Material Specifications
Panel, shelf, uprights, floor platform: made from wood particles (class E1 = low formaldehyde emission) or MDF.
Edge with rack:made in brown extruded aluminum with 32 mm spacing.
Technical Specifications and Equipment

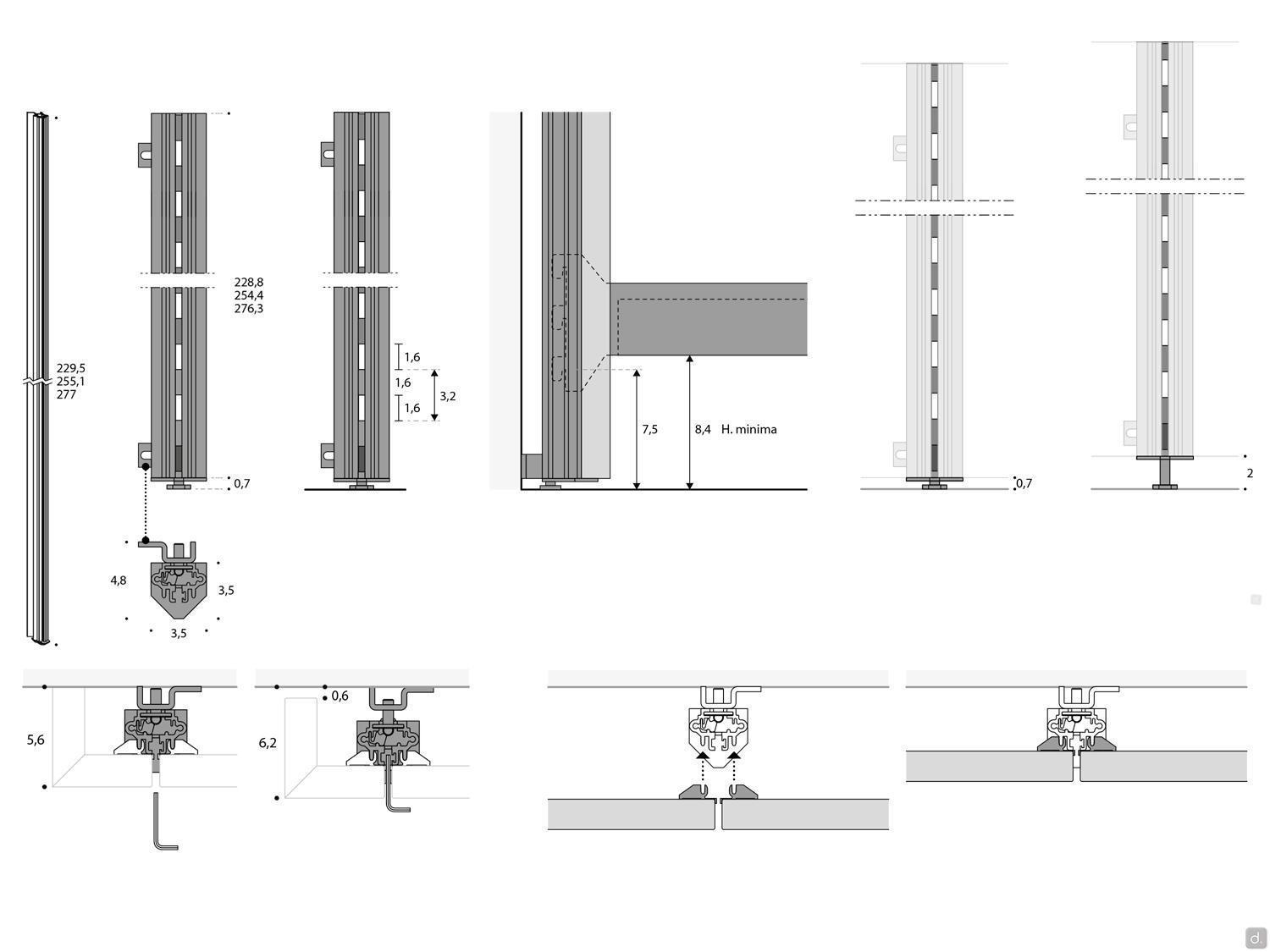

Edge with rack: cm 3,5 d.4,8 h.277 shaped with holes or fixed hooks that make it easy to hook the elements and allow you to freely change their position over time. The depth can be adjusted by max 0.6 cm, to be fixed to the wall with a foot that is adjustable in height (min cm 0.7 / max cm 2).

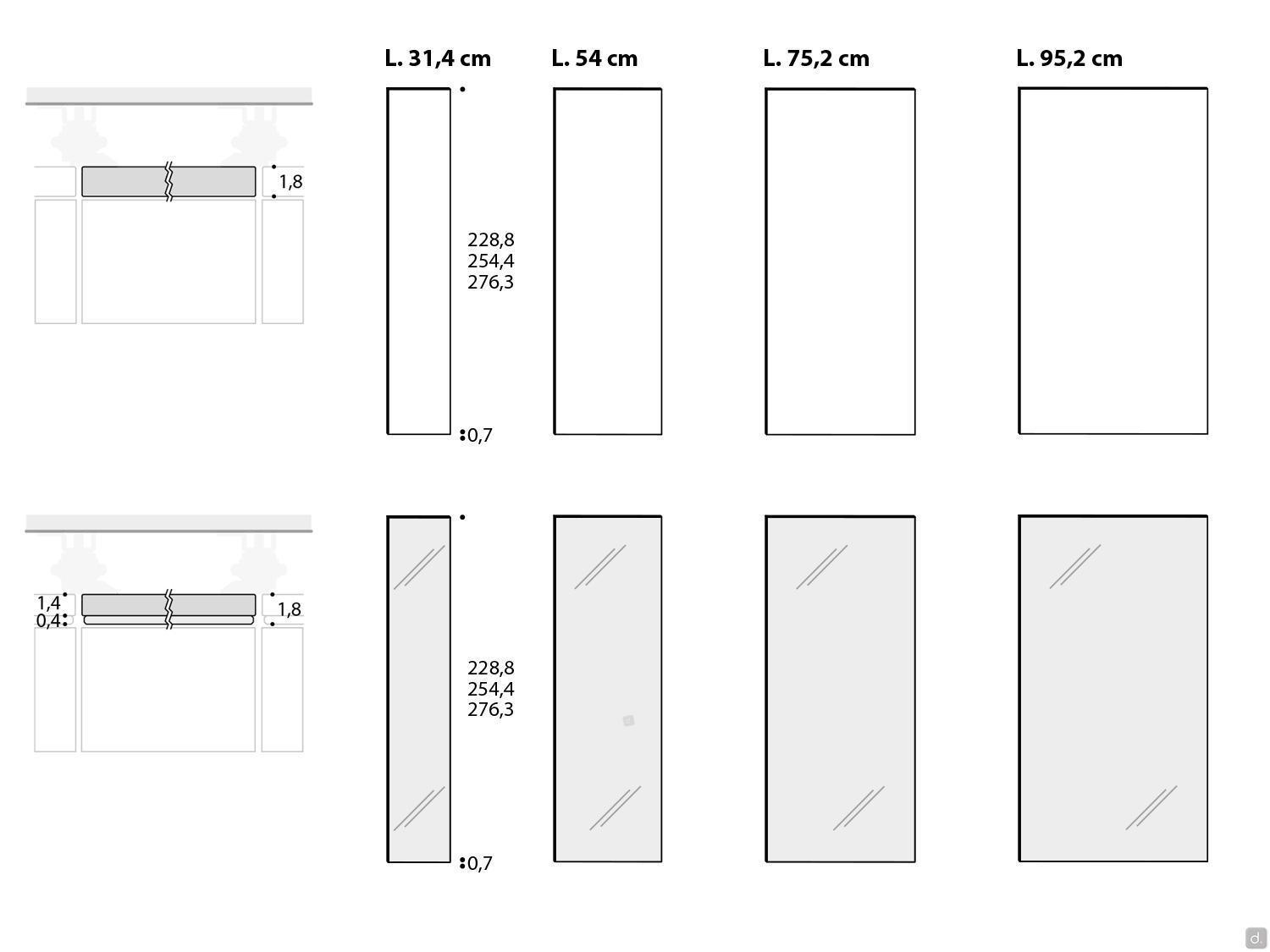

Panel: 1,8 cm thick, with exposed board made from wood, lacquered ABS or ABS.
- wooden version: melamine, matt lacquer, open-pore matt-lacquered oak veneer and fashion wood;

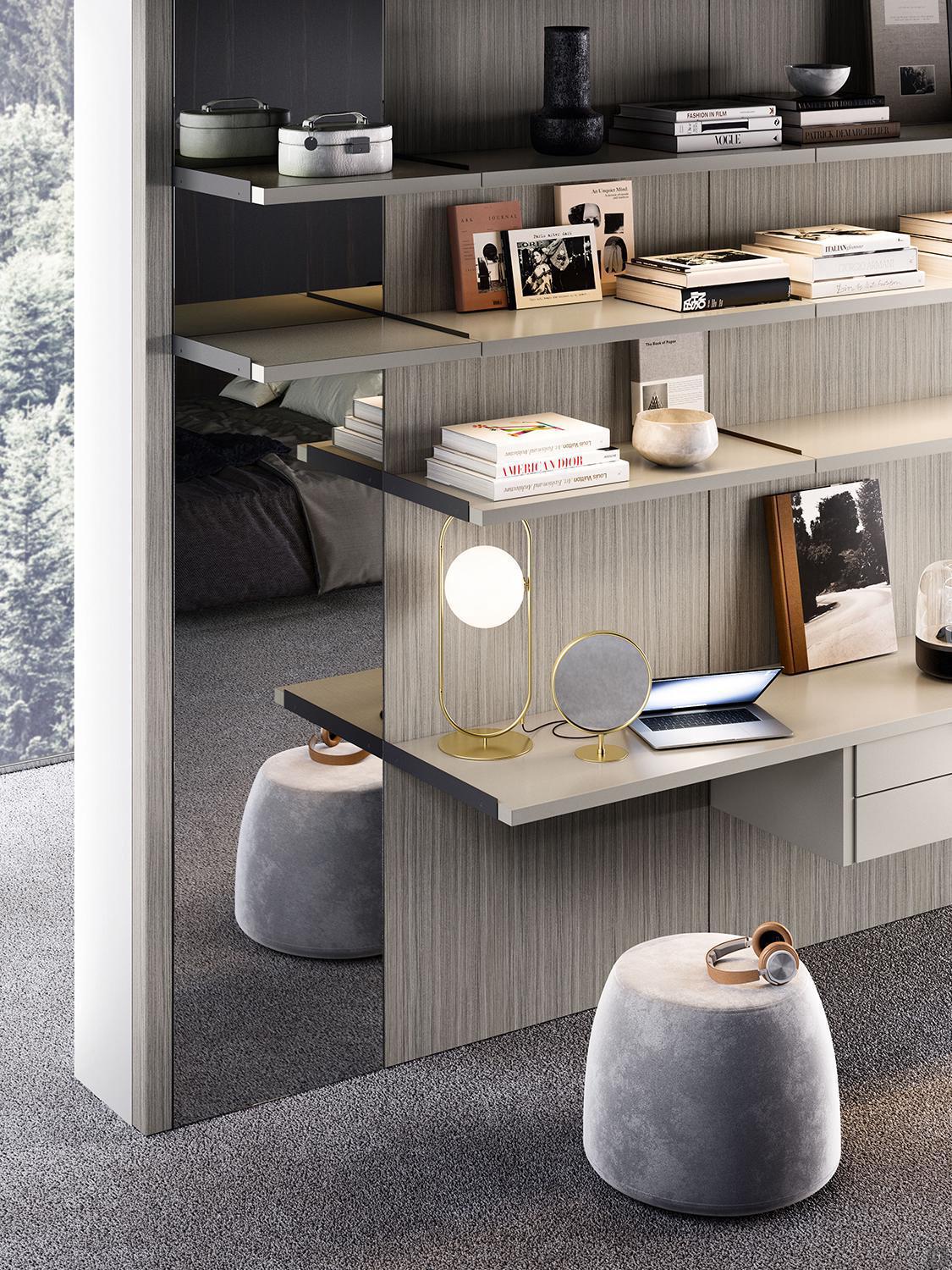

- mirror version: gunmetal melamine panel (1,4 cm thick) + natural or grey mirror (0,4 cm thick).

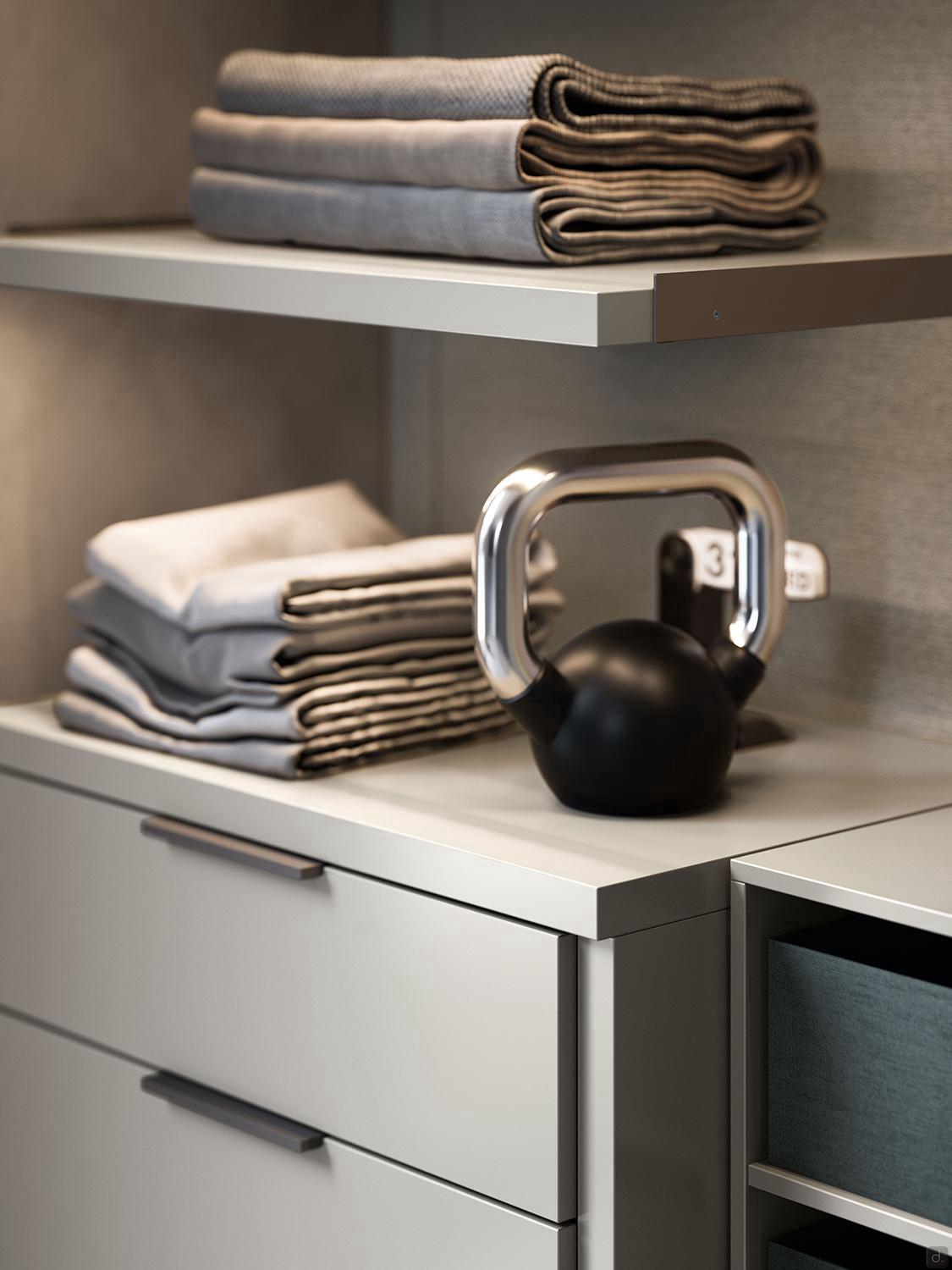

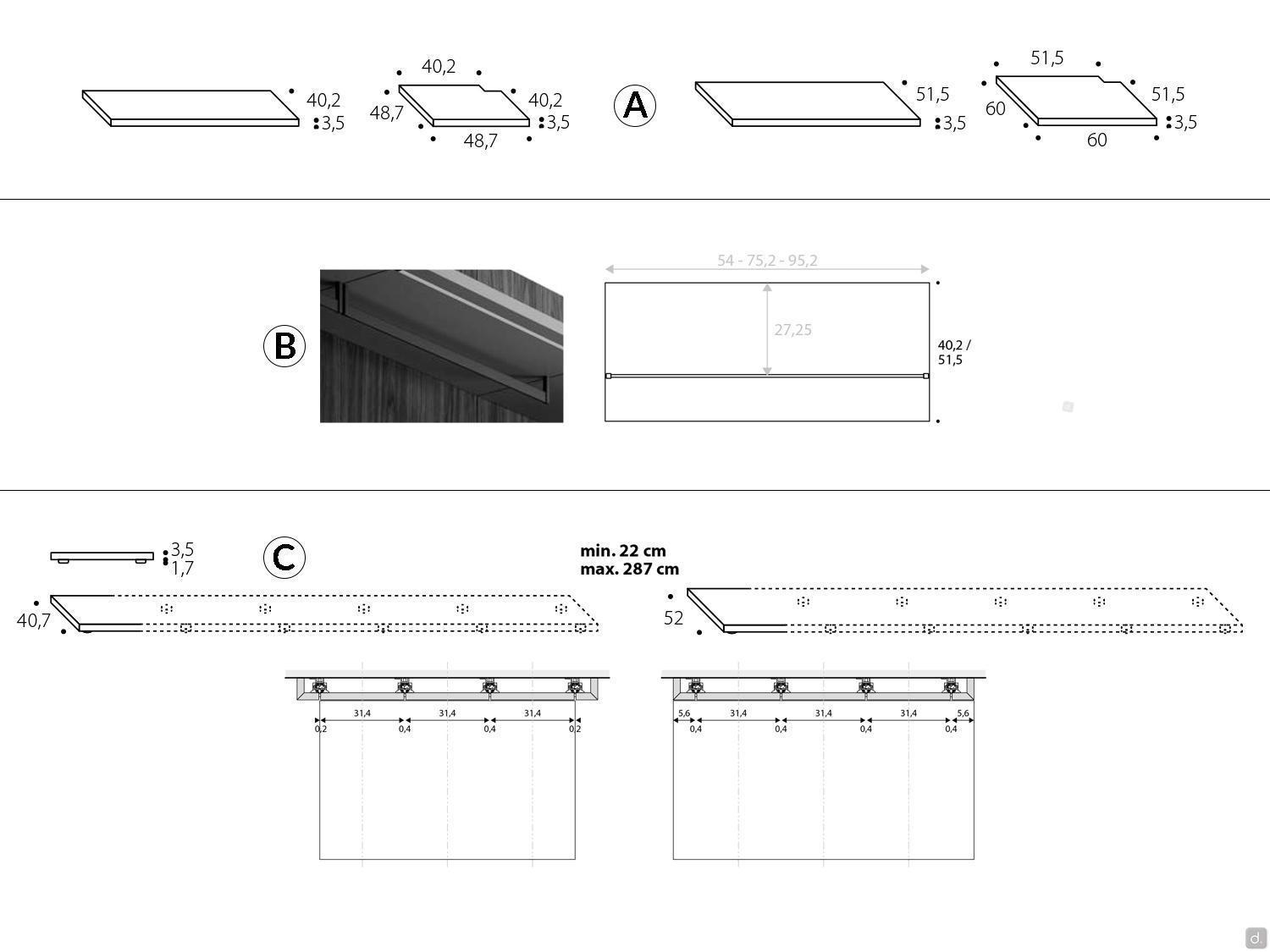

Shelf: panel can be equipped with n.1, 2 or 3 shelves (3,5 cm thick). Complete with metal brackets, it can be positioned at a minimum height of 8.4 cm from the ground. Maximum load-bearing capacity is evenly distributed at 25 Kg per linear metre.
Shelf Brackets: made from moka shine painted metal (0,3 cm thick).

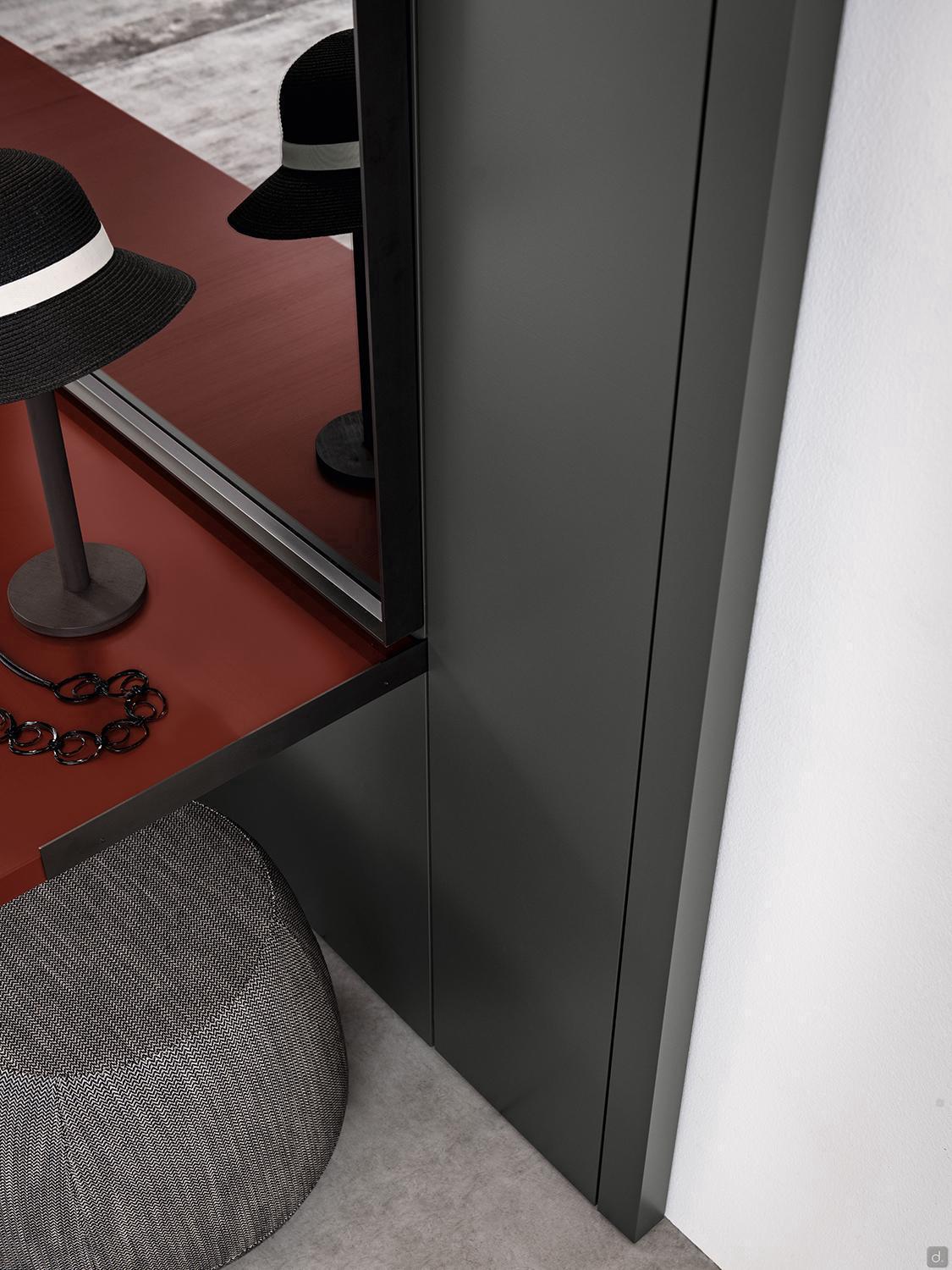

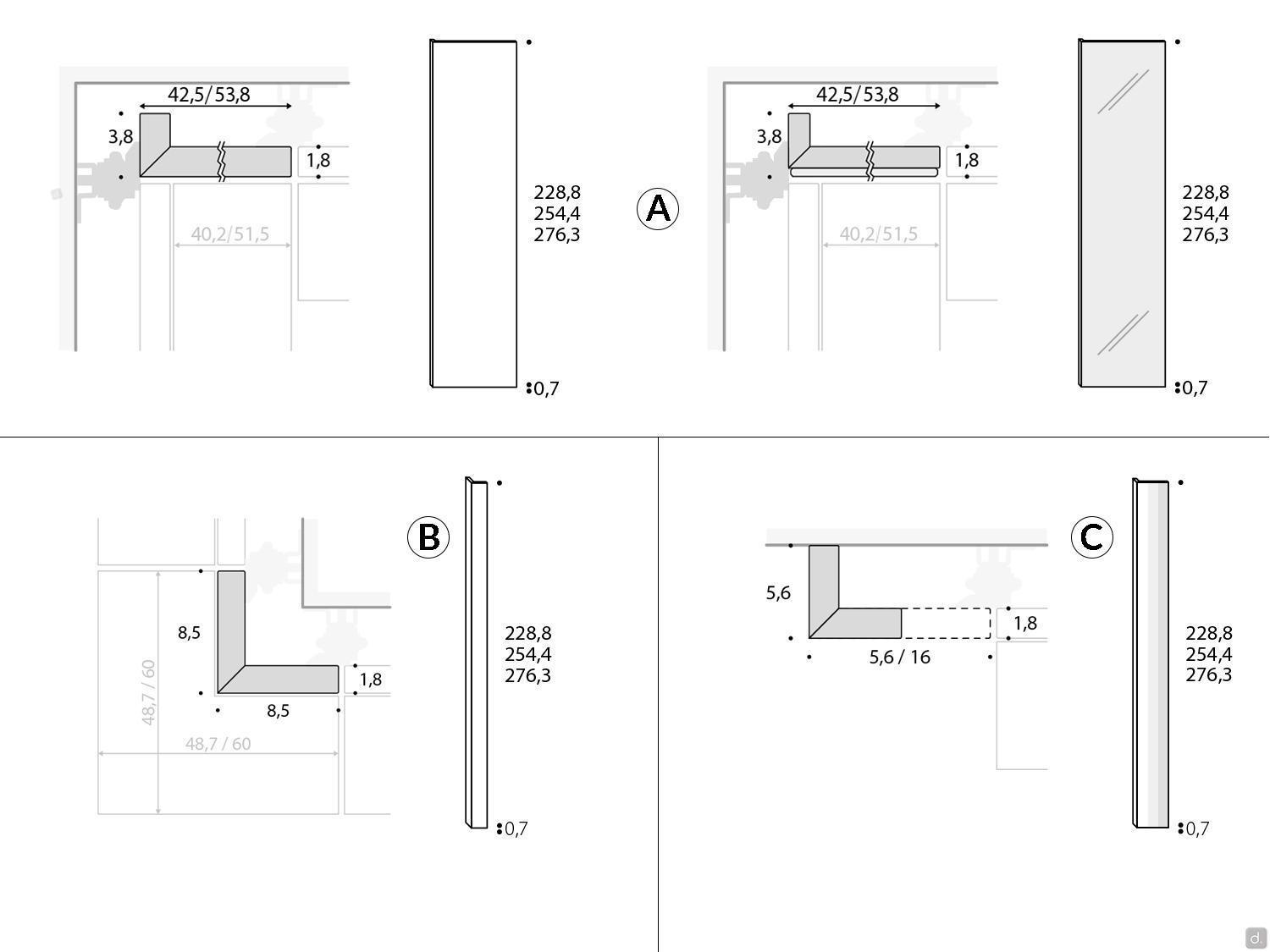

End Supports: cm d.5,6 con with a bespoke width (min cm 5,6 / max cm 16), must be placed at the beginning and end of the composition. Panel (1,8 cm thick) made from melamine, matt lacquer, open-pore matt-lacquered oak veneer and fashion wood.
NB: the support at the end of the composition includes an edge with a rack (+ cm 0,4).

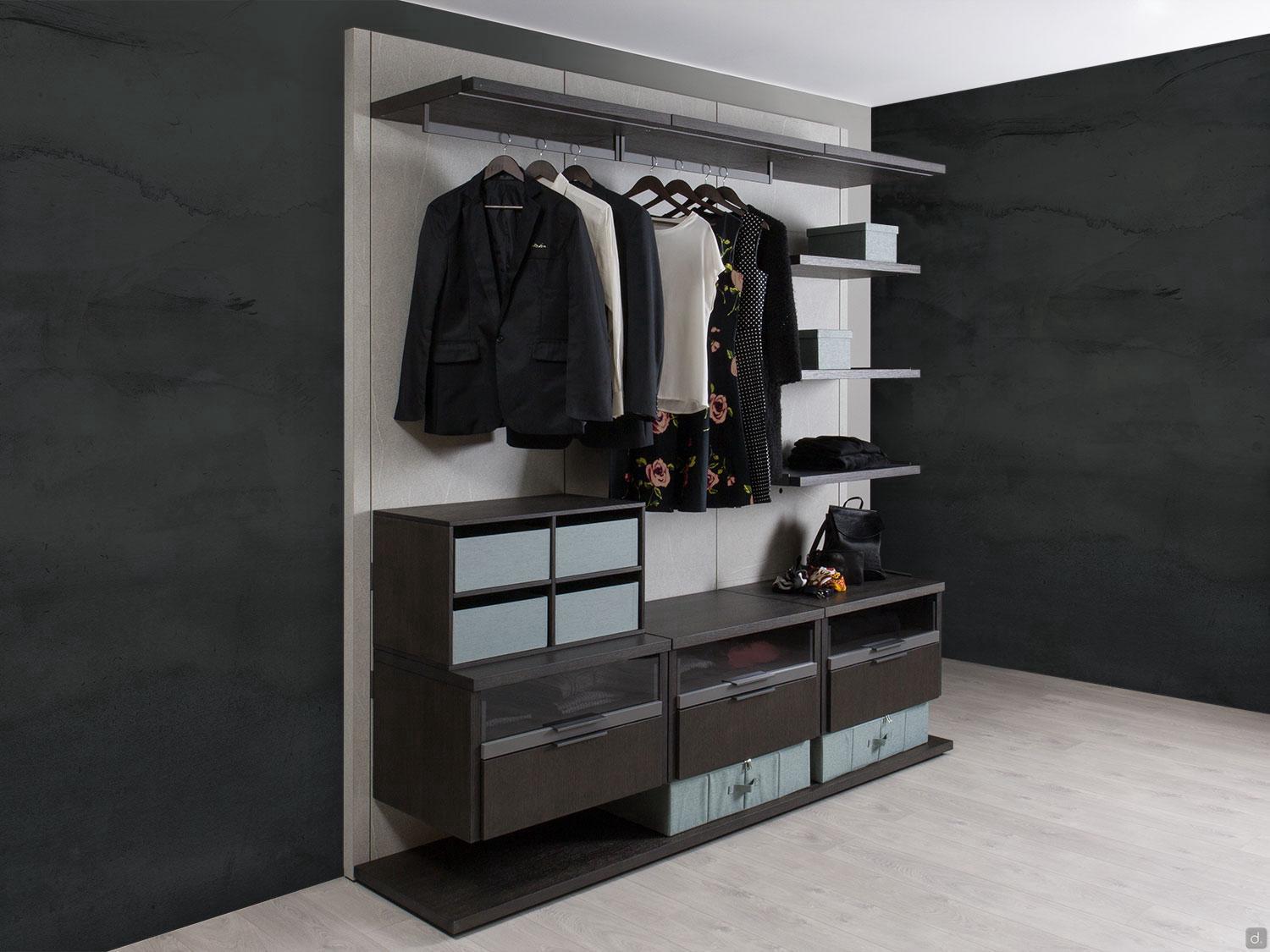

Floor Platform: custom width and made from melamine, matt lacquer, open-pore matt-lacquered oak wood veneer and fashion wood. 3,5 cm thick with adjustable feet (cm h.1,7). Visible border in wood, lacquered ABS or ABS.
Optional - Shelf

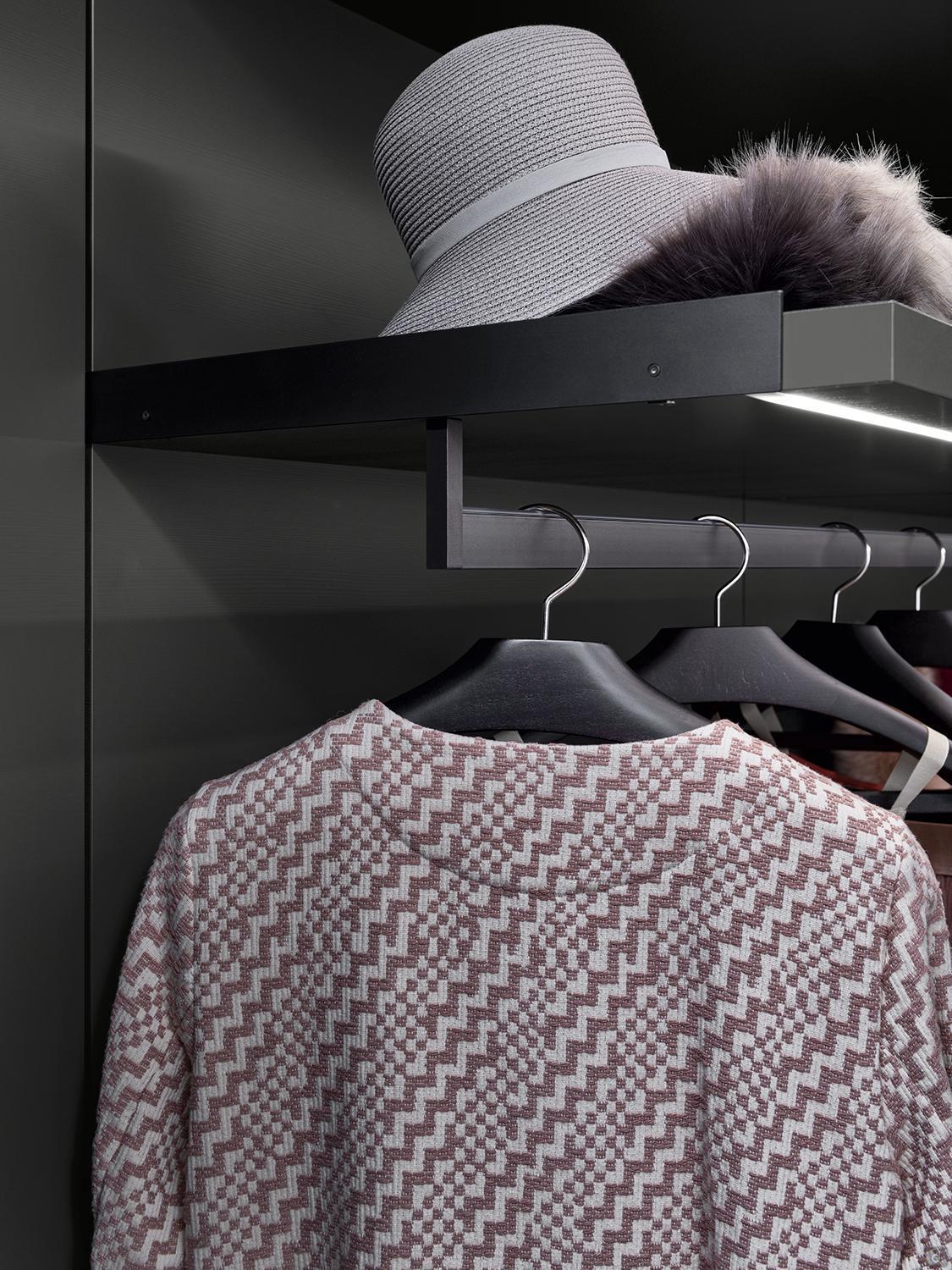

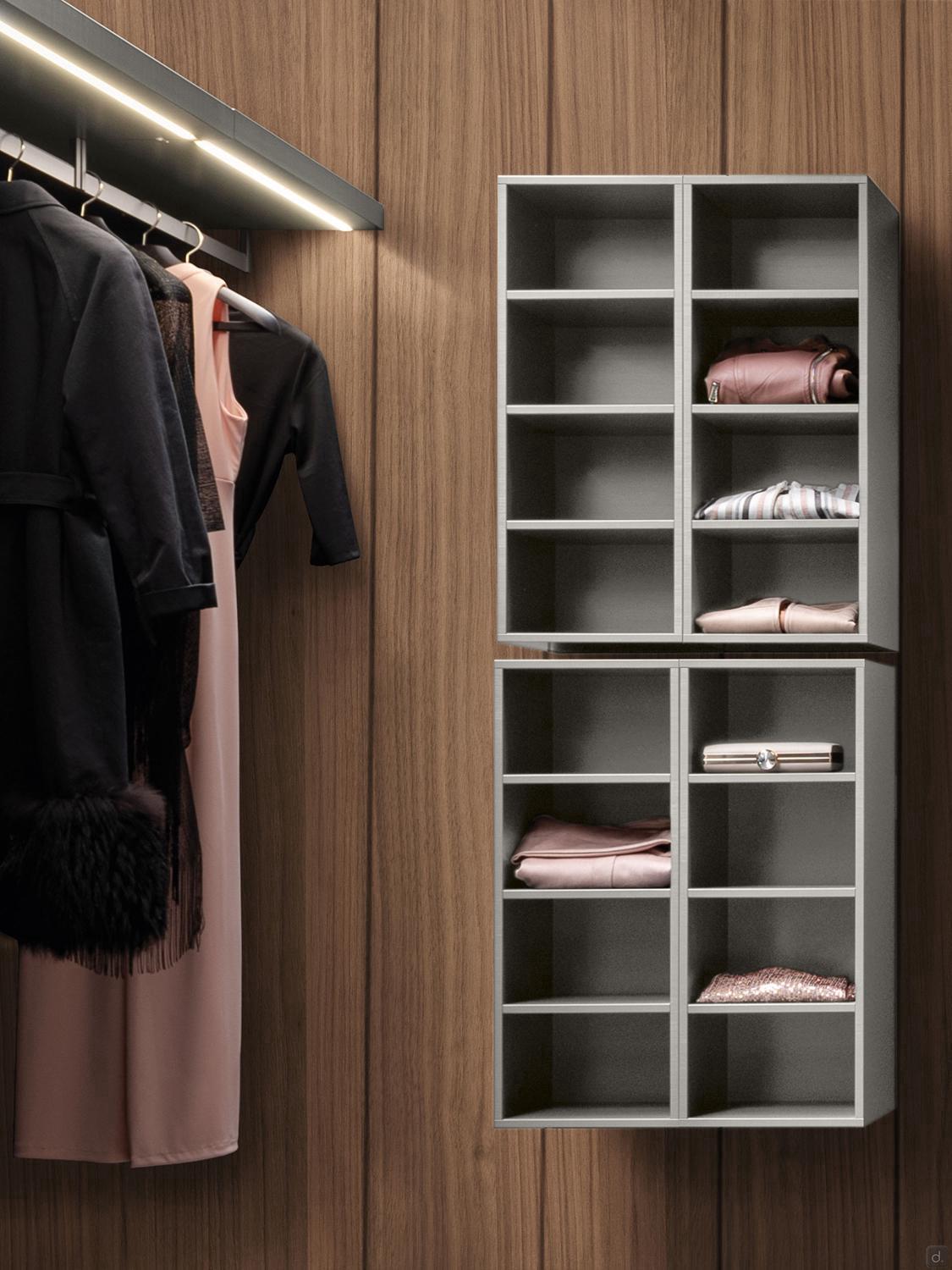

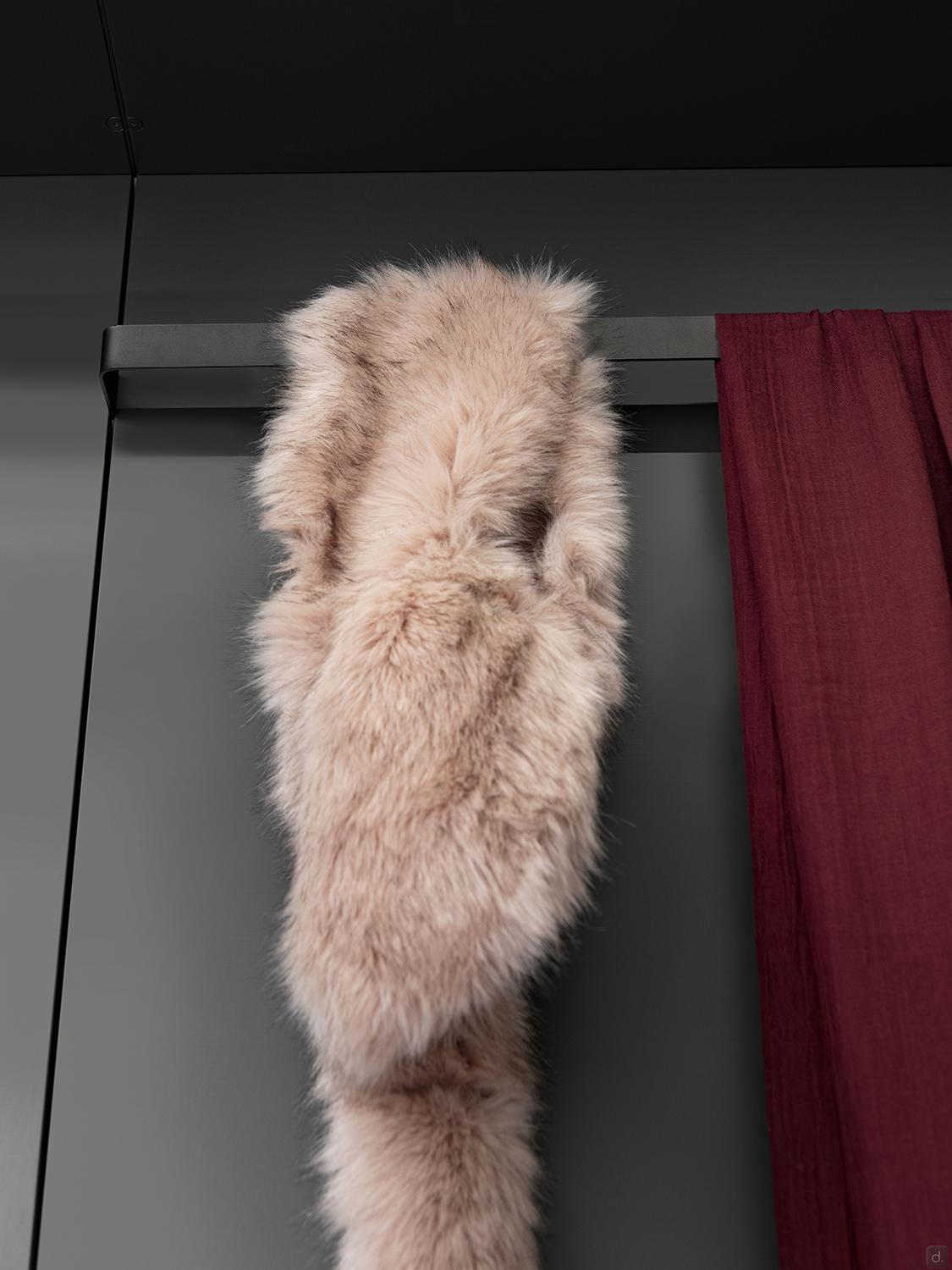

clothes rail: made in moka shine painted extruded aluminium. Complete with a seal at the top to be fixed to the shelf. Not available for the cm 31,4 shelf. Maximum load capacity is evenly distributed at 15 Kg per linear meter.

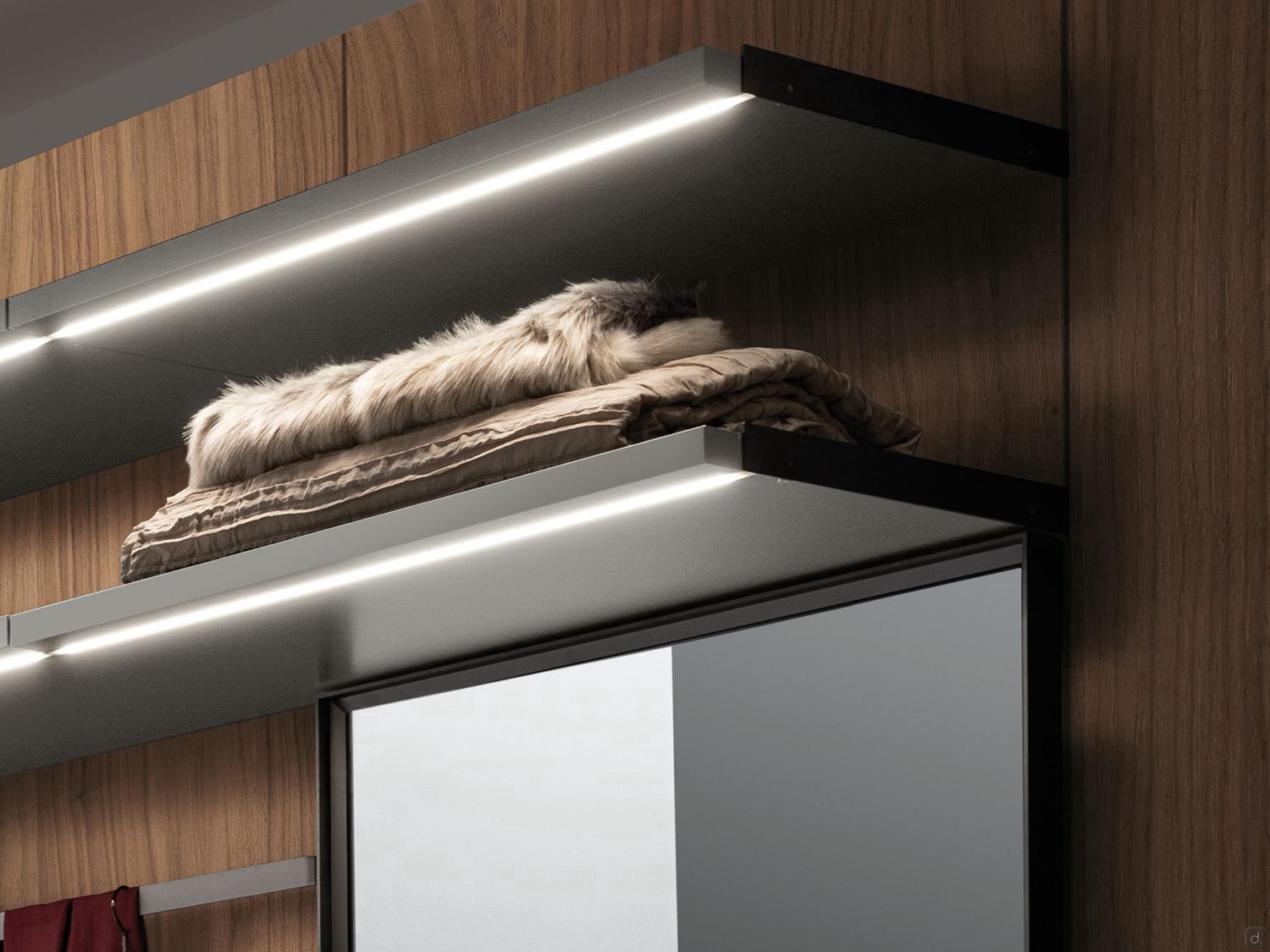

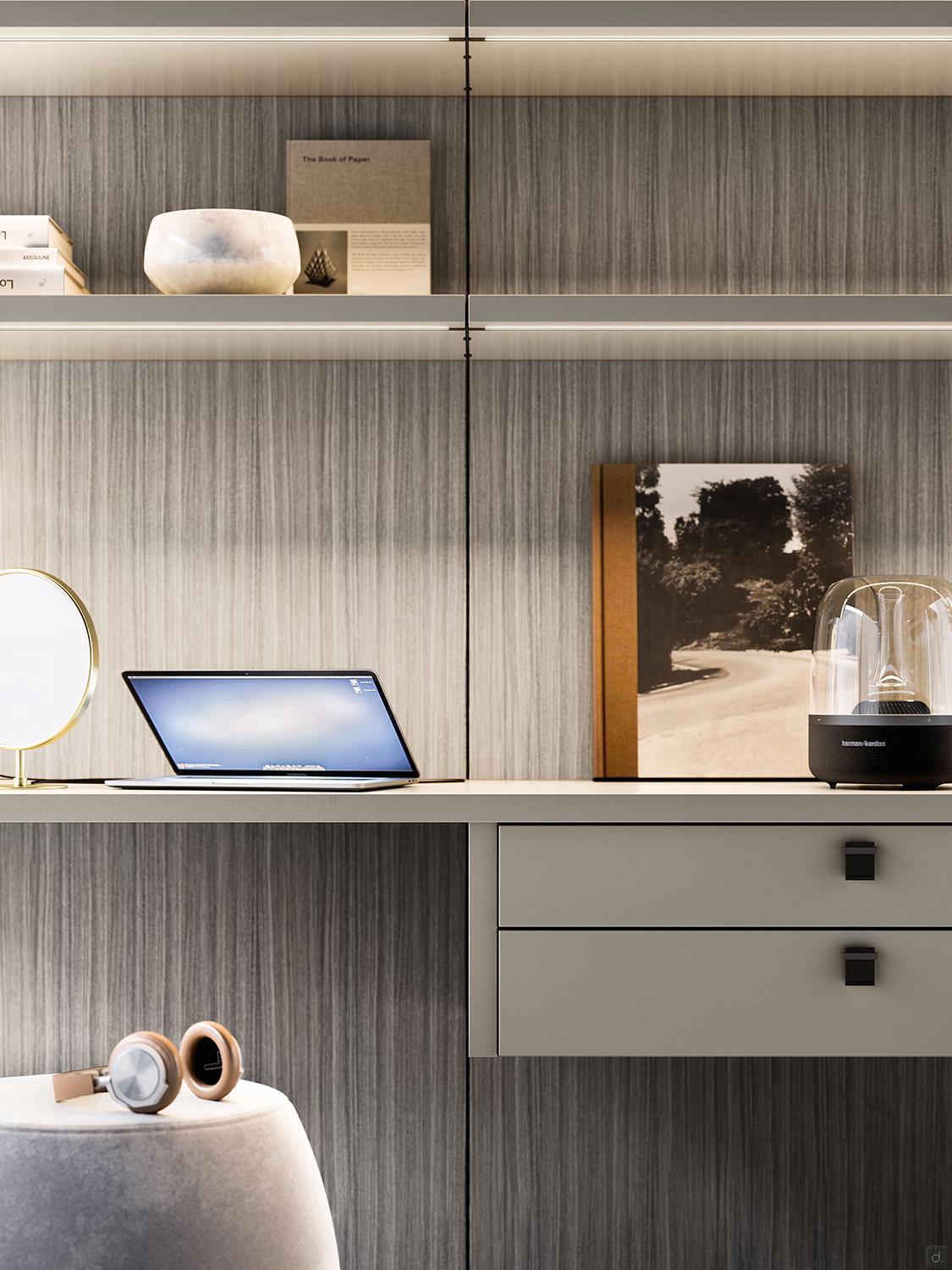

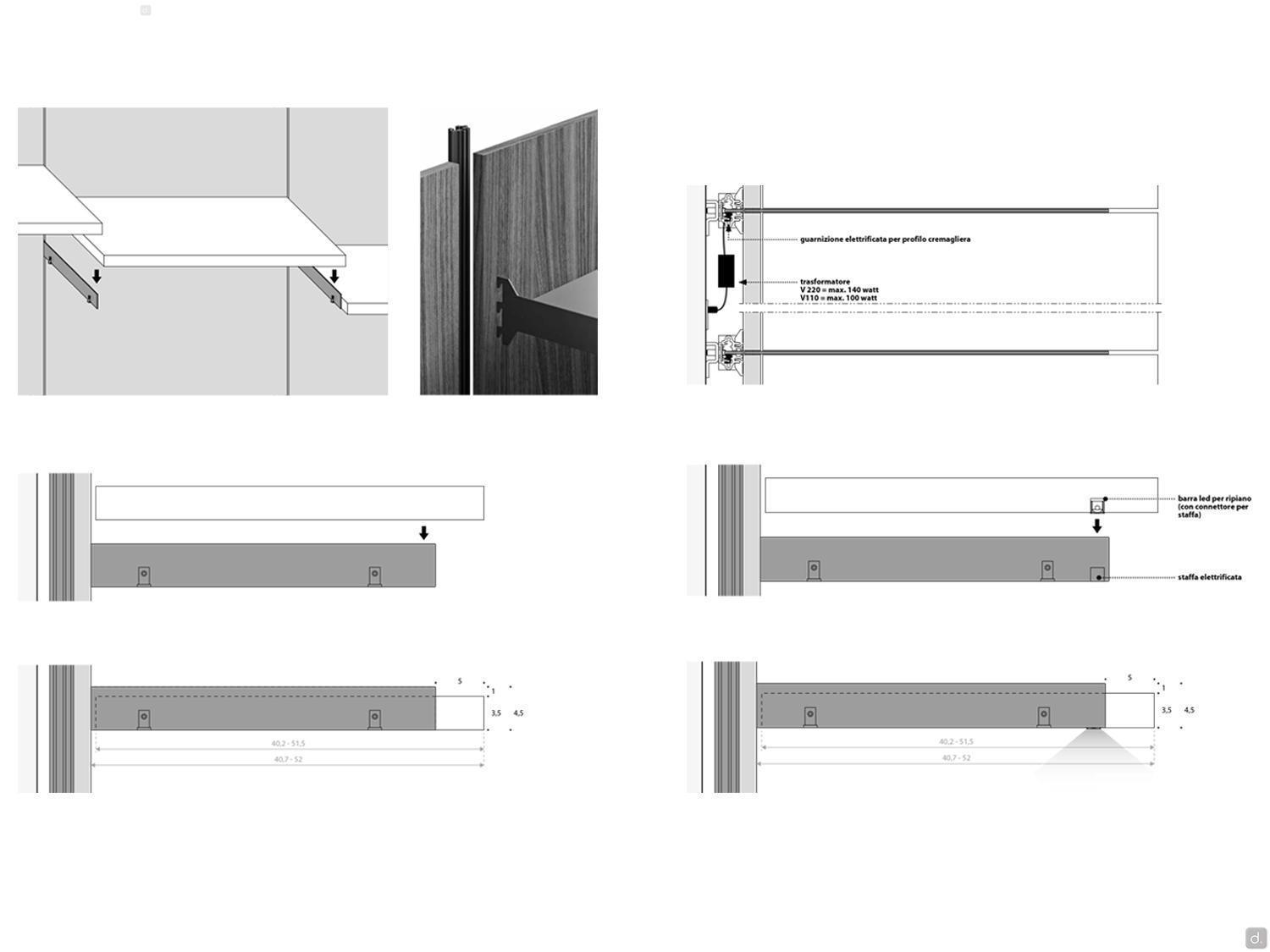

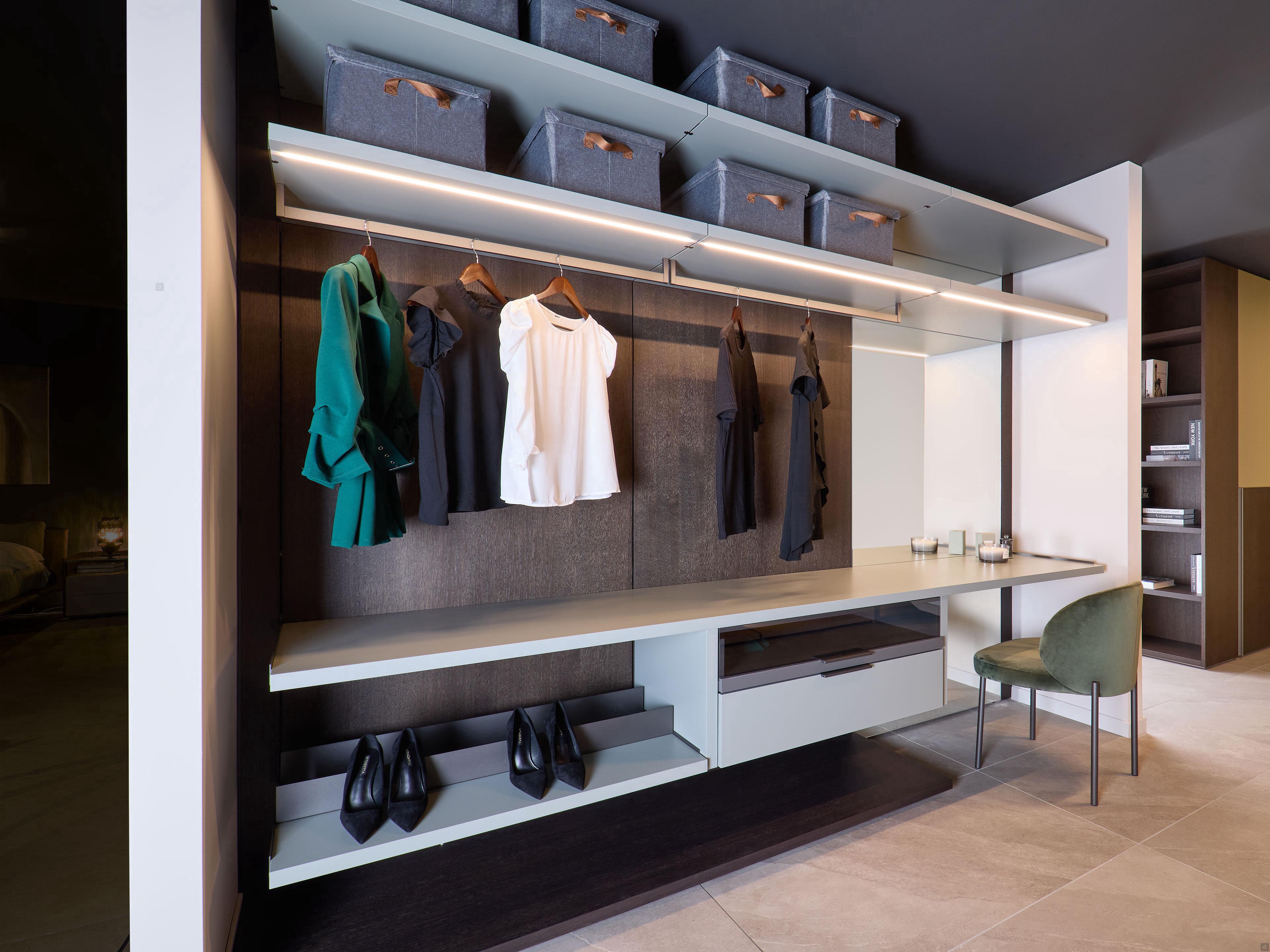

LED bar: 3000 K warm light placed under the milled linear shelf in the front. Electricity is transmitted by means of contact between the bracket, non-oxidisable for electrical conduction, with the electrified rack edge (by means of an internal gasket). The electrified rack is equipped with a power cable that must be connected to the transformer, which is positioned in the space between the panel and the wall. To electrify the compartment, both rack edges must be electrified. The lights are switched on by remote control.
Optional - Linear Panel

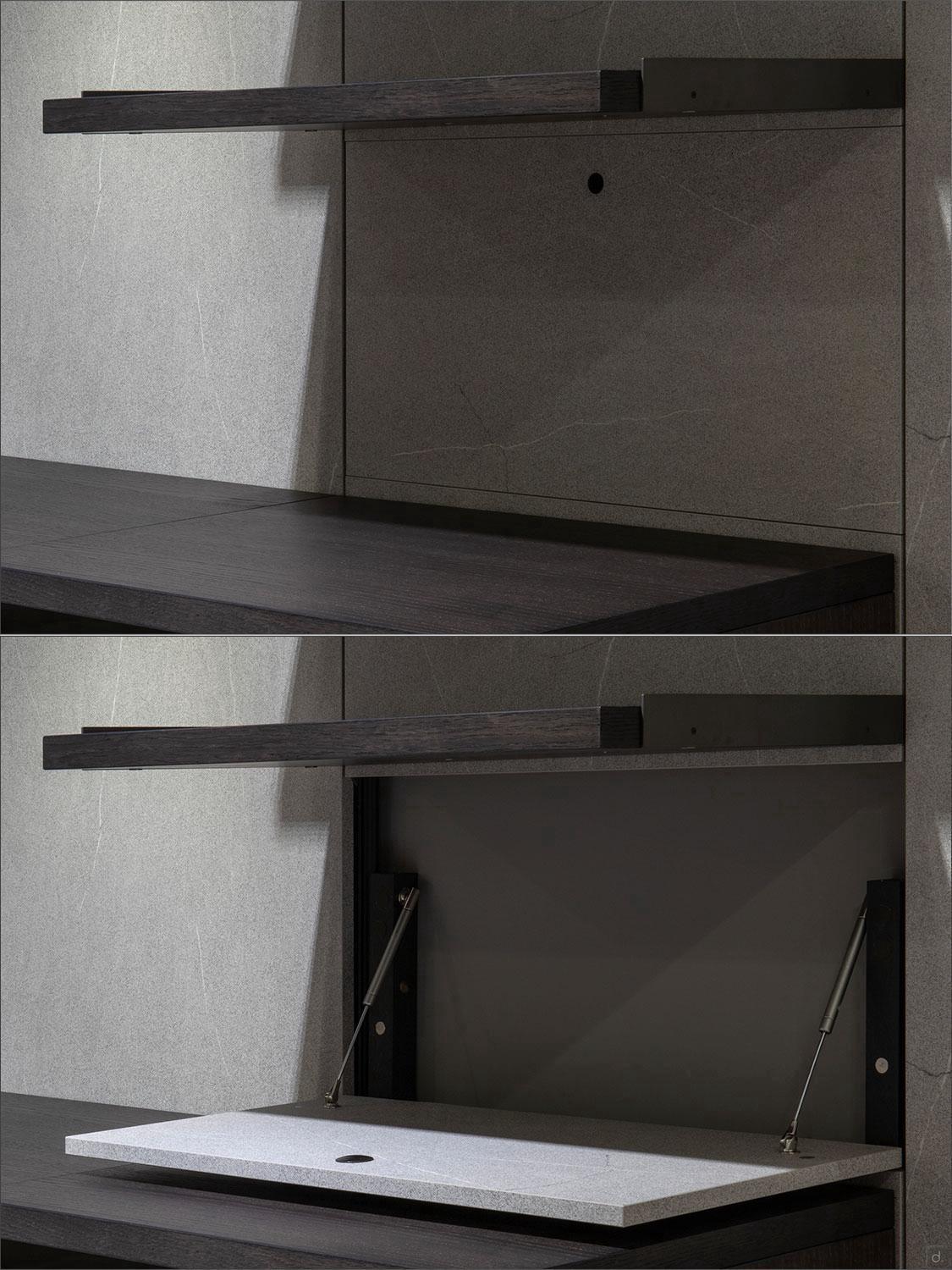

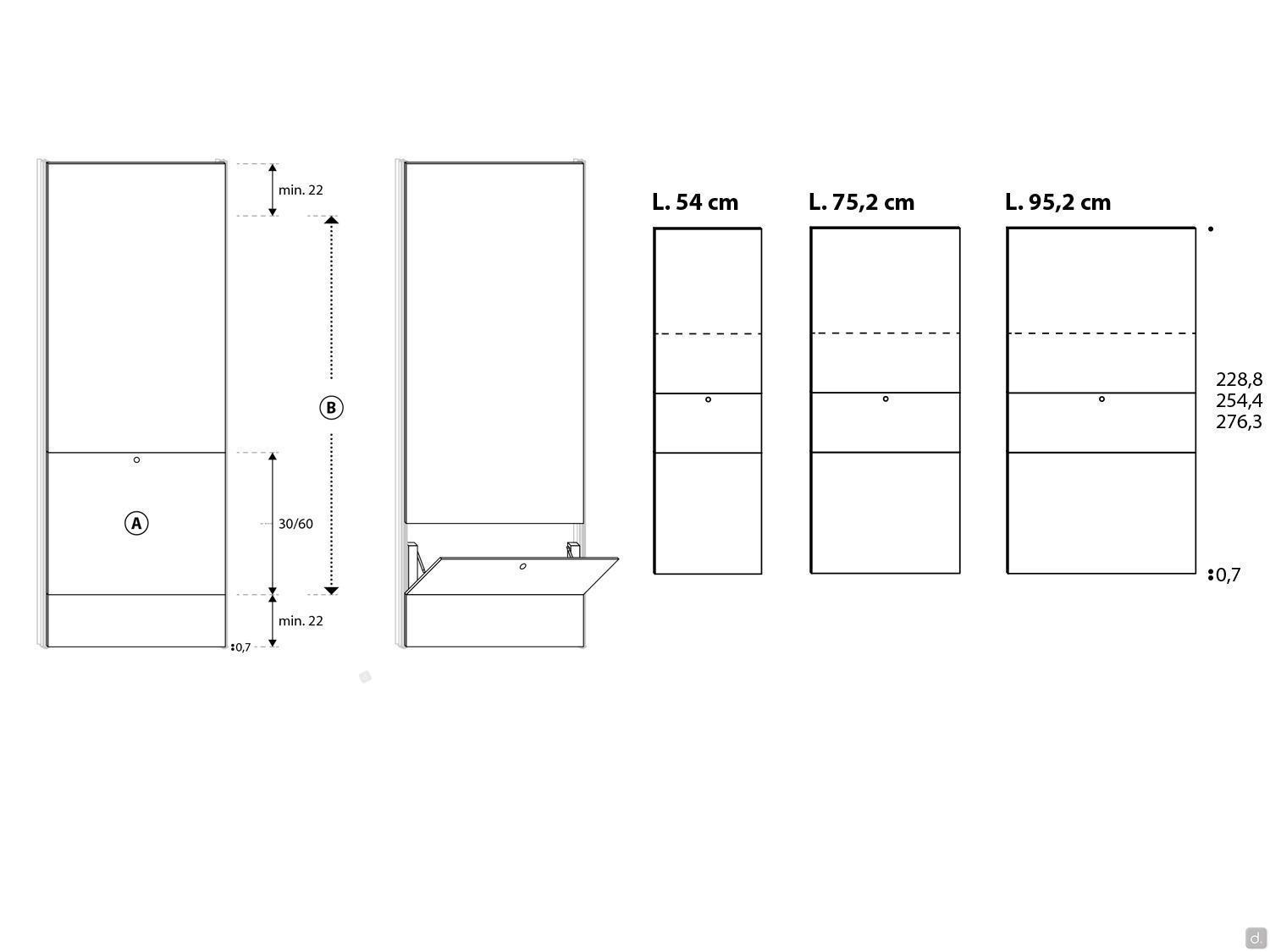

drop-down flap: back panel with a bespoke, drop-down flap opening (min cm h.30 / max cm h.60). To be placed at a minimum height of 22 cm from the ground. Not available for the cm 31.4 panel.
Assembly Tips
To assemble the wardrobe, you will need:
- cm 0,6 in width
- cm 1 in height
