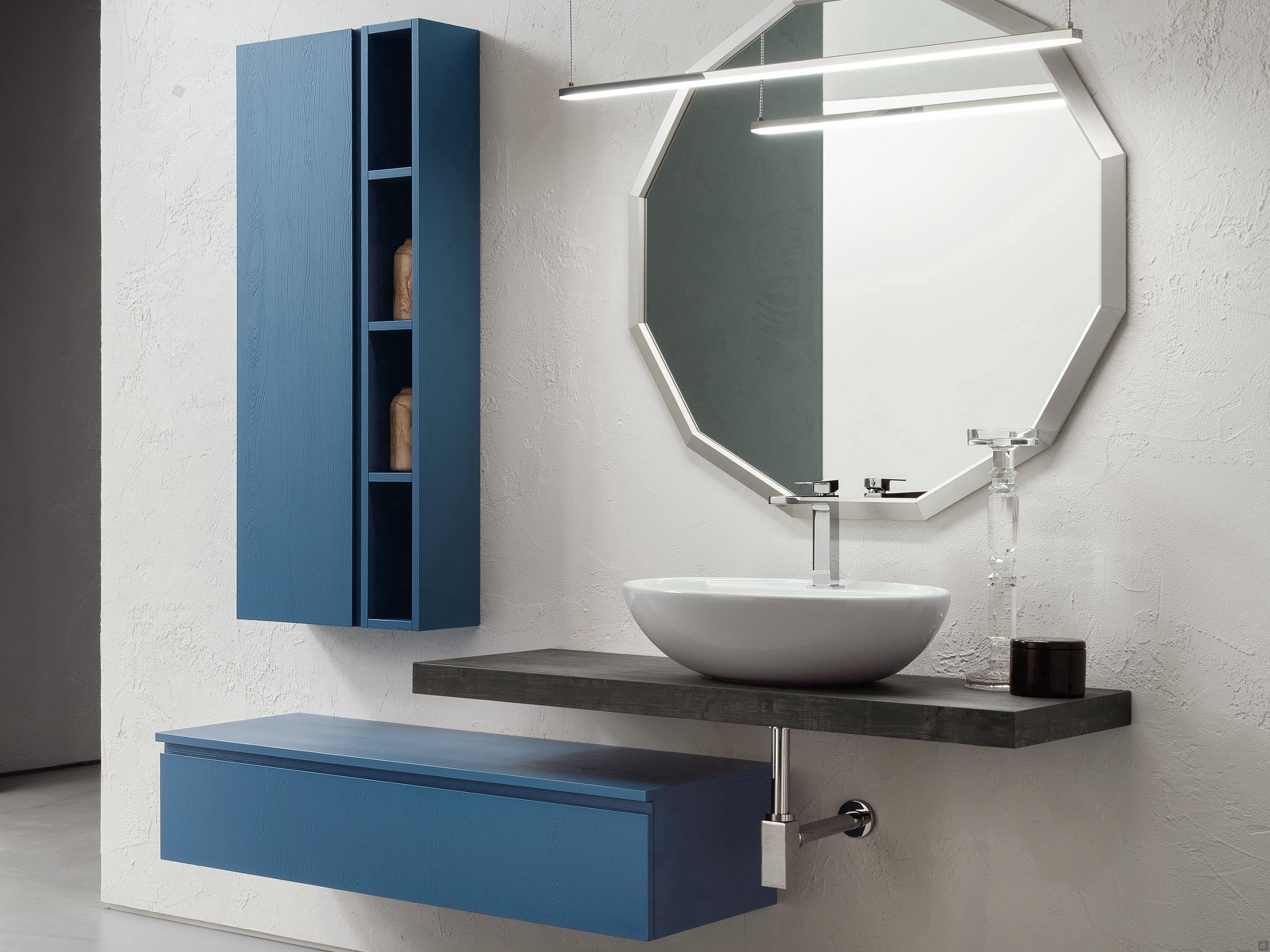

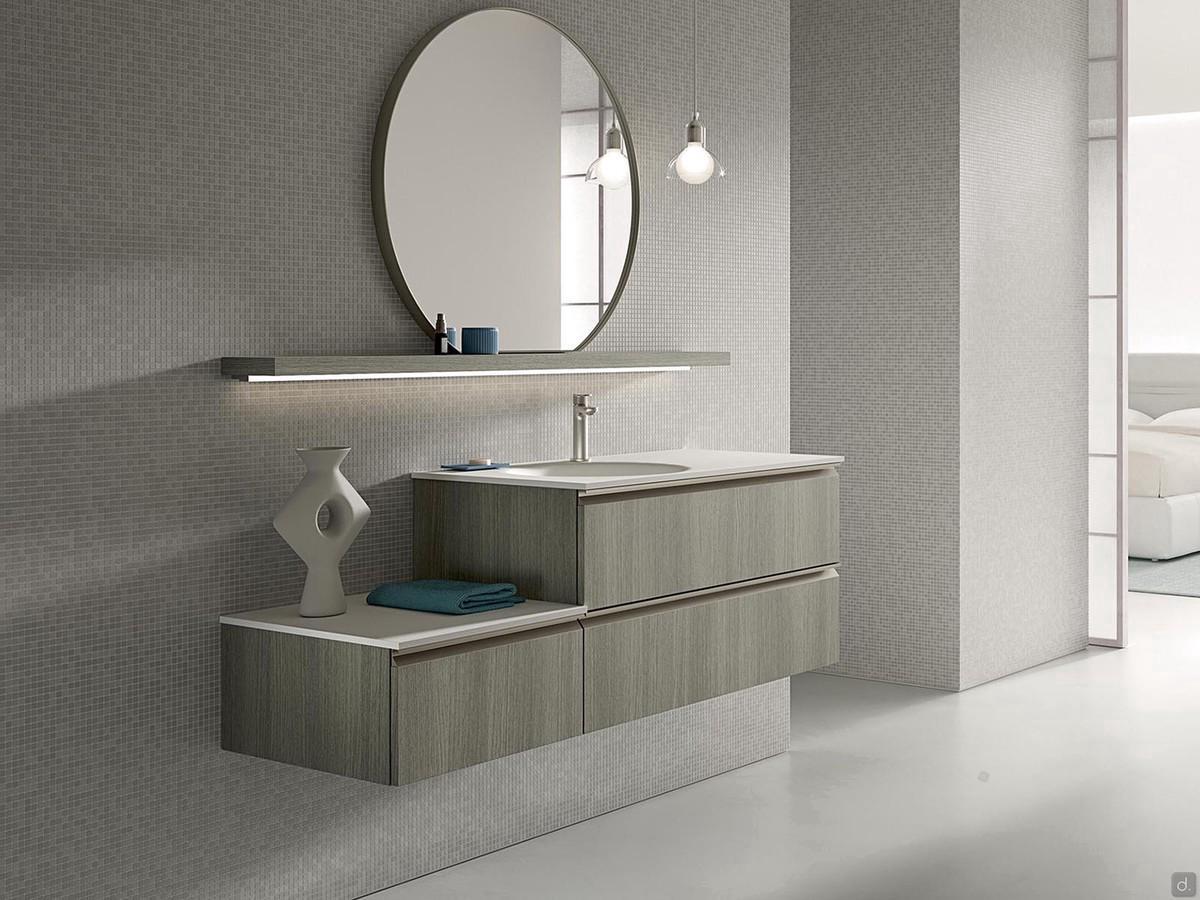

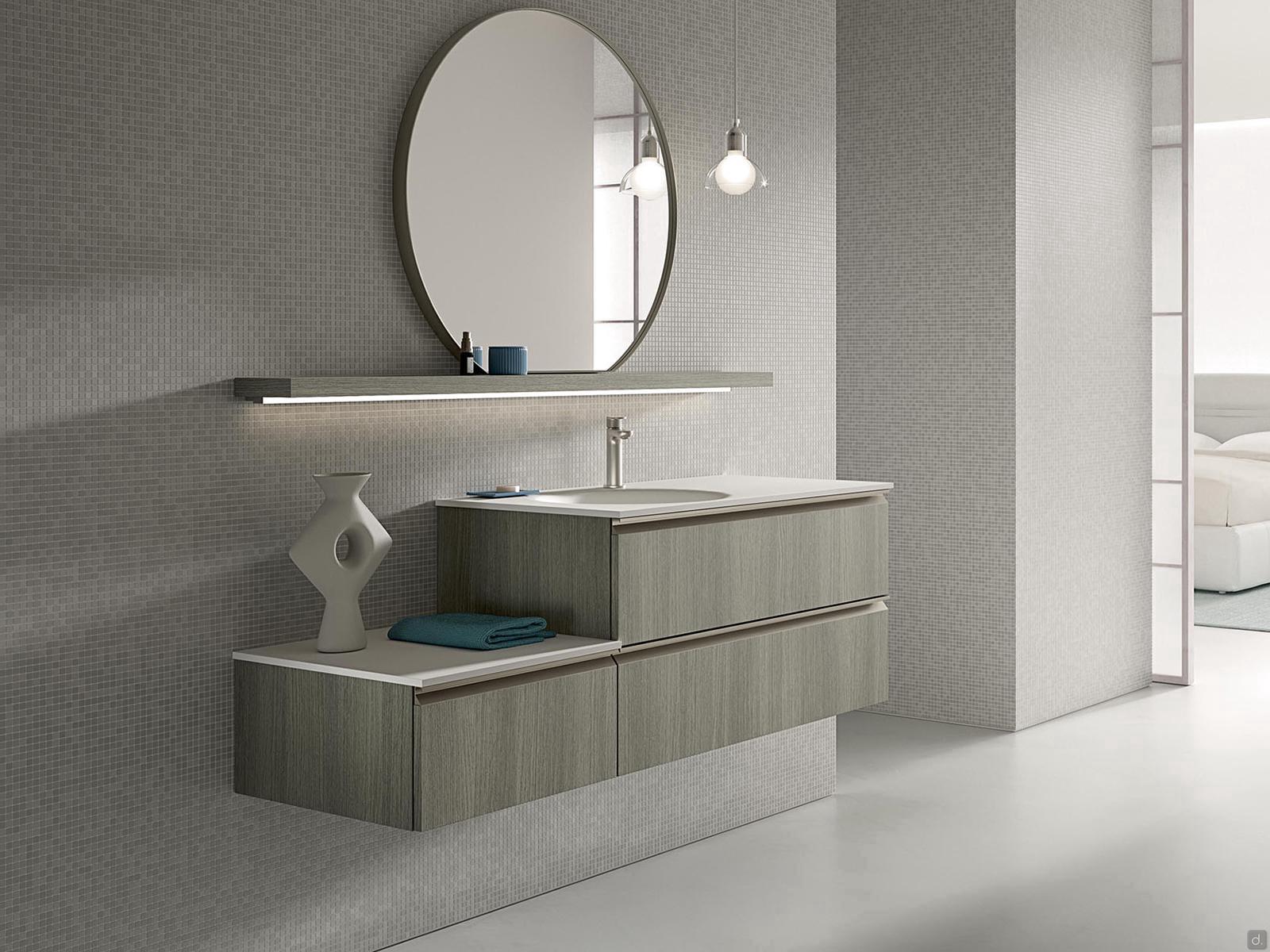

Suspended base unit for Atlantic bathroom p.62 - Composition with suspended base unit with additional top, combined with washbasin base unit

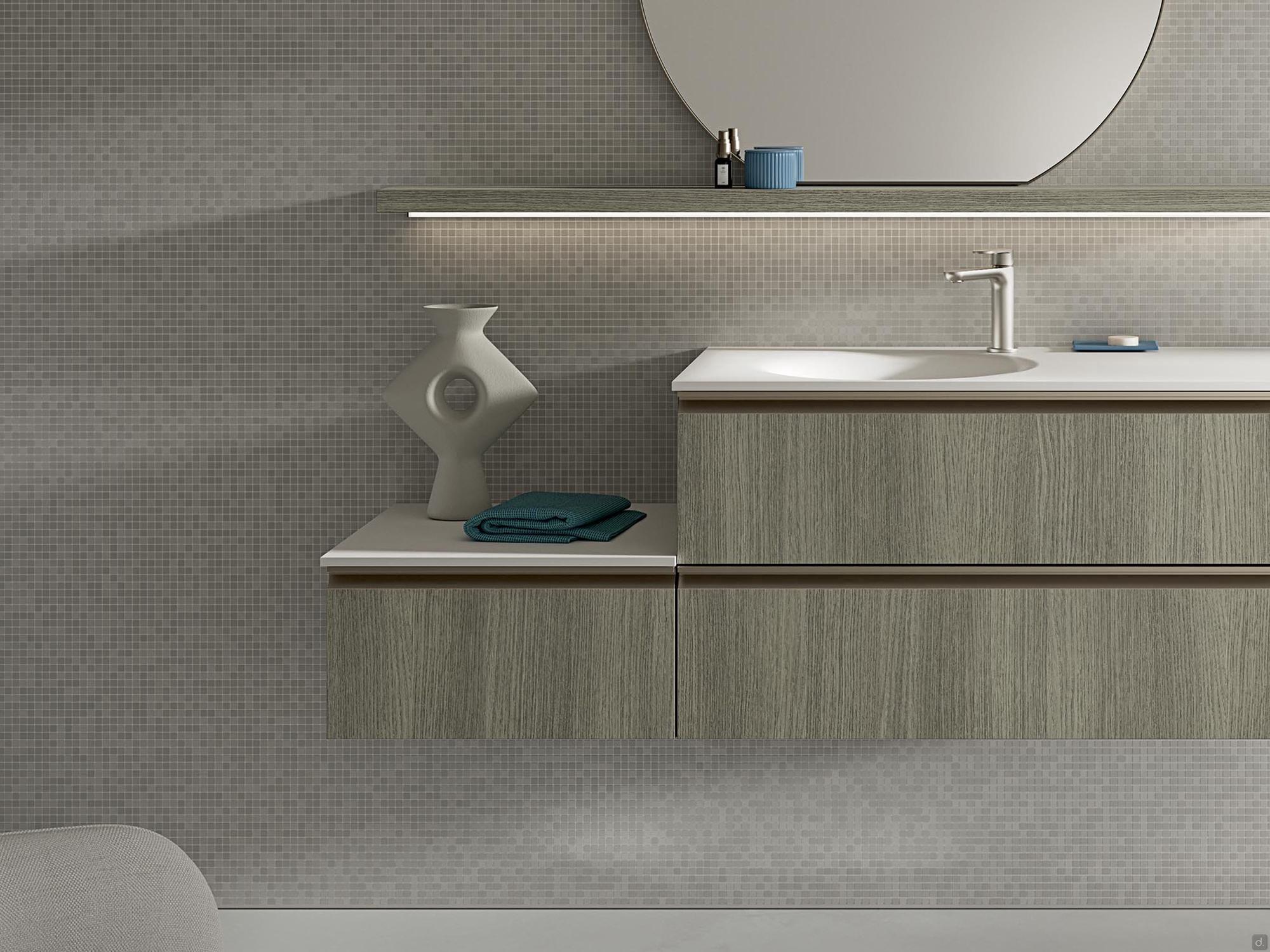

Bathroom composition Atlantic with wall-hung base unit cm 62 deep with additional top - Cross H8 Riviera melamine

+ 4

MORE IMAGES

Atlantic Base p.62 - NEW

* Required Fields

Larghezza Base *

Altezza Base *

Altezza Base *

Altezza Base *

Altezza Base *

------------------- Larghezza CM 60
cm h.62,5

Altezza Base *

Modello *

Modello *

------------------- 25 p.62 h.75
base a 1 anta

Modello *

Modello *

------------------- 35 p.62 h.75
base a 1 anta

Modello *

Modello *

------------------- 50 p.62 h.75
base a 2 ante

Modello *

------------------- 60 p.62 h.62,5
base a 1 cassetto e 1 cestone

Modello *

------------------- 70 p.62 h.25
base a 1 cassetto

Modello *

Modello *

------------------- 70 p.62 h.75
base a 2 ante

Finitura *

Finitura *

Finitura *

Finitura *

Finitura *

Colore *

838 Rovere Raw

Top *

Senza Top (se posizionata sotto altri elementi di uguale profondità)
Con Top (N.B. scheda a parte)

Tipologia Apertura *

Modello Maniglia/e *

Finitura Profilo Metallico *

Finitura Profilo Metallico *

Nota Bene *

la maniglia è disponibile esclusivamente su basi con larghezza pari o superiore a cm 50

Nota Bene *

la maniglia è disponibile esclusivamente su basi con larghezza cm 70

Posizionamento Maniglia/e *

Posizionamento *

sospeso a parete

Posizionamento *

--------- ALTEZZA CM 50
sospeso a parete
in appoggio a terra

Posizionamento *

--------- ALTEZZA CM 62,5
sospeso a parete
in appoggio a terra

Posizionamento *

--------- ALTEZZA CM 75
sospeso a parete
in appoggio a terra

Altezza e Tipologia Appoggio a Terra *

Altezza e Tipologia Appoggio a Terra *

Altezza e Tipologia Appoggio a Terra *

Finitura Zoccolo *

Finitura Piedini *

metallo nichel satinato

Finitura Piedini *

Finitura Piedini *

Posizionamento Base *

Optional

cestello portabiancheria in metallo cromato cm 26,5 p.25,5 h.36 +€60.30
organizer per cassetto - cm 24,2 h.5 p.27 +€83.42
organizer per cestone - cm 21,8 h.11 p.37 +€88.44

Quantità Organizer

Quantità Organizer

Finitura Organizer *

Quantity

From €142.71

View Samples

Wishlist

Description

The Atlantic wall-hung bathroom base unit p.62 comes in many models that vary in width. height and composition. Available with hinged doors, baskets and drawers, it can be highly customised in the choice of finishes and colours. The Atlantic wall-hung base unit p.62 is the perfect solution for those who wish to have plenty of space, ideal for completing modern bathroom furniture, in combination with other elements from the same family. For this as for the other depths, for the models with a height of 25 cm and 37.5 cm the positioning is suspended; on the floor for the other heights, choosing from various models of shaped, rectangular or square feet, and the plinth. Among the various types of openings, we find the classic push-pull system, the groove, the "L" or "U" metal profile, and numerous models of handles.
To complete the individual base units, or to create compositions of several elements side by side, the top can also be added, in a dedicated tab, available in many finishes and colours.

Features
free-standing bathroom element or as part of a composition
internal organisers in orione or canaletto walnut finish for drawer and basket available as optional extras
wall-hung or floor-standing base unit for models from cm h.50
wide choice of baskets, drawers or hinged doors
models with raised back and sides and lowered top complete the proposal, offering an open compartment
type of opening to choose between push-pull, numerous models of handles, or metal profile
can be matched in finishes and colours to all elements of the Atlantic collection

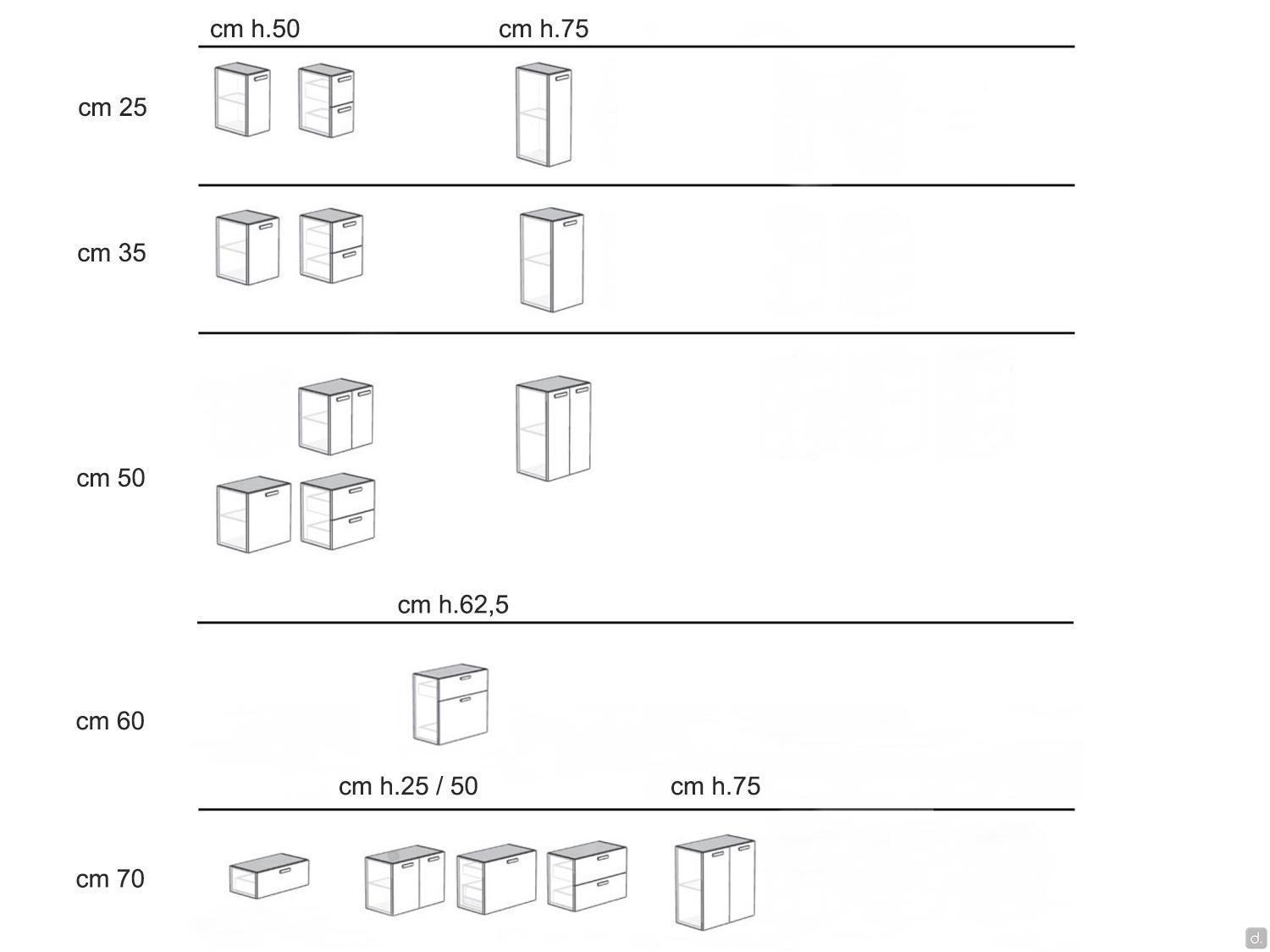

Model and Dimensions
Width: cm 25 / 35 / 50 / 60 / 70
Depth: cm 62
Height: cm 25 / 37,5 / 50 / 62,5 / 75 + thickness of top and possible ground support

Materials and Finishes
- melamine
- matt lacquered, glossy, matt on melamine, metallic, sandblasted
- wood veneer

Info for your Purchase

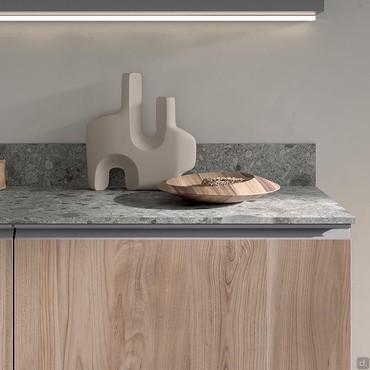

You can complete the Atlantic base unit with the top you find among the products at the bottom of the page. The top is always recommended unless the base unit is placed under other elements of equal depth. In the case of compositions the top is unique.
Also among the products at the bottom of the page you can find the Additional Side.

All floor-standing base unit models do not have a back panel.

Technical study

Material Specifications
Structure: 1.8 cm thick particle board panels.
Fronts: doors, drawers and baskets made of 1.8 cm thick particle board panels. With a smooth lacquered finish, the front is made of 1.9 cm thick MDF.

Technical Specifications and Equipment

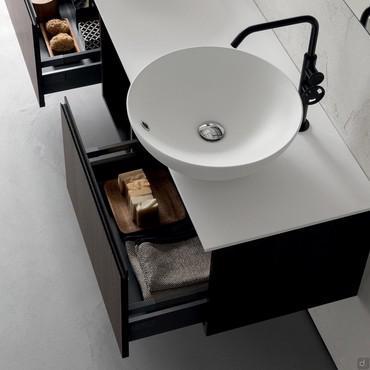

Drawers / Legrabox drawer: equipped with a metal frame featuring straight drawer sides both internally and externally, only 1.28 cm thick. Full-extension runners and slow-closing mechanism.
The baskets are equipped with an internal drawer.
Doors: fitted as standard with Smoove hinges that allow slow closing.
The models with doors are equipped with an internal shelf in 0.6 cm thick clear tempered glass.

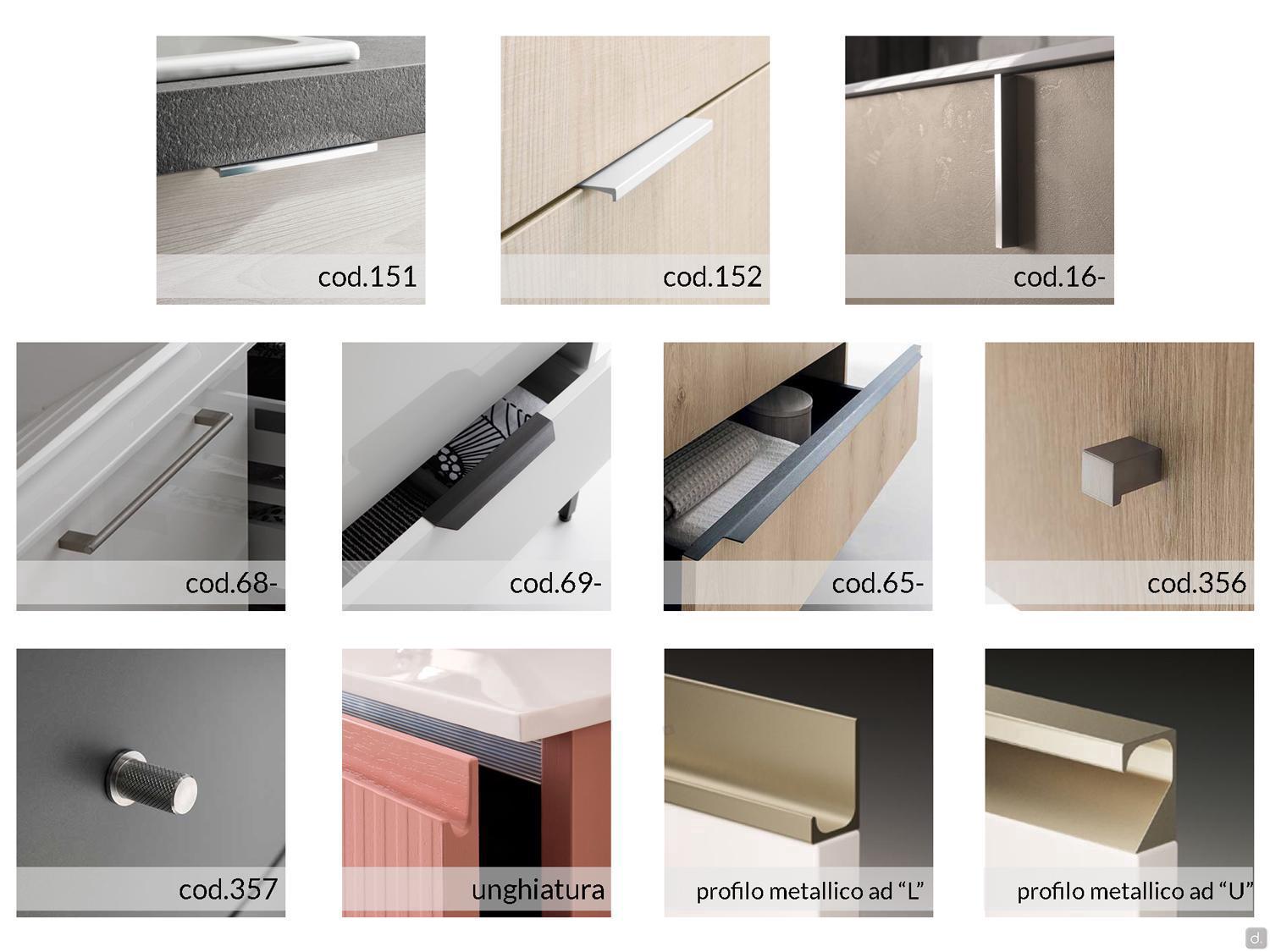

Handles: for all basic models you can choose from various models of handles, in addition to the push-pull opening.
The handles cod.152-, cod.16- and groove handles with grip are available in matt lacquered finish in all the colours of the sample collection.
Handles mod. 68- protrude 4 cm from the surface of the door.
Handles code 16-: in the case of base units with horizontal door and handle, the positioning is opposite to the door opening direction.
Feet: cm h.10 with rectangular or shaped section available in chrome, satin nickel, black lacquered, matt lacquered or sandblasted metal in all the colours of the sample collection; the suspended base unit cm h.62,5 thus becomes a floor-standing unit 72,5 cm high (excluding top thickness); cm h.12 with square section in satin nickel or matt lacquered in all the colours of the sample collection.
Plinth: cm h.6 / 10 / 15 in aluminium or matt lacquered in all sample colours.
Castors: cm h. 10; 4 swivel castors, 2 with brake and 2 without.

Optional
door basket: cm 26,5 d.25,5 h.36 in chrome-plated metal, available for doors wider than cm 25 and with a minimum height of cm 50; the basket is fixed inside the door.

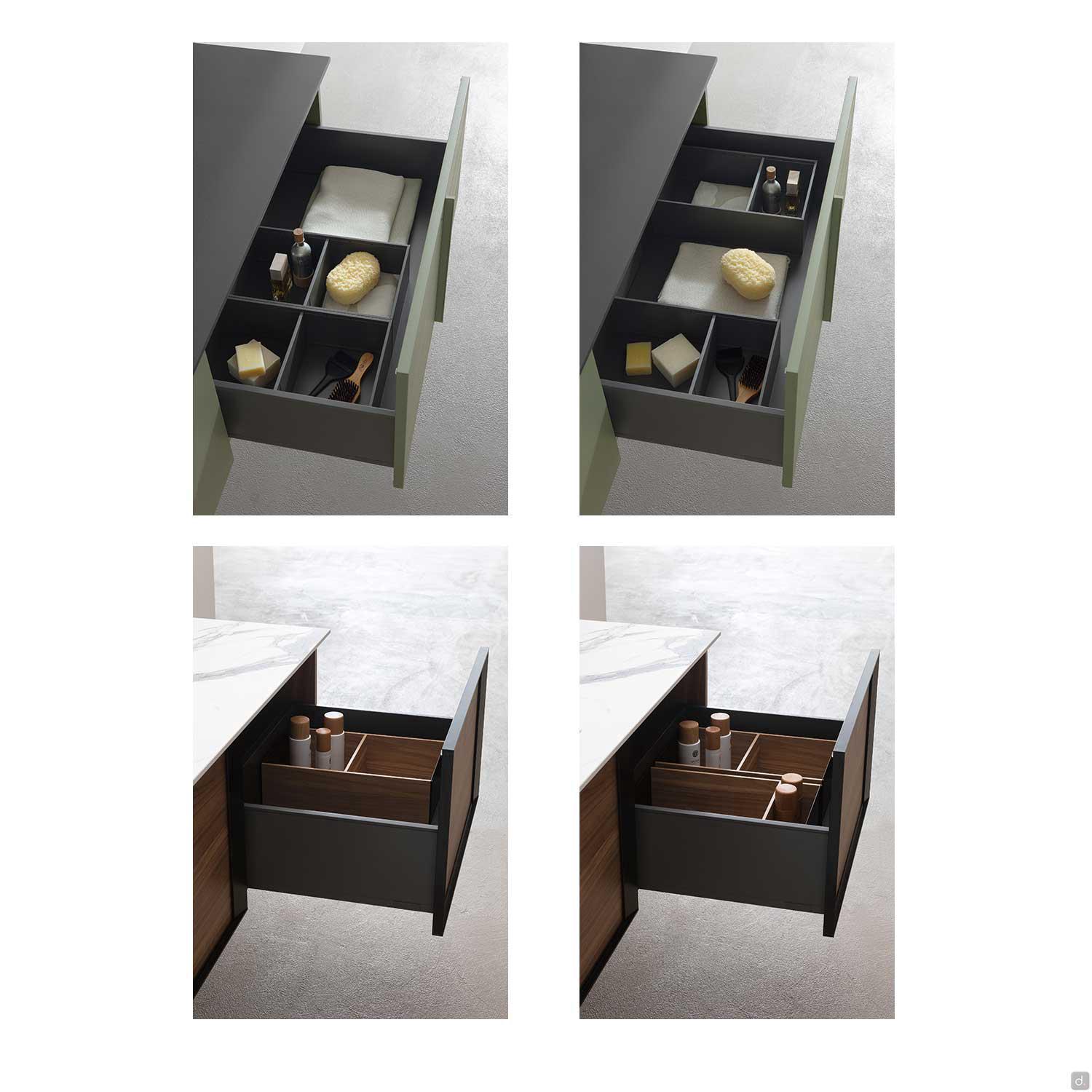

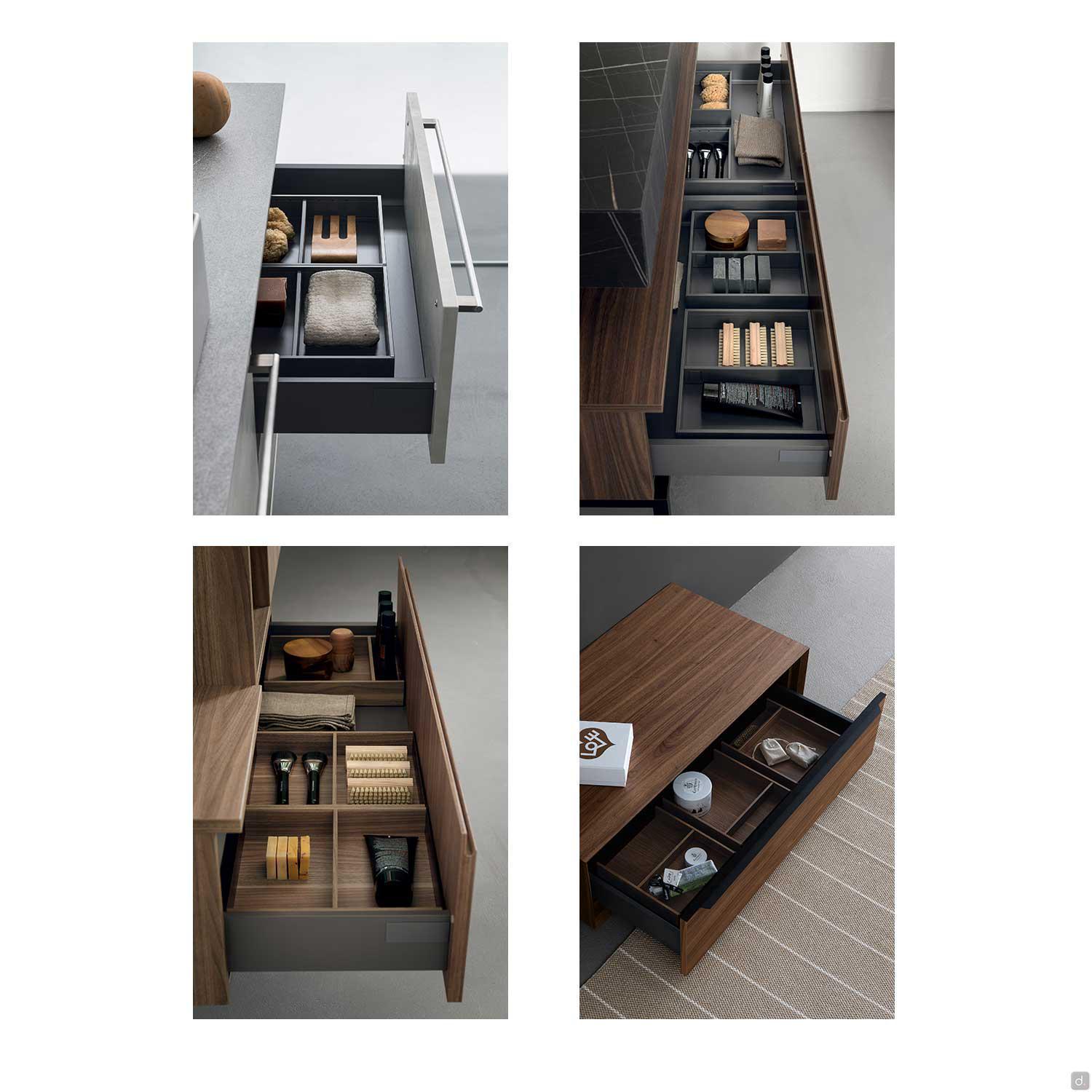

organiser: internal partitioning system for Legrabox drawer and basket. Available in Canaletto Walnut and Orione finishes.

Video

Additional Information

Area of Production
Italy

Approximate Time
5-6 working weeks for production

Assembling
Easy Assembling

Assembling Instructions
See Tab Video

Cubic Metres
0.08 to 0.20 m³
