Measurement Specifications

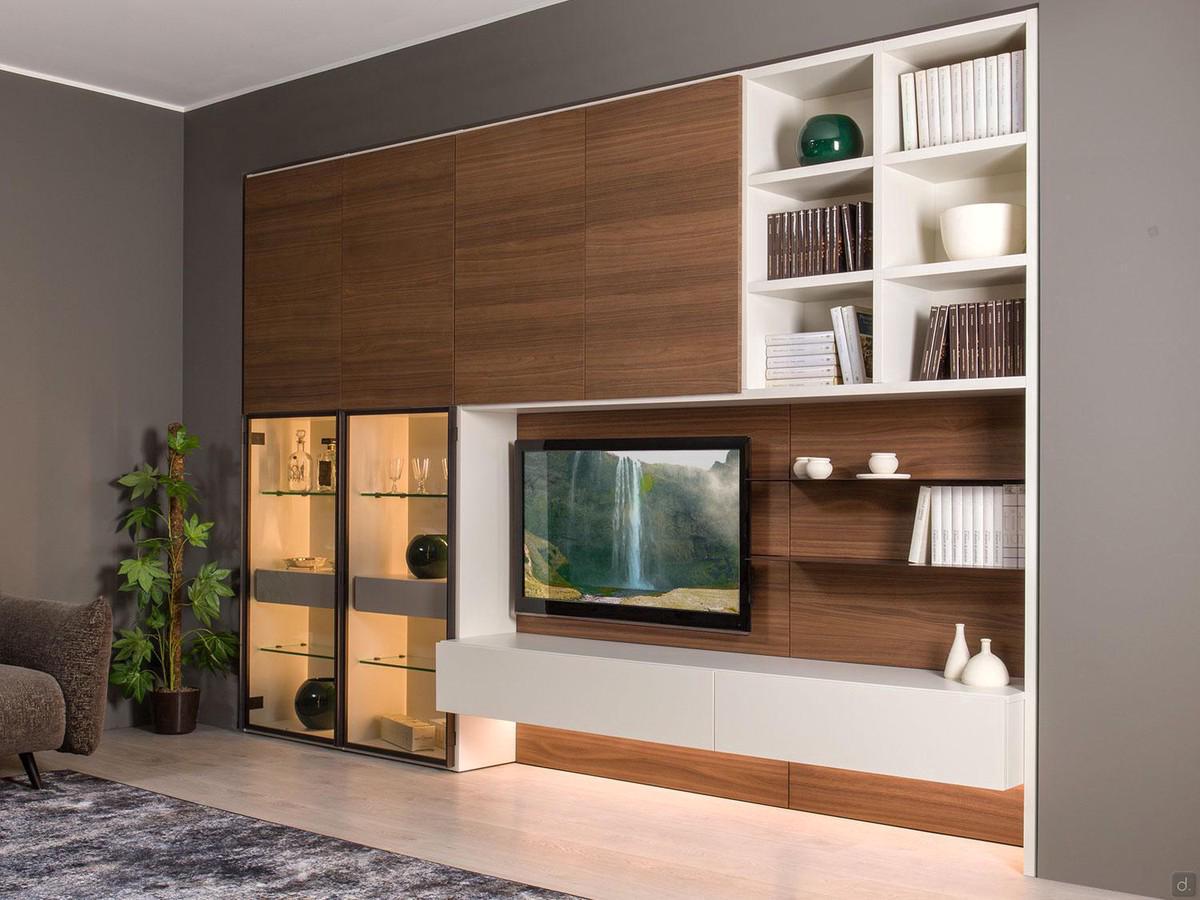

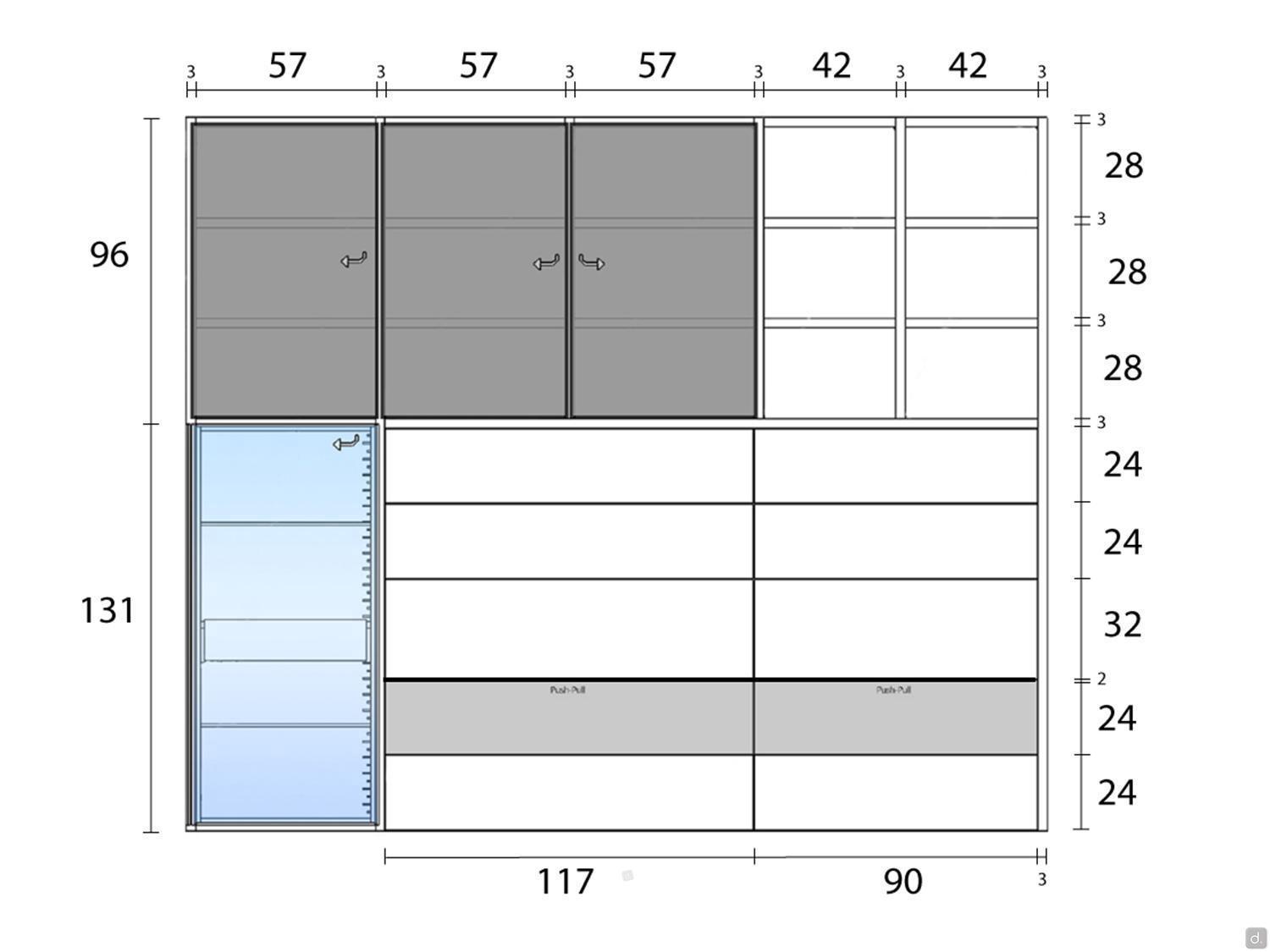

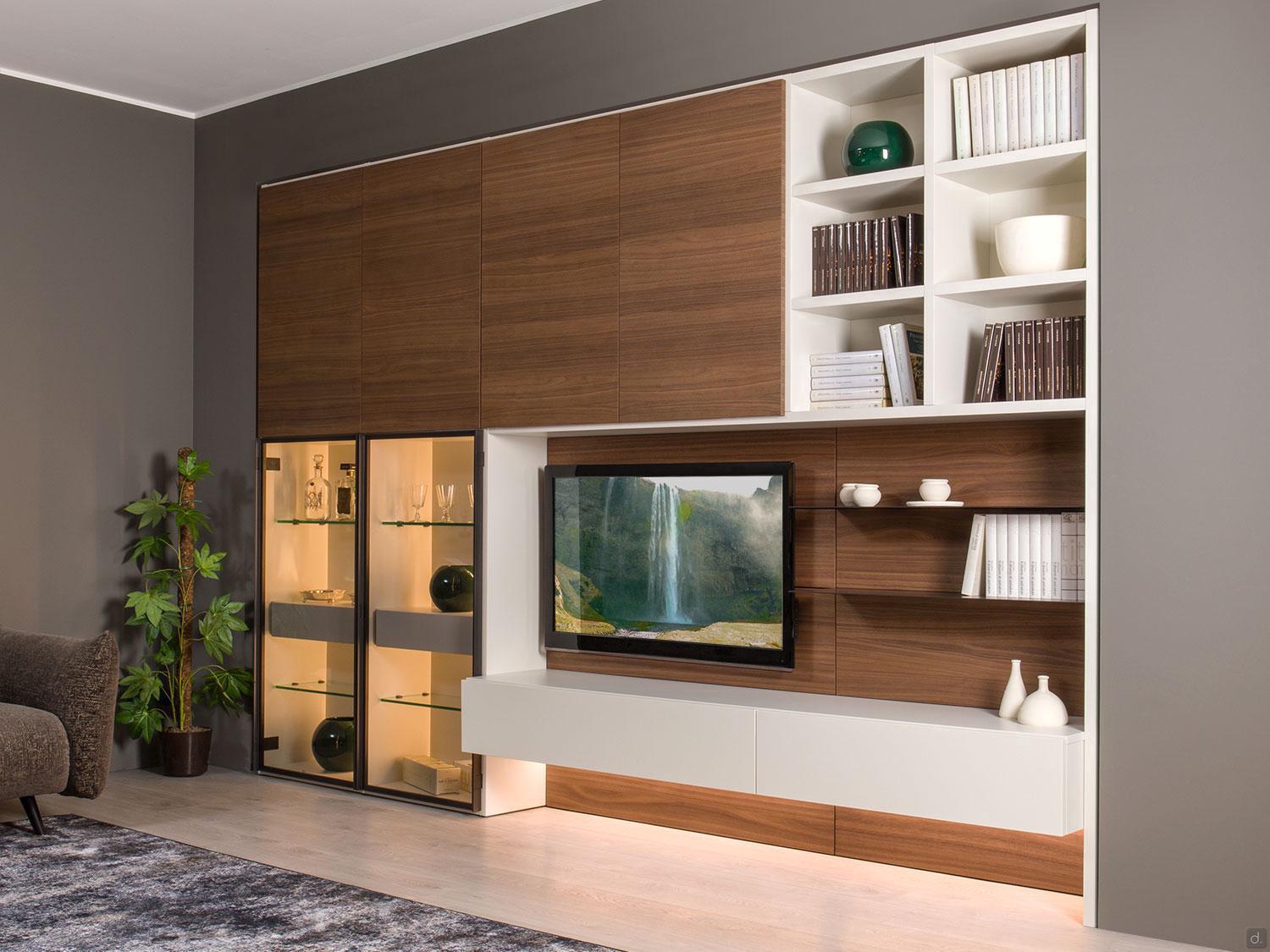

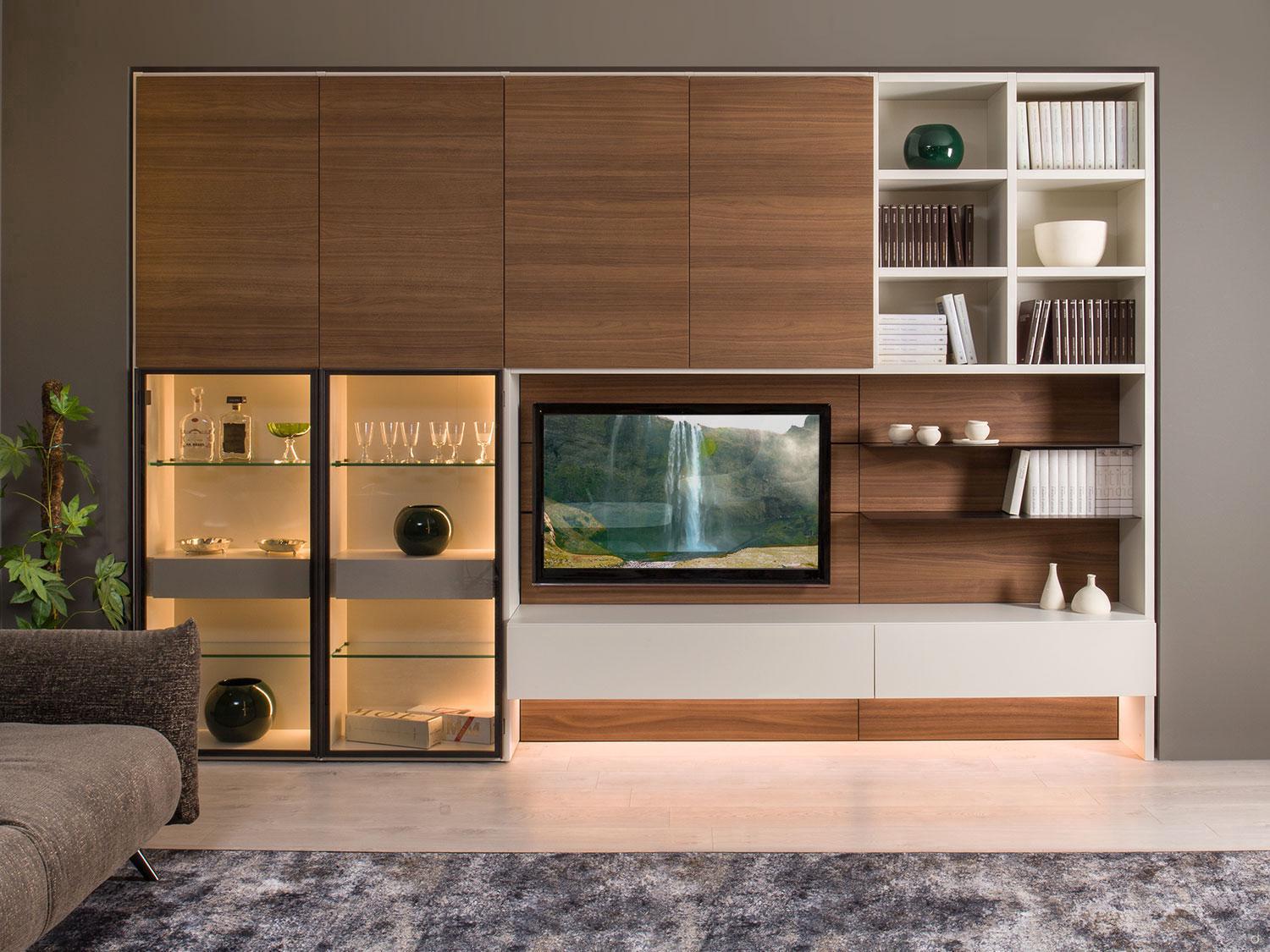

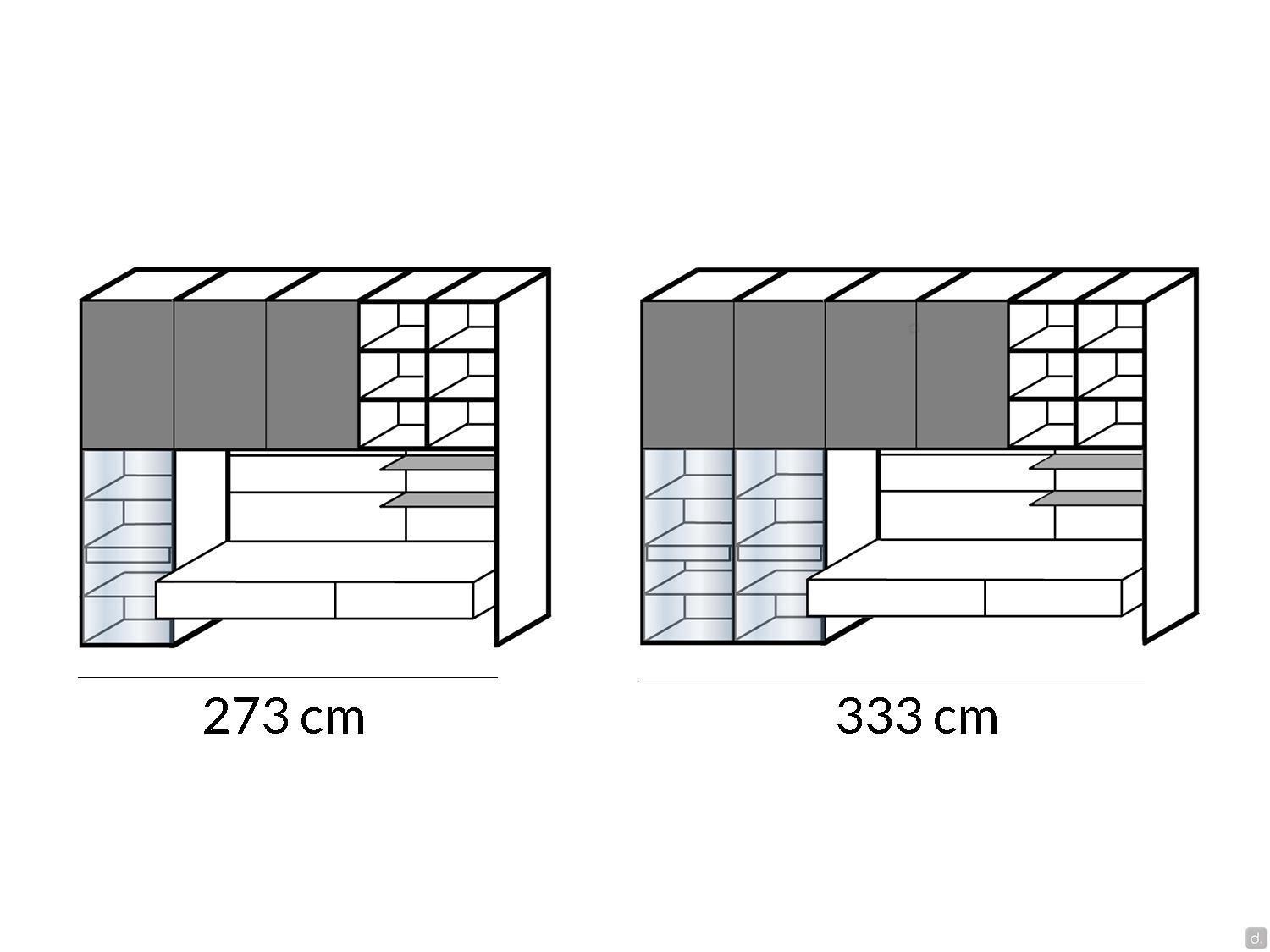

MODEL A: cm 273 d.45 h.227
n.1 column with display case and hinged door: cm 60 d.33 h.227

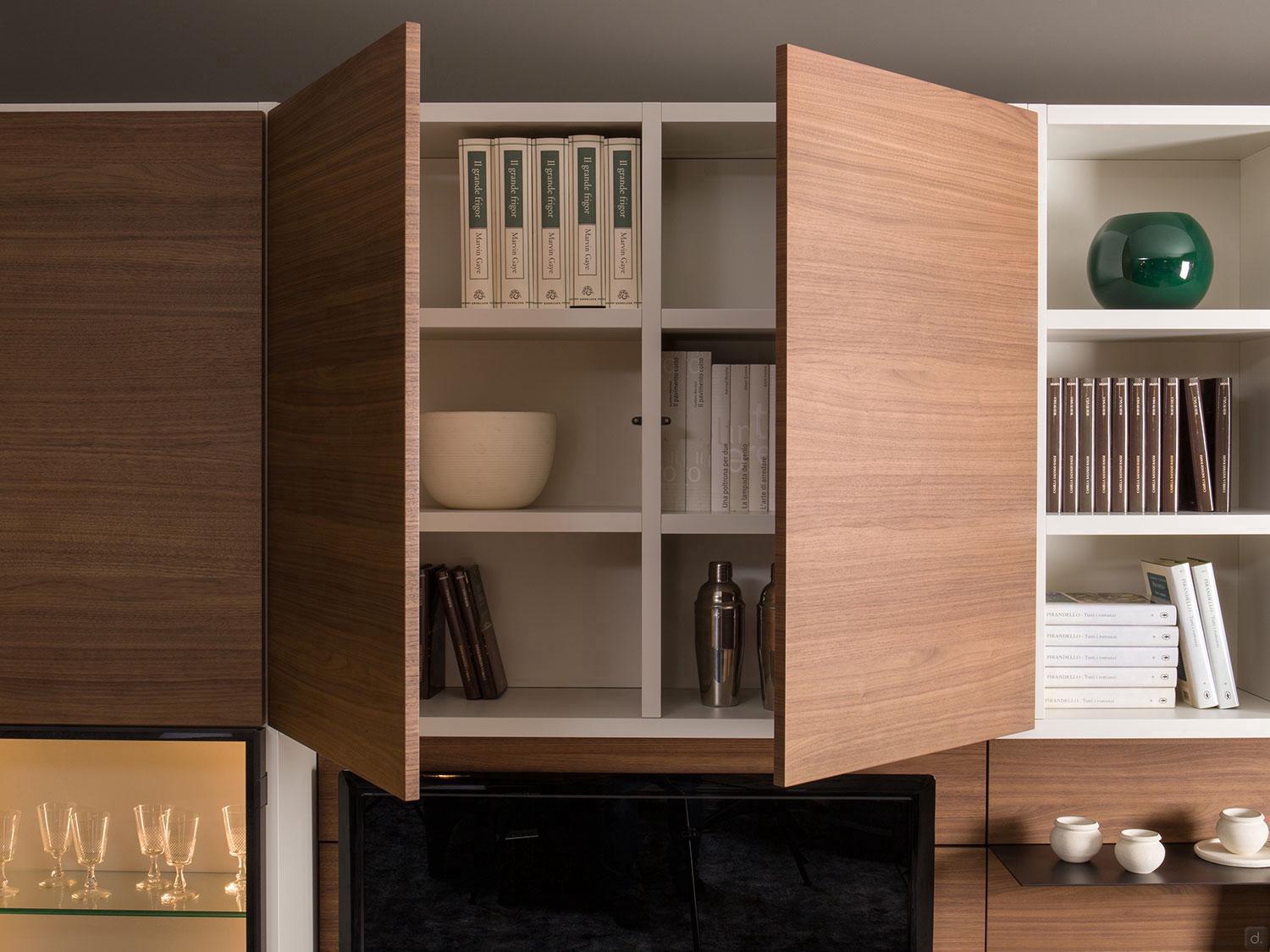

n.1 compartment with two hinged doors: cm 120 d.33 h.96
n.1 open 6 compartment element: cm 90 d.33 h.96

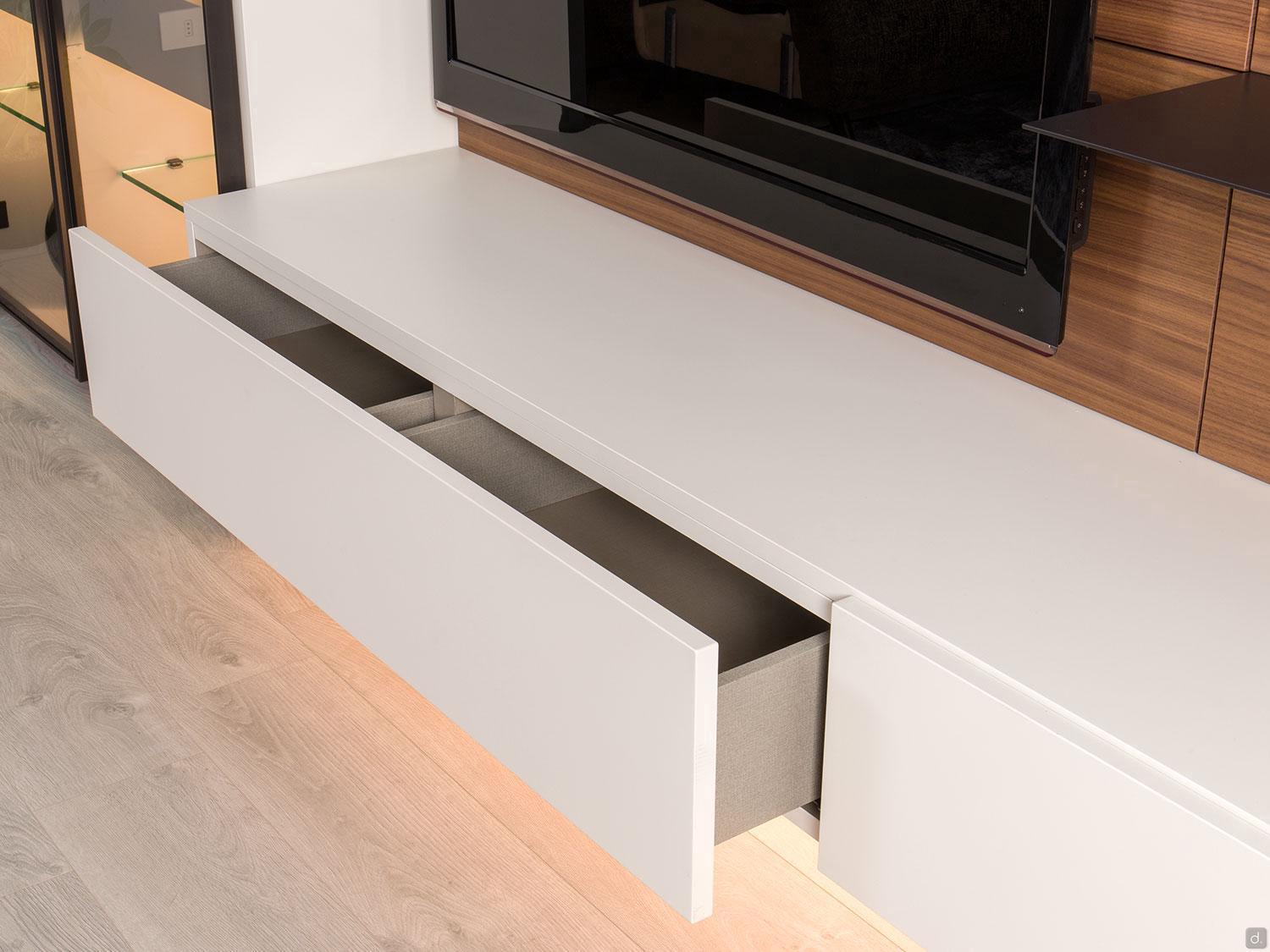

n.1 suspended drawer base: cm 117 d.45 h.24
n.1 suspended drawer base: cm 90 d.45 h.24

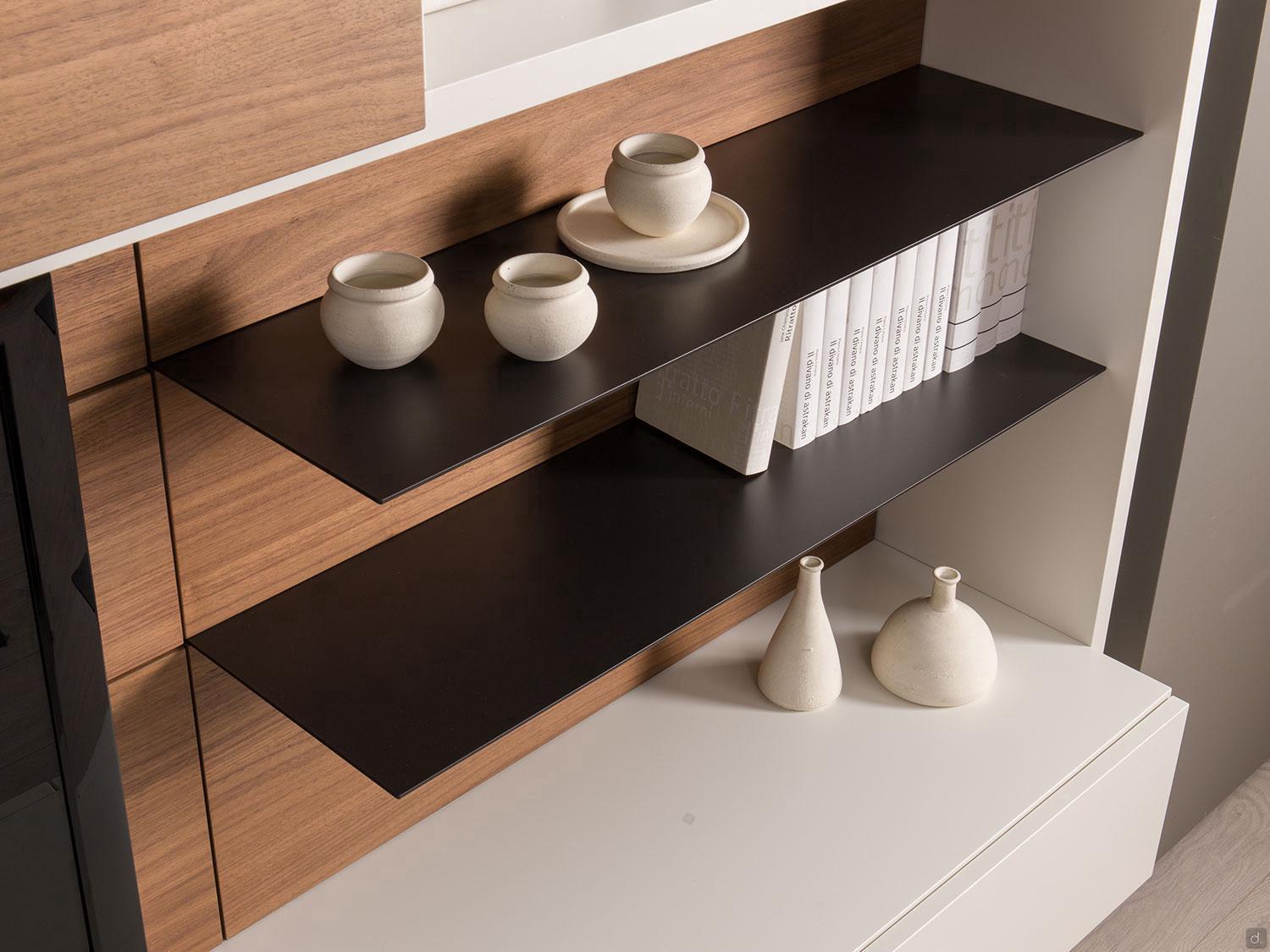

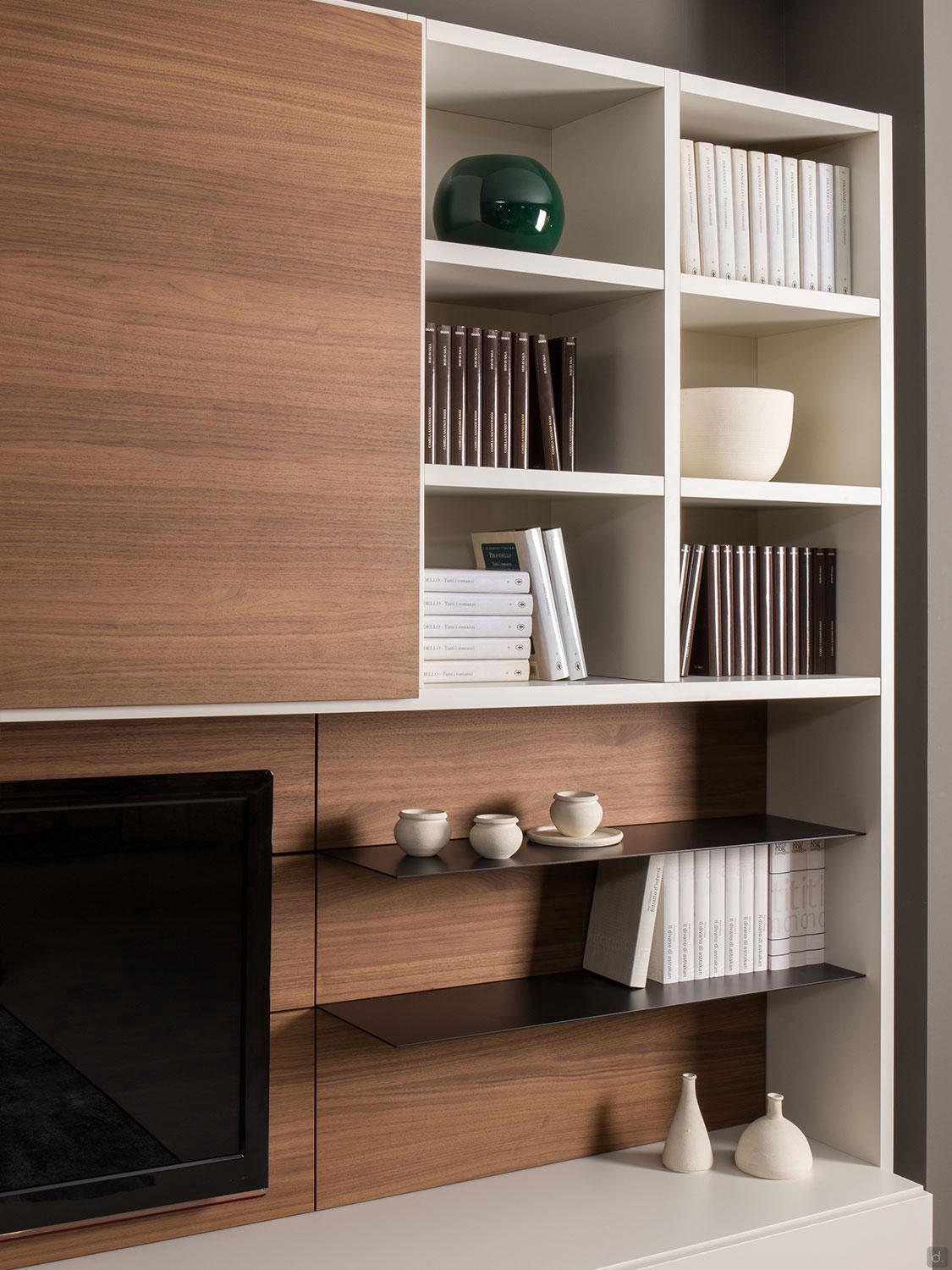

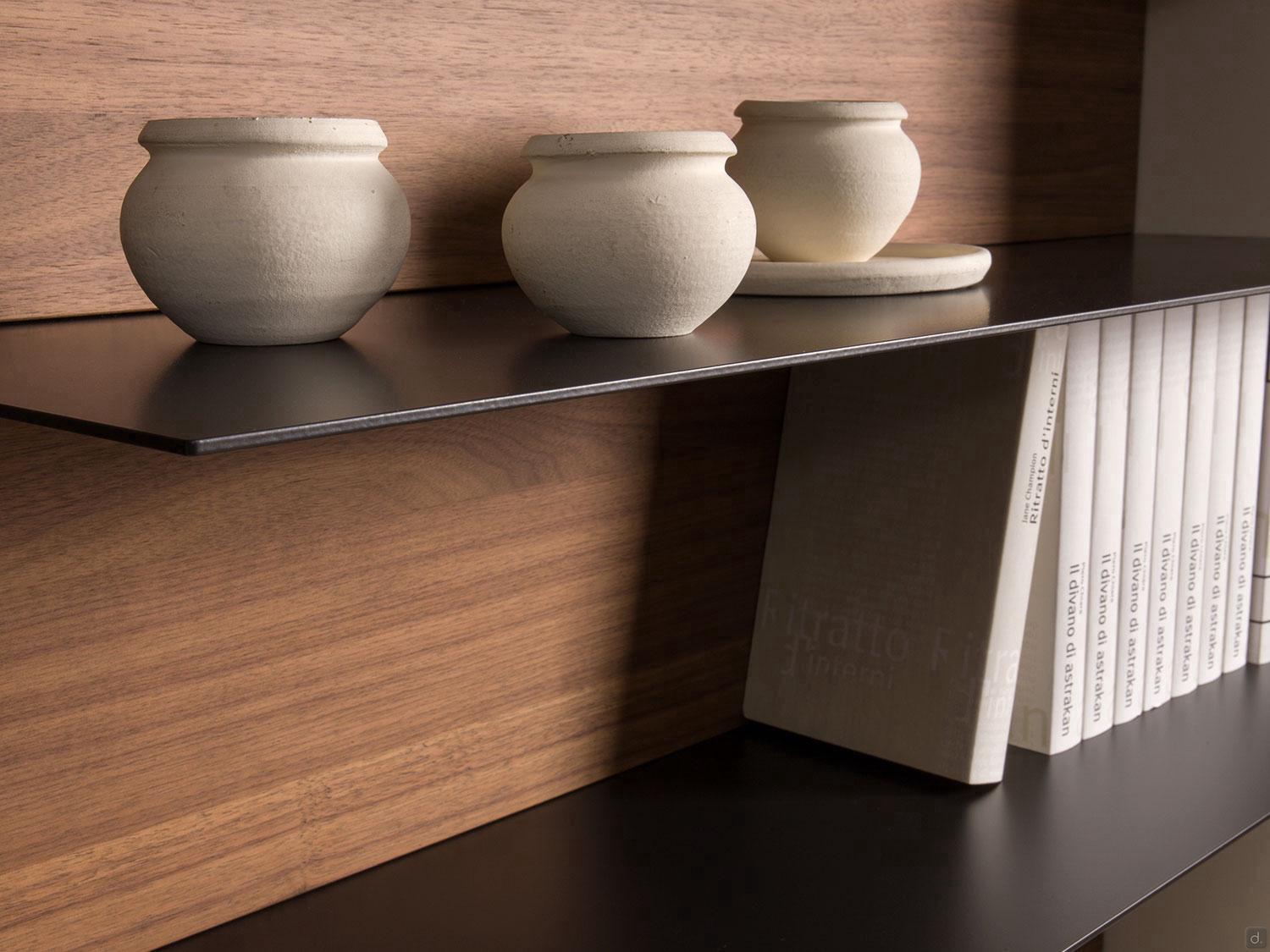

n.1 metal shelf: cm 90 d.25 sp.0,3
n.3 boiserie panel: cm 116,7 th.2,5 h.23,7
n.3 boiserie panel: cm 89,7 th.2,5 h.23,7
n.1 boiserie panel: cm 116,7 th.2,5 h.31,7
n.1 boiserie panel: cm 89,7 th.2,5 h.31,7

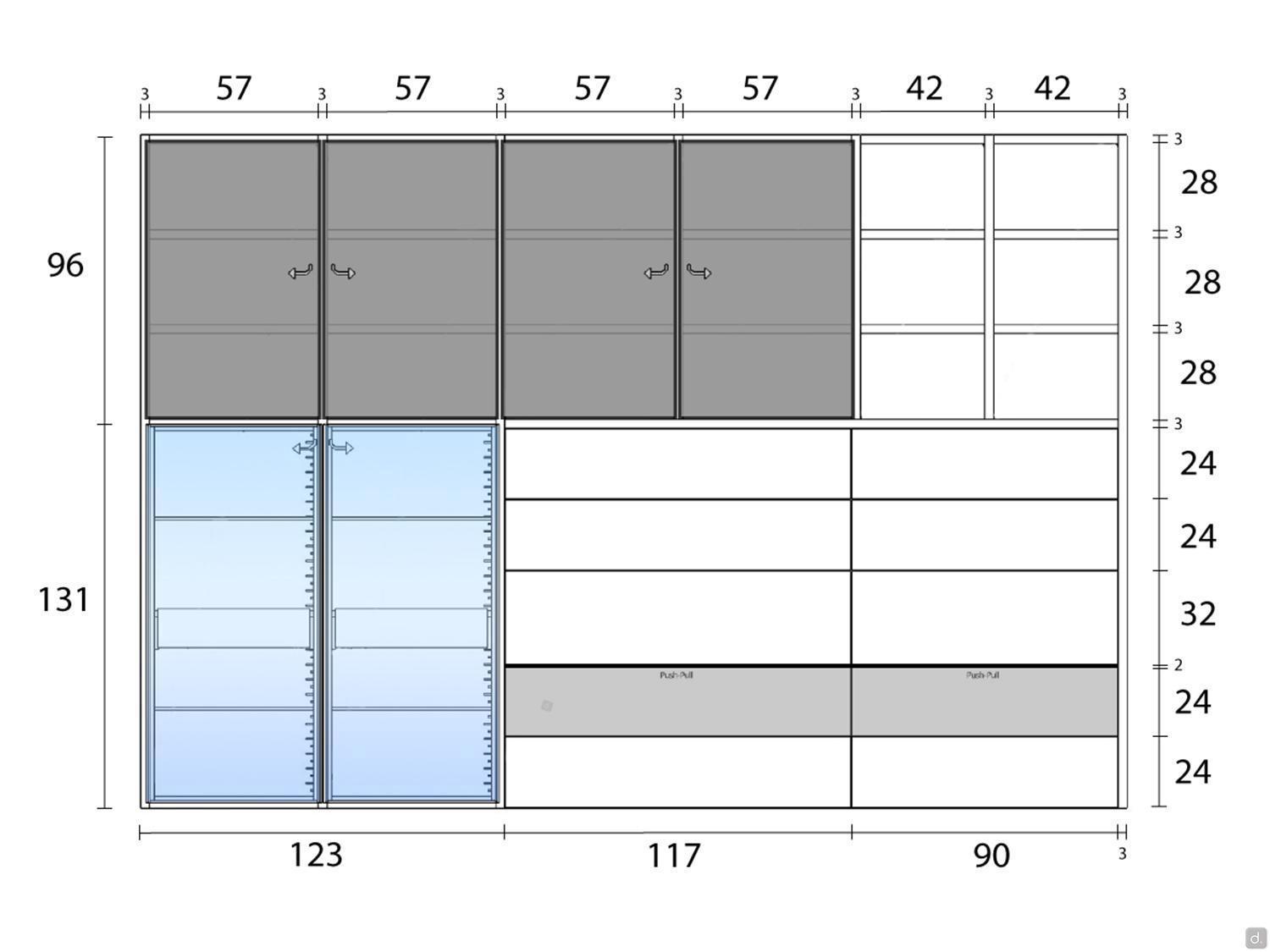

MODEL B: cm 333 d.45 h.227
n.2 columns with display case and hinged door: cm 120 d.33 h.227
n.1 compartment with two hinged doors: cm 120 d.33 h.96
n.1 open 6 compartment element: cm 90 d.33 h.96
n.1 suspended drawer base: cm 117 d.45 h.24
n.1 suspended drawer base: cm 90 d.45 h.24
n.1 metal shelf: cm 90 d.25 th.0,3
n.3 boiserie panel: cm 116,7 th.2,5 h.23,7
n.3 boiserie panel: cm 89,7 th.2,5 h.23,7
n.1 boiserie panel: cm 116,7 th.2,5 h.31,7
n.1 boiserie panel: cm 89,7 th.2,5 h.31,7
Technical Specifications and Equiment
Sides, Dividers and Shelves: 3 cm thick, made of class E1 wood particle board with low formaldehyde content. In case of finishing in Eco-walnut or Sketch textured, the sides will have vertical grain.
Backs: 1.5 cm thick, made of class E1 wood particle board with low formaldehyde content..

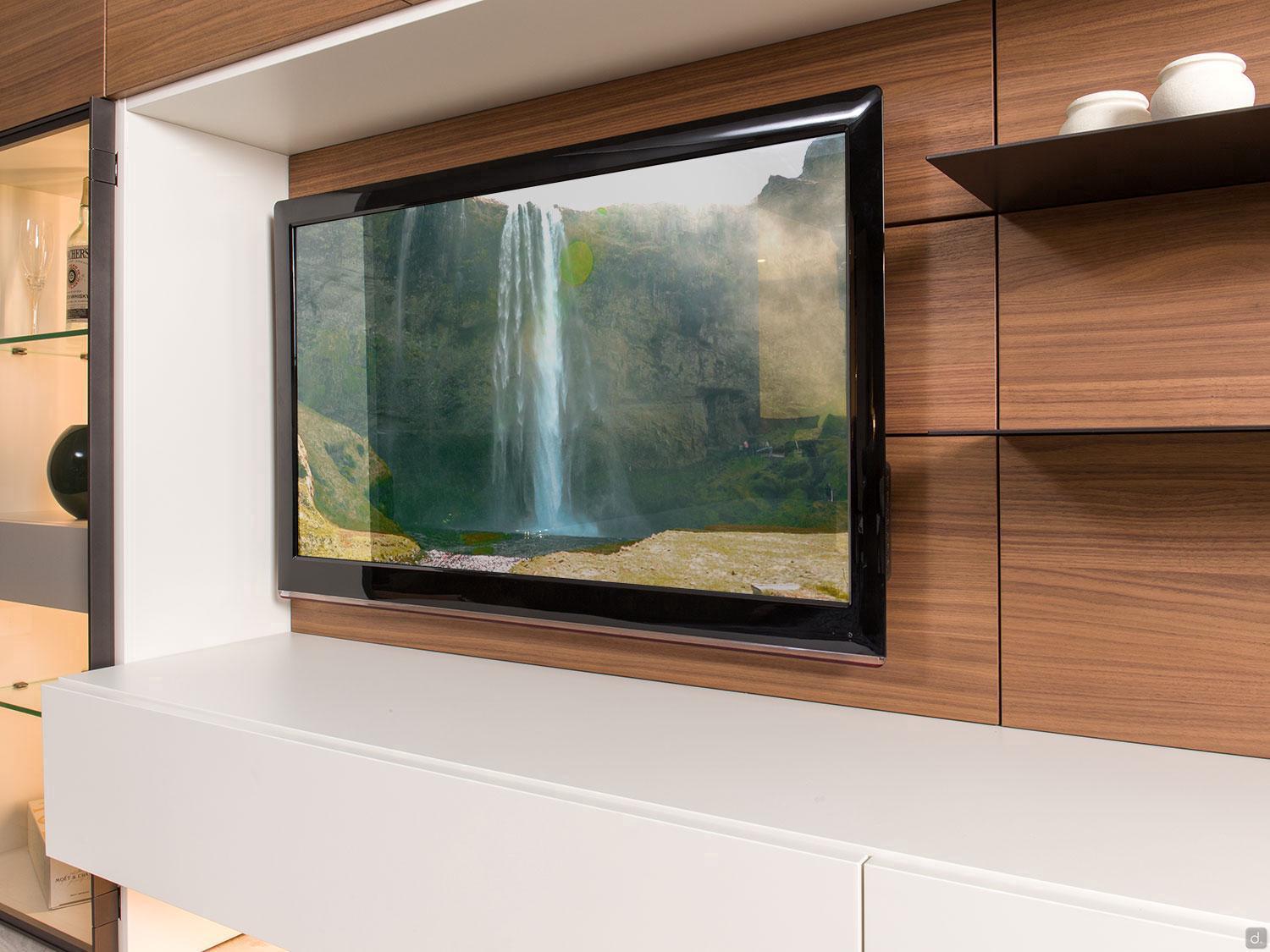

Boiserie Panels: 2,5 cm thickness, made of class E1 particle board with low formaldehyde content and covered with synthetic melamine (also matte or metallic lacquer) or wood veneer. Back panel in black MDF 1.9 cm thickness already prepared with hardware and hangers included.

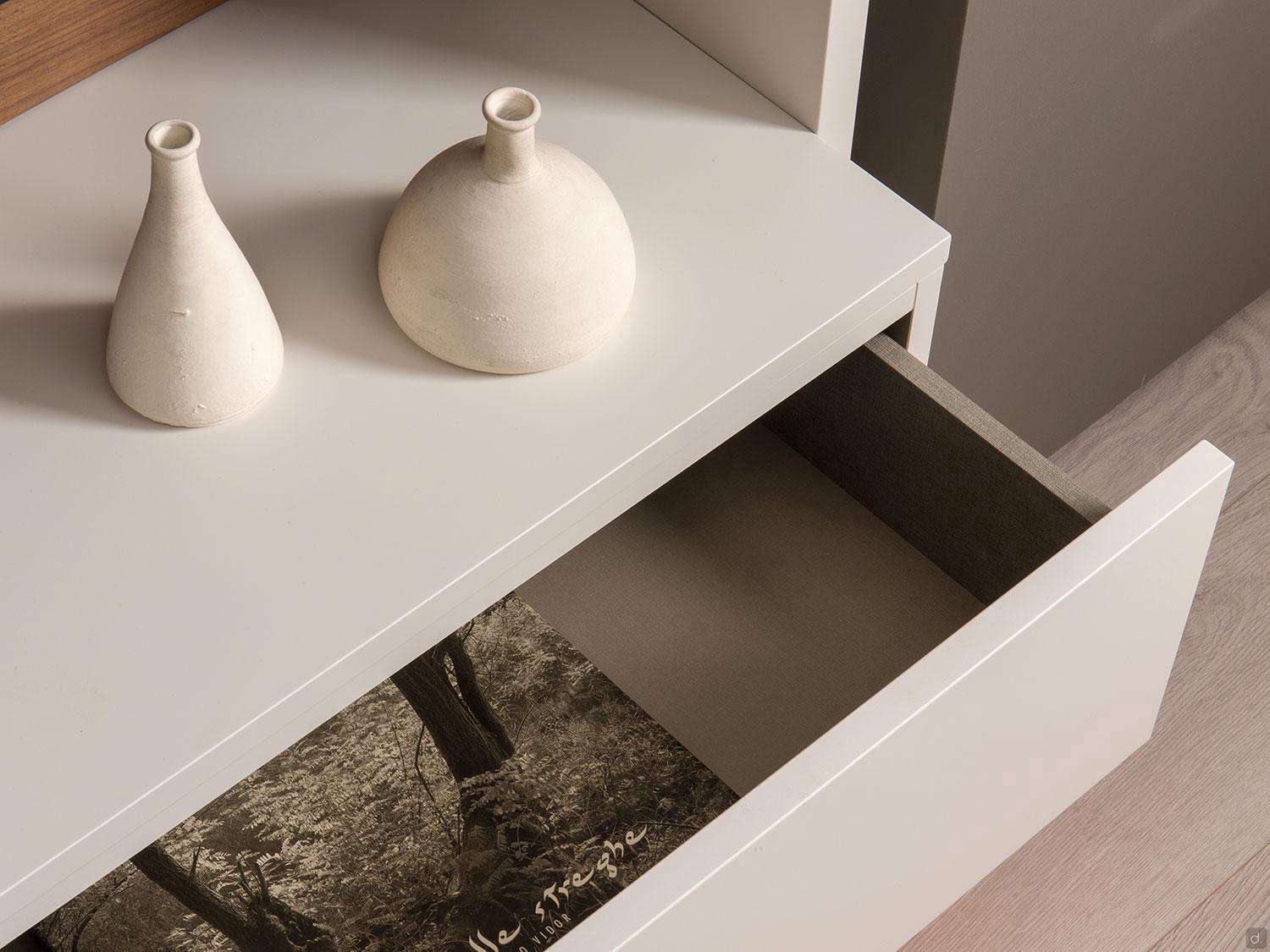

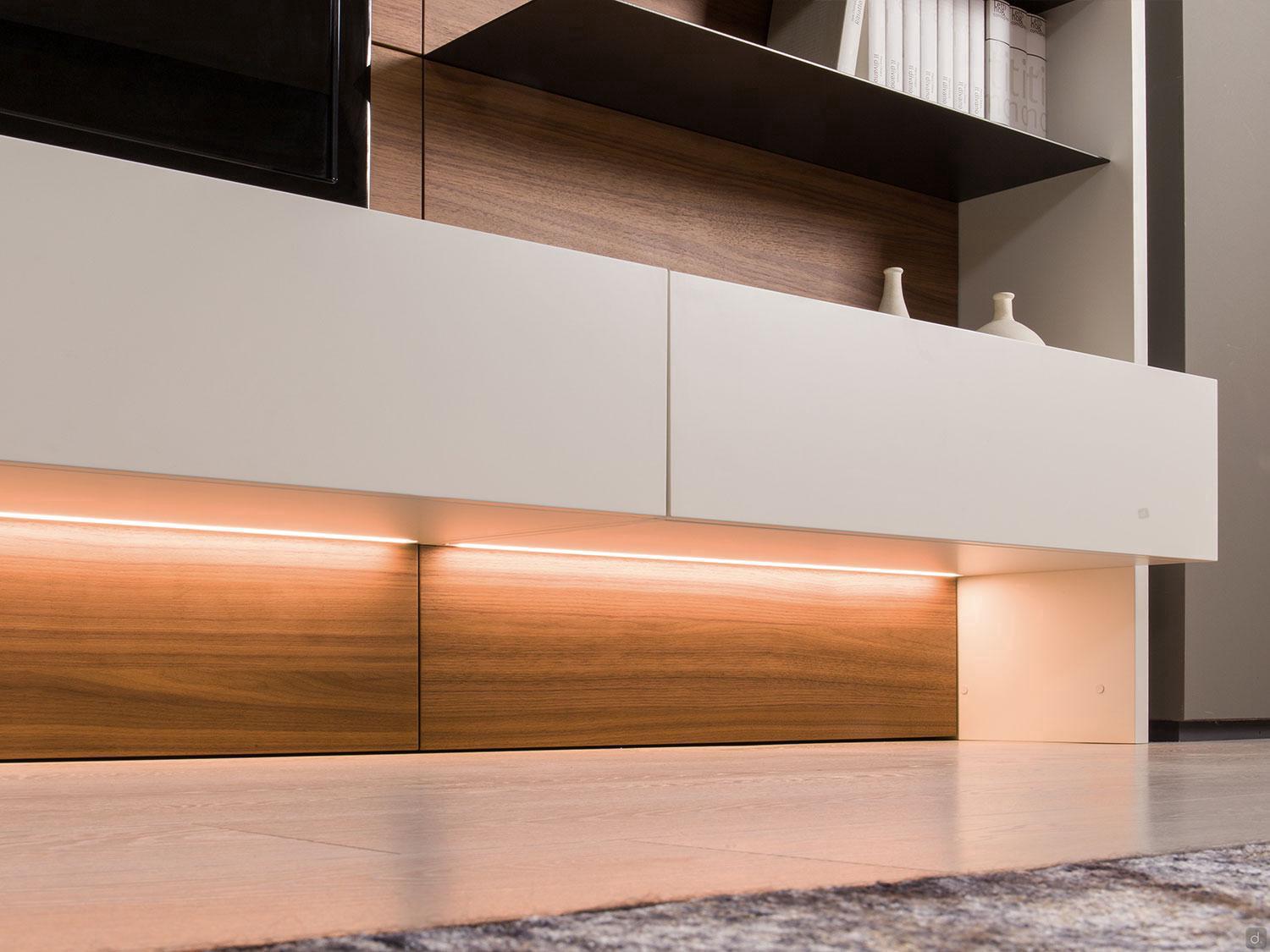

Suspended bases: structure made of wood particle board panels of class E1 with low formaldehyde content, 2 cm thickness. Backs made of MDF, 0.4 cm thickness. Interior and backs are always in the same colour as the structure, while the interior of the bases with drawer is always in jute textured melamine.

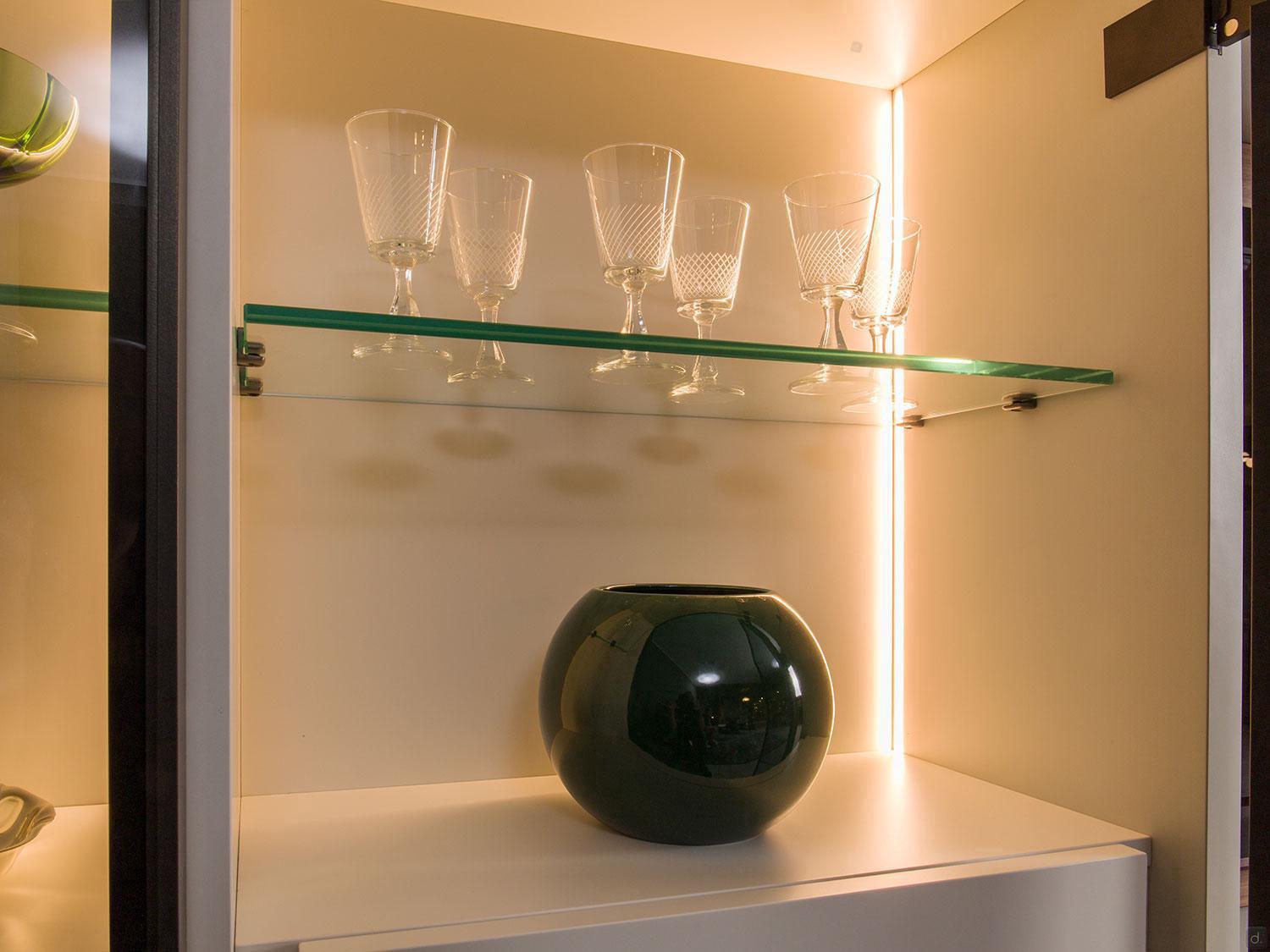

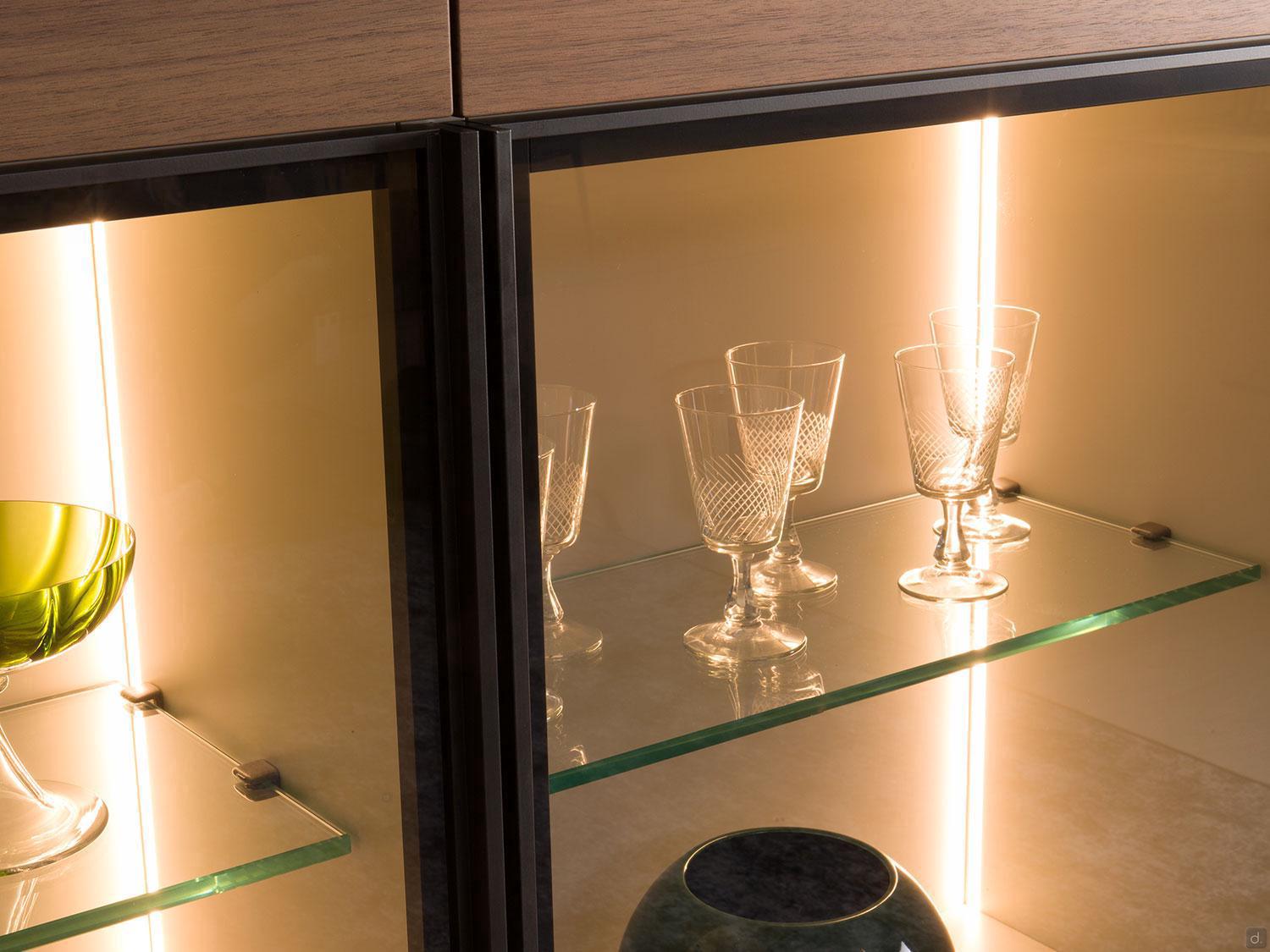

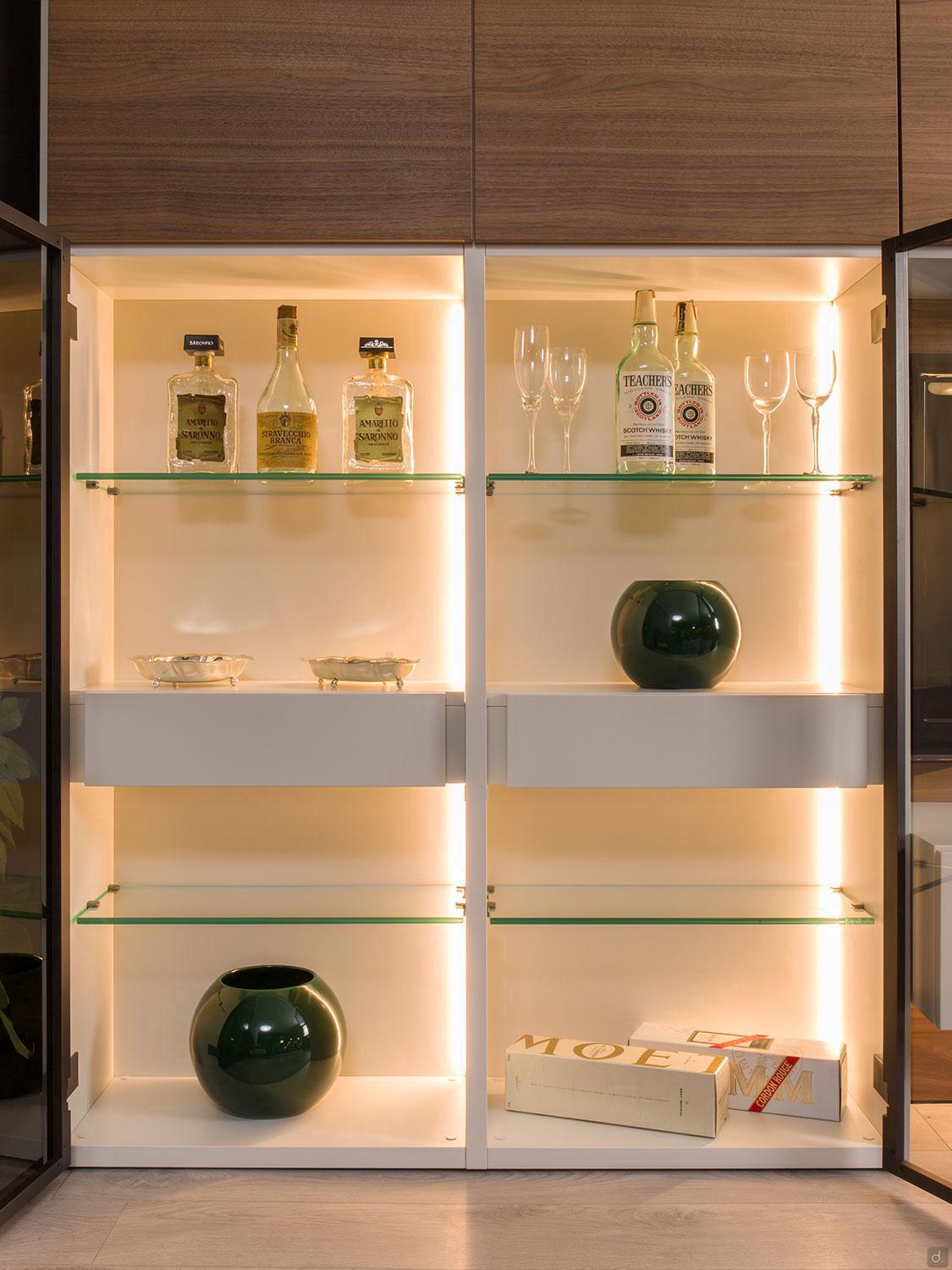

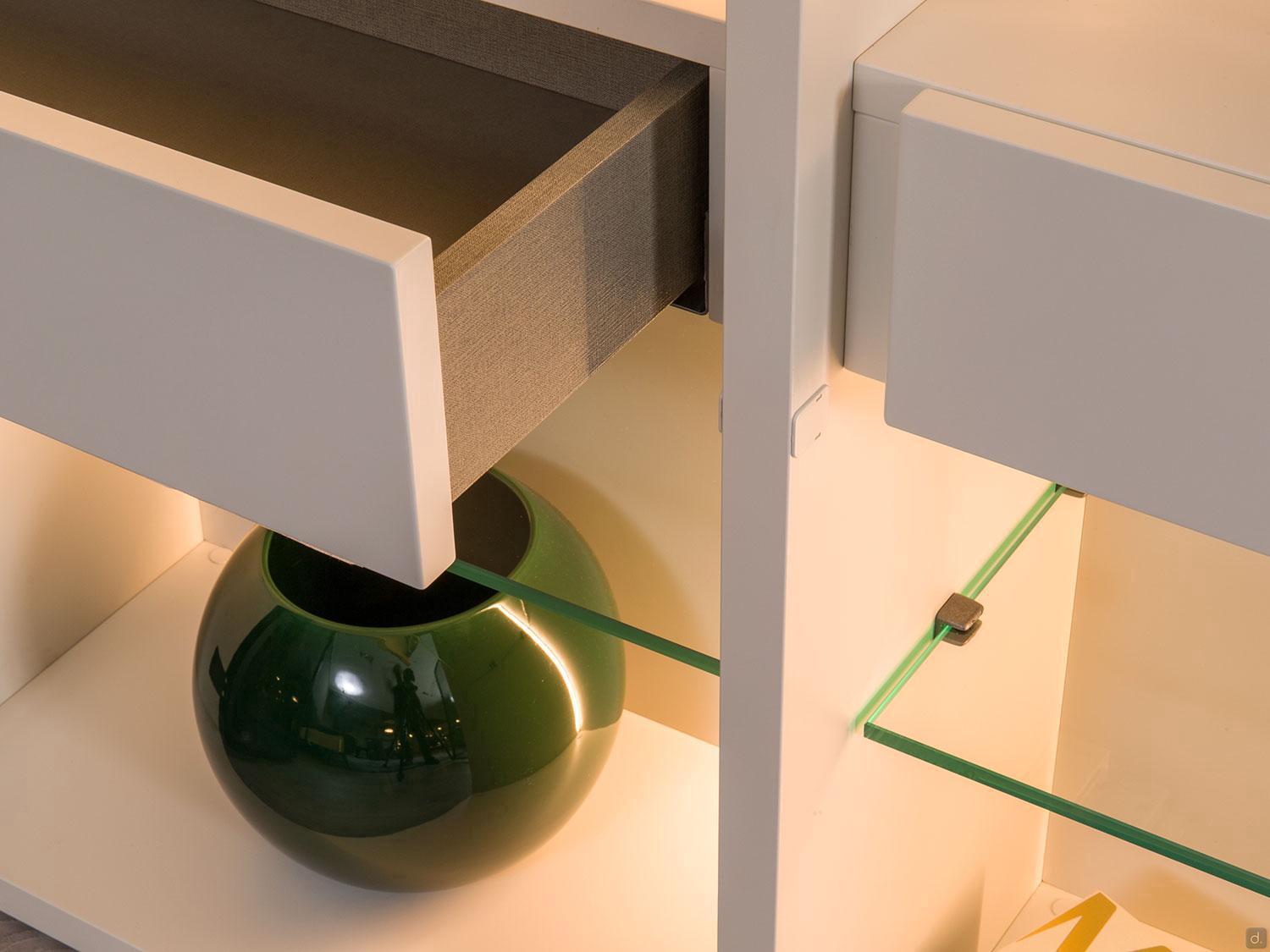

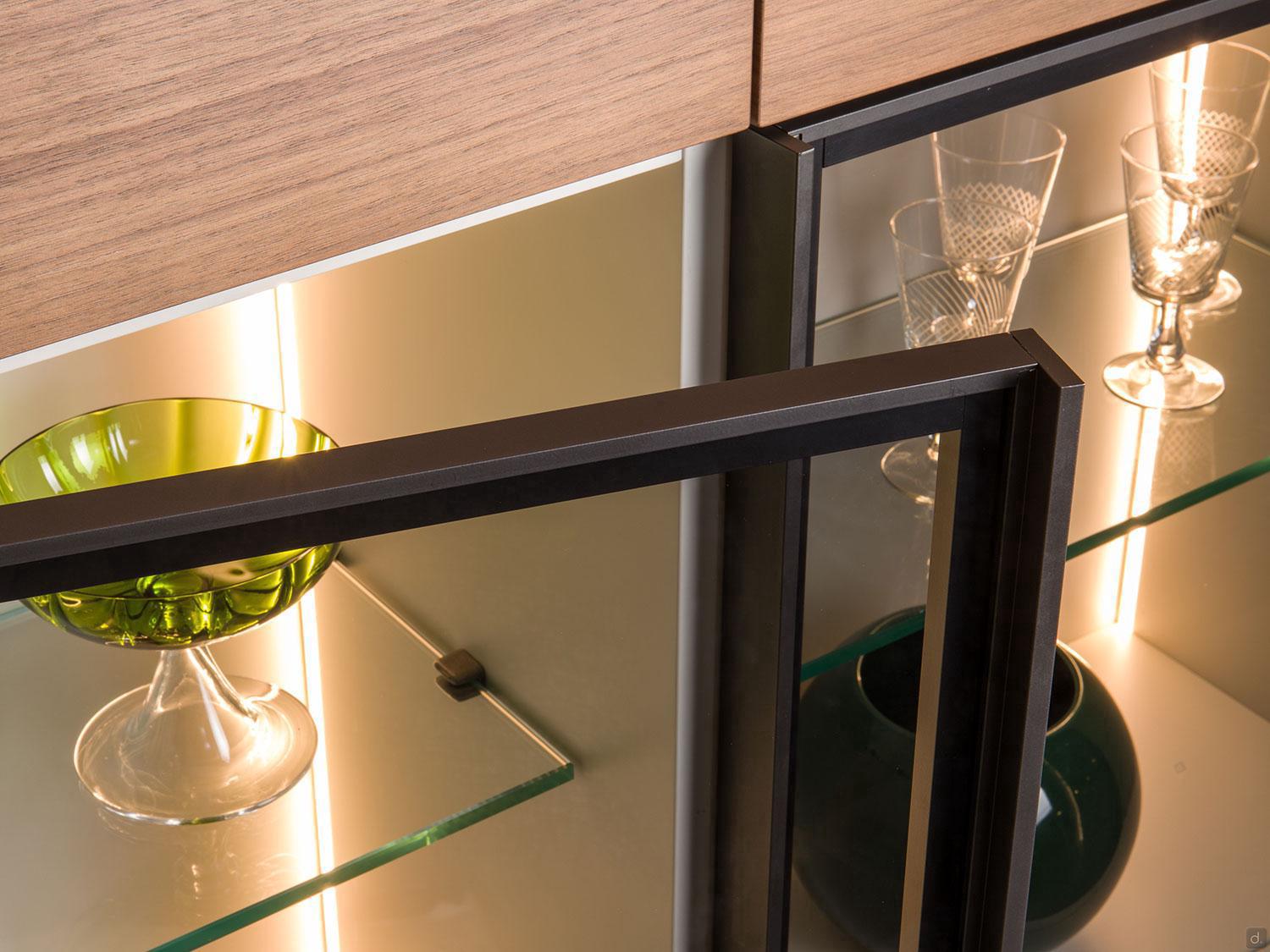

LED bars: 9,6W/ml, positioned vertically inside the display case at 2.3 cm from back to flush back, complete with transformer for maximum 50W. Switched on with mains connection or wireless with optional remote control.
Maintenance Tips
Products are not intended for outdoor use because surfaces placed in prolonged contact with water or other liquids may be damaged. Contact with hot surfaces can damage the product. For cleaning windows and mirrors, use a soft cloth with glass cleaner while a dampened cloth is recommended for other surfaces. Under no circumstances should abrasive products, solvents, thinners, alcohol or corrosive products in general be used.
