Materials Specifications
Sides, partitions, bottom, top, backs:made with E1 class particle wood panel with low formaldehyde emission.
Doors: made with E1 class particle wood panels with low formaldehyde emission (with textured or matt lacquered on ash-wood melamine finish) or made with honeycomb sandwich panel (with lacquered or wood veneer finish). Matt or high gloss lacquered finish made with polyurethane paints.
Technical Specifications and Equipment
Sides and partitions:cm 2,5 thick. Sides: ABS edge for textured finishes and lacquers, in wood for veneers. Partitions: ABS edge matching the internal finish. Included adjustable feet, adjustable by cm 1,2.
Top and bottom: cm 3,5 thick. ABS edge matching the internal finish.
Back panels:cm 0,8 thick.
Internal shelves: cm 3,5 thick. ABS edge matching the internal finish.
Clothes Hanging Rod: rectangular cm 3 x 1, in Gunmetal painted metal (for natura loto, linen textured or medium elm internal finish) or Brown (for taupe loto, terra loto, dark elm or eco-walnut internal finish), Palladium ( for sand, rock and tobacco sketch internal finish)
Doors: thickness cm 2,6. ABS edge matching with the door for textured melamine and lacquer, in wood for veneered doors. In case of couple of doors, the handle is always placed on the right door; the left doors comes with pvc edge in smoked transparent colour. Each door comes with a soft closing system and 94° opening; in the cm 35 module the soft closing system is installed on the top panel. For doors with height cm 239,6, 255,6 and 287,6 there will be 6 hinges whereas for doors with height cm 223,6 there will be 4 hinges.

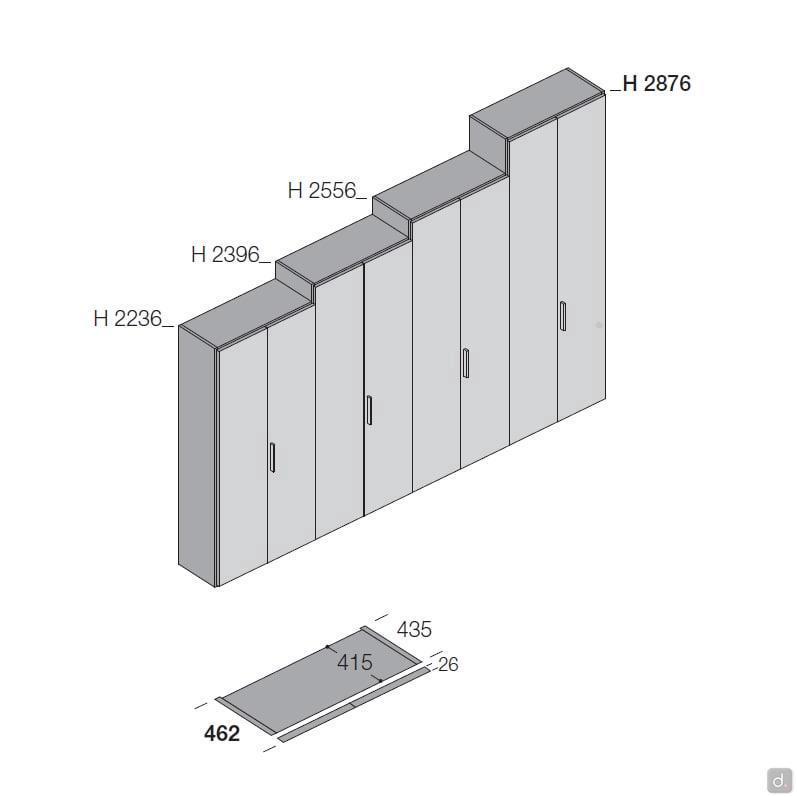

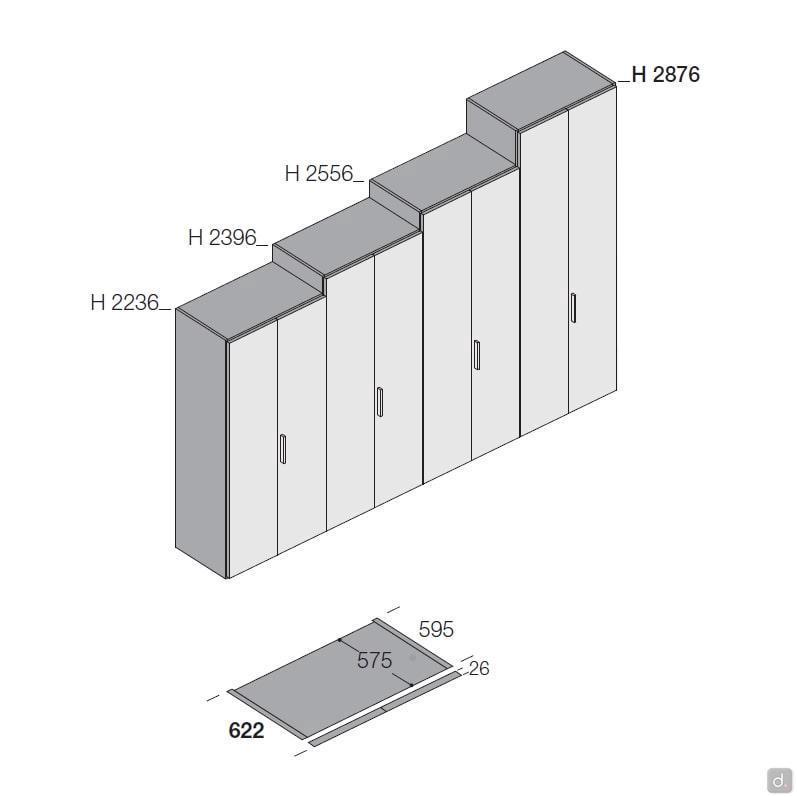

Internal usable height:
- for cm h.223,6 wardrobe: cm 216,6
- for cm h.239,6 wardrobe: cm 232,6
- for cm h.255,6 wardrobe: cm 248,6
- for cm h.287,6 wardrobe: cm 280,6

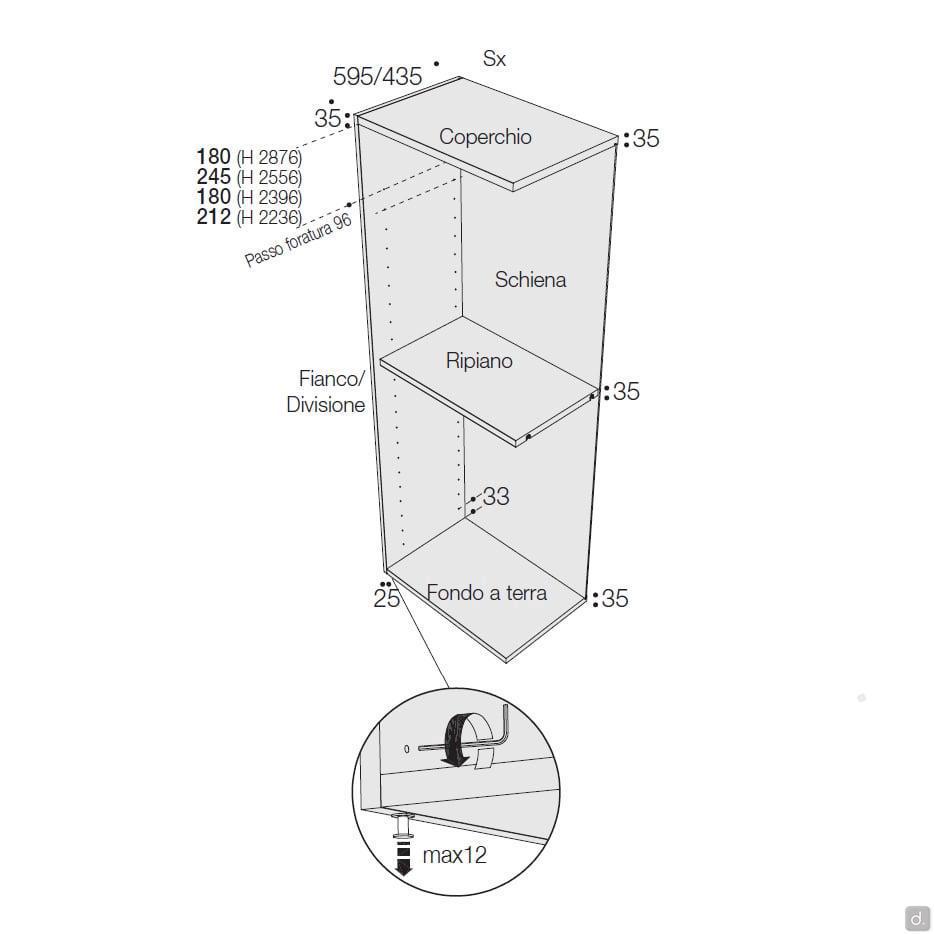

Side Holes
Sides and partitions come with fixed holes every 9,6 cm. For the detailed measurements, please have a look at the scheme inside the picture gallery.
Assembling Tips
To assemble the structure you need:
- cm 3,5 in width
- cm 2 in height (cm 5 in case you add LED bars, in order to place the power supply on the top).
In cm 46,2 deep wardrobes, at least 2 compartments come with a bracket for wall fastening, for safety reasons. Also cm 62,2 deep wardrobes come with a bracket for at least one compartment to be used when needed. The anti-tip bracket comes with spacer that allows the use even if you have a skirting board (max 15 mm thick).
