Jersey Pacific
Design Sliding Wardrobe

Original wardrobe with sliding doors with a geometric pattern in glossy or frosted glass. Also available in melamine and lacquer. Invisible aluminium handle.

* Required Fields


From €2,874.14

Description

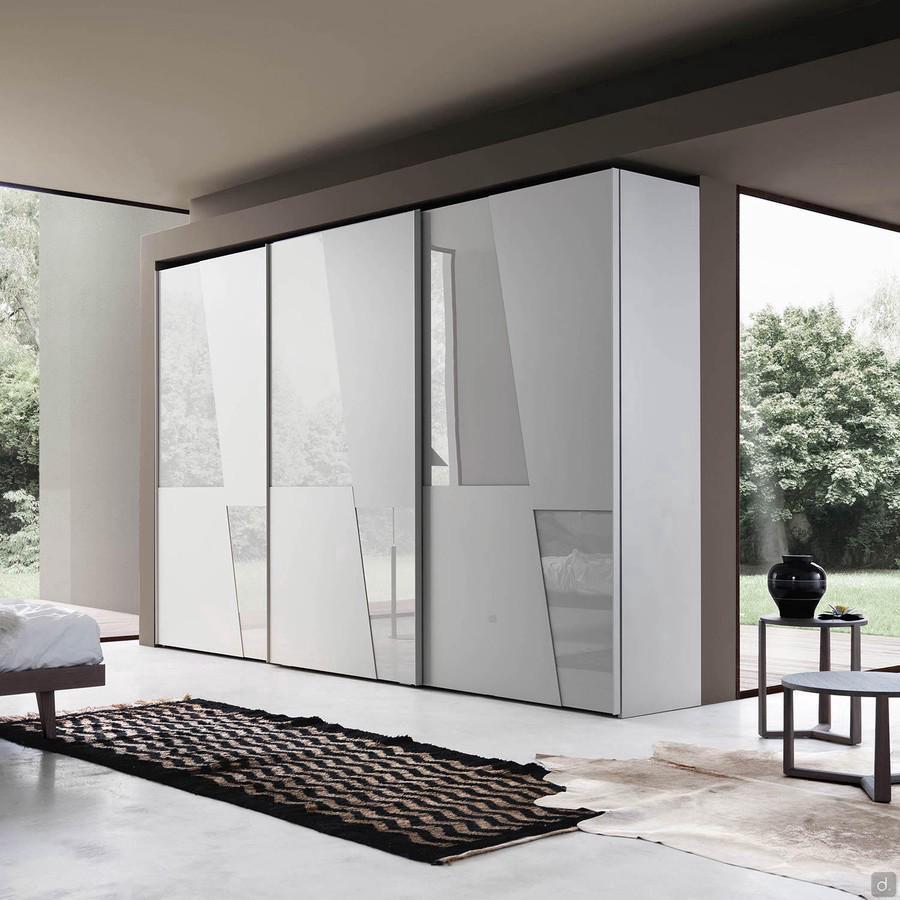

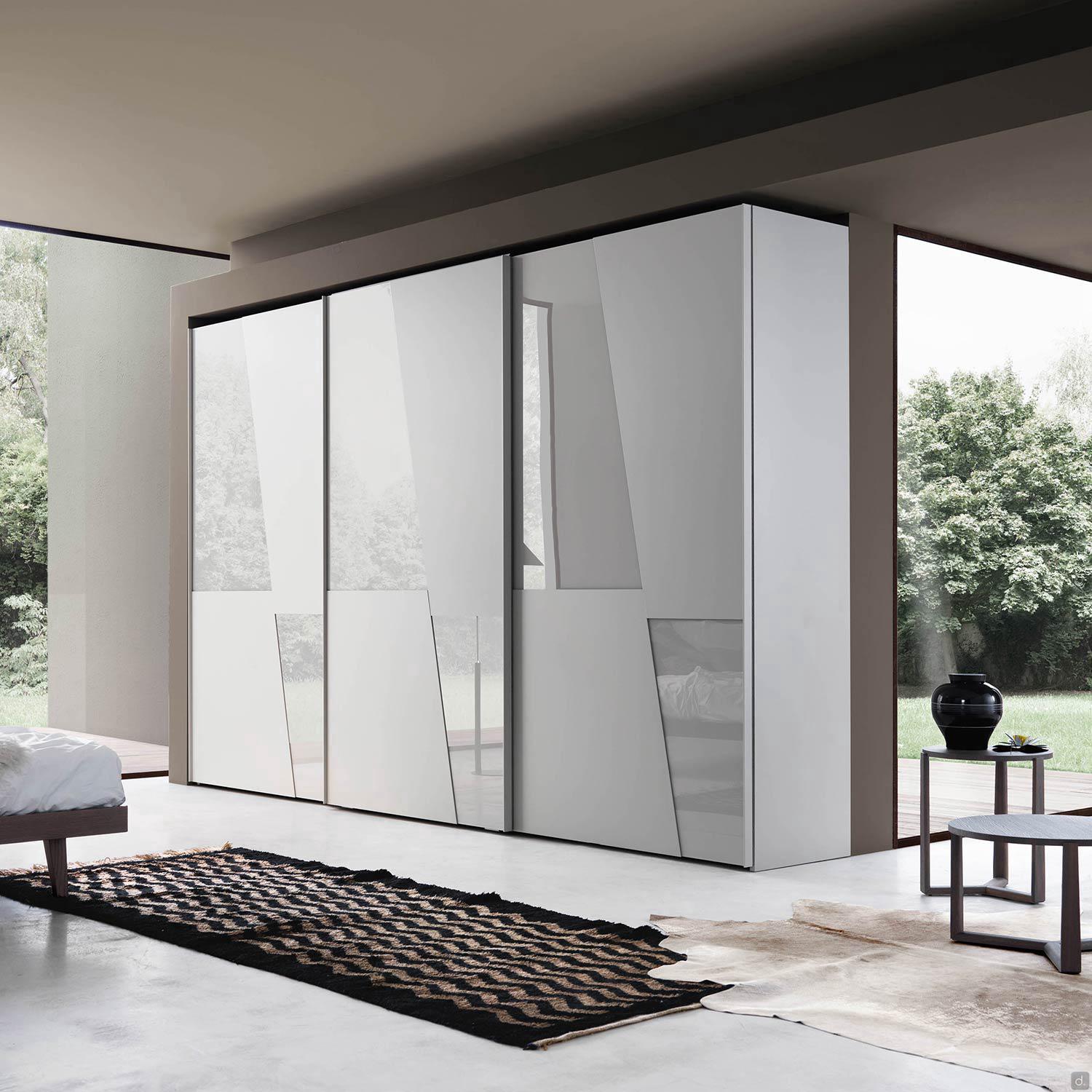

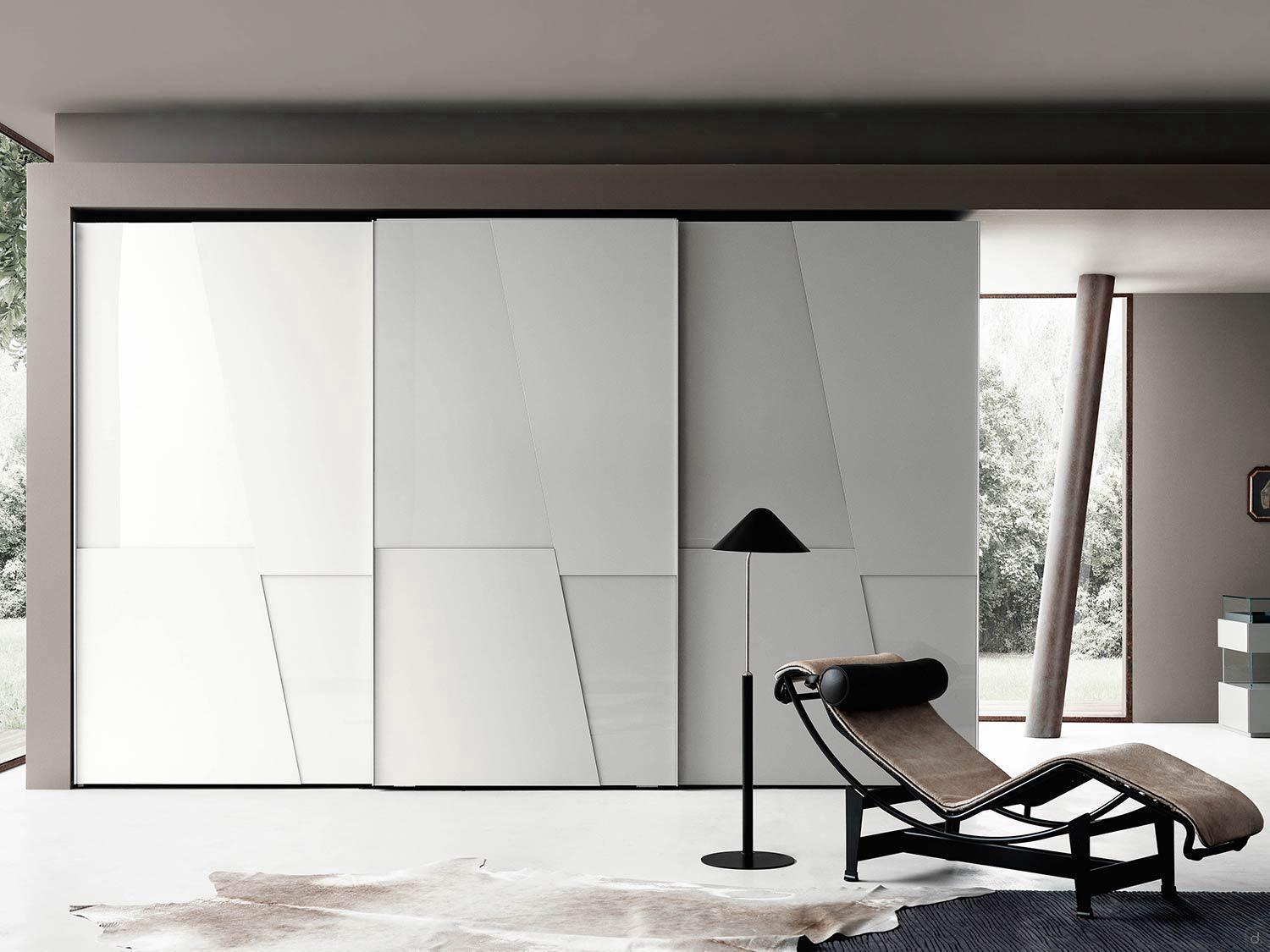

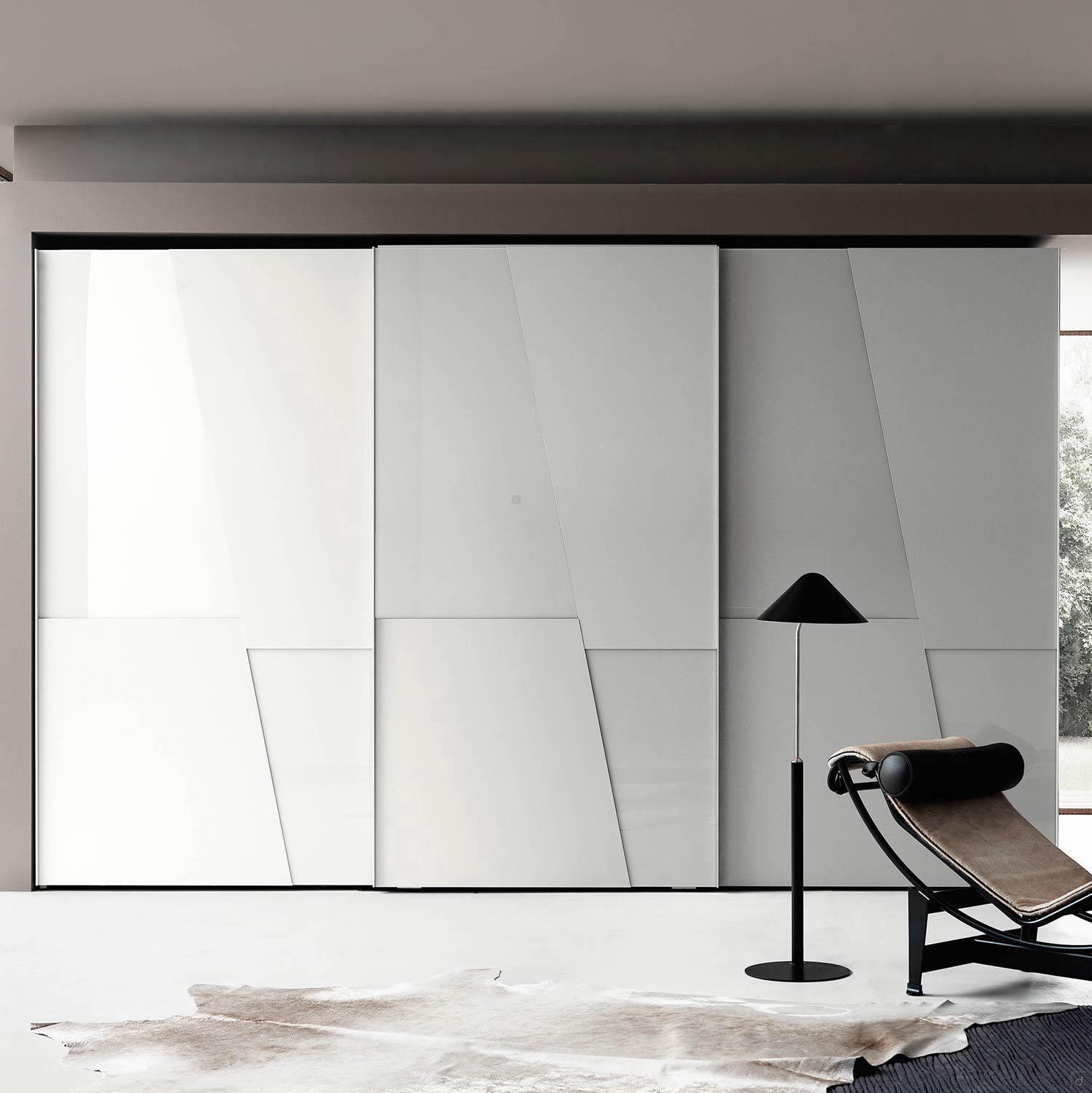

Jersey is a unique wardrobe with geometrically designed sliding doors characerised by trapezoid-shaped sections made of different materials for an elegant material contrast.
Two of the four trapezoids that make up each door are in frosted or glossy glass, available in 10 colours to ensure a perfect match with the remaining panels and the structure of the entrie wardrobe.

Characteristics

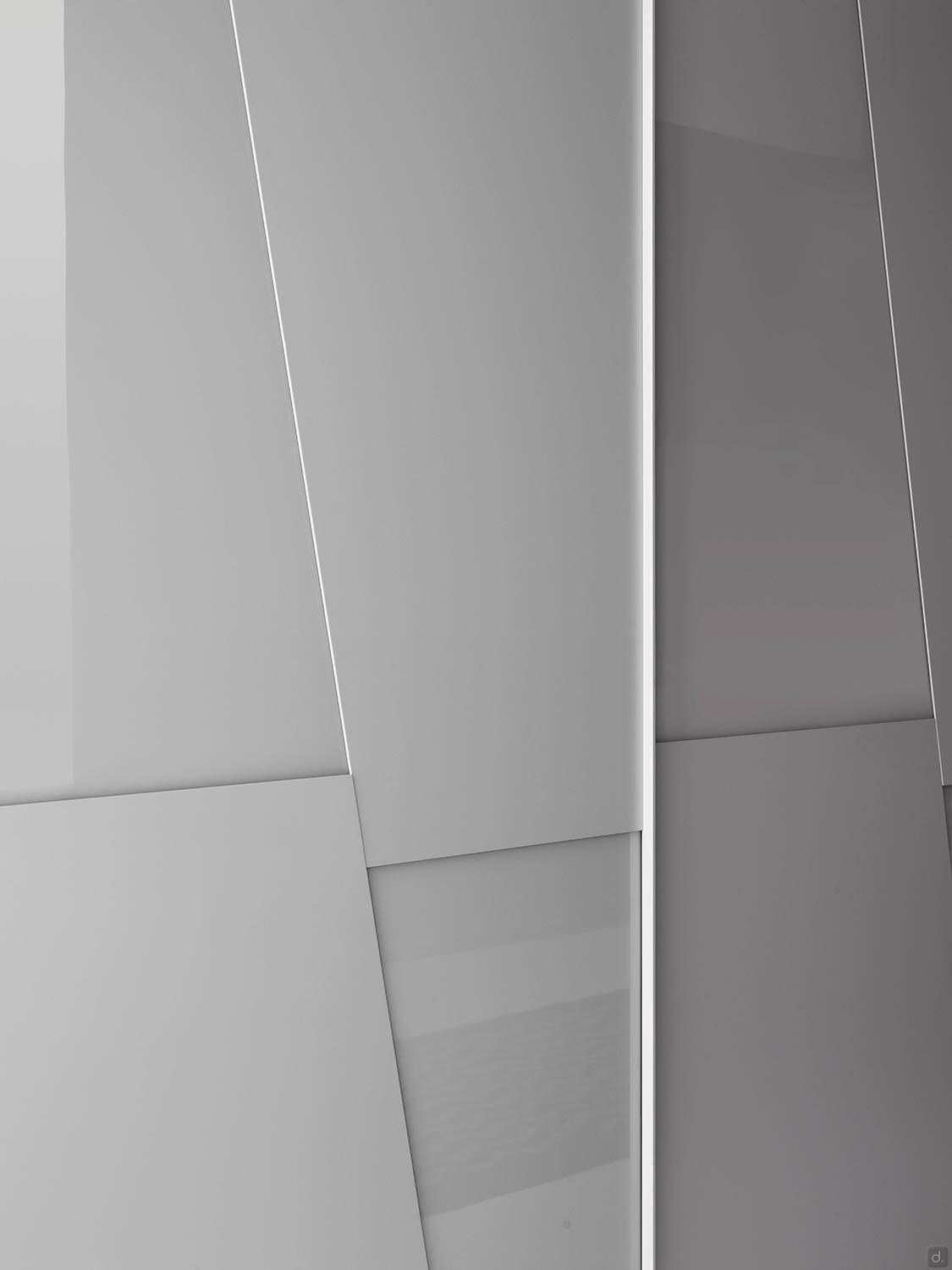

sliding doors with an oblique and horizontal cut forming 4 irregular trapezoids
original and modern design to make your bedroom unique
perfect combination of glossy or frosted glass with textured and lacquered finishes
available up to 452,5 cm wide, in 2 heights and depths

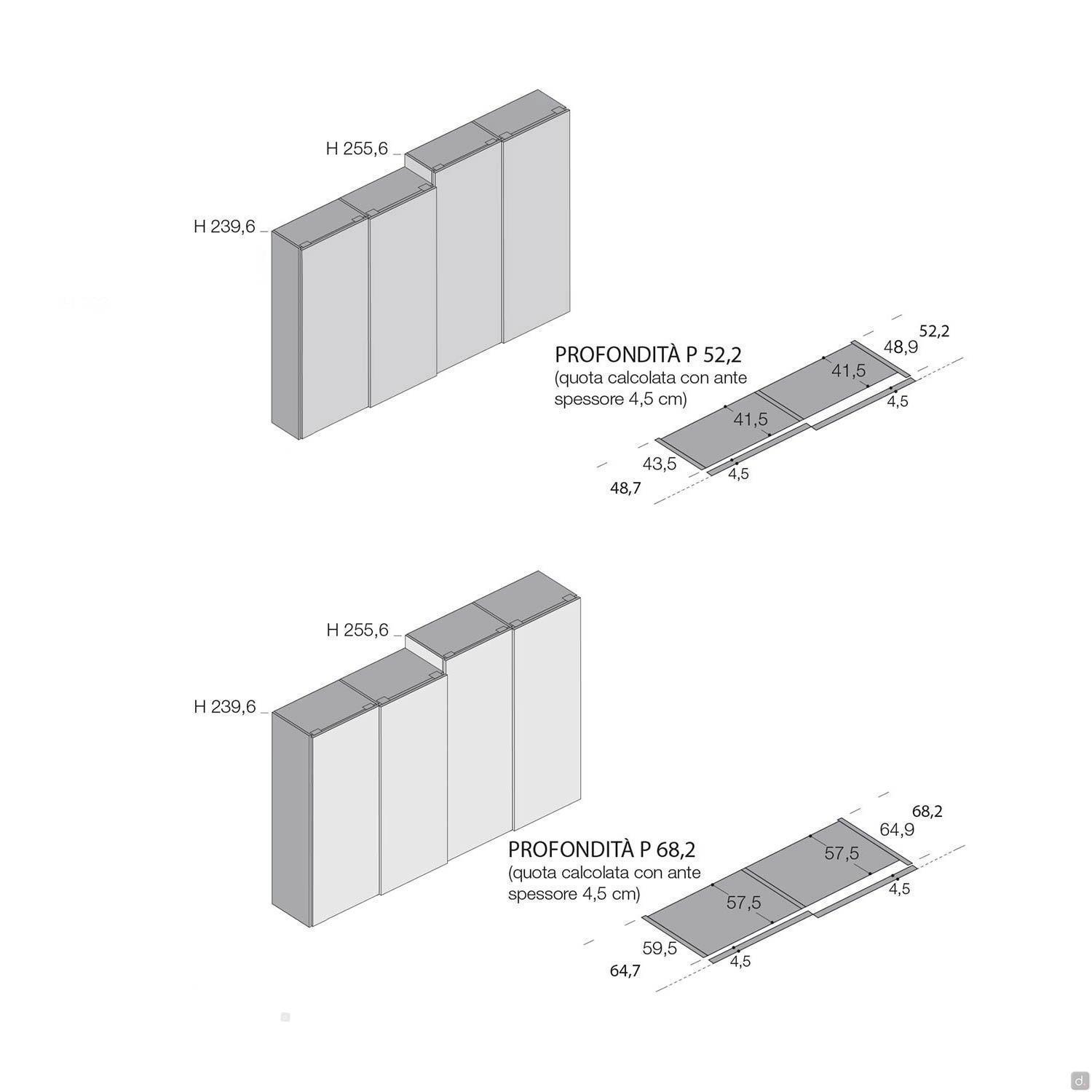

Measurements
Width: from cm 242,5 to 452,5
Height: cm 239,6 / 255,6

Wardrobe Depth Specifications d.52,2:
- complessiva: cm 52,2 (external doors) / cm 48,7 (internal doors)
- structure: cm 48,9 (external doors) / cm 43,5 (internal doors)
- interna: cm 41,5

Wardrobe Depth Specifications d.68,2:
- overall: cm 68,2 (external doors) / cm 64,7 (internal doors)
- structure: cm 64,9 (external doors) / cm 59,5 (internal doors)
- internal: cm 57,5

Materials and Finishes

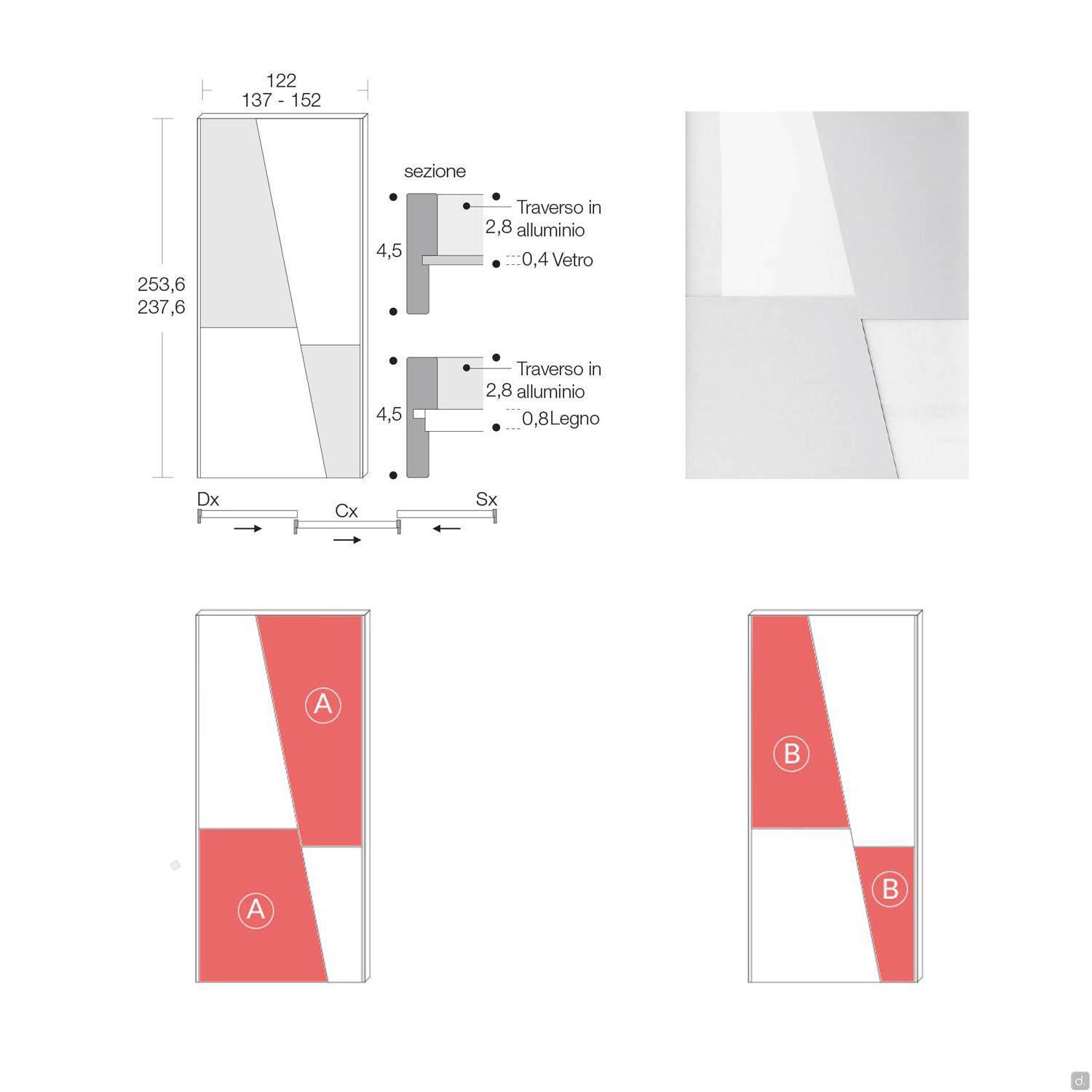

Door and Wardrobe Part A:
- melamine
- matte lacquer
Door Part B:
- frosted / glossy glass
Door Frame:
- matte lacquer metal
Interior:
- melamine

Purchase Information
Each module of the wardrobes with a depth of cm 52,2 includes a standard internal shelf; each module of the wardrobes with a depth of cm 68,2 includes an internal shelf and 2 clothes hanging rods.

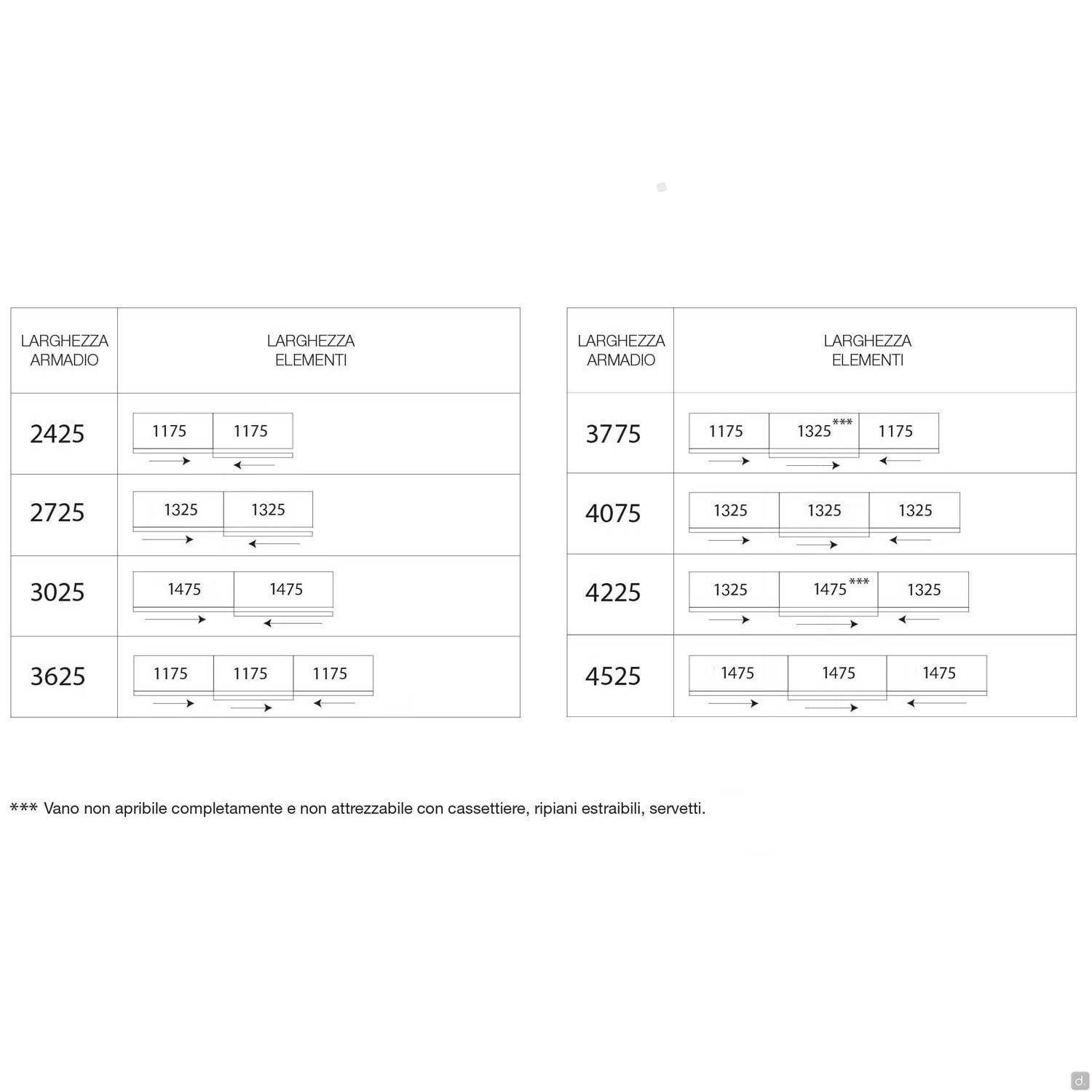

In 2-door wardrobes the outside door is always positioned to the right; in 3-door wardrobes the middle door always opens from left to right (see diagrams in the image gallery).
In the cm 377,5 / cm 422,5 widths, the cm 132,5 / 147,5 modules cannot be fully opened and therefore cannot be equipped with drawer units, pull-out shelves and pull-down hanging rods (marked with "***" in the diagram in the image gallery).
All sliding doors, especially those cm 72,5 and cm 147,5, must be assisted with opening and closing.

Technical study

Material Specifications
Sides, partitions, top, backs: made of class E1 low formaldehyde emission wood particle board panels.
Doors: made from 8 mm thick class E1 wood particle board panels with low formaldehyde emission (with textured melamine finish), with 8 mm thick medium density panels (with lacquered finish). Matte lacquering carried out with polyurethane varnish. 4 mm thick tempered glass panel. Full-height frames used as handles in matte lacquered aluminium.

Technical Specifications and Equipment
Sides and partitions: thickness 2.5 cm. For sides ABS edge. For the partitions, ABS edge to match the interior. Complete with adjustment feet inserted in the thickness and adjustable cm 1,2.
Top and bottom: thickness cm 2,5. ABS edge to match interior.
Backs: thickness cm 0,8.
Internal shelves: thickness cm 3,5. ABS edging to match interior.
Clothes hanging rods: rectangular section cm 3 x 1, in Gunmetal painted metal (for the interior in loto natura, linen textured or medium elm), Brown (for the interior in loto taupe, loto terra, dark elm or eco-walnut), Palladium (for the interior in sand, rock and tobacco sketch).
Doors: thickness cm 4,5. ABS edging to match Door Part A. Doors come complete with dust cover profile and external adjustment rods.
Useful internal height:
- for wardrobe cm h.239,6: cm 222,6
- for wardrobe cm h.255,6: cm 238,6

Drilling Sides

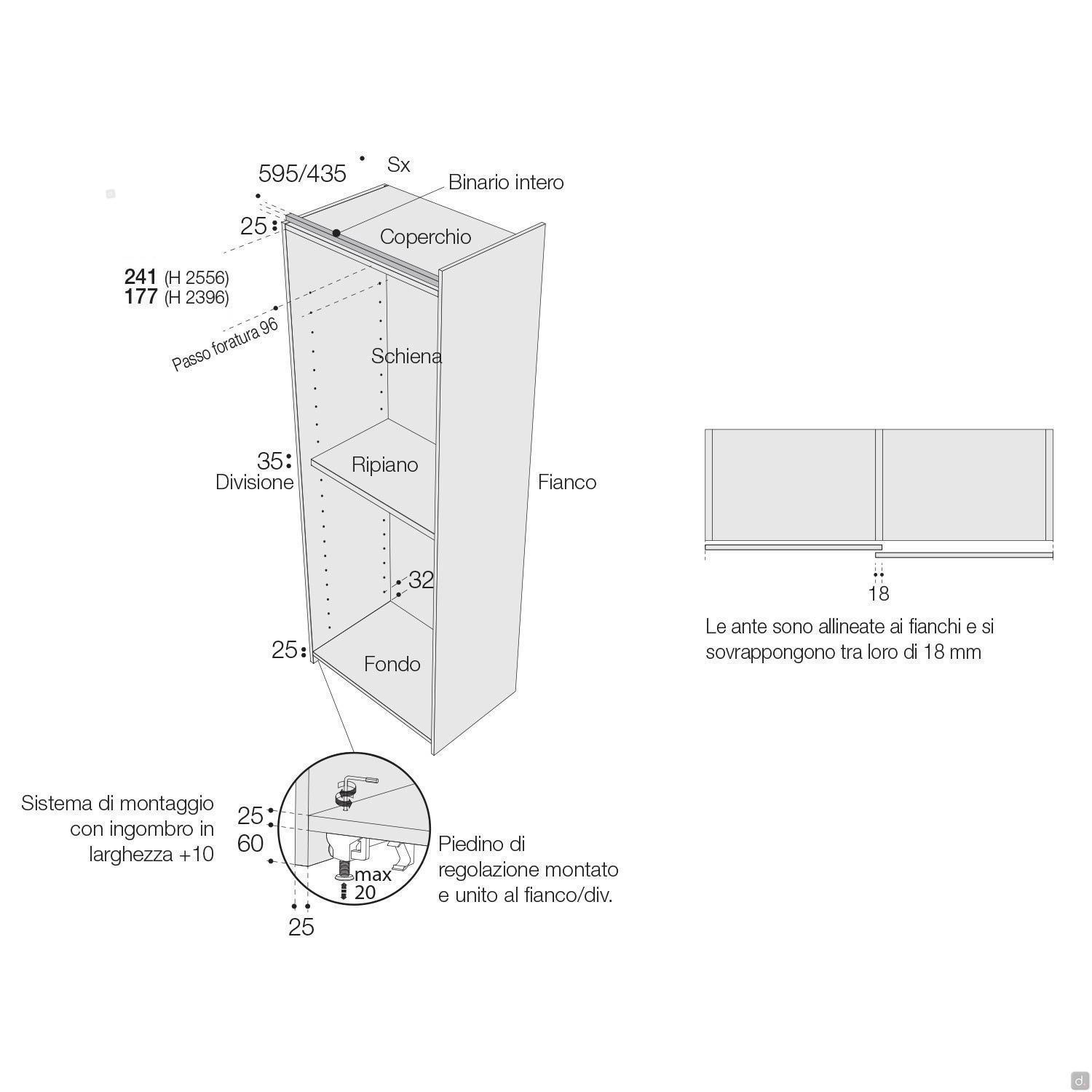

Sides and partitions have fixed holes every 9.6 cm on average. For detailed measurements, please refer to the dedicated diagram in the image gallery.

Assembly Tips
To assemble the structure, you need:
- cm 3,5 in width
- cm 6 in height

The doors can be adjusted from the front and do not require additional space at the top.

In the wardrobes cm d.43,5 at least 2 standard compartments are provided with an anti-tilt hanger to be fixed to the wall. Also in the cm d.59,5 wardrobes at least one compartment is supplied with an anti-tilt hook for use when necessary. The anti-tilt plate to be fixed to the wall is provided with spacers that allow it to be used even in the presence of skirting boards with a maximum thickness of 15 mm.

Additional Information

Area of Production
Italy
Assembling
Medium Assembling
Assembling Instructions
Download the Assembly Instructions
Cubic Metres
from 0,92 to 2,73 m³
