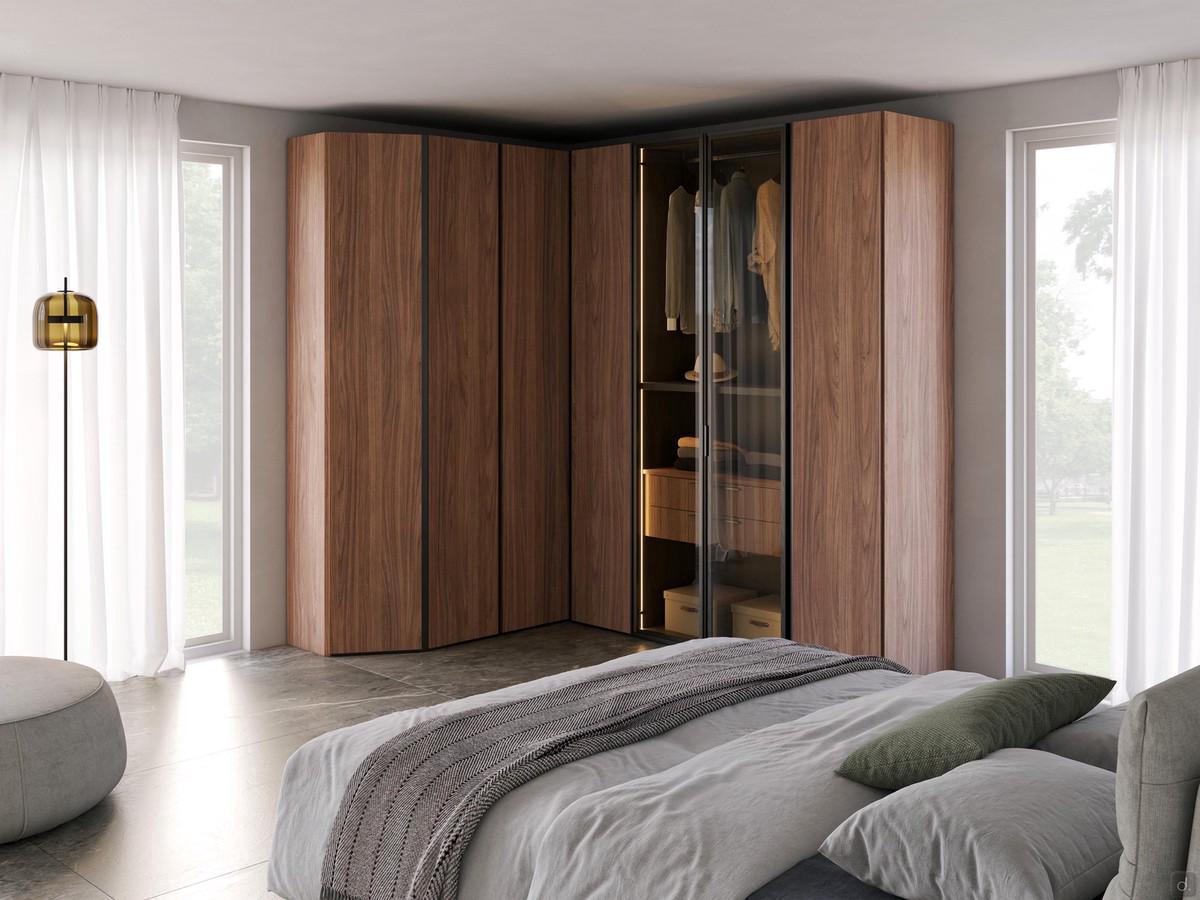

Wide hinged end piece in natural walnut melamine combined with module with bronze glass doors

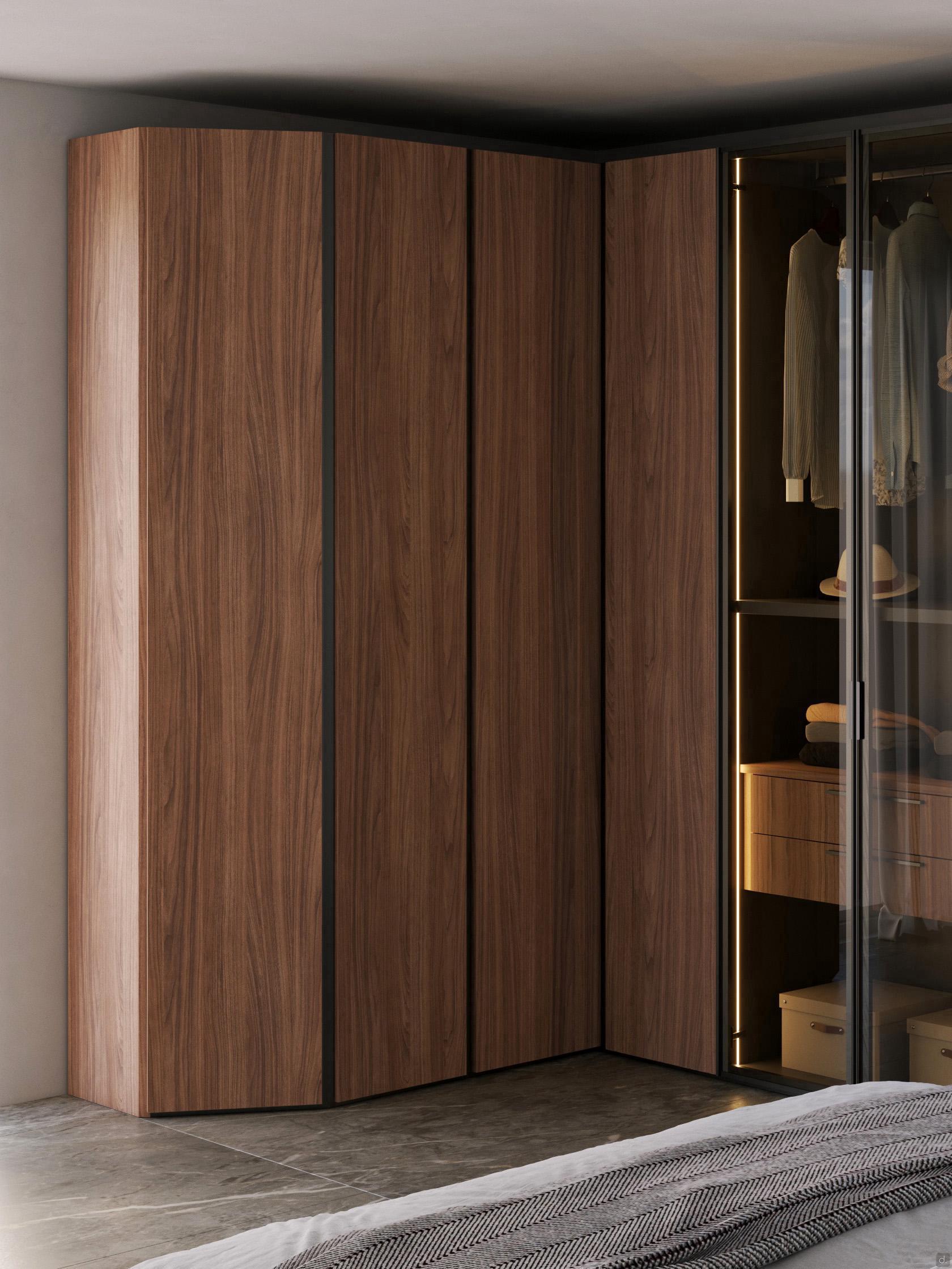

Wide hinged end cap in moka shine finish

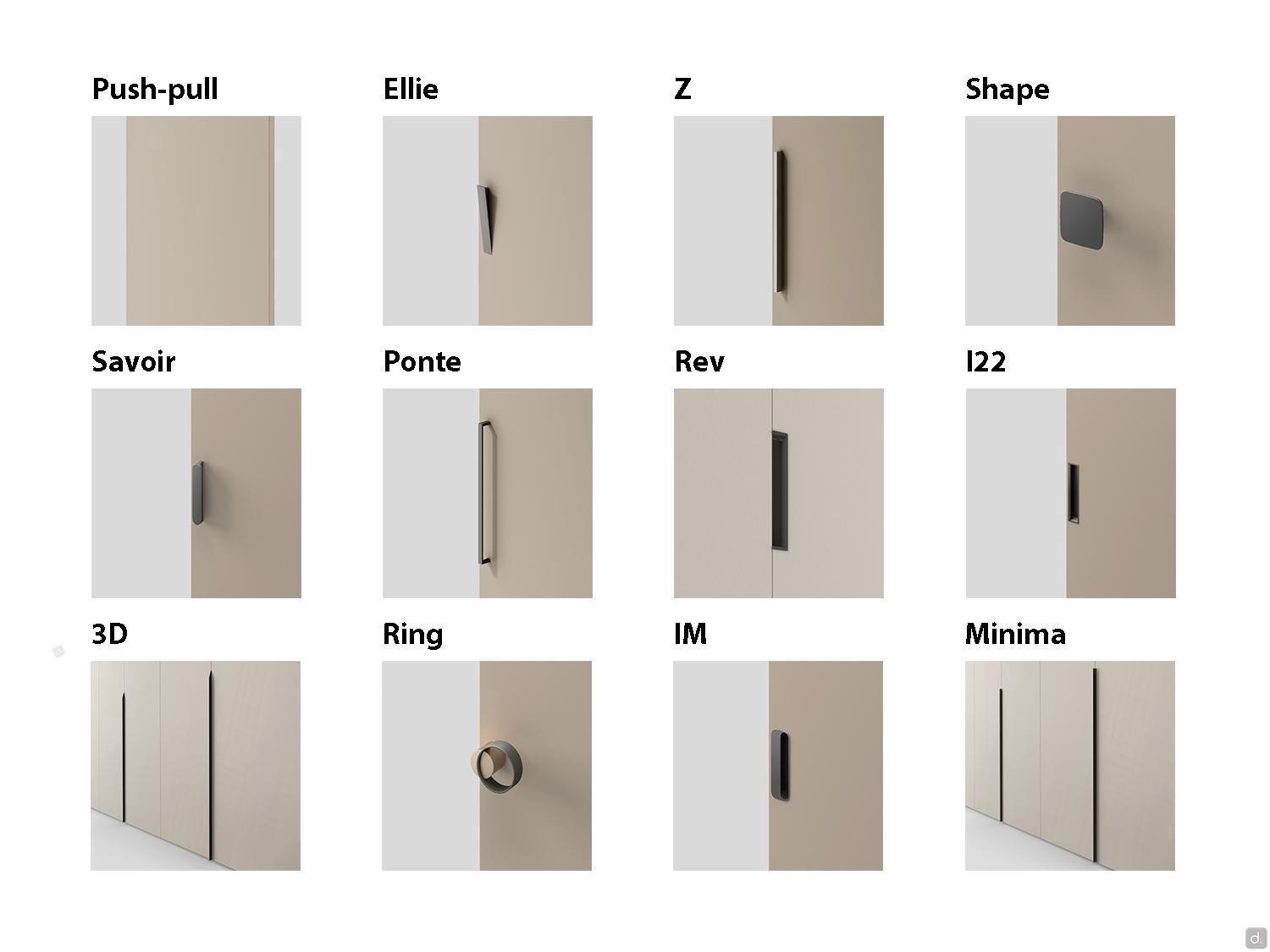

Diagram of handles available in the Wide terminal version with Focus door type

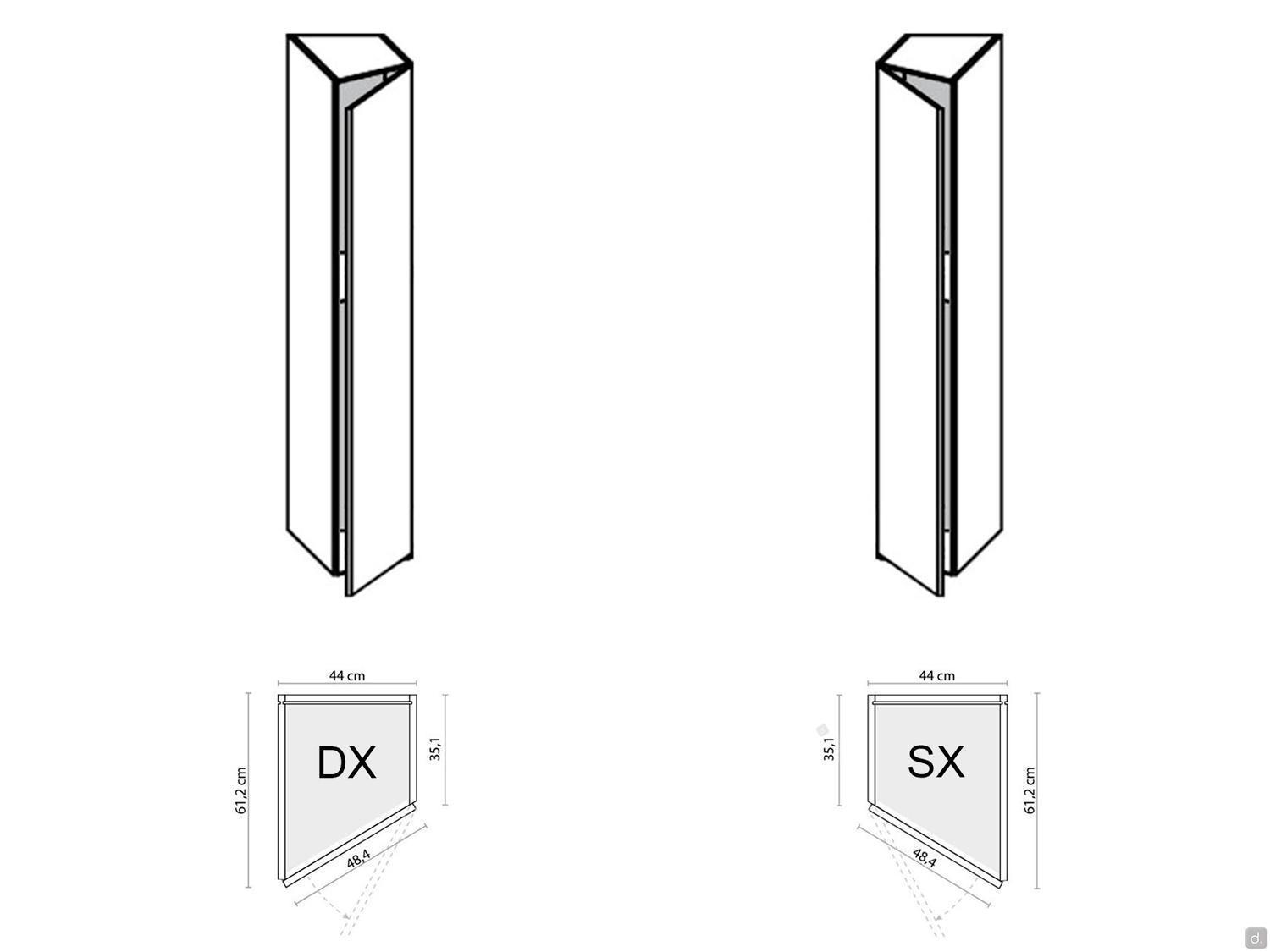

Diagram of diagonal end module positions Wide: at the end of a linear sash composition (sash opening to the right) or at the beginning (sash opening to the left)

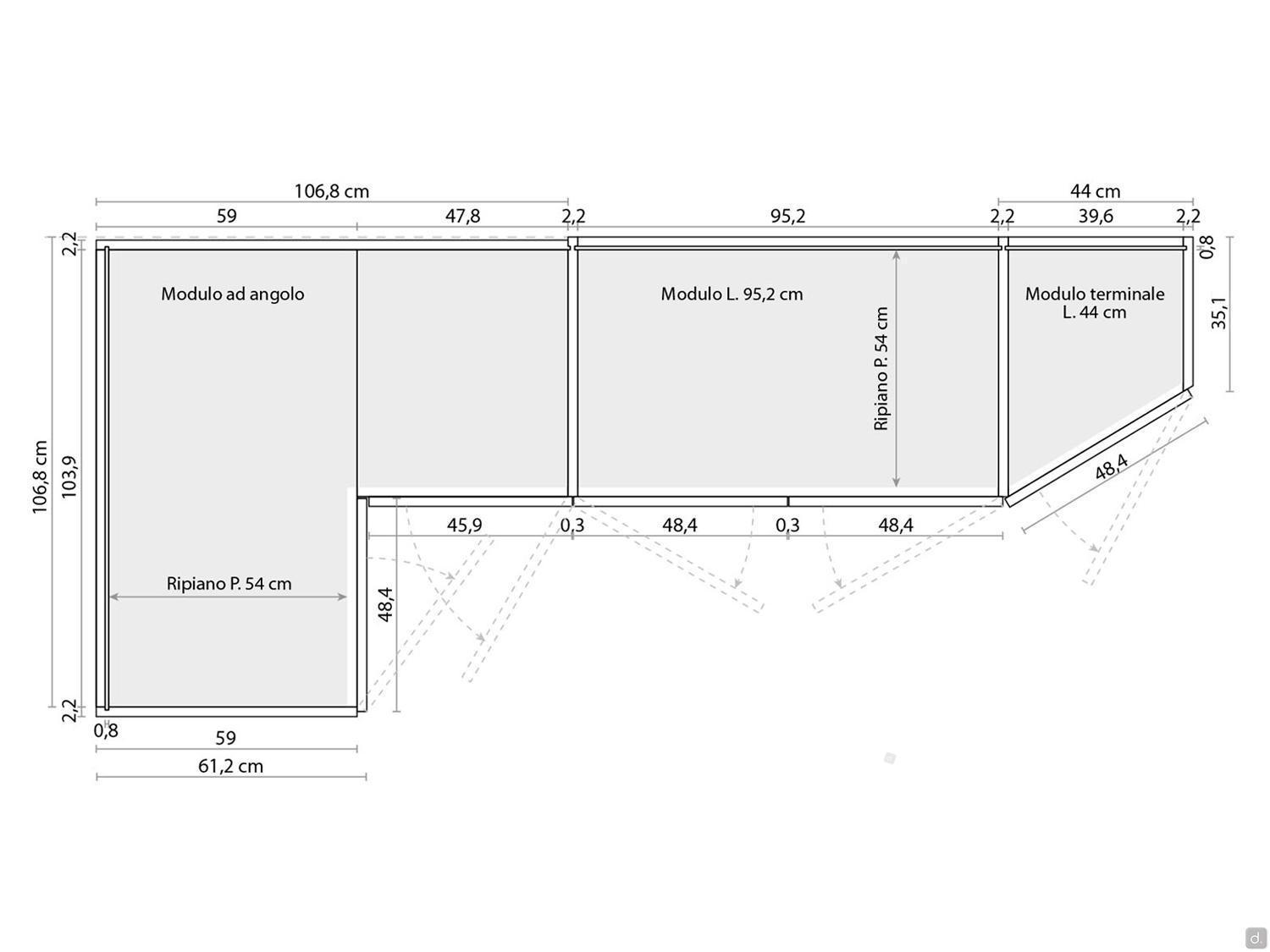

Schematics and dimensions of a Wide composition with a hinged corner unit, a linear hinged module with two doors and, closing on the right, an oblique Wide end unit

+ 2

MORE IMAGES

Wide Terminal p.61,2
Hinged Wardrobe

Wardrobe with oblique end piece for compositions with hinged doors from the Wide collection, with handle or groove, also wooden or mirrored doors.

* Required Fields

Dimensioni Elemento Terminale *

cm 44 p.61,2 / 35,1

Altezza Elemento Terminale *

Posizionamento e Verso Apertura Anta * Considerare uno sviluppo da Sx verso Dx della composizione armadio

Modello Anta *

Altezza Ante Stagionali *

anta inferiore: cm 127,7 / anta superiore: cm 101,8

Altezza Ante Stagionali *

anta inferiore: cm 127,7 / anta superiore: cm 127,4

Altezza Ante Stagionali *

anta inferiore: cm 127,7 / anta superiore: cm 162,6

Finitura Anta e Fianco *

Finitura Anta e Fianco *

Finitura Anta e Fianco *

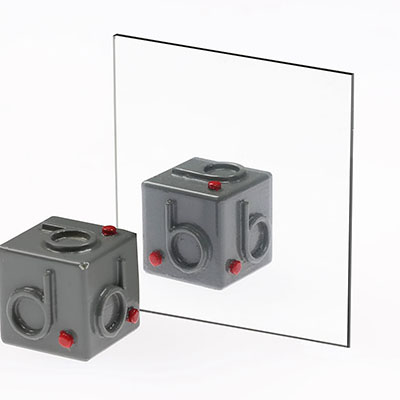

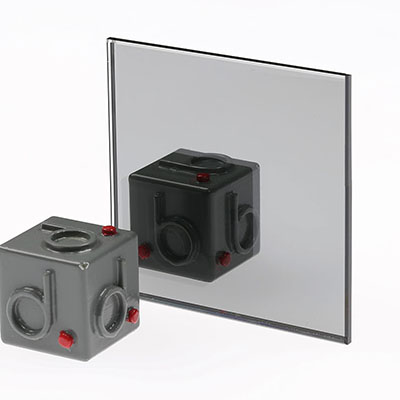

Colore Specchio *

Finitura Pannello Superiore Anta e Fianco *

Finitura Pannello Inferiore Anta *

Modello Maniglia *

Finitura Maniglia *

Finitura Maniglia *

Finitura Maniglia *

metallo verniciato Nickel, con anello esterno in metallo verniciato Moka Shine

Finitura Maniglia *

metallo verniciato peltro spazzolato

Finitura Unghiatura *

Finitura Maniglia Integrata Curva e Profilo Orizzontale *

Finitura Maniglia Integrata Curva *

Dotazioni Interne *

- n.1 ripiano cm sp.3,5
- n.2 tubi appendiabiti

Nota Bene *

I bordi di coperchio, fondo e divisione sono sempre in finitura Moka Shine.

Quantity

From €512.11

View Samples

Wishlist

Description

Wardrobe with oblique end unit for Wide collection hinged compositions with a depth of 61.2 cm, with every type of handle, nailing and material available.
Practical and functional, the Wide end unit is the ideal element to end a linear or corner composition with a space-saving module, to be positioned near the entrance to the room. It is supplied as standard with one shelf and two hanging modules, and is therefore ready to be used as a hanging compartment. Alternatively, it can be equipped with other optional shelves, up to a maximum of 5 per module.

Characteristics
wardrobe with oblique end element equipped with door with handle or groove
high customisation in height and door finish
perfect for making the most of available space
perfect for making the most of available space

Measurements
Overall measurements
- cm 44 d.61,2 / 35,1
Height: cm h.229,5 / 255,1 / 290,3
Depth:
- wardrobe: cm d.61,2 / 35,1
- body: cm d.59 / 32,9
- interior: cm d.58,2 / 32,1

Materials and Finishes
Door:
- melamine
- matt lacquered
- wood essence
- mirror
Handle and Hinge:
- lacquered metal
- lacquered metal
Interiors:
- melamine
- matt lacquered

Purchase Information
To calculate the overall measurements of your composition, simply add the width of the end module to the width of the linear hinged composition.

Technical study

Material Specifications
Doors, sides, partitions, lid, backs, internal shelves: made of class E1 particleboard panels with low formaldehyde emission.
N.B. Wood-effect melamine, barré polymeric, Metal Smoke material and Gurè material have the grain direction always vertical. Furthermore, in these cases, there is no grain continuity between the lower and upper panels of the Ocean and Level doors.

Technical Specifications and Features
Sides and partitions: 2.2 cm thick. Equipped with levelling feet inserted in the thickness (cm 0.5 drainage, to be added to the overall height of the cabinet) and adjustable cm 1 inside.
Lid: thickness cm 2,2 complete with joints for fixing, matching the interior.
Bottom: thickness cm 3.5 complete with joints for fixing, matching Interiors.
Backs: cm 0.8 thick, matching Interiors.
Inner shelf: thickness cm 3,5 complete with joints for fastening, matching Interiors.
Hanging tubes: umber shine painted metal.
Doors: cm 2.2 thick with assisted closing mechanism. Door opening by means of handle or partial vertical, full-height and horizontal nailing in white, mocha shine nickel or matt lacquered metal.
Handles:
- push-pull: positioned at the standard height of the shelf provided, which in the case of the Focus door with push-pull opening is fixed at a height of 111.8 cm, not movable.
- Ellie: cm 14,8 d.2,2 h.2,5. White, moka shine, nickel or matt lacquered metal finish.
- Z: cm 31,3 p.1,8 h. 0,9. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
- Bridge: cm 32,6 d.2,7 h.1,2. Finishes in metal painted white, moka shine, nickel or matt lacquered.
- Rev: cm 3,2 h.19,1. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
- I22: cm 4,2 p.1,5 h.19,2. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
- 3D: cm 1,7 p.1,9 h.116. Finishes in white lacquered metal, moka shine, nickel or matt lacquered.
- Minima: cm 1,9 p.2,1 h.110. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
- IM: cm 5,3 h.16,2. Finishes in white painted metal, moka shine, nickel or matt lacquered.
- Savoir: cm 3,2 p.2,6 h.17,2. Brushed pewter painted metal finish.
- Shape: cm 7 p.2,5 h.7. White, moka shine, nickel or matt lacquered metal finish.
- Ring: cm 11,9 d.5,6 h.9. Nickel painted metal finish with mocha shine painted metal outer ring.

Drilling Sides
Sides and partitions have fixed holes on average every 16 cm.

Assembly tips
The following are required for assembling the shell:
- in width cm 4
- in height cm 2.5 (cm 0.5 for levelling feet in unloaded position + cm 2 for assembly). If the lighting system is fitted, this becomes cm 3.5.

Additional Information

Area of Production
Italy

Approximate Time
8-9 working weeks for production

Assembling
Medium Assembling
