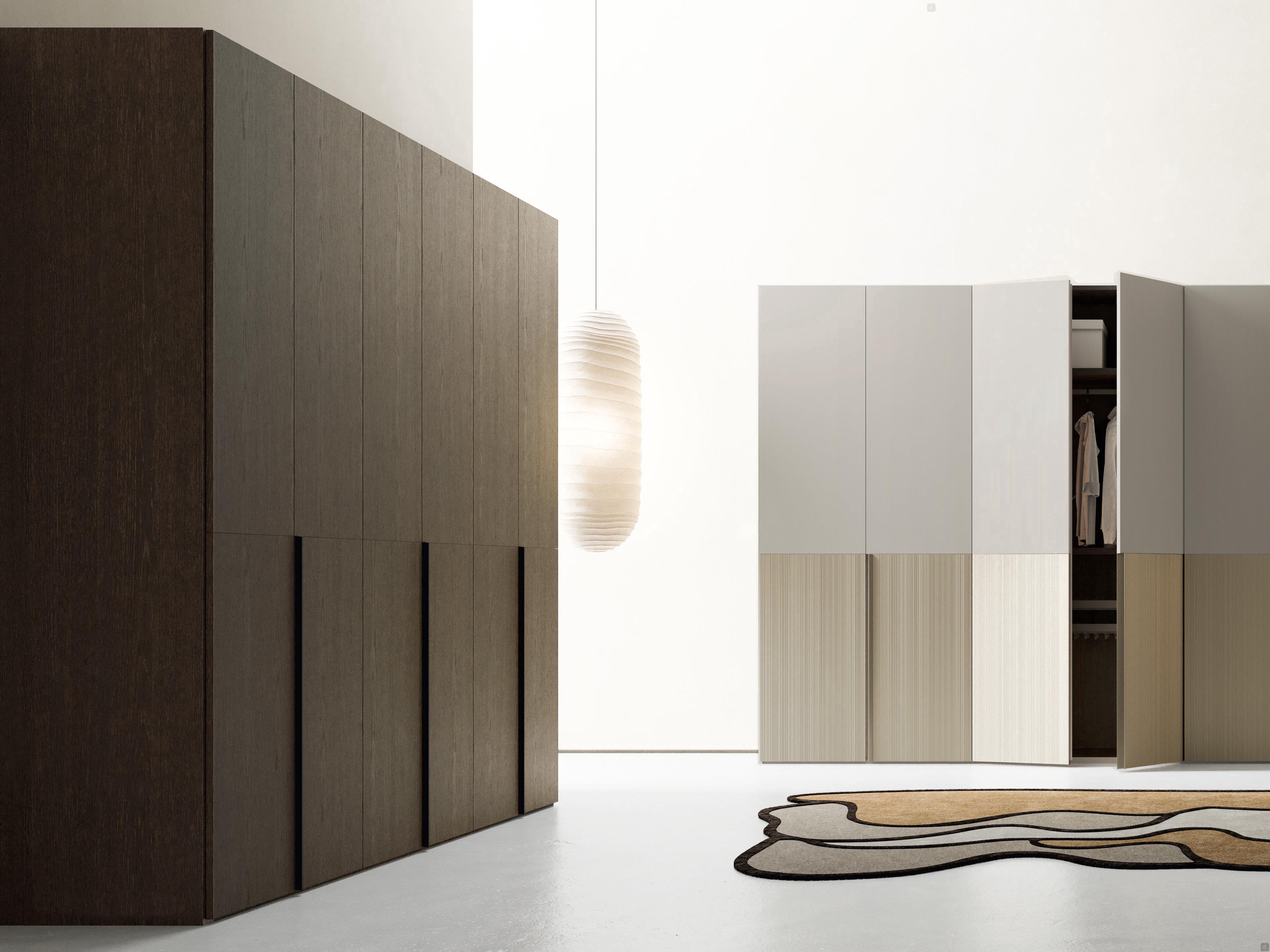

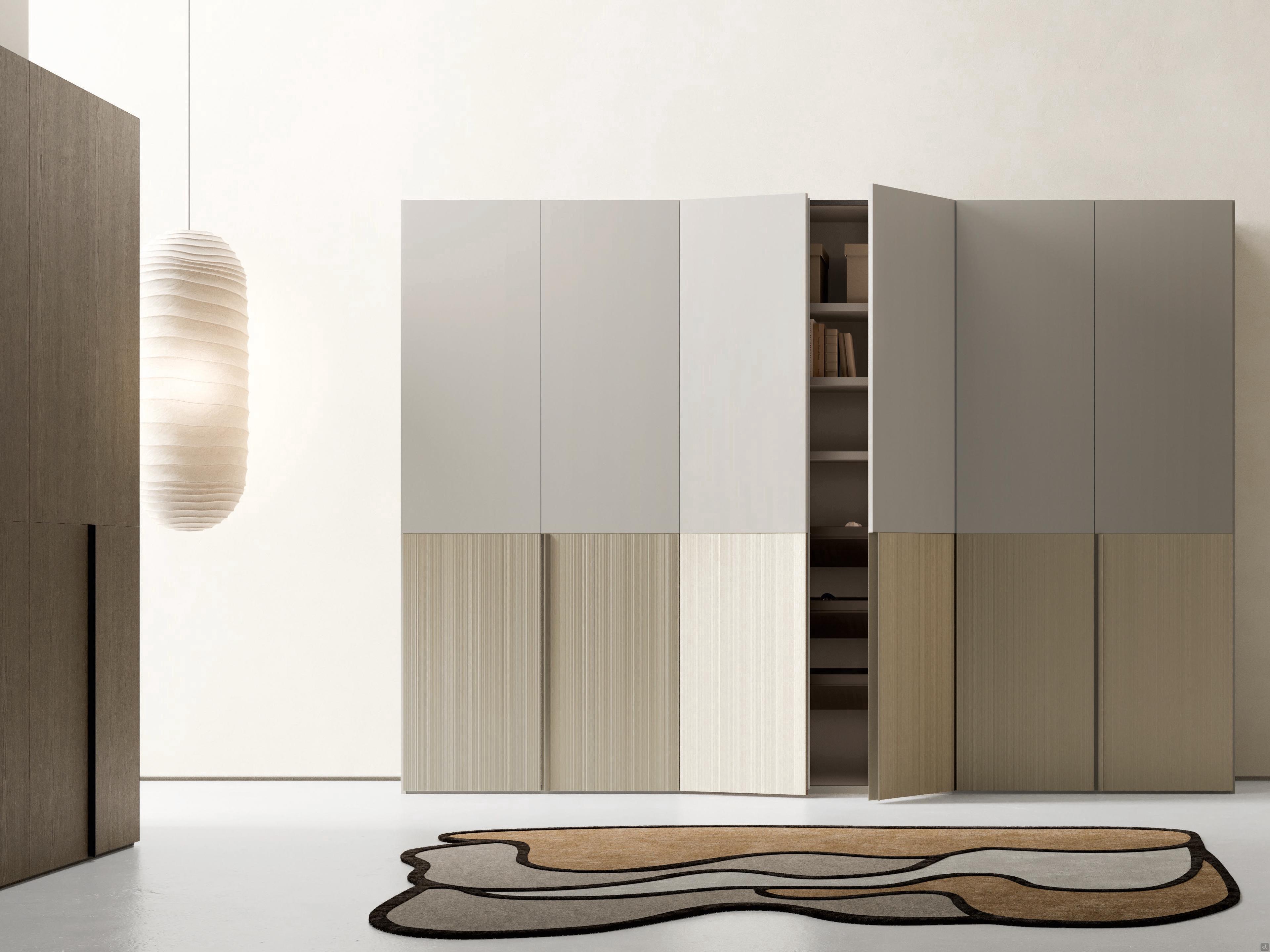

Ocean Wide wardrobe with curved lacquered metal groove handles. Single-coloured charcoal oak veneer on the left, combined with a matt lacquered bi-material base composition with bottom panels in polymeric barré

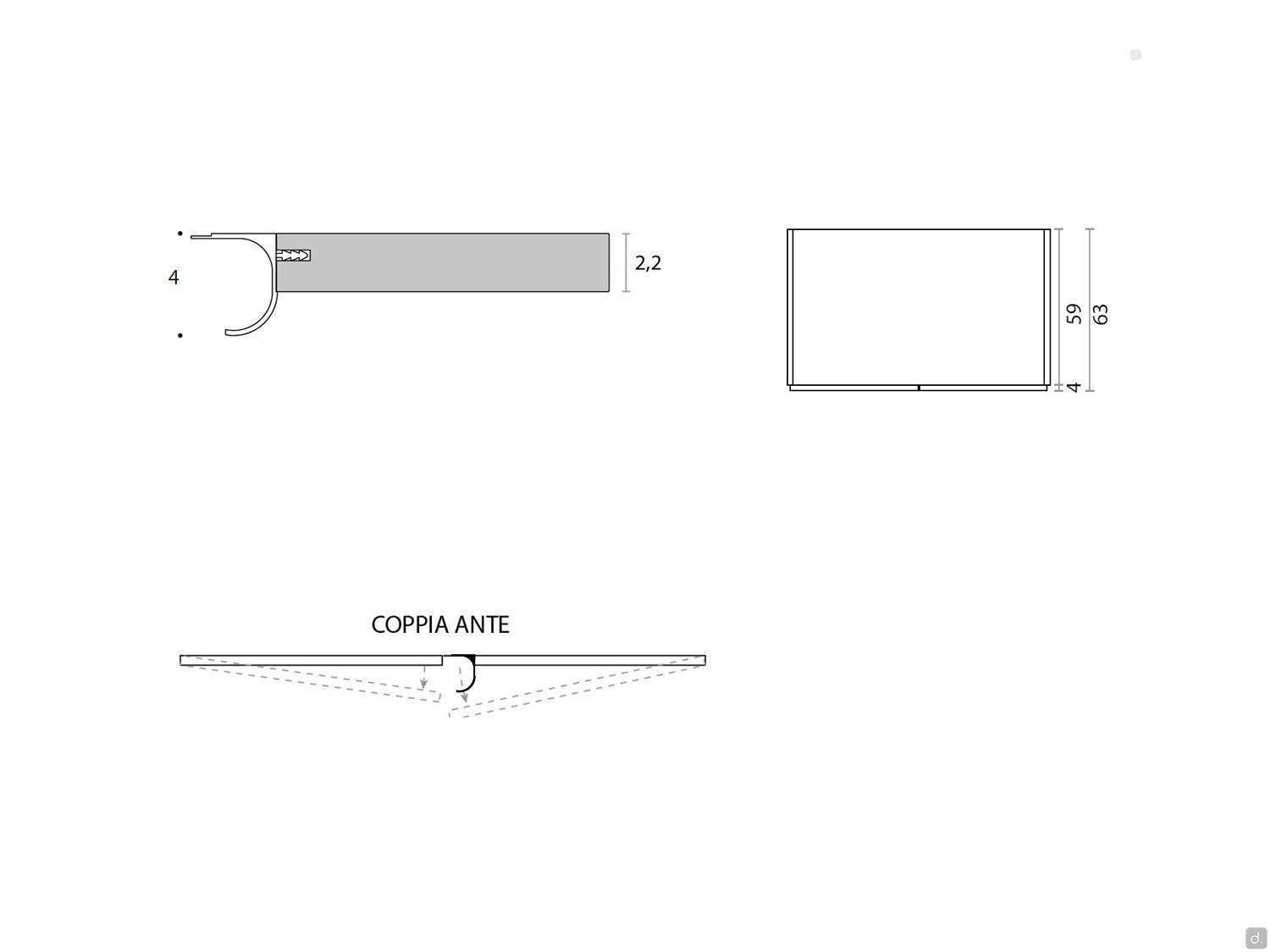

Diagram and overall dimensions in depth of the Ocean Wide cabinet, plus the exact dimensions of the characteristic painted metal opening

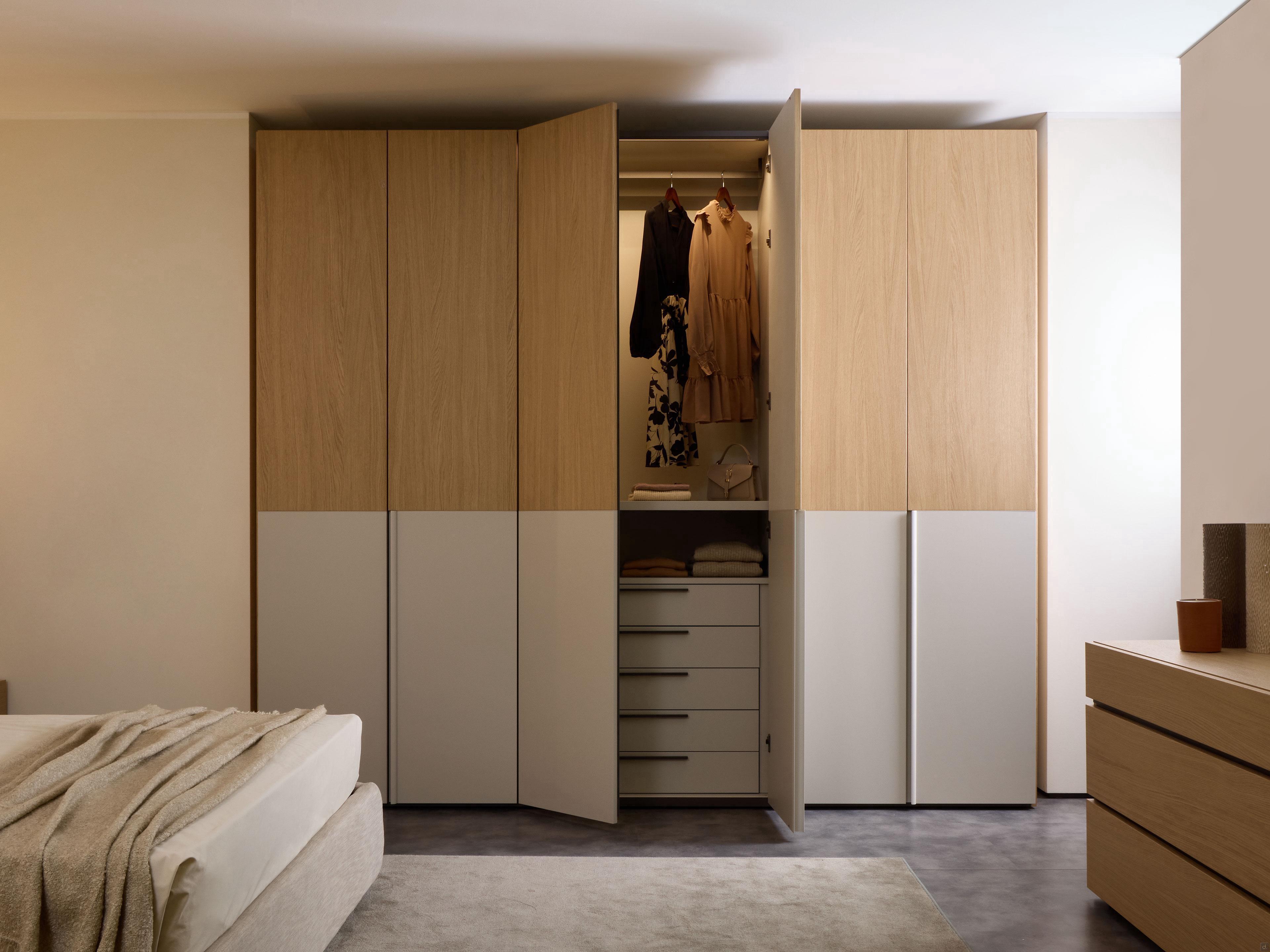

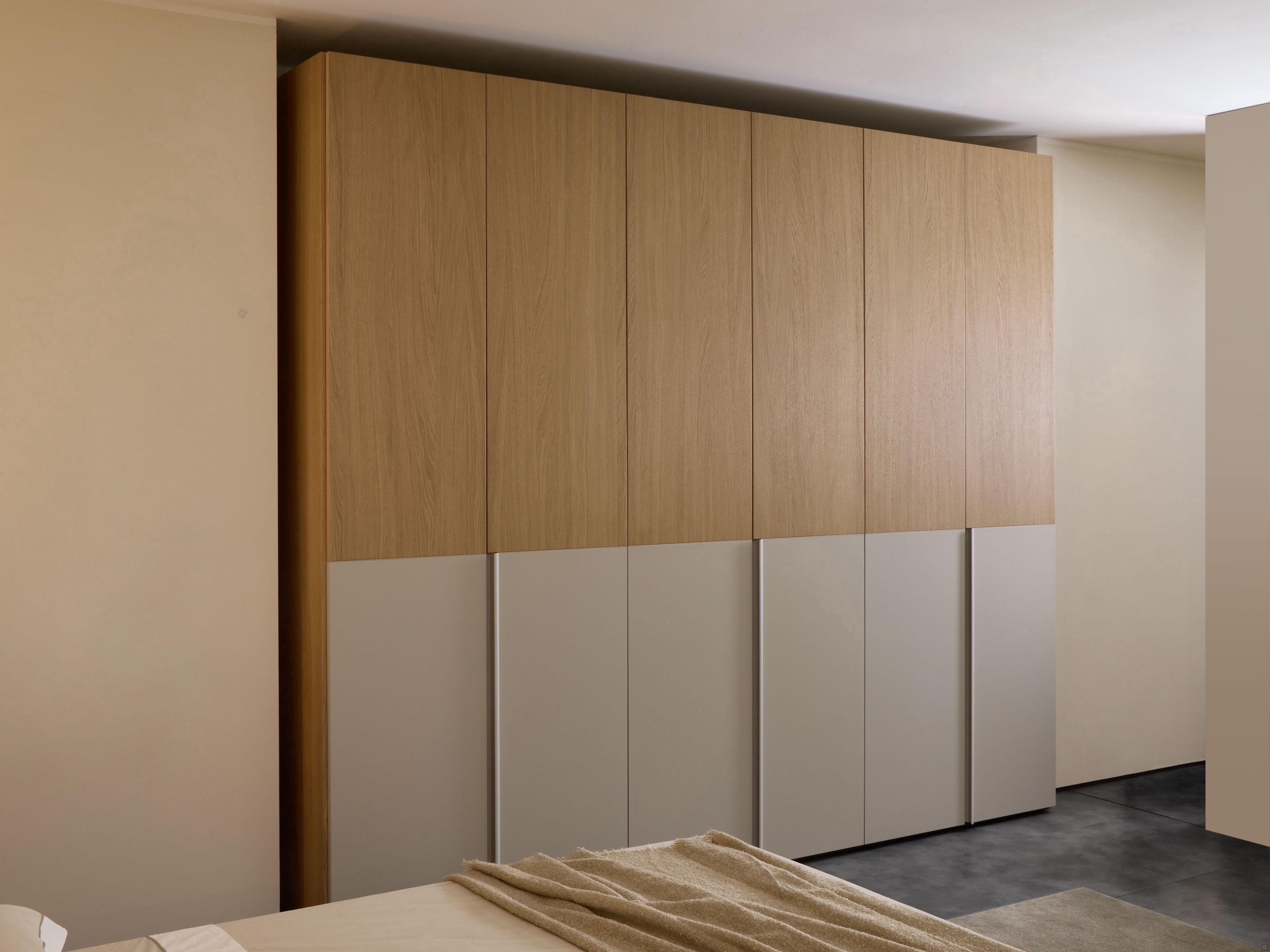

Modularity of the Ocean Wide wardrobe, which can be combined by placing elements of equal height together

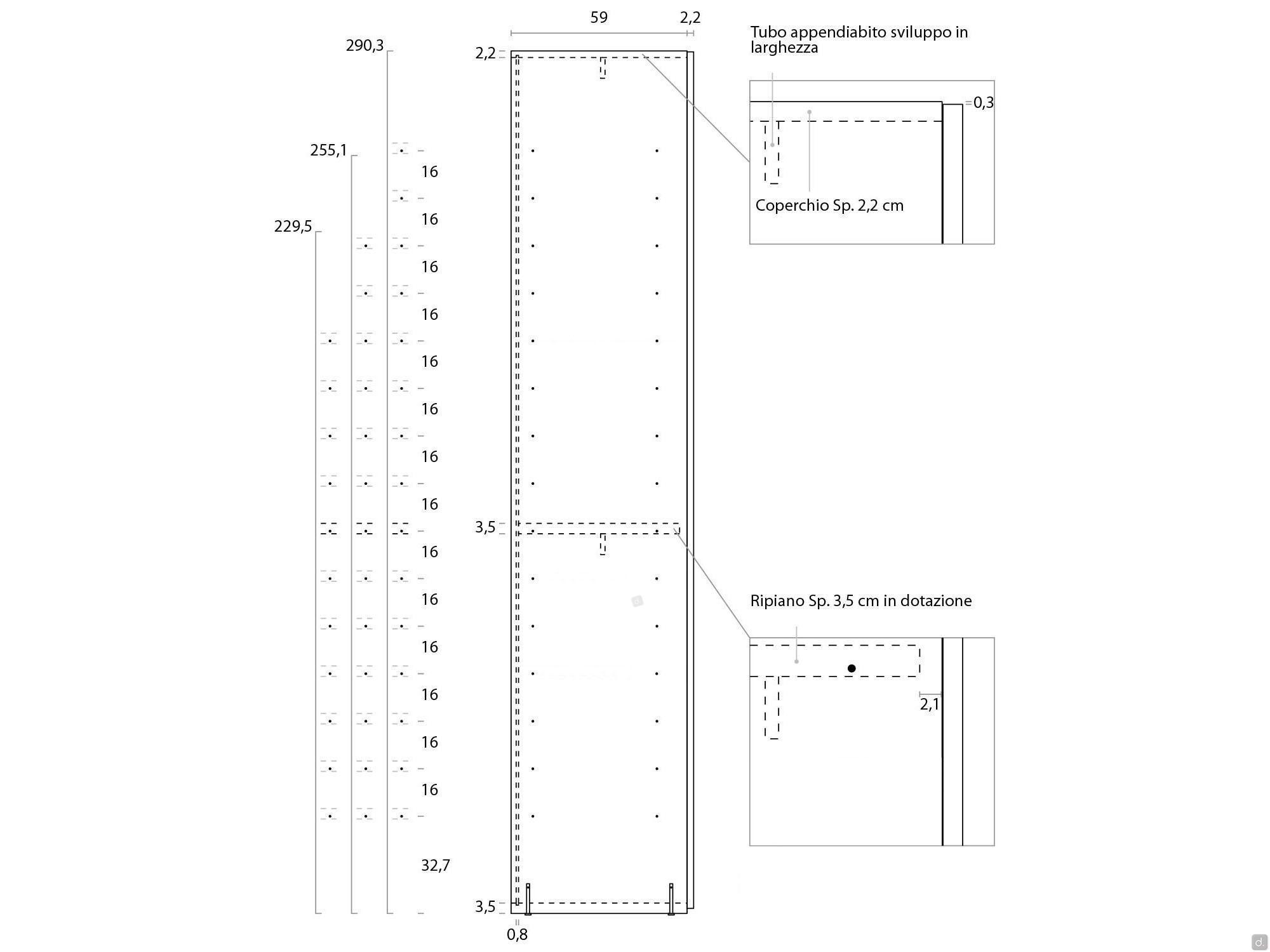

Depth and hole pattern of the Ocean Wide cabinet, with the internal equipment freely movable according to this guide

+ 3

MORE IMAGES

Ocean Wide p.61,2
Wardrobe with Recess Grip

Ocean Wide wardrobe with groove handles in melamine, matte lacquer, oak veneer or open pore in many variations. Single or two-toned hinged doors.

* Required Fields

Info per il tuo Acquisto *

Componi il tuo armadio Ocean Wide aggiungendo al Carrello i singoli moduli.

Larghezza Modulo *

Nota Bene *

Il modulo da cm 85,2 ha ante asimmetriche (cm 38,4 anta Sx / cm 48,4 anta Dx)

Altezza Modulo *

Verso Apertura Anta *

verso Destro con cerniere a Destra
verso Sinistro con cerniere a Sinistra

Finitura Pannello Superiore Anta/e *

Finitura Pannello Superiore Anta/e *

Finitura Pannello Superiore Anta/e *

Finitura Pannello Superiore Anta/e *

Finitura Pannello Superiore Anta/e *

Finitura Pannello Superiore Anta/e *

Finitura Pannello Superiore Anta/e *

Finitura Pannello Superiore Anta/e *

Finitura Pannello Superiore Anta/e *

Finitura Pannello Inferiore Anta/e *

Finitura Pannello Inferiore Anta/e *

Finitura Pannello Inferiore Anta/e *

Finitura Pannello Inferiore Anta/e *

Finitura Pannello Inferiore Anta/e *

Finitura Pannello Inferiore Anta/e *

Finitura Pannello Inferiore Anta/e *

Finitura Pannello Inferiore Anta/e *

Finitura Pannello Inferiore Anta/e *

Finitura Pannello Inferiore Anta/e *

Finitura Pannello Inferiore Anta/e *

Finitura Pannello Inferiore Anta/e *

Finitura Pannello Inferiore Anta/e *

Finitura Pannello Inferiore Anta/e *

Finitura Pannello Inferiore Anta/e *

Finitura Pannello Inferiore Anta/e *

Finitura Pannello Inferiore Anta/e *

Finitura Pannello Inferiore Anta/e *

Dotazioni Interne *

n.1 ripiano cm sp.3,5, n.2 tubi appendiabiti

Finitura Maniglia Integrata Curva e Profilo Orizzontale *

Finitura Interni *

Finitura Interni *

Finitura Interni *

nobilitato rovere bianco NR

Finitura Interni *

Finitura Interni *

nobilitato

Finitura Lato Interno Anta/e *

nobilitato skin effect NSE

Nota Bene *

I bordi di coperchio, fondo e divisione sono sempre in finitura Moka Shine.

Posizionamento * Considerare uno sviluppo da Sinistra verso Destra della composizione armadio.

Posizionamento * Considerare uno sviluppo da Sinistra verso Destra della composizione armadio.

Posizionamento * Considerare uno sviluppo da Sinistra verso Destra della composizione armadio.

Posizionamento * Considerare uno sviluppo da Sinistra verso Destra della composizione armadio.

Posizionamento * Considerare uno sviluppo da Sinistra verso Destra della composizione armadio.

Posizionamento * Considerare uno sviluppo da Sinistra verso Destra della composizione armadio.

Finitura Fianco di Chiusura *

in tinta al Pannello Superiore Anta/e

Finitura Fianco di Chiusura *

----PER ANTE NOBILITATE
in tinta al Pannello Superiore Anta/e su entrambi i lati

Info per il tuo Acquisto *

Il lato interno del fianco di chiusura è in nobilitato Skin Effect NSE.

Info per il tuo Acquisto *

Il lato interno del fianco di chiusura è in legno Fashion Wood, in tinta al lato esterno.

Info per il tuo Acquisto *

Il lato interno del fianco di chiusura è in Nobilitato Rovere Bianco NR

Quantity

From €465.94

View Samples

Wishlist

Description

Ocean Wide wardrobe with groove handles in melamine, matt lacquer, oak veneer or open pore in many variations. Single or two-toned hinged doors. Also available in a single-colour version, the Ocean wardrobe allows for an infinite number of combinations of very different variants and materials: for example, it is possible to opt for a single matt lacquered or oak veneered material, or to enliven the composition by combining matt lacquered with lower panels in practical and resistant melamine.

Characteristics
two-tone / bi-material doors with a variety of possible colour combinations
also single-colour and single-material version in melamine, matt lacquered, oak veneer or open pore
maximum compositional freedom thanks to the combination of hinged, corner, bookcase and bridge modules
opening with the elegant curved lacquered metal handle
doors with assisted closing mechanism integrated in the hinges

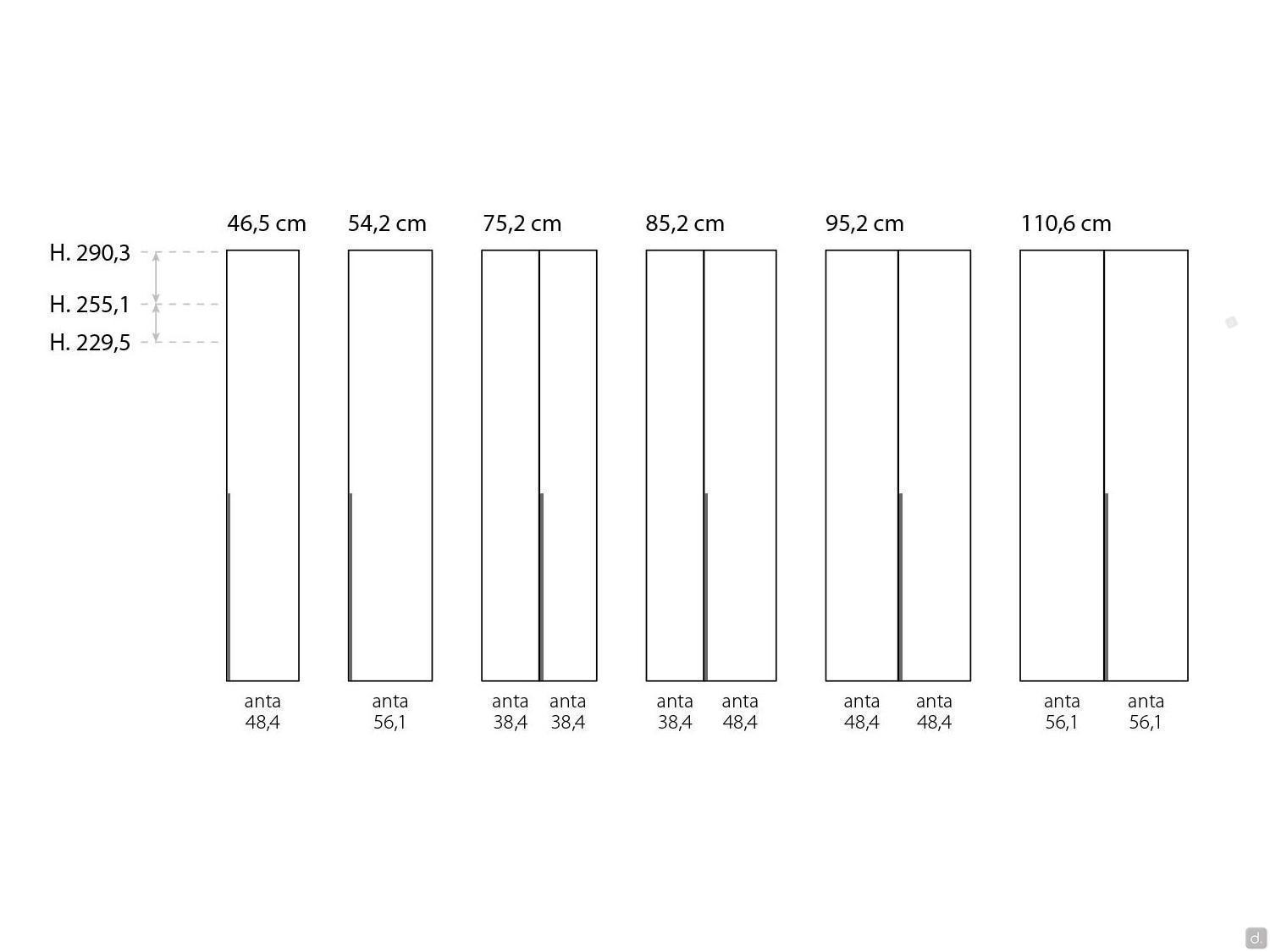

Measurements
Width: cm 48.7 to 112.8 per module (useful internal width cm 46.5 to 110.6)
Height: cm h.229,5 / 255,1 / 290,3
Depth:
- wardrobe: cm d.61,2 (including integrated curved handle: cm d.63)
- body: cm d.59
- useful interior: cm d.58,2

Materials and Finishes
Door:
- melamine
- matt lacquered
- wood essence
Sides:
- melamine coated
- matt lacquered
- wood essence
Curved integrated handle
- painted metal
- matt lacquered metal
Interiors:
- melamine-faced
- matt lacquered melamine

Purchase Information

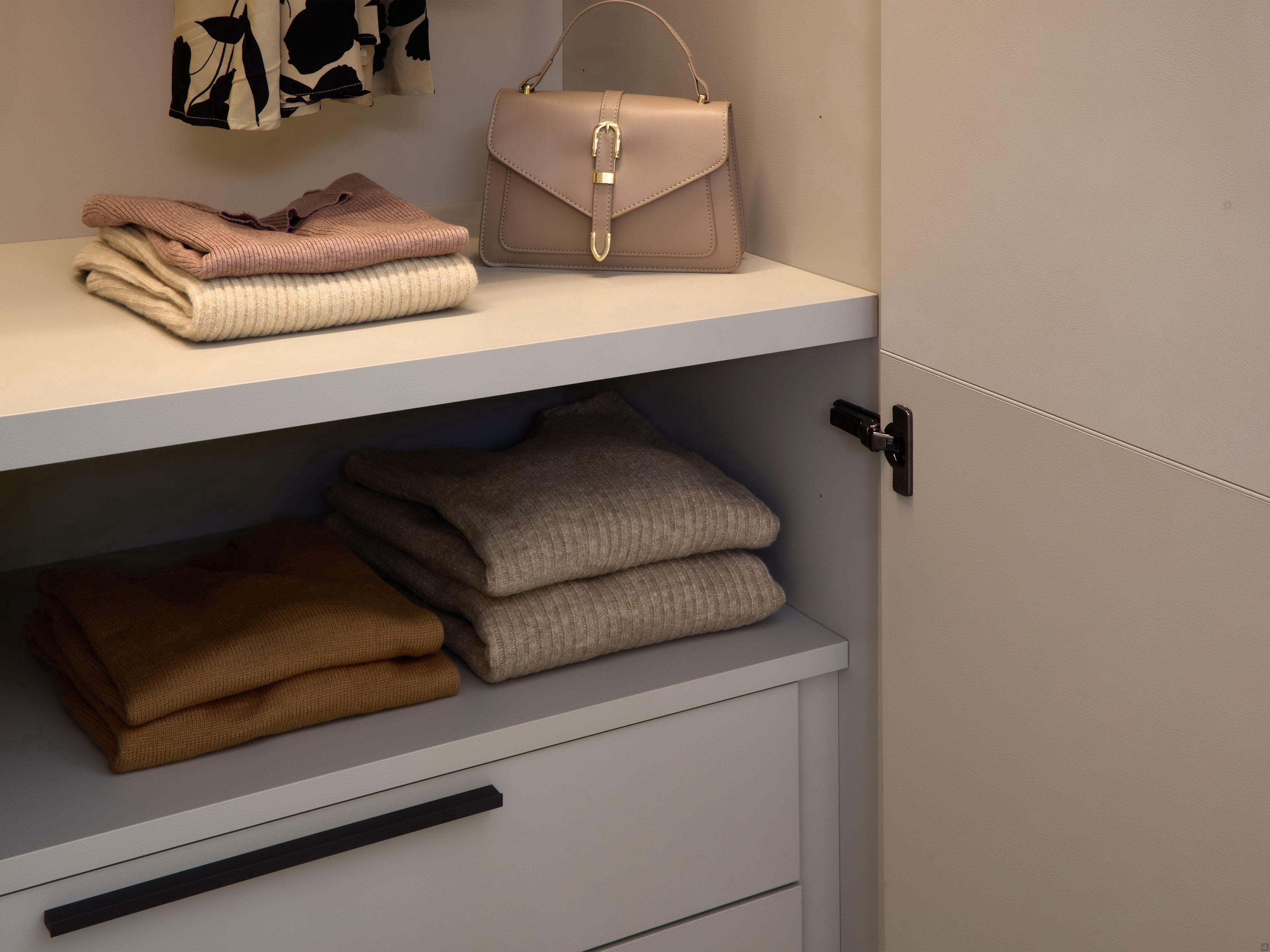

Each module includes a shelf and two hanging tubes as standard.
You can purchase other interior equipment in the Wide Hinged Internal Accessories product sheet and add the desired items to your shopping basket.

Technical study

Material Specifications
Doors, sides, partitions, lid, backs, internal shelves: made of class E1 particleboard panels with low formaldehyde emission.

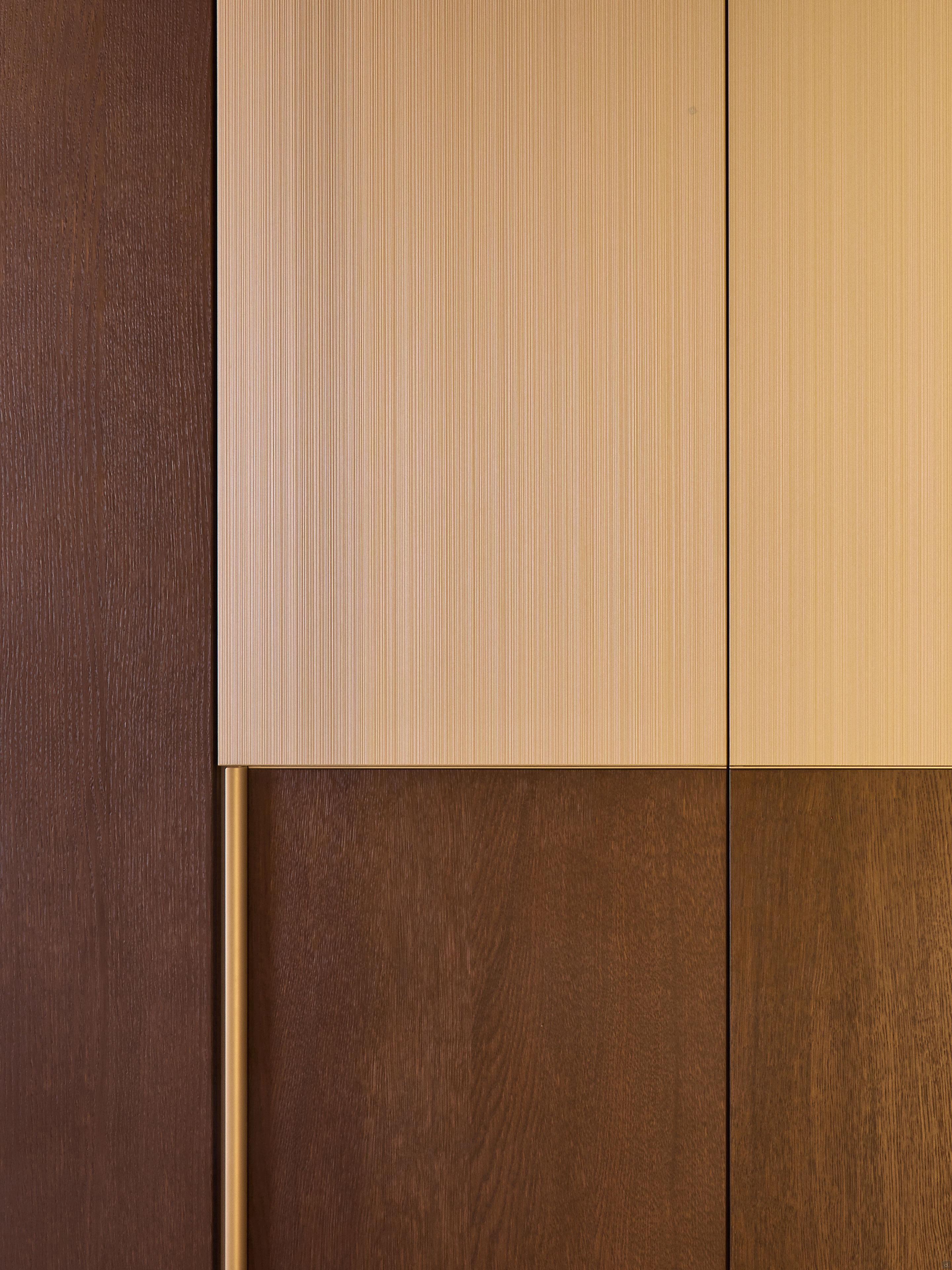

N.B. Wood-effect melamine, barré polymeric and Metal Smoke / Gurè material laminates always have a vertical grain direction. Furthermore, in these cases, there is no grain continuity between the lower and upper panels of the Ocean doors.

Technical Specifications and Features
Sides and partitions: 2.2 cm thick. Equipped with levelling feet inserted in the thickness (cm 0.5 drainage, to be added to the overall height of the cabinet) and adjustable cm 1 from the inside.
Lid: thickness 2.2 cm complete with joints for fixing, matching the interior.
Bottom: thickness cm 3.5 complete with joints for fastening, matching Interiors.
Backs: thickness 0.8 cm to match Interiors.
Internal shelves: thickness cm 3,5 complete with joints for fastening, matching Interiors.

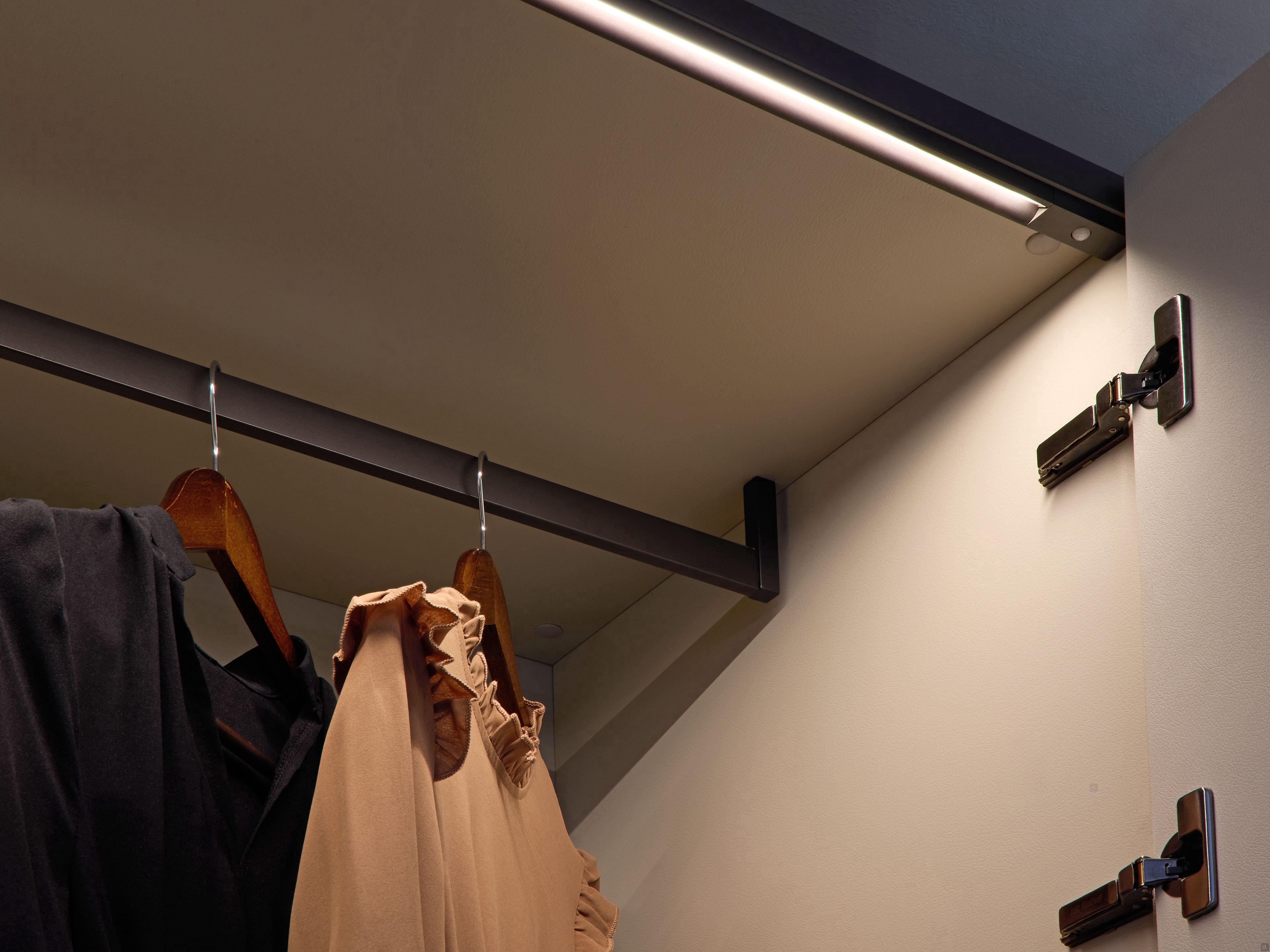

Hanging tubes: umber shine painted metal. The wardrobe modules are supplied with clothes-hanging tubes in the Standard version: within the product "Wide Hinged Internal Equipment" linked at the bottom of the page you can then choose the Premium version, with a squarer profile.
Doors: 2.2 cm thick. Ocean doors are made up of a lower panel with a fixed height of 110 cm and an upper panel with a height that varies according to the height of the cabinet: between the two panels is a horizontal metal profile that matches the integrated curved handle. In modules with two hinged doors, a pvc rebate dust cover is installed on the left door.

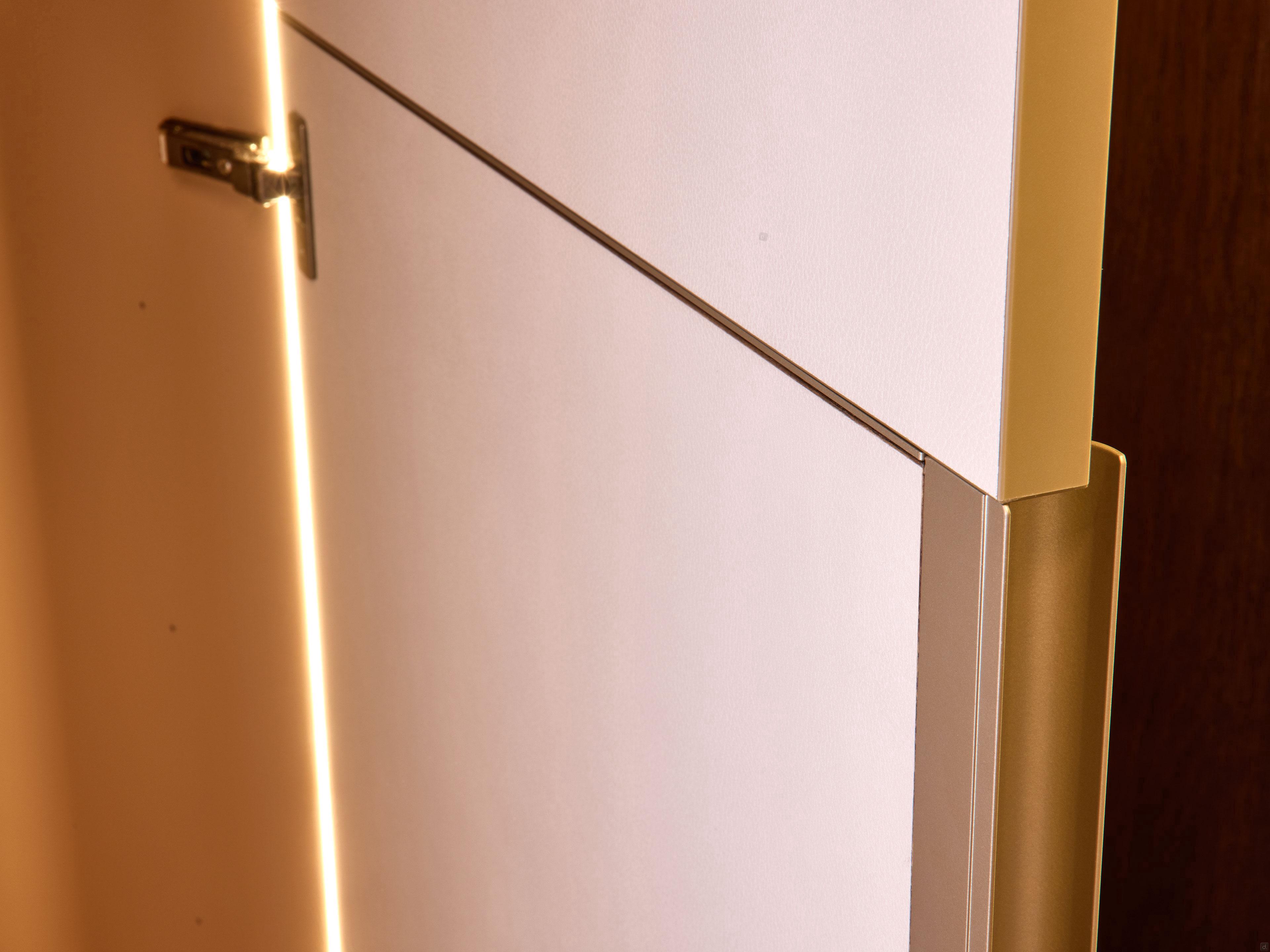

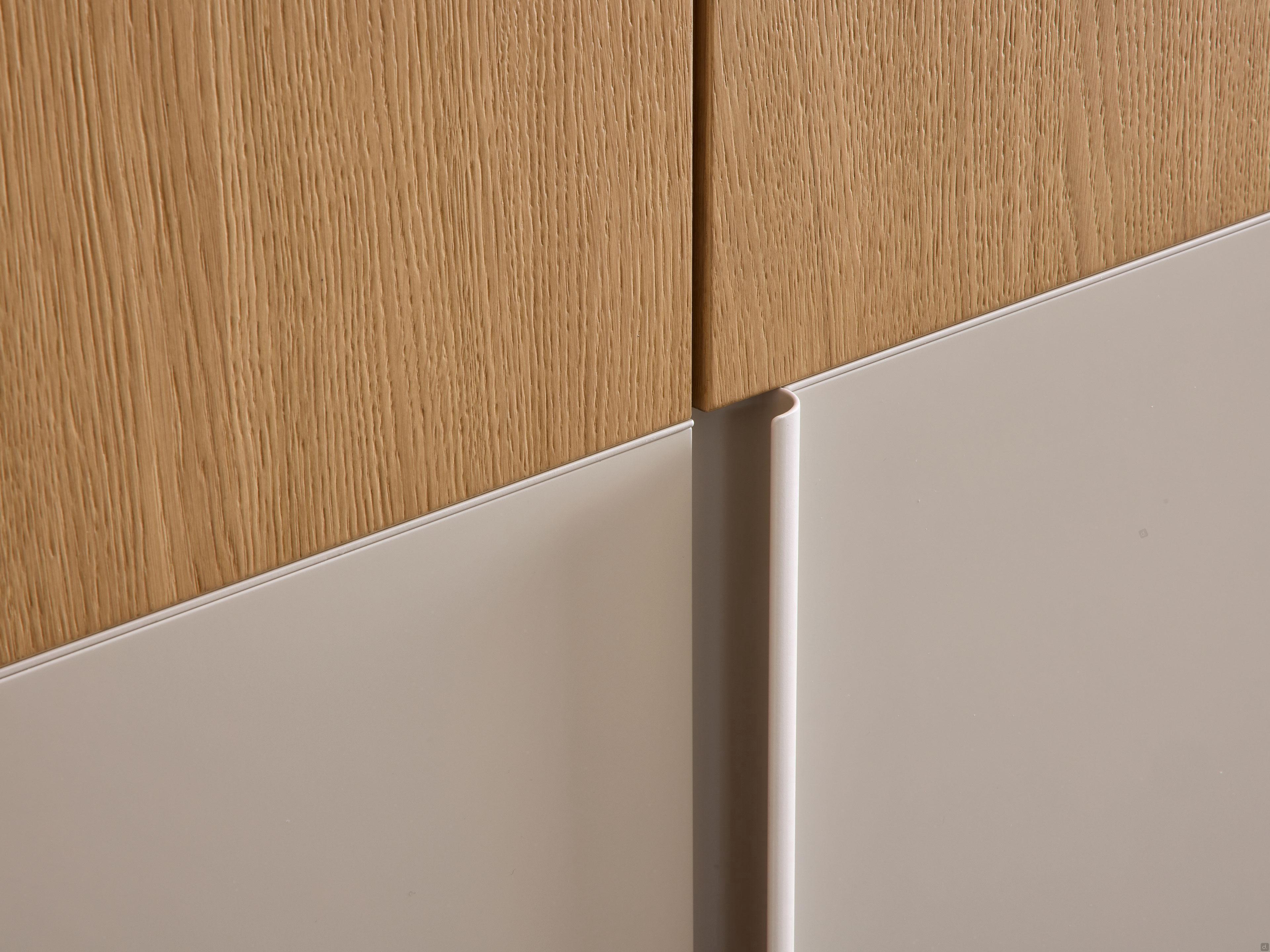

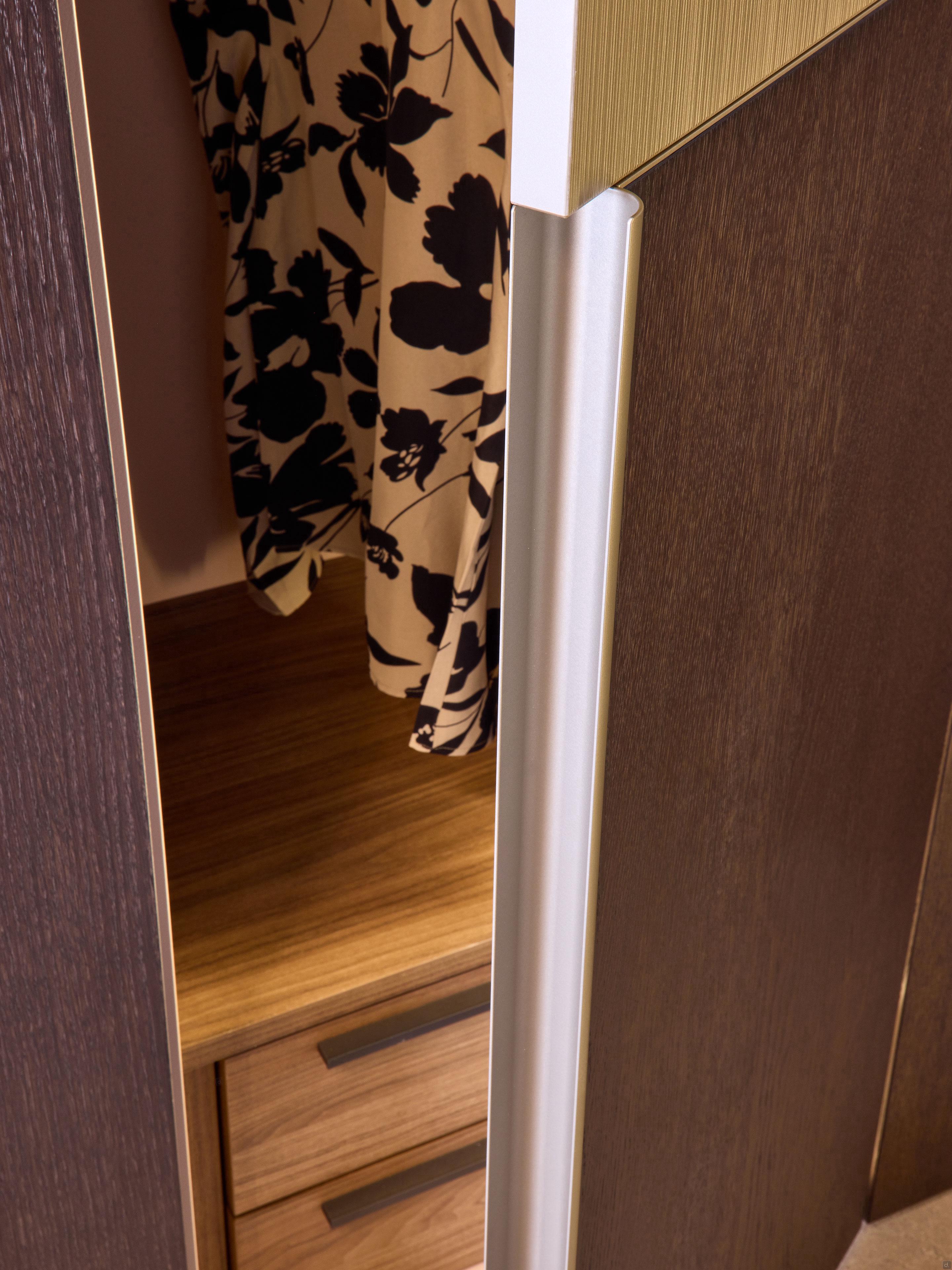

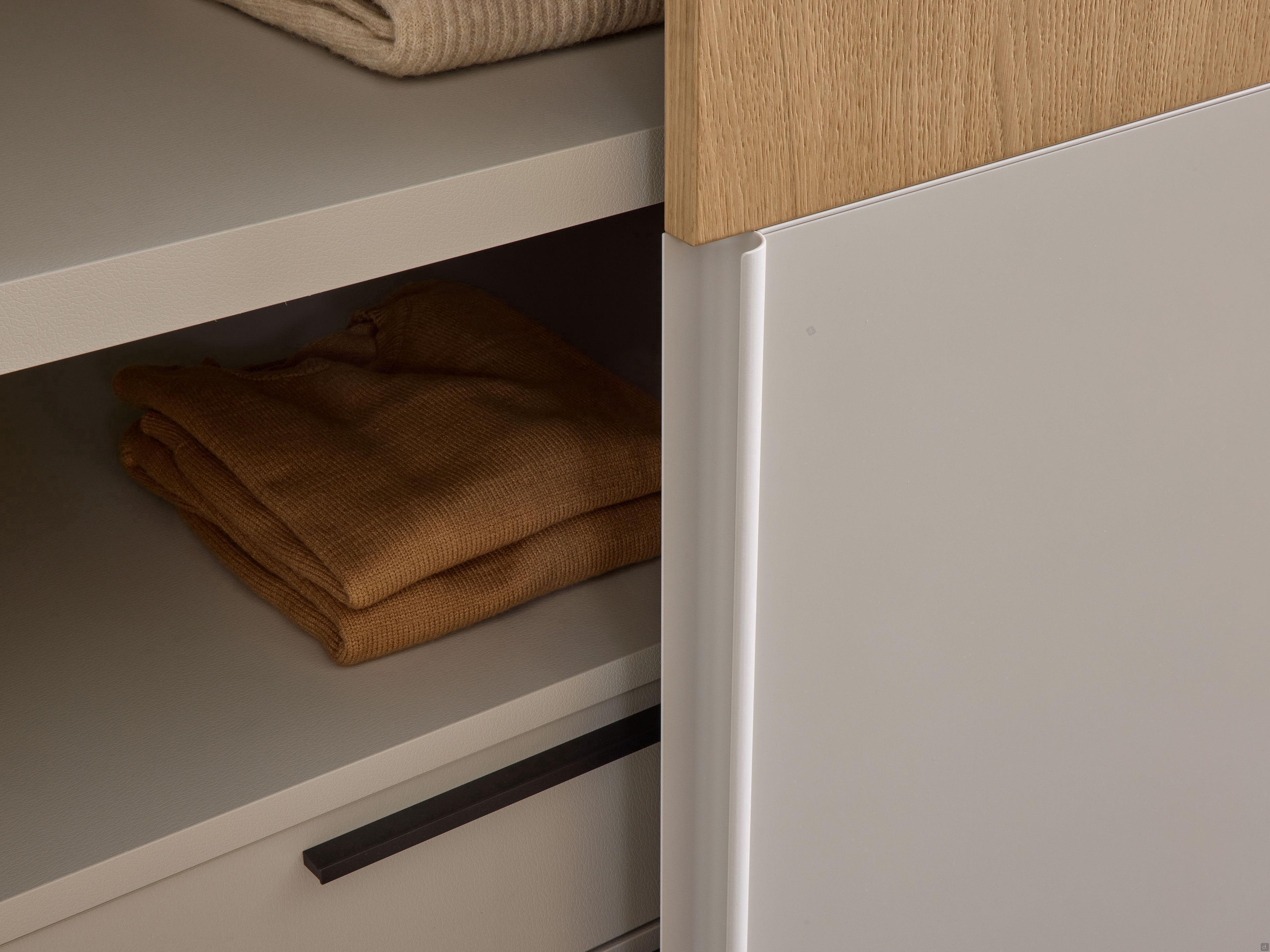

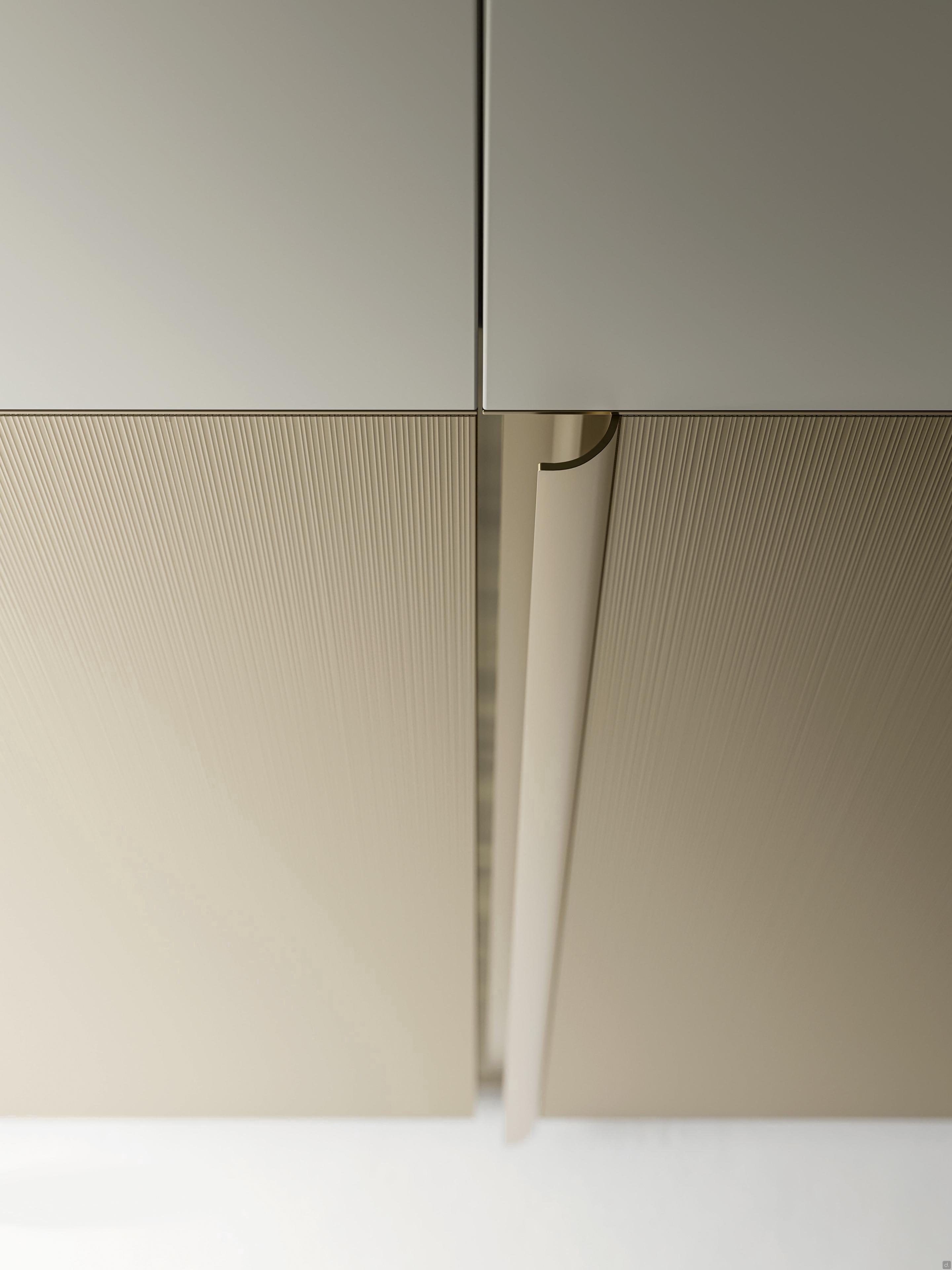

Door opening: this is done by means of a curved integrated handle in white, moka shine, nickel or matt lacquered metal. The handle has the same height of 110 cm as the lower panel of the Ocean door, while the thickness is 4 cm, protruding 1.8 cm from the edge of the doors.
Hinges: in titanium-painted metal with 110° opening and fitted with a mechanism for assisted soft-closing. The doors are fitted with n.4 hinges up to cm 229.5 in height, n.5 hinges for higher heights.

Drilling Sides
Sides and partitions have fixed holes on average every 16 cm. For detailed dimensions, please refer to the dedicated diagram in the image gallery.

Assembly Tips
The following are required for assembling the body:
- in width cm 4
- in height cm 2.5 (cm 0.5 for levelling feet in unloaded position + cm 2 for assembly). In case the lighting system is mounted, this becomes cm 3.5.

Additional Information

Area of Production
Italy

Approximate Time
8-9 working weeks for production

Assembling
Medium Assembling

Assembling Instructions
Download the Assembling Instructions
