Material Specifications
Sides, divisions, top, bottom backs: made with class E1 wood particle panels with low formaldehyde emission.
Doors: made with class E1 melamine particleboard panels with low formaldehyde emission with 2.1cm thick melamine paper + 0.4cm thickness of the covered panel. The inside of the door, based on the selected covering, is in matt lacquered finish White 10, Canapa, Creta, Brown or Terranova.
Technical Specifications and Equipment

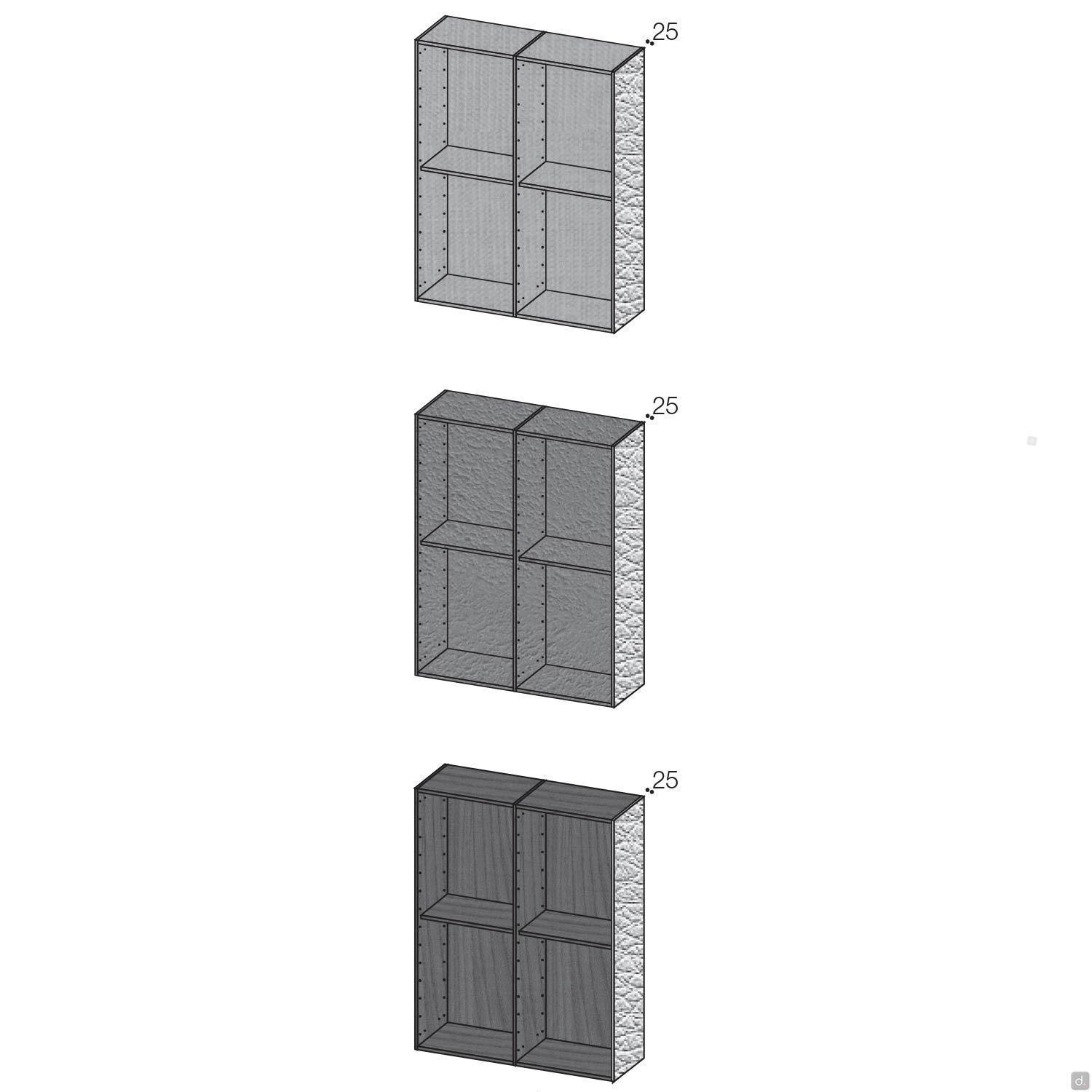

Sides and Partitions: thickness 2.5 cm. Covered in faux-leather, ecovintage faux-leather or lacquered with metal profile. Partitions have an ABS edge matching the interior. Complete with adjustment feet inserted into the thickness and adjustable to 1.2 cm.
Top and Bottom: : thickness 3.5 cm. ABS edge matching the interior.
Backs: thickness cm 0,8.
Internal Shelves: thickness 3.5 cm. ABS edge matching the interior.
Clothes Hanger Tubes: with rectangular section 3 x 1 cm, in Gunmetal painted metal (for interiors in the finishes natural loto, linen textured or medium elm), Brown (for interiors in taupe loto, terra loto, dark elm or eco walnut), Palladio (for interiors in sand, rock and tobacco).

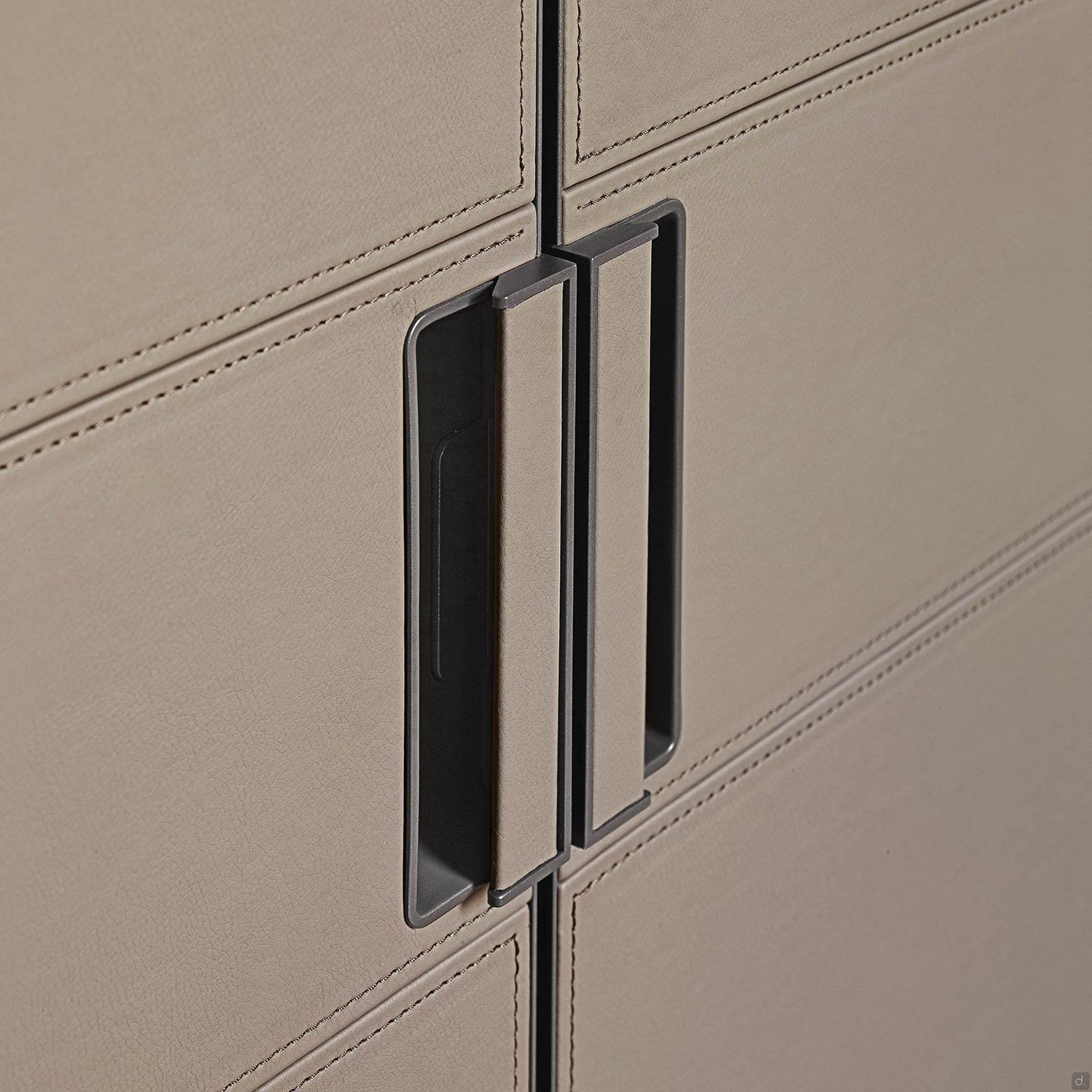

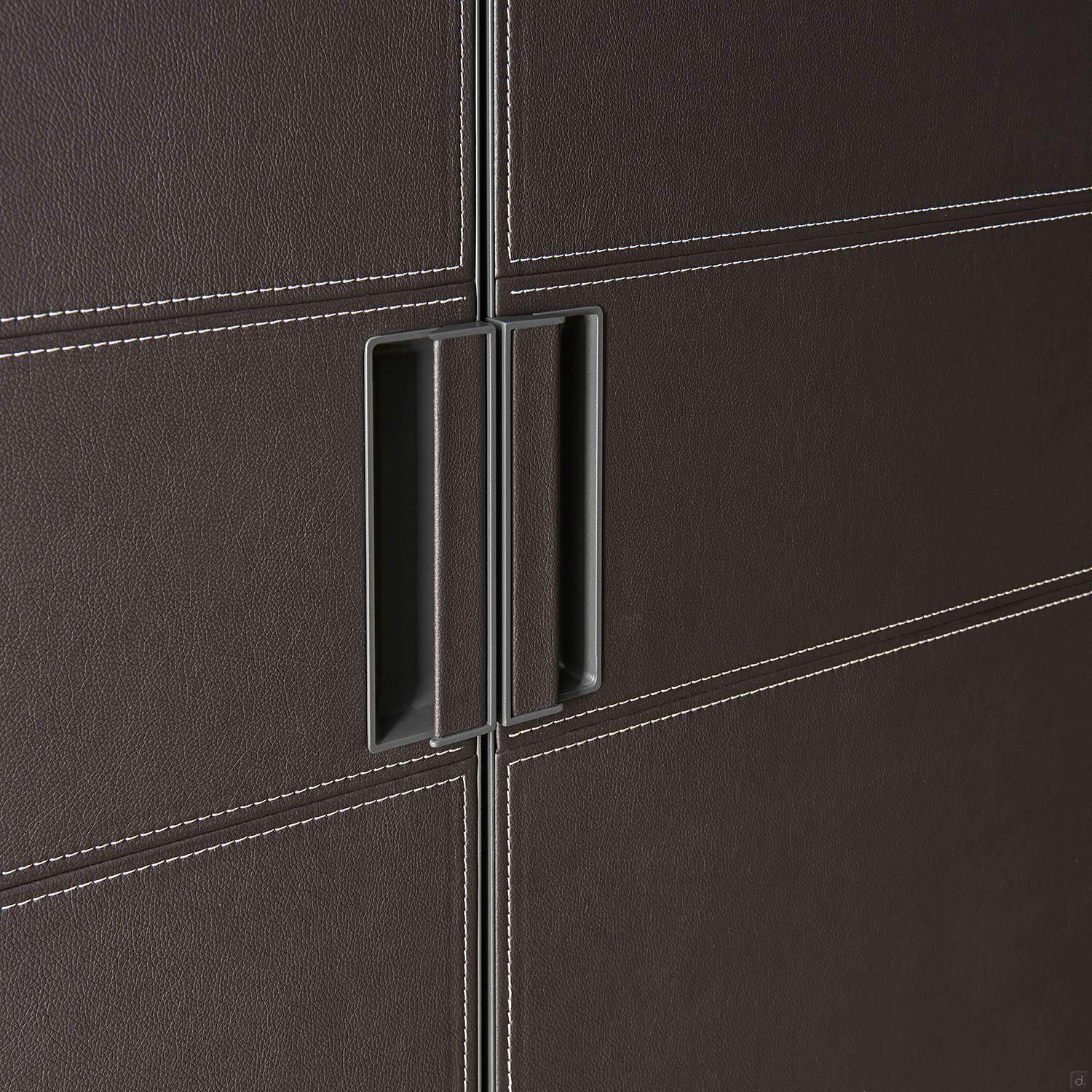

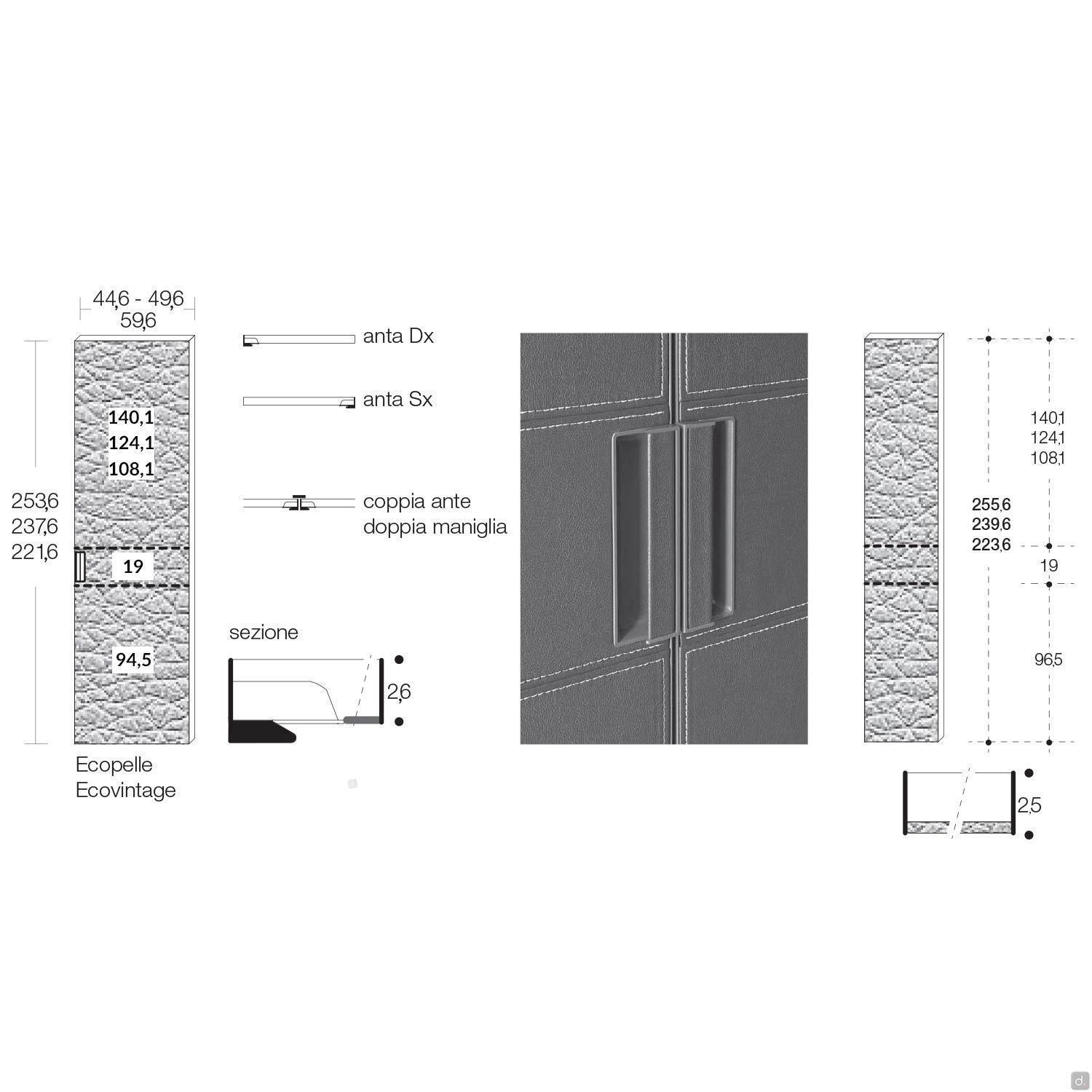

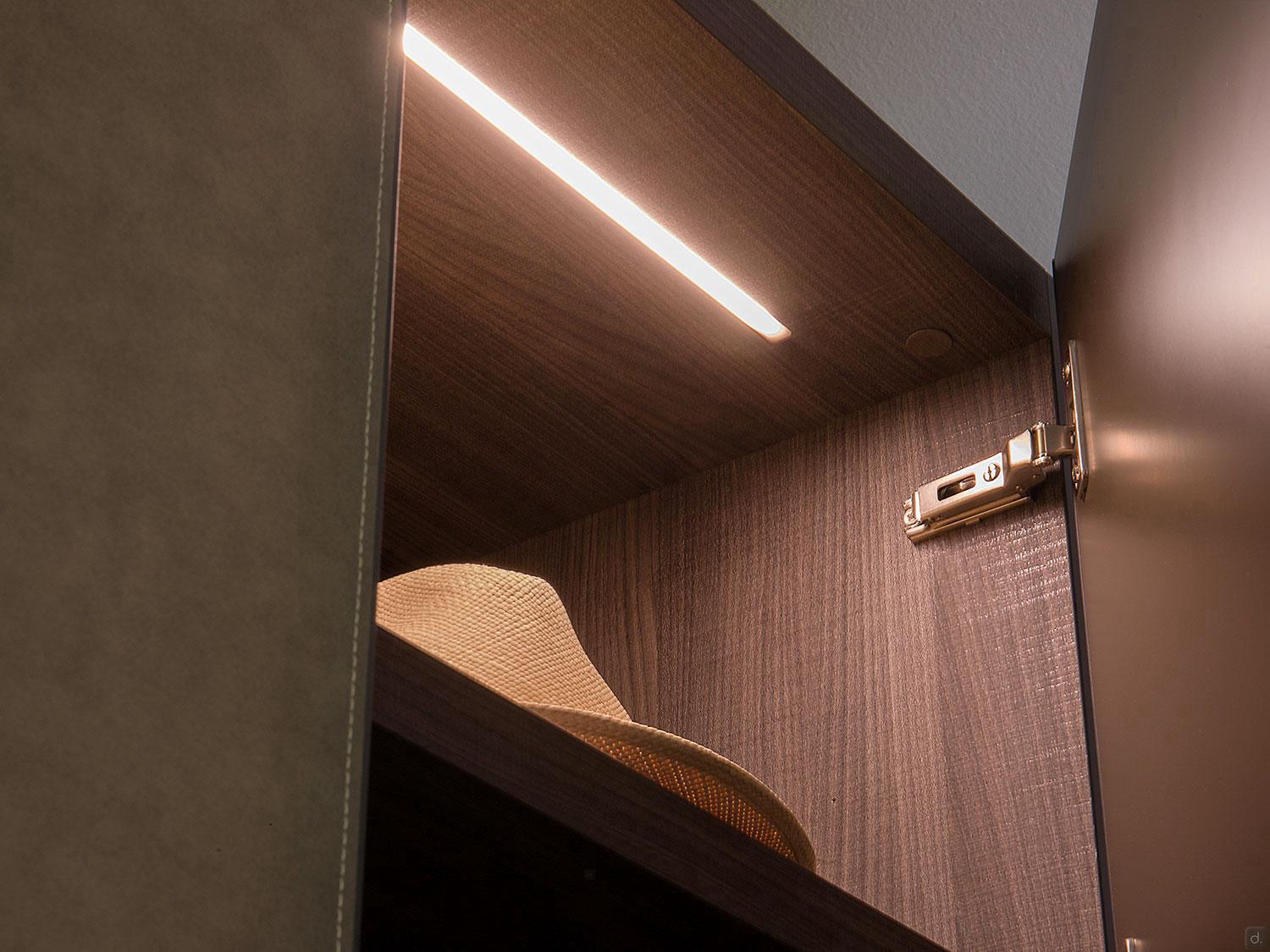

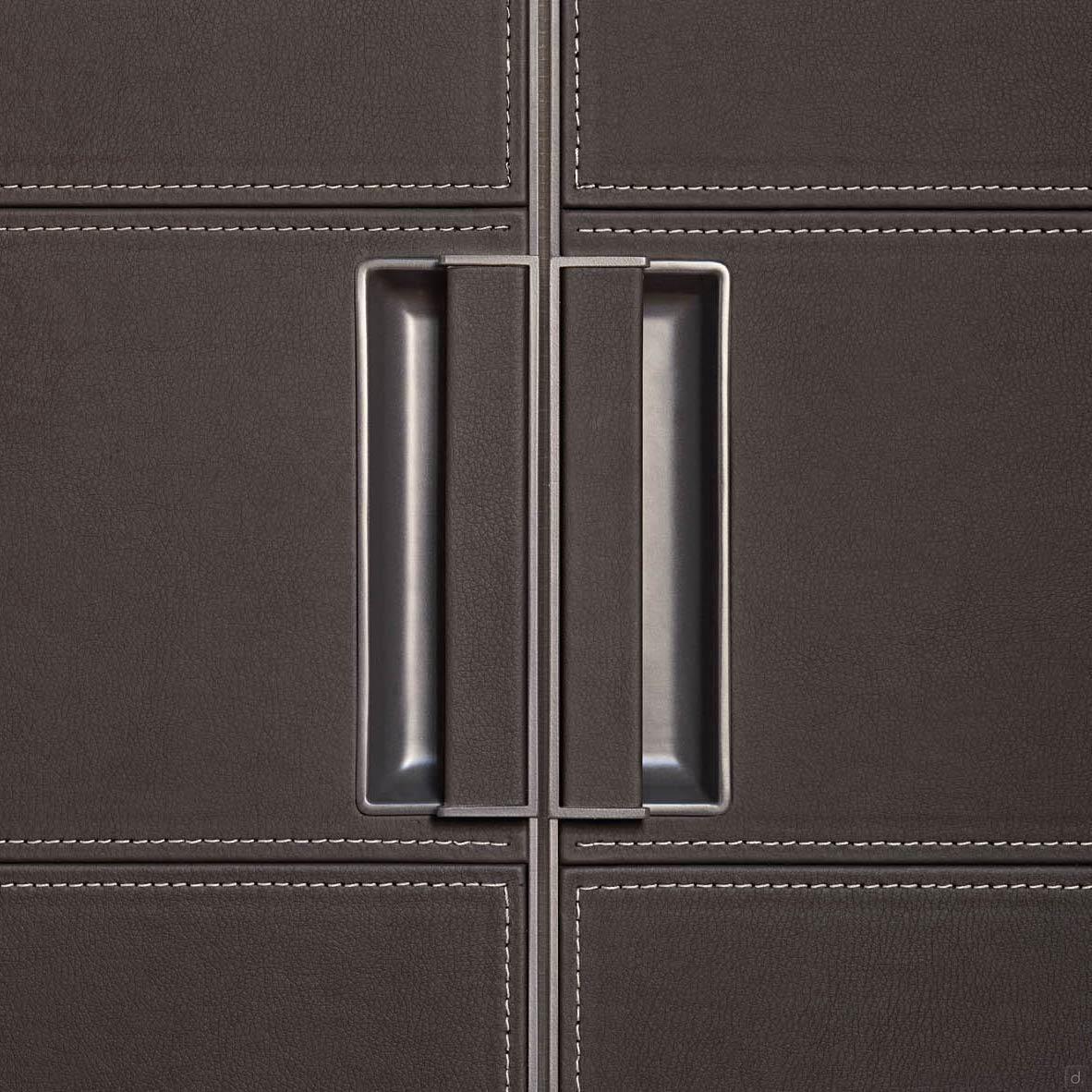

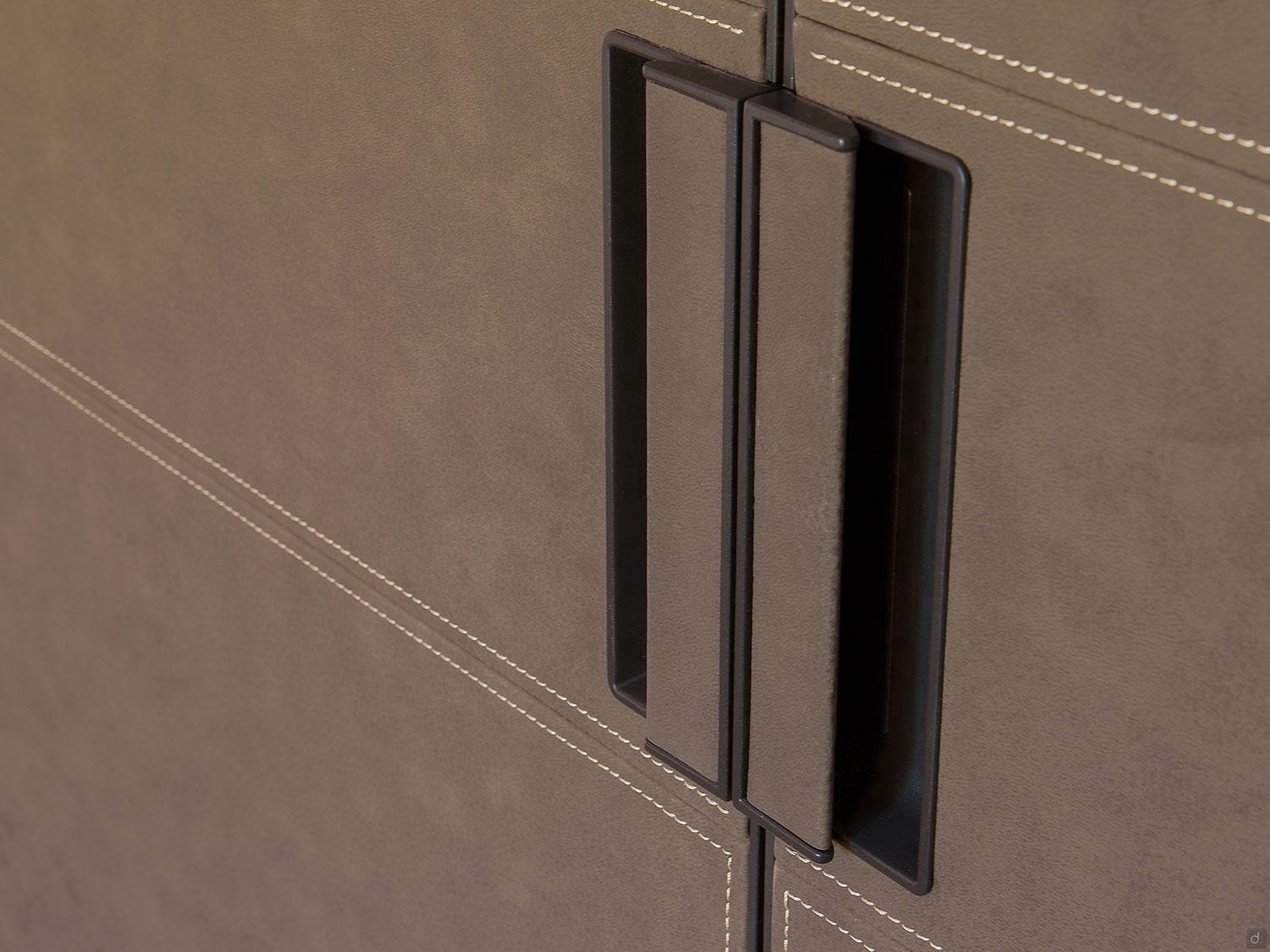

Doors: thickness 2.6 cm. In the case of a pair of doors, the handle is positioned on both. Each door is equipped with hinged with soft closure which open at 94°; in the 35 cm module the slow closure mechanism is mounted separately on the lid. . For doors with a height of 239.6 and 255.6 cm, 6 hinges are mounted, while for doors with a height of 223.6 cm, 4 hinges are mounted..

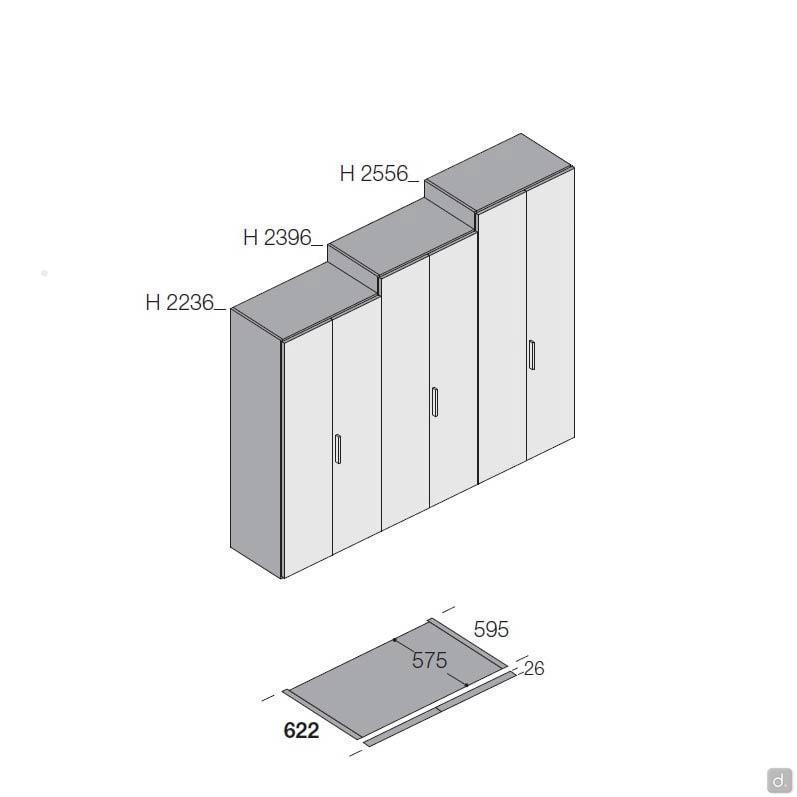

Useful Internal Heights:
- for wardrobe cm h.223,6: cm 216,6
- for wardrobe cm h.239,6: cm 232,6
- for wardrobe cm h.255,6: cm 248,6
Side Drilling

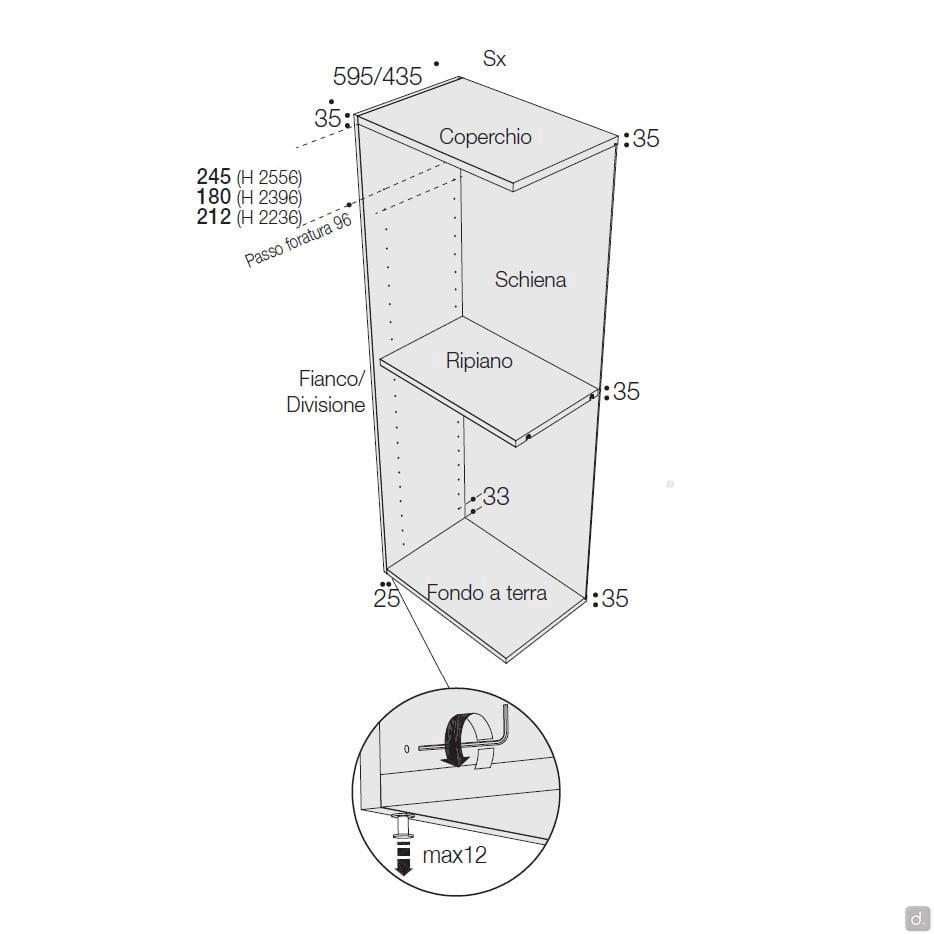

Sides and partitions require fixed perforations on average every 9.6 cm. For detailed dimensions we recommend viewing the dedicated diagram in the Images gallery.
Assembly Tips
To assemble the structure you will need:
- extra cm 3,5 in width
- extra cm 2 in height (5 cm in case of insertion of LED bars for positioning the power supply on the cover)

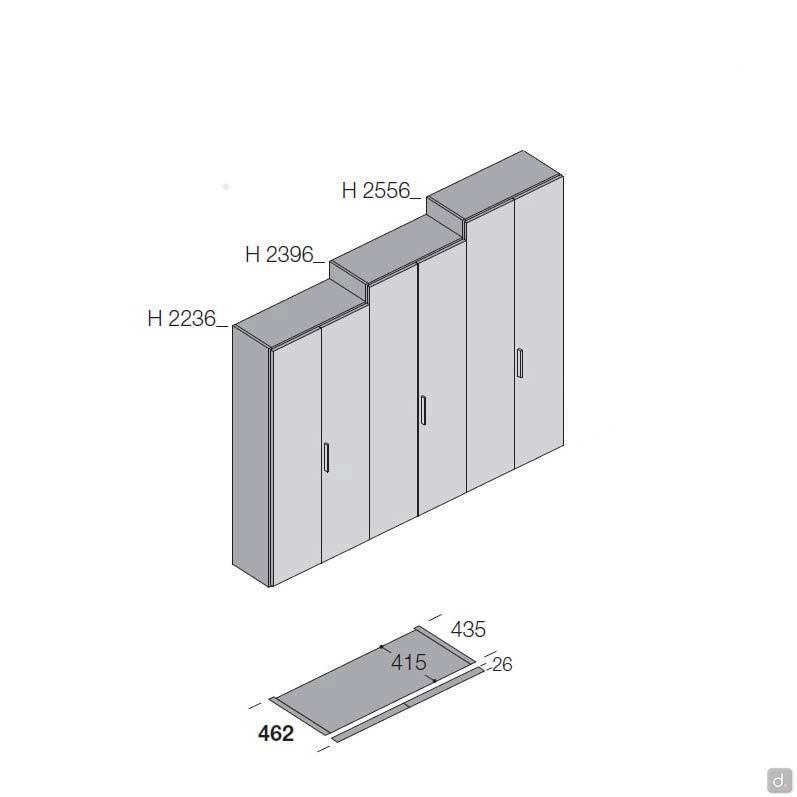

In the 46.2 cm depth wardrobes at least 2 compartments are supplied as standard with an anti-tipping hook to be fixed to the wall. Even in the 62.2cm depth wardrobes, at least one compartment is supplied with an anti-tipping hook to be used if necessary. The anti-tipping plate is to be fixed to the wall, and is equipped with spacers that allow it to be used even in the presence of skirting boards with a maximum thickness of 15 mm.
