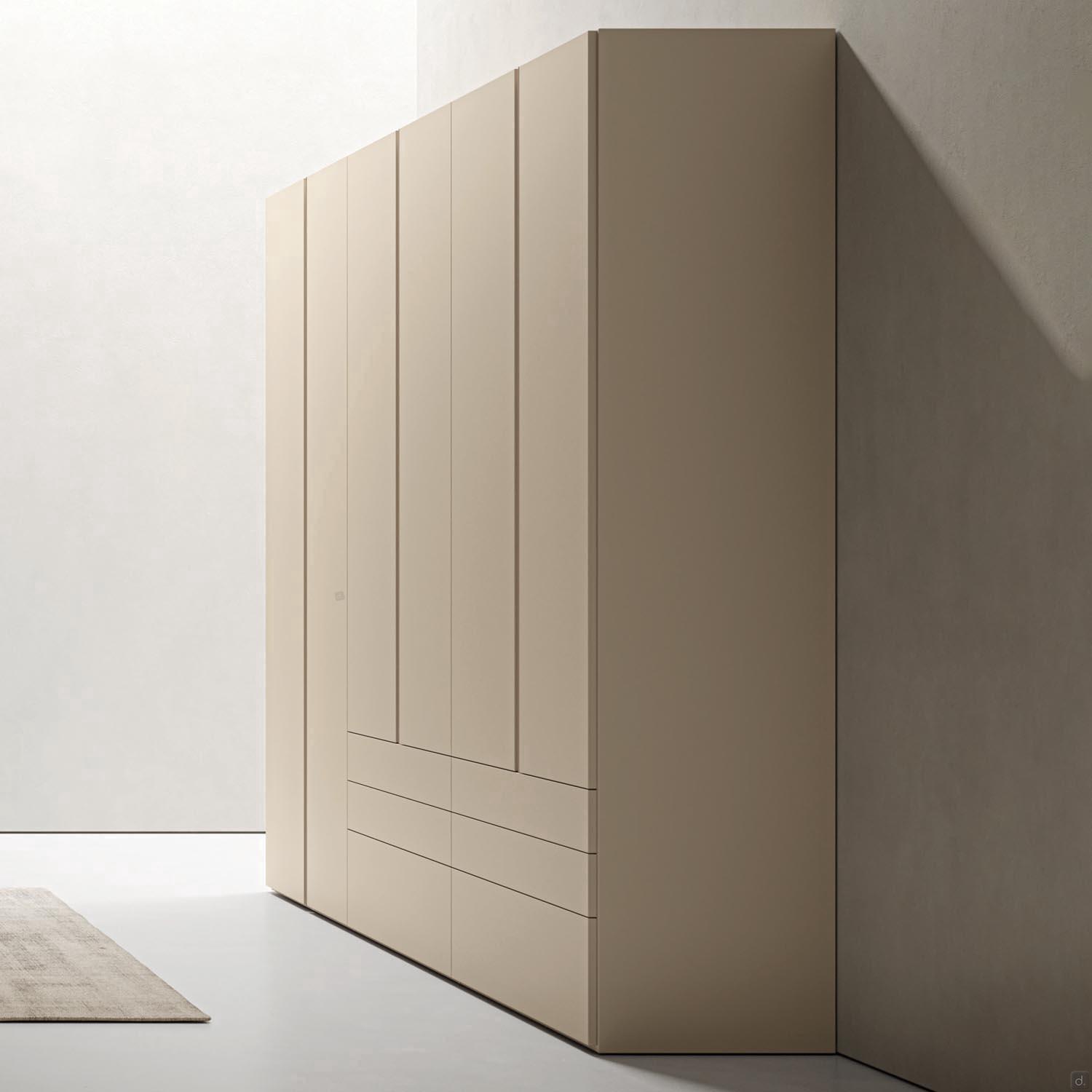

Wide wardrobe with drawers with matt lacquered doors, in the version with basket and two drawers

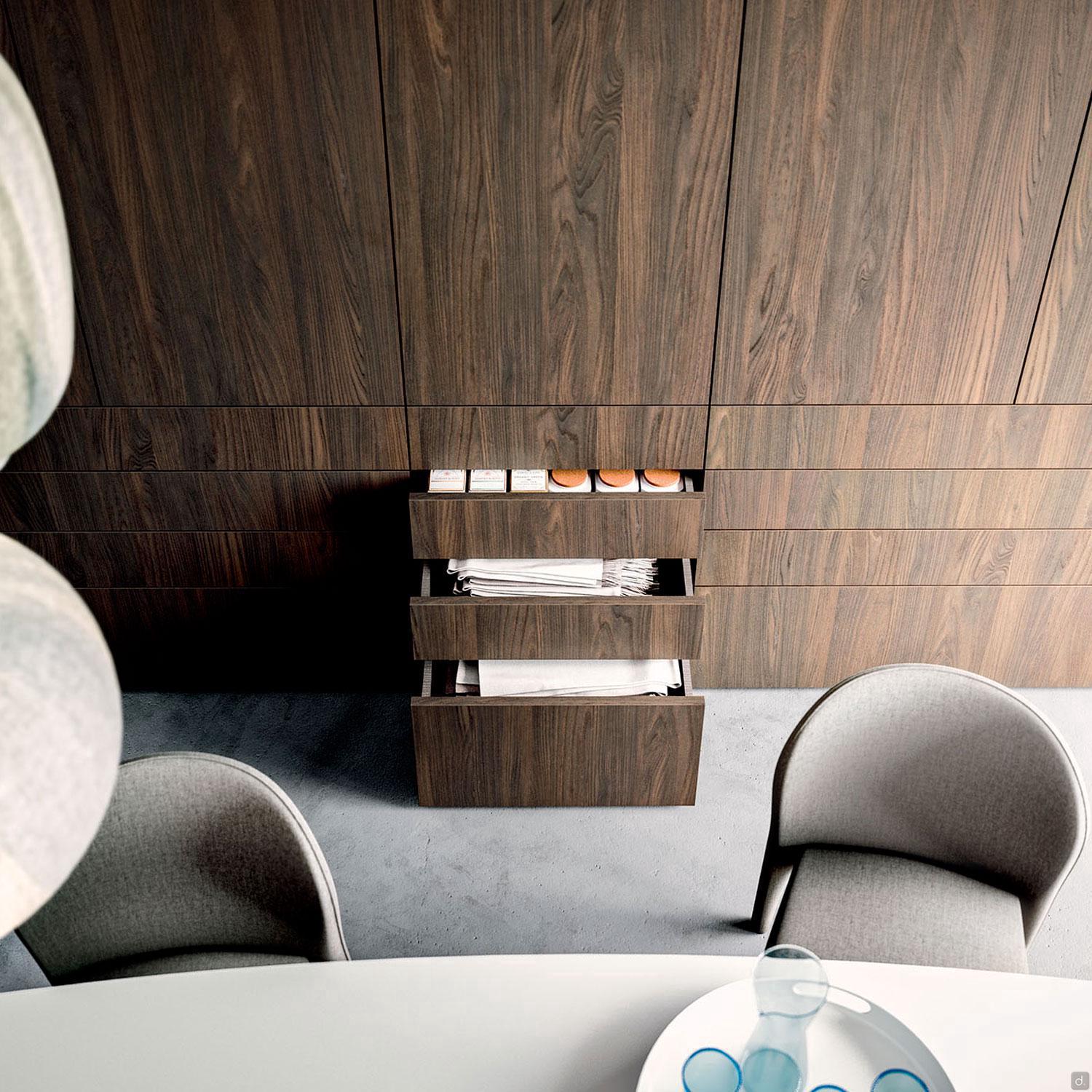

Wardrobe with Wide drawers made of veneered wood, with three low drawers and bottom basket

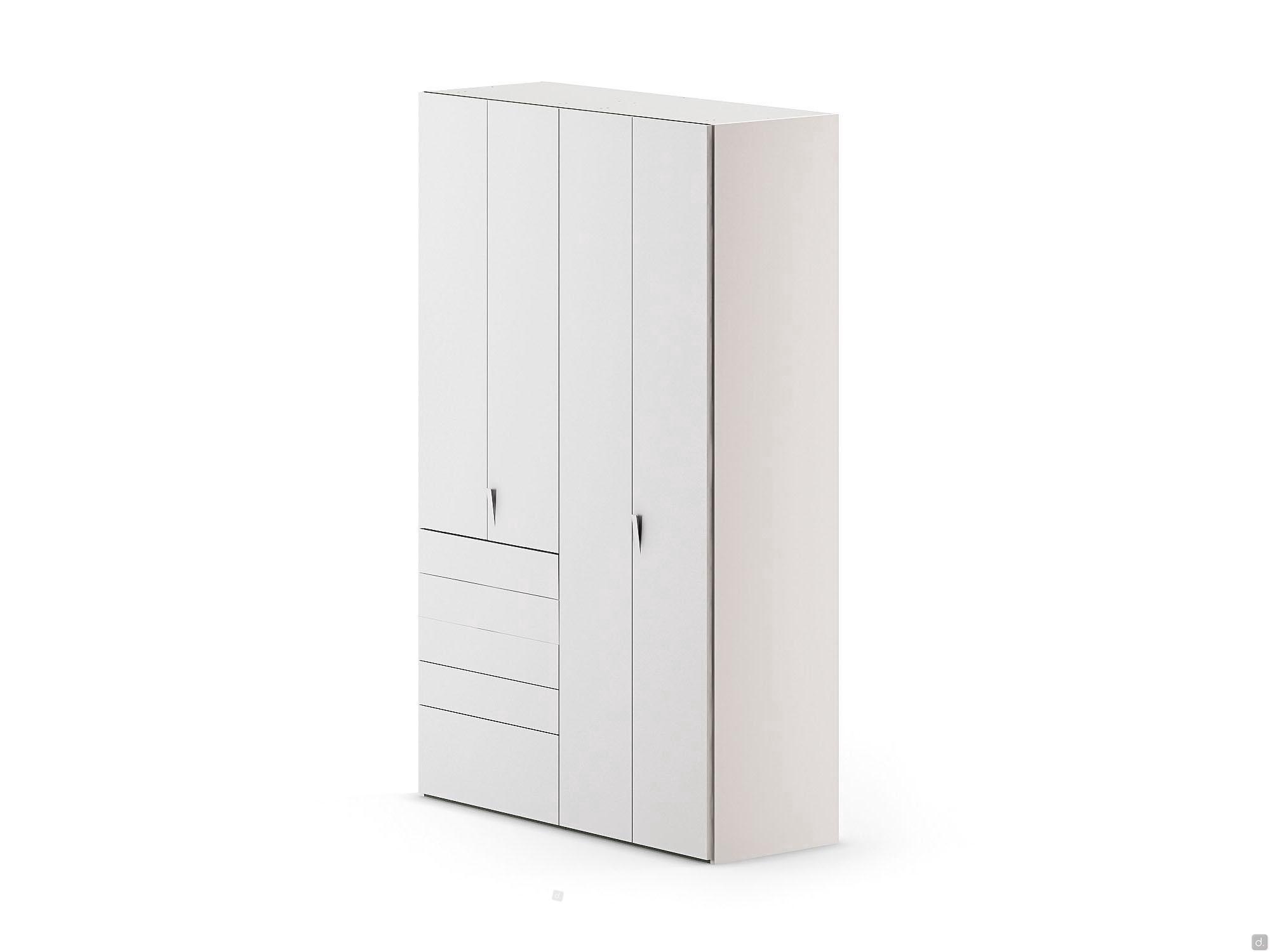

Centrepiece composition made by joining several door and drawer modules together

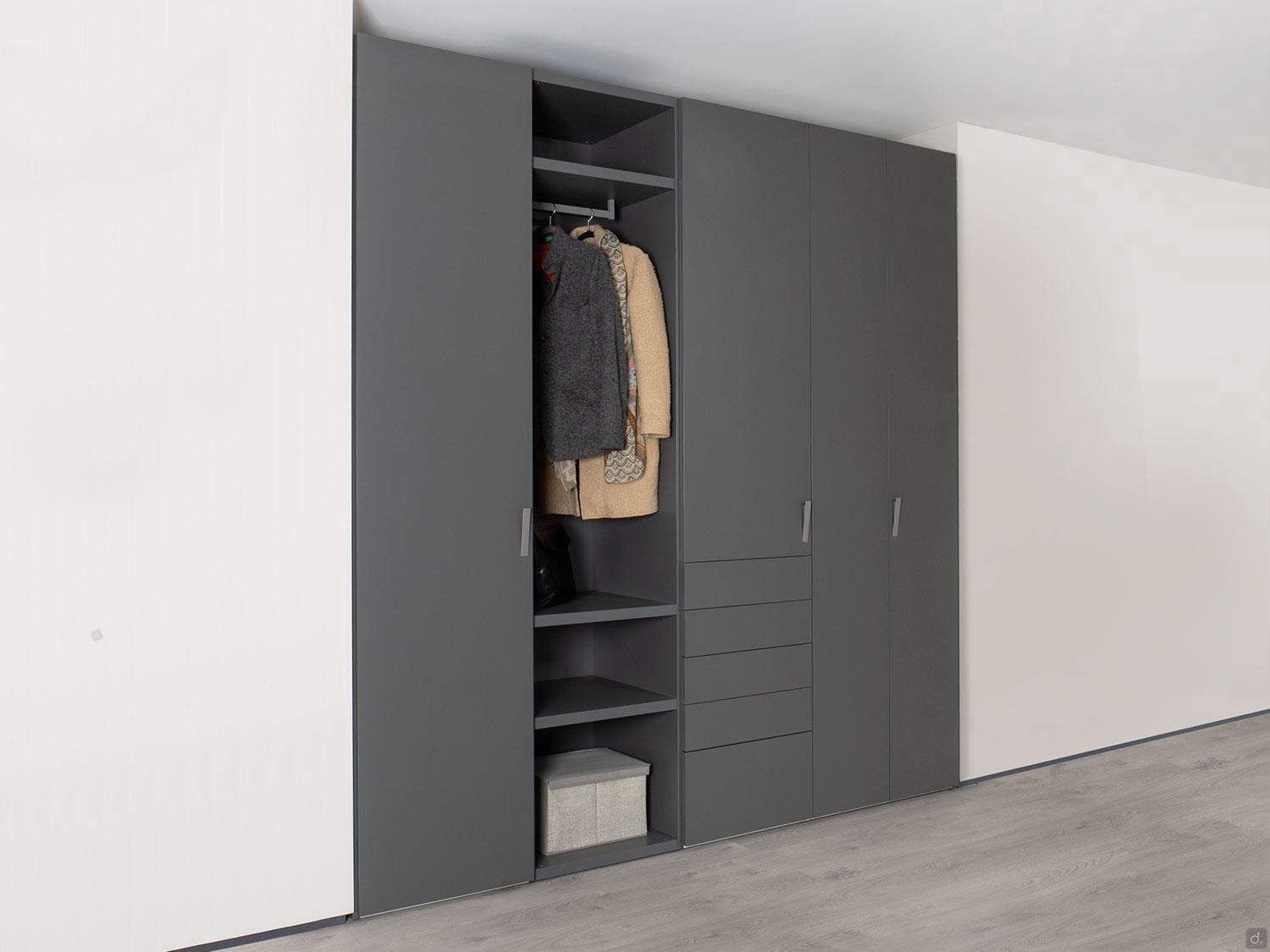

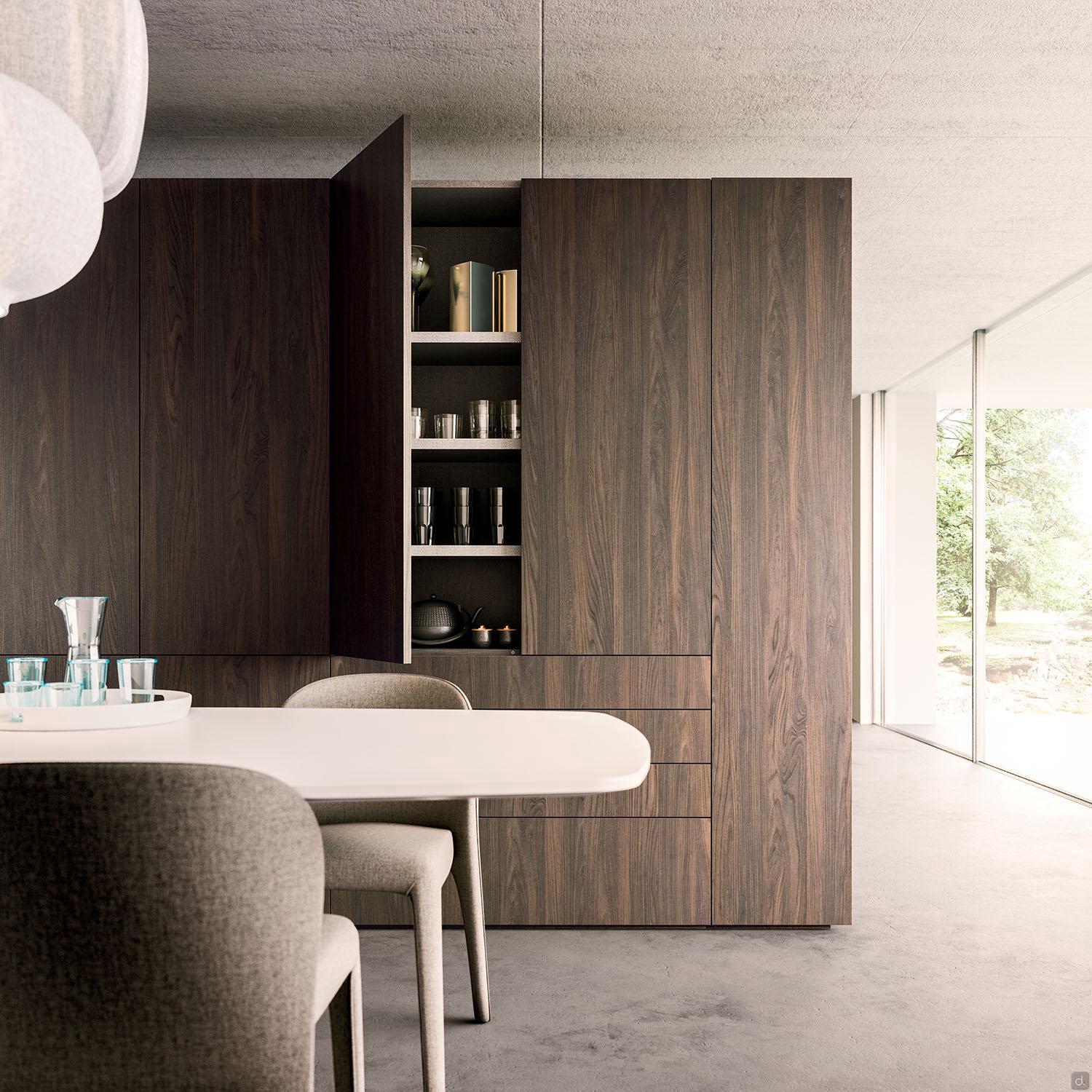

Wide module with doors and drawers combined with an open element and a hinged Focus Wide with Ellie handle.

Detail of a Wide door and drawer module combined with other elements of the collection of the same name. The drawers can have the same handle as the hinged door (in this case the Ellie model), or the more discreet push-pull opening

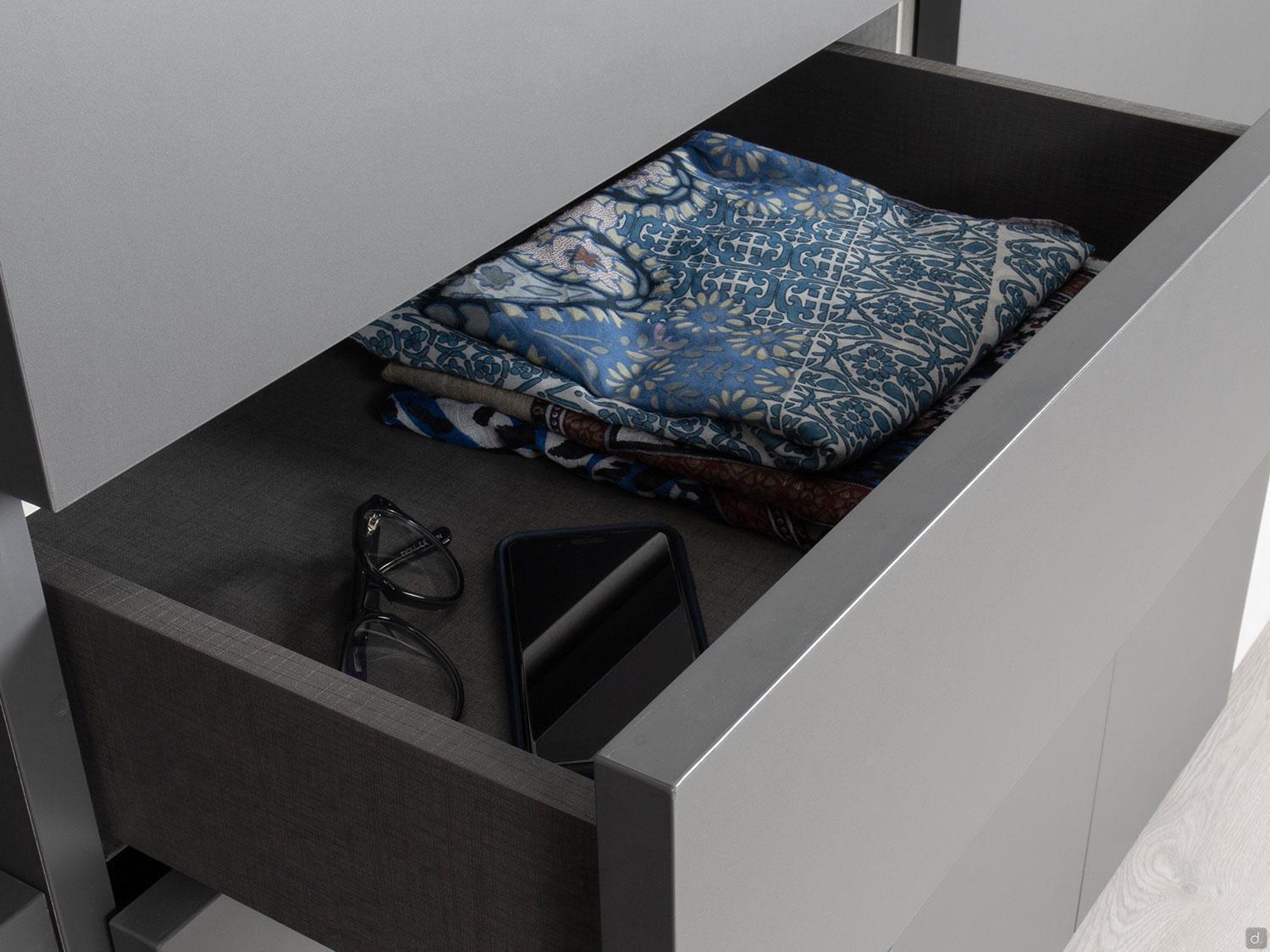

Detail of a Wide wardrobe drawer, with side panels and internal structure in linen grey melamine

110.6 cm Wide door and drawer module with double hinged door, internally equipped with two more shelves in addition to the one supplied as standard

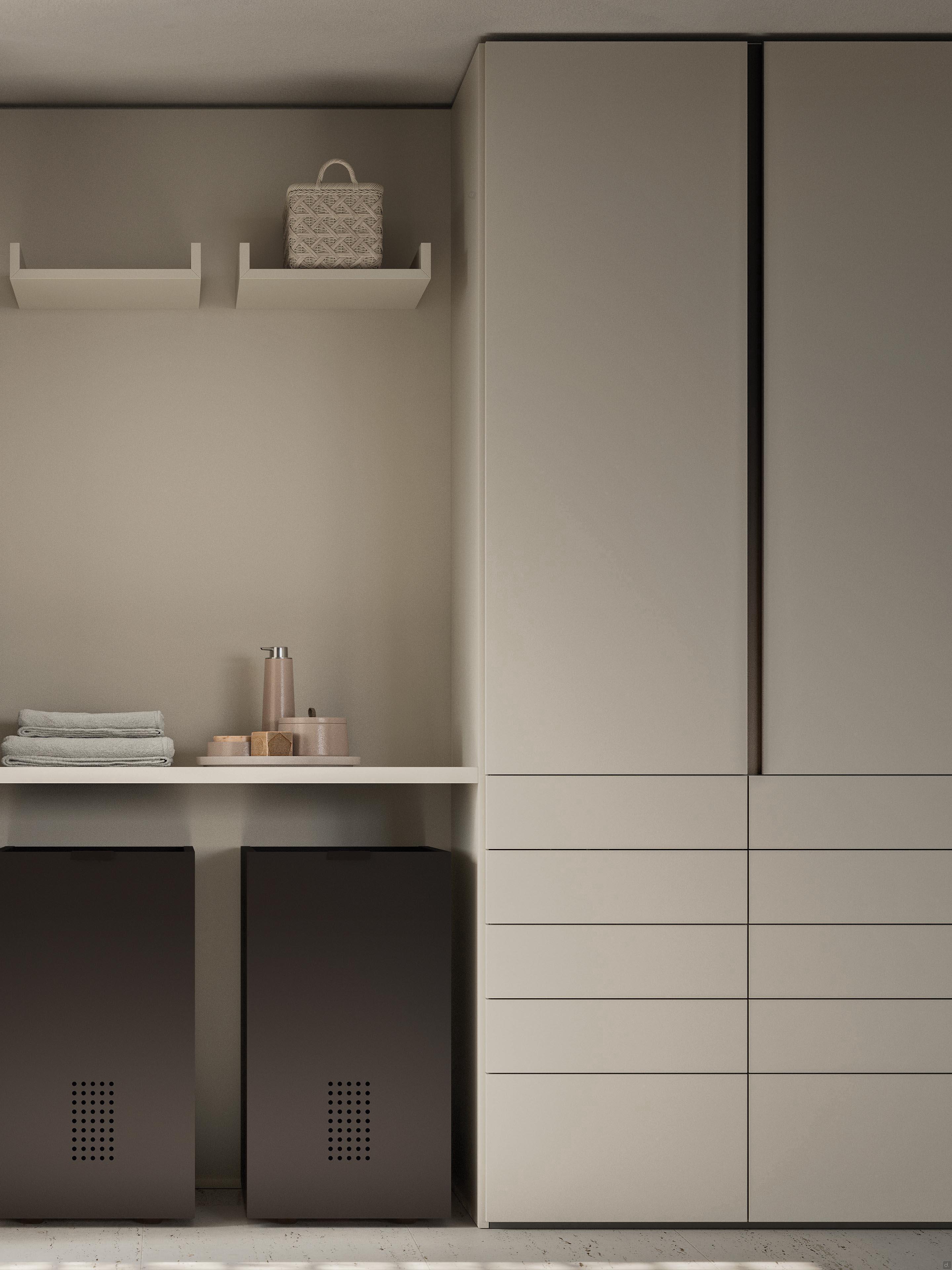

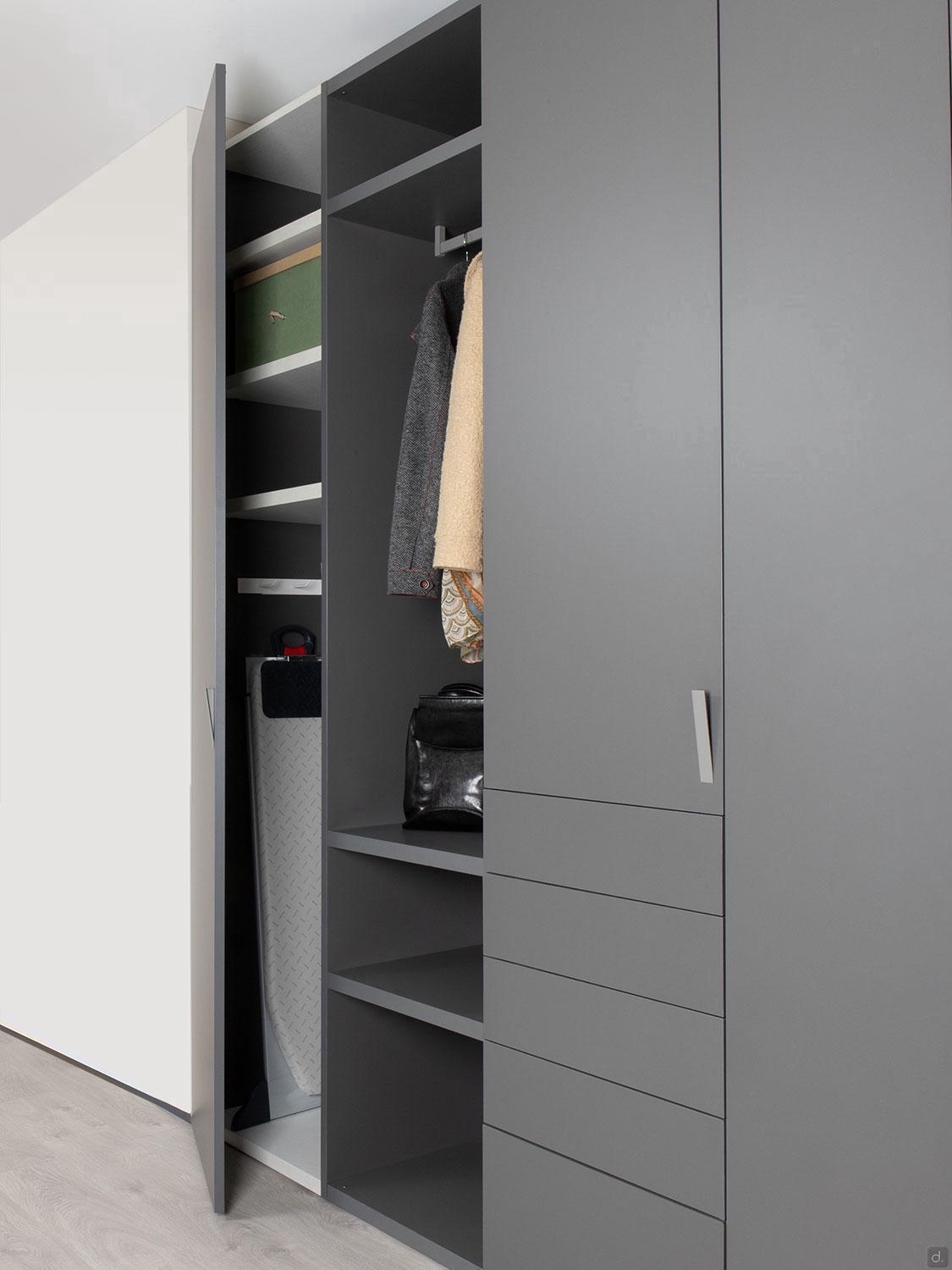

Wide door and drawer module with full-height Midley groove, combined with an open module for laundry use, with back panel and shelves

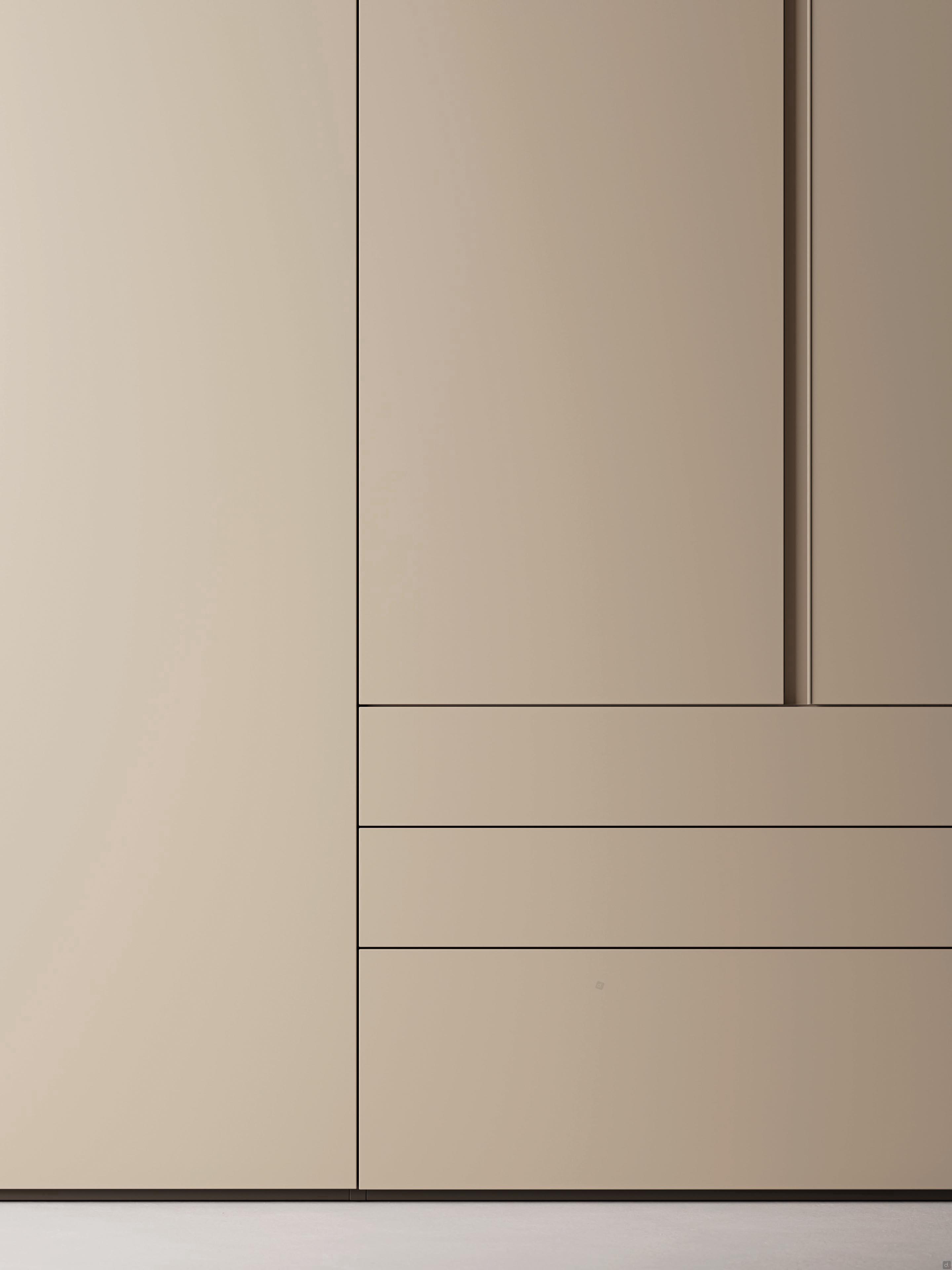

Detail of a wardrobe with Wide drawers with Midley groove lacquered to match the doors. Also in this case the drawers can follow the door with the same type of opening, or mount a push-pull mechanism (as in the photo)

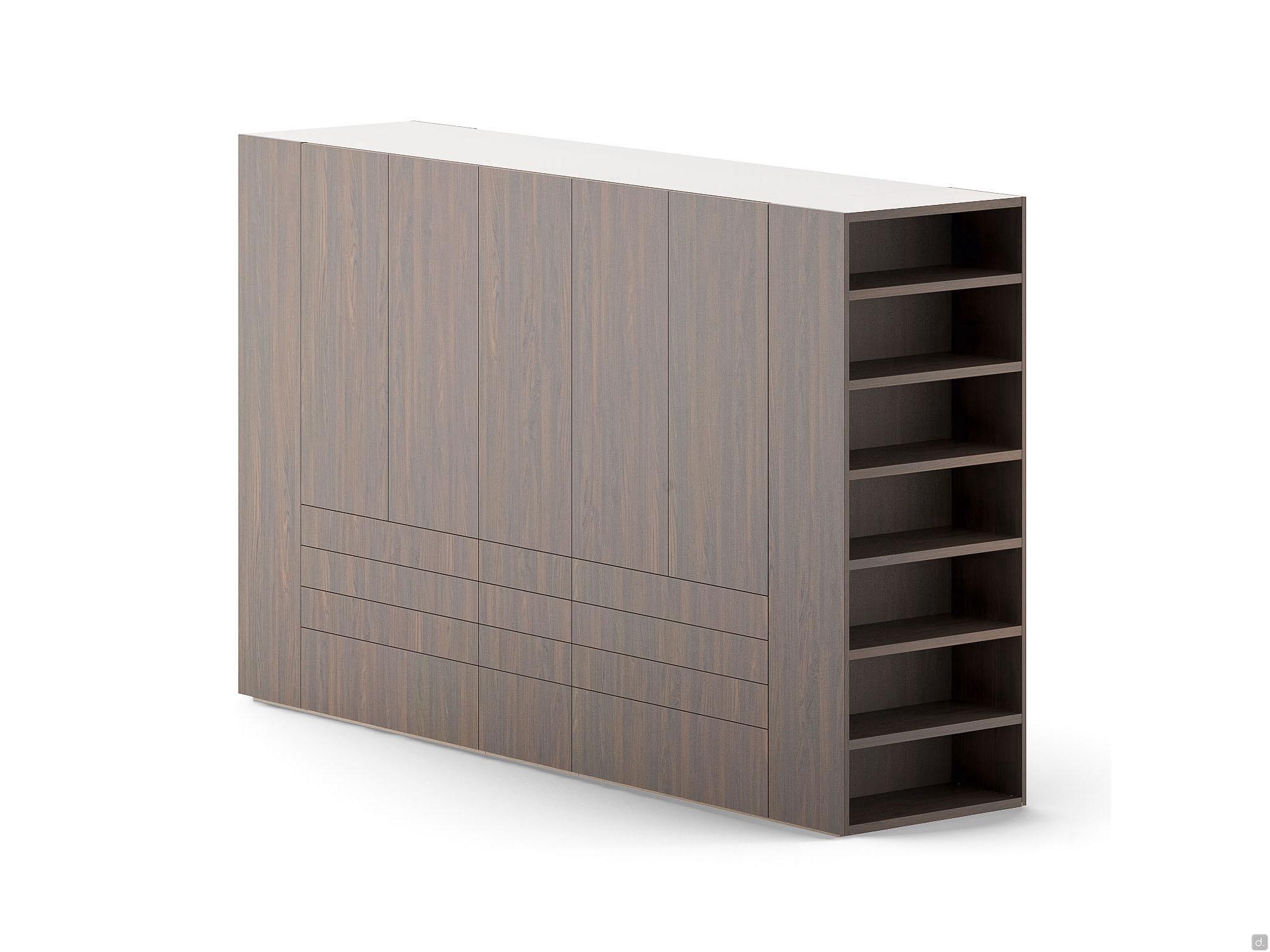

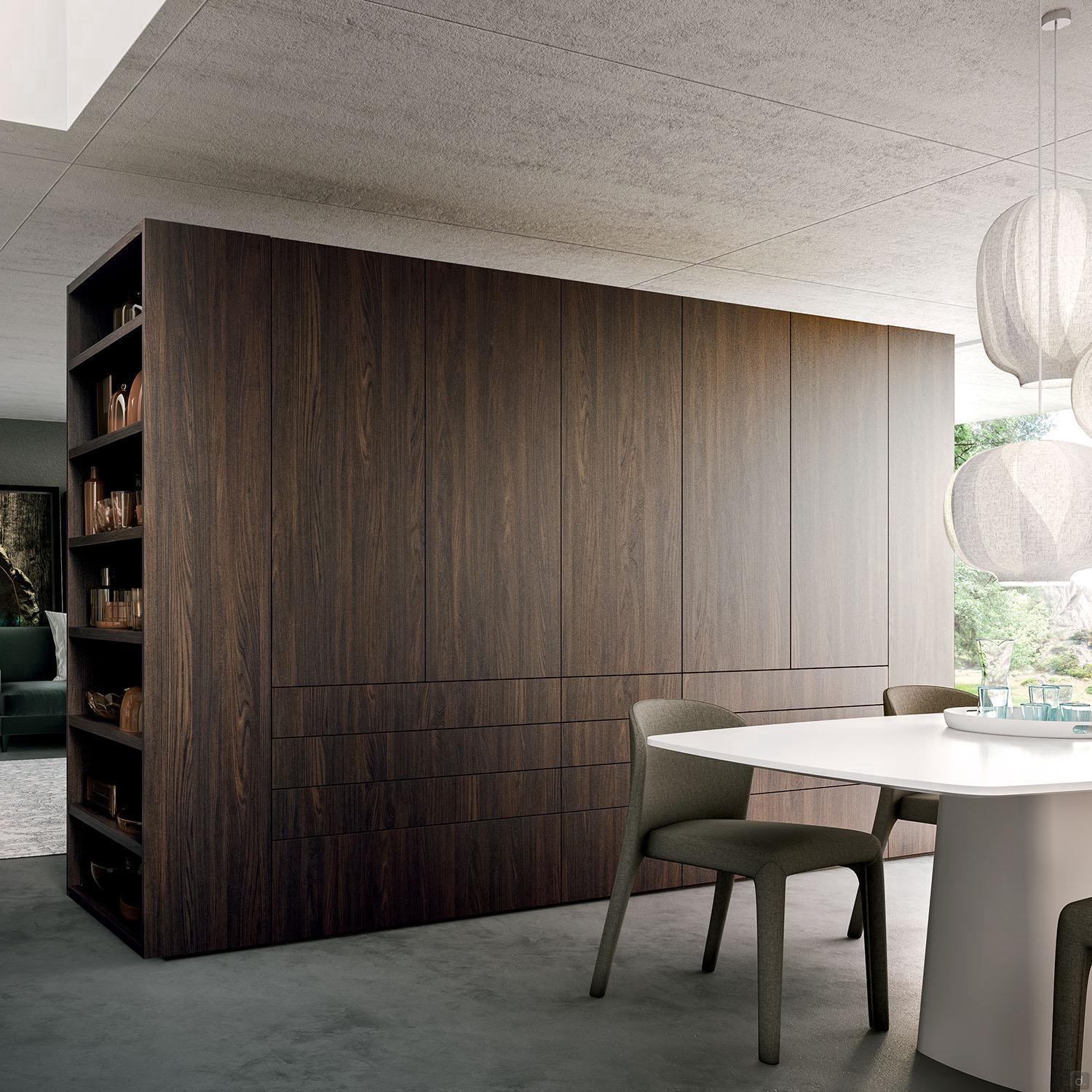

Wide door and drawer composition, with end bookcase to make the wardrobe also suitable for use in the centre of the room

Wide wardrobe with doors and drawers combined with a Focus Wide module also 61.2 cm deep

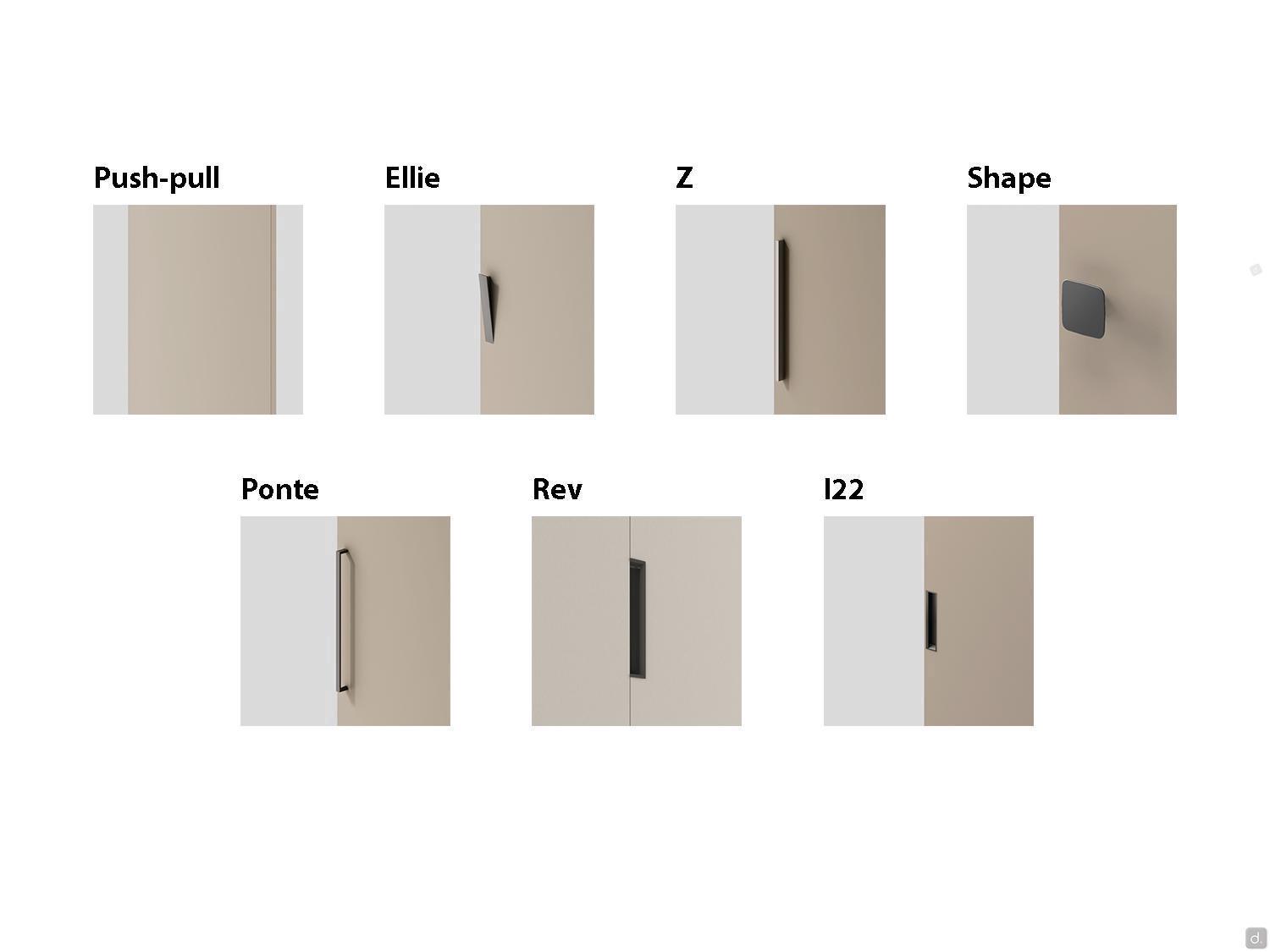

Diagram of the handles available on the Wide drawer wardrobe. In addition to these applied handles, painted metal or matt lacquered handles are also available in the sample colours

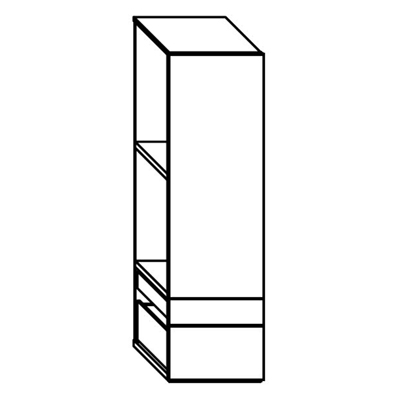

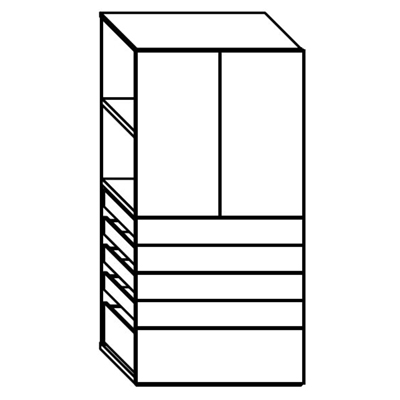

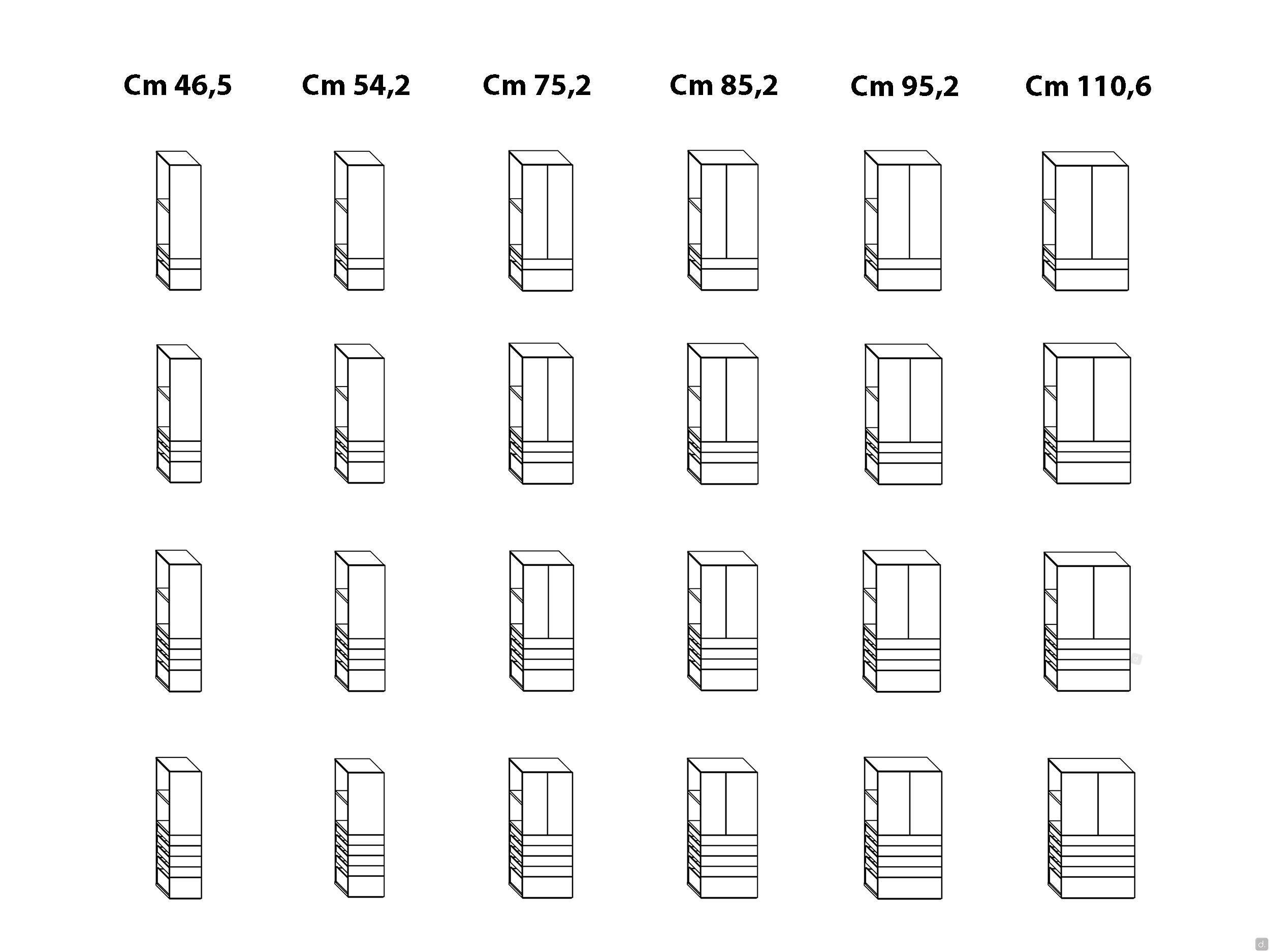

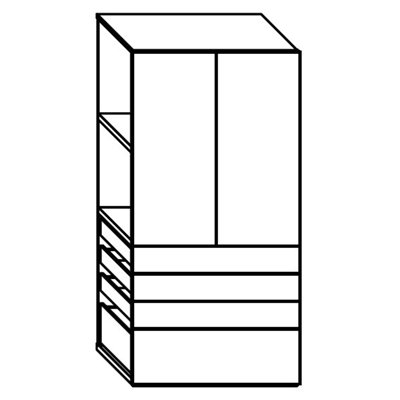

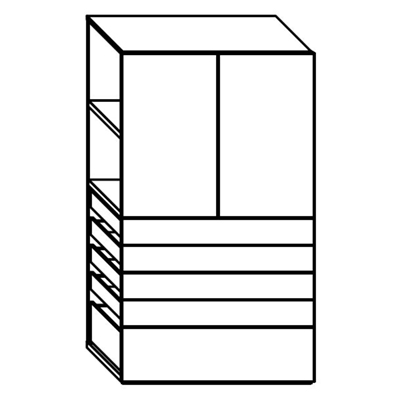

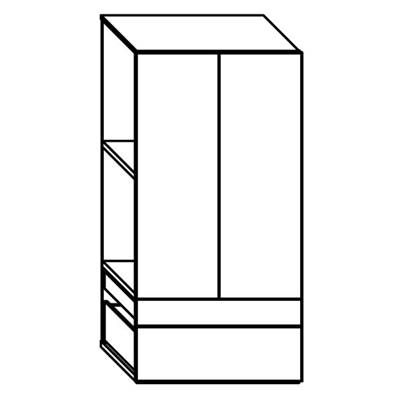

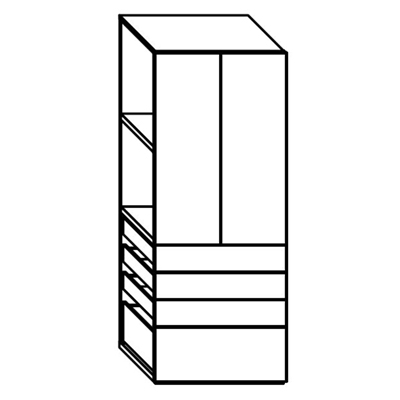

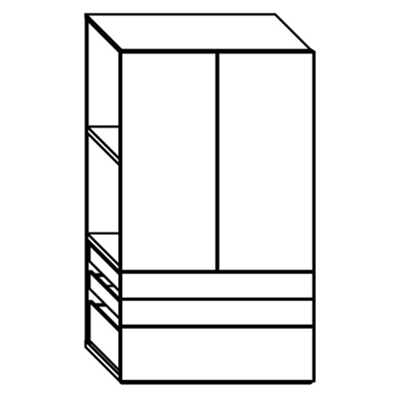

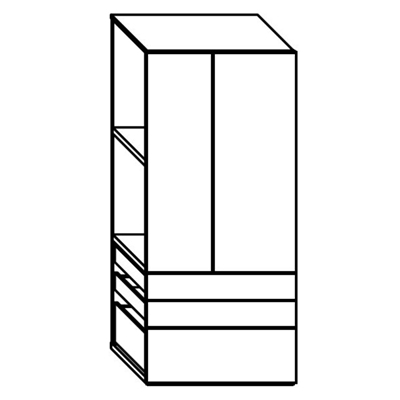

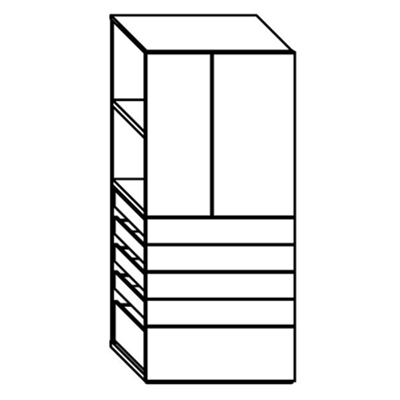

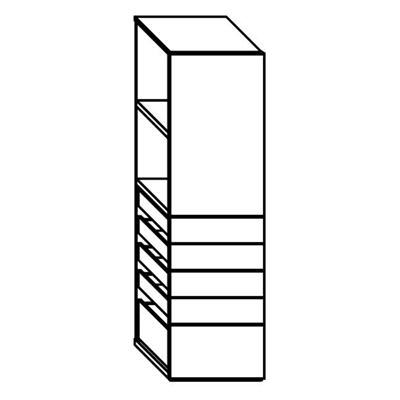

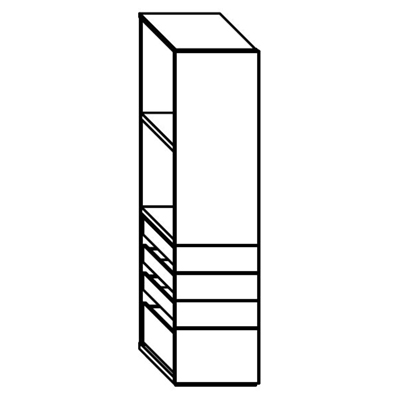

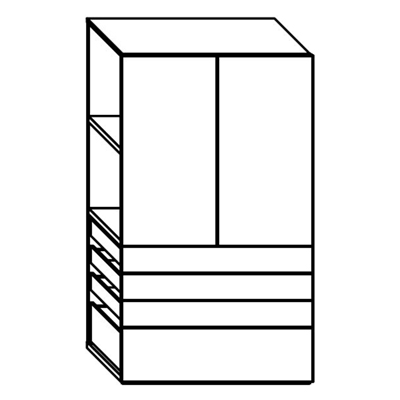

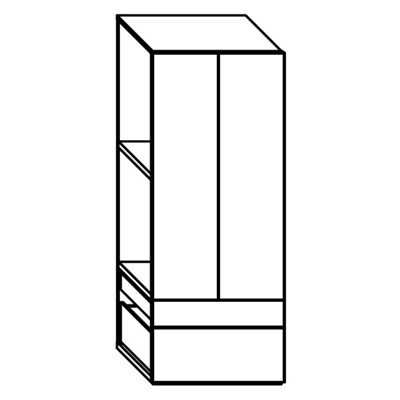

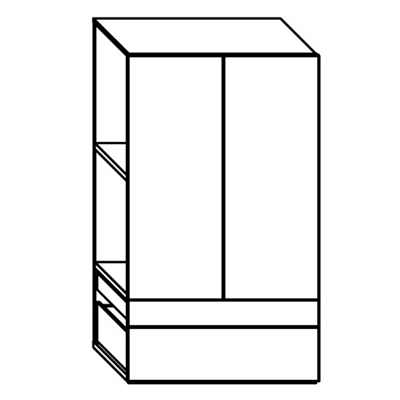

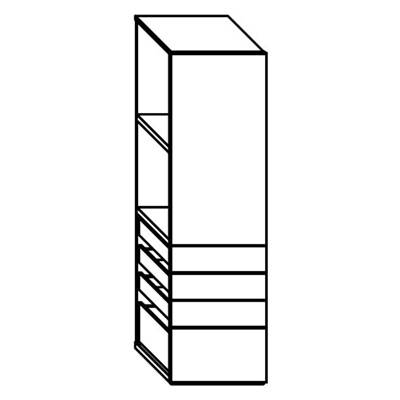

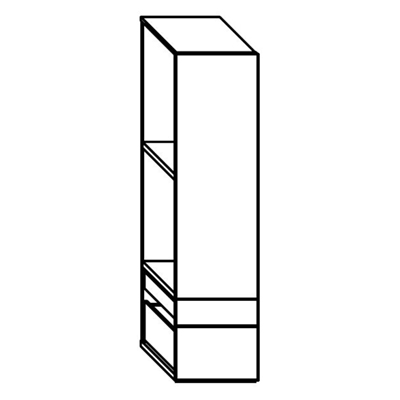

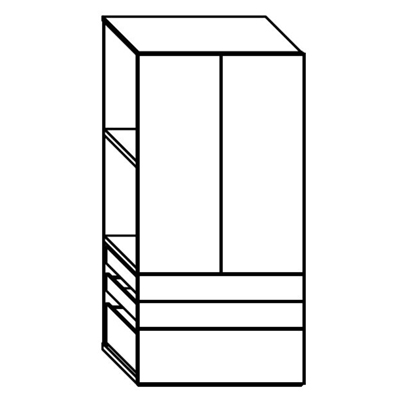

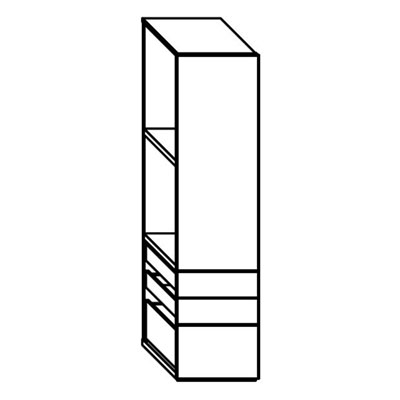

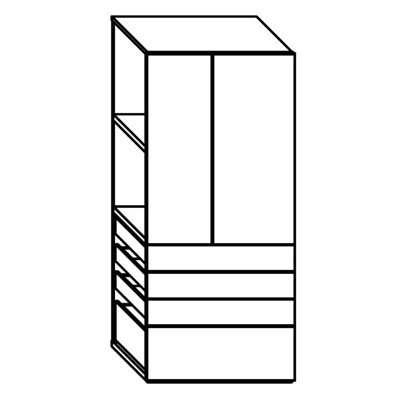

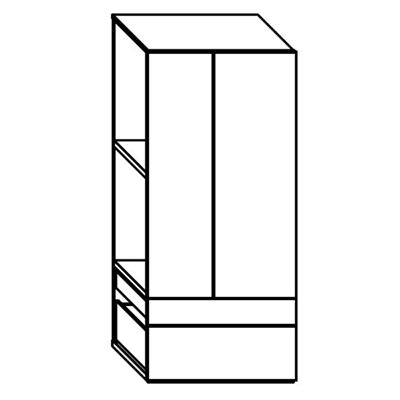

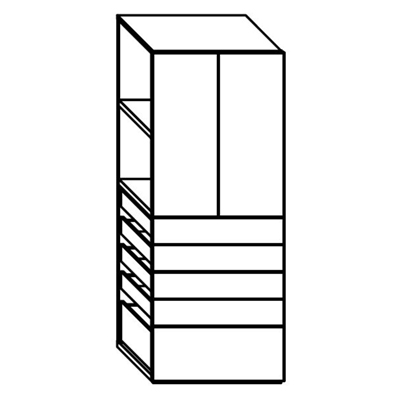

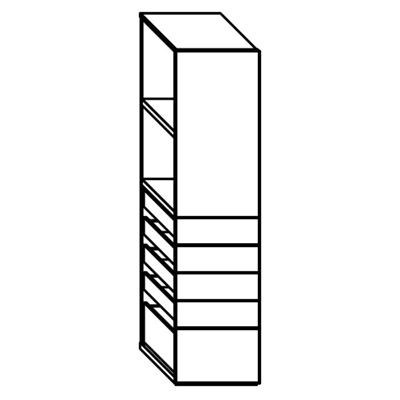

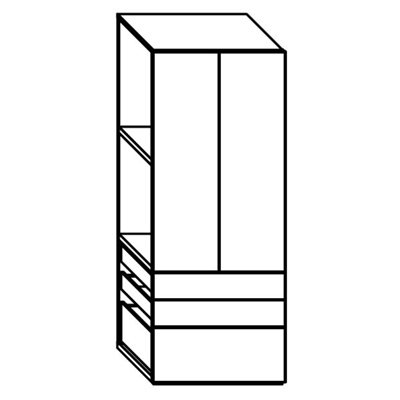

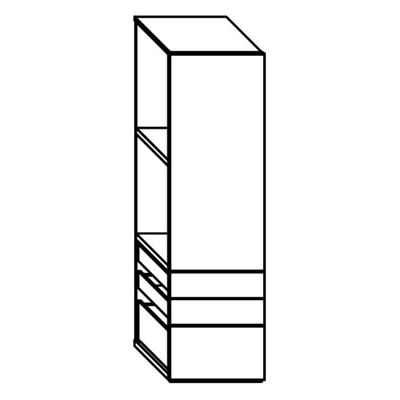

Diagrams of the models and widths available for the Wide drawer cabinet. The large selection of drawer numbers and sizes allows for highly customisable compositions

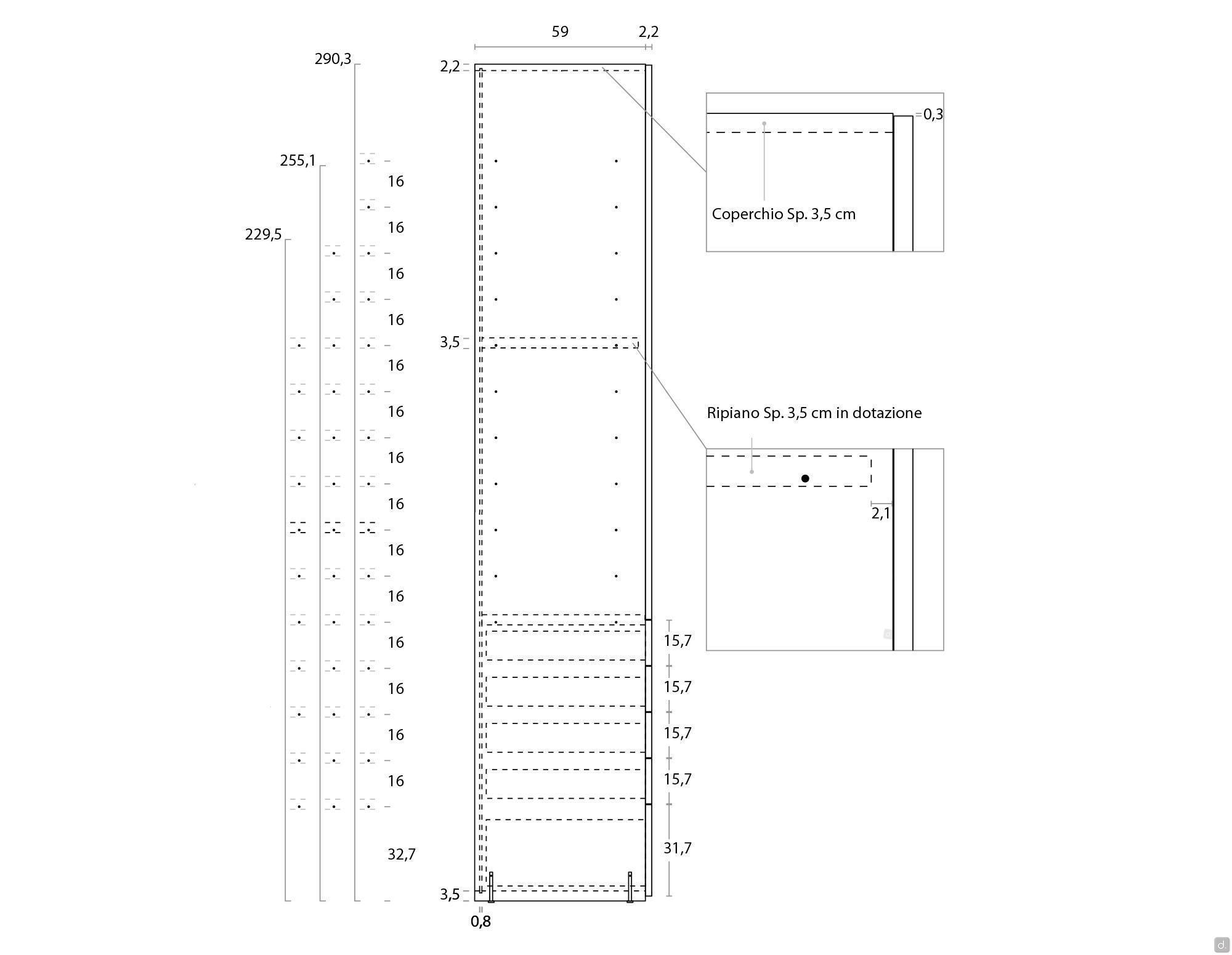

Diagram of module depth with Wide drawers and drawer heights

+ 11

MORE IMAGES

Wide Doors and Drawers p.61,2
Wardrobe with Drawers

Wardrobe with drawers for 61.2 cm deep Wide hinged compositions. Opening by handle, push-pull or groove, 2 to 5 drawers with bottom basket.

* Required Fields

Larghezza *

Nota Bene *

Il modulo da cm 85,2 ha ante asimmetriche (cm 38,4 anta Sx / cm 48,4 anta Dx)

Altezza *

Modello *

Modello *

Modello *

Verso Apertura Anta *

Modello Ante e Cassetti *

Modello Ante e Cassetti *

Modello Ante e Cassetti *

Finitura Ante e Cassetti *

Finitura Ante e Cassetti *

Finitura Ante e Cassetti *

Finitura Ante e Cassetti *

Finitura Ante e Cassetti *

Finitura Ante e Cassetti *

Dotazioni Interne *

n.1 ripiano cm sp.3,5

Modello Maniglia *

Finitura Maniglia/e *

Nota Bene *

il primo cassetto in prossimità dell'anta ha una maniglia incassata nell'estremità inferiore

Finitura Unghiatura *

Finitura Interni *

nobilitato

Finitura Interni *

Finitura Interni *

Finitura Interni *

Finitura Interni *

Finitura Interni *

Finitura Interni *

Finitura Lato Interno Ante *

nobilitato skin effect NSE

Nota Bene *

I bordi di coperchio, fondo e divisione sono sempre in finitura Moka Shine.

Posizionamento *

Posizionamento *

Posizionamento *

Posizionamento *

Posizionamento *

Posizionamento *

Finitura Fianco di Chiusura *

------PER ANTE NOBILITATE
in tinta alle Ante su entrambi i lati

Finitura Fianco di Chiusura *

in tinta alle Ante

Info per il tuo Acquisto *

Il lato interno del fianco di chiusura è in nobilitato Skin Effect NSE.

Info per il tuo Acquisto *

Il lato interno del fianco di chiusura è in legno Fashion Wood, in tinta al lato esterno.

Info per il tuo Acquisto *

Il lato interno del fianco di chiusura è in Nobilitato Rovere Bianco NR

Quantity

From €506.35

View Samples

Wishlist

Description

The Widewardrobe with drawers is a modular element that can be combined with hinged or open compositions of the collection of the same name, equipped with one or two hinged doors and from 2 to 5 drawers of 15.7 cm, in which a 31.7 cm bottom drawer is always included.
Configurable in three heights and 6 widths, the Wide hinged door and drawer wardrobe combines the capacity of a hinged wardrobe with the functionality of a weekly cabinet and is available in melamine, matt lacquer or wood veneer, for a high degree of customisation. The hinged module always includes a shelf to match the interior and can be equipped with additional accessories, while the door and drawer opening includes different models of handles, a lacquered metal groove or the practical and invisible push-pull mechanism.

Characteristics
wardrobe with drawers and doors practical and functional, can be combined with hinged or open units
available in different sizes and compositions with door, basket and 1 to 4 drawers
complete with guides with assisted closing and 3.5 cm thick internal shelf
customisable finish and type of opening, to create a complement that is always unique

Measurements
Width: cm from 48,7 to 112,8 per module (useful internal width from cm 46,5 to 110,6)
Height: cm h.229,5 / 255,1 / 290,3
Depth:
- wardrobe: cm d.61,2
- body: cm d.59
- useful interior: cm d.58,2

Materials and Finishes
Element:
- melamine
- matt lacquered
- wood veneeressence
Handle and Hook
- painted metal
- matt lacquered metal
Interiors:
- melamine-faced
- matt lacquered melamine

Purchase Information
The positioning of the wardrobe with drawers can be independent, initial, central or final with respect to one or two hinged compositions. To calculate the overall dimensions of your linear composition, simply add the width of the wardrobe with drawers to that of the linear hinged wardrobe.

Technical study

Material Specifications
Doors, sides, partitions, drawer unit, lid, backs, internal shelves: made of class E1 particleboard with low formaldehyde emission.
N.B. Wood-effect melamine, barré polymeric and Metal Smoke / Gurè material melamine have the grain direction always vertical. In these cases there is also no continuity of grain between drawer and drawer fronts and upper doors.

Technical Specifications and Equipment
Sides and partitions: thickness 2.2 cm. Equipped with levelling feet inserted in the thickness (cm 0.5 drainage, to be added to the overall height of the cabinet) and adjustable cm 1 from the inside.
Lid: thickness cm 2,2 complete with joints for fixing, matching the interior.
Bottom: thickness cm 3.5 complete with joints for fastening, matching Interiors.
Backs: cm 0.8 thick, matching Interiors.
Internal door shelf: thickness cm 3.5 complete with joints for fixing, matching Interiors.
Doors: cm 2.2 thick with hinges fitted with a mechanism for assisted soft-closing (except for push-pull doors, which do not). Doors open by means of a handle or metal groove painted white, moka shine, nickel or matt lacquered. In the modules with two hinged doors, a single handle is normally installed on the right door: the left door is instead fitted with a PVC rebate guard.
Drawer: with front 2.2 cm thick and 15.7 cm high, fitted with partial-extension concealed runners equipped with a mechanism for assisted soft-closing. Equipped with handle or horizontal groove (the first drawer near the doors does not have a groove but a recessed handle in the lower part) in white, moka shine, nickel or matt lacquered metal. Drawer sides and bottom are always in linen grey melamine.
Drawer: with front thickness 2.2 cm and height 31.7 cm, fitted with partial-extension concealed runners equipped with a mechanism for assisted soft-closing. Equipped with handle or horizontal groove in white, moka shine, nickel or matt lacquered metal. Drawer sides and bottom are also in linen grey melamine.
Handles:
- push-pull: positioned at the standard height of the supplied shelf, which in the case of the Focus door with push-pull opening is fixed at a height of 111.8 cm, not movable.
- Ellie: cm 14,8 d.2,2 h.2,5. White, moka shine, nickel or matt lacquered metal finish.
- Z: cm 31,3 p.1,8 h. 0,9. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
- Bridge: cm 32,6 d.2,7 h.1,2. Finishes in metal painted white, moka shine, nickel or matt lacquered.
- Rev: cm 3,2 h.19,1. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
- I22: cm 4,2 p.1,5 h.19,2. Finishes in white painted metal, moka shine, nickel or matt lacquered.
- Shape: cm 7 p.2,5 h.7. Lacquered metal finish in white, moka shine, nickel or matt lacquered.

Drilling Sides
Sides and partitions have fixed holes on average every 16 cm. For detailed dimensions please see the dedicated diagram in the image gallery.

Assembly Tips
The following are required for assembling the shell:
- in width cm 4
- in height cm 2.5 (cm 0.5 for levelling feet in unloaded position + cm 2 for assembly). In case the lighting system is mounted, this becomes cm 3.5.

Additional Information

Area of Production
Italy

Approximate Time
8-9 working weeks for production

Assembling
Medium Assembling
