Material Specifications
Doors, sides, partitions, drawer unit, lid, backs, internal shelves: made of class E1 particleboard with low formaldehyde emission.
N.B. Wood-effect melamine, barré polymeric and Metal Smoke / Gurè material melamine have the grain direction always vertical. In these cases there is also no grain continuity between drawer and drawer fronts and upper doors.
Technical Specifications and Equipment
Sides and partitions: thickness 2.2 cm. Equipped with levelling feet inserted in the thickness (cm 0.5 drainage, to be added to the overall height of the cabinet) and adjustable cm 1 from the inside.
Lid: thickness cm 2,2 complete with joints for fixing, matching the interior.
Bottom: thickness cm 3.5 complete with joints for fastening, matching Interiors.
Backs: cm 0.8 thick, matching Interiors.
Internal door shelf: thickness cm 3.5 complete with joints for fixing, matching Interiors.
Doors: cm 2.2 thick with hinges fitted with a soft-assisted closing mechanism (except for push-pull doors, which do not). Doors open by means of a handle or metal groove painted white, moka shine, nickel or matt lacquered. In the modules with two hinged doors, a single handle is normally installed on the right door: the left door is instead fitted with a PVC rebate guard.

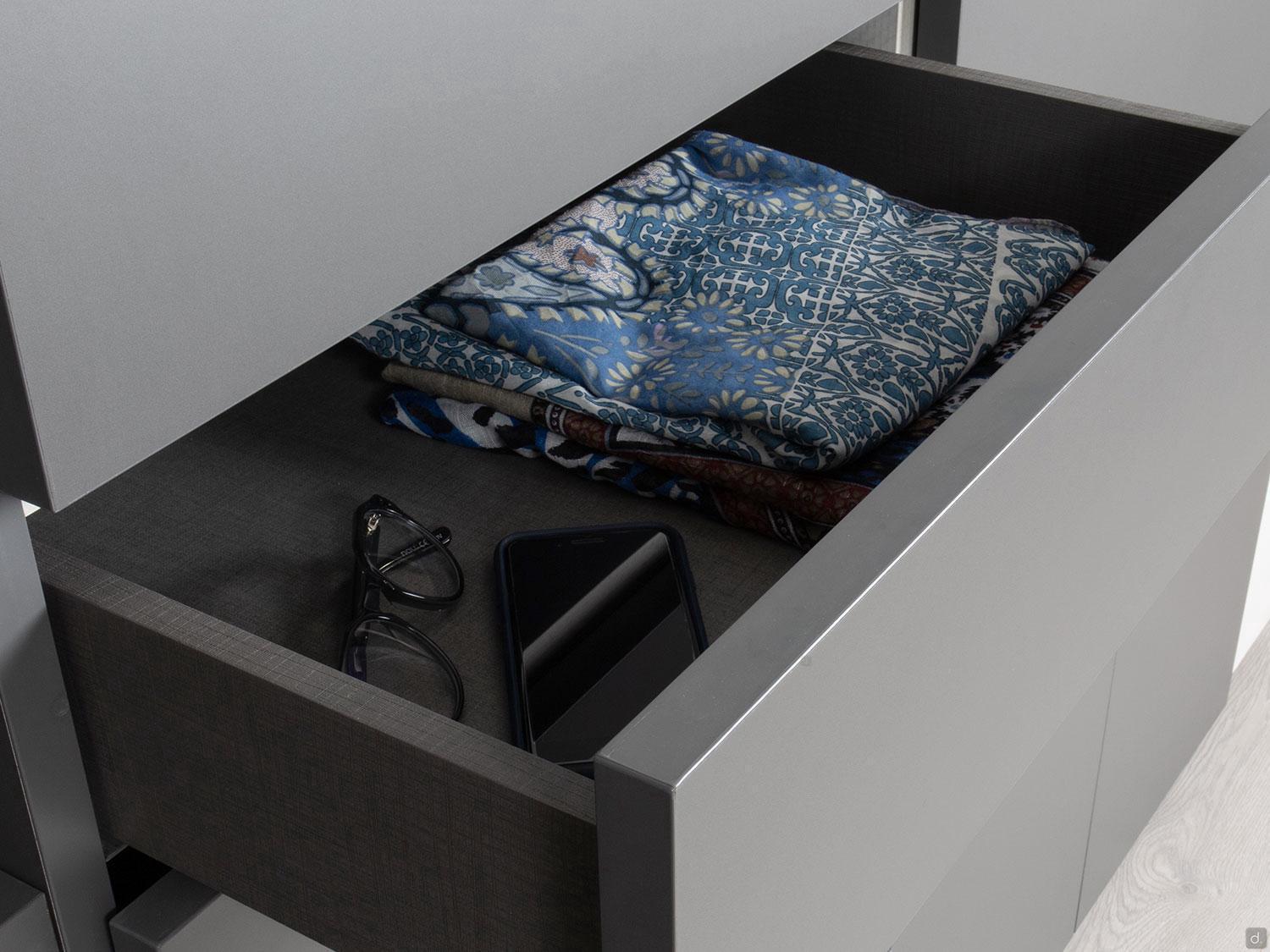

Drawer: with front thickness of 2.2 cm and height of 15.7 cm, fitted with concealed full-extension runners equipped with a mechanism for assisted soft-closing. Equipped with handle or horizontal groove (the first drawer near the doors does not have a groove but a recessed handle in the lower part) in white, moka shine, nickel or matt lacquered metal. Drawer sides and bottom are always in linen grey melamine.
Drawer: with front thickness 2.2 cm and height 31.7 cm, fitted with full-extension concealed runners equipped with a mechanism for assisted soft-closing. Equipped with handle or horizontal groove in white, moka shine, nickel or matt lacquered metal. Drawer sides and bottom are also in linen grey melamine.

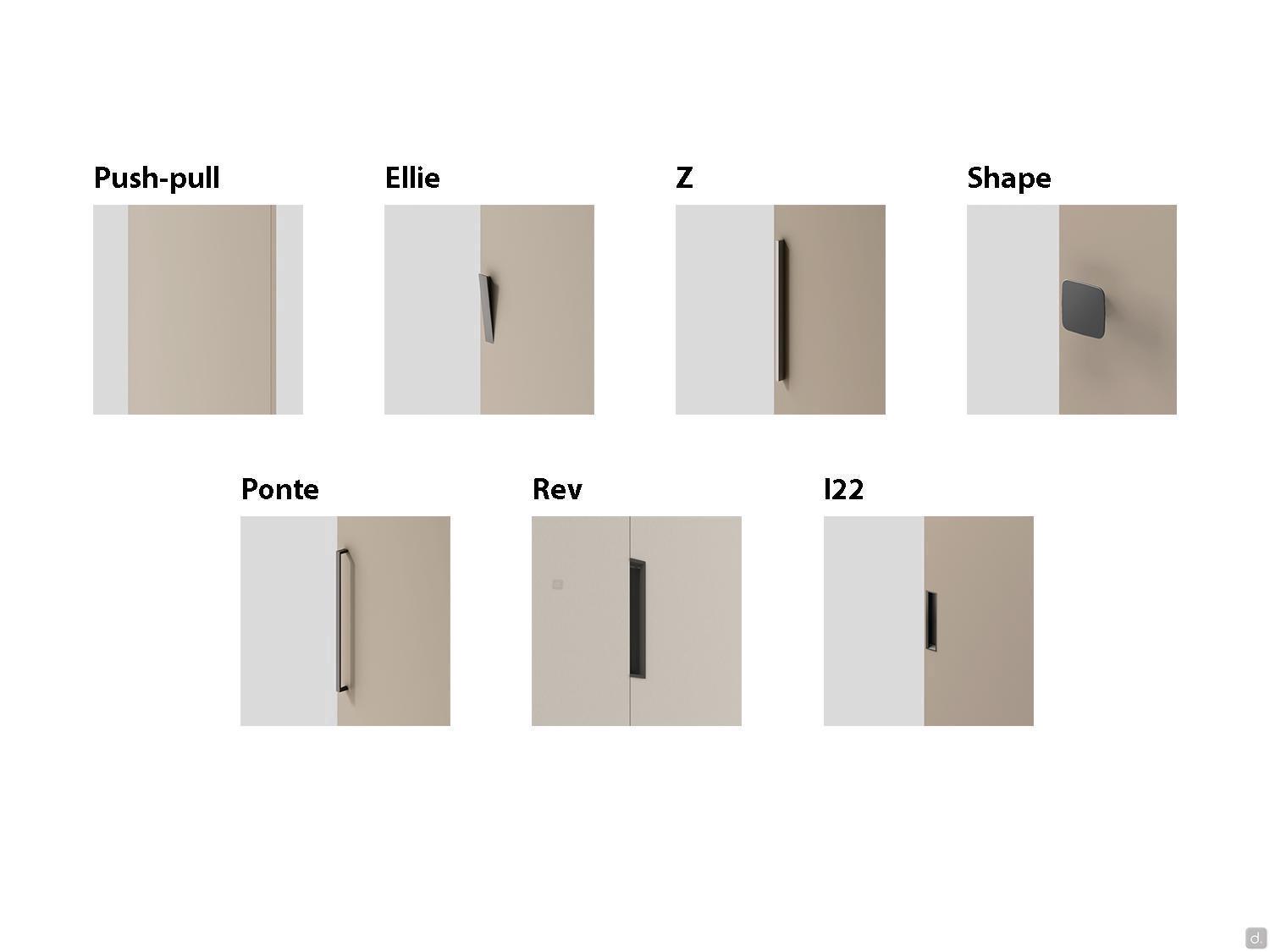

Handles:
- push-pull: positioned at the standard height of the supplied shelf, which in the case of the Focus door with push-pull opening is fixed at a height of 111.8 cm, not movable.
- Ellie: cm 14,8 d.2,2 h.2,5. White, moka shine, nickel or matt lacquered metal finish.
- Z: cm 31,3 p.1,8 h. 0,9. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
- Bridge: cm 32,6 d.2,7 h.1,2. Finishes in metal painted white, moka shine, nickel or matt lacquered.
- Rev: cm 3,2 h.19,1. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
- I22: cm 4,2 p.1,5 h.19,2. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
- Shape: cm 7 p.2,5 h.7. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
Drilling Sides
Sides and partitions have fixed holes on average every 16 cm. For detailed dimensions please see the dedicated diagram in the image gallery.
Assembly Tips
The following are required for assembling the shell:
- in width cm 4
- in height cm 2.5 (cm 0.5 for levelling feet in unloaded position + cm 2 for assembly). If the lighting system is fitted, this becomes cm 3.5.
For safety reasons it is compulsory to fix the wardrobe cm p.43,8 to the wall or to the back of another wardrobe when it is in the middle of the room.
