Specific Measurements
Wide Small:
- n.1 suspended drawer: cm 112,8
- n.1 wooden shelf: h. cm 8
- n.1 coat hanger tube
- n.2 Ellie hangers
- n.1 hinged door: cm 56,1 (fixed on the side of the wardrobe)
- n.1 back panel: cm 112,8
- n.1 hinged door wardrobe: cm 58,6
Wide Large:
- n.1 suspended shelf: cm 143,8
- n.2 wooden shelves: h. cm 8
- n.1 coat hanger tube
- n.3 Ellie hangers
- n.1 hinged door: cm 56,1 (fixed on the side of the wardrobe)
- n.1 back panel: cm 56,4
- n.1 back panel: cm 87,4
- n.1 hinged door wardrobe: cm 58,6
Materials Specifications
Doors, sides, partitions, top, backs, internal shelves: made of particle wood panels - class E1 for low formaldehyde emission.
Note: melamines with wood effect, Metal Smoke textured and Gurè textured always come with vertical veins.
Technical Specifications and Equipment
Sides and Partitions: thickness cm 2,2. Equipped with levelling feet inserted in the structure (cm 0,5 empty, to be added to the overall height of the wardrobe) and adjustable cm 1 from the inside.
Top: cm 2,2 thick, equipped with joints for mounting, matching the internal side.
Bottom: cm 3,5 thick, equipped with joints for mounting, matching the internal side.
Back panels: thickness cm 0,8 matching the internal side.
Inner shelves: thickness cm 3,5 coming with joints for mounting, matching the internal side.
Coat Hanger Back Panel: thick cm 4,4
Doors: thickness cm 2,2 equipped with soft closing mechanism.
Handles:
- push-pull: placed at the same height of the standard fixed shelf (111,8 cm)
- Ellie: cm 14,8 d.2,2 h.2,5. White or titanium painted, matt lacquered metal.
- Z: cm 31,3 d.1,8 h. 0,9. Brushed steel, painted or titanium painted or matt lacquered metal.
- I22: cm 4,2 d.1,5 h.19,2. White or moka shine painted, matt lacquered metal.
- Ponte: cm 32,6 d.2,7 h.1,2. Brushed steel, painted or titanium painted or matt lacquered metal.
Side Holes

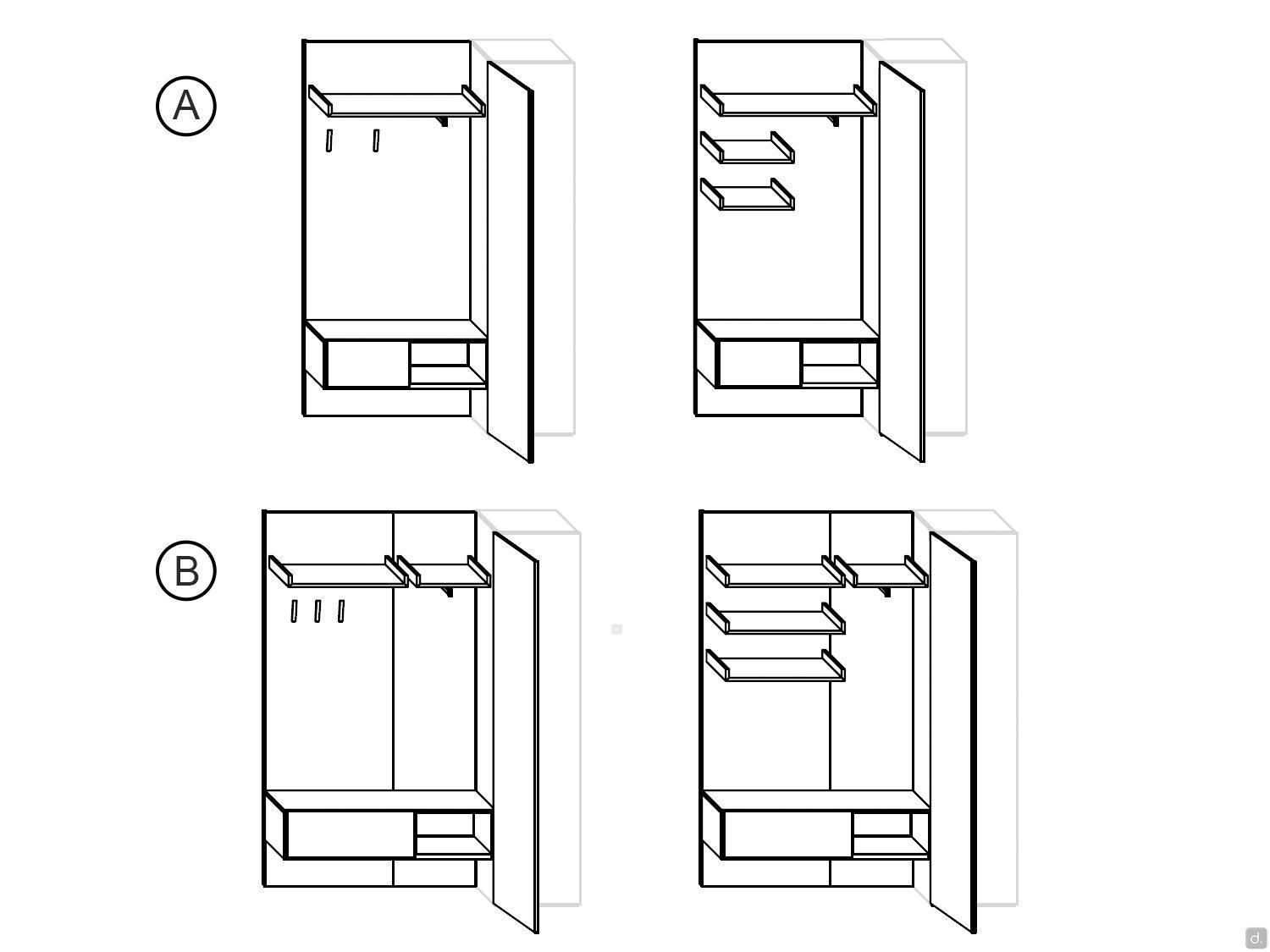

Sides and partitions have full-height holes set every 16 cm. For detailed measurements we recommend checking the scheme you find in the picture gallery.
Tips for Assembling
In order to assemble the structure you need to consider:
- 4 cm in width
- 2,5 cm in height (cm 0,5 for adjustable feet + 2 for the assembling).
