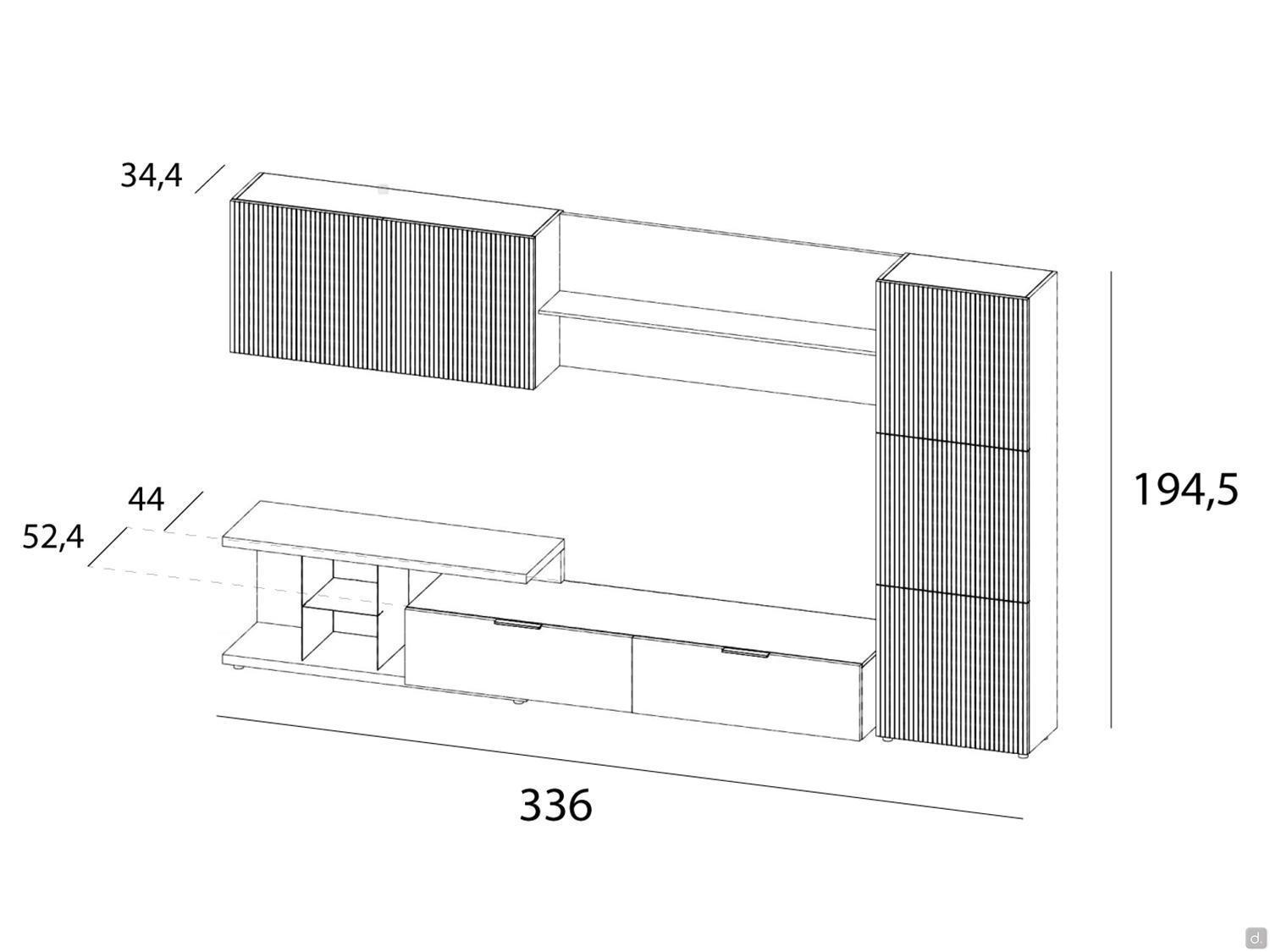

Specific Measurements
Suspsnded Base with n.2 drawers: cm 192 d.52,4 h.32
Cabinet with n.2 hinged doors: cm 128 d.34,4 h.64
Column with n.3 hinged doors: cm 64 d.34,4 h.192

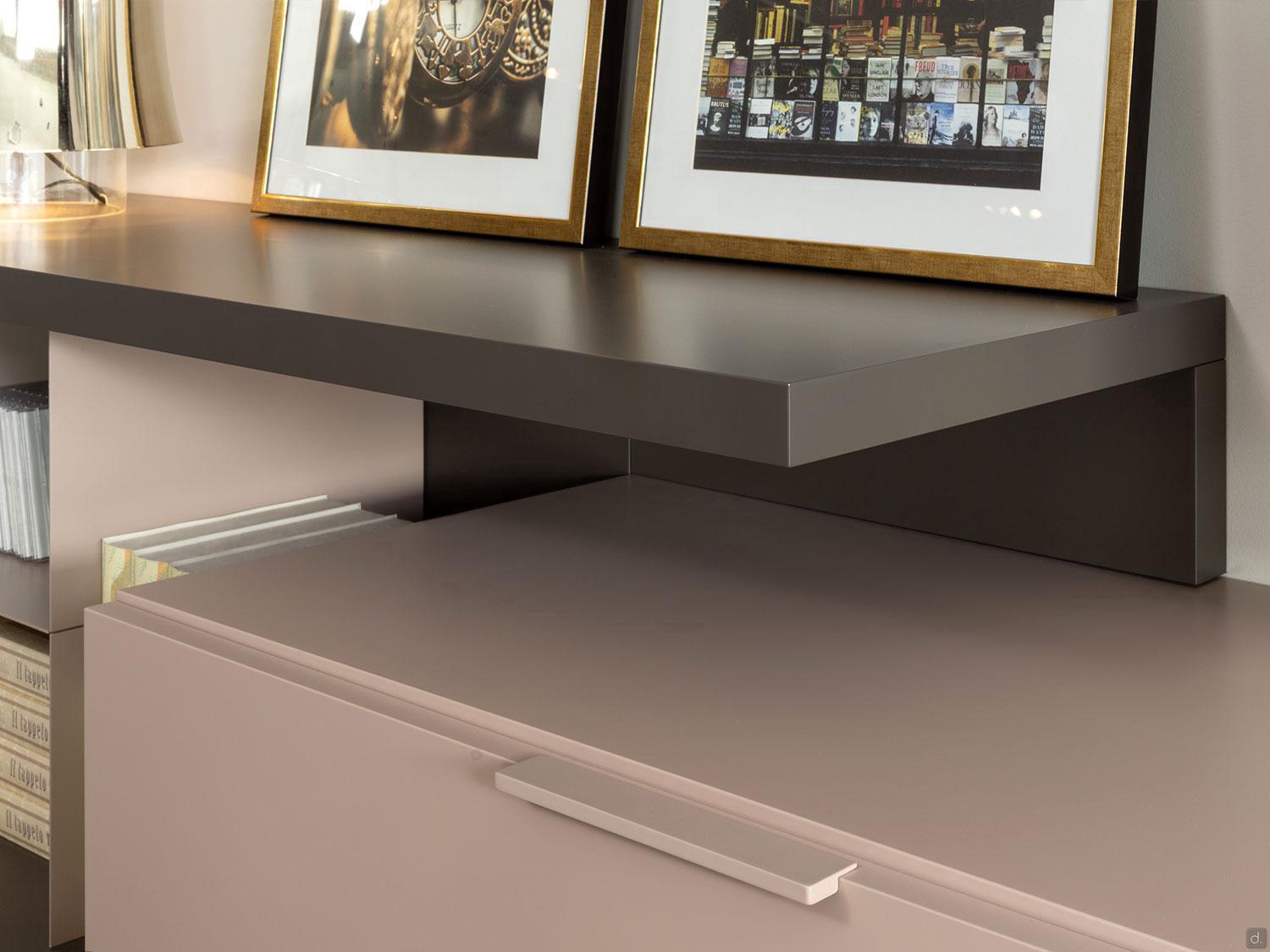

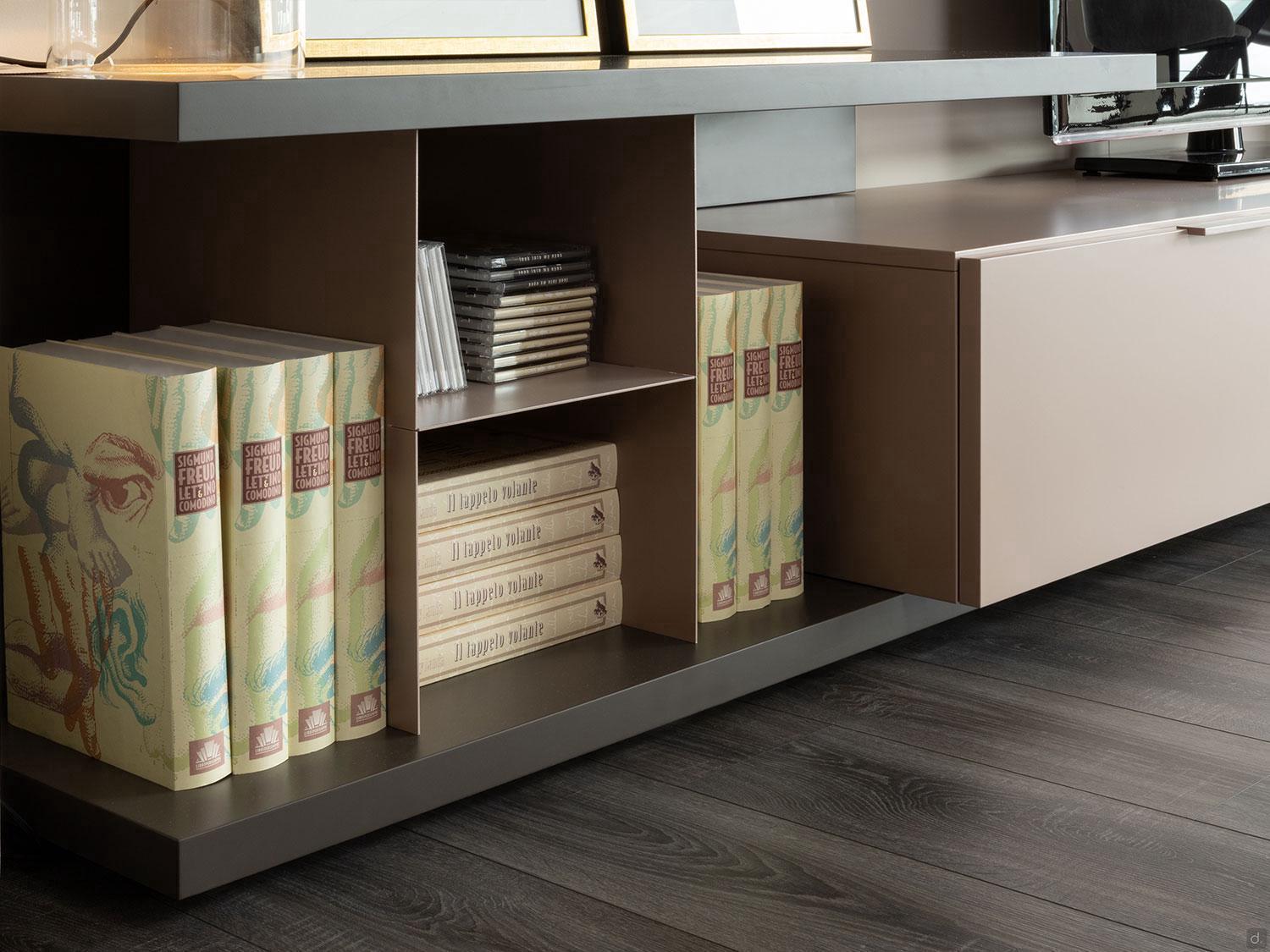

C-Shape Shelf: cm 128 d.44 h.56 th.4
Back Panel: cm 144 d.4,4 h.64
Bookshelf: cm 144 d.24,3 h.1,4
Technical Specifications and Equipment
Structure: wood
particle panel covered in melamine (class E1 - low formaldehyde emission), wood
or MDF (for glossy lacquer).
Back Panel: wood
particle panel (class E1 - low formaldehyde emission) 2,2 cm thick; the back of
the panel has a profile also in wood particles, 2,2 cm thick, covered in
polymer leaf in a matte black finish.

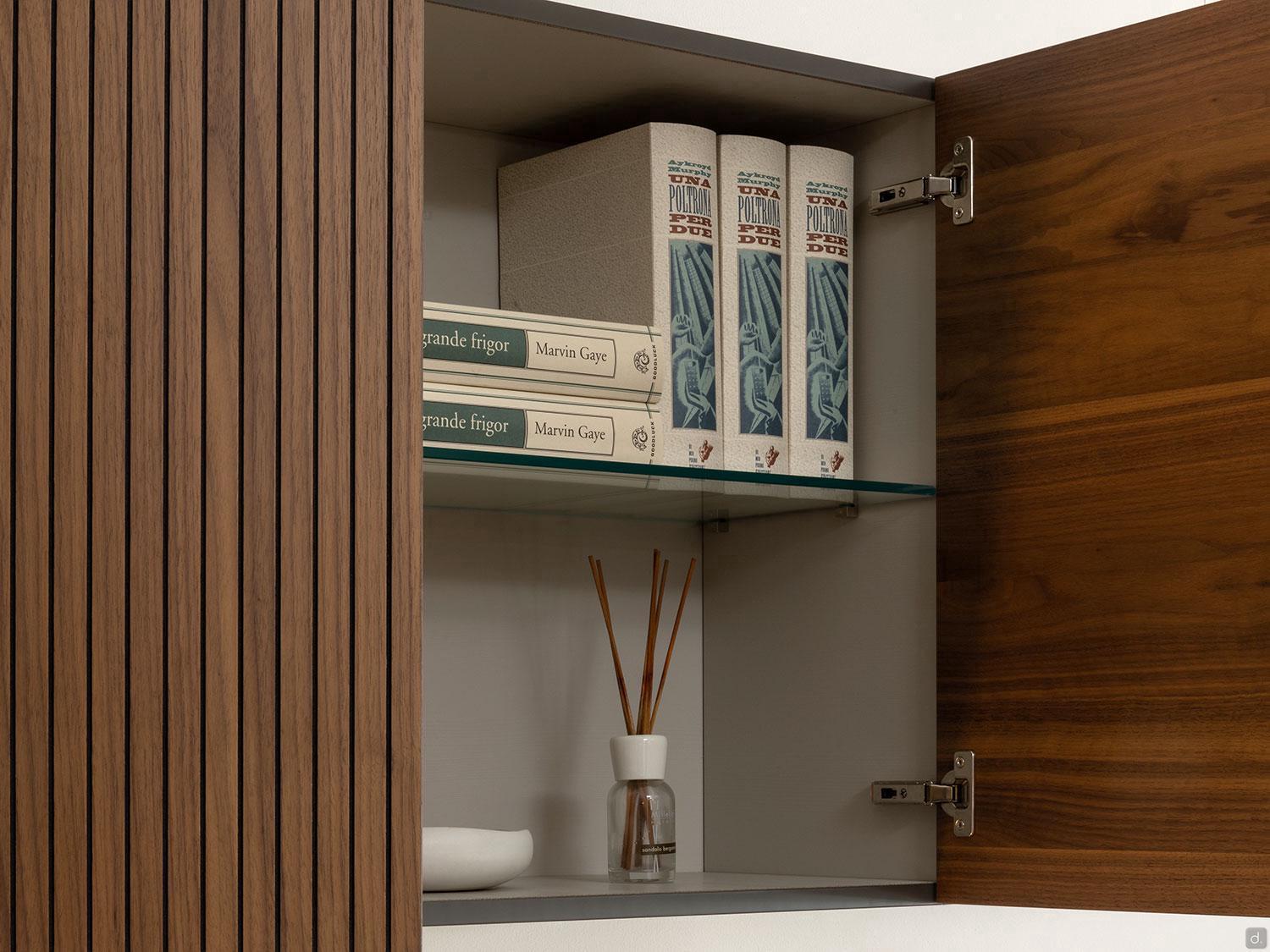

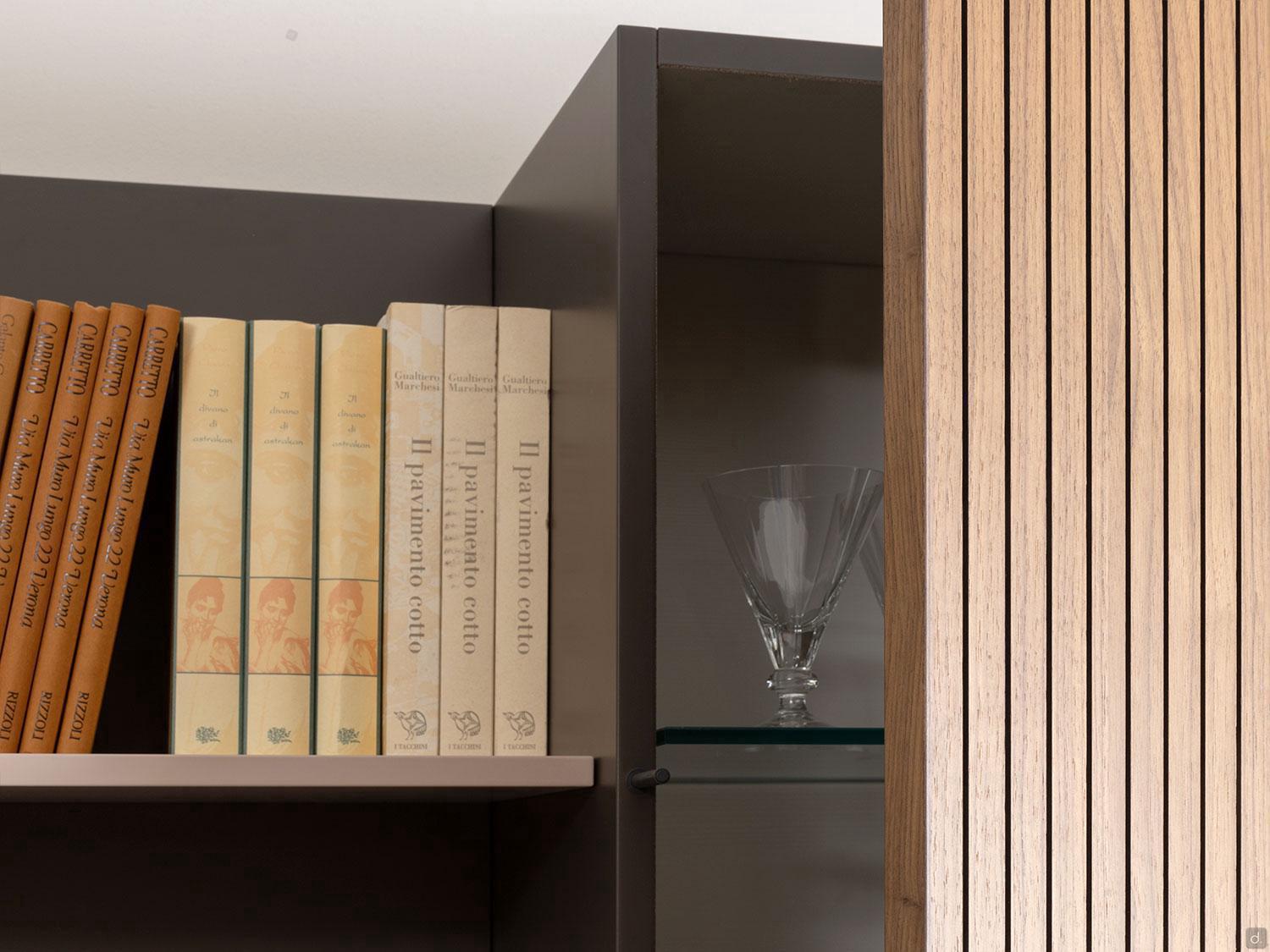

Shelves: glass,

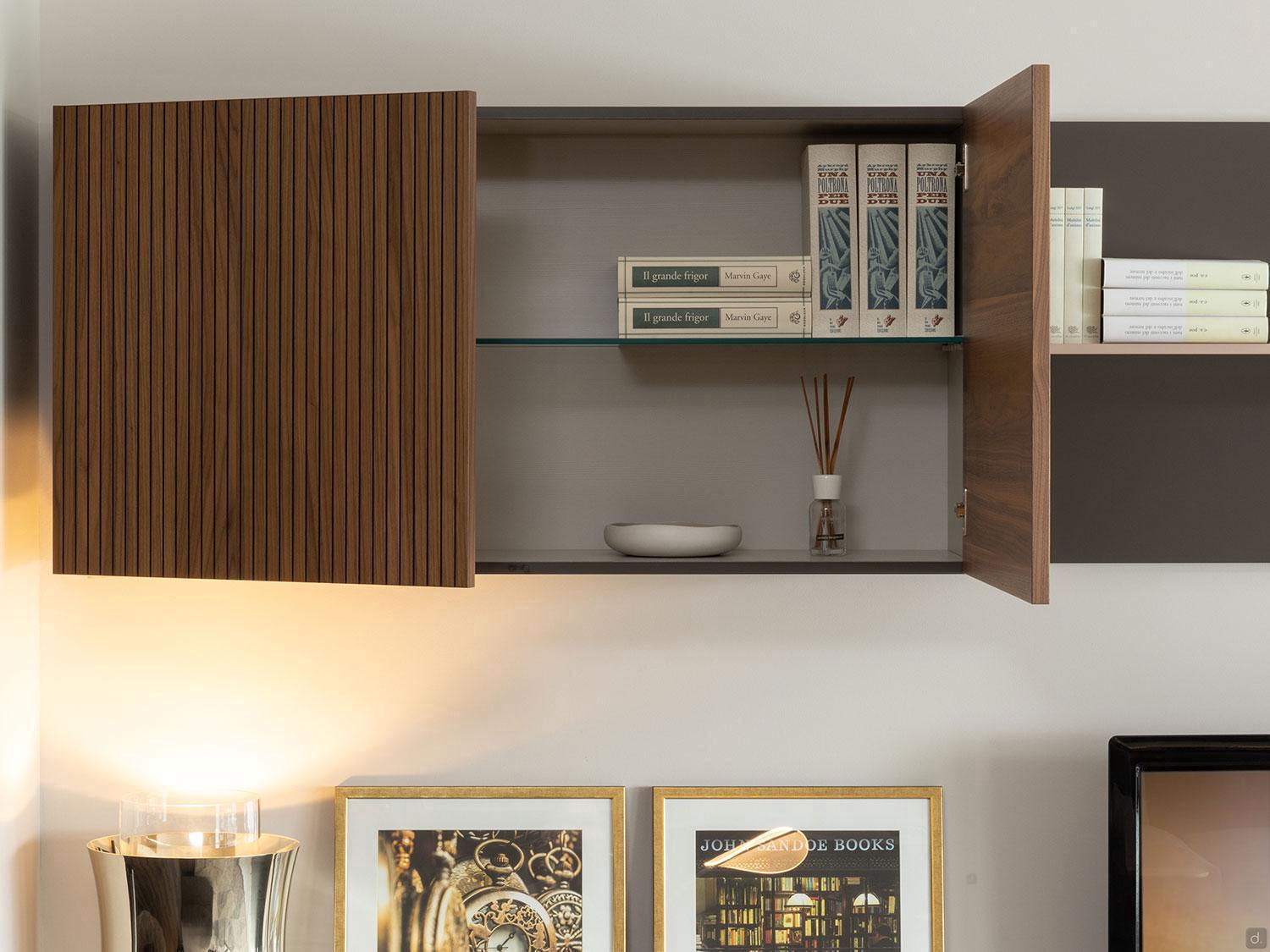

0,8 cm thick; matching, thickness 1,8 cm. In the suspended module with two
hinged doors there is a central glass shelf, while in the column there are 2
wooden shelves and 3 glass shelves.
Hinged Doors: wood
particle panel covered in melamine (class E1 - low formaldehyde emission), wood

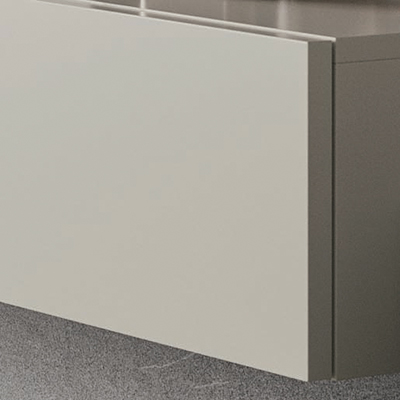

or MDF 2,2 cm thick. Equipped with push-pull opening and hinges with soft

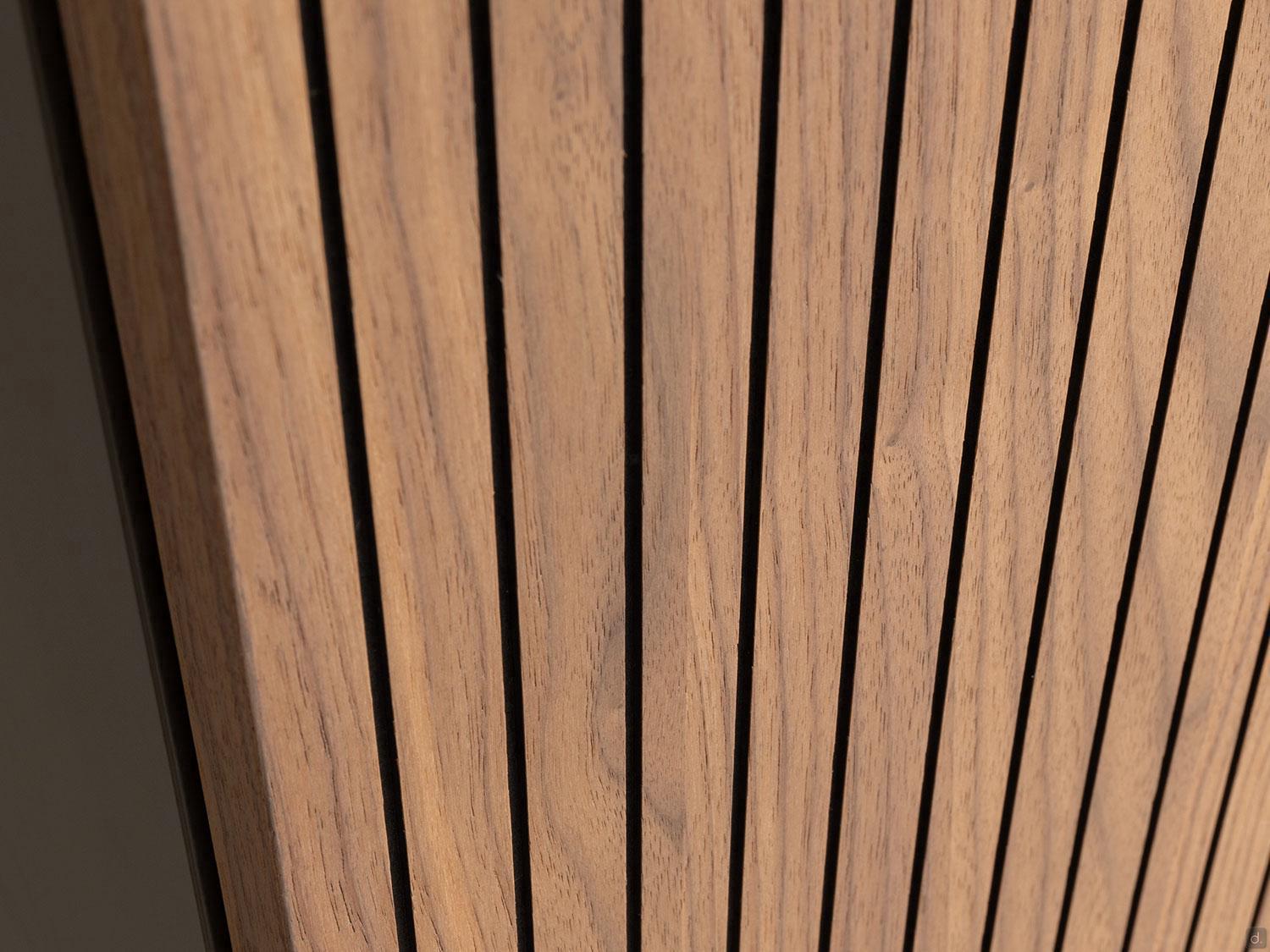

closing. Groove Wood Door Groove

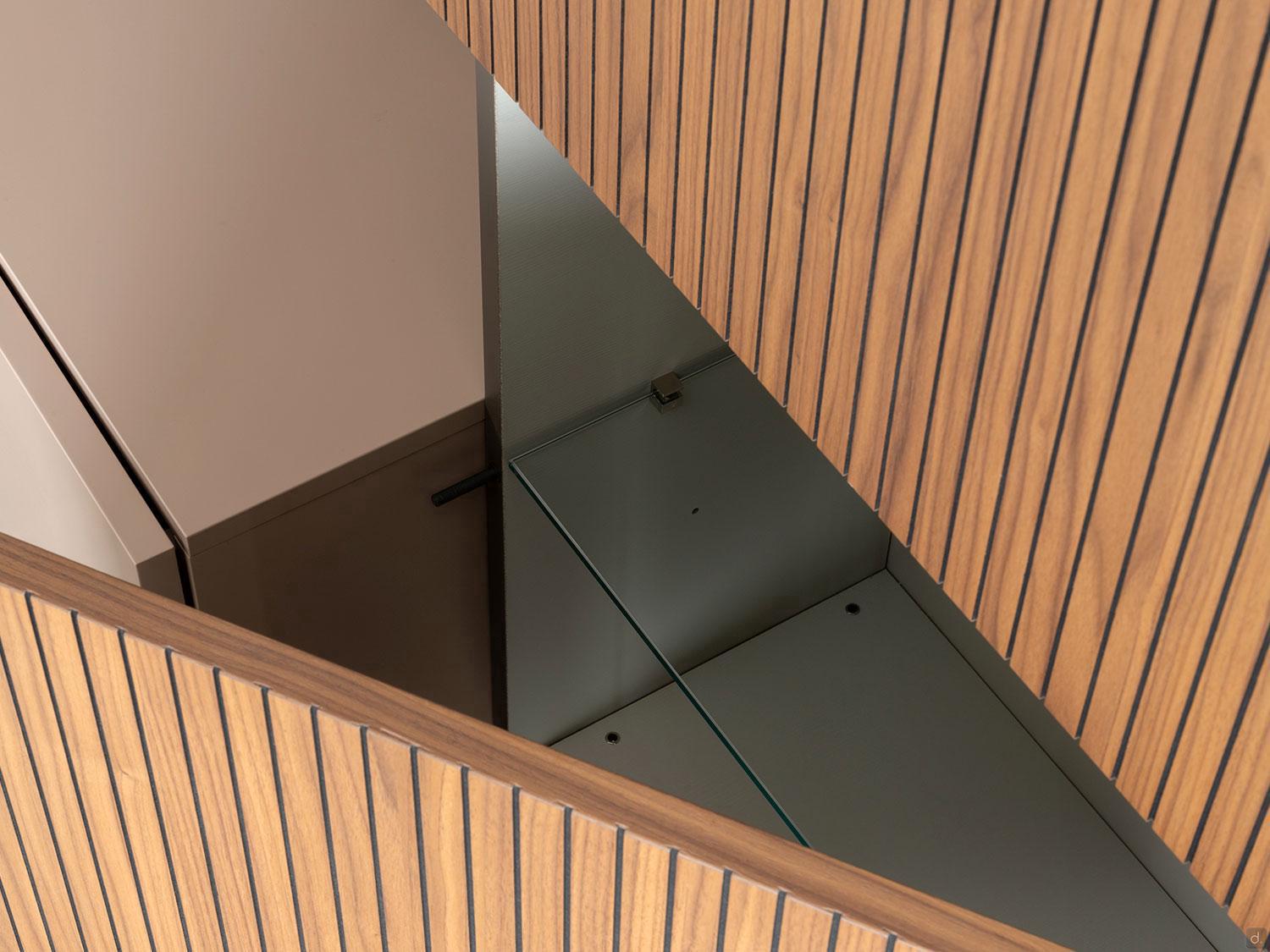

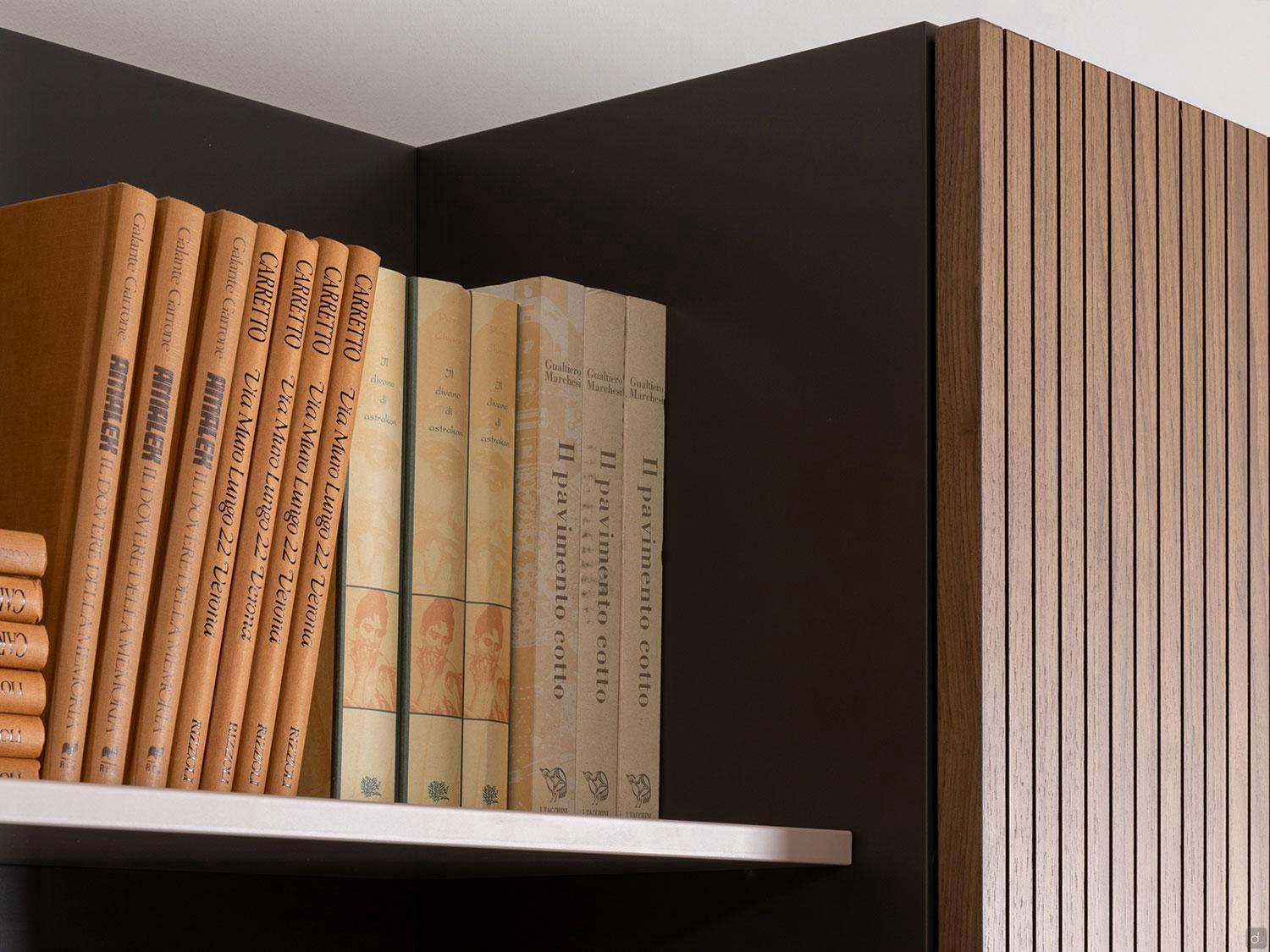

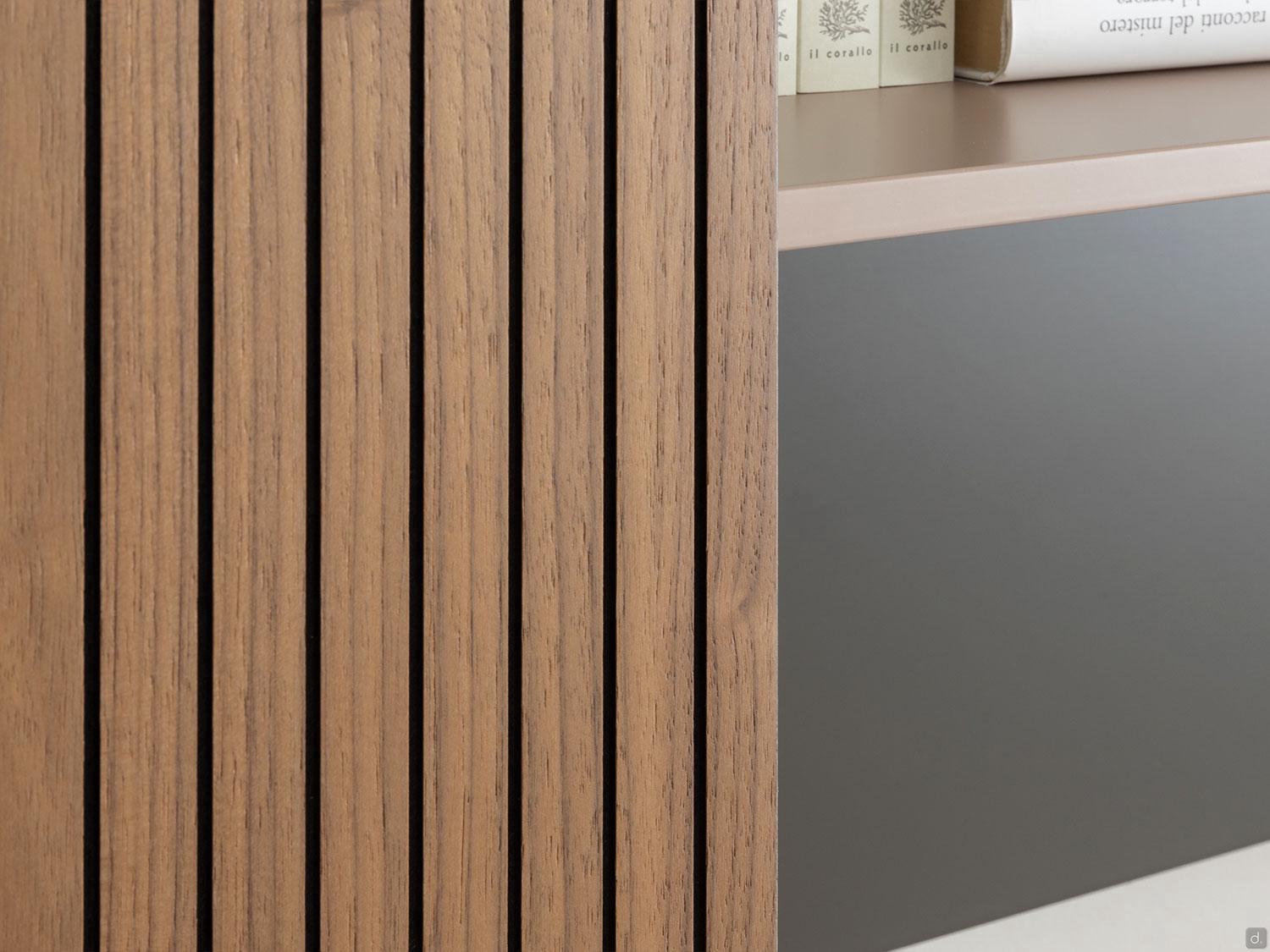

Wood door in MDF thickness 2,2 cm, with 0,3 cm grooves placed at 1,7 cm
intervals.

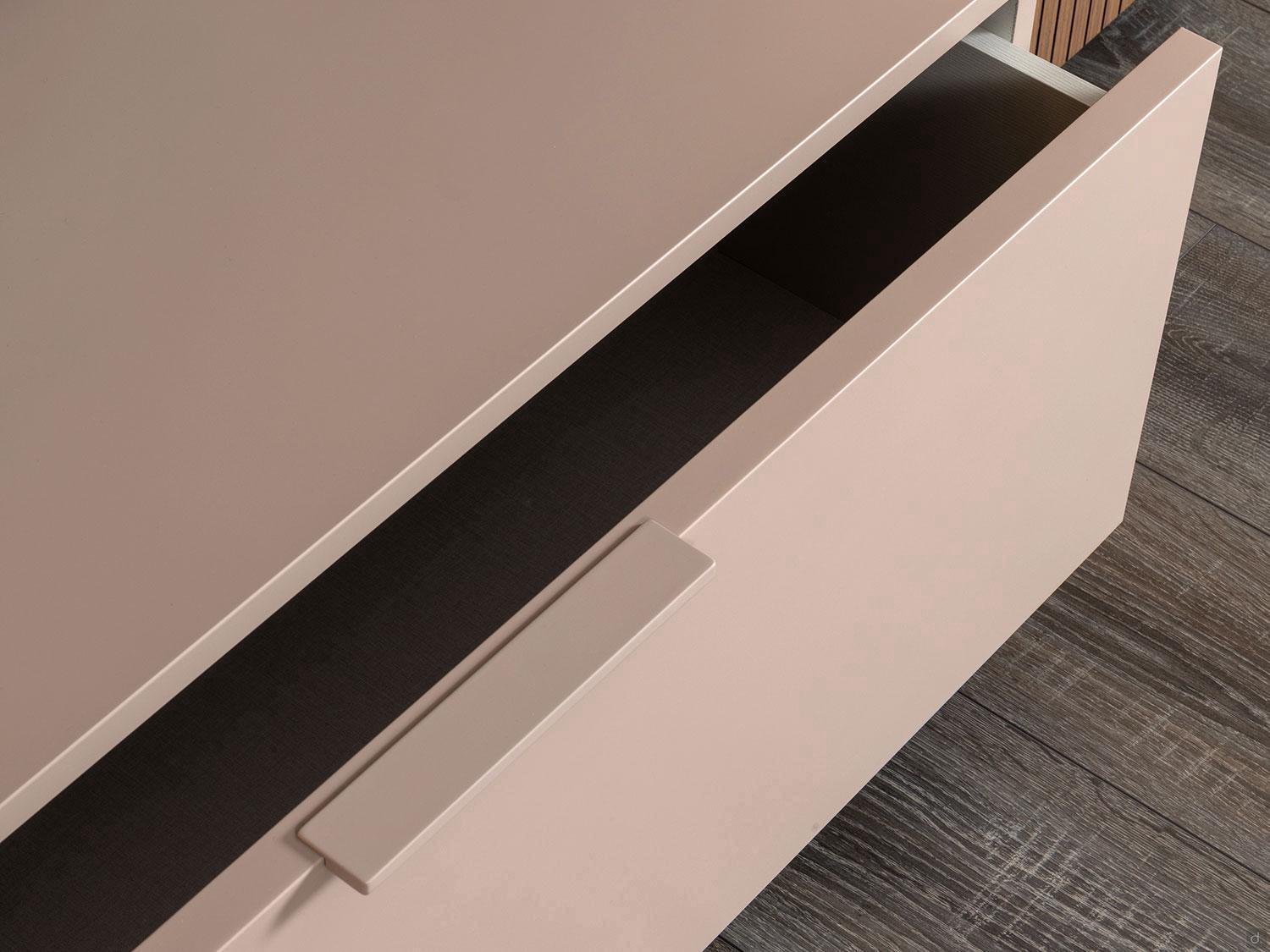

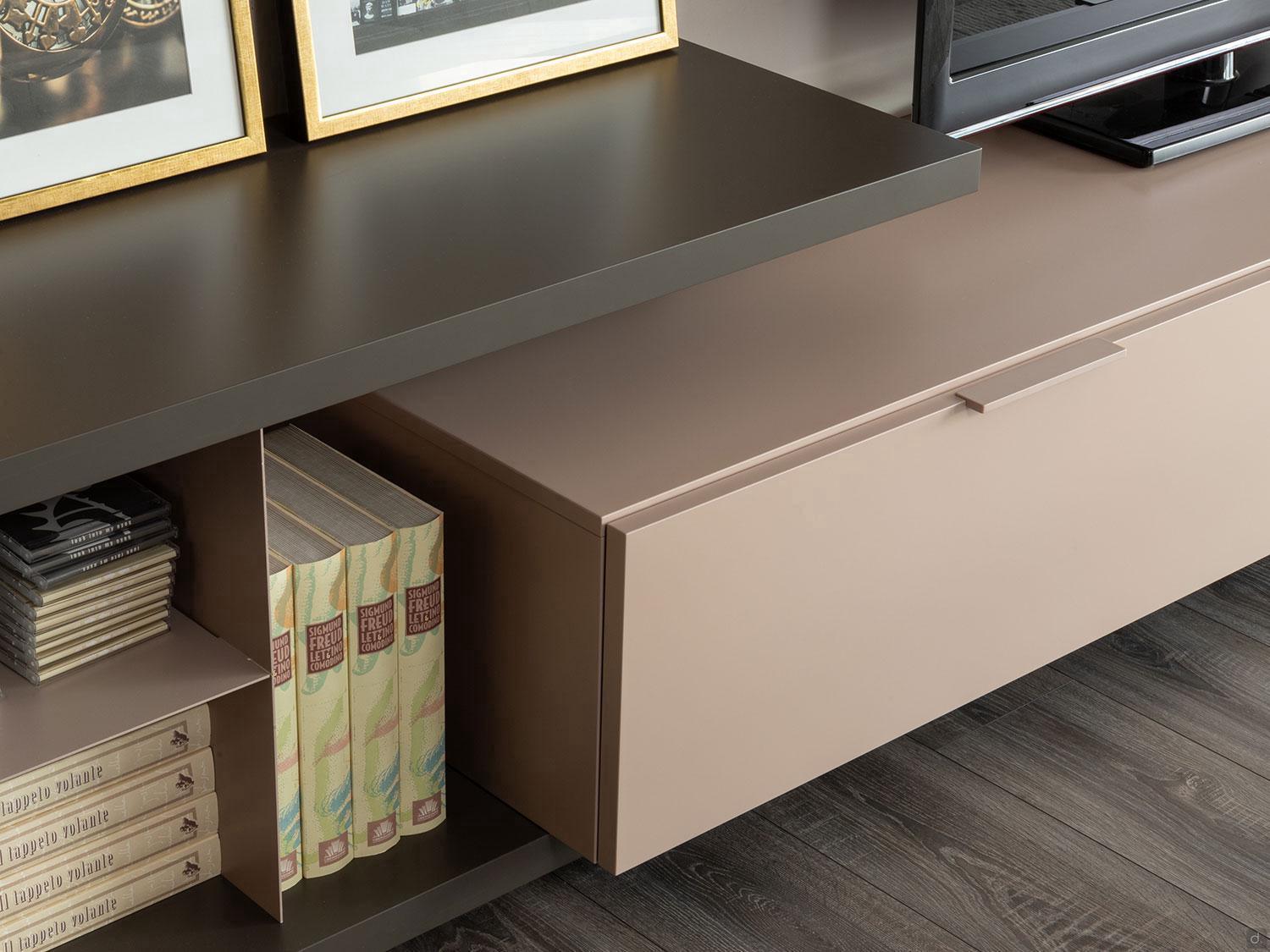

Baskets: fronts
in wood particles (class E1 - low formaldehyde emission) or MDF 2,2 cm thick,
sides in wood particle panels covered with polymer foil 1,4 cm thick. The sides
of the baskets are always in Dove Grey melamine.
Assembly Tips
The cabinets are equipped with hangers for wall fixing with an anti-release system. The dowels are adjustable from the inside by 1 cm in height and 0,3 cm in depth. The maximum capacity of the cabinet is 80 kg for each hanger.
The back panel is equipped with adjustable hangers with a maximum load capacity of approximately 80 kg each.
