Technical Specifications and Equipment
Structure: made from MDF, 1,8 cm thick, with a 45° edge on all sides. The interior section is made from melamine, matt lacquer, glossy lacquer, metallic lacquer, open-pore oak wood or aged oak wood.

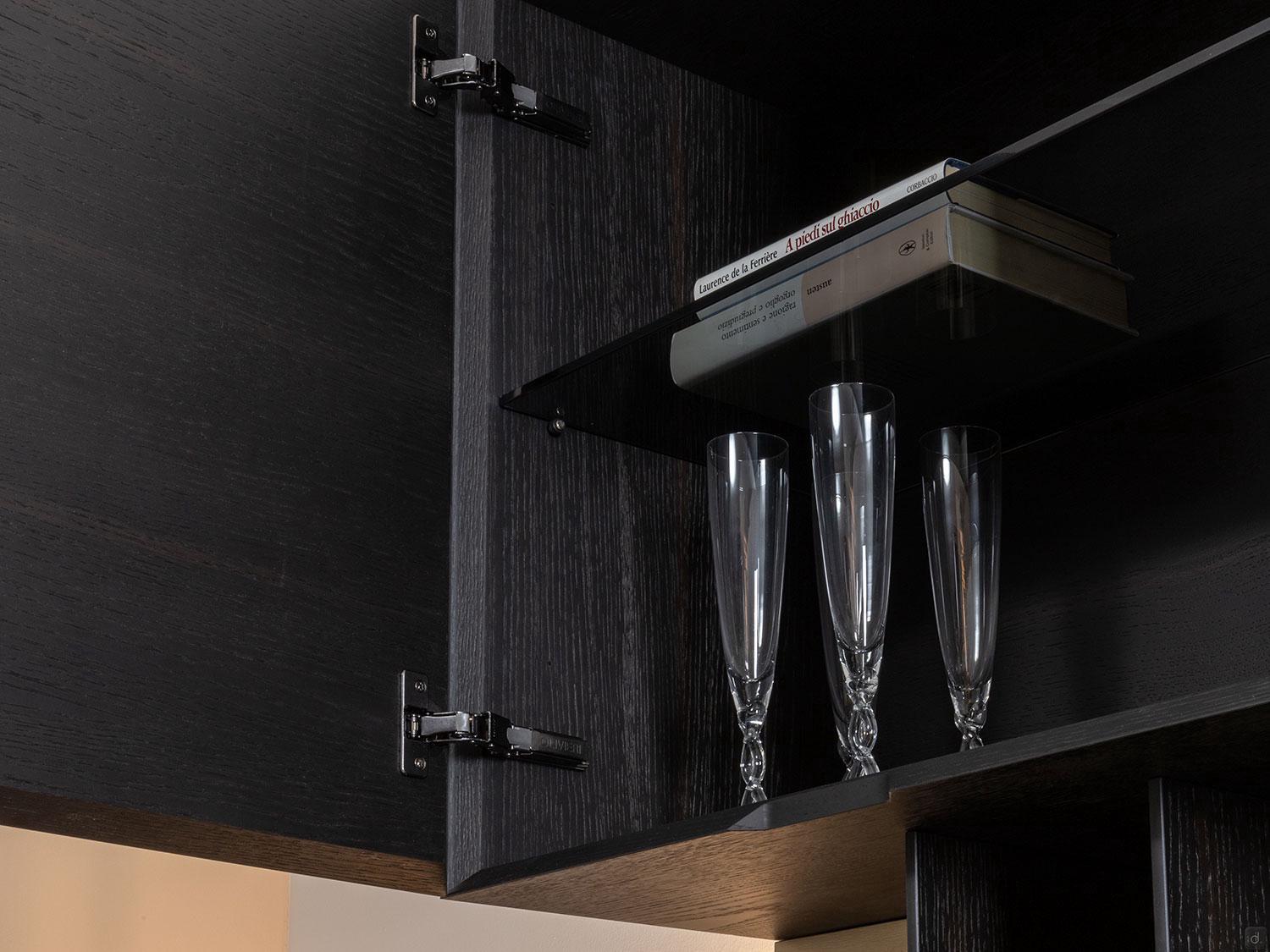

Internal Shelves: made in smoked glass, 0,8 cm thick, or matching the interior section of the wall unit, 1,8 cm thick.

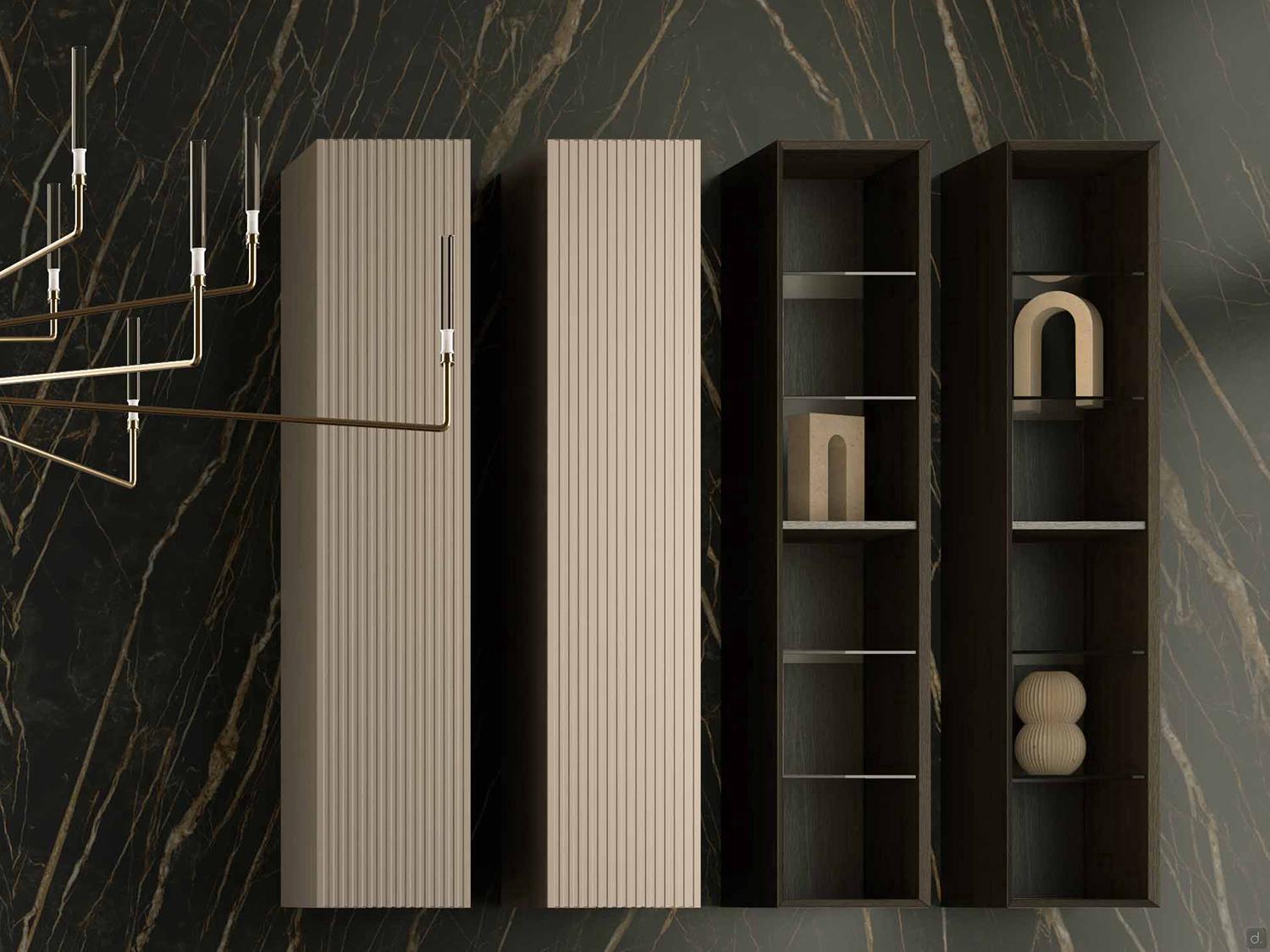

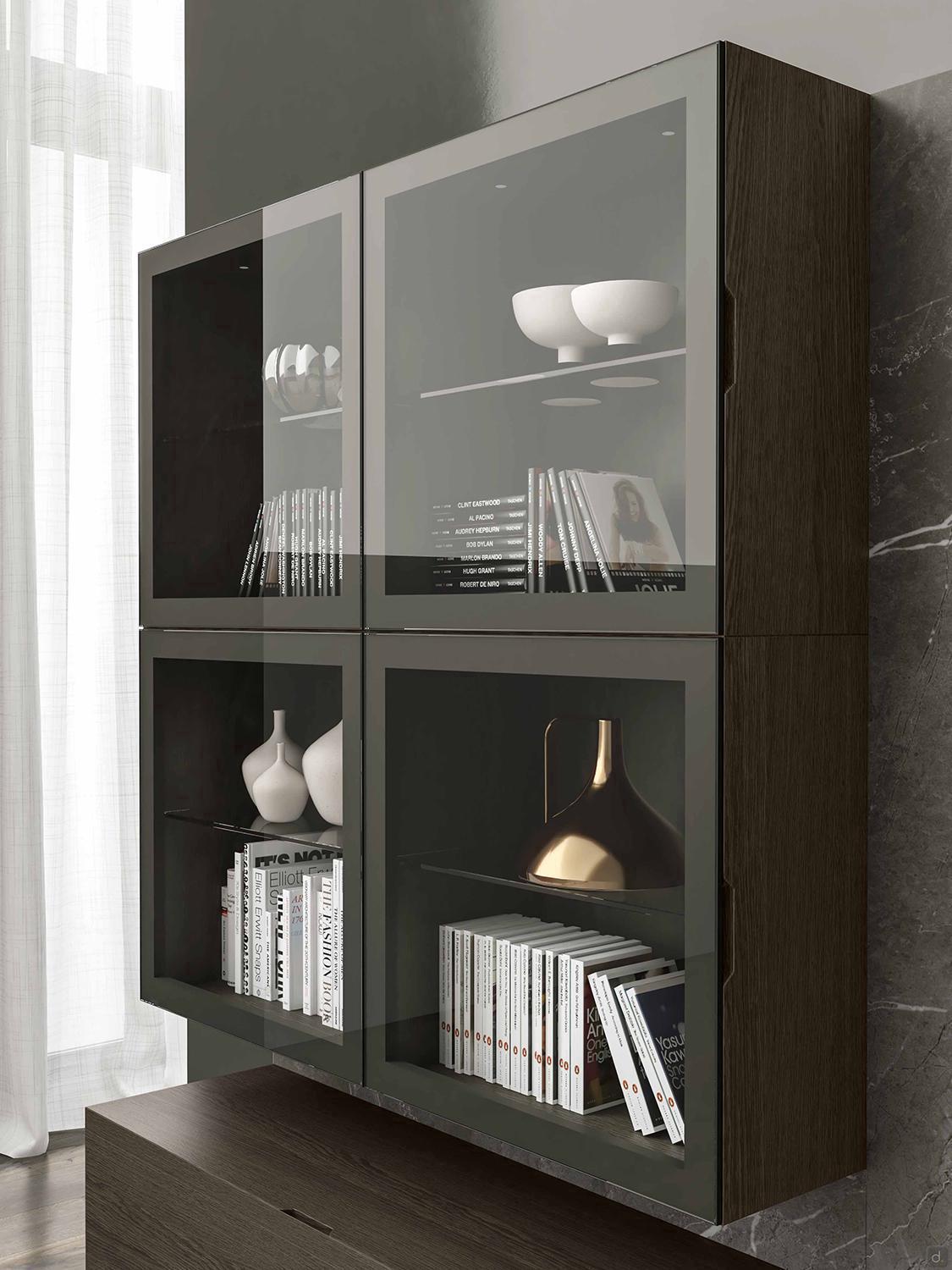

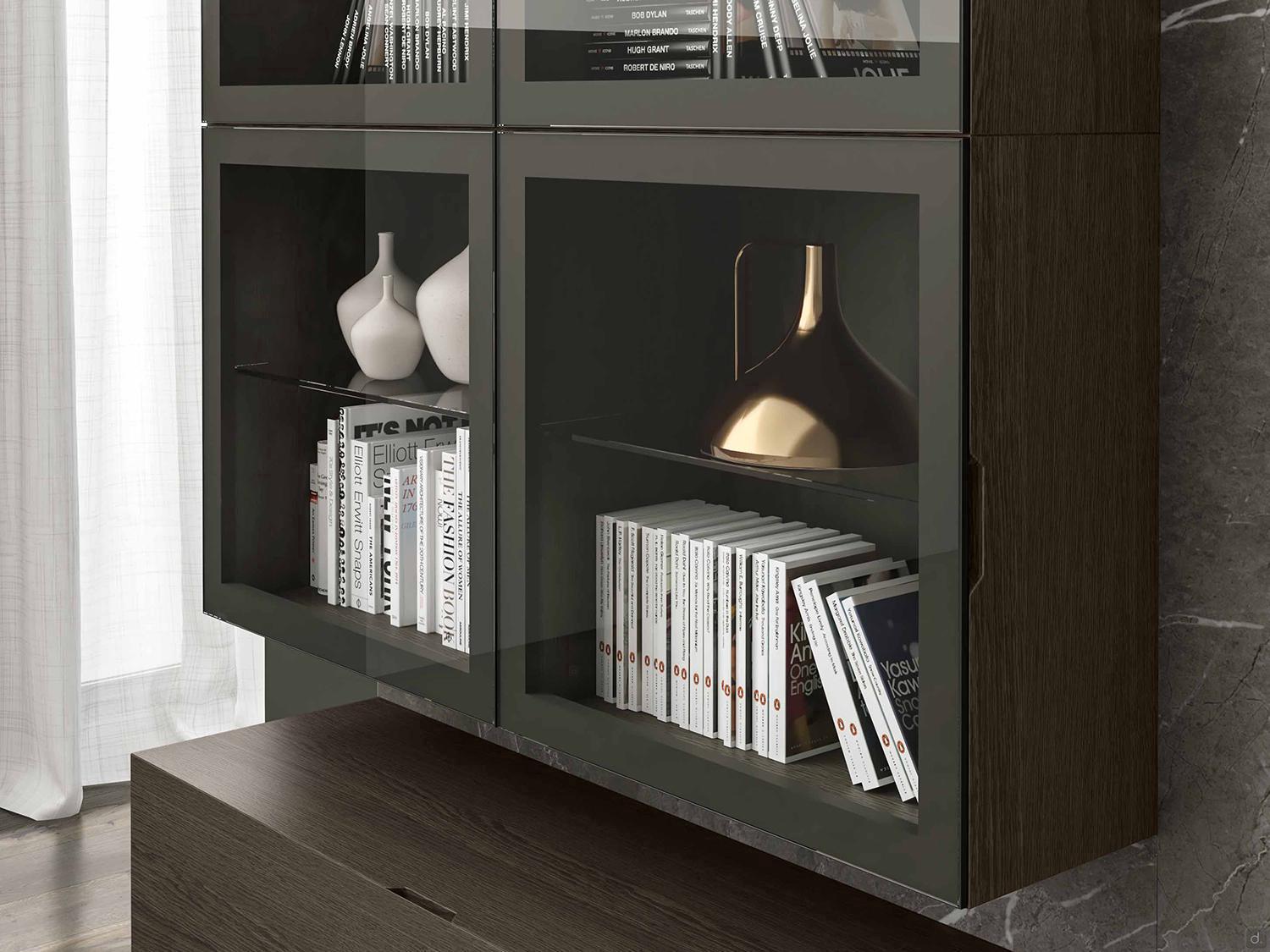

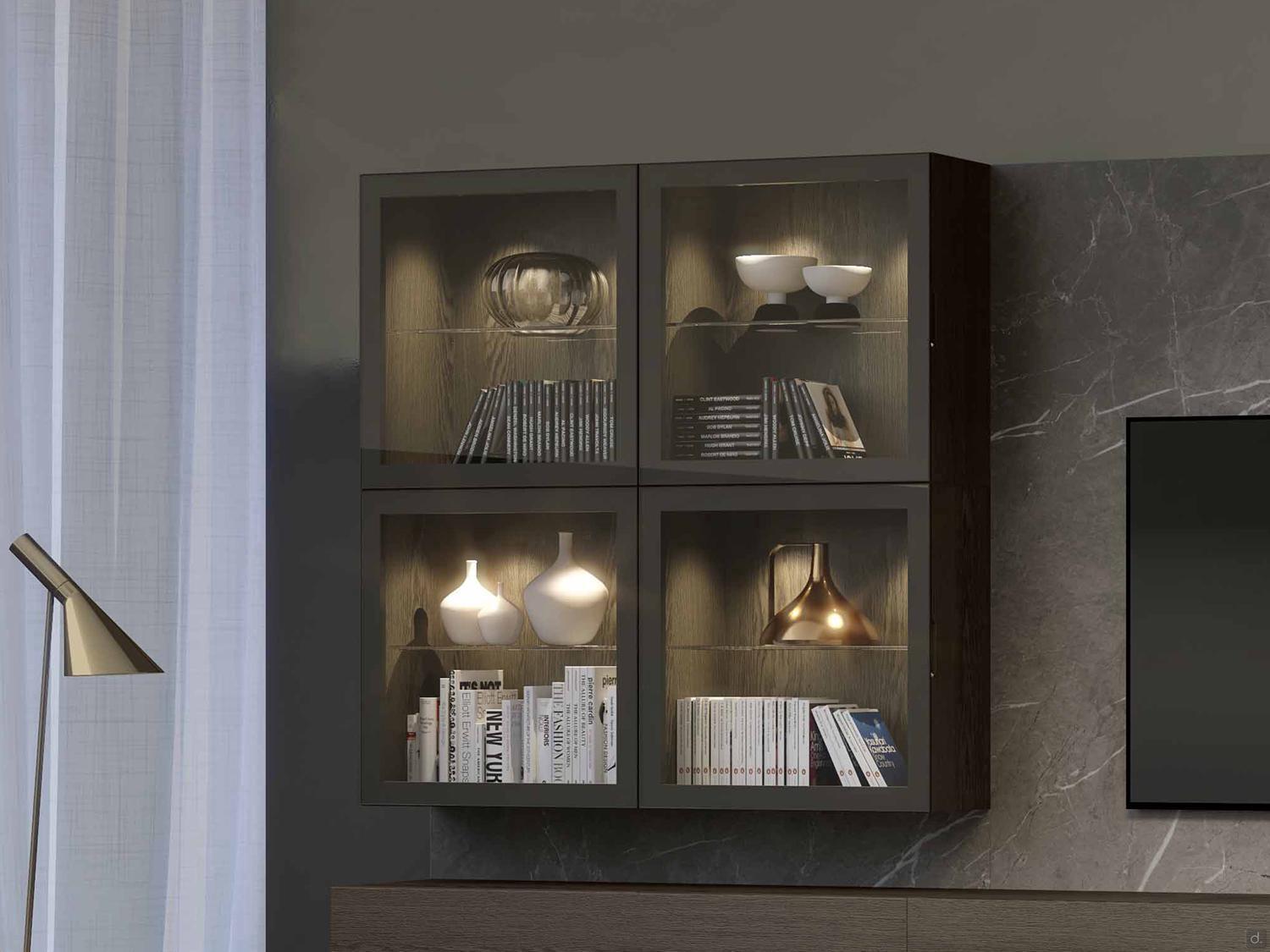

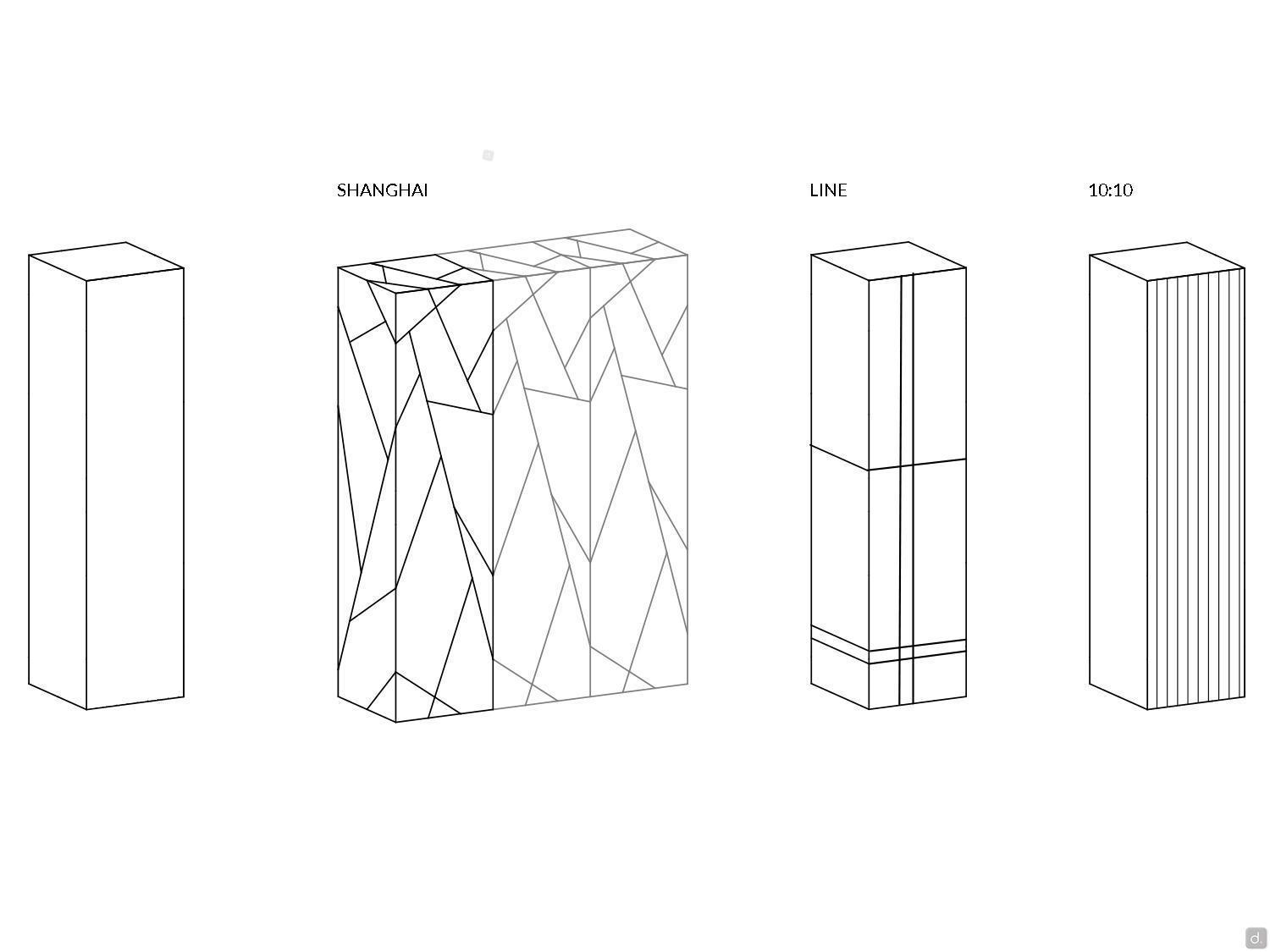

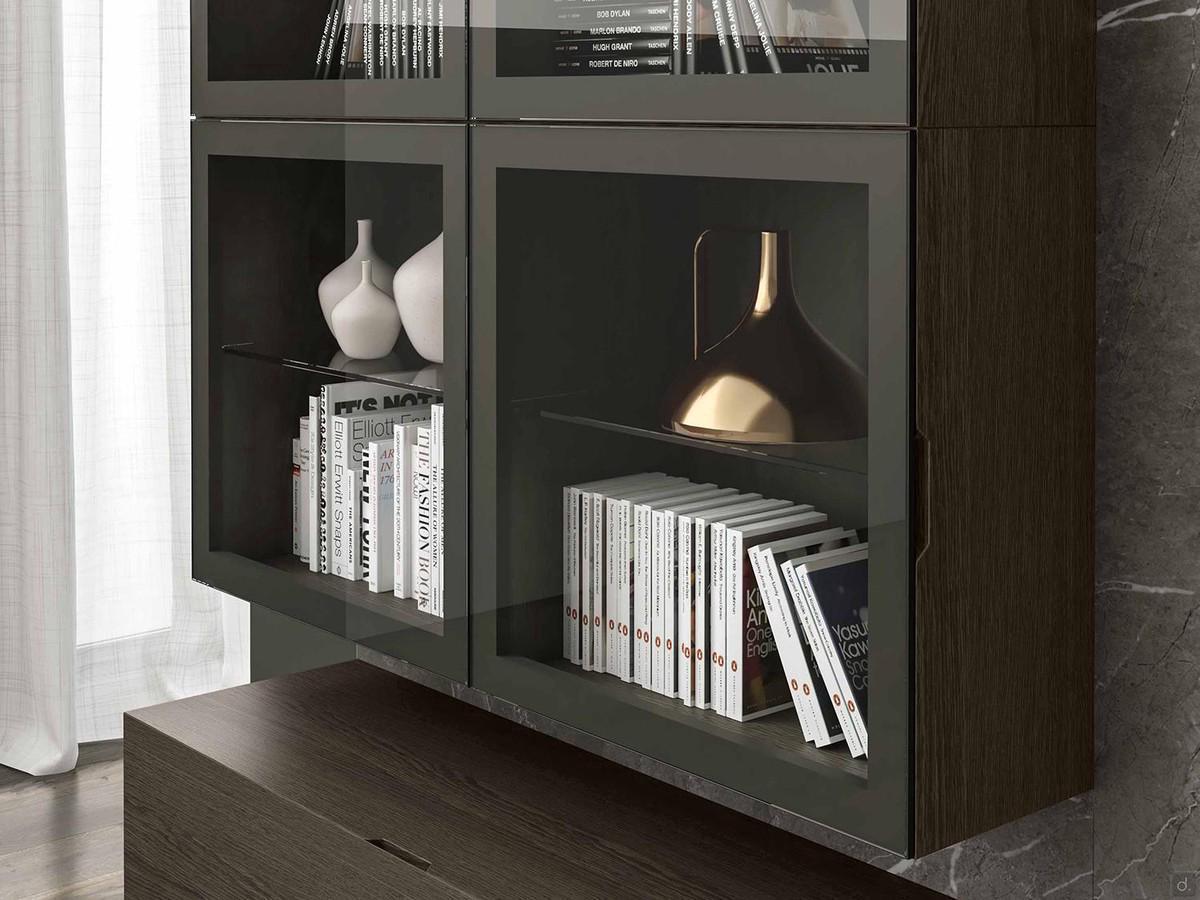

Door: made of glass with a brown aluminium frame, or made of wood / lacquer. The front panels can be smooth or customised with a pattern:

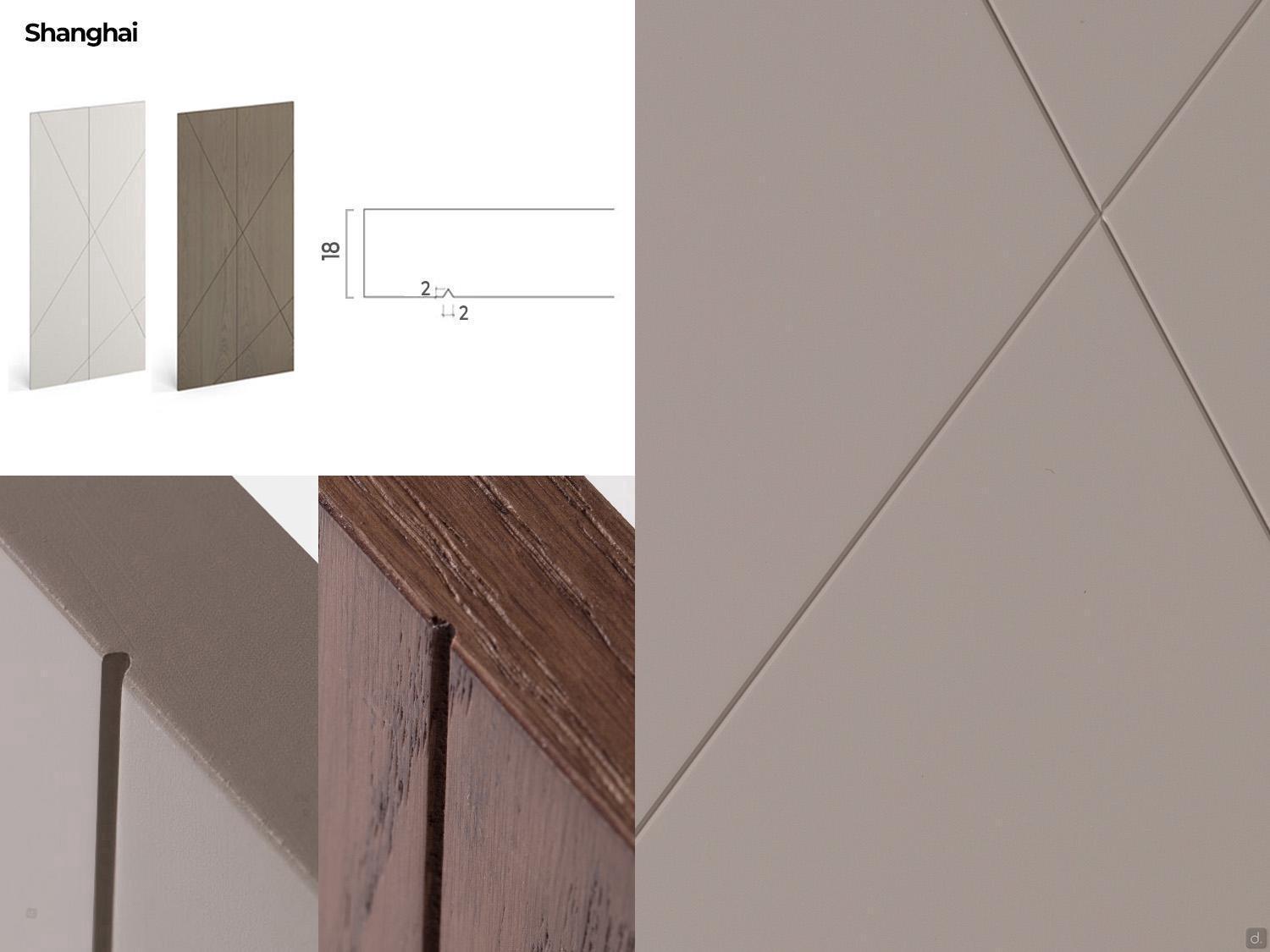

- Shanghai: diagonal "V"-shaped engravings cm 0,2 d.0,2.

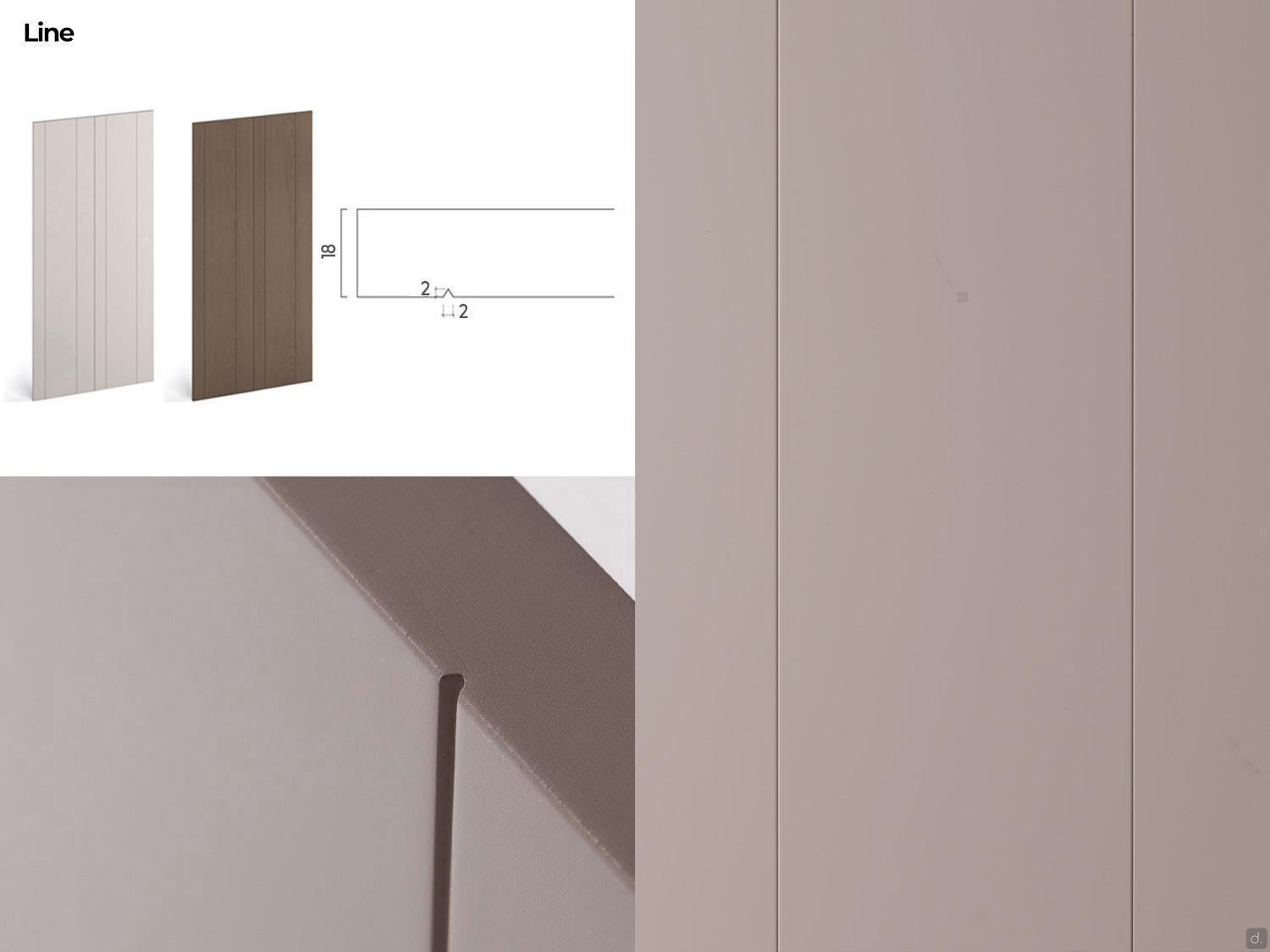

- Line: vertical "V"-shaped engravings cm 0,2 d.0,2.

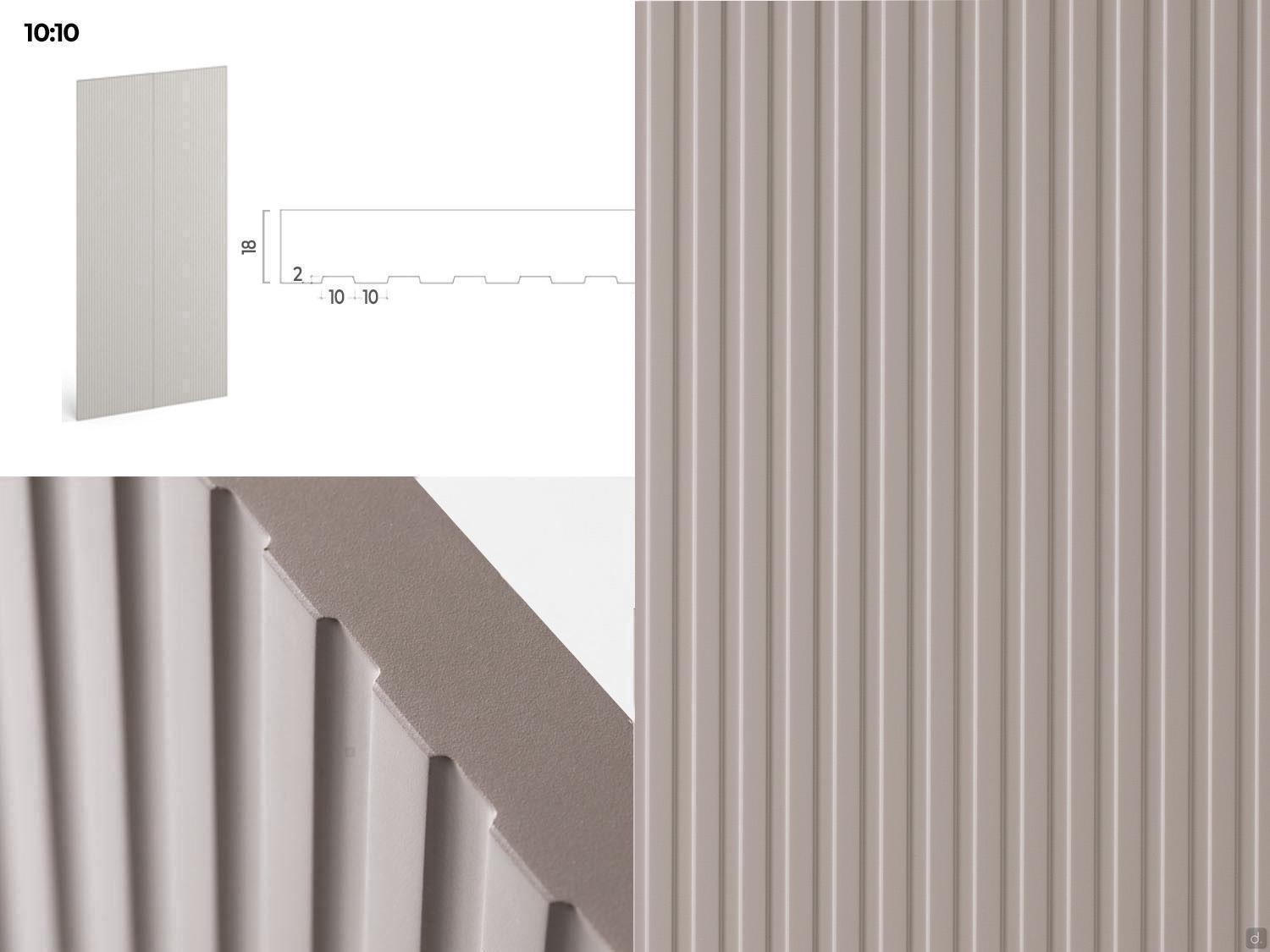

- 10:10 (only for lacquer finishes): "U"-shaped engravings cm 1 d.0,2.

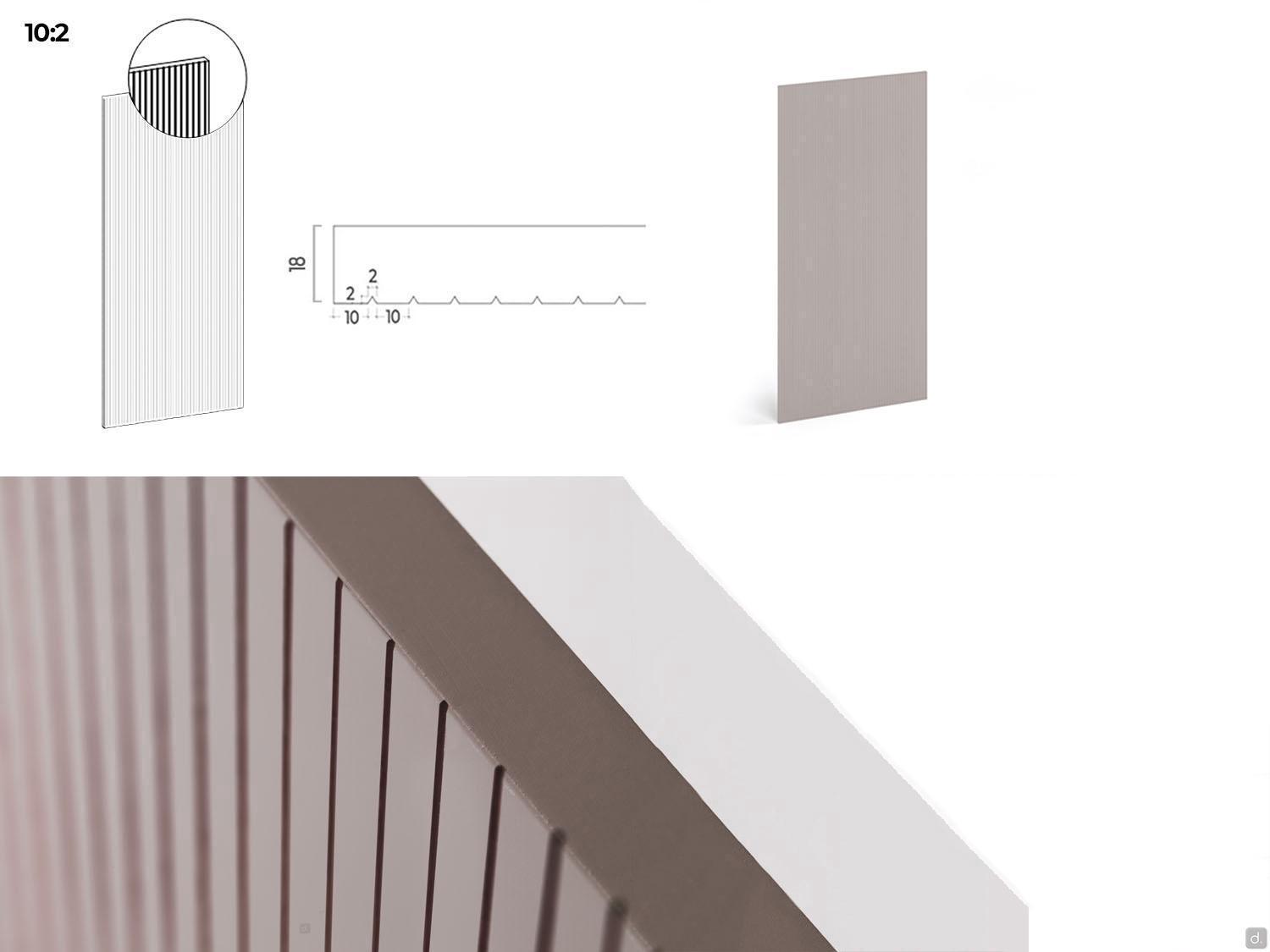

- 10:2: vertical "V" engravings cm 0,2 thick.

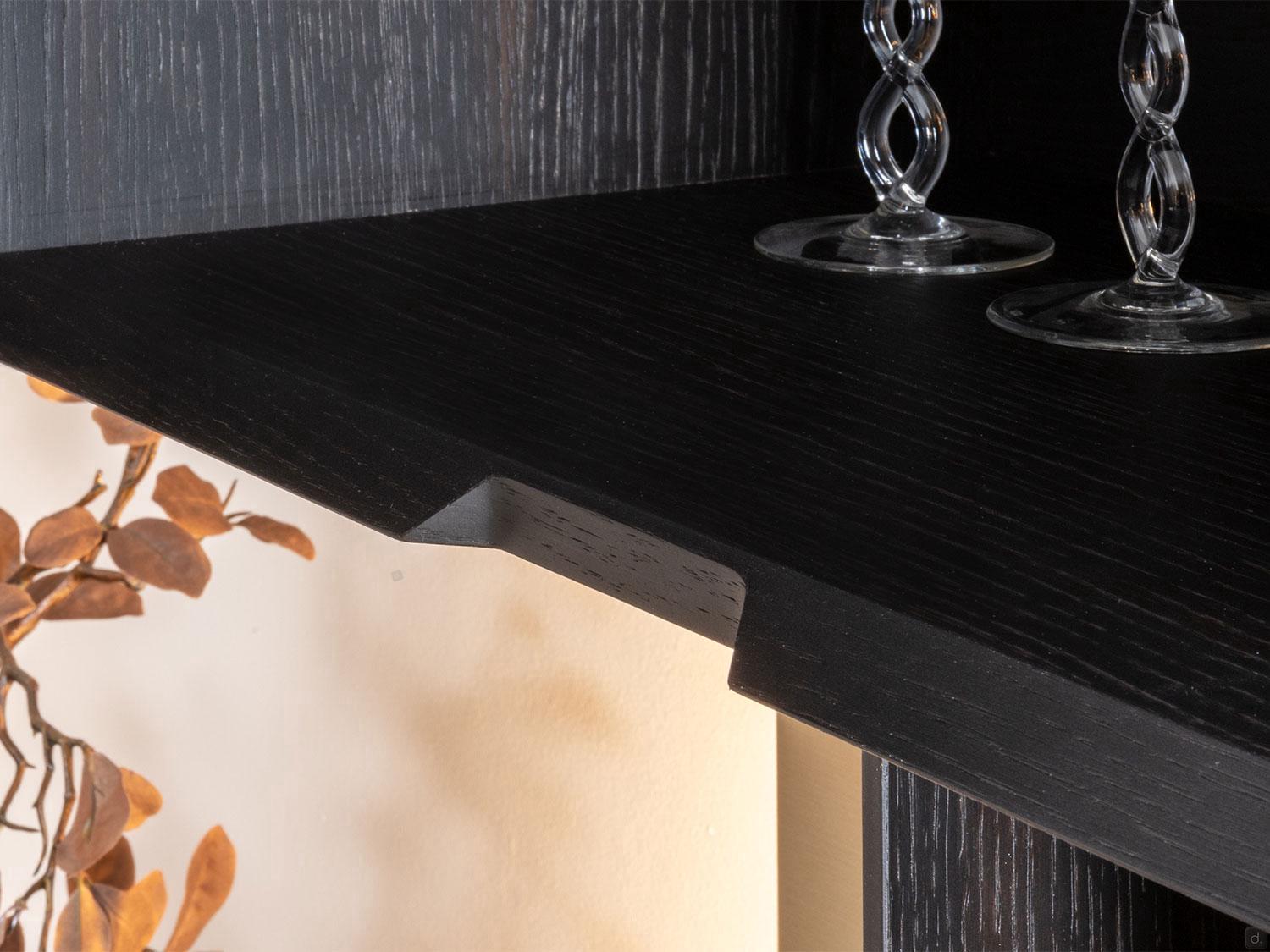

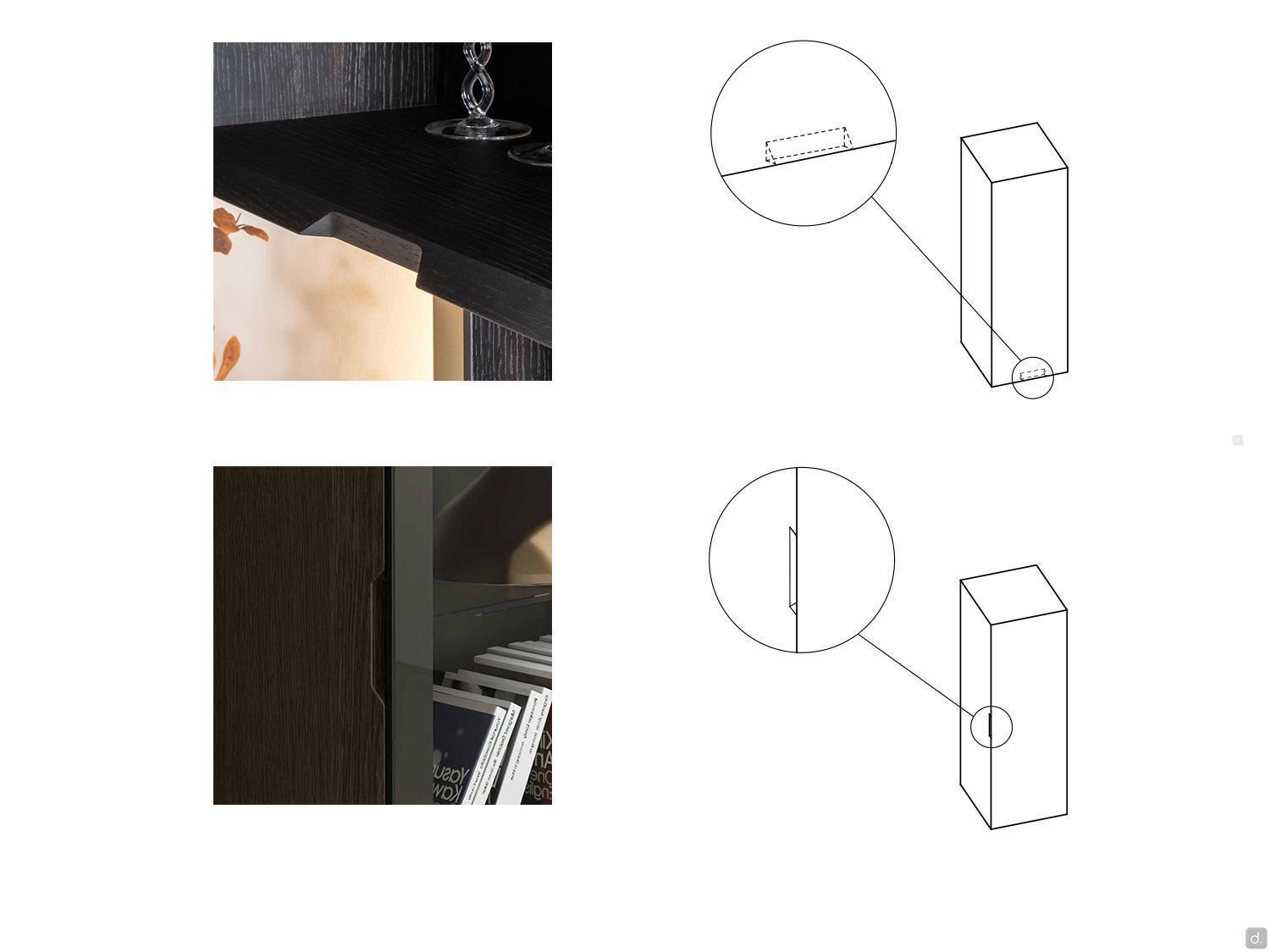

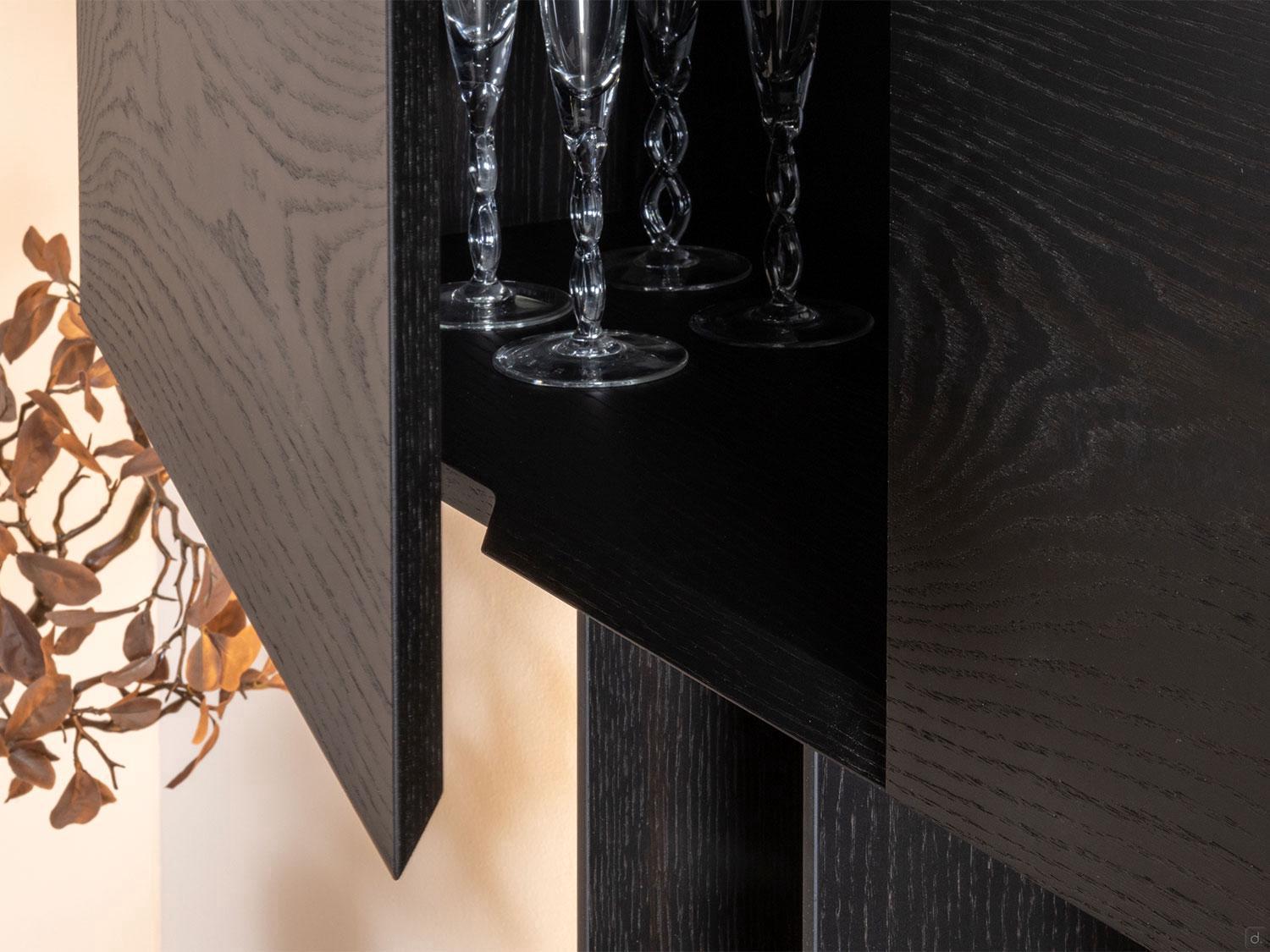

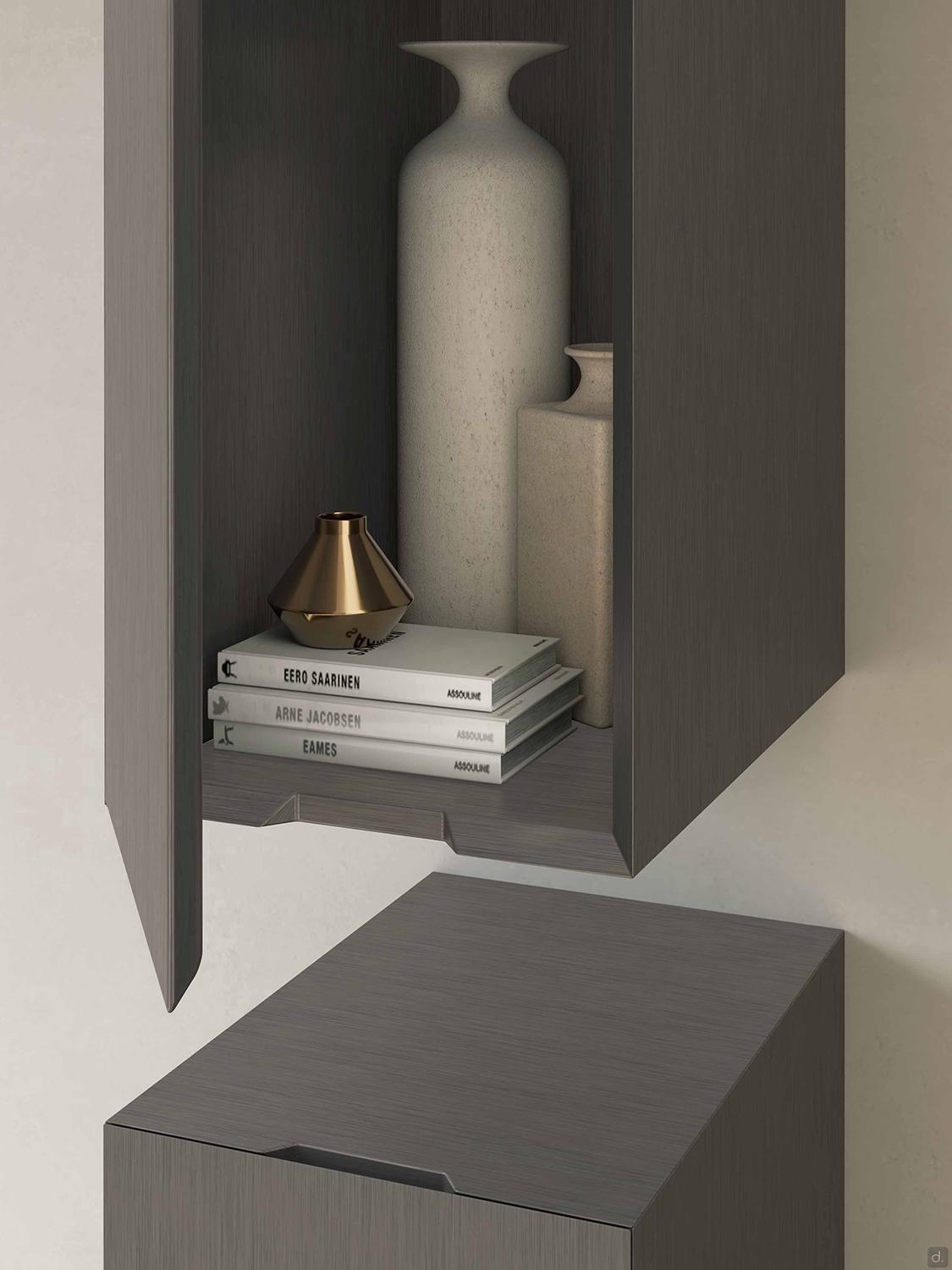

Opening: with a recess on the bottom or side of the unit.
Optional

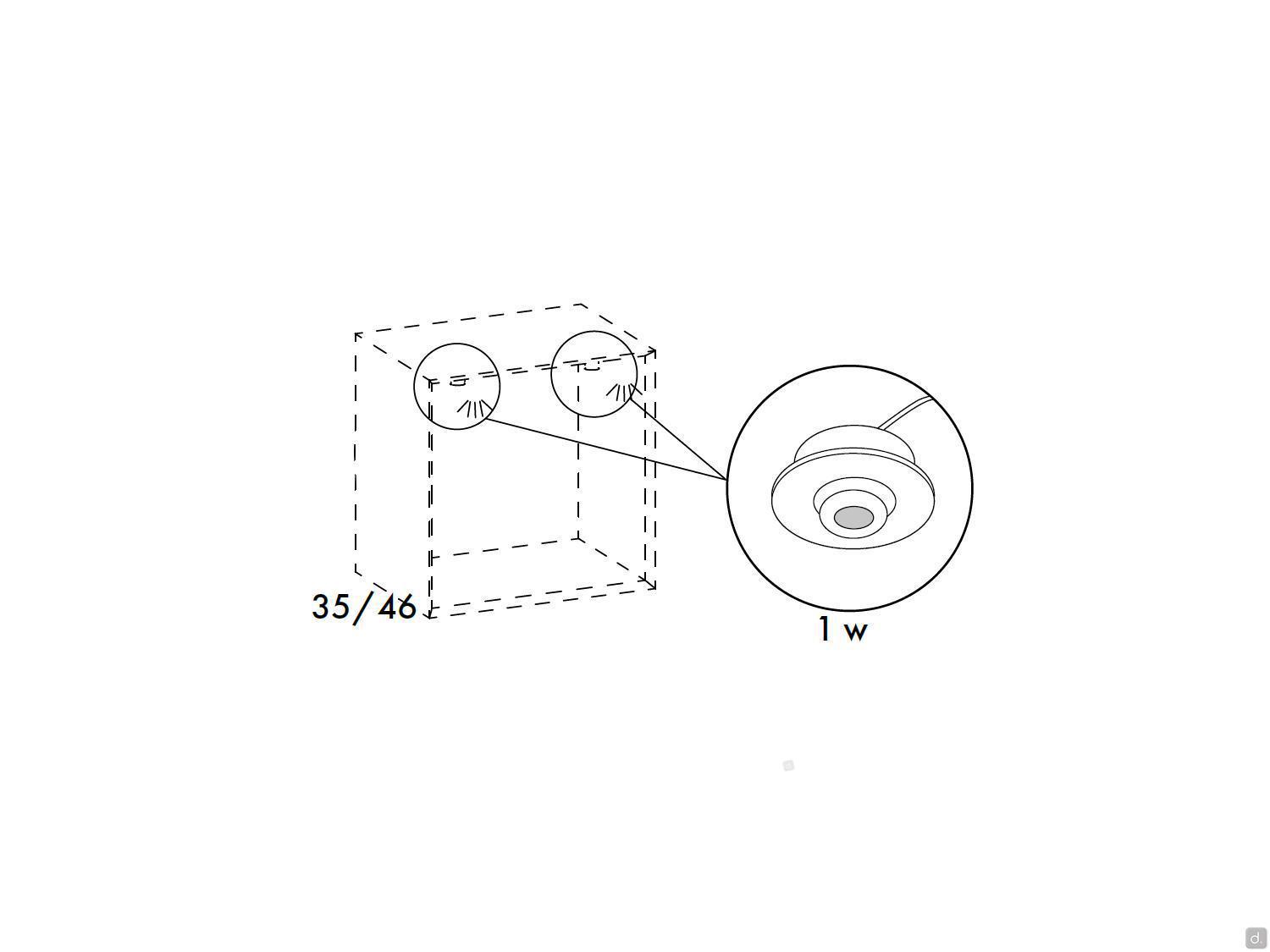

LED lights for internal lightning: cm Ø 3,8 adjustable in brown aluminium (1W - 24V). Transformer with wall switch or touch switch (30W - 24V)

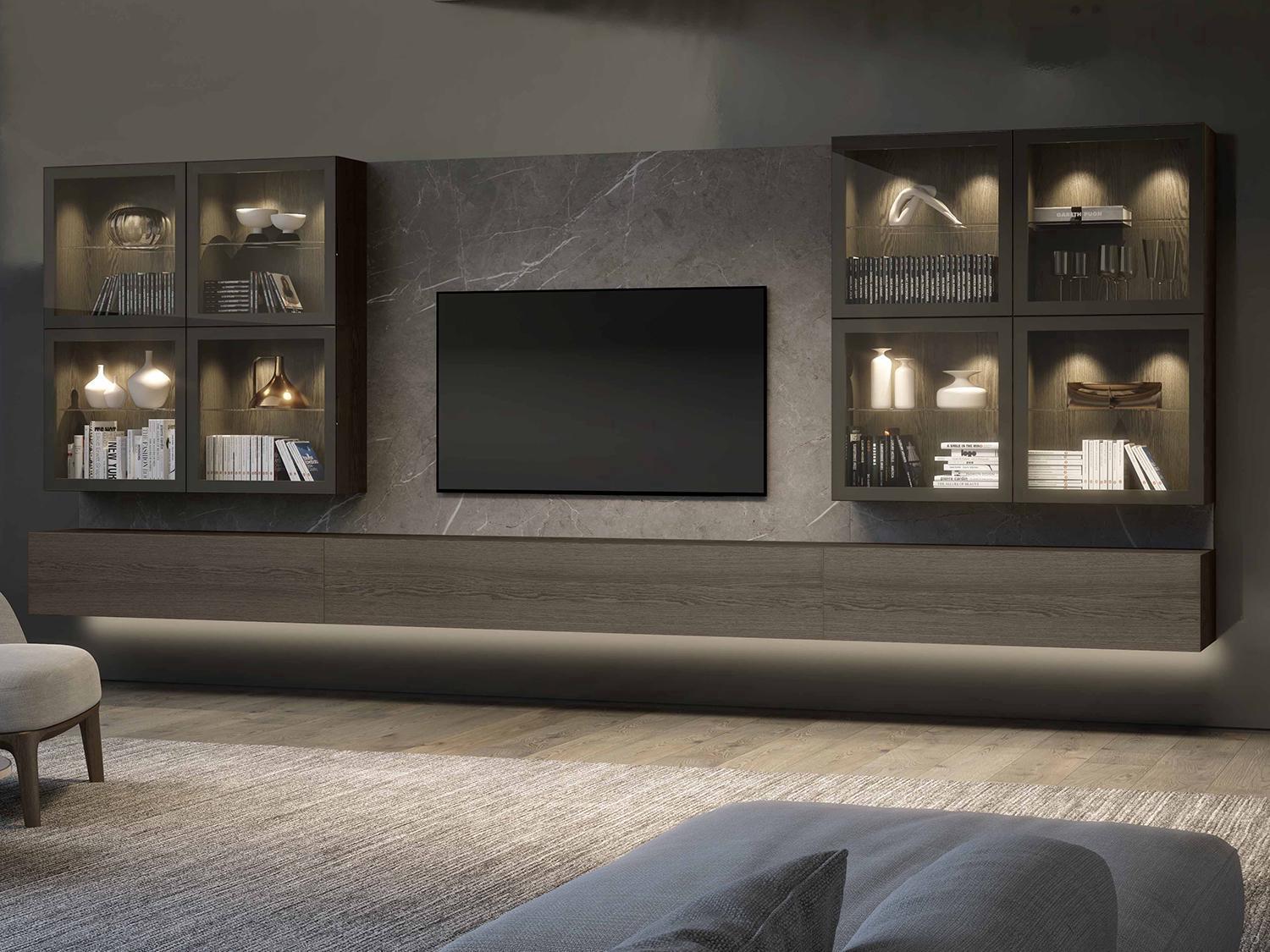

LED strip under the wall unit for external light: placed under the wall mounted storage unit (3000 K - 11 W/ml). Transformer with wall switch or touch switch (30, 75 or 150W - 24 V).

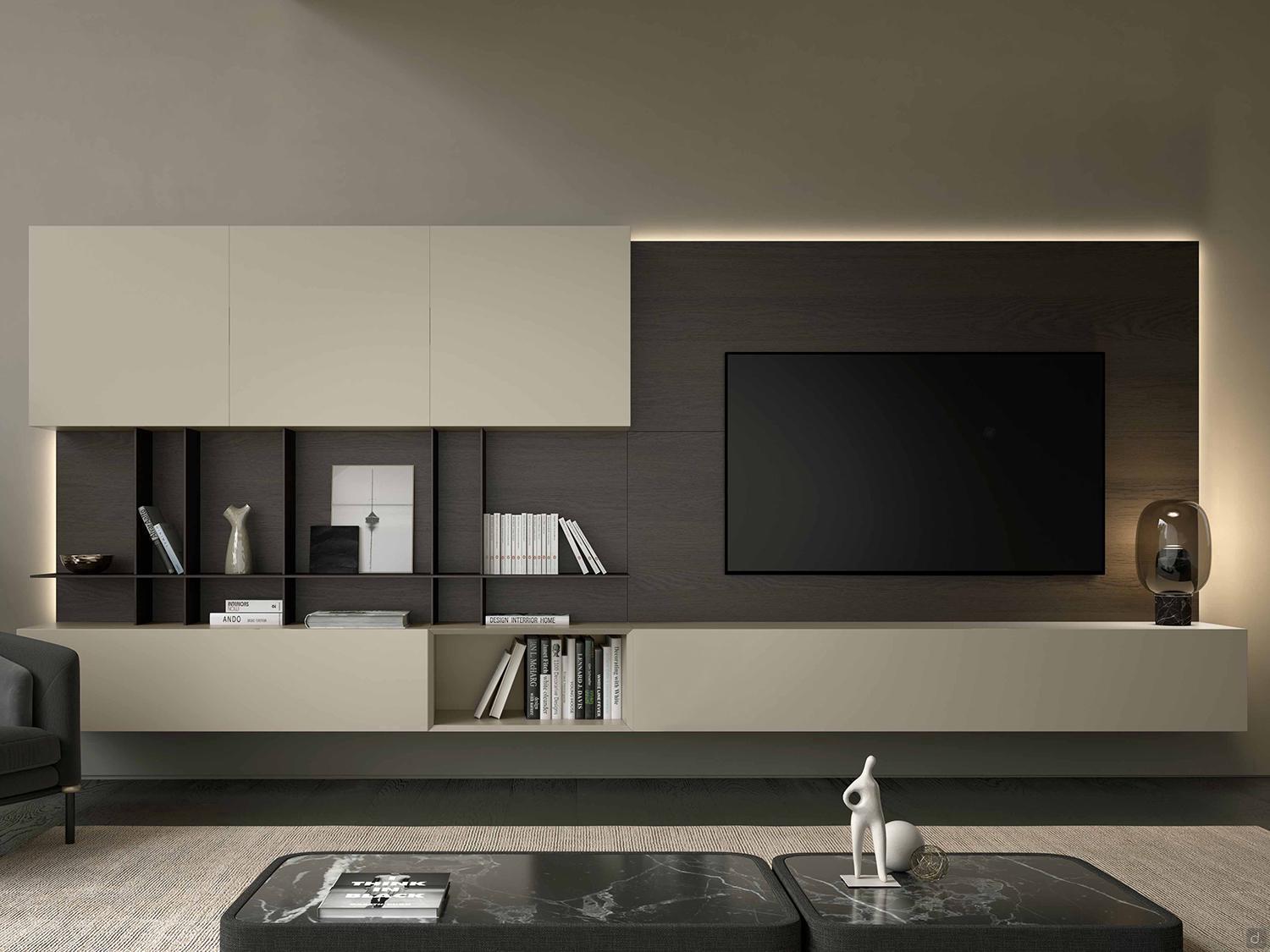

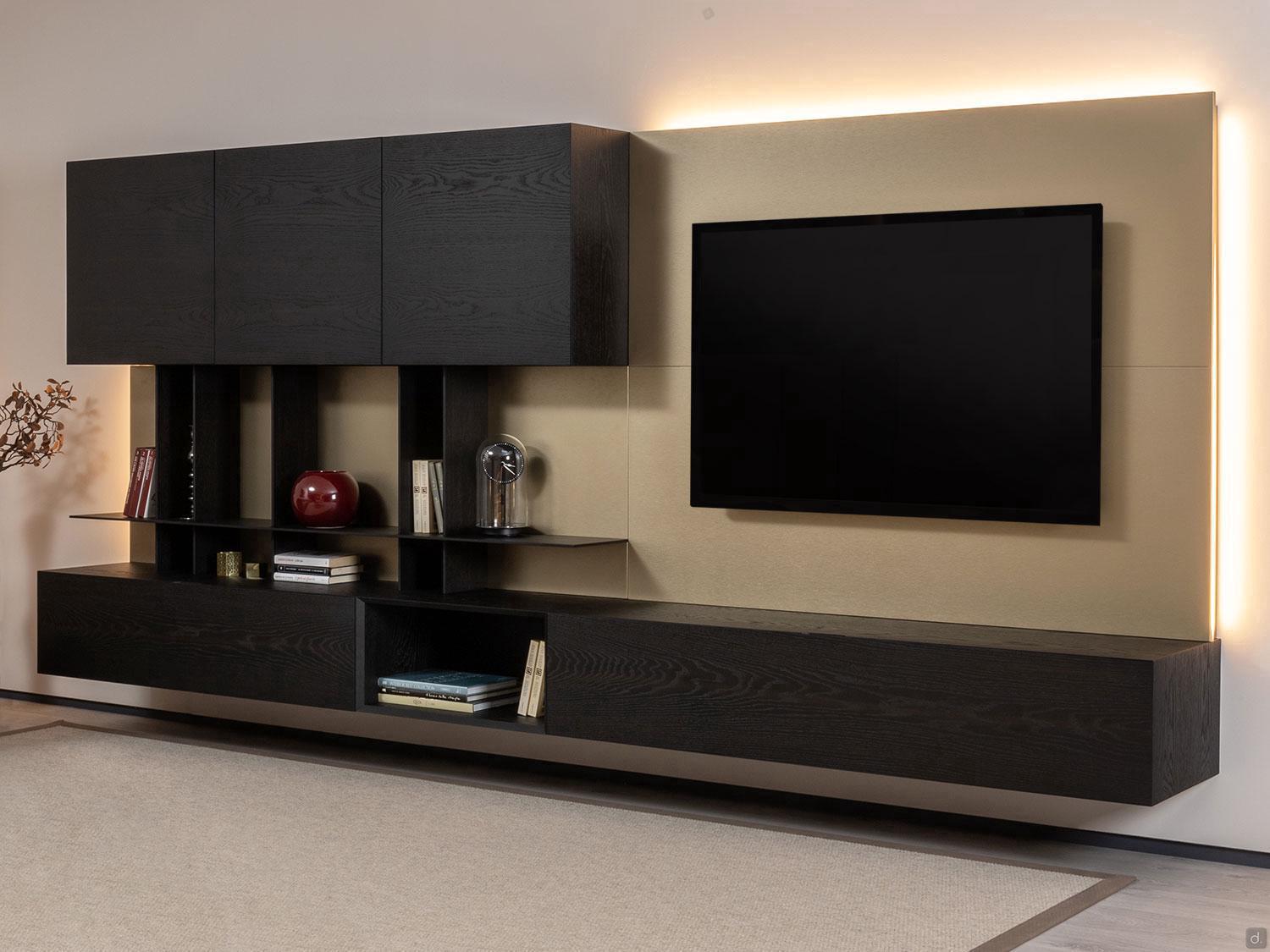

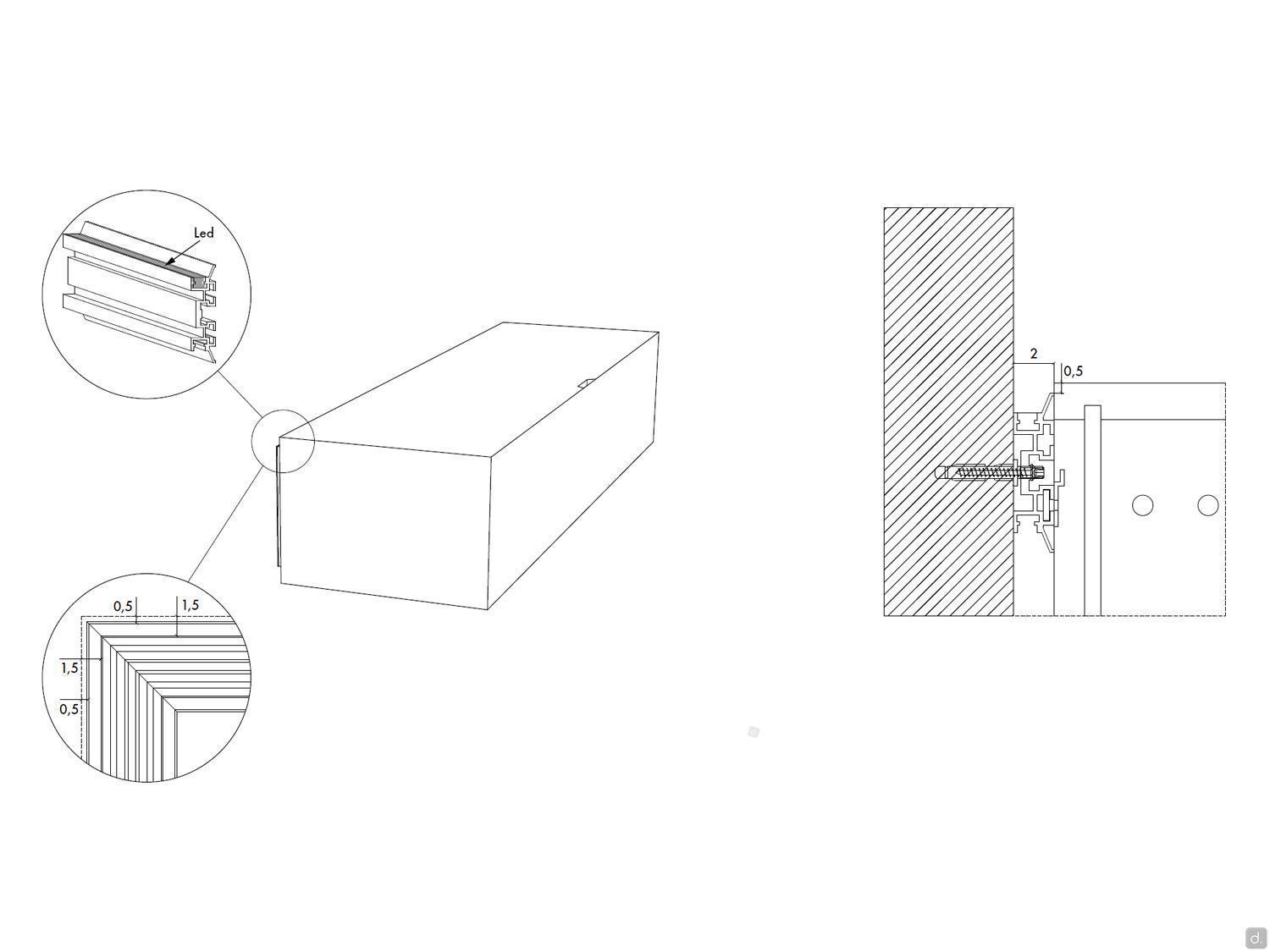

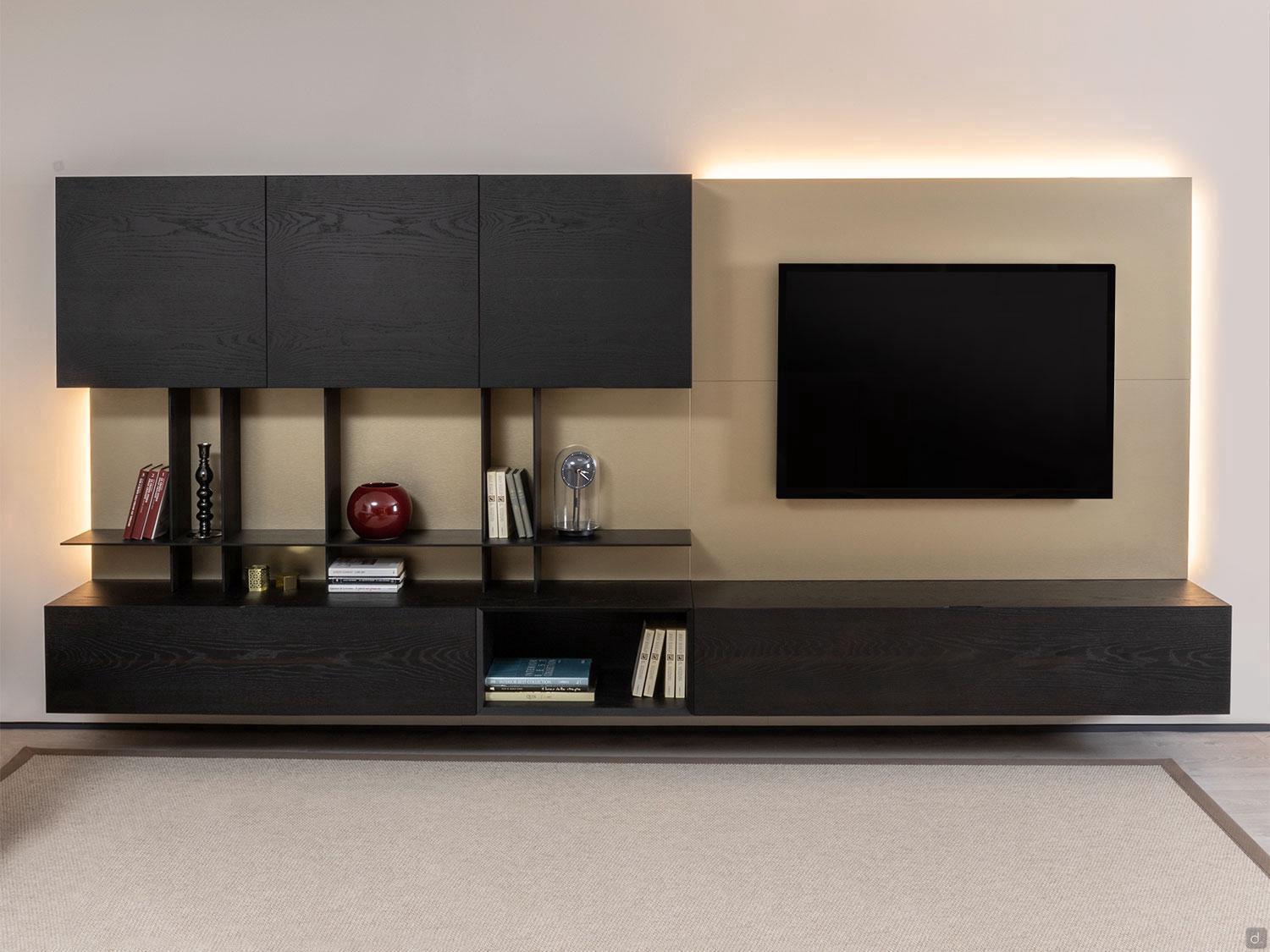

perimetral LED strip for external light: placed in a dedicated "slot" built-in the modular frame in brown anodised aluminium, which is mounted between the wall and the back of the wall unit (3000 K - 11 W/lm). Transformer with wall switch or touch switch (30, 75 or 150 W - 24V).
Assembly Tips
Hardware is pre-mounted on all elements to facilitate and speed up assembly. Elements are complete with brackets for fixing them to the wall.
Further Information...
Aged Oak: compared to the "standard" open-pore oak, aged oak is characterised by a slightly more brushed surface, which shows a deeper pore and a more marked grain. This difference is particularly noticeable on bigger surfaces such as tables, wall units and wardrobes, less so on accessories, beds and bedroom sets.
