Plan 30
Wall System with Wall Tv

Wall system with wall TV and LEDs Plan 30. Living room composition with suspended bases, hinged-door wall unit and suspended column wall unit.

* Required Fields


From €2,581.36
Wishlist

Description

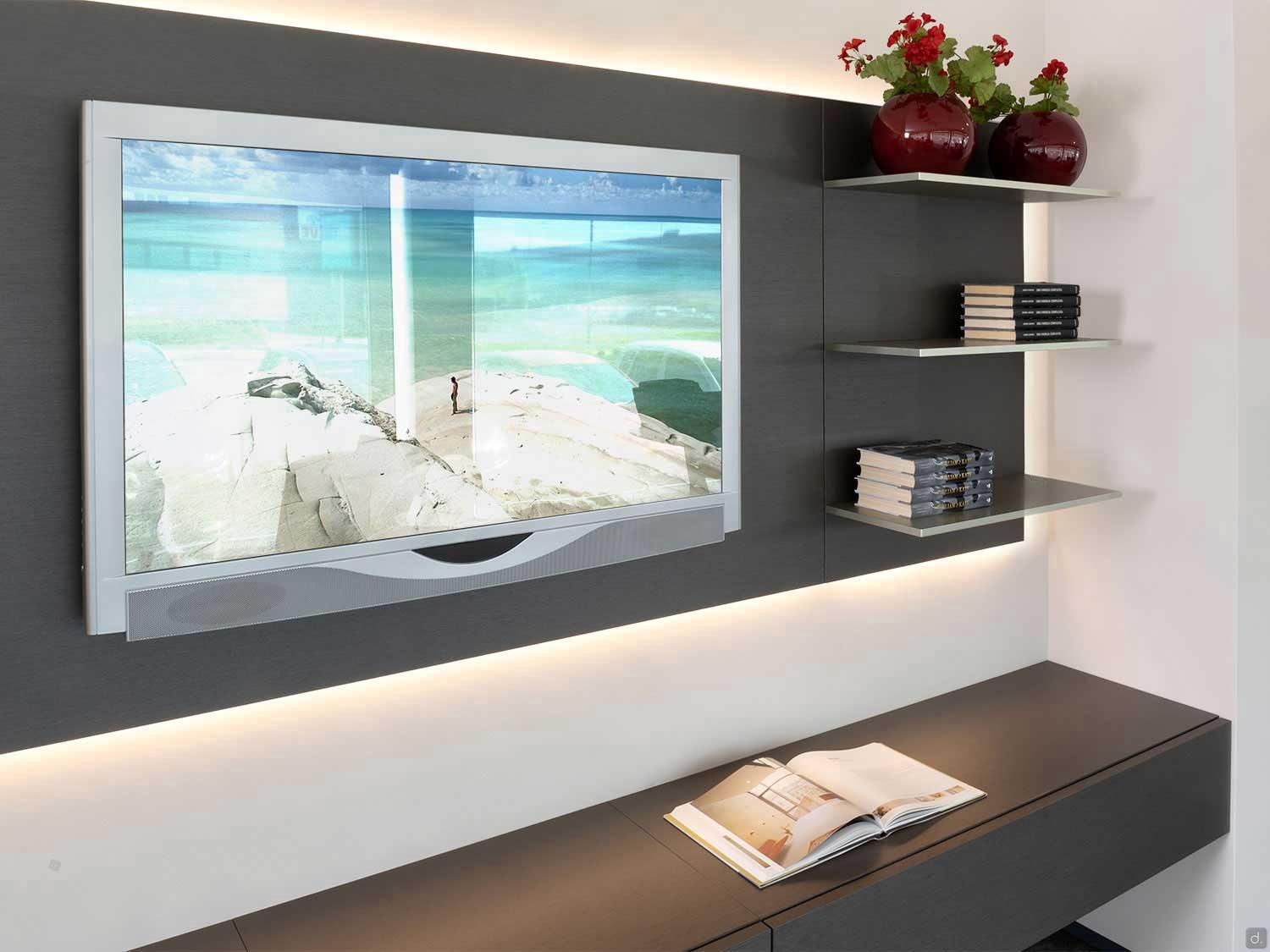

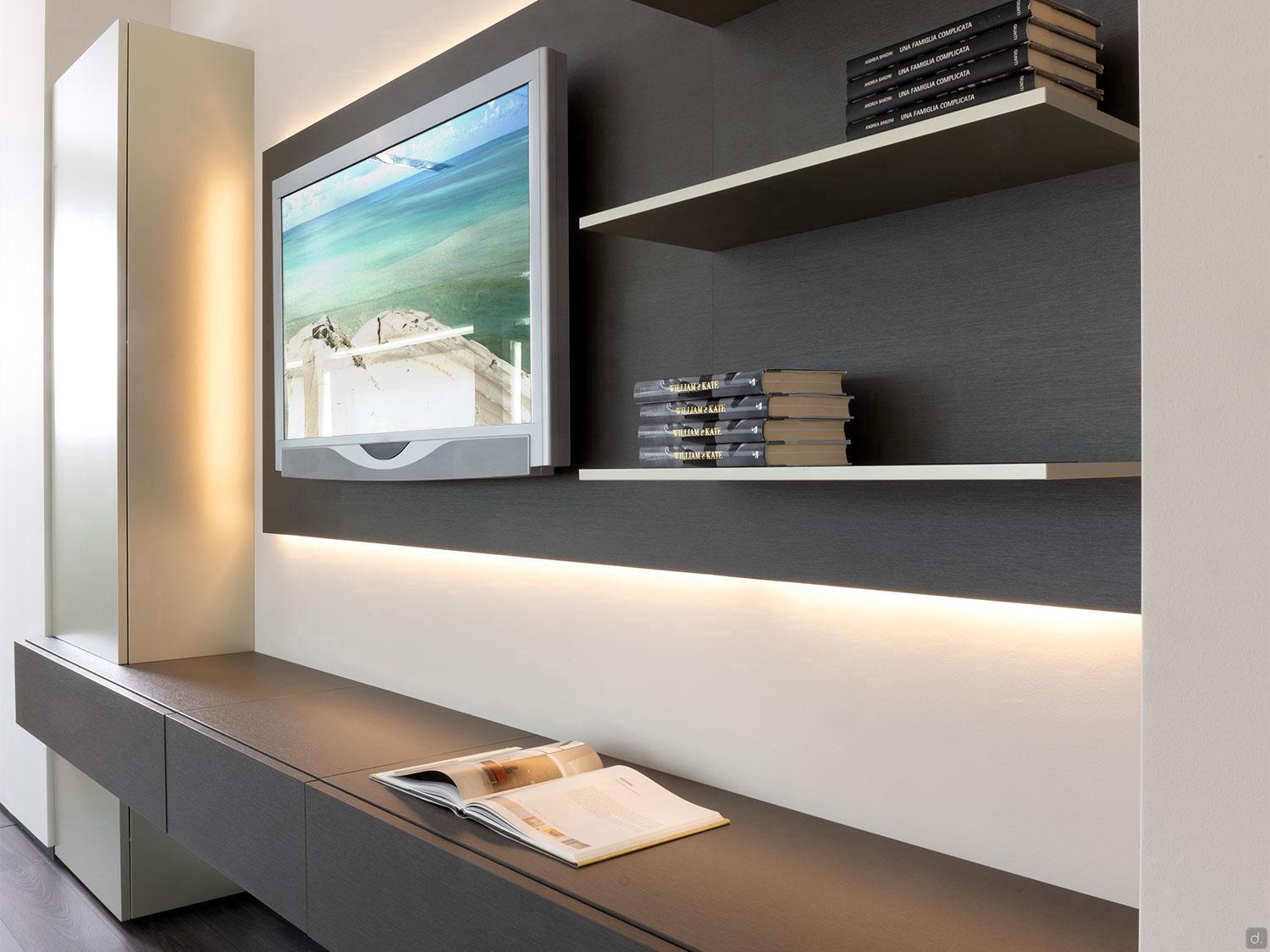

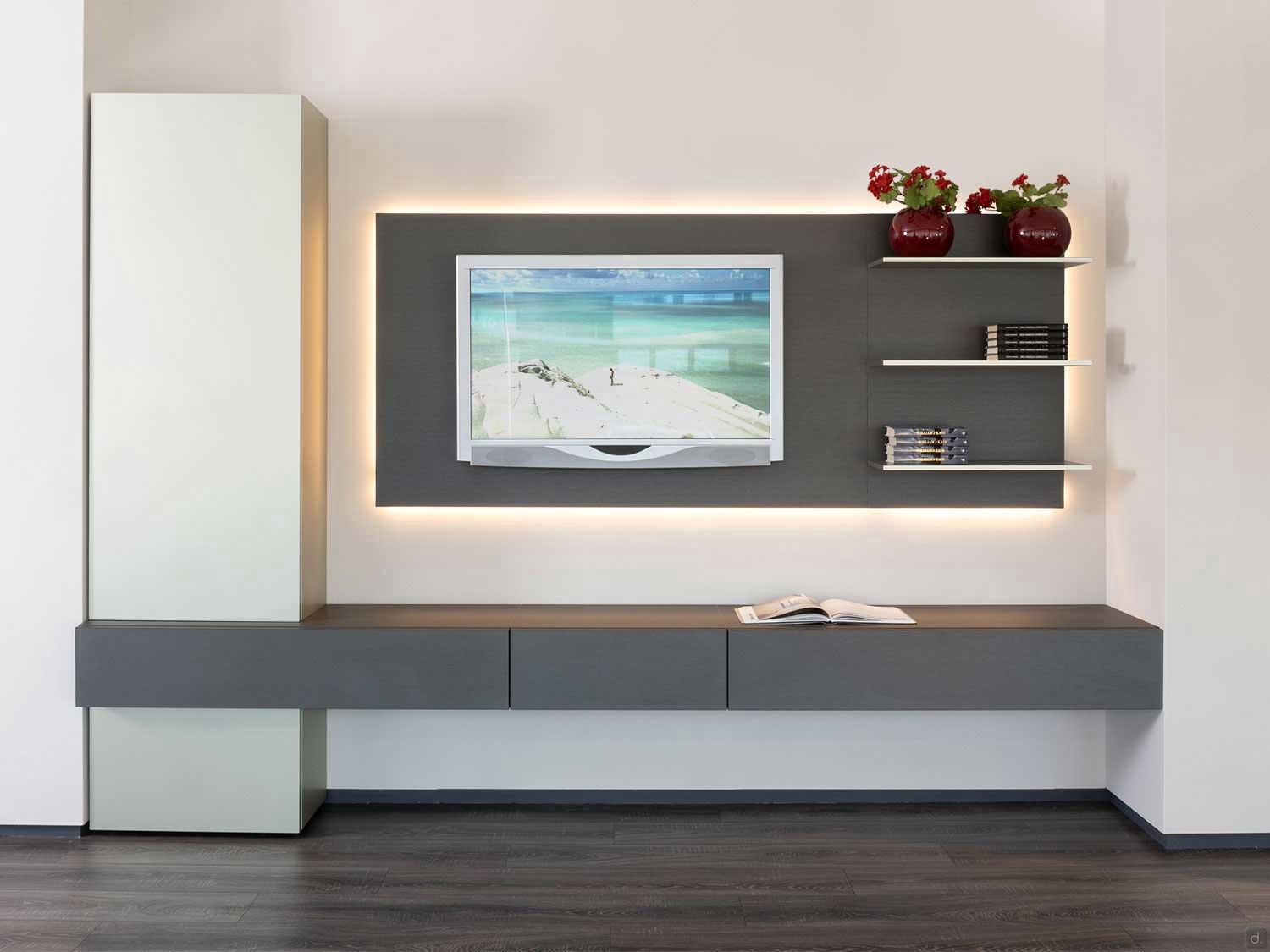

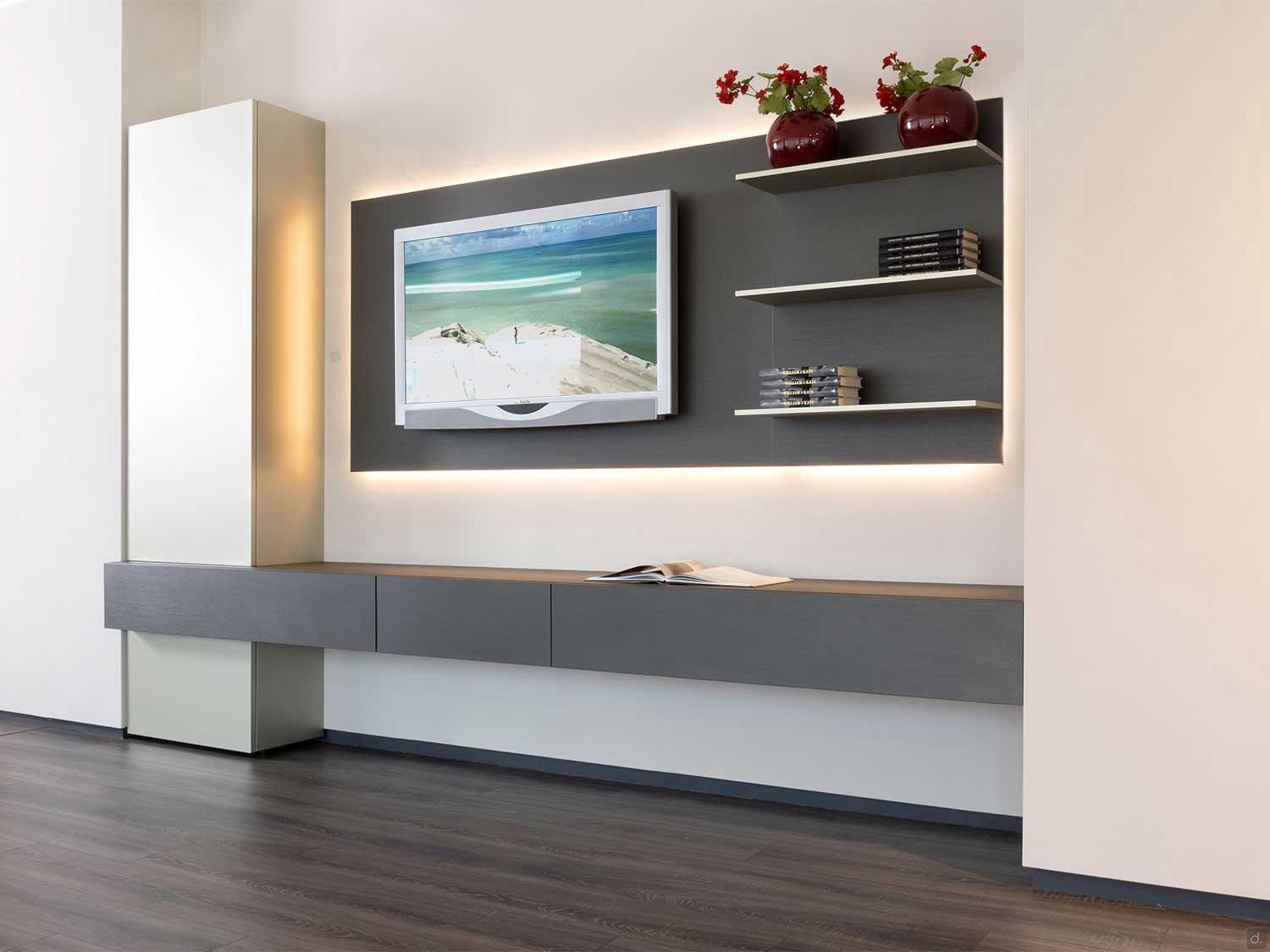

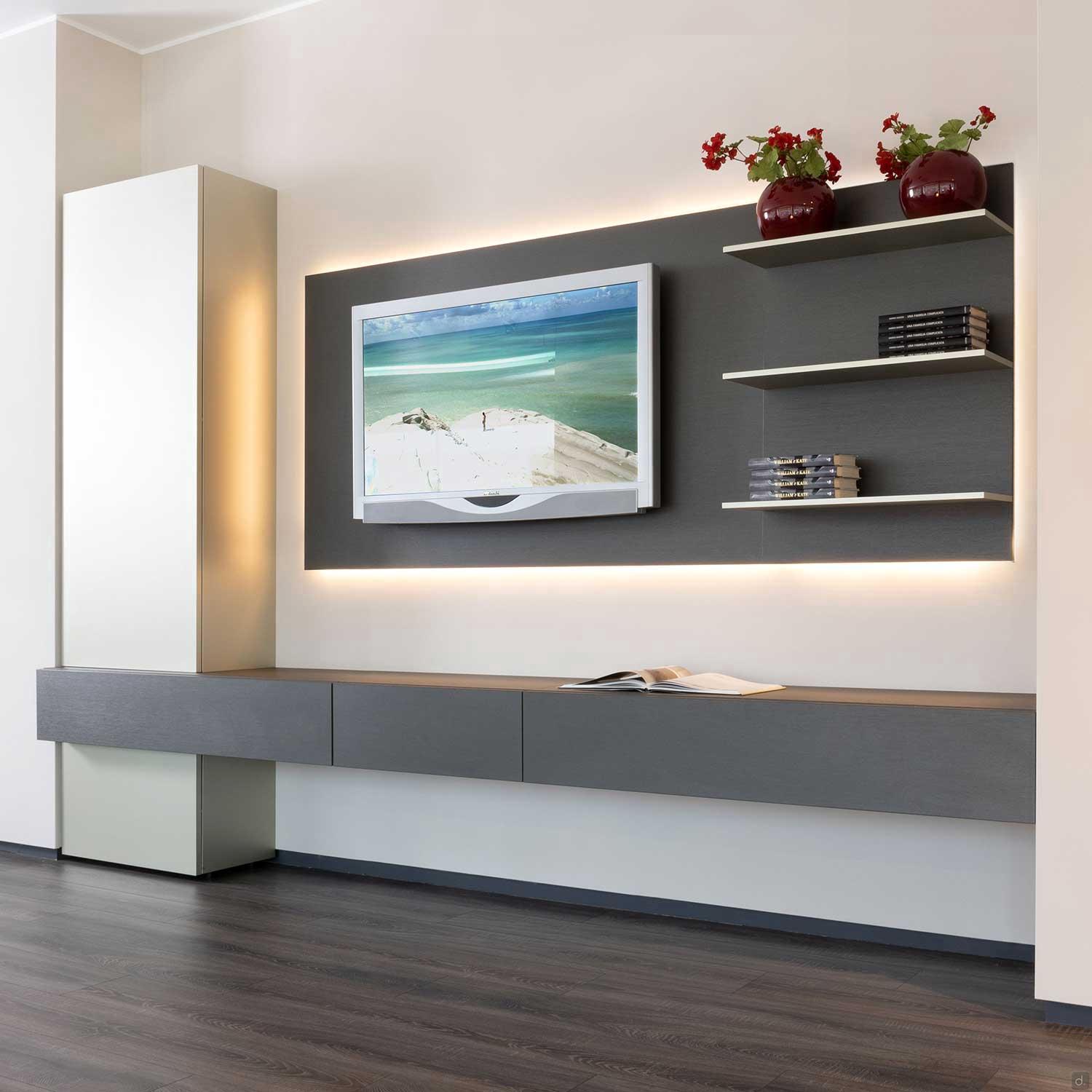

Plan 30 is a large wall system with wall TV and LEDs positioned on the back of the TV. The back-lighting TV is a stylish detail that will improve your screen view especially in low light conditions. The composition is made up of: a wall panel that holds the TV while hiding all your cables, a panel with shelves, three suspended base containers one next to another as if they were a single piece, a hinged-door grounded base and a column wall unit. Grounded base, suspended base and wall unit are fixed one on top of another, yet they are independent elements that just look like a single unit. The column wall unit is internally organised with four glass shelves, the grounded base in a single compartment. Both of these modules are perfect for your cutlery, silverware or whatever you might want to store out of sight.

Plan 30 in these pictures is a white and grey wall system made of wood and lacquered, however it is customisable in materials and colours. In our samples there is a vast choice of finishes to meet all your needs and create the product that is perfect for you.

The composition in the picture suggests a possible use: Plan 30 was conceived for living room walls 3,20 m width at least. However, it can also be configured for smaller walls.

Characteristics
wall system with TV and LEDs, with transformer and switch
wall system for flat-screen TV, suspended and fixed to a wall panel
suspended bases and wall units with different depths
doors without handles, push-pull or hinged or drop-down opening
vast choice of materials and colours between wood, lacquered and melamine

Measurements
- cm 320 d.44 h.226,5

Materials and Finishes
Bases and Wall Panels, Hinged Column and Shelves:
- melamine
- stone effect melamine
- fashion wood
- matt lacquered oak
- glossy / matt / metallic lacquered
Interiors:
- melamine decor

Technical study

Specific Measurements

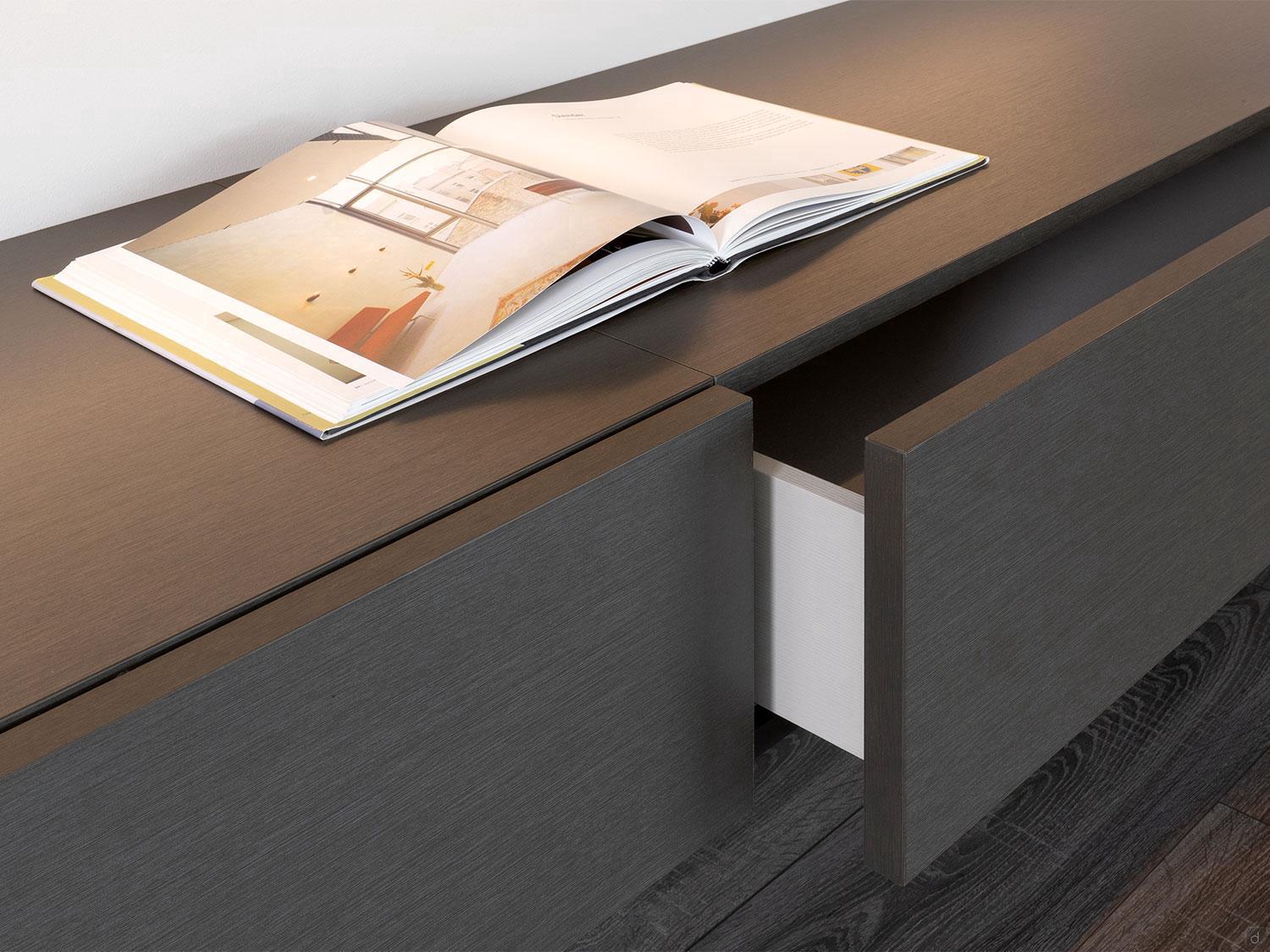

n.2 suspended bases with deep drawer: cm 128 d.44 h.24
n.1 suspended drop-down base: cm 64 d.44 h.24
n.1 suspended hinged column wall unit: cm 64 d.34,4 h.160
n.1 hinged grounded base: cm 64 d.34,4 h.40
n.1 wall panel: cm 160 h.96 th.4,4
n.1 wall panel with 3 shelves: cm th.1,4: cm 64 h.96 th.4,4

Technical Specifications and Equipment
Structure: particle wood panel covered in melamine material (class E1 - low formaldehyde emission), wood or mdf (for glossy lacquered).
Wall Panel: particle wood panel covered in melamine material (class E1 - low formaldehyde emission) thickness cm 2,2; rear part covered in matt black polymeric leaf.

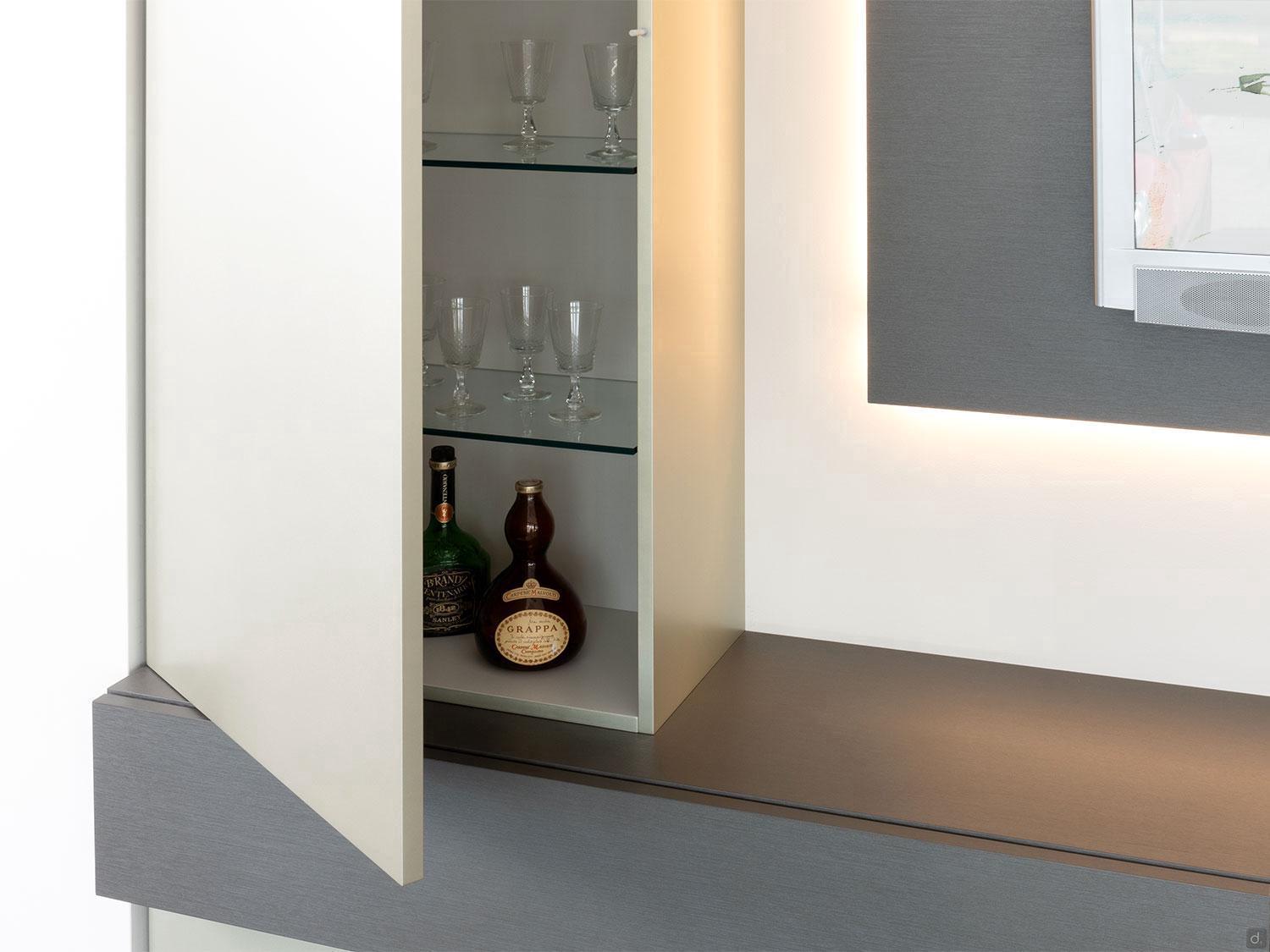

Shelves: glass, thickness cm 0,8 matching colour, thickness cm 1,8. The hinged container cm 64 h.160 is equipped with 4 internal shelves; the hinged container cm 64 h.40 has a single compartment.

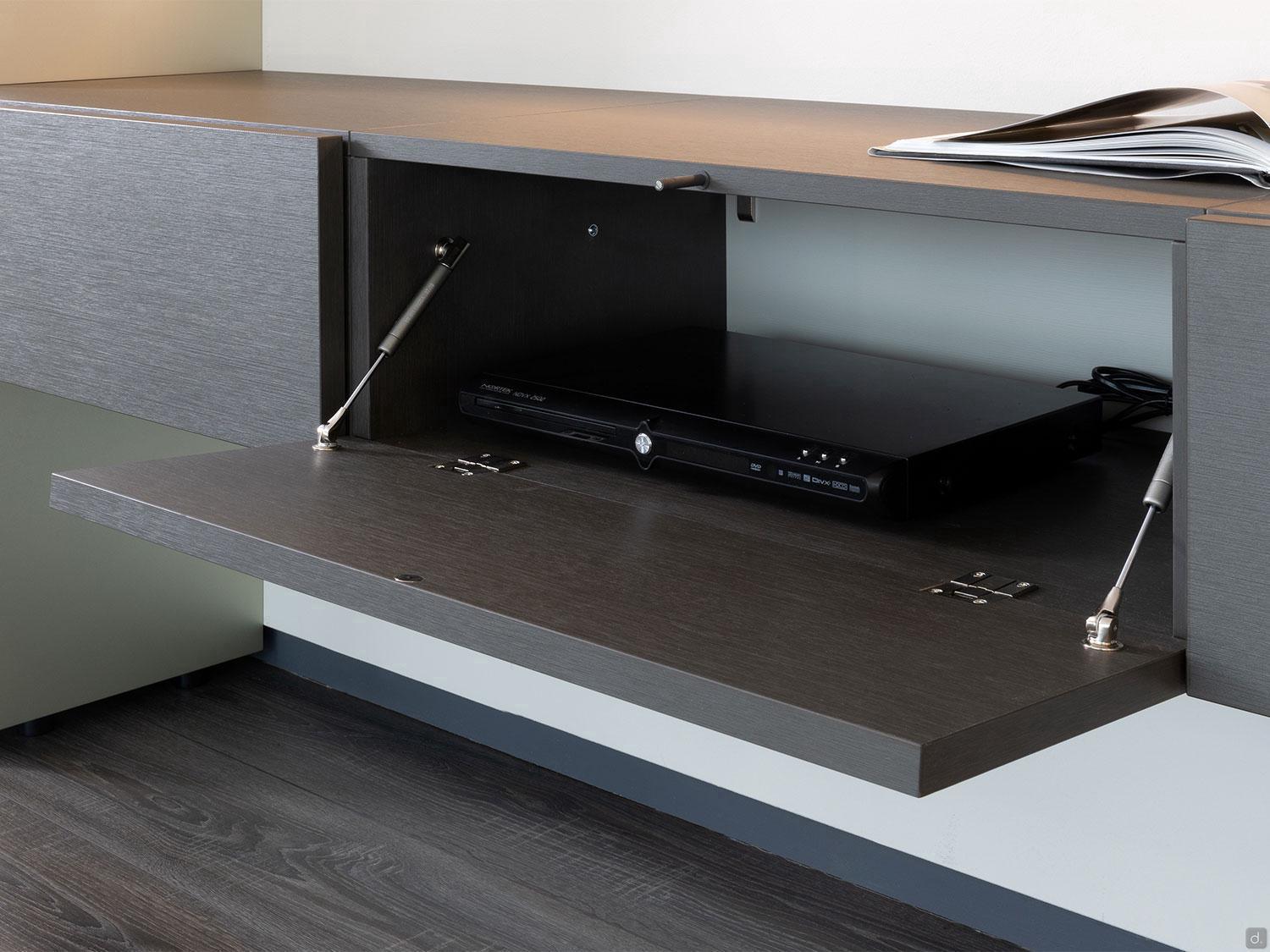

Drop Down: door with two oledynamic pistons.
Base and Wall Unit Opening System: push-pull.
LEDs Strip: 5,44 m, it can be placed in the rear part of the panel, in a consecutive patten. With transformer and switch.

Assembling tips
The wall units are equipped with brackets for wall mounting with an anti-unhooking system. The dowels are internally adjustable 1 cm in height and 0,3 cm in depth. The maximum capacity is 80 kg for each bracket.
The back panels are equipped with adjustable brackets with a maximum capacity of 80 kg each.

Video

Additional Information

Area of Production
Italy
Assembling
Medium Assembling
Weight
191 Kg
Cubic Metres
1,232 m³
