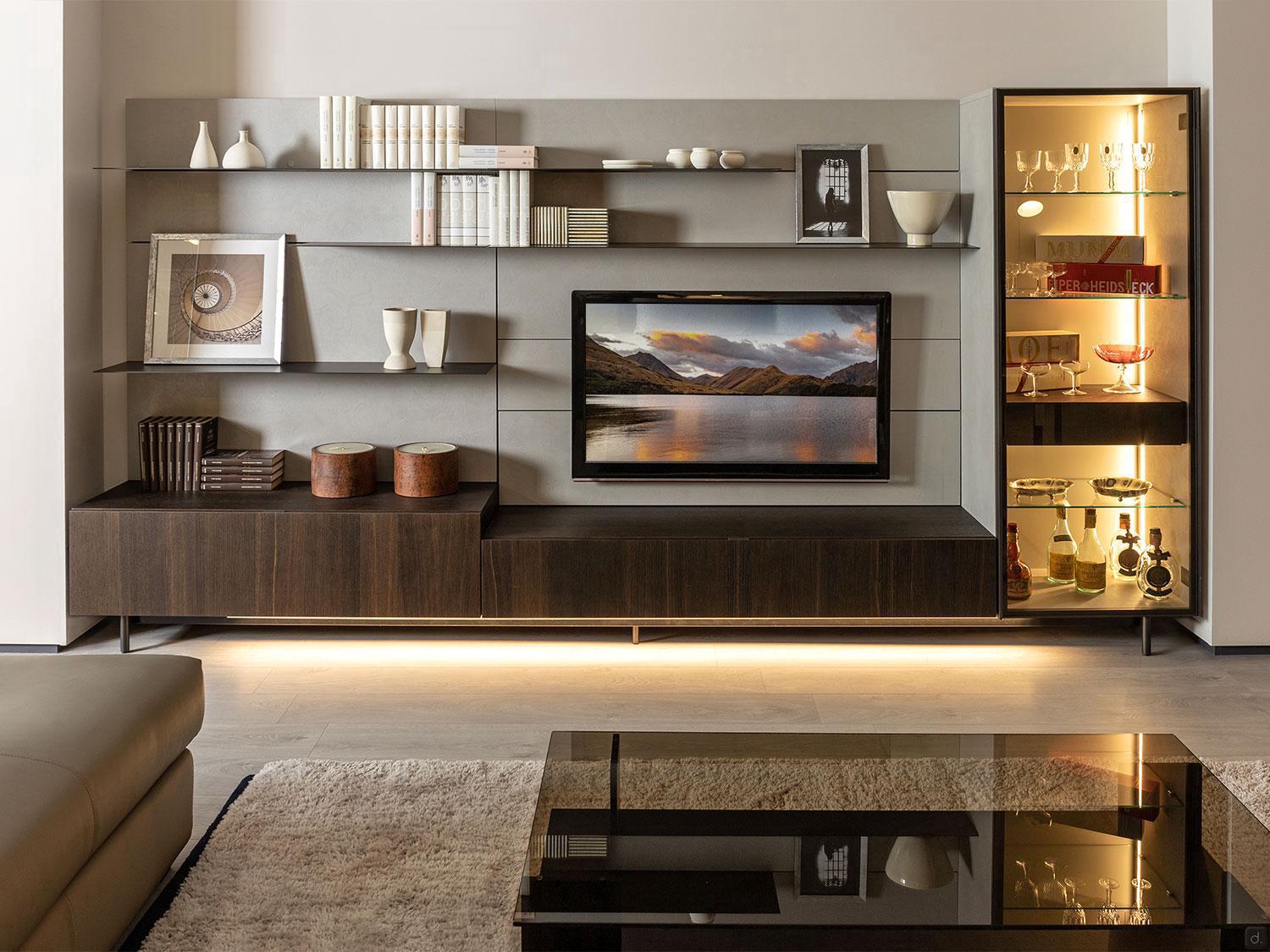

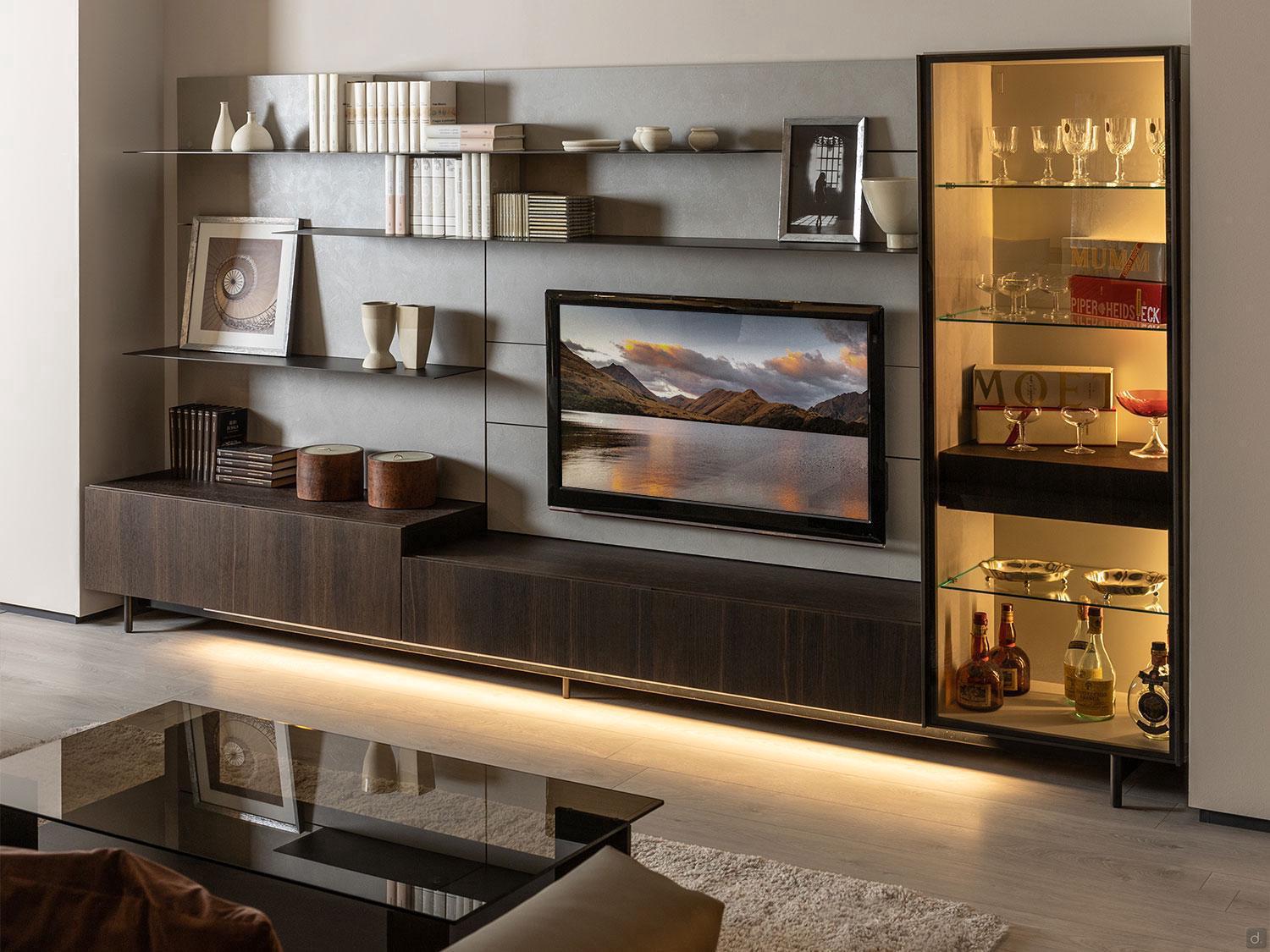

Specific Measurements
n.1 drop-down base: cm 120 d.45 h.32
n.1 drop-down base: cm 150 d.45 h.24

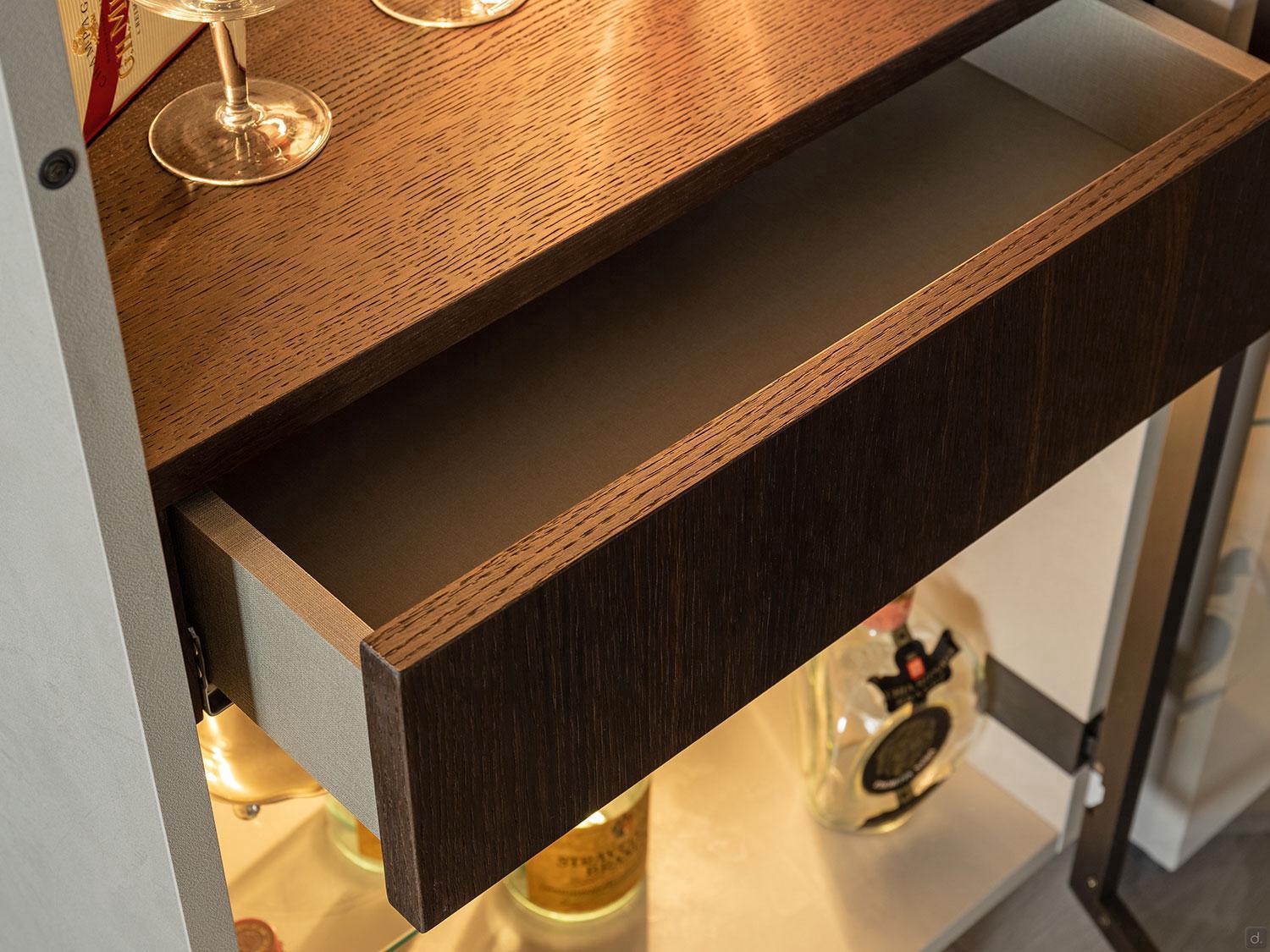

n.1 showcase with internal drawer: cm 60 d.46,5 h.160
n.2 wall panels: cm 119,5 h.23,6 th.3,5
n.2 wall panels: cm 119,5 h.39,6 th.3,5
n.3 wall panels: cm 149,5 h.23,6 th.3,5 (1 smooth, 1 with central channel, holes for Vesa bracket and cable routing hole and 1 with just central channel)
n.2 wall panels: cm 149,5 h.32,6 th.3,5

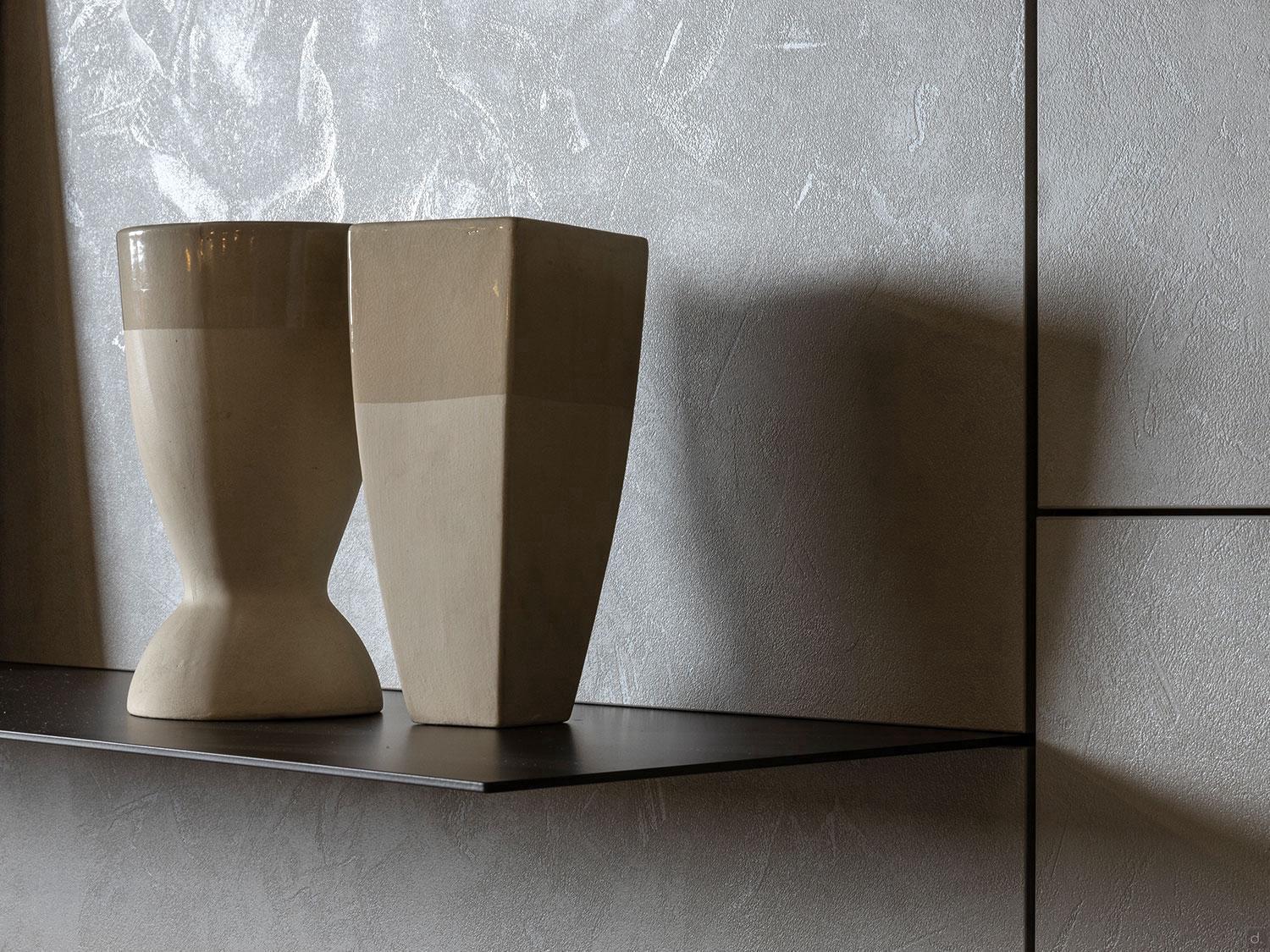

n.1 shelf: cm 59,4 d.25 th.0,3
n.1 shelf: cm 89,4 d.25 th.0,3
n.1 shelf: cm 119,4 d.25 th.0,3
n.1 shelf: cm 149,4 d.25 th.0,3
Technical Specifications and Equipment
Base and Showcase Bodies: 20 mm thickness particle wood panel covered in melamine material class E1 - low formaldehyde emission (sides, bottoms, covers and shelves) or mm 40 (partitions and internal dividing elements). The back panels are 4 mm thick.

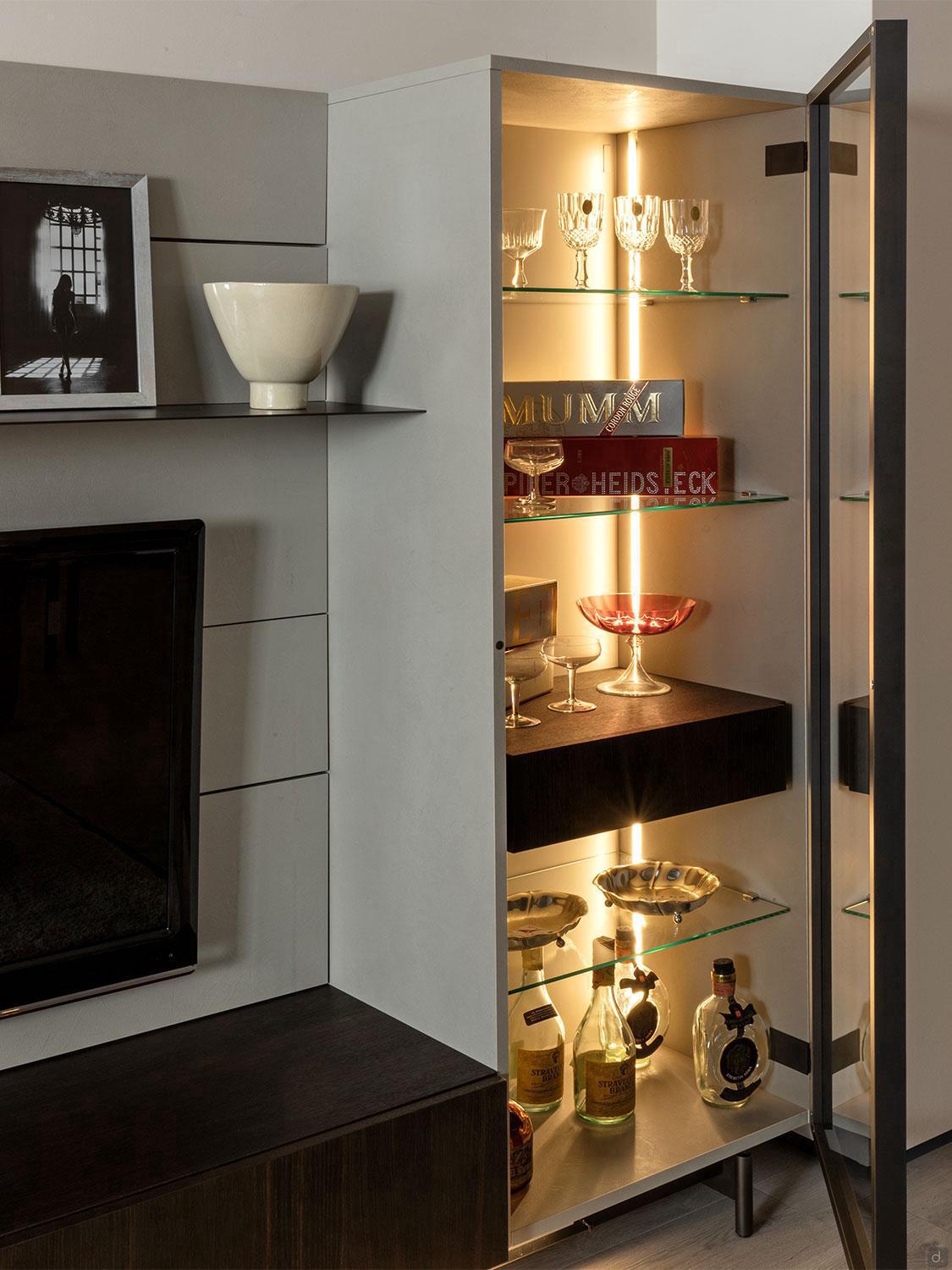

Doors: 20 mm thickness particle wood panel covered in melamine material class E1 - low formaldehyde emission. They are equipped with metal hinges and bases in nickel finish with 90° opening, adjustable vertically, horizontally and in depth . The showcase door is composed by a frame with hinge in the vertical part and base installed in the depth on the element side that allows a 180° opening when there are no obstructions.
Wall Panels: completed with adjustable height brackets (+ 5 mm / - 5 mm), maximum weight capacity 30 kg.

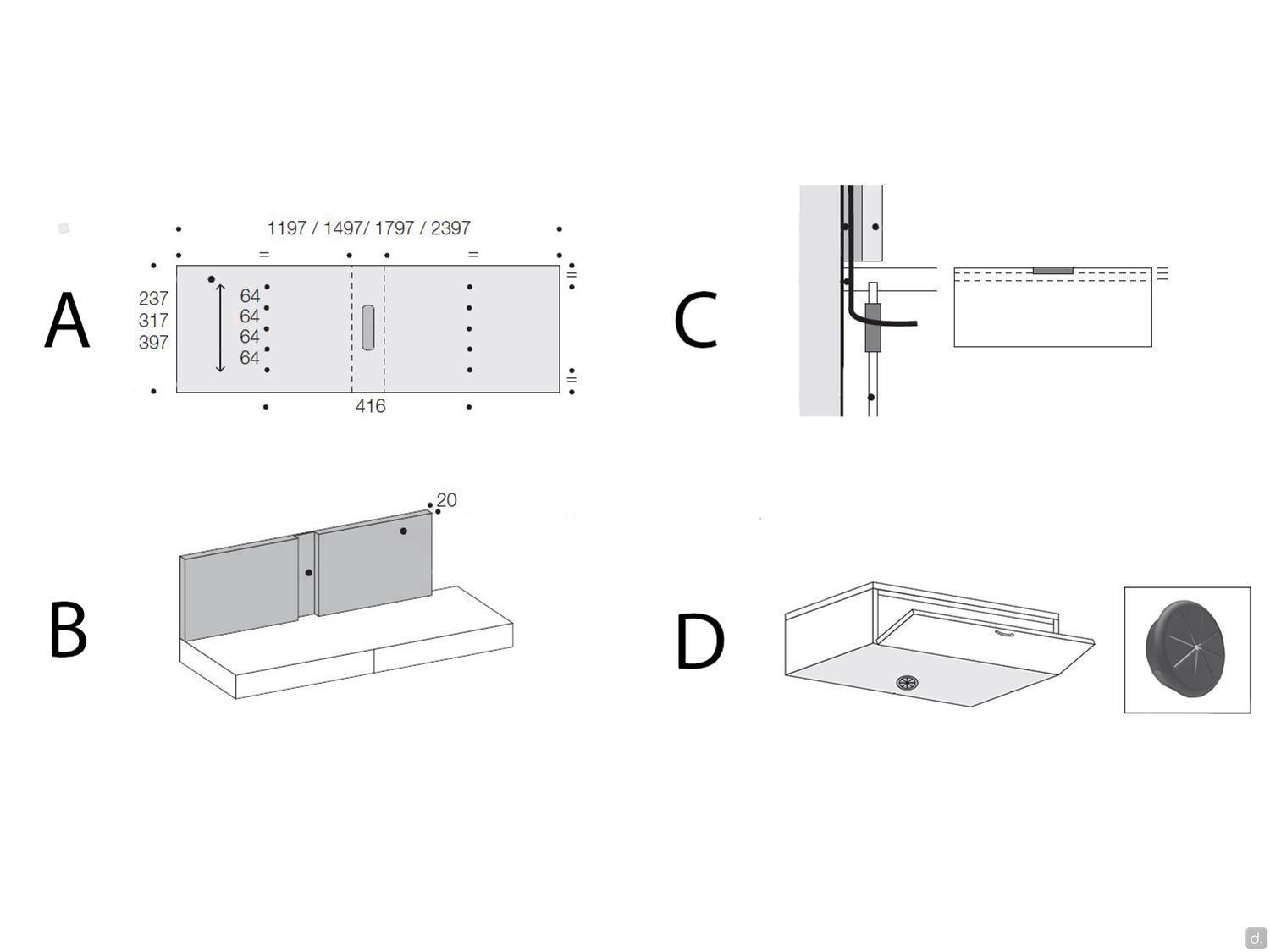

Cable holes for suspended TV: one of the panels (cm 149,7 h.23,7) will be equipped with holes for cables and for VESA mounts, to correctly fix the TV to the panels. The mdf panel on the back, where the panel needs to be fixed to, comes with a recess to hold the TV cables. The cm 150 h.24 cabinet comes with a recess on the back to allow the passage of the cables (not visible) and a round cable hole on the bottom of the structure. For more details please refer to the scheme inside the gallery.
Vertical Recessed LED bars: 15,6W each, with power supply. Natural white light at 3.000°K.

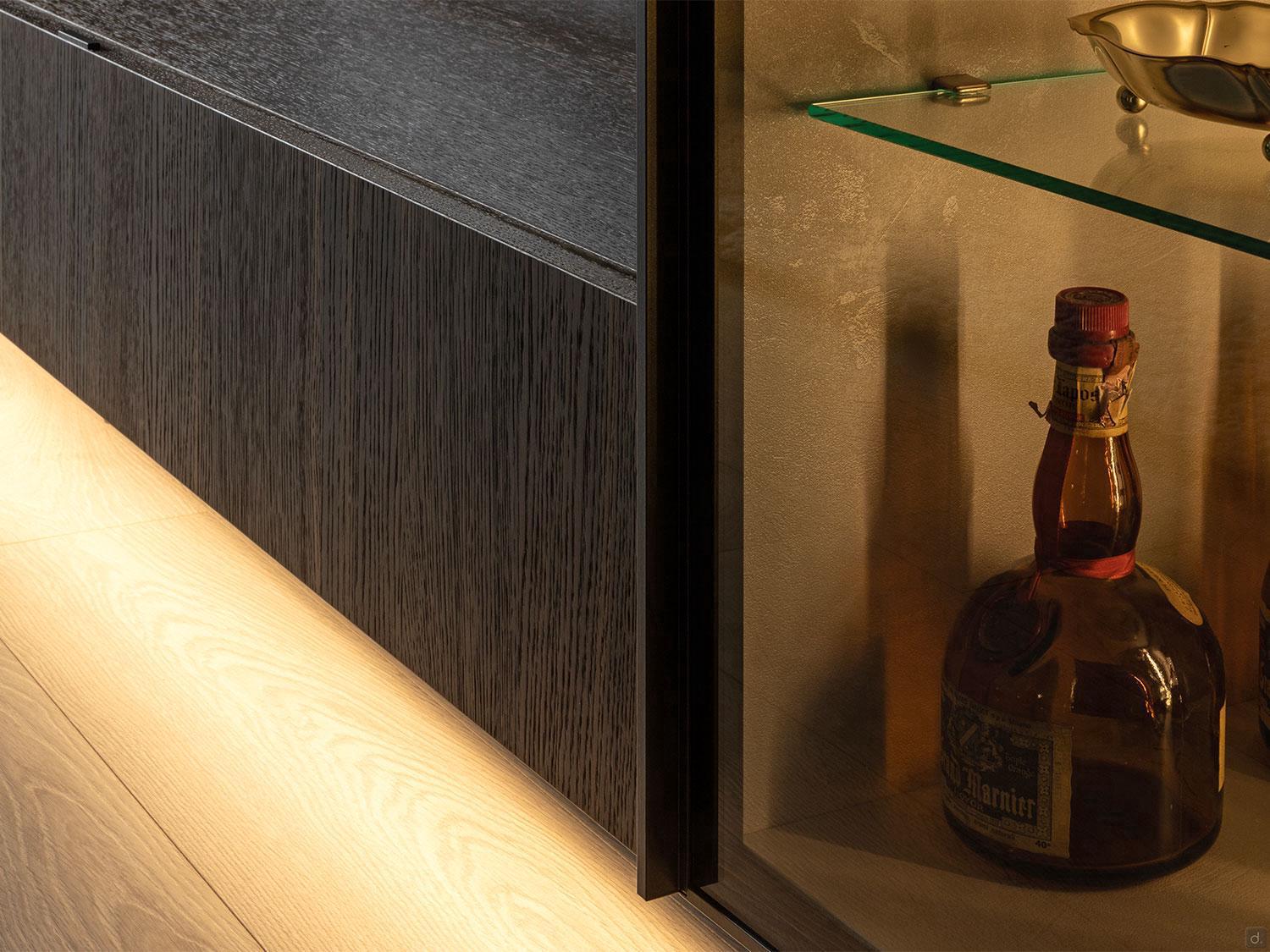

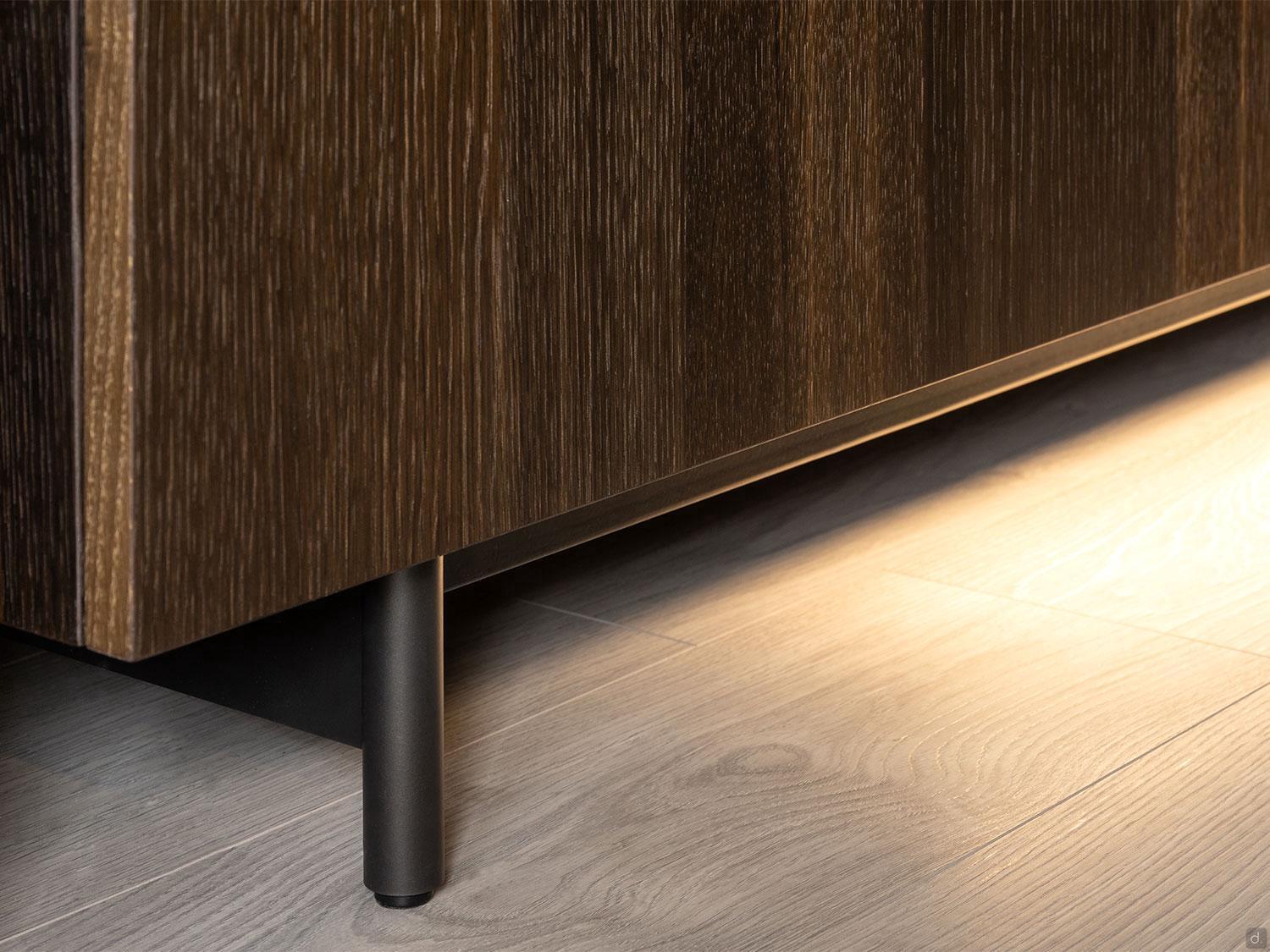

LEDs under the Base: 28,8W, with power supply. Natural white light at 3.000°K.
