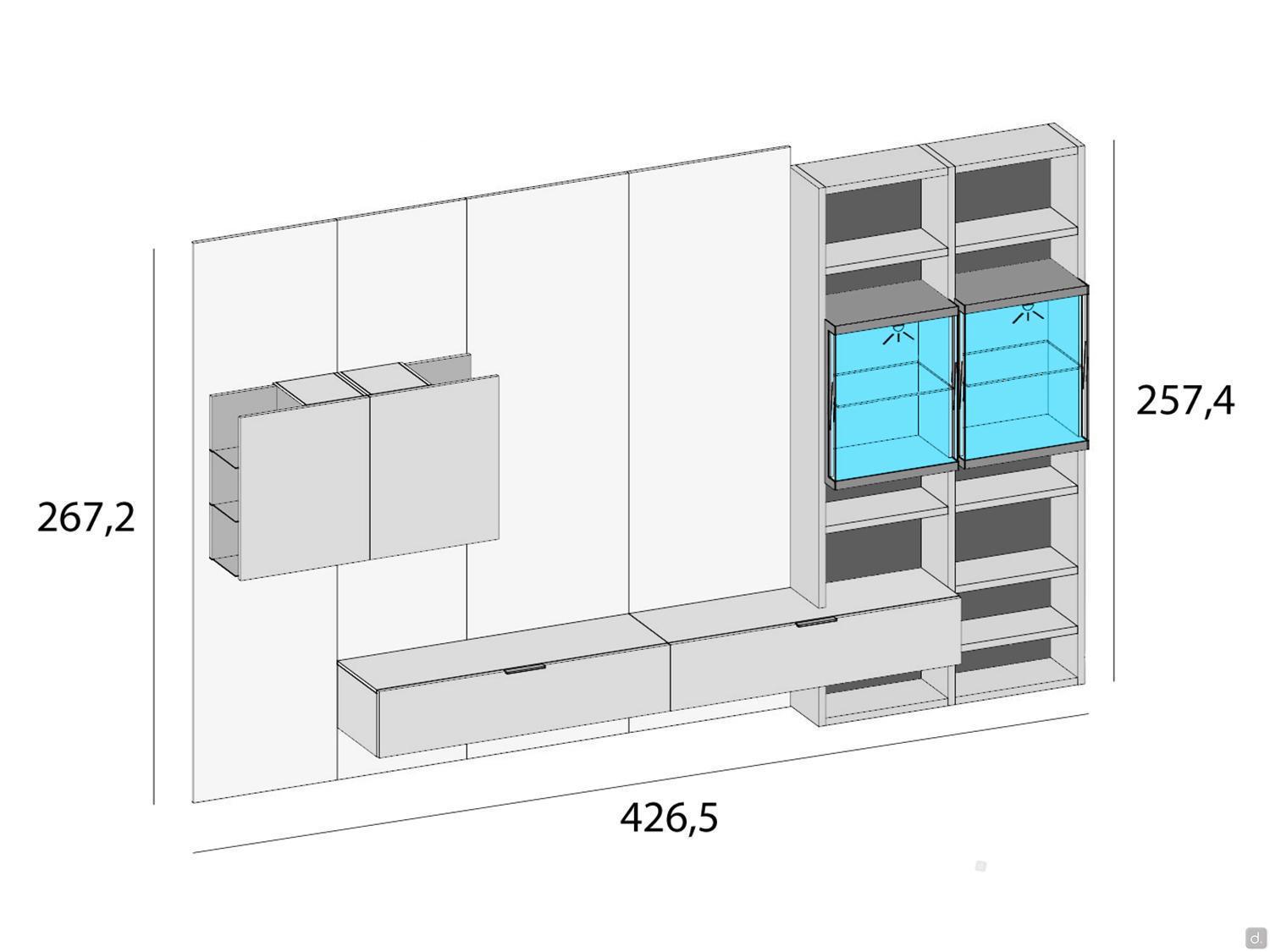

Specific Measurements
n.2 suspended base units with drawer: cm 144 d.44,3 h.32
n.2 bookcase columns: overall composition measurements cm 131,5 d.32 h.240 / 260
n.2 display cases with hinged doors: cm 61,5 d.42,5 h.78,1
n.2 wall panels: cm 80 th.2,2 h.240 / 260
n.1 wall panel cm 64 th.2,2 h.240 / 260
n.1 wall panel cm 71 th.2,2 h.240 / 260
n.1 wall panel cm 32 th.2,2 h.64

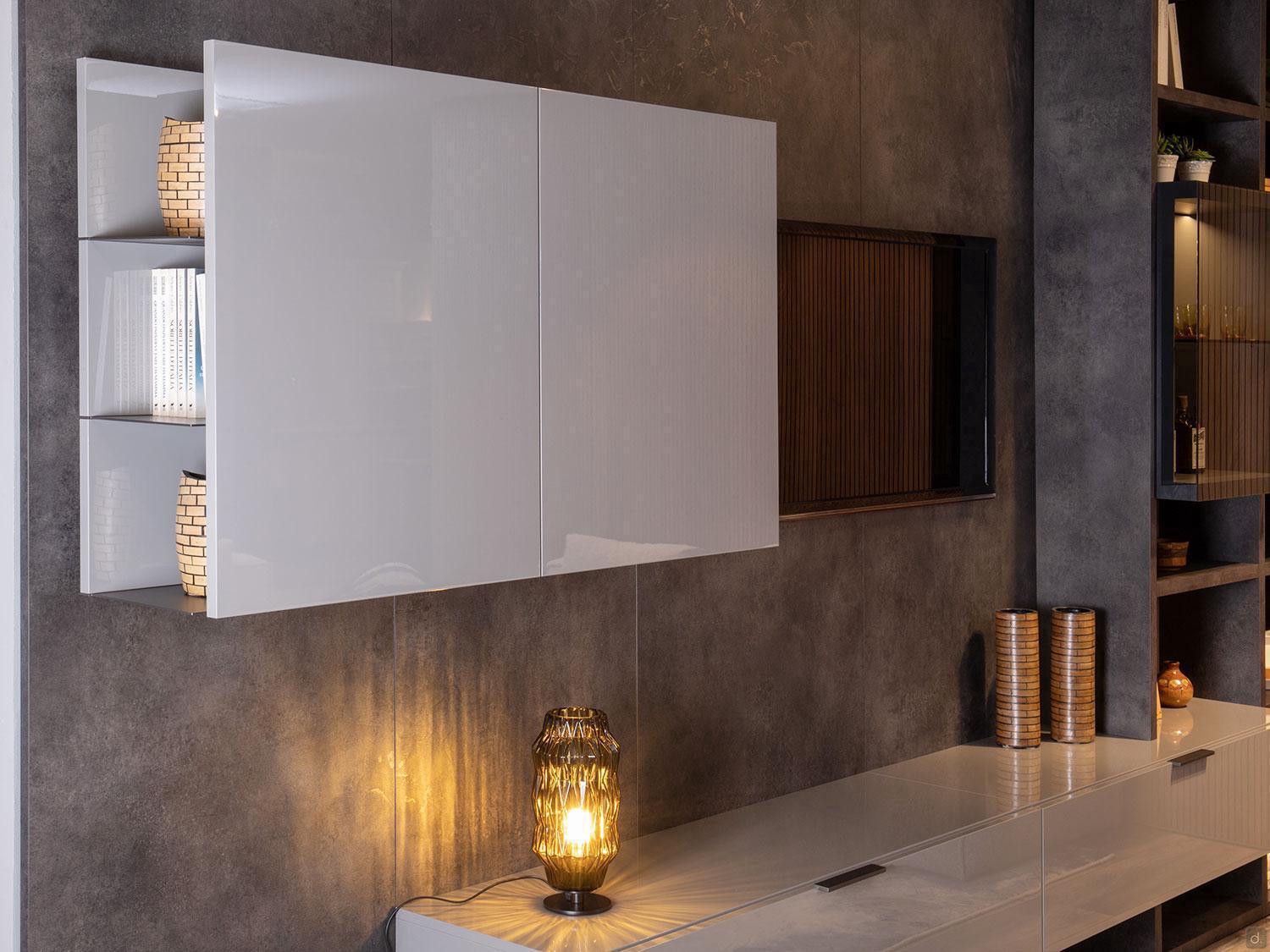

n.2 wall unit elements with hinged doors: cm 64 d.34,4 h.96 each
Technical Specifications and Equipment
Base and Wall Unit Structure: panel made from wood particles, covered
in melamine material (class E1 - low formaldehyde emission), wood or MDF (for
glossy lacquer).

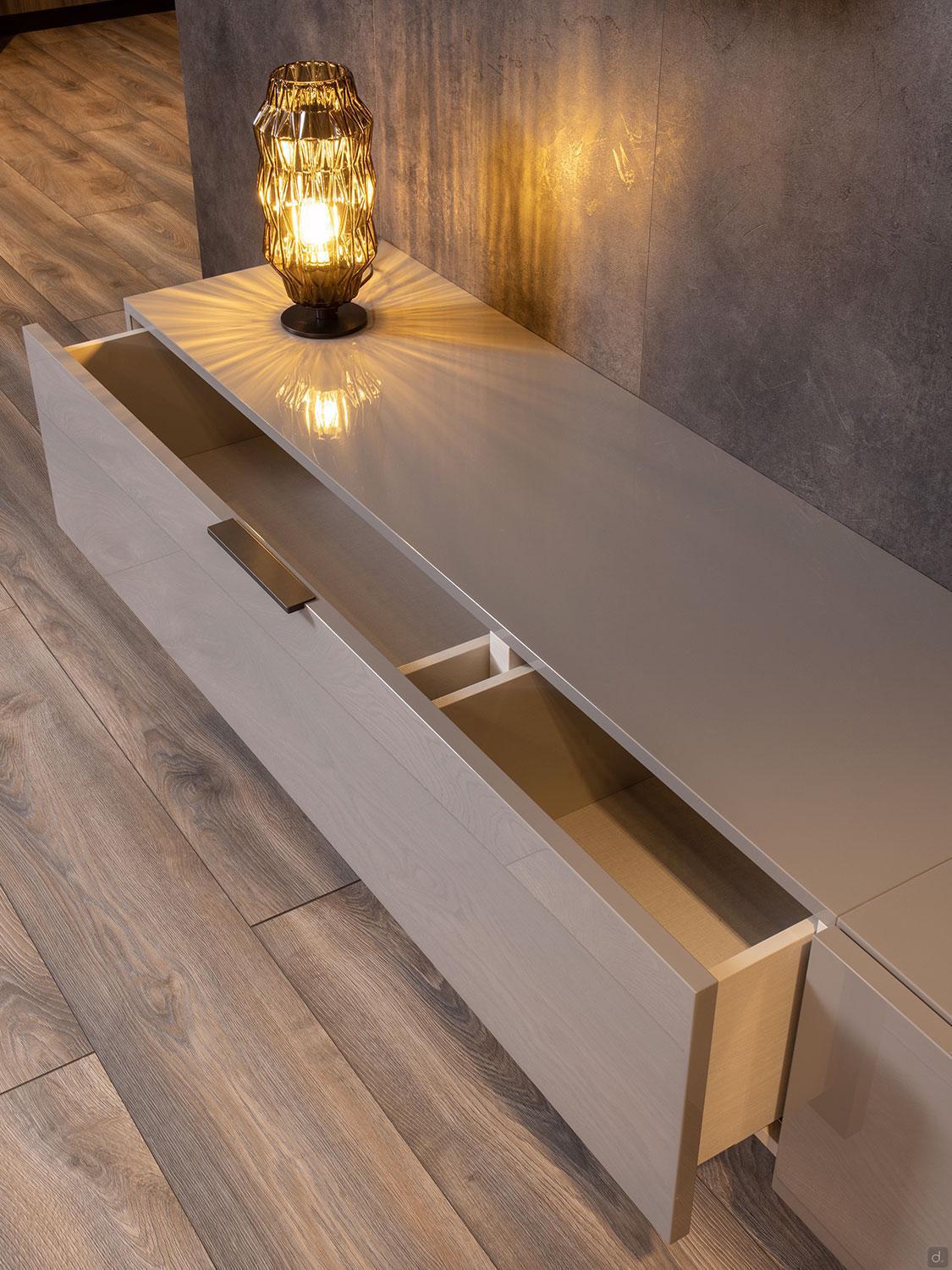

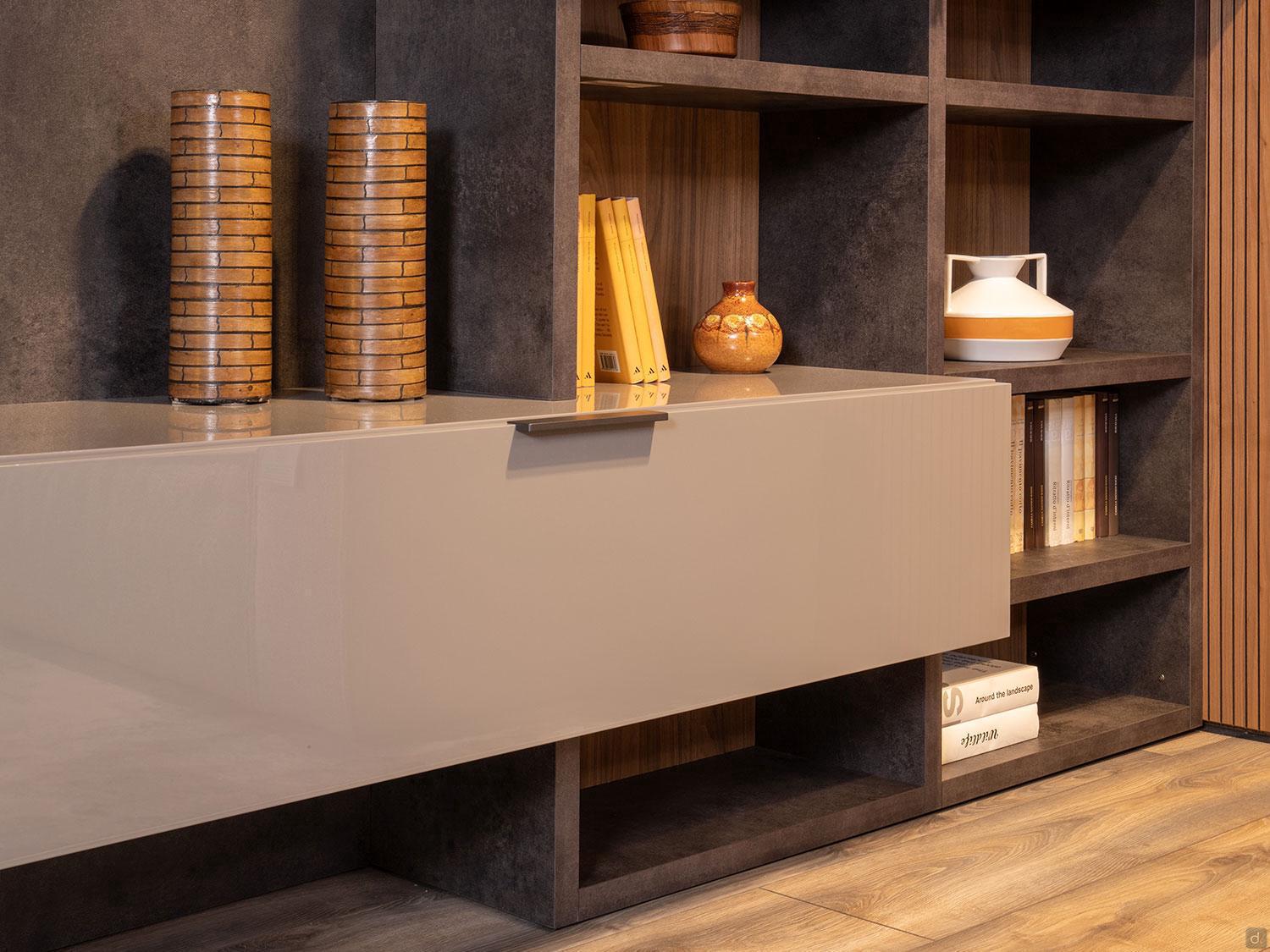

Basket Drawers: fronts in wood particles (class E1 - low formaldehyde emission) or
2,2 cm thick MDF, sides in wood particle panels covered with 1,4 cm thick
polymer foil. The sides of the baskets are always in Taupe melamine. The 144 cm
baskets are divided into two internal compartments of 96 cm and 48 cm.

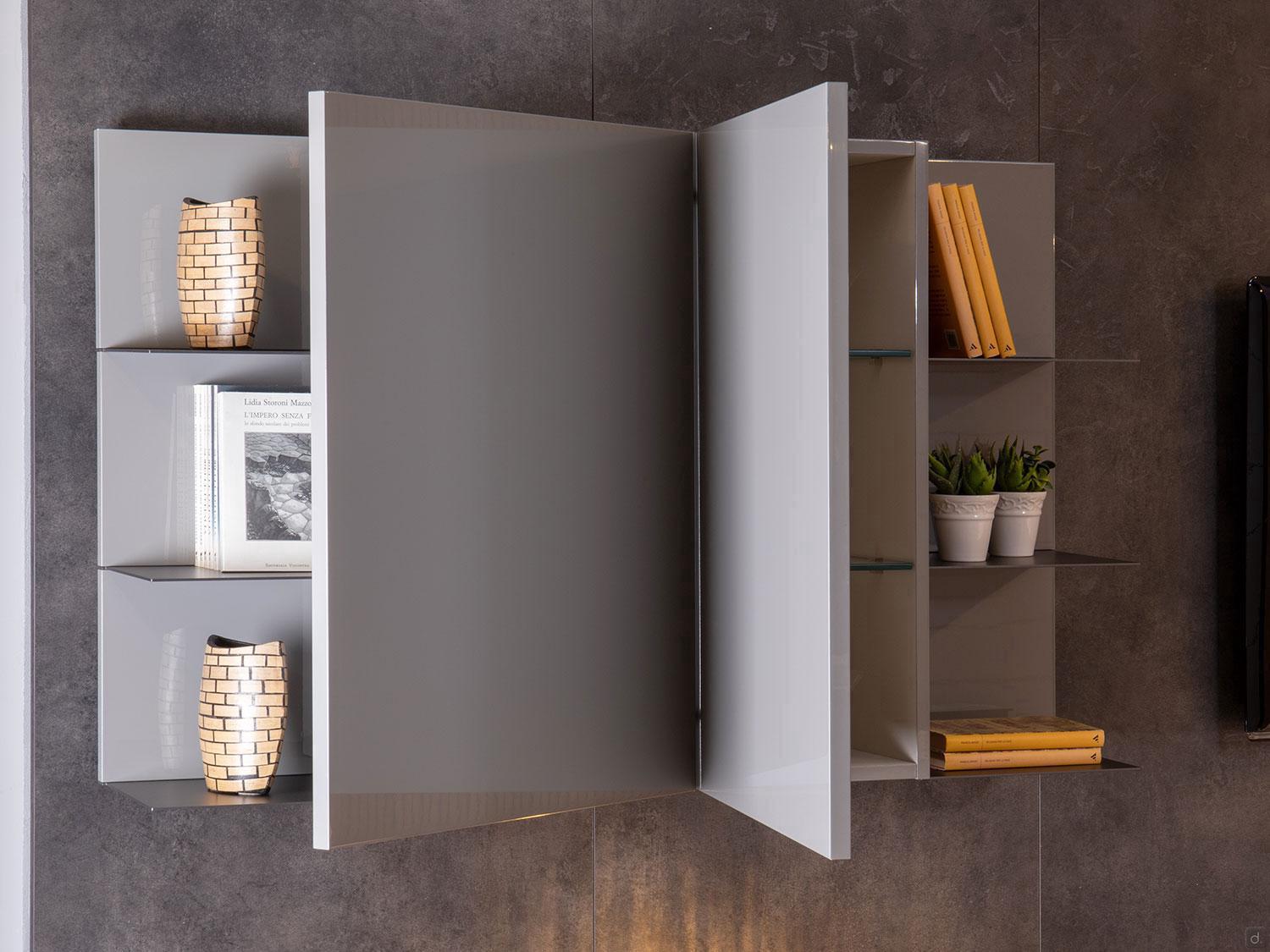

Hinged Doors: wood particle
panel covered in melamine (class E1 - low formaldehyde emission), wood or MDF 2,2
cm thick. Equipped with push-pull opening and hinges with soft closing. Groove
Wood door in black body MDF thickness 2,2 cm with 0,3 cm grooves placed at 1,7
cm intervals.

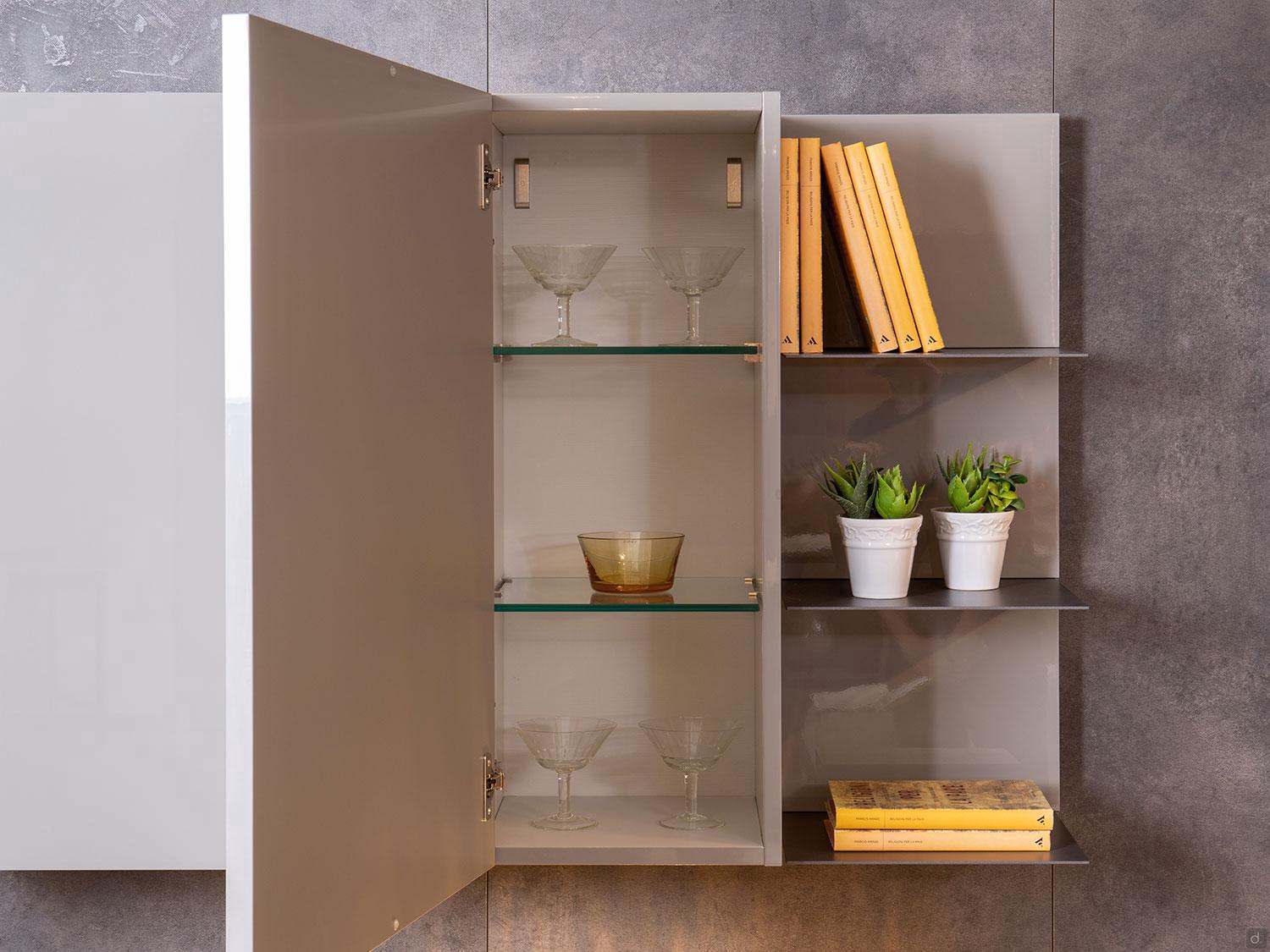

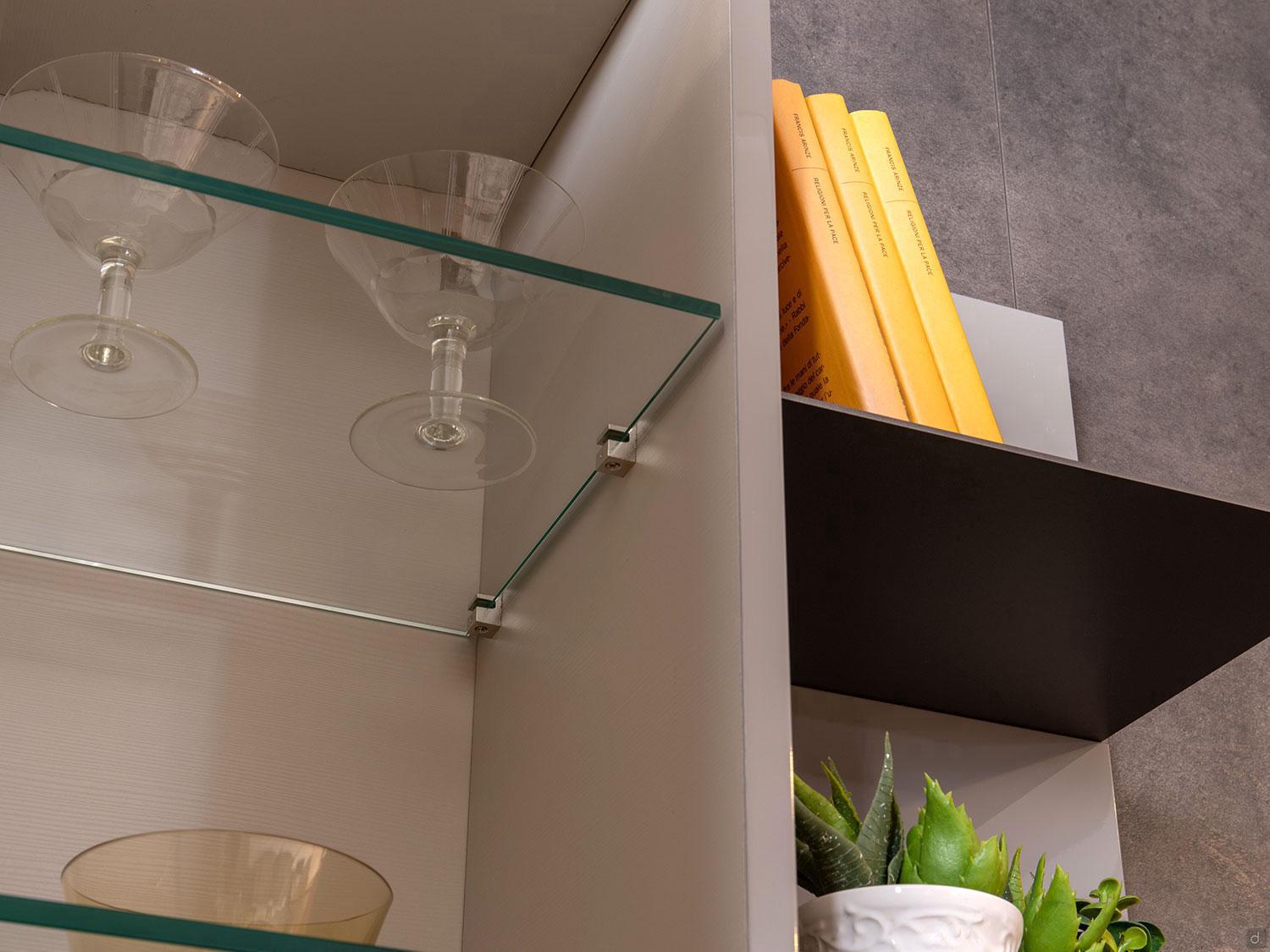

Internal Shelves: in transparent glass, 0,8 cm thick, 2 are included in each
hanging module with hinged door.

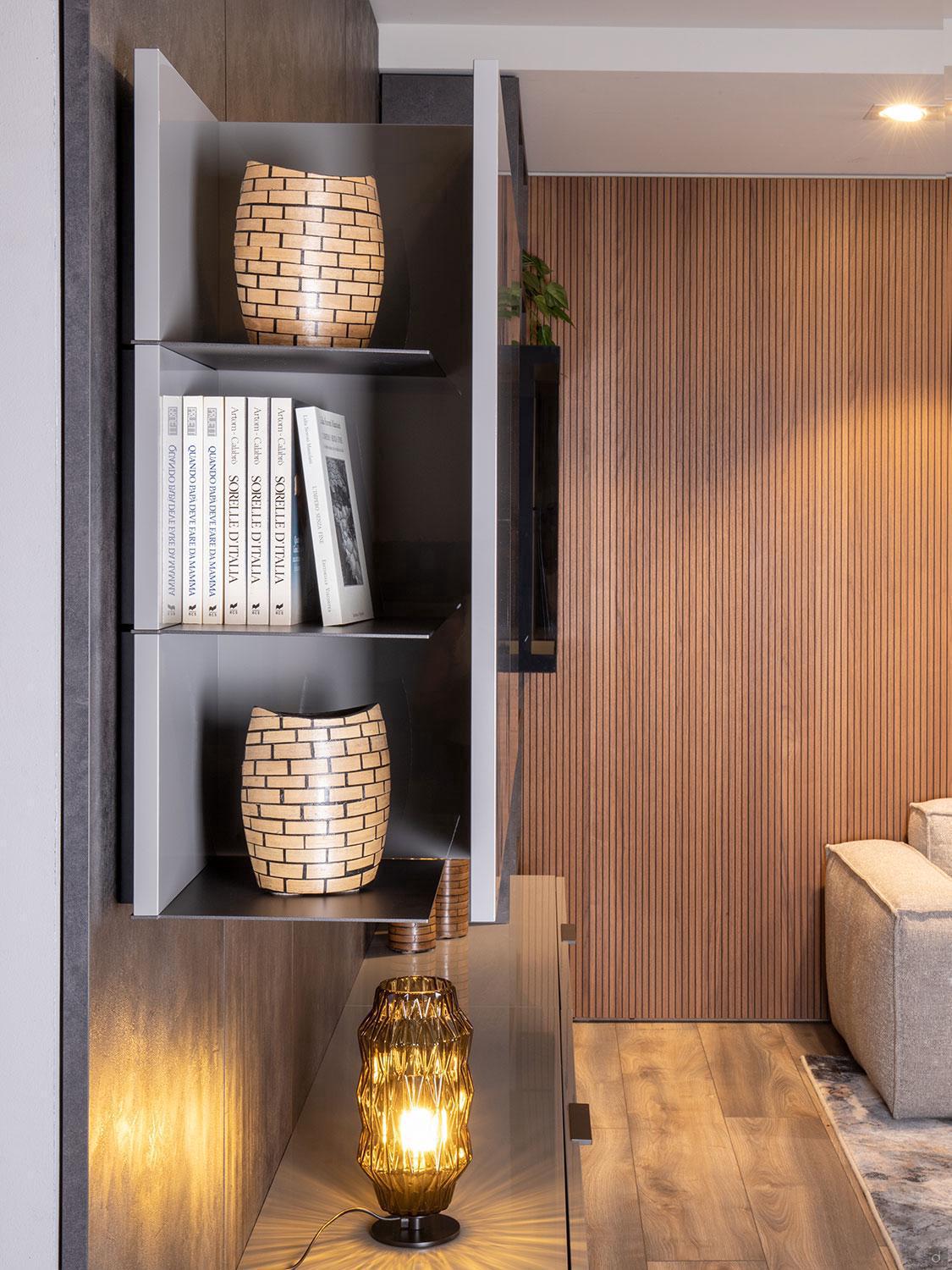

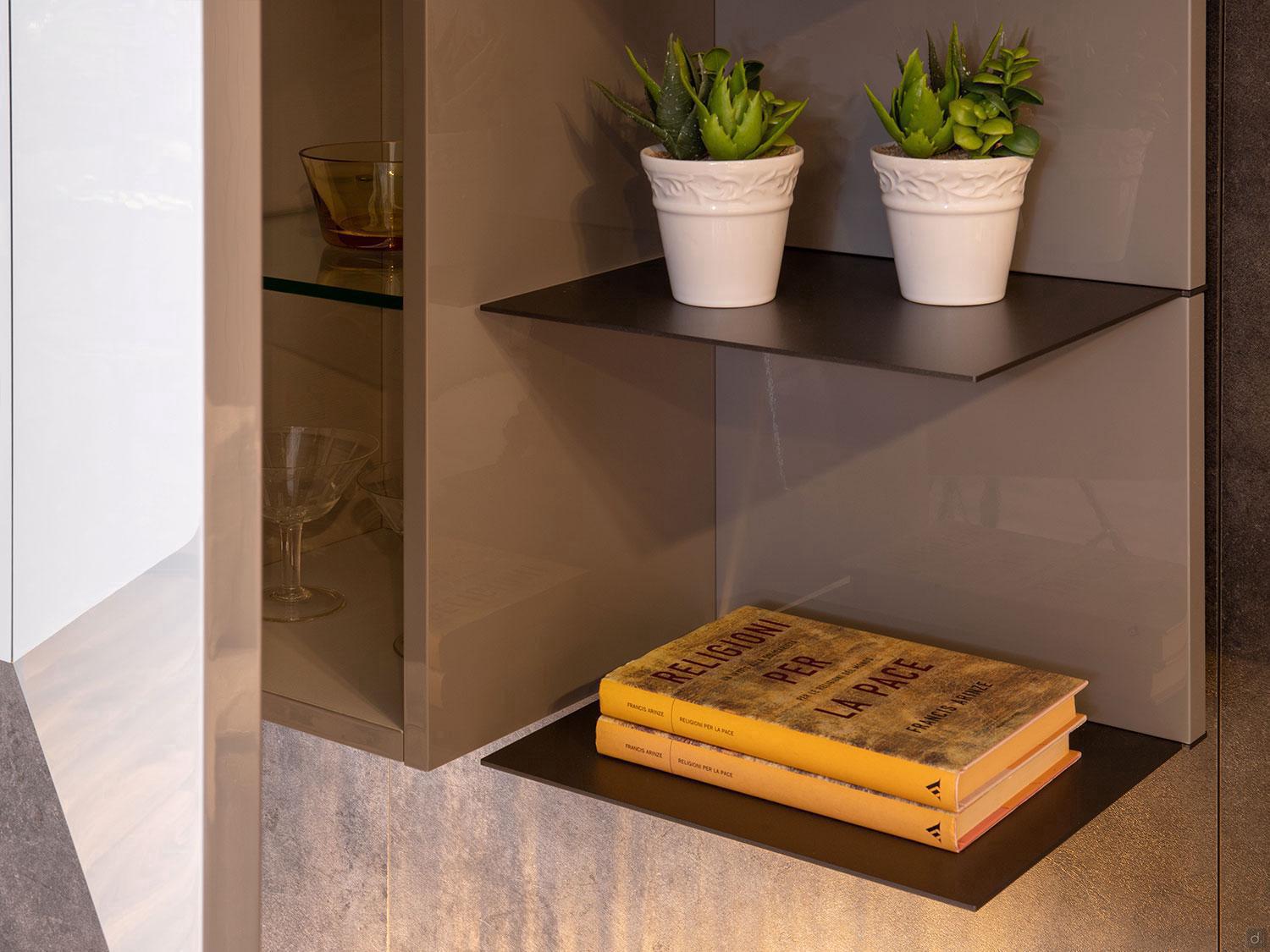

Shelves: in moka
shine painted steel sheet, 0,4 cm thick. Included in the two hanging modules
with hinged door.
Wall Panels: panels made from wood particles panels (class E1 - low formaldehyde emission) 2,2 cm thick;
the back of the panel has a profile also made of wood particles, 2,2 cm thick,
covered in polymeric leaf in a matte black finish.

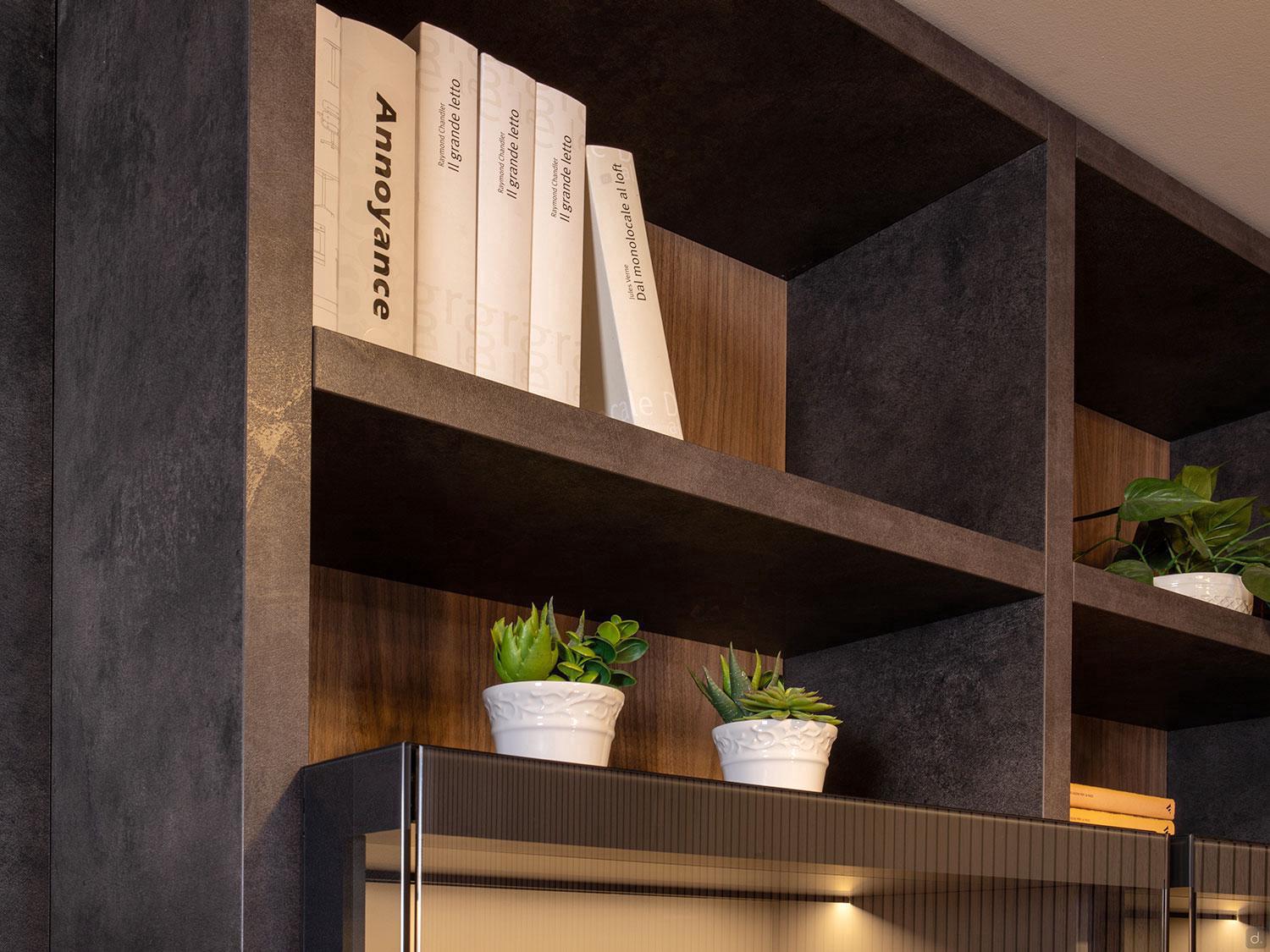

Bookcase Column Structure: wood particle panel (class E1 with low formaldehyde emission). Wooden edge,
lacquered ABS or ABS. The panels on the ground are always equipped with levelling
feet inserted into it (0,5 cm unloaded). Bottoms, lids, shelves and dividers all have a thickness of cm 3,5.
Bookcase Back Panels: 1,4 cm thick, milled
on the bottom and lid. Sanitary void of 2,1 cm.

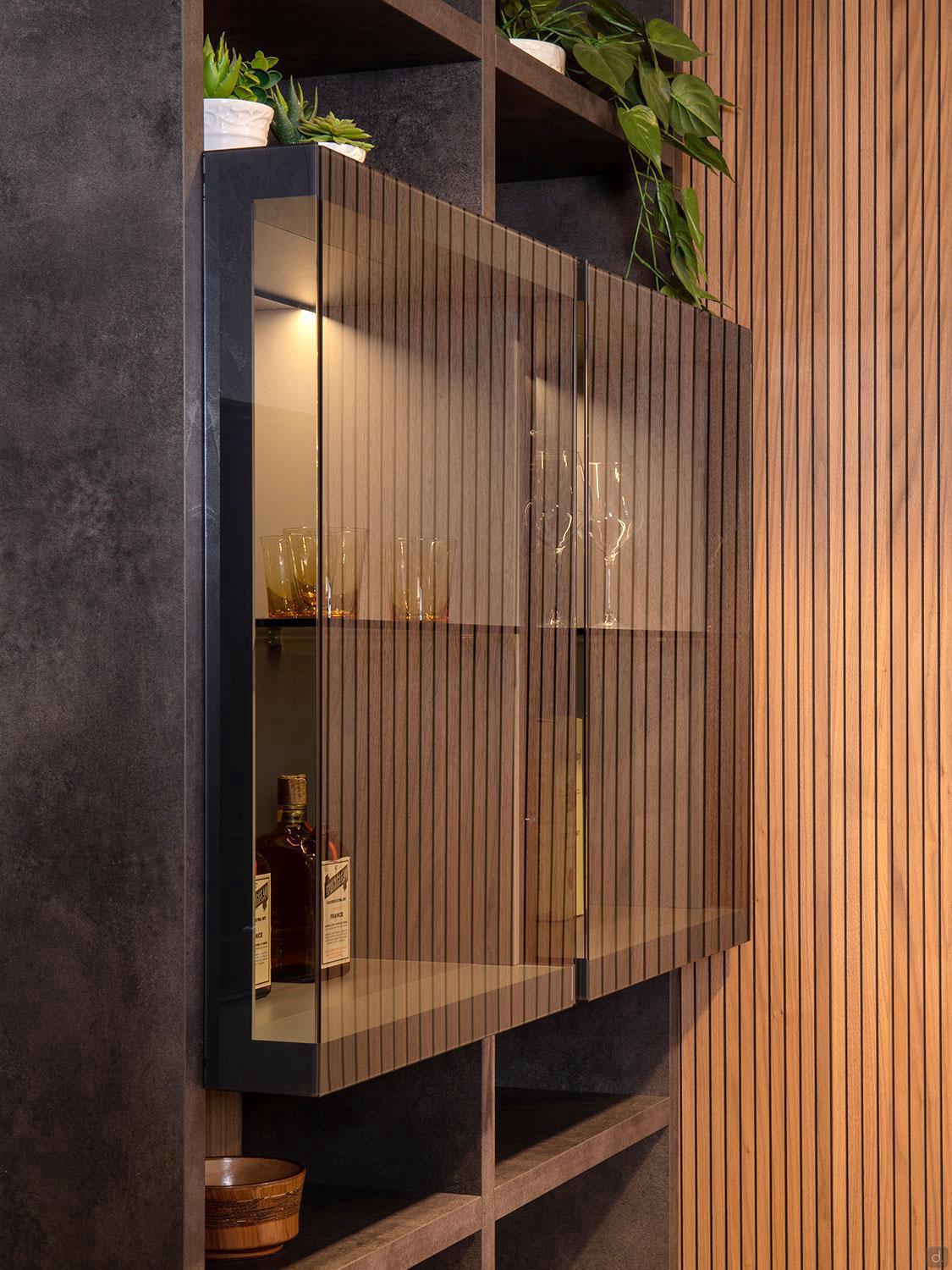

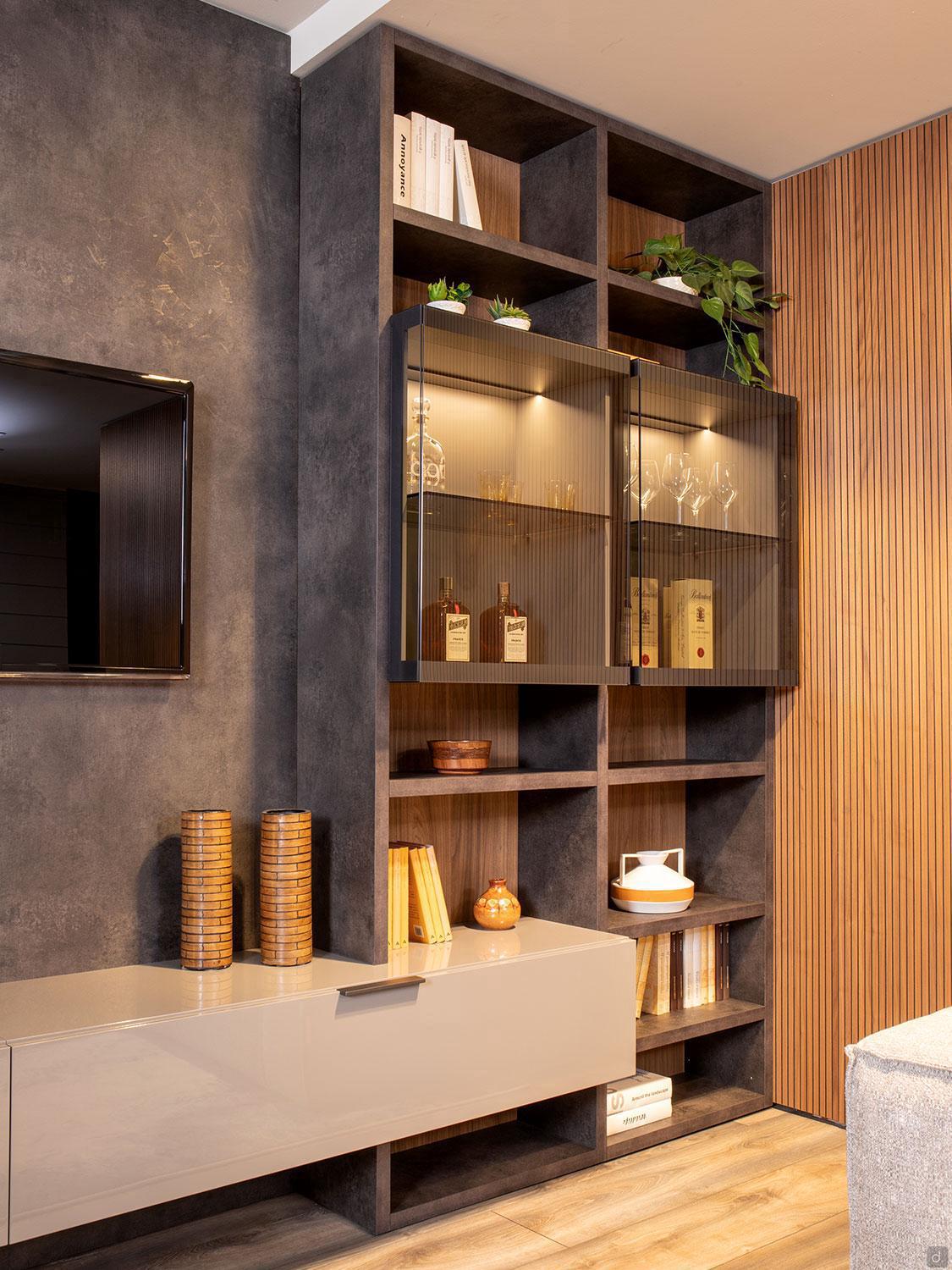

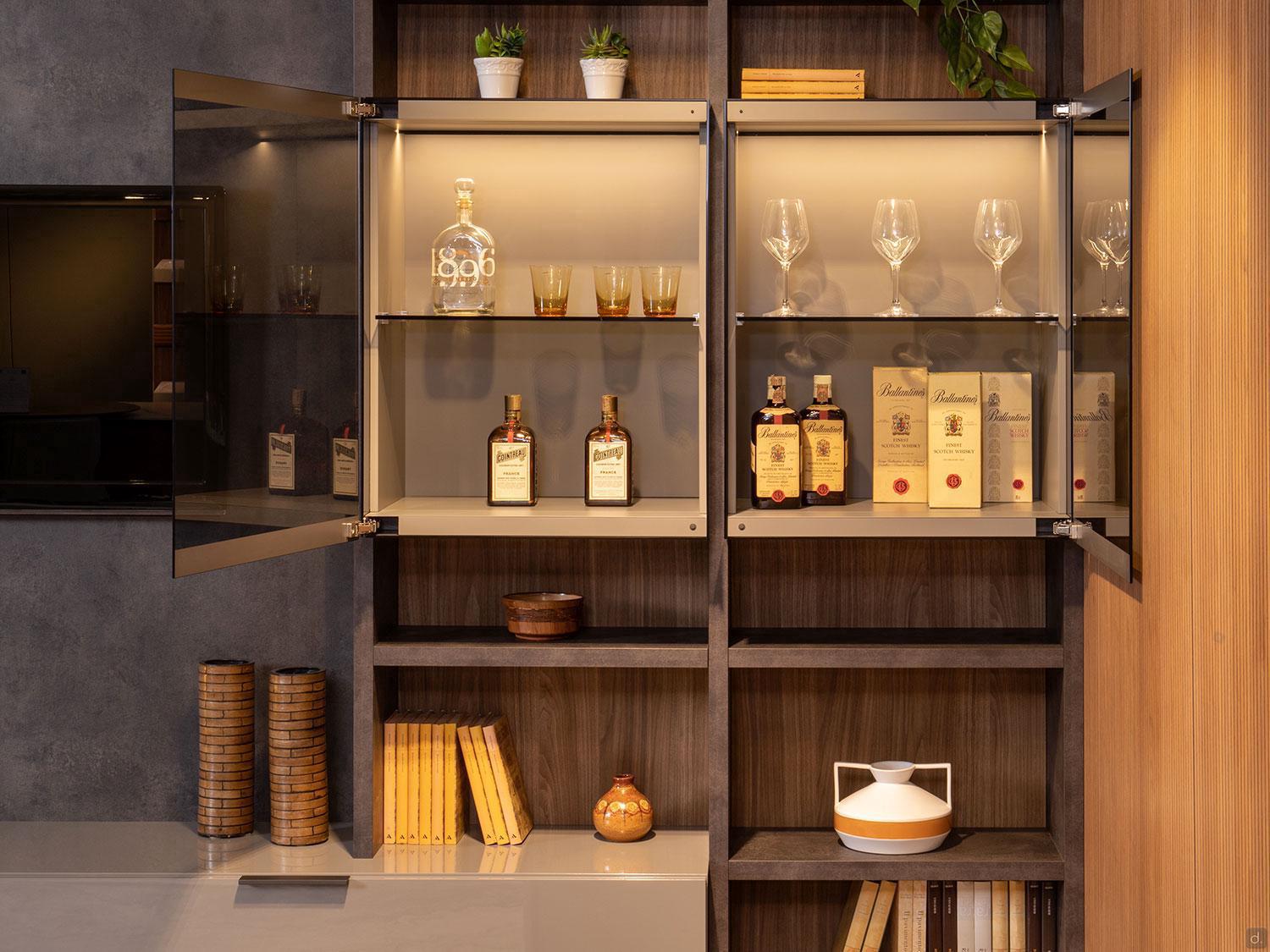

Display Case Door: in grey transparent glass cm th.0,5 with lead painted frame. The entire display case is 42,5
cm deep and therefore protrudes 10,5 cm compared to the bookcase that encloses
it.
Optional

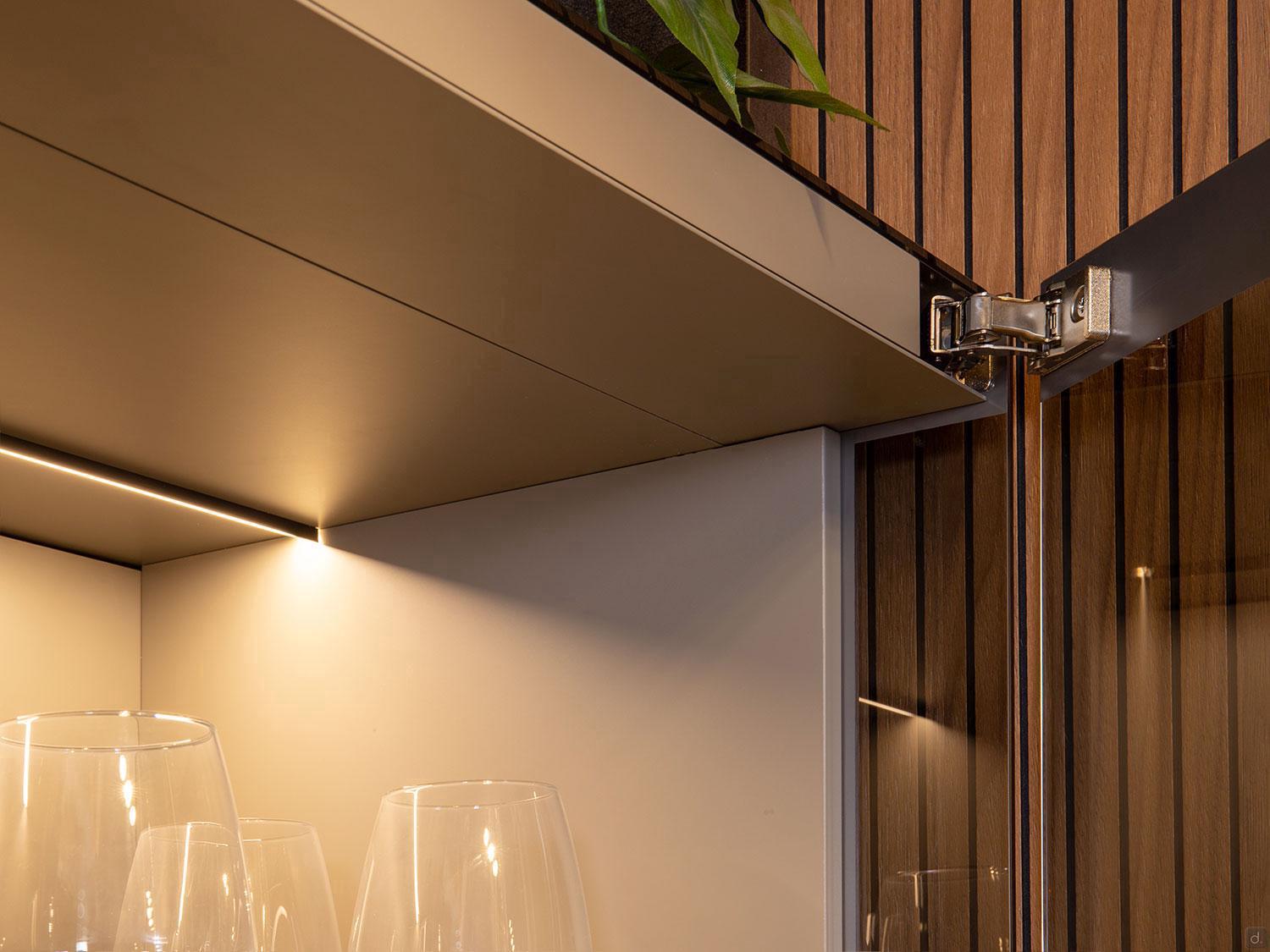

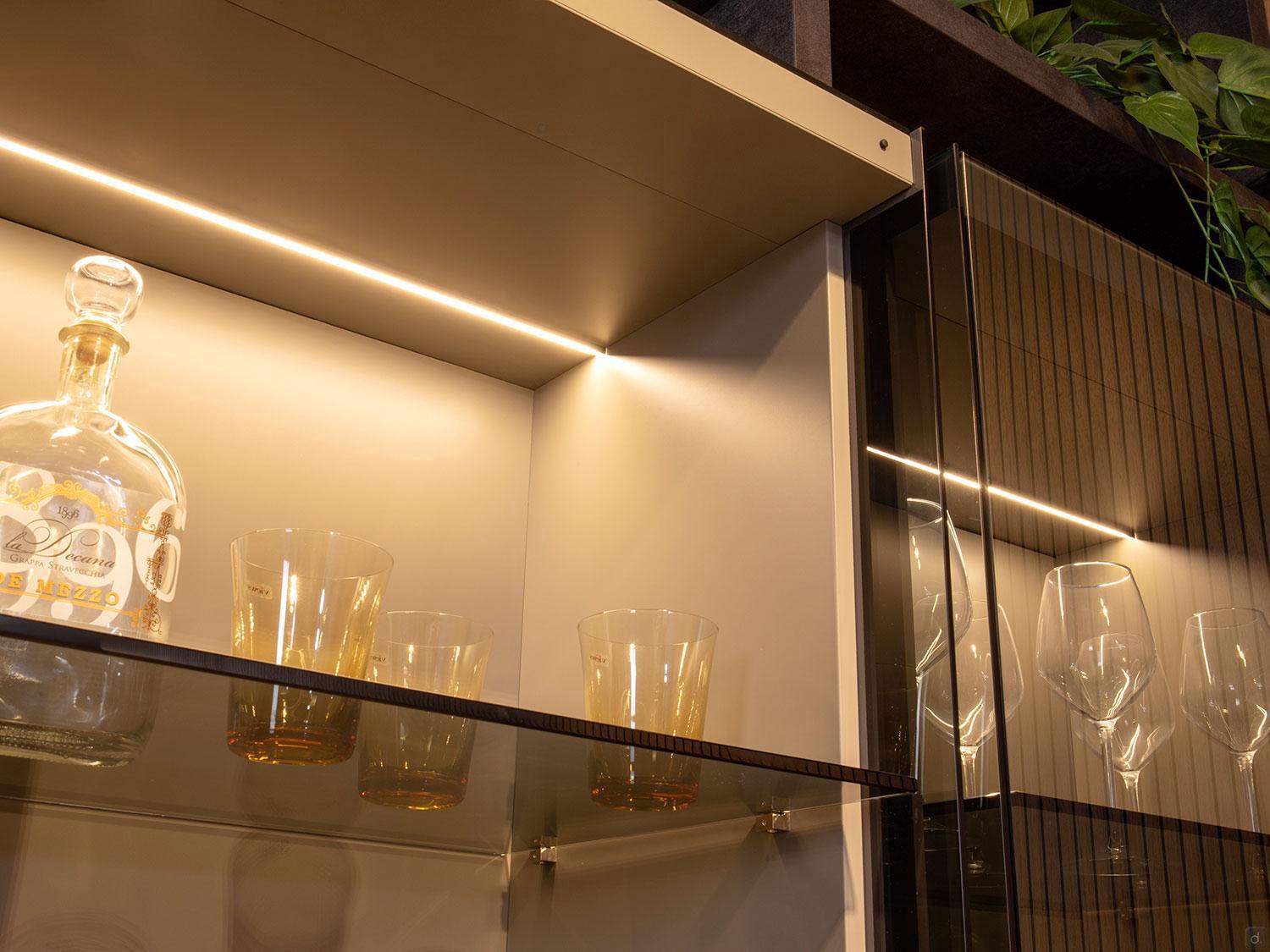

LED Lighting: bar milled in the lid of the display case, with 30W power supply
included. 3000K warm light.
Total Extraction Drawers: total extraction allows you to extract the drawers 34,7 cm compared to the
completely closed container, compared to 25,7 cm for the standard partial
extraction. In case of total extraction, the depth of the suspended base with
the basket completely open is 76,3 cm.
Assembly Tips
The suspended containers (base and hinged wall units) are
equipped with hangers for wall fixing with an anti-release system. The dowels
are adjustable from the inside by 1 cm in height and 0,3 cm in depth. The
maximum capacity of the container is 70 kg for each hanger.
The boiserie panels are equipped with adjustable hangers
with a maximum load capacity of approximately 100 kg each. To mount the bookcase columns on the side of the equipped
wall you will need:
- in width: cm 2
- in height: cm 2,5
