Technical Specifications and Equipment

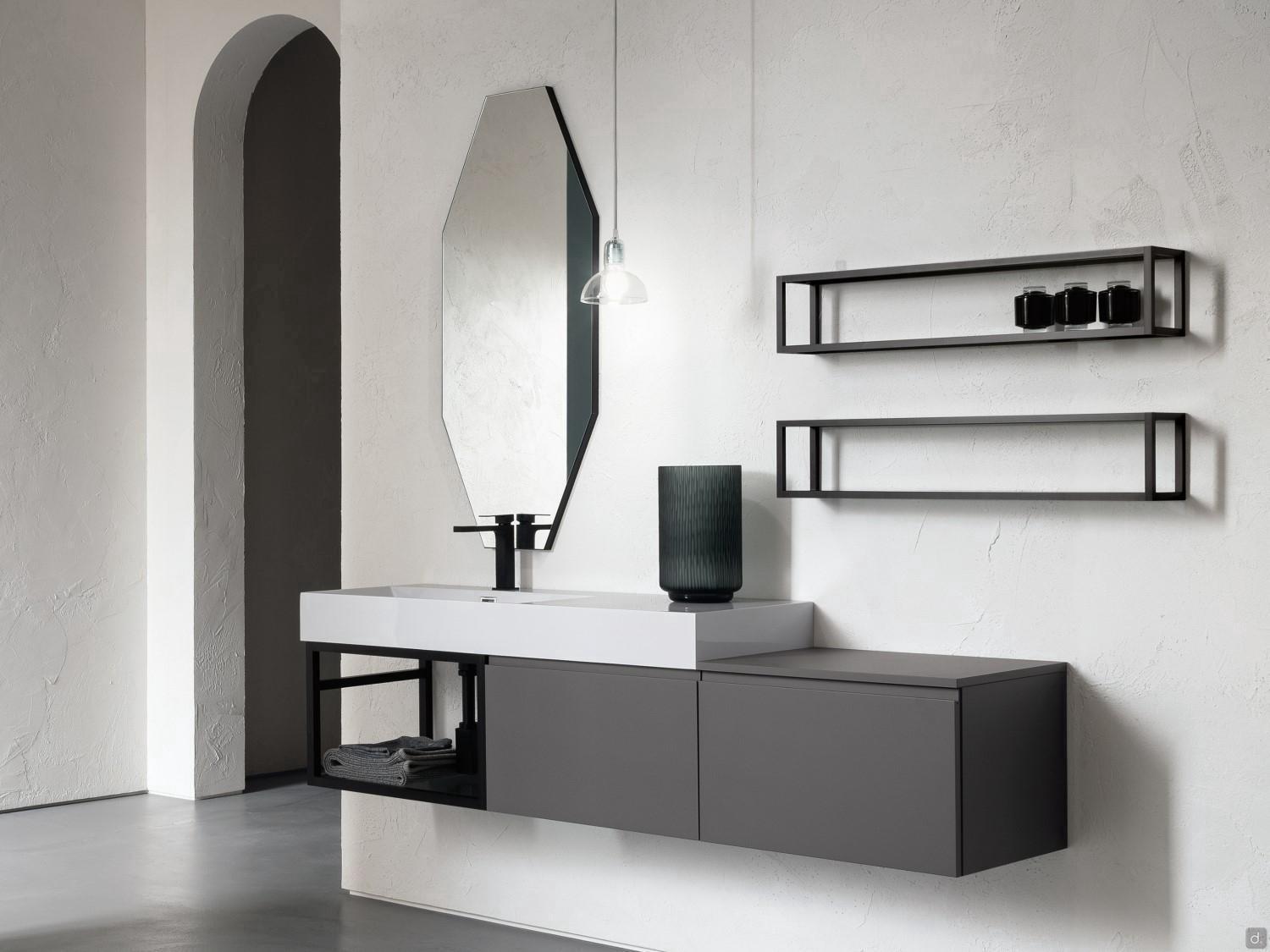

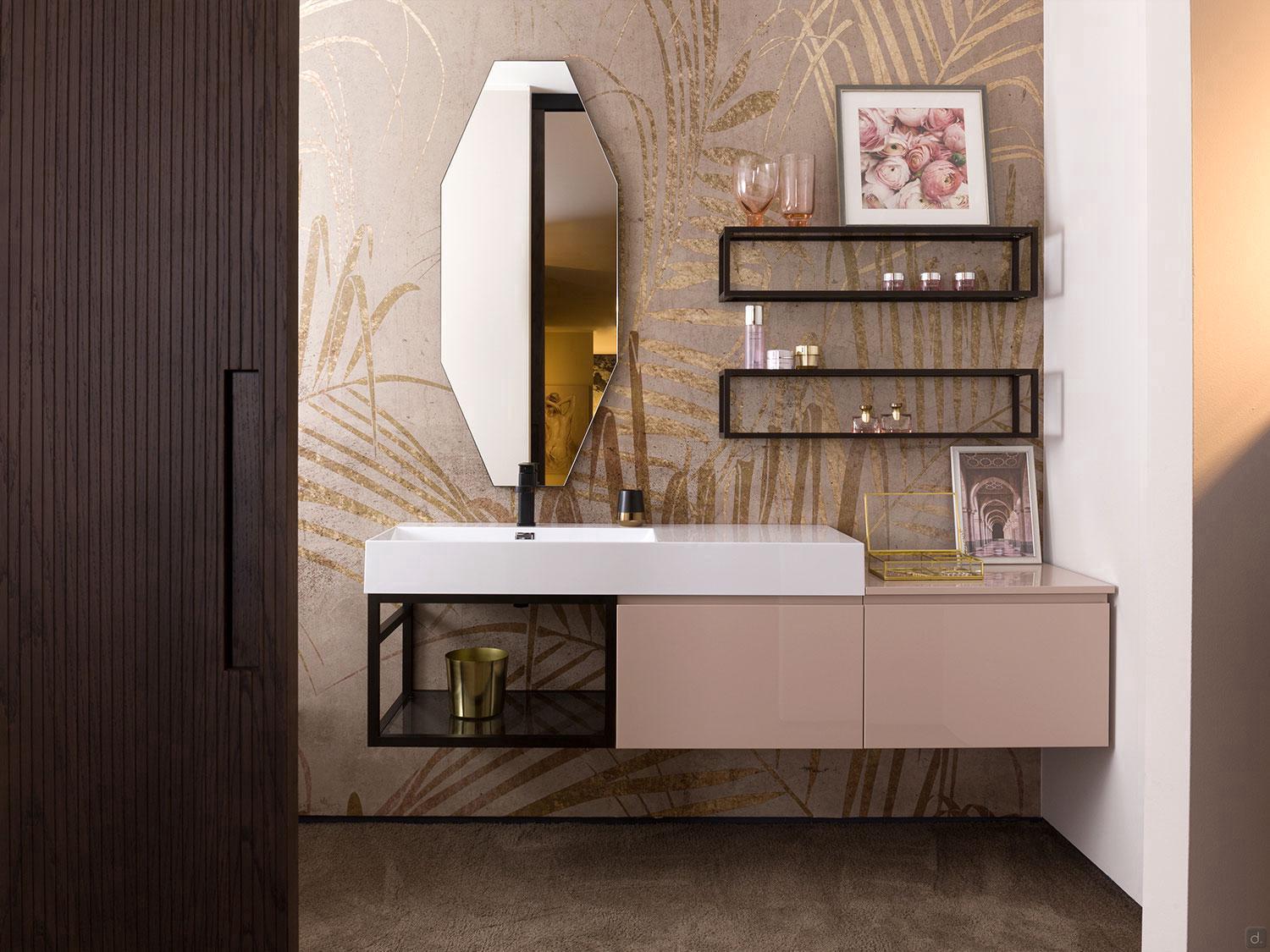

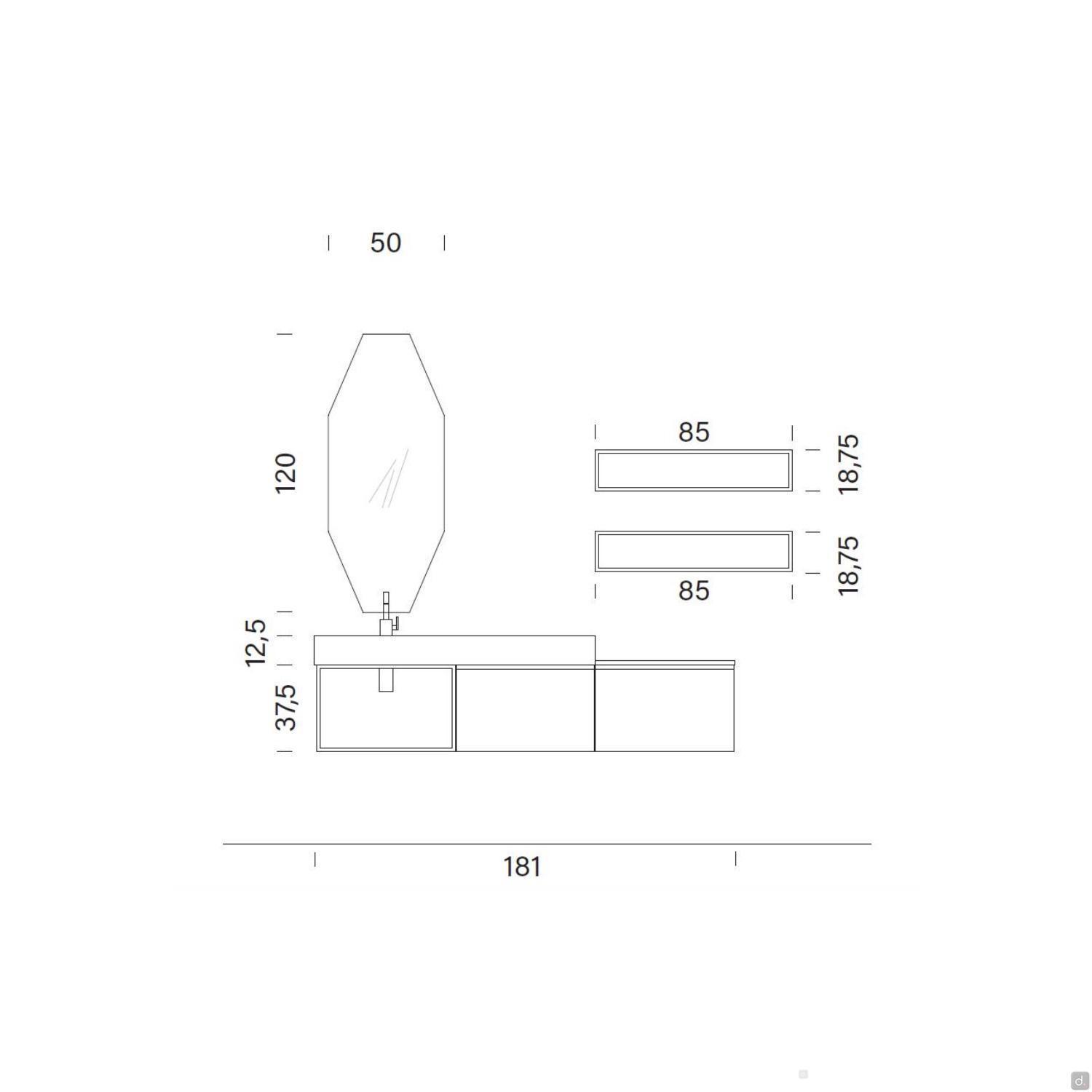

The N77 bathroom unit is composed of:

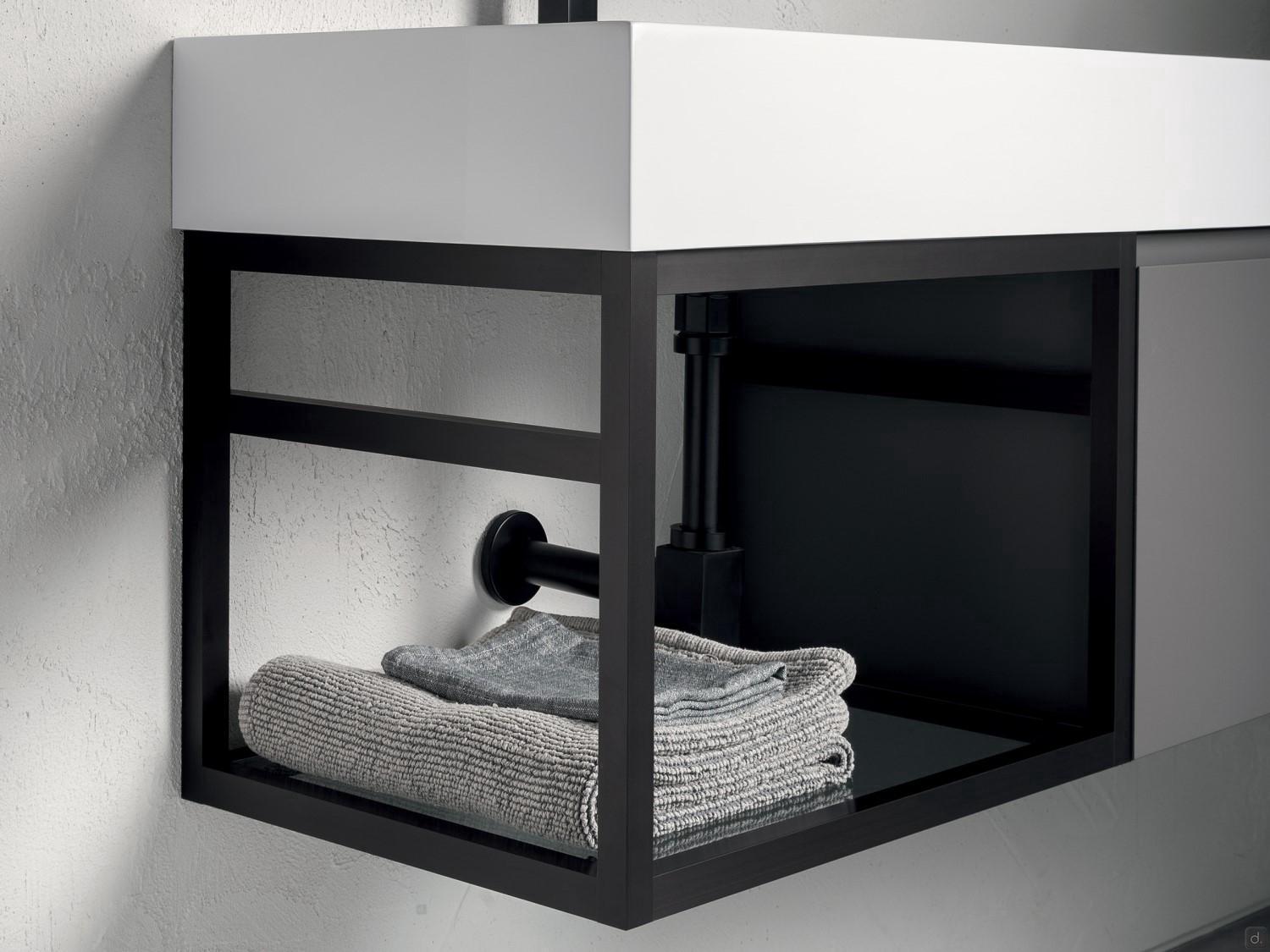

n.1 open suspended base with an aluminium structure and grey glass bottom cm th. 0,6, with a lateral towel holder, cm 60 d.45 h.37,5.

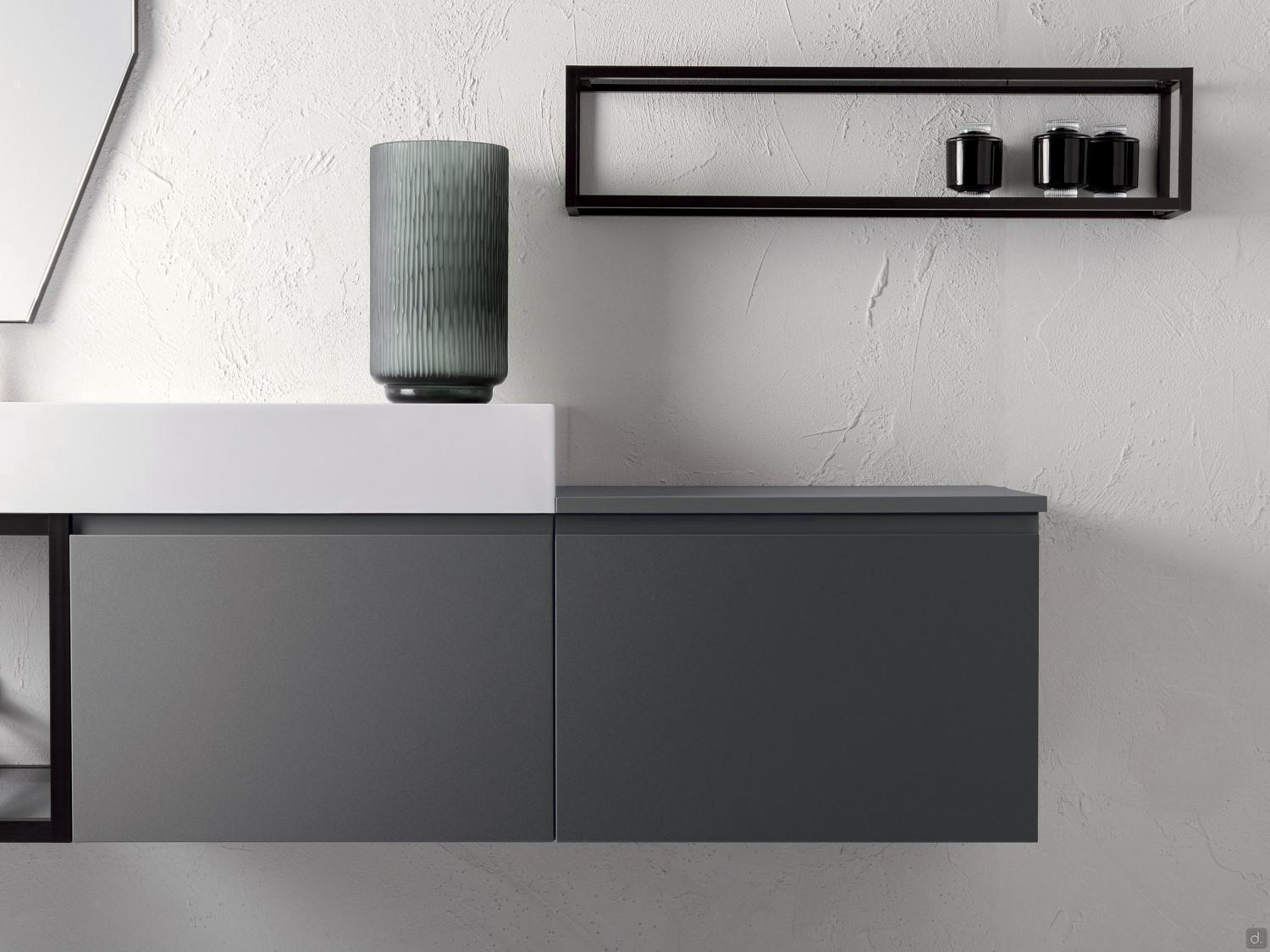

n.2 suspended bases with drawer, cm 60 d.45 h.37,5.
n.1 wooden top, cm 60,5 d.46 th.1,8.

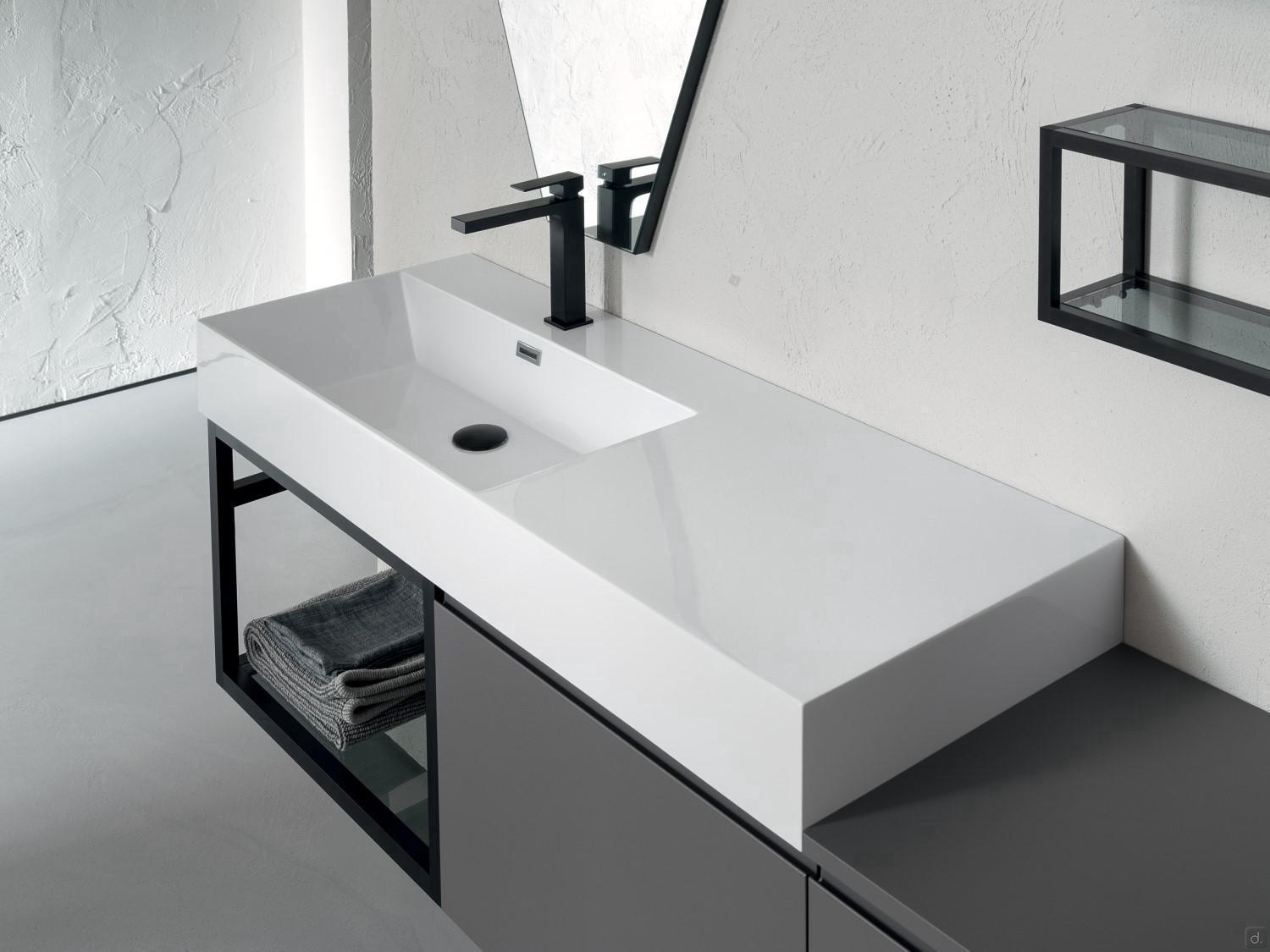

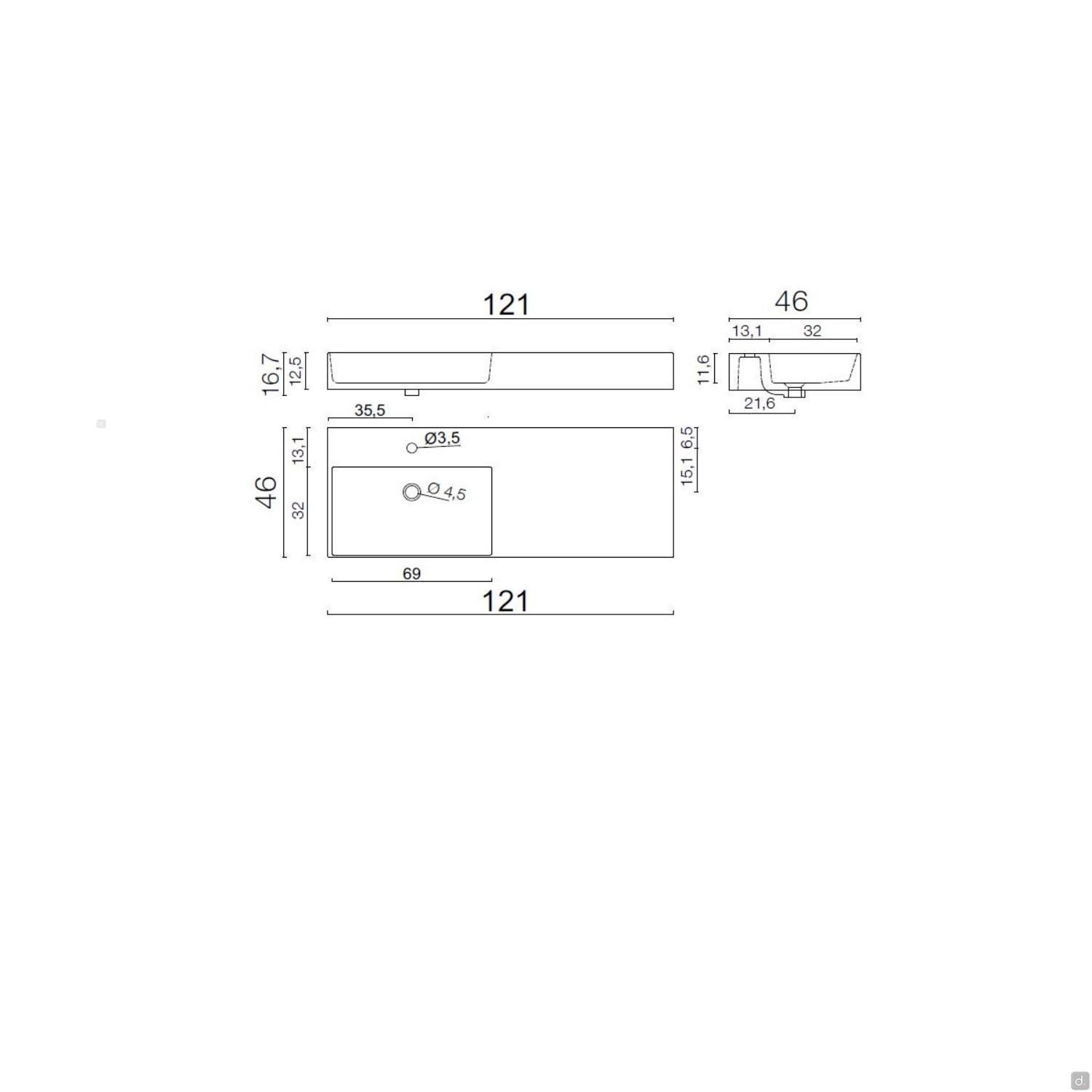

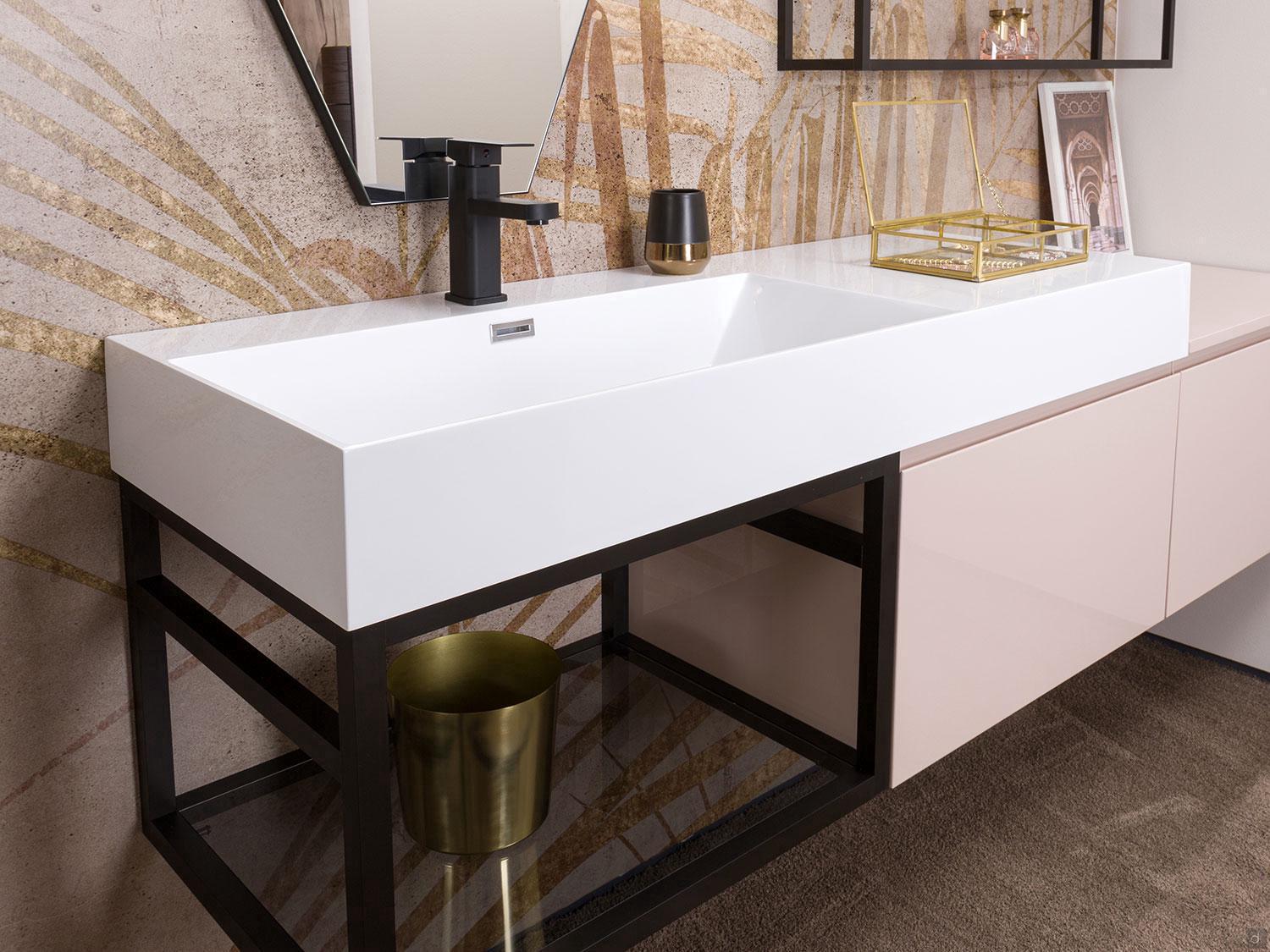

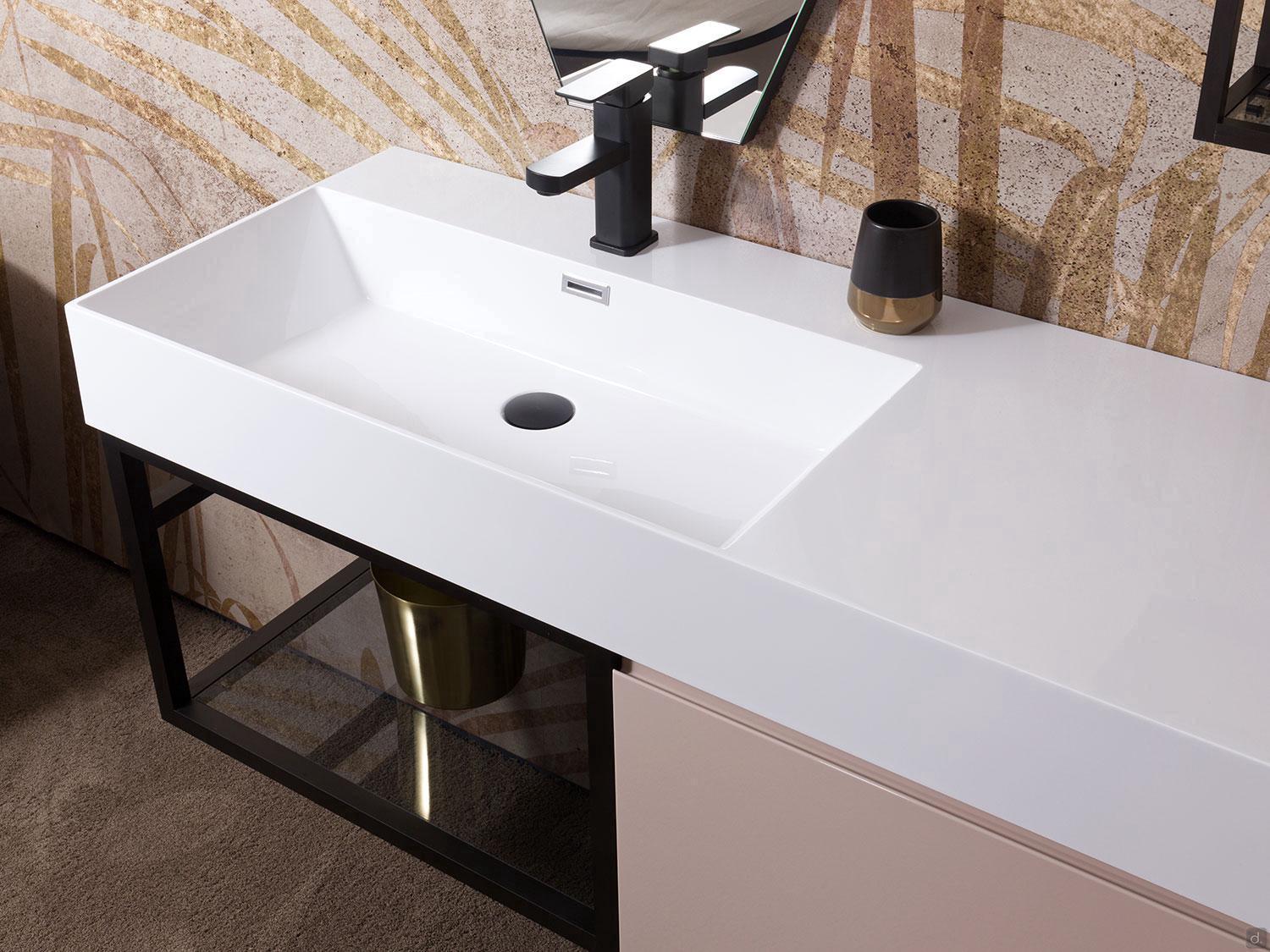

n.1 consolle sink made from mineralguss mod. Tahiti, cm 121 d.46 h.12,5. The measurements of the wash basin are: cm 69 d.32 h.11,6. An overflow hole is provided, while it is not equipped with a drain.

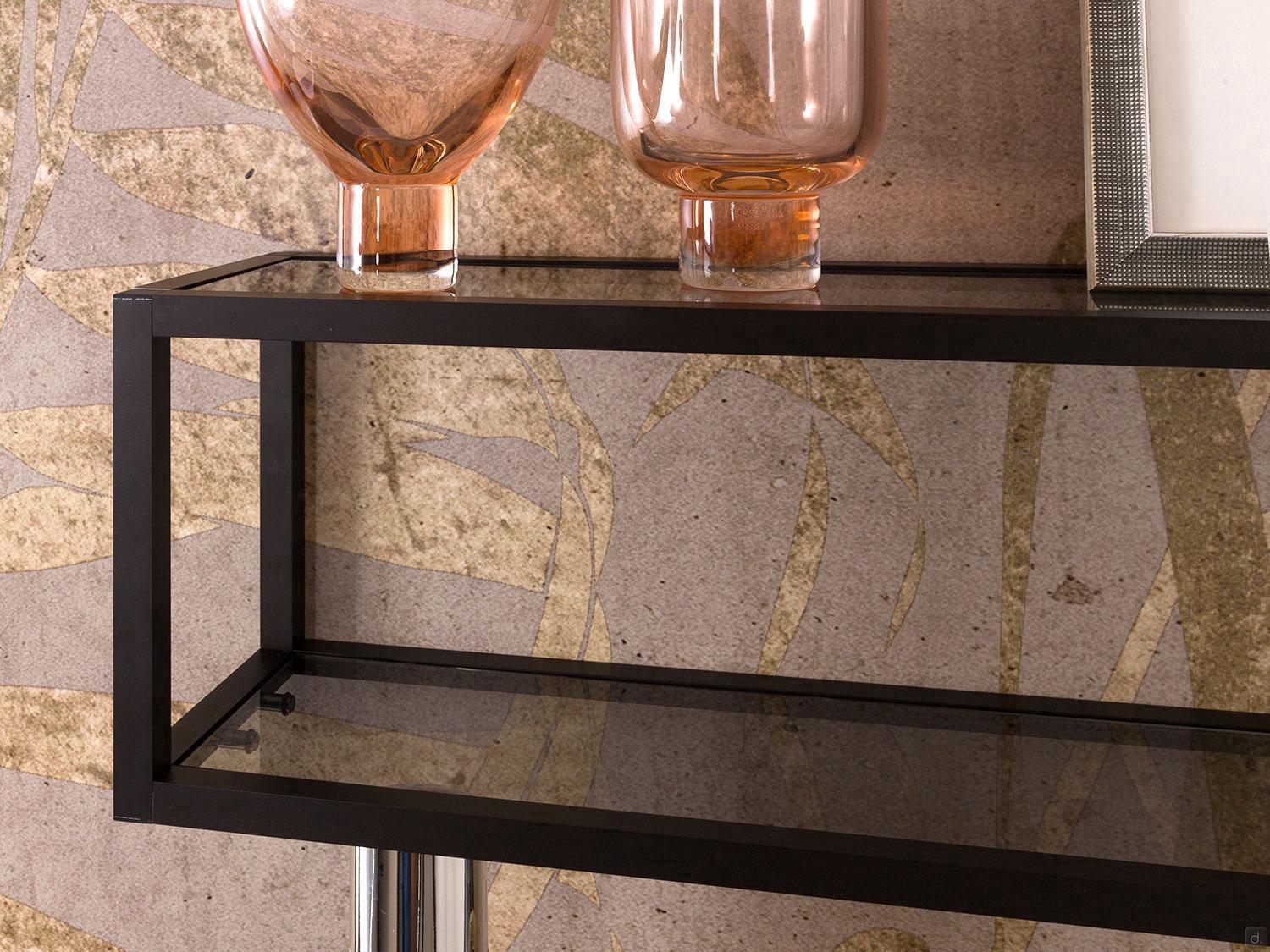

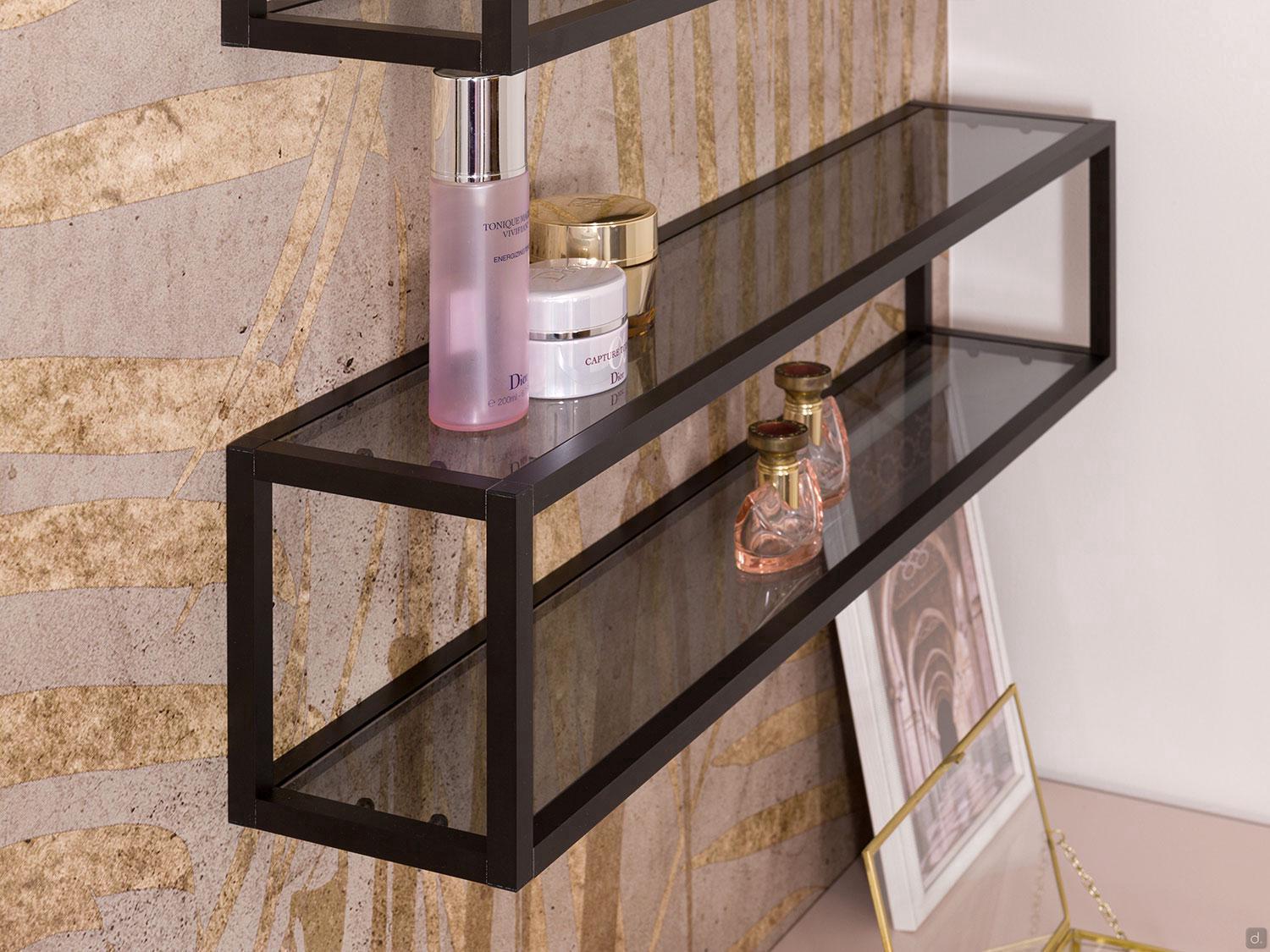

n.2 wall-mounted units with aluminium structures, cm 85 d.15 h.18,75. Grey glass shelves cm th. 0,6.

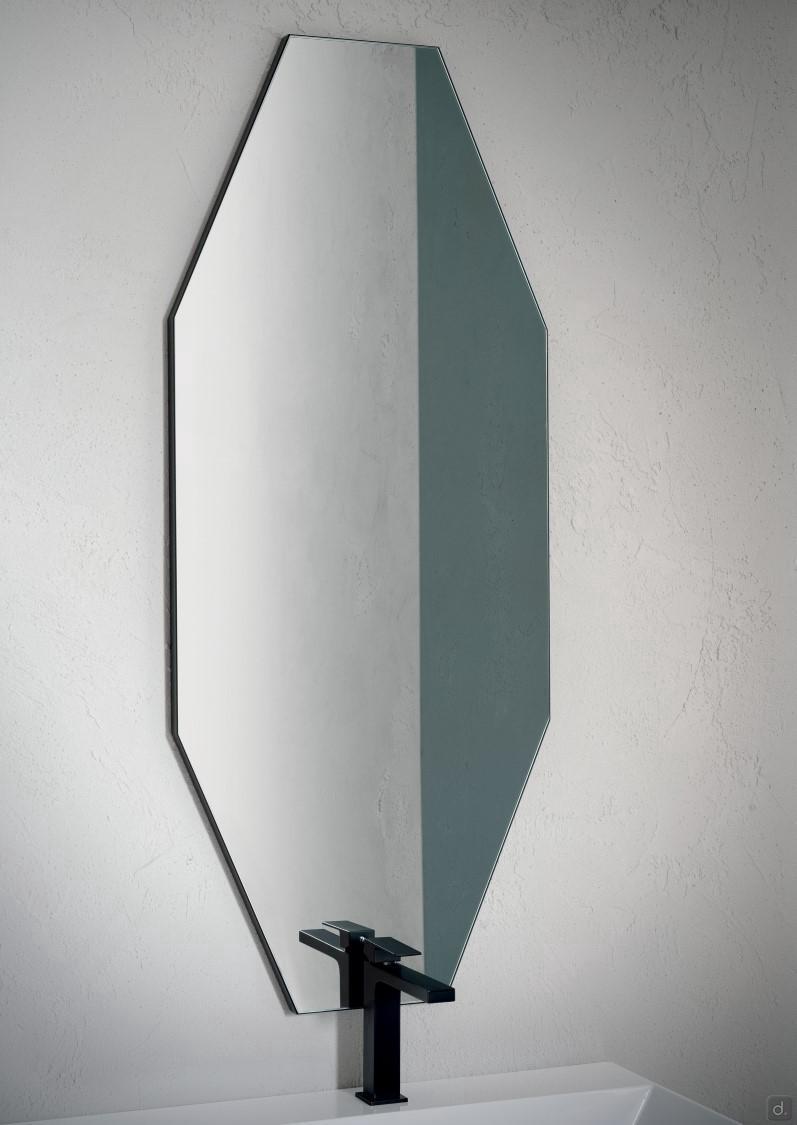

n.1 mirror mod. Alfa, cm 50 h.120 th.2,6.
Base Cabinet Structure and Top: cm th. 1,8 made of wood particle panels. Handle can be chosen from a range of models, as well as push-pull and grip.
Legrabox Drawers: characterised by straight sides both internally and externally, with a thickness of just cm 1,28. Equipped with a metal shell with total extraction guides and soft closure.

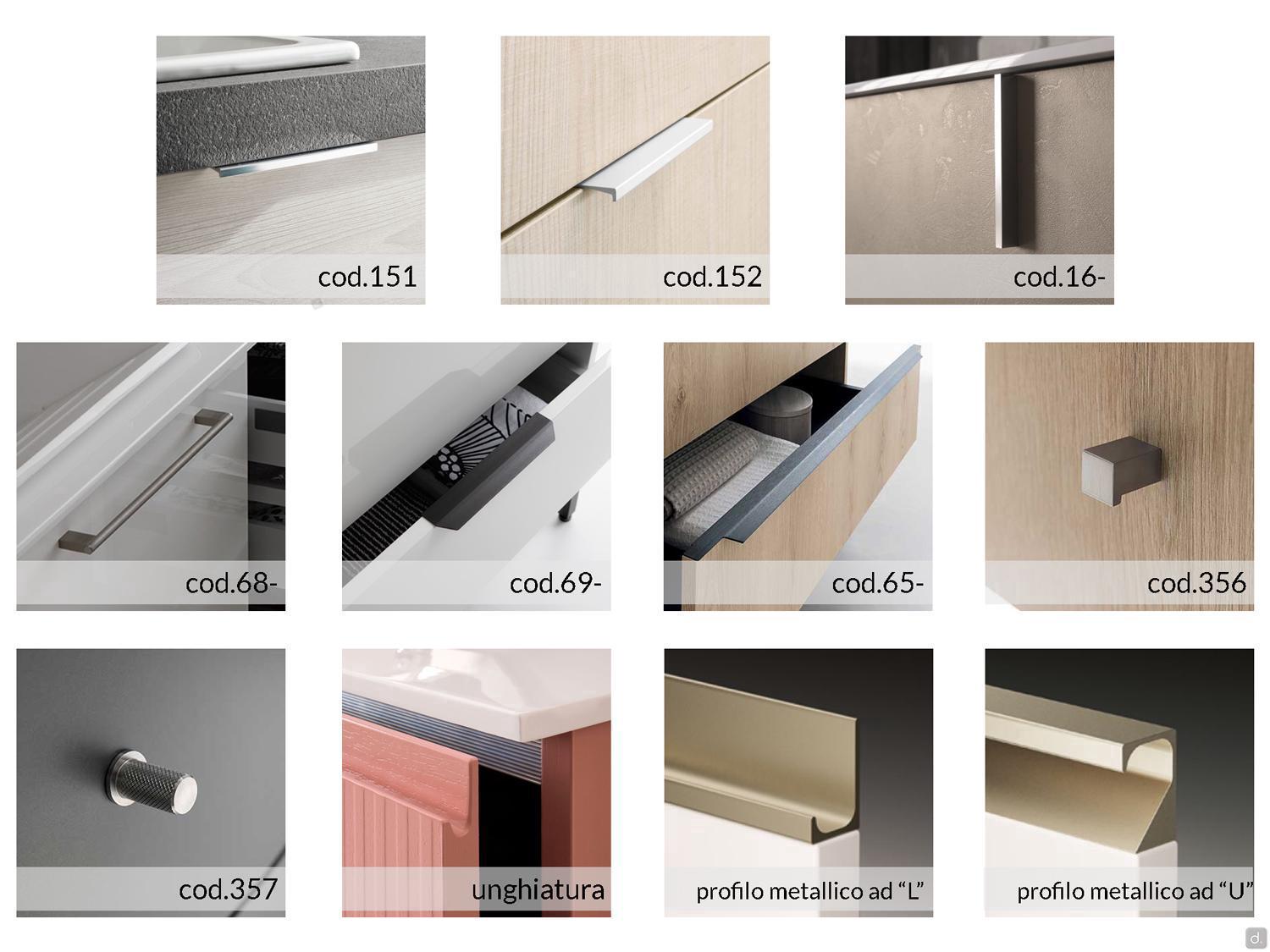

Handles: it is possible to choose from a variety of handle models, as well as push-pull.
The cod.152, cod.16 handles and the groove handle are available in matte lacquer finishes in all colours from the sample book.

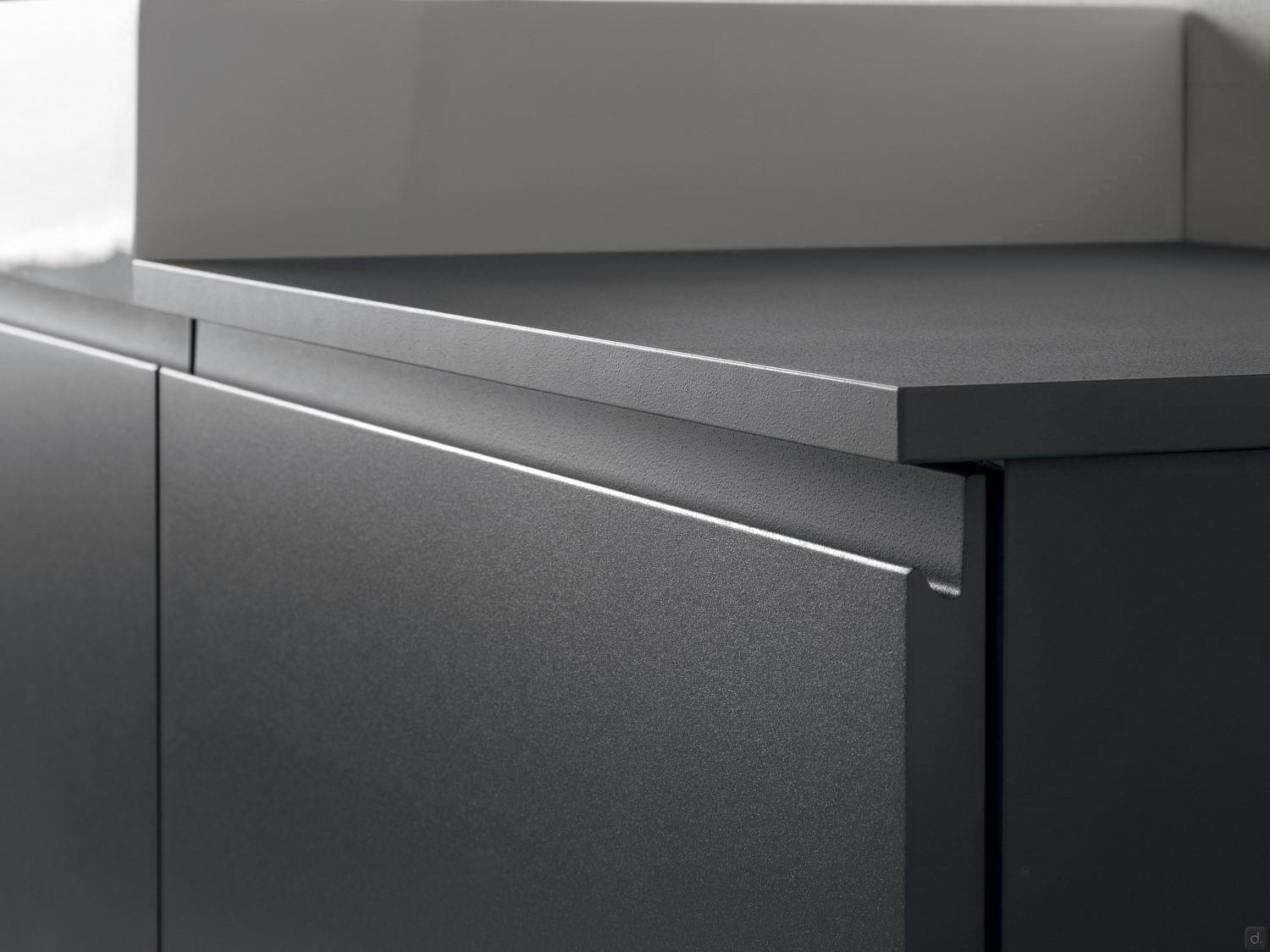

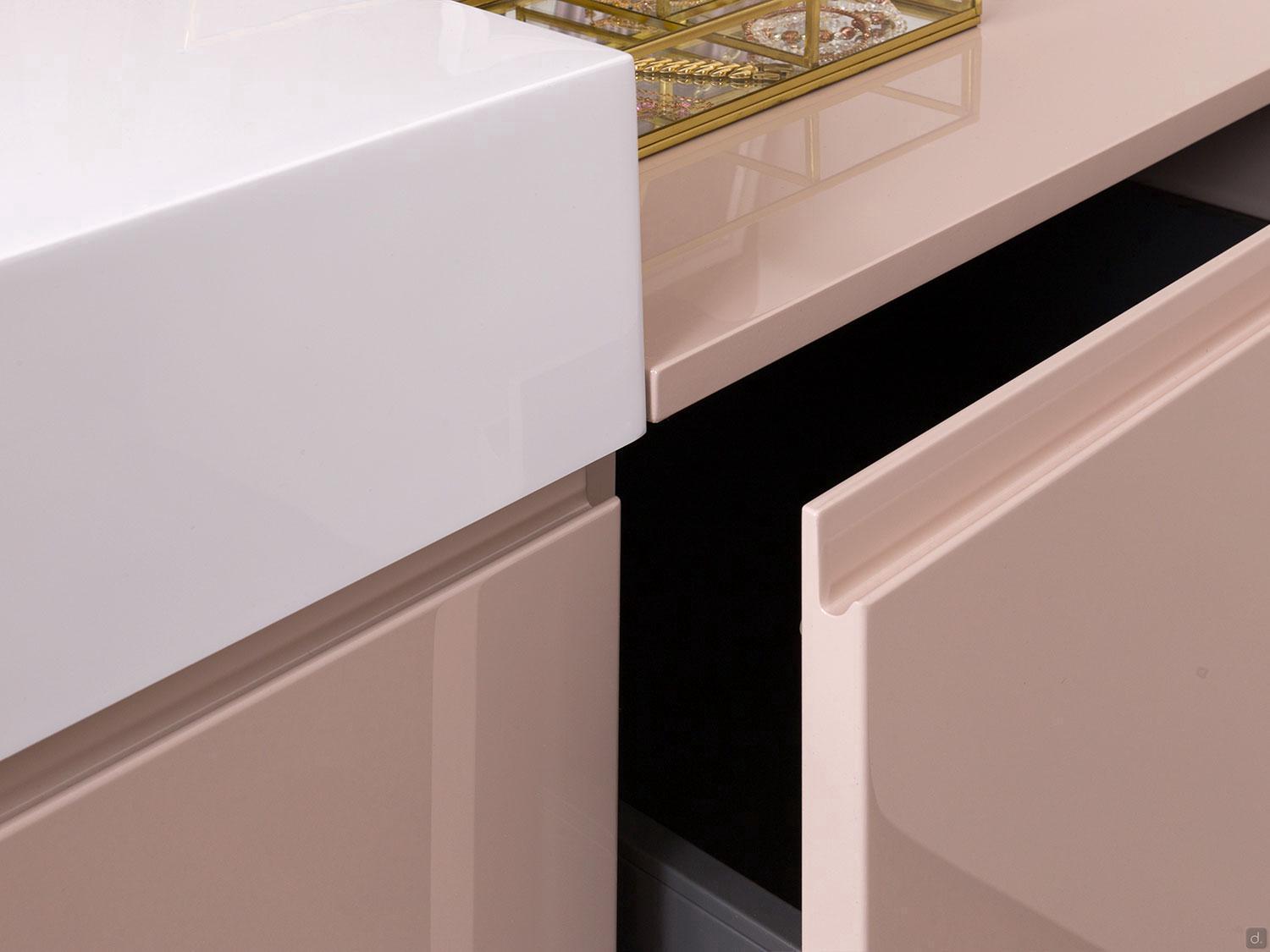

Groove is only available in melamine and lacquered finishes. Grip is only available in wood finishes (except for 306 Smooky Walnut) and lacquer.
The mod. 68- handles protrude by 4 cm compared to the door surface.
Optional

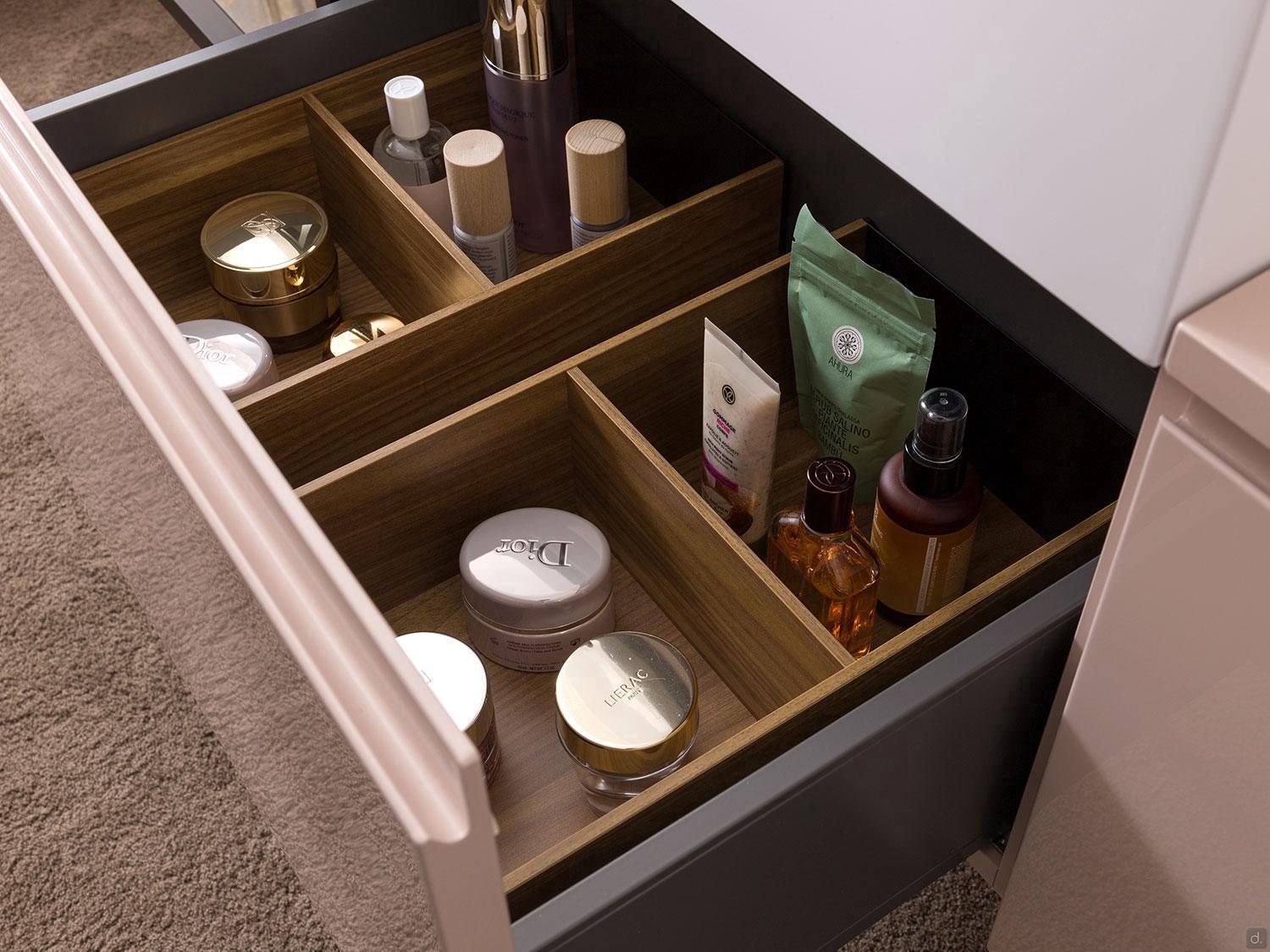

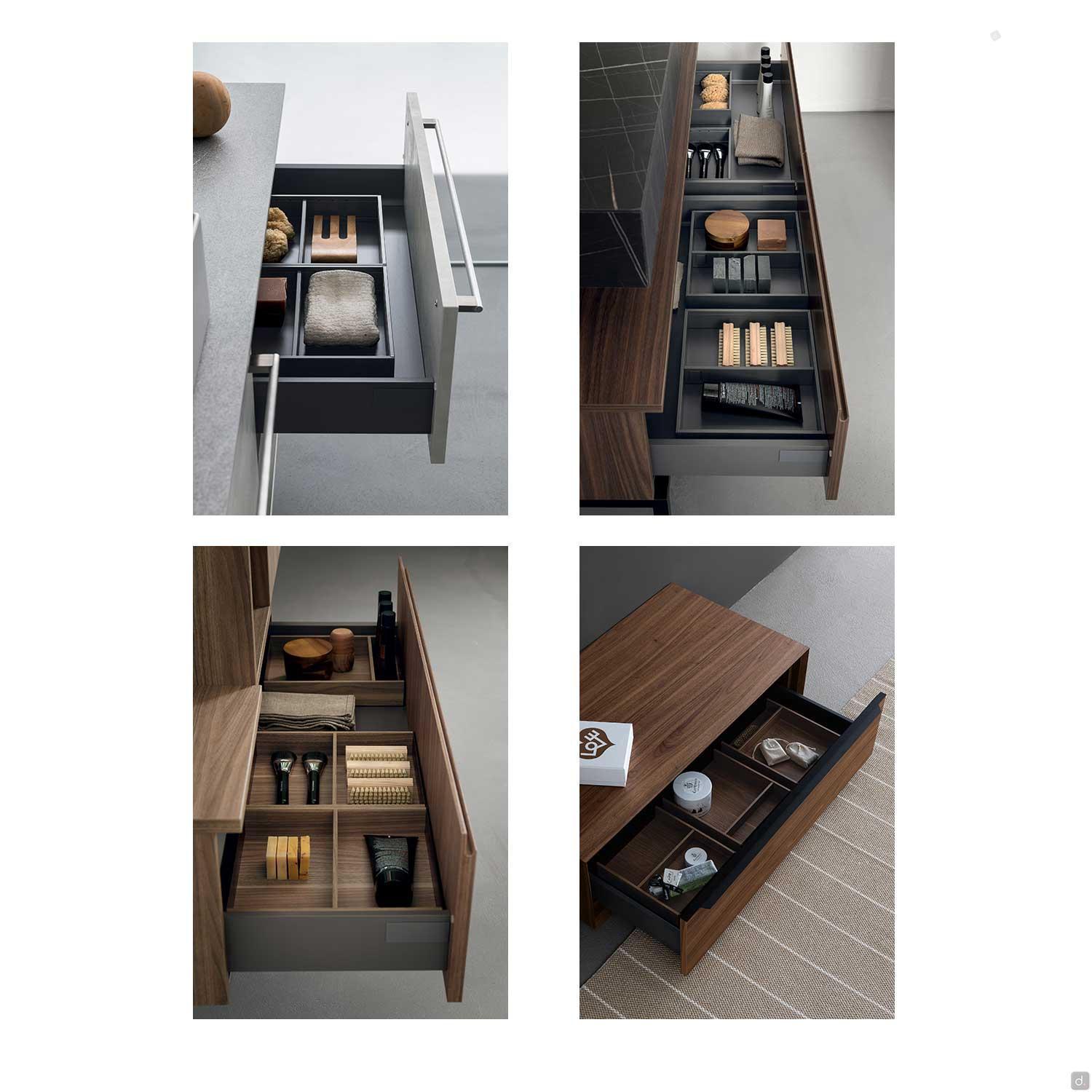

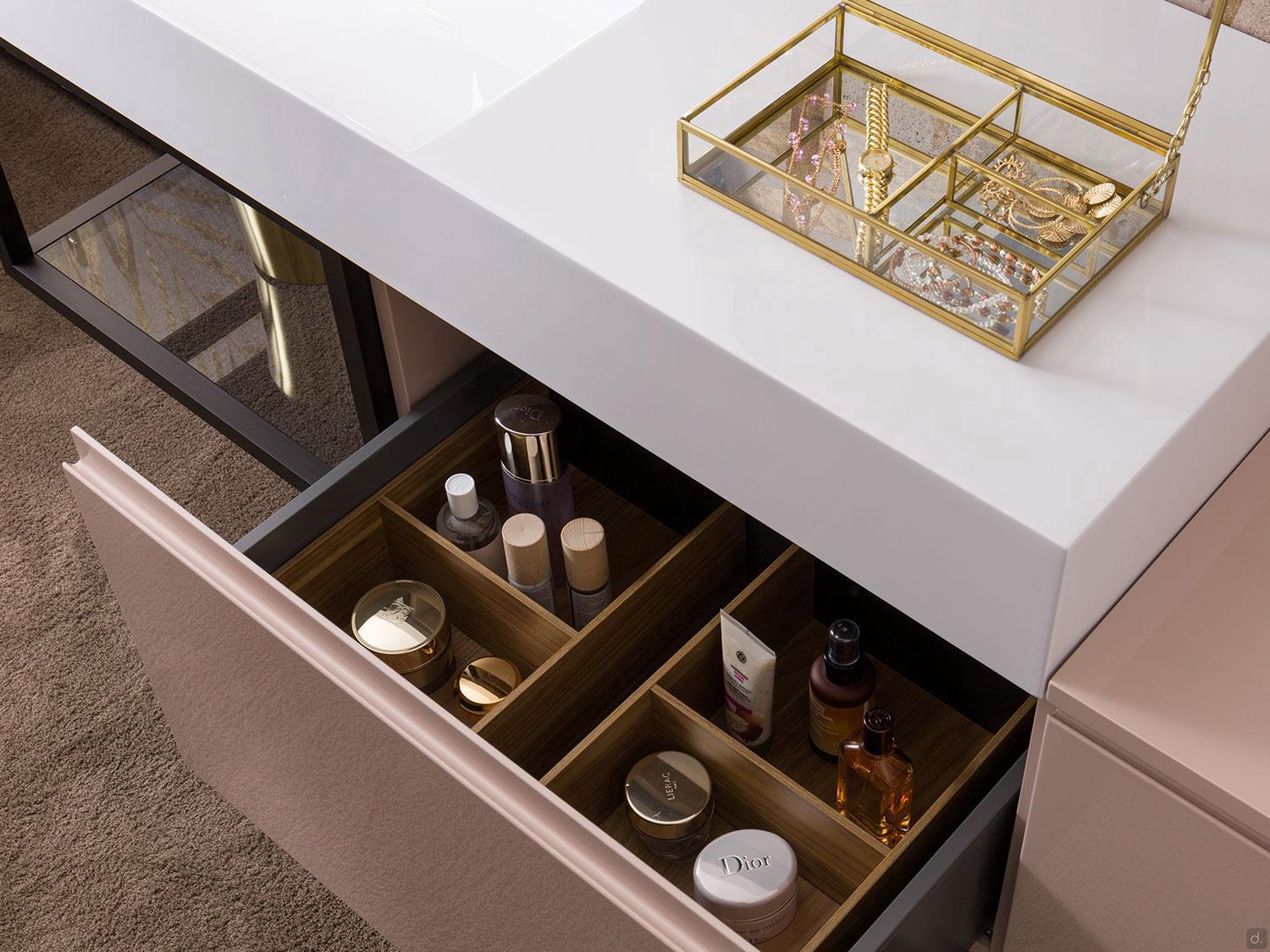

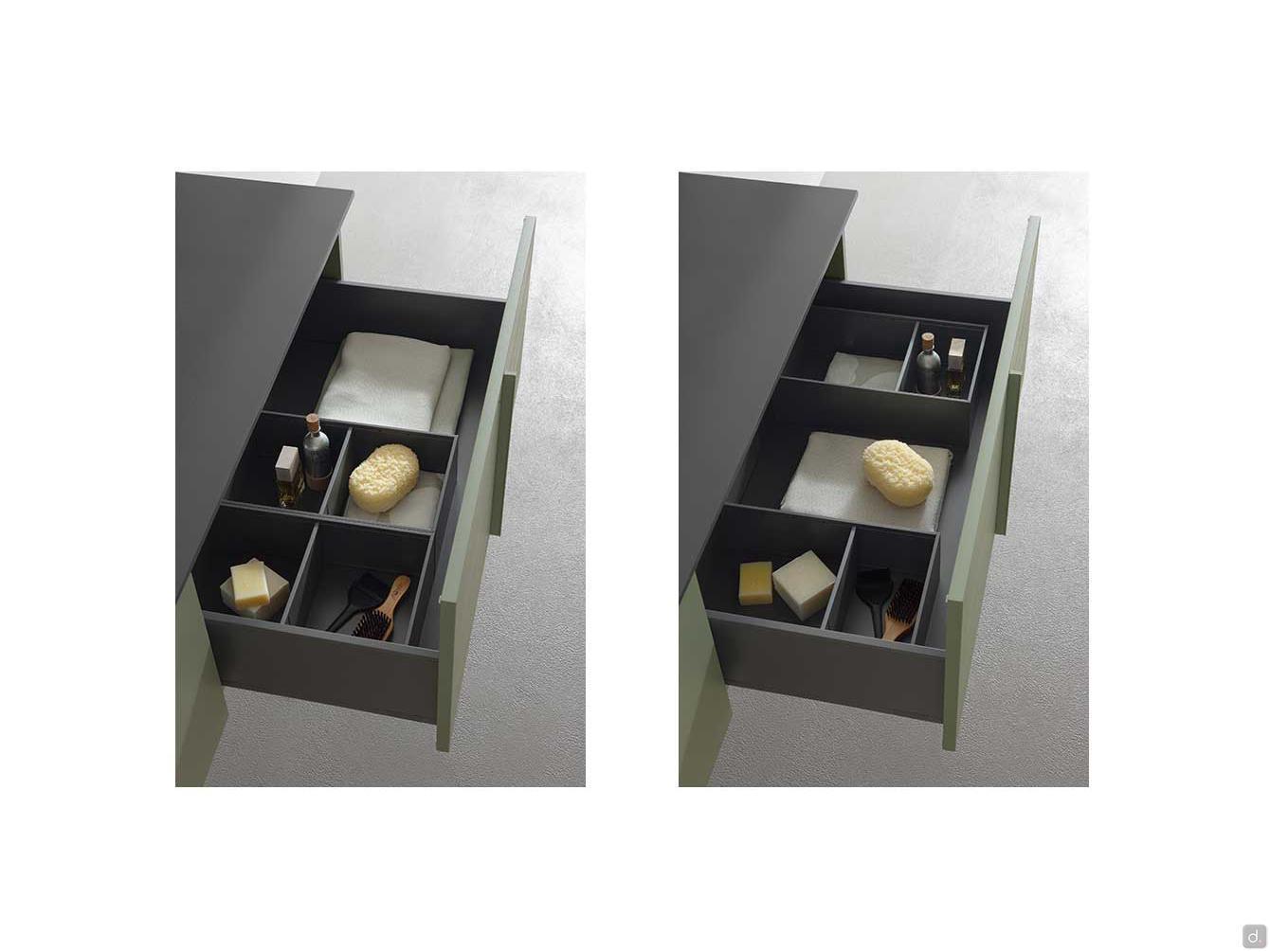

Organiser: division system inside the Legrabox drawer. Available in the Canaletto Walnut and Orion.
Maintenance Tips
Melamine: for cleaning simply use neutral liquid detergents. To remove limescale stains, wipe the surface with a sponge soaked in vinegar or an anti-limescale product, then rinse and dry. Do not use acids, abrasive products or powders; do not leave anti-limescale products in contact with the surface for a long time, as this could create marks.
Lacquer: For cleaning, use soft, non-abrasive cloths to avoid damaging the surface. Do not use products containing solvents, acetone or abrasives, nor products with a wax, alcohol or silicone base.
Wood: "live" material superficially protected by paint; for cleaning it is necessary to use a soft, non-abrasive, damp and well-wrung cloth. It is recommended to clean the top along the grain and dry carefully.
To know more...
Mineralguss: it is a material composed of calcium carbonates and aluminum trihydrates, bound by a low percentage of polyester resin. The surface is covered with a gelcoat film which offers excellent physical-chemical resistance. The compound is ductile and heat resistant. Any colour variations, caused by high temperatures, can be eliminated by cleaning with a slightly abrasive sponge and subsequent polishing.
To clean, use a sponge with water and a normal cream detergent. The surface must not be in contact with solvents and alkaline lotions such as ammonia. Hair colour products should not sit in the sink and should be rinsed off immediately. Never fill the sink with hot water above 60°C.
