Material Specifications
Structure: 1.8 cm thick particle board panels.
Fronts: doors, drawers and baskets made of 1.8 cm thick particle board panels. With a smooth lacquered finish, the front is made of 1.9 cm thick MDF.
Technical Specifications and Equipment

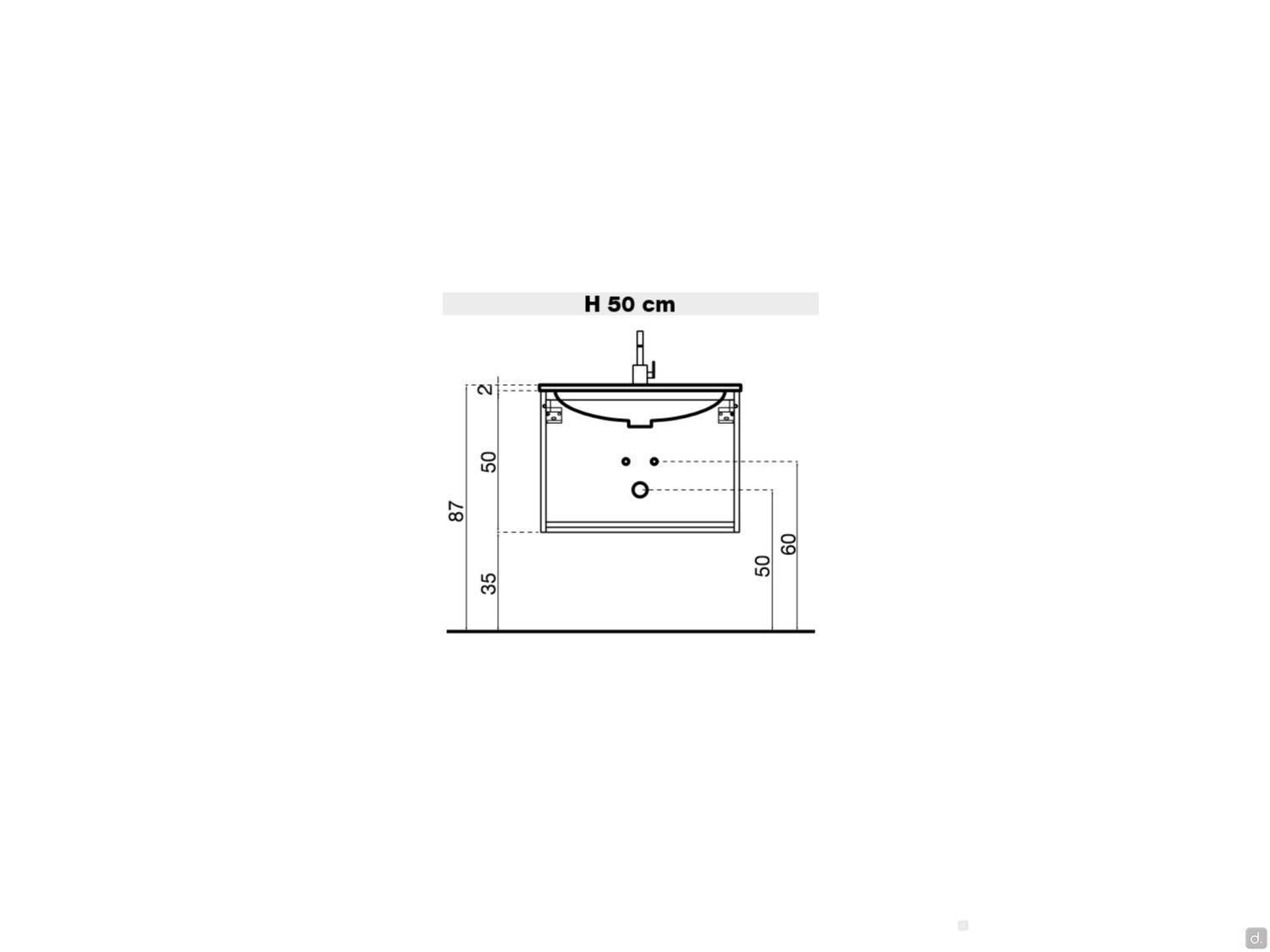

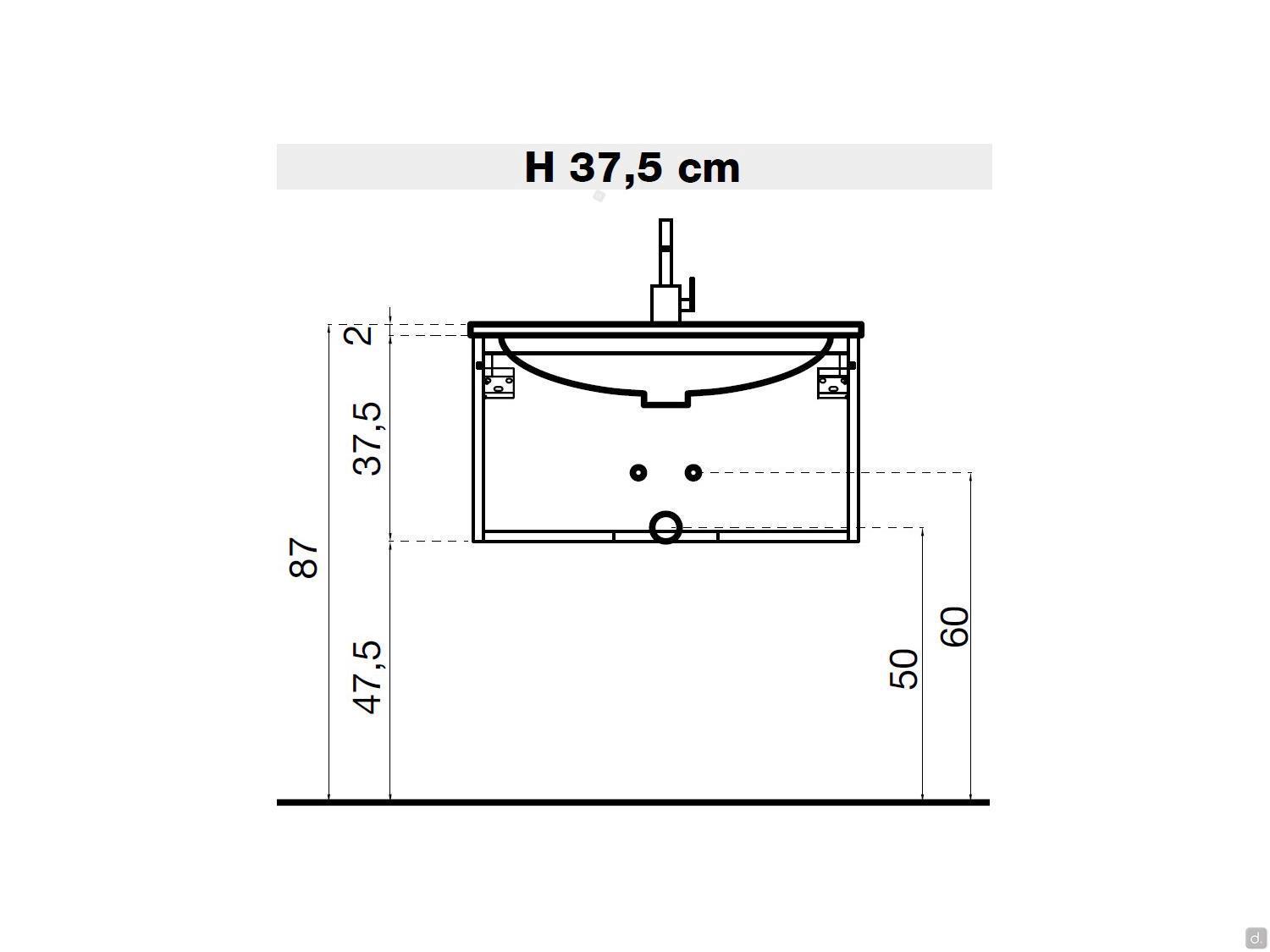

Structure: characterised by free back for the passage of drains.

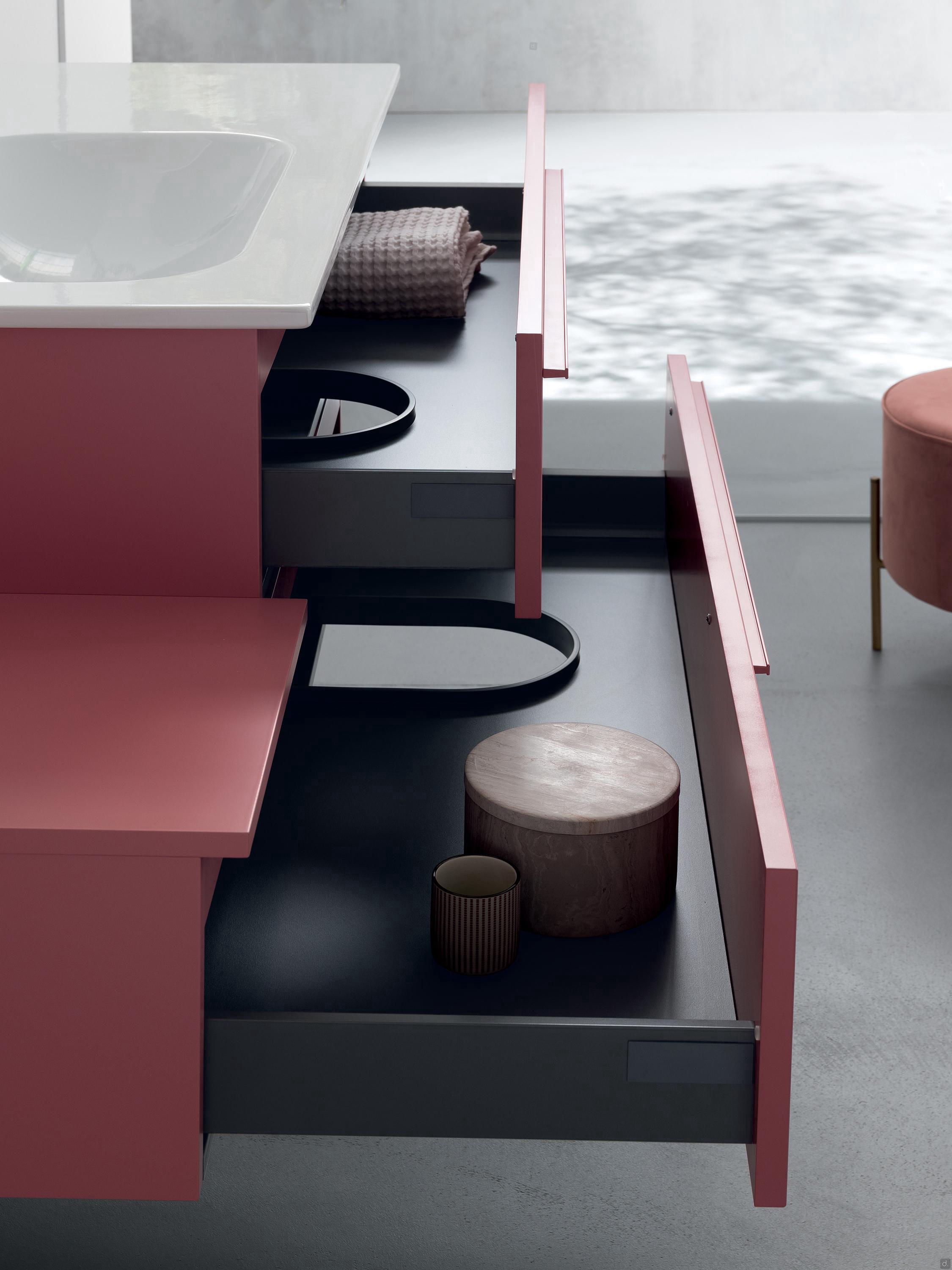

Drawers / Legrabox drawer: fitted with a metal frame characterised by straight drawer sides both internally and externally, only 1.28 cm thick. Full-extension runners and slow-closing mechanism.
Doors: fitted as standard with Smoove hinges that allow slow closing.

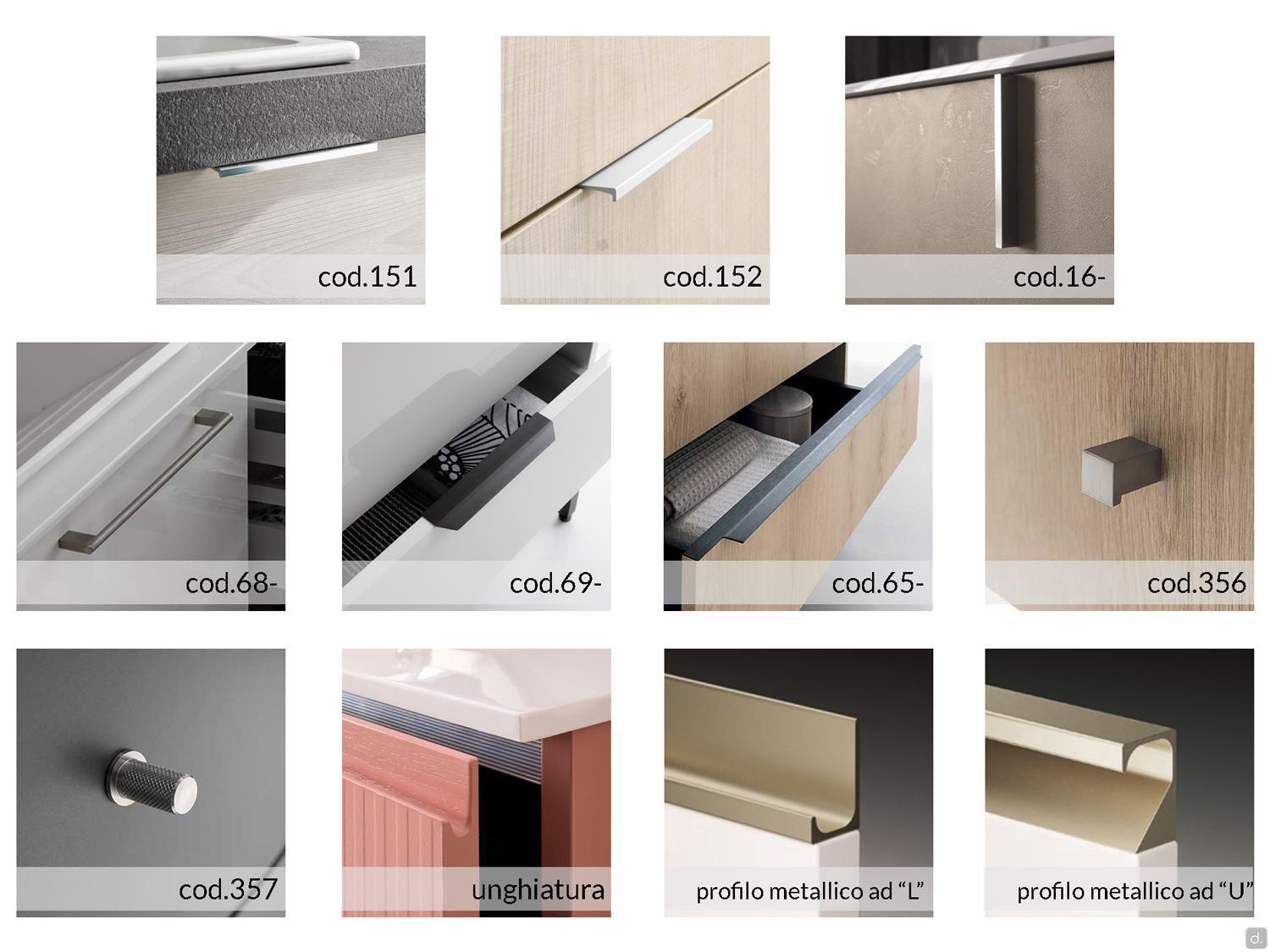

Handles: you can choose from various models of handles, as well as push-pull opening.
The handles cod.152-, cod.16- and both metal profiles are available in a matt lacquered finish in all the colours of the sample collection.
The handles mod. 68- protrude 4 cm from the surface of the door.

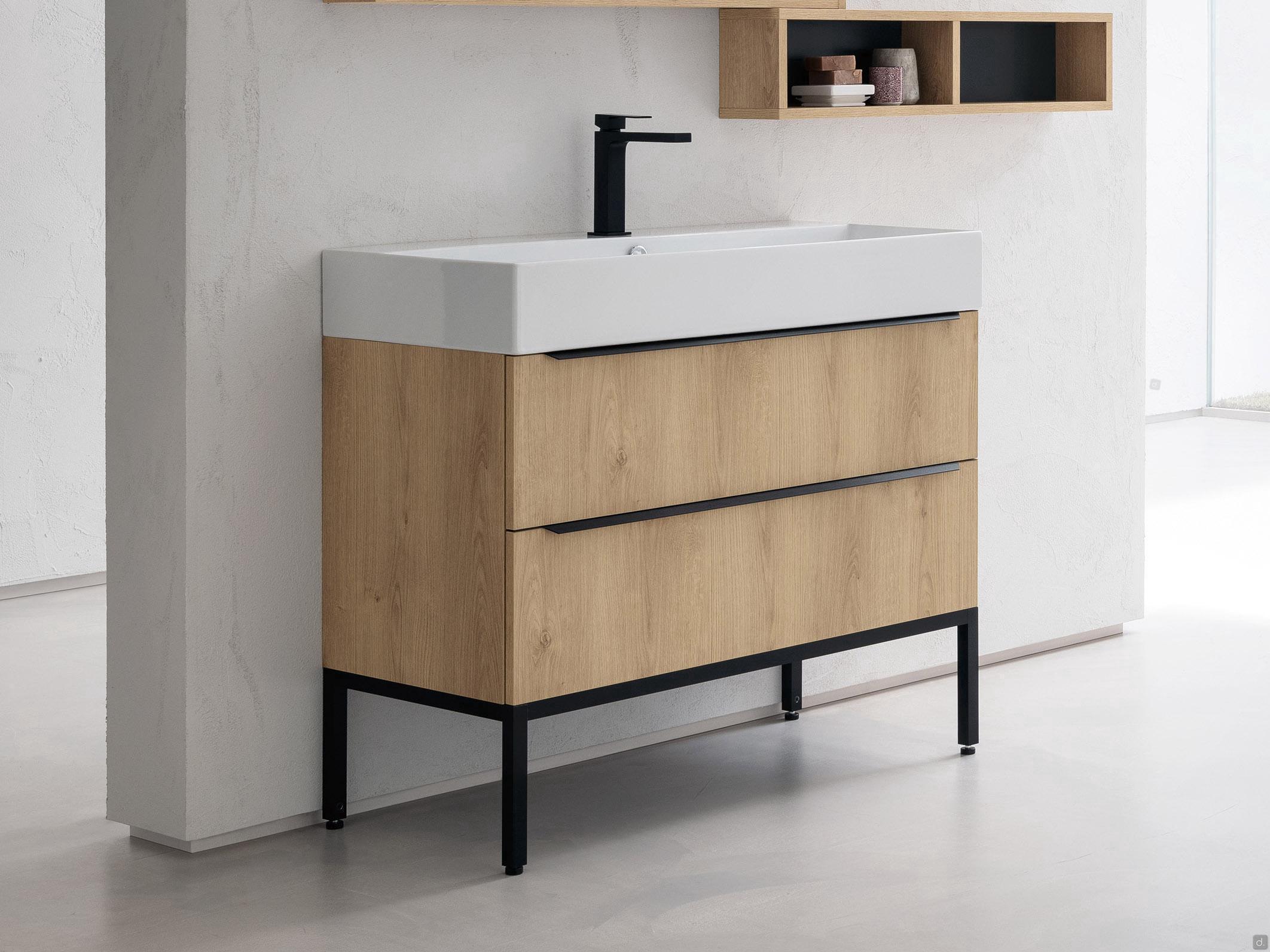

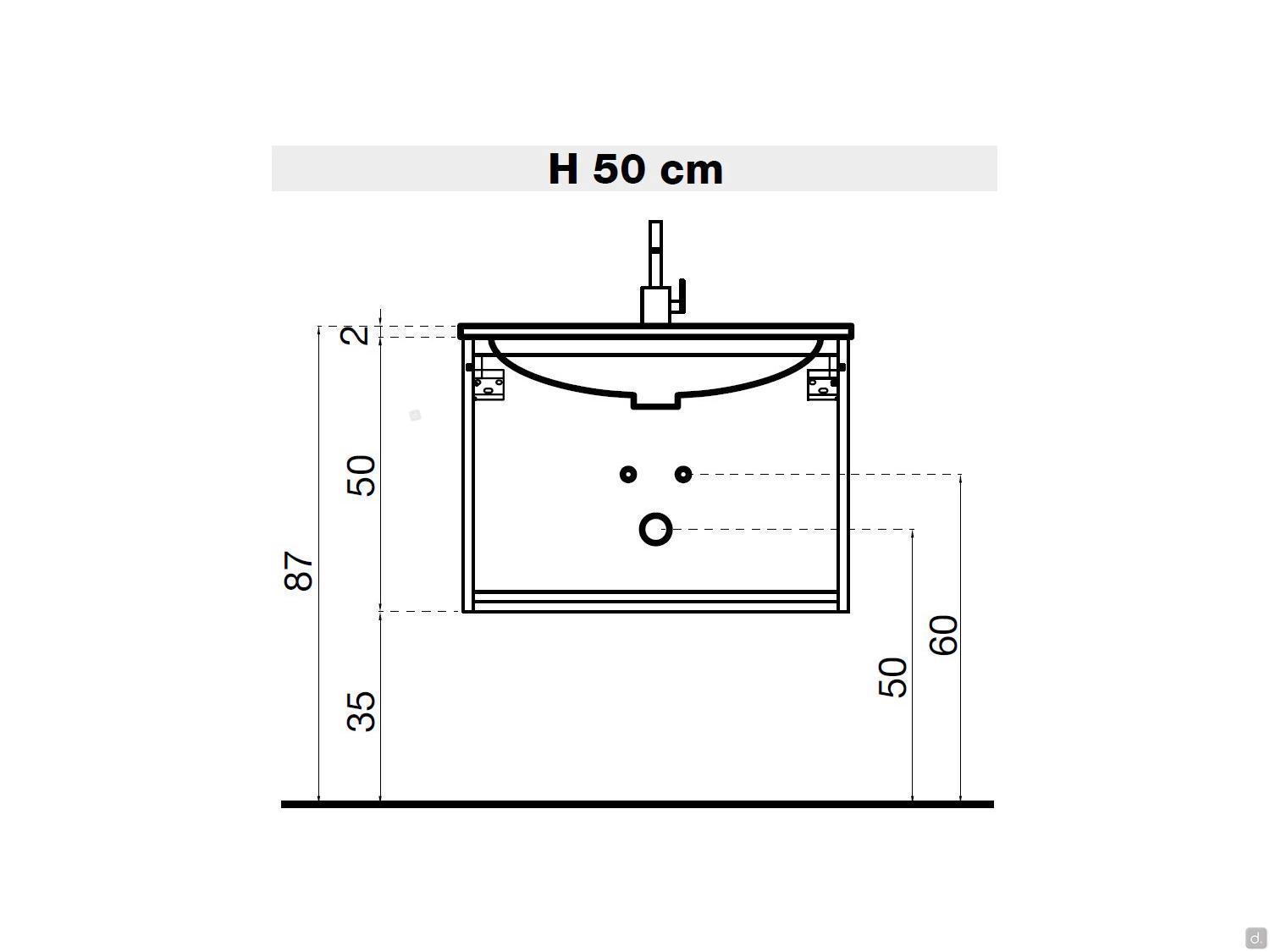

Feet cm h.10: with rectangular or shaped section, available in chrome, satin nickel, black lacquered, matt lacquered or sandblasted lacquered metal in all sample colours; the wall-hung base unit cm h.75 thus becomes a floor-standing unit 85 cm high (excluding the height of the console washbasin, indicated in the Configurator).
Feet cm h.12: with square section, available in satin nickel metal, matt lacquered or sandblasted lacquered in all the colours of the sample collection; the wall-hung base unit cm h.75 thus becomes a floor-standing vanity unit 87 cm high (excluding the height of the console washbasin, indicated in Configurator).
Feet cm h.20: with a square section, available in satin nickel metal, matt lacquered or sandblasted lacquered in all the colours of the sample collection; the wall-hung base unit cm h.62,5 thus becomes a floor-standing unit 82,5 cm high (excluding the height of the console washbasin, indicated in Configurator).
Plinth cm h.6: in aluminium or matt lacquered in all the colours of the sample collection; the wall-hung base unit cm h.75 thus becomes a floor standing unit cm 81 high (excluding the height of the console washbasin, indicated in Configurator).
Plinth cm h.10: in aluminium or matt lacquered in all the colours of the sample collection; the wall-hung base unit cm h.75 thus becomes a floor standing unit cm 85 high (excluding the height of the console washbasin, indicated in Configurator).

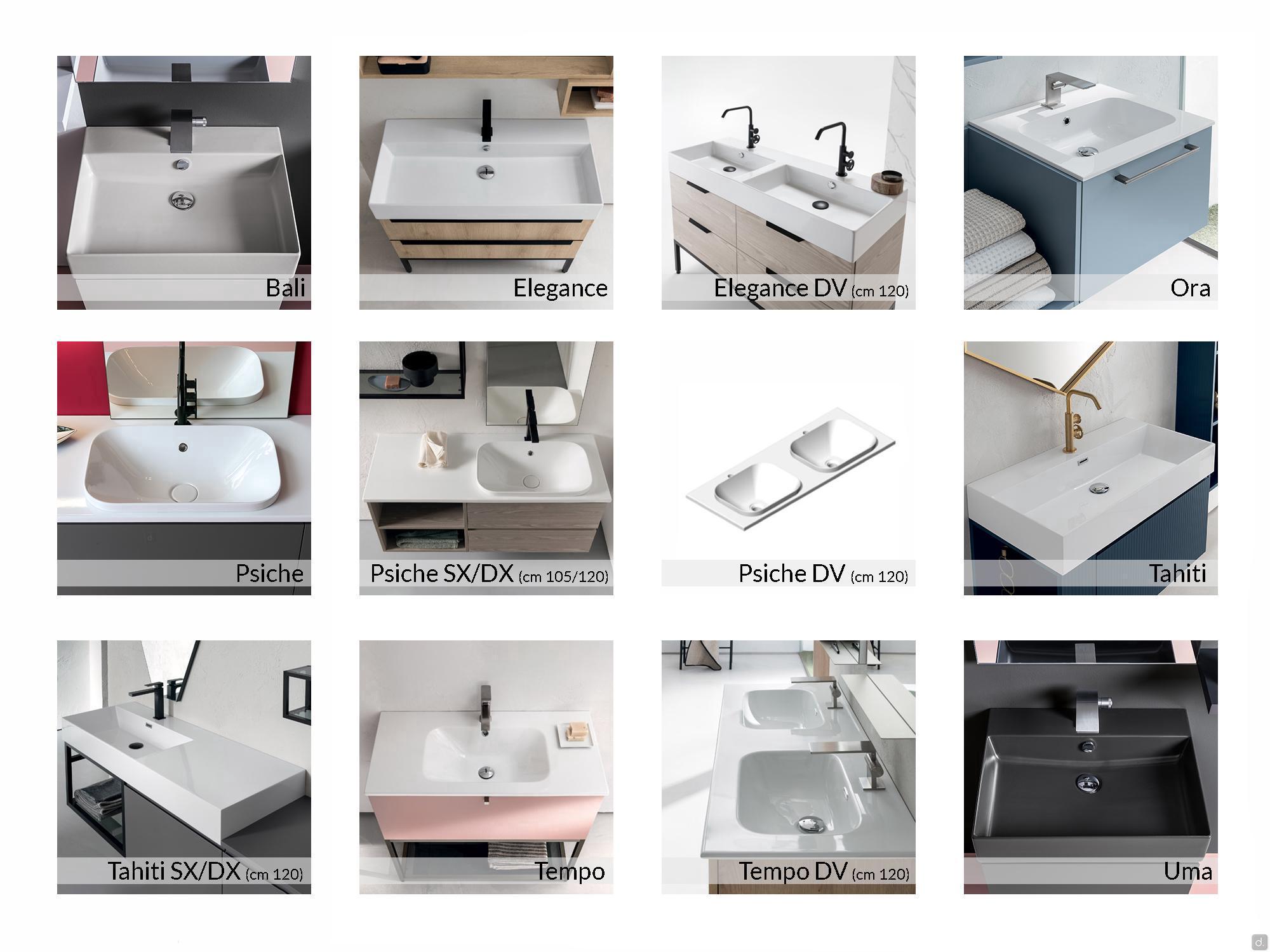

| Washbasin Model |
Dimensions |
Internal basin |
Overflow |

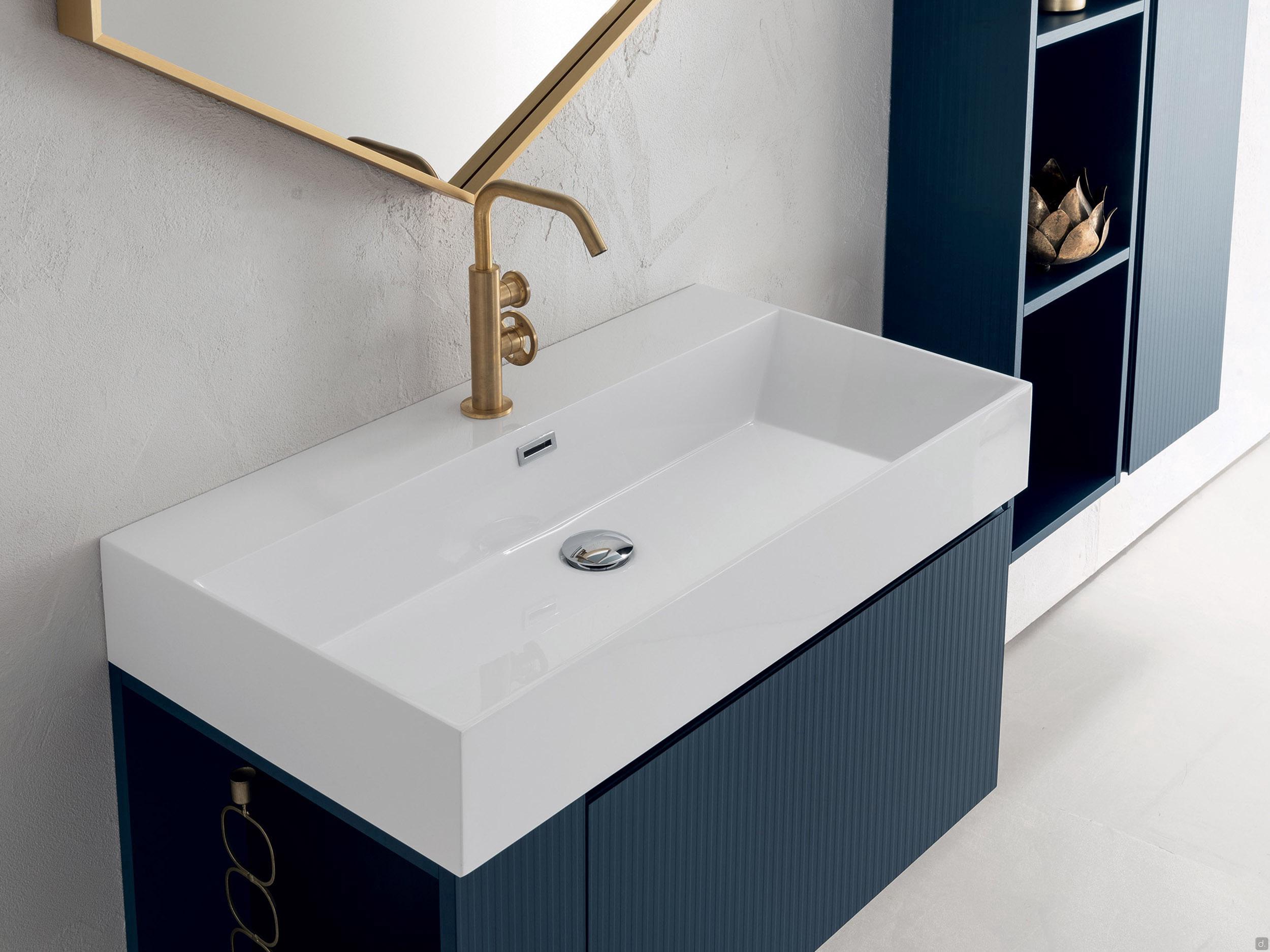

| Bali - matt grey ceramic |
cm 61 p.46,5 h.15 |
cm 58 d.33,5 h.11 |
yes |
| Elegance - glossy white ceramic |
cm 51 p.46,5 h.15
cm 61 p.46,5 h.15
cm 71 p.46,5 h.15
cm 86 p.46,5 h.15
cm 96 p.46,5 h.15
cm 120 p.46,5 h.15 |
cm 48,4 p.31 h.10,5
cm 58,4 p.31 h.10,5
cm 68,4 p.31 h.10,5
cm 83,4 p.31 h.10,5
cm 93,4 d.31 h.10,5
cm 118,4 d.31 h.10,5 |
yes |

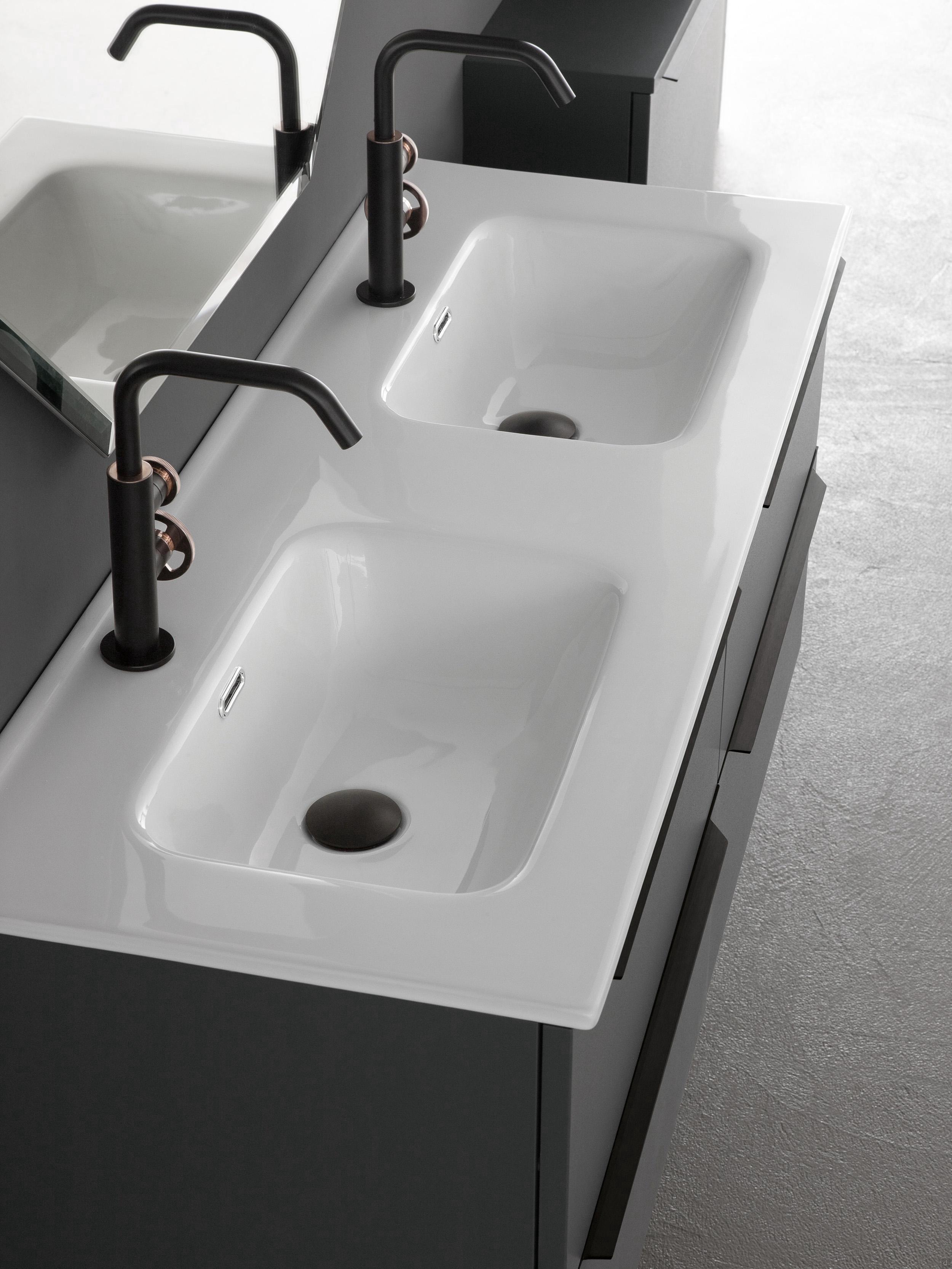

| Elegance (double bathtub) - ceramic glossy white |
cm 121 p.46,5 h.15 |
cm 56 p.31 h.10,5 |
yes |
| Ora - mineralguss polished white |
cm 60,5 p.46 h.15
cm 70,5 p.46 h.15
cm 85,5 p.46 h.15
cm 95,5 d.46 h.15
cm 105,5 p.46 h.15
cm 120,5 d.46 h.15 |
cm 48 p.27 h.13
cm 58 p.27 h.13
cm 58 p.27 h.13
cm 58 p.27 h.13
cm 58 p.27 h.13
cm 58 p.27 h.13 |
yes |
| Ora (double bathtub) - mineralguss white glossy |
cm 120,5 p.46 h.15 |
cm 48 d.27 h.13 |
yes |
| Psyche - glossy white ceramic |
cm 61 p.46,5 h.18,4
cm 71 p.46,5 h.18,4
cm 86 p.46,5 h.18,4
cm 96 p.46,5 h.18,4
cm 106 p.46,5 h.18,4
cm 121 p.46,5 h.18,4 |
cm 43 p.33 h.14
cm 43 p.33 h.14
cm 55 p.33 h.14
cm 55 p.33 h.14
cm 55 p.33 h.14
cm 55 p.33 h.14 |
yes |
| Psiche SX / DX - glossy white ceramic |
cm 106 p.46,5 h.18,4
cm 121 p.46,5 h.18,4 |
cm 43 p.33 h.14
cm 55 p.33 h.14 |
yes |
| Psyche (double bathtub) - polished white ceramic |
cm 121 p.46,5 h.18,4 |
cm 43 p.33 h.14 |
yes |
| Tahiti - glossy white mineralguss |
cm 61 p.46 h.16,7
cm 71 p.46 h.16,7
cm 86 p.46 h.16,7
cm 96 p.46 h.16,7
cm 106 p.46 h.16,7 |
cm 59 p.32 h.11,6
cm 69 p.32 h.11,6
cm 84 p.32 h.11,6
cm 94 p.32 h.11,6
cm 104 p.32 h.11,6 |
yes |
| Tahiti SX / DX - glossy white mineralguss |
cm 121 p.46 h.16,7 |
cm 69 d.32 h.11,6 |
yes |
| Tempo - ceramic glossy white |
cm 61,5 p.46,5 h.17
cm 71 p.46,5 h.17
cm 86 p.46,5 h.17
cm 96 p.46,5 h.17
cm 106 p.46,5 h.17
cm 121 p.46,5 h.17 |
cm 44 d.27 h.13
cm 47 d.2 h.13
cm 53 p.27 h.13
cm 53 p.27 h.13
cm 53 p.27 h.13
cm 53 p.27 h.13 |
yes |
| Tempo (double basin) - glossy white ceramic |
cm 121,5 p.46,5 h.17 |
cm 41 p.27 h.13 |
yes |
| Uma - matt black ceramic |
cm 61 p.46,5 h.15 |
cm 58,4 p.33,5 h.11 |
yes |
N.B. All the above washbasins are equipped with a hole for the central mixer, standard diameter cm 3,5.
The indicated measurements of all ceramic washbasins may be subject to a dimensional variation (specifically about 0.8%) due to wear and tear of the moulds or to small variations in the technical characteristics of the materials making up the mix.
Optional

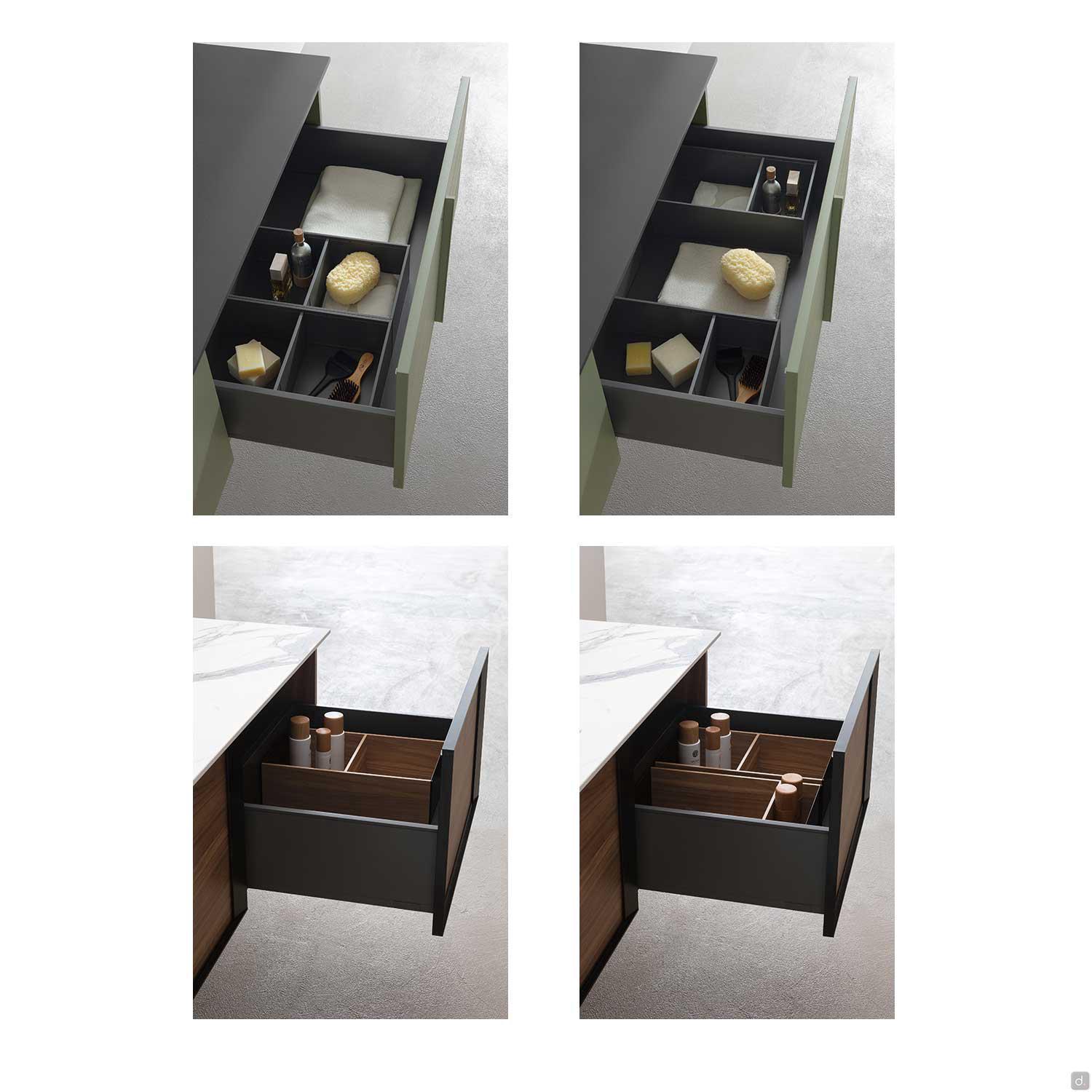

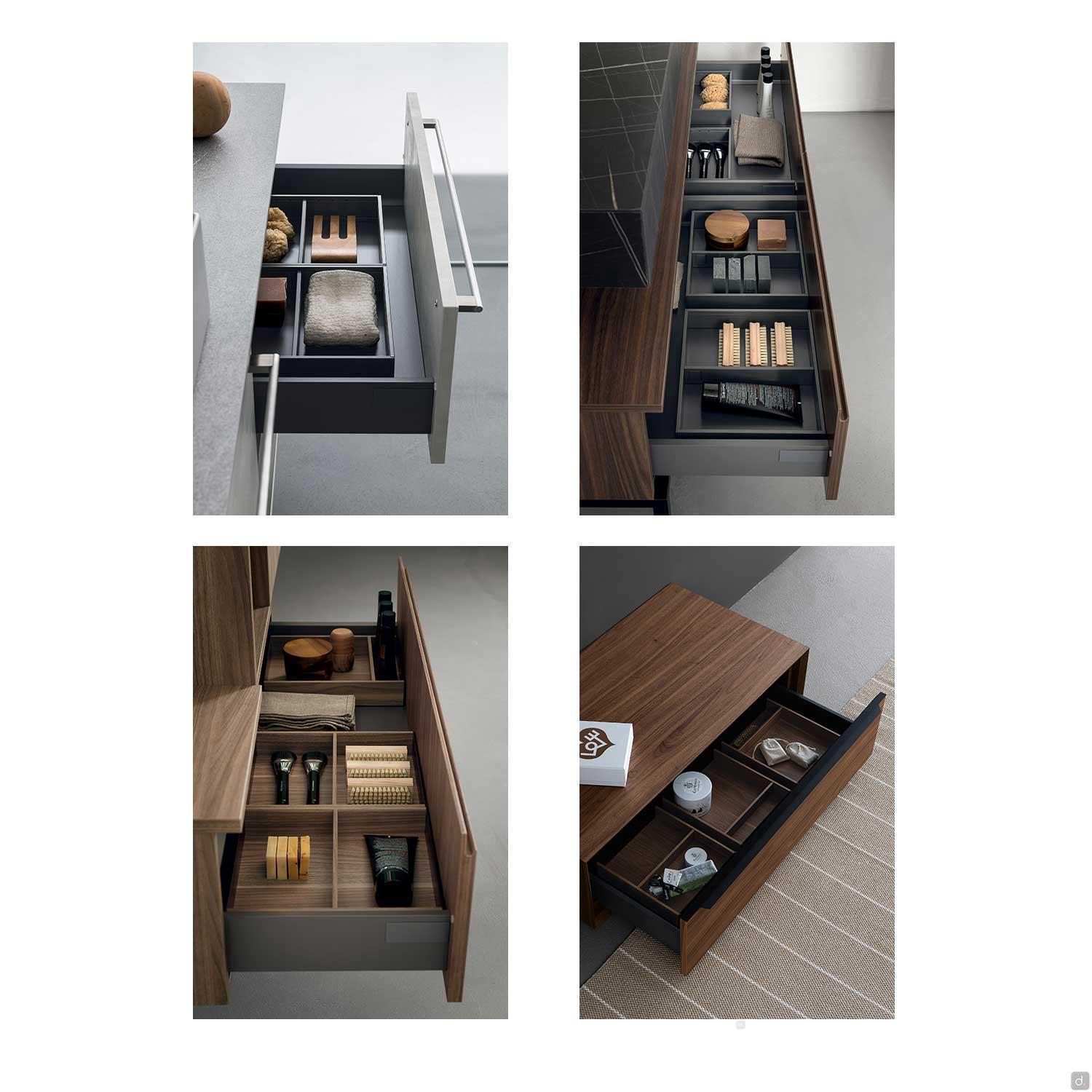

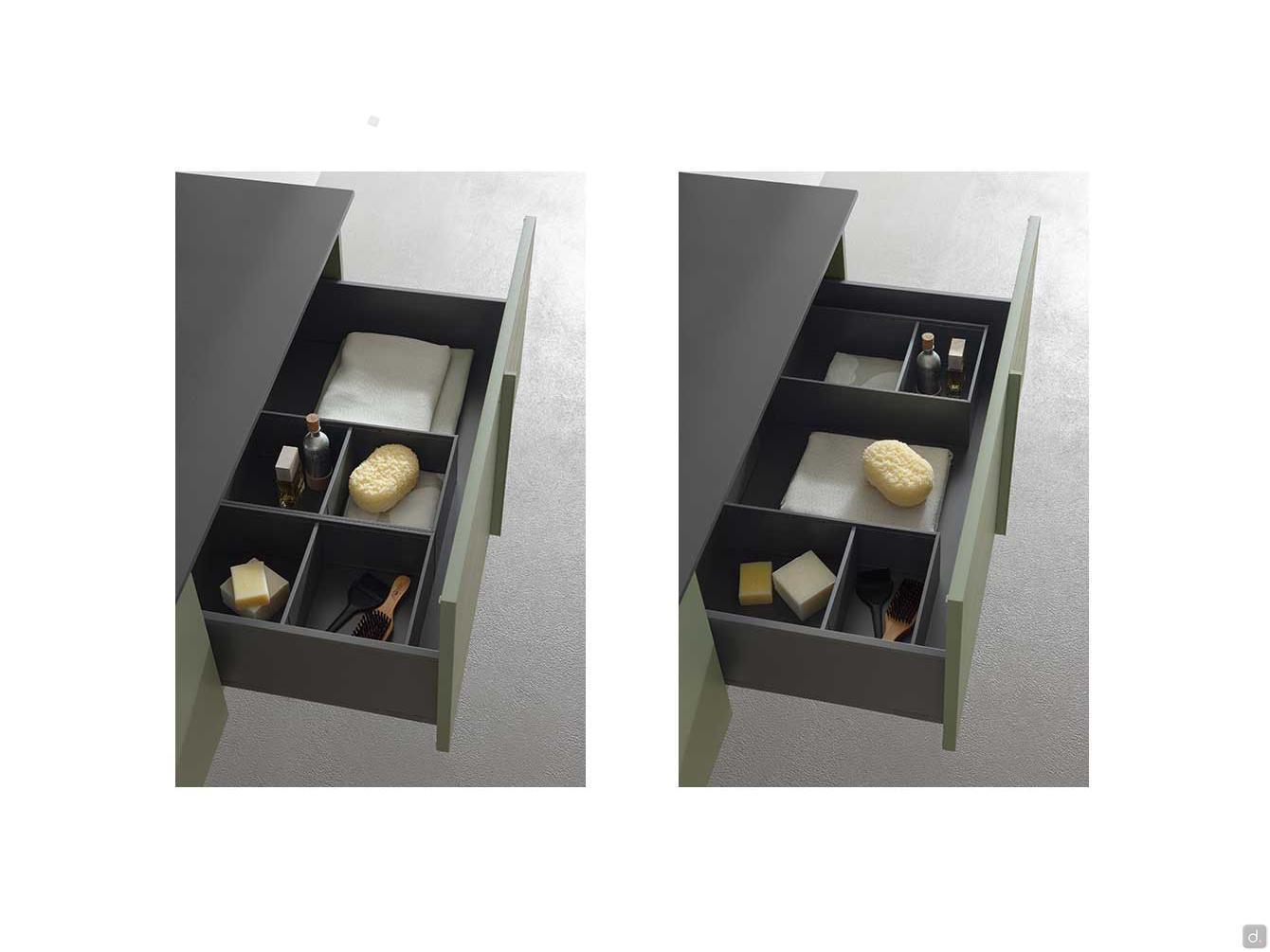

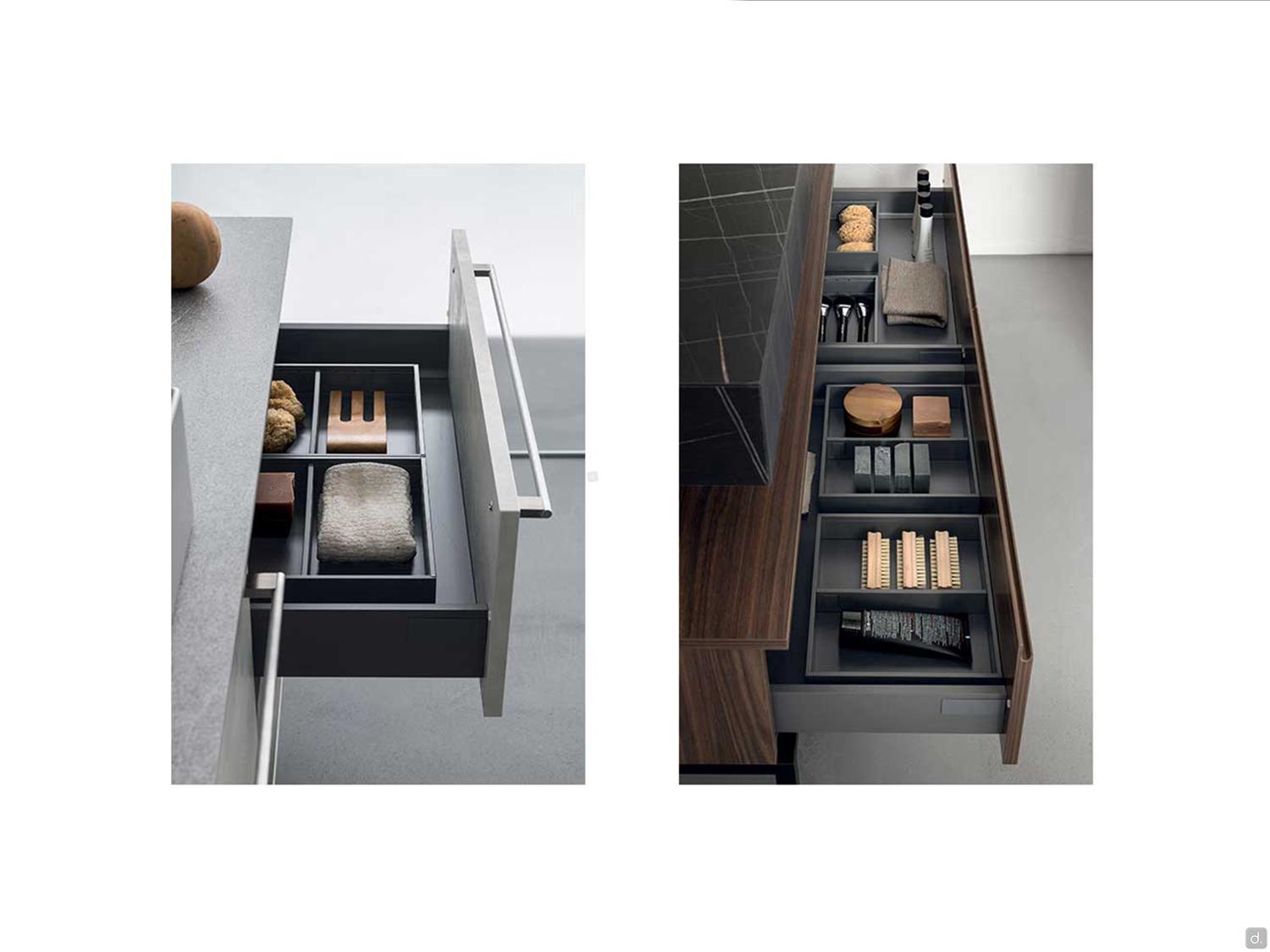

Organiser: internal subdivision system for Legrabox drawer and basket. Available in Canaletto Walnut and Orione finishes.
Splashback: designed to complete bathroom furniture with Mineralguss console washbasin; particularly suitable for walls that are not perfectly square and for combination with free-standing mirrors.
Maintenance Tips
Mineralguss : use neutral liquid detergents for cleaning. To remove limescale stains, wipe the top with a sponge soaked in vinegar or anti-limescale product, then rinse and dry. Do not use acids, abrasive products or powders; do not leave anti-limescale products in contact with the top for a prolonged period of time, as this could create halos.
Lacquer: use soft, non-abrasive cloths for cleaning to avoid damaging the surface. Do not use products containing solvents, acetone or abrasives, nor wax, alcohol or silicone-based products.
Wood: "living" material protected superficially by varnish; for cleaning, use a soft, non-abrasive, damp cloth well wrung out. It is recommended to clean the top in the direction of the grain and dry it carefully.
