Materials Specifications
Structure: made from cm thk.1,8 wood particle panels. Several handles to choose from, as well as a push-pull system or recessed grip handles.
Technical Specifications and Equipment

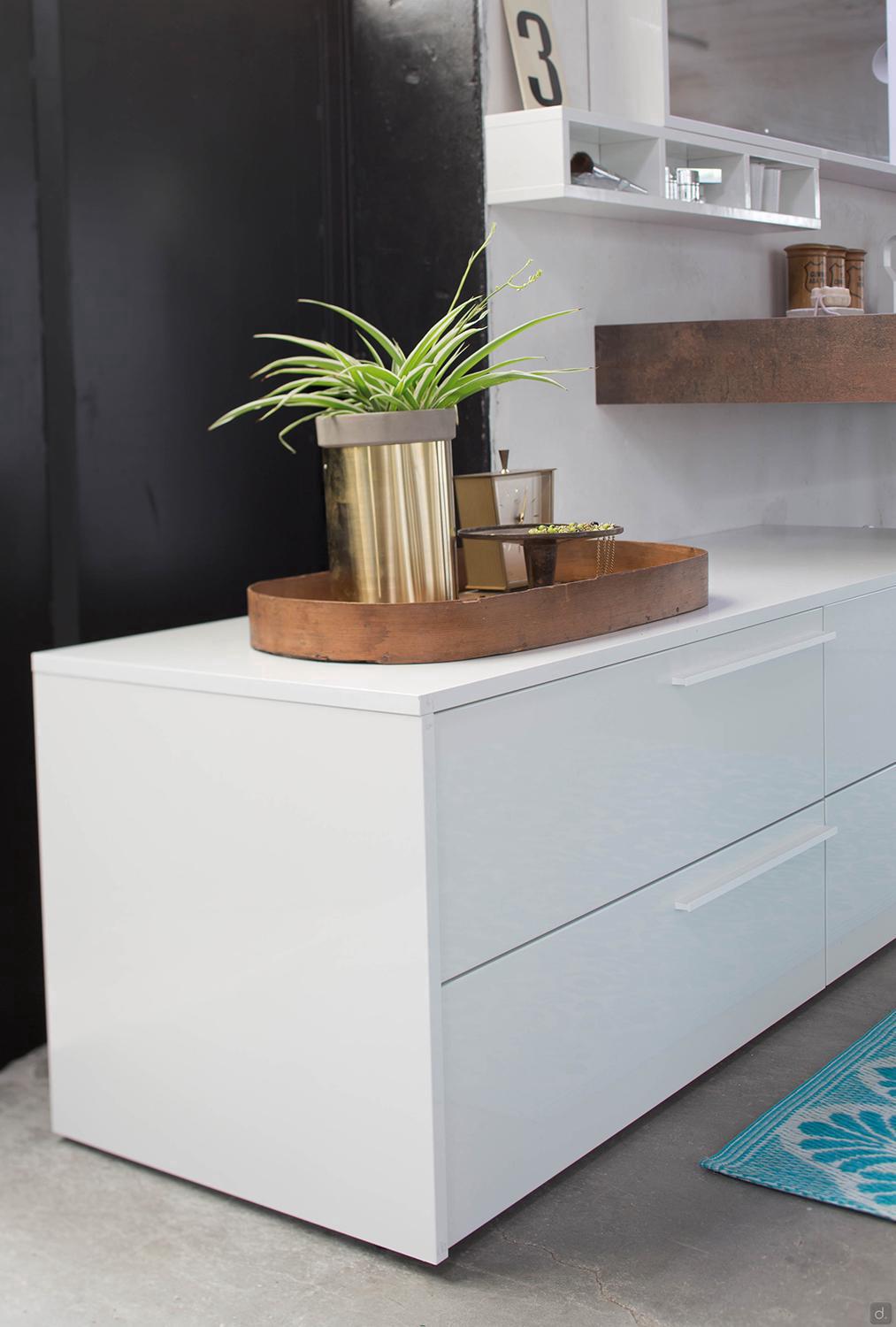

Legrabox Drawers: characterised by straight sides both internally and externally, 1.28cm thick. Equipped with full extension metal runners and soft closing system.

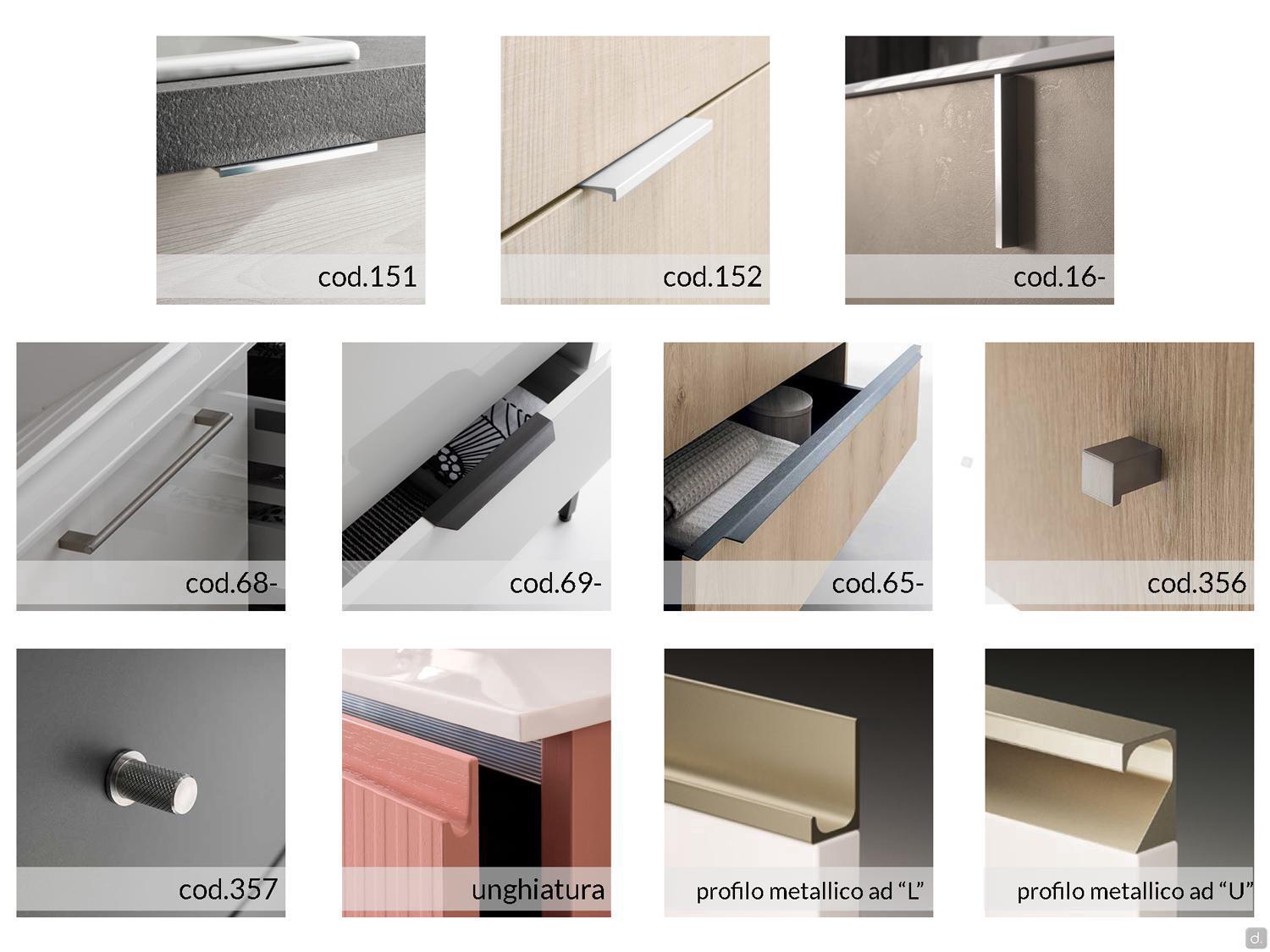

Handles: there are several handle models to choose from, as well as a push-pull opening option. The cod. 152, cod.16 and groove handles are all available in a matt lacquer finish in all the colours displayed in the samples page.
Recess grip handles only available with melamine and matt lacquer finishes. Groove handles only available with wooden (except for 306 Smoky Walnut) and lacquer finishes.
The mod.68 handles protrude by 4cm from the surface of the door.
Zelda Mirror: rectangular, with Led 12V. Available in various measurements.

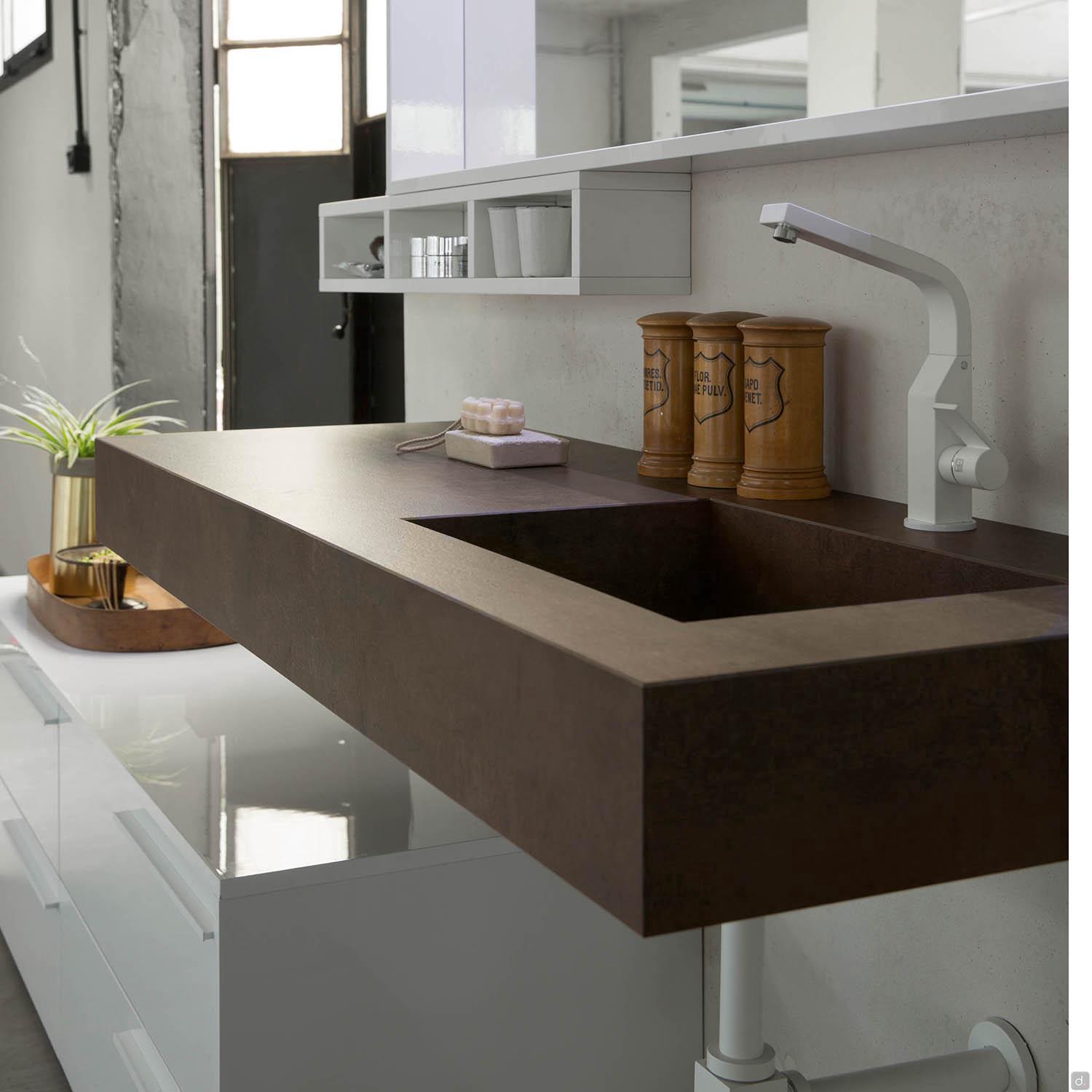

| Basin Model |
Measurements |
Inside Basin |
Mixer Hole |
Overflow Hole |
| Ra |
cm 174 d.51 h.12,5 |
cm 46 d.28,5 h.11 |
in the middle of the basin |
no |
N.B. The mixer hole has a standard diameter of 3,5 cm.
Maintenance Tips
Melamine and HPL Stratified: for cleaning, please use neutral liquid detergents. To remove limescale spots pass a sponge wet with vinegar or a anti-limescale product, wash and then dry out. Do not use acid products or abrasive duties; do not leave the anti-limescale agents too much on the surfaces in order to avoid auras.
Lacquer: clean with soft non-abrasive cloths to avoid the scratch of surfaces. Do not use products containing solvents, acetone or abrasive agents. Avoid silicon, alcohol and wax based products.
Wood: a "living" material with superficial varnish protection; to be cleaned with a soft non-abrasive damp cloth. It is recommanded to clean the top according to the sense of the veins. Dry with care.
Further Info...
Stratified HPL: laminated HPL, 10mm thick, made up of layers of cellulosic fibres impregnated with phenolic resin. The external layers, however, are impregnated with thermosetting resins. The material is subjected to polycondensation of the resins with a combination of strong pressure and heat of 150°. The surface is then rough to the touch. The material has many properties which are necessary for settings where there is a need for a high level of hygiene. It is a non-porous material which does not generate mould or the growth of bacteria. It is resistant to scratches, bumps and general wear. It is characterised by its capacity to endure chemicals, organic agents, and for its high level of impermeability. It is dust-proof, easy to clean, non-toxic and suitable for contact with food, environmentally friendly, heat-resistant up to 170° and non-flammable.
Optional

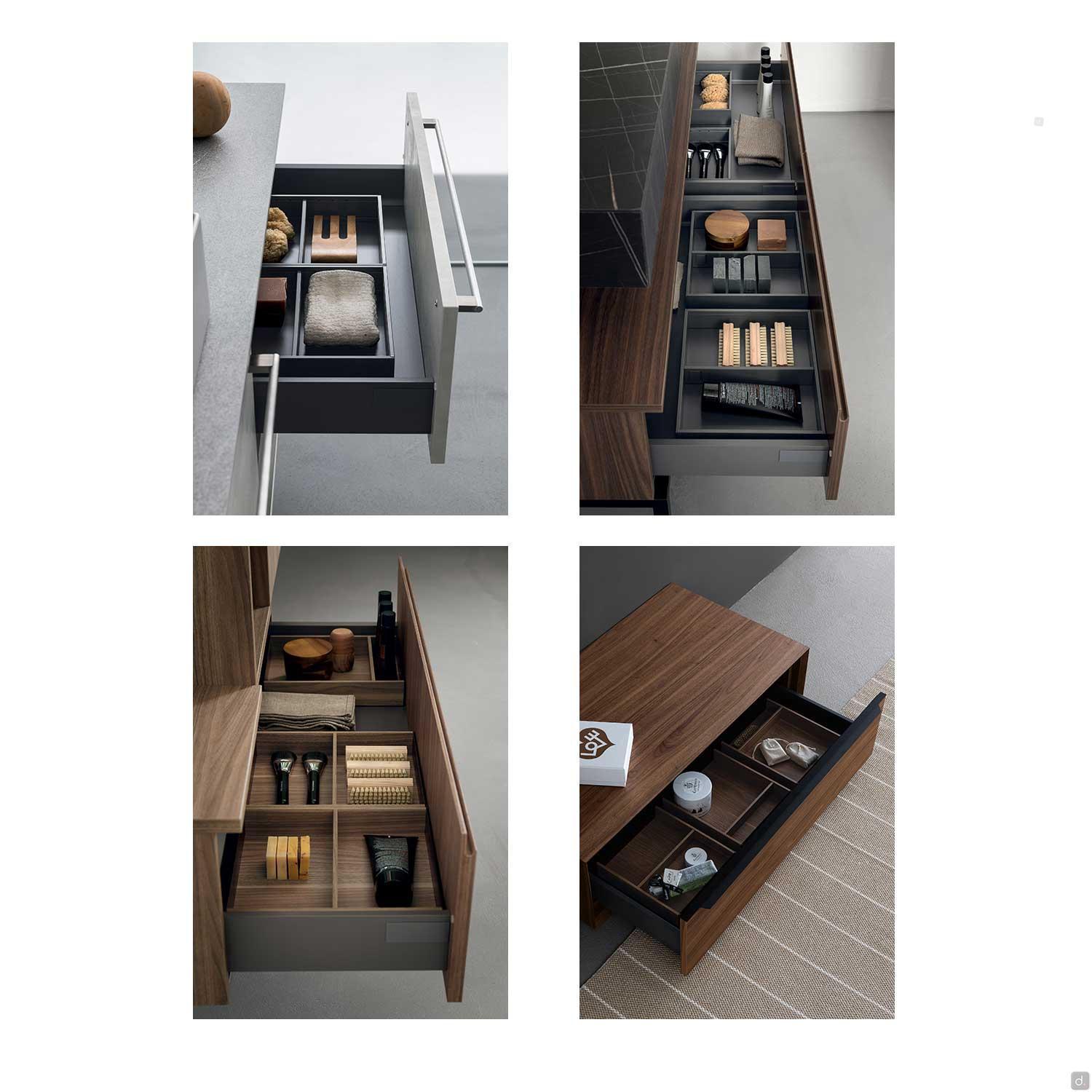

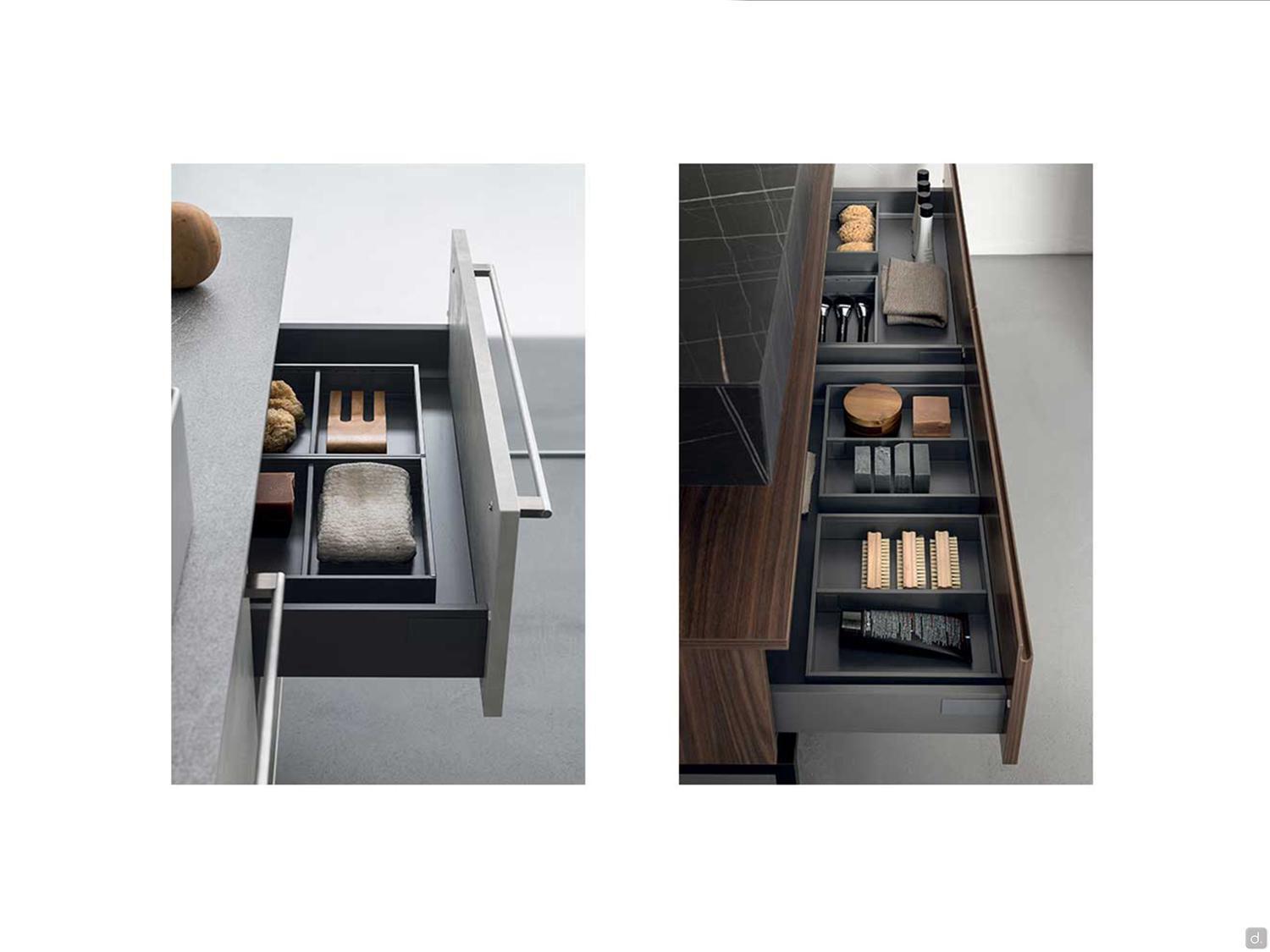

Organiser: dividing system inside the Legrabox drawer. Available in a Canaletto Walnut or Orion Grey finish.
