Description

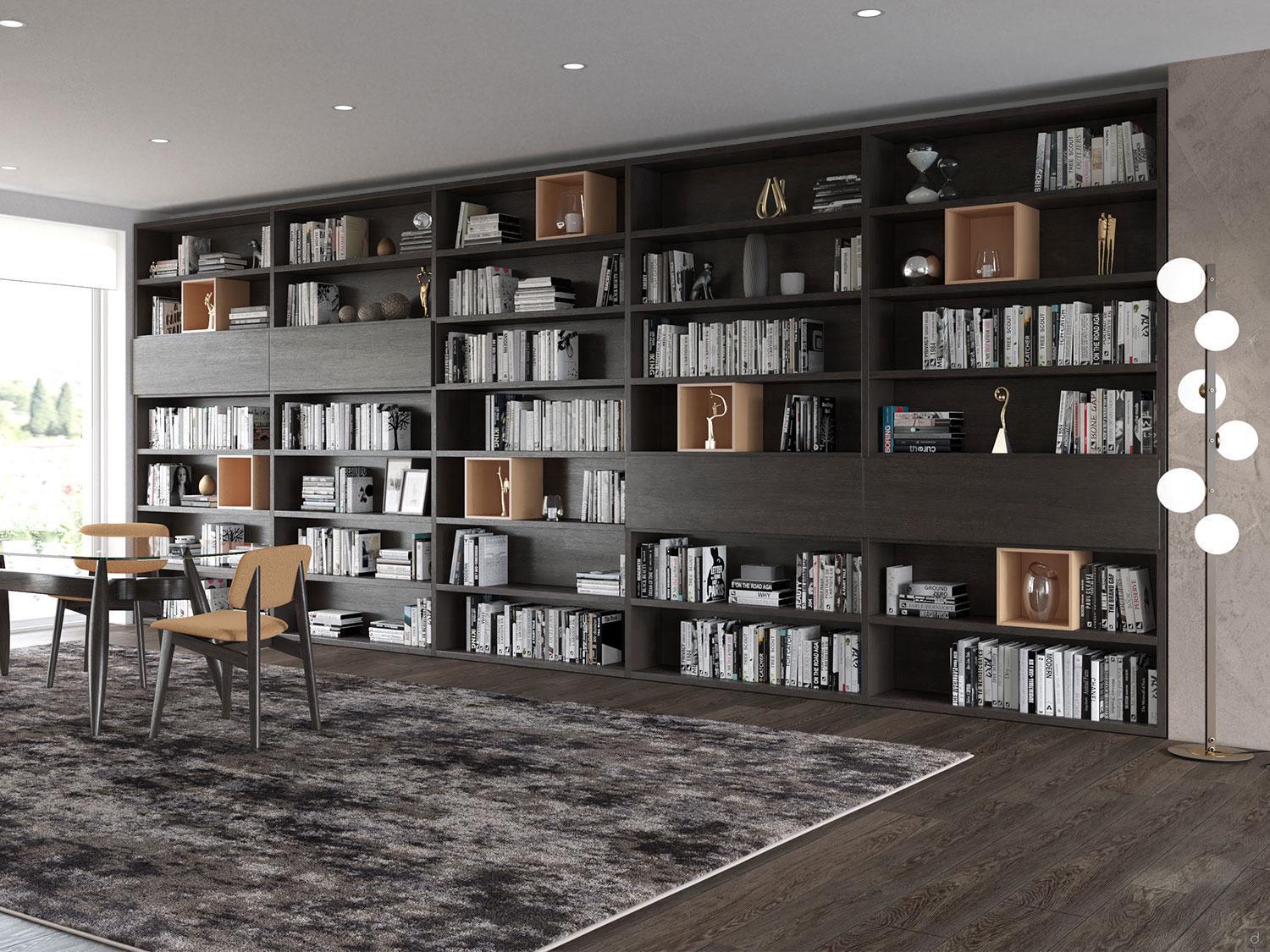

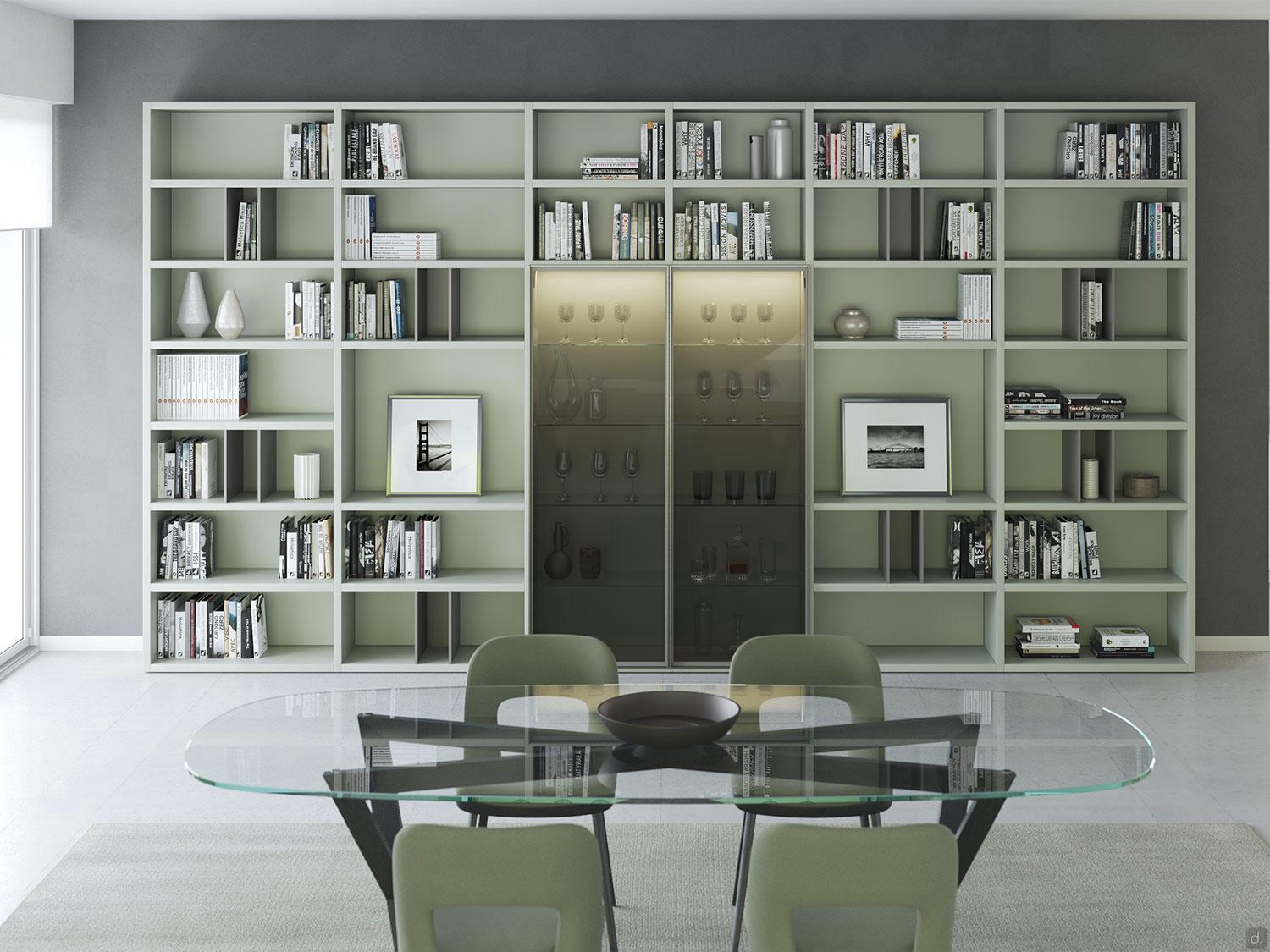

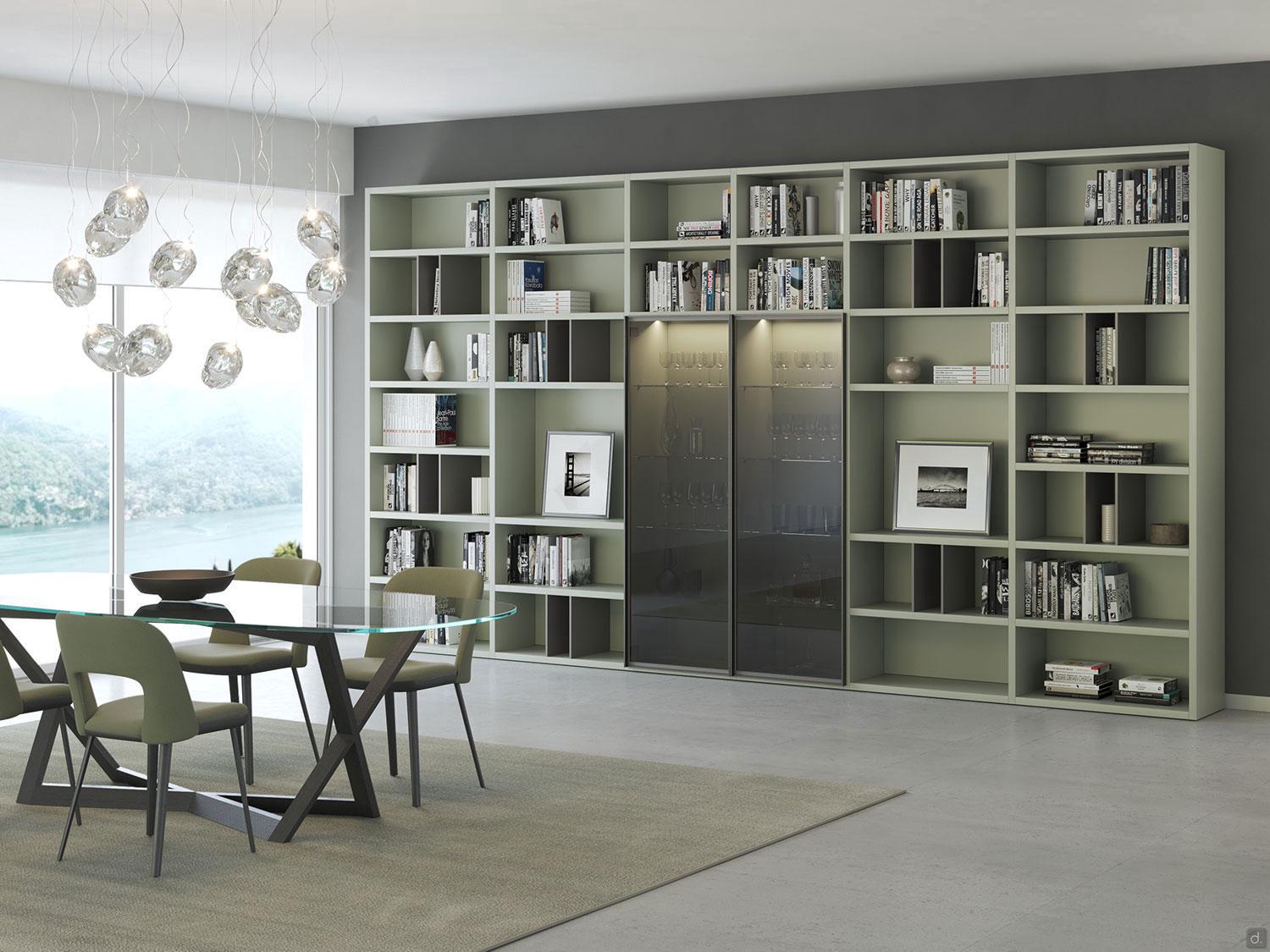

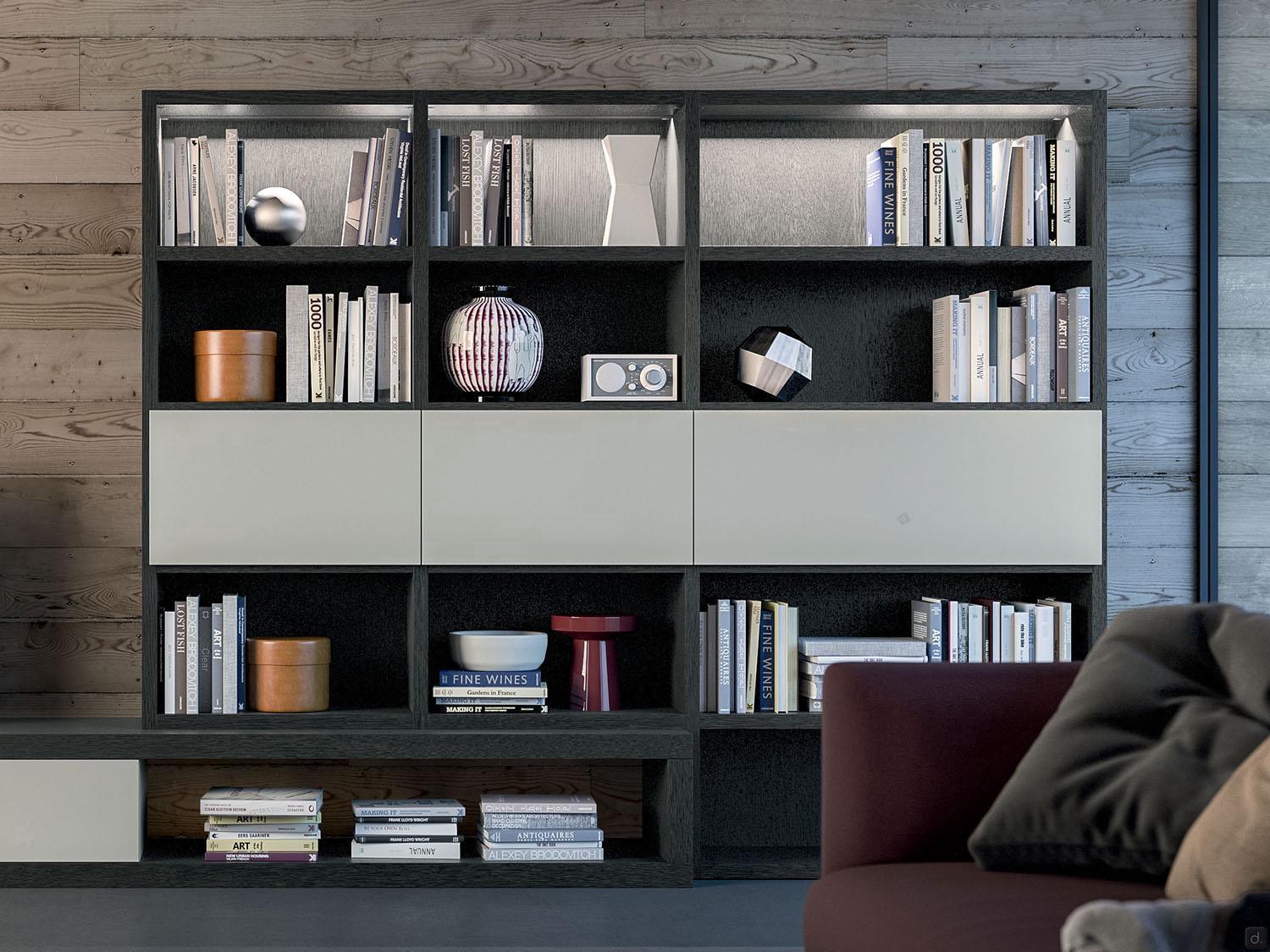

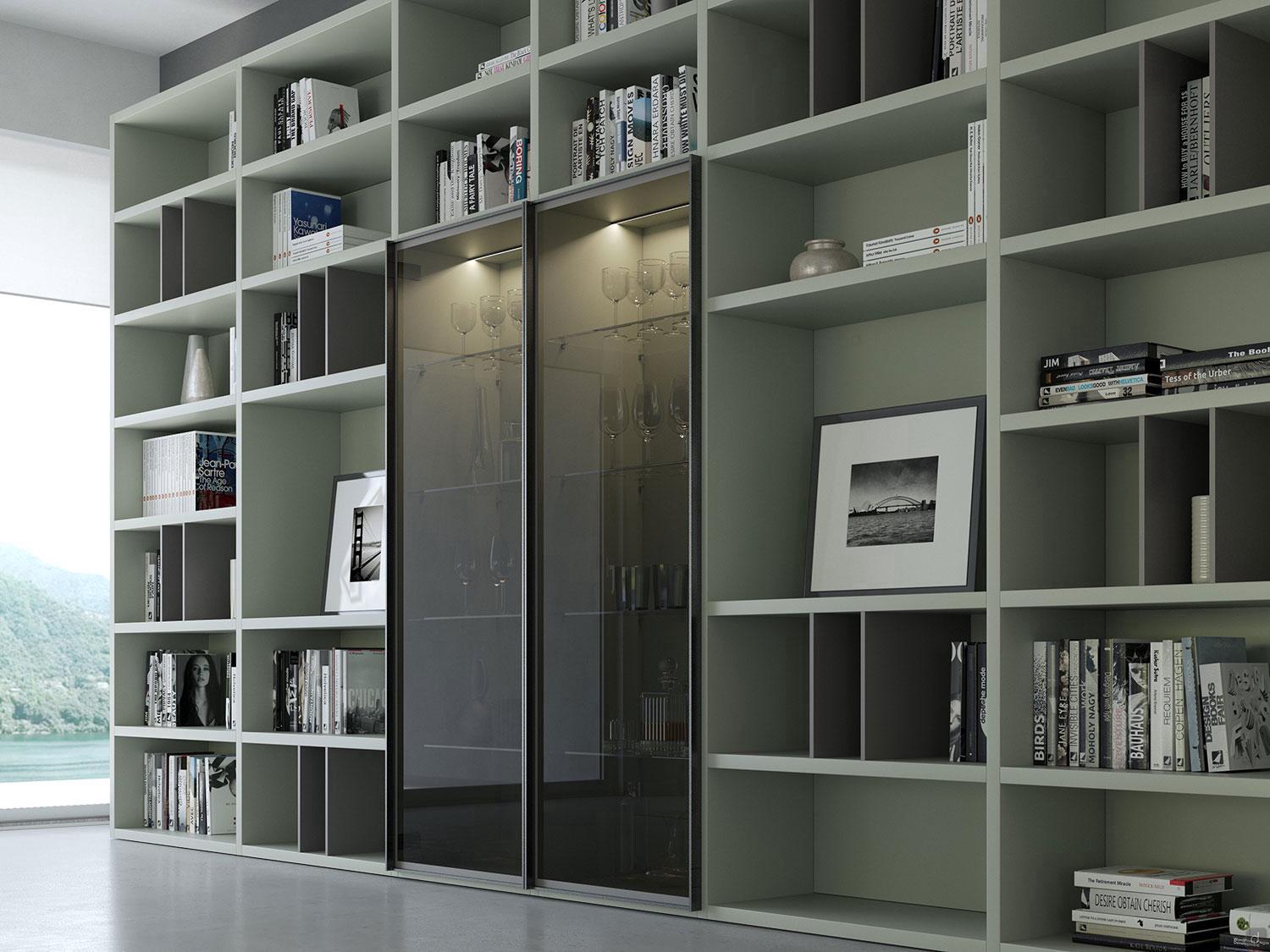

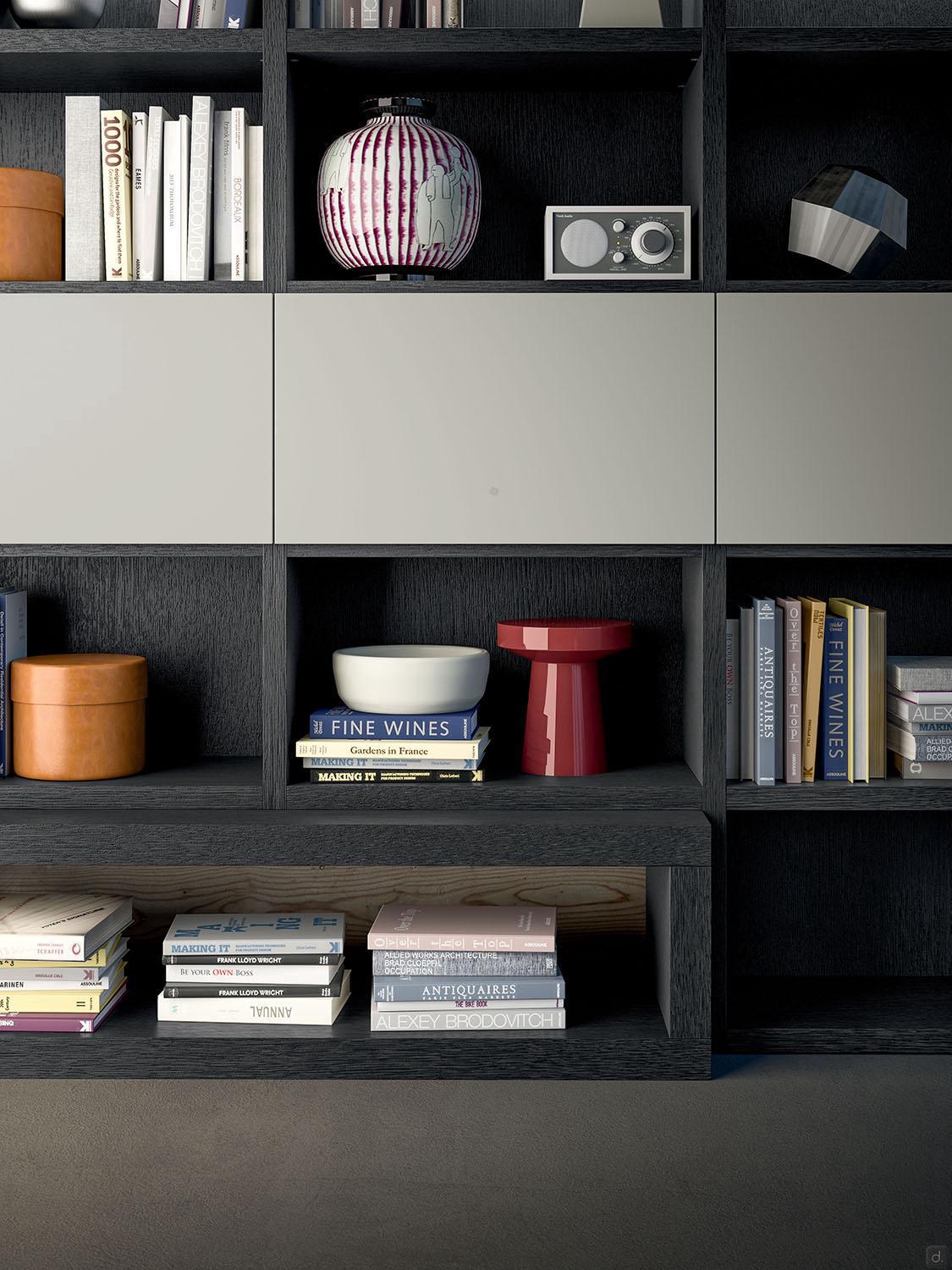

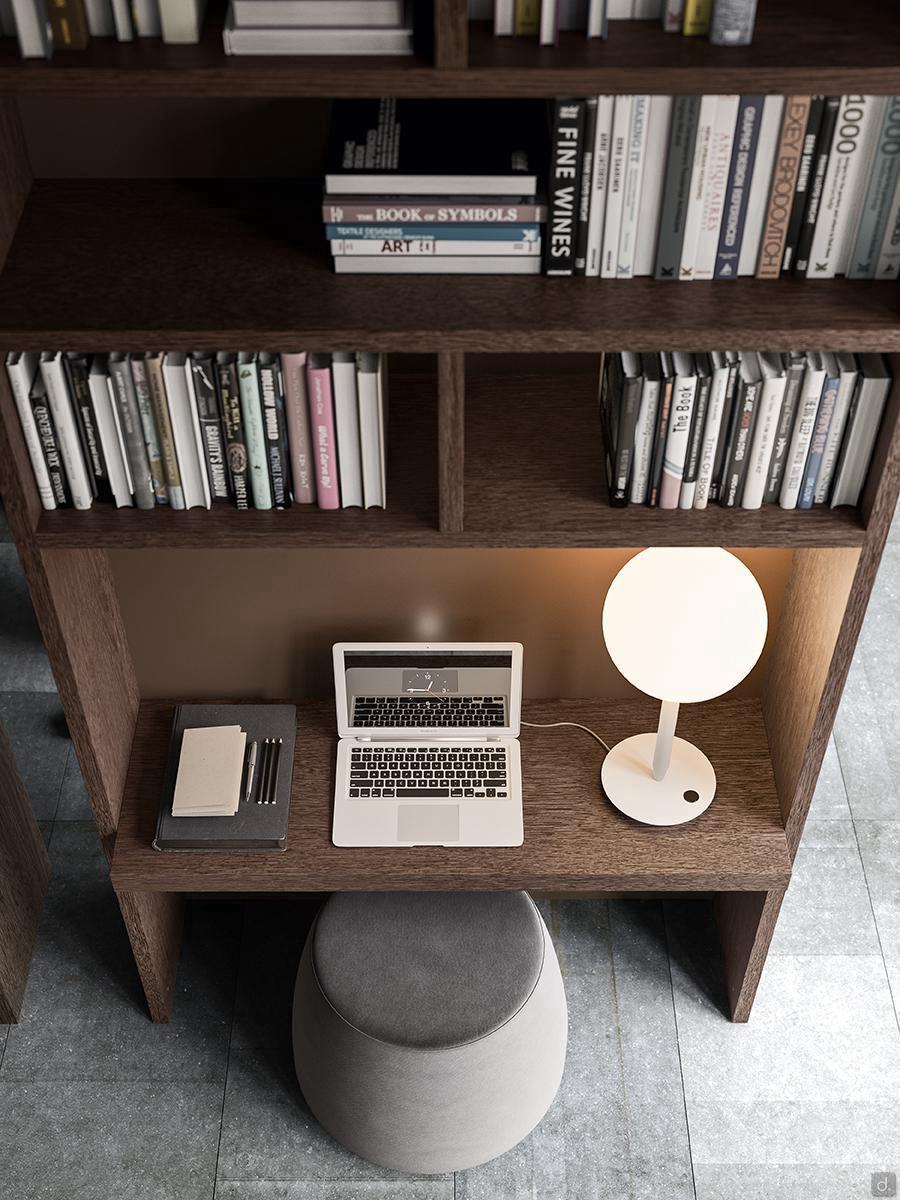

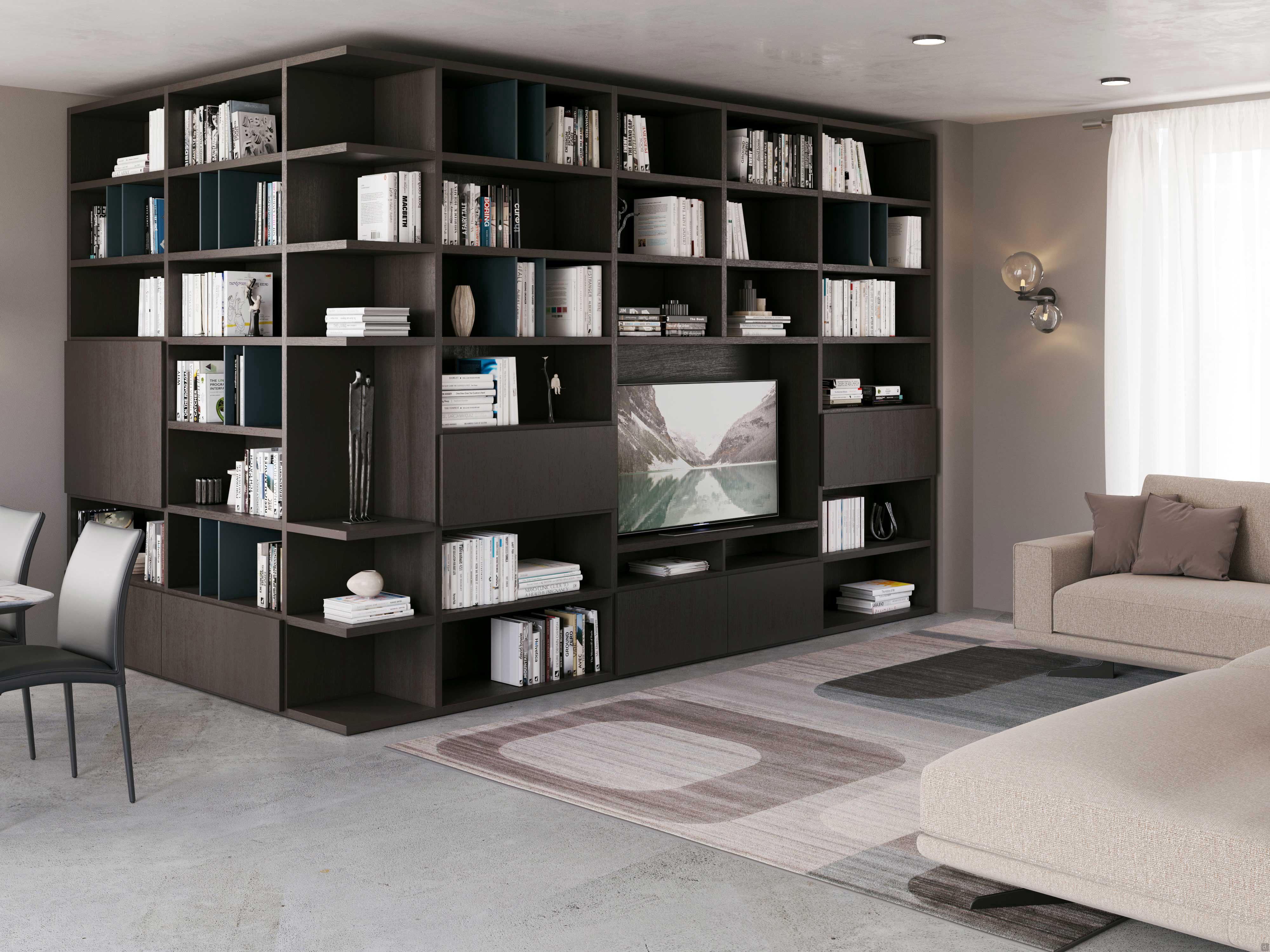

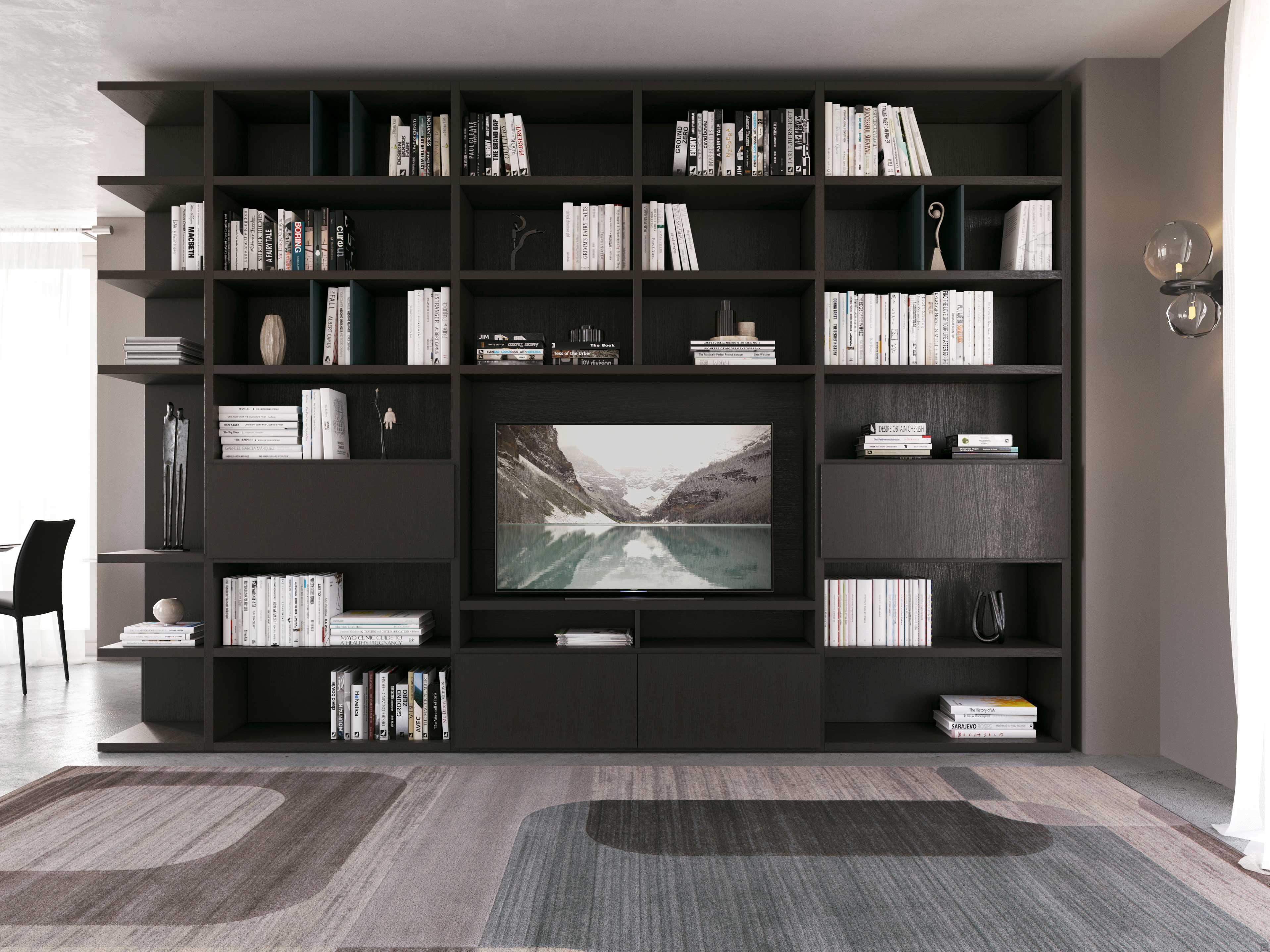

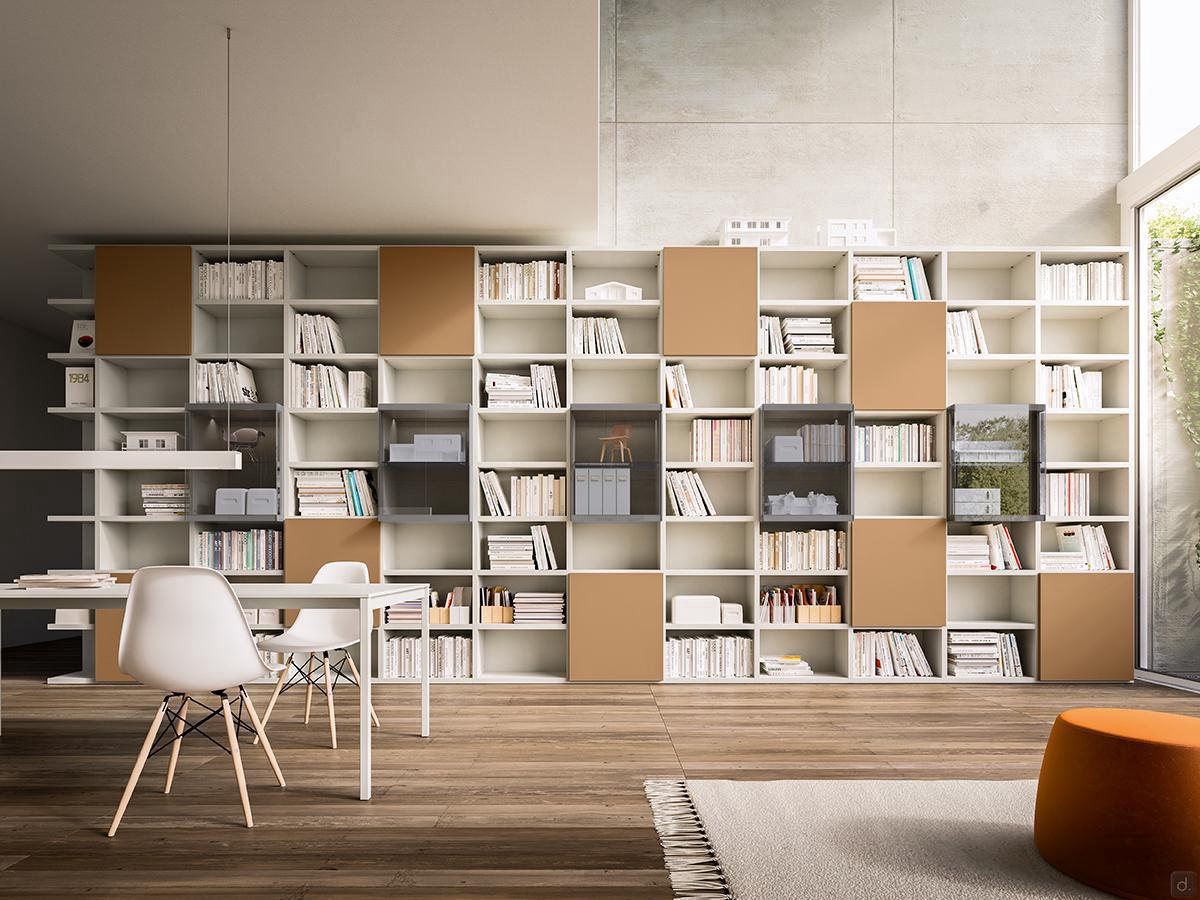

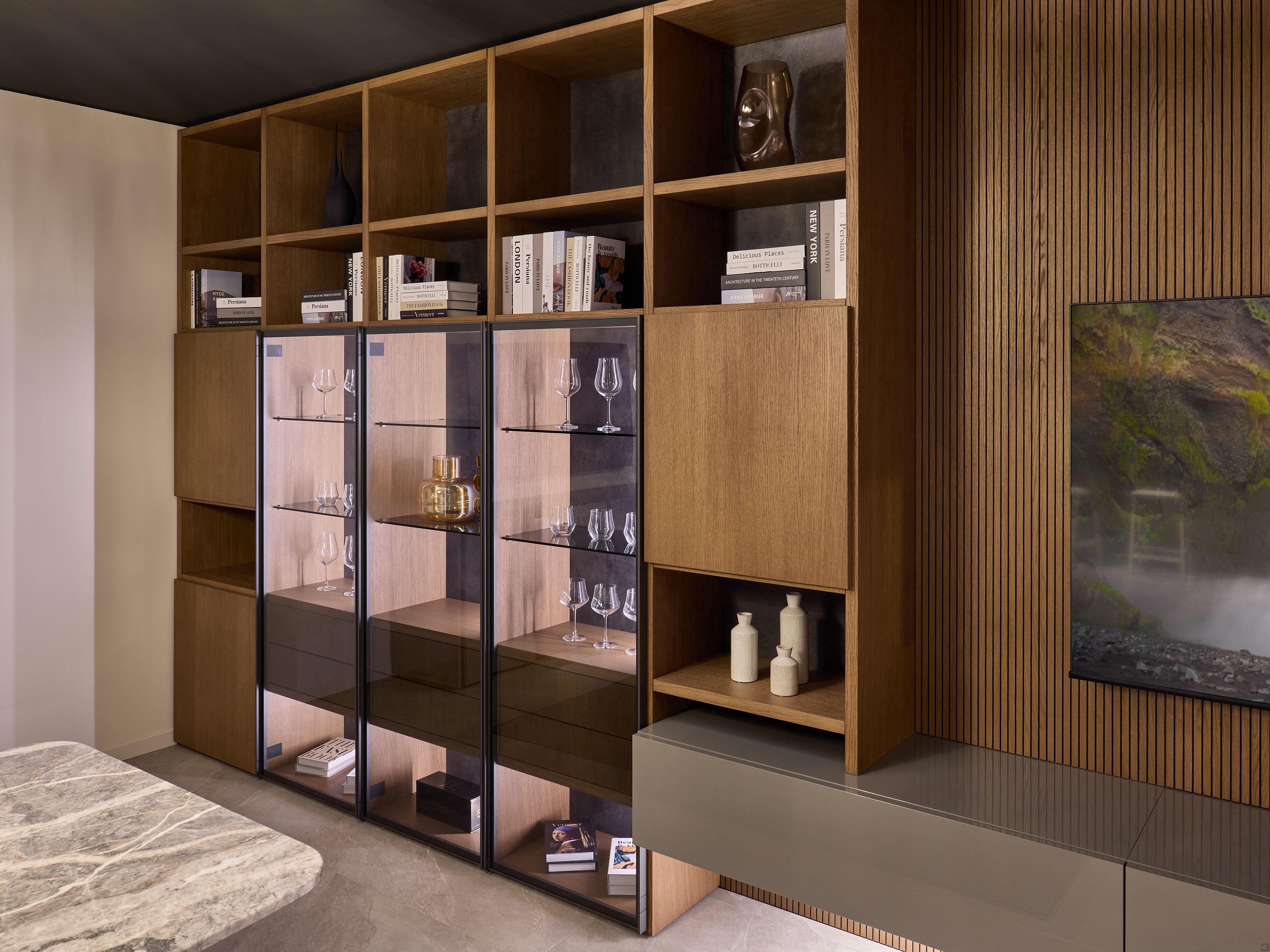

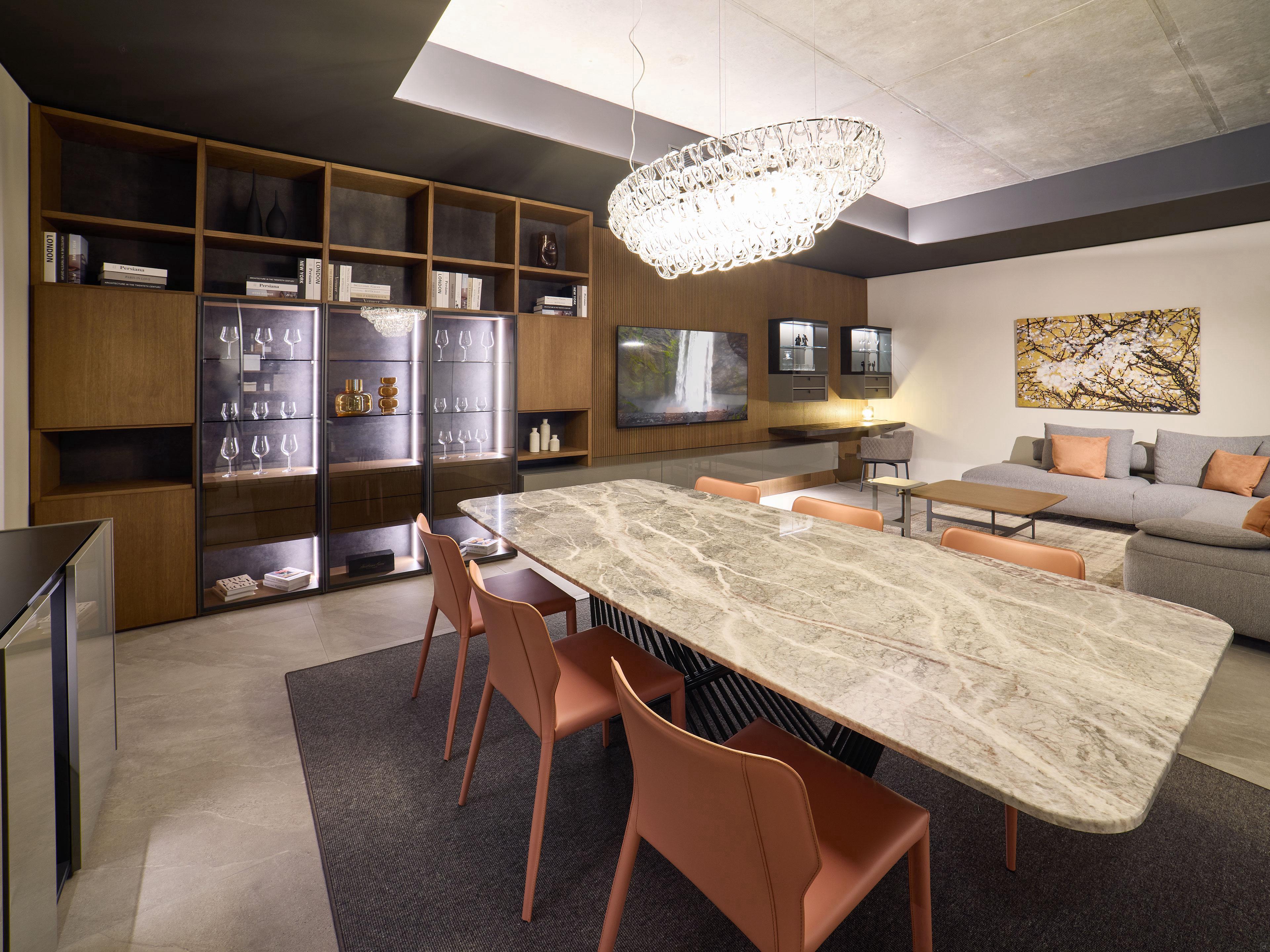

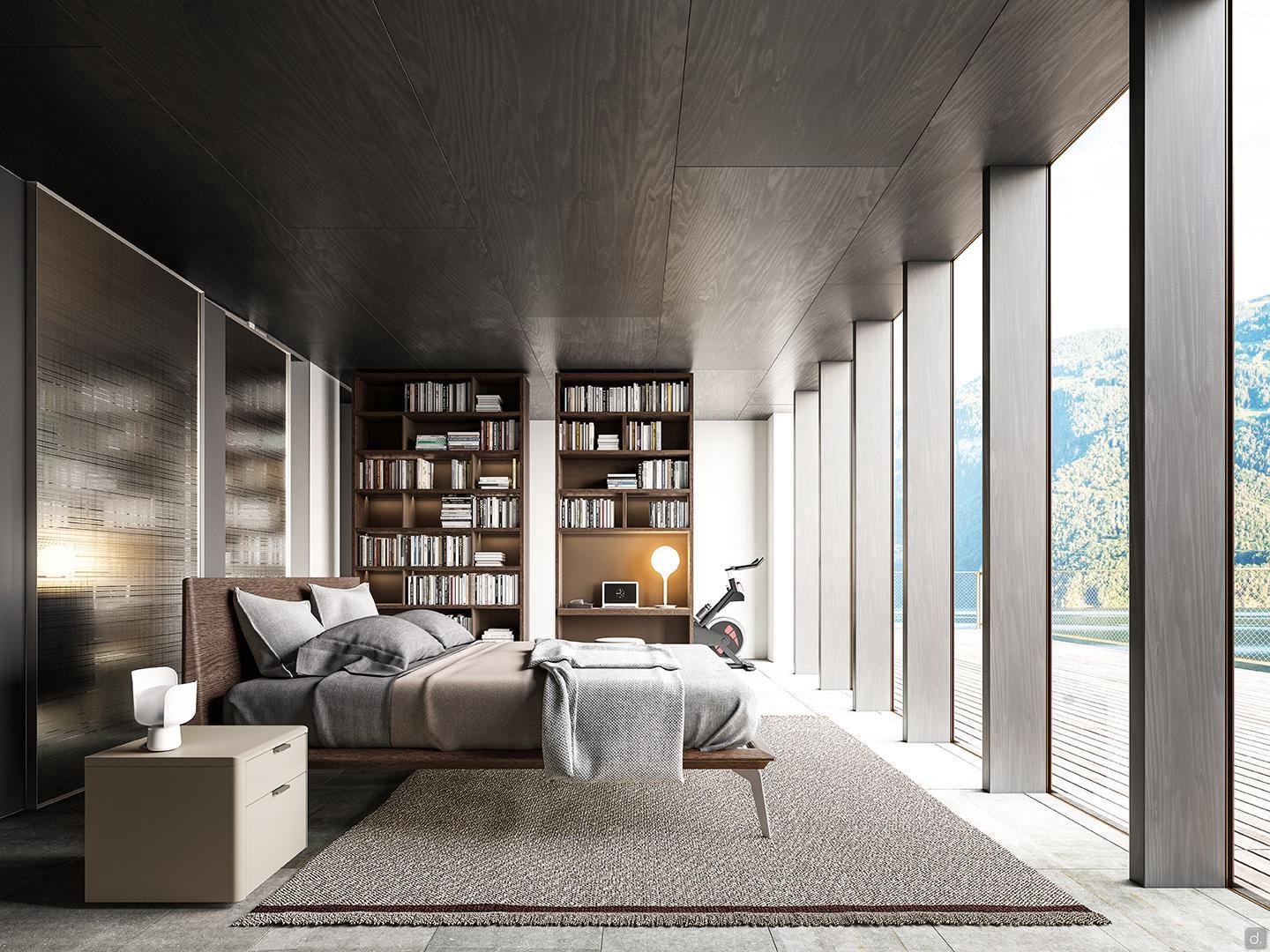

Aliant 07 is a wall-mounted modular bookcase with display cabinets, which can also be customised at full height or with suspended elements, to integrate with existing furnishings and become part of a single large system.

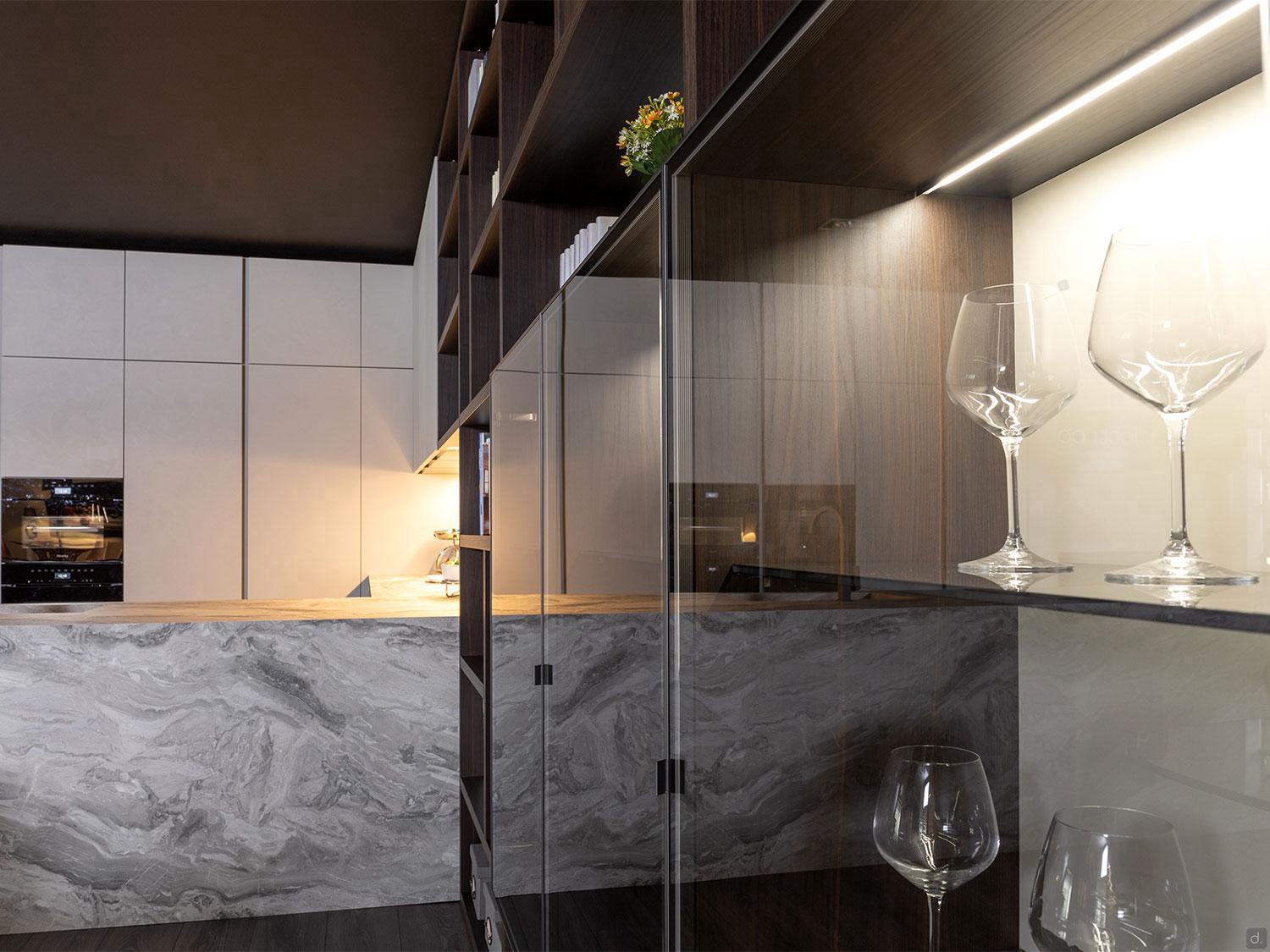

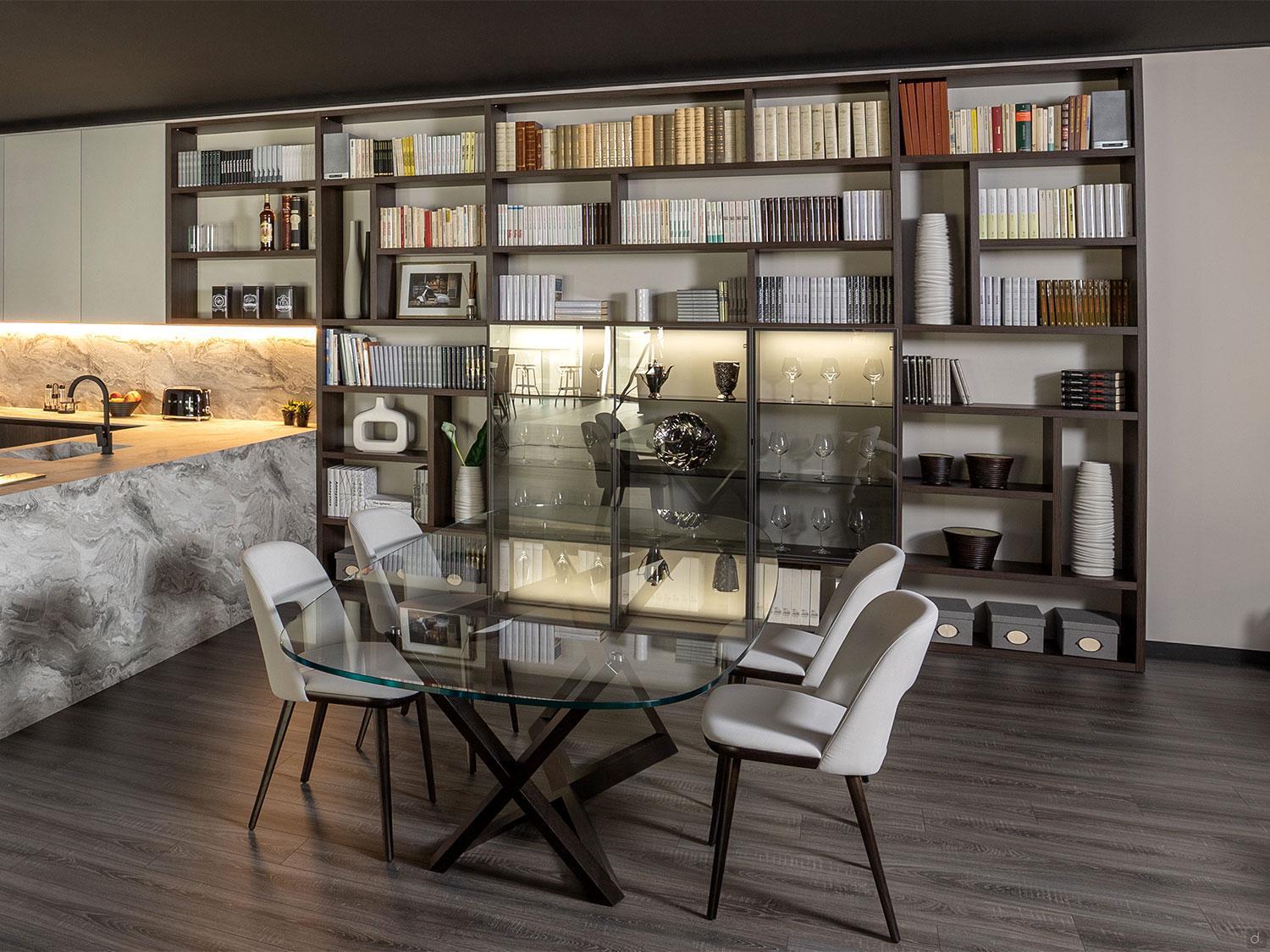

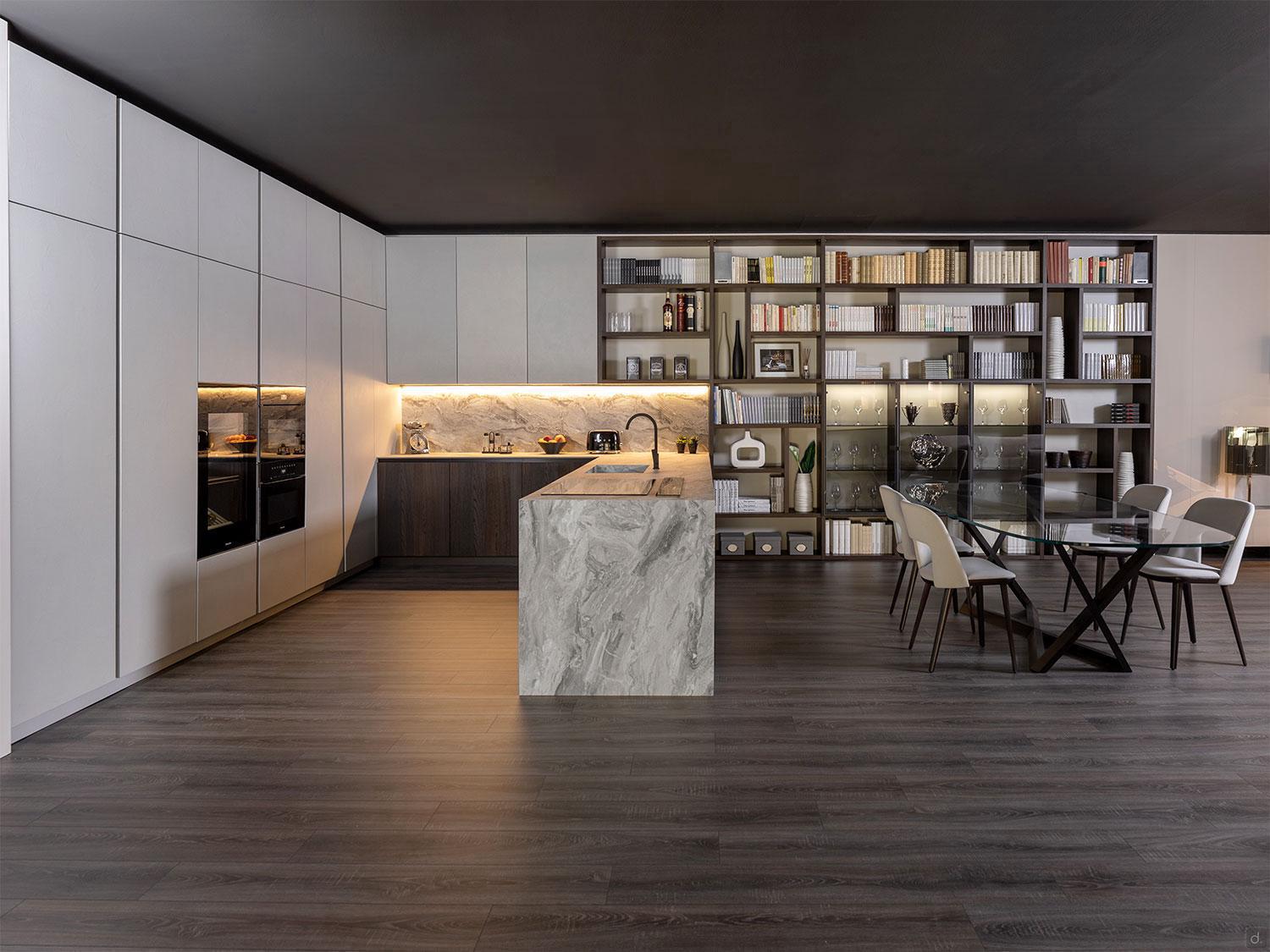

The great compositional freedom it enjoys, combined with the elegance of the finishes and the care of the workmanship, make it an ideal furnishing complement in modern, elegant living rooms or large open spaces, even as a point of contact between an important kitchen and the rest of the living area. In addition to display cabinets, a symbol of elegance and aesthetic lightness par excellence, Aliant can be equipped with doors (hinged, drop-down or flip up, also with glass fronts), open compartments and partitions, for total customisation capable of interacting with any style and colour palette.
The finishes, selected and applied following the high standards of Made in Italy furniture and design, include plain and textured melamine, a wide choice of matte lacquers, and veneered woods in various shades. Impossible, with such a range of textures and colours available, not to achieve a perfect match between the wall bookcase and your living room or open space.

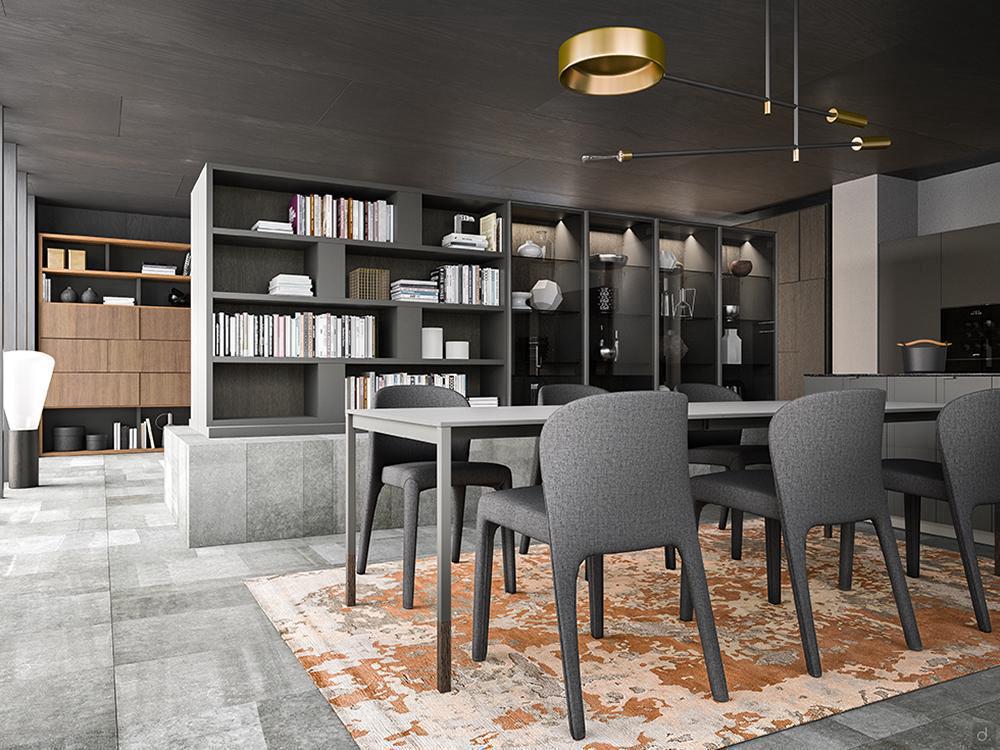

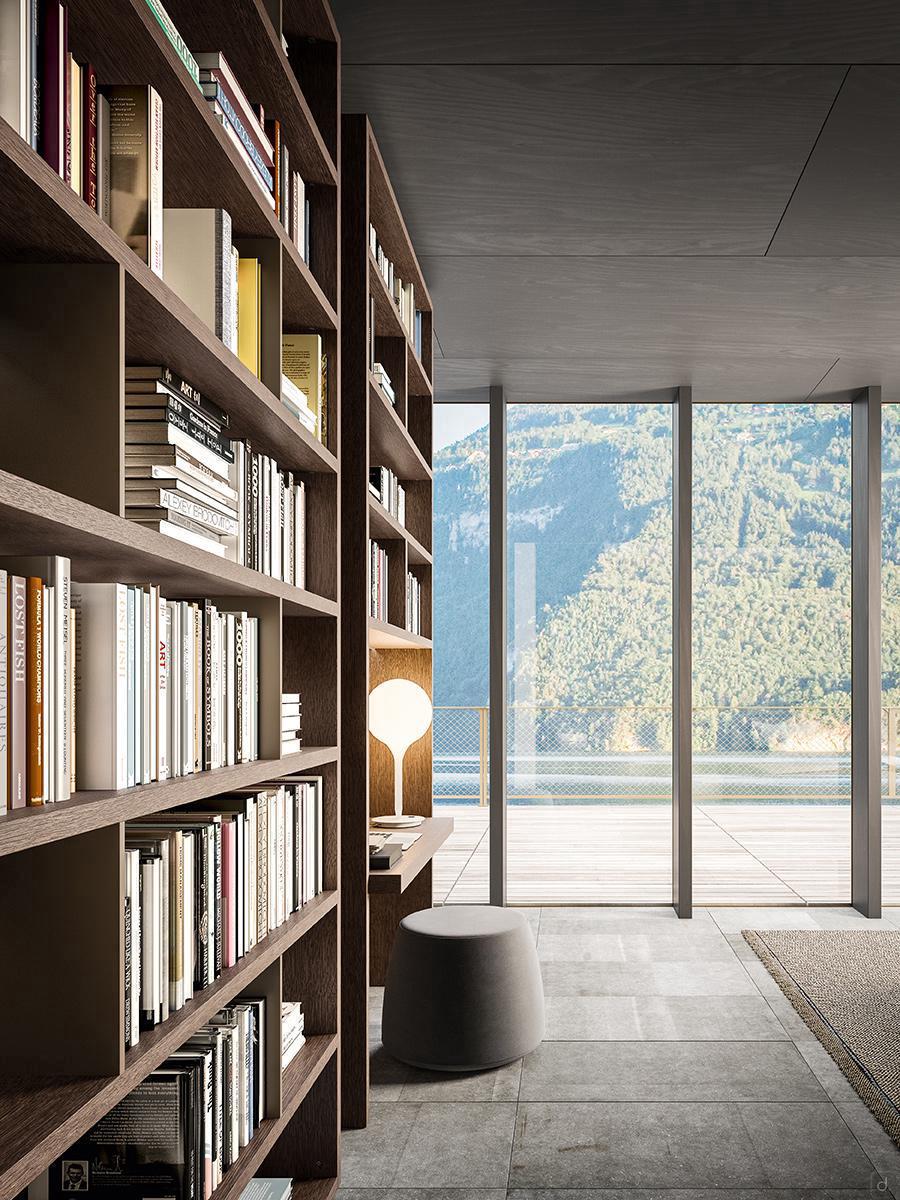

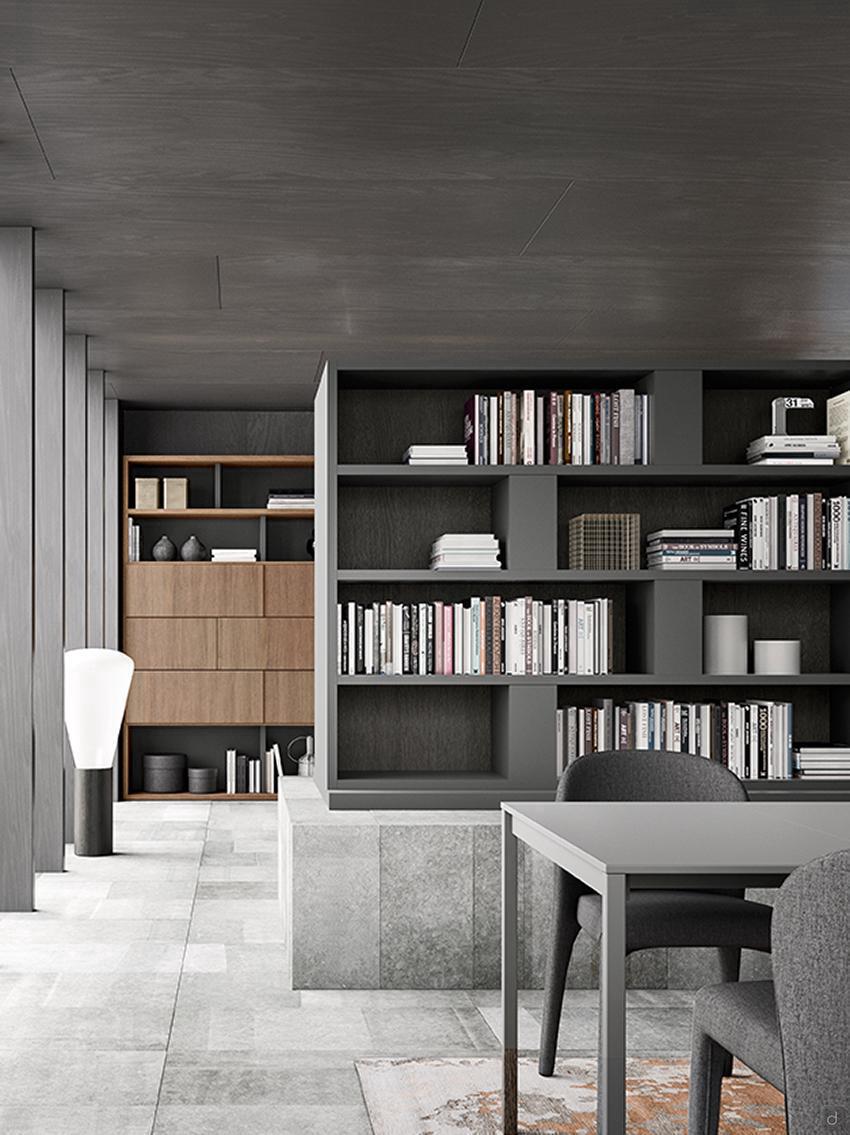

However, Aliant is much more than a bookcase with display cabinets: it is in fact part of a large modular system that also includes a reduced depth version (32 cm) and two double-sided models, which can also be configured with a bridge to separate rooms.
Quality and Value
Made in Italy modular bookcase that can be customised, including full-height
doors, display cases, open compartments and dividers available as accessories for total customisation
melamine, matte lacquered, veneered and open-pore lacquered among the many finishes
ideal for furnishing large walls in modern living rooms and open spaces with simplicity and personality
Made in Italy modular bookcase that can be customised, including full-height
doors, display cases, open compartments and dividers available as accessories for total customisation
melamine, matte lacquered, veneered and open-pore lacquered among the many finishes
ideal for furnishing large walls in modern living rooms and open spaces with simplicity and personality
Measurements

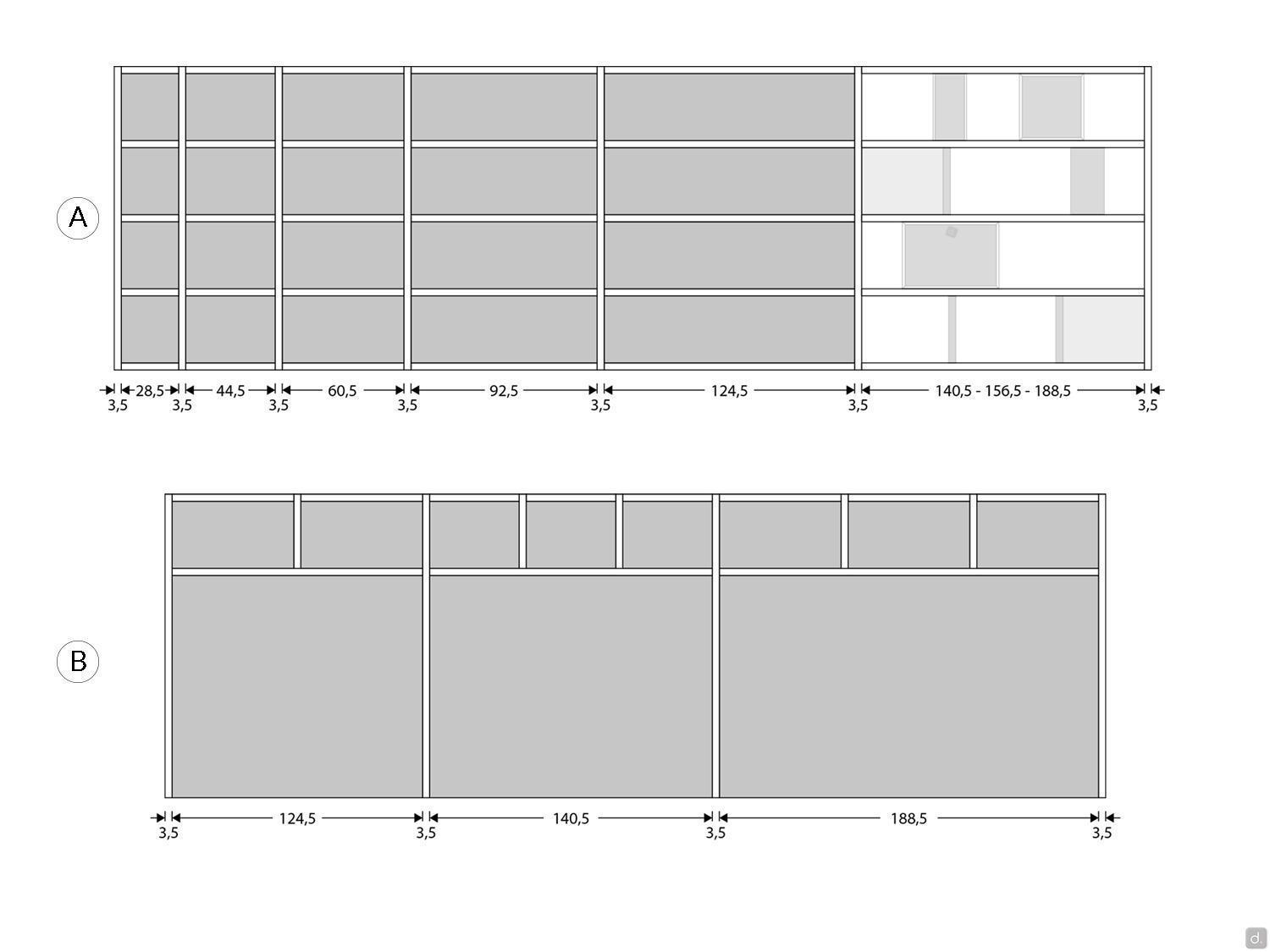

Module width:
- cm 32 / 48 / 64 / 96 / 128 / 144 / 160 / 192
Each module includes a 3,5 cm initial side and a 28,5 / 44,5 / 60,5 / 92,5 / 124,5 / 140,5 / 156,5 / 188,5 cm shelf.

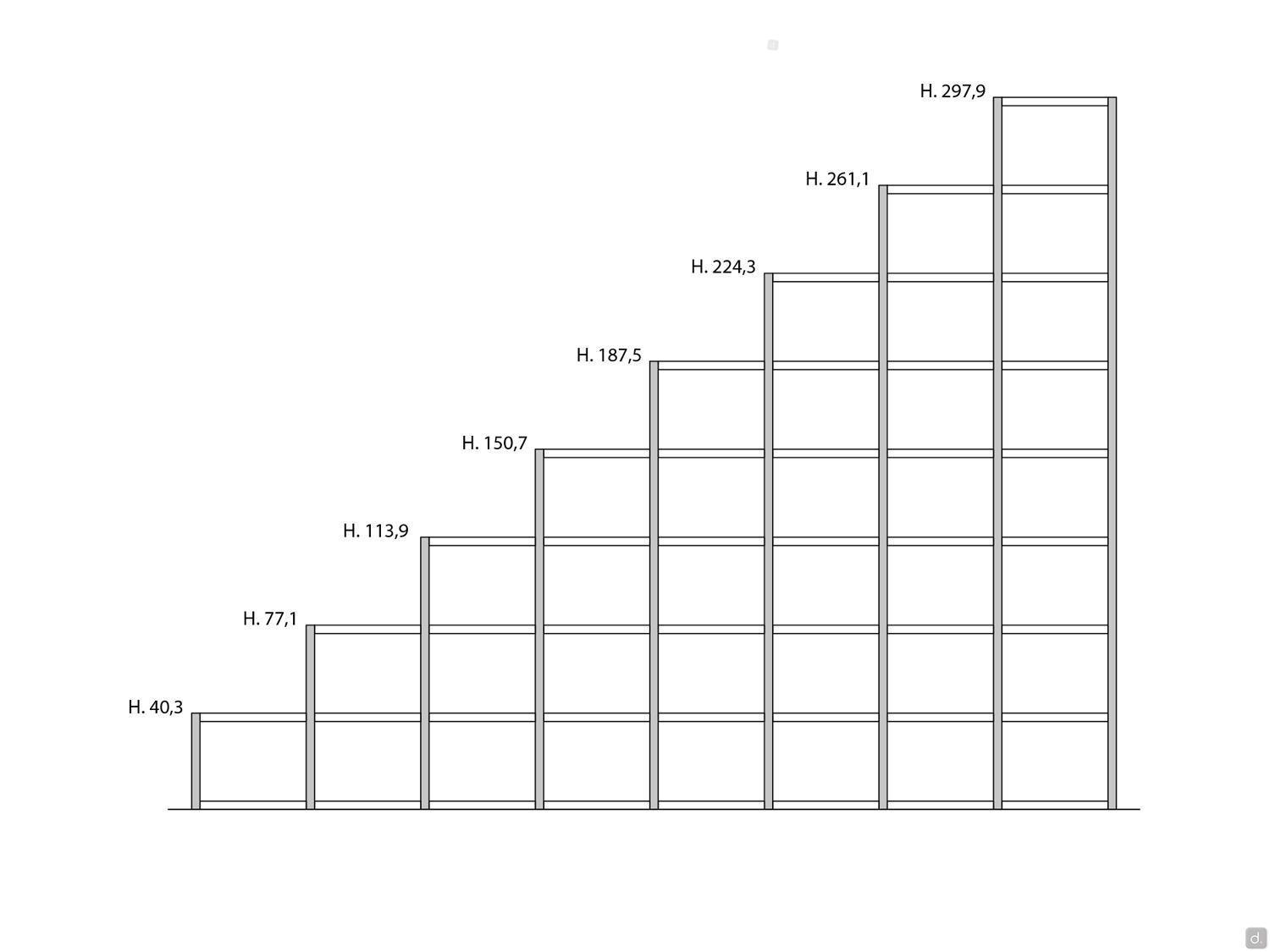

Height:
- cm 40,3 (1 compartment)
- cm 77,1 (2 compartments)
- cm 113,9 (3 compartments)
- cm 150,7 (4 compartments)
- cm 187,5 (5 compartments)
- cm 224,3 (6 compartments)
- cm 261,1 (7 compartments)
- cm 297,9 (8 compartments)
In compositions of up to 187,5 cm high, the top is replaced by a 3.5 cm thick finishing top. For widths greater than cm 297,9 the top is divided into two parts.
Thickness:
- shelves, sides and dividers: cm 3,5
- glass shelves: cm 0,8
- back panel: cm 1,4 (included in the total depth of 41,6 cm)
Depth:
- overall: cm 41,6
- shelves with back: cm 38,1
Materials and Finishes
- melamine
- matte lacquer
- veneered wood
- glass (on doors and display cabinets)
Purchase Information
The Aliant collection can be perfectly combined with the elements and wall units of the Plan system.
In the case of shelves wider than 124.5 cm, it is mandatory to provide at least one divider (even in the rectangular open version) or an open box compartment within the compartment for structural reasons.
If the shelf is without a back and greater than 140.5 cm, the divider must have a maximum distance of 92.5 cm from either shoulder. On the other hand, for a shelf with a back, the maximum distance to be maintained is 124,5 cm.
For the overall height calculation of the bookcase, the height of the sides already includes the thickness +0,5 cm of the levelling feet.
Technical study
Technical Specifications and Equipment
Structure: wood particle board (class E1 low formaldehyde emission). Wooden edge, lacquered ABS or ABS. The sides on the floor are always equipped with levelling feet inserted in the thickness (0,5 cm h. minimum).
Sides, Bottoms, Tops, Dividers: cm th.3,5.
Finishing Top: cm th.3,5 replacing the top in tall compositions up to cm h.187,5. For widths over cm 279,7 the top is divided into two parts.
Bridge: equipped with iron support bar with cover panels (cm 124,5 / 140,5 / 188,5 d.14,2 h.10) matching the bridge element, positioned under the bottom. Bridge compartments can be equipped with backs cm th.1,4.
Wooden shelf: cm th.3,5

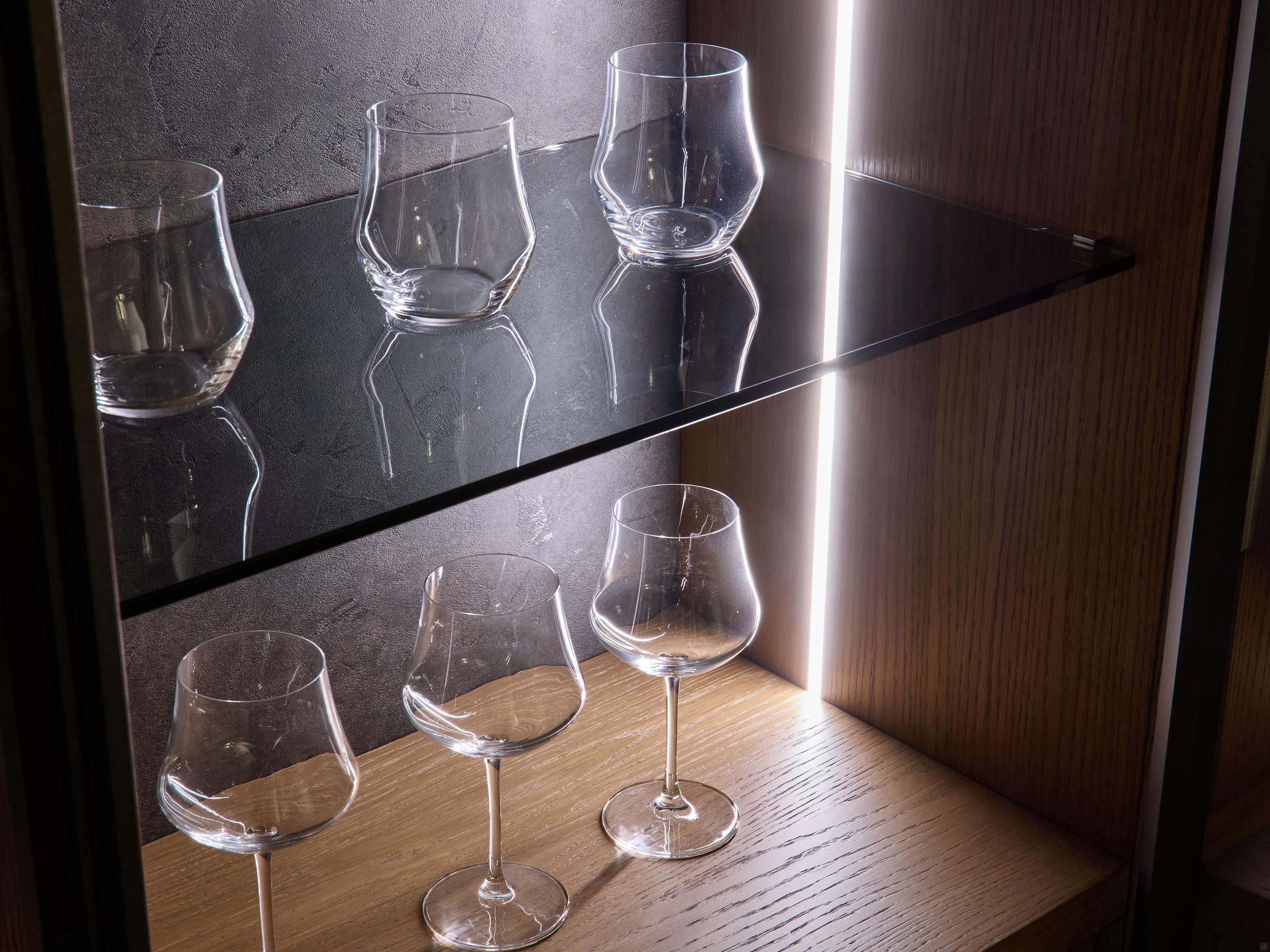

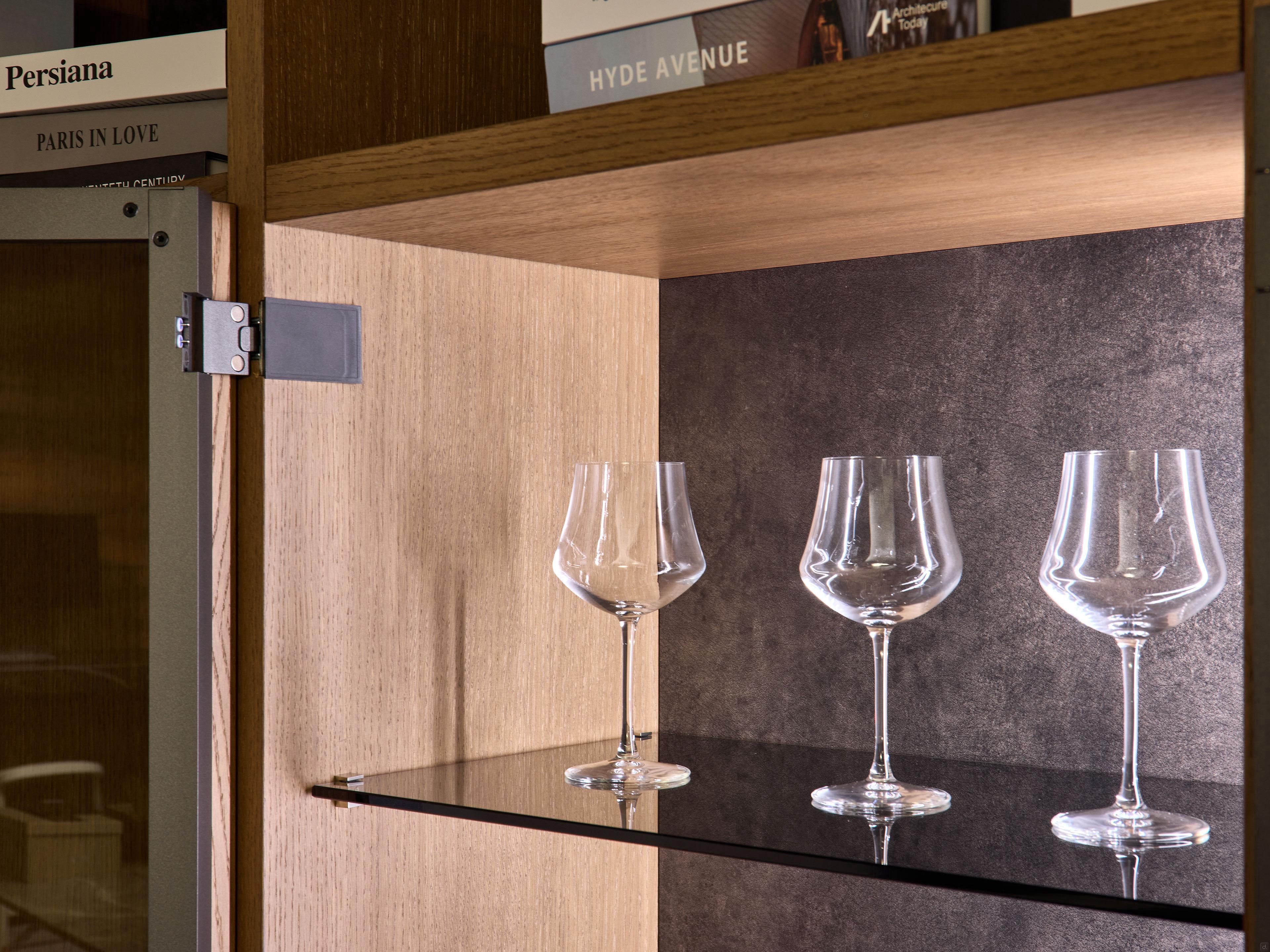

Glass shelf: transparent grey cm th.0,8 with visible blocking shelf supports. Placement in the centre of the side (recessed cm 3,5 per side).
Rectangular open divider: cm th.1,2 in MDF panel coated polymeric matte lacquered. Freely positioned in the centre of the side (recessed cm 1,75 per side), 45° folding processing.

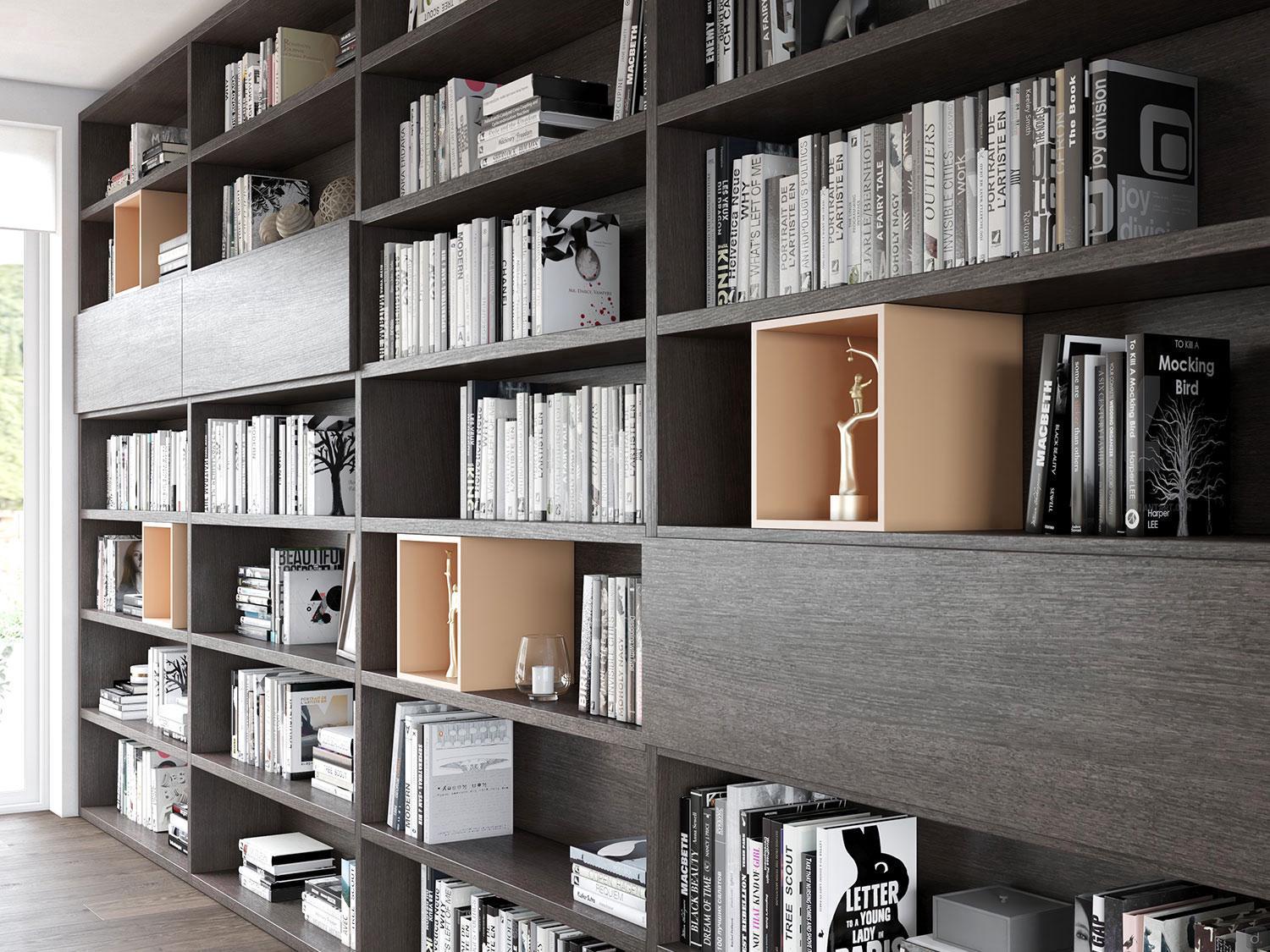

Open compartment box: cm th.1,4 in wood particle board panel (class E1 low formaldehyde emission) matte lacquered. Offered with cm th.1,4 matching back, positioned in the centre of the box depth. ABS edge. Freely positioned in the centre of the side (recessed cm 0,1 per side), 45° folding processing.
Wooden hinged door: cm th.2,2 in wood particle board (class E1 low formaldehyde emission) or MDF. Wooden edge, lacquered ABS or ABS. Opening via push-pull or M handle.
Glass hinged door: cm th.2,2 in tempered transparent, transparent grey or glossy lacquered glass with moka shine, white or matte lacquered aluminium frame. Integrated handle to match the frame.

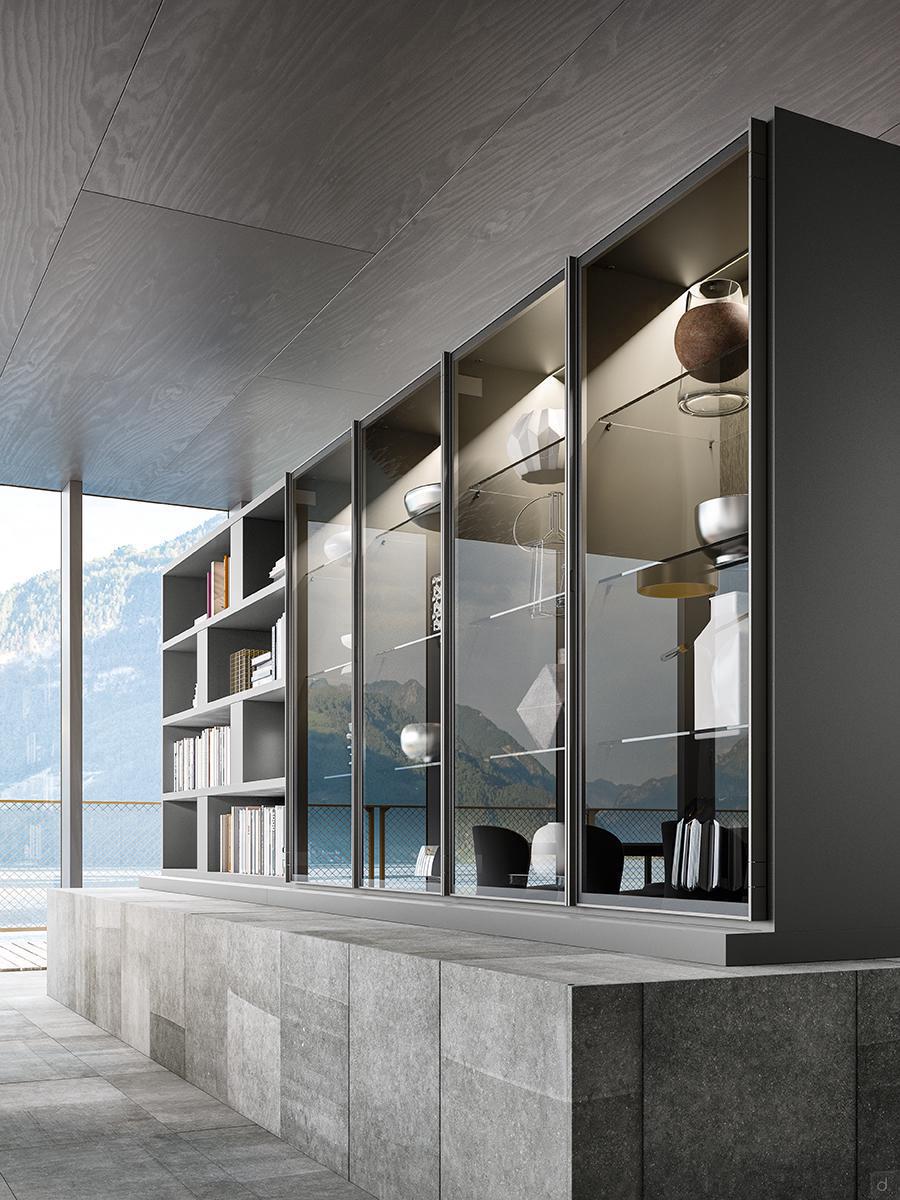

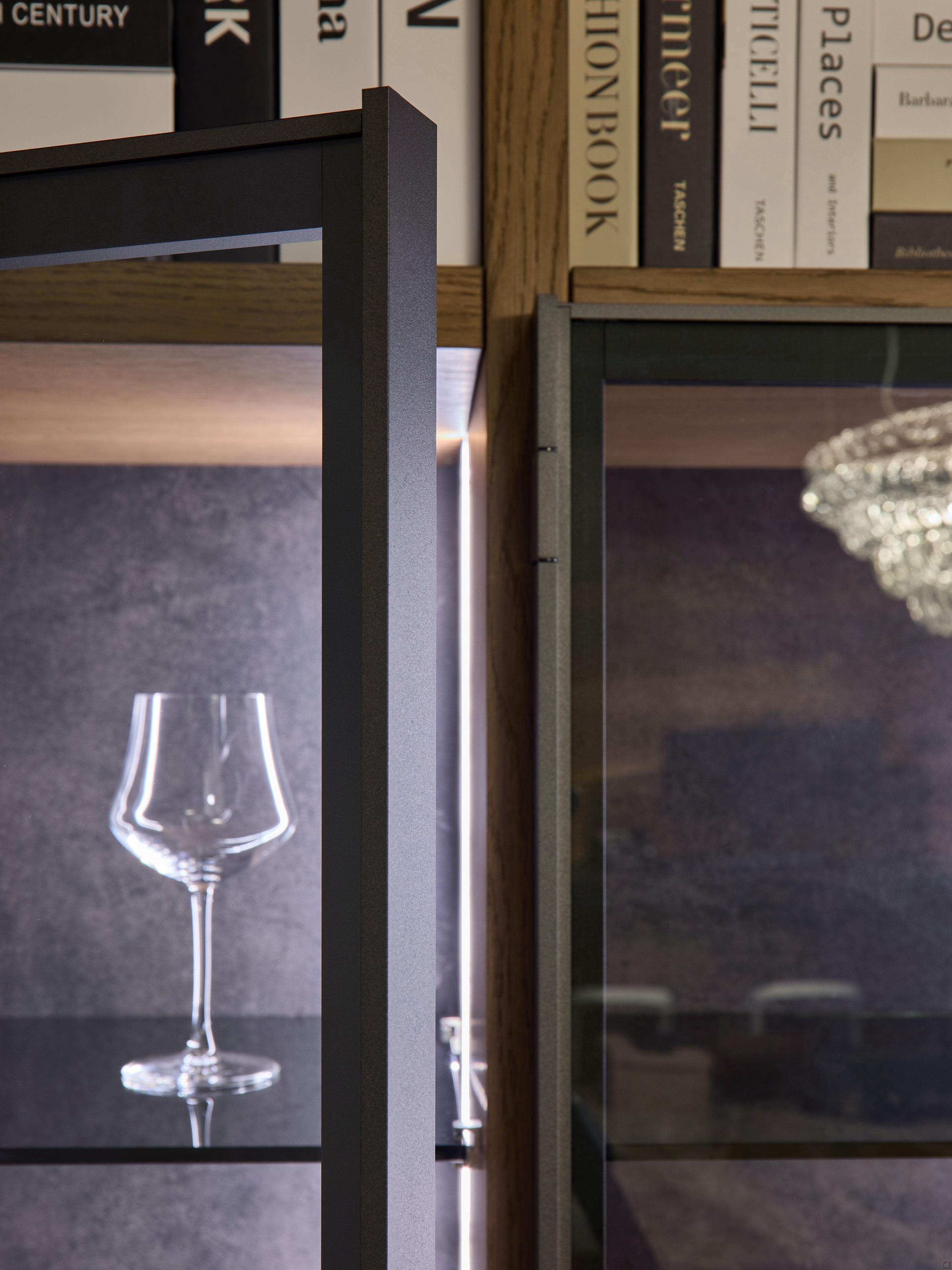

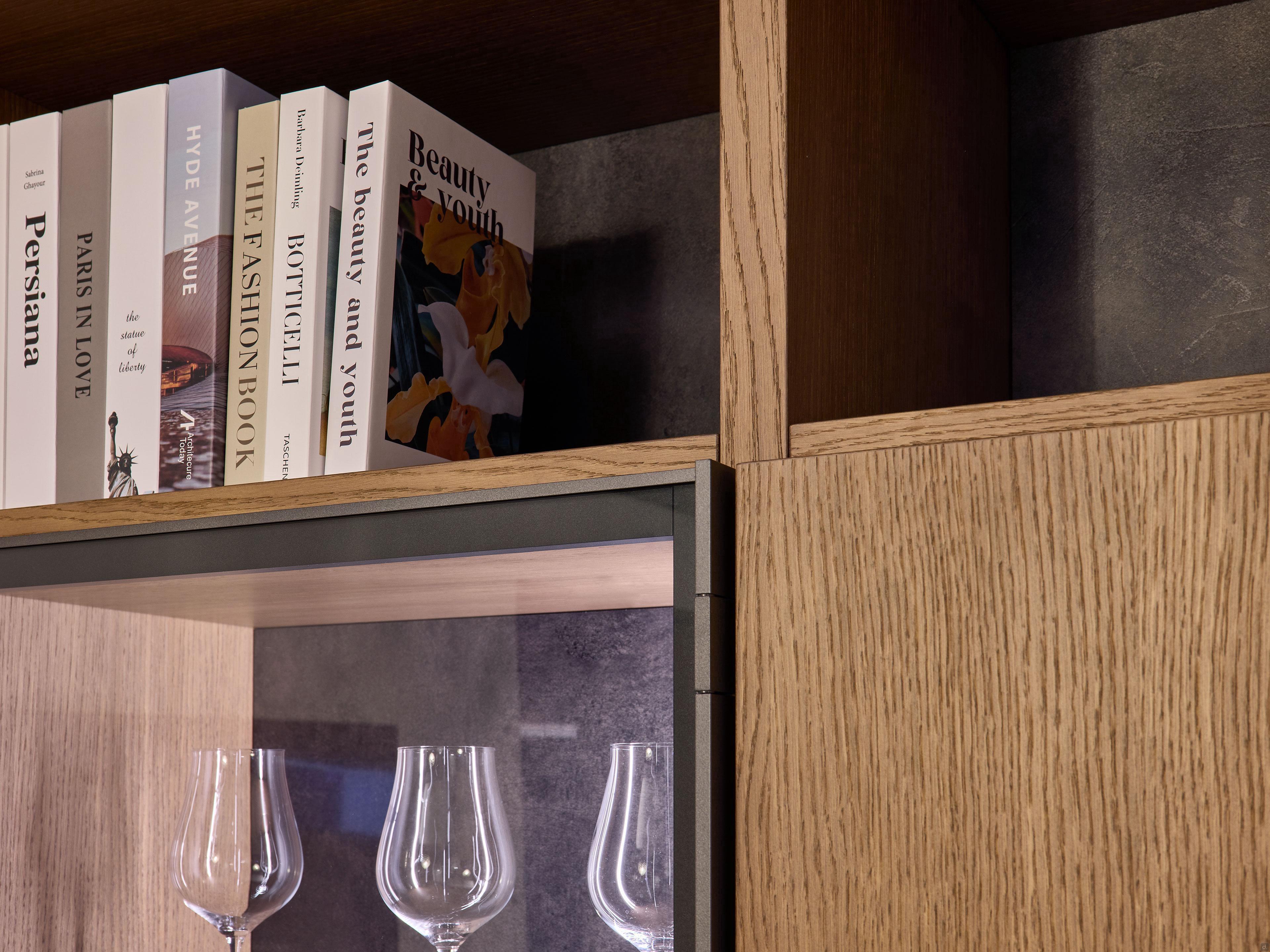

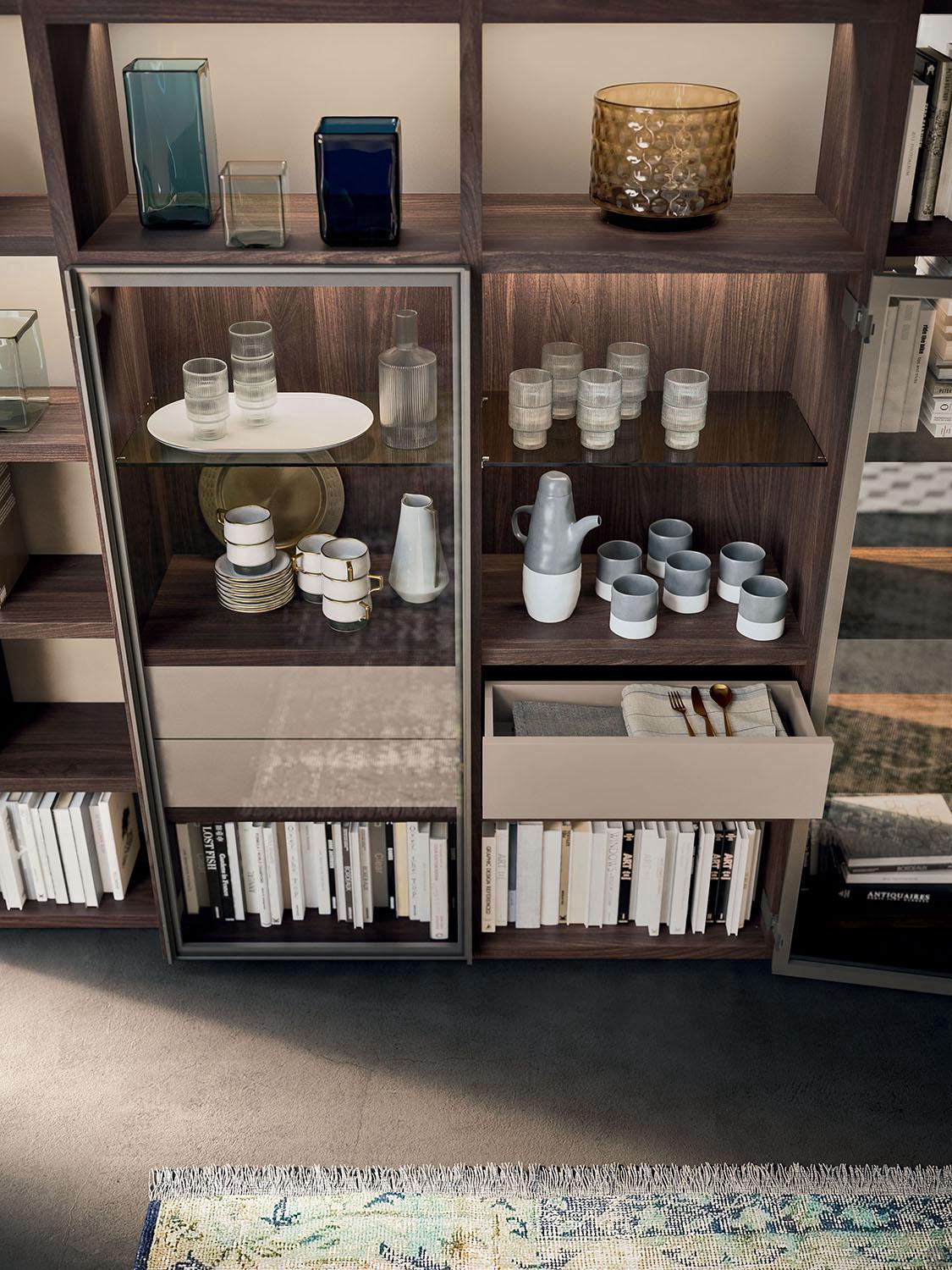

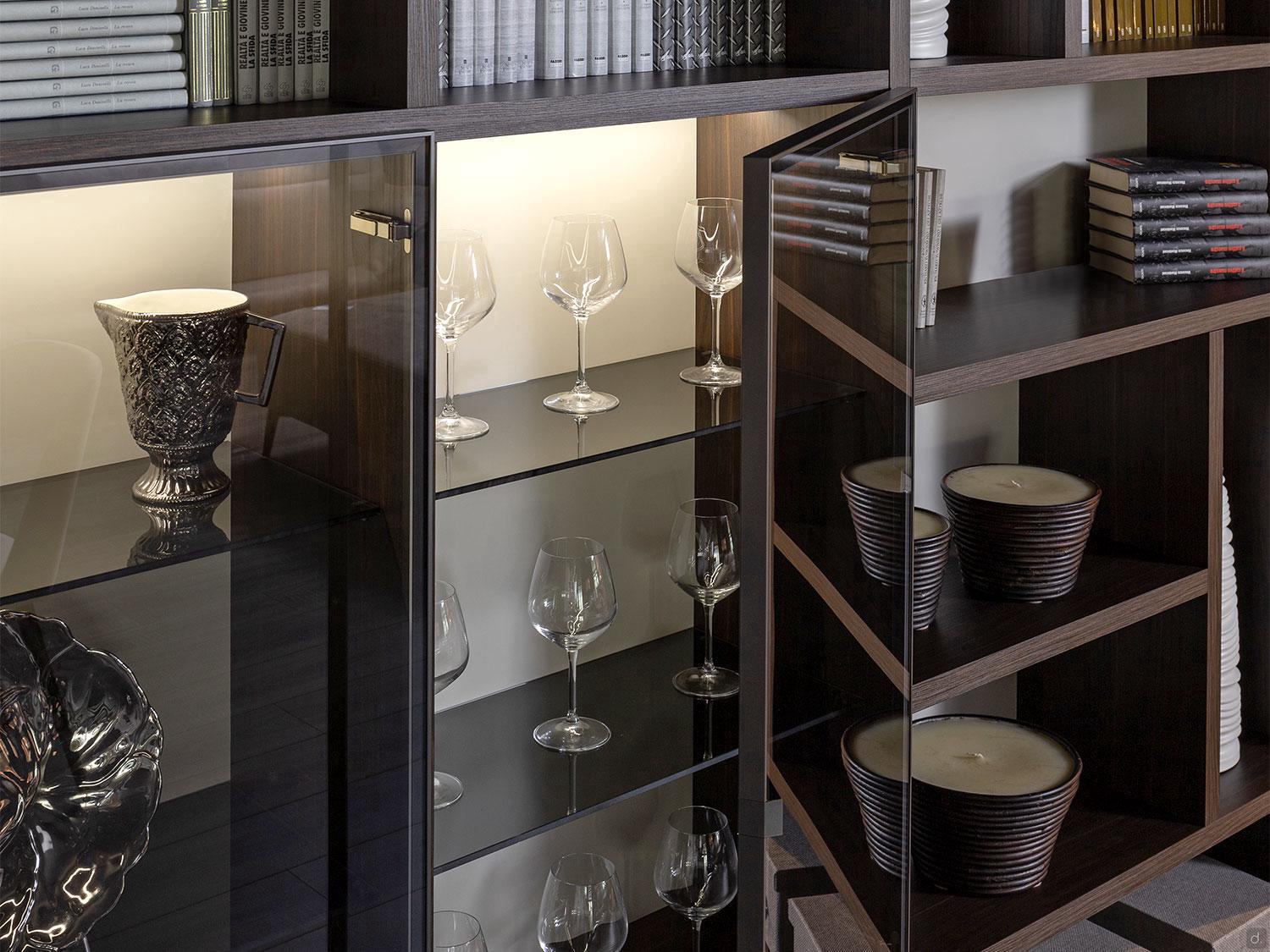

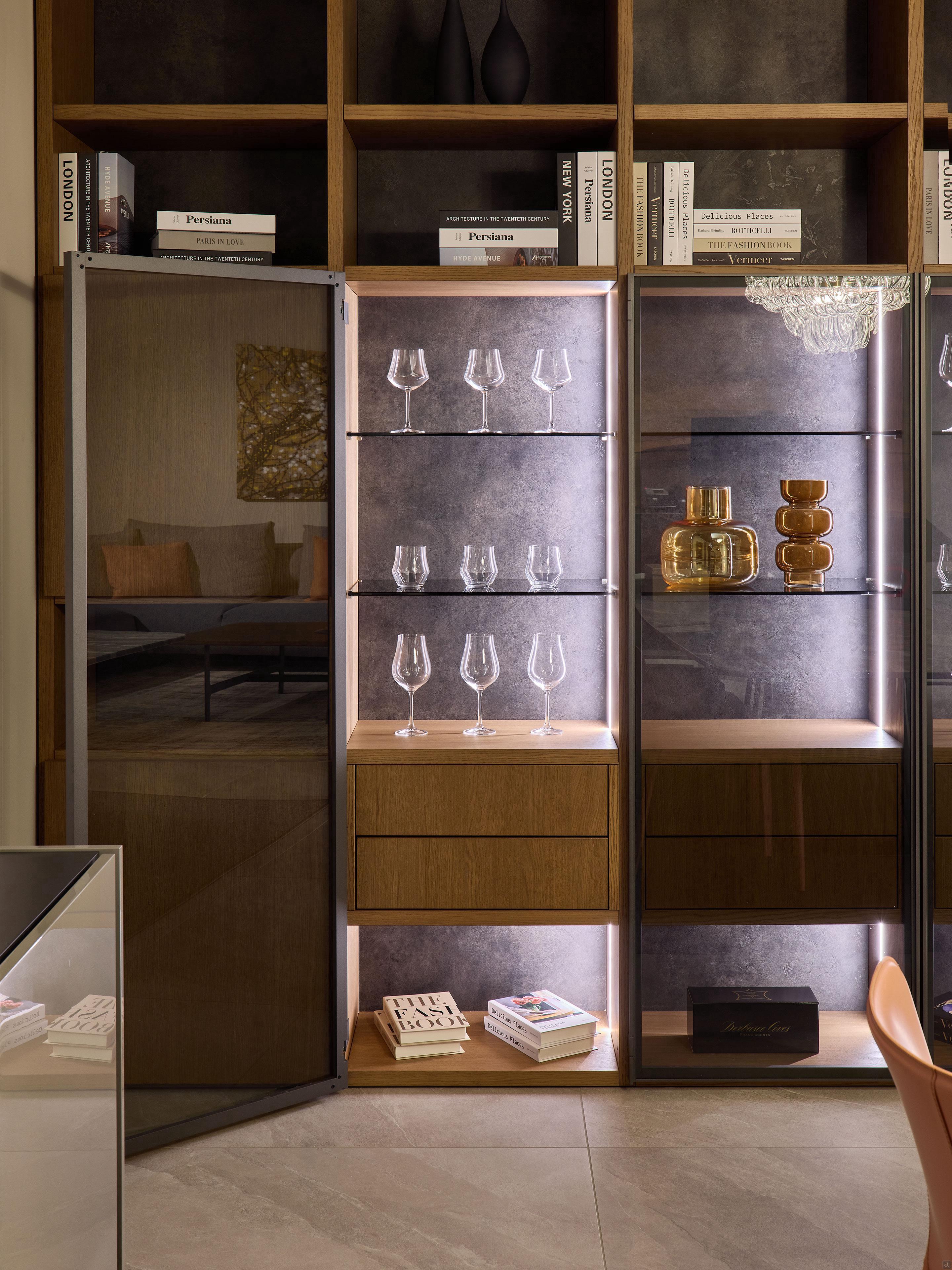

Display door: cm th.3,5 in grey transparent tempered glass mounted on moka shine painted aluminium frame (2 cm th.). Opening with full-height handle integrated with the frame (cm 0,8 d.3,5).
Wooden drop-down door: cm th.2,2 in wood particle board (class E1 low formaldehyde emission) or MDF. Wooden edge, lacquered ABS or ABS. Opening via push-pull or M handle downward or upward. Mechanical movement is provided by a pair of hydraulic pistons or by 'winch' mechanism (downward drop-down opening only).

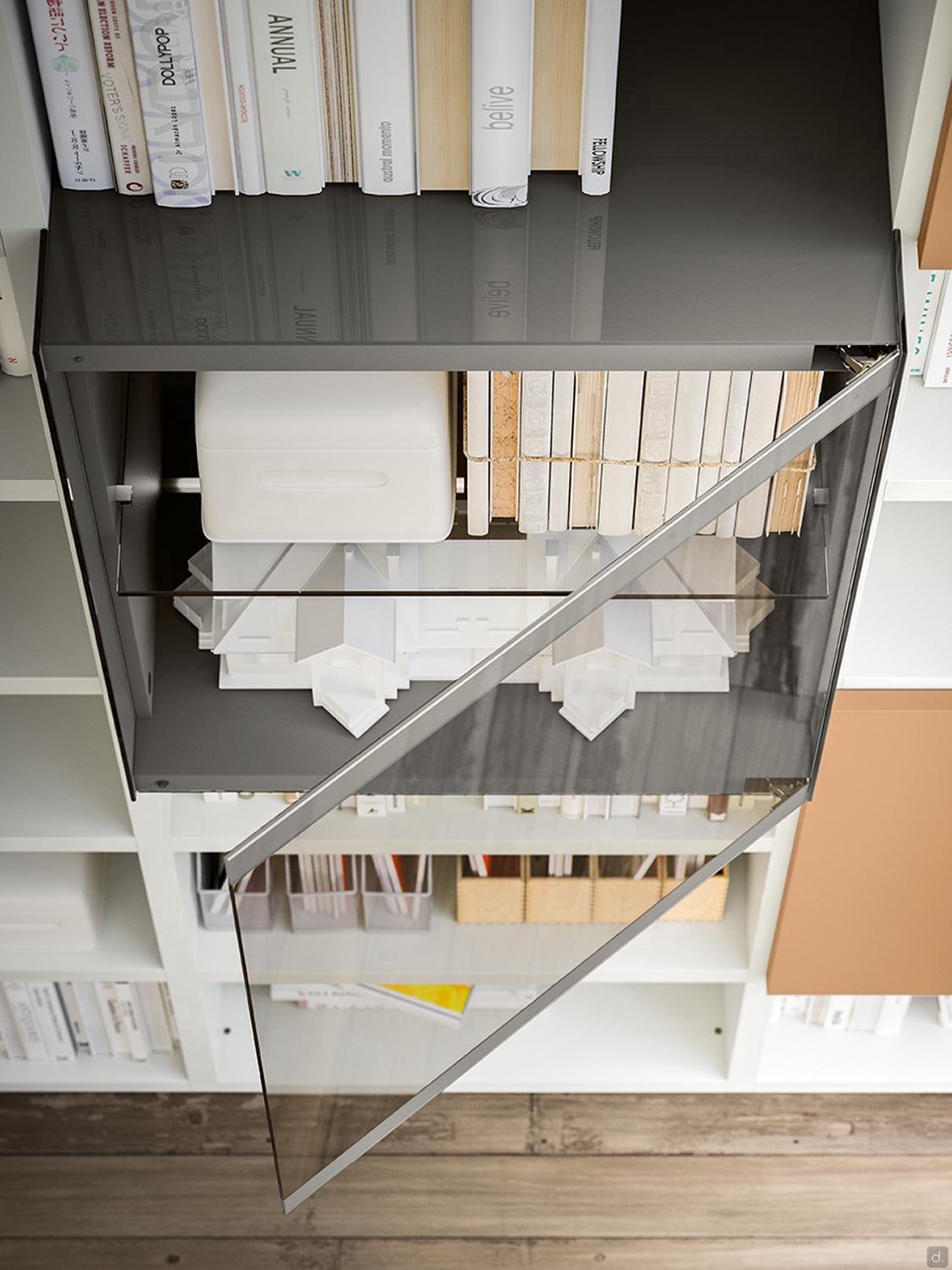

Glass drop-down door: cm th.2,2 in tempered transparent, transparent grey or glossy lacquered glass with moka shine, white or matte lacquered aluminium frame. Integrated handle matching the frame with downward or upward opening. Mechanical movement is provided by hinges.

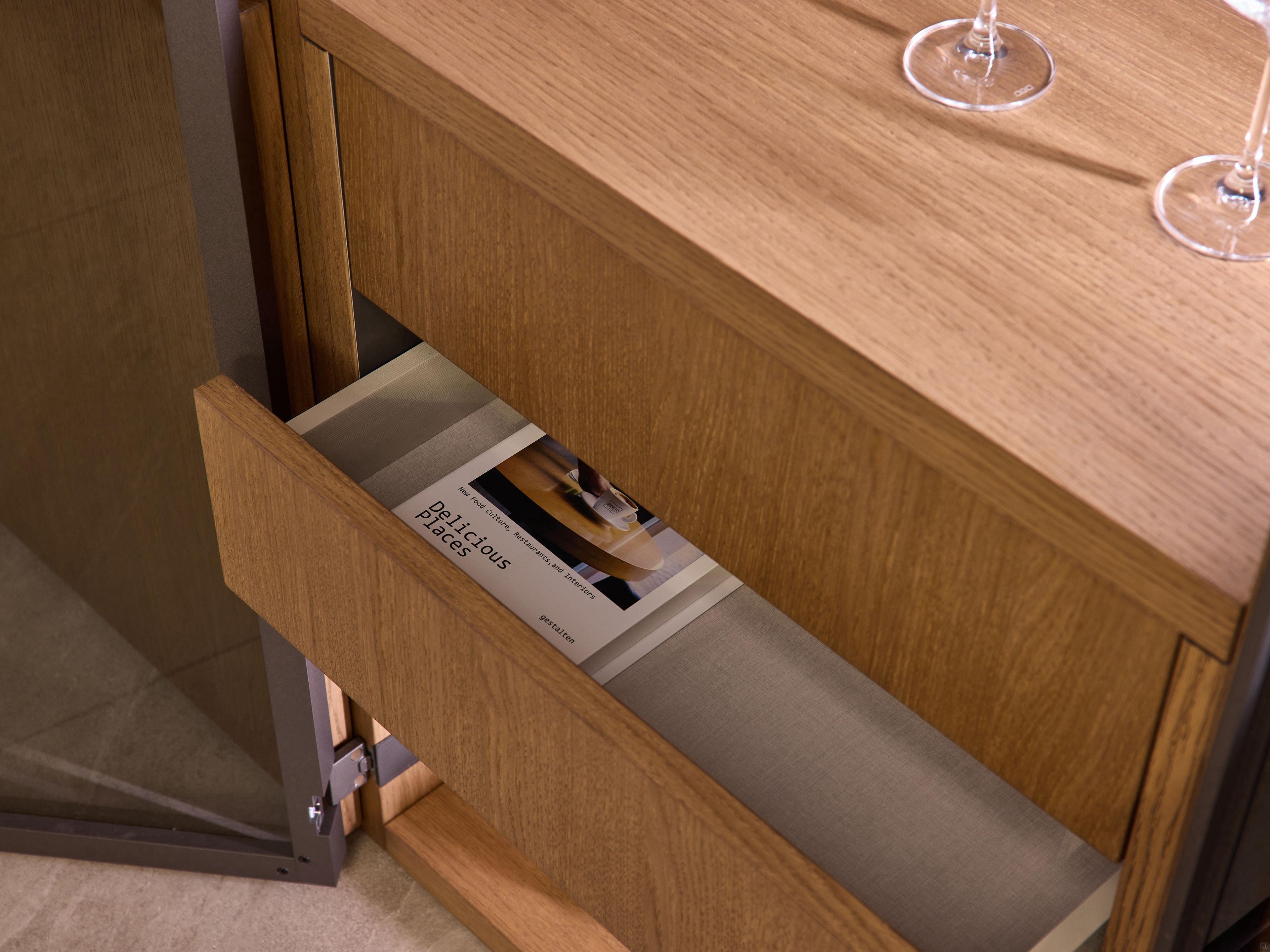

Drawer / wooden basket: cm th.2,2 in particle board (class E1 low formaldehyde emission) or MDF. Wooden edge, lacquered ABS or ABS. Opening via push-pull or M handle. Equipped with concealed full-extension runners with vertical adjustment built into the latch. Dynamic load capacity of the slides 30 kg. Assisted closing system.
Drawer / basket also offered 'in light' version with fronts reduced in width (not rebated on visible side panels).
Fixed fronts: cm th.2,2 for double-sided closing. Made in the same size as the respective front with opening. Fixed to the structure by means of pins.
Cleaning and Maintenance
Surfaces should not be placed in contact with water, liquids in general, excessive heat and moisture.
Cleaning should be done only with a damp cloth; the use of alkaline products, solvents and abrasives is not recommended. The products are not suitable for outdoor use.
Assembly Tips
Assembly of the bookcase requires:
- 2 cm in width
- 2,5 cm in height
Video
Additional Information
Area of Production
Italy
Italy
Assembling Instructions
Download the Instructions - bookcase
Download the Instructions - Bench and Desk
Download the Instructions - bookcase
Download the Instructions - Bench and Desk
Partner Factory
This is an Italian product, born from the experience and manufacturing excellence of a company which has been working in the furniture field since the 50s. A brand from Veneto region, internationally renowned and present in 81 countries worldwide. Its wide catalogue allows to furnish your entire house: wall systems, sideboards, tables and coffee table for the living area; beds, dressers and nightstands, wardrobes and walk-in closets for the night area.
Made in Italy quality is one of this company strengths: all furniture items are designed and manufactured in Italy, and undergo constant quality controls throughout the whole production process. Each item has been created directly from the experience and skill of a variety of designers and craftsmen: a custom made production relying on carefully selected products, and technologies and innovation always up to date. All the steps of the manufacturing process are carried out with utmost environment friendly techniques. This renown company produces high quality furniture able to last through time maintaining its original look and characteristics, and most of all to adapt to the lifestyles and trends of the models, becoming thus suitable for all kinds of houses.
