Materials Specifications
Panel, shelf, uprights, floor panel: made with E1 class particle wood panel with low formaldehyde emission.
Profile with rack: anodized aluminium passage 32 mm.
Technical Specifications and Equipment

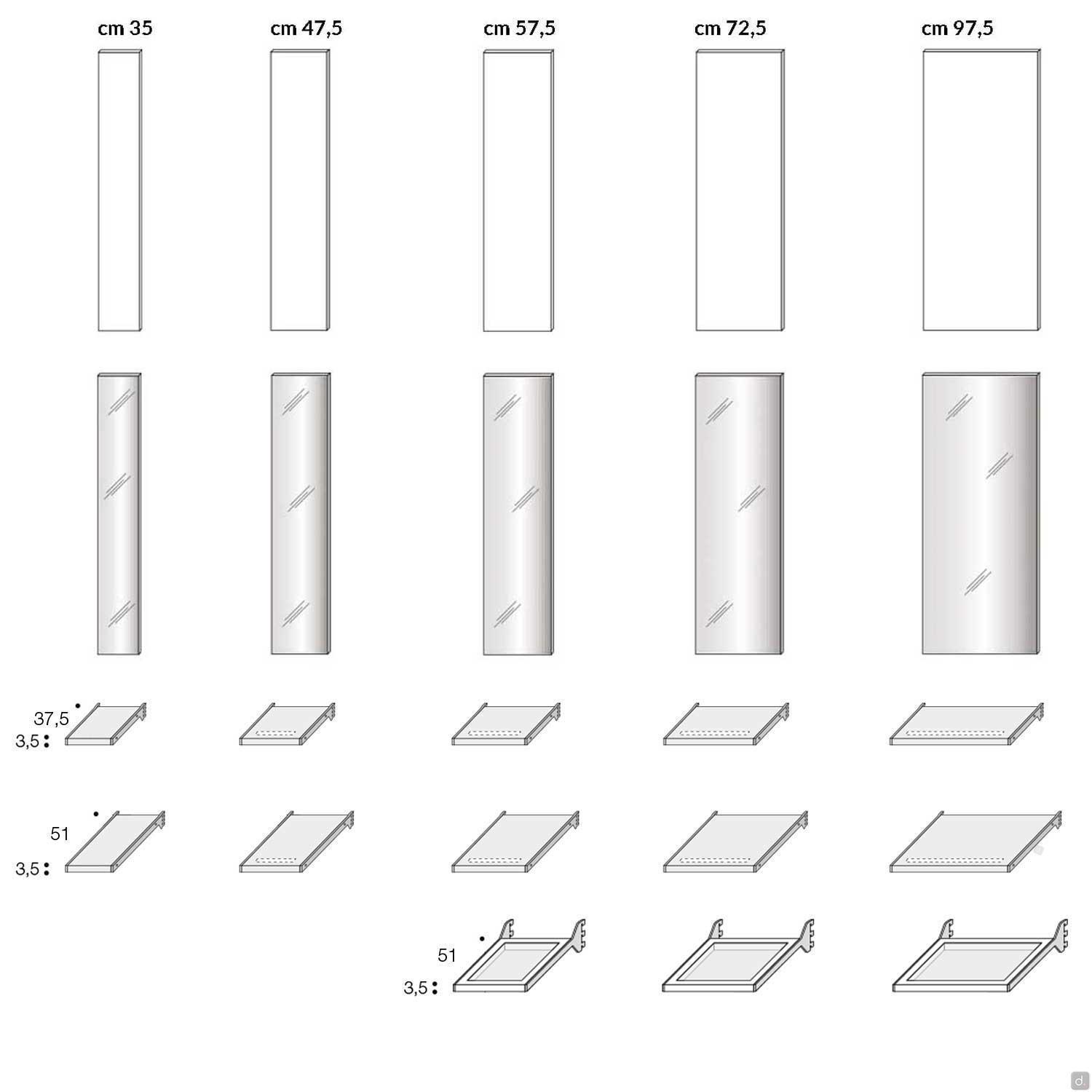

Panel: cm th.2.
- wood version: melamine or matt lacquer with polyurethane paints;
- mirror version: melamine panel with melamine paper th.1,5 + Silver or Dark mirror cm th.0,4.
Shelf: panel equipable with n.1, 2 o 3 shelves cm th.3,5. With metal brackets.
- wood version: melamine or matt lacquer with polyurethane paints, board in ABS matching the panel;

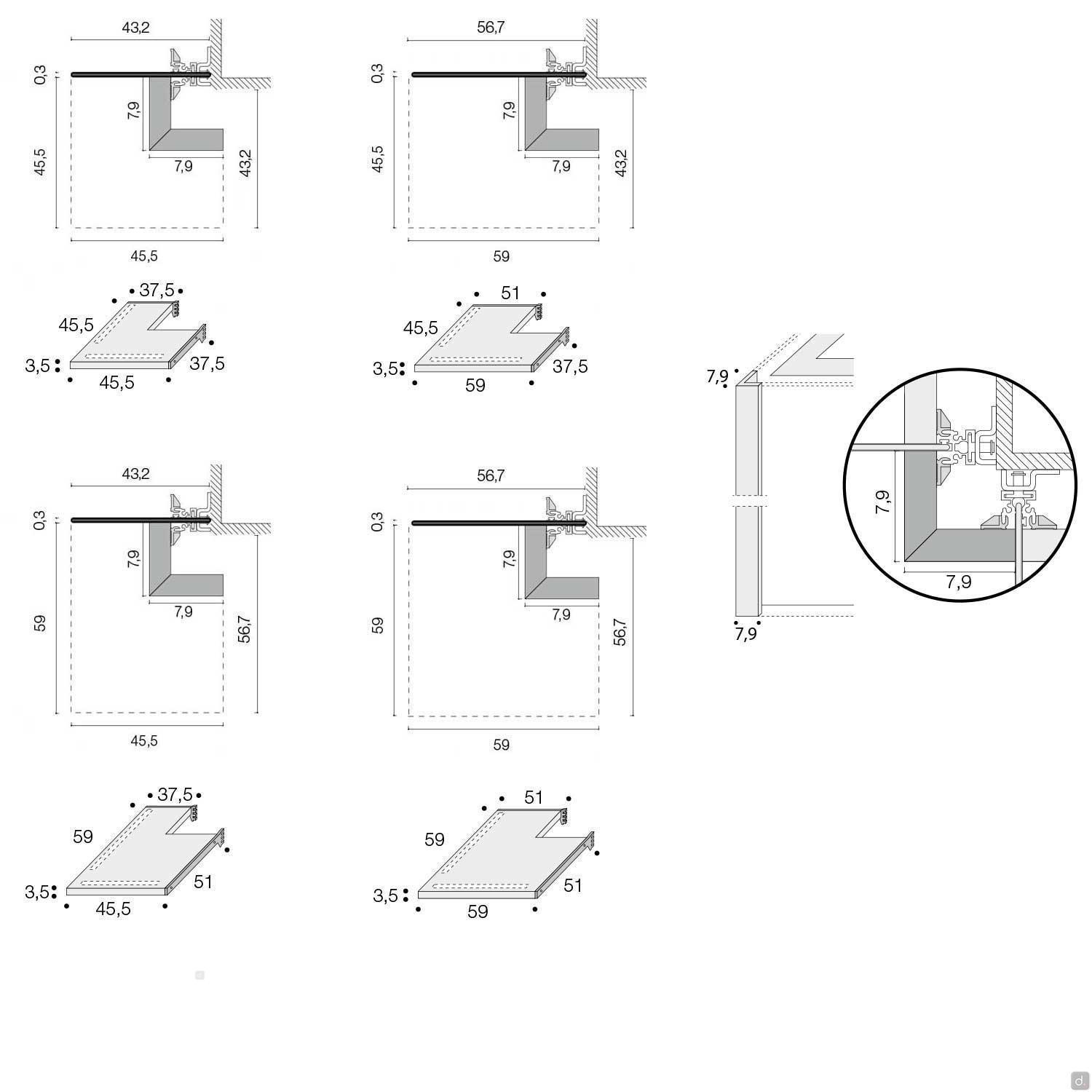

- glass version: 4 sided aluminium frame with section cm 3,5 x 2,4 in Gunmetal, Brown or Palladium finish inside in which transparent tempered glass cm th.0,4 is inserted (only available for walk-in closet cm d.56,7).
Shelf Brackets: cm th.0,3 metal with epoxy powder coating in Gunmetal, Brown or Palladium finish, complete with three-dimensional regulation.

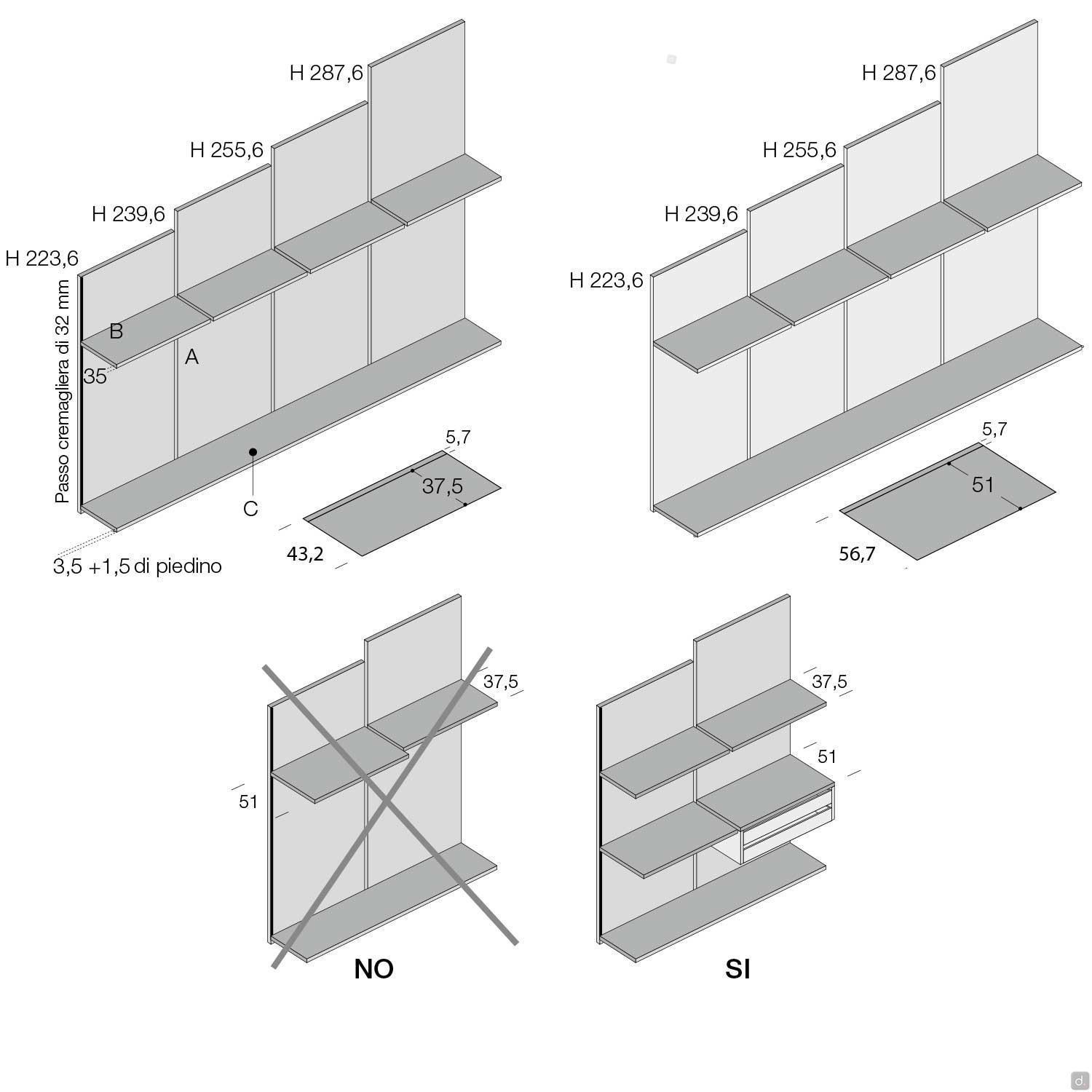

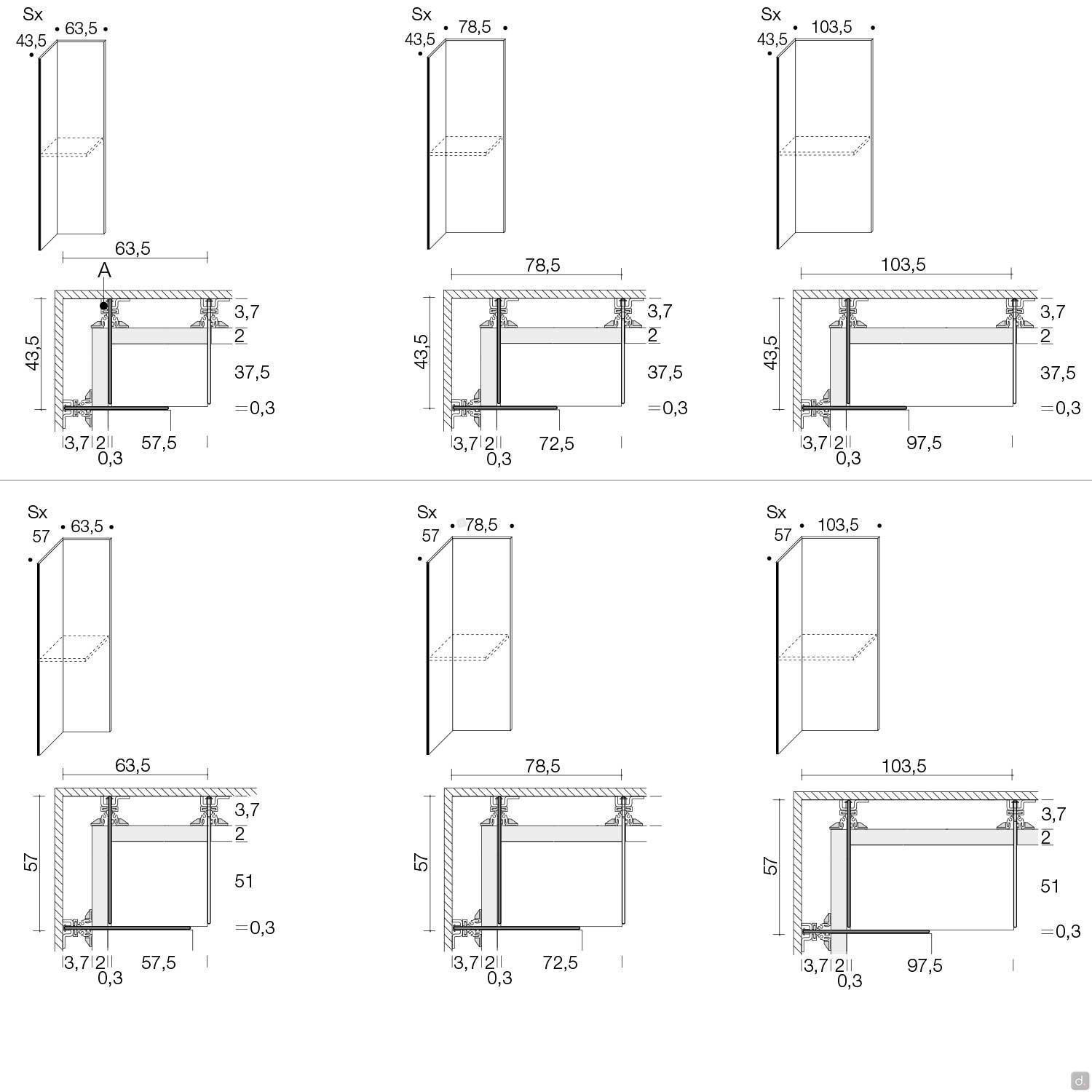

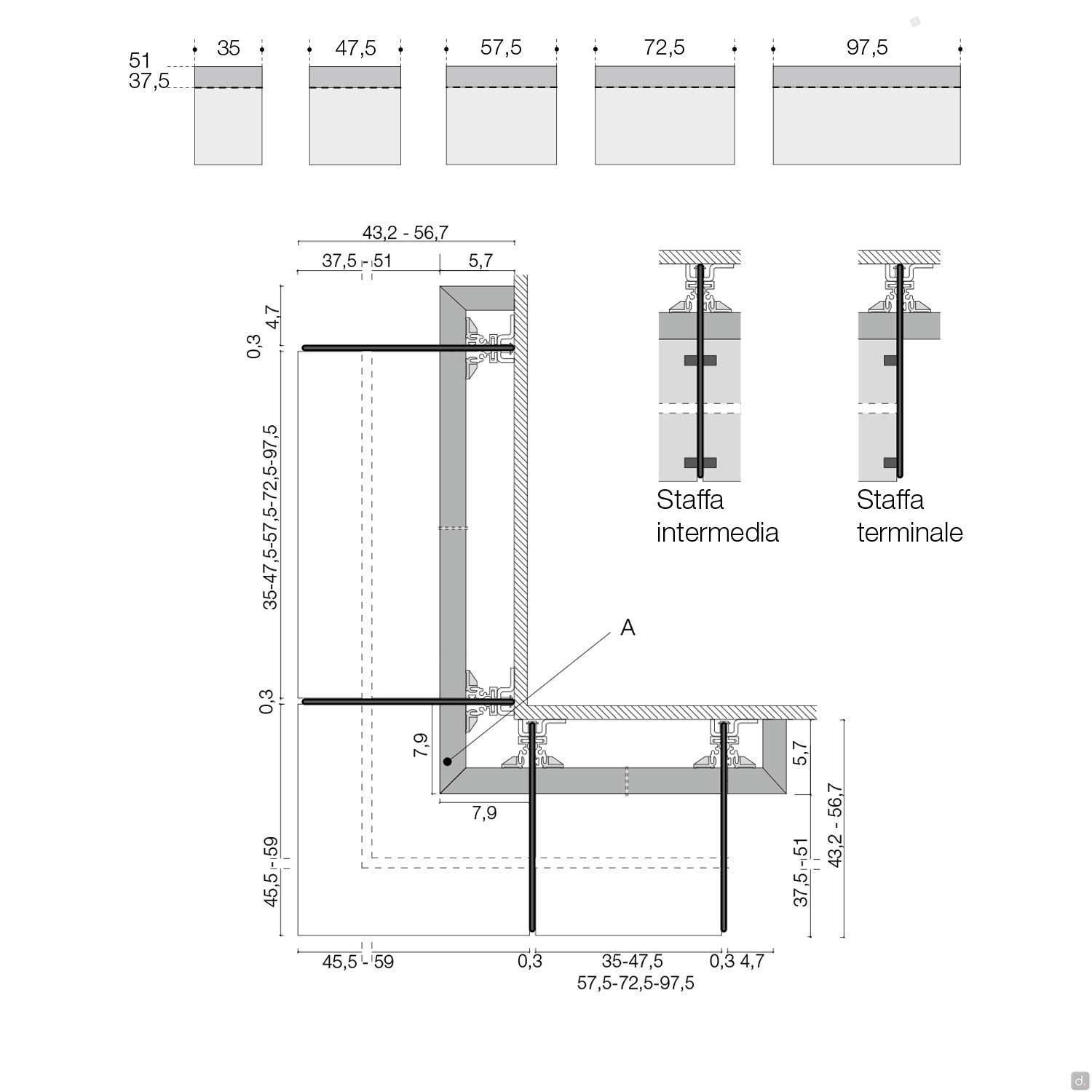

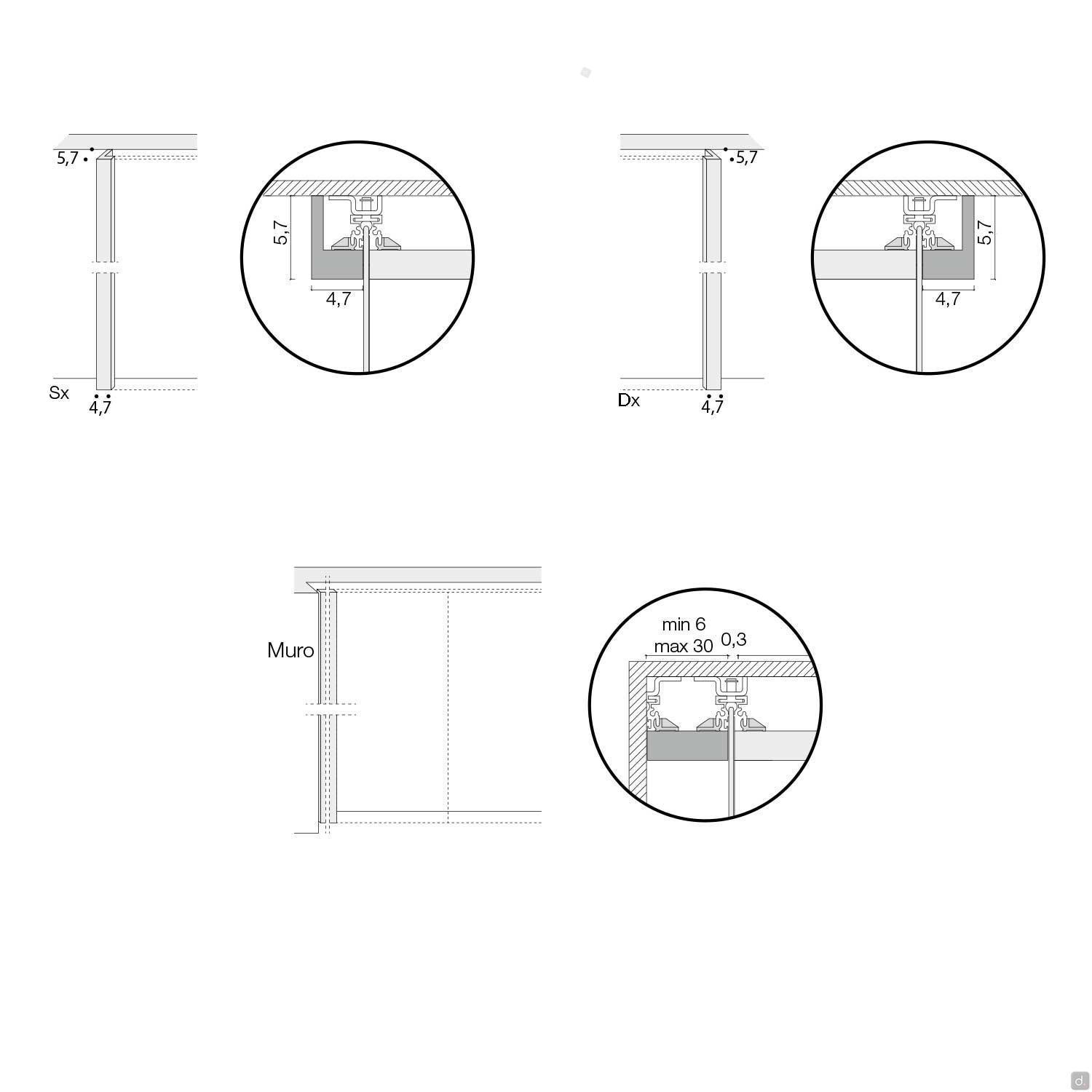

Infill Upright: cm d.5,7 is mandatory and to be placed at the initial and final point of the composition.
- standard: cm 4,7 in textured melamine or matt lacquer with polyurethane paints;

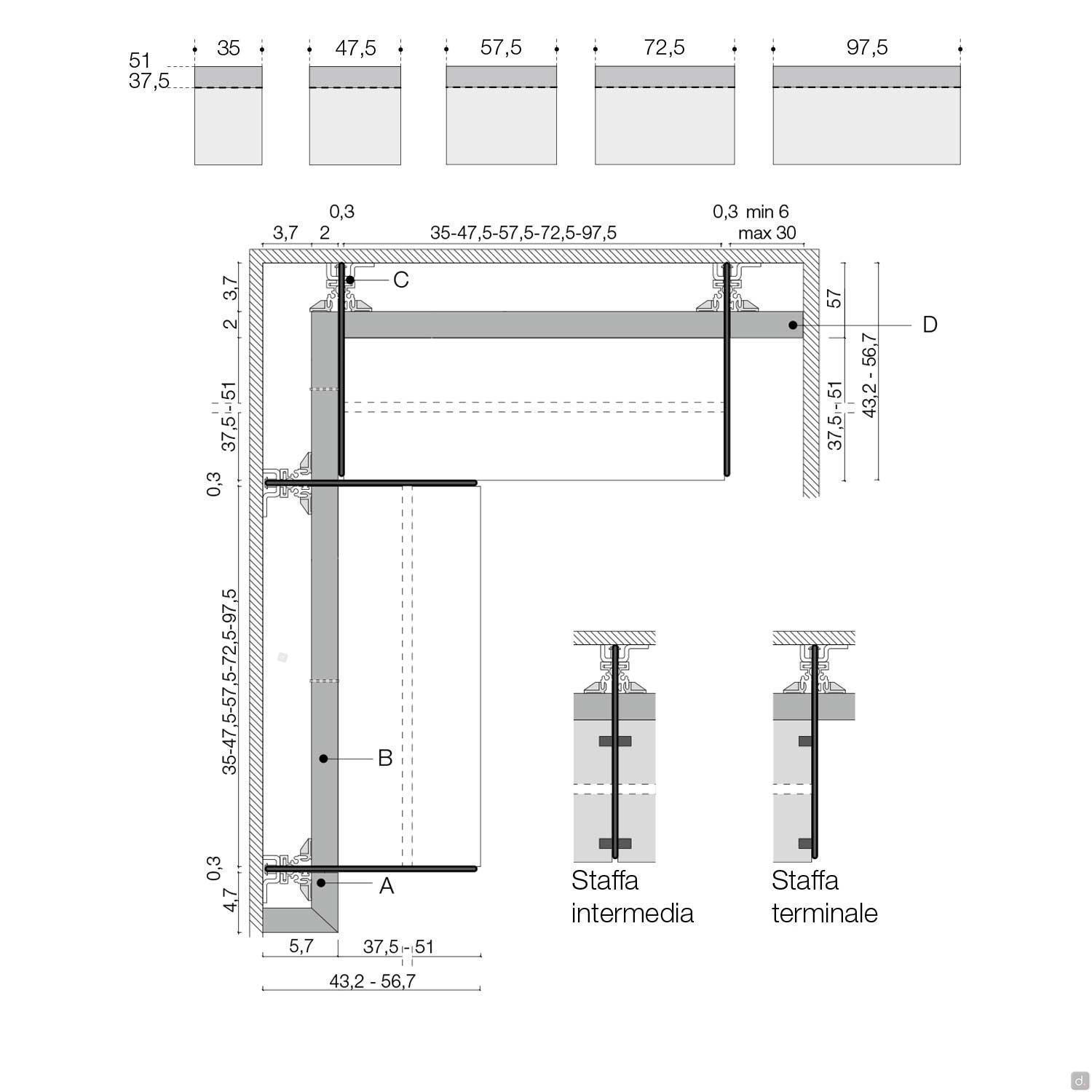

- custom: min. cm 6 / max. cm 30 with panel cm th.2 textured melamine or matt lacquer with polyurethane paints; to be placed as infill band on the wall (instead of the standard upright at the initial or final points).

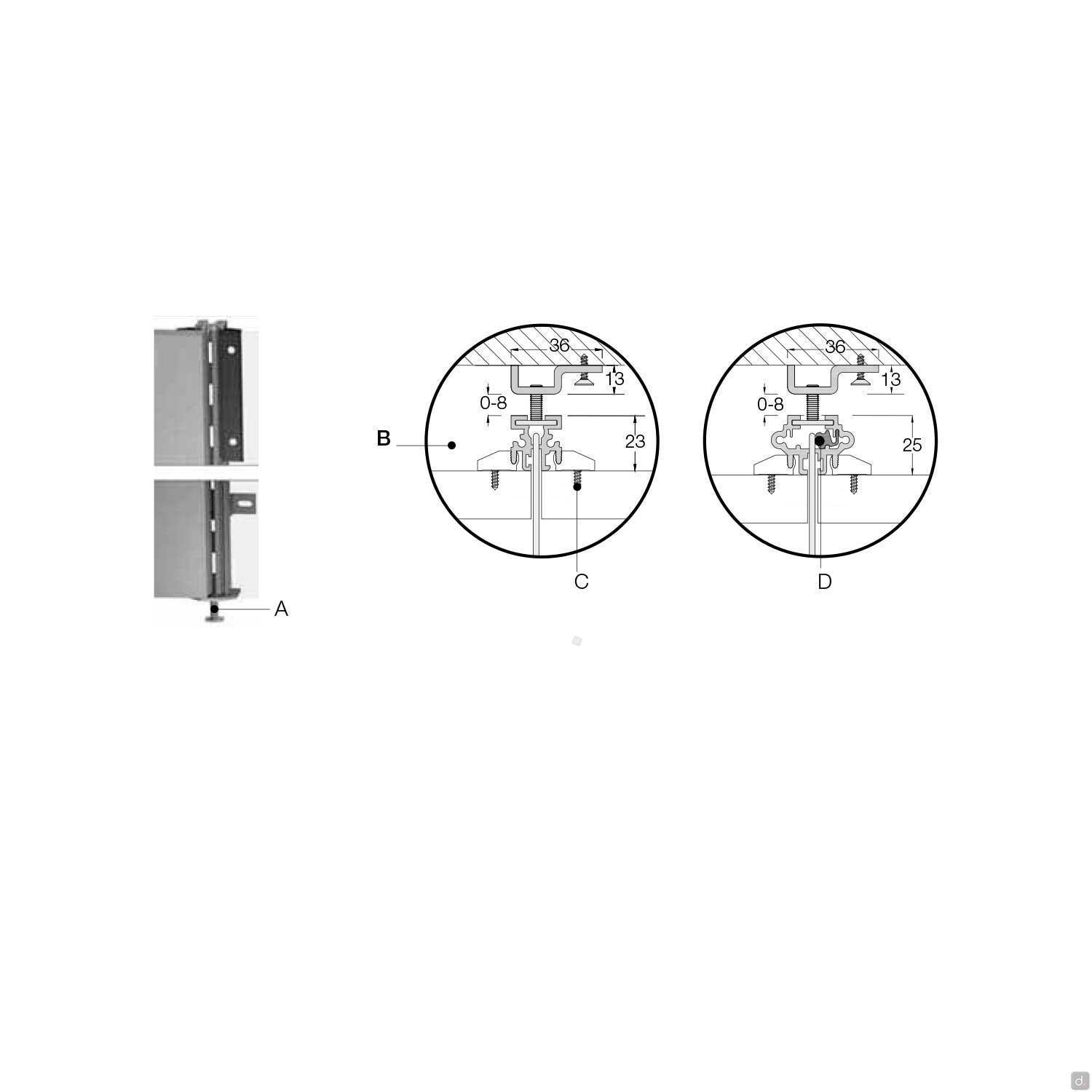

Please note: final upright with profile with rack (+ cm 0,3).

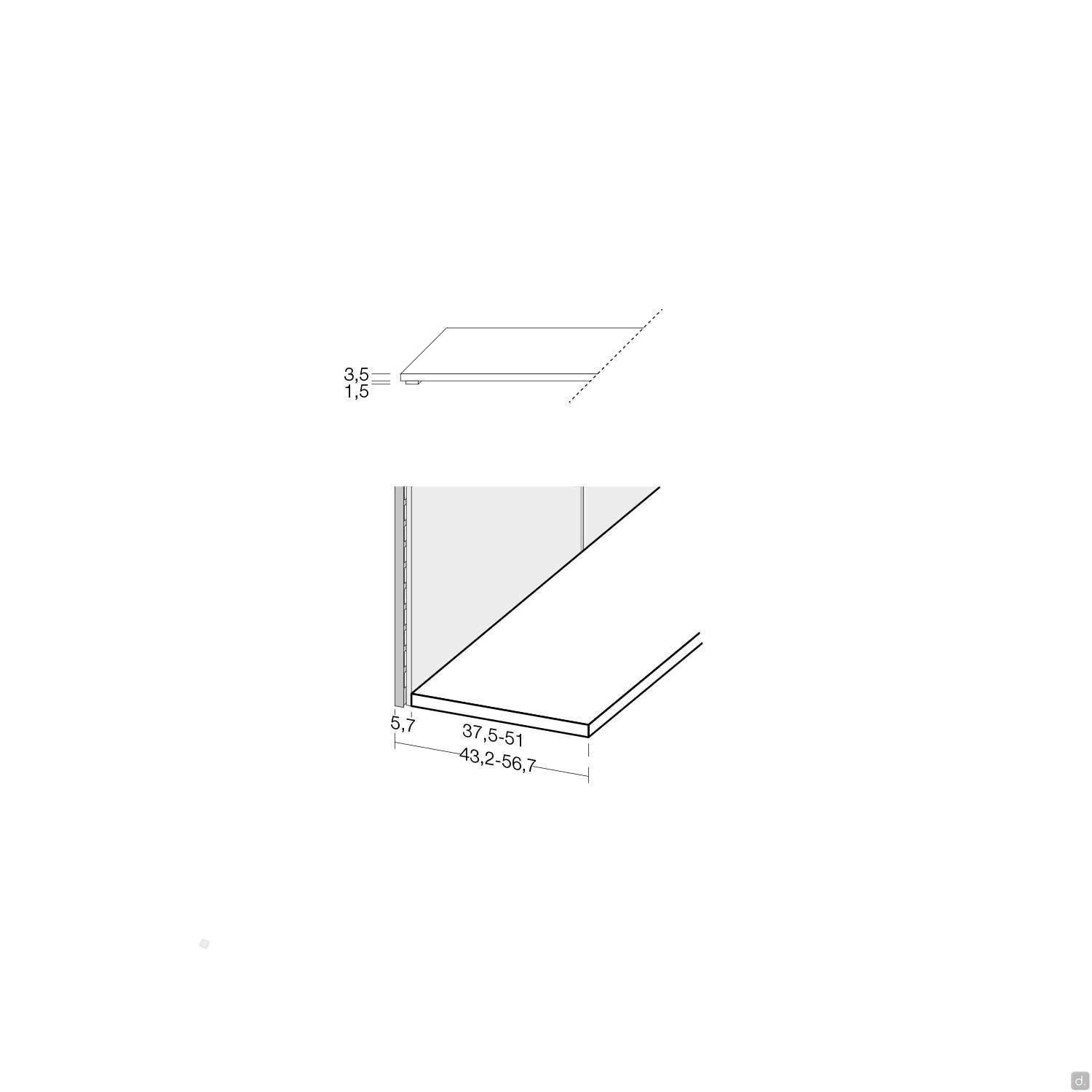

Floor Board: custom width in textured melamine, matt lacquer with polyurethane paint, metallic lacquered or wood essence. Thickness cm 3,5 with adjustable feet(+ cm h.1,5). ABS edge matching the panel
Optional - Shelf
pull-out hanging rail: for closet cm d.43,2. Burnished aluminium rails and pull-out hook in opaline white.
hanging rail: for closet cm d.56,7. Rectangular section cm 3 x 1 in Gunmetal, Brown or Palladium painted metal with transparent anti-slip rubber. Supporting metal tube cm 2,4 x 1 h.7,7.
LED bar: 3000 K LED light with electricity transmitted thanks to the contact between the brackets of the stainless steel shelf and the profile with electrified rack, equipped with a power cable that comes out upward to be connected to the power supply (located in the gap between panel and wall).
Lights switching with connection to domestic power grid or with remote:
- remote kit (optional): remote kit is needed to use the radio-frequencies switching, it holds power supplies up to 3000 W. It can be used for all the lighting systems (if you use more than one power supply, consider buying a multi-socket power strip).
Assembly Tips
The following are required to assemble the walk-in closet:
- 1 cm in width
- 1 cm in height
