Technical Specifications and Equipment

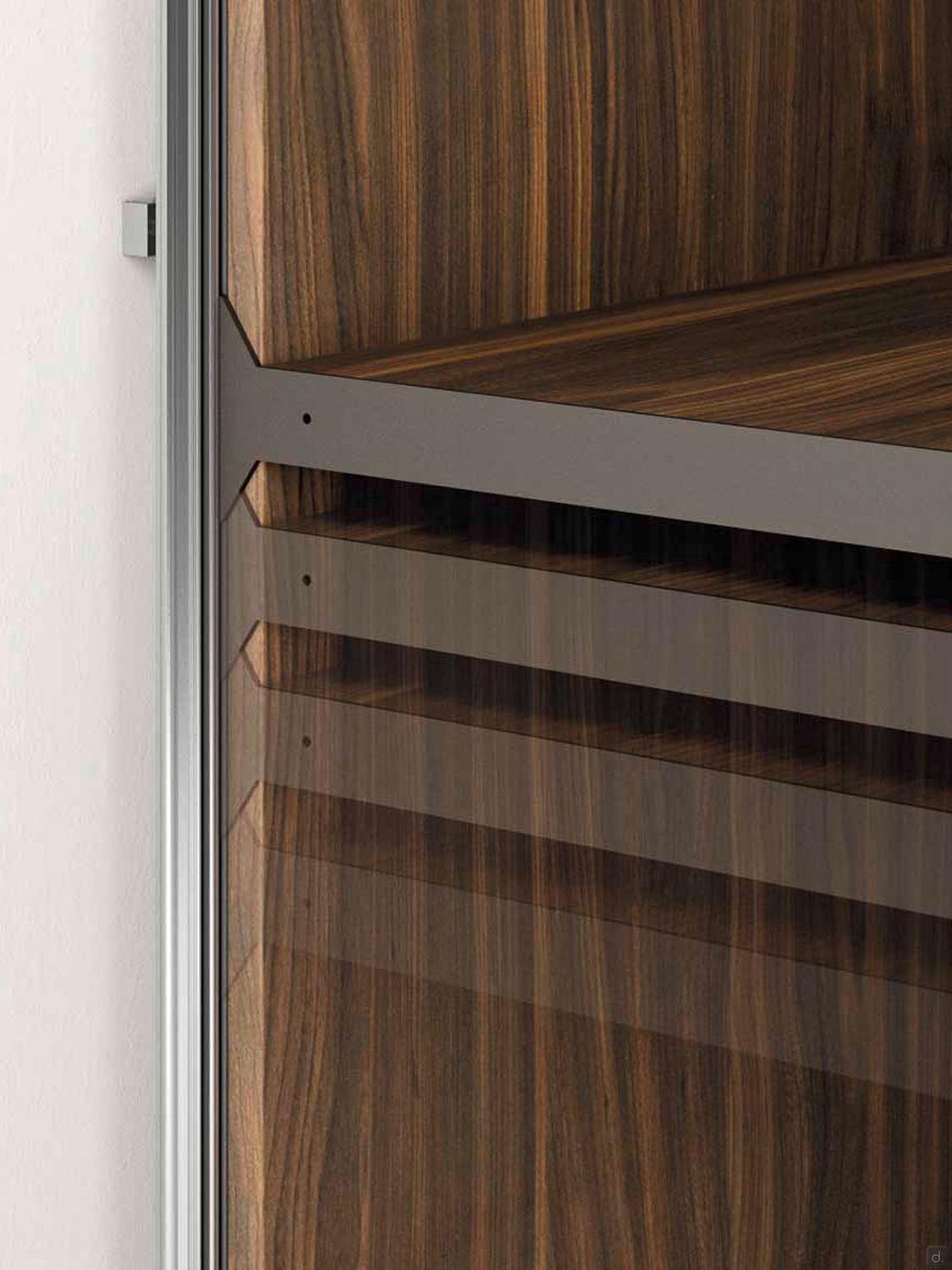

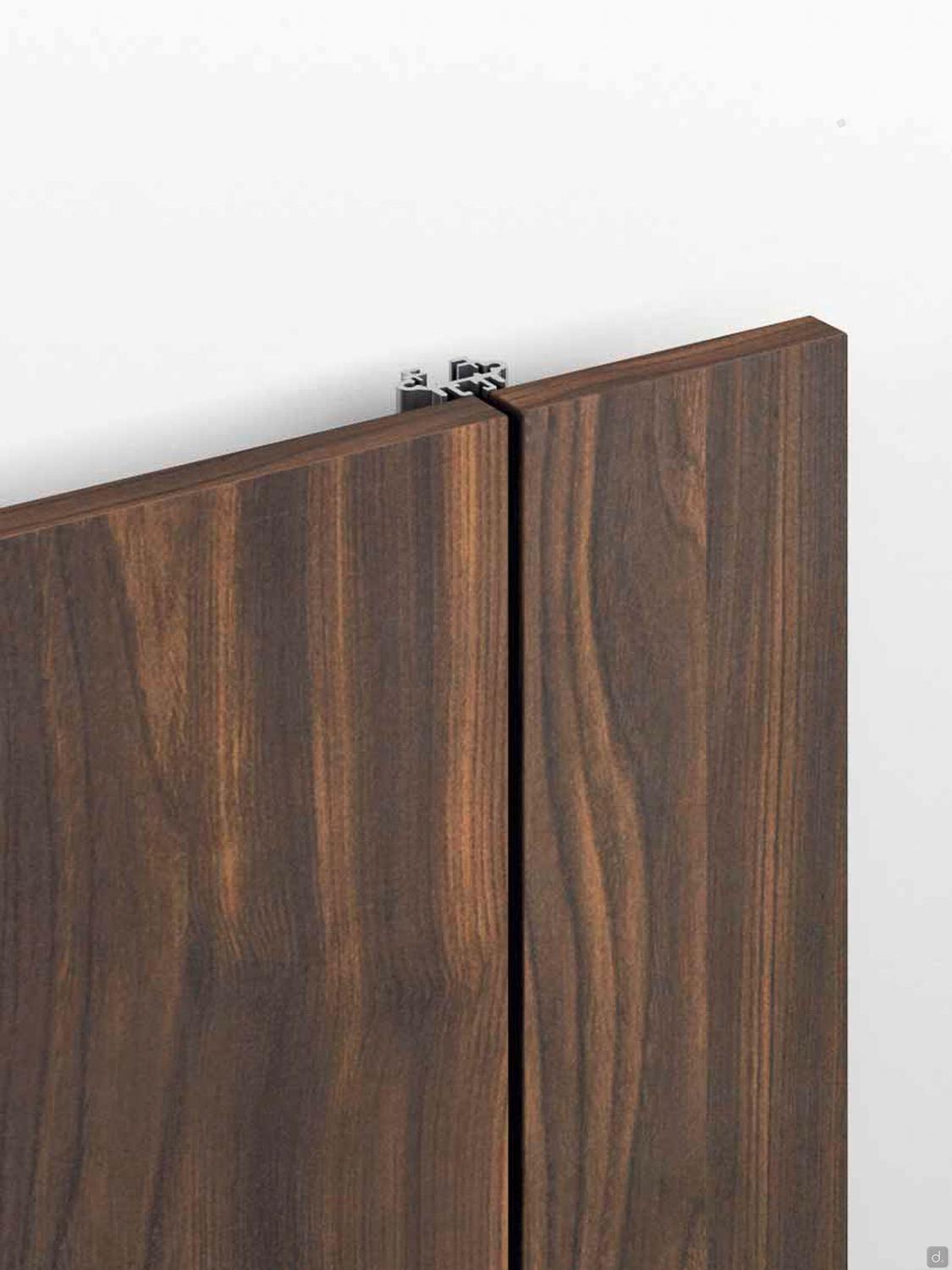

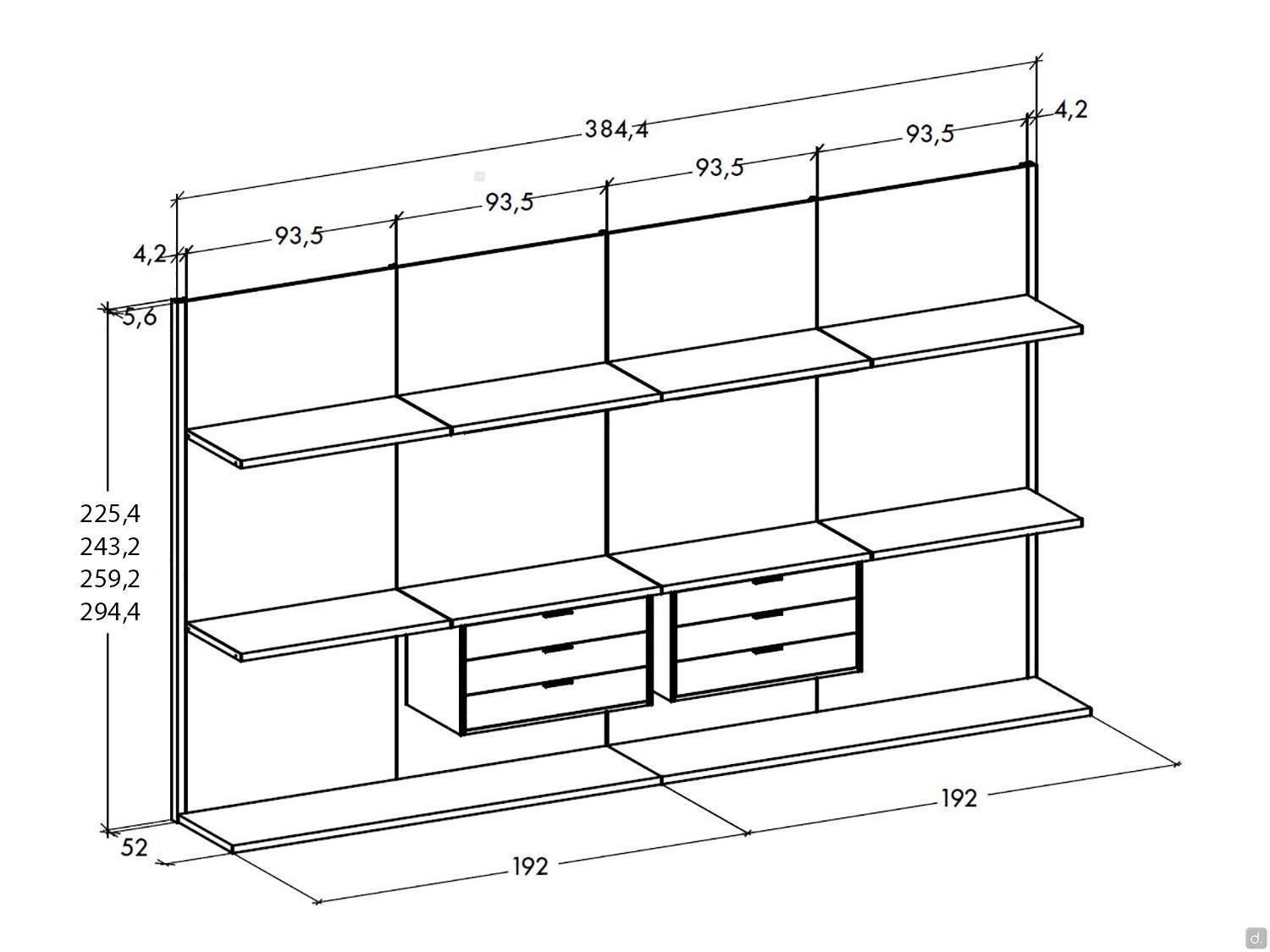

Rack Profile: cm 3,5 d.4,2 h.225,0 shaped with 3,2 cm space between the pre-fixed hooks for free positoning of equipment. In brown finish aluminium, also available with electrification for the passage of current (in the presence of accessories with LED bars).

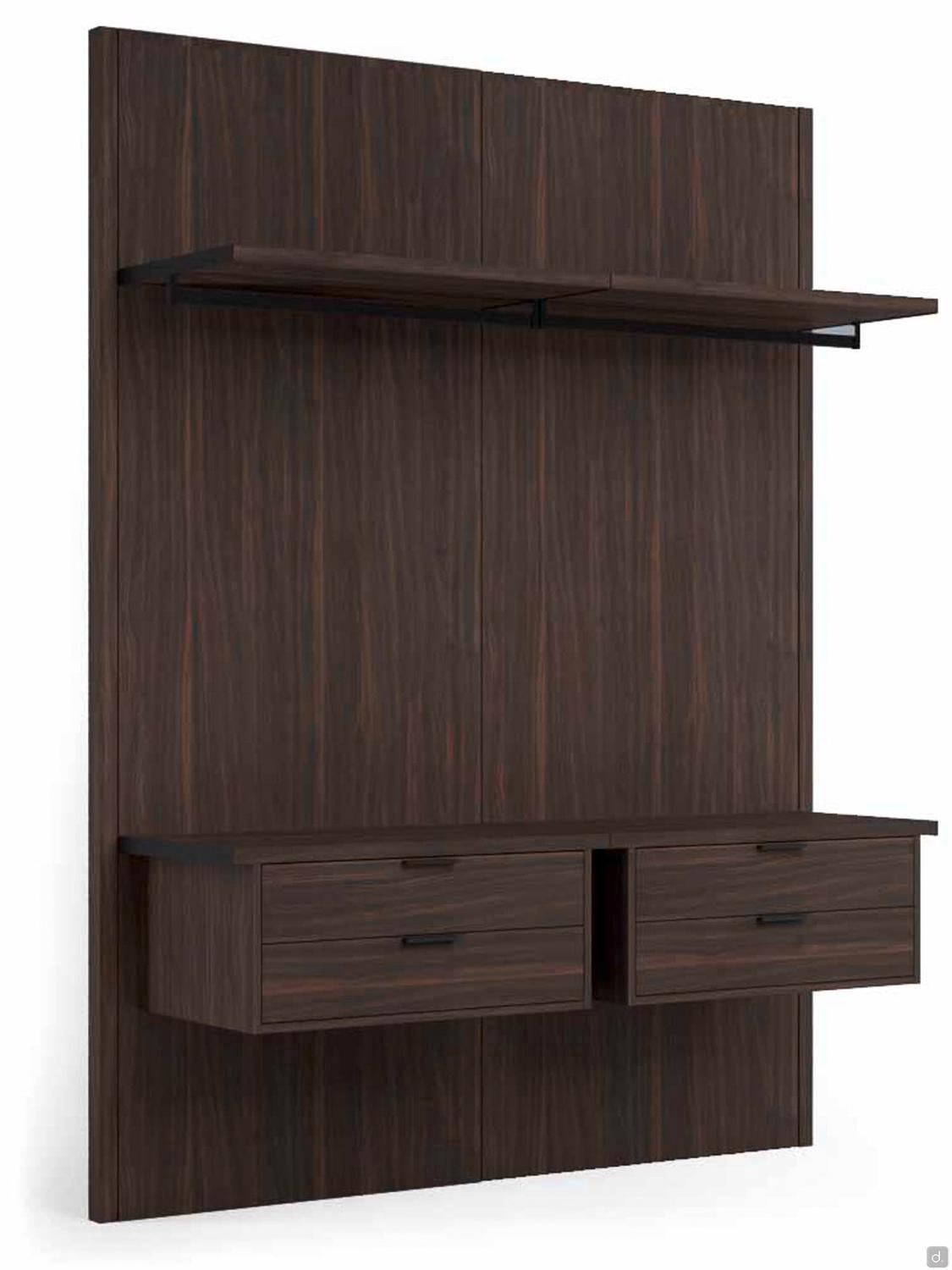

Panel: cm h.224,6 th.1,8.
- Wood version: in melamine-faced, matte lacquered or metallic MDF, veneered in open-pore or aged oak or covered in fabric or faux leather.

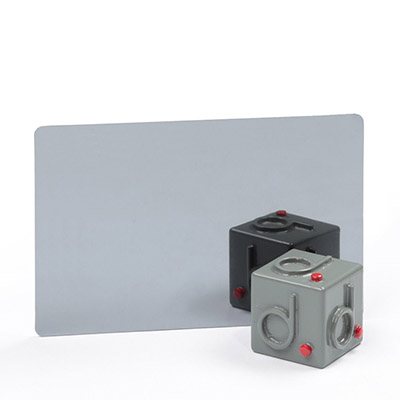

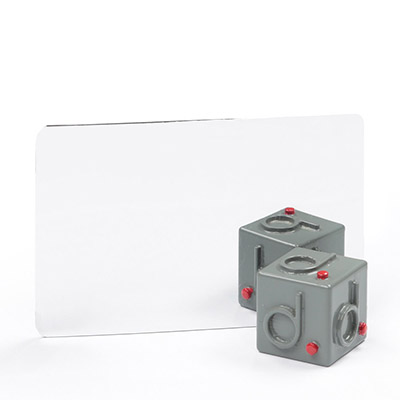

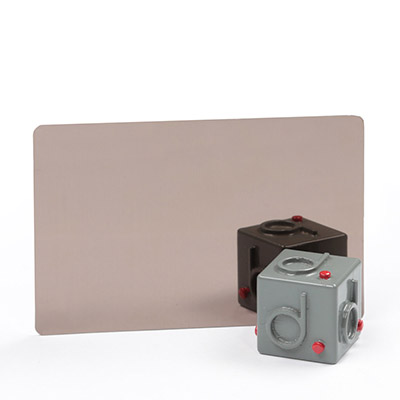

- Mirror version: 1,4 cm thick MDF panel + 0,4 thick natural, bronzed or smoked mirror.

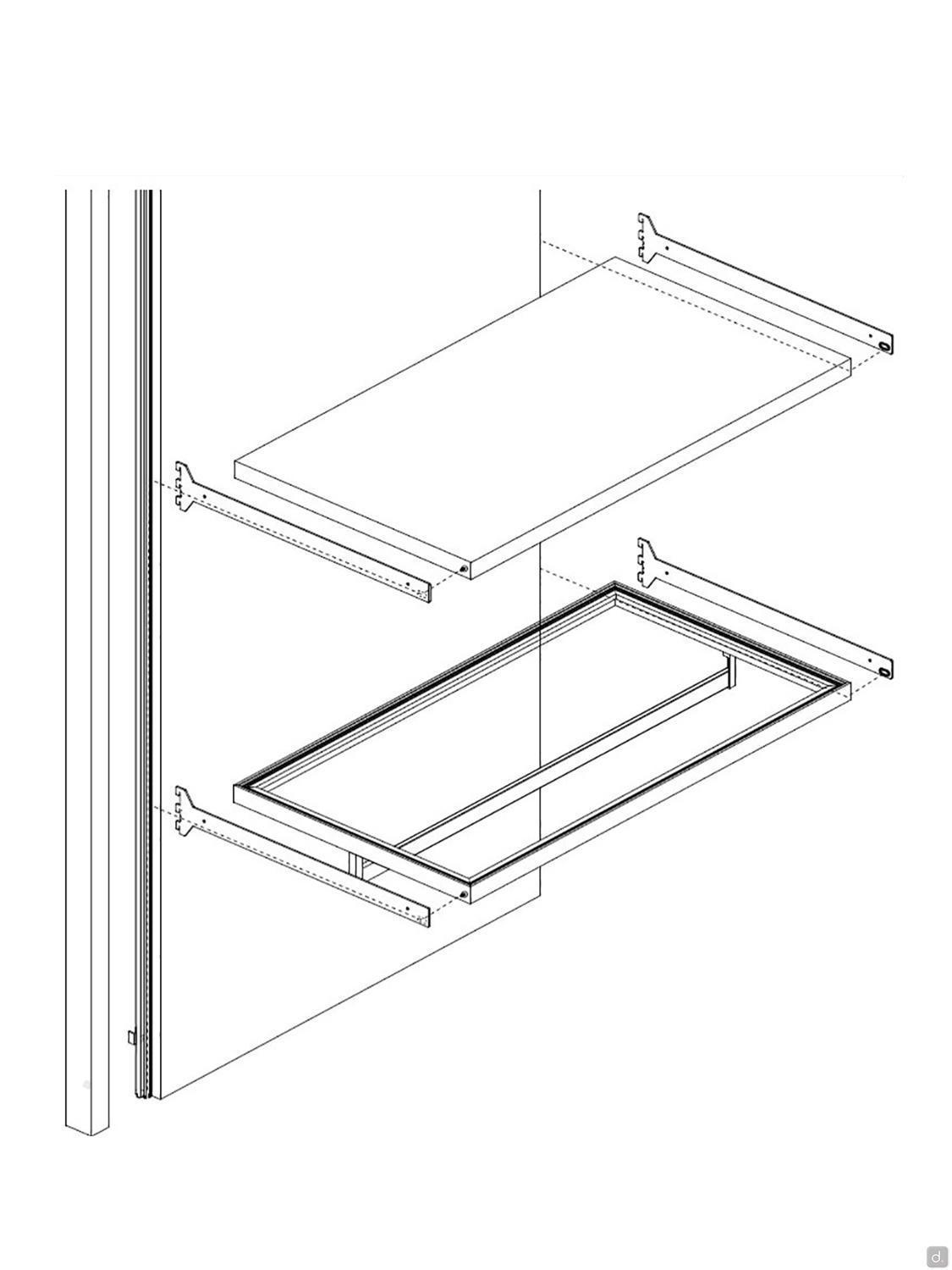

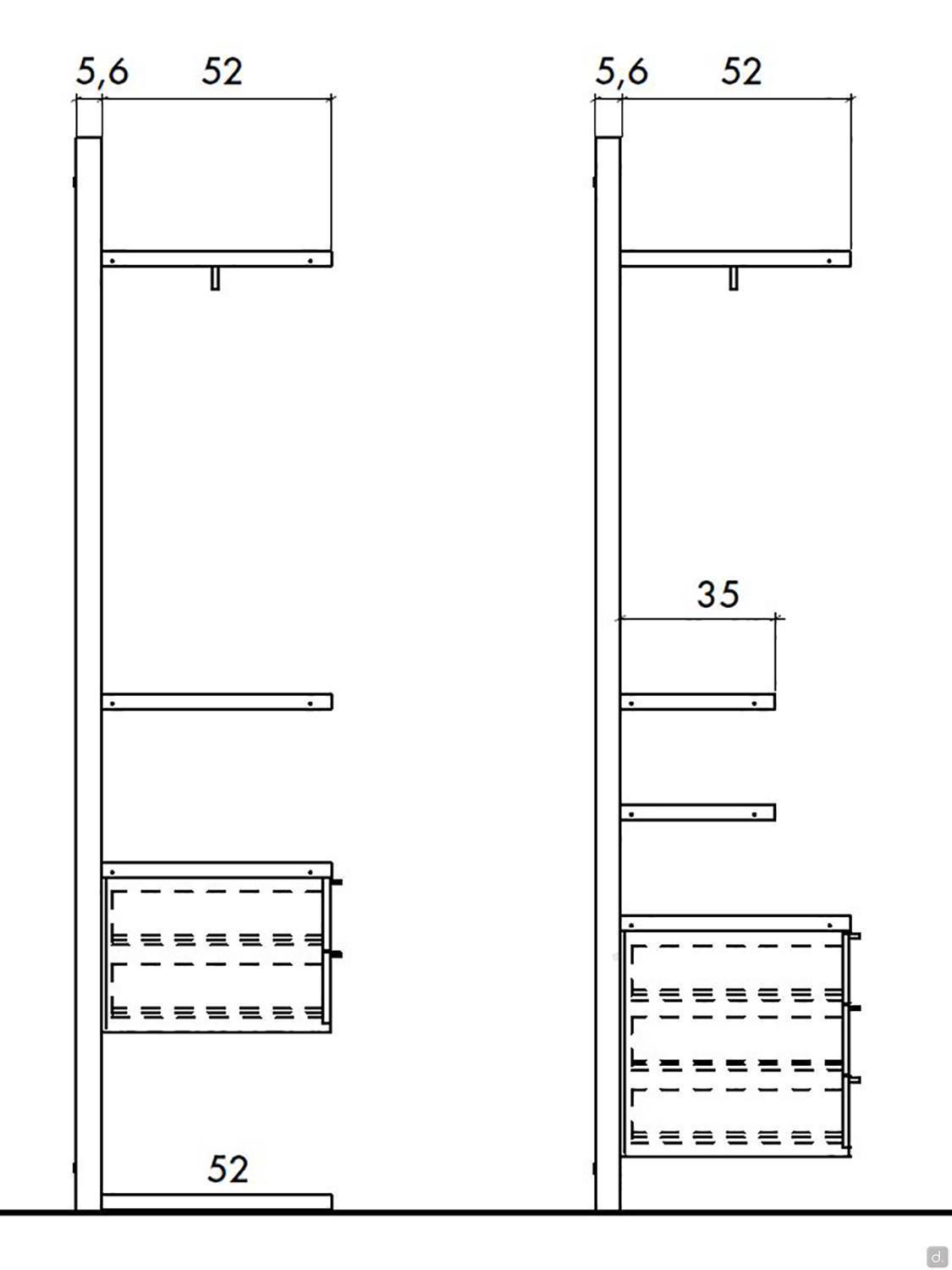

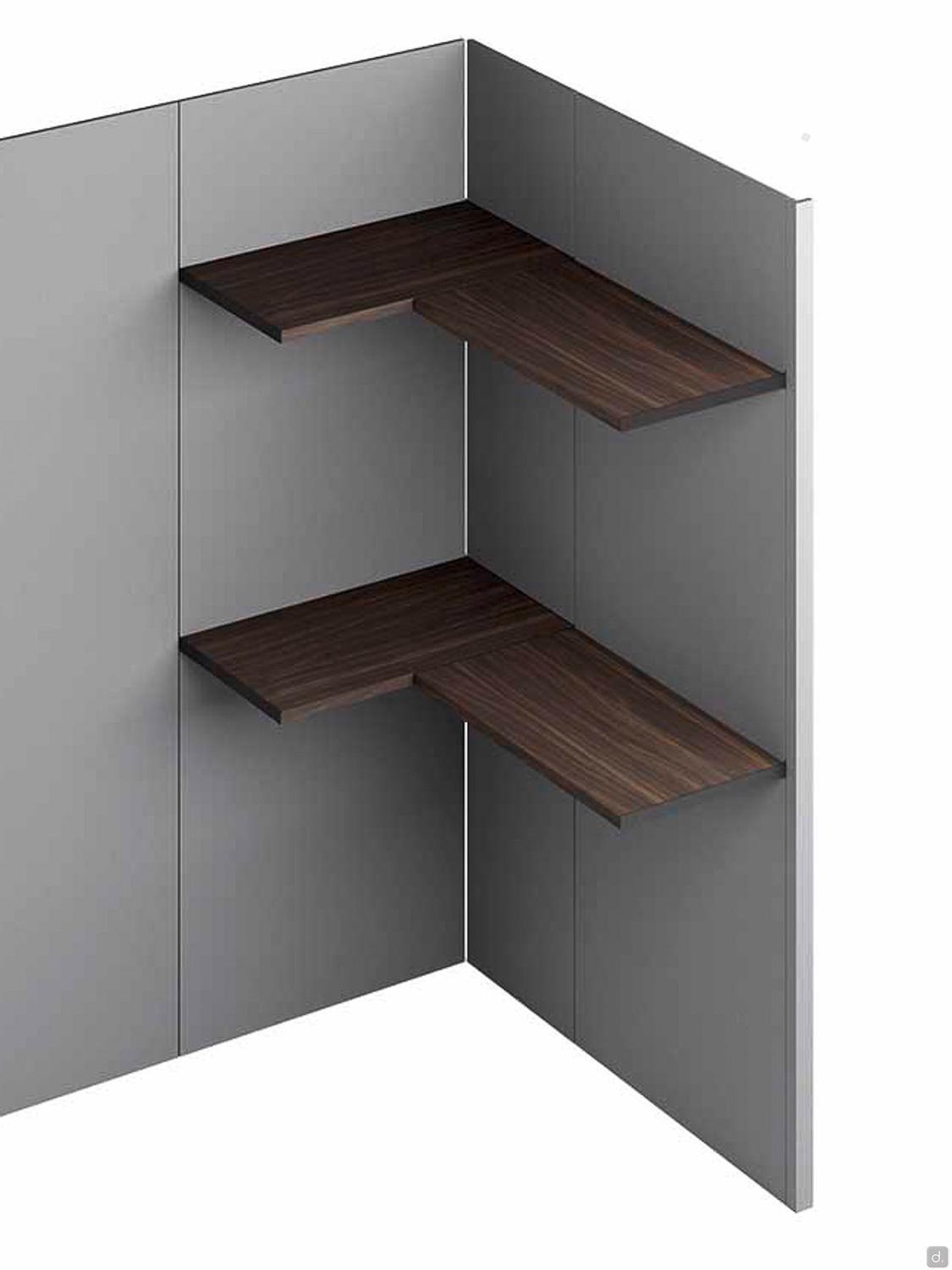

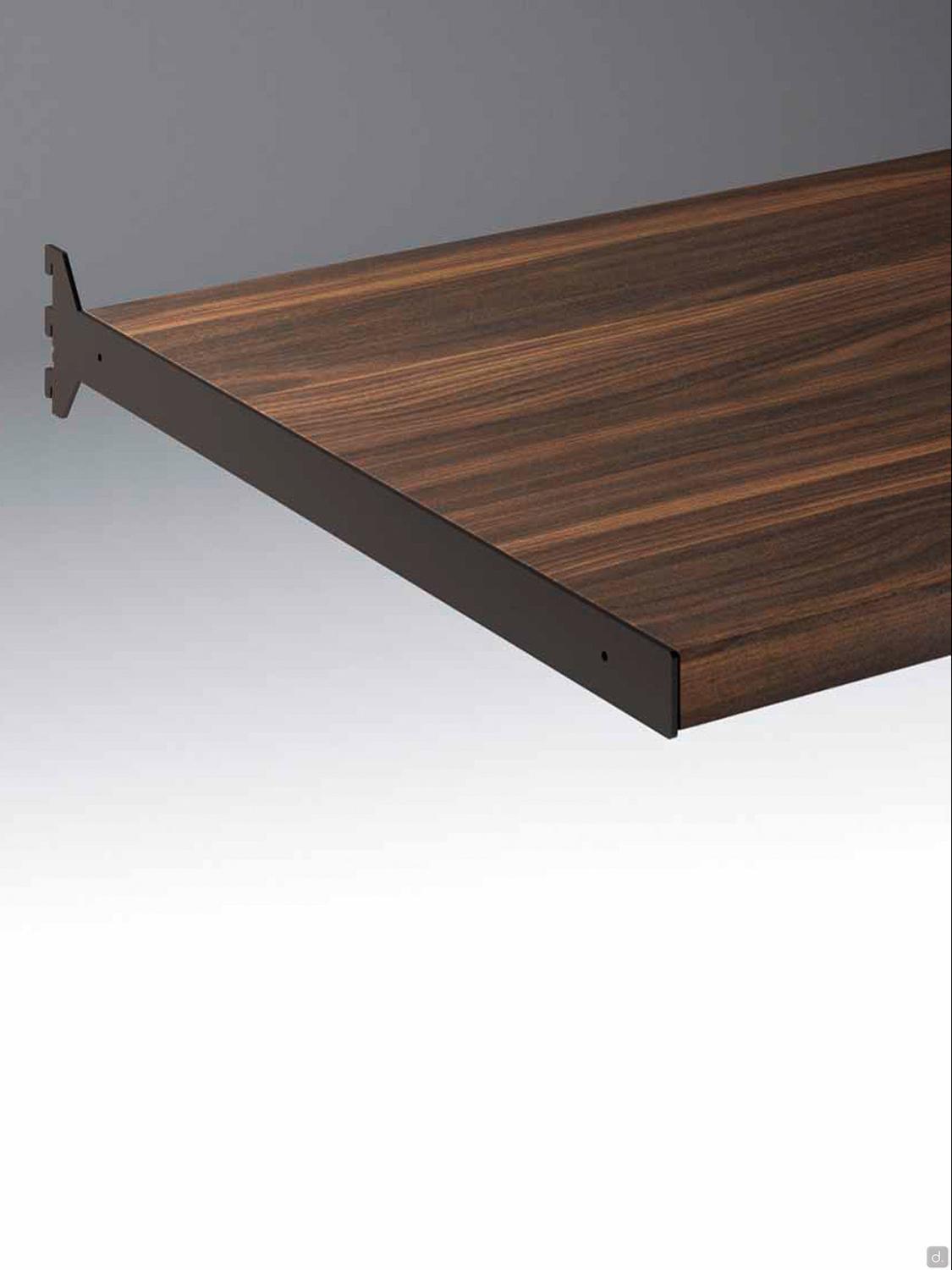

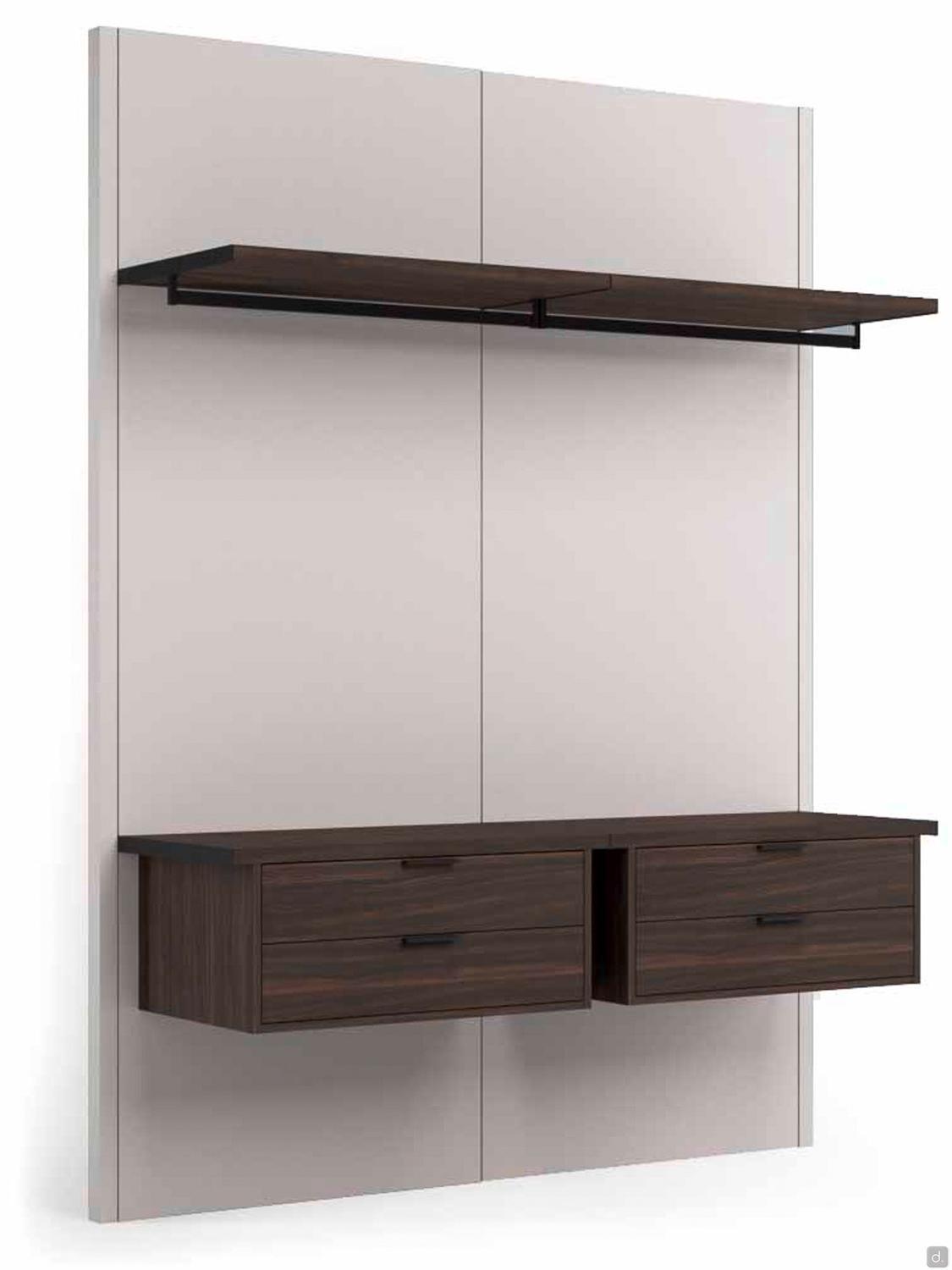

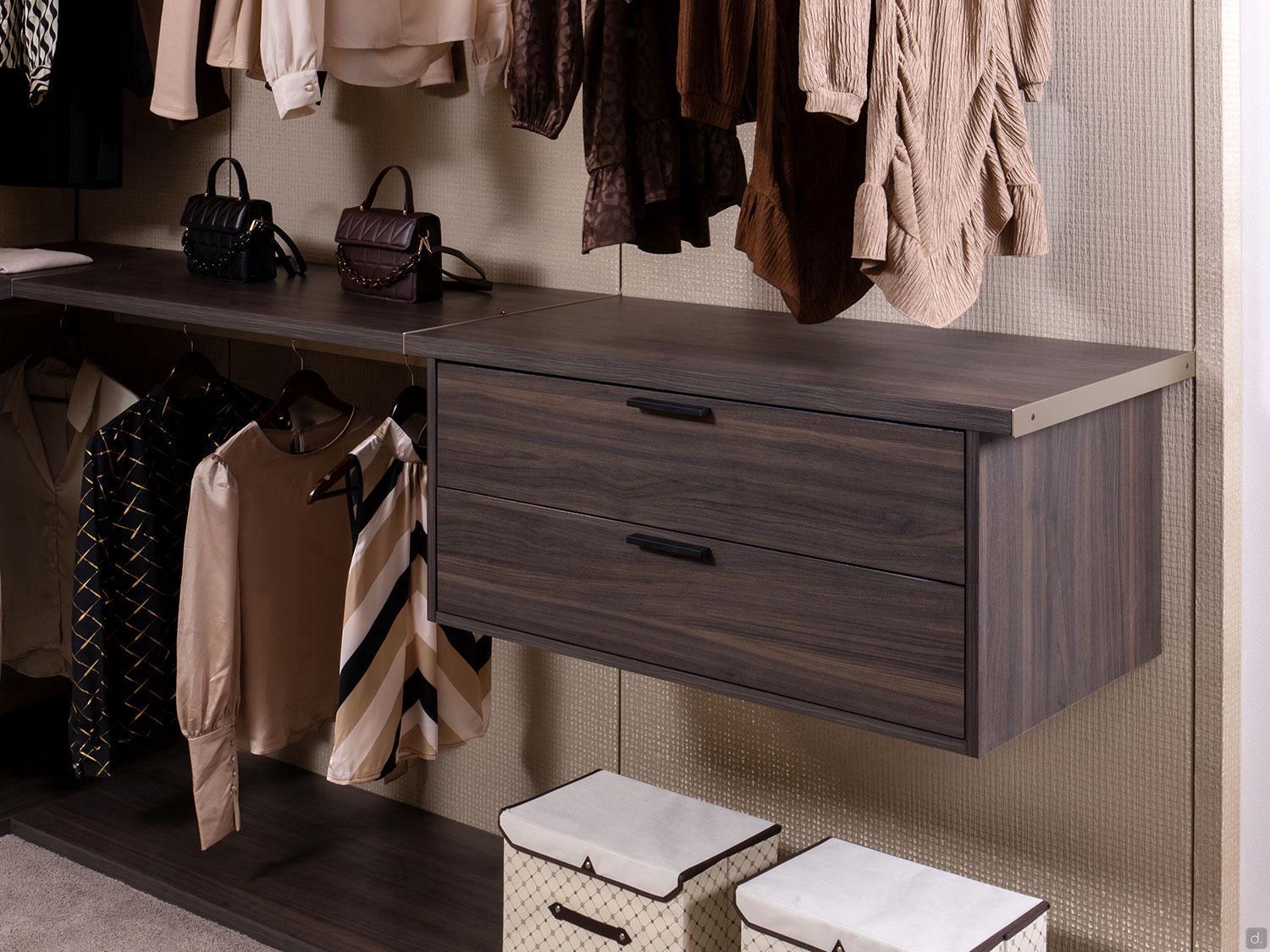

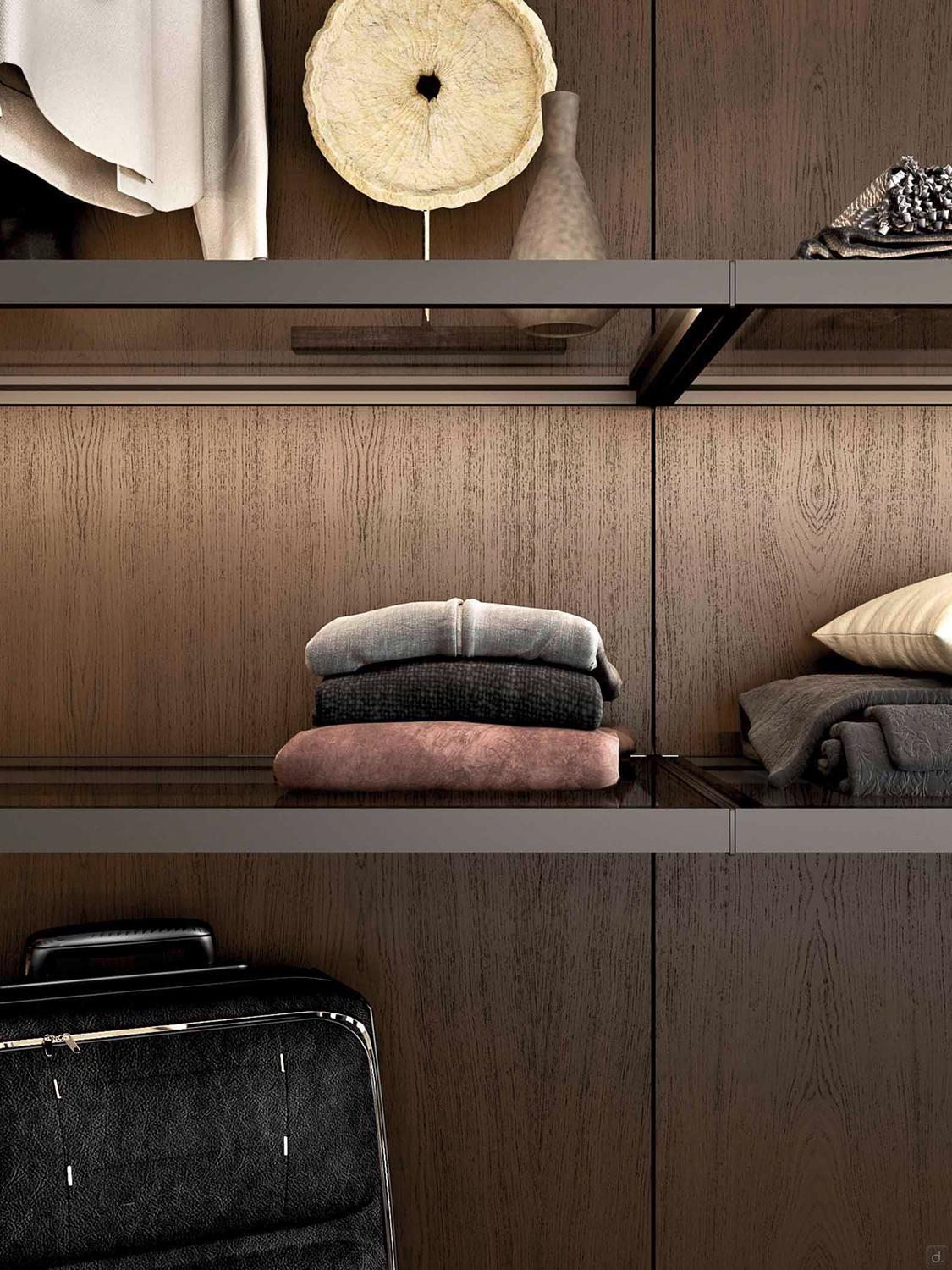

Shelf: panel can be equipped directly i the product sheet with n.1, 2 or 3 wooden shelves (other equipment in separate sheet). In honeycomb-core wood with solid pine frame, 3.2 cm thick, available melamine-faced, matte lacquered, metal lacquered or open-pore oak veneer, which can be equipped with a hanging tube or LED bar. Complete with 2 metal brackets for fastening to the panel, which can be positioned every 3.2 cm along the rack.
Shelf Brackets: in brown painted metal or lacquered metal, cm thickness 0.3 d.35 / 52.

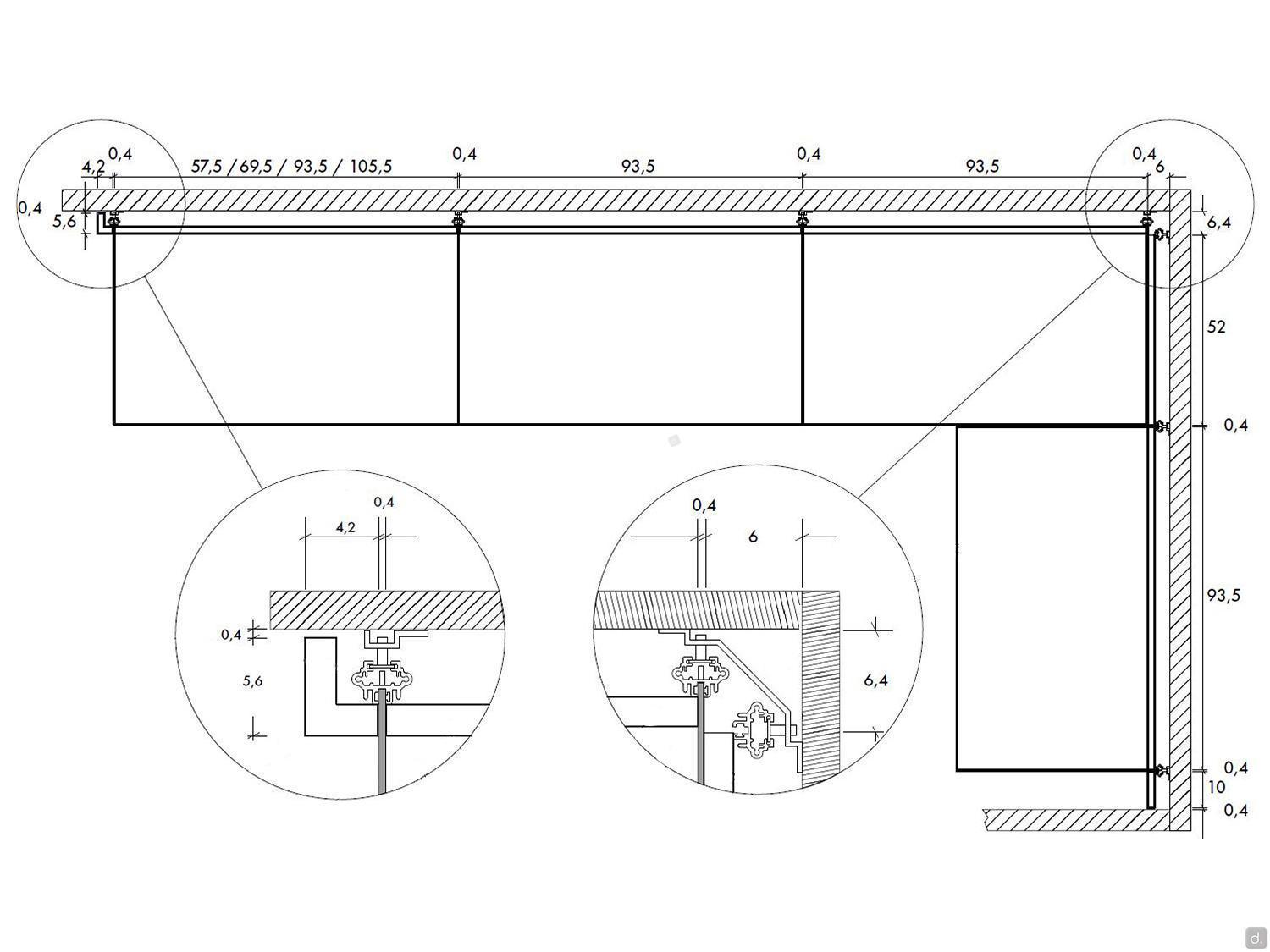

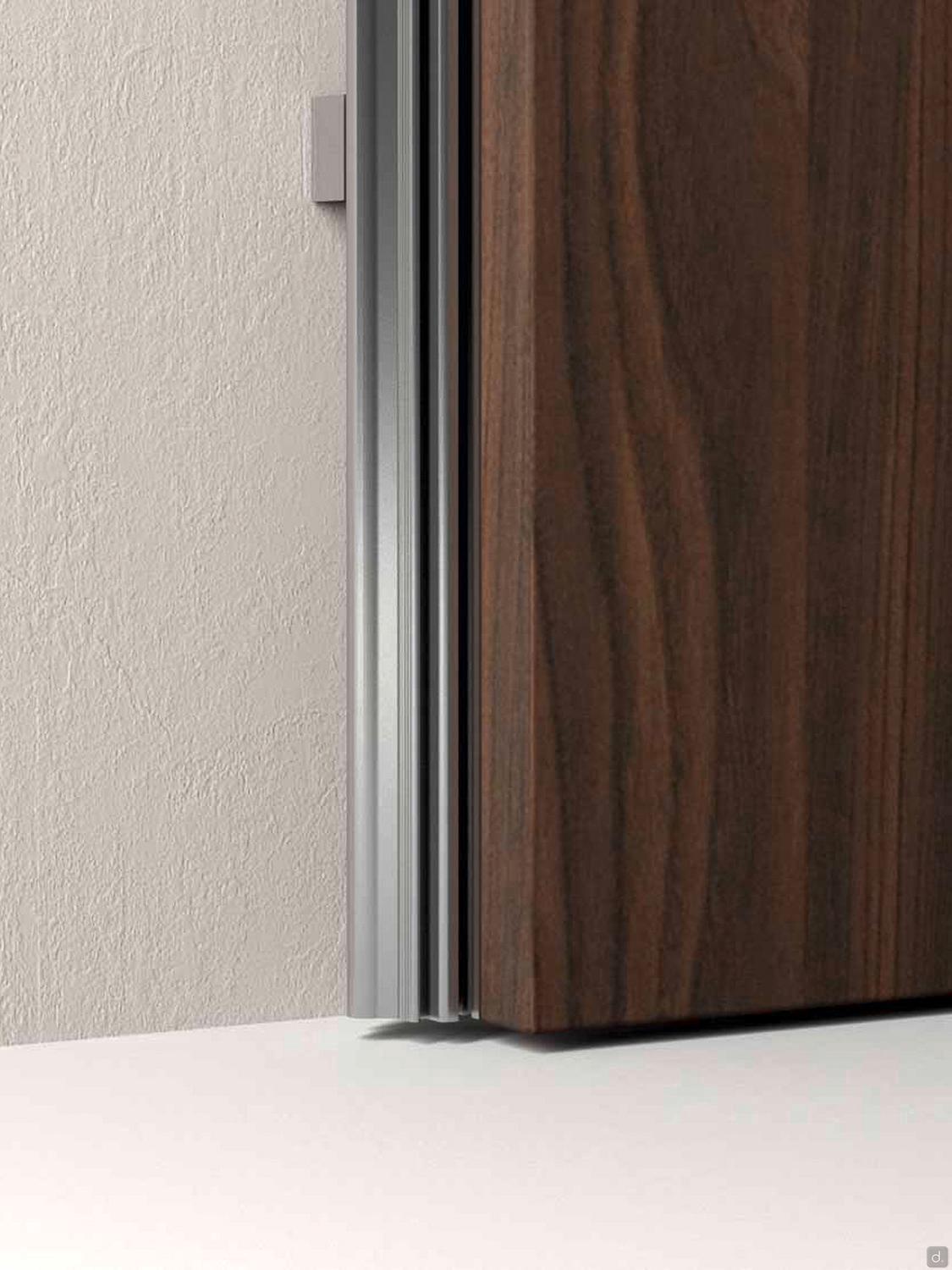

Start / End Rails: available as an L-shaped end panel or as a buffer strip, MDF 1.8 mm thick. To be positioned obligatorily at the beginning and end of the composition, available in the same finishes as the back panels.

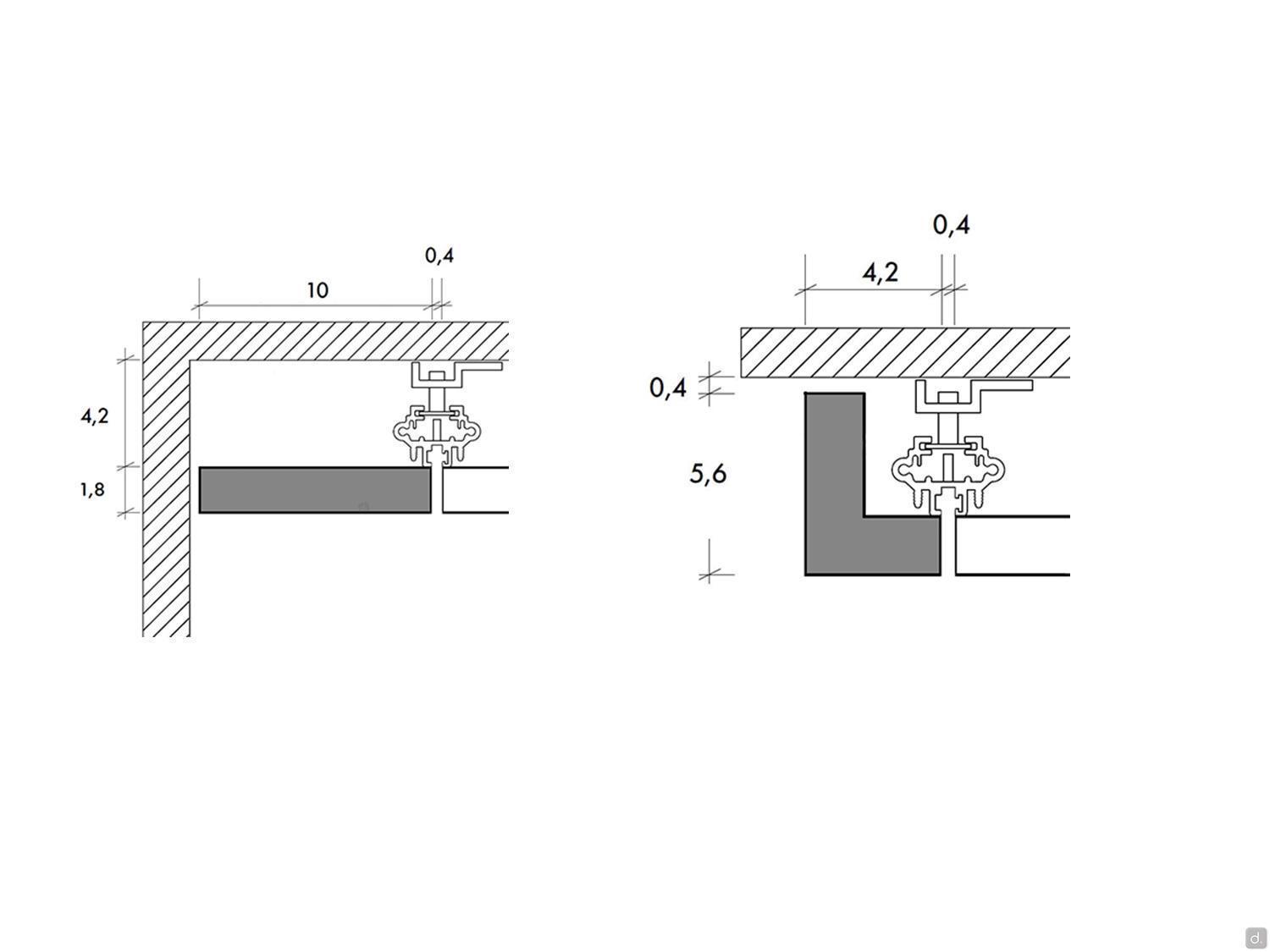

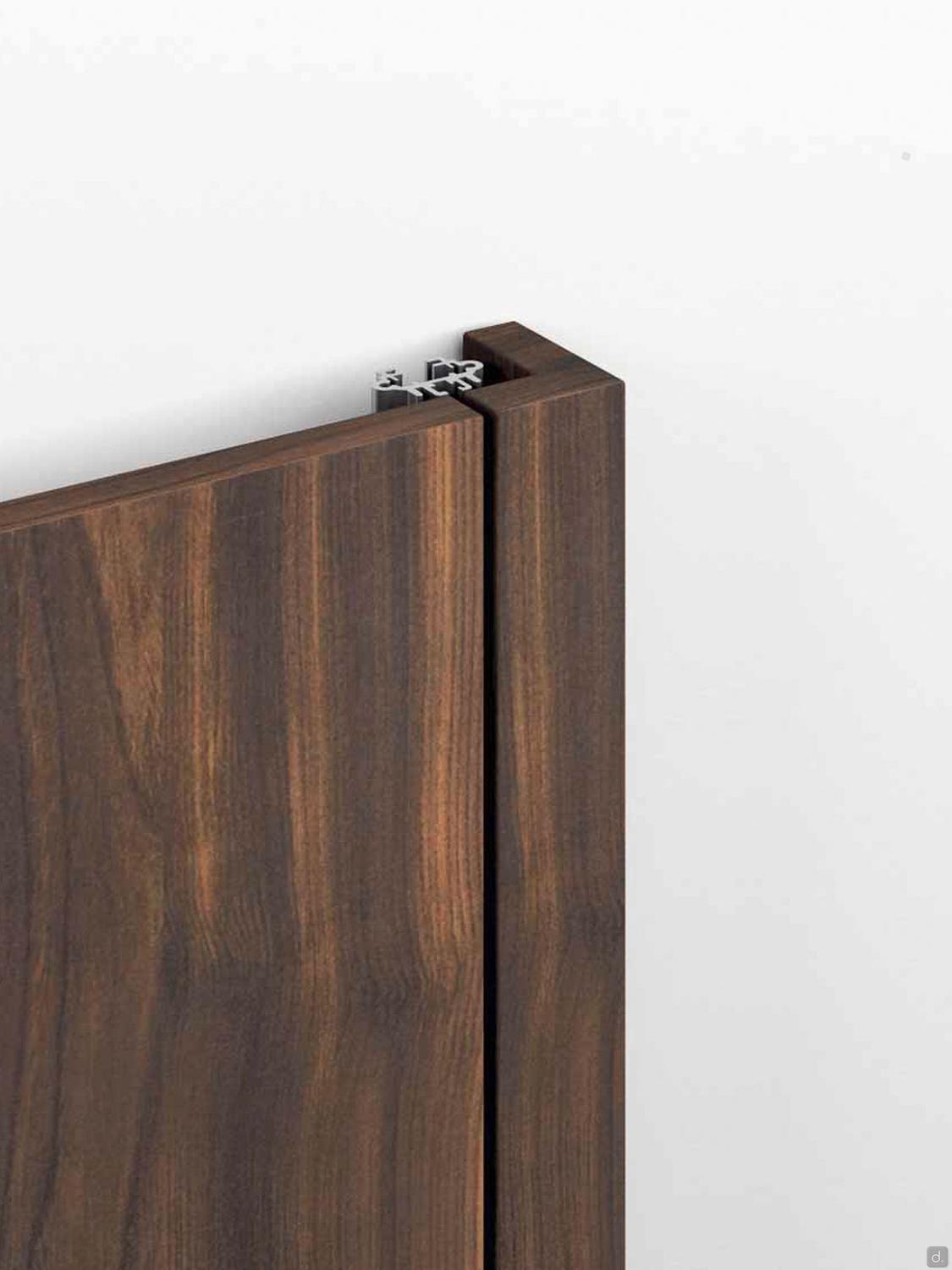

- L-shaped Closing Panel: cm 4,2 d.5,6, indicated in compositons with visible beginning and end panels
- Filling Strip: width customised between cm 3 and cm 10, th.1,8, indicated in compositions with beginning and end adjacent to other walls
Please Note: The rails at the end of the composition always include a rack for correct wall fastening of the end element, also available electrified in the case of elements equipped with LED bars.

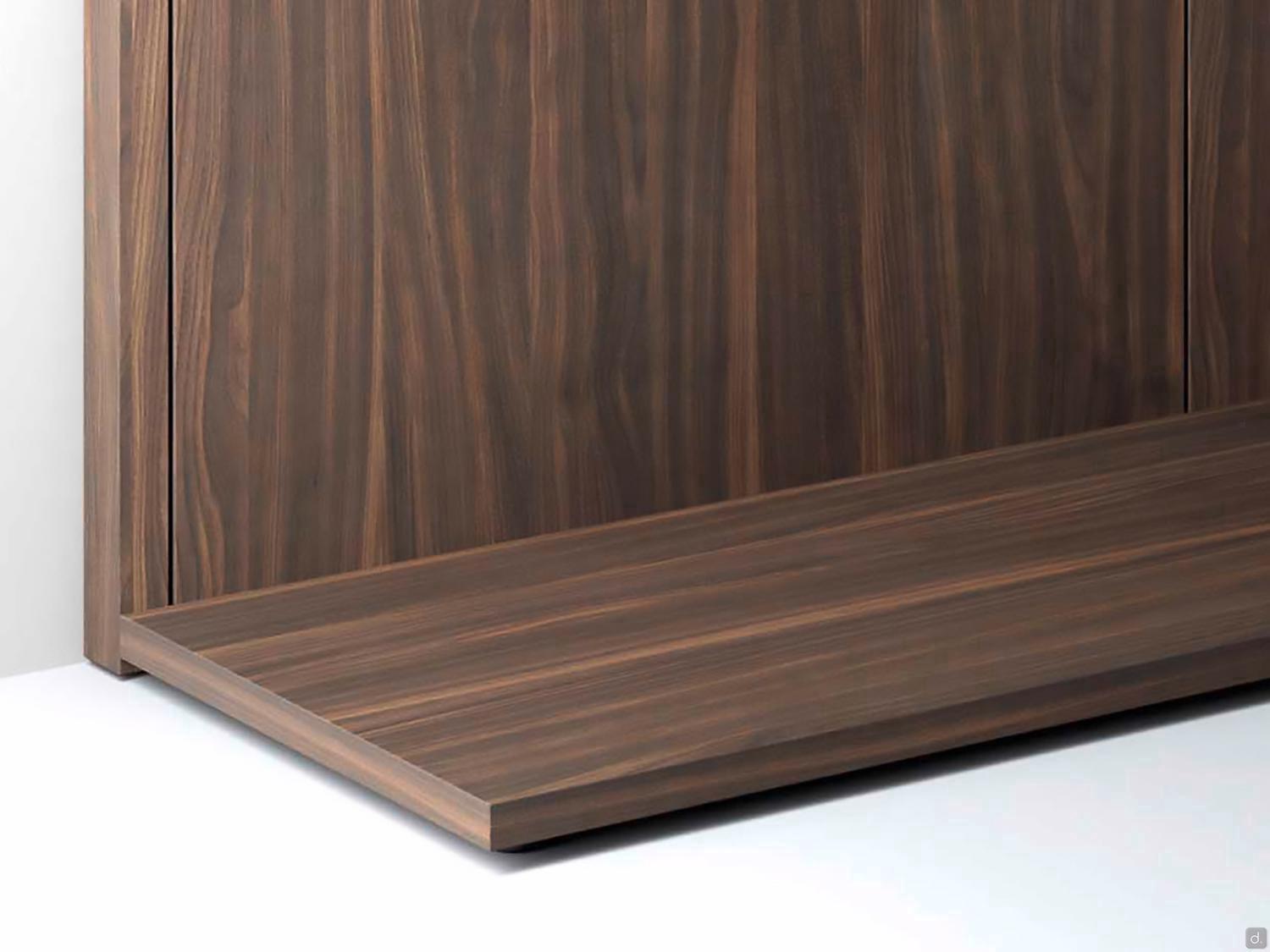

Floor bench: customised width in melamine, matte lacquered or metallic, open pore oak veneer. Thickness cm 3,5, d.35 or 52 depending on the depth selected. With black ABS fixed feet, cm 0,5.
Optional - Shelf

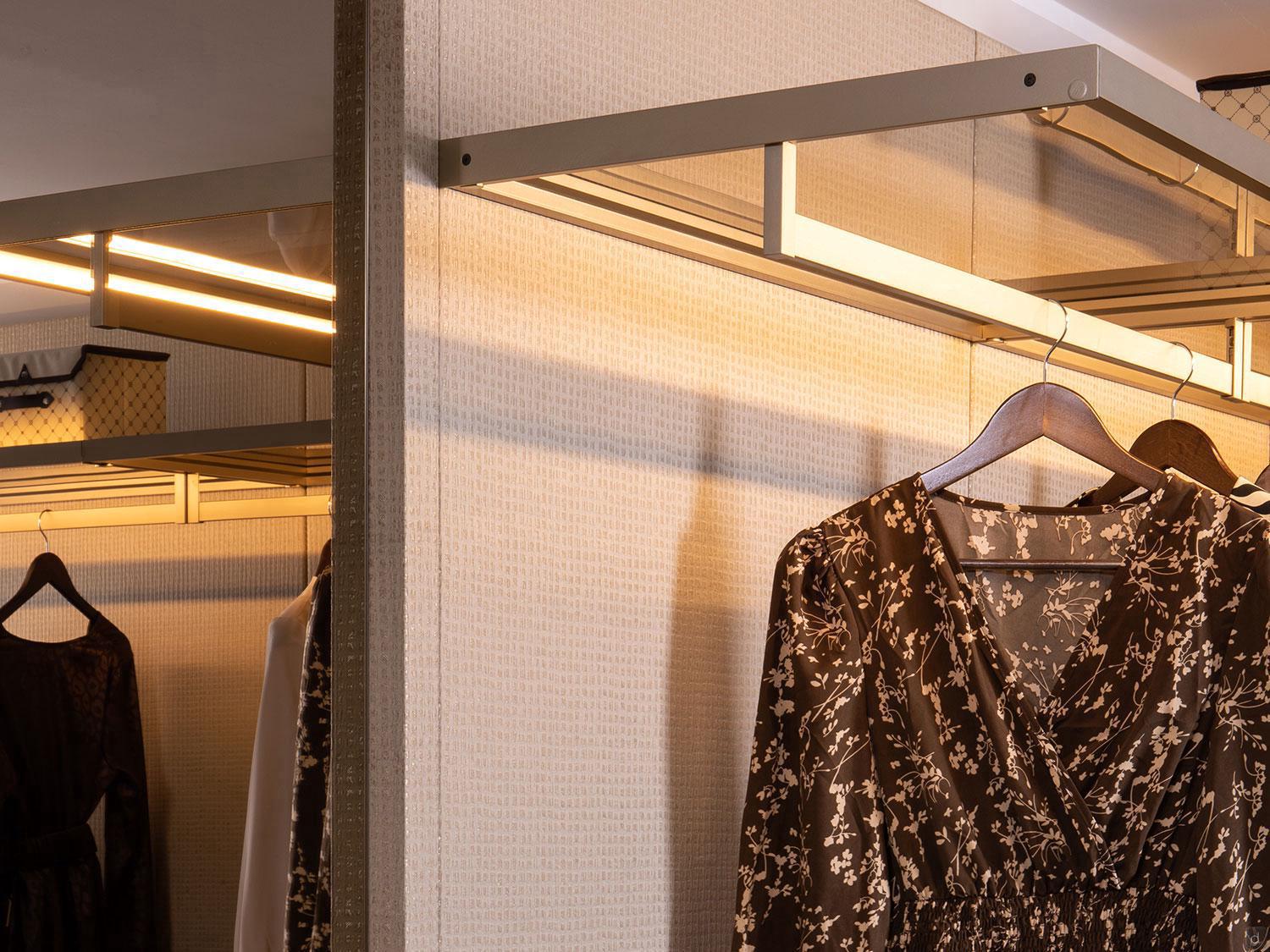

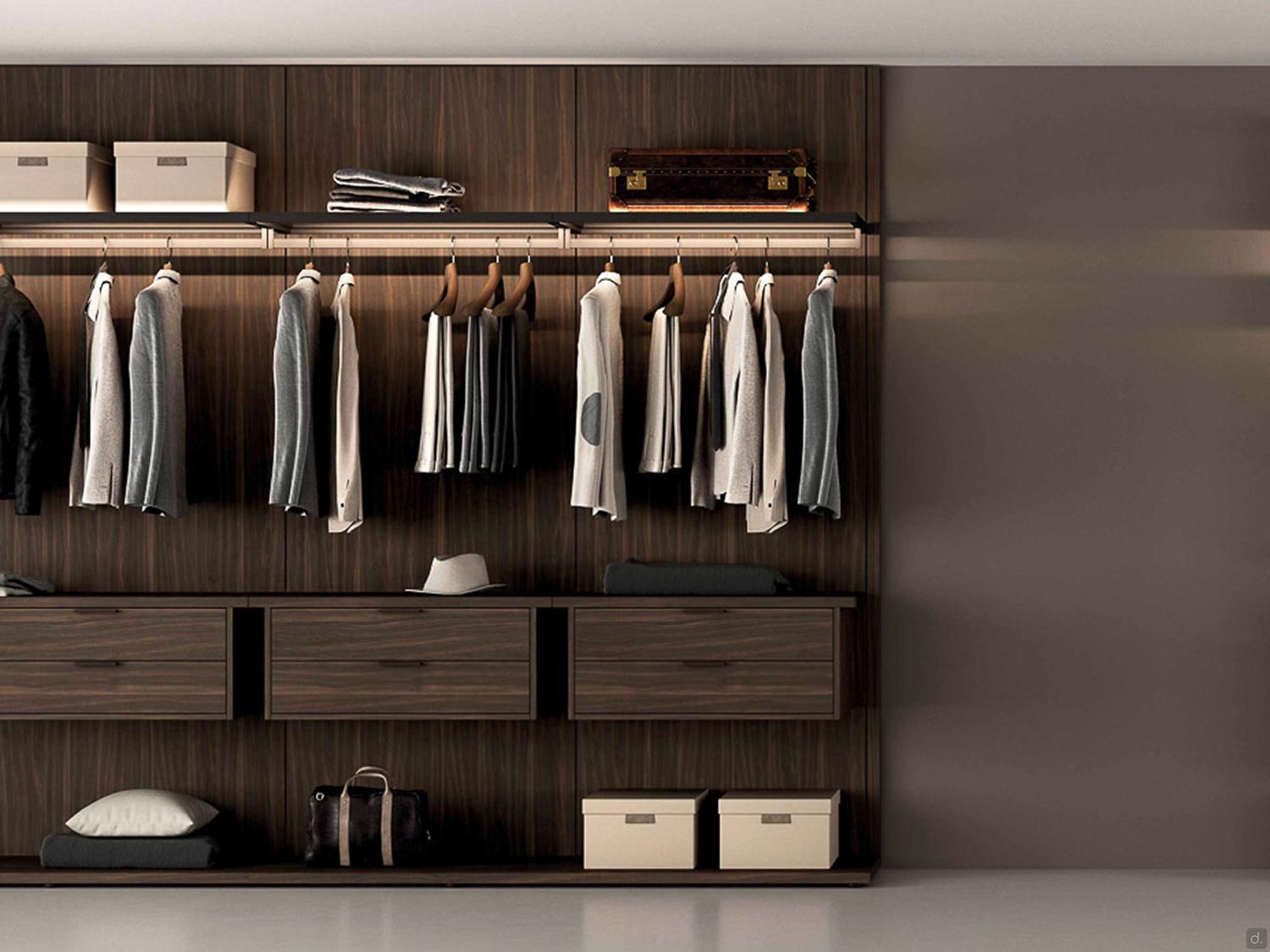

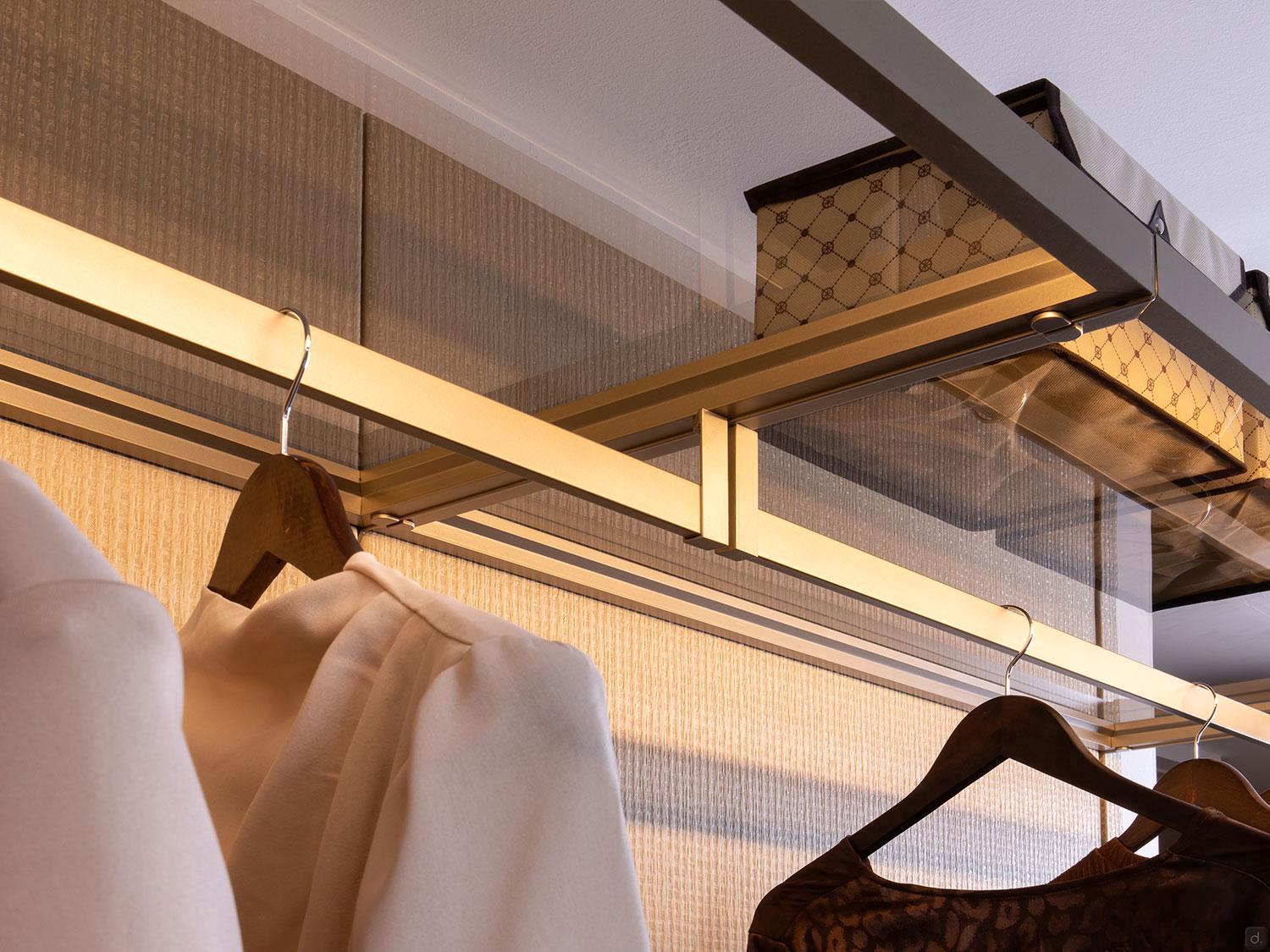

Clothes Hanger Rod: rectangular section cm 3 x 1, in brown lacquered metal or metal finish. Available on all 4 shelf / panel widths in the configurator.

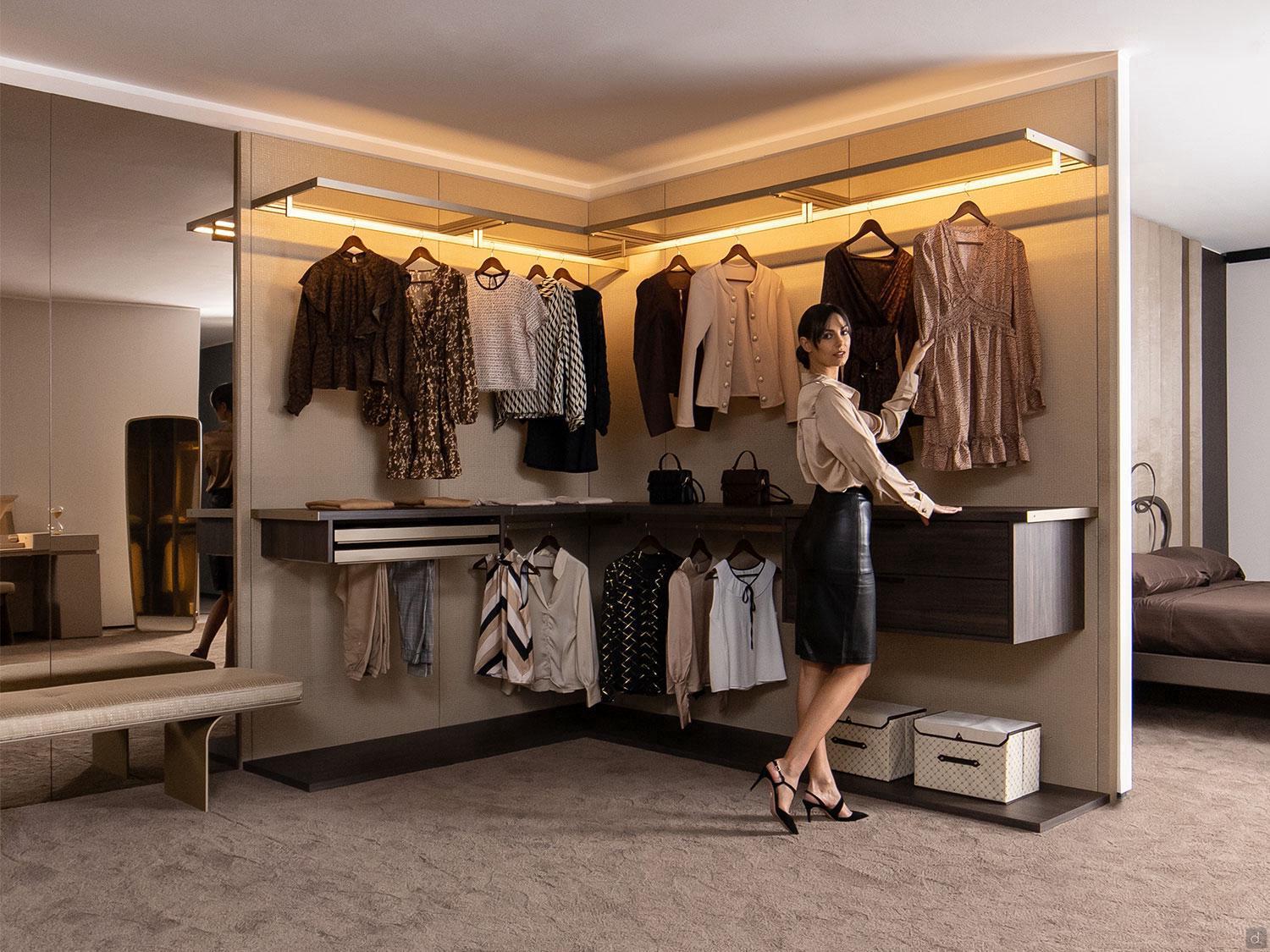

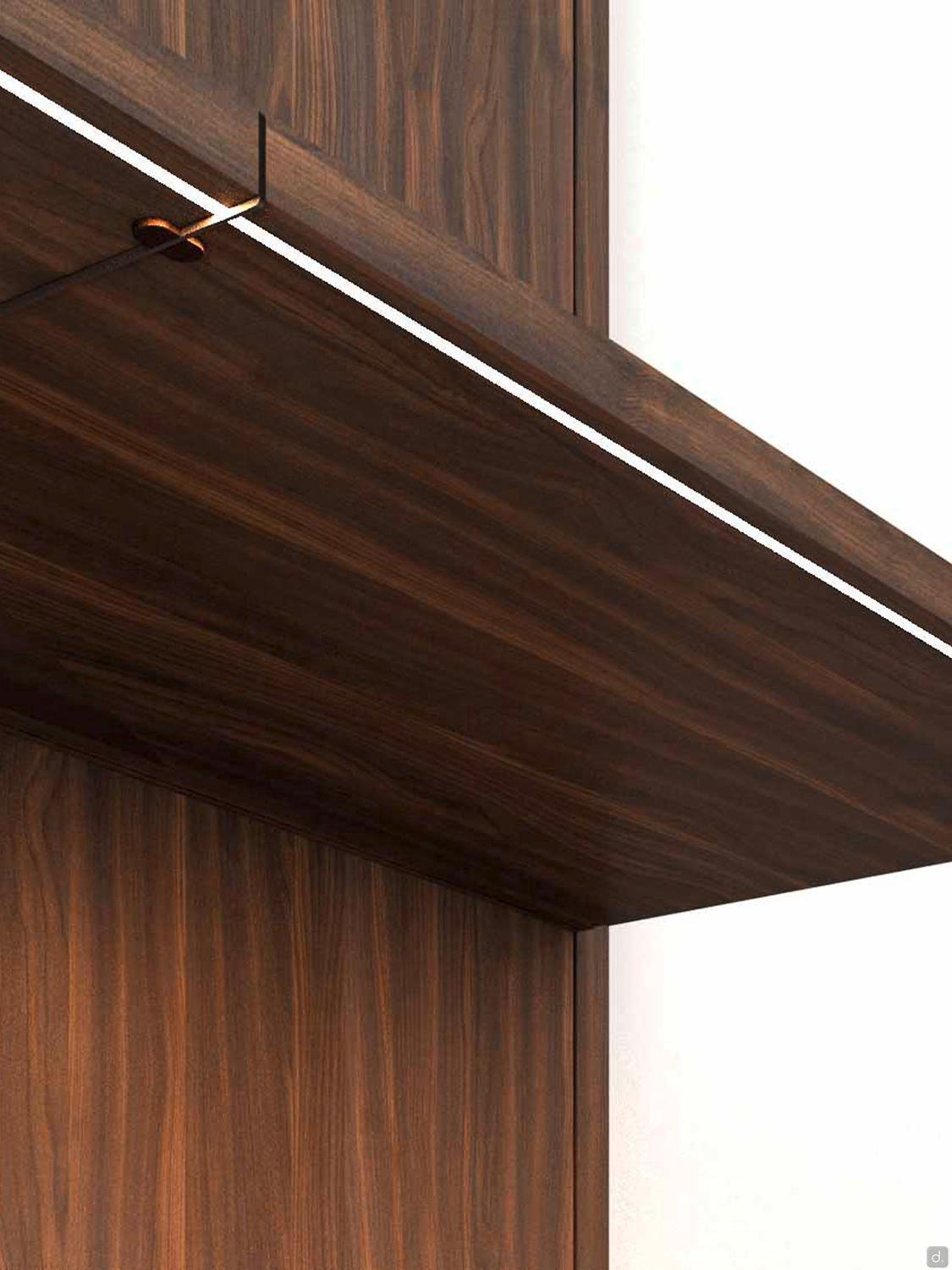

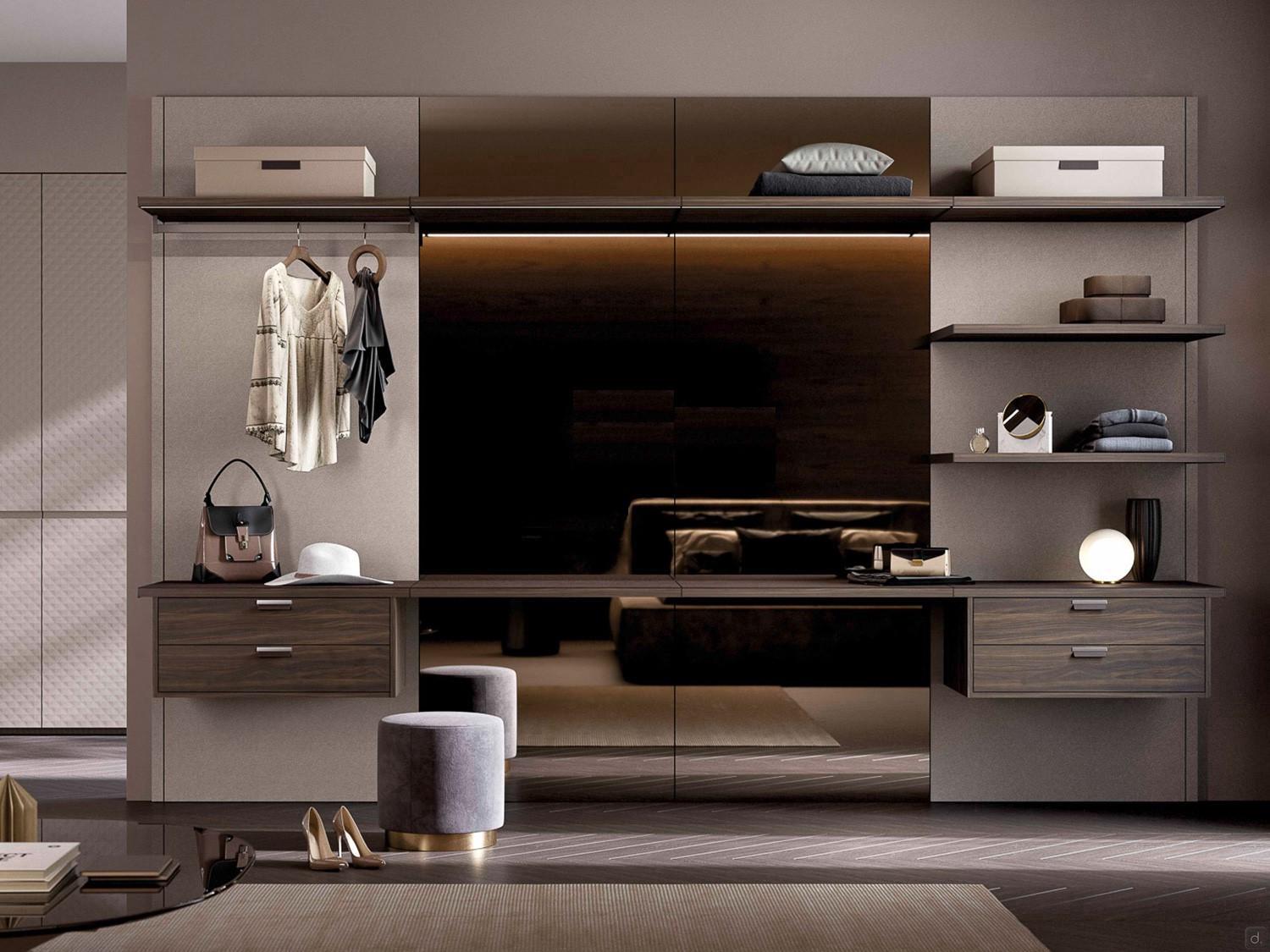

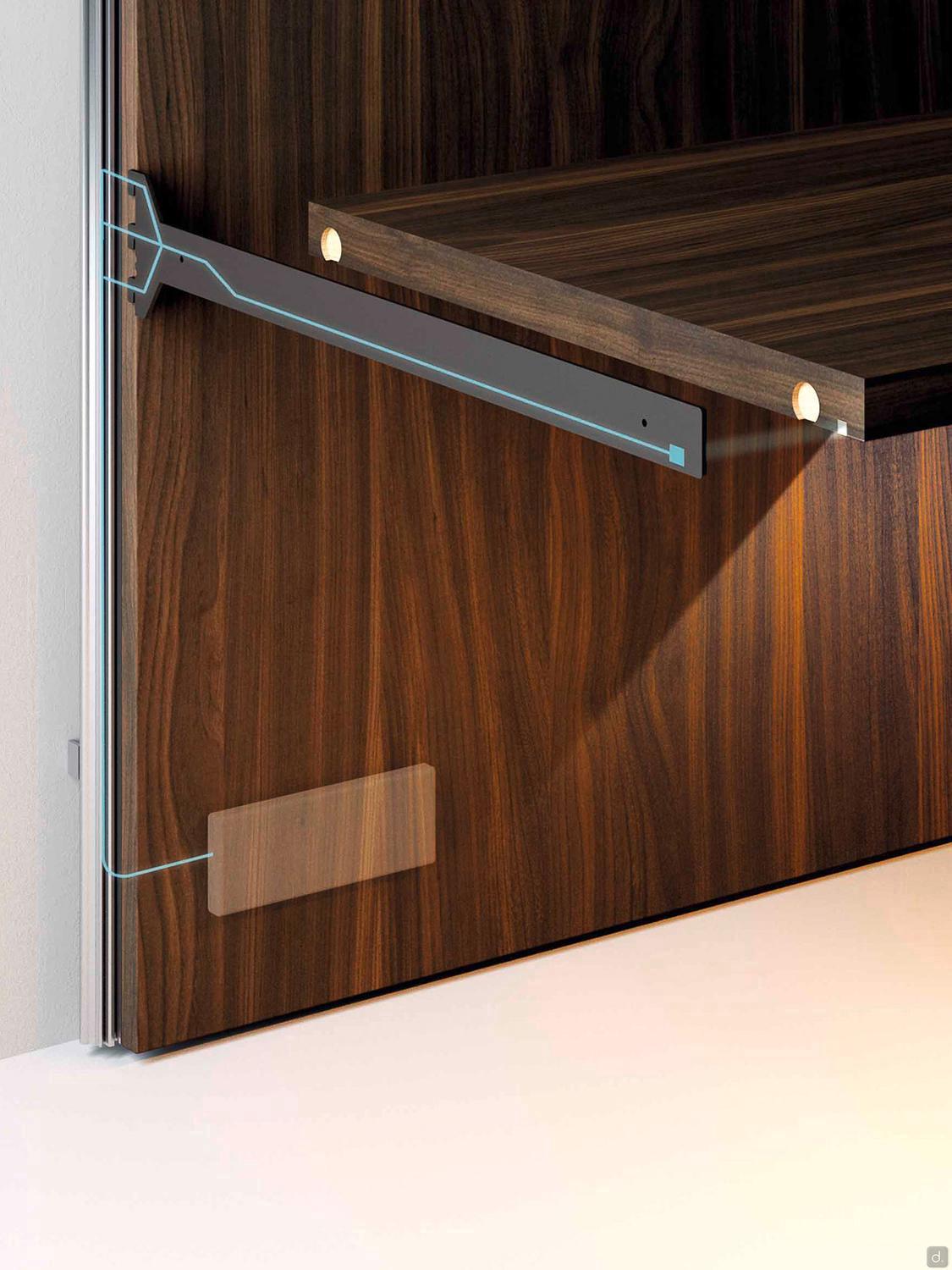

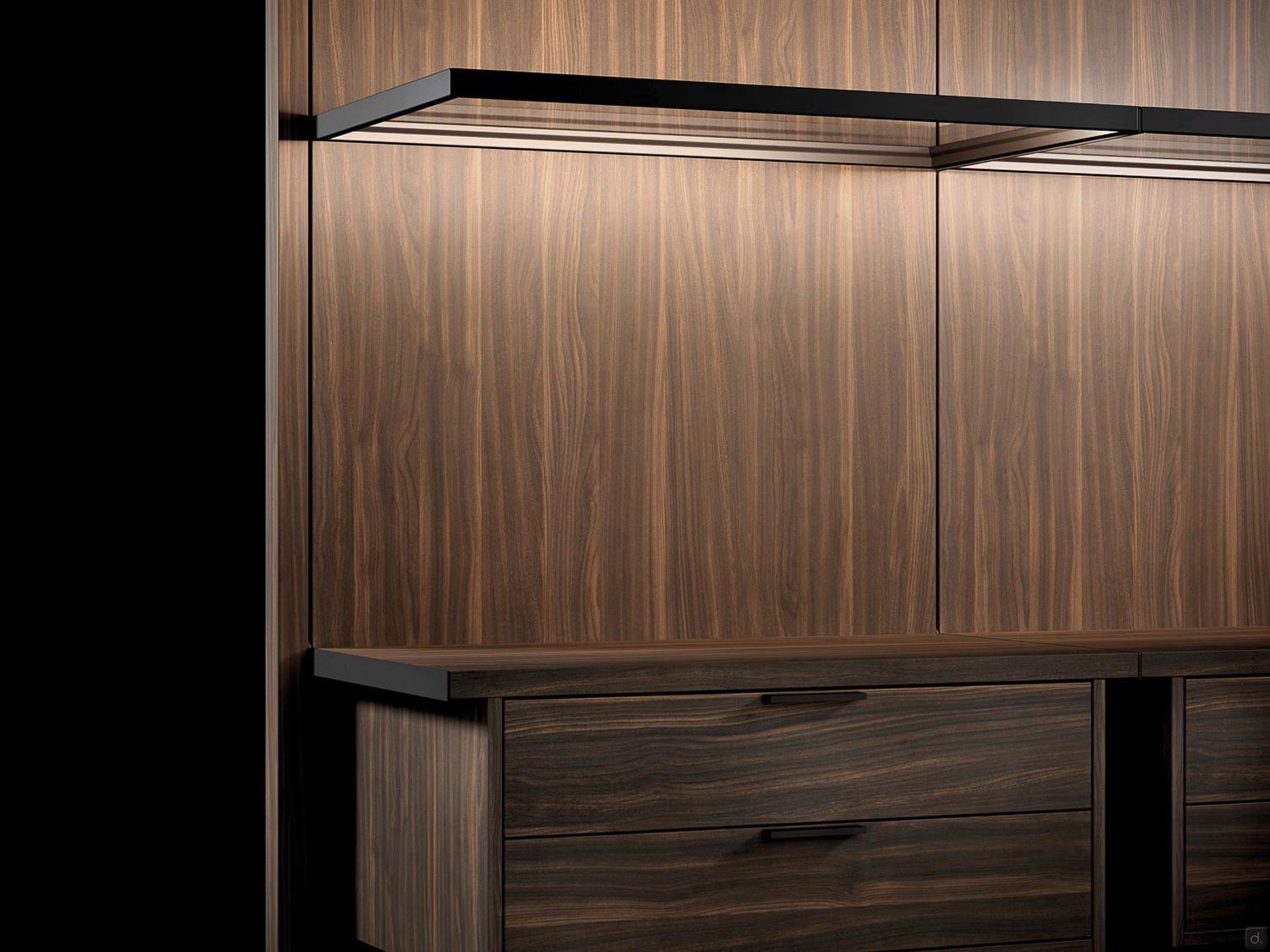

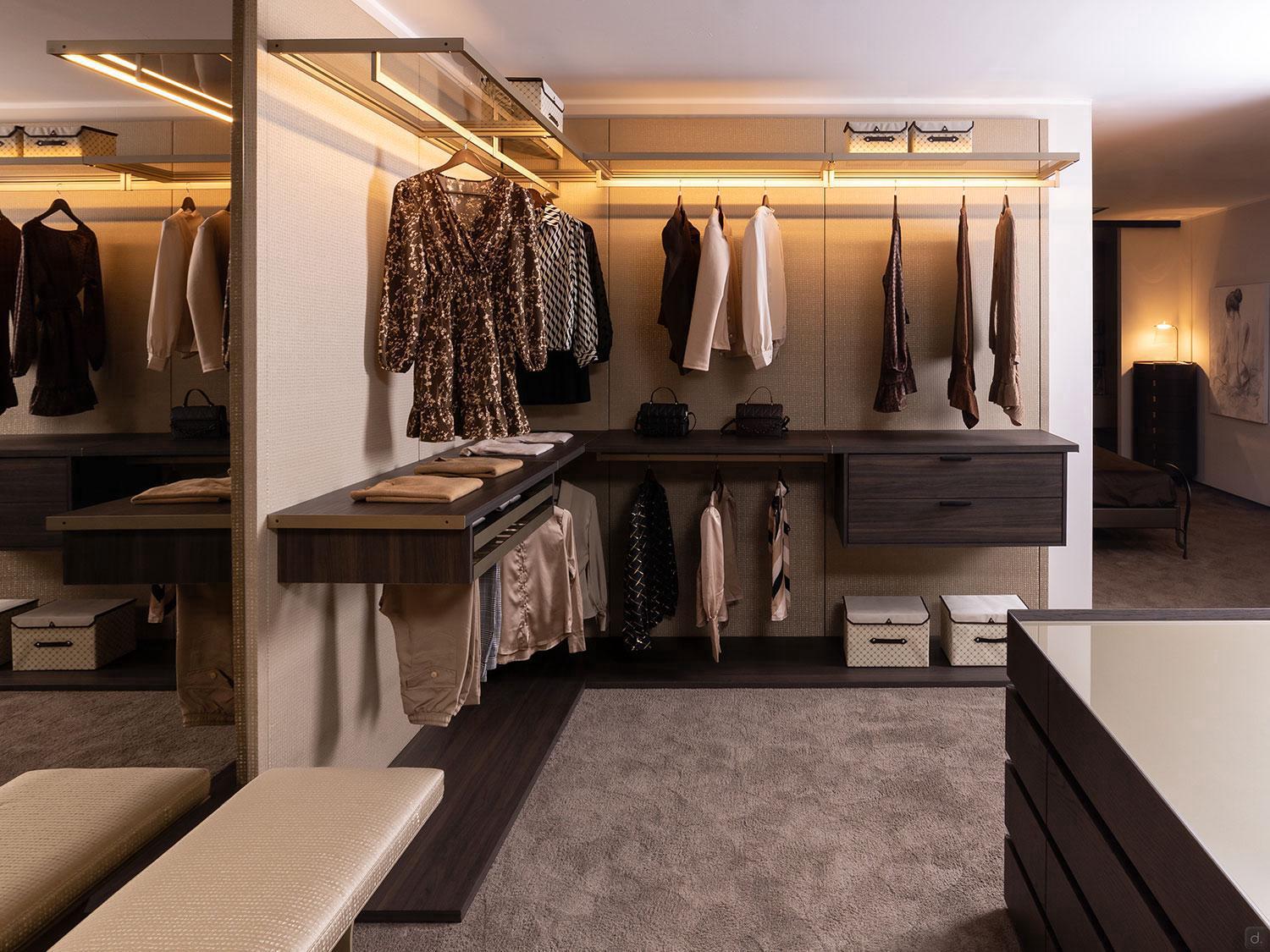

LED bar: warm light at 3000K and 24V positioned in a milled recess in front of the shelf. Electricity transmitted through contact between brackets and electrified rack profile, equipped with a power cable to be connected to the transformer located in the sanitary gap between the panel and the wall. To provide the shelf with LED lighting, both rack profiles, left and right of the panel, must be electrified. The lights are switched on via a controlled socket.
Assembly Tips
A height clearance of 2 cm is required for mounting the car.
Read more...
Honeycomb: is a panel made with an internal honeycomb structure and a 5 / 7 cm perimeter frame in first choice solid pine closed with 2 MDF panels 0,3 / 0,4 cm thick, subsequently lacquered or veneered.
The advantages of honeycomb panels are:
- greater durability;
- greater load resistance;
- significantly reduced panel weight (up to 60% less), which is useful for transport, assembly, moving or relocation, but above all to reduce the weight of the sashes on the structure and hardware;
- hardware always fixed to the perimeter (solid pine wood) of the sides and doors, so the hinges will have greater strength and the furniture will last considerably longer;
- better resistance to humidity, as the material 'breathes';
- exclusively '100% Made in Italy' product
Aged Oak: compared to 'standard' open-pore oak, aged oak is characterised by difference is more noticeable on important surfaced such as tables, wall units and wardrobes, less so on complements, beds and bed sets..
