Materials Specifications
Top, bottom, backs: made with E1 class particle wood panels with low formaldehyde emission.
Sides and Partitions: made with E1 class particle wood panels with low formaldehyde emission or with aluminium frame painted with epoxy powders.

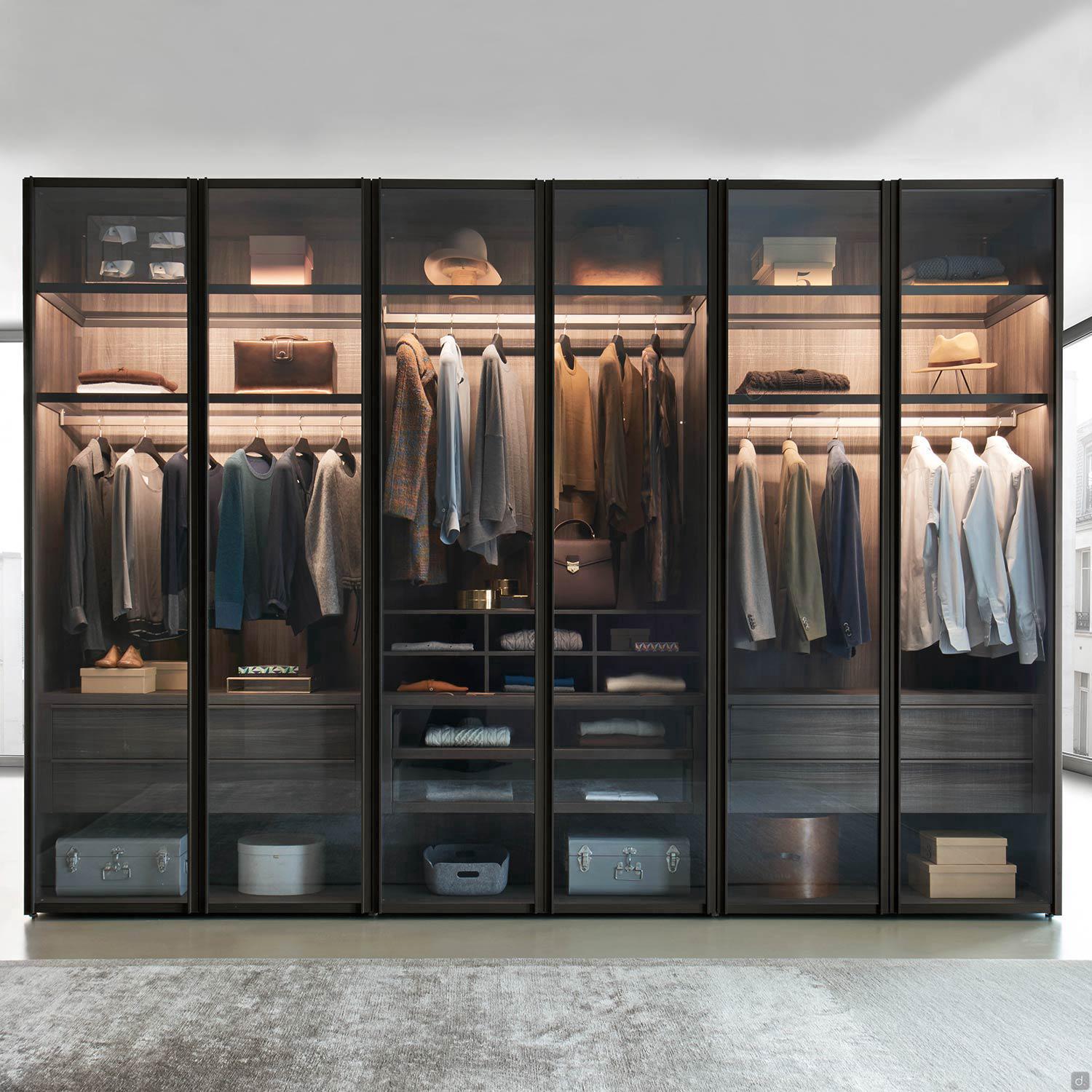

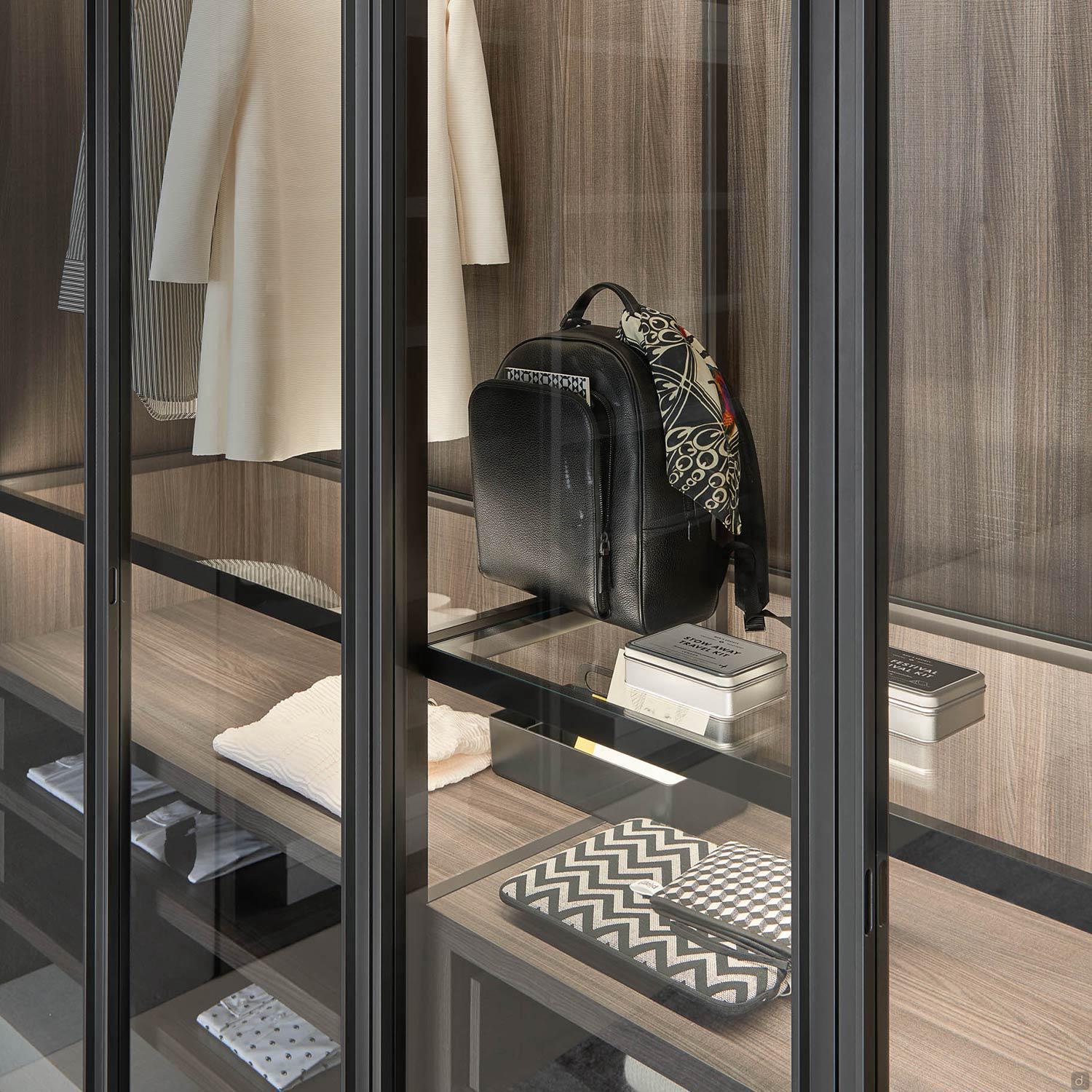

Doors: made with tempered glass and painted aluminium frame with built-in handle.
Technical Specifications and Equipment
Sides and partitions: cm 2,5 thick.
- Panel version:
sides with ABS edges for lacquers, in wood for veneers: partitions with ABS edges matching the inside. Included adjustable feet, adjustable by cm 1,5.
- Frame version:
Top and bottom: 3,5 cm thick. ABS edge matching the inside.
Back panels:cm 0,8 thick matching the inside.

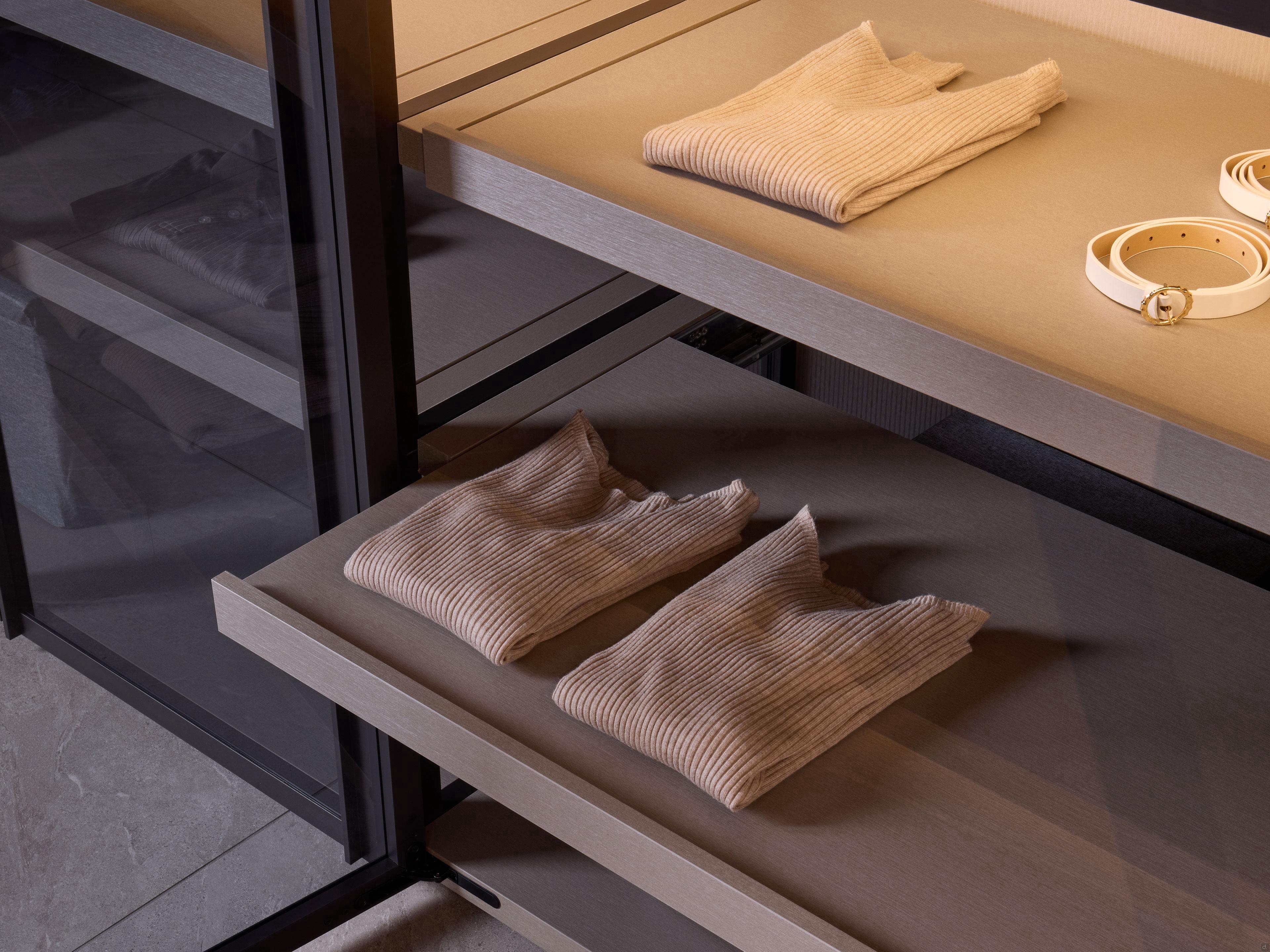

Internal shelves:cm 3,5 thick. ABS edge matching the internal finish.

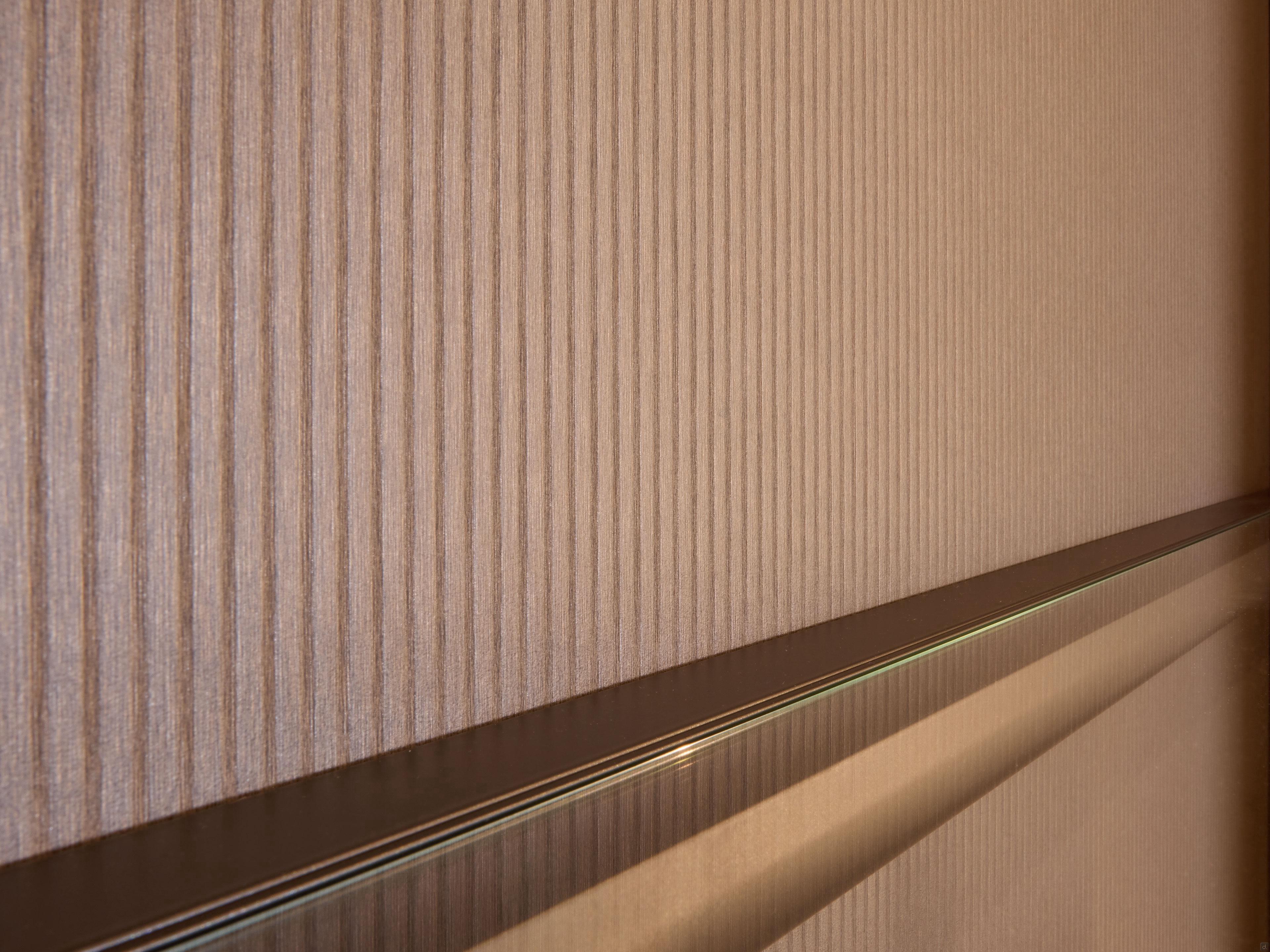

Rod for clothes: rectangular cm 3 x 1, in Gunmetal painted metal (for natura loto, linen textured or medium elm internal finish) or Brown (for taupe loto, terra loto or dark elm and eco-walnut internal finish), Palladium (for sand, rock and tobacco sketch internal finish).

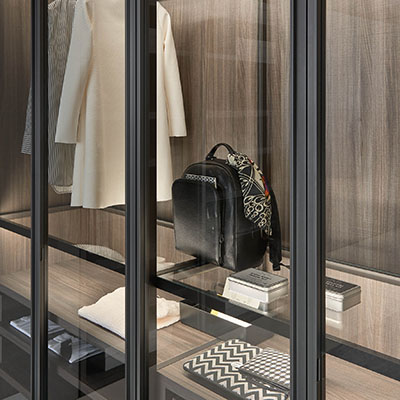

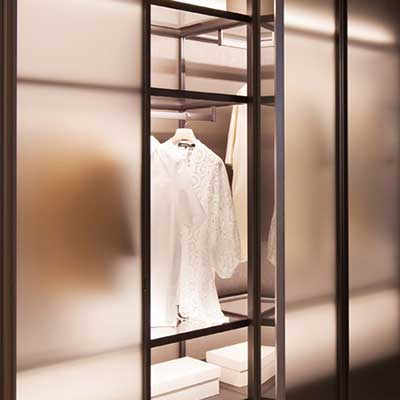

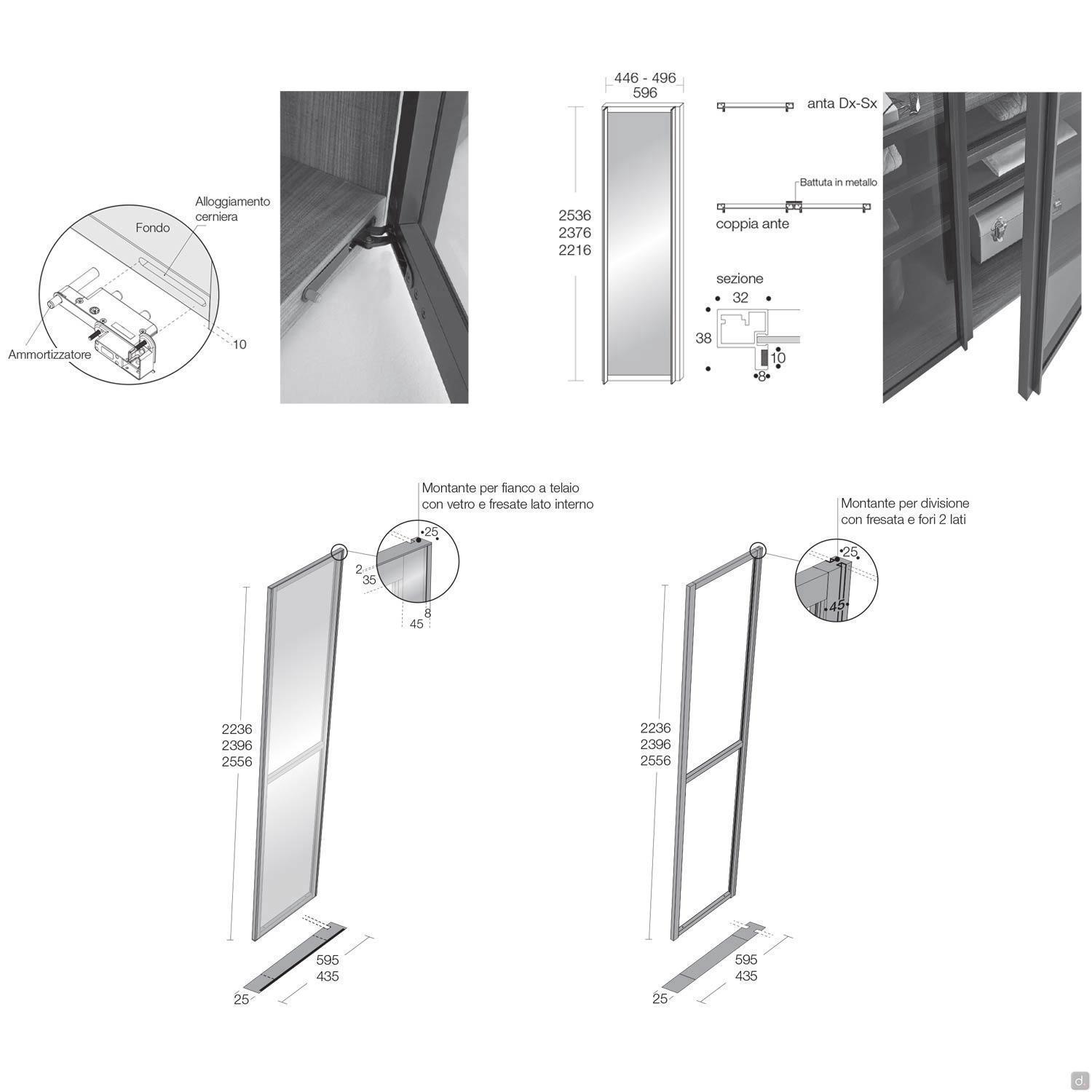

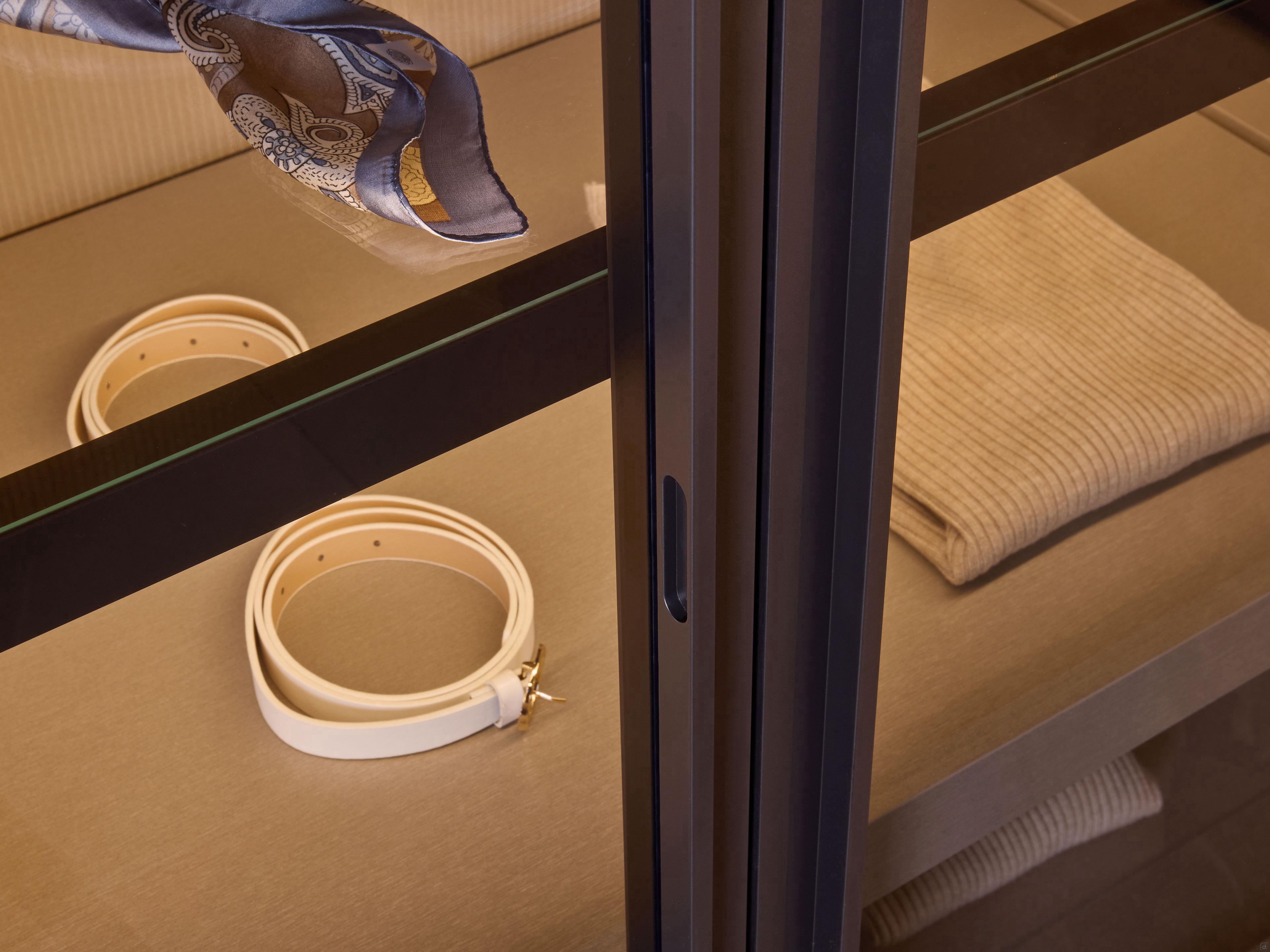

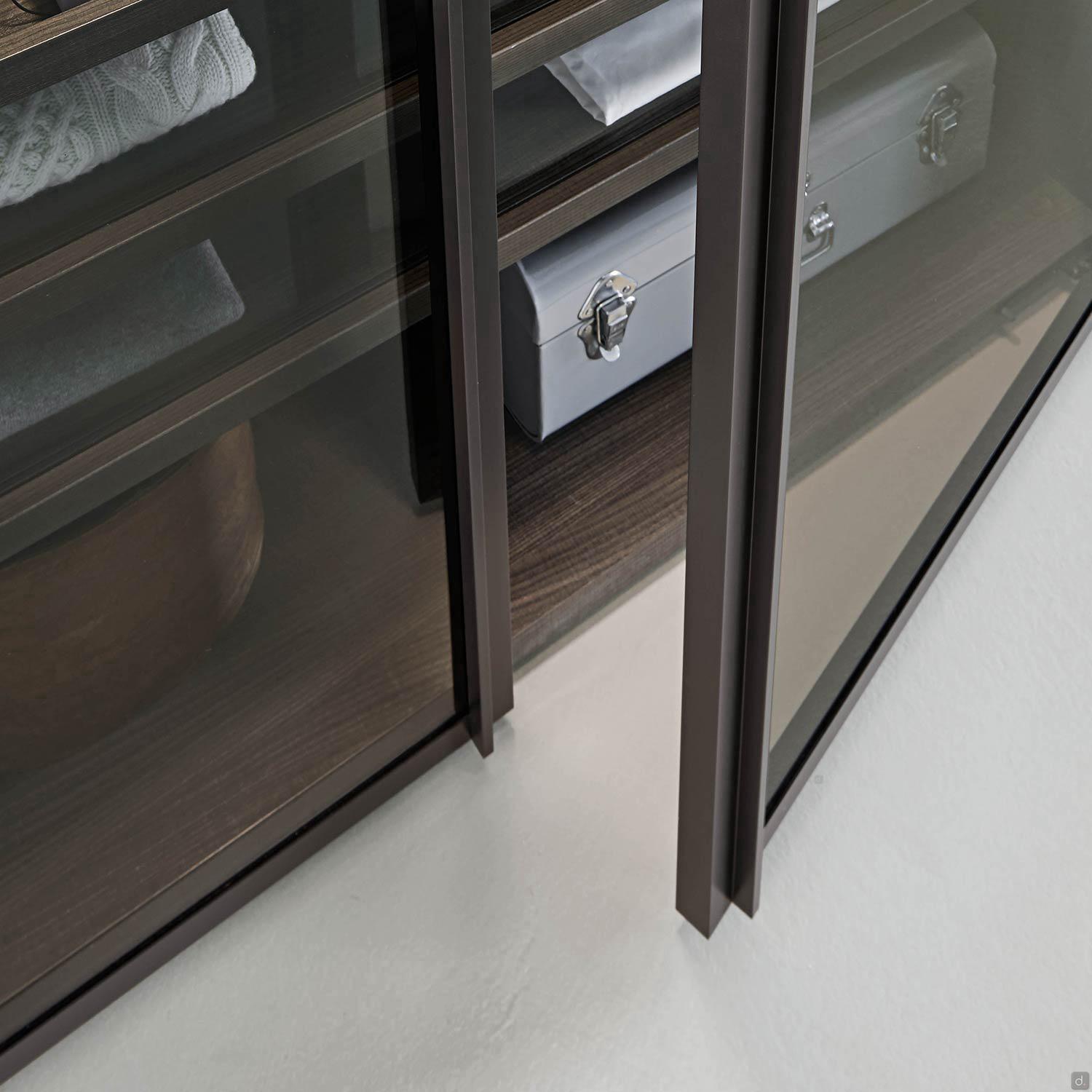

Doors: cm 3,8 thick (2,6 + 1,2 handle). Clear or satin-finished glass (mm sp.4) with brown or titanium lacquered metal frame. In case of couple of doors, the built-in handle is always on the right door; the left door comes with metal edge matching the frame.
Hinges: each door comes with soft closing hinges and 94° opening fixed on the top and bottom part of the wardrobe module. The hinges are not visible and they do not impede the position of additional shelves and the use of other internal equipment. They come with shock absorber and returning spring, adjustable in 3 directions: height, width and depth.
Usable internal height:
- for cm h.223,6 wardrobe: cm 216,6
- for cm h.239,6 wardrobe: cm 232,6
- for cm h.255,6 wardrobe: cm 248,6

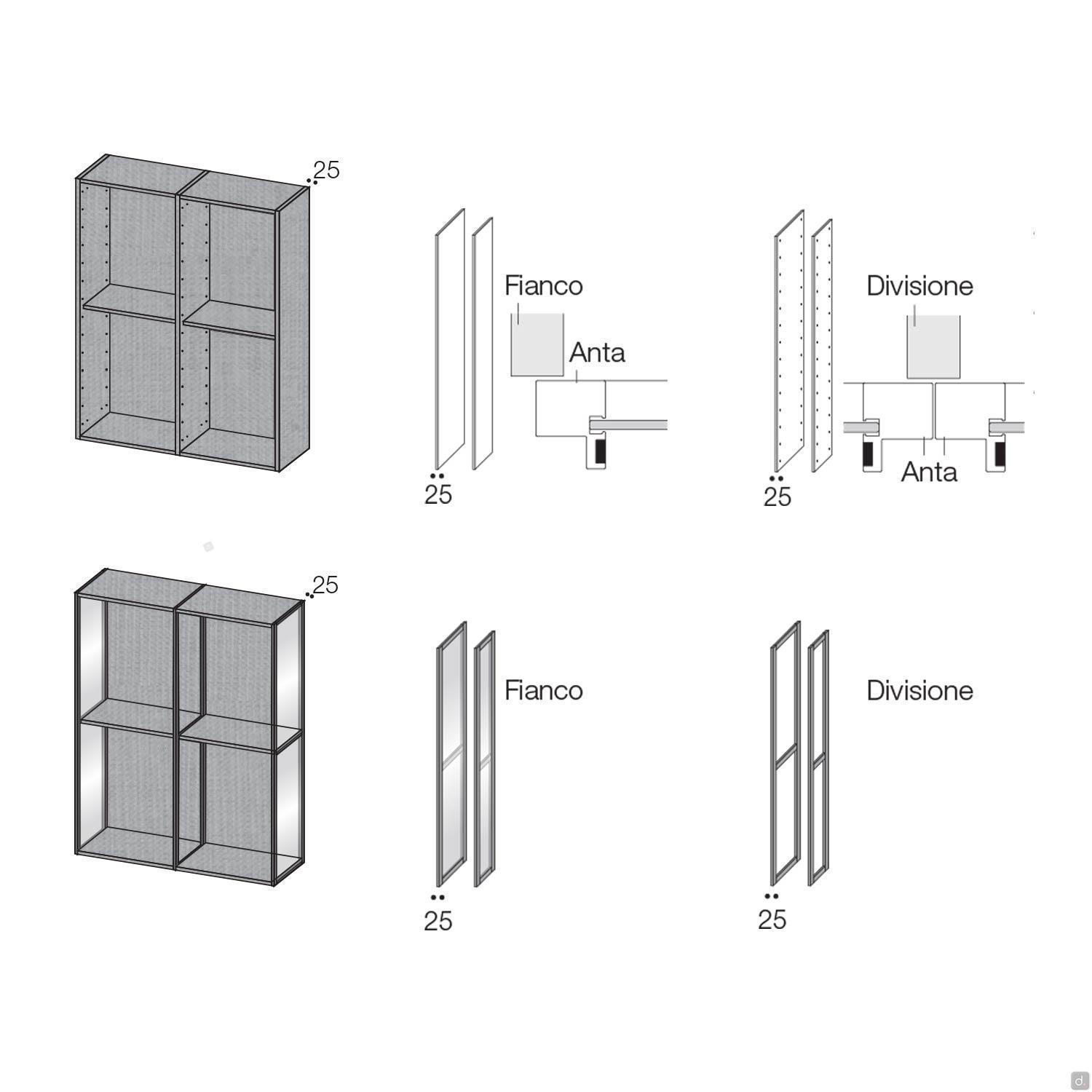

Side Holes
- Panel version:
sides and end partitions come with fixed holes every 9,6 cm.
- Frame version:
sides and partitions come with racks every 3,2 cm with ranges that correspond to the holes on the sides/partition panels.

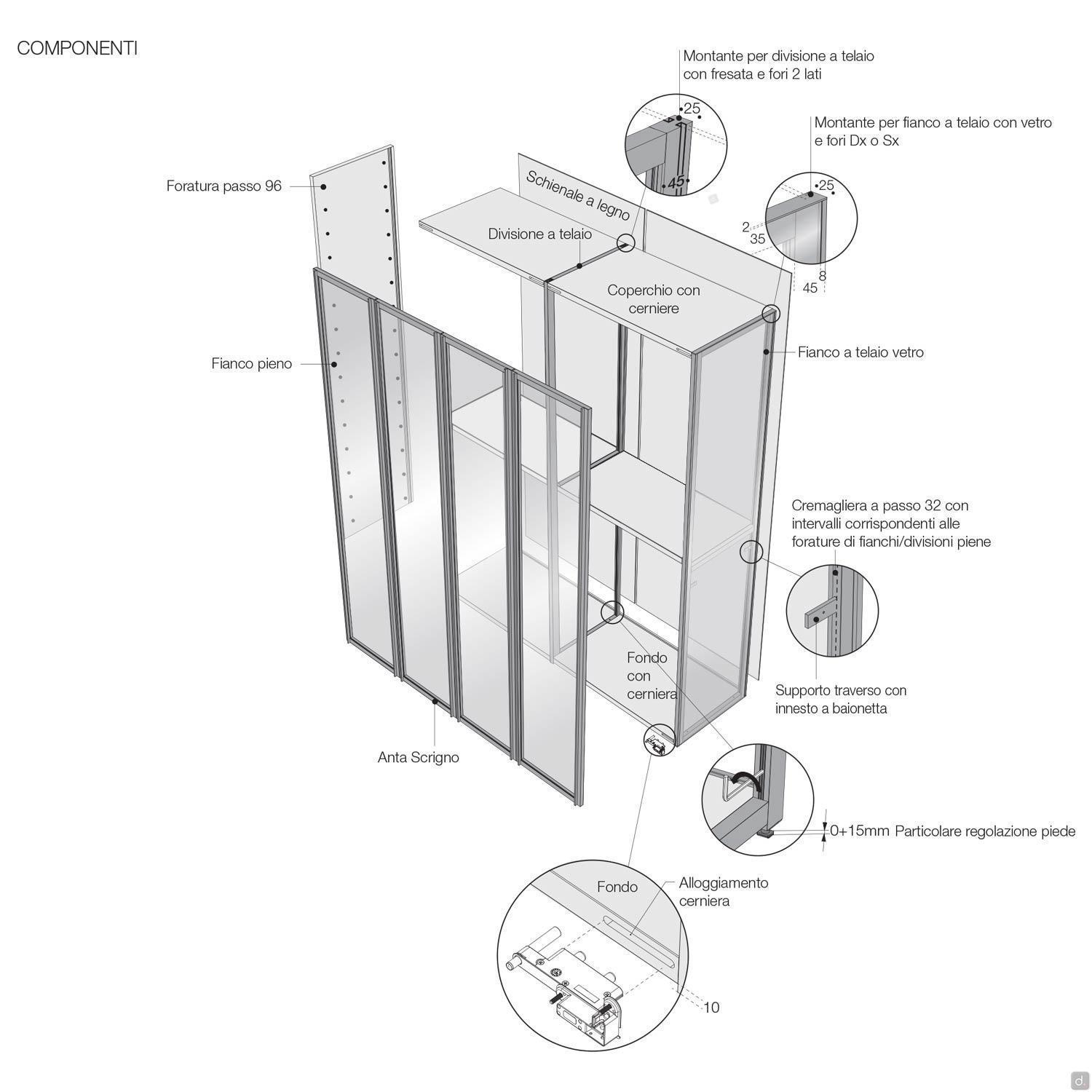

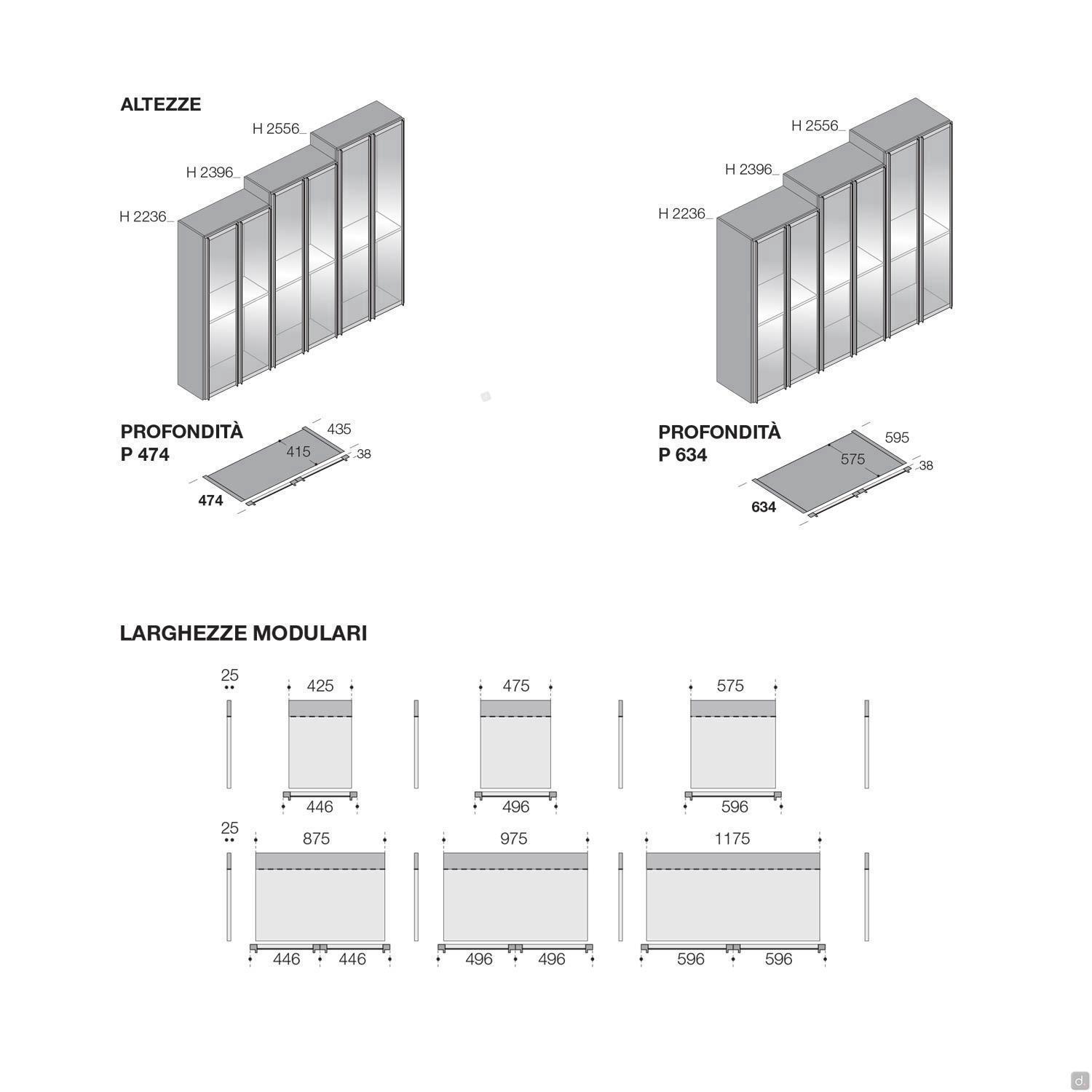

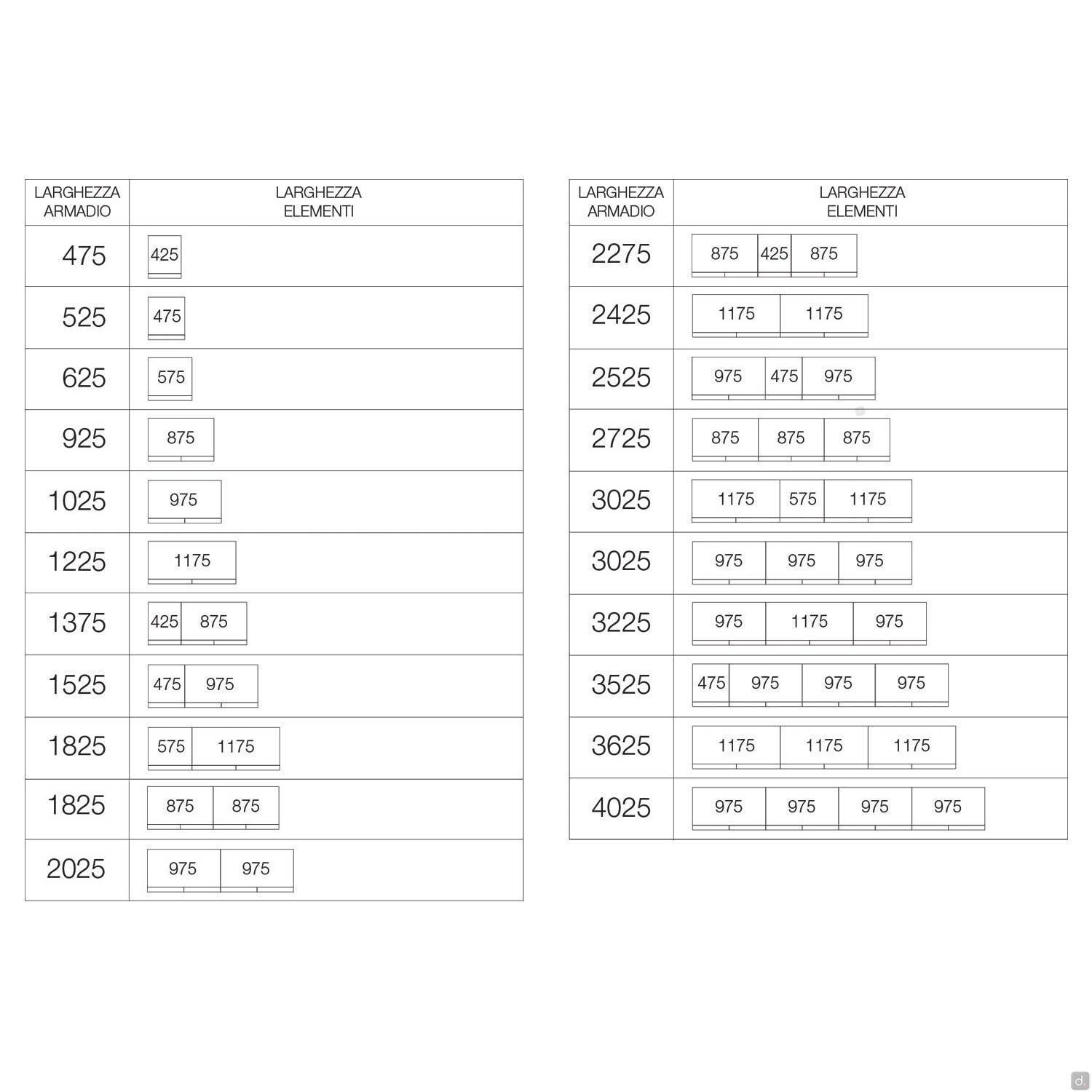

For the detailed measurements please have a look at the scheme inside the picture gallery.
Assembling Tips
To assemble the structure you need:
- cm 3,5 in width

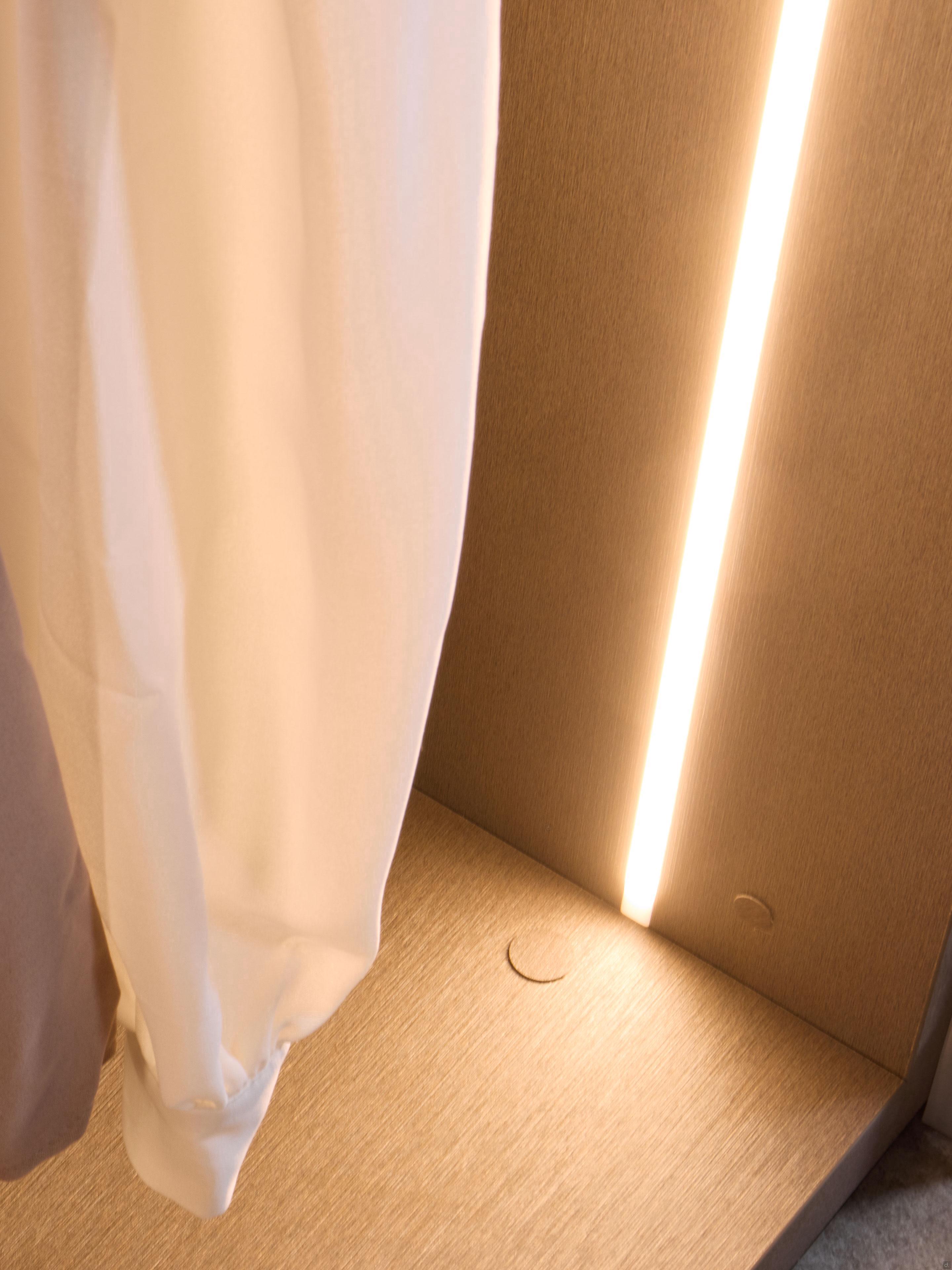

- cm 2 in height (cm 5 in case you add LED bars, in order to place the power supply on the top)
In cm 47,4 deep wardrobes,at least 2 compartments come with a bracket for wall fastening, for safety reasons. Also cm 63,4 deep wardrobes come with a bracket for at least one compartment to be used when needed. The anti-tip bracket comes with spacer that allows the use even if you have a skirting board (max 15 mm thick).
