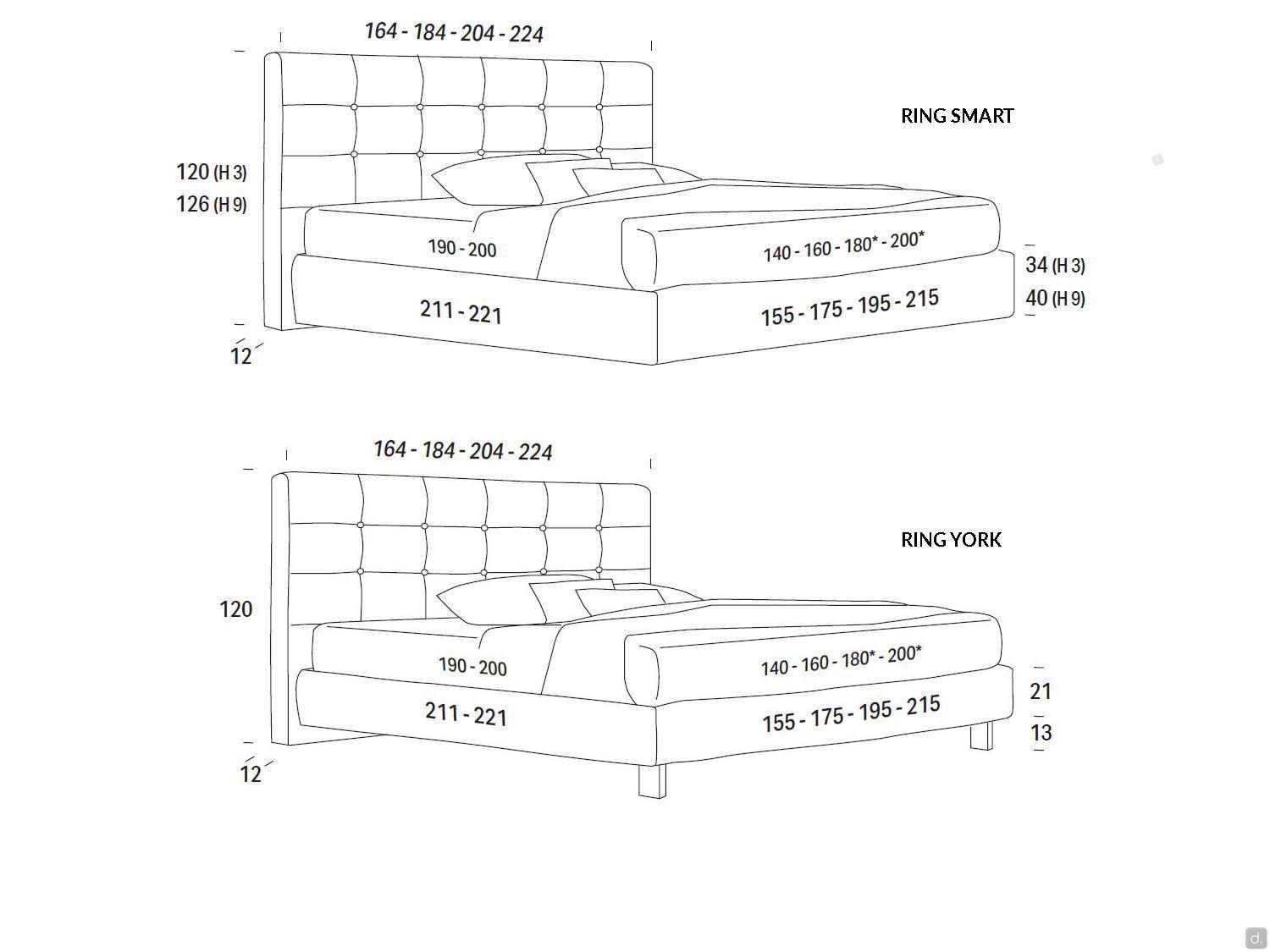

Model and Specific Measurements
Smart Bed Frame (feet cm h.3 / 9):
- French double: cm 155 h.34
- standard double: cm 175 h.34
- king size: cm 195 h.34
York Bed Frame (feet cm h.13):
- French double: cm 155 h.21
- standard double: cm 175 h.21
- king size: cm 195 h.21
Technical Specifications and Equipment
Slatted Base: 68mm thick slats made of steamed beech plywood bent by warm with low formaldehyde emission. The slats are connected to the metal frame with silicon rubber mounts. The steel frame is at square section mm 40 x 30. Painting with epoxy powders.
Structure: fir solid wood and/or caged in multi-layer poplar wood. 18/25 mm thick panels made of particle poplar wood in E1 class of low and natural wood fibre.
Filling: crushproof polyurethane foam with different firmness, density from 18 to 40 Kg/m³. First layer made of polyester foam joined with thermo-coupled interline made of polyester and/or batting polyester at 100% of 200 gr.
Headboard back: covered in the same material of the frontal headboard

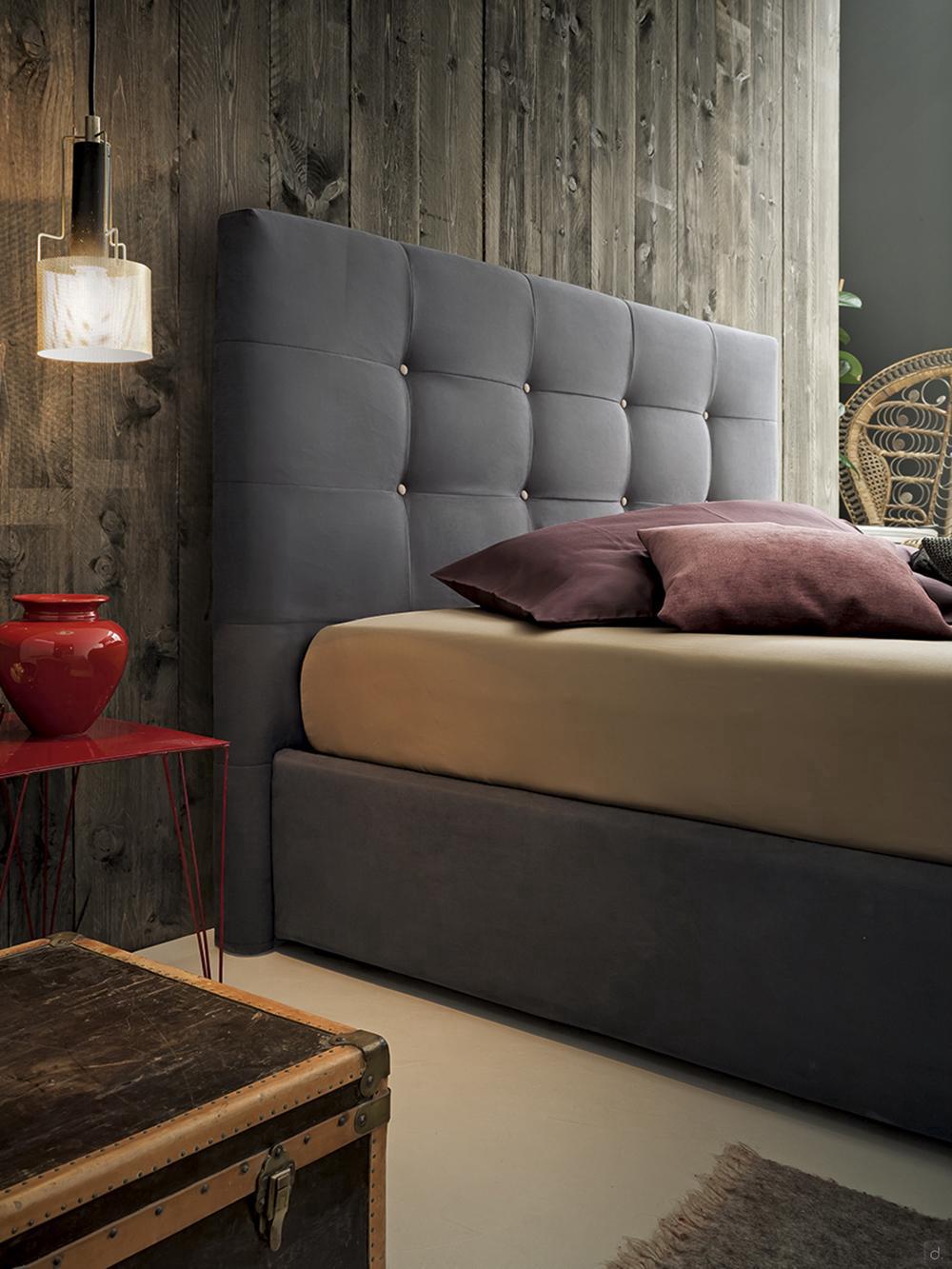

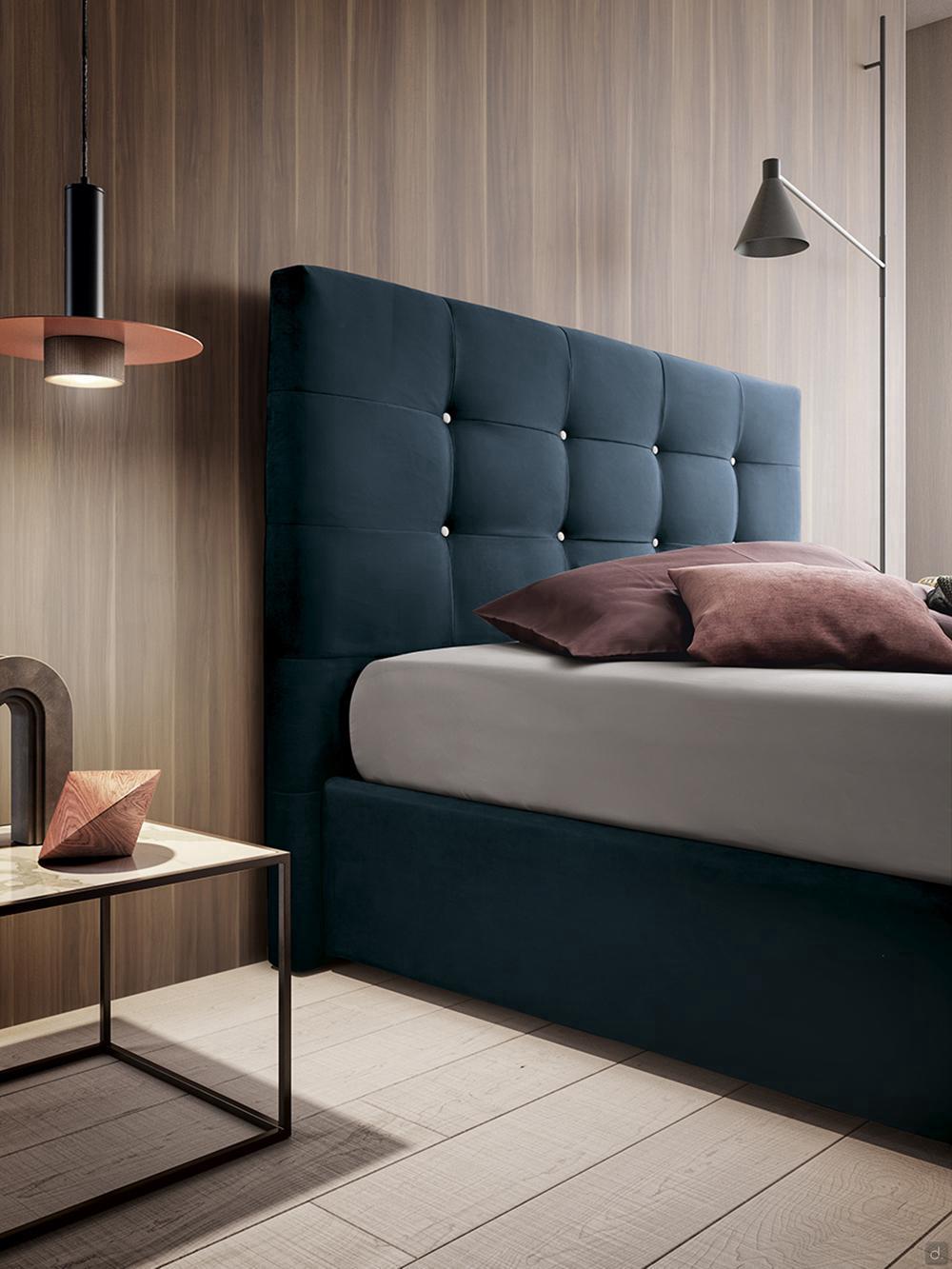

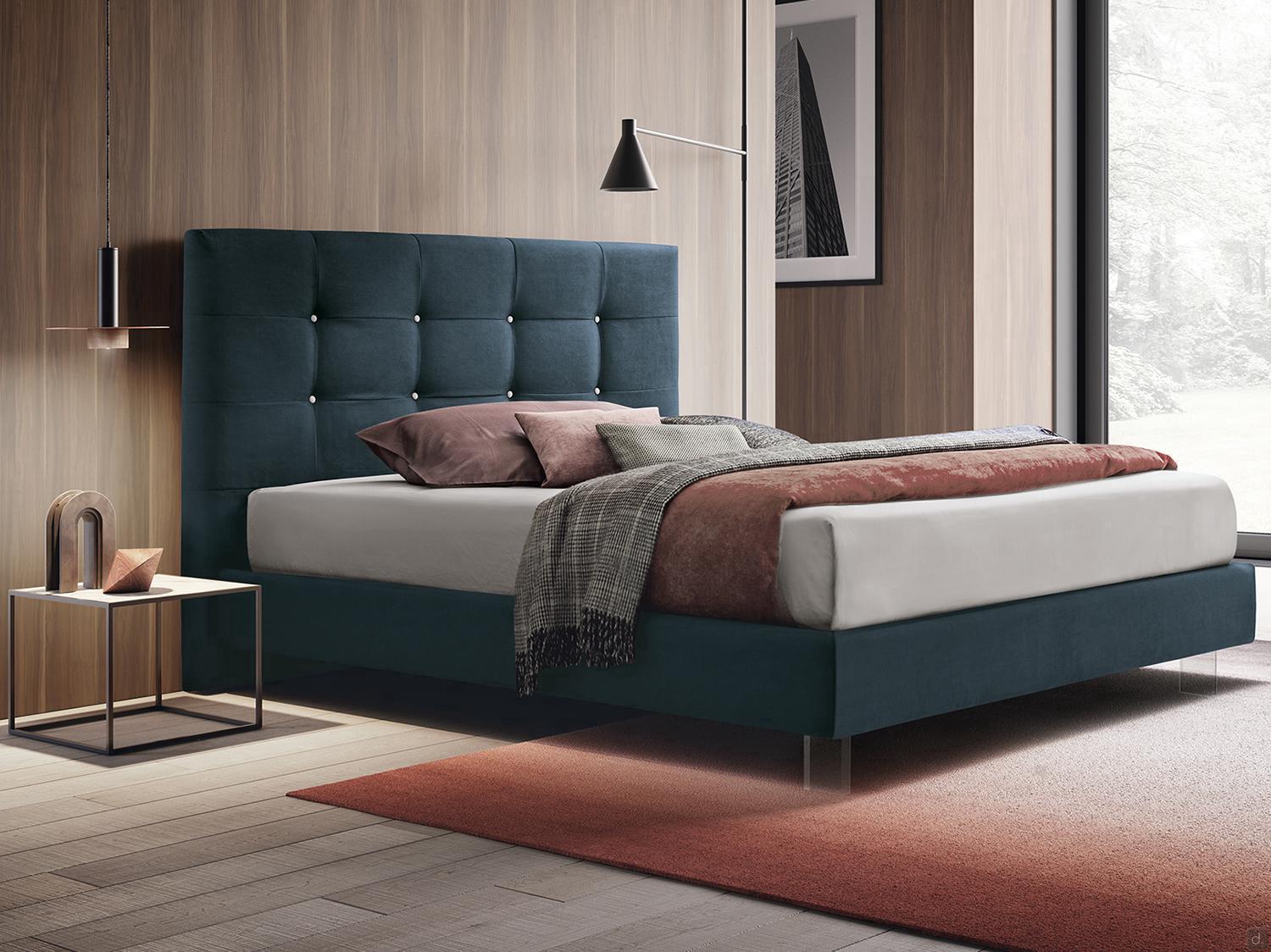

Headboard Buttons: they create a geometrical pattern and they can match the headboard cover or have a different shade. They can also be in clear or black Swarovsky crystal.
Storage Box: only available with the bed frame Smart model. 12-14 mm thick panels made of particle poplar wood in E1 class.
Simple lift-up mechanism: traditional mechanism certified and tested up to 5.000 cycles, allows you to lift the bed base at 45°. Metal structure painted in epoxy powders with gas springs set on mattress weight.
Double lift-up mechanism: tested up to 4.000 cycles with assisted mechanism, allows you to lift the bed base at 45° and then raised it flat at a convenient height (m h.1). In this way, you can access the box easily and don't have to bend over the bed to make it or get into uncomfortable positions. Metal structure painted in epoxy powders with gas springs set on mattress weight.
Feet:
Basic standard (Smart bed frame): n.4 polypropylene regenerated and recyclable feet, available in wengé, black, white or silver. 3 cm height.
Visual (Smart bed frame): n.4 polypropylene regenerated and recyclable feet, available in wengé, black, white or silver. 3 cm height. Feet height cm 9, the total bed height increases of 6 cm.
Lux (Smart bed frame): n.4 " L " shaped feet for measurements of cm 18 x 18 h.3. Available in seasoned natural beech wood in wengé, black, matt white or in a chrome plated colour.

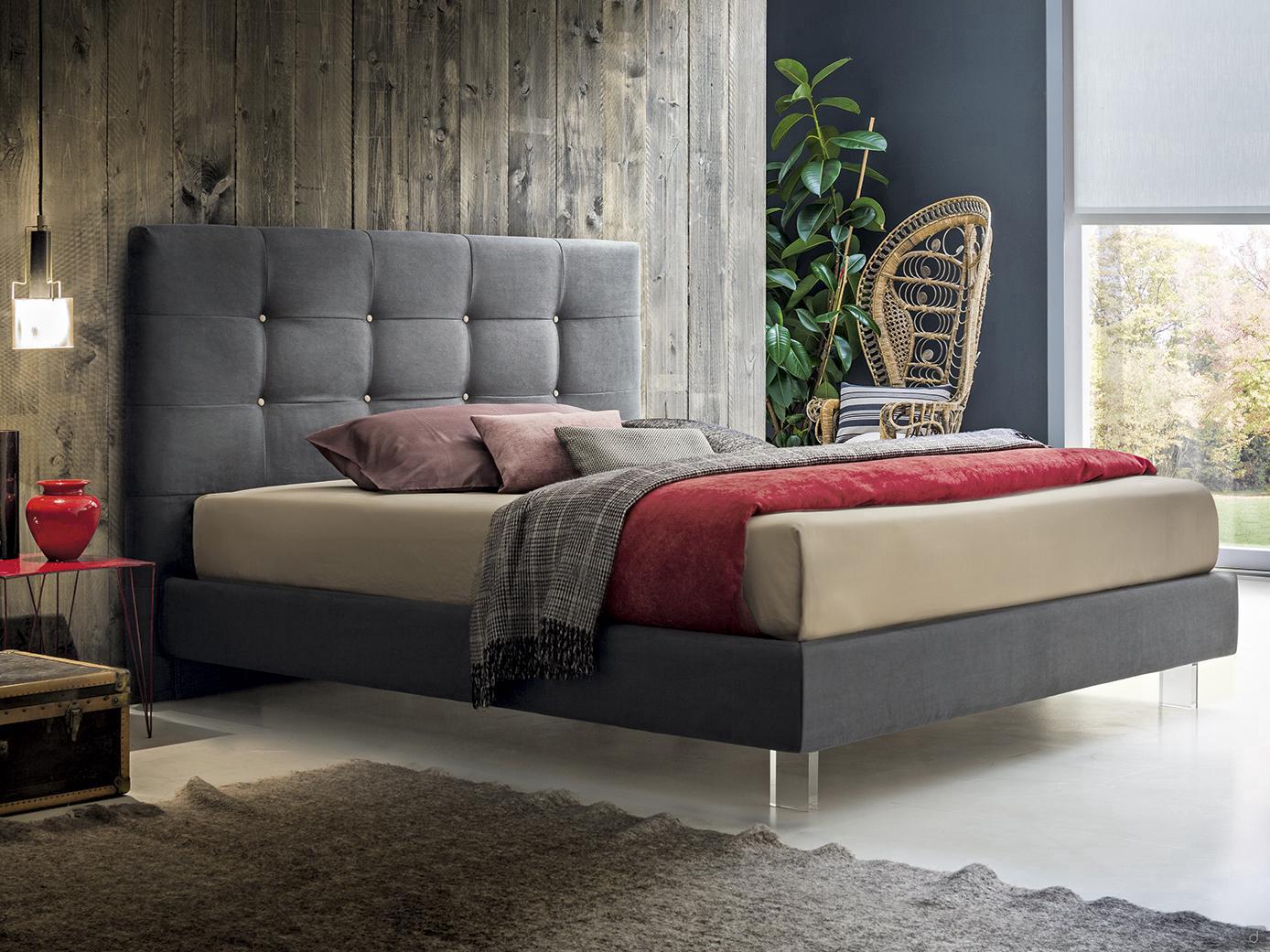

Ghost (York bed frame): n.4 clear polycarbonate feet with non-sliding system. 13 cm height.
Blade (York bed frame): n.2 plexiglass footboard feet in moulded aluminium alloy. Painted in epoxy, satin or bronze, with brushing treatment. 13 cm height. Choosing Blade feet, the two headboard feet will be in the Ghost clear model
Plexi (York bed frame): n.2 footboard feet in clear plexiglass 30 mm thick with non-sliding rubber 13 cm height. Choosing the Plexi model, the two headboard feet will be in the Ghost clear model..
Tower (York bed frame): n.2 footboard feet in polish chrome-plated stainless steel, 13 cm height. Choosing the Tower model, the two headboard feet will be in the Ghost clear model.
Optionals
remove slatted base: you can purchase a bed without bed base only for the models without storage box.

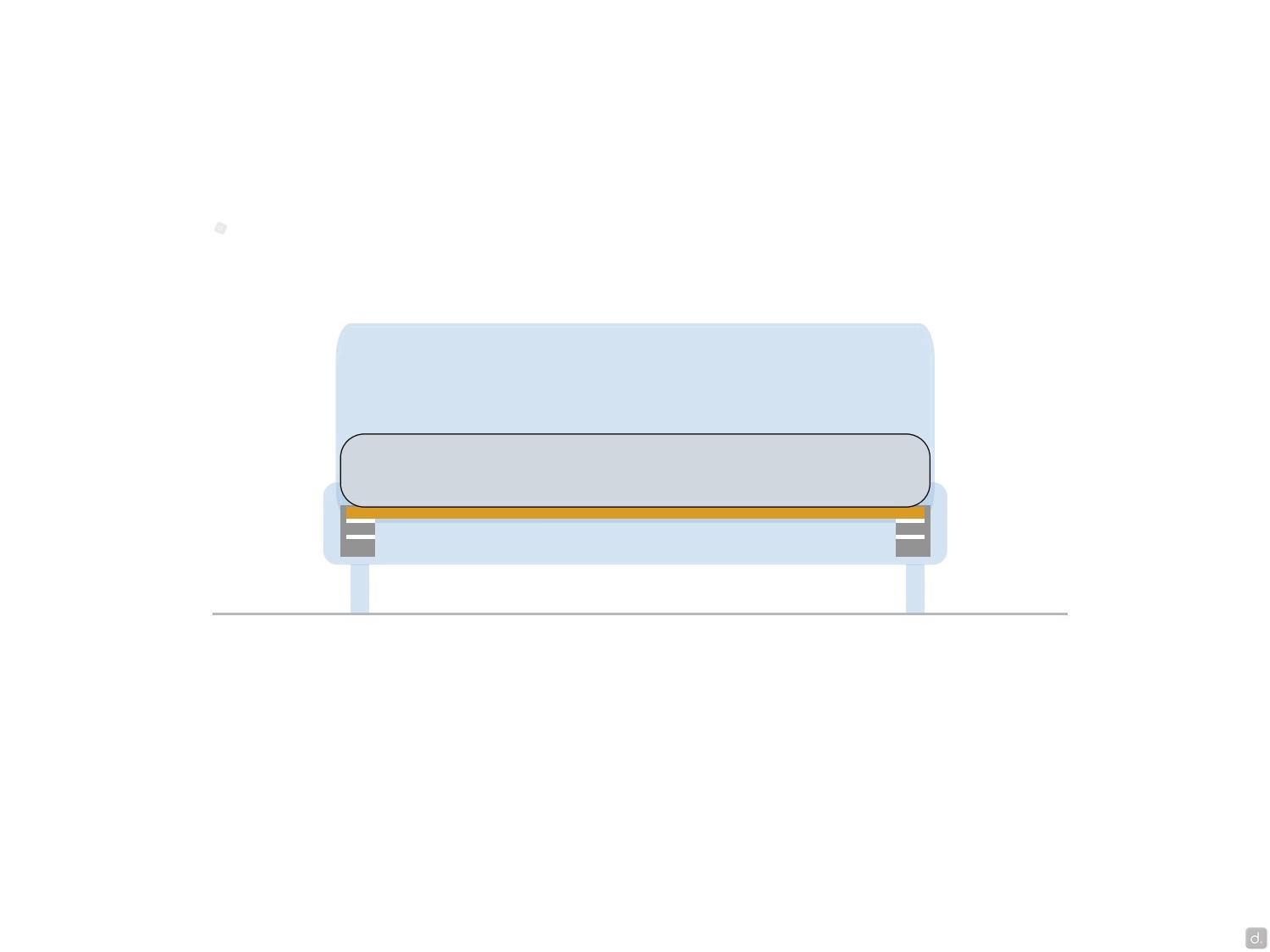

corner support set: available for those models with slatted base without mechanical system and without storage box. It gives the possibility to regulate the slatted base's height for a more or less recessed mattress. The three different height positions are: cm 5, cm 6 e cm 12.

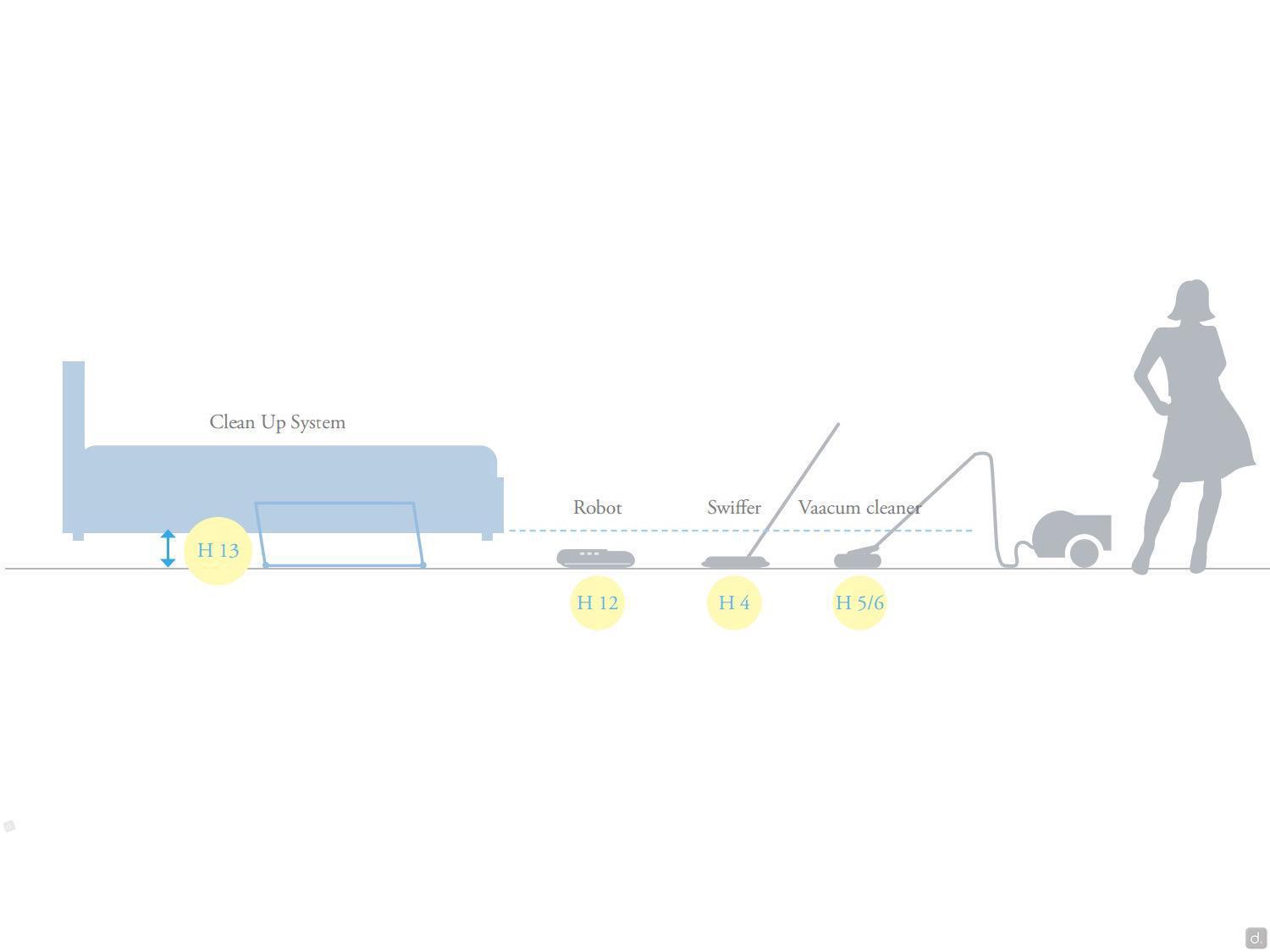

Clean Up System: it is a mechanism that allows you to lift the storage bed models and move the whole structure,without effort, by operating two hidden levers assembled on the sides of the bed frame. In this way, 4 no-marks rubber casters lower down and the whole bed is raised of cm h. 13 and can be move back and forth effortlessly. When the levers are lowered down, the casters disappear and the bed rests again on its feet. Easy, handy and safe.
tool-holder: useful, practical and elegant solution to store magazines, glasses and handkerchiefs. It is attached to the bed frame with a velcro.
Assembly Tips
Easy to assembly, with useful instructional sheet with maintenance advice.
Storage beds with covered headboard are delivered with an already fixed mechanisms and they come with the Catas Italian quality certification.
