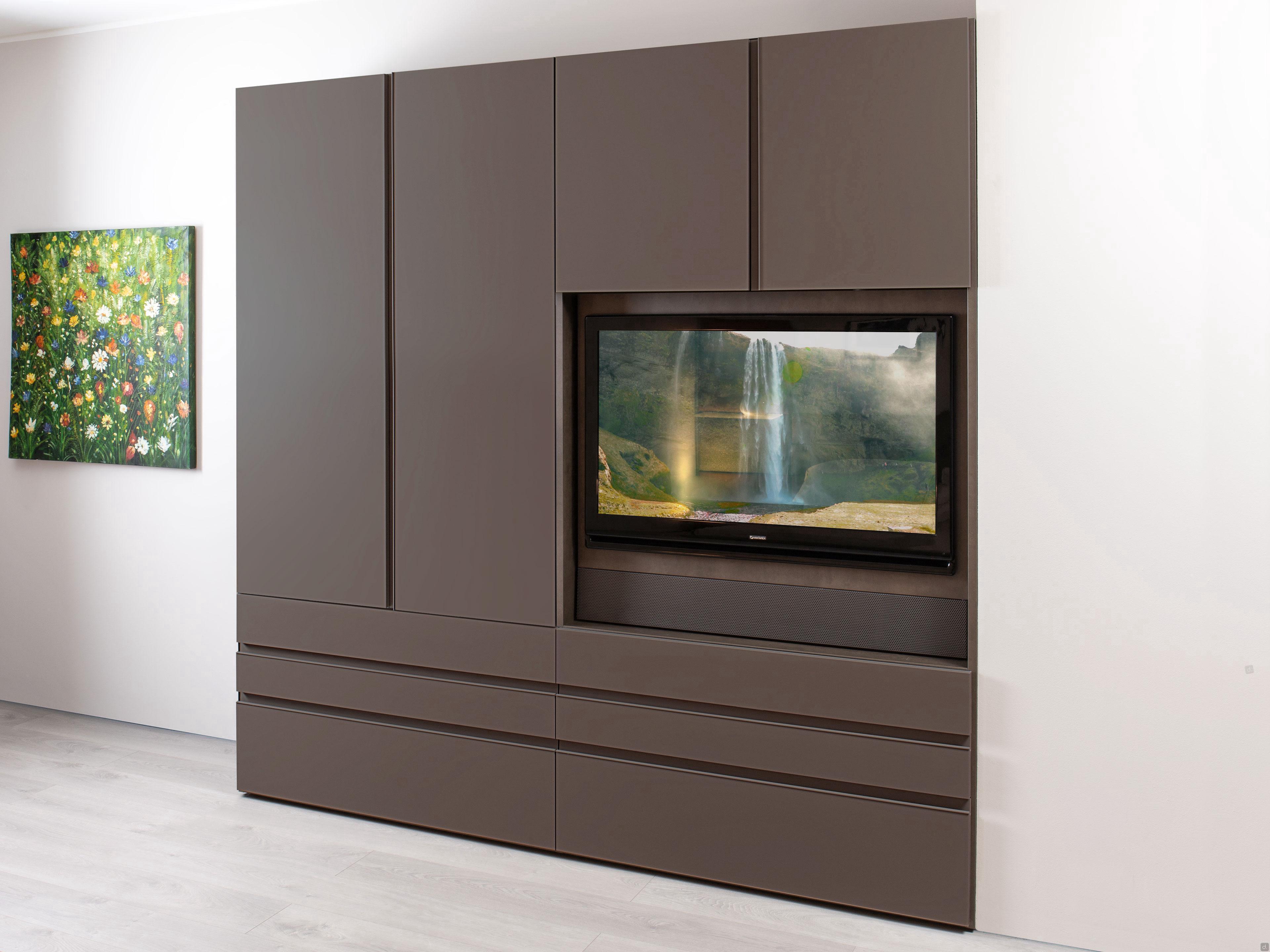

Wardrobe with matt lacquered Wide TV module, with two upper hinged doors and three lower drawers

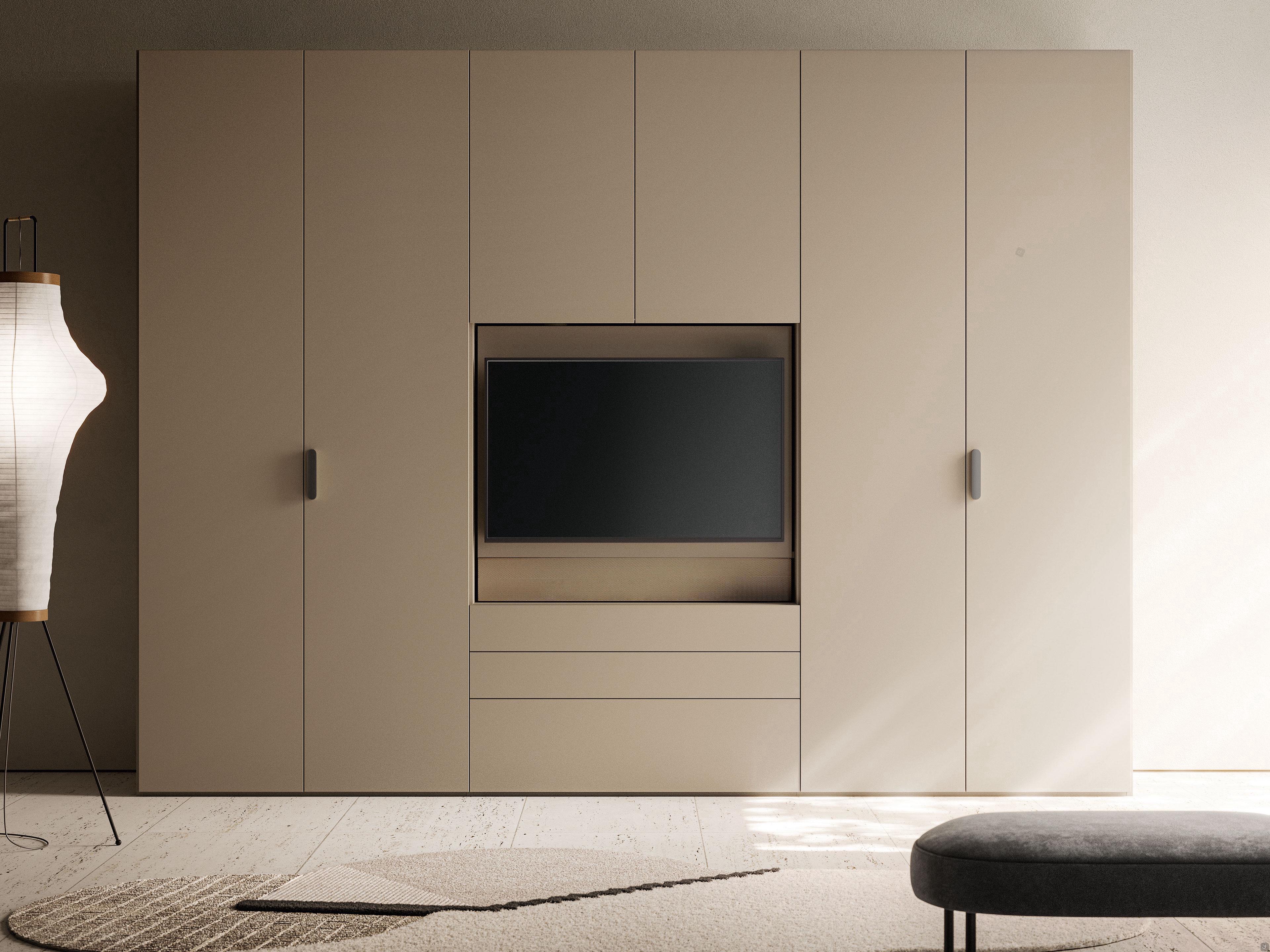

Cabinet with Wide TV module combined with two Focus Wide side modules with Savoir handle

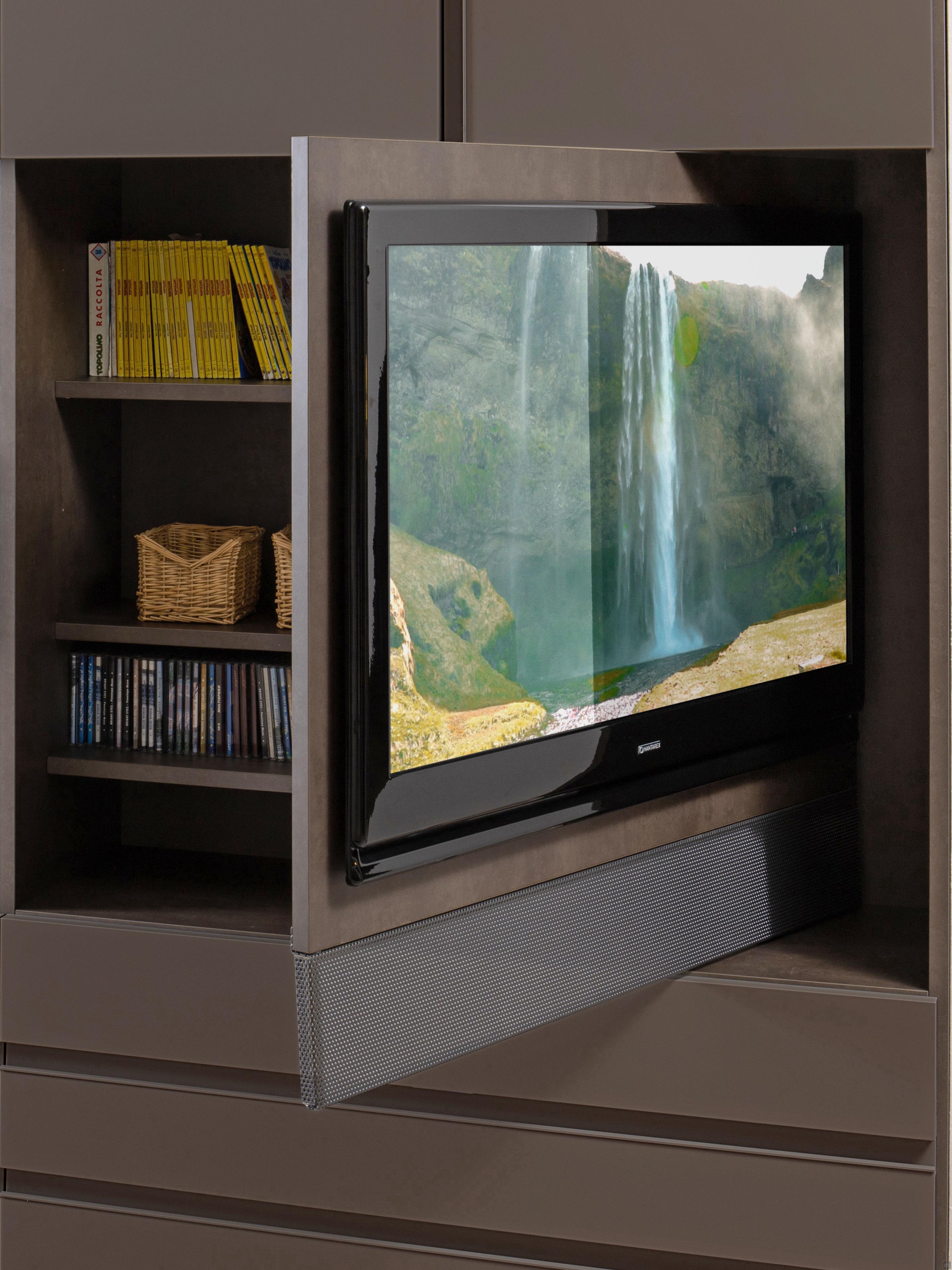

Detail of the TV door of the Wide TV cabinet, with microperforated bottom panel for soundbar or electronic devices with remote control

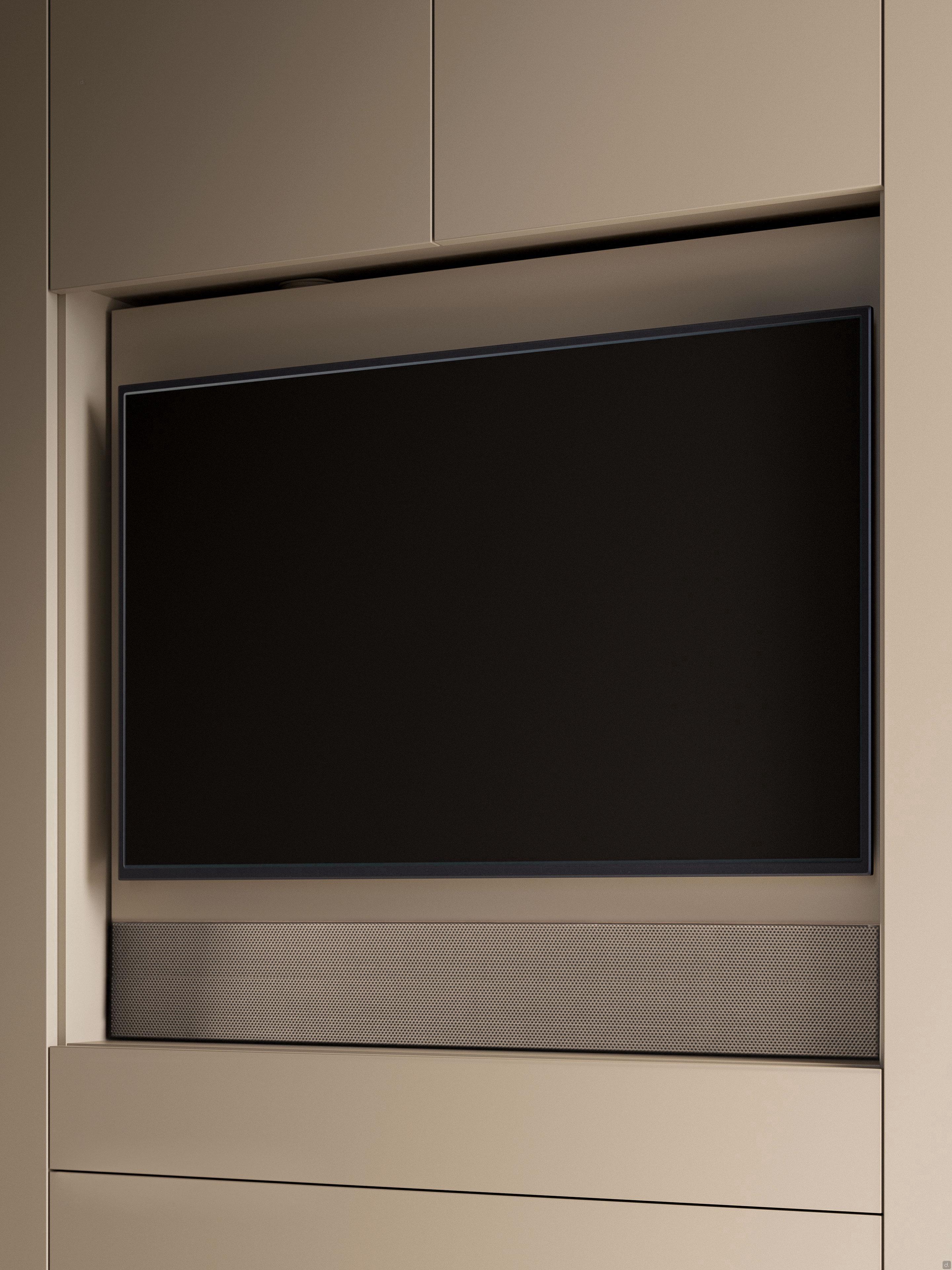

TV door when closed, with microperforated bottom panel. The centre element of the Wide TV always matches the doors and bottom drawers

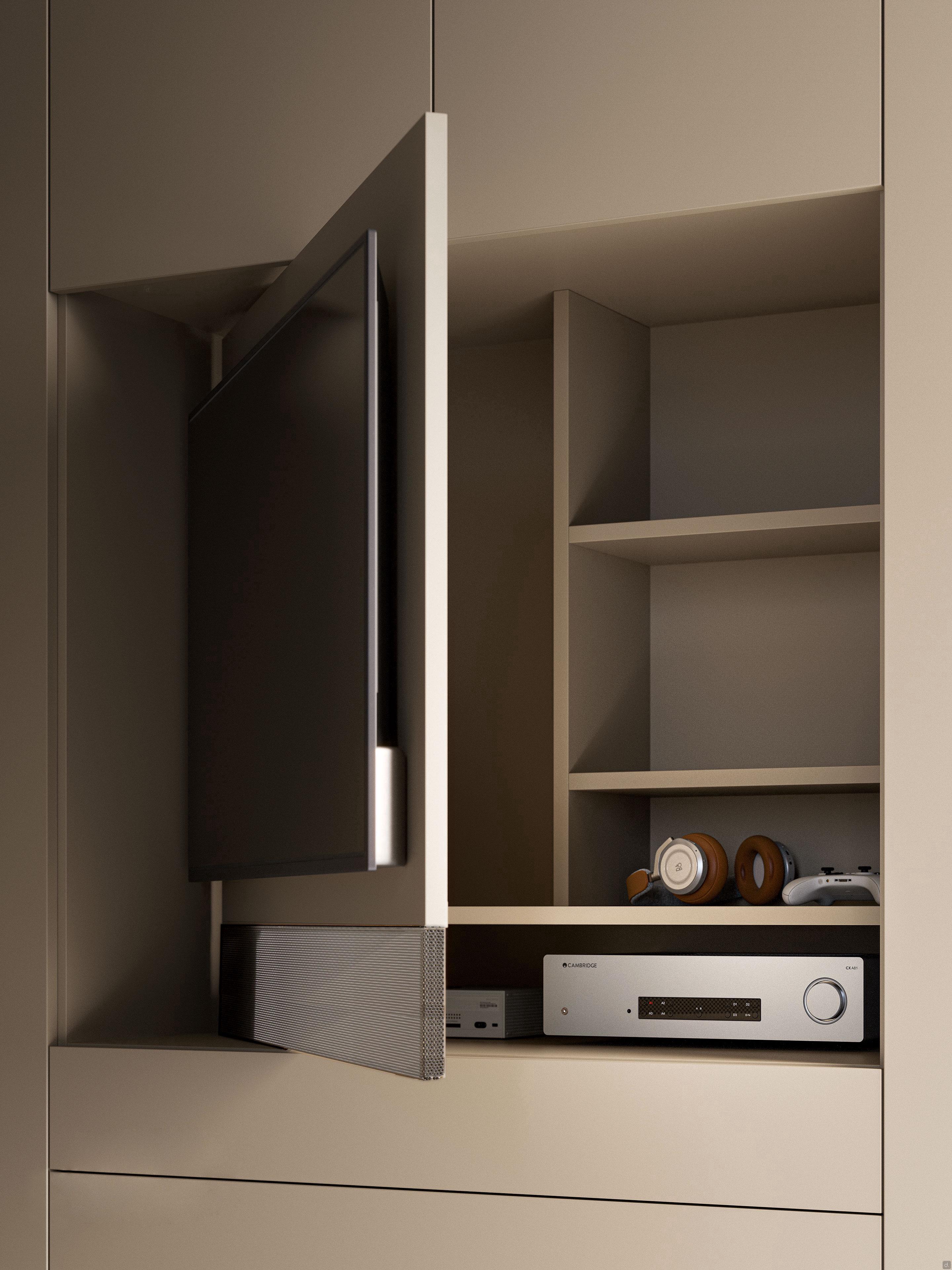

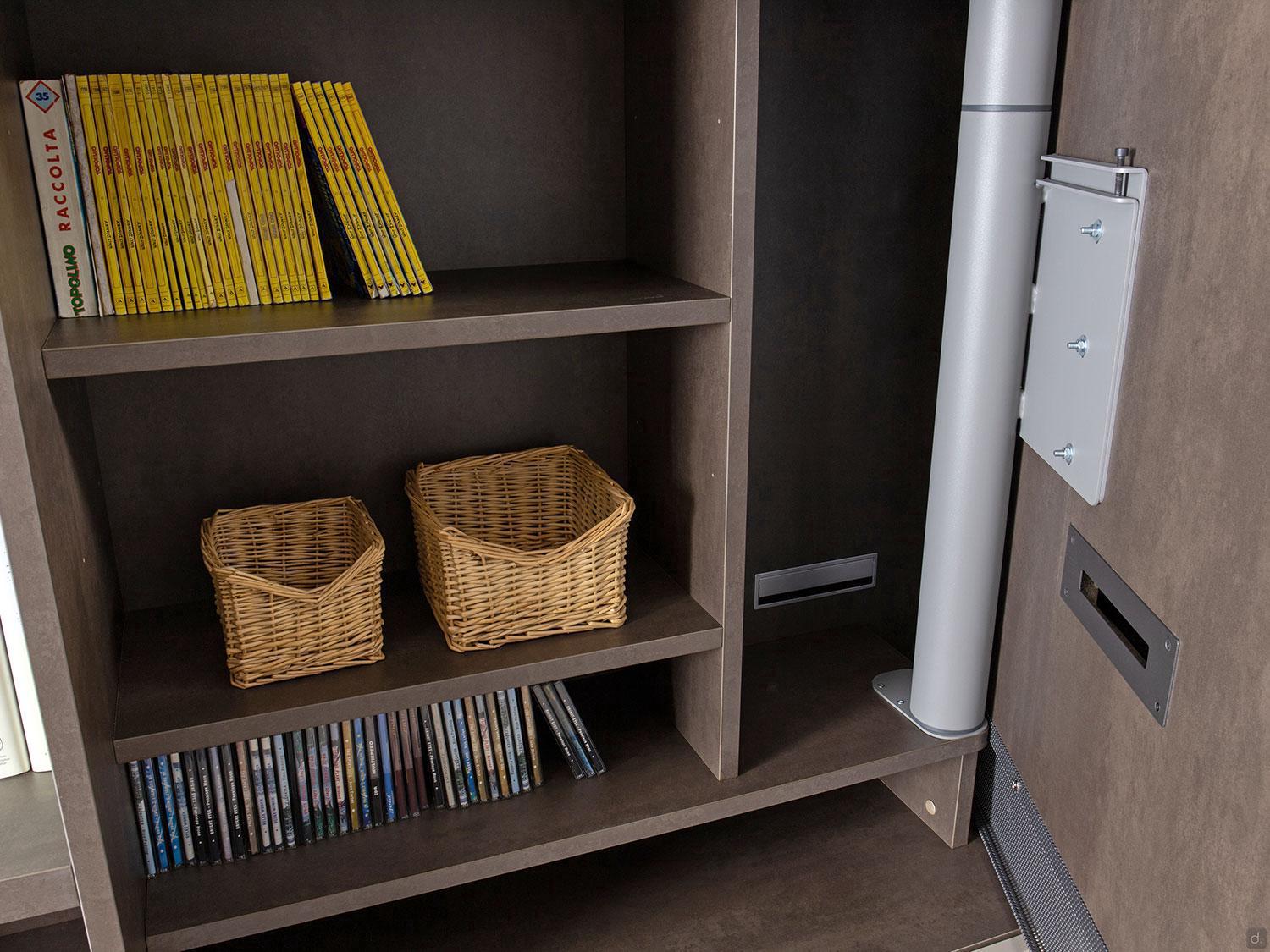

Detail of the interior compartment behind the TV door, organised with four upper compartments and a lower one dedicated to electronic devices

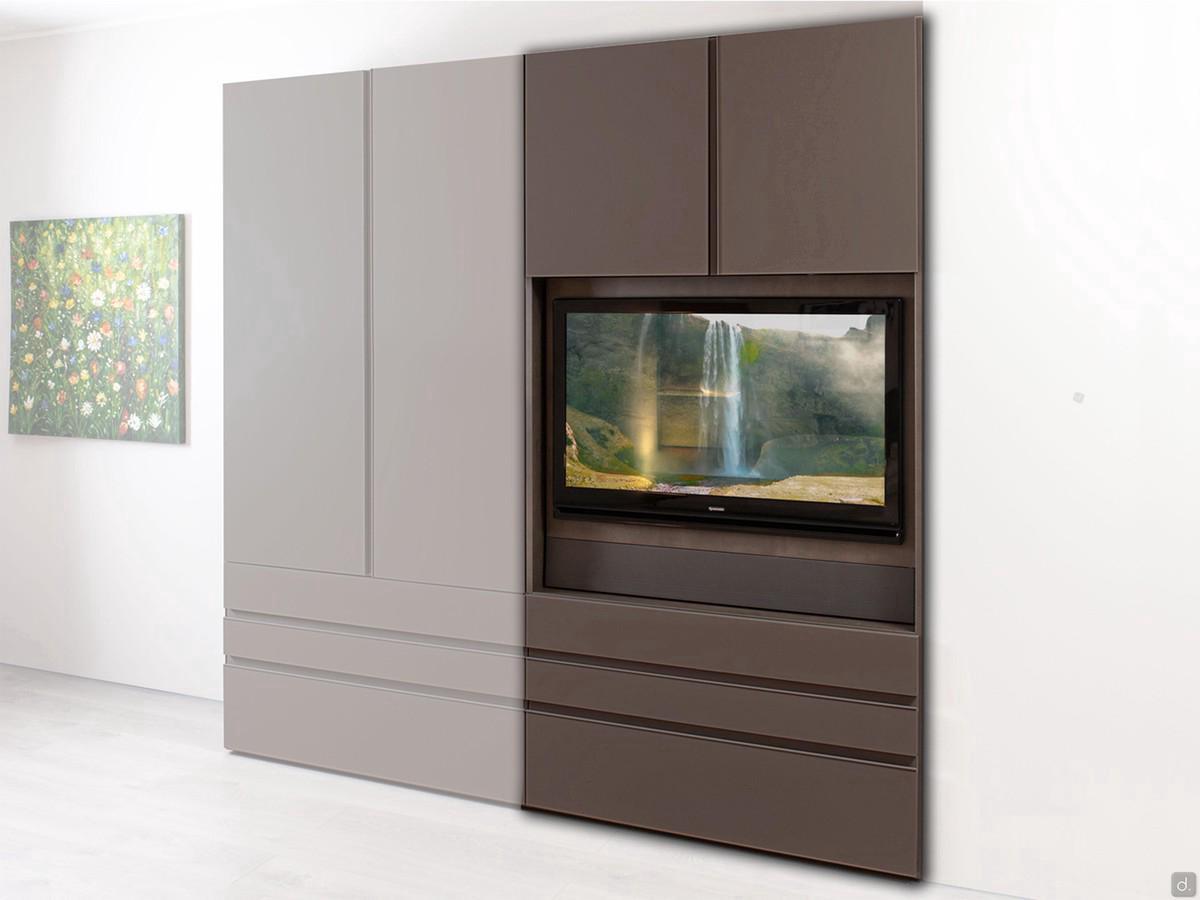

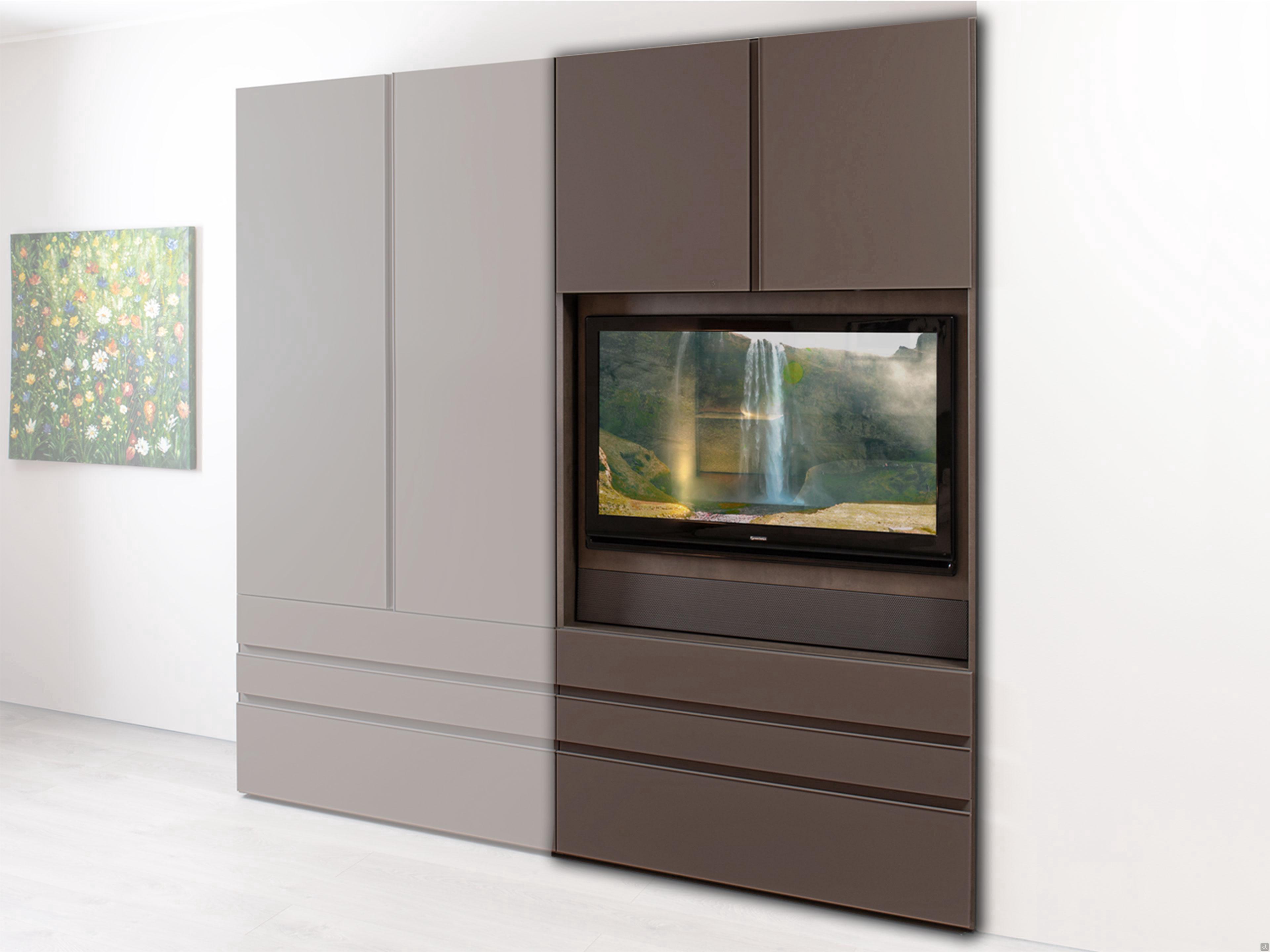

Wardrobe with Wide TV module combined with a door and drawer module, also from the Wide collection

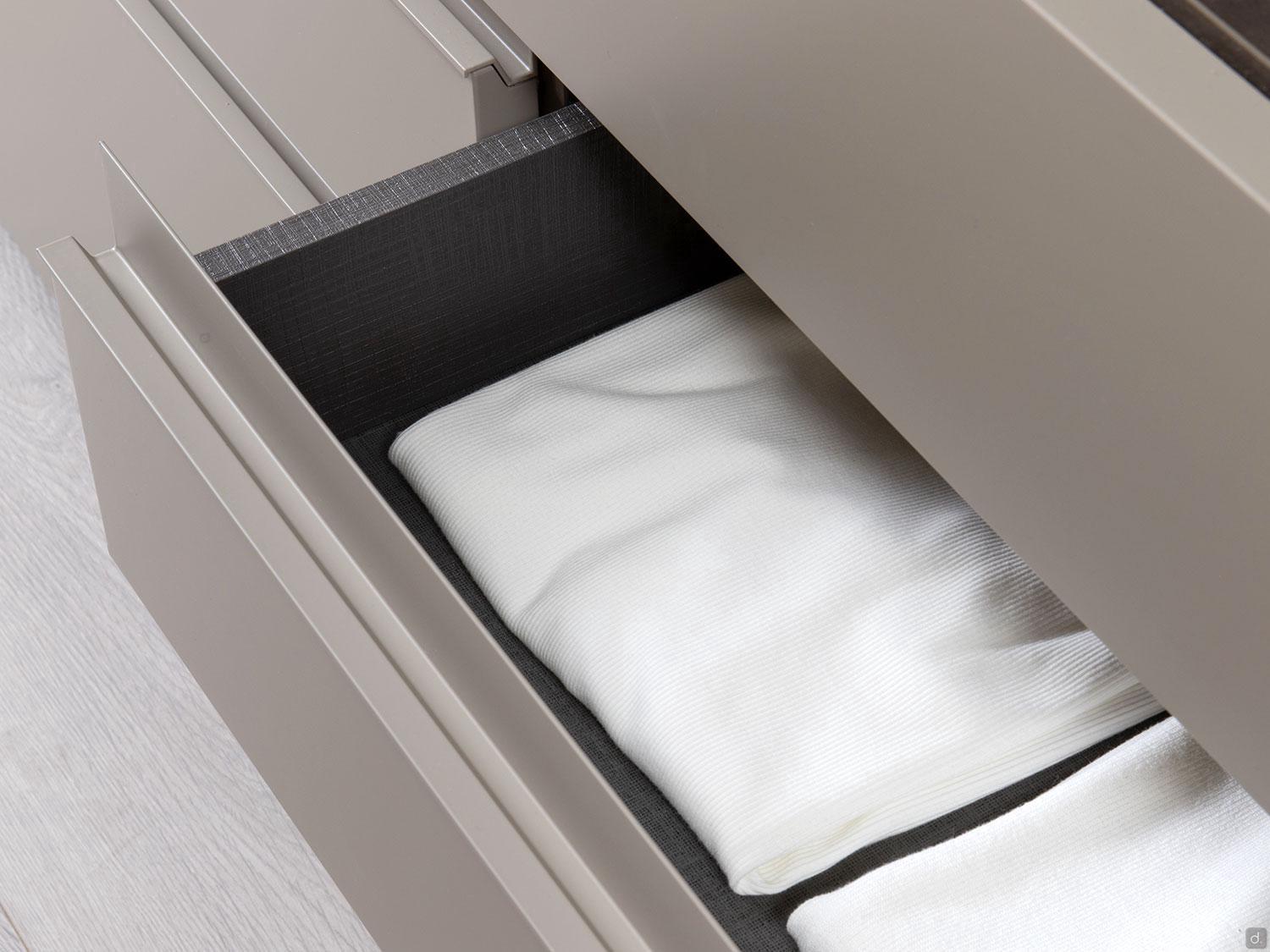

Detail of the bottom drawers of the Wide TV hinged wardrobe, with internal structure also in linen grey melamine

Internal organisation of the TV compartment, equipped with double grommets for simple and clean screen power management

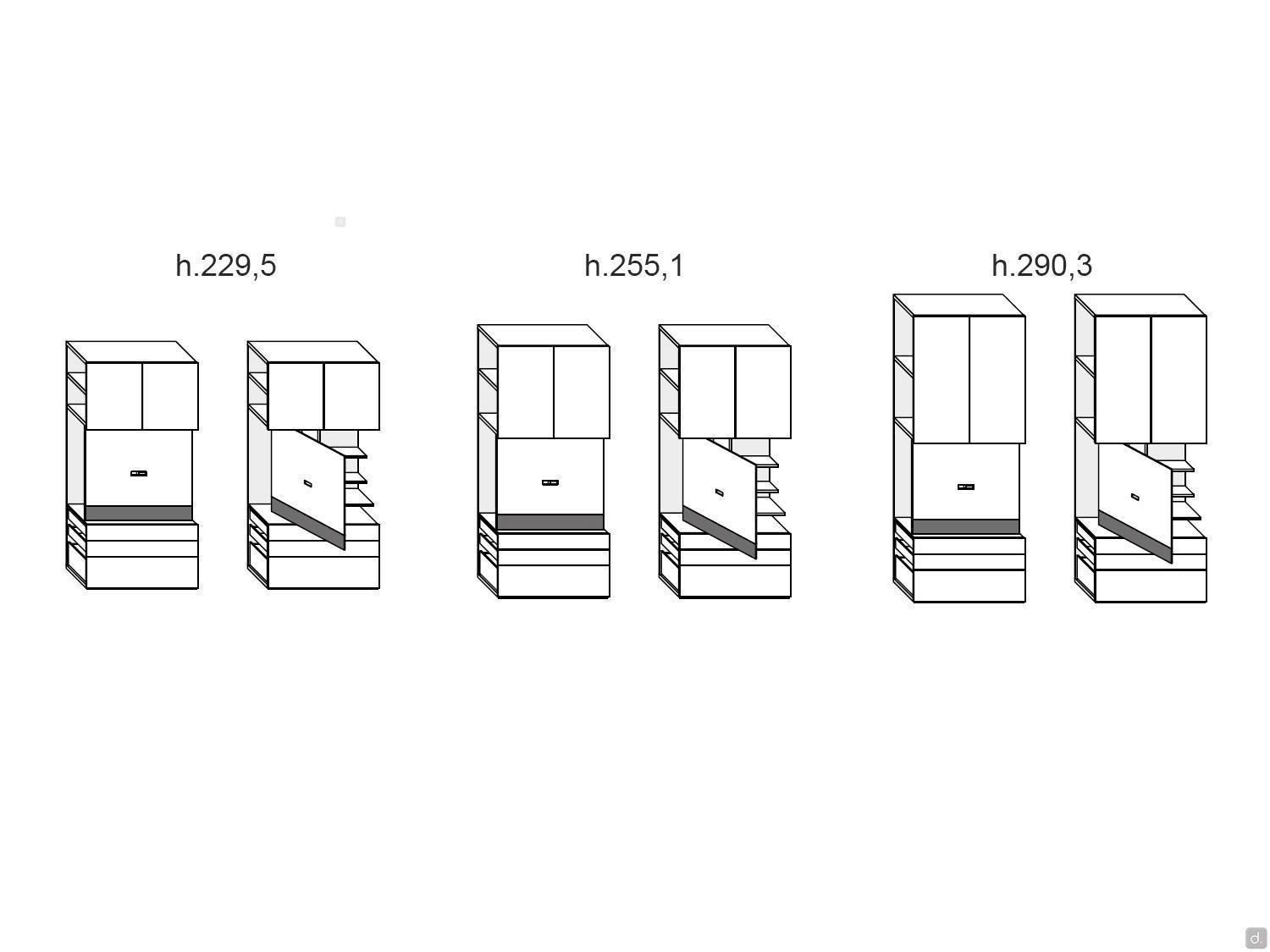

Wardrobe with TV Wide module - Diagram of the three available heights. The part of the drawers and TV holder remains unchanged, while the height of the upper doors changes

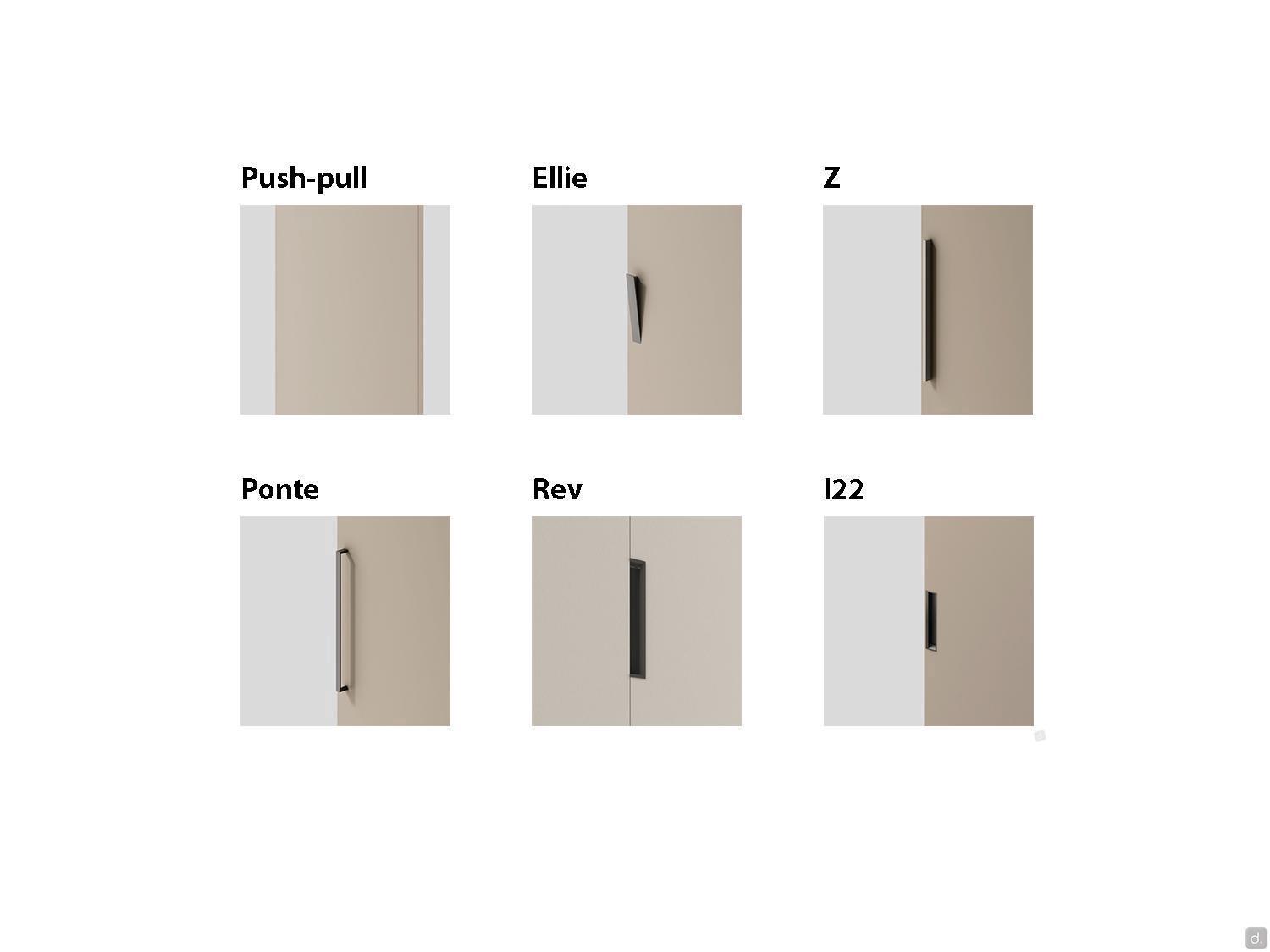

Overview of handles available on the Wide TV module doors in the Focus door version

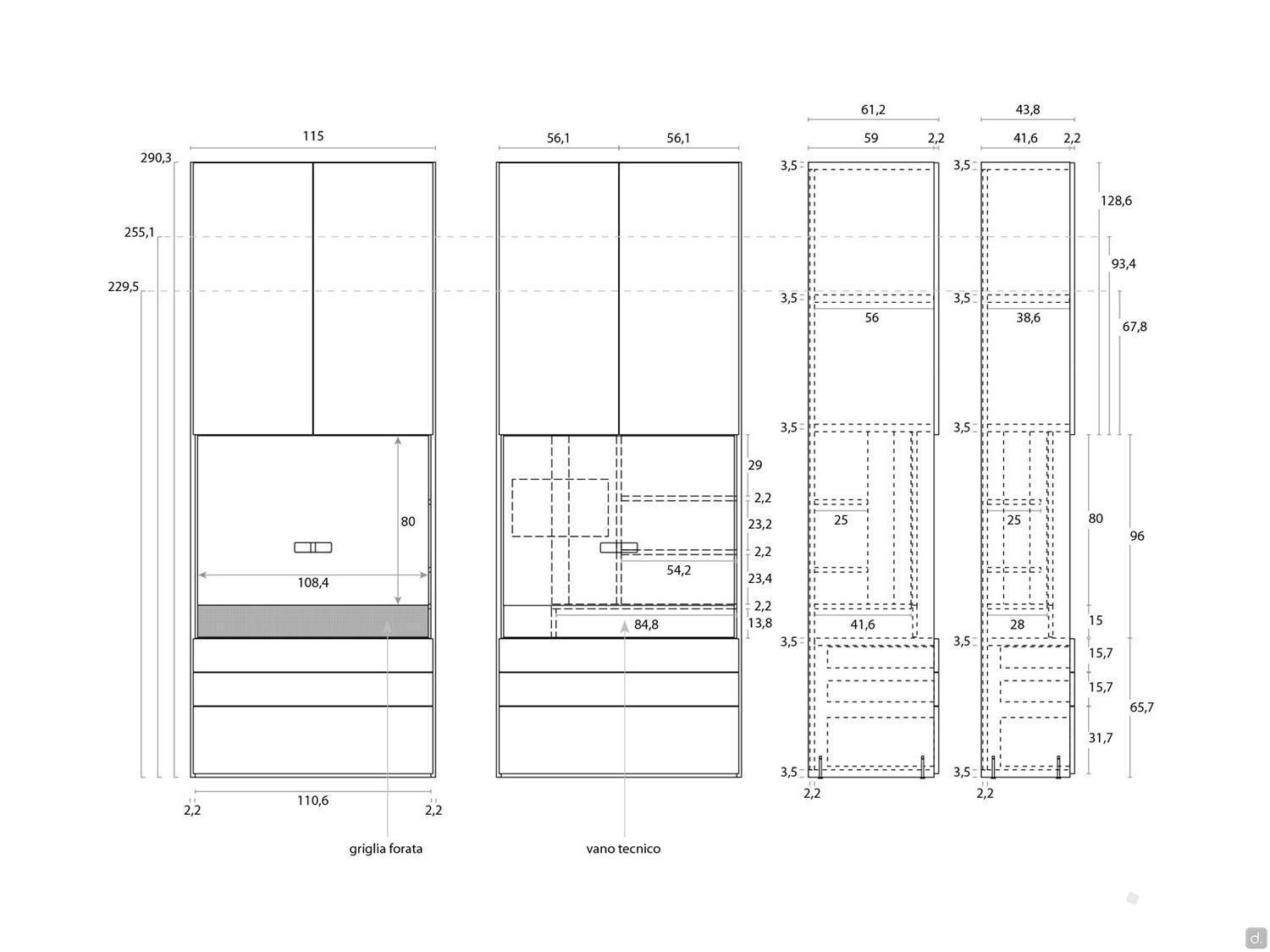

Scheme and dimensions of the Wide TV module in the three heights and two depths available

+ 8

MORE IMAGES

Wide - Element with Doors, Drawers and TV compartment
Wardrobe with TV

Element with doors, drawers, compartment or adjustable TV panel for Wide wardrobes. 110,6 cm wide and in several finishes.

* Required Fields

Tipologia Elemento *

con ante, cassetti e porta tv orientabile

Profondità Elemento *

----------- con ante, cassetti e porta tv
cm 43,8
cm 61,2 +€177.42

Altezza Elemento *

Composto da: *

n.2 ante cm h.67,8 + pannello porta Tv cm h.96 + cassettiera cm h.65,7

Composto da: *

n.2 ante cm h.93,4 + pannello porta Tv cm h.96 + cassettiera cm h.65,7

Composto da: *

n.2 ante cm h.128,6 + pannello porta Tv cm h.96 + cassettiera cm h.65,7

Finitura Elemento *

Finitura Elemento *

Finitura Elemento *

Finitura Elemento *

Modello Maniglia *

Finitura Maniglia *

Finitura Unghiatura *

Dotazioni Interne *

n.1 ripiano, n.1 divisorio con ripiani laterali

Finitura Interni *

nobilitato

Finitura Interni *

Finitura Lato Interno Anta/e *

nobilitato skin effect NSE

Nota Bene *

I bordi di coperchio, fondo e divisione sono sempre in finitura Moka Shine.

Verso Pannello Porta TV *

Finitura Fianco di Chiusura *

-----NOBILITATO
in tinta alle Ante su entrambi i lati

Finitura Fianco di Chiusura *

-----NOBILITATO
in tinta alle Ante

Quantity

From €1,586.19

View Samples

Wishlist

Description

Element with doors, drawers, compartment or adjustable TV panel for wardrobes with hinged doors of Wide collection.
This element, available in two depths and three heights, can create a pleasant contrast of material and colour with the rest of the wardrobe by choosing the convenient TV panel equipped with a mechanism adjustable up to 90° on one side and metal grid on the lower side.

Characteristics
element with drawer, 2 drawers and upper doors with internal shelf
available with Focus or Midley fronts, with handles or recess grip
wide range of melamine and matte lacquered finishes
convenient partition with side shelves on the back of the panel

Measurements
Width: cm 110,6
Height: cm h.229,5 / 255,1 / 290,3
Depth:
- wardrobe: cm d.43,8 / 61,2
- structure: cm d.41,6 / 59
- internal side: cm d.38,6 / 56

Materials and Finishes
Element:
- melamine
- matte lacquer
TV Panel:
- melamine
- matte lacquer
Handle and Recess:
- painted metal
- lacquered metal
Internal Side:
- melamine

Information for your Purchase
In order to calculate the total space taken by the composition you simply need to add the element width to the one of the hinged wardrobes.

Technical study

Materials Specifications
Doors, drawers, top, bottom, back panels, internal shelves: made with particle wood panels - class E1 with low formaldehyde emissions.
Note: melamines with wood effect, Metal Smoke textured and Gurè textured always come with vertical veins.

Technical Specifications and Equipment
Top: cm 2,2 thick equipped with fixing joints.
Bottom: cm 3,5 thick equipped with fixing joints.
Back Panel: cm 2,2 thick.
TV panel: cm 108,4 th.2,2 h.95, equipped with cable hole and metal grid on the lower part. The adjusting mechanism allows to rotate the panel on one side by 90°, thanks to a metal structure; convenient partition with side shelves matching the element placed on the back of the panel.
Door internal shelf: cm 3,5 thick equipped with fixing joints.
Doors: cm 2,2 thick equipped with soft closing mechanism. It features a full-height handle or recess grip: white or titanium painted metal or in several matt lacquered metal finish.
Drawers: thickness cm 2,2 height cm 15,7 equipped with a soft closing system, depth cm 43,8 with full extension runners. It features an horizontal handle or recess grip (the first drawer next to the shelf does not have a recess grip but a handle built-in the lower side): white or titanium painted metal or in several matt lacquered metal finishes.
Basket: thickness cm 2,2 height cm 31,7 equipped with soft closing system. It features an horizontal handle or recess grip: white, titanium painted metal or in several matt lacquered metal finishes.
Handle:
- push-pull
- Ellie: cm 14,8 d.2,2 h.2,5. White or titanium painted, matte lacquer.
- Katy: cm 12,3 d.2,2 h.3. White or titanium painted, matte lacquer.
- Z: cm 31,3 d.1,8 h. 0,9. Brushed steel, white or titanium painted, matte lacquer.
- Hobby: cm Ø 2,2 d.2,2. White or titanium painted, matte lacquer.
- Ponte: cm 32,6 d.2,7 h.1,2. Brushed steel, white or titanium painted, matte lacquer.
- I22: cm 4,2 d.1,5 h.19,2. White or moka shine painted, matte lacquer.

Assembling Tips
In order to assemble the structure you need:
- in width cm 4
- in height cm 2,5 (cm 0,5 for the adjustable feet + cm 2 for the assembling). In case you select the optional lighting system the cm becomes 3,5.

Additional Information

Area of Production
Italy

Approximate Time
8-9 working weeks for production

Assembling
Medium Assembling

Assembling Instructions
Download the Assembly Instructions
