Specific Measurements

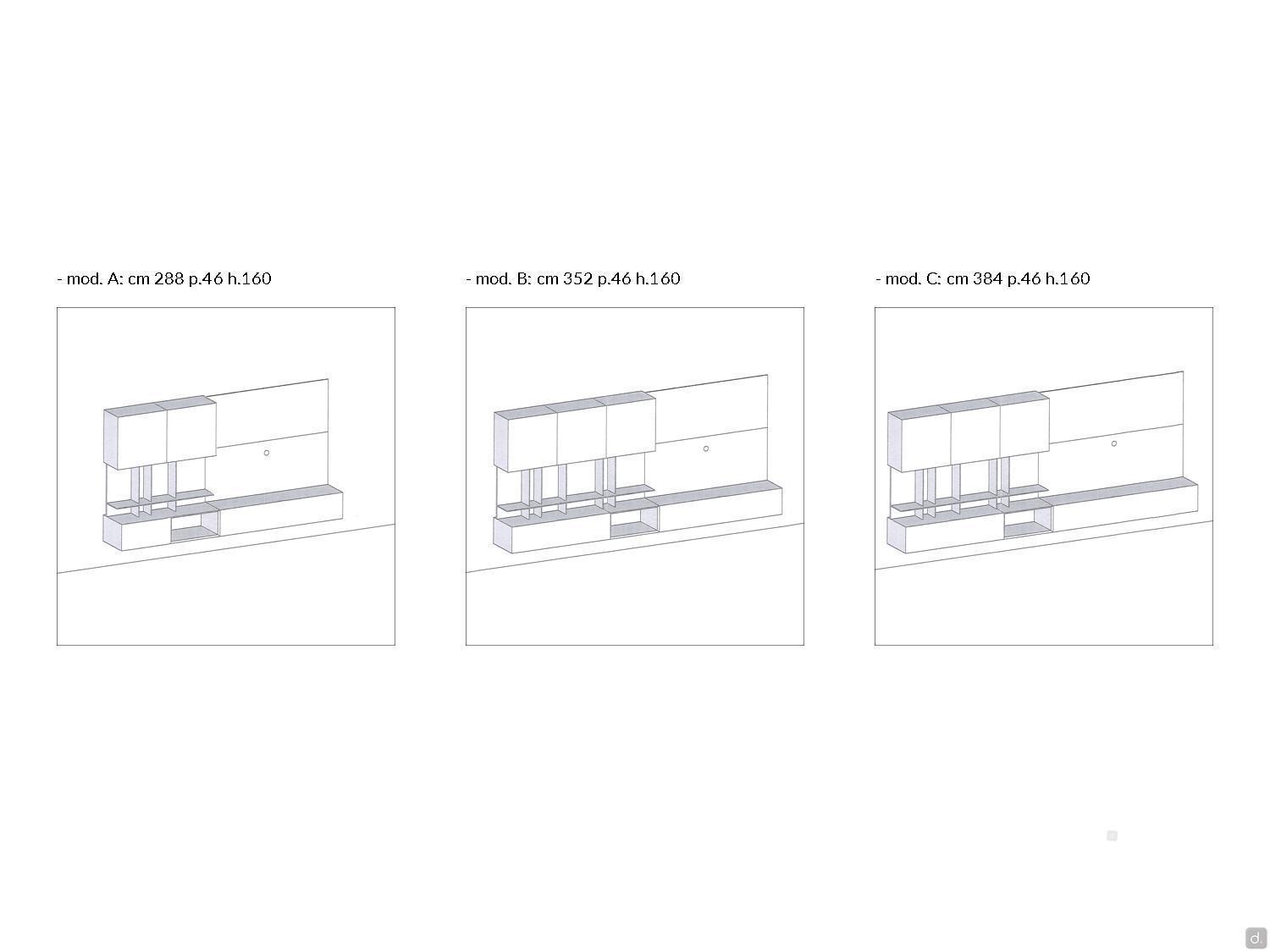

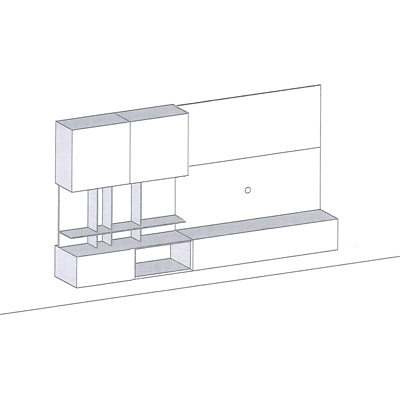

Mod. A (cm 288 d.46 h.160):
n.1 base unit with deep drawer: cm 64 d.46 h.32 with handle at the top.
n.1 open base unit: cm 64 d.46 h.32.
n.1 base unit with drop-down door: cm 160 d.46 h.32 with handle at the top.

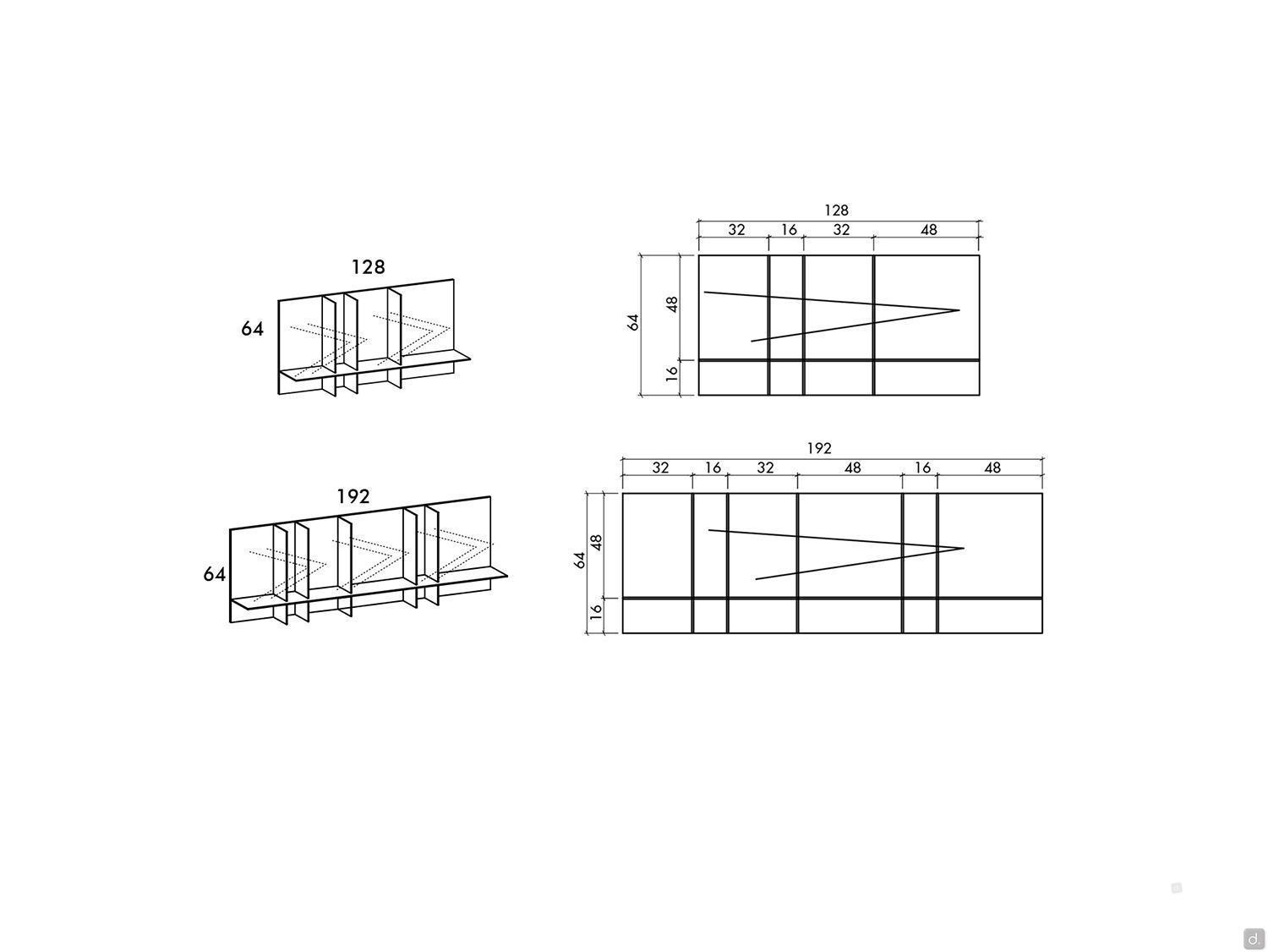

n.1 back panel with shelves and dividers: cm 128 d.27 h.64.
n.2 horizontal back panels: cm 160 thk.1,8 h.64.
n.1 perimeter frame behind back panel: cm d.6,5 (technical compartment is 7 cm in depth).
n.2 wall units with hinged doors: cm 64 d.35 h.64 with handle at the bottom of the wall unit and internal glass shelf, 0,8 cm thick.

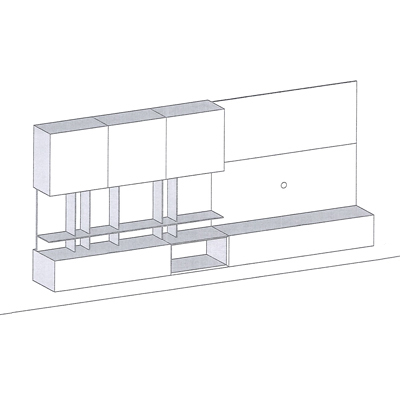

Mod. B (cm 352 d.46 h.160):
n.1 base unit with deep drawer: cm 128 d.46 h.32 with internal divider and handle at the top.

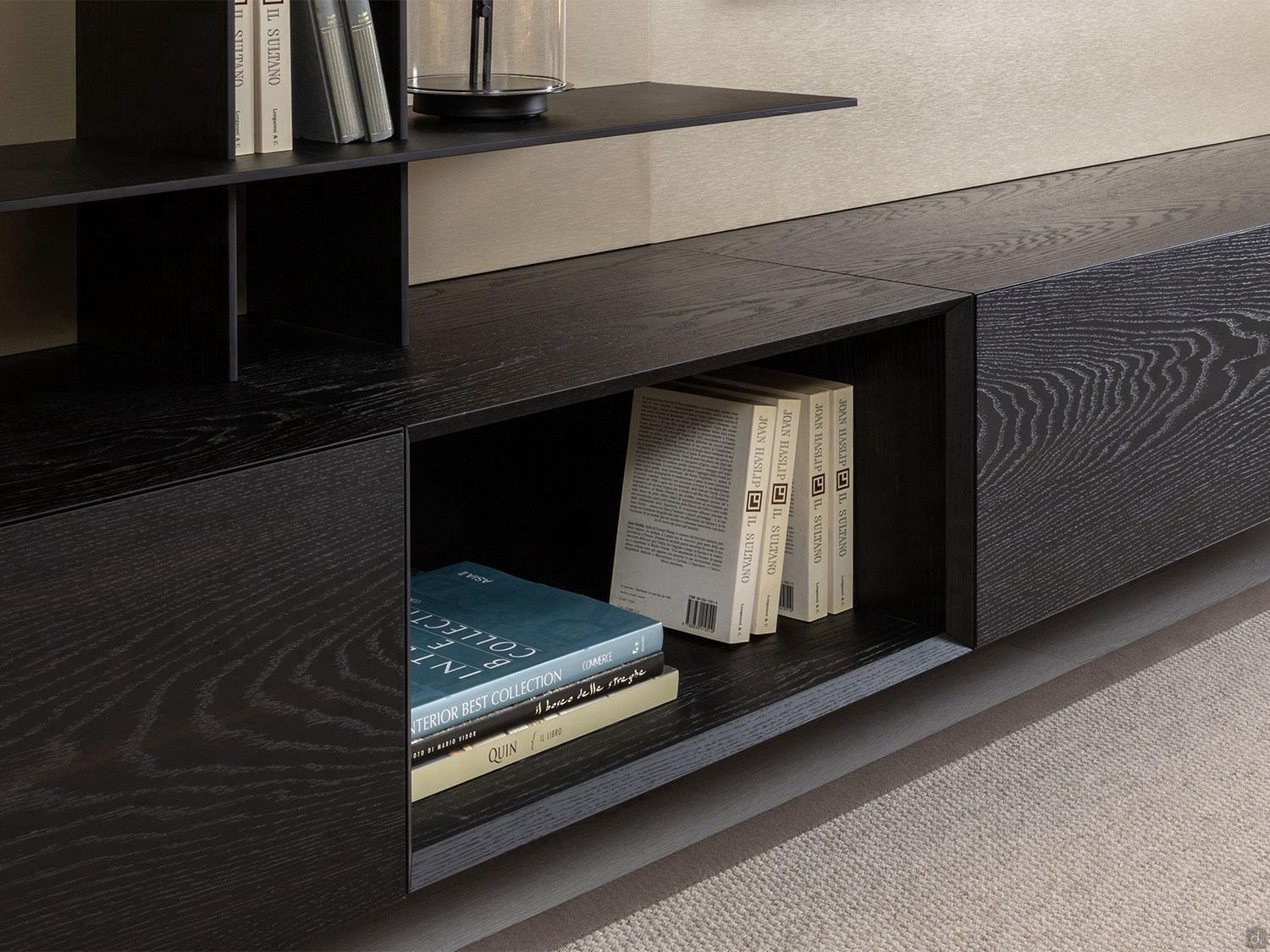

n.1 open base unit: cm 64 d.46 h.32.
n.1 base unit with drop-down doors: cm 160 d.46 h.32 with handle at the top.
n.1 back panel with shelves and dividers: cm 192 d.27 h.64.
n.2 horizontal back panels: cm 160 thk.1,8 h.64.
n.1 perimeter frame behind back panel: cm d.6,5 (technical compartment is 7 cm in depth).
n.3 wall units with hinged doors: cm 64 d.35 h.64 with handle at the bottom of the wall unit and an internal glass shelf, 0,8 cm thick.

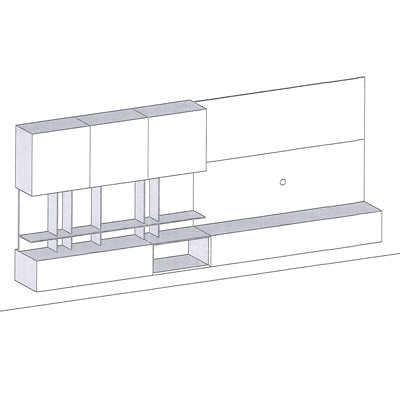

Mod. C (cm 384 d.46 h.160):
n.1 base unit with deep drawer: cm 128 d.46 h.32 with internal divider and handle at the top.
n.1 open base unit: cm 64 d.46 h.32.
n.1 base unit with drop-down door: cm 192 d.46 h.32 with handle at the top.
n.1 back panel with shelves and dividers: cm 192 d.27 h.64.
n.2 horizontal back panels: cm 192 thk.1,8 h.64.
n.1 perimeter frame behind the back panel: cm d.6,5 (technical compartment is 7 cm in depth).
n.3 wall units with hinged doors: cm 64 d.35 h.64 with handle at the bottom of the wall unit and internal glass shelf, 0,8 cm thick.
Technical Specifications and Equipment
Deep-Drawer Base, Open Base, Drop-Down Base and Hinged Wall Units:

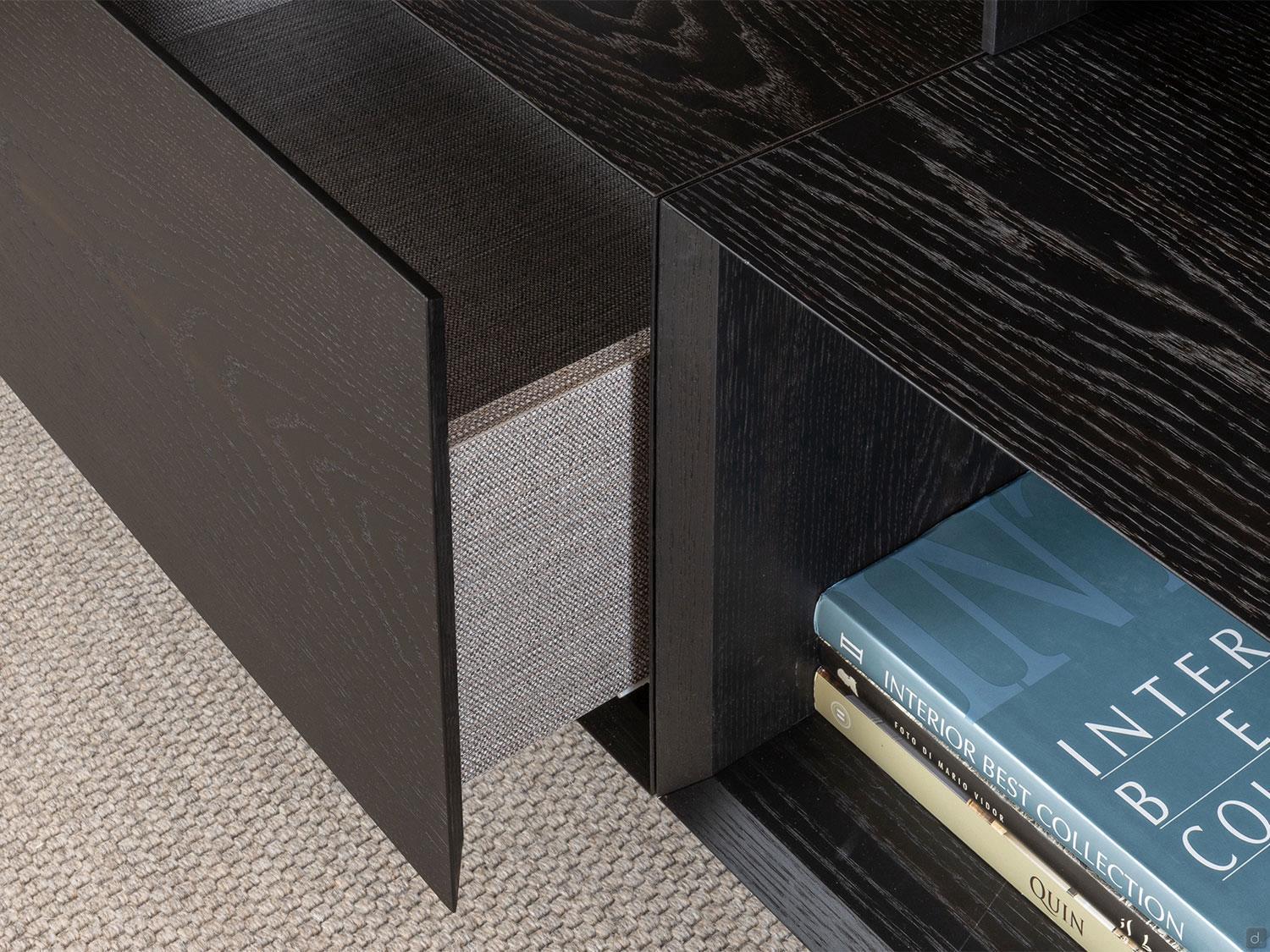

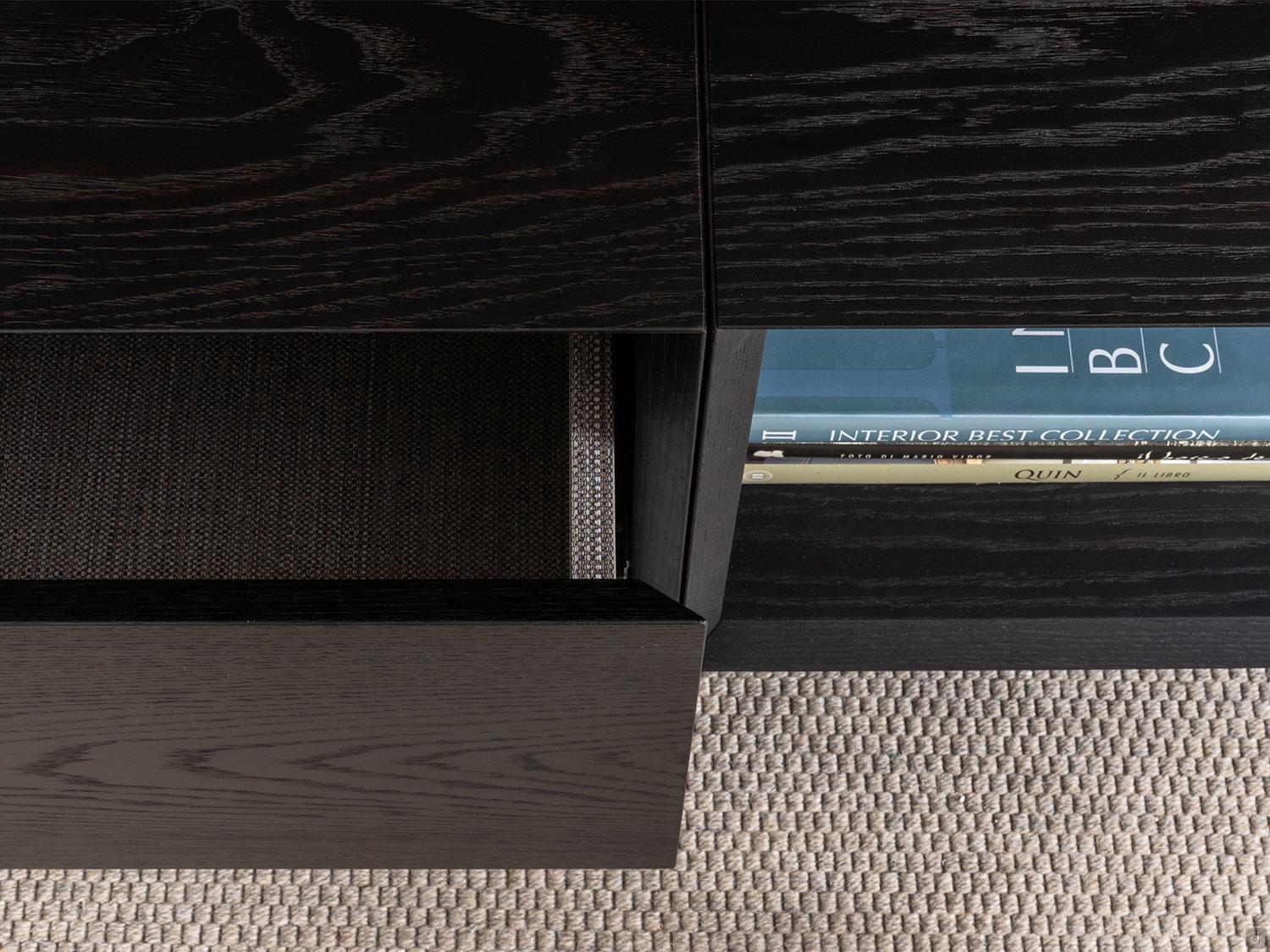

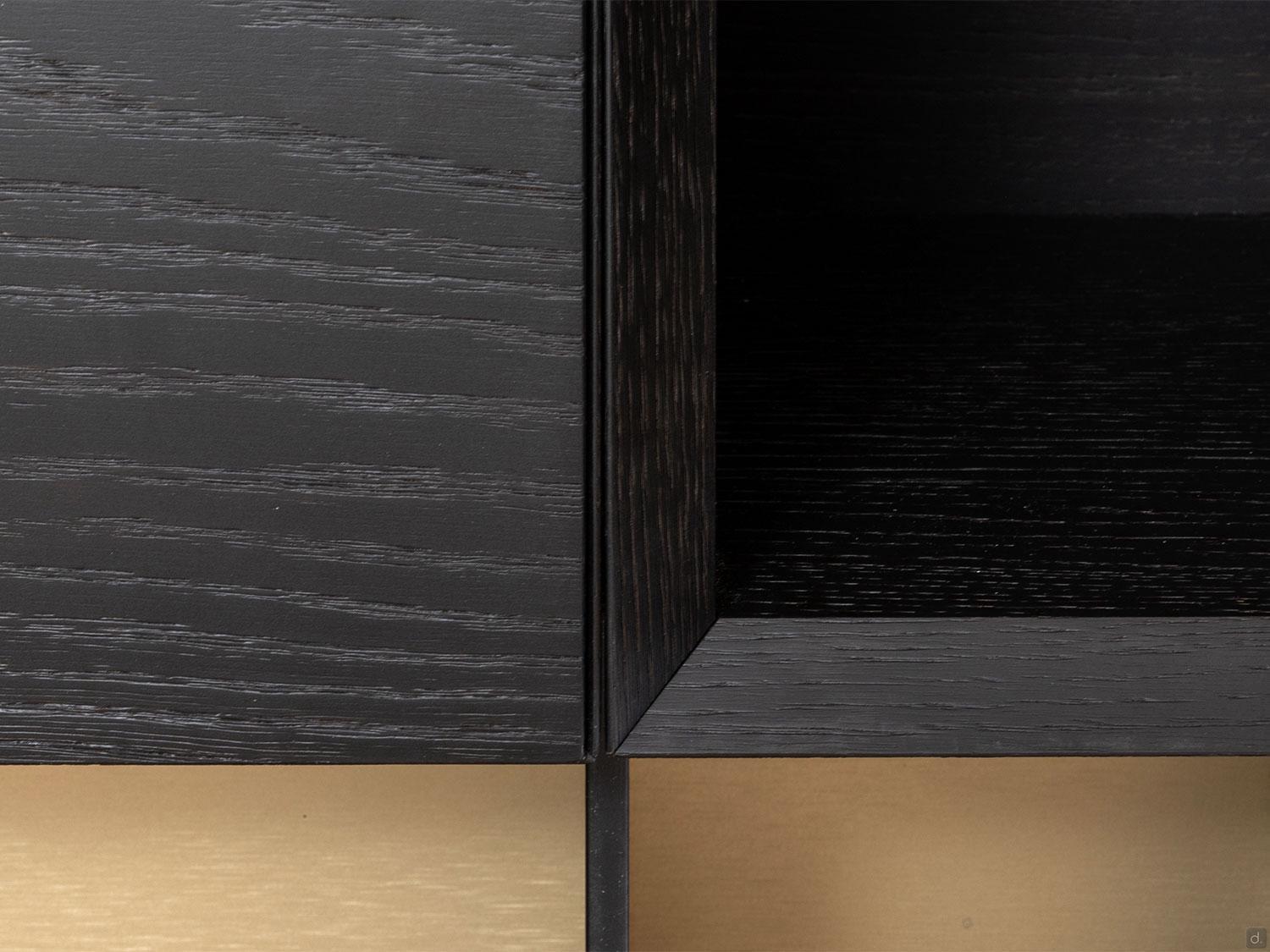

Structure: made from MDF, 1,8 cm thick, with a 45° angle on the edge of all sides. Internal sections in melamine, matt lacquer, glossy lacquer, metallic lacquer, open-pore oak wood and aged oak wood. Deep drawer with removable storage container in T77 Alpha melamine.

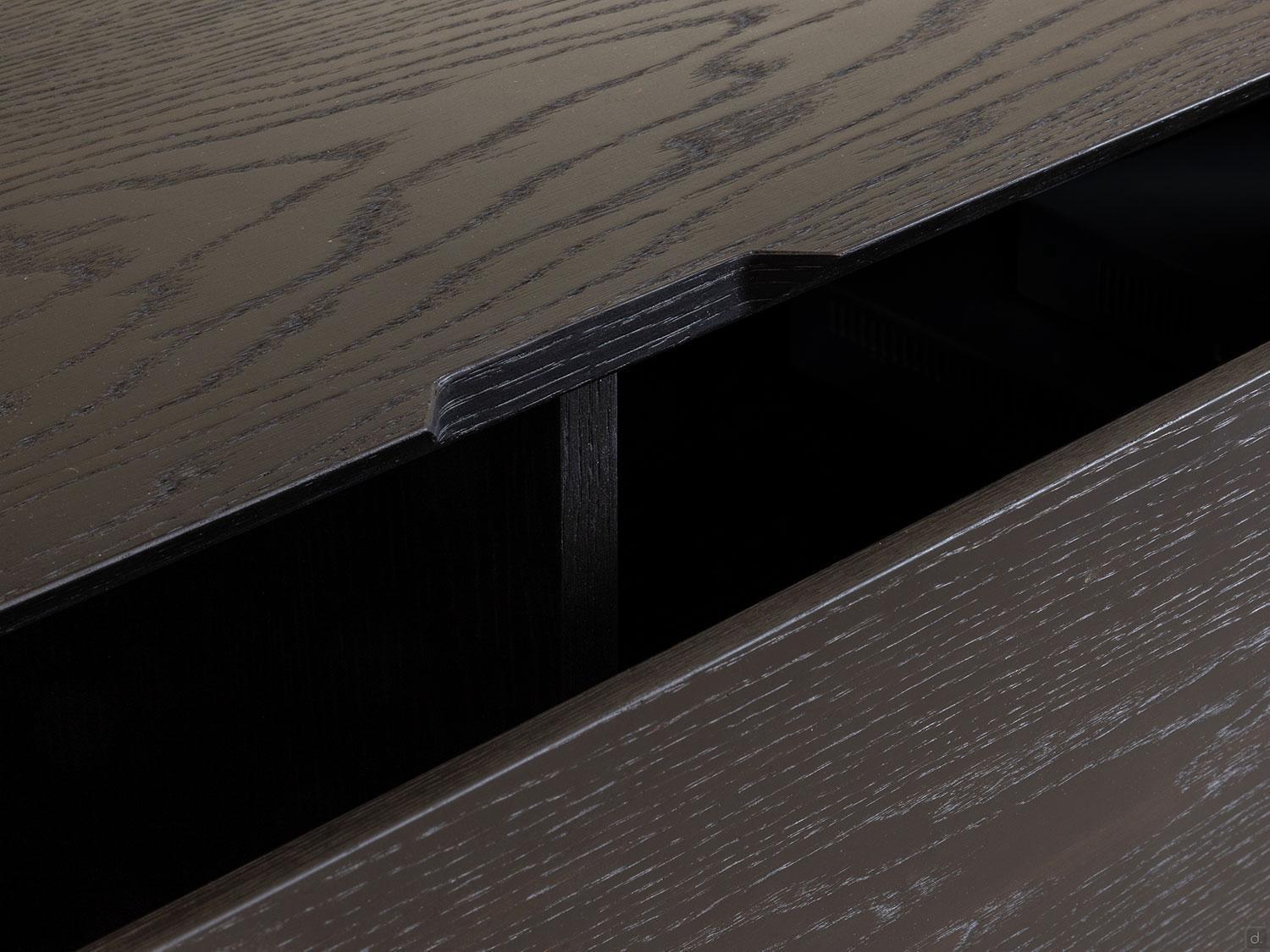

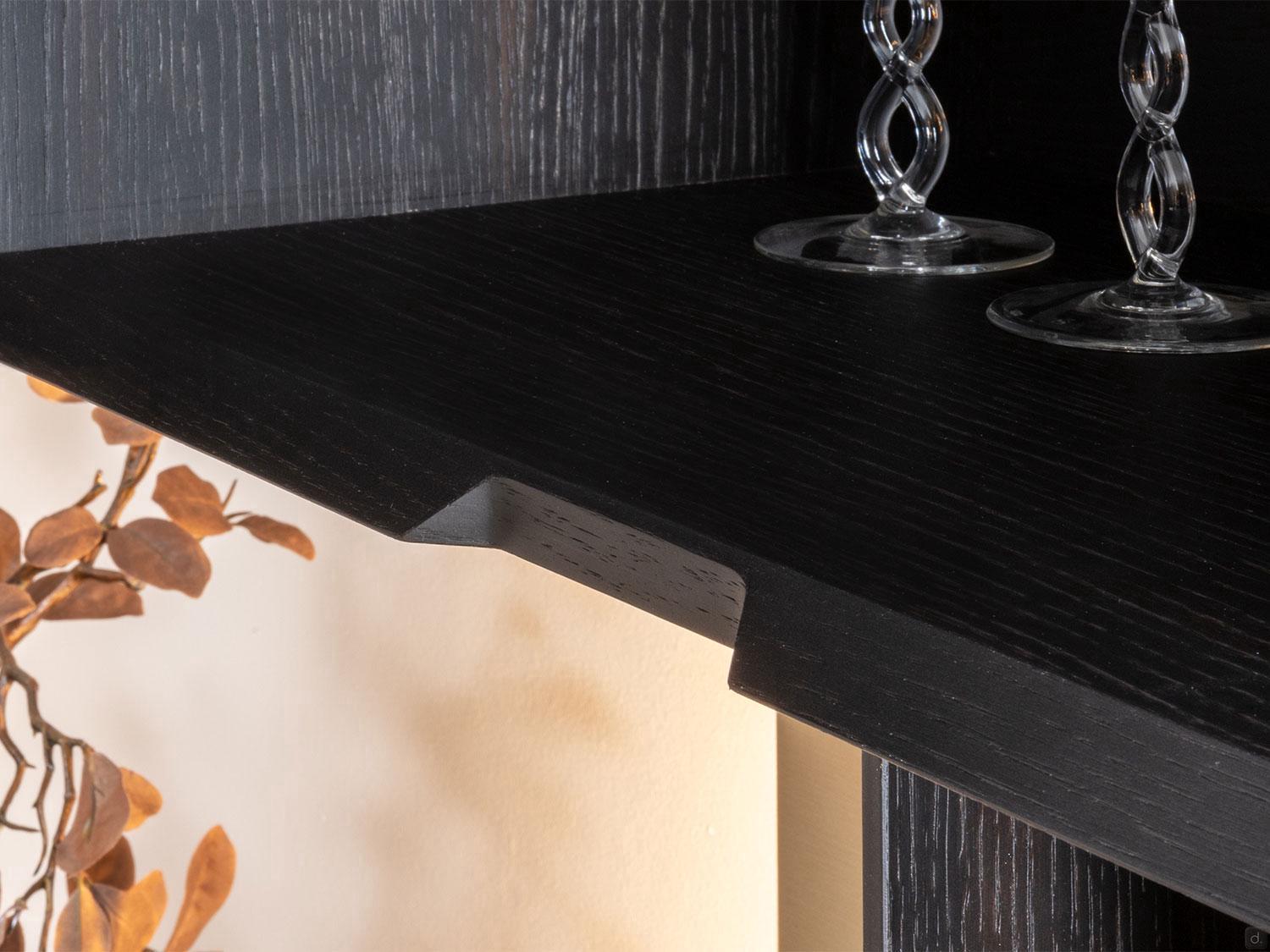

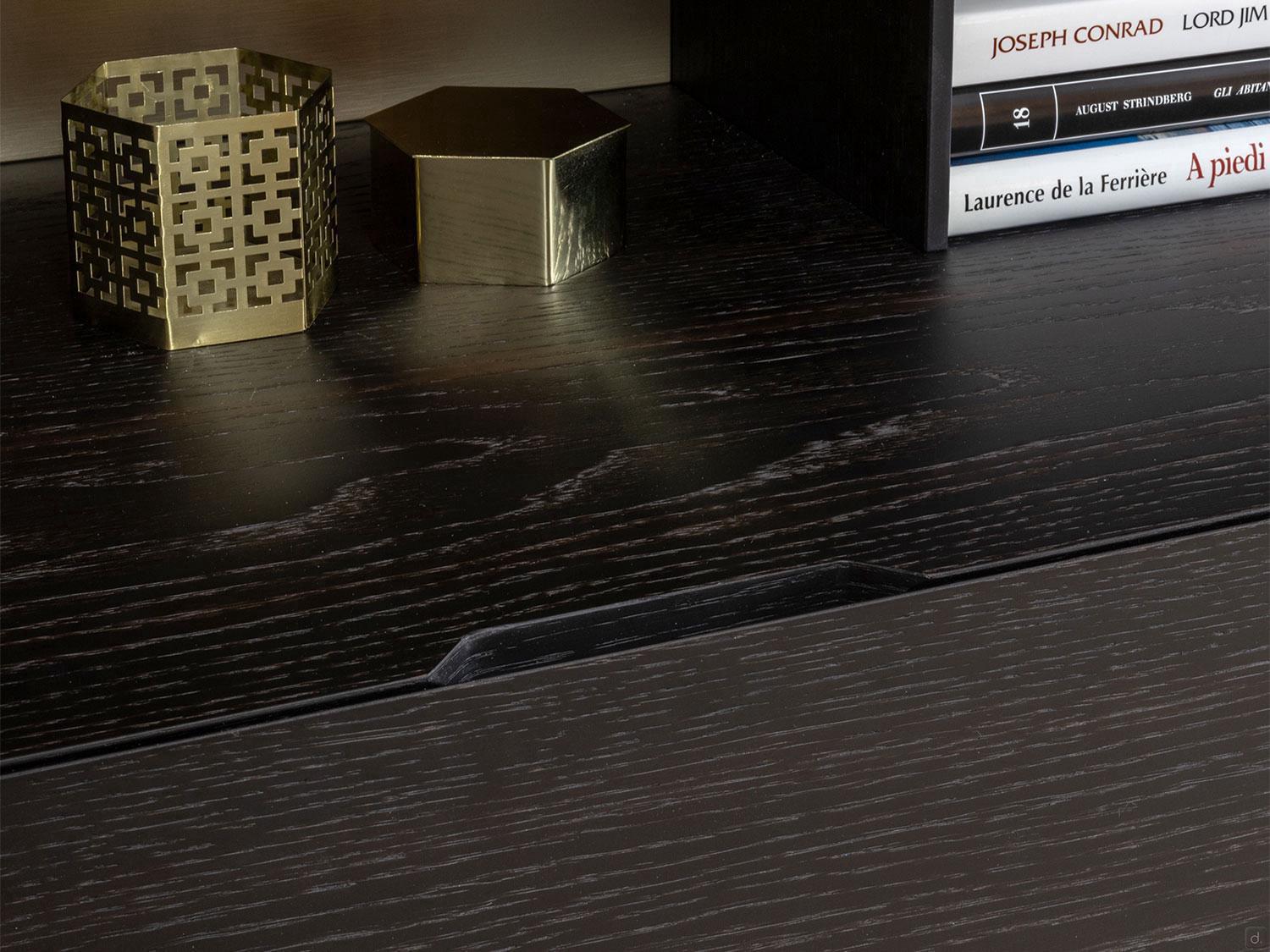

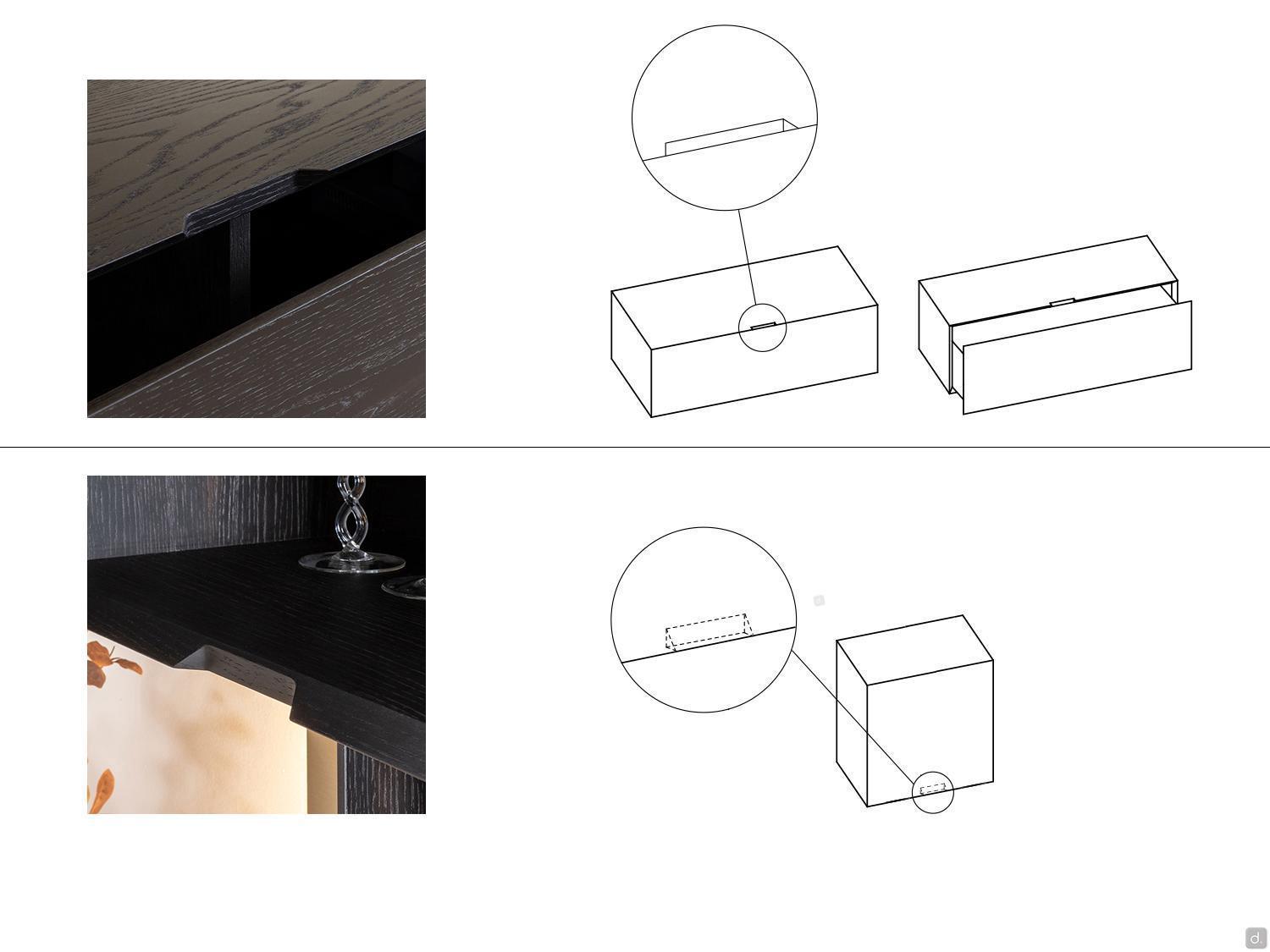

Handles: for the deep drawer and drop-down unit there is a groove at the top, for the wall units there is a groove at the bottom.
Wall Panelling:

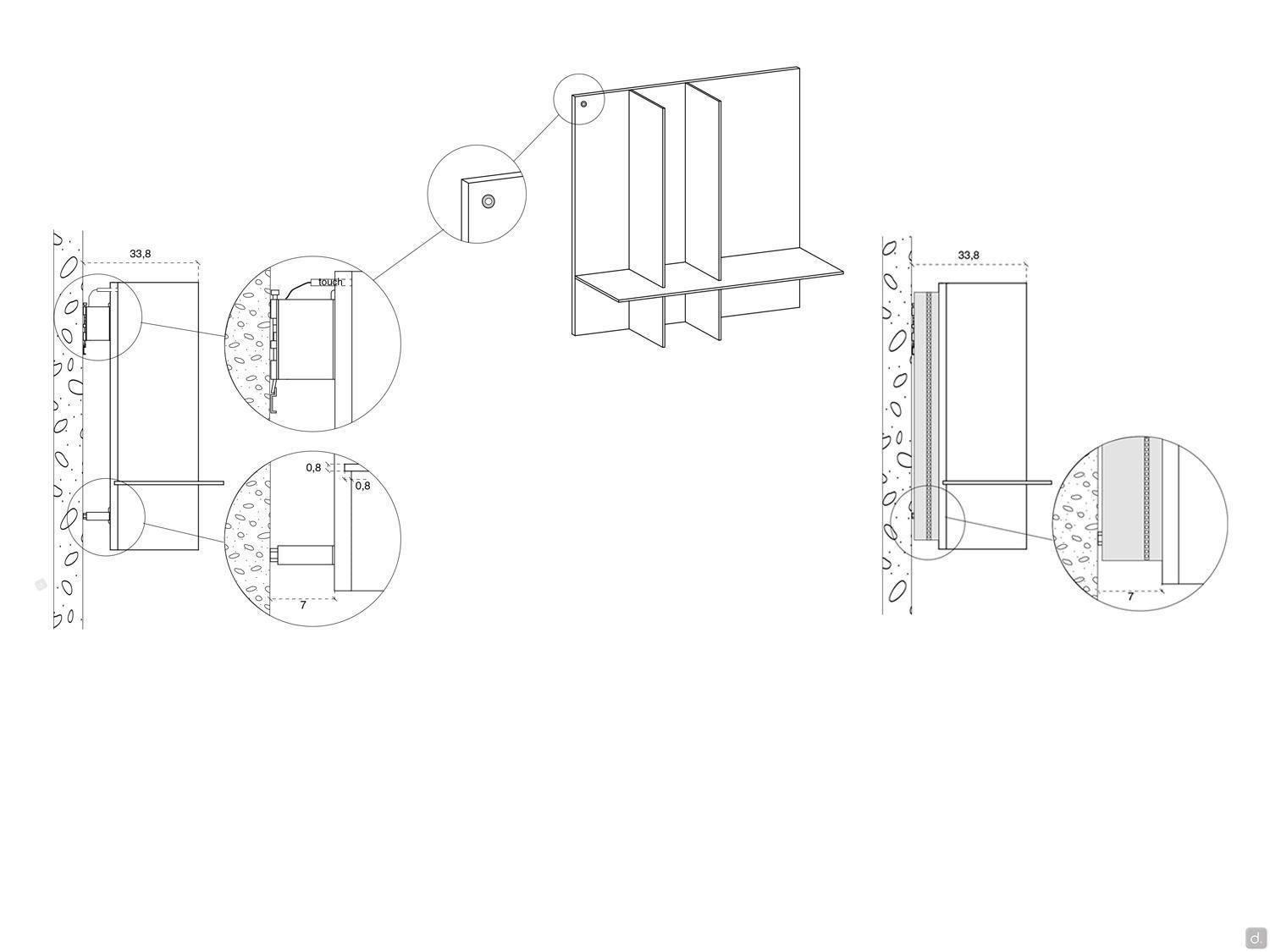

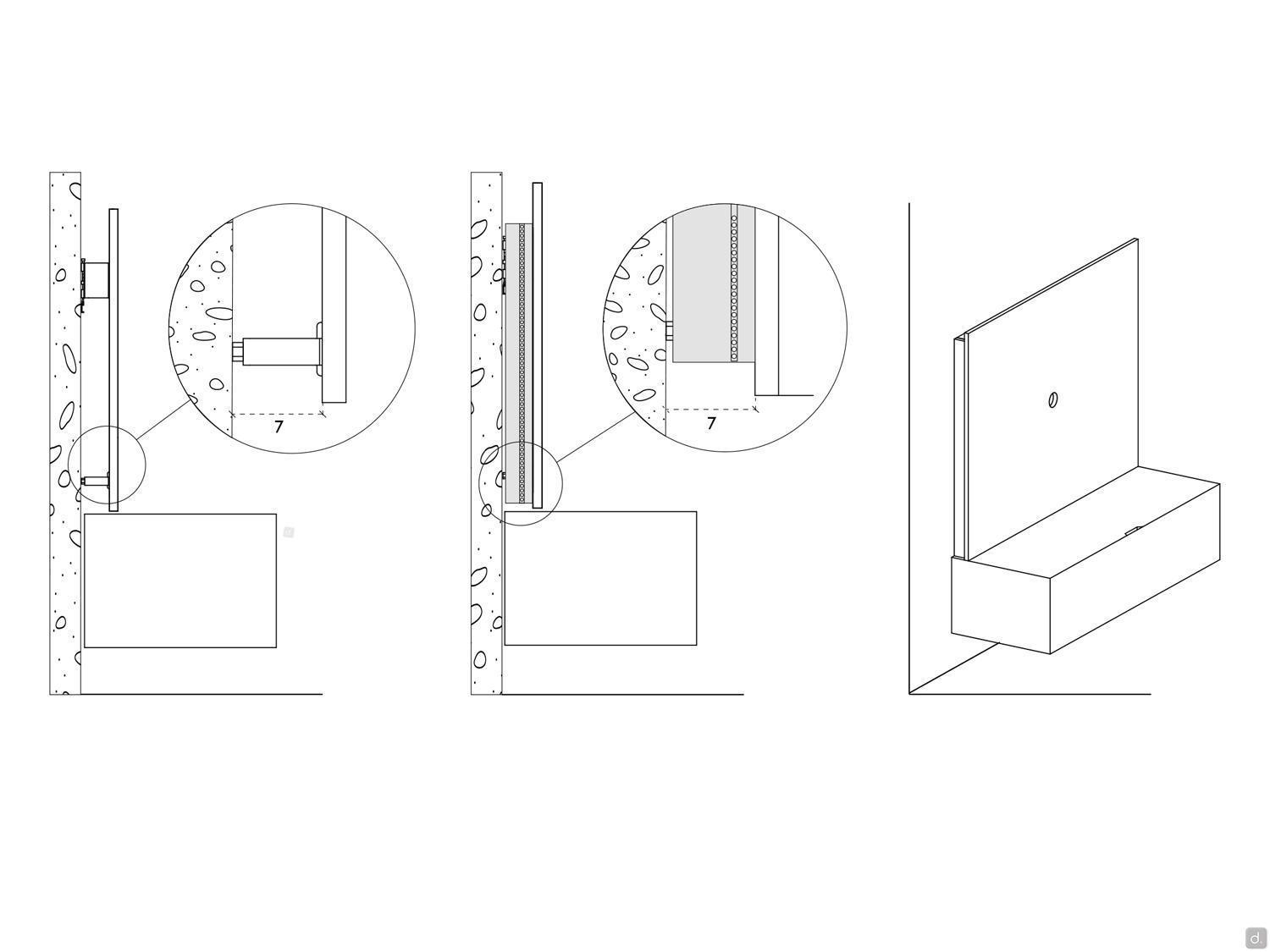

Back Panels: made from MDF, 1,8 cm thick. Complete with a perimeter frame at the back of the panel (6,5 cm in depth) matching the back panel and a hardware kit for spaced mounting (6,8 cm in depth). Techincal compartment, 7 cm in depth. The TV back panel features n.1 cable hole cm Ø 6 with a lid, positioned in the centre.

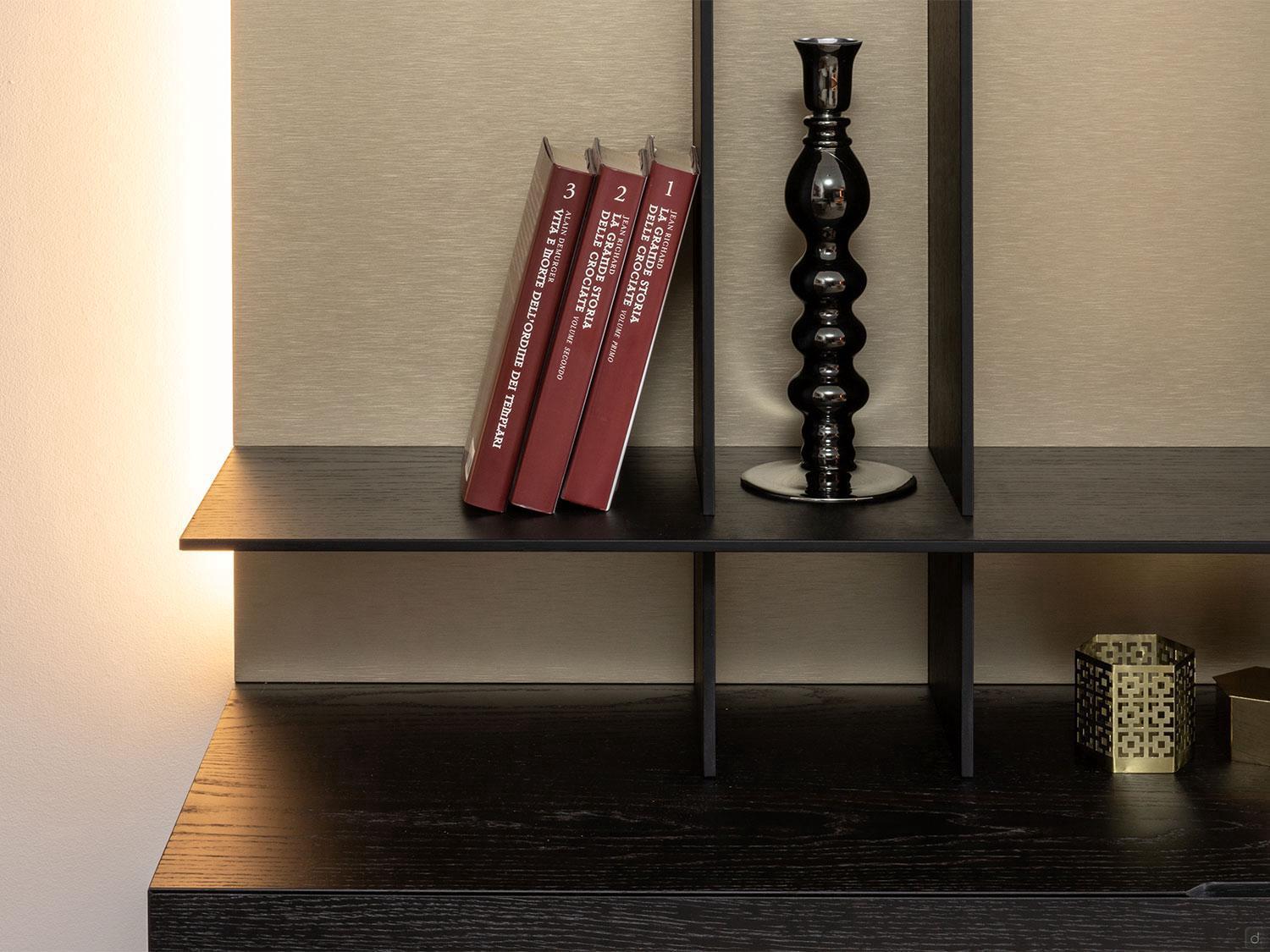

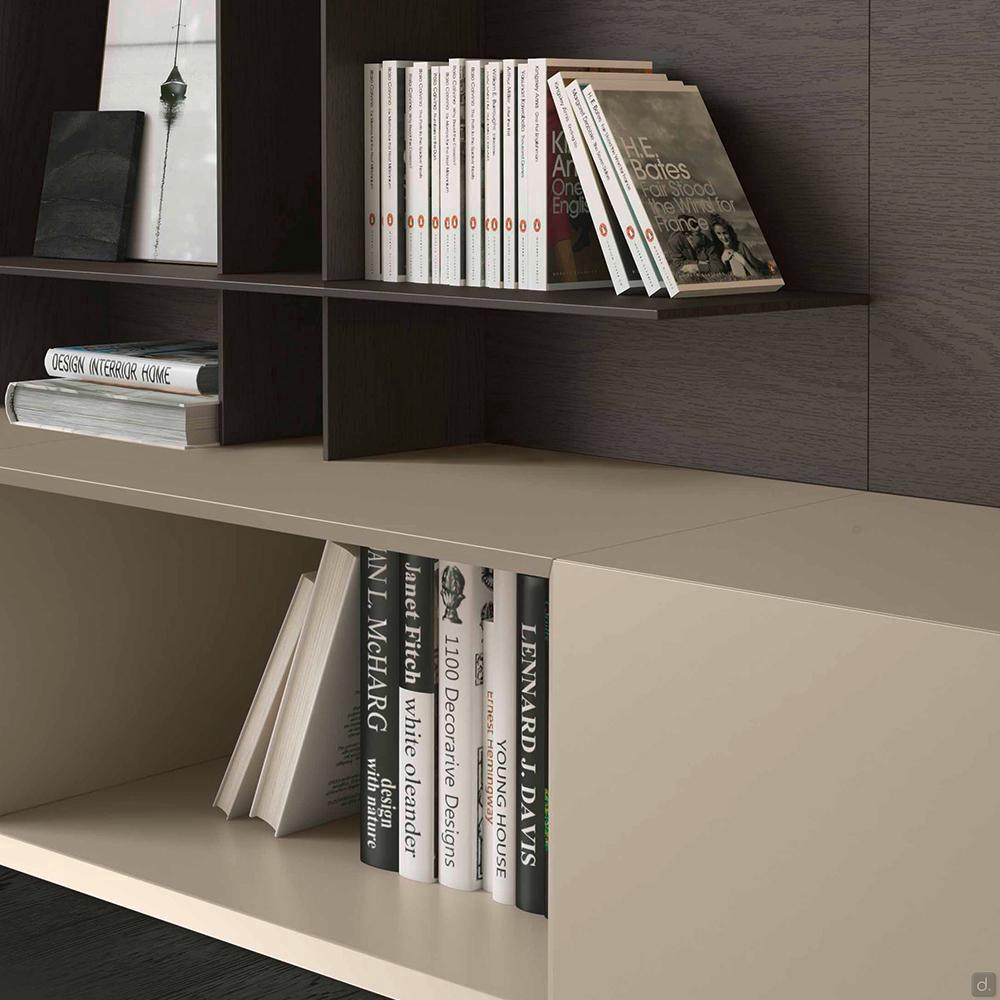

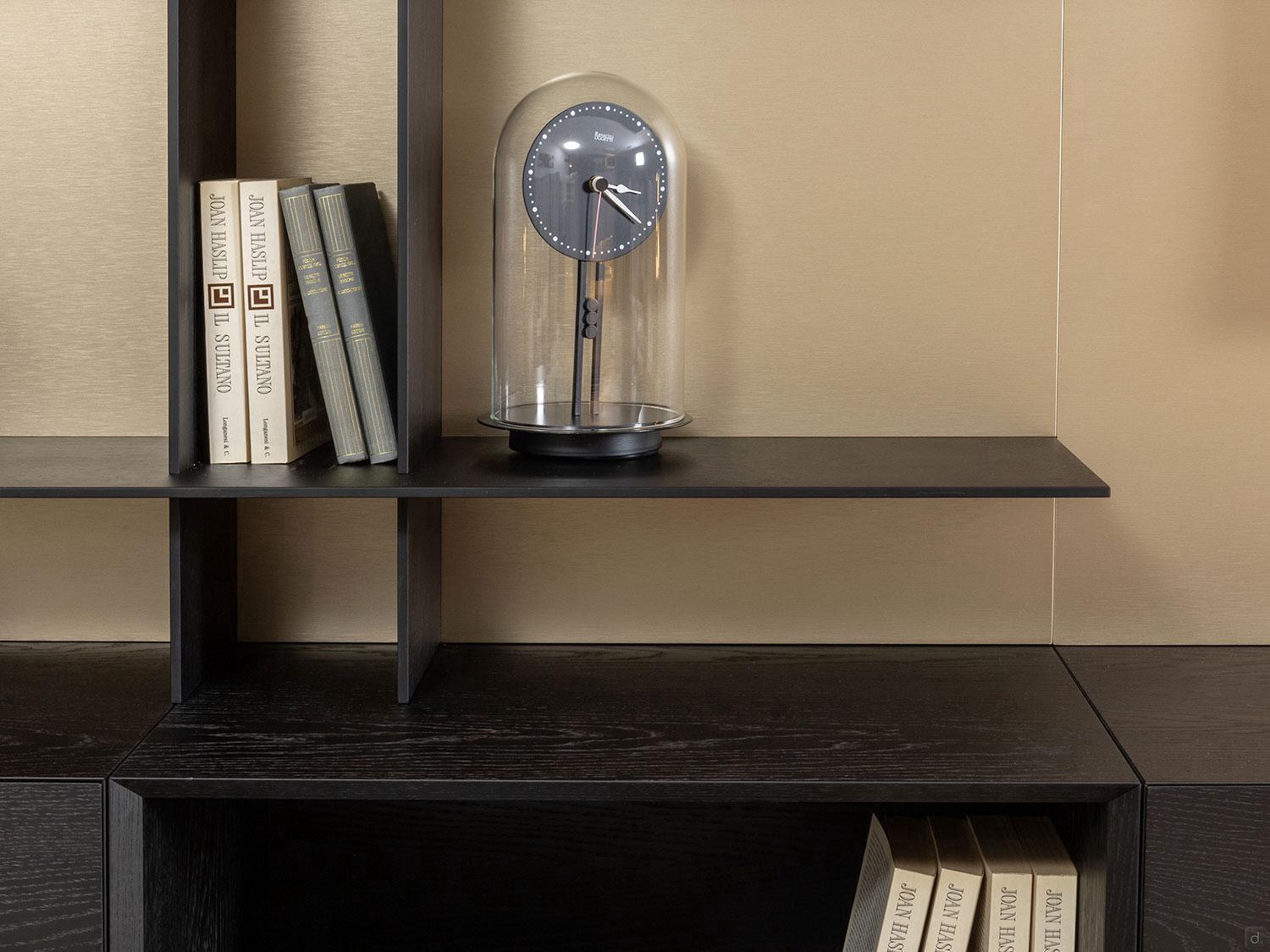

Shelves: horizontal shelves, 25,2 cm in depth, made from laminate which is 0,8 cm thick. The shelves in wood veneer are not bordered, they keep the original black colour of the laminate material.

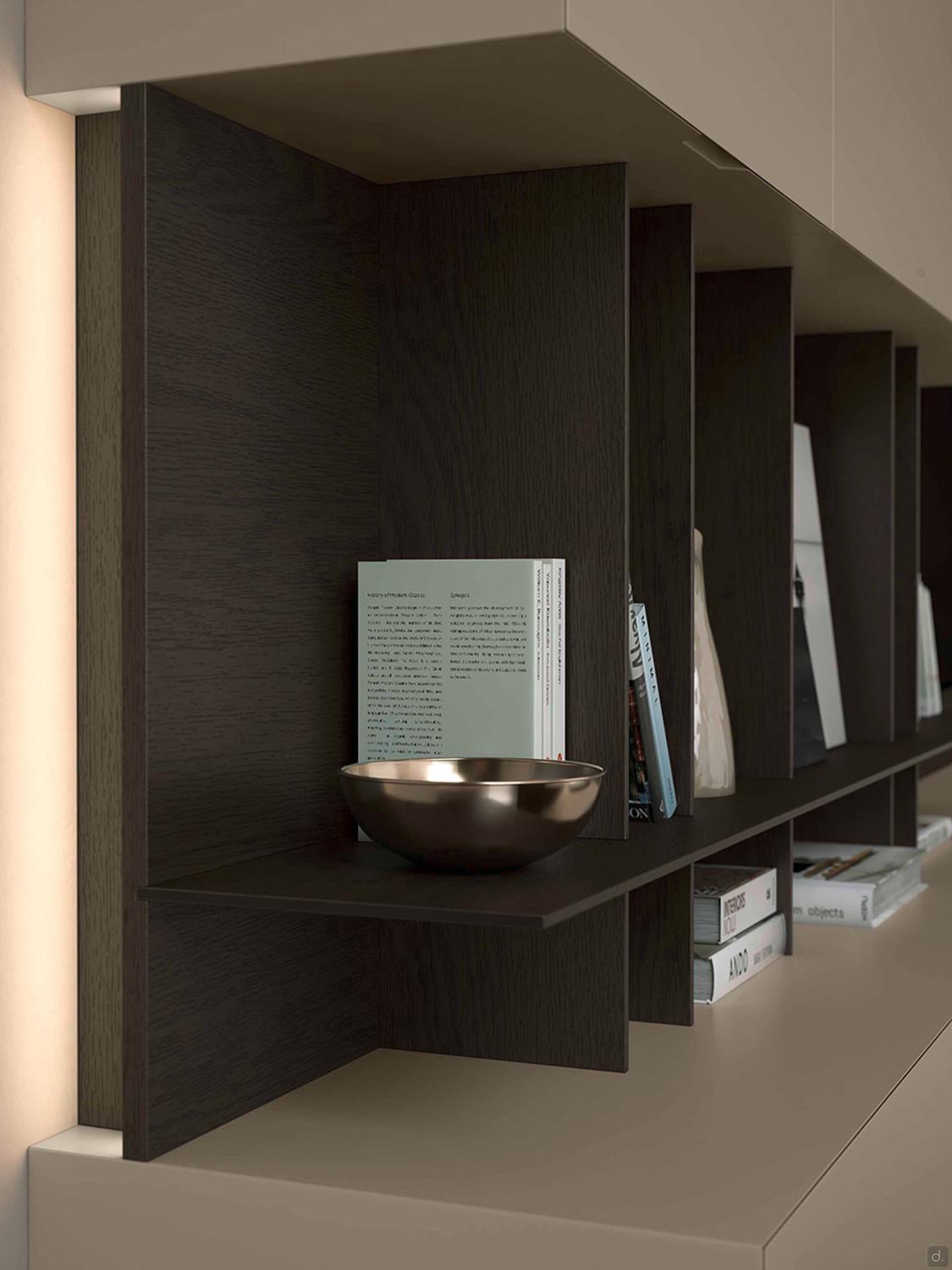

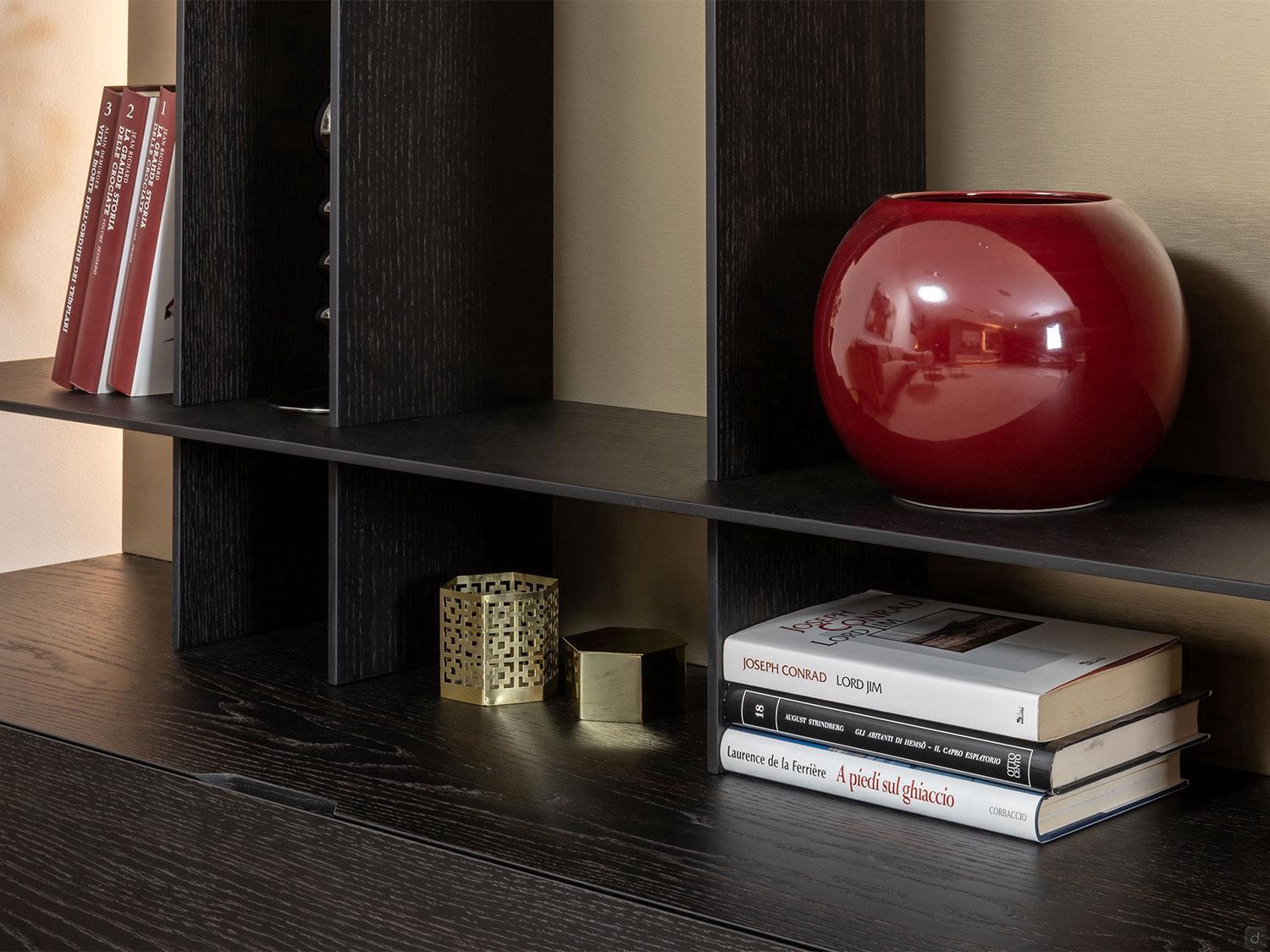

Dividers: vertical dividers, 19,2 cm in depth, made from laminate which is 0,8 cm thick. The dividers in wood veneer are not bordered, they keep the original black colour of the laminate material.
Optional - Wall Panelling

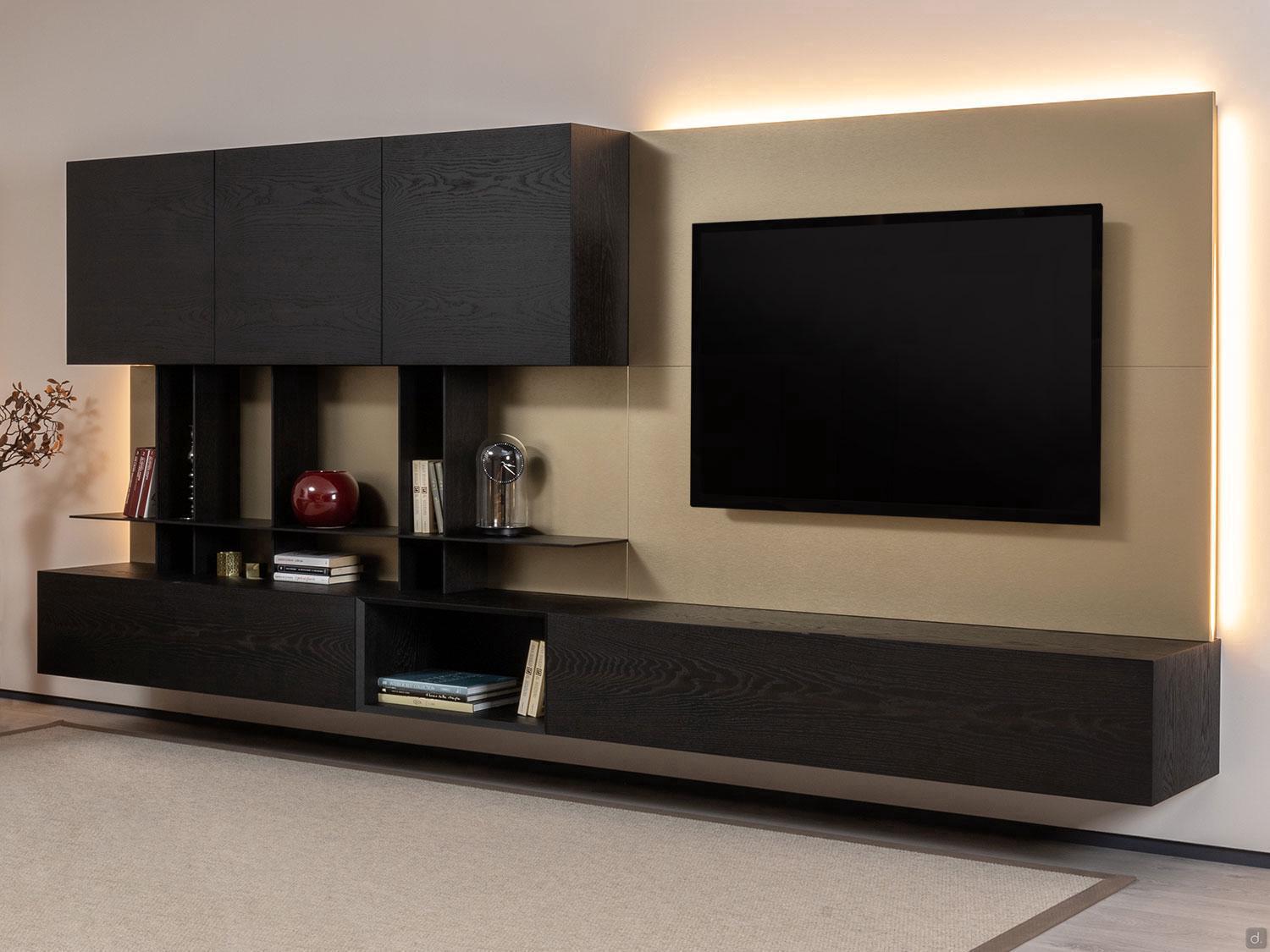

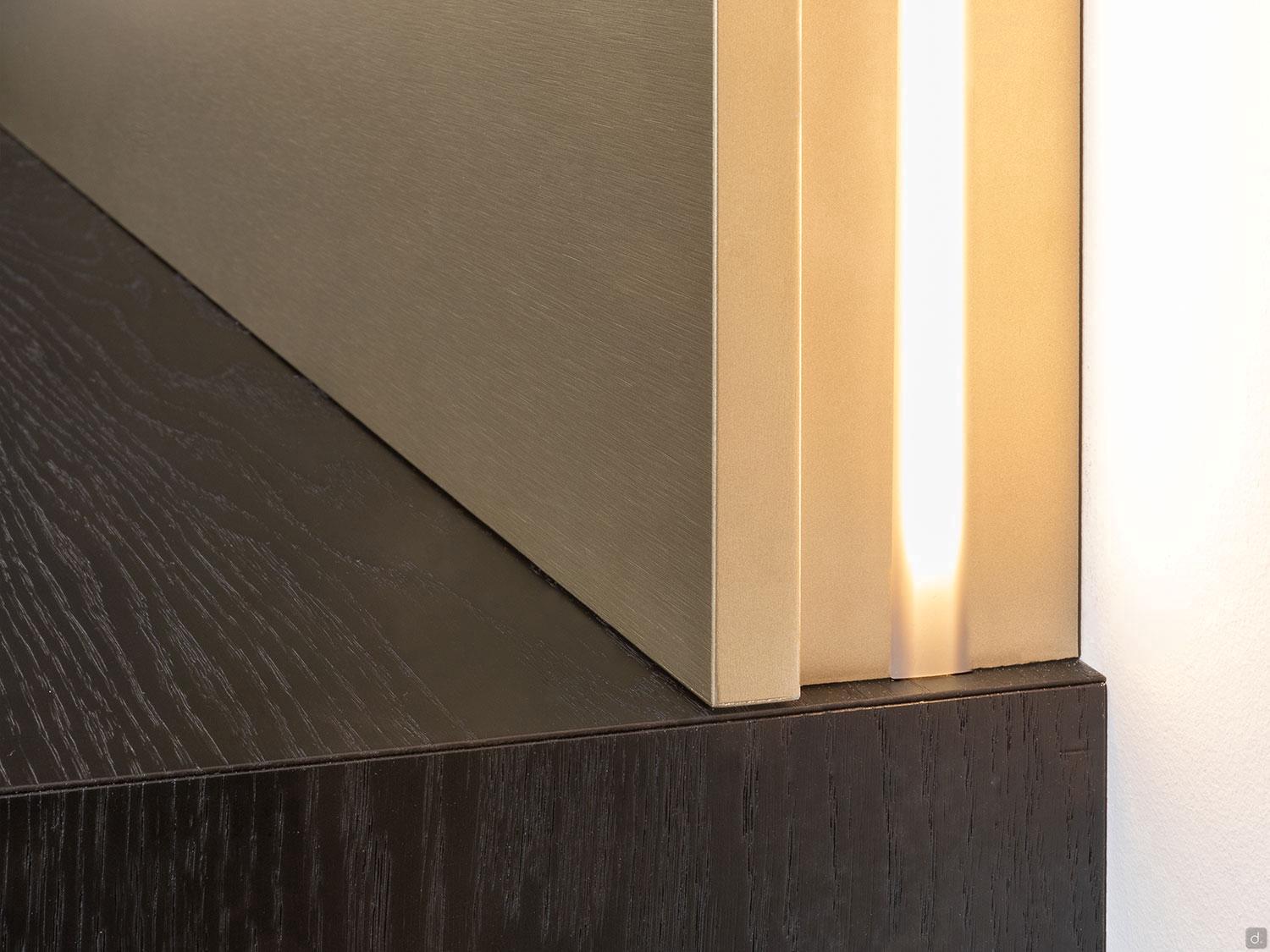

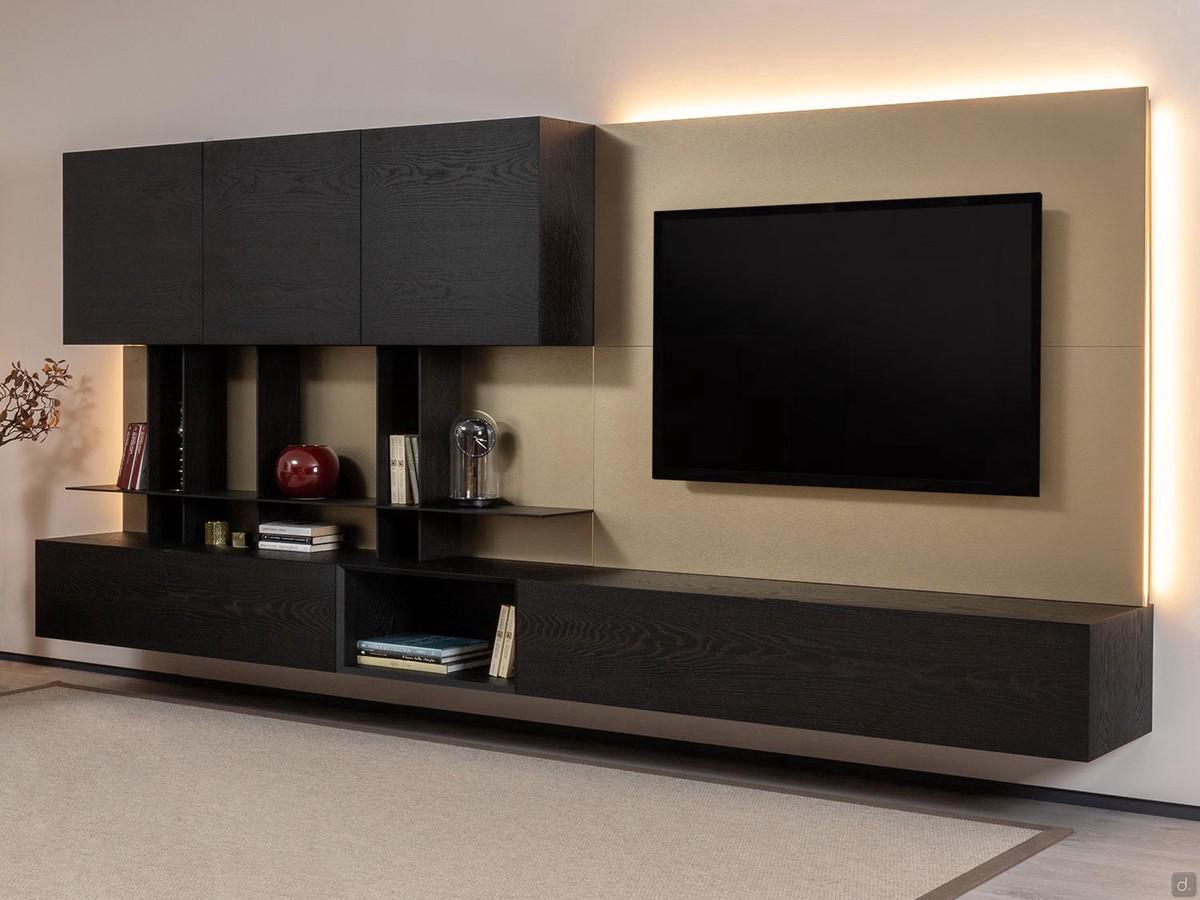

LED lighting: positioned on the perimeter frame around the wall panel (3000 K - 11 W/ml). Transformer which is switched on/off with a switch-controlled socket or a cm Ø 2 touch switch.
Assembly Tips

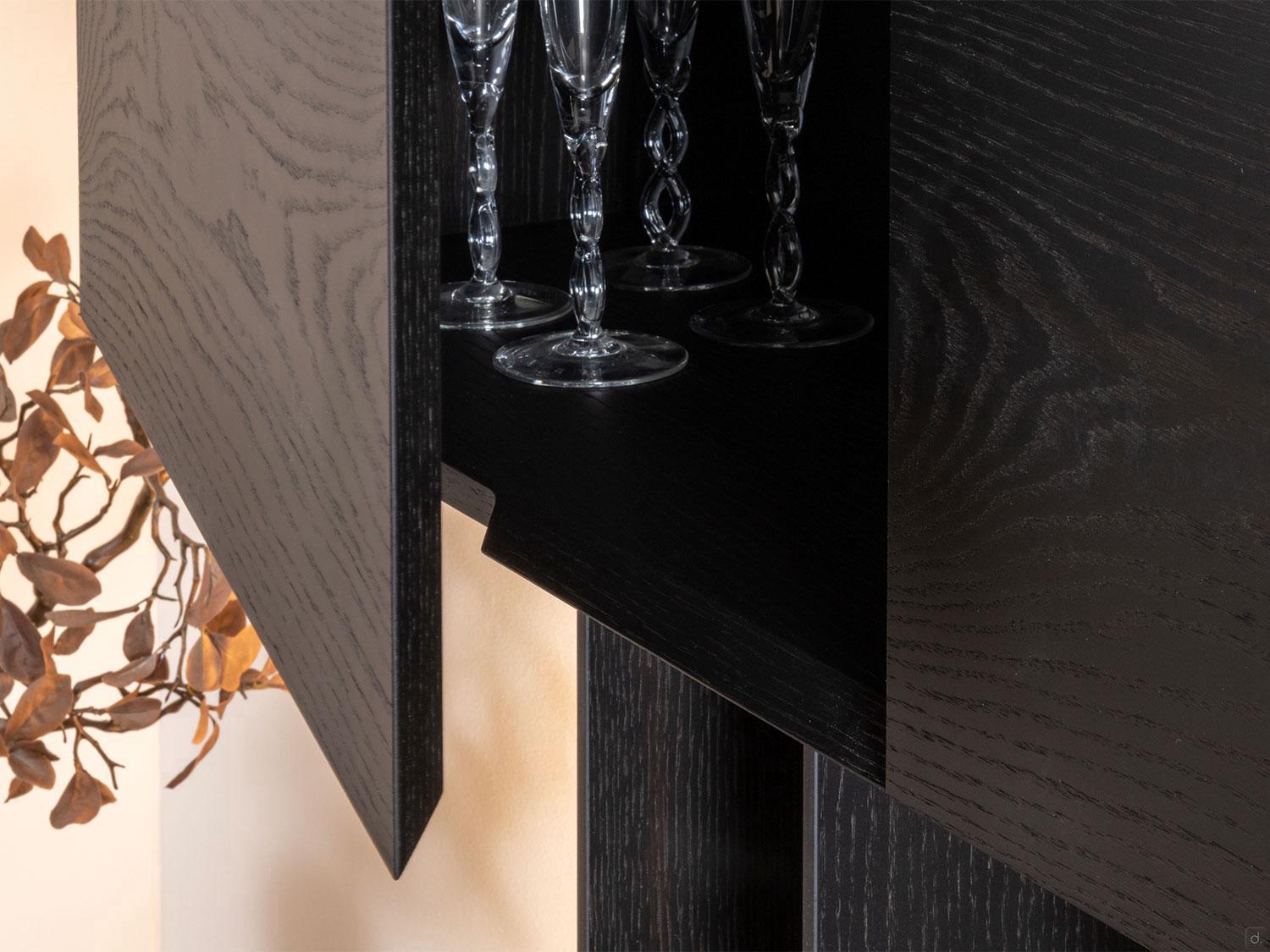

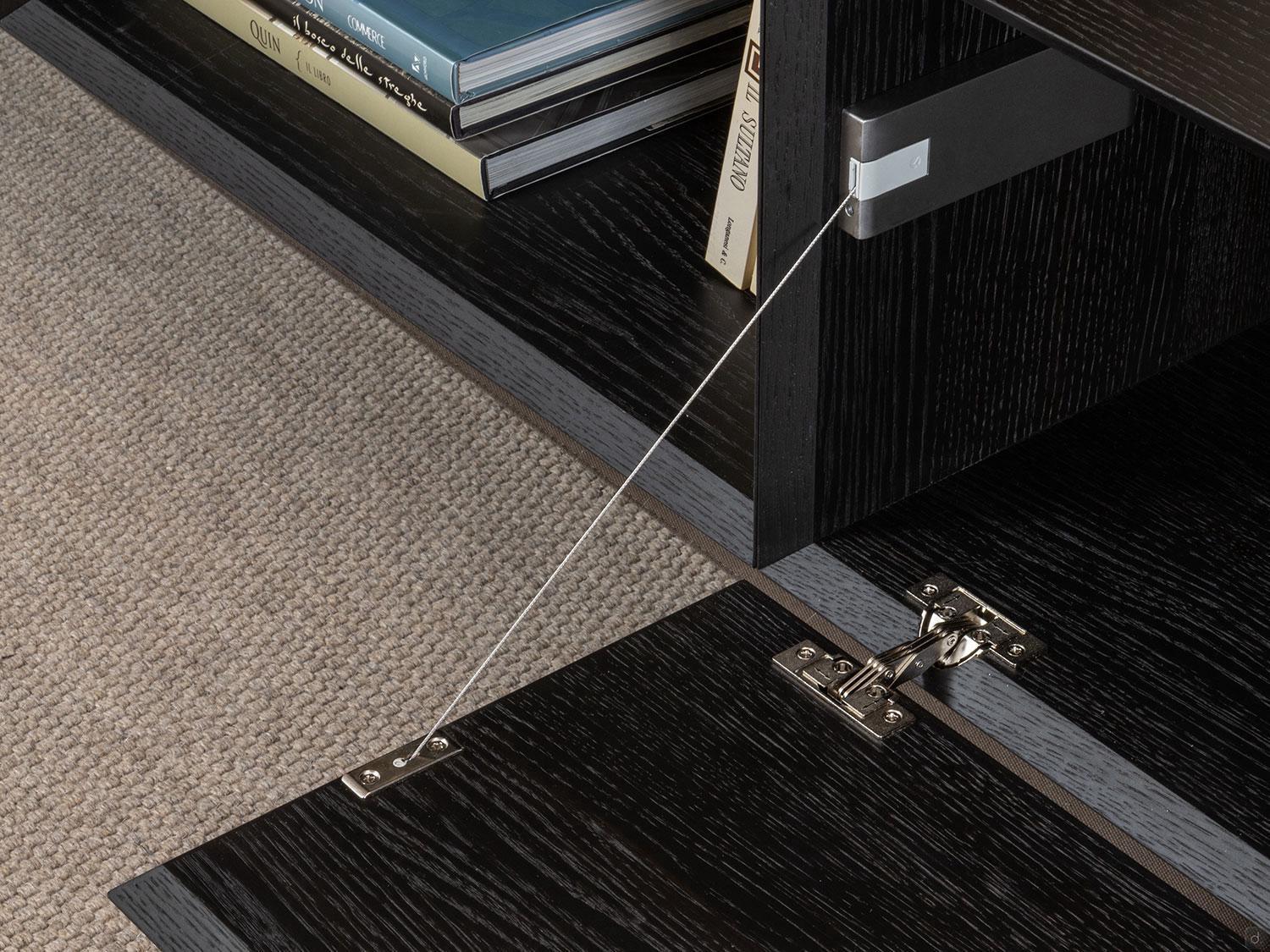

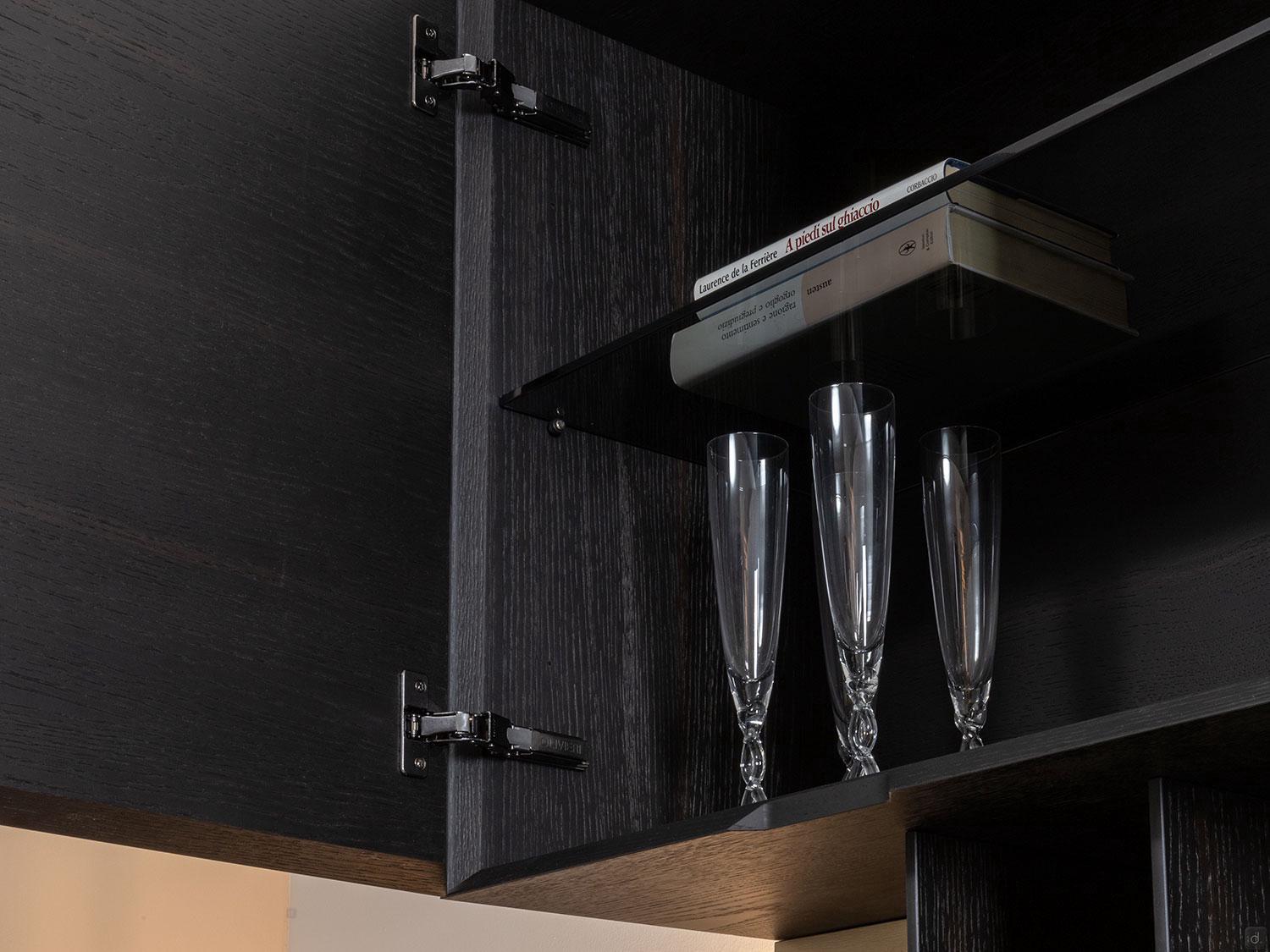

Hardware is pre-mounted on all elements to facilitate and speed up assembly. Hinged doors are equipped with slow-closing metal hinges. Elements are complete with brackets for fixing them to the wall.
Further Information...
Aged Oak: compared to the "standard" open-pore oak, aged oak is characterised by a slightly more brushed surface, which shows a deeper pore and a more marked grain. This difference is particularly noticeable on bigger surfaces such as tables, wall units and wardrobes, less so on accessories, beds and bedroom sets.
