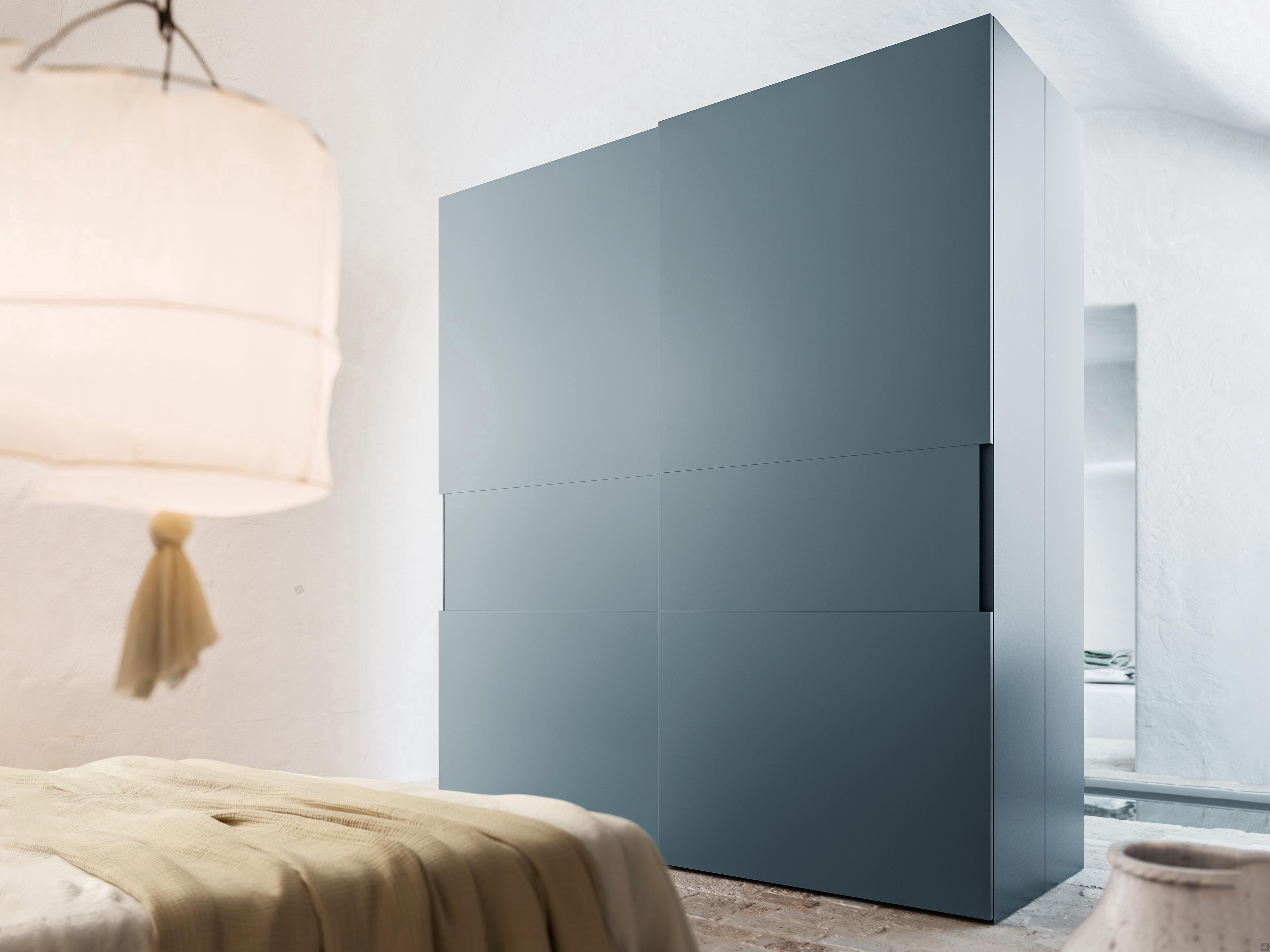

Layout Wide space-saving narrow sliding closet with matte lacquered center band matching the rest of the closet and integrated handle also matching

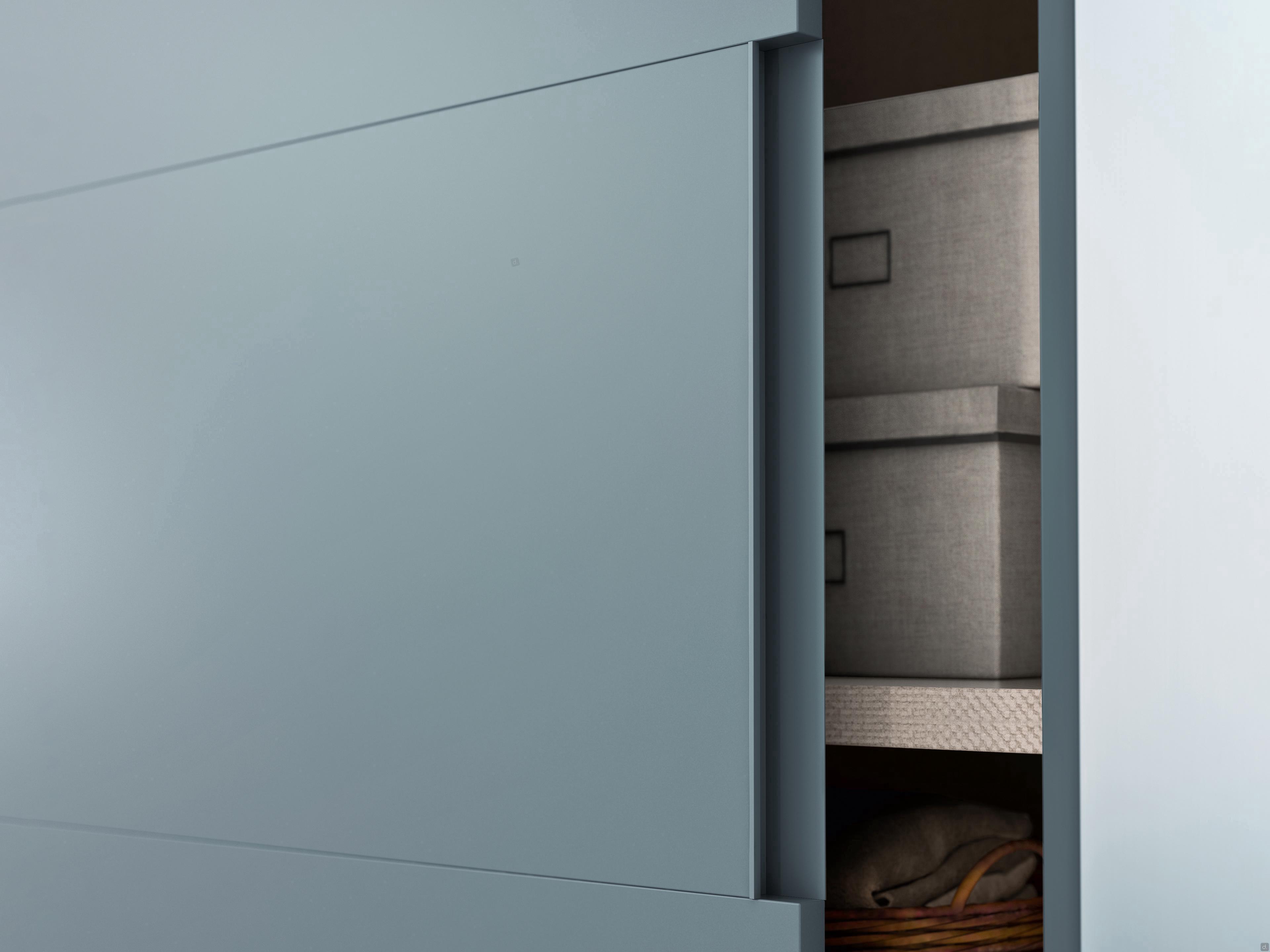

The Layout Wide cabinet's integrated handle is also available in matte lacquer, as well as in a selection of dedicated metal paint finishes

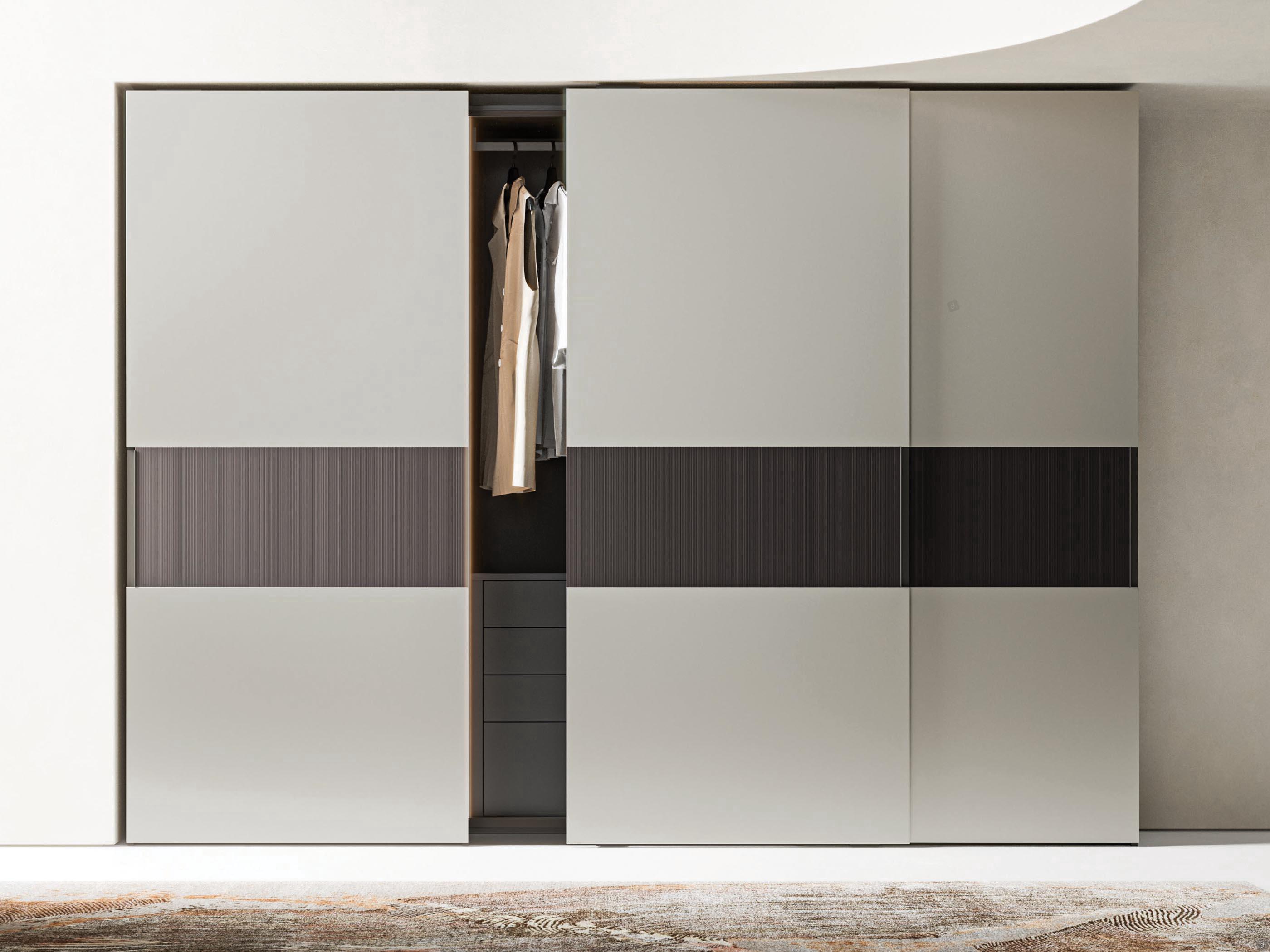

Layout Wide space-saving narrow sliding closet, offered here with matte lacquered doors and fashion wood center band. Multiple combinations are possible, in both solid and contrasting colors

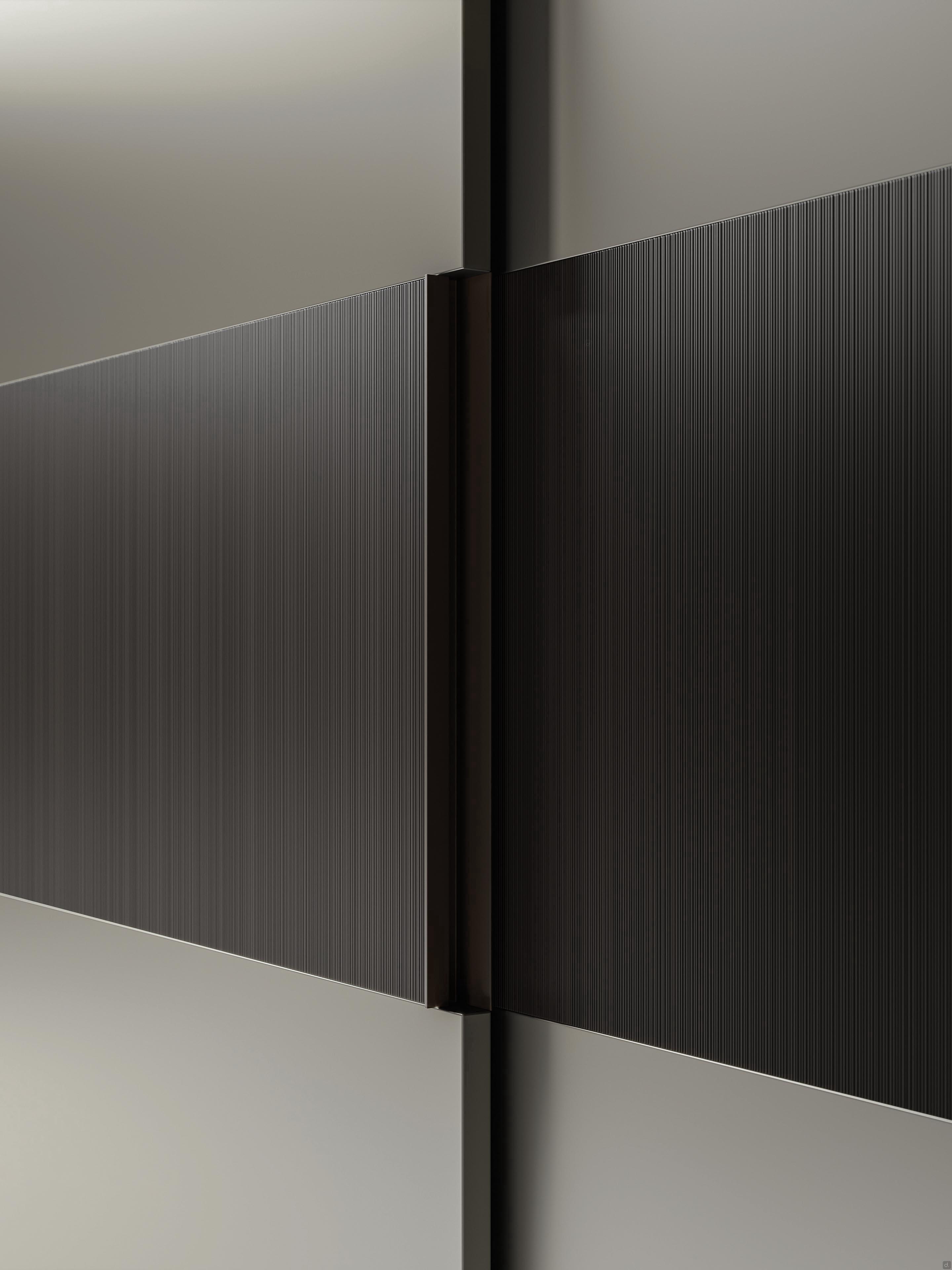

Detail of the center band of the Layout Wide cabinet, with detail of the integrated metal handle

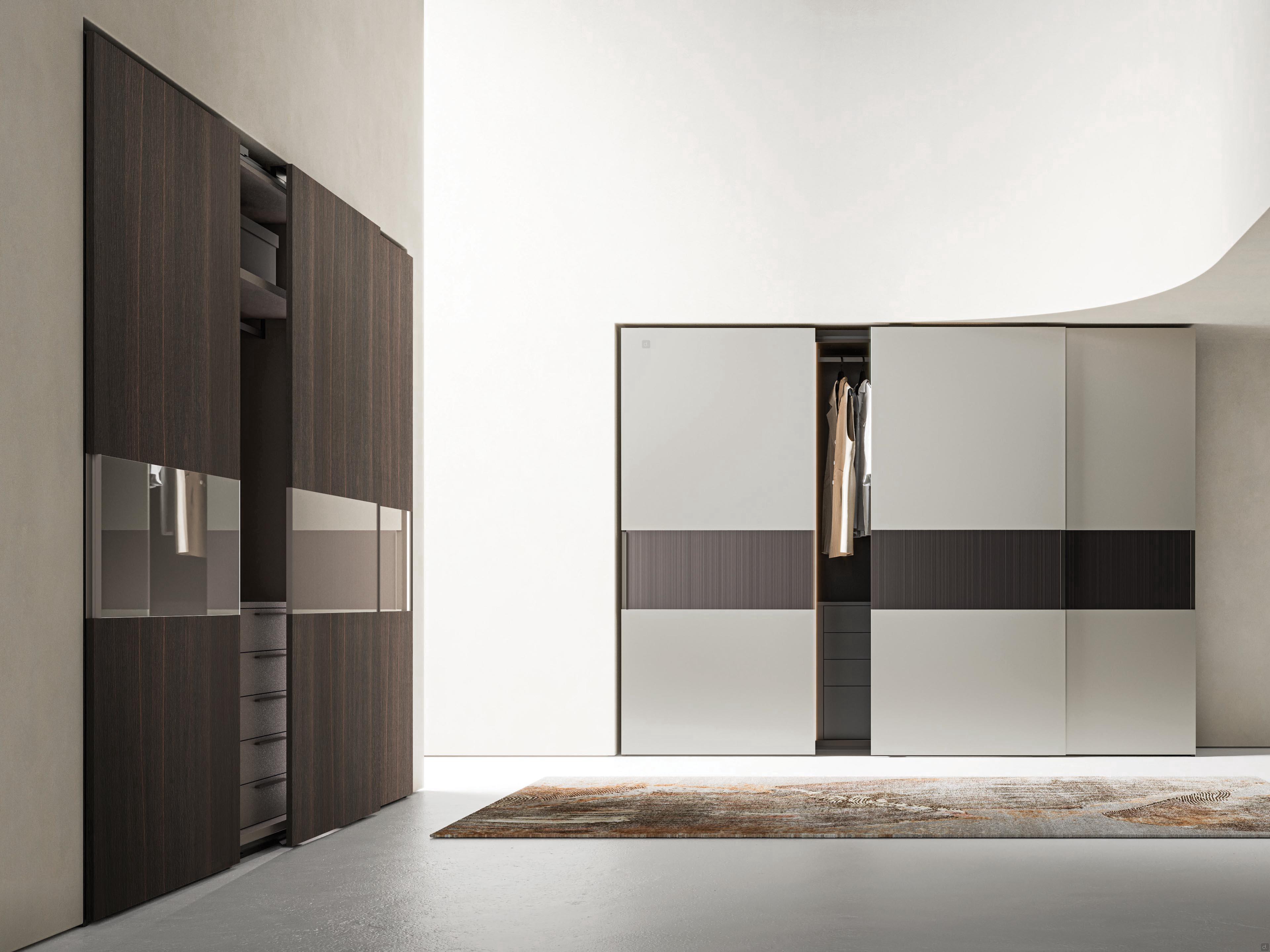

Room furnished with two Layout Wide closets, both with contrasting center band.

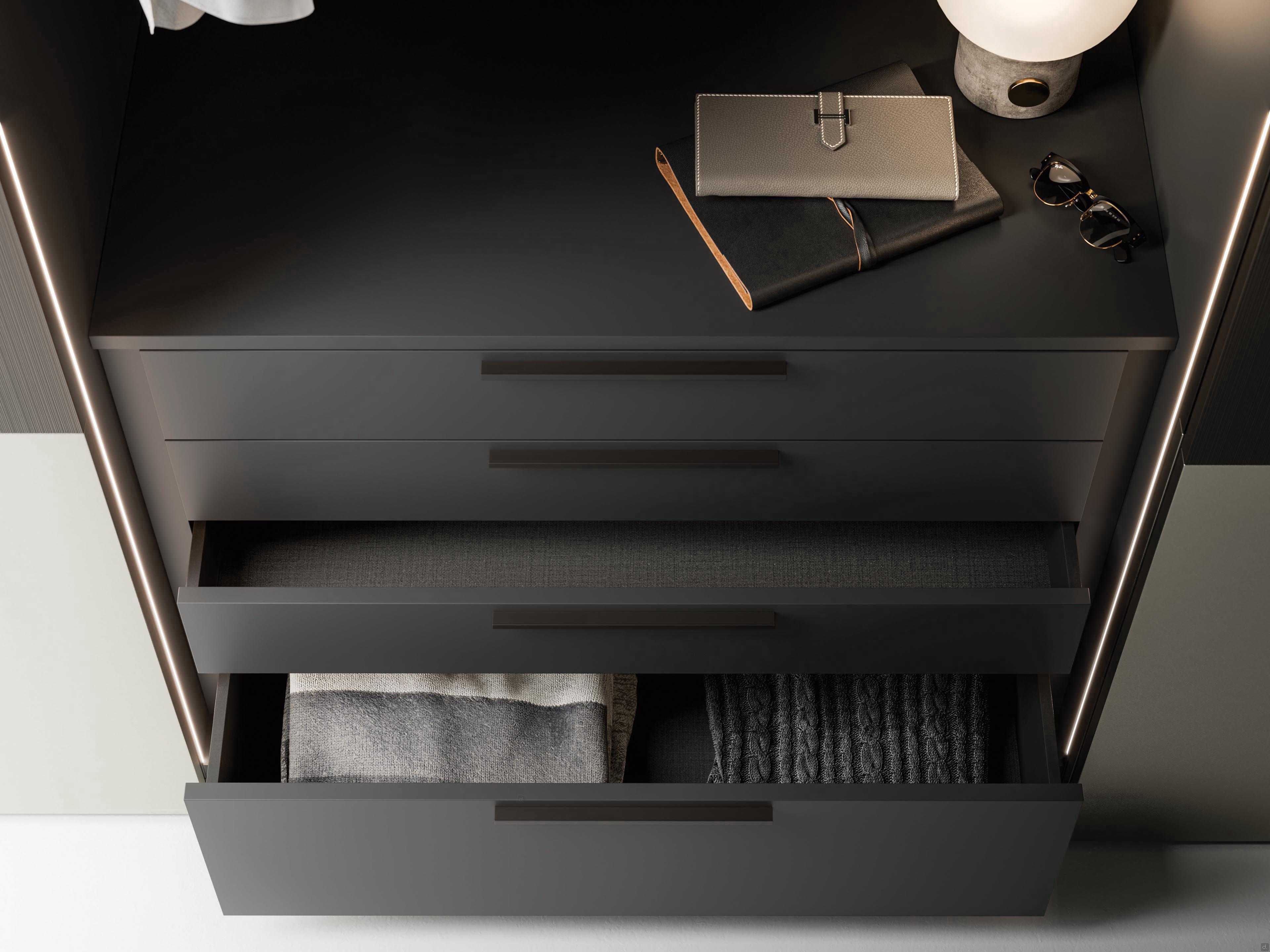

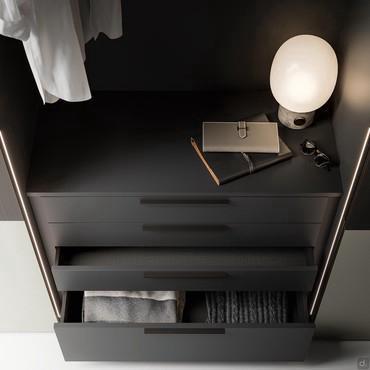

The Layout Wide cabinet can be equipped with drawers (as pictured), shelves, pull-out accessories and internal horizontal or vertical LED lighting

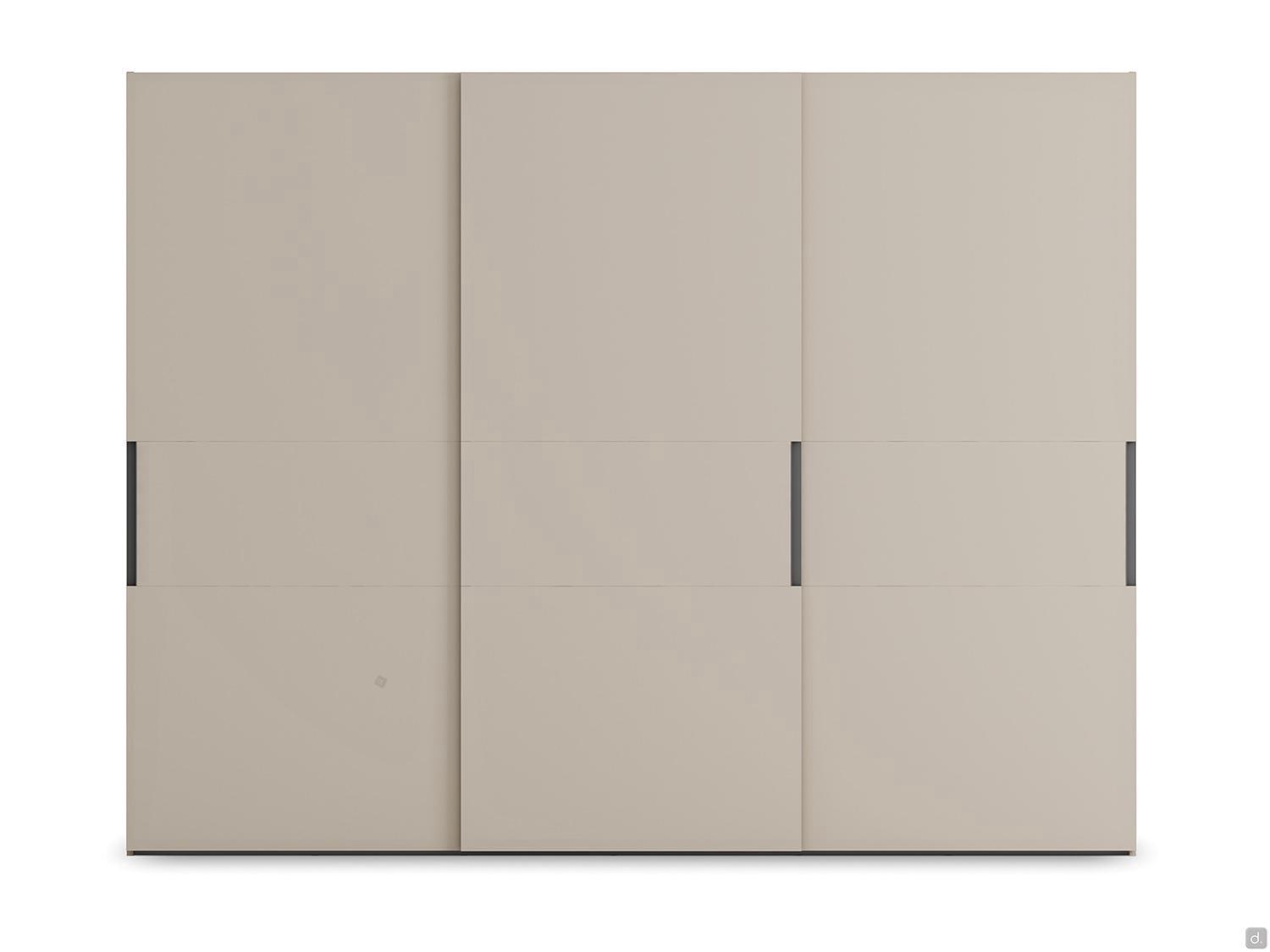

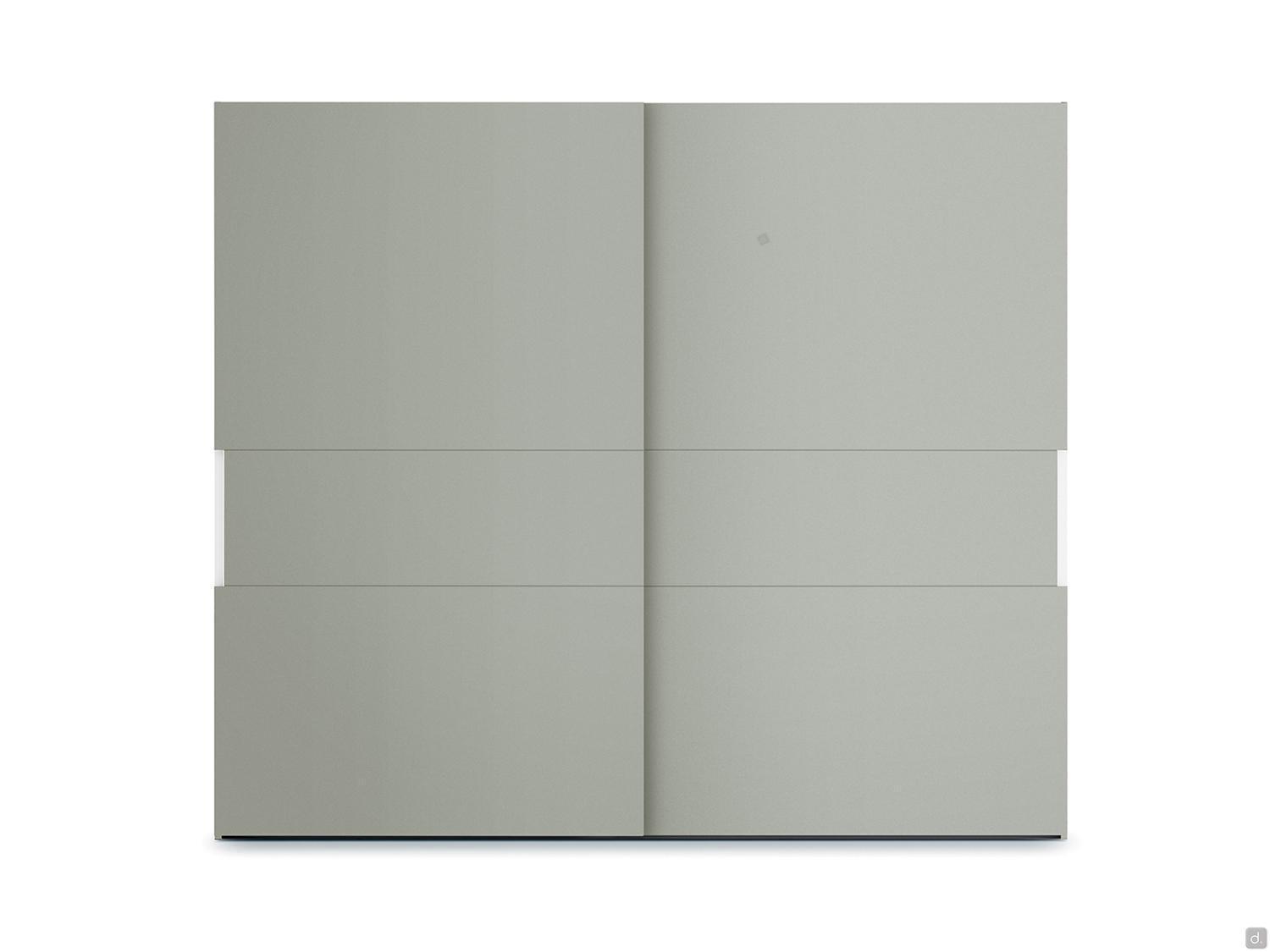

Layout Wide fully matte lacquered cabinet with integrated white painted metal handle

Layout Wide cabinet with contrasting side handle, in Moka Shine finish

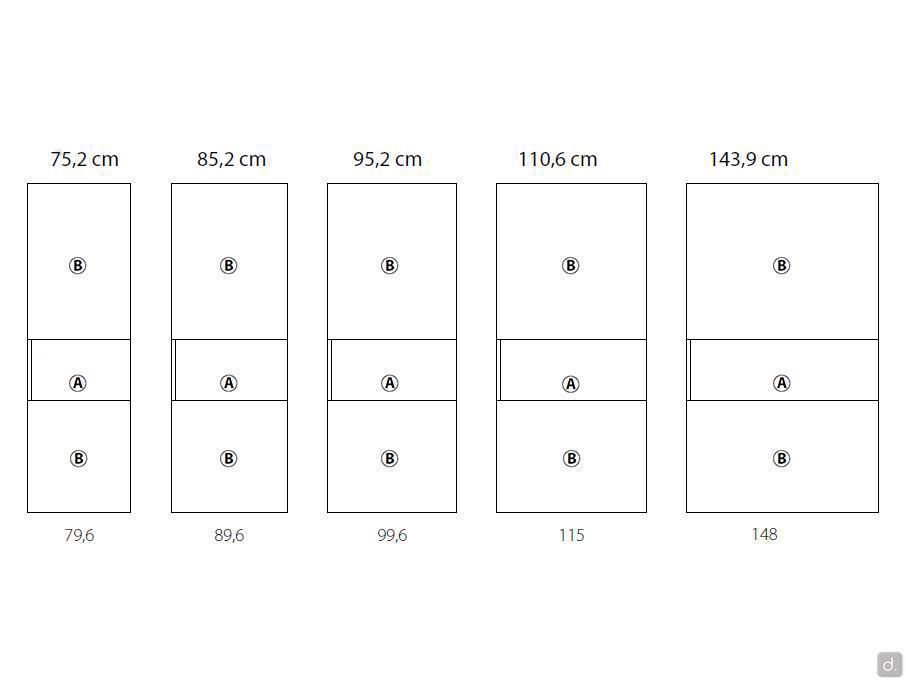

Individual module widths available for the Layout Wide cabinet, then rearranged into different 2-, 3- or 4-door compositions available in the configurator. Panels A and B can be made in solid or contrasting colors for a two-tone effect

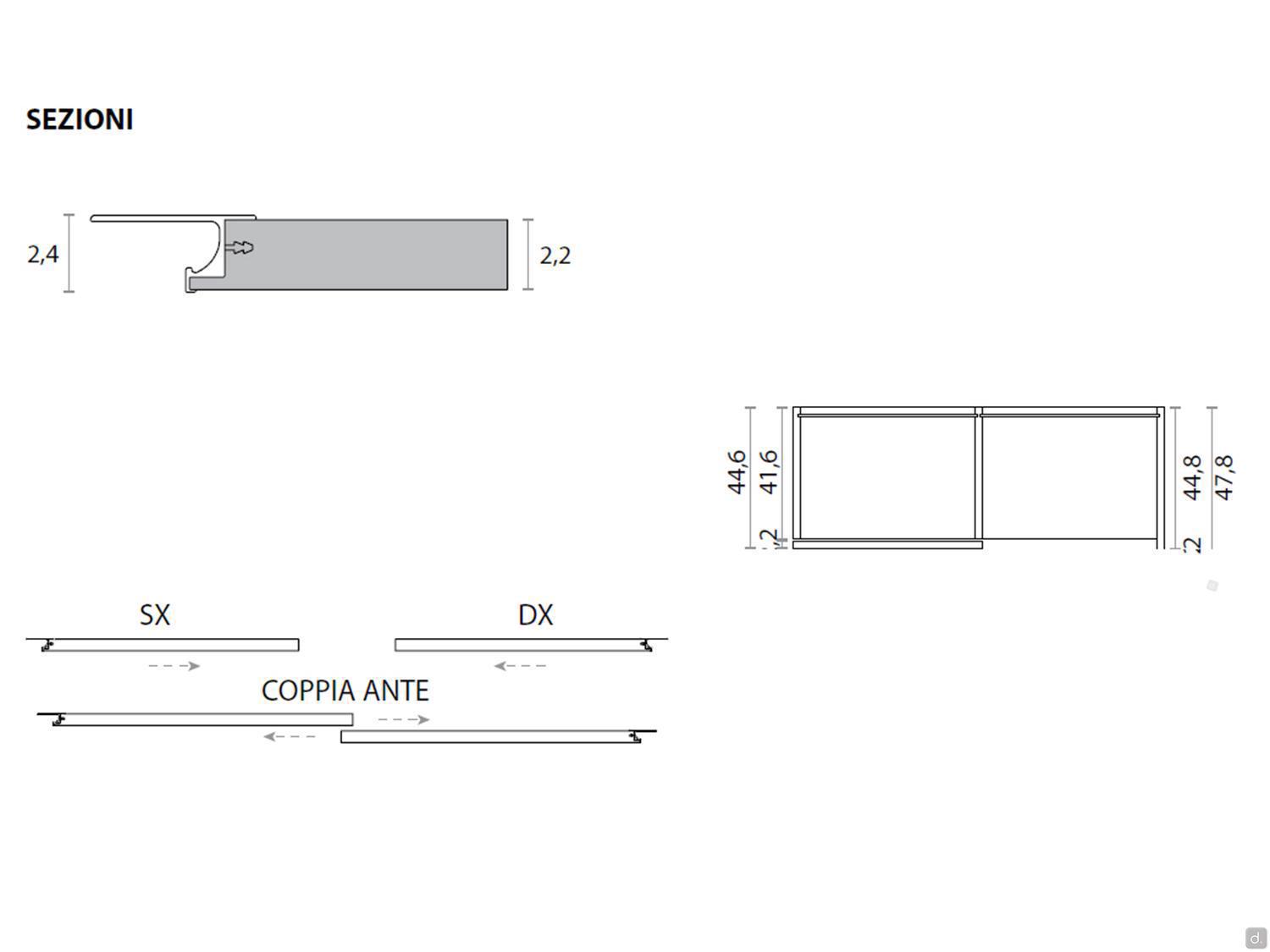

Depth and overall dimensions of the integrated handle of the Layout Wide cabinet.

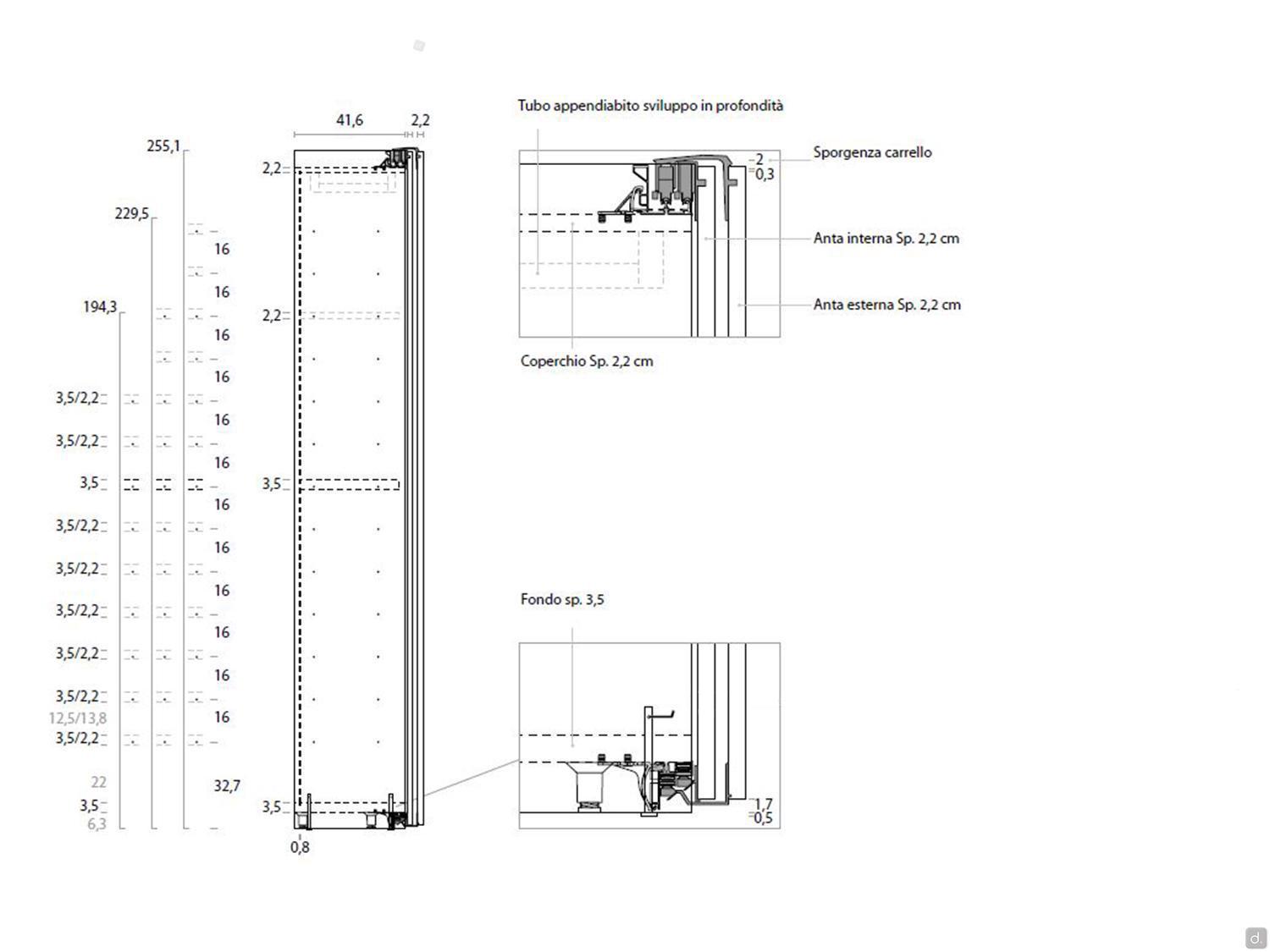

Schematic diagram of internal holes and overall cabinet depths Layout Wide

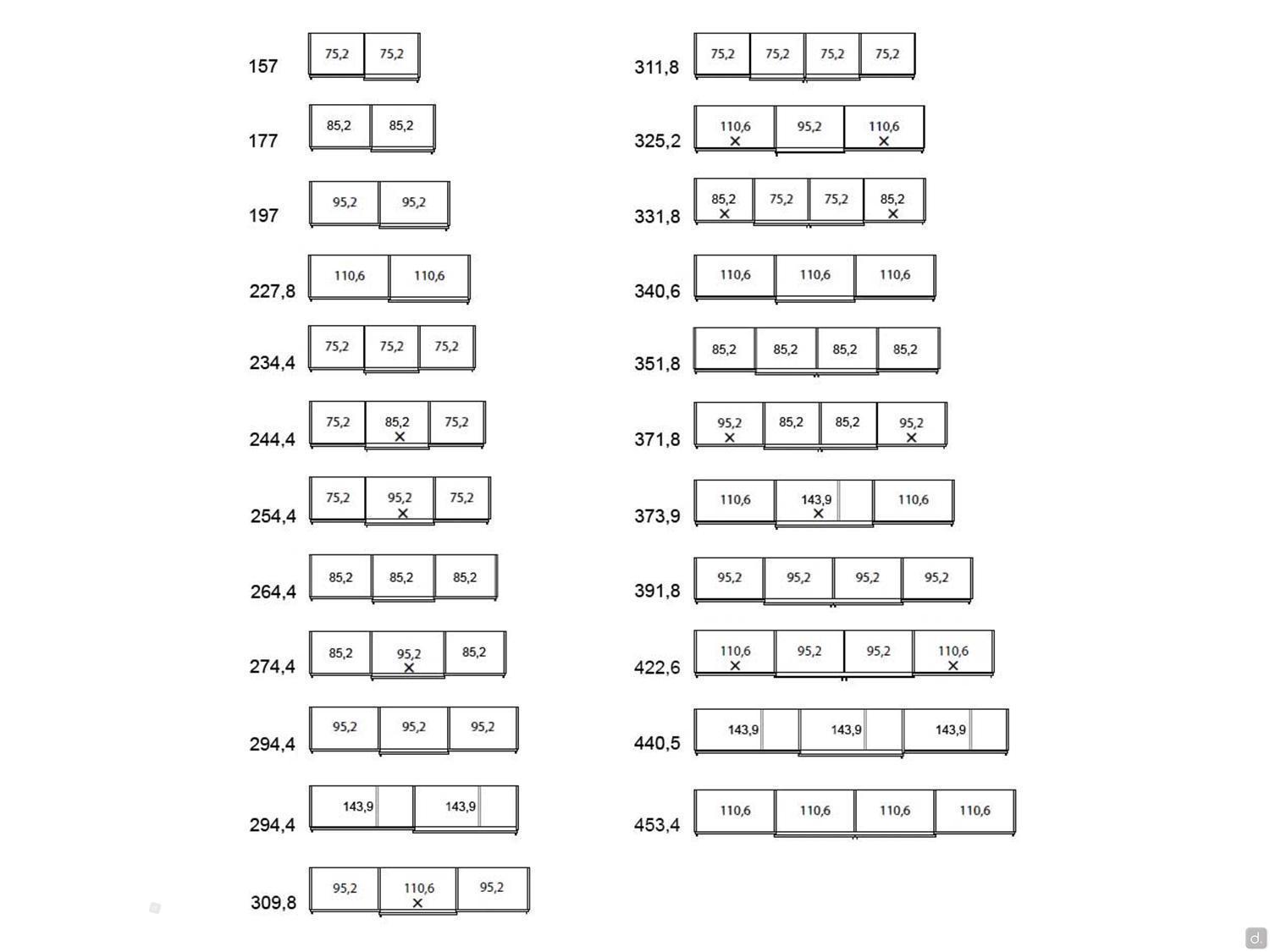

Diagram of available widths for the Focus Wide closet, with 2, 3 or 4 doors

+ 9

MORE IMAGES

Layout Wide D.47,8
Sliding Wardrobe

Space-saving narrow sliding wardrobe Layout Wide, with contrasting central band for two-tone or matching doors. Reduced depth, less than 50 cm.

* Required Fields

Larghezza Armadio *

Altezza Armadio *

Altezza Armadio *

Verso Apertura *

------2 ANTE
Destro, con anta esterna a Destra
Sinistro, con anta esterna a Sinistra

Verso Apertura Anta Centrale *

------3 ANTE
da Sinistra verso Destra
da Destra verso Sinistra

Verso Apertura Anta Centrale *

------MISURA 373,9
da Destra verso Sinistra. Anta centrale con fascia da cm 48 posizionata a sinistra.
da Sinistra verso Destra. Anta centrale con fascia da cm 48 posizionata a destra.

Finitura Ante e Fianchi *

Finitura Ante e Fianchi *

Finitura Ante e Fianchi *

Finitura Ante e Fianchi *

Finitura Ante e Fianchi *

Finitura Ante e Fianchi *

Finitura Ante e Fianchi *

Finitura Ante e Fianchi *

Finitura Pannello Centrale *

Finitura Pannello Centrale *

Finitura Pannello Centrale *

Finitura Pannello Centrale *

Finitura Pannello Centrale *

Finitura Pannello Centrale *

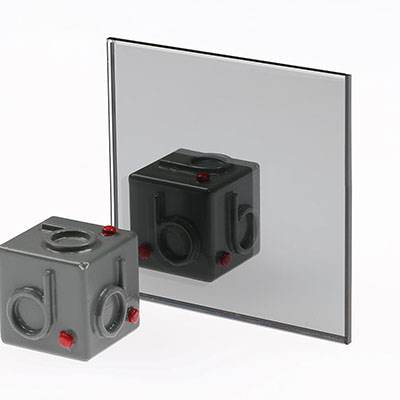

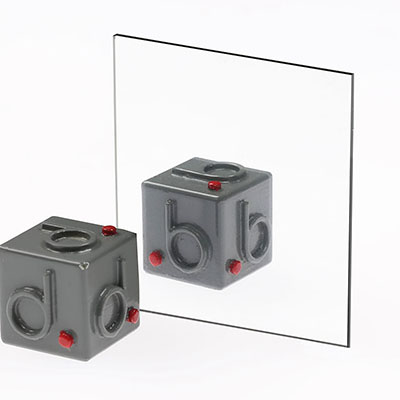

Colore Specchio *

Dotazioni Interne *

n.1 ripiano cm sp.3,5 e n.2 tubi appendiabiti per ogni modulo

Finitura Maniglia Integrata *

Finitura Interni *

nobilitato

Finitura Lato Interno Fianchi di Chiusura *

nobilitato in tinta all'esterno

Finitura Interni *

Finitura Interni *

Nota Bene *

I bordi di coperchio, fondo e divisione sono sempre in finitura Moka Shine

Info per il tuo Acquisto *

il lato interno del fianco di chiusura è in Nobilitato Skin Effect NSE

Quantity

From €1,515.79

View Samples

Wishlist

Description

Layout Wide is a narrow, space-saving sliding wardrobe with a depth of less than 50 cm for hallways or bedrooms with limited space. The wardrobe is characterised by a central band that can be configured to match the door or in contrast, at the end of which is the integrated handle in painted or matt lacquered metal.
The reduced measurements do not prevent the interior of the wardrobe from being equipped with drawer units, pull-out accessories or perpendicular hanging rods, which make it possible to exploit the smaller space of the structure by alternately arranging hanging garments.

Characteristics
sliding wardrobe with reduced depth, overall size less than 50 cm
central band on each door, which can be contrasting or matching the other panels
available in two different heights, 229.5 or 255.1 cm
possibility of customising the interior with dedicated fittings

Measurements
Width: cm 157 to 453.4
Height: cm 229,5 / 255,1
Depth
- wardrobe: cm 47,8 (external doors) / cm 44,6 (internal doors)
- structure: cm 41,6
- interior: cm 40,8

Materials and Finishes
Doors and Sides
- melamine
- matt lacquered
Central Panel:
- melamine
- matt lacquered
- wood essence
- mirror
- lacquered glass
Interiors:
- melamine
- matt lacquered melamine

Purchase Information
Each module includes a shelf and two hanging tubes as standard. The 143.9 cm module is composed of the 95.2 + 46.5 cm modules.
You can purchase other interior fittings in the Wide Internal Equipment product card and add the desired items to the trolley; it is not possible to insert pull-out fittings in the modules marked with the letter "X" in the diagram in the image gallery.

Technical study

Material Specifications
Doors, sides, partitions, lid, backs, internal shelves: made of class E1 particleboard panels with low formaldehyde emission.
N.B. Wood-effect melamine, barré polymeric and Metal Smoke and Gurè material melamine have the grain direction always vertical.

Technical Specifications and Equipment
Sides and partitions: thickness 2.2 cm. Equipped with levelling feet inserted in the thickness (cm 0.5 off, to be added to the overall height of the cabinet) and adjustable cm 1 inside.
Lid: thickness cm 2,2 complete with joints for fixing.
Bottom: thickness cm 3.5 complete with joints for fixing.
Backs: thickness cm 0.8.
Inner shelves: thickness cm 3.5 complete with joints for fastening.
Doors: thickness cm 2.2. Equipped with turnbuckle and assisted closing mechanism. Exposed side profile in extruded aluminium painted titanium or lacquered in matching matt colours. In the case of 3- or 4-door wardrobes, the outer doors always have a handle on the outer sides.
Hanging tubes: in umber shine painted metal. Coat hanger tubes are supplied with the wardrobe modules in the Standard version: within the product"Wide Sliding Interior Equipment" linked at the bottom of the page it is then possible to choose the Premium version with a squarer profile.

Drilling Sides
Sides and partitions have fixed perforations on average every 16 cm. For detailed dimensions please refer to the dedicated diagram in the image gallery.

Assembly Tips
The following are required for assembling the body:
- in width cm 4
- in height cm 4 (cm 2 for the protrusion of the upper carriage + cm 0.5 for the levelling feet in the unloaded position + cm 1.5 for assembly).

Additional Information

Area of Production
Italy

Approximate Time
8-9 working weeks for production

Assembling
Medium Assembling

Assembling Instructions
Download the Assembling Instructions
