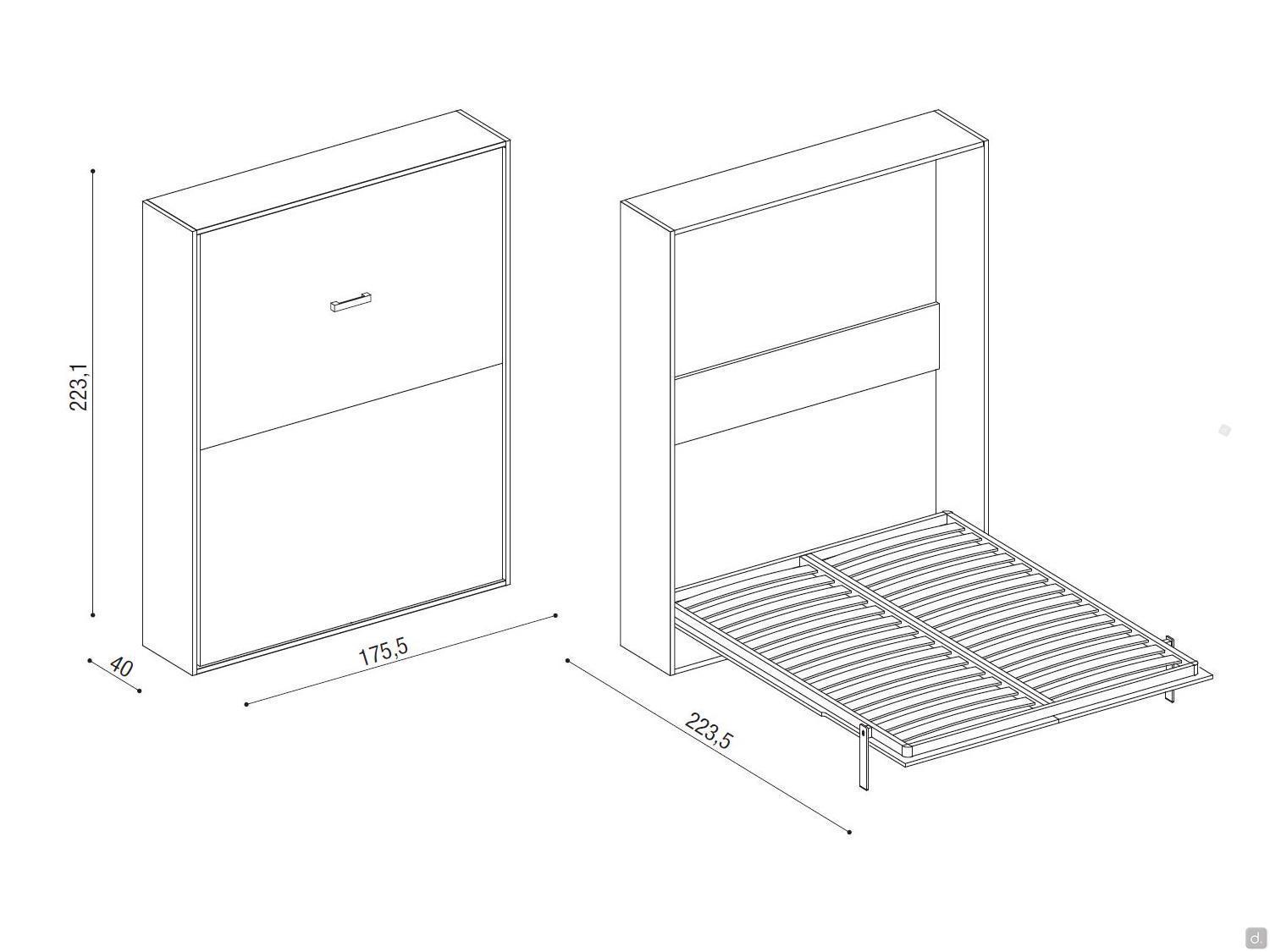

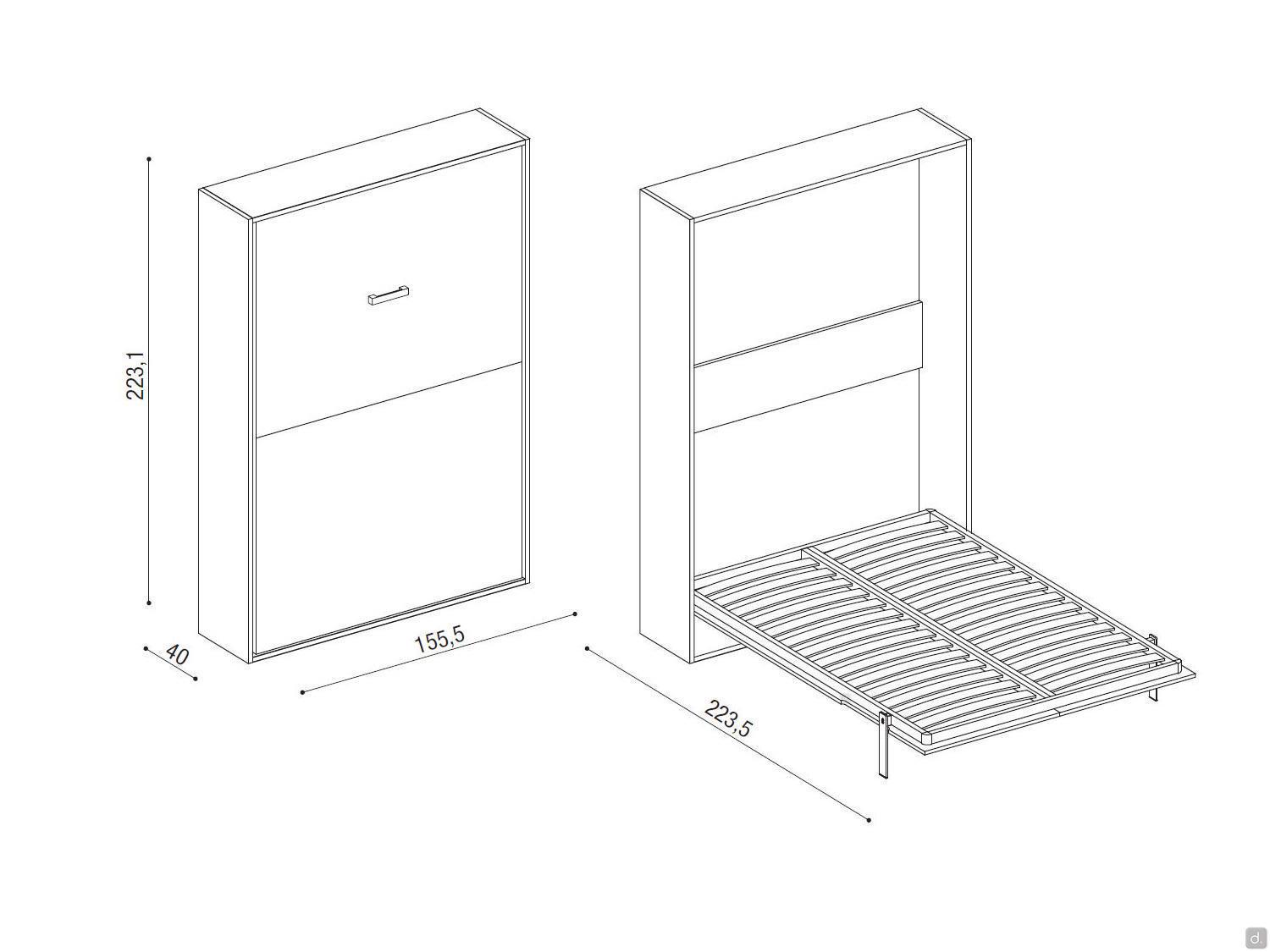

Model and Specific Measurements
Bed Model |
Bed Measurements |
Bed Base |
Mattress
|
French double |
cm 155,5 x 223,5 |
cm 142 x 202, thk.5 |
cm 140 x 200 |
standard double |
cm 175,5 x 223,5 |
cm 162 x 202, thk.5 |
cm 160 x 200 |
spring mattress: internal steel springs with 2,20 mm wire and 1,30 mm steel spirals, 1000 gr/m² thermo-sealed insulating felt, layer of D21 resin on both sides, 1,5 cm thick, padding in 320 gr/m² hypoallergenic fibres and polyester covering fabric, non-deformable perimiter boxing, packaged in heat-sealed nylon bag.
memory foam mattress: internal solid block made from non-deformable water-based polyurethane foam with a 30 Kg/m³ density, 4 cm thick memory sheets, 320 gr/m² hypoallergenic fibre padding and polyester covering fabric, packaged in heat-sealed nylon bag.
client mattress: the mattress must have a weight between 25 and 30 kg.
Technical Specifications and Equipment
sides, tops and bottom panels: class E1 melamine faced panel, thk. 2,5 cm. The bottom panels are equipped with height-adjustable feet.
doors and backs: class E1 melamine faced panel, thk. 1,8 cm.

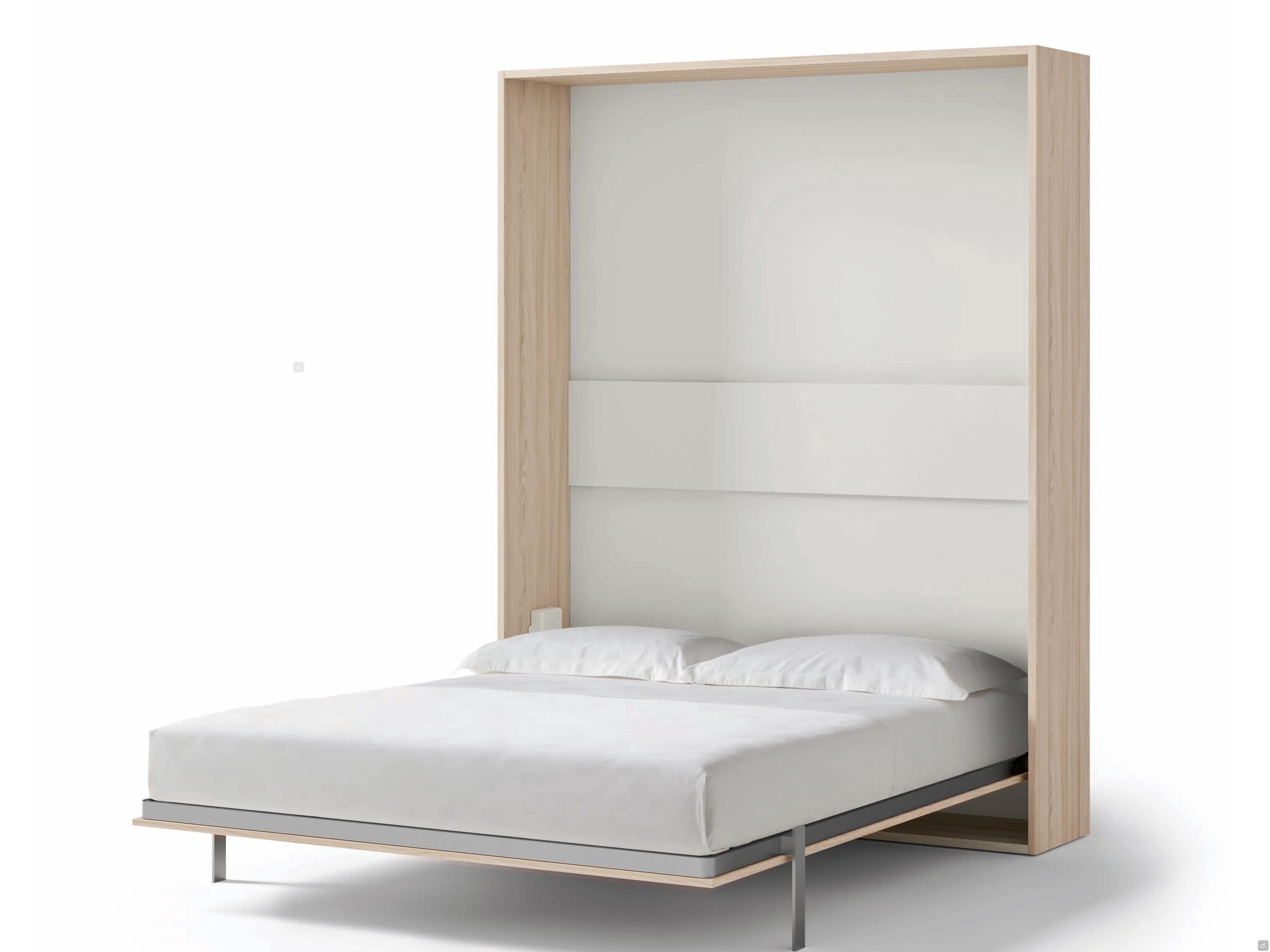

bed base: epoxy powder-coated bed base, equipped with beech wood slats and anti-torsion system.
mechanism: mechanism equipped with braking system mounted on epoxy powder-coated metal plates.
Optional
upper storage cabinet: class E1 melamine, thk. 2,5 cm, with double compartment and internal division. Also available with a 1,8 cm thick flip door with a push-pull opening system.
table: class E1 melamine panel, thk. 2,5 cm. Metal leg is coated in epoxy powder. Equipped with a folding system, fixed to the front of the closed bed.
LED lighting: pair of dimmable LED lights.
Material Specifications
matte lacquered: sides and fronts are finished in matte lacquer on both sides; top and bottom panels are lacquerd on the inside.
Assembly Tips
For safety reasons, fixing to a brick wall is mandatory.
In the presence of the optional top, 5 cm in height are required for the assembly.
