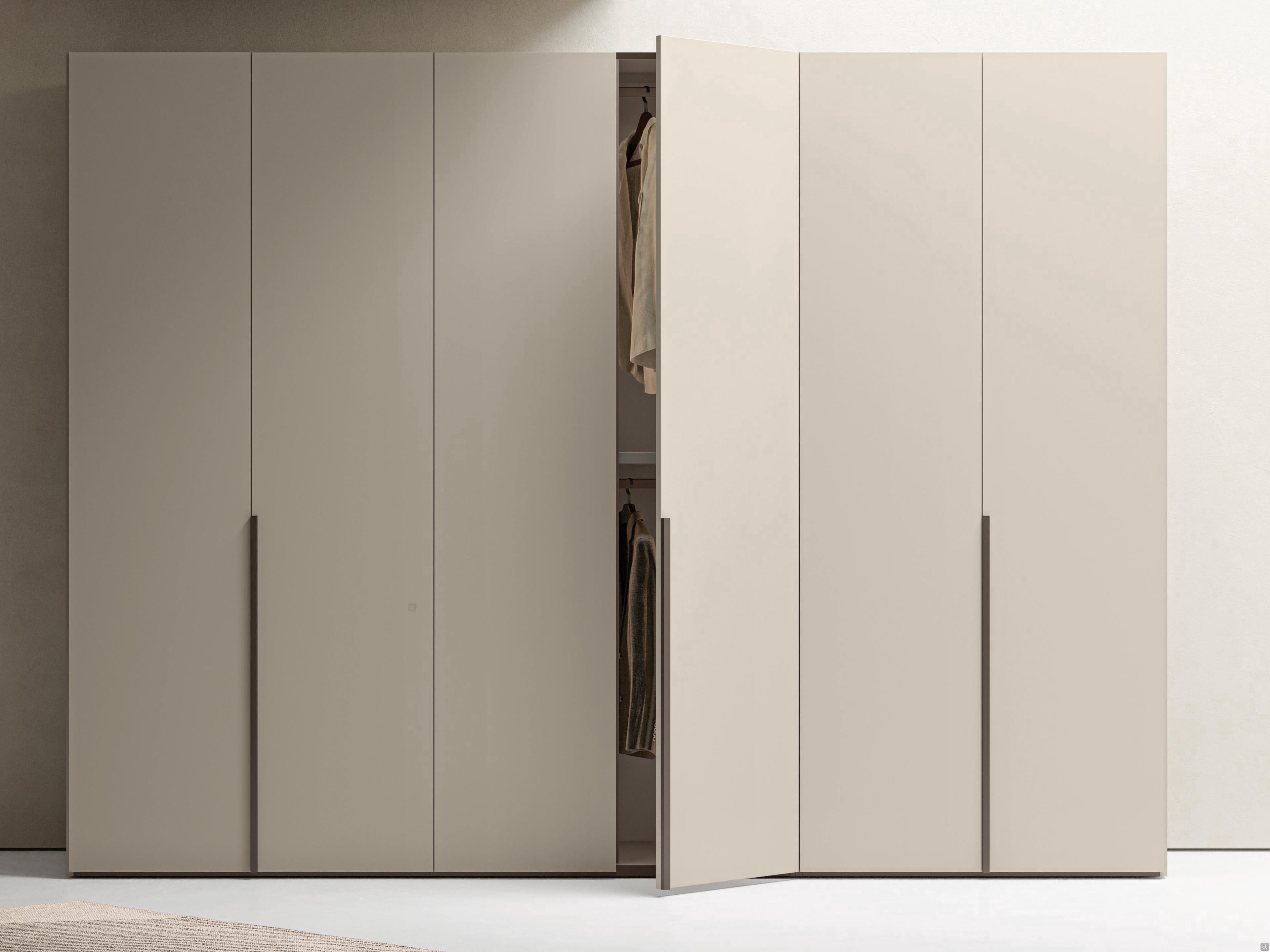

Focus Wide hinged wardrobe with handle model Minima, painted in contrast to the matt white lacquered structure

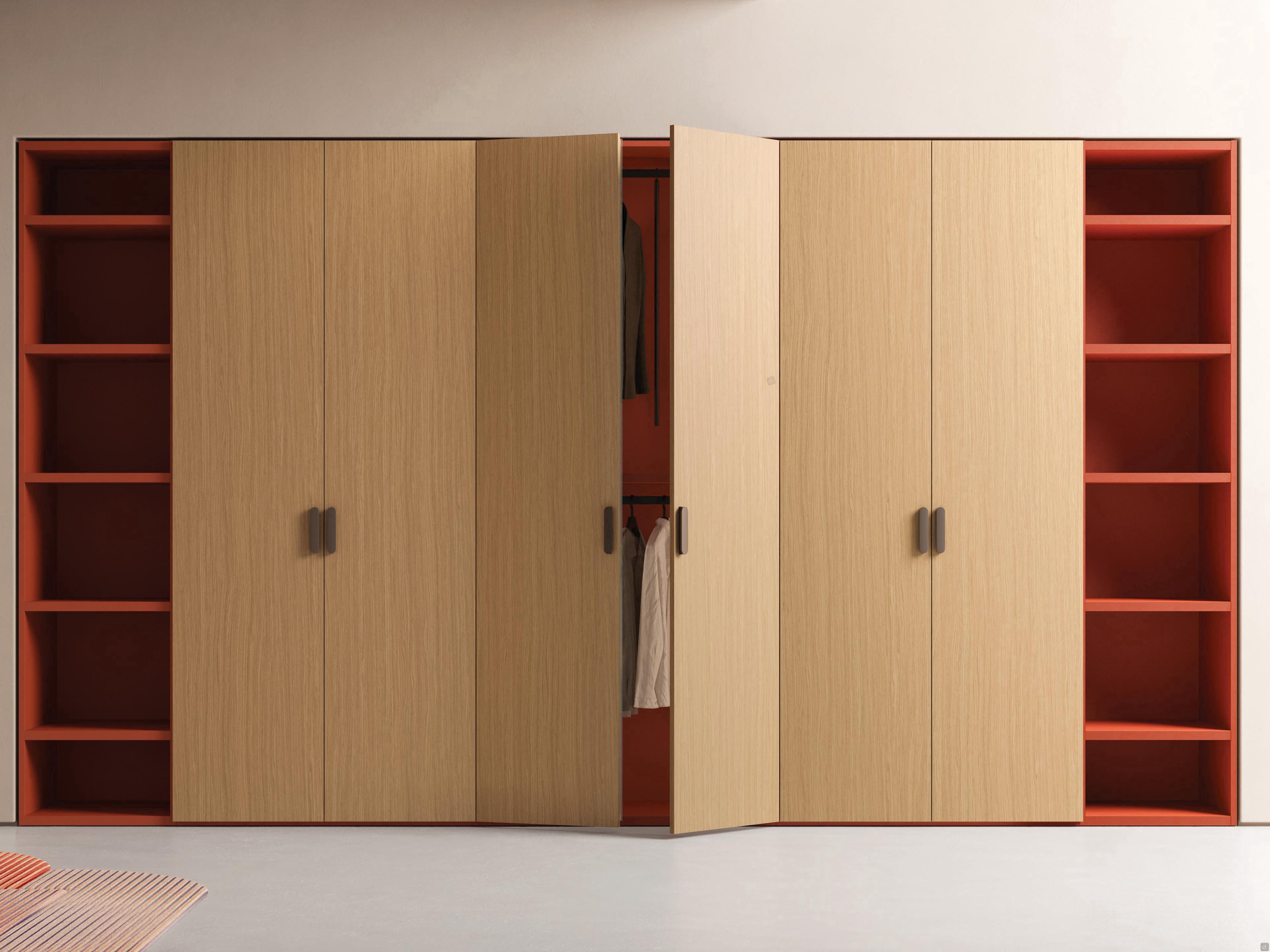

Modern wardrobe with hinged doors Focus Wide, here proposed with Fashion Wood veneer exterior and matt lacquered interior, combined with two Wide side bookcases

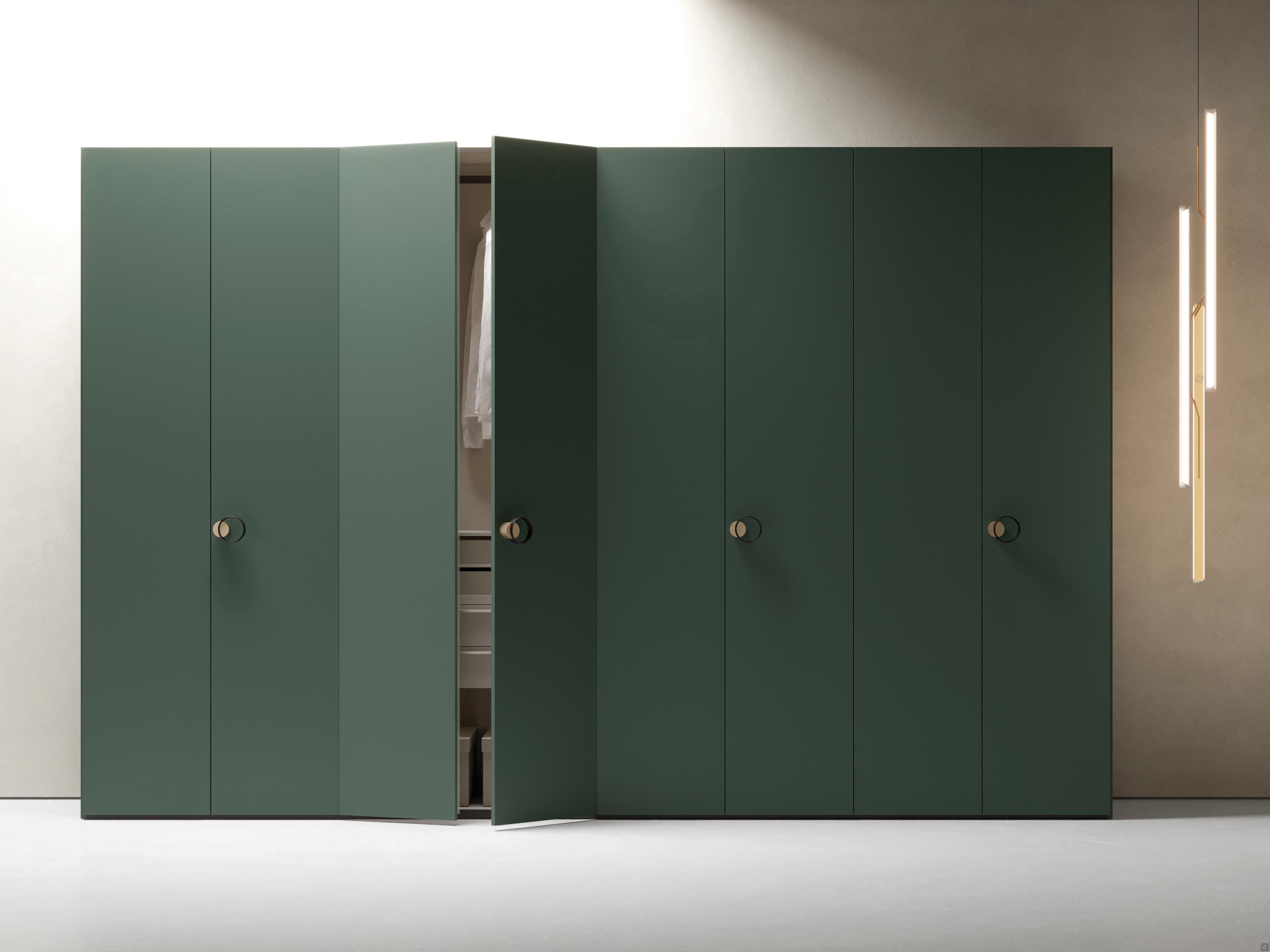

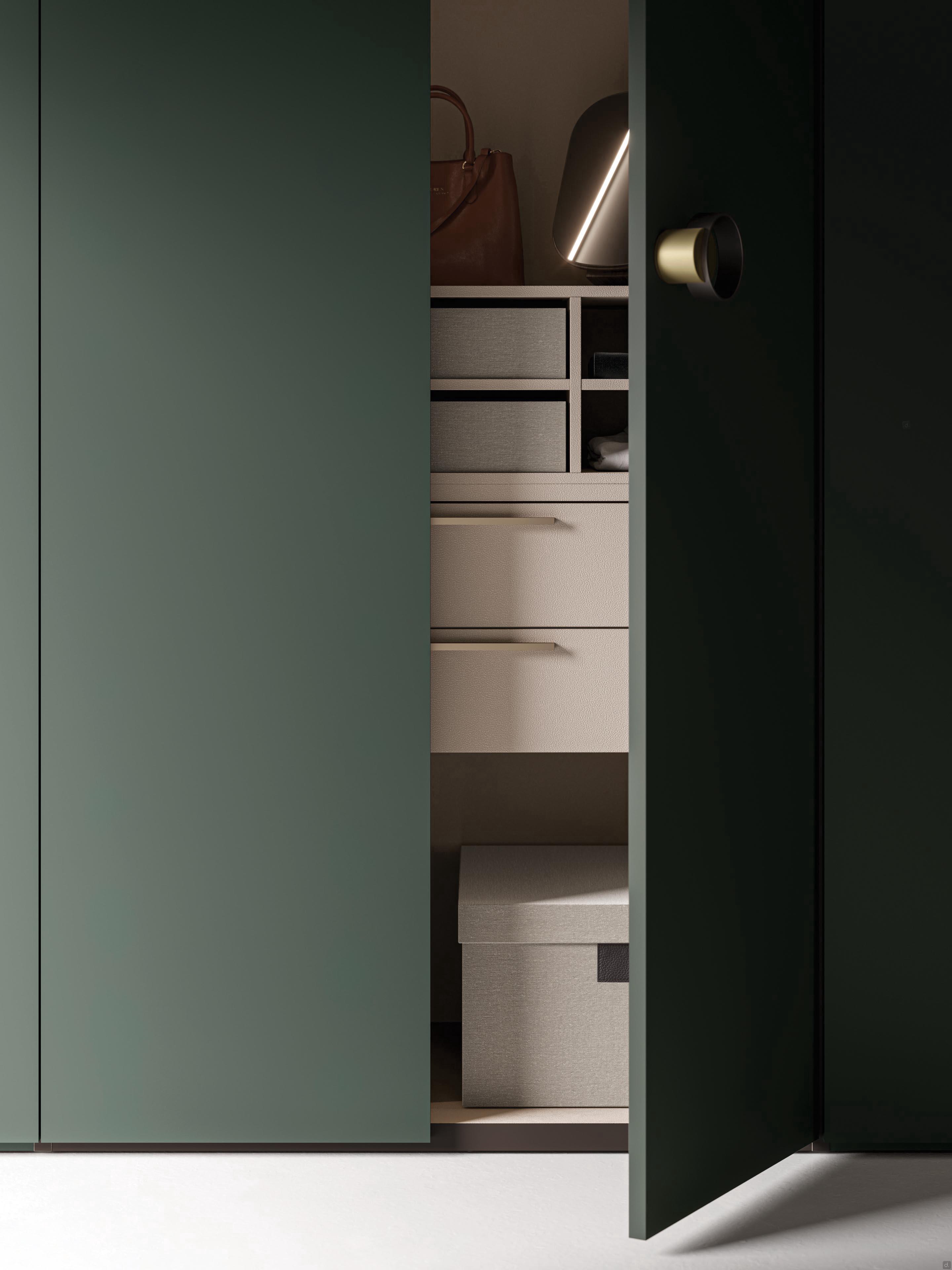

Focus Wide forest green lacquered hinged wardrobe, with Ring handle, in a striking 8-door composition

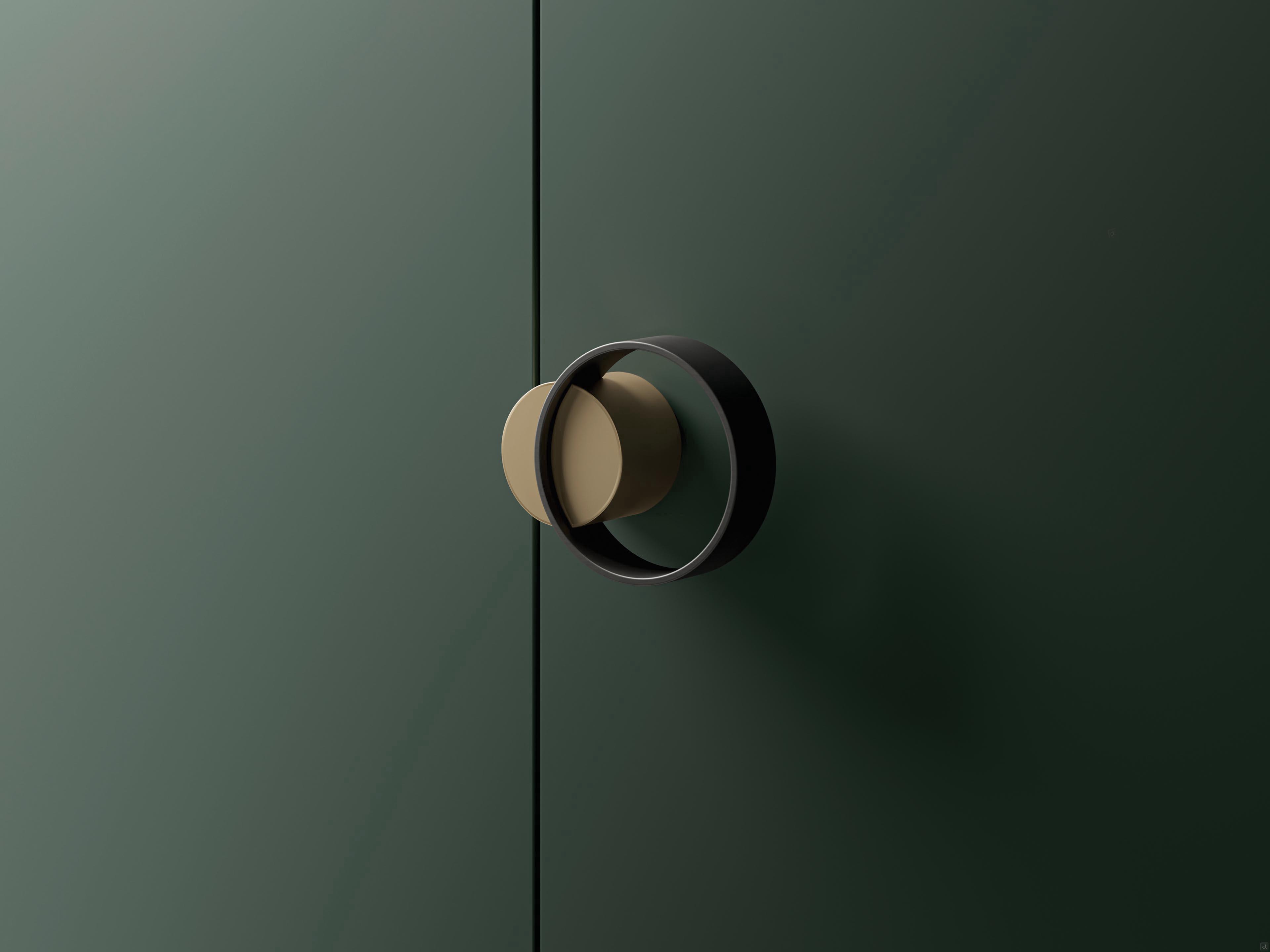

Detail of the Ring handle, one of the many available for the Focus Wide wardrobe. The finishes of the knob and outer ring are Nickel painted metal and Moka Shine painted metal.

Detail of the Minima handle, with special ergonomic grip to facilitate door opening

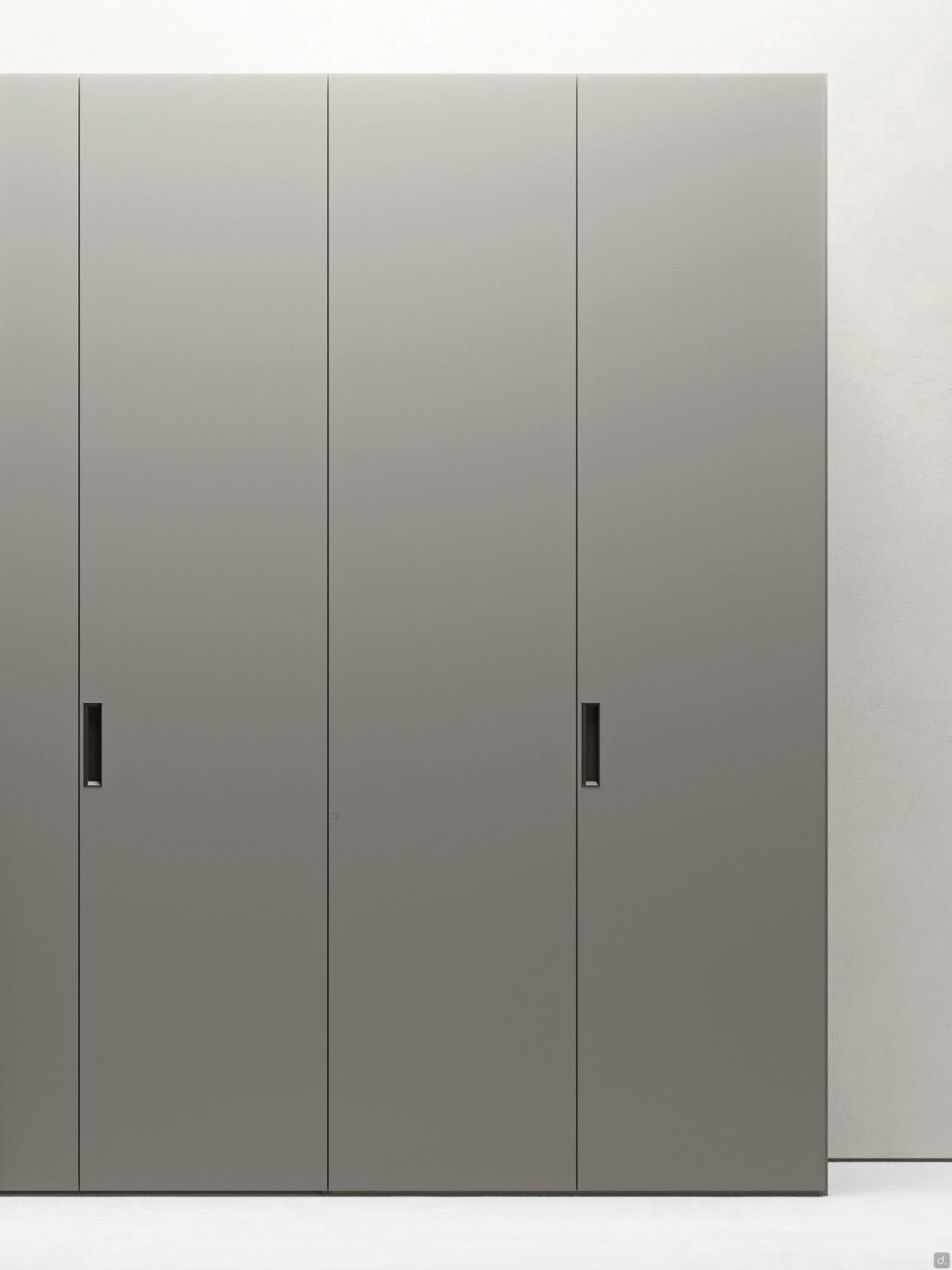

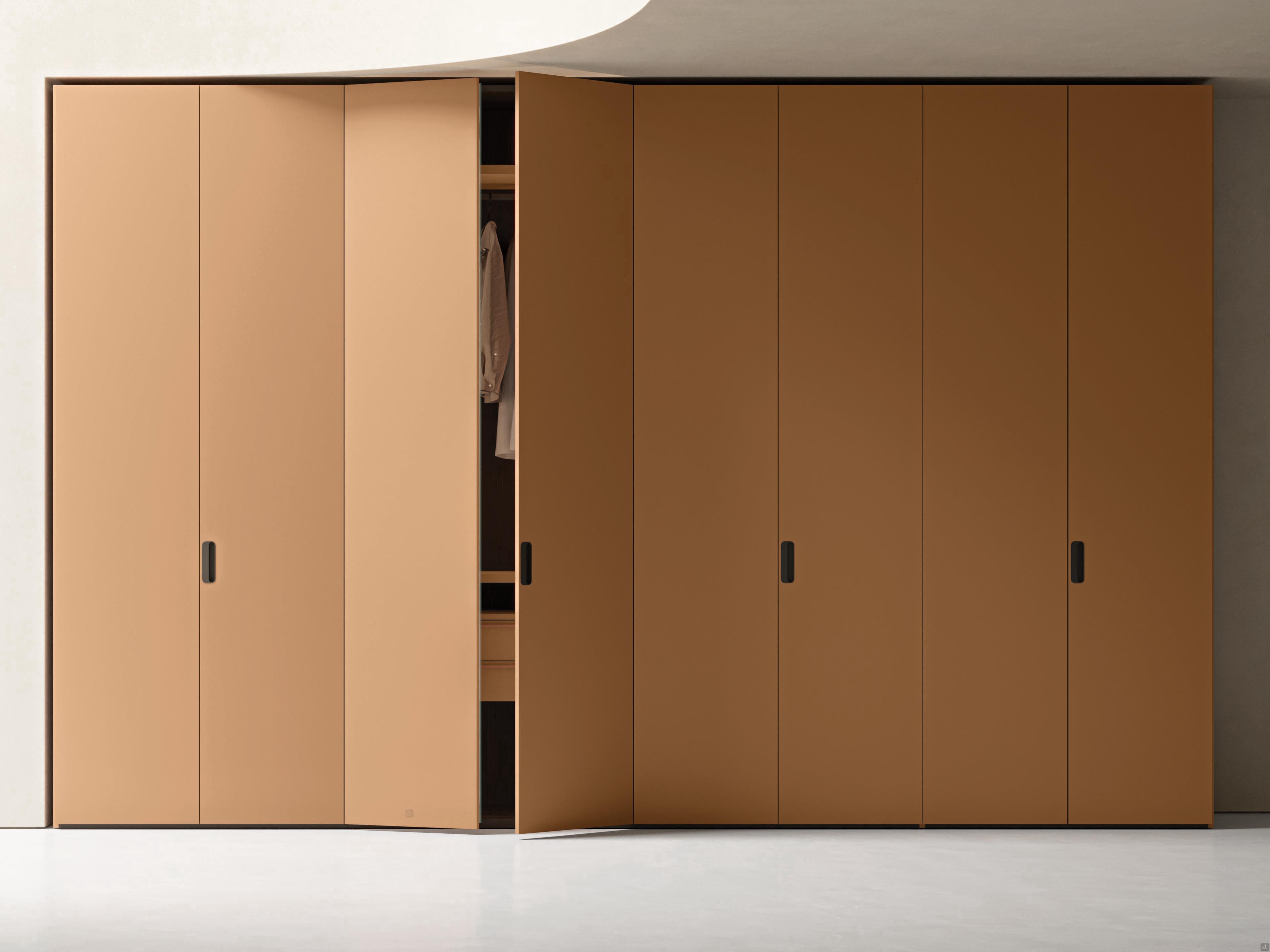

Focus Wide hinged wardrobe here in Coccio matt lacquered with IM handle

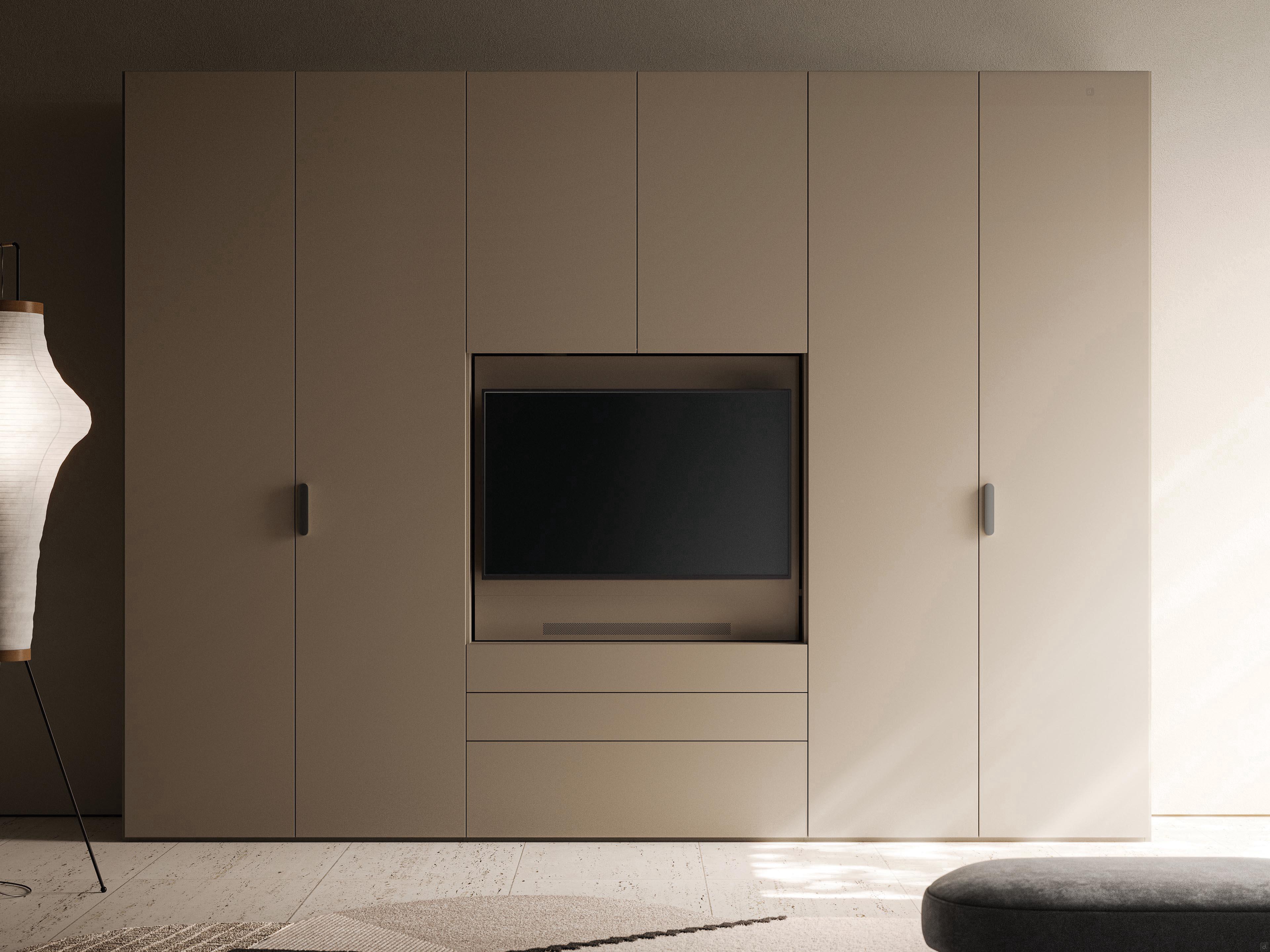

Two Focus Wide hinged modules placed at the sides of a Wide TV element, composing a classic wardrobe with central television, doors and drawers

Focus Wide wardrobe with I22 handle, created by combining two double-hinged door modules

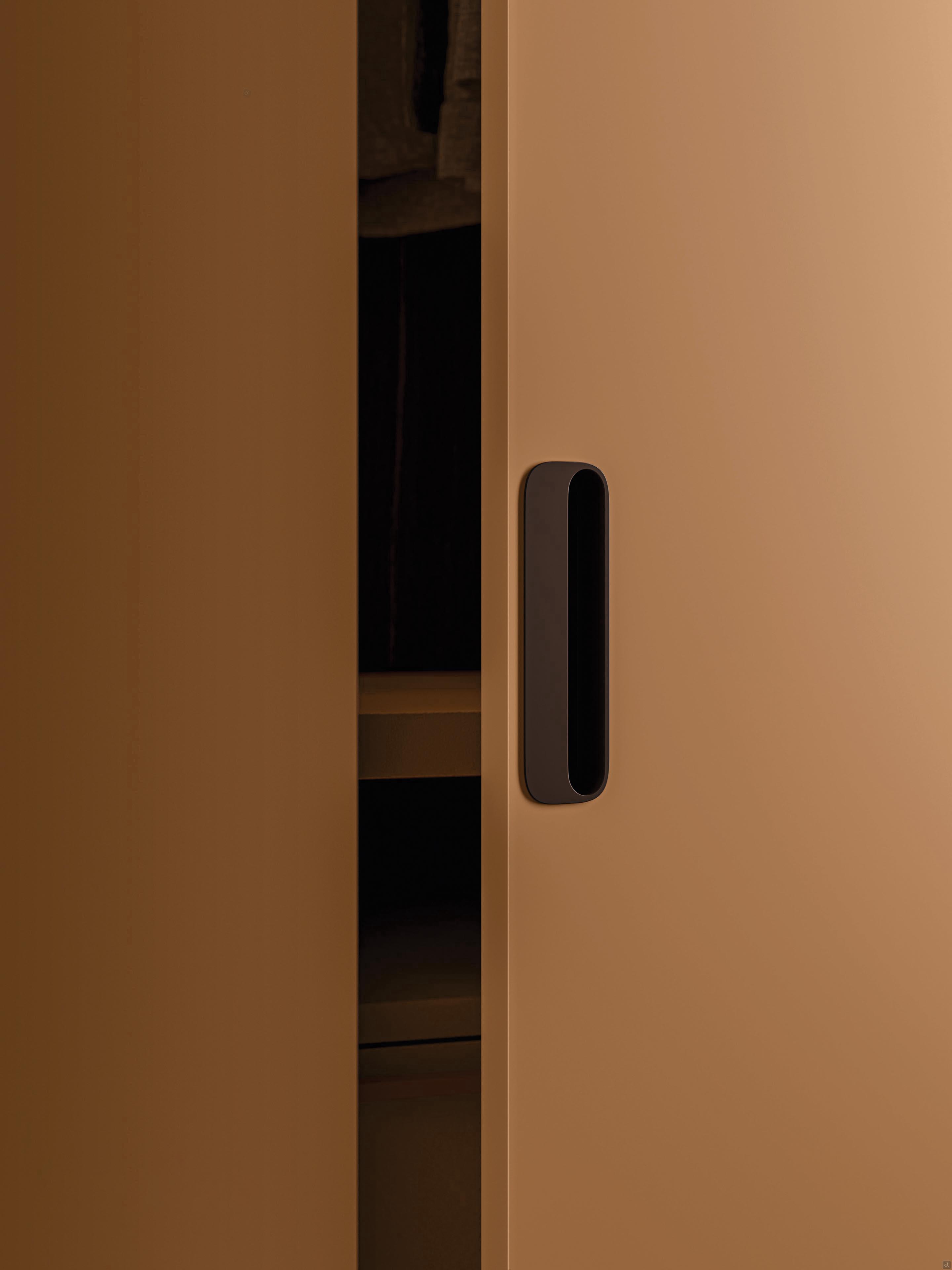

Detail of the IM handle, which can be combined with all door materials available for the Focus Wide wardrobe

Example of interior equipment for a Focus Wide wardrobe, which can be purchased in the dedicated tab. Note in particular the suspended drawer unit and the storage raster

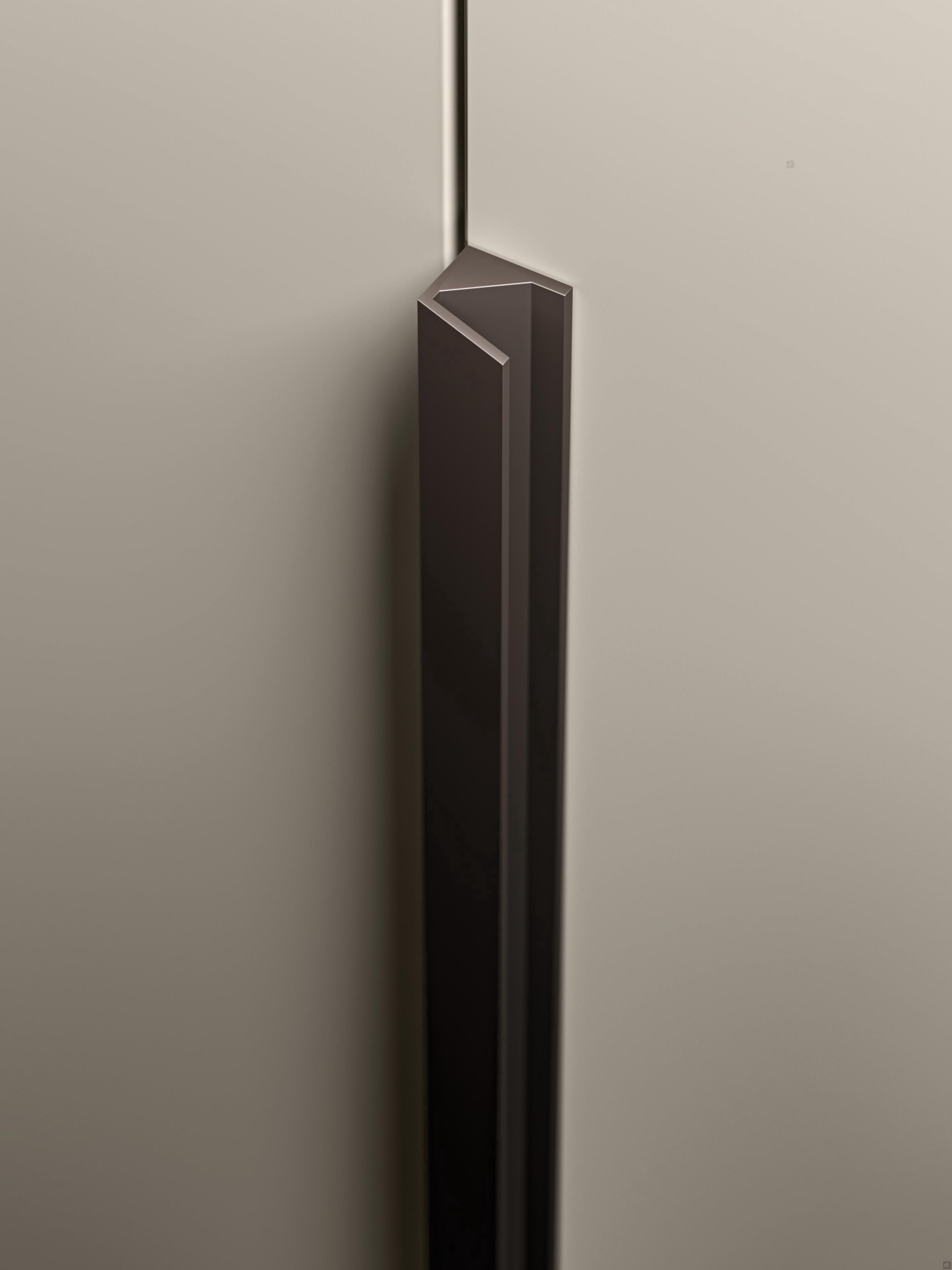

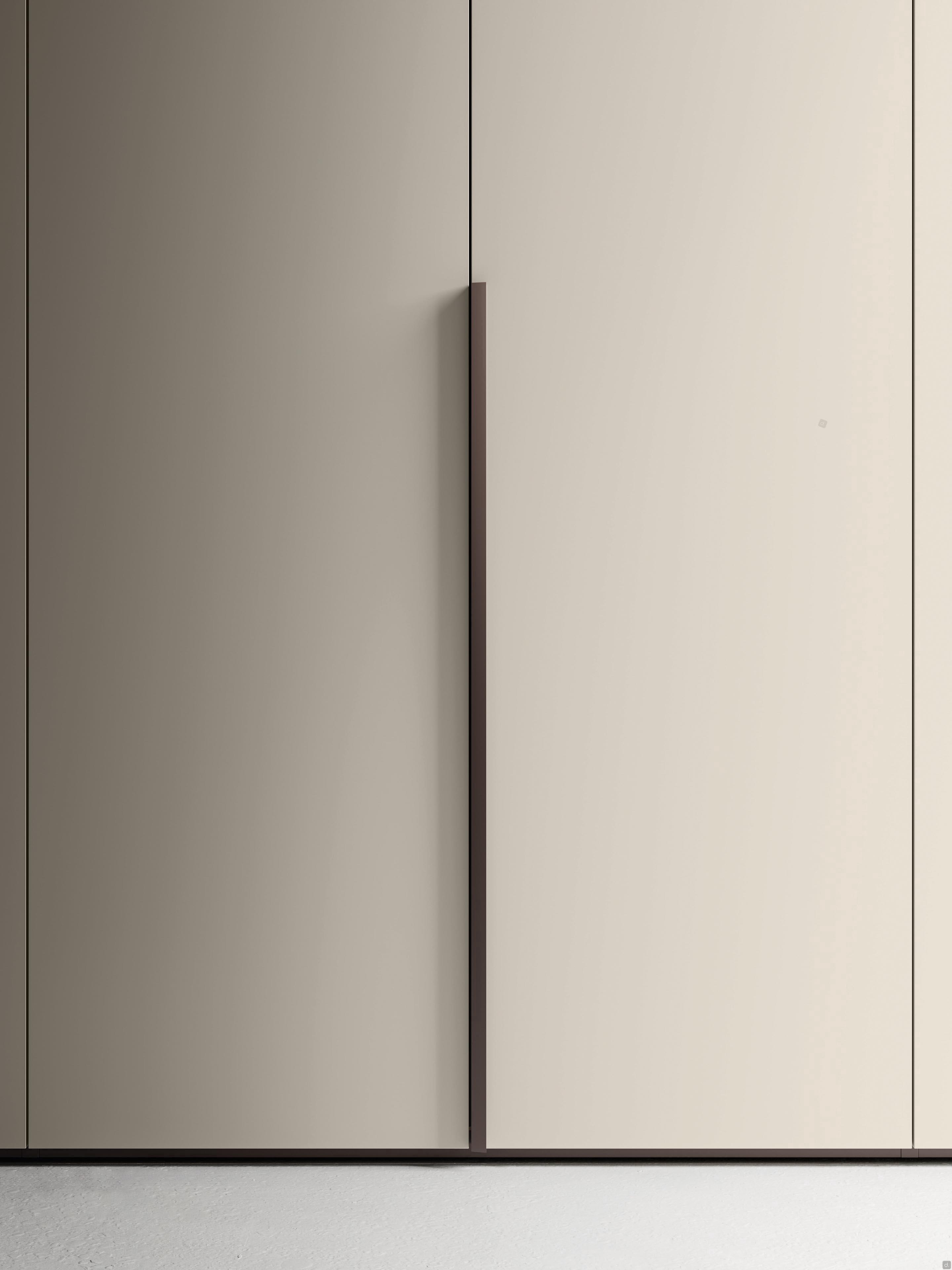

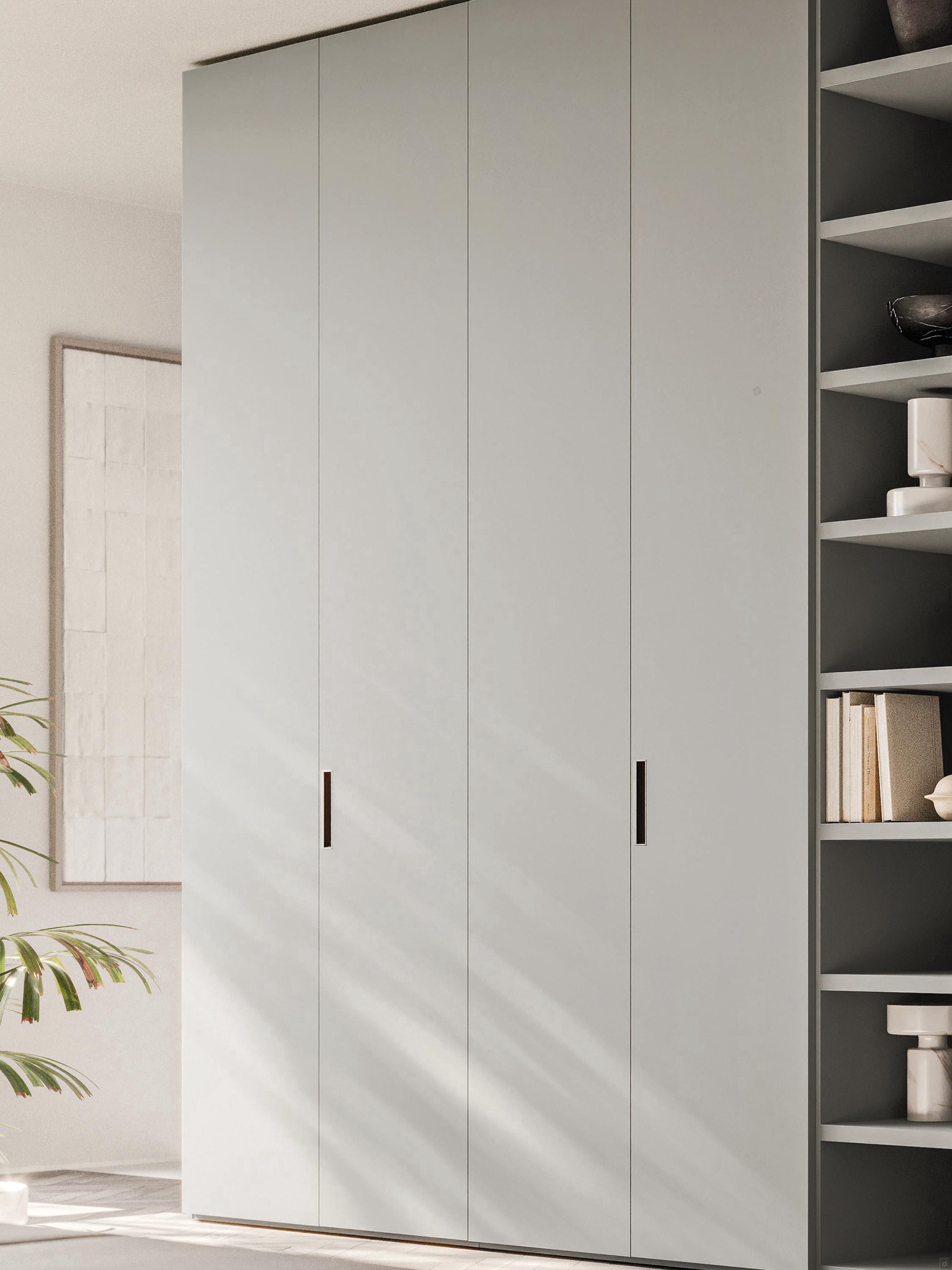

Detail of the Minima metal handle, tall and slim

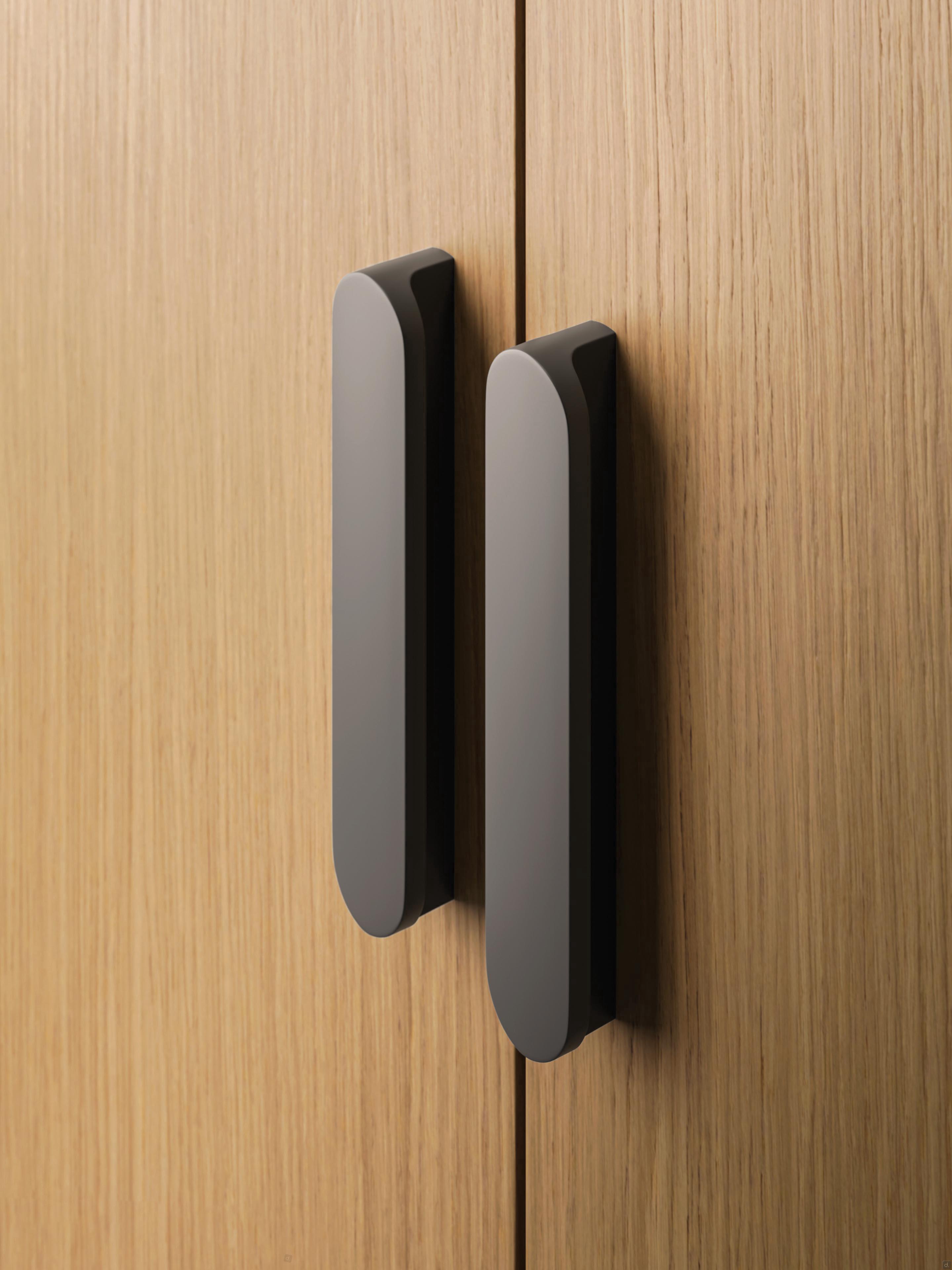

Detail of the Savoir double handle, also available as a single handle with positioning on the right-hand door only

Front view of a Focus Wide matt lacquered wardrobe with I22 handle

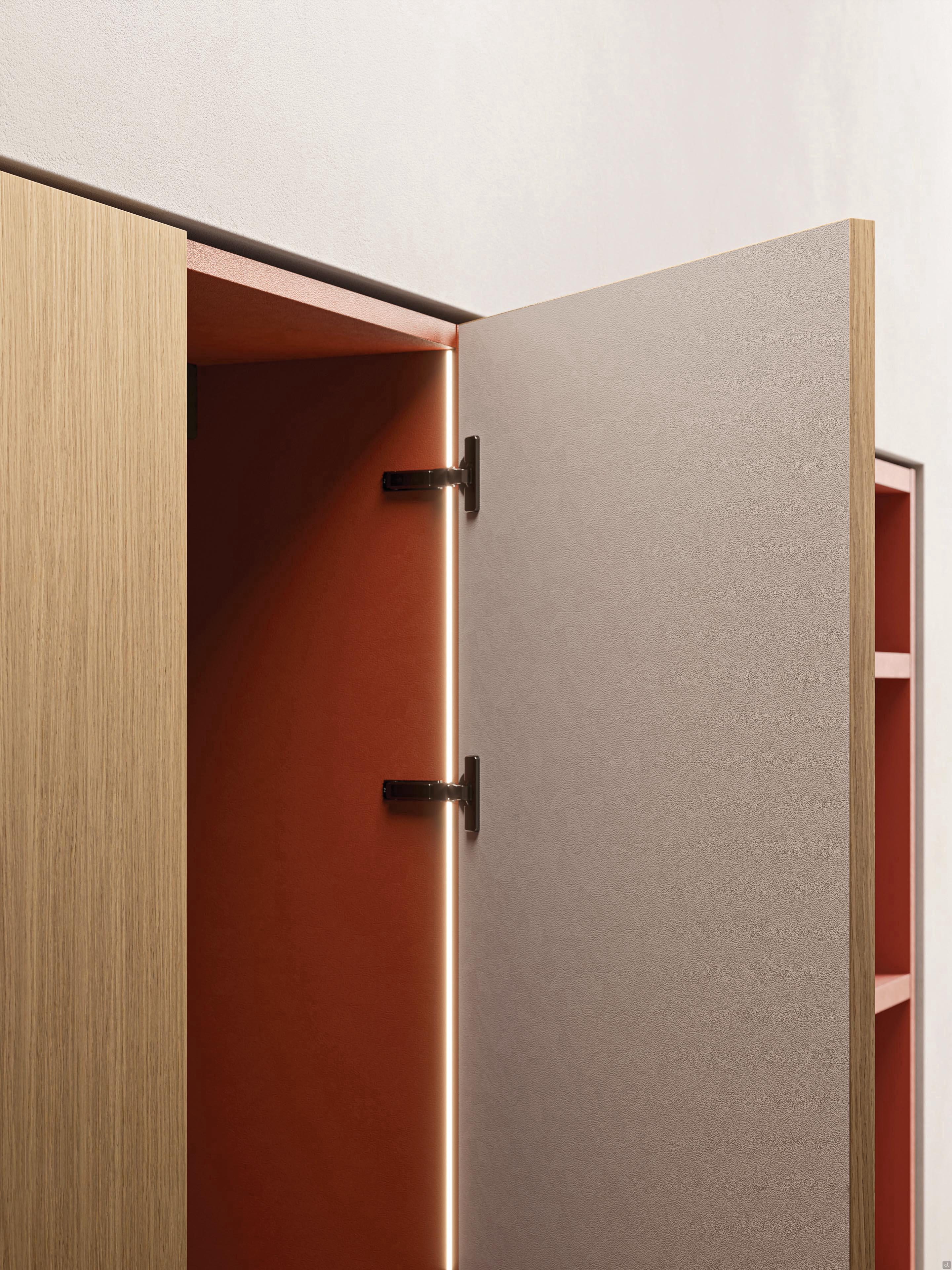

View of the inside of a Focus Wide wardrobe door. The doors in Barré polymeric melamine and Fashion Wood veneer (as shown in the photo) have the inside in Skin Effect NSE melamine.

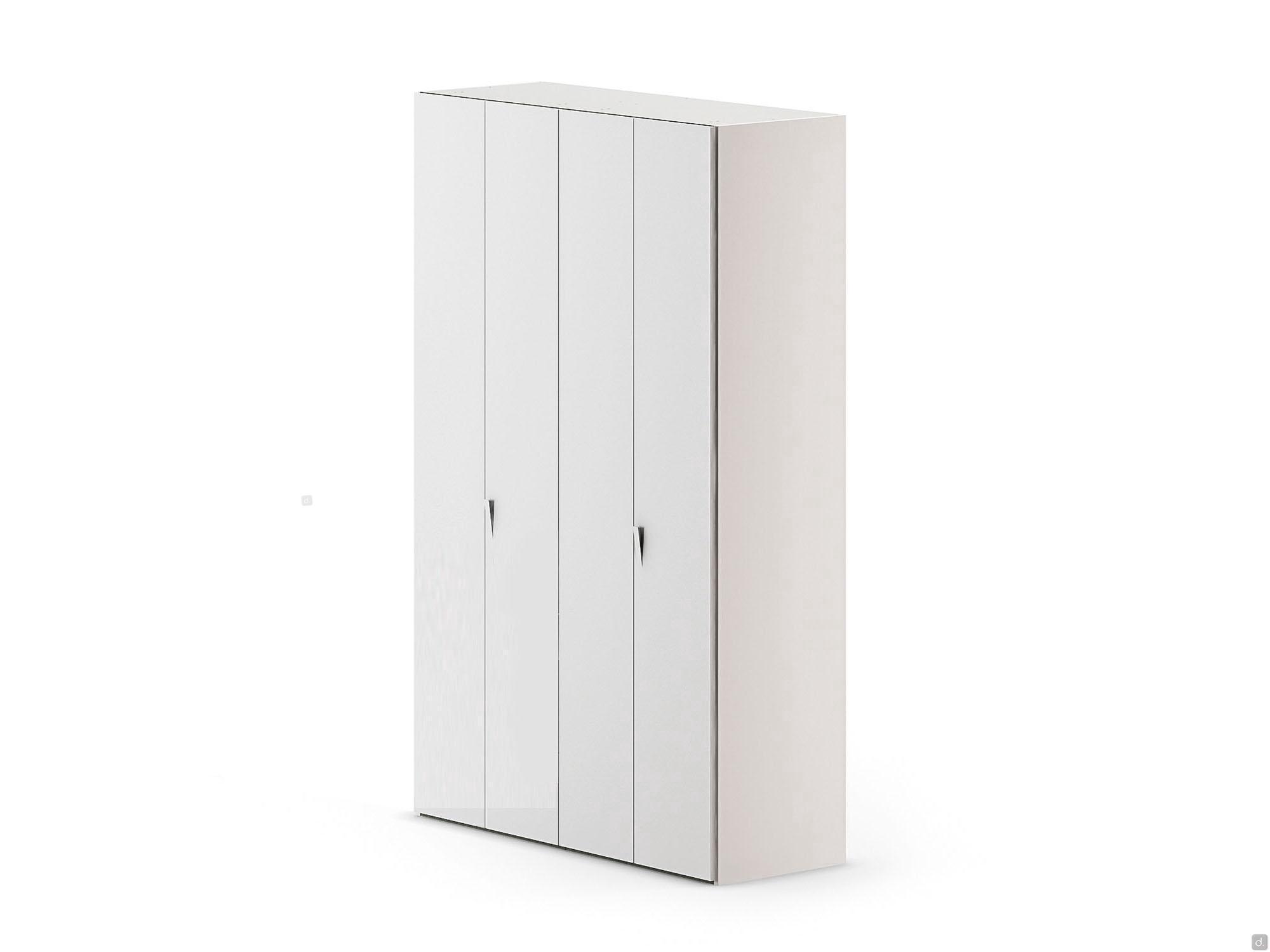

Focus Wide composition example with Ellie handle

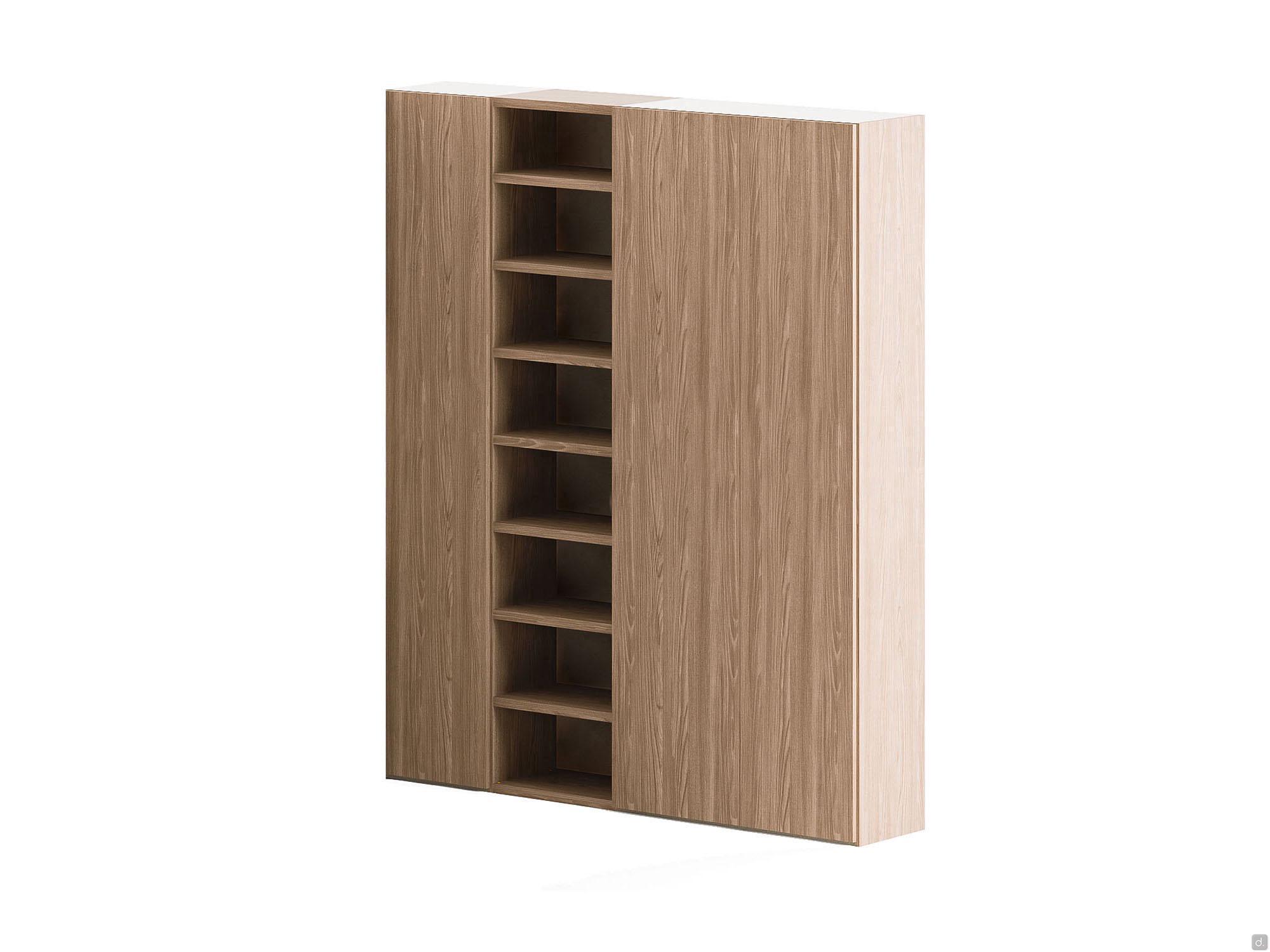

Focus Wide with push-pull and open bookcase element

Focus Wide door, matt lacquered, with metal Ponte handle

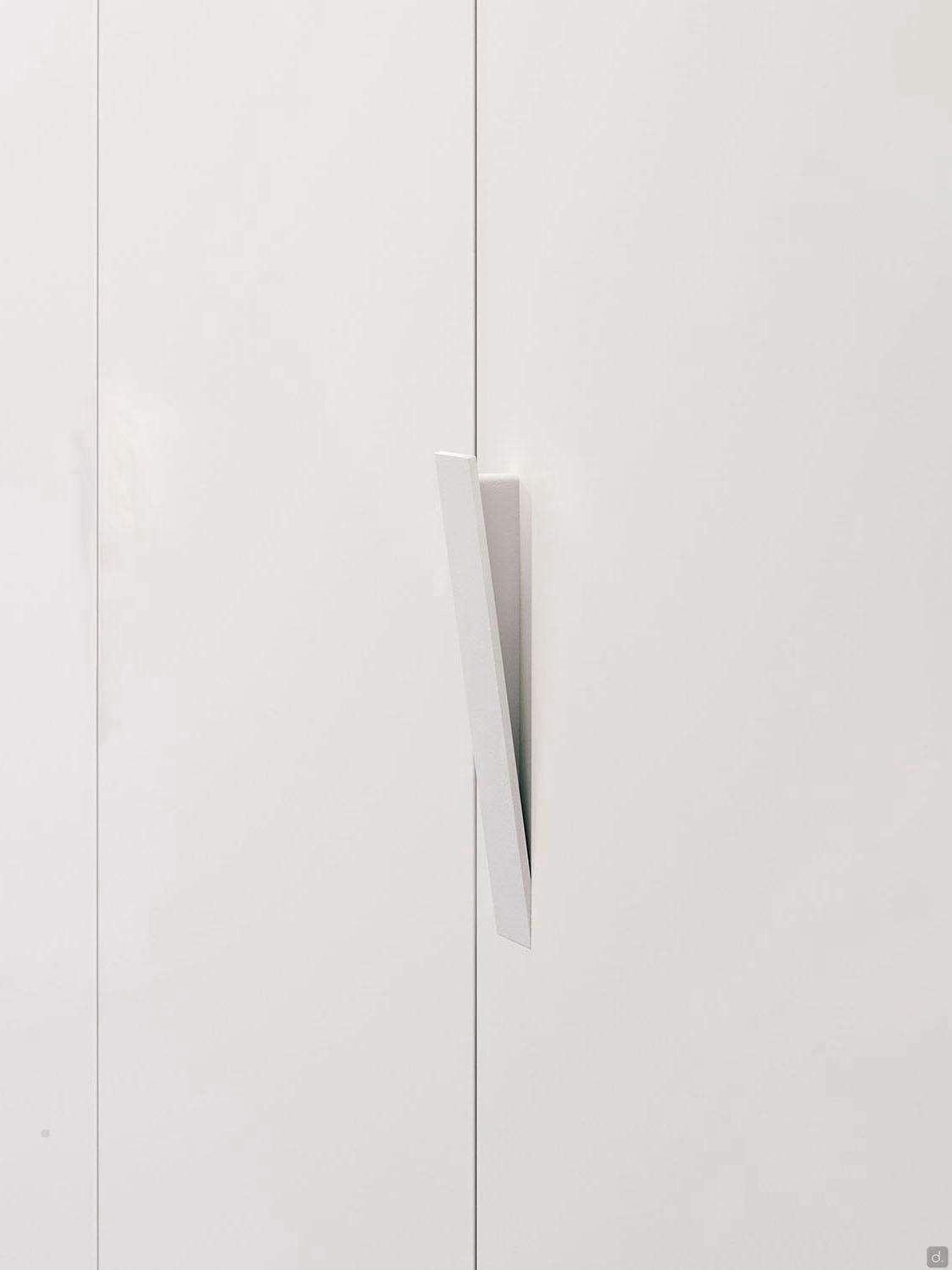

Detail of the Ellie handle, available in three standard finishes or matt lacquered with sample colours

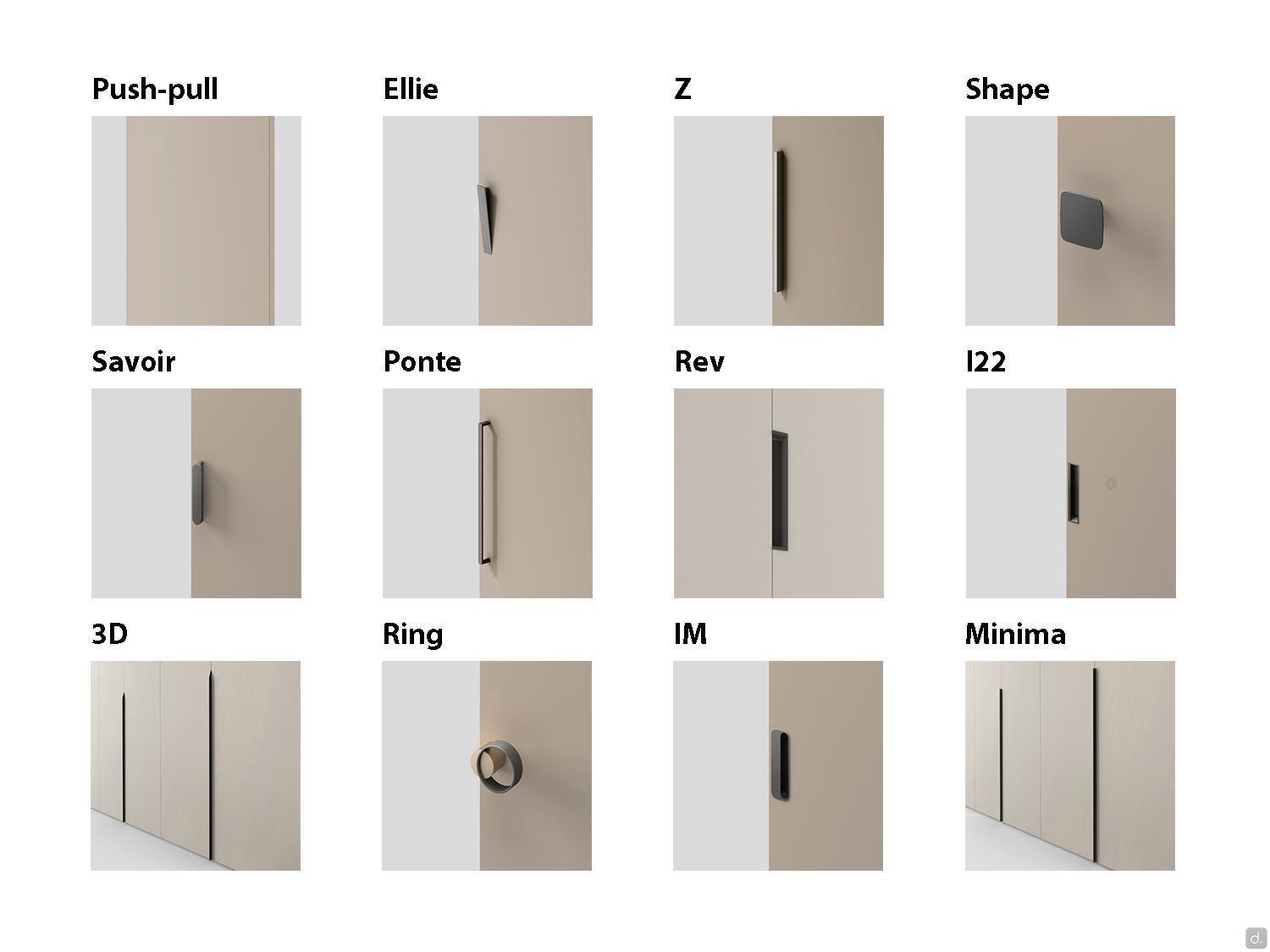

Overview of handles available on the Focus Wide hinged wardrobe

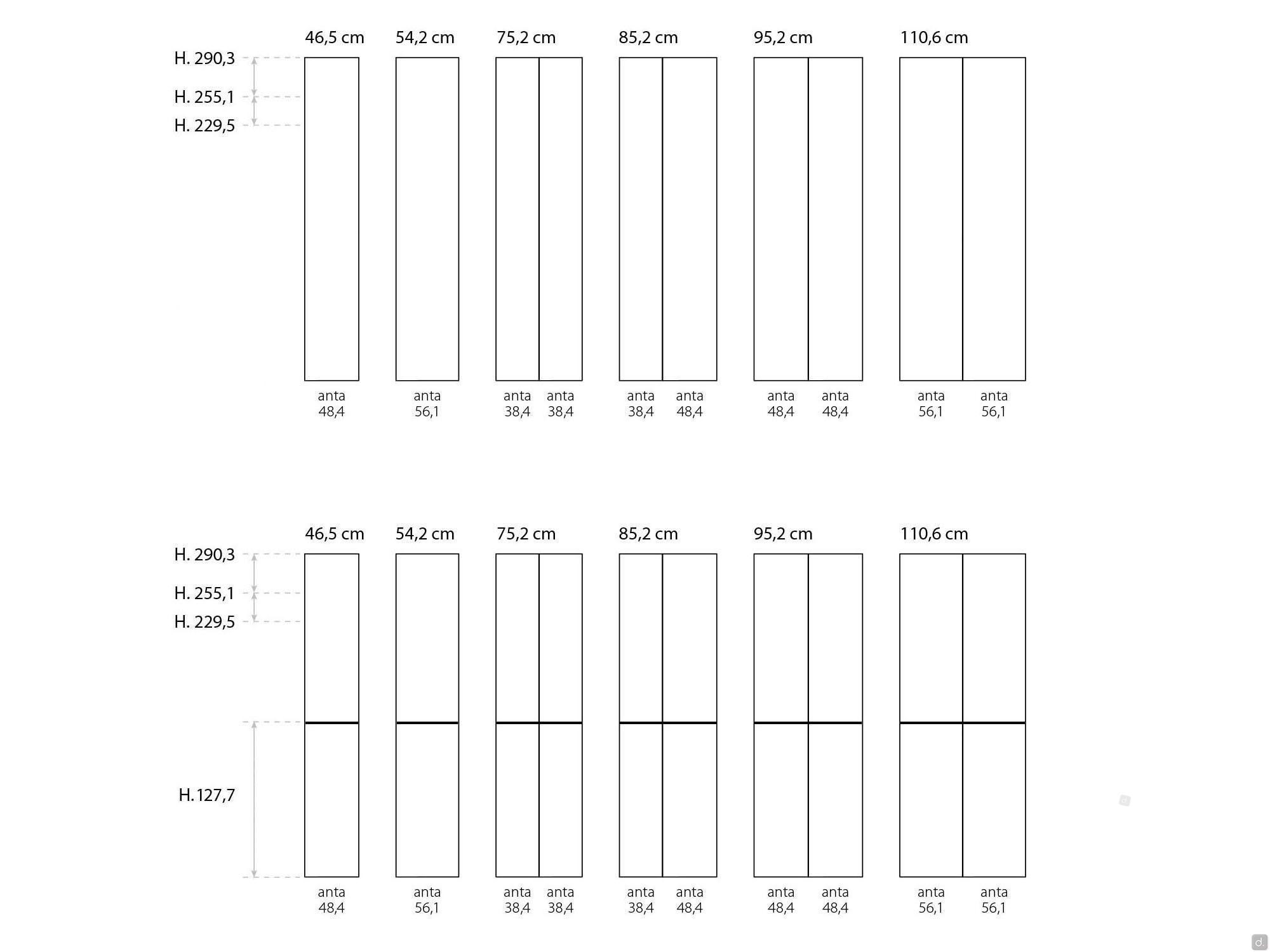

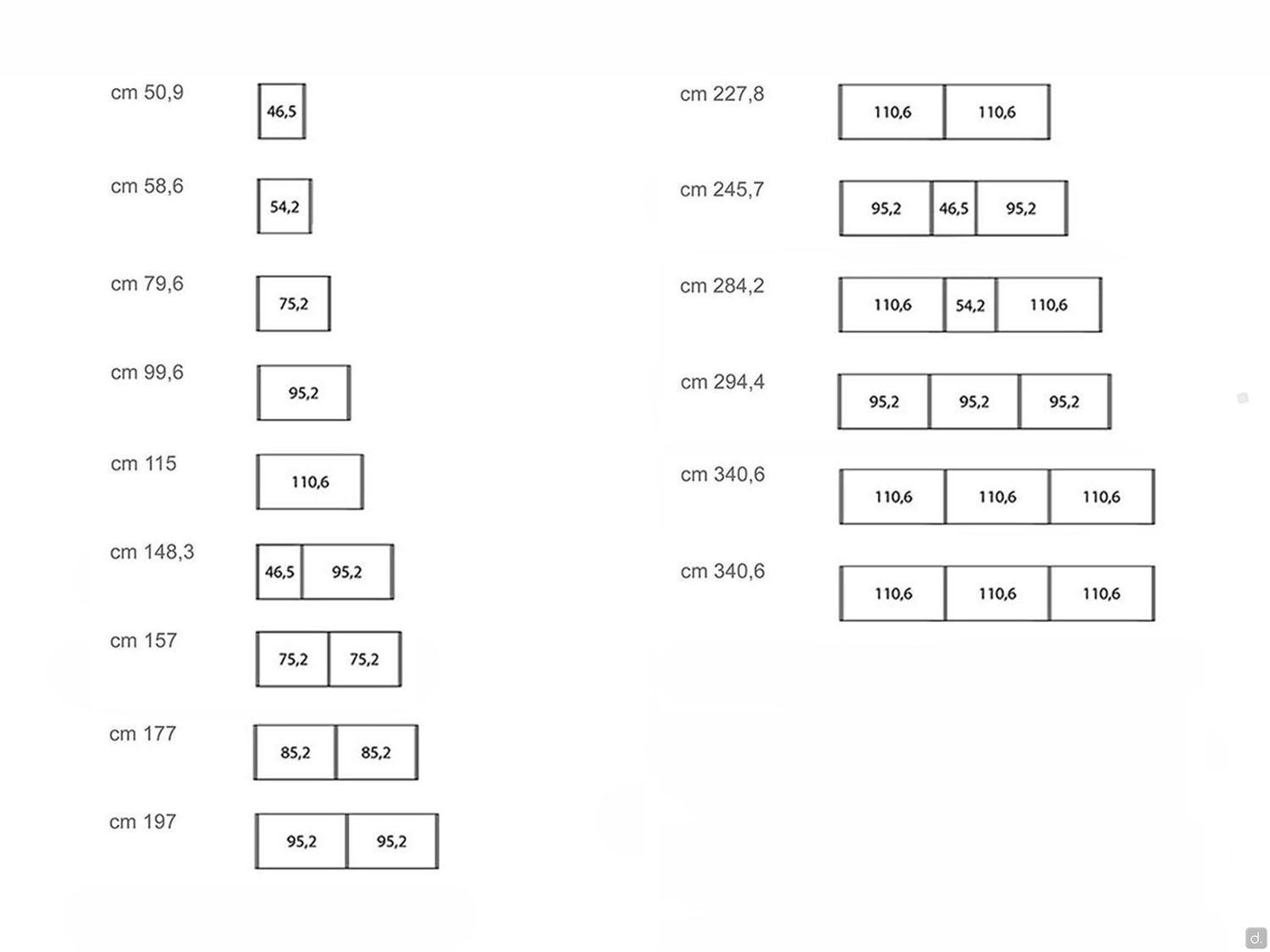

Available compositions for Focus Wide wardrobe, 2 to 6 doors

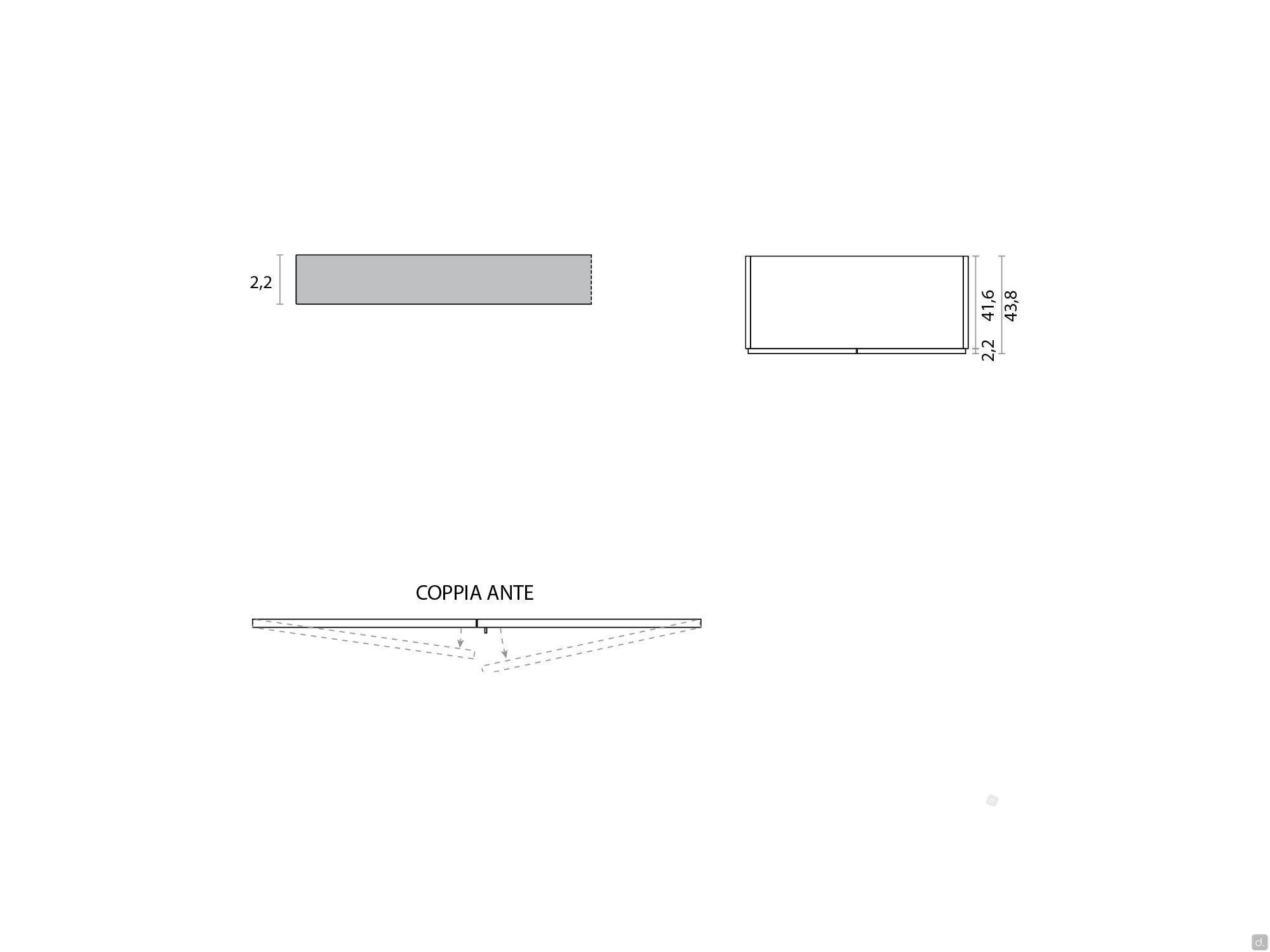

Diagram of overall depths of Focus Wide hinged wardrobe and door only

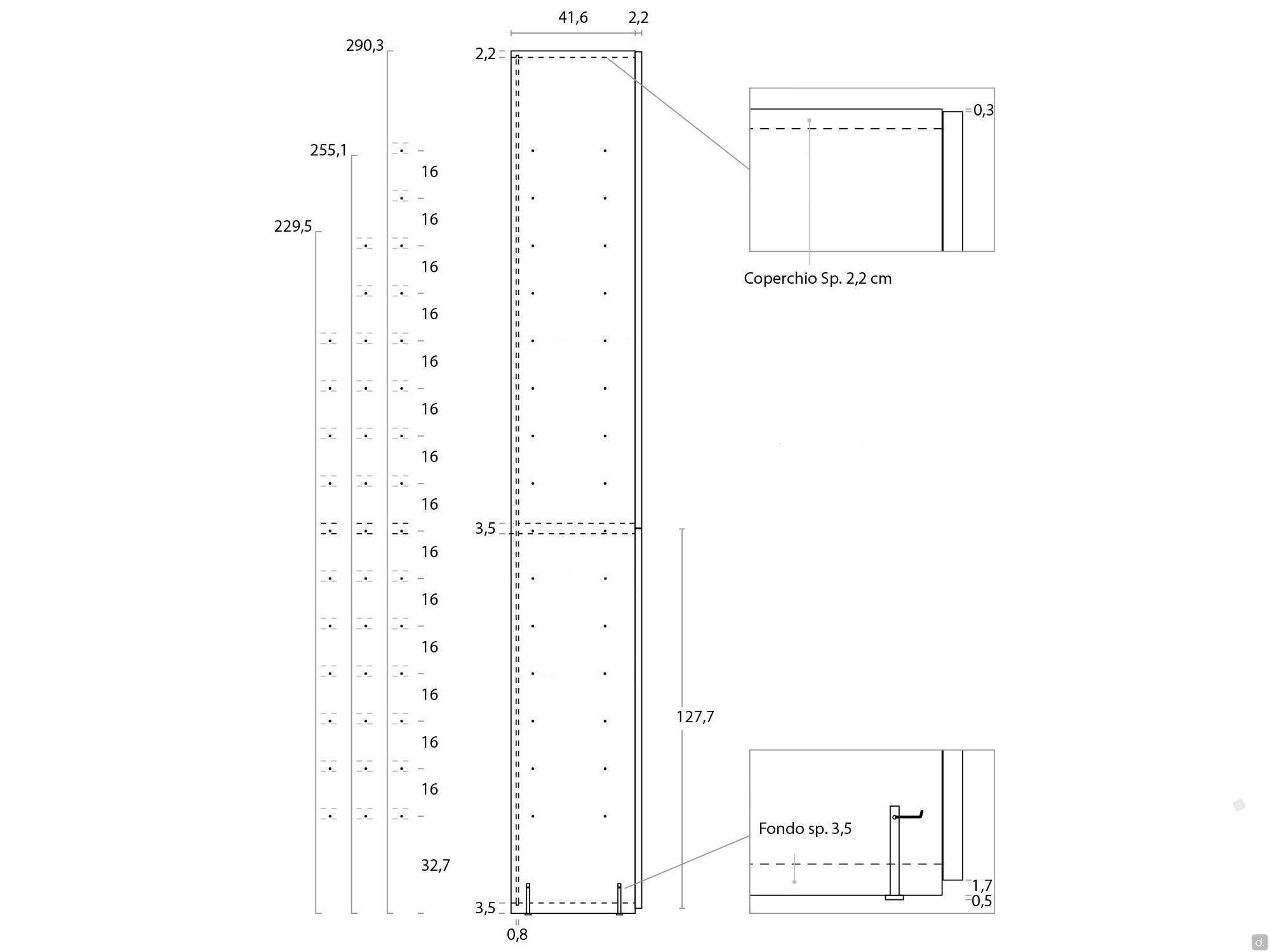

Depth, thickness and hole pattern of the Focus Wide cabinet, with the internal shelves freely positionable according to the hole spacing shown here

+ 20

MORE IMAGES

Focus Wide p.61,2 - Compositions
Hinged Wardrobe

Focus Wide space-saving hinged wardrobe with handle, modular and available also with double door in melamine, matt lacquer or wood veneer.

* Required Fields

Larghezza Armadio *

Nota Bene *

i moduli da cm 85,2 hanno ante asimmetriche (cm 38,4 anta Sx / cm 48,4 anta Dx)

Altezza Armadio *

Altezza Armadio *

Altezza Armadio *

Verso Apertura Anta *

------1 ANTA
verso Sinistro, con cerniere a Sinistra
verso Destro, con cerniere a Destra

Posizionamento e Verso Apertura Anta Singola *

------3 ANTE
Sinistro - verso Sinistro con cerniere a Sinistra
Destro - verso Destro con cerniere a Destra

Posizionamento Anta Singola *

Verso Apertura Anta Singola *

------armadi 5 ante con anta singola centrale
Sinistro, con cerniere a Sinistra
Destro, con cerniere a Destra

Verso Apertura Anta Singola *

------armadi 5 ante con anta singola sinistra
Sinistro, con cerniere a Sinistra

Verso Apertura Anta Singola *

------armadi 5 ante con anta singola destra
Destro, con cerniere a Destra

Modello Anta *

Modello Anta *

Modello Anta *

Altezza Ante Stagionali *

anta inferiore: cm 127,7 / anta superiore: cm 101,8

Altezza Ante Stagionali *

anta inferiore: cm 127,7 / anta superiore: cm 127,4

Altezza Ante Stagionali *

anta inferiore: cm 127,7 / anta superiore: cm 162,6

Finitura Ante e Fianchi *

Finitura Ante e Fianchi *

Finitura Ante e Fianchi *

Finitura Ante e Fianchi *

Finitura Ante e Fianchi *

Finitura Ante e Fianchi *

Finitura Ante e Fianchi *

Finitura Ante e Fianchi *

Finitura Ante e Fianchi *

Dotazioni Interne *

n.1 ripiano cm sp.3,5 per ogni modulo

Modello Maniglia *

Modello Maniglia *

Modello Maniglia *

Finitura Maniglia/e *

Tipologia Maniglia *

Finitura Maniglia/e *

metallo verniciato peltro spazzolato

Finitura Maniglia/e *

metallo verniciato Nickel, con anello esterno in metallo verniciato Moka Shine

Finitura Maniglia *

Finitura Maniglie *

Finitura Maniglie *

Finitura Maniglie *

Finitura Maniglie *

Finitura Interni *

------Ante nobilitato
nobilitato

Finitura Interni *

Finitura Interni *

Finitura Interni *

Finitura Interni *

Finitura Interni *

Finitura Interni *

Finitura Interni *

Finitura Interni *

Finitura Interni *

Finitura Interni *

Finitura Interni *

Finitura Interni *

Finitura Interni *

Finitura Interni *

Finitura Interni *

Finitura Lato Interno Ante *

nobilitato skin effect NSE

Finitura Lato Interno Fianchi di Chiusura *

in tinta ad Ante e Lato Esterno

Finitura Lato Interno Fianchi di Chiusura *

nobilitato rovere bianco NR

Finitura Lato Interno Fianchi di Chiusura *

nobilitato skin effect NSE

Finitura Lato Interno Fianchi di Chiusura *

legno essenza in tinta al lato esterno

Quantity

From €444.32

View Samples

Wishlist

Description

Focus Wide is a space-saving hinged wardrobe with handle that is ideal for positioning in the living area - even in the entrance hall - or in rooms of limited dimensions, also available in the version with seasonal doors for an alternative arrangement of the internal volumes.
The fronts are offered with opening through the practical and invisible push-pull system, or embellished with different models of painted metal handles, to meet any functional and aesthetic requirement.
Focus Wide is available in a wide range of veneered, matt lacquered and wood veneer finishes, with the option of also lacquering the internal structure.

Features
wardrobe with reduced depth, ideal for entrances, living areas or small rooms
wide choice of lacquered metal handles, or possibility of push-pull mounting
customisable width thanks to numerous compositions available in three heights
can be completed with the internal equipment dedicated to the Wide collection

Dimensions
Width: from cm 50,9 to cm 340,6. See all available widths in the Configurator.
Height: cm h.229,5 / 255,1 / 290,3
Depth:
- wardrobe: cm d.43,8
- body: cm d.41,6
- useful interior: cm d.40,8

Materials and Finishes
Wardrobe:
- melamine
- matt lacquered
- wood essence
Handles:
- painted metal / matt lacquered
Interiors:
- melamine-faced
- matt lacquered melamine

Info for your Purchase
Each module includes a shelf as standard.
You can purchase other interior equipment in the Wide Battente Attrezzature Interne product sheet and add the desired items to your shopping cart.

Technical study

Material Specifications
Doors, sides, partitions, lid, backs, internal shelves: made of class E1 particleboard panels with low formaldehyde emission.
N.B. Wood-effect melamine, barré polymeric and Metal Smoke / Gurè material melamine have the grain direction always vertical. In these cases, in the presence of seasonal doors, there is no vein continuity between the lower and upper doors.

Technical Specifications and Equipment
Sides and partitions: thickness 2.2 cm. Equipped with levelling feet inserted in the thickness (cm 0.5 drainage, to be added to the overall height of the cabinet) and adjustable cm 1 from the inside.
Lid: thickness cm 2,2 complete with joints for fixing, matching the interior.
Bottom: thickness cm 3.5 complete with joints for fastening, matching Interiors.
Backs: thickness 0.8 cm to match Interiors.
Internal shelves: thickness cm 3,5 complete with joints for fastening, matching Interiors.
Doors: 2.2 cm thick. In modules with two hinged doors, a single handle is normally installed on the right-hand door: the left-hand door is instead fitted with a PVC doorstop.
Hinges: in titanium-painted metal with 110° opening and equipped with a mechanism for assisted soft-closing (with the exception of push-pull doors, which do not have this). The doors are fitted with n.4 hinges up to a height of 229.5 cm, n.5 hinges for higher heights.
Handles:
- push-pull: positioned at the standard height of the shelf provided, which in the case of the Focus door with push-pull opening is fixed at a height of 111.8 cm, not movable.
- Ellie: cm 14,8 d.2,2 h.2,5. White, moka shine, nickel or matt lacquered metal finish.
- Z: cm 31,3 p.1,8 h. 0,9. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
- Bridge: cm 32,6 d.2,7 h.1,2. Finishes in metal painted white, moka shine, nickel or matt lacquered.
- Rev: cm 3,2 h.19,1. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
- I22: cm 4,2 p.1,5 h.19,2. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
- 3D: cm 1,7 p.1,9 h.116. Finishes in white lacquered metal, moka shine, nickel or matt lacquered.
- Minima: cm 1,9 p.2,1 h.110. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
- IM: cm 5,3 h.16,2. Finishes in white painted metal, moka shine, nickel or matt lacquered.
- Savoir: cm 3,2 p.2,6 h.17,2. Brushed pewter painted metal finish.
- Shape: cm 7 p.2,5 h.7. White, moka shine, nickel or matt lacquered metal finish.
- Ring: cm 11,9 d.5,6 h.9. Nickel painted metal finish with mocha shine painted metal outer ring.

Drilling Sides
Sides and partitions have fixed holes on average every 16 cm. For detailed dimensions please see the dedicated diagram in the image gallery.

Assembly Tips
The following are required for assembling the shell:
- in width cm 4
- in height cm 2.5 (cm 0.5 for levelling feet in unloaded position + cm 2 for assembly). In case the lighting system is mounted, this becomes cm 3.5.

Additional Information

Area of Production
Italy

Approximate Time
8-9 working weeks for production

Assembling
Medium Assembling

Assembling Instructions
Download the Assembling Instructions
