Charles
Design Sofa Bed

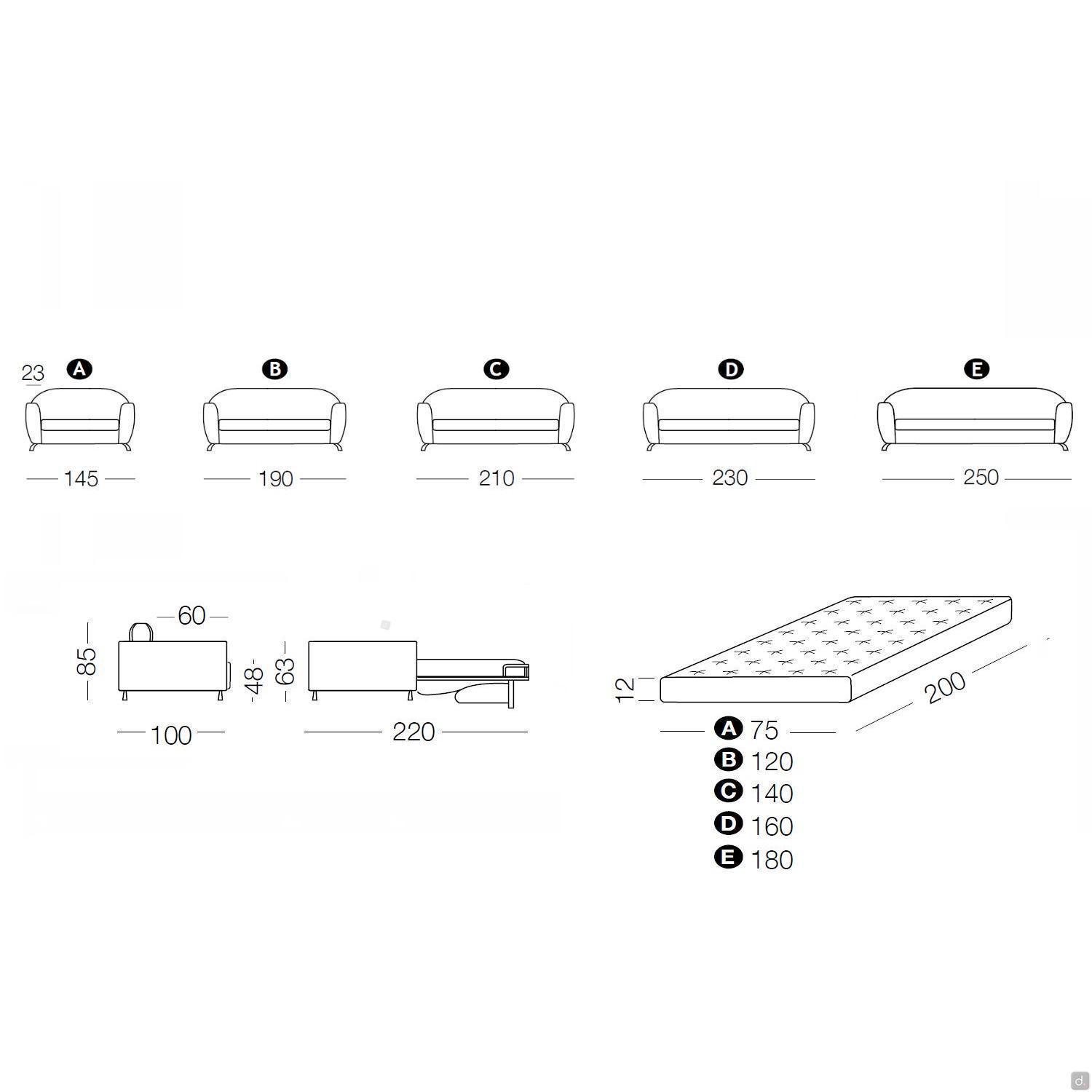

Model and Specific Measurements
Armchair: cm 145 d.100 with sofa bed single mattress cm 75 x 200.
Linear 2 seats: cm 190 d.100 with sofa bed and a half square mattress cm 120 x 200.
Linear 3 seats: cm 210 d.100 with sofa bed or with french double bed mattress cm 140 x 200.
Linear 3 maxi seats: cm 230 d.100 with king size sofa bed mattress cm 160 x 200 or cm 250 d.100 with king size sofa bed mattress cm 180 x 200.

Material Specifications
Structure: solid wood of spruce and plywood of poplar. Backing in tubular metal with high resistance painted with epoxy powder.
Mechanism: tubular metal with high resistance painted with epoxy powder. Orthopedic bed top slate in evaporated beech multilayer and seat with elastic straps. Opening and closing mechanism in one time (Lampolet mechanism).
Upholstery: structure in expanded polyurethane 40 Kg/m³ covered with coupled light velvet with resined 200 g/m². Seat in expanded polyurethane 35 Kg/m³, covered with thermobonded needlepunch 280 gr/m² and quilted back mm 2,5. Backing in expanded polyurethane 21 Kg/m³, covered with thermobonded needlepunch 380 g/m² and upholstered light velvet mm 2,5.

Technical specifications and Equipment
Lampolet Mechanism: tested and guaranteed throughout time, allows the opening and the closing of the sofa in one move, without removing the seat and backing pillows, which stay anchored to the structure. For the opening, it is sufficient to have traction on the upper part of the backing first and then to make a rotation on the terminal foot of the sofa bed.
Standard Mattress: in crushproof expanded polyurethane h.12 cm with density 35 Kg/m³. Covered in fabric 100% cotton, quilted on both sides with wadding 100% polyester 400 g/m² and TNT.
