Material Specifications
Structure: 1.8 cm thick particle board panels.
Fronts: doors, drawers and baskets made of 1.8 cm thick particle board panels. With a smooth lacquered finish, the front is made of 1.9 cm thick MDF.
Technical Specifications and Equipment

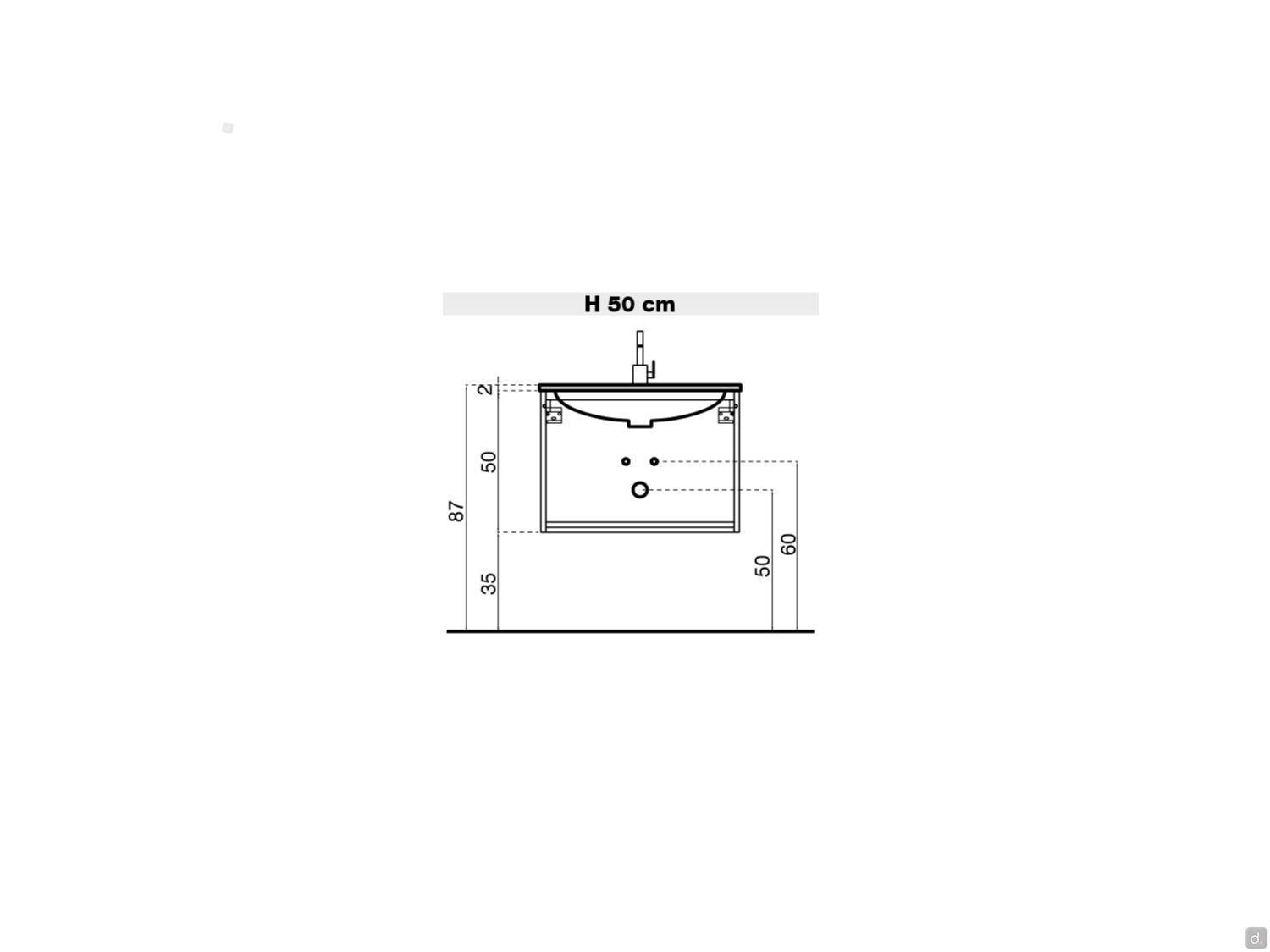

Structure: characterised by free back for the passage of drains.

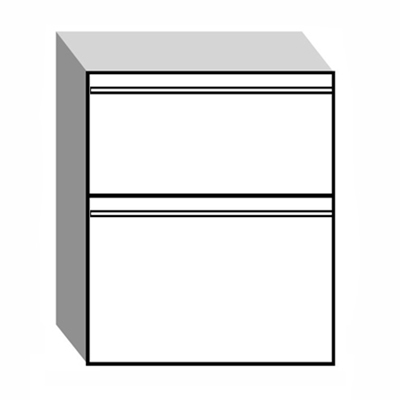

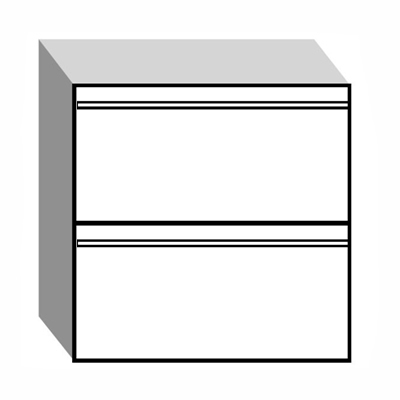

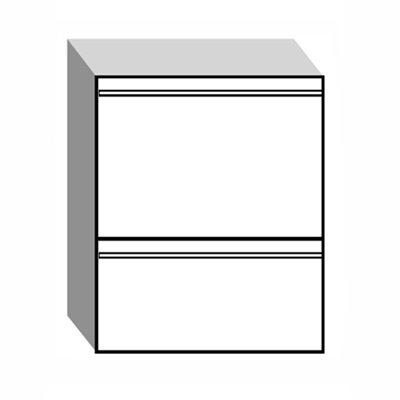

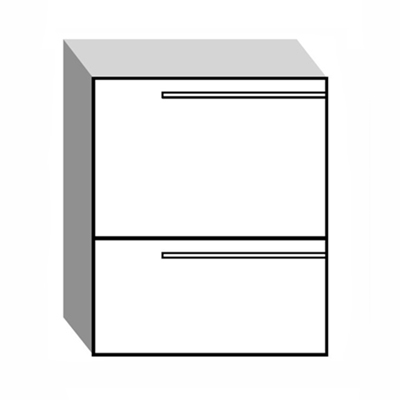

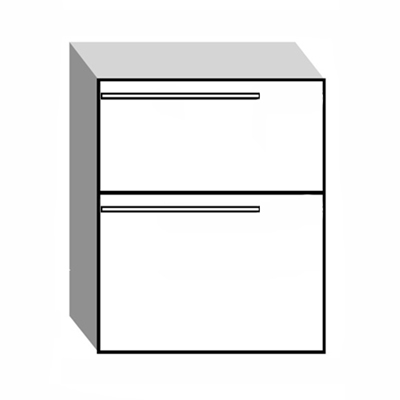

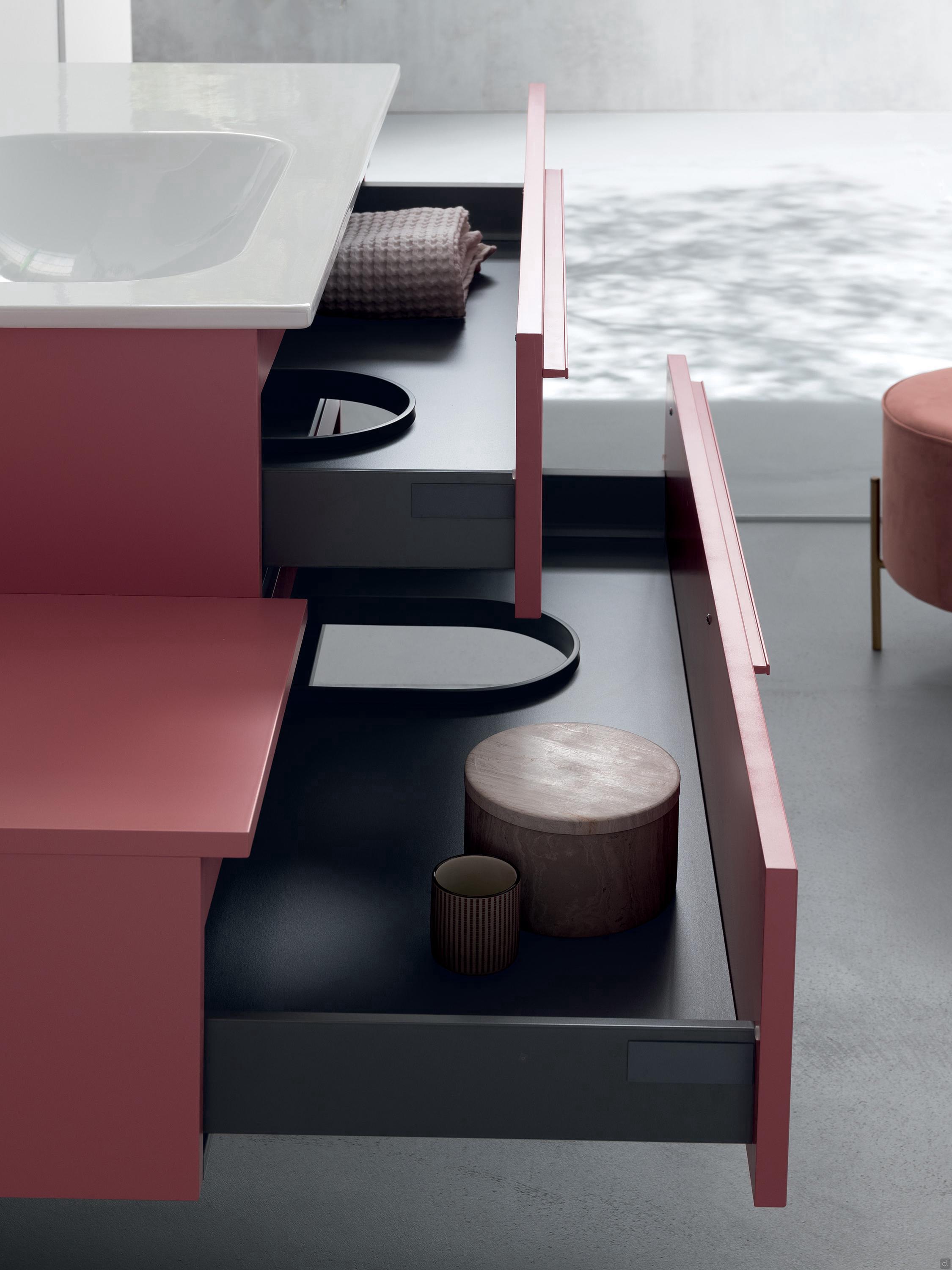

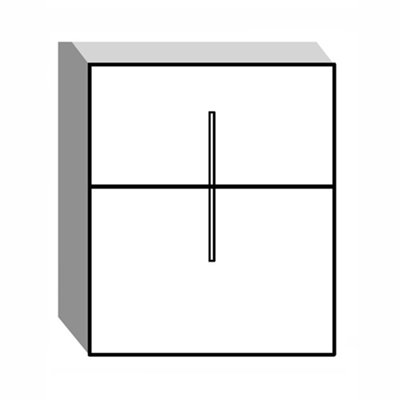

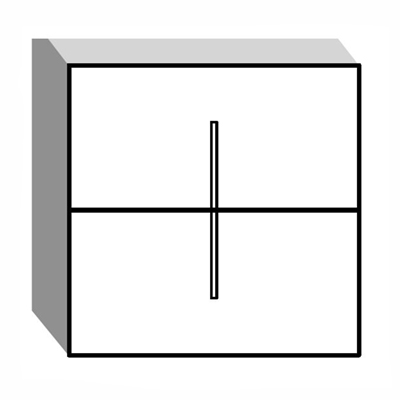

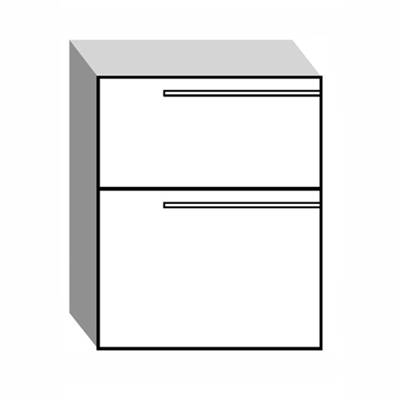

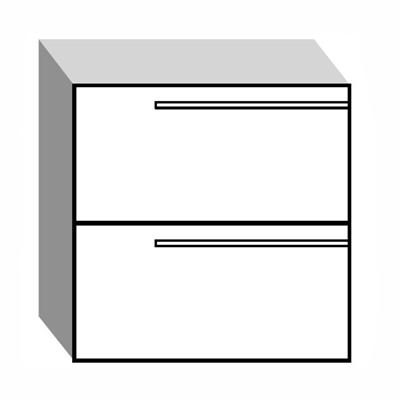

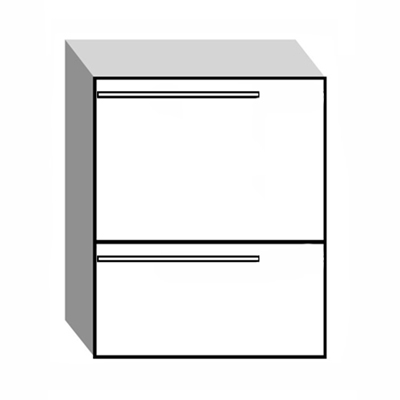

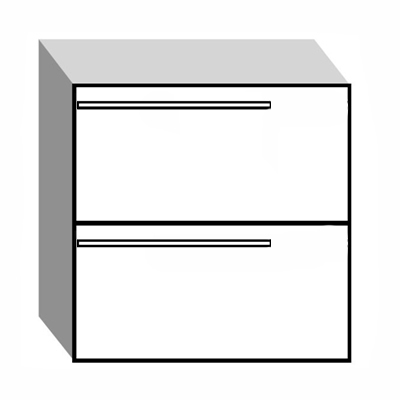

Drawers / Legrabox drawer: fitted with a metal frame characterised by straight drawer sides both internally and externally, only 1.28 cm thick. Full-extension runners and slow-closing mechanism.

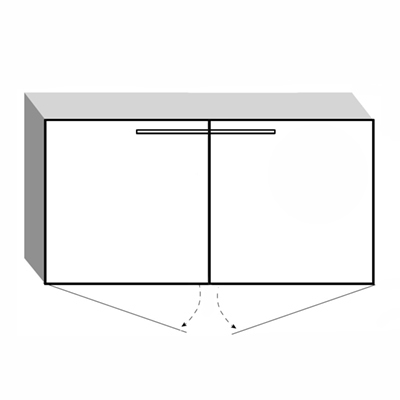

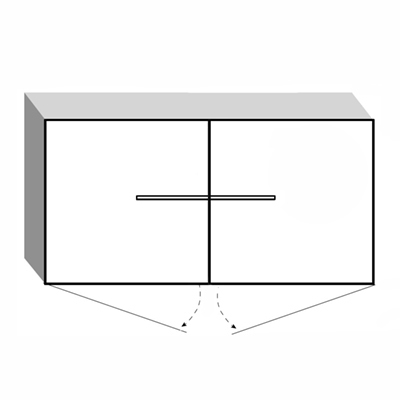

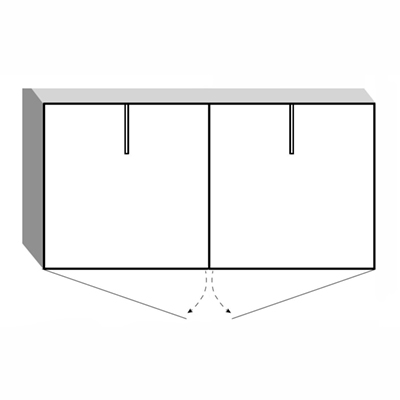

Doors: fitted as standard with Smoove hinges that allow slow closing.

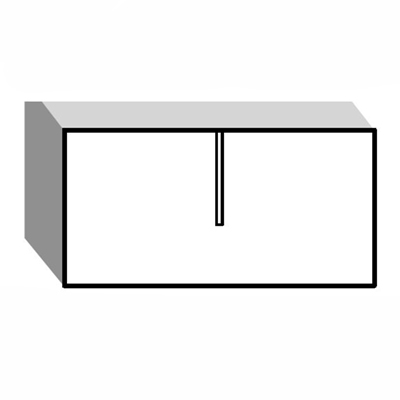

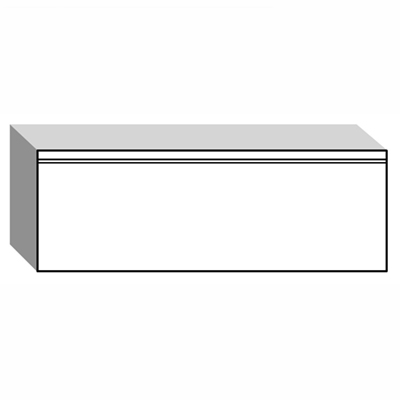

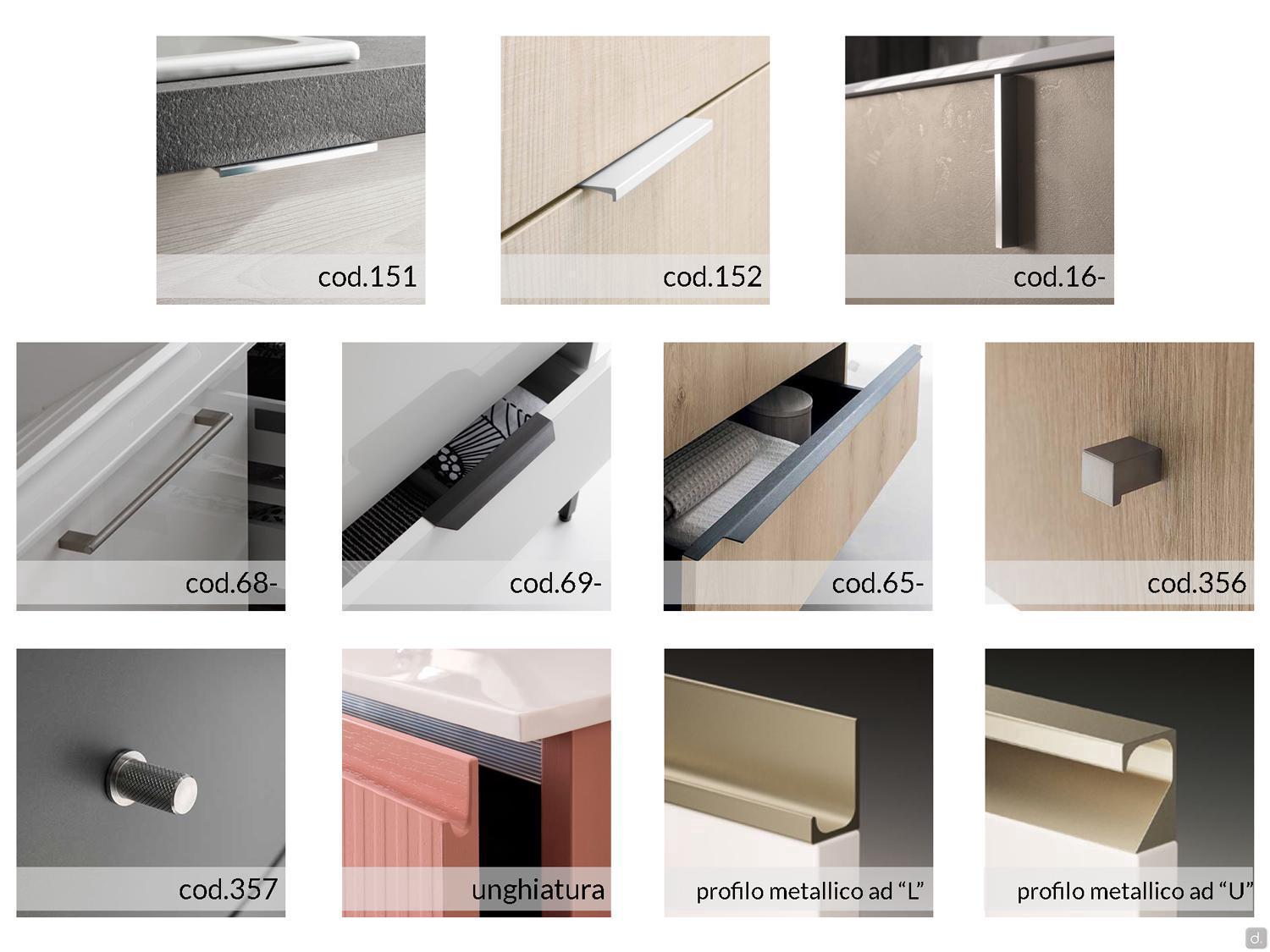

Handles: you can choose from various models of handles, as well as push-pull opening.
The handles cod.152-, cod.16- and both metal profiles are available in a matt lacquered finish in all the colours of the sample collection.
The handles mod. 68- protrude 4 cm from the surface of the door.

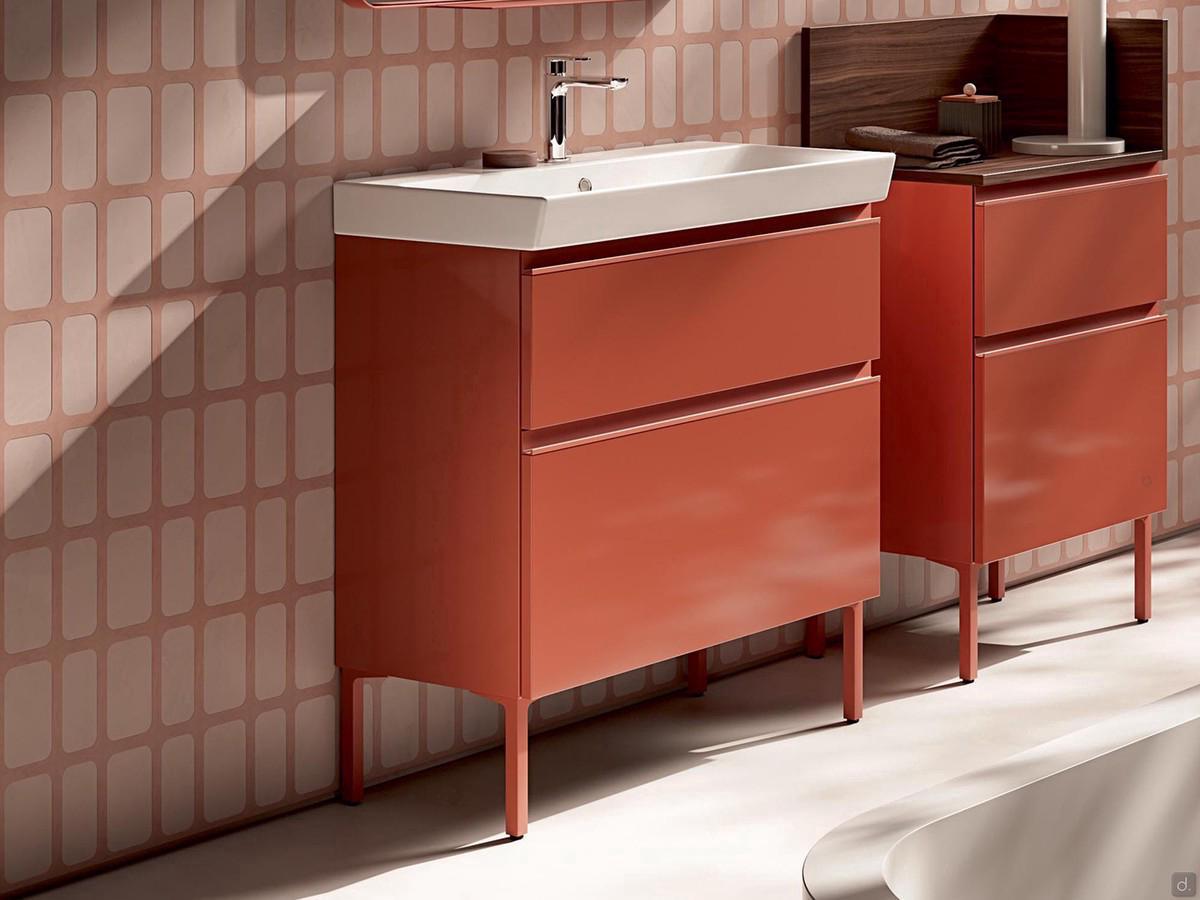

Feet cm h.10: with rectangular or shaped section, available in chrome, satin nickel, black lacquered, matt lacquered or sandblasted lacquered metal in all sample colours; the wall-hung base unit cm h.75 thus becomes a floor-standing unit 85 cm high (excluding the height of the console washbasin, indicated in the Configurator).
Feet cm h.12: with square section, available in satin nickel metal, matt lacquered or sandblasted lacquered in all the colours of the sample collection; the wall-hung base unit cm h.75 thus becomes a floor-standing vanity unit 87 cm high (excluding the height of the console washbasin, indicated in Configurator).
Feet cm h.20: with a square section, available in satin nickel metal, matt lacquered or sandblasted lacquered in all the colours of the sample collection; the wall-hung base unit cm h.62,5 thus becomes a floor-standing unit 82,5 cm high (excluding the height of the console washbasin, indicated in Configurator).
Plinth cm h.6: in aluminium or matt lacquered in all the colours of the sample collection; the wall-hung base unit cm h.75 thus becomes a floor standing unit cm 81 high (excluding the height of the console washbasin, indicated in Configurator).
Plinth cm h.10: in aluminium or matt lacquered in all the colours of the sample collection; the wall-hung base unit cm h.75 thus becomes a floor standing unit cm 85 high (excluding the height of the console washbasin, indicated in Configurator).

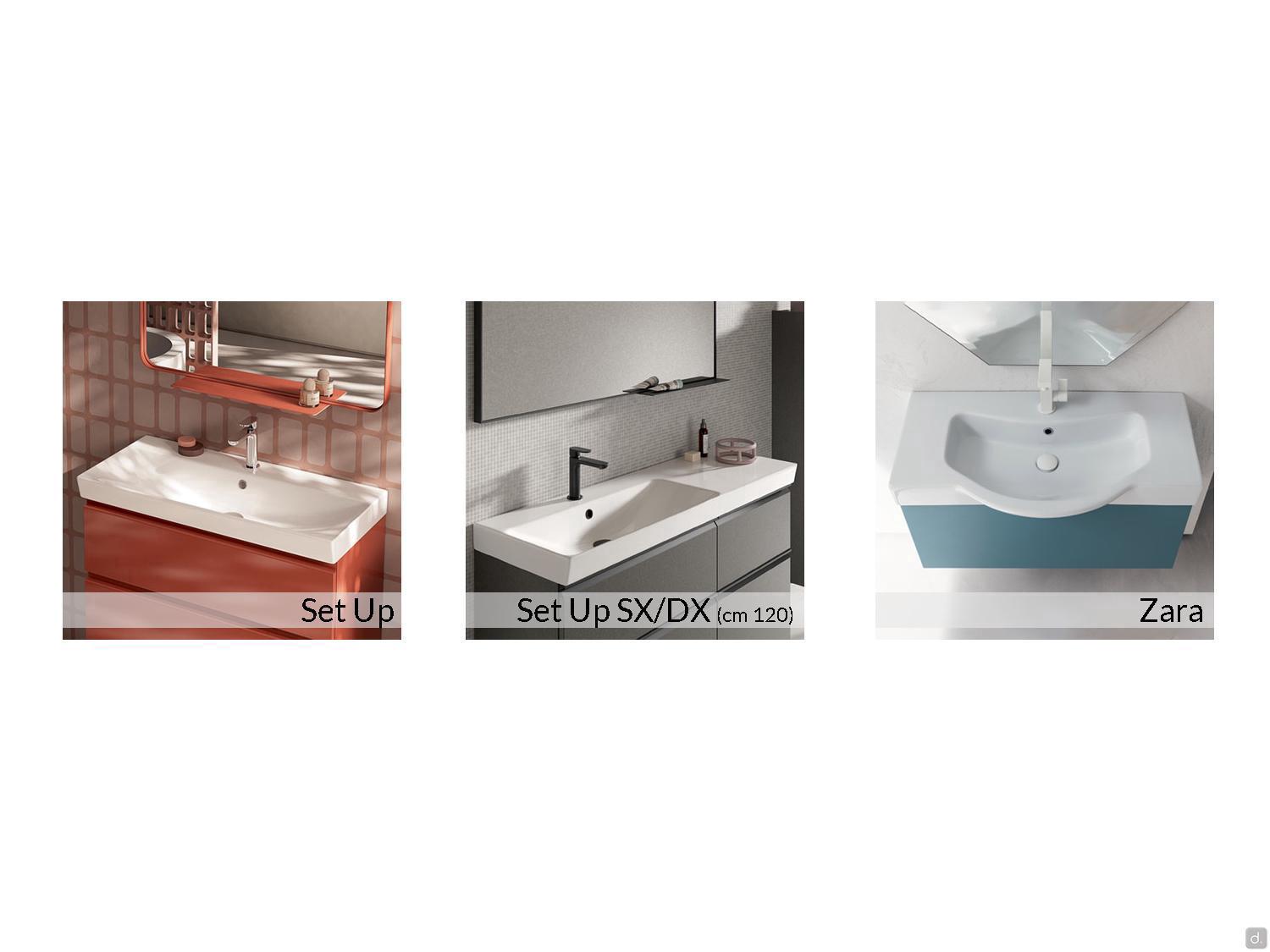

| Washbasin Model |
Dimensions |
Internal basin |
Overflow |

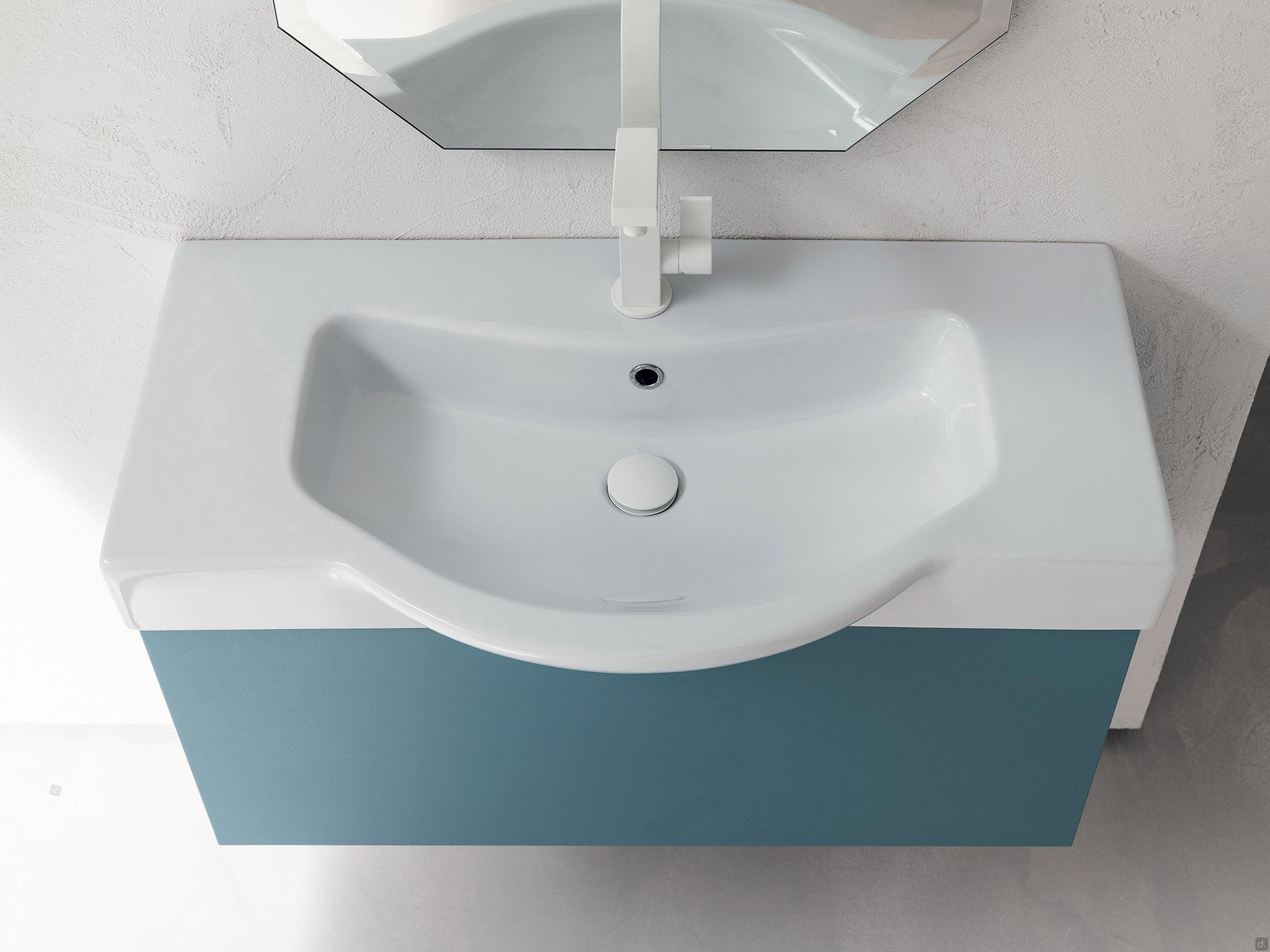

| Set Up 52 - glossy white ceramic |
cm 52,5 d.40 h.17 |
cm 51 d.28 h.12 |
yes |
| Set Up 71 - glossy white ceramic |
cm 71 p.40 h.17 |
cm 69 p.28 h.11,5 |
yes |
| Set Up 86 - glossy white ceramic |
cm 86,5 p.40 h.17 |
cm 84 p.28 h.11,5 |
yes |
| Set Up - glossy white ceramic |
cm 96 p.40 h.17 |
cm 94 p.28 h.11,5 |
yes |
| Set Up 106 - ceramic glossy white |
cm 106 p.40 h.17 |
cm 105 p.28 h.12 |
yes |
| Set Up 121 Sx or Dx - glossy white ceramic |
cm 121 p.40 h.17 |
cm 69 p.28 h.11,5 |
yes |
| Zara 70 - ceramic glossy white |
cm 73 p.48 h.16 |
cm 59 p.19/29,5 h.12 |
yes |
| Zara 85 - ceramic glossy white |
cm 88 p.48 h.16 |
cm 62 d.19/29,5 h.12 |
yes |
| Zara 95 - ceramic glossy white |
cm 98 p.48 h.16 |
cm 72 d.19/29,5 h.12 |
yes |
N.B. All the washbasins indicated above are equipped with a hole for the central mixer, standard diameter cm 3,5 (mod. Set-Up) and cm 3,8 (mod. Zara).
The indicated measurements of all ceramic washbasins may be subject to a dimensional variation (in specific about 0.8%) due to wear of the moulds or to small variations in the technical characteristics of the materials making up the mix.
Optional

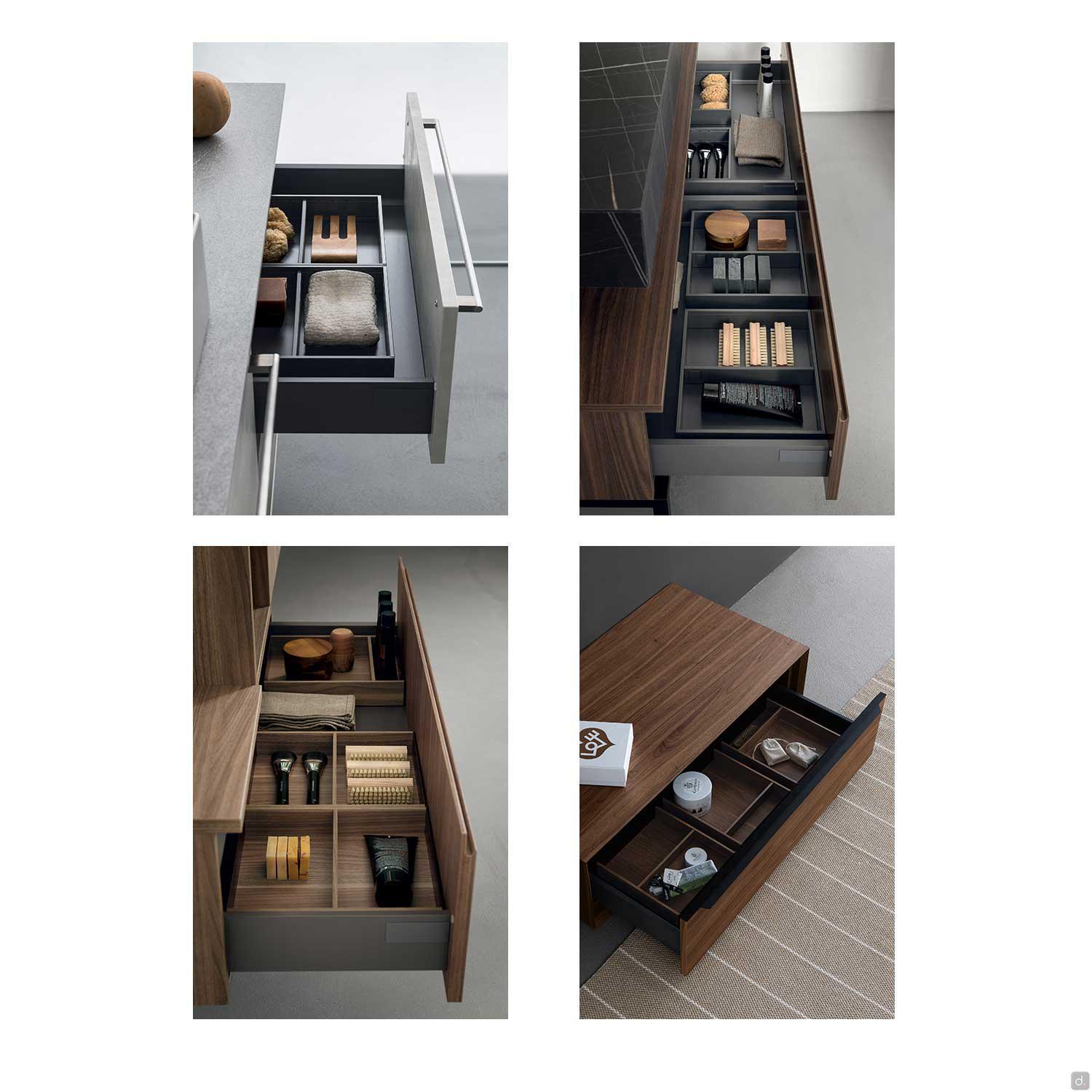

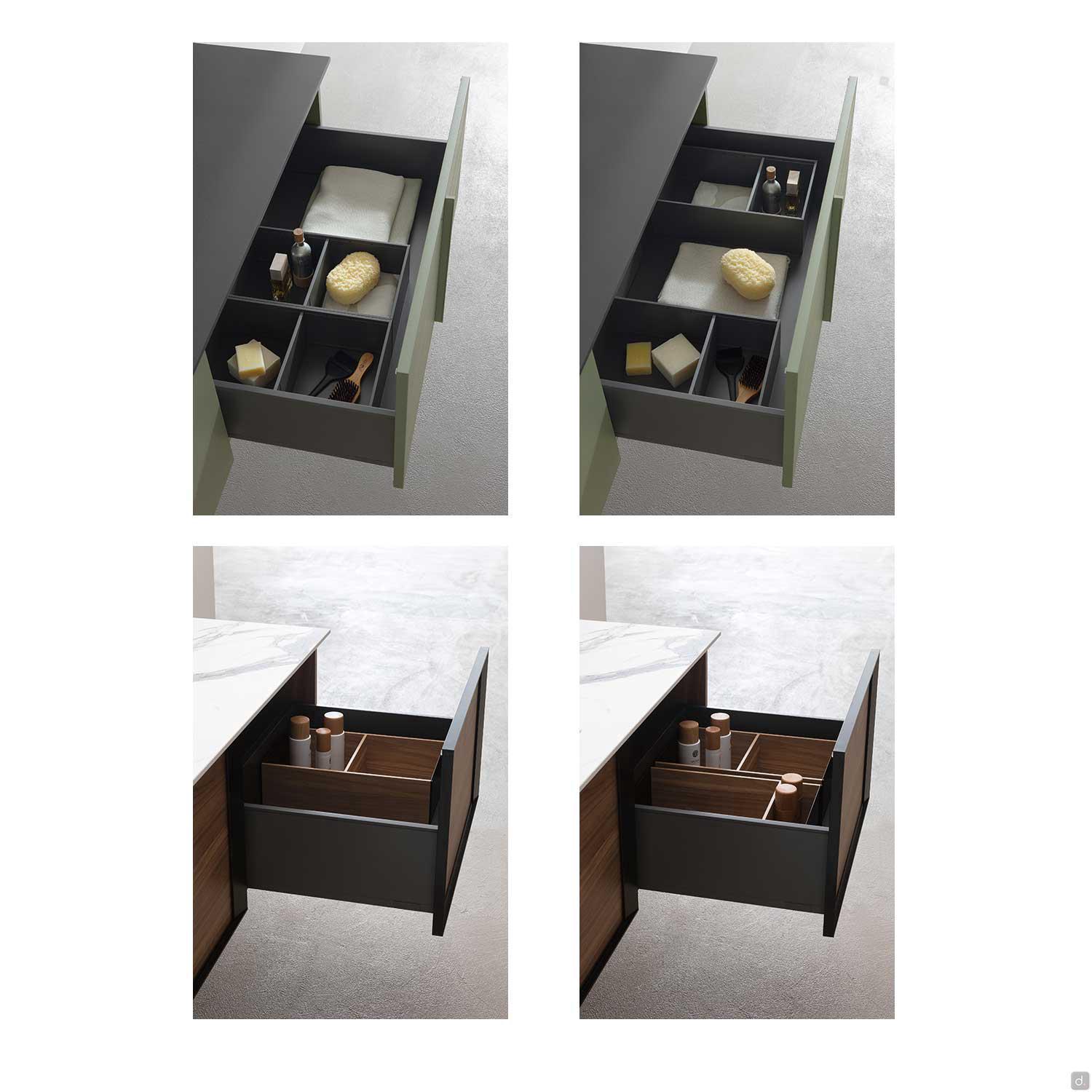

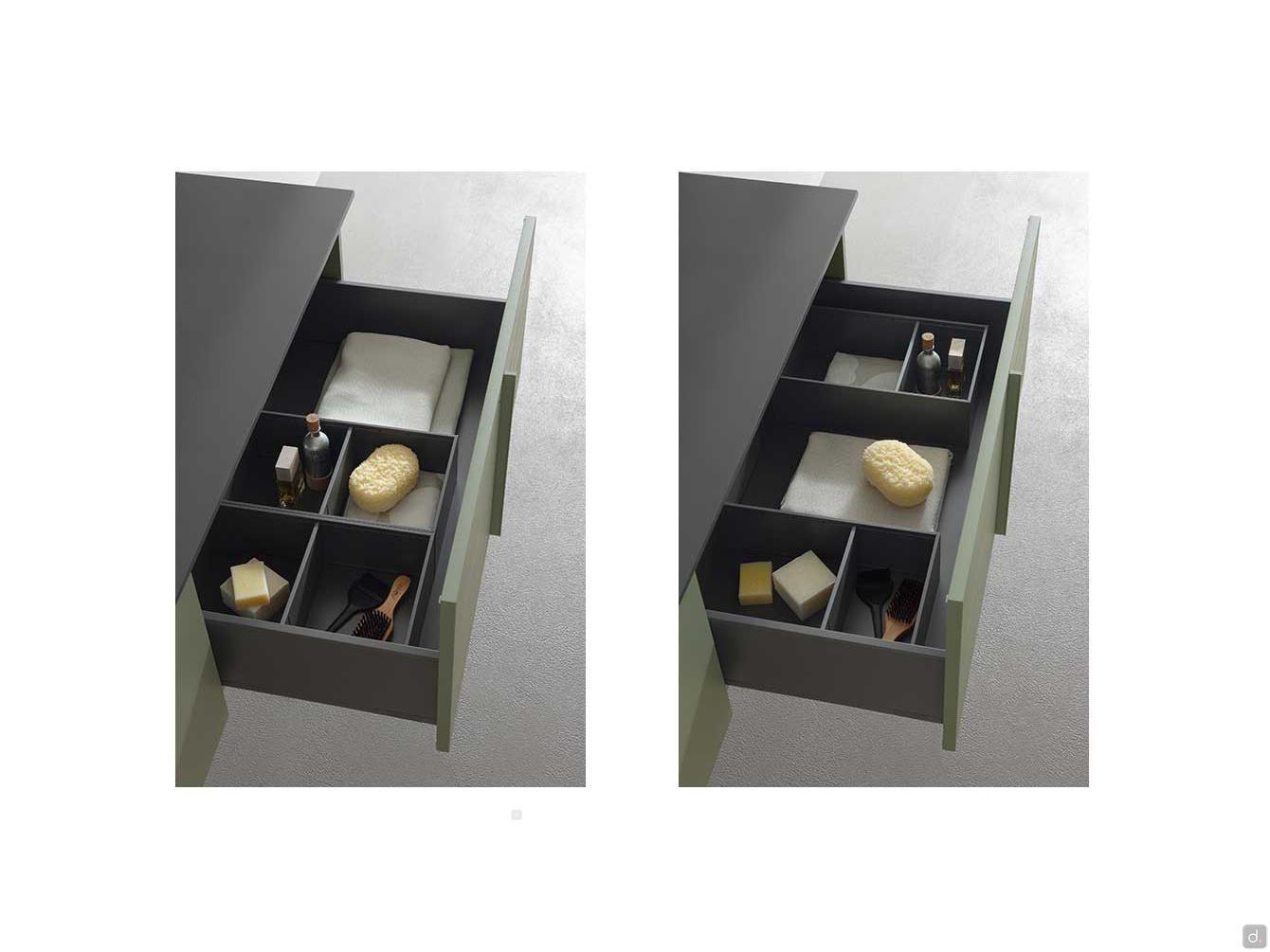

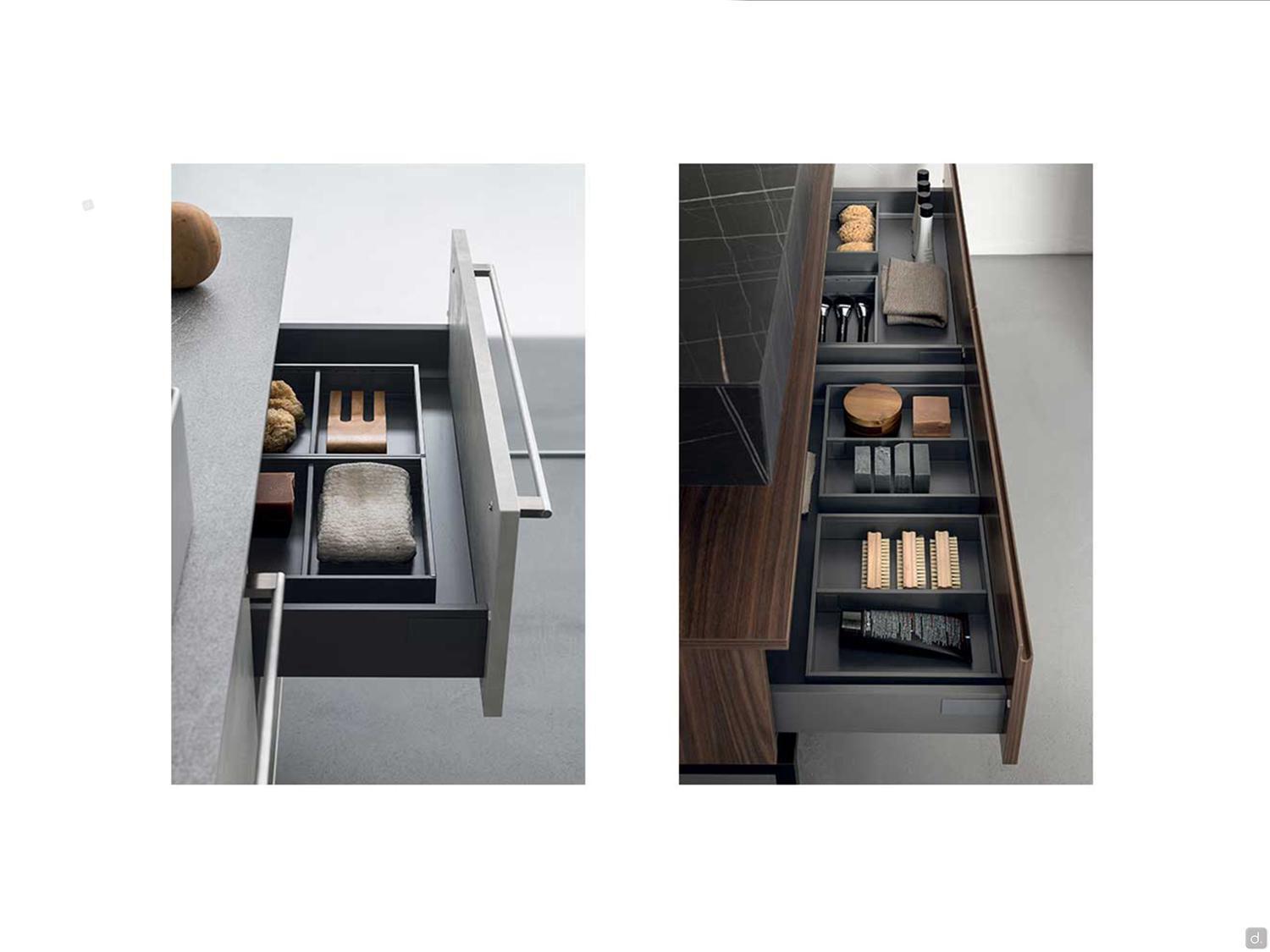

Organiser: internal subdivision system for Legrabox drawer and basket. Available in Canaletto Walnut and Orione finishes.
Maintenance Tips
Veneered: use neutral liquid detergents for cleaning. To remove limescale stains, wipe the top with a sponge soaked in vinegar or anti-limescale product, then rinse and dry. Do not use acids, abrasive products or powders; do not leave anti-limescale products in contact with the top for a prolonged period of time, as this could create halos.
Lacquer: use soft, non-abrasive cloths for cleaning to avoid damaging the surface. Do not use products containing solvents, acetone or abrasives, nor wax, alcohol or silicone-based products.
Wood: "living" material protected superficially by varnish; for cleaning, use a soft, non-abrasive, damp cloth well wrung out. It is recommended to clean the top in the direction of the grain and dry it carefully.
