Material Specifications

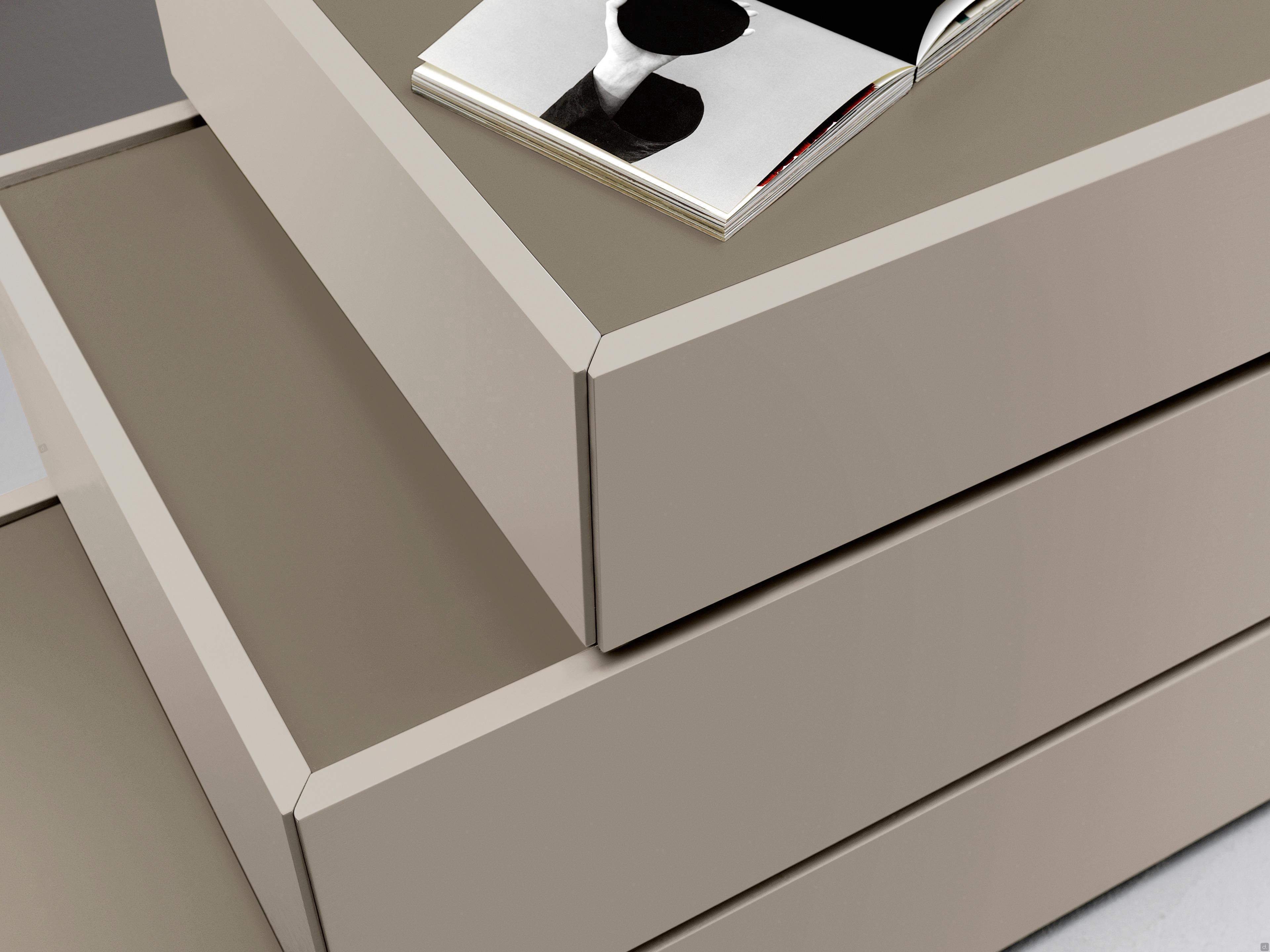

Structure: 2 cm thick with vertical edges shaped at 45°, (E1 class wood panels with low formaldehyde levels) coated with melamine layers lacquered in matte or glossy colours. If you choose a glossy lacquer finish, the inside perimeter and the plinth will be in matte lacquer; otherwise it will match the outside structure.
Drawers: the drawer sides are made of 1,4 cm thick panels coated with jute textured melamine
Technical Specifications and Equipment

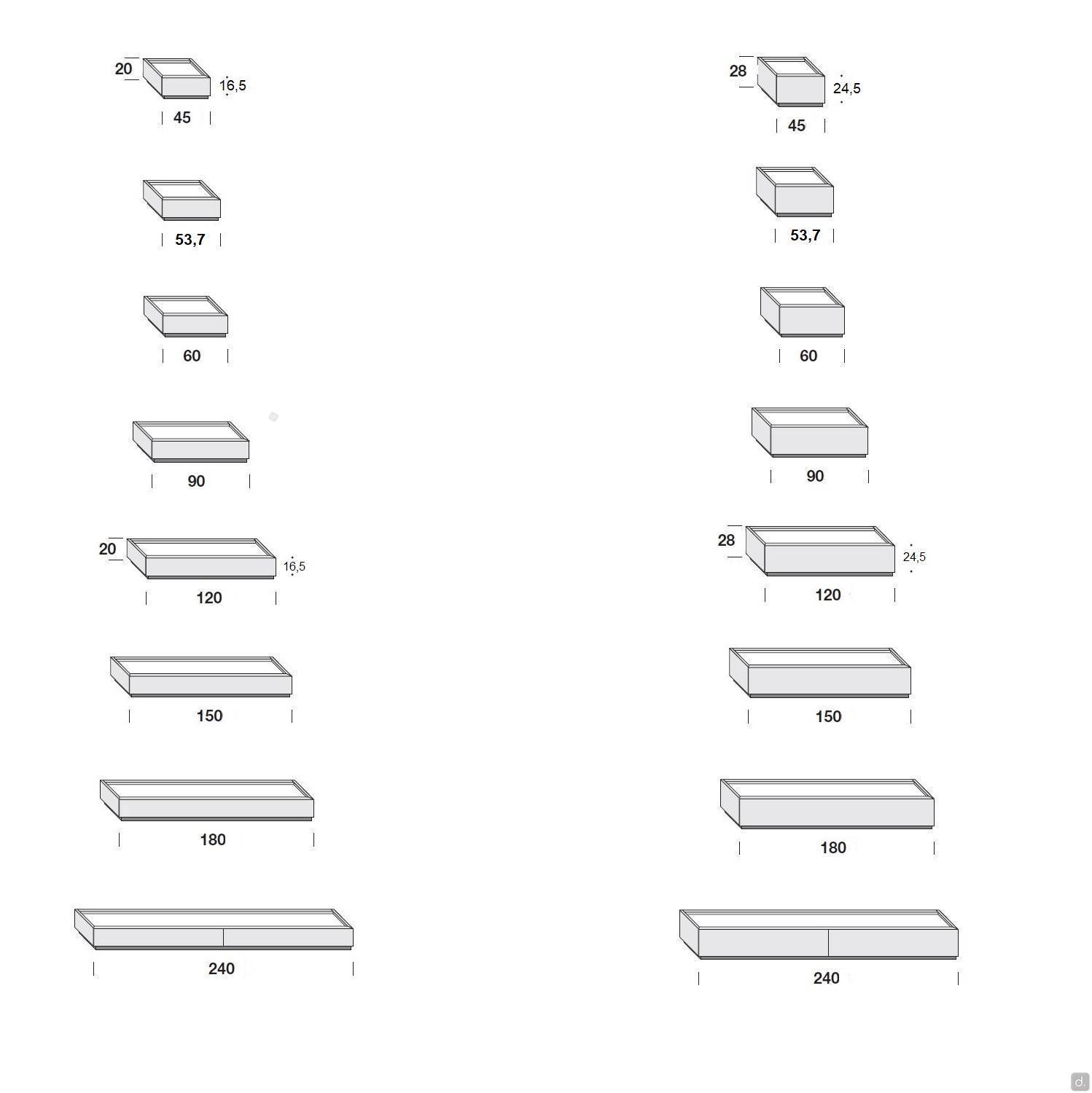

Structure, top and fronts thickness: cm 2.
Fronts Height: cm 16,5 for cm 19,5 high drawer; cm 24,5 for cm 27,5 high drawer.

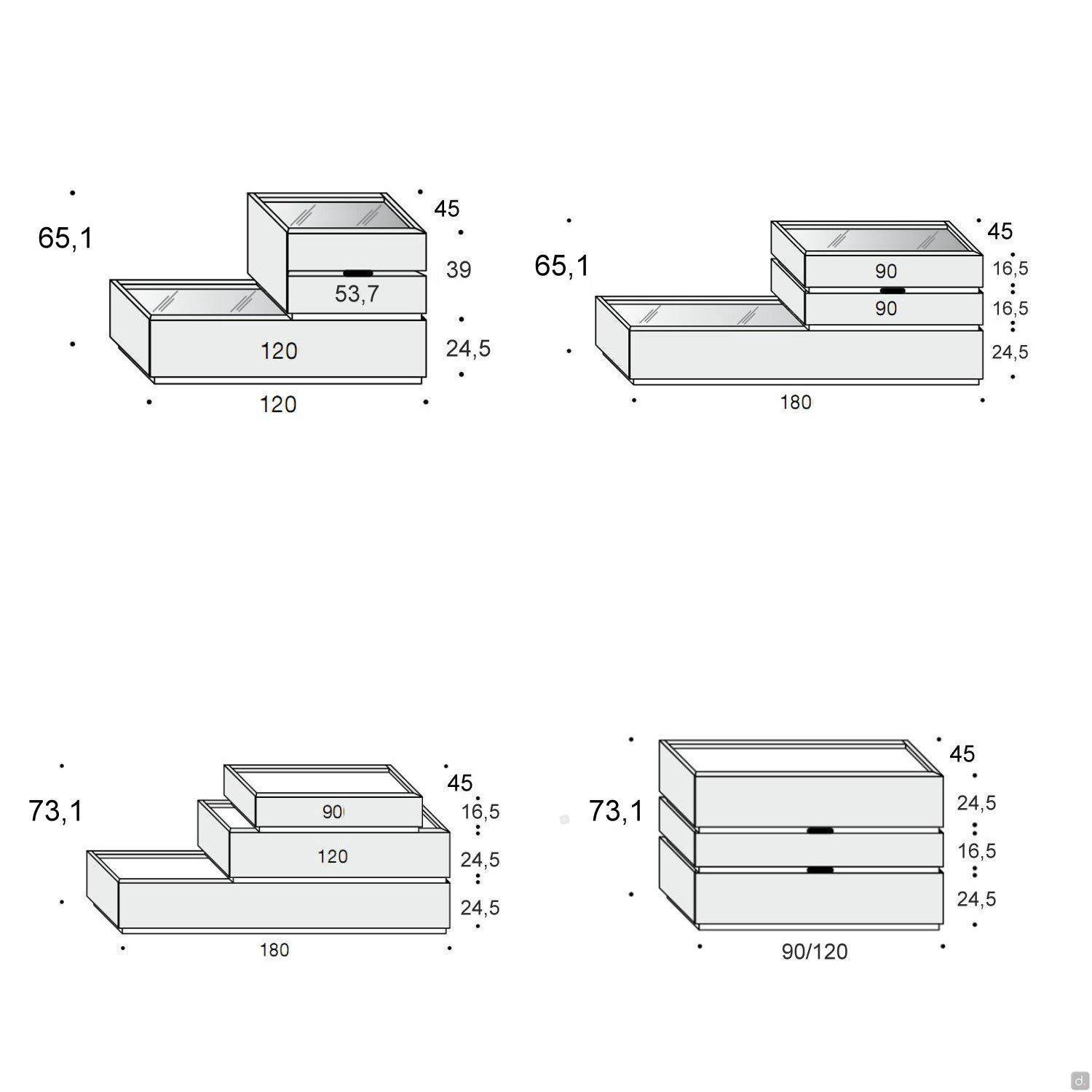

Structure: cm 45, 53,7, 60 and 90 wide models have a one-piece front with an internal compartment. Cm 120, 150 and 180 wide models have a one-piece front with two internal compartments. Cm 240 wide models are equipped with two fronts, each including two internal compartments.

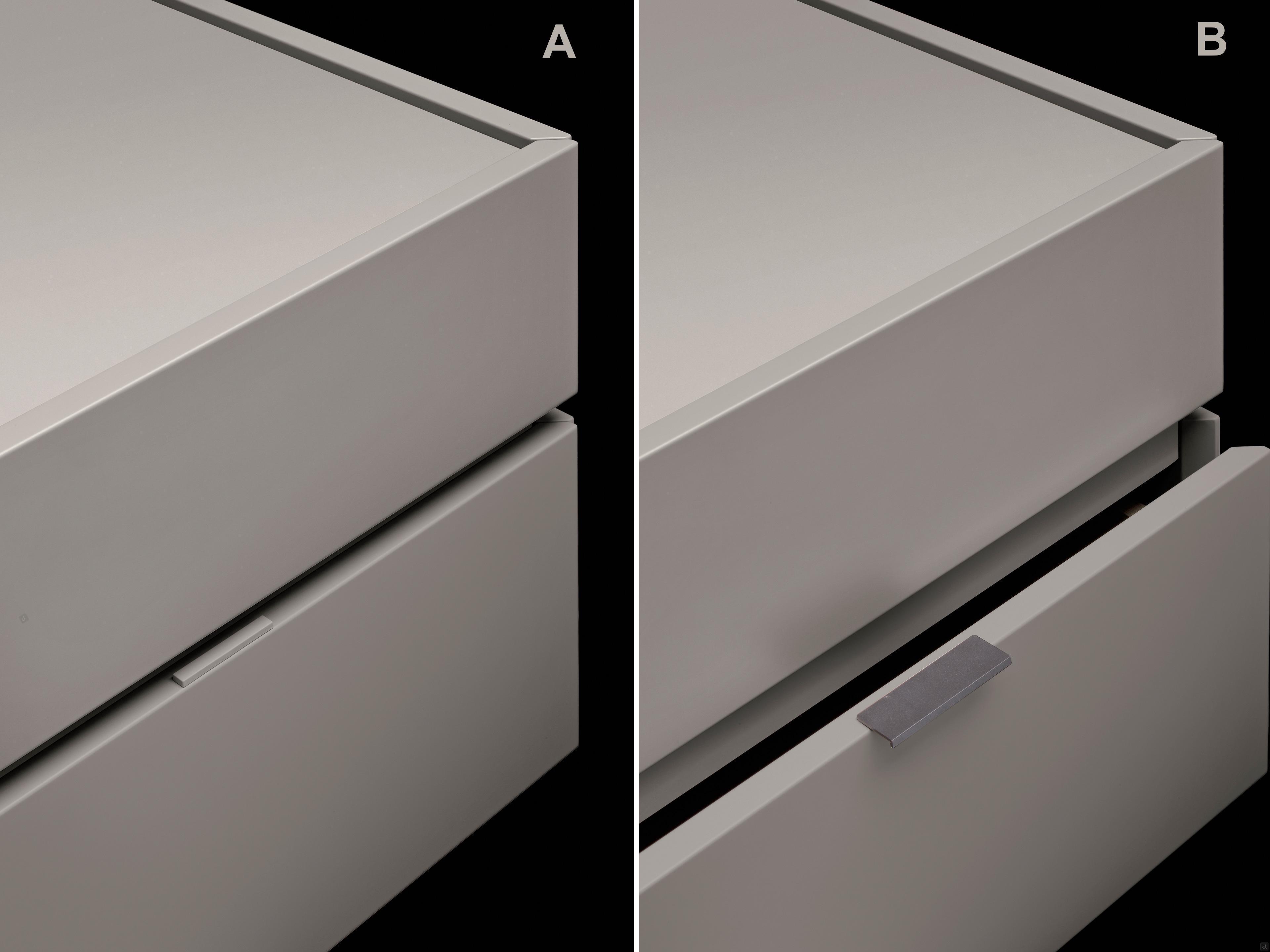

Handle: Minimal and Cidori handles are both optional on the Raiki drawers purchased singularly. In case of layouts composed of more Raiki elements coming in the same width, Minimal handles come as a standard starting from the second drawer from above. In case of layouts composed of more Raiki elements coming in different widths, Minimal handle is again optional. It is always possible to request both handles on each drawer or composition of chests of drawers.
Chart matching Minimal and Cidori handles with the structure
| Drawers |
Handles
|
| Avana Oak |
matte Brown |
| Clay Oak |
matte Terranova |
| Cuba Oak |
matte Brown |
| Grey Oak |
matte Brown |
| Coal Oak |
matte Brown |
| Canaletto Walnut |
matte Brown |
| matte lacquer |
matte lacquer |
| glossy lacquer |
glossy lacquer |
| metallic lacquer |
metallic lacquer |
Plinth: cm h.3 equipped with black plastic feet adjustable from the inside. In case of drawers standing on other elements, the feet are replaced by a special 1 mm thick high grip film, and the plinth remains 7 mm recessed in the top.

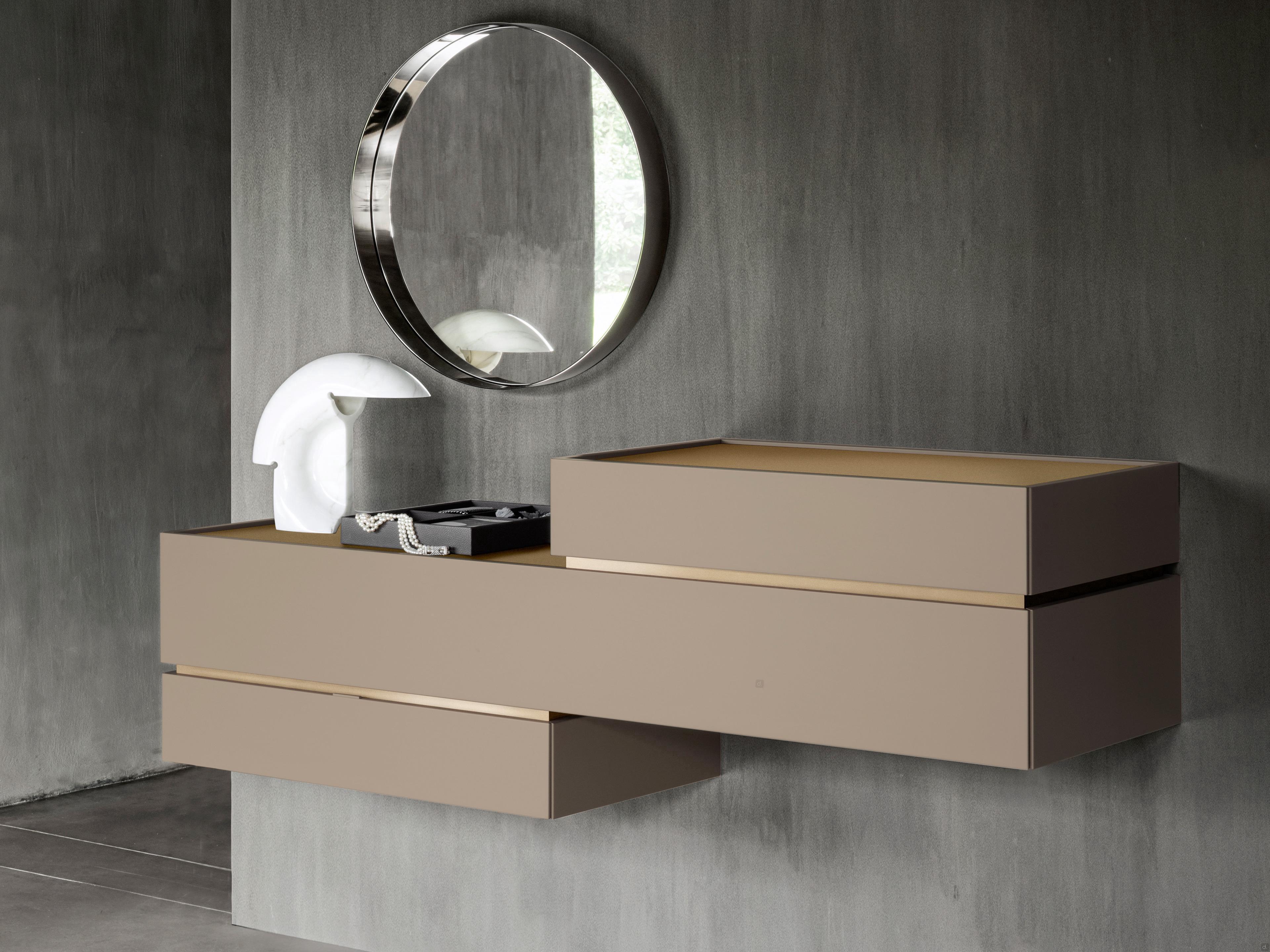

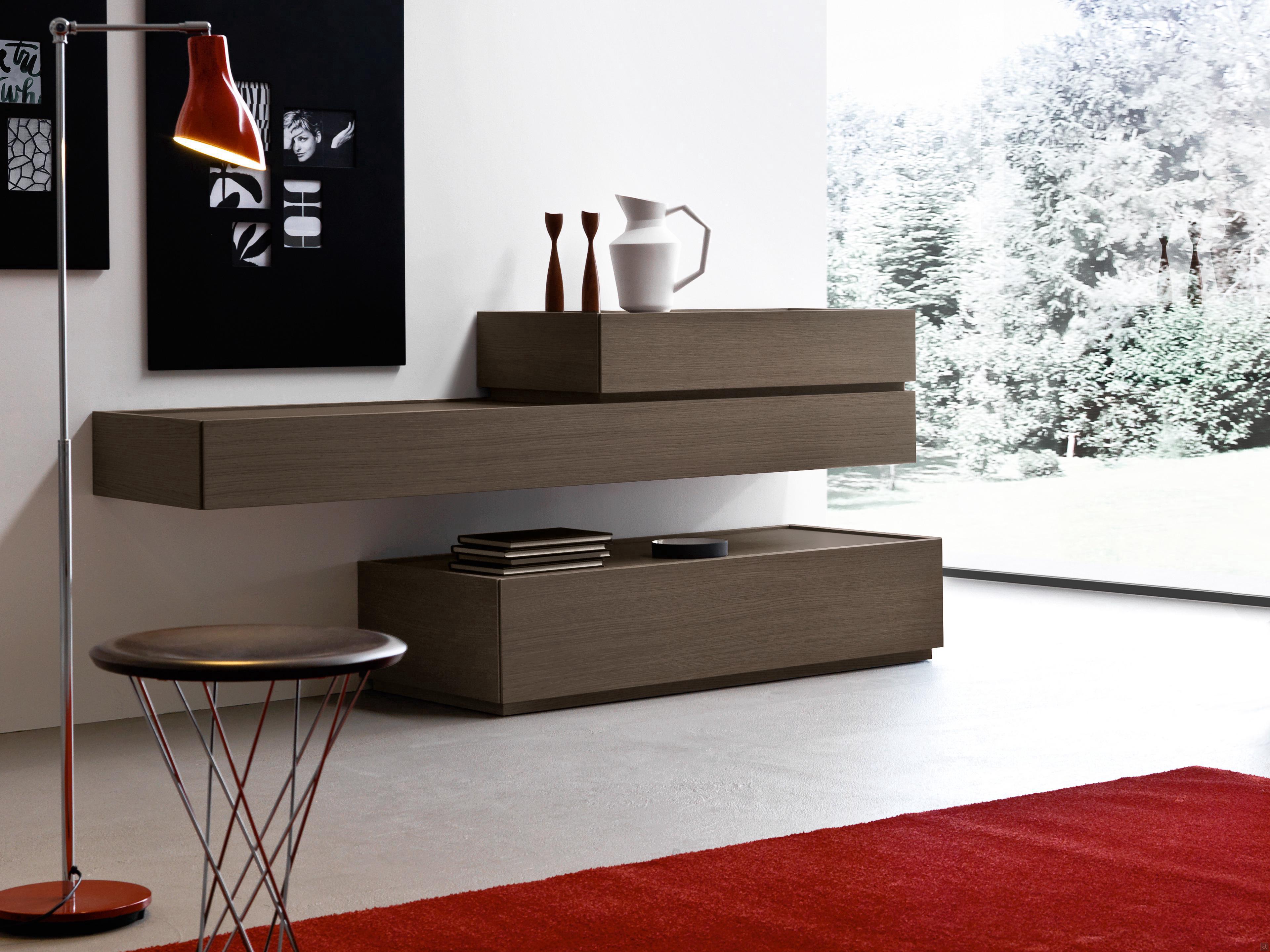

Wall mounted drawers: the wall mounted elements don't have a plinth and are equipped with brackets with anti-unhooking system to hang them to the wall. The hardware supplied is suitable for masonry walls; for plasterboard walls the hardware has to be purchased separately.
Please Note: wall mounted drawers can't be placed on each other but must be hanged one by one.
Opening system: the drawers are equipped with Blumotion runners with stop and soft closing mechanism.

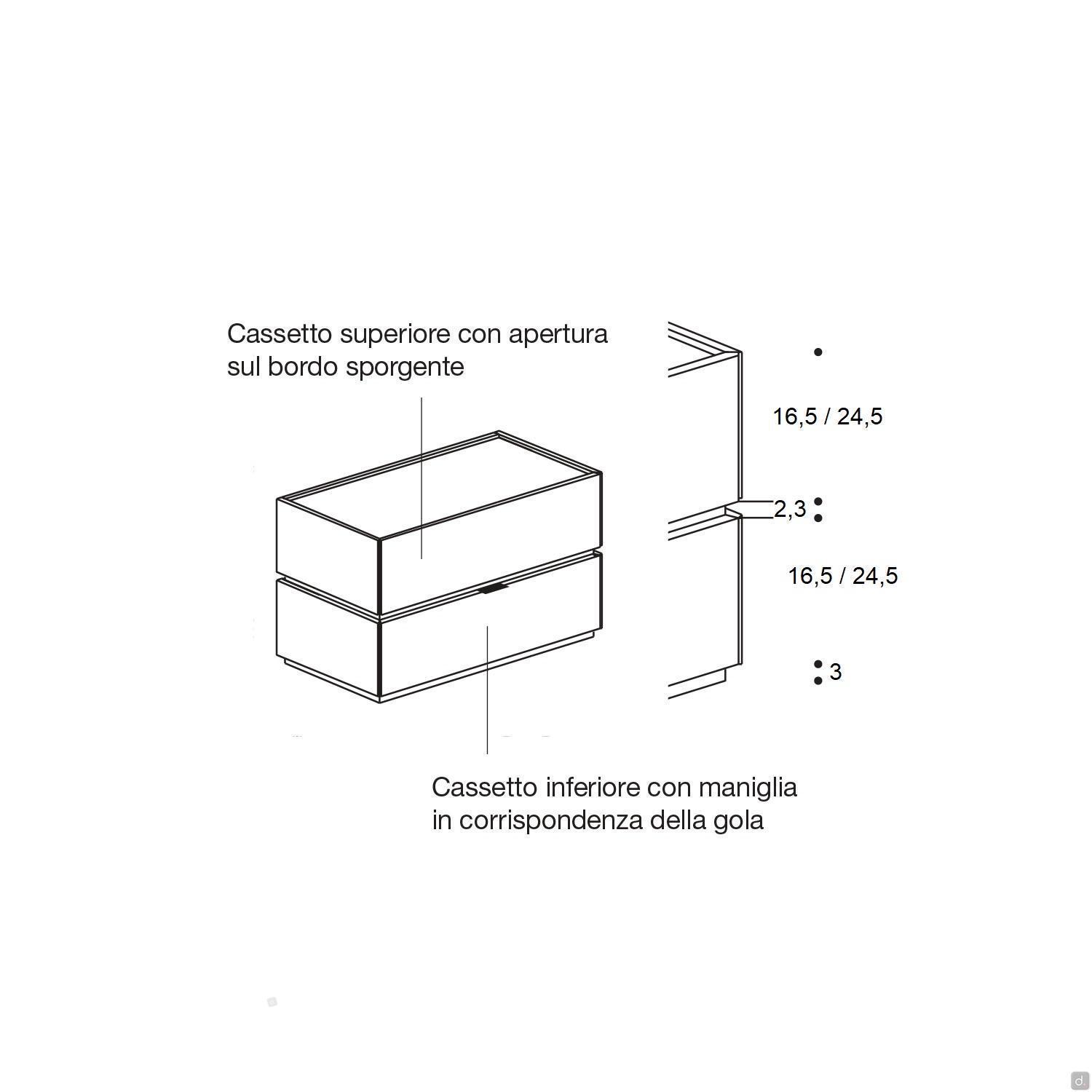

In case a drawer is wall mounted, independent or is the top element of a composition, it has a recessed grip. In case they are central or bottom element of a composition the drawers can be open in two ways depending on the type of composition: with staggered composition they can have a recessed grip, otherwise if all the drawers have the same width, they will be equipped with a Minimal built-in handle placed in the groove between the drawers.
Extras
45° joint on the back: ideal for a double-sided composition to place in the middle of the room.
Read more...
Laminate: it is a wood effect coating usually applied to different materials, such as melamine panels. This coating consists of sheets obtained by pressing together several layers of paper sheets soaked in melamine or phenolic resins. There are different types and aesthetically it can present itself with different effects, such as wood-like effects.
