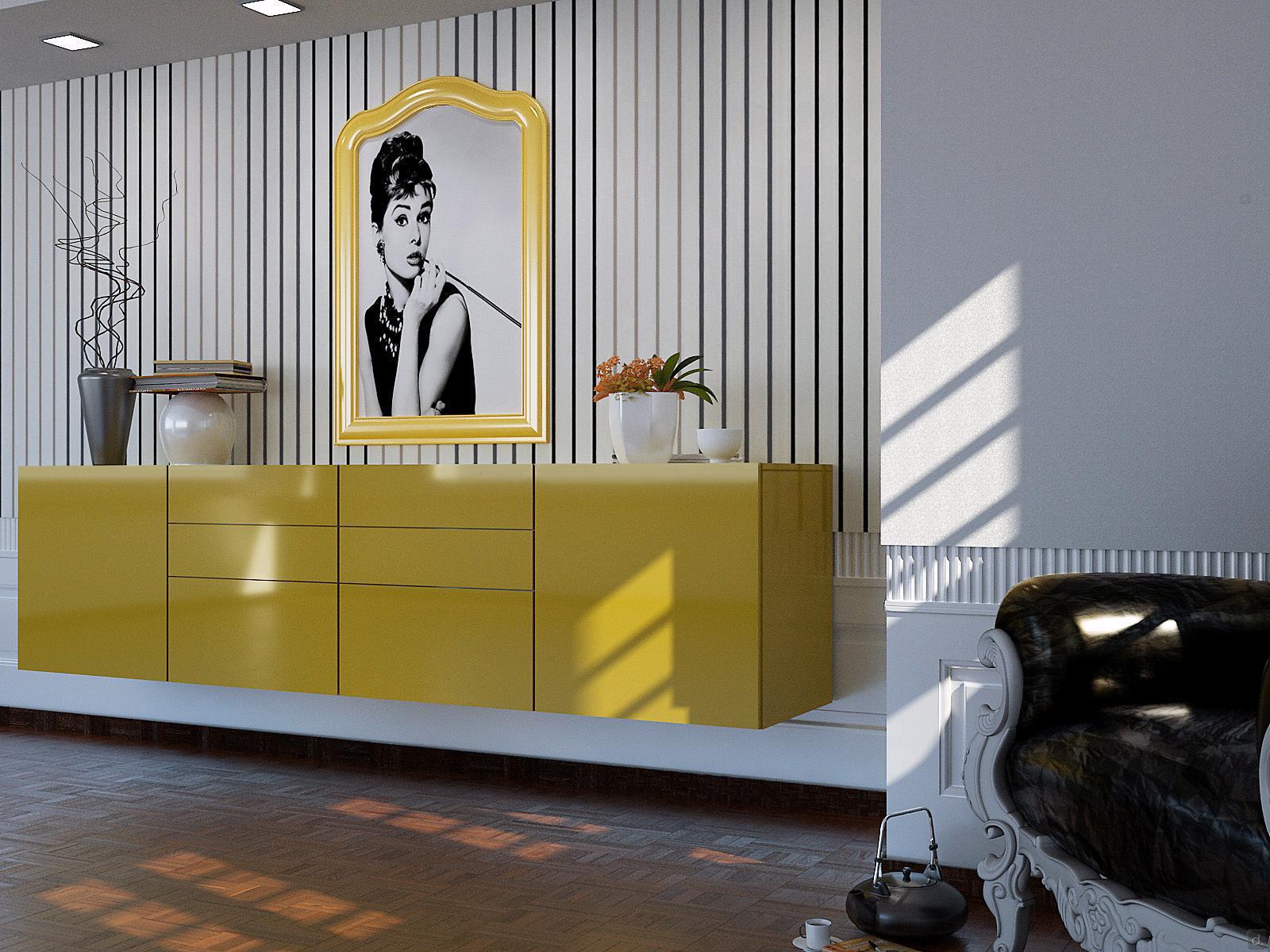

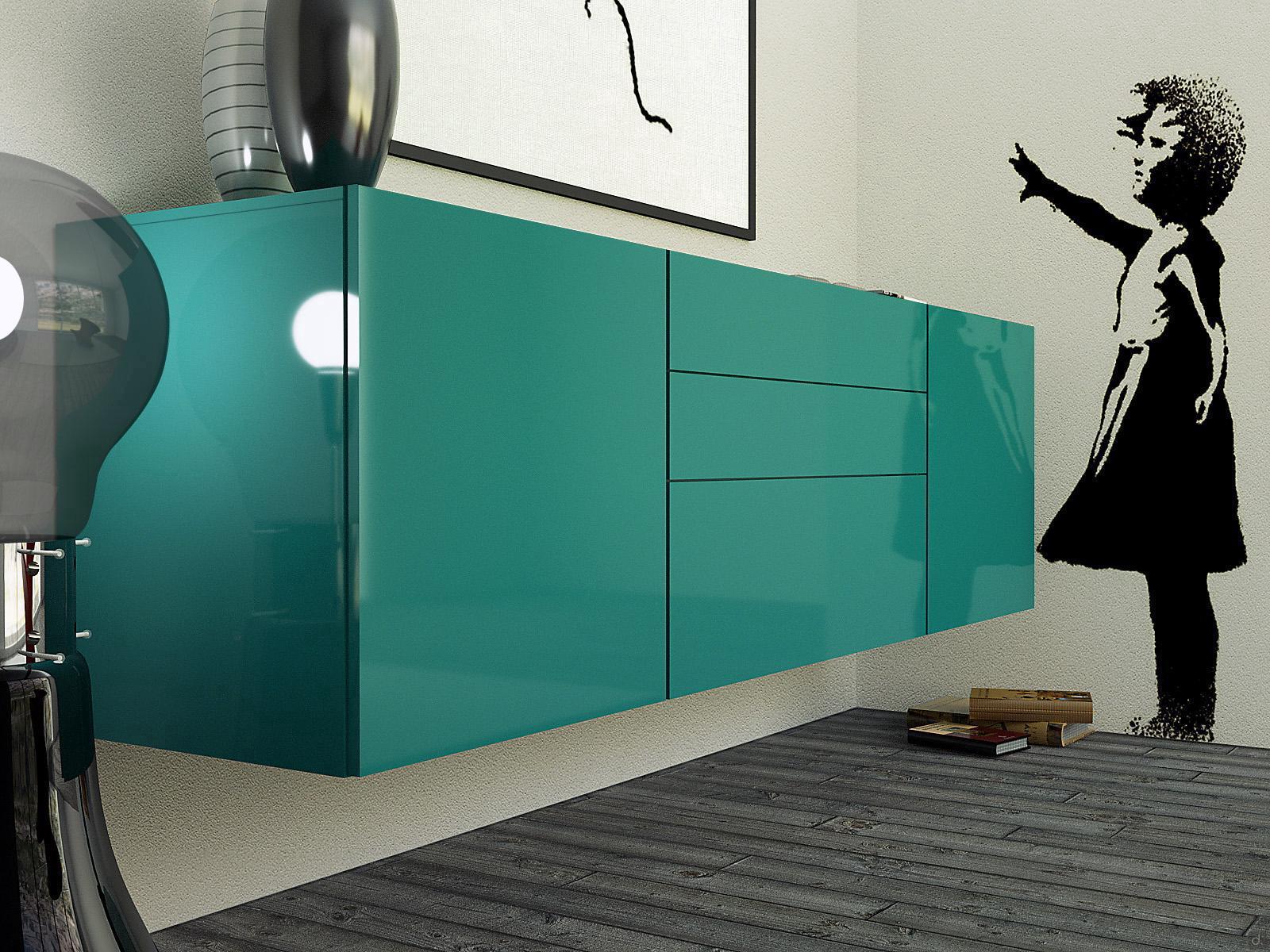

Plan sideboard equipped with two hinged doors, 4 drawers and 2 big drawers

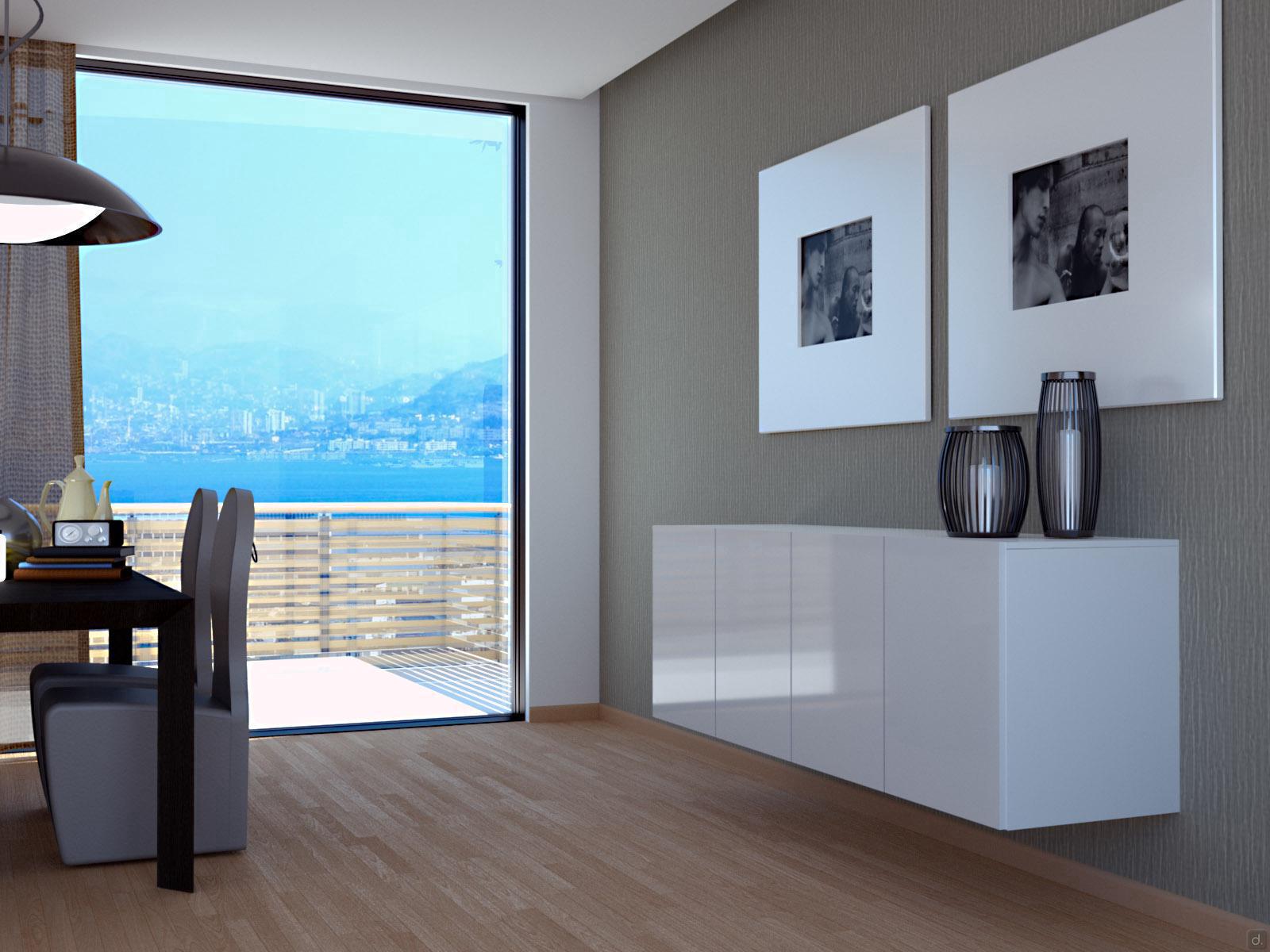

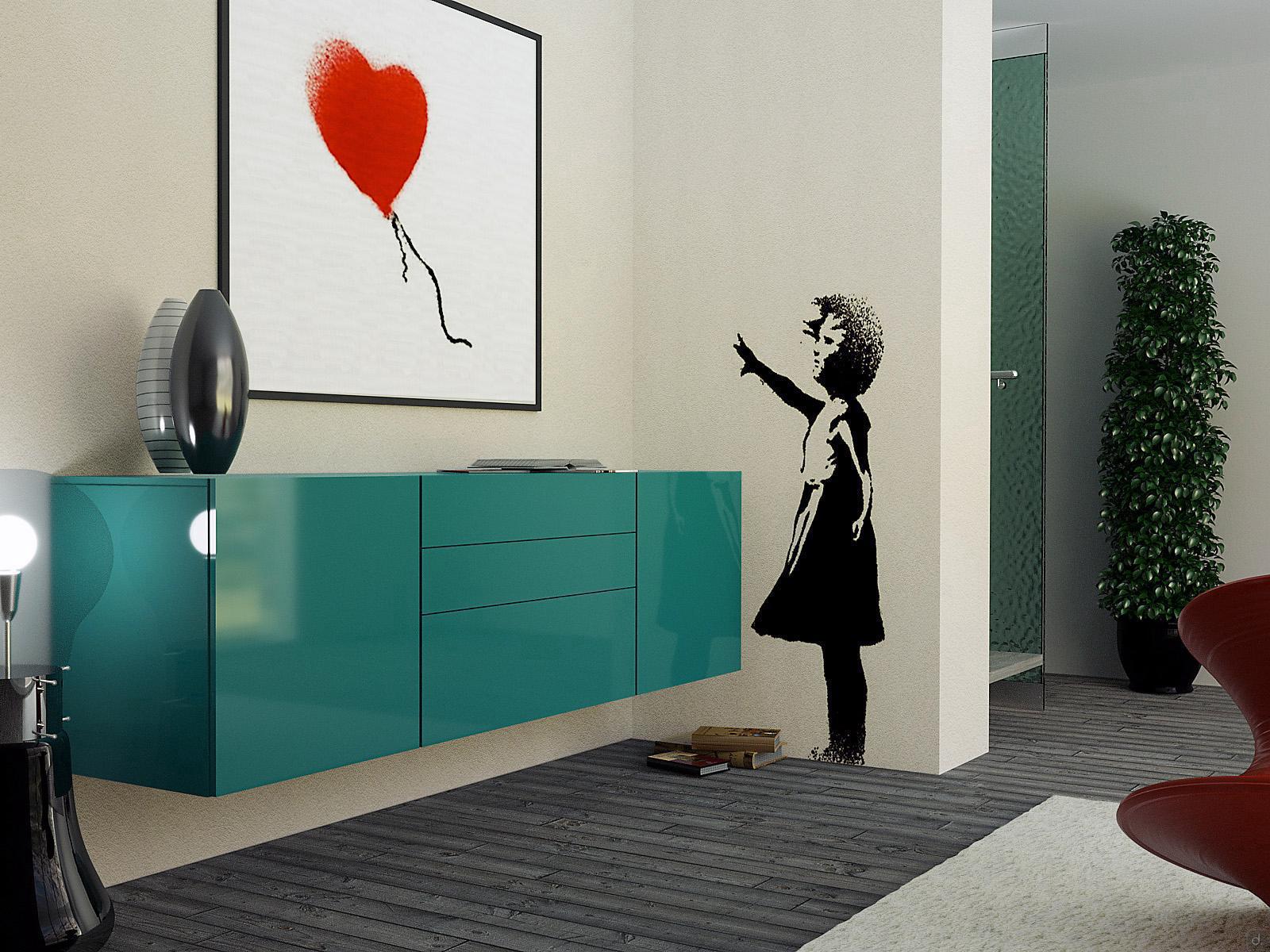

Plan lacquered hanging sideboard with 4 hinged doors

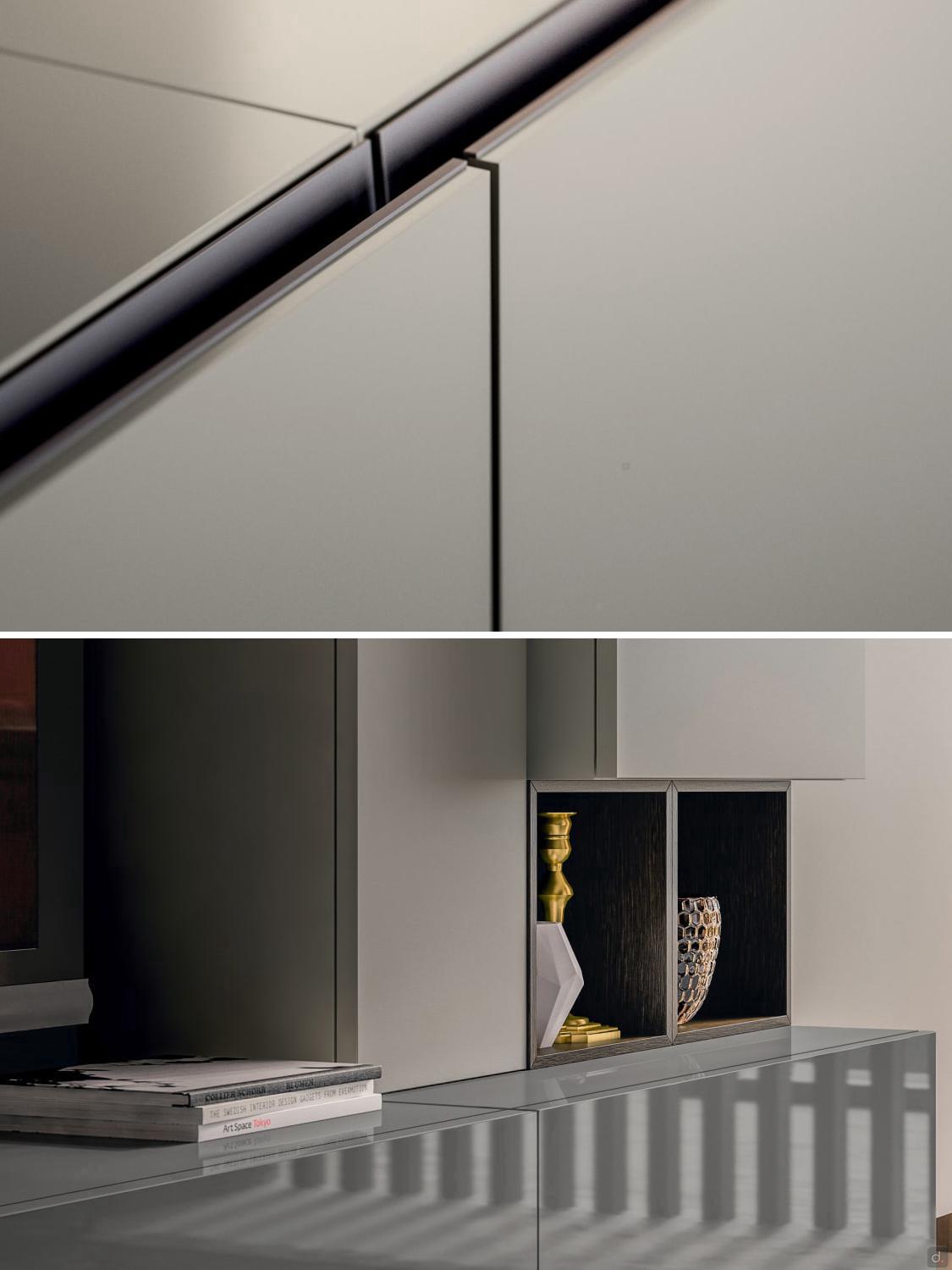

Detail views showing the aesthetics of the top of a Plan hanging sideboard: as the cabinets are independent and side by side, the separation lines between the various modules can be seen at the top

Opening through push-pull of the hinged doors, drawers and big drawers

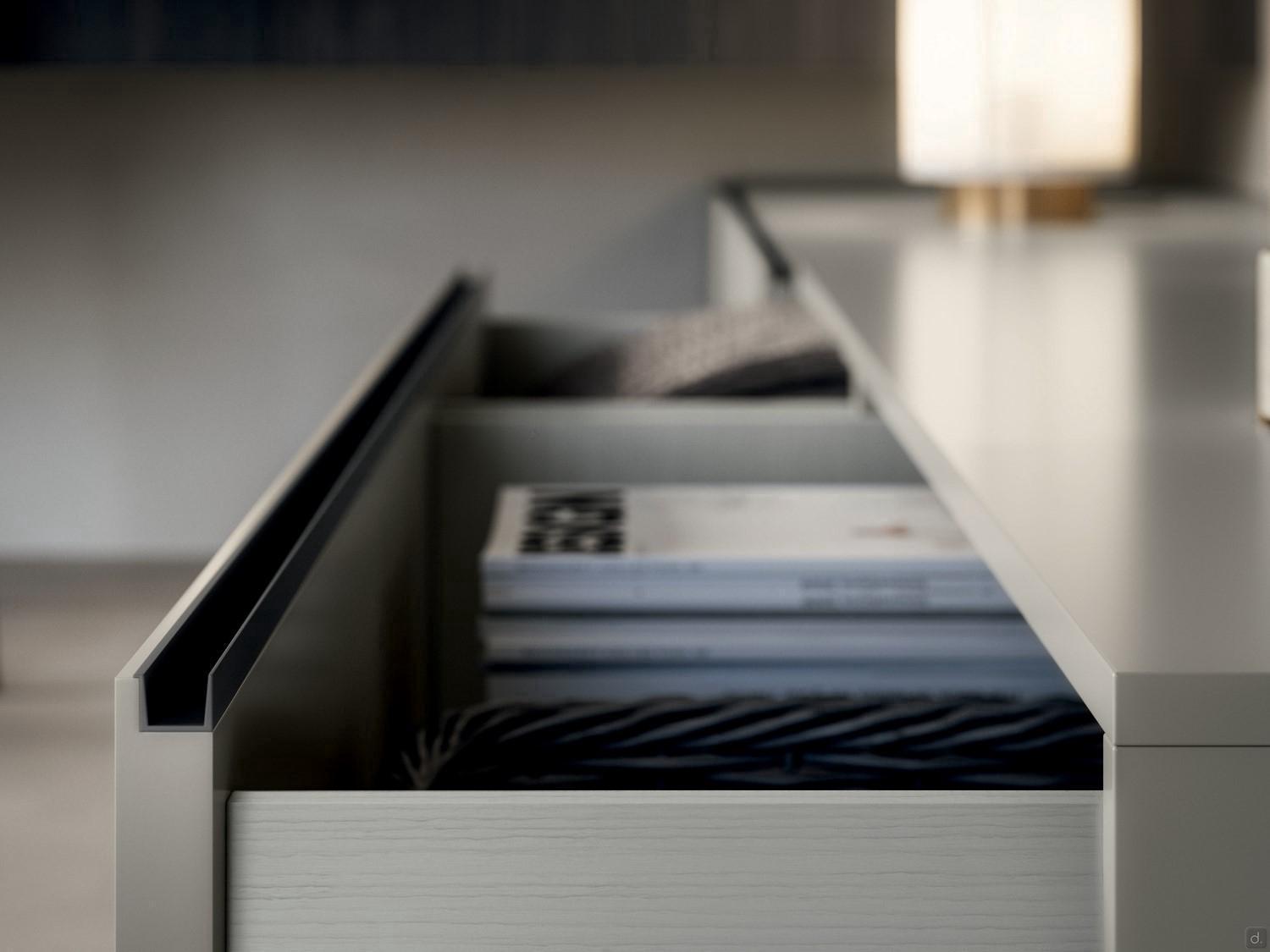

Detail of the drawers through the C15 handles

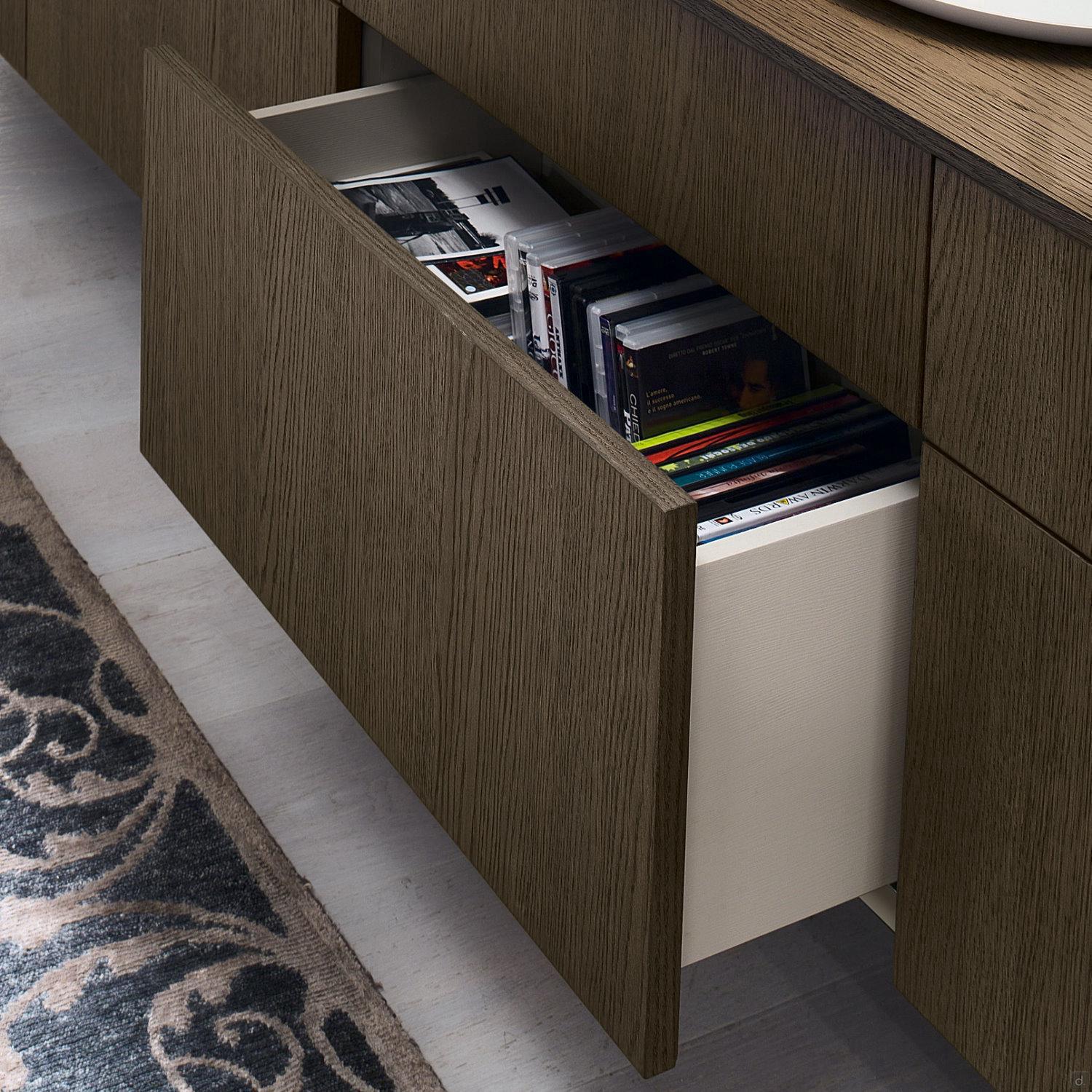

Drawers and big drawers with full-extensions opening

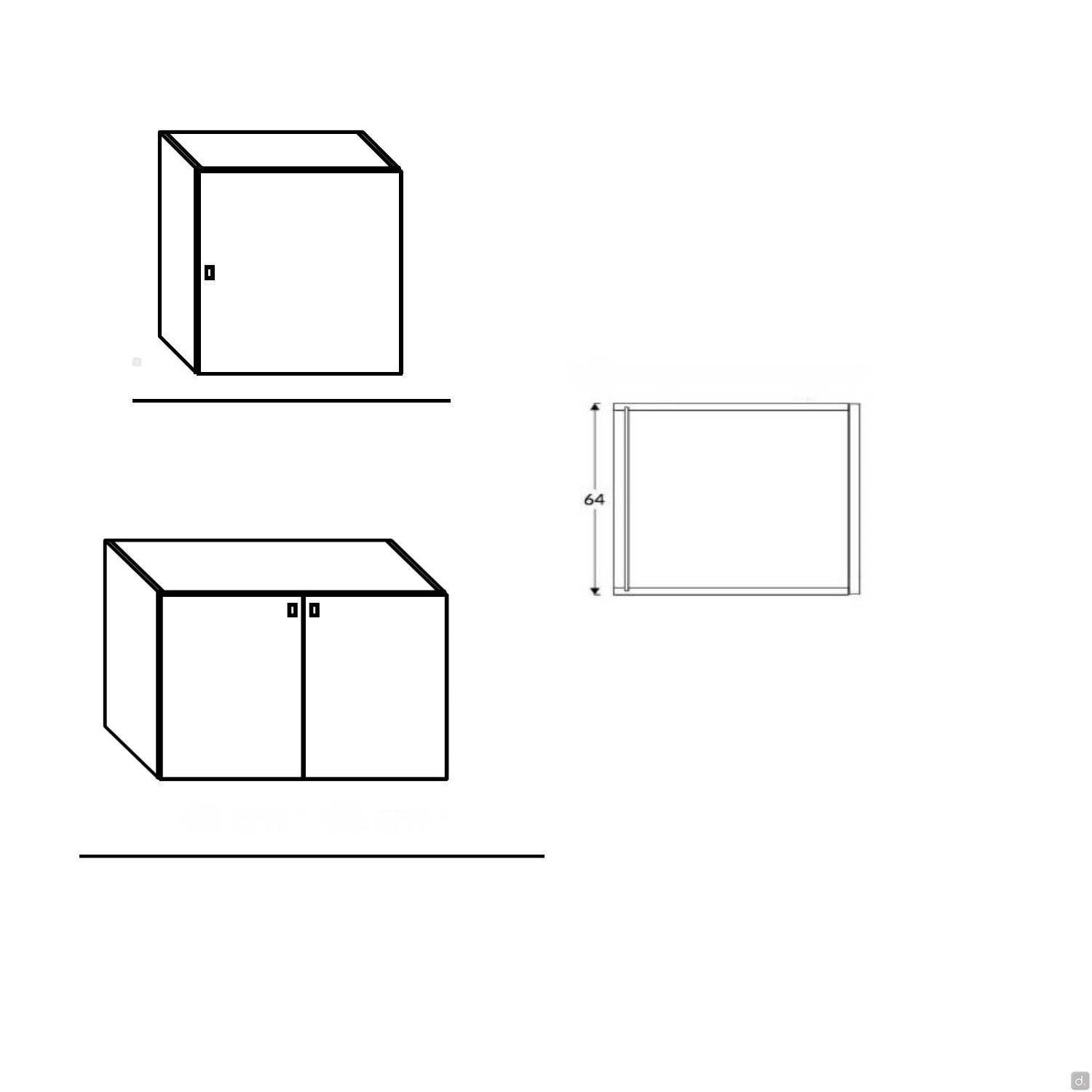

Plan lacquered hanging sideboard - Height

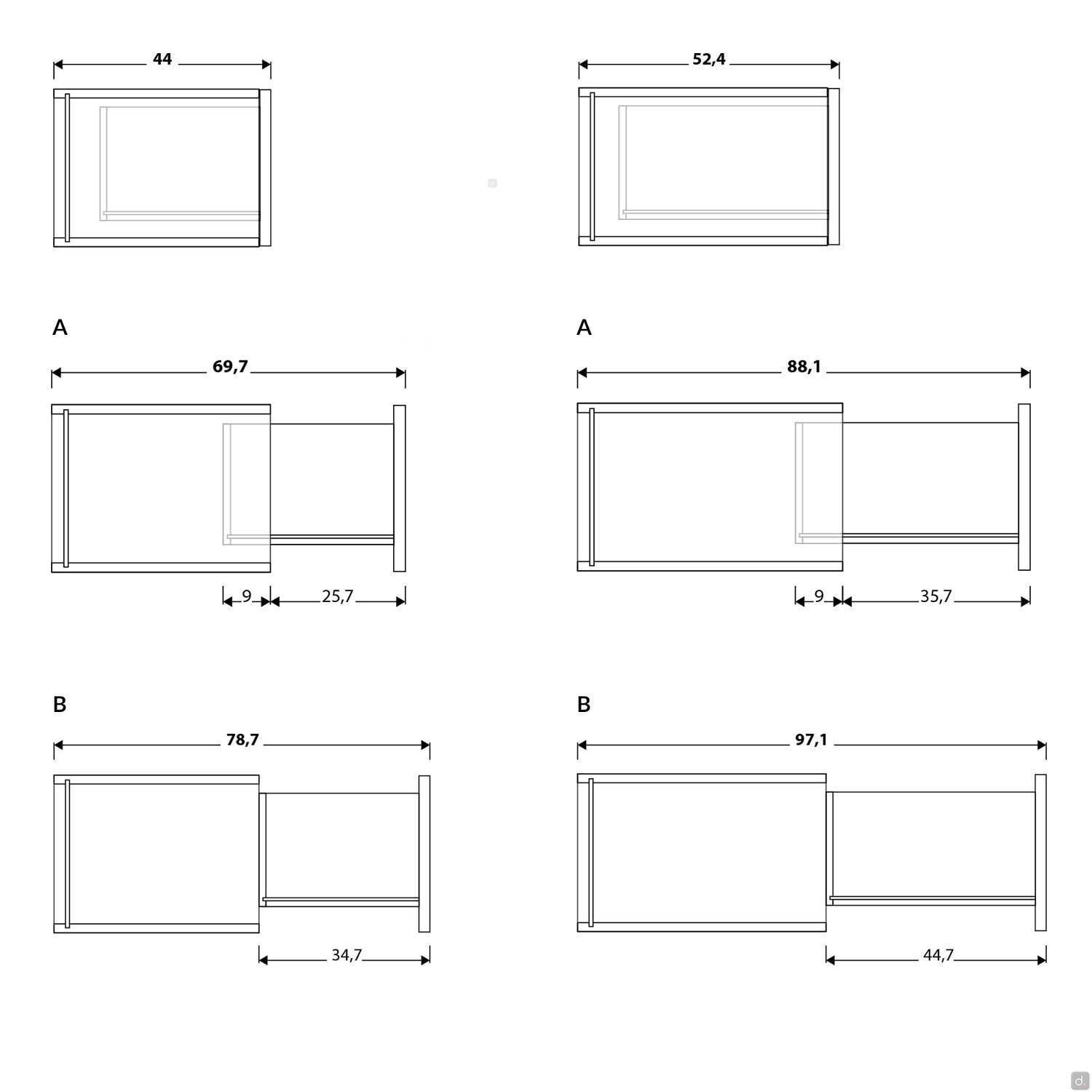

Plan lacquered hanging sideboard - Partial (A) / full (B) extension drawers and big drawers

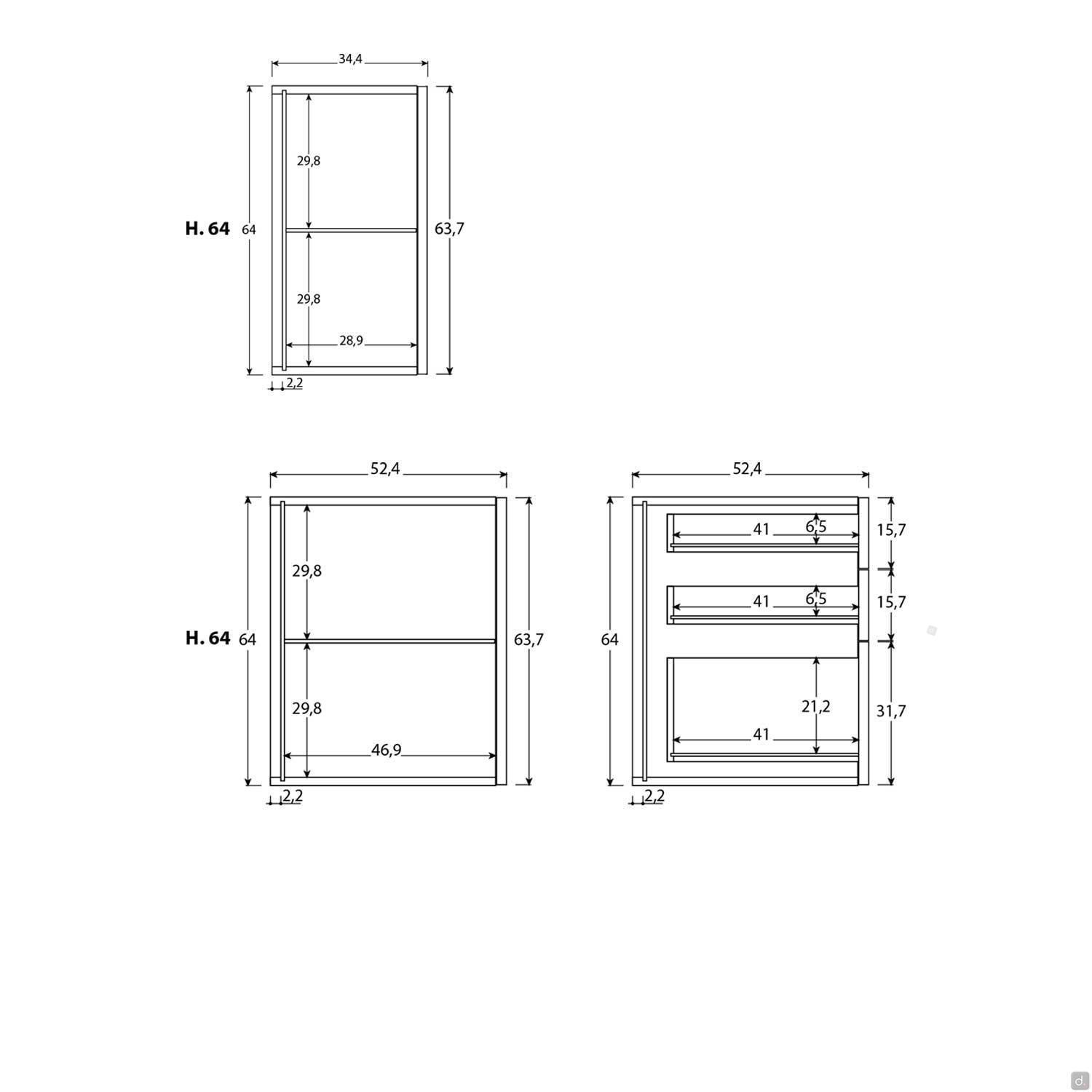

Plan lacquered hanging sideboard - Specific Measurements

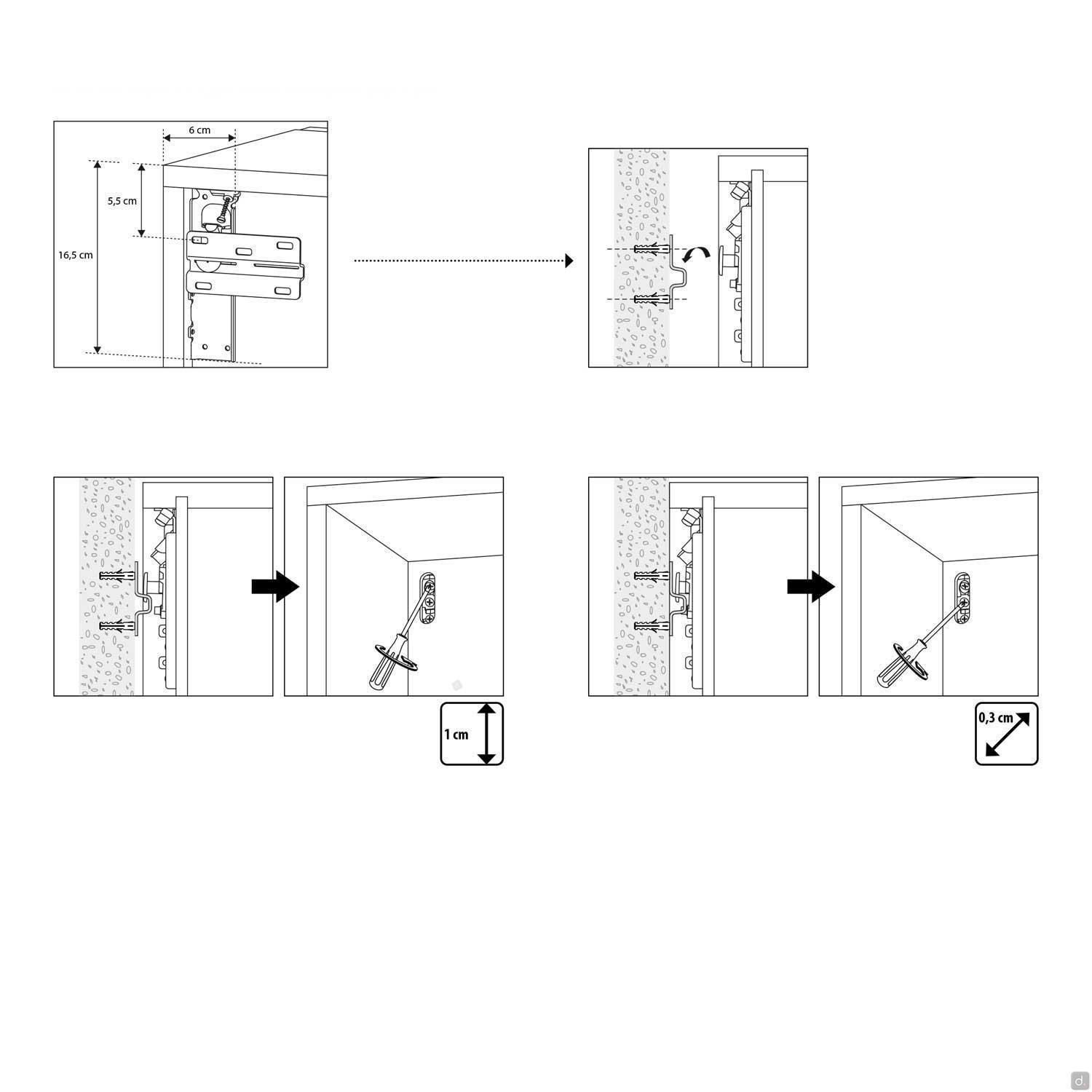

Plan lacquered hanging sideboard - Details of the mounting through brackets

+ 8

MORE IMAGES

Plan Hanging Sideboard - Single Integrated Top
Wall Mounted Sideboard

Plan modern hanging lacquered sideboard with hinged doors, drawers, big drawers or drop down doors. Also available in melamine, wood veneer or open pore lacquer.

* Required Fields

Width and Model *

Depth and Height *

Depth and Height *

----------- 2 doors 2 drawers 1 compartment
cm d.52,4 h.64

Layout *

1 element with 2 HINGED DOORS cm 128

Layout *

1 element with 2 HINGED DOORS cm 96 + 1 element with 2 HINGED DOORS cm 96

Layout *

1 element with 2 HINGED DOORS cm 96 + 1 element with 2 HINGED DOORS cm 96

Layout *

1 element with HINGED DOORS cm 32 (left side) + 2 elements with 2 overlapping DROP DOWN DOORS cm 128 + element with HINGED DOORS cm 32 (right side)

Layout *

1 element with 2 HINGED DOORS cm 128 + 1 element with 2 HINGED DOORS cm 128

Layout *

----------------- 144 d.34,4
1 element with HINGED DOOR cm 48 (left side) + 1 element with 2 HINGED DOORS cm 96
1 element with 2 HINGED DOORS cm 96 + 1 element with HINGED DOOR cm 48 (right side)

Central hinged door direction *

Finish *

Handles Model *

Handle Finish *

Handle Finish *

Handle Finish *

Handle Finish *

Handle Finish *

------------ Pomolo
VMS moka shine painted metal

Pomolo (knob) Cover *

------------ Pomolo
grey belting leather

Handles Colour Code Click to select the Colour

Hinged Doors Push-Pull Positioning *

lateral high according to the opening side
lateral in the middle according to the opening side

Drawers and Baskets Push-Pull Positioning *

middle high

Drop Down Doors Push-Pull Positioning *

middle high

Hinged Doors Handles Positioning *

------- T16 / M / Pomolo
middle high
lateral high according to the opening side
lateral in the middle according to the opening side

Hinged Door Handle Position *

------- Z
horizontal on the top
vertical and lateral according to the opening side

Drop Down Door Handle Positioning *

------- T16 / M / Pomolo
middle high

Drawers and Baskets Handle Positioning *

------- Z
middle high

Posizionamento Maniglia Anta Ribalta *

------- T16 / M / Pomolo
middle high

Drop Down Door Handle Position *

------- Z
horizontal on the top

Handle Position *

------- C15
horizontal on the top

Internal Finish *

matching melamine (backrest in taupe decor melamine)

Internal Finish *

taupe decor melamine

Internal Finish *

Optional

drawers and big drawer with full-extension runners +€121.89
drawers and big drawer with full-extension runners +€240.84

Quantity

From €338.15

View Samples

Wishlist

Description

Plan is an hanging lacquered sideboard also available in melamine, wood veneer and open pore. Different widths available from 128 to 256 cm.
Plan storage collection is the wide range of solutions thanks to the different modularity, to the many handles and to the double depths. Models with depth of cm 34,4 are ideal as hallways sideboard thanks to the compact forms and therefore perfect for small spaces.

Characteristics
wall-mounted sideboard customisable in different colours
two depths of 34,4 and 52,4 cm to furnish every type of environment solution
push-pull opening or handles in different models
soft closing on drawers and baskets which can have the partial or full extension

Model and Measurements
Models: with doors / with doors, drawers and big drawers / with drop down door
Width: cm 128 / 144 / 160 / 176 / 192 / 224 / 256
Depth: cm 34,4 / 52,4
Height:
- cabinets: cm 64

Materials and Finishes
- melamine
- wood veneer
- open pore lacquer
- matt / glossy / metallic lacquer

Technical study

Materials Specifications
The elements are realized with E1 class panels with low formaldehyde content according to the European Community rules.
Wooden finishes are made of an ultraviolet polymerisation painting.
Matt lacquered products are realized using almost totally a water-based paint; glossy lacquered finishes are brushed with a polyurethane polymerisation. Used painted products are high solids.

Technical Specifications and Equipment
Structure: thickness of cm 1,8. Equipped with adjustable brackets (maximum weight per bracket Kg 70).
Doors: thickness of cm 2,2, provided with a series of hinges with soft-closing mechanism. The cabinets with one hinged door comes with 1 internal shelf; the cabinets with two hinged doors come with 2 internal shelves.
Drawers / Compartments: fronts thickness cm 2,2; edges thickness cm 1,4. Equipped with roll-away runners with vertical adjustment integrated in the hook and with soft-losing mechanism. Dynamic weight load of the runners equal to Kg 30.
Drop down door: thickness cm 2,2.
Visible edge: wooden edge, abs wooden edge or abs lacquered wooden edge.
Top: single integrated top for each element, matching the structure and fronts.
Opening Type:
- handle T16: cm 19 d.3,3 h.0,8 in moka shine painted metal or matt lacquered;
- handle M: cm 10,2 d. 1,4 h.0,3 in moka shine painted metal or matt lacquered;
- handle Z: cm d. 1,5 h. 0,7 in moka shine or white painted metal or matt lacquered;
- Pomolo (knob) handle: cm 4,1 d. 1,6 h.4,1
- handle C15: cm d.1,7 h. 1,4 in moka shine, white painted metal or matt lacquer;
- push-pull.

Optional
full-extension: drawers and big drawers can be equipped with full-extension runners.

Maintenance Tips
Surfaces put in contact with water or other liquids can suffer some damage. The products do not tolerate excessive heat and humidity; it is therefore recommendable to position them far from any heat or humidity source.
To clean the materials it is necessary to use a wet cloth and neutral detergents, drying soon afterwards with a soft cloth. Do not use alkaline products, solvents and abrasive ones.

Additional Information

Area of Production
Italy

Approximate Time
8-9 working weeks for production

Assembling
Medium Assembling

Assembling Instructions
Download the Assembling Instructions

Cubic Metres
from 0,39 to 1,17 m³
