Technical Specifications and Equipment

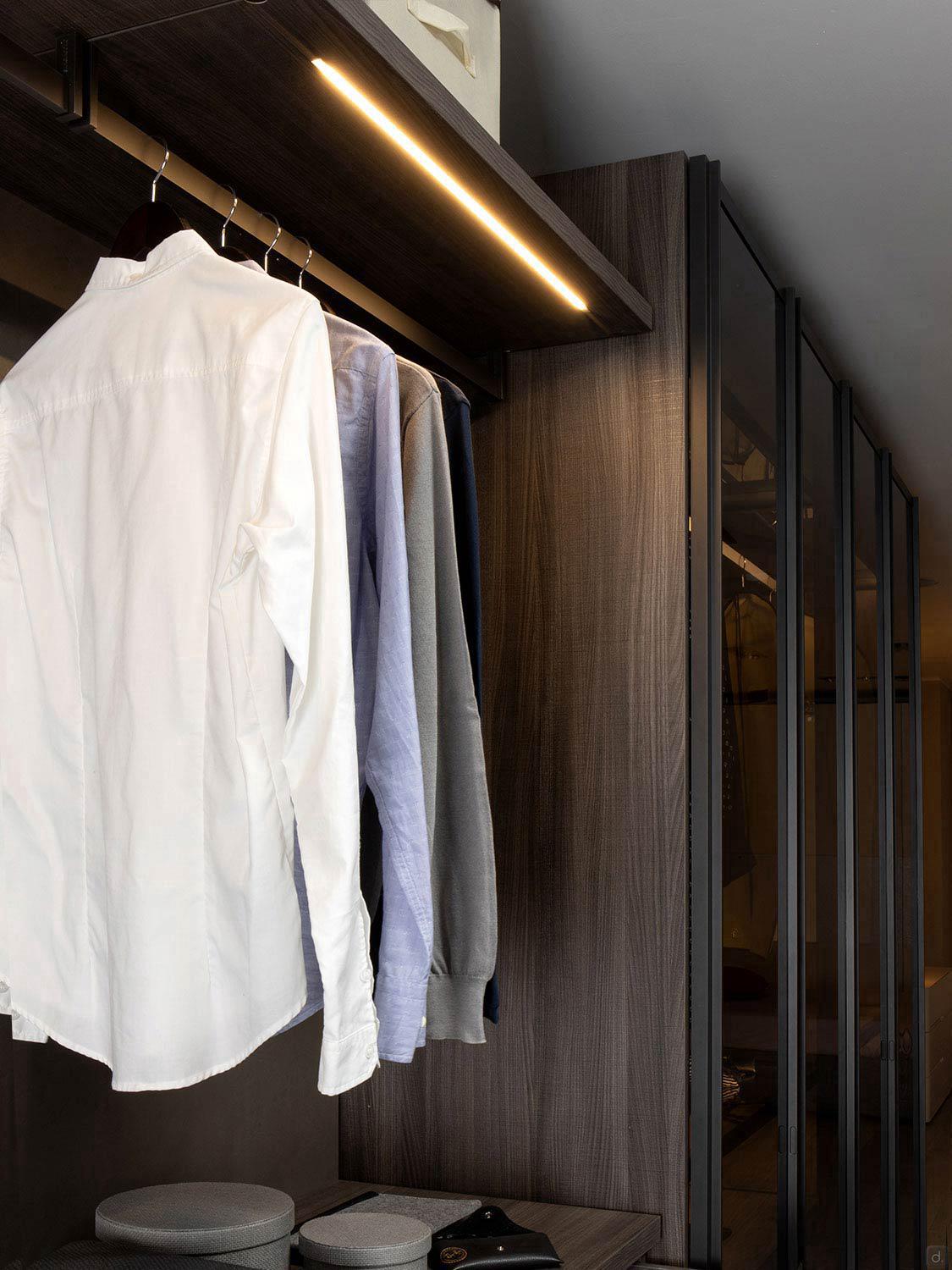

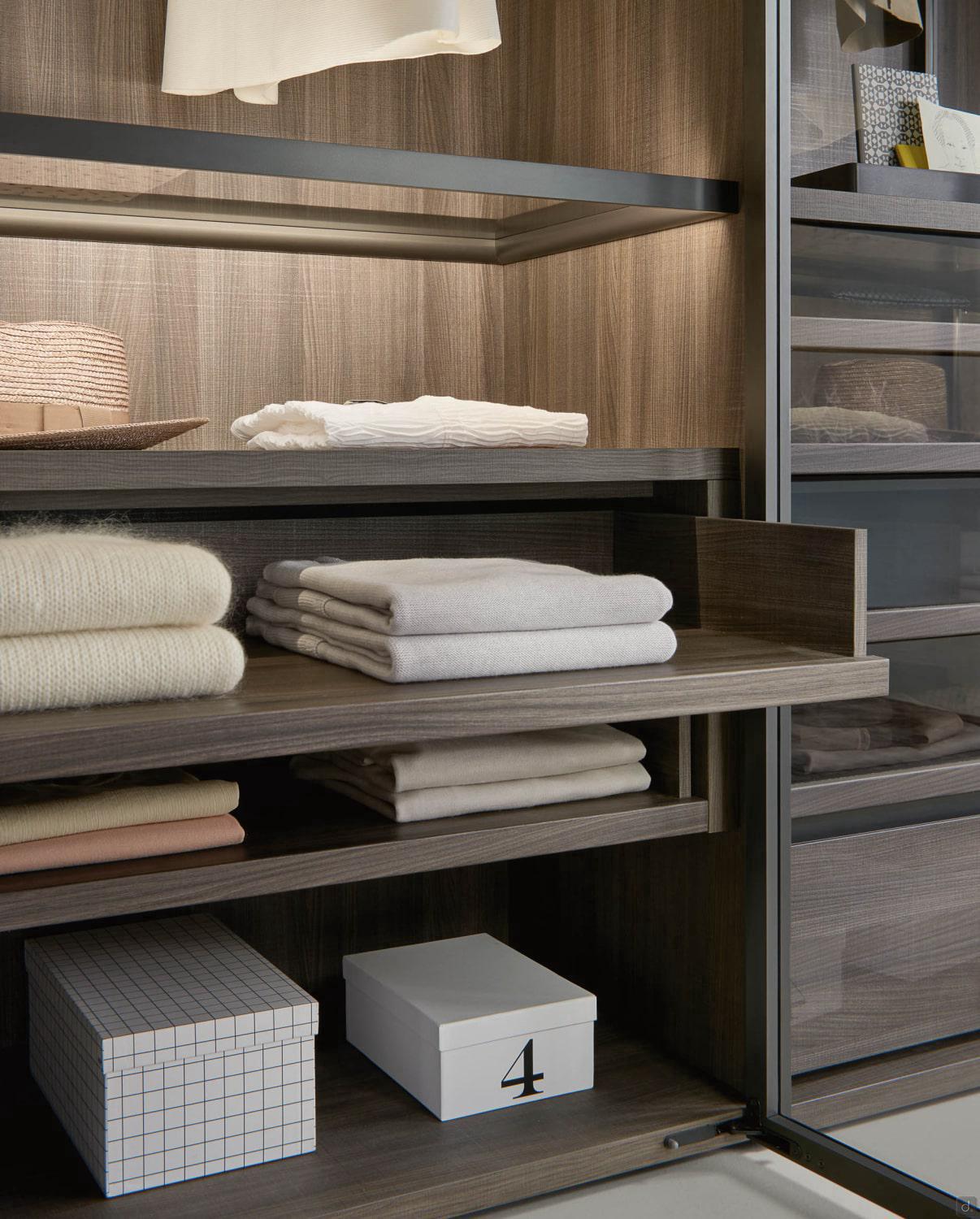

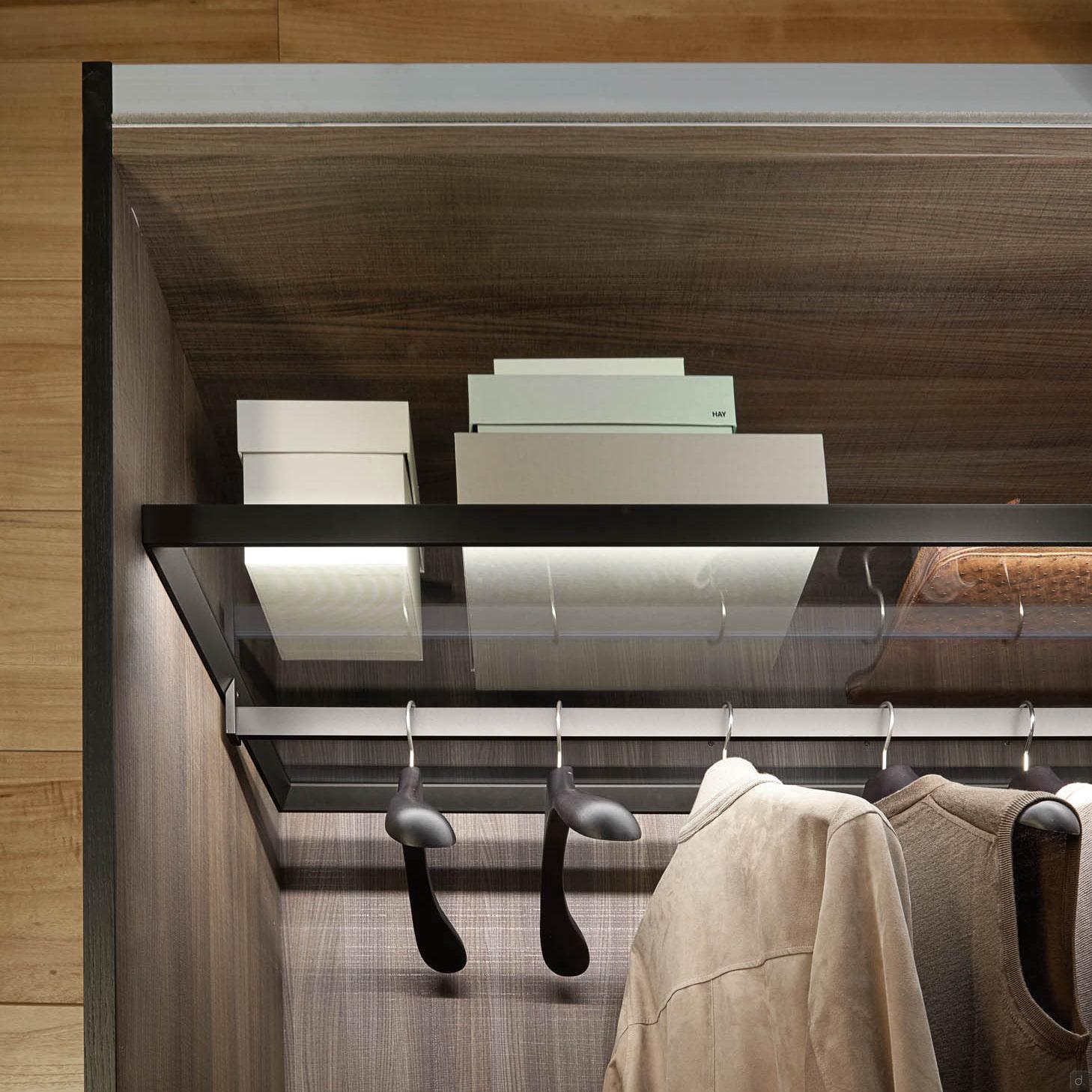

Wooden shelves with light: they are equipped with power cable channelled behind the back panel or, in the model with electrified frame sides/partitions, though cross pieces. To turn on and off the light you need to connect it to your own electrical system.

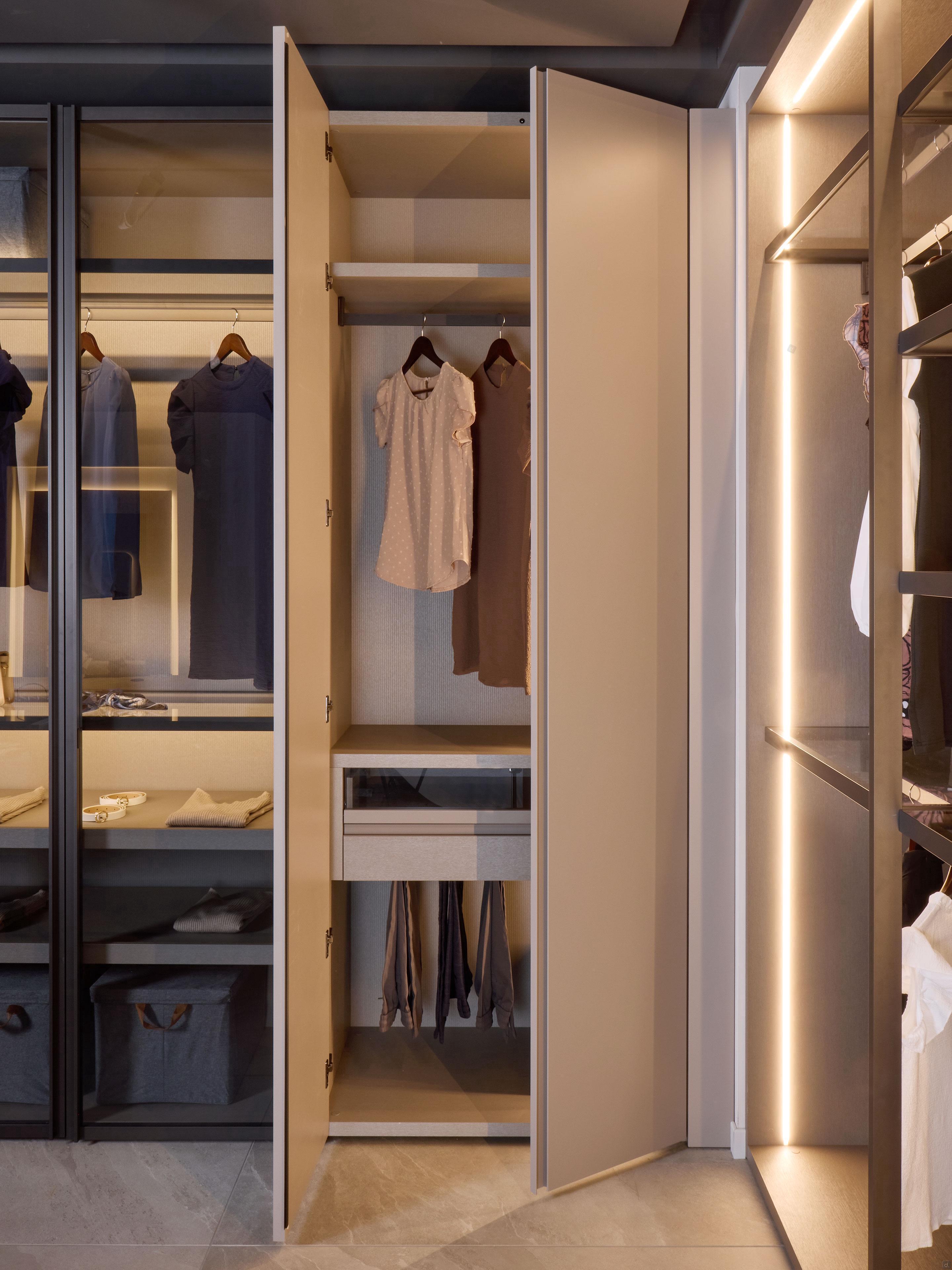

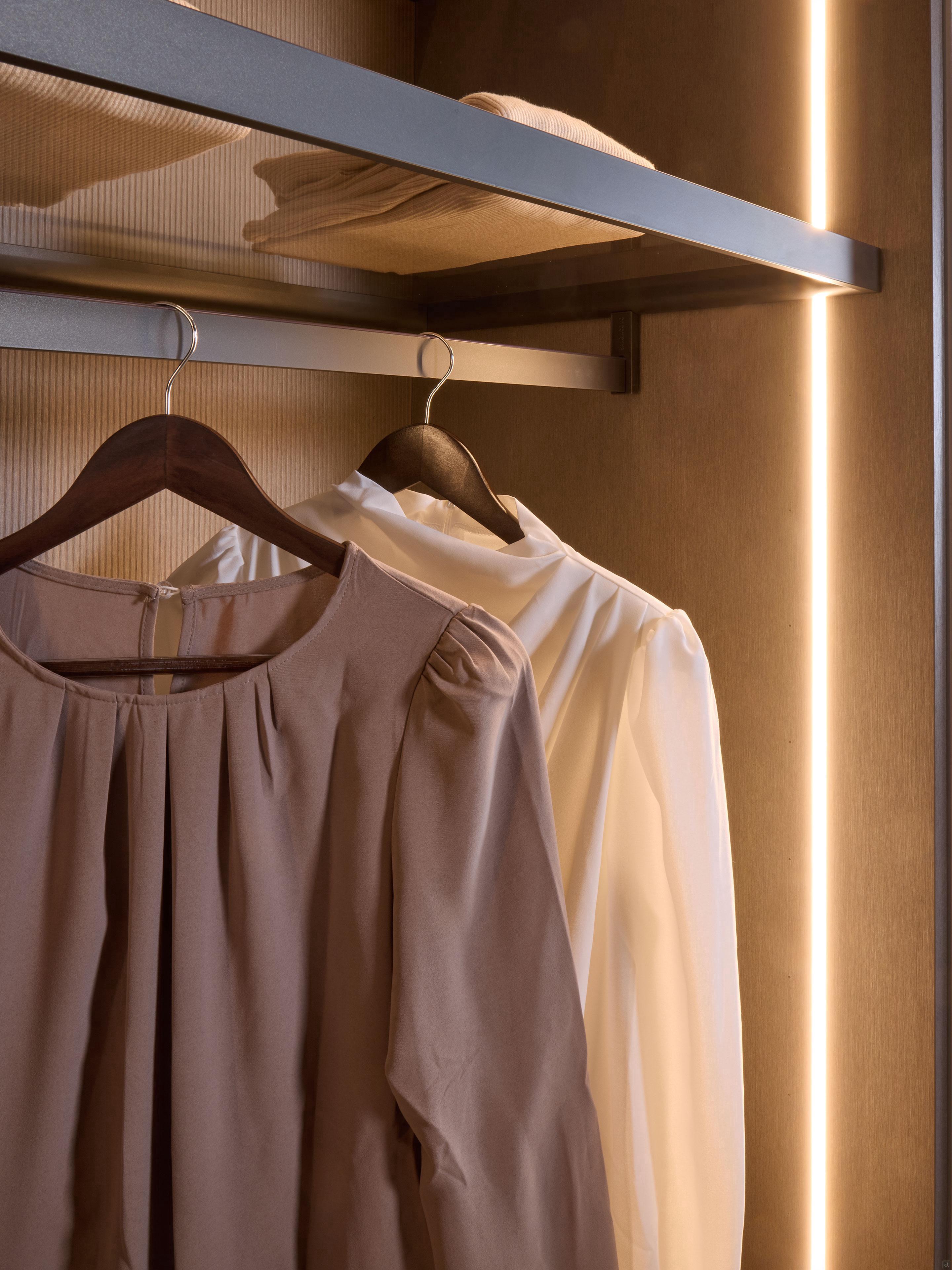

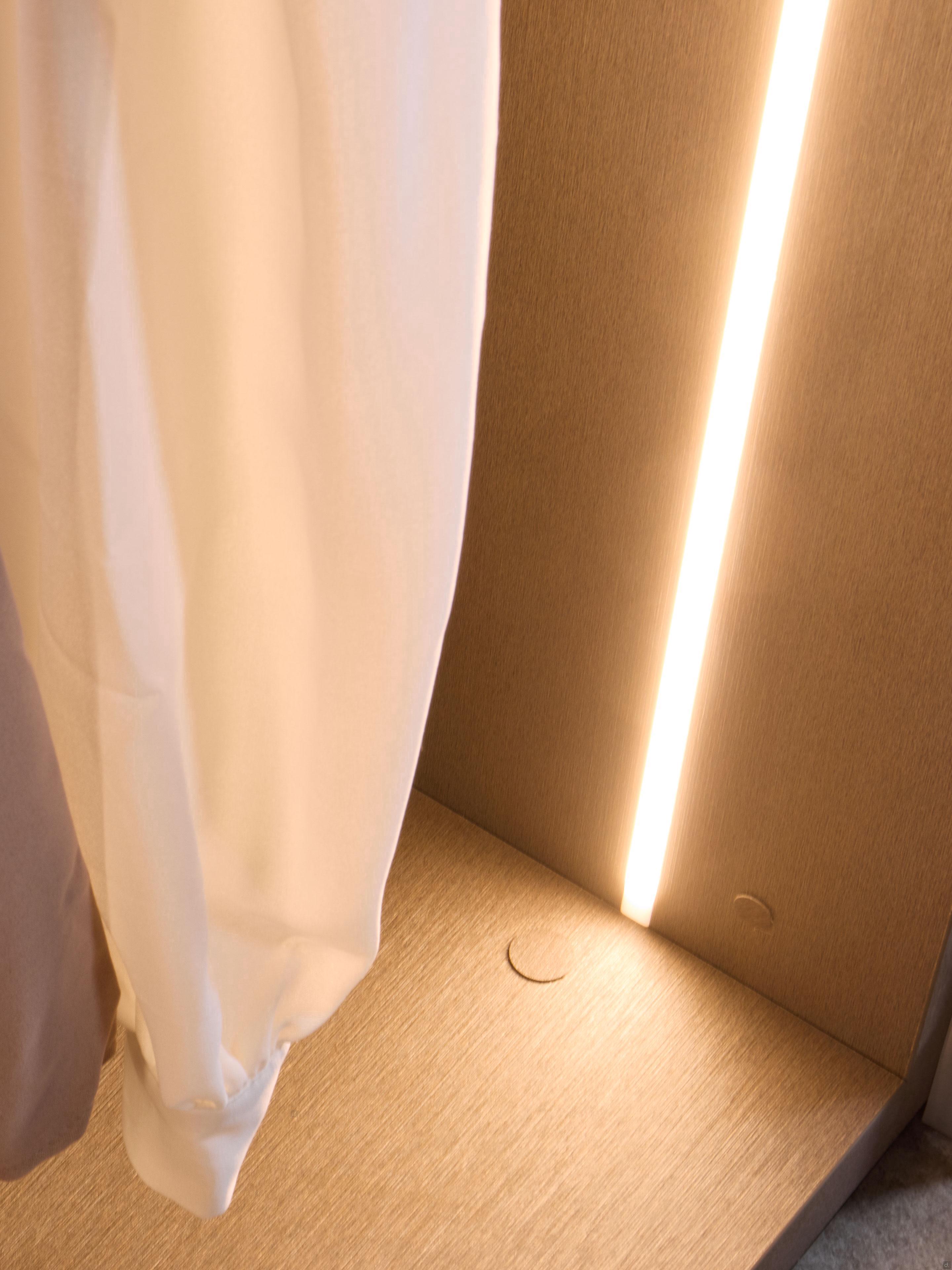

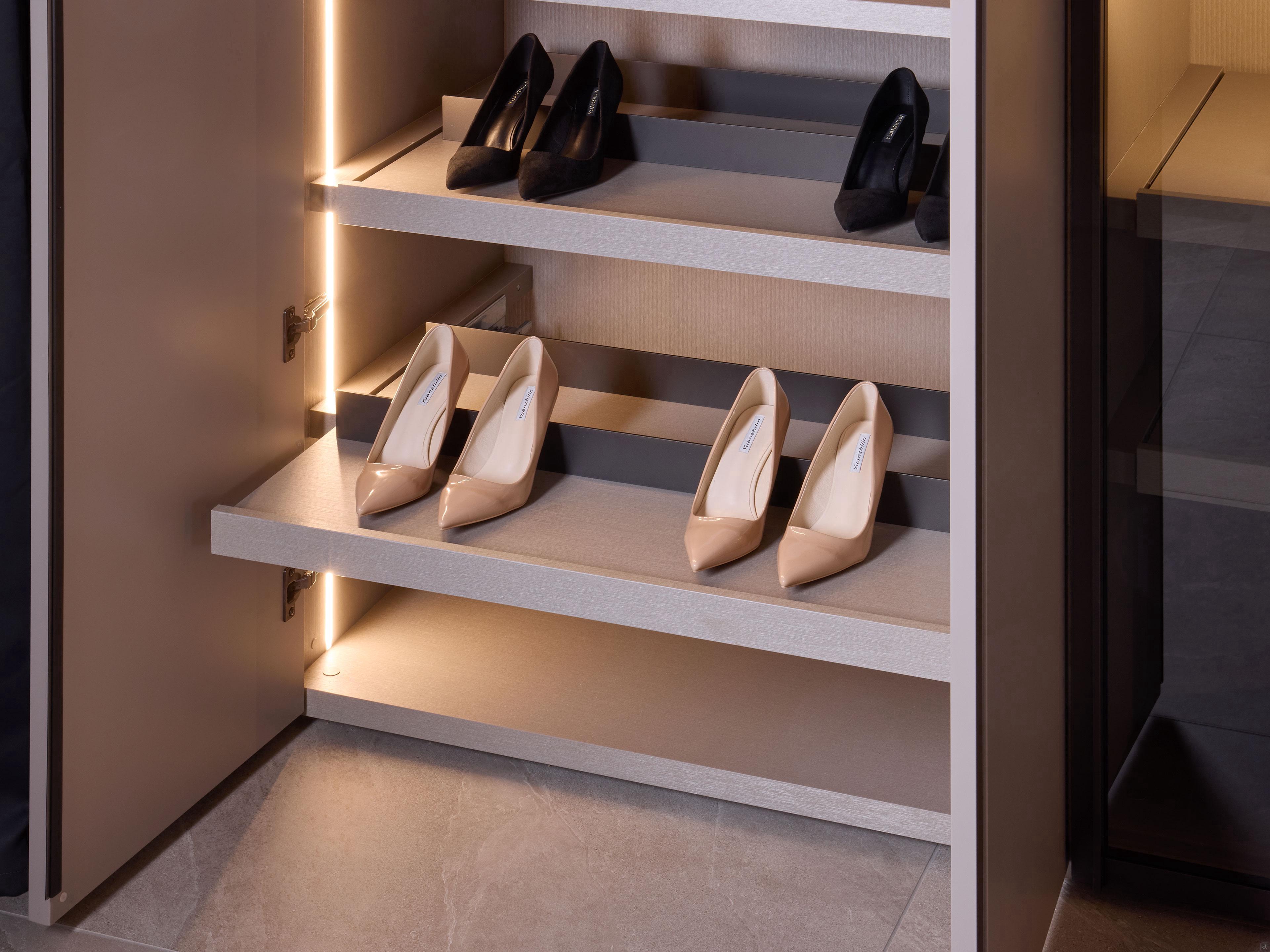

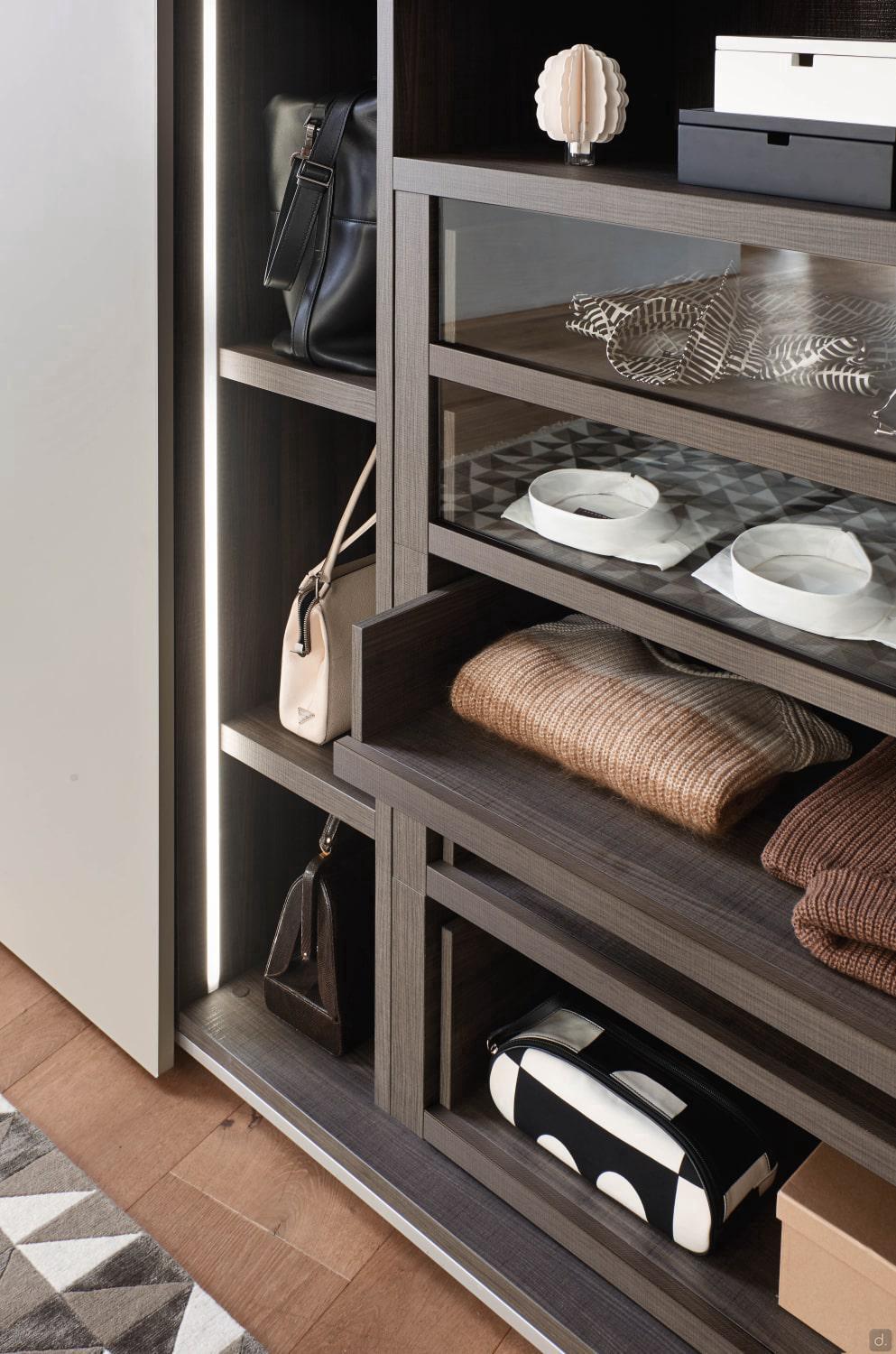

Led bars: switch through motion sensor, which activates once the doors open. It is fixed on the top part of the wardrobe. On vertical bars and tops the wire comes out directly above the top. Power supplies, placed on the tops, are equipped with 5 metres cables to make the connection easier. The vertical LED bars have the following power:
- 24 W for cm h.223,6 wardrobe
- 26 W for cm h.239,6 wardrobe
- 28 W for cm h.248,6 wardrobe
- 31 W for cm h.280,6 wardrobe
Remote control kit (optional): the kit includes a receiver to switch on and off the light through radio frequency, it supports power supplies for LED lights up to a max. of 300 W. It is compatible with all lighting systems, simply connect the receiver to your house system and the transformer/power supply (in case of multiple transformers please use a multi-plug socket).

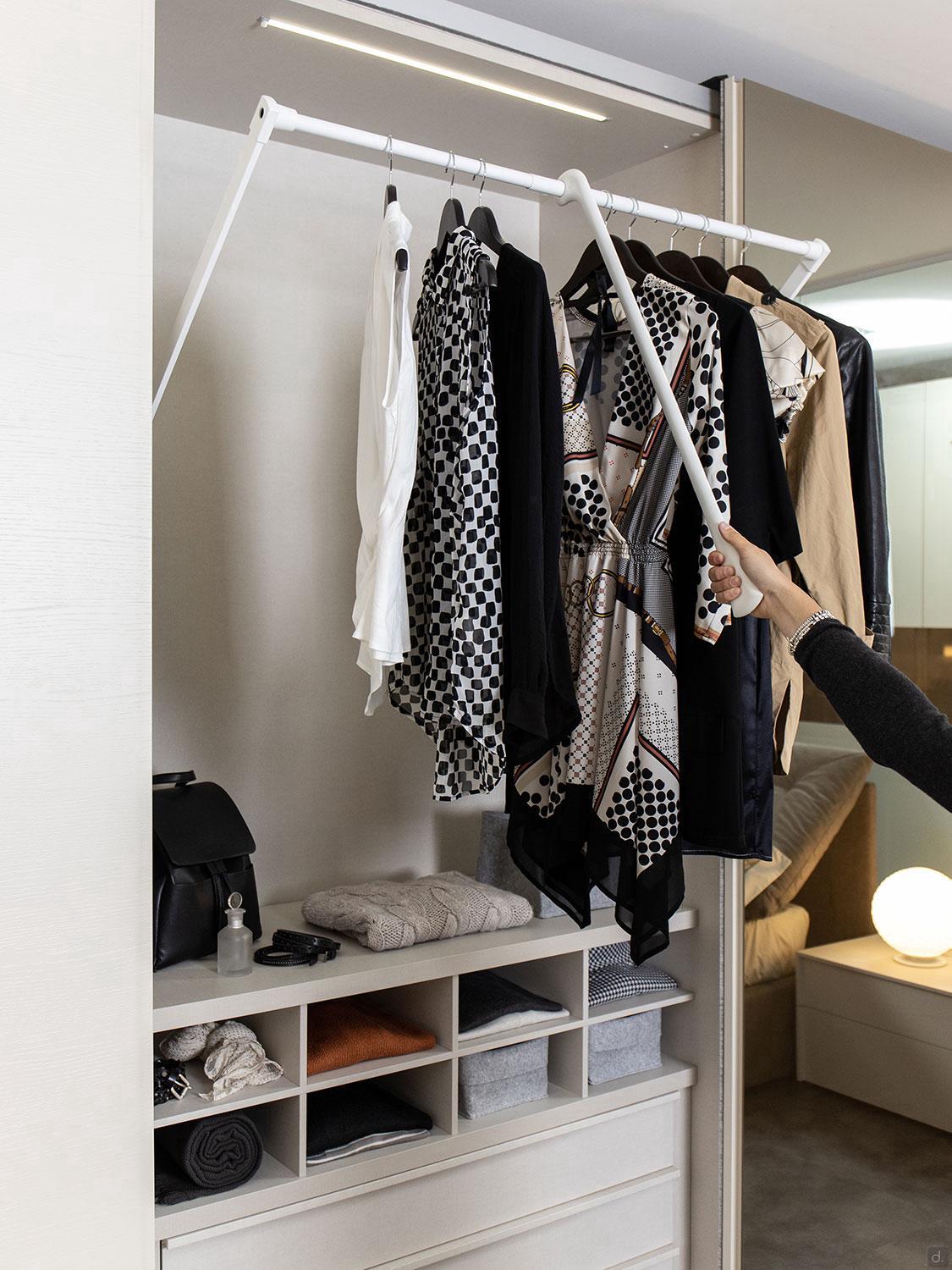

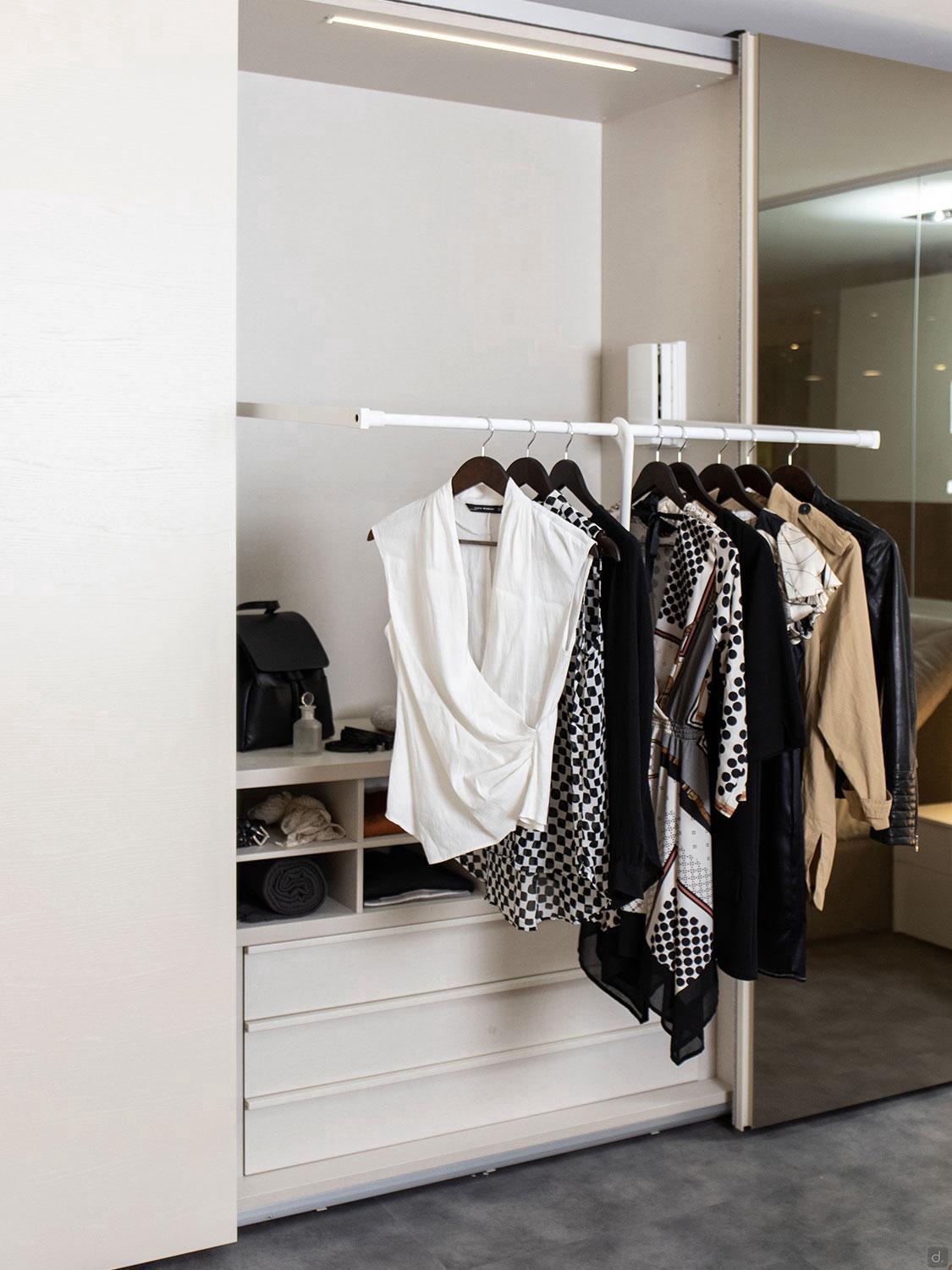

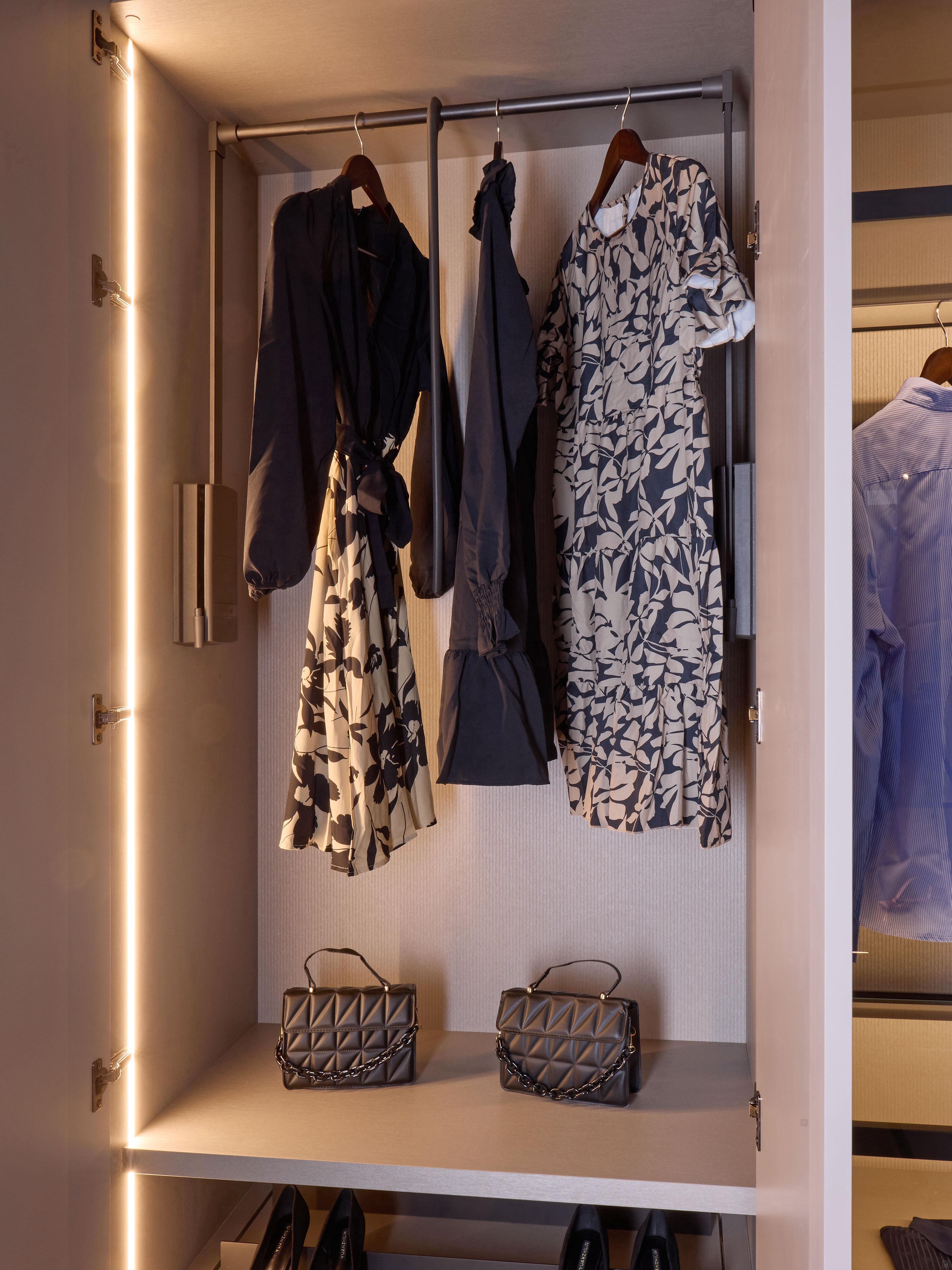

Pull-out Servetto: rail and vertical parts in Brown finish, max load 10 kg

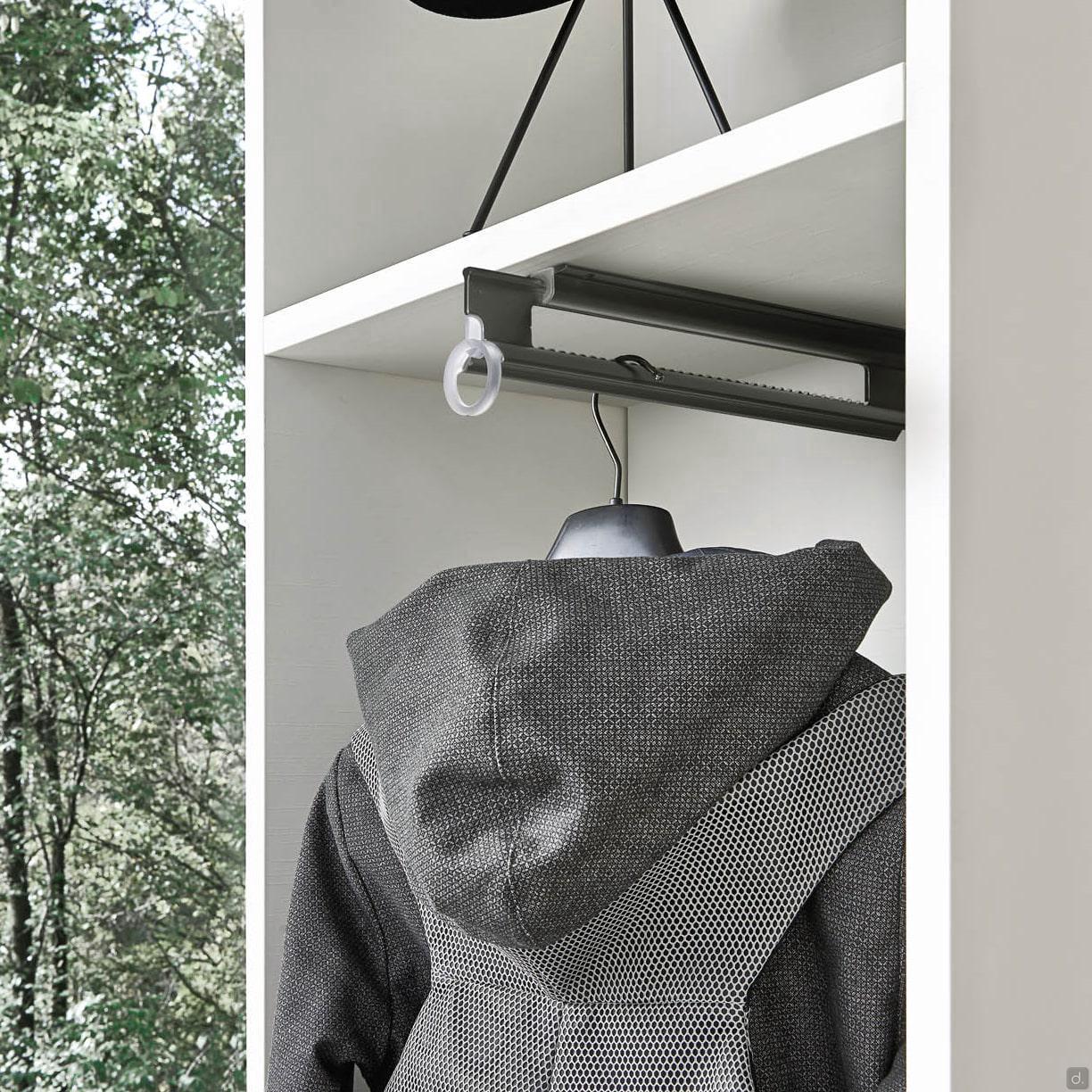

Pull-out clothes rail: runners in burnished aluminium and pull-out hook in opal white.

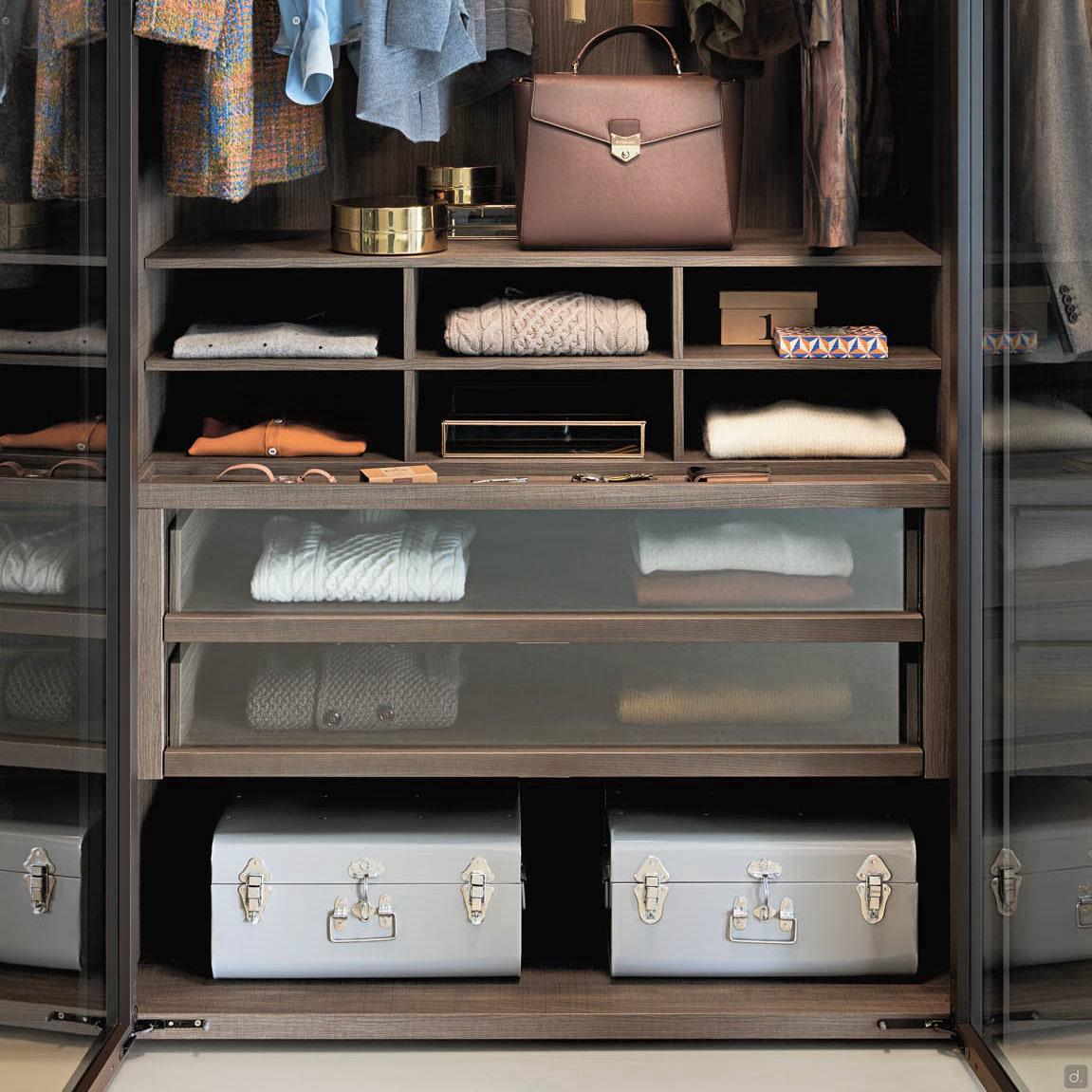

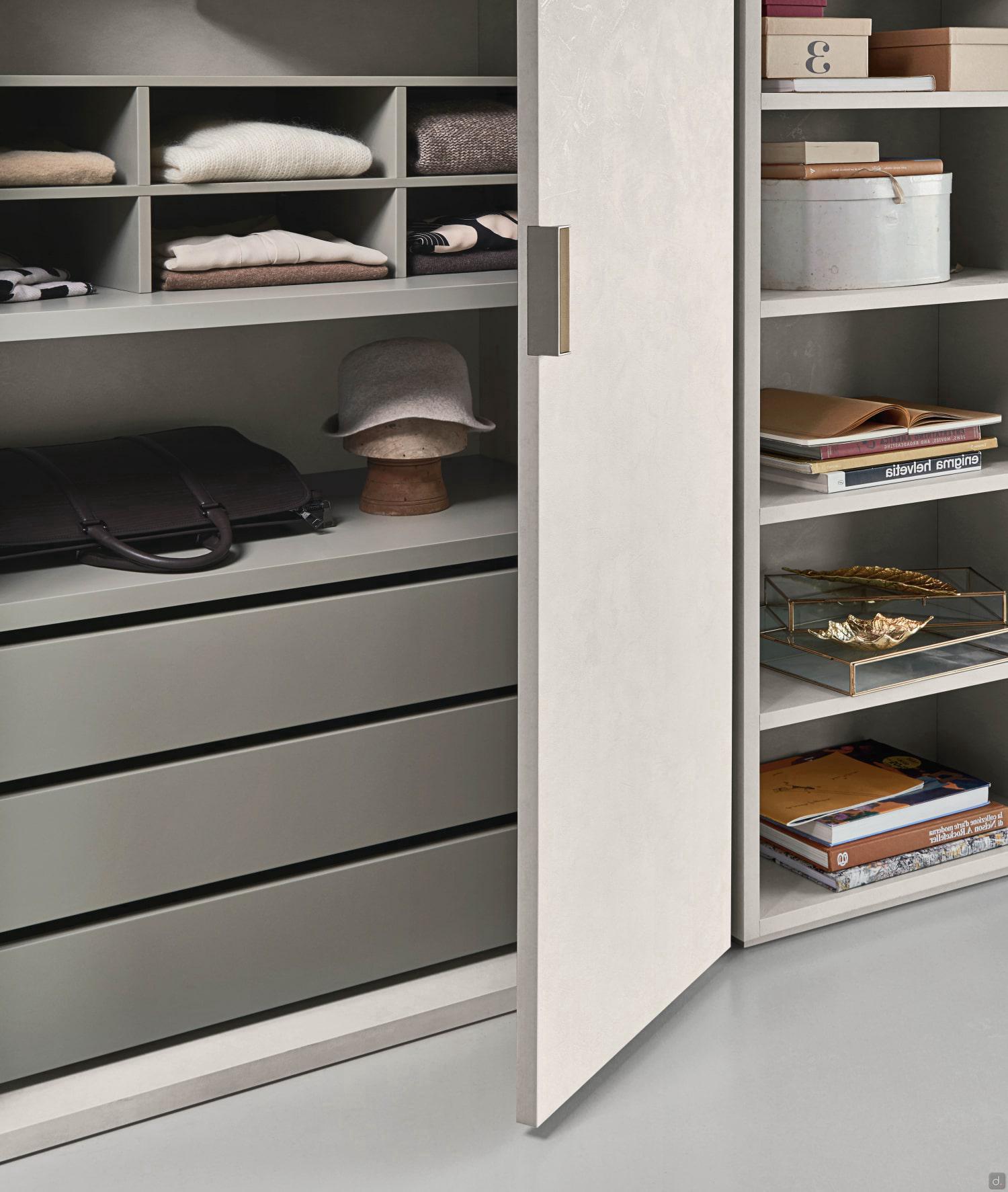

Shirt raster: always standing on a shelf or a chest of drawers. Depth cm 37,5. The elements composing the grid and the top have a thickness of cm 1,5.

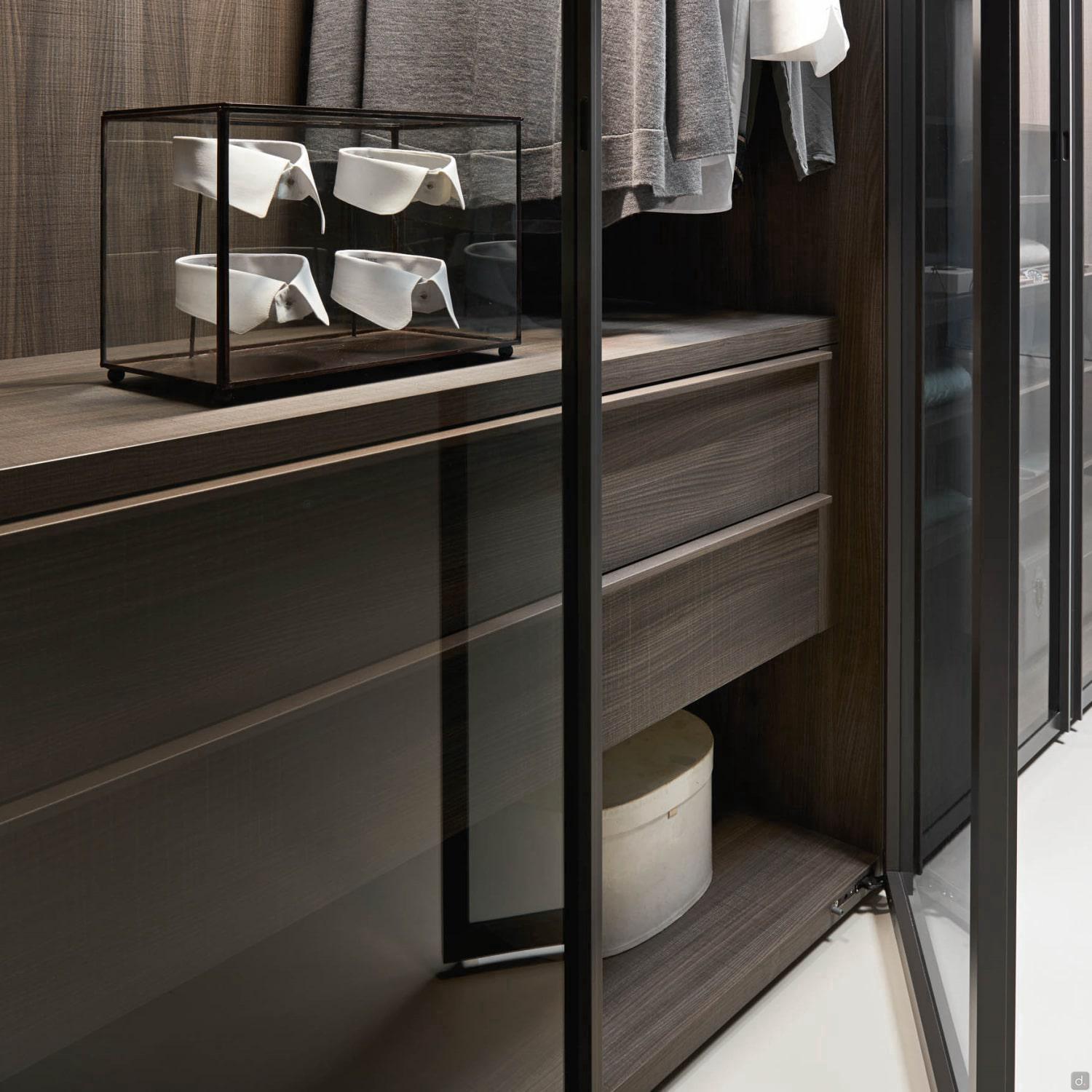

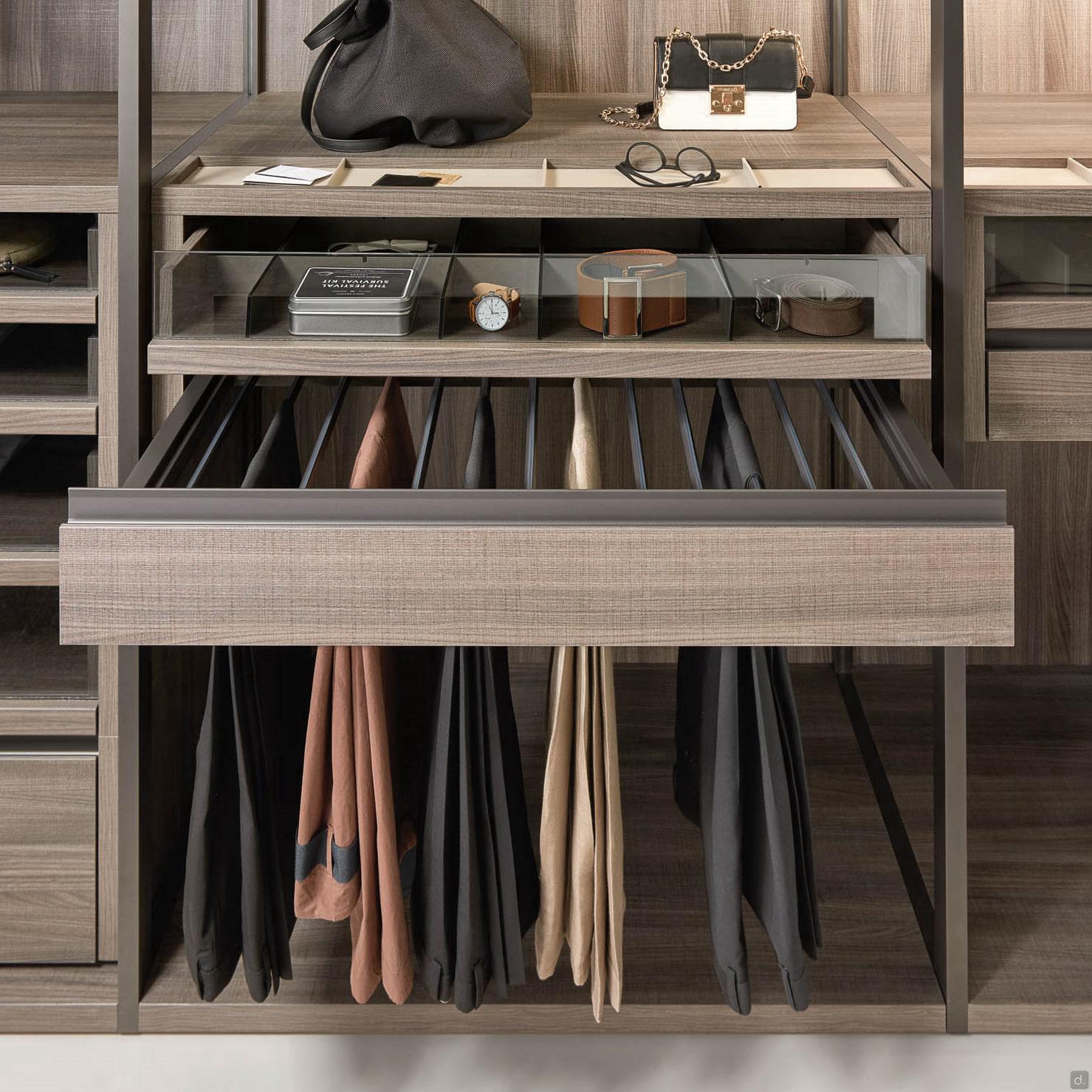

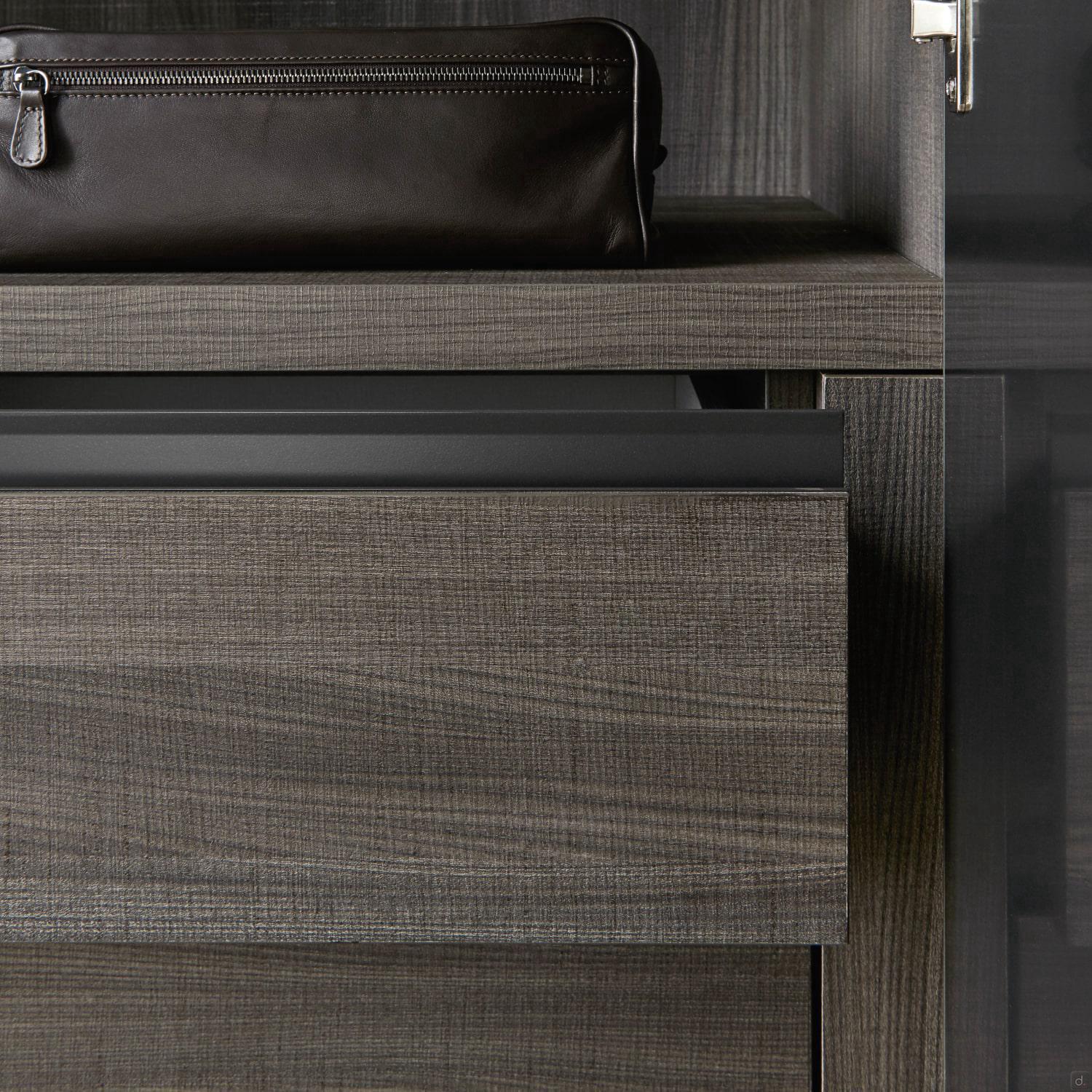

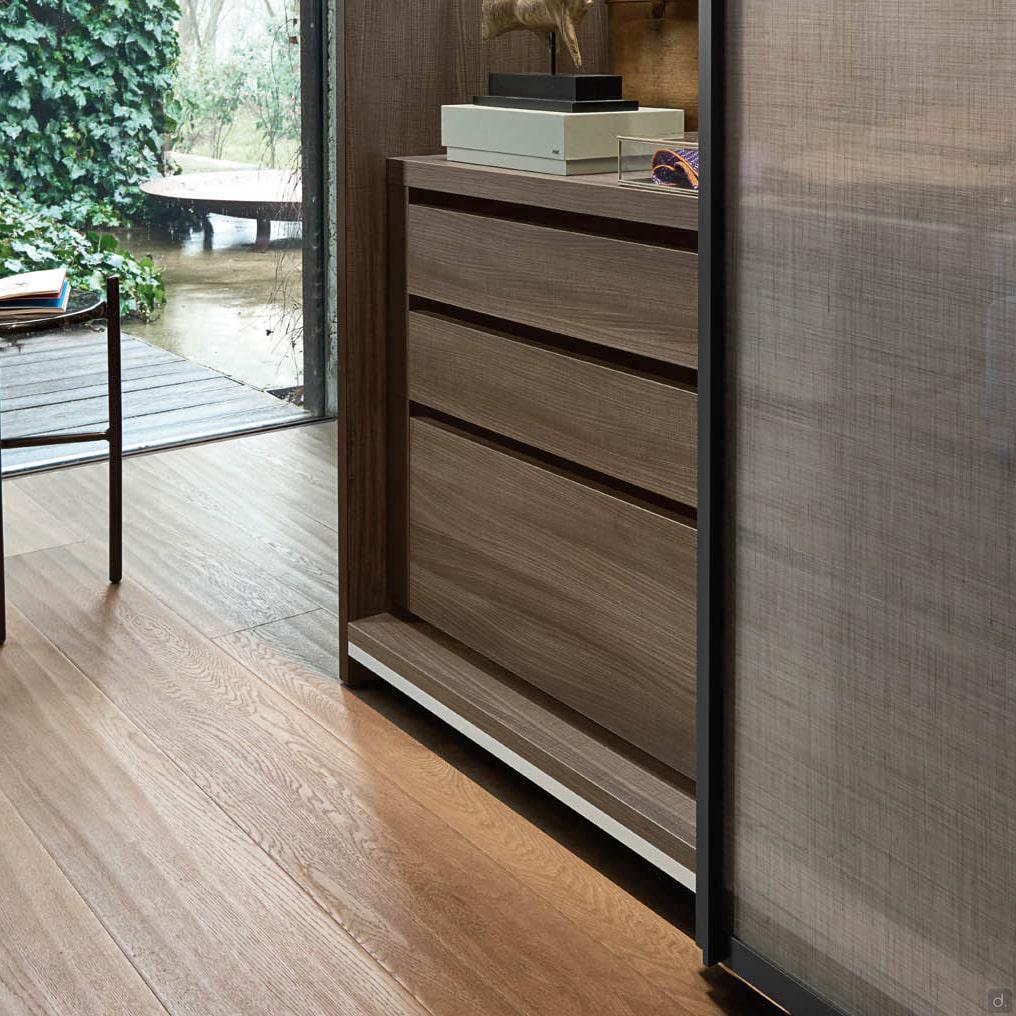

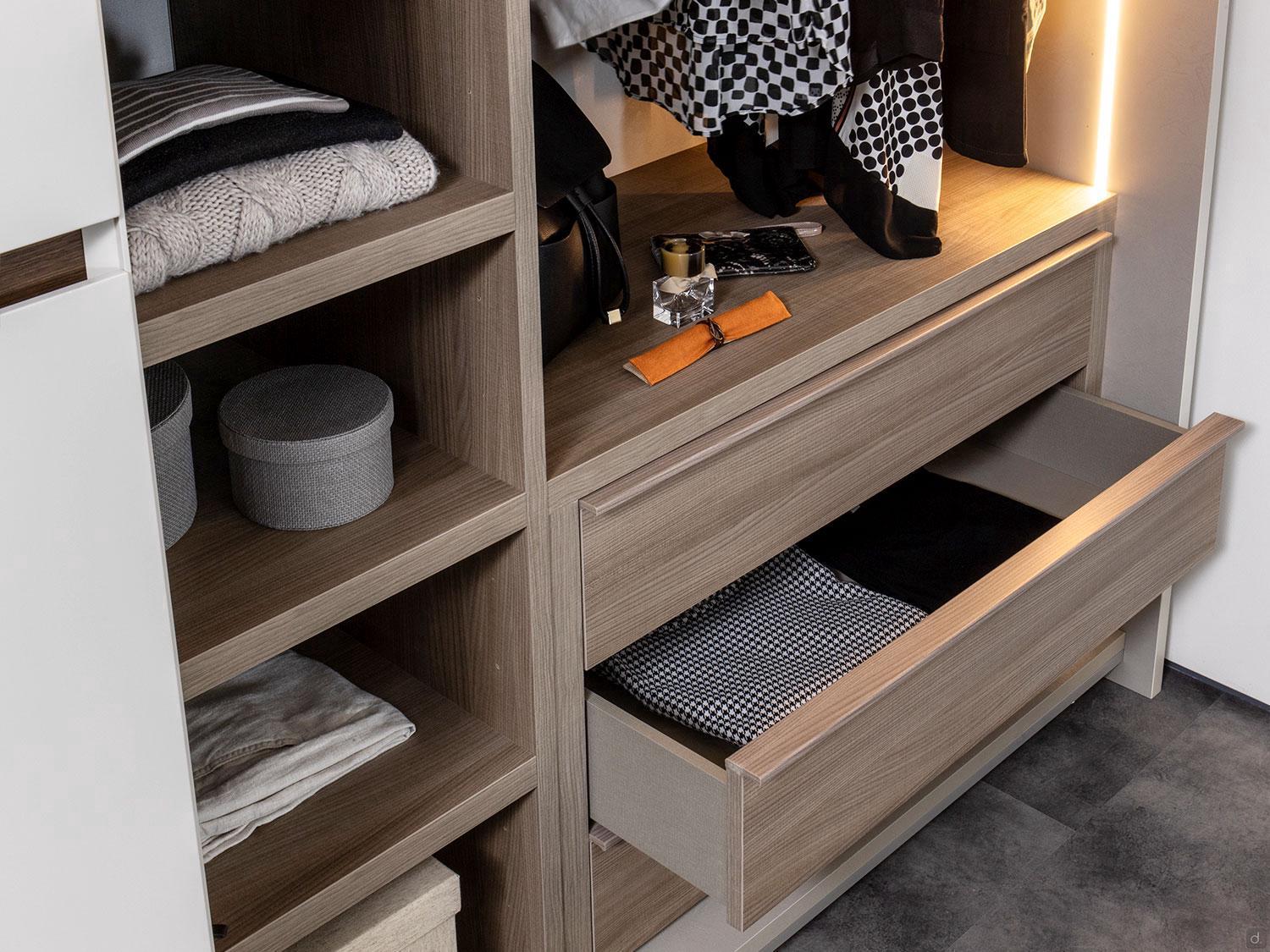

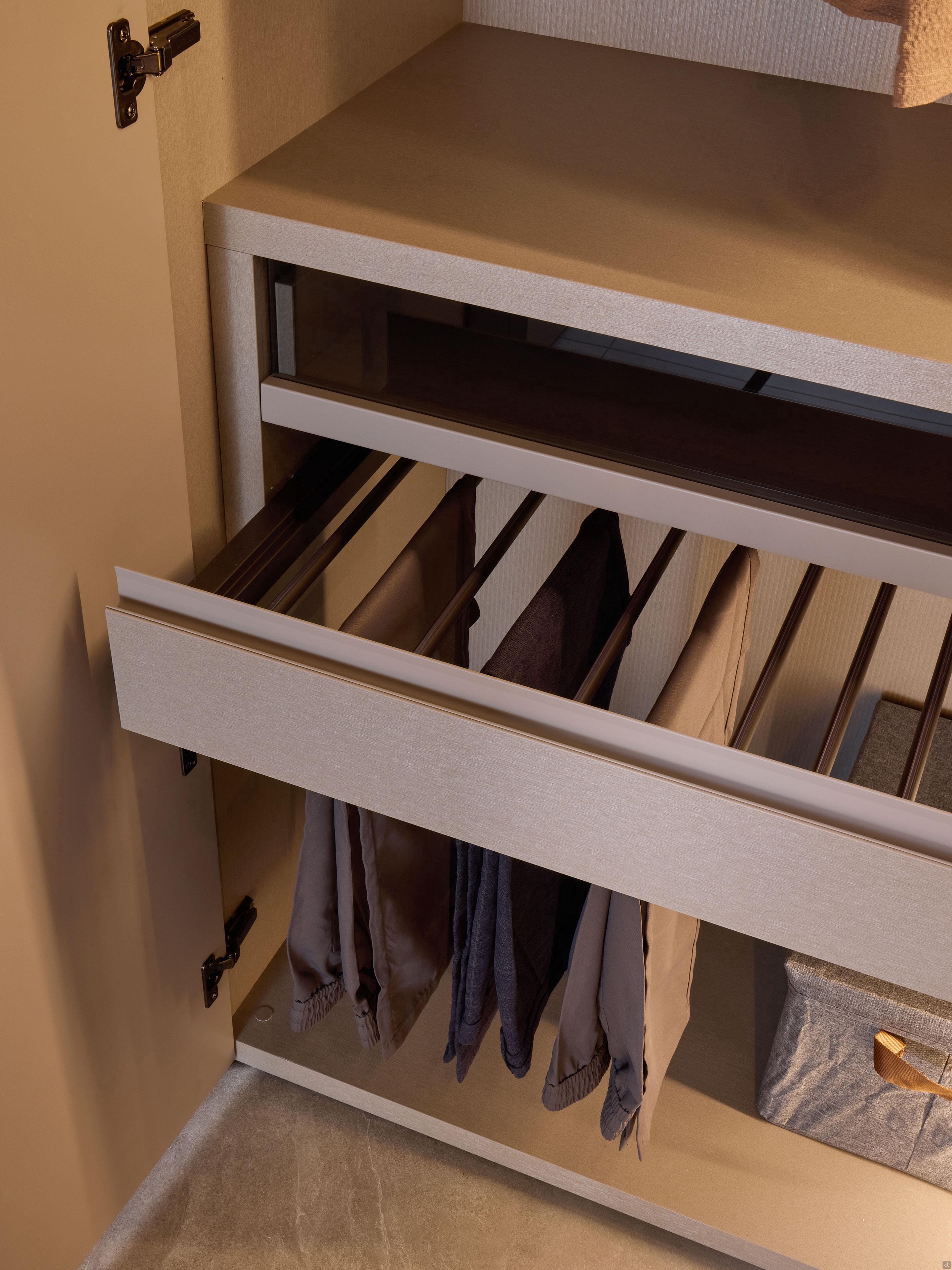

Chest of drawers / pull-out trouser rack: by choosing the opening with recess grip, the colour combinations are the following:
- linen textured: matt linen recess grip
- eco-walnut: matt brown recess grip
- loto natura / taupe grey: matt rope grey recess grip
- loto terra: matt terranova recess grip
- medium elm: matt gunmetal recess grip
- dark elm: matt brown recess grip
- sand sketch: matt canvas recess grip
- rock sketch: matt silica recess grip
- tobacco sketch: matt beaver recess grip

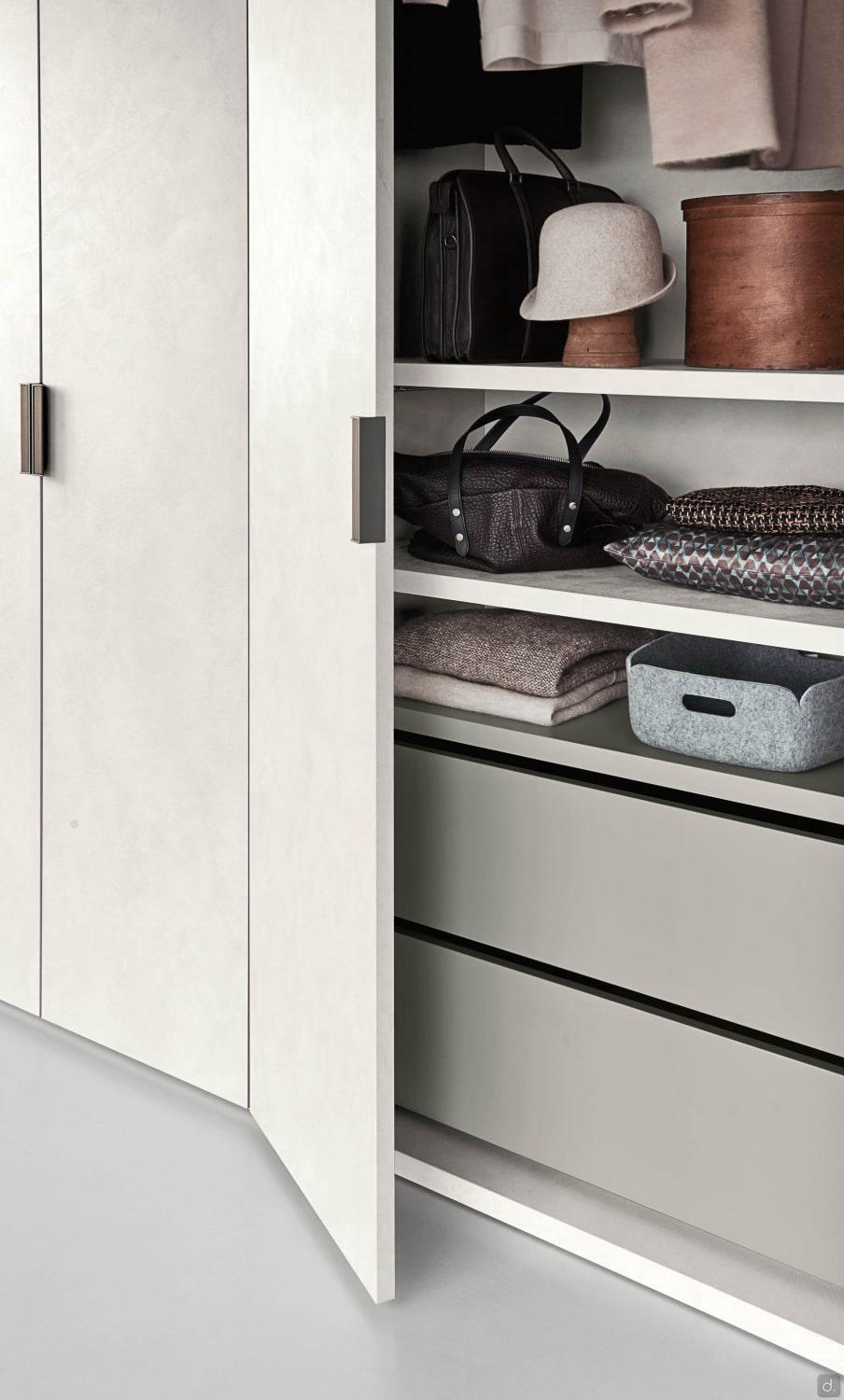

By choosing the opening with handle, the colour combinations are the following:
- textured linen: matt linen recess grip
- natura / taupe loto: matt rope grey handle
- terra loto: matt terranova handle
- medium elm: medium elm handle
- dark elm: dark elm handle

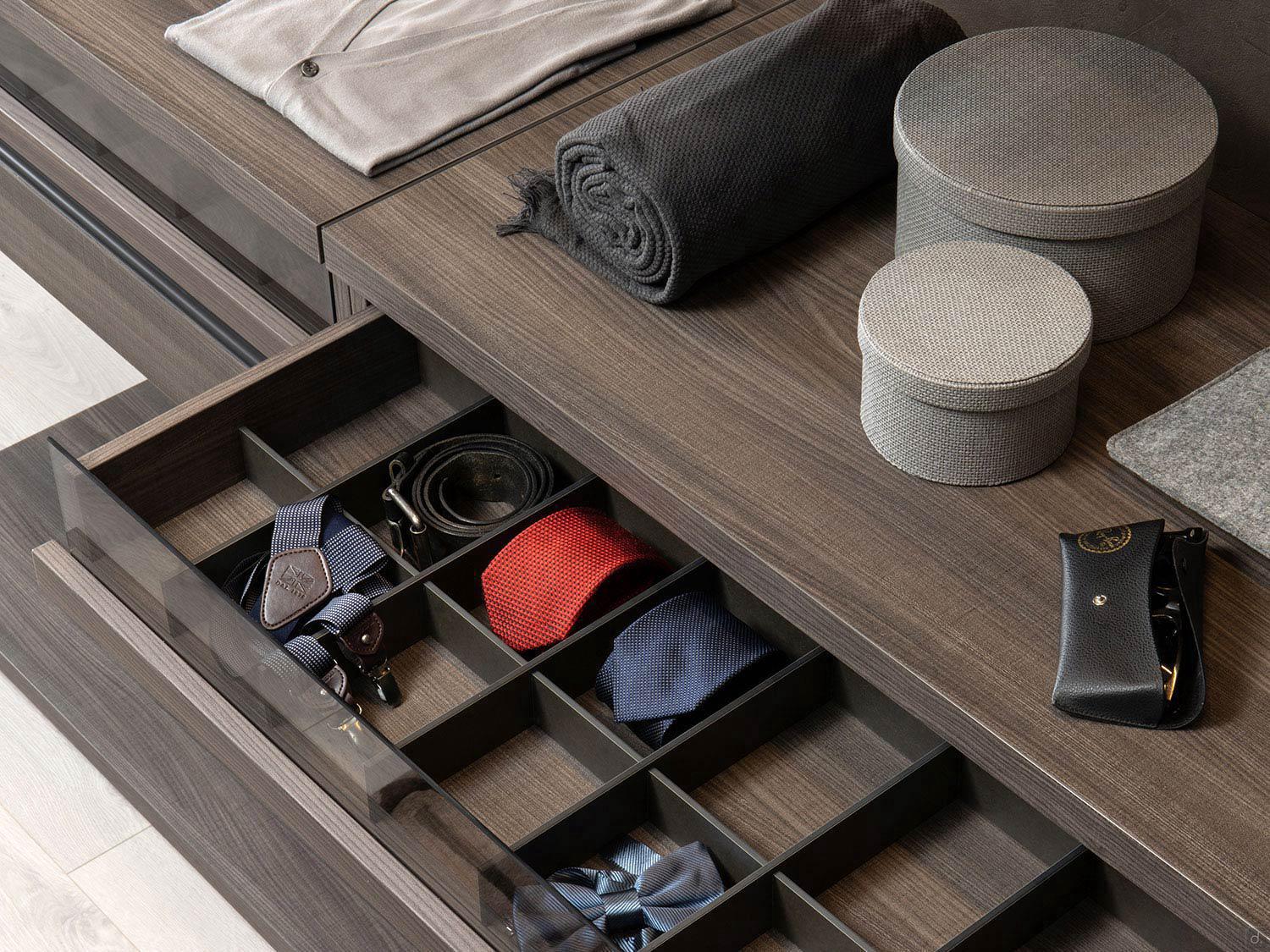

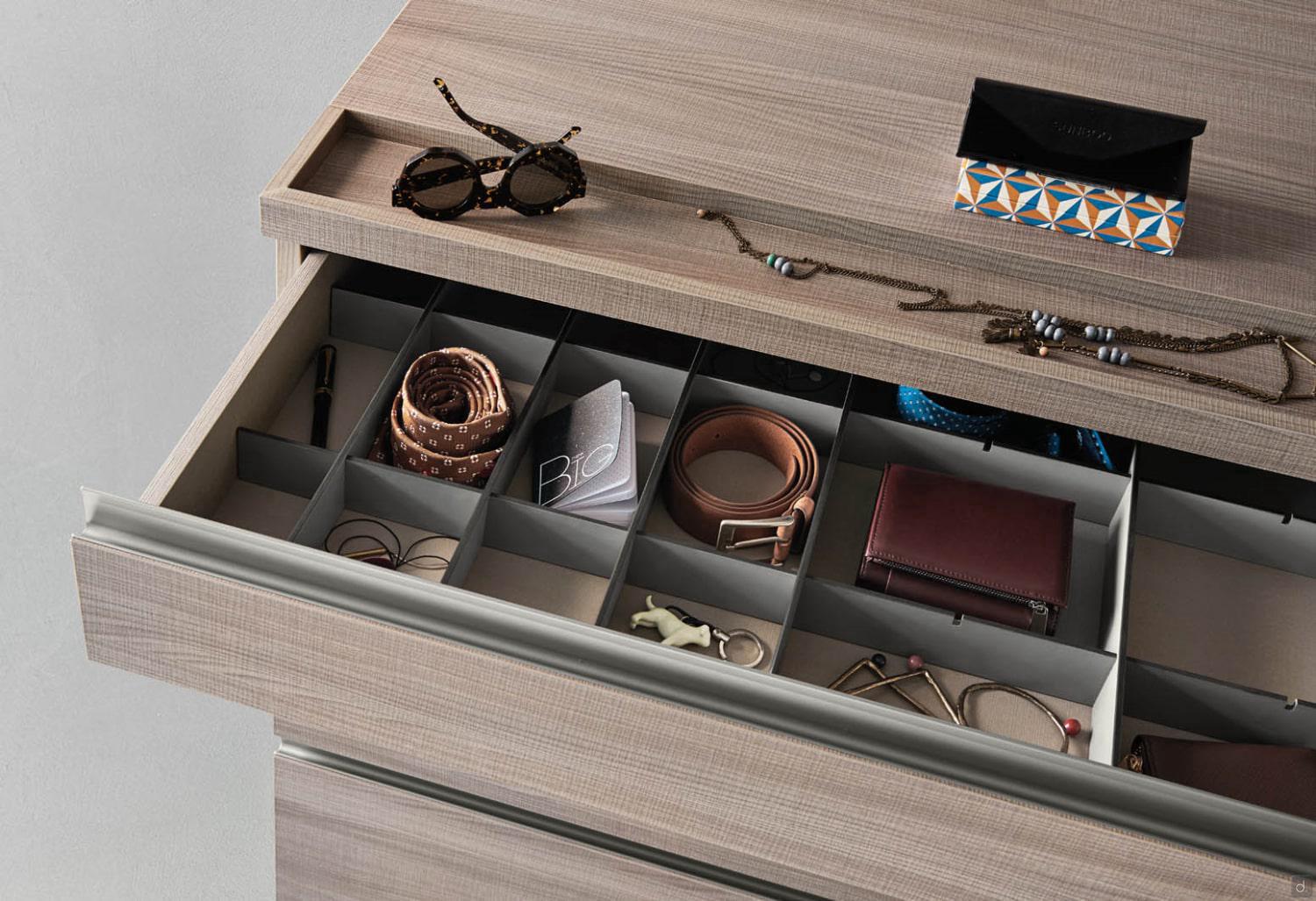

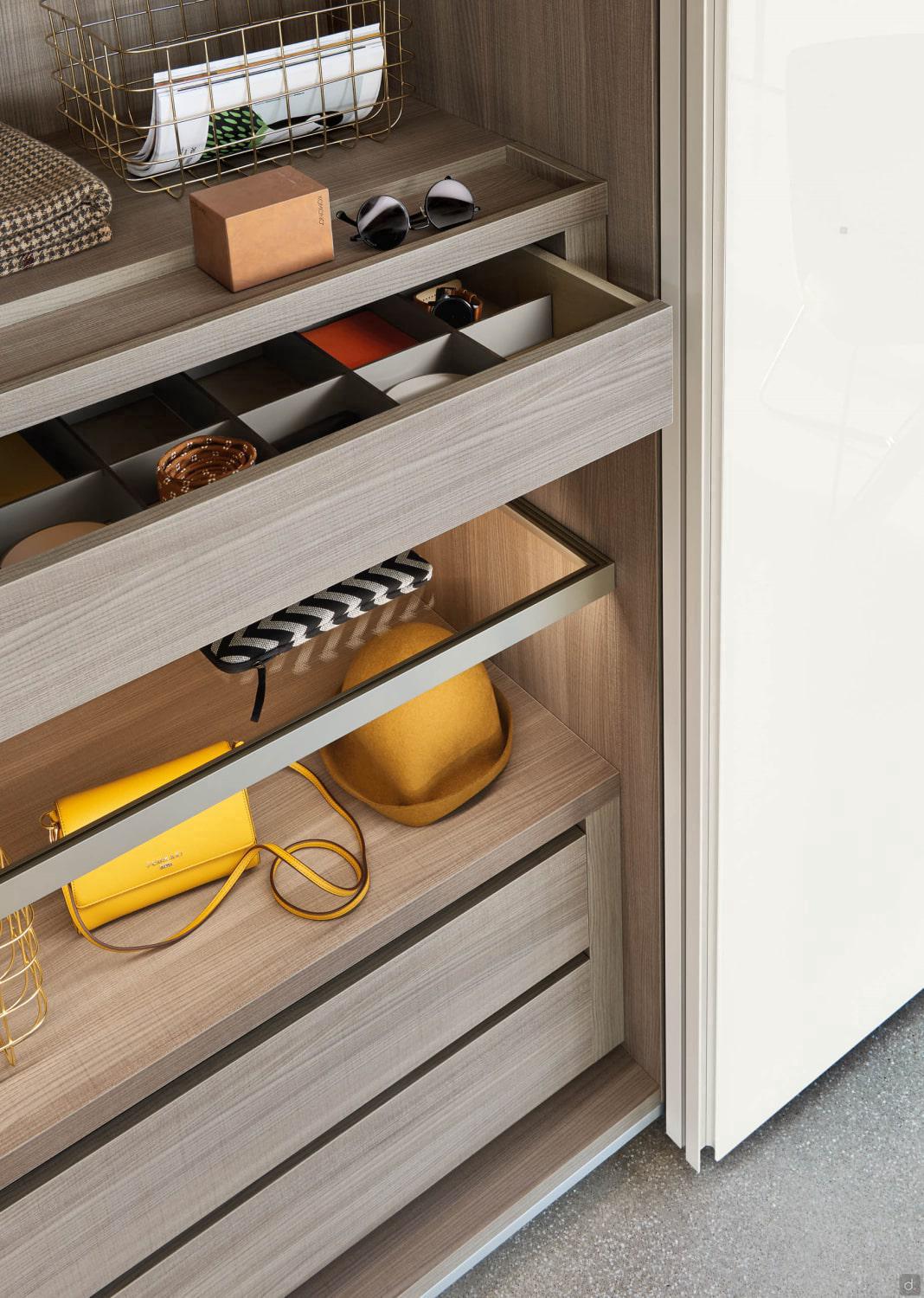

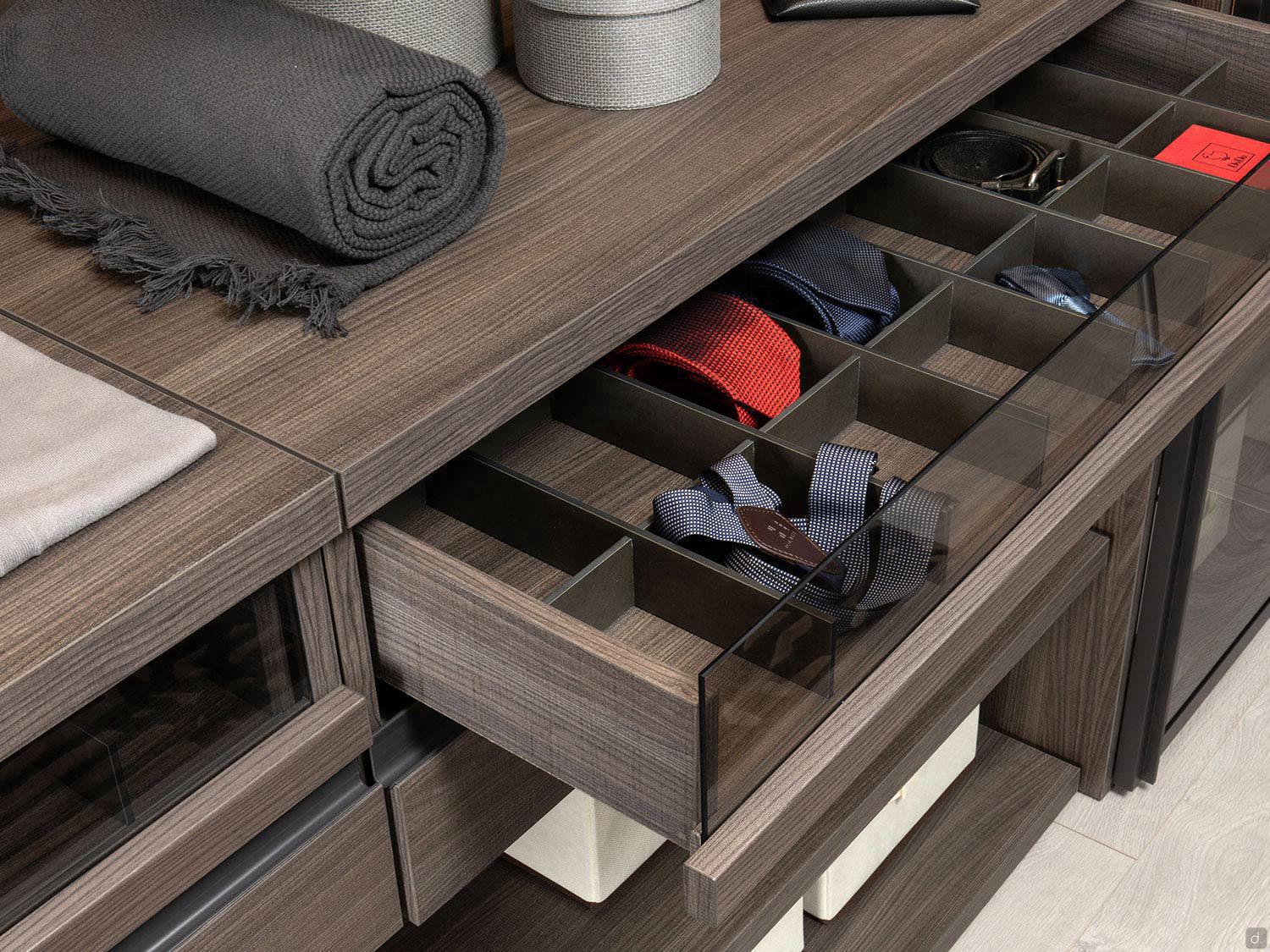

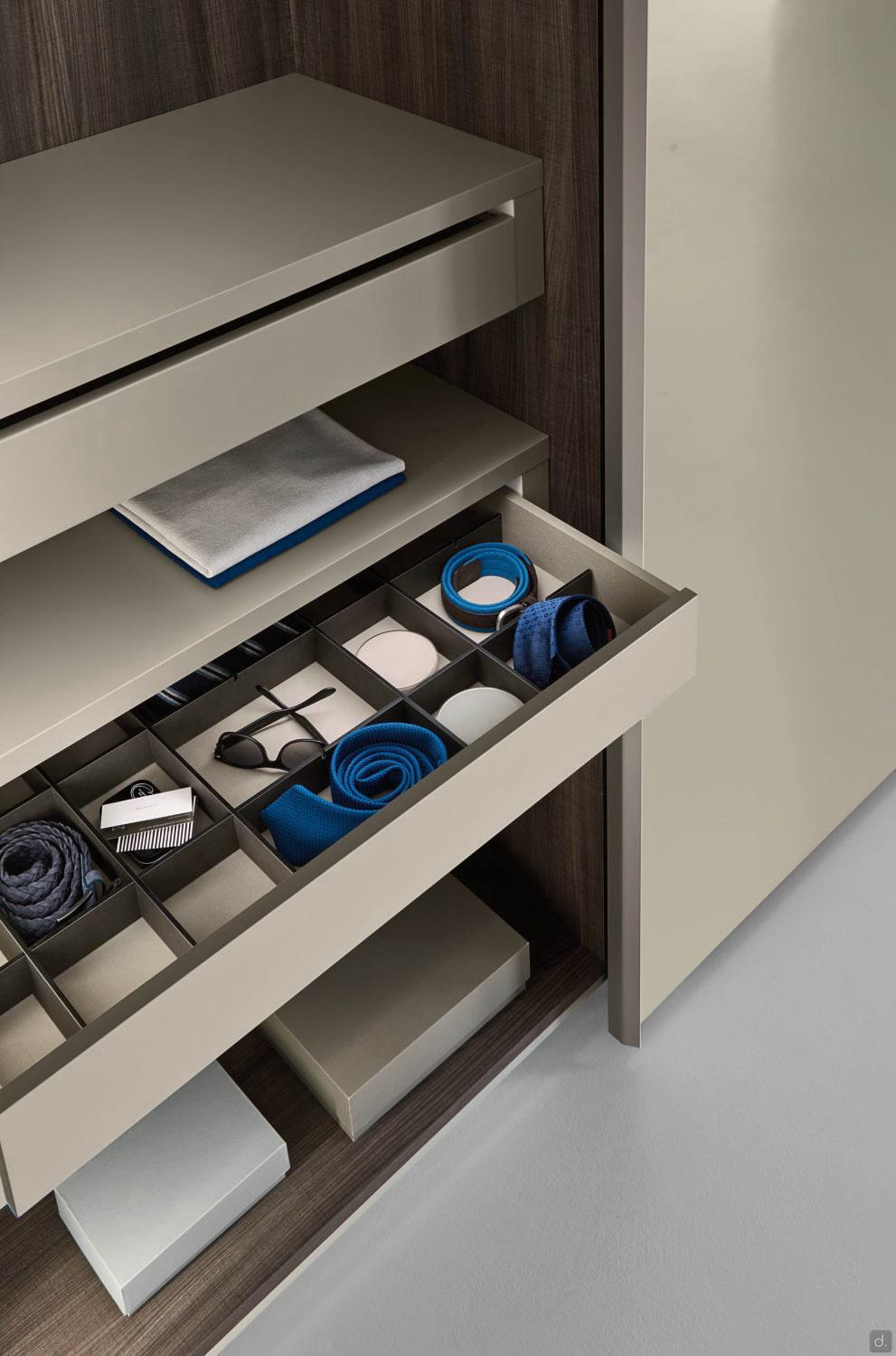

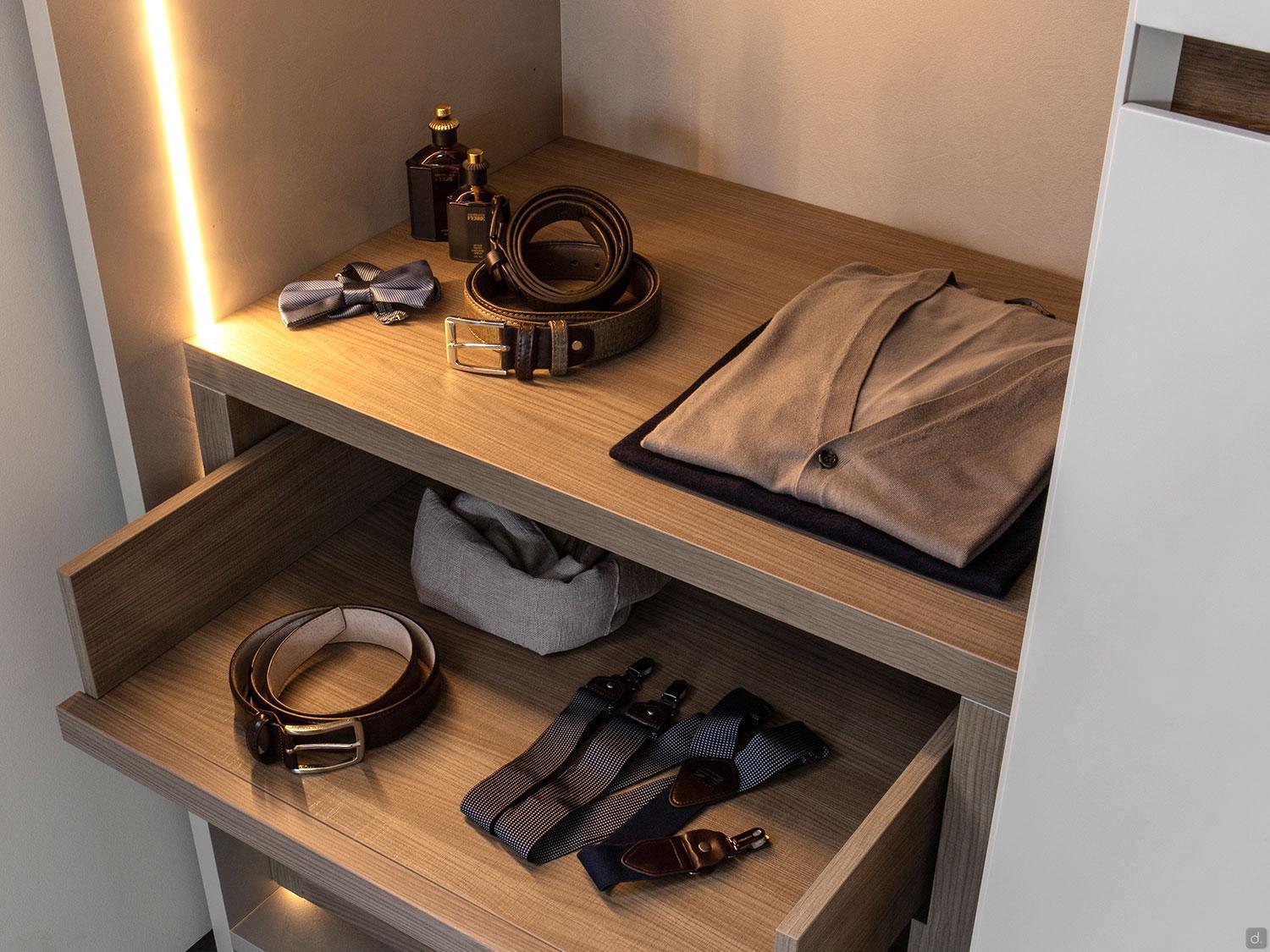

Pocket emptier: made with folding technique on the top of the chest of drawers, pull-out trouser rack, has a usable internal depth of cm 10,8. It can be equipped with practical belting leather dividers:
- with 2 compartments for cm 57,5 chest of drawers
- with 3 compartments for cm 72,5 chest of drawers
- with 4 compartments for cm 87,5, 97,5 and 117,5 chest of drawers
Assembling Tips

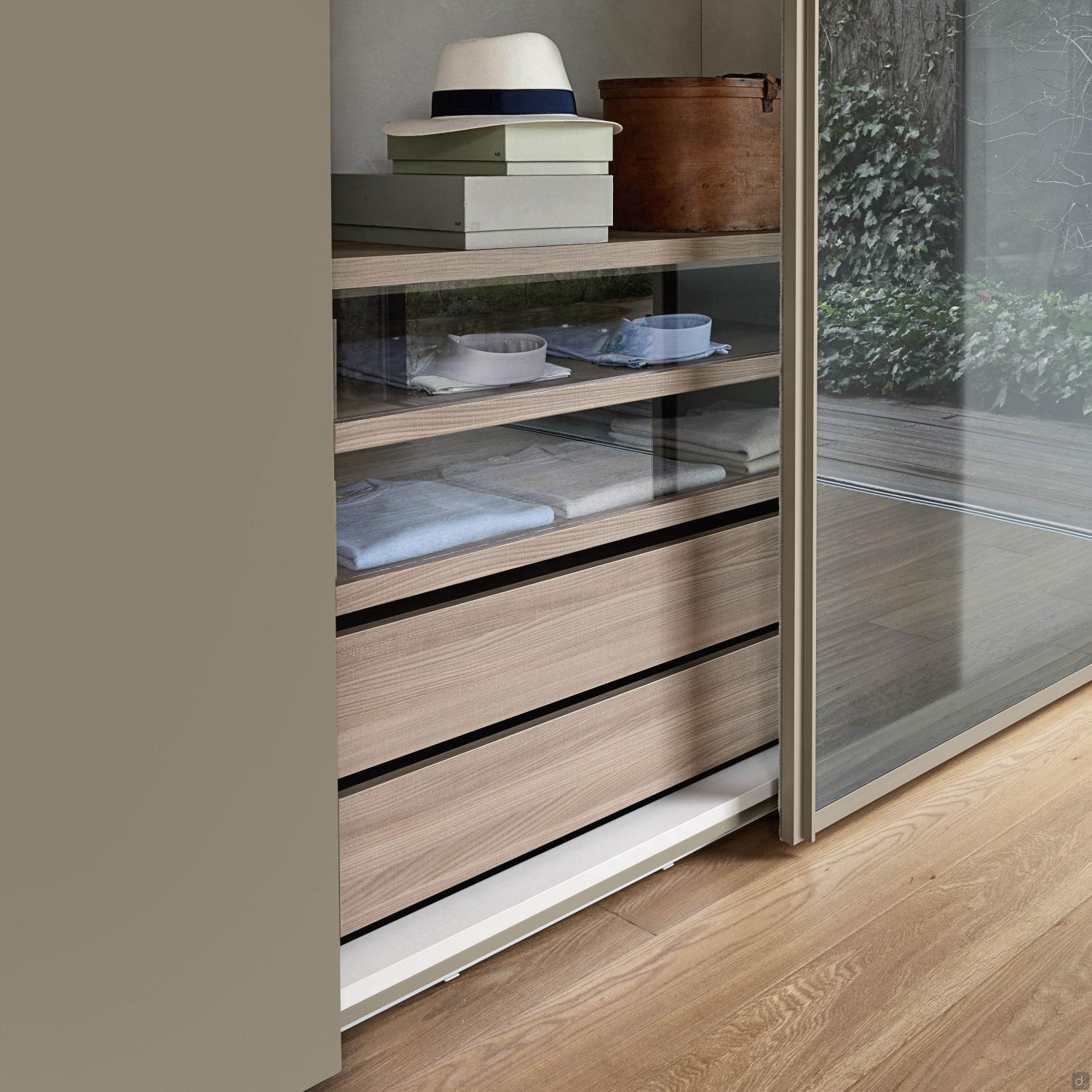

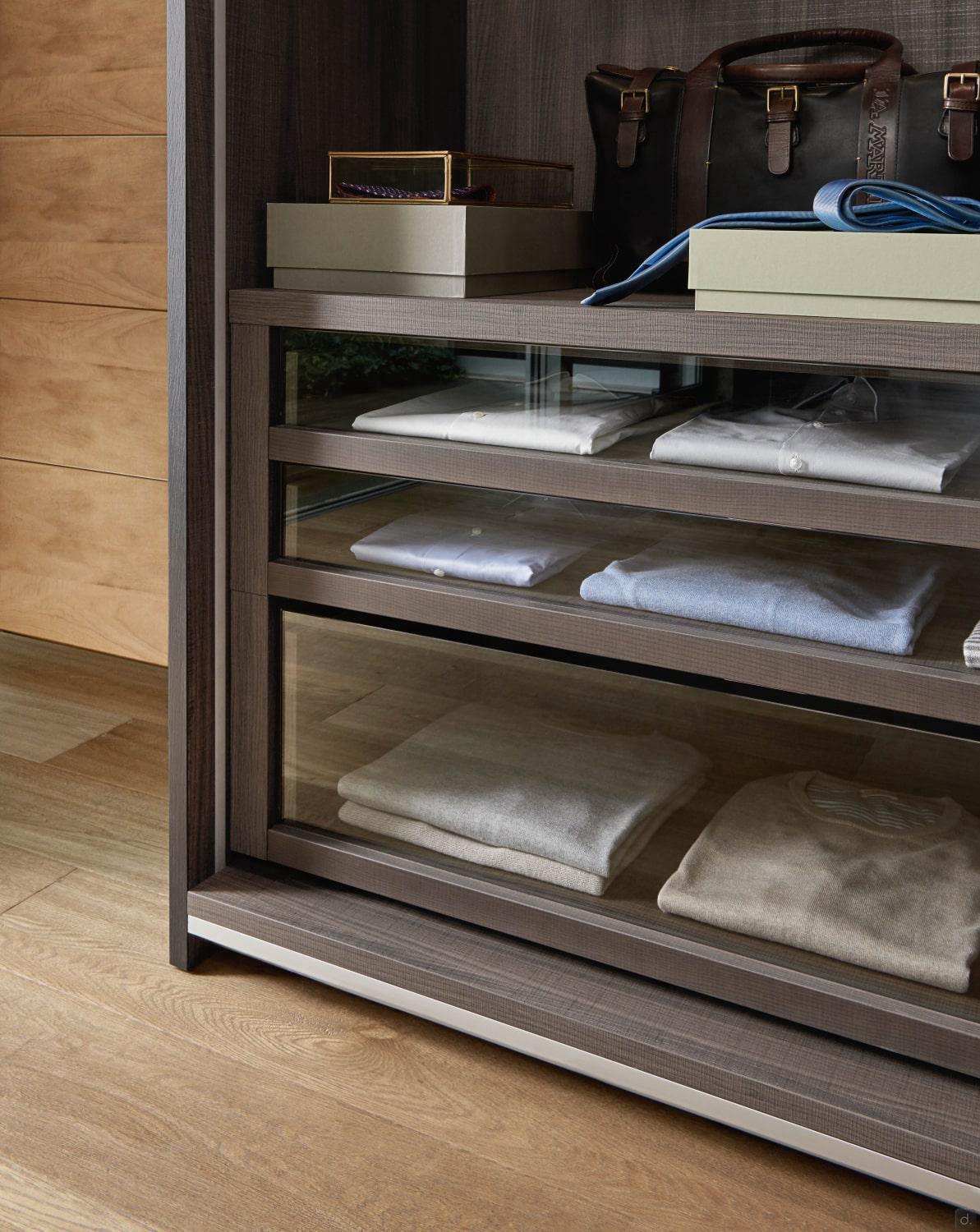

Chest of drawers with glass fronts and pull-out trays can not be placed above the chest of drawers with handle (the opening will not be accessible as the other two models have a lower recess which will cover the handle).
In 43,5 cm deep hinged door wardrobes it is not possible to insert shirt rasters in correspondence of the hinges:

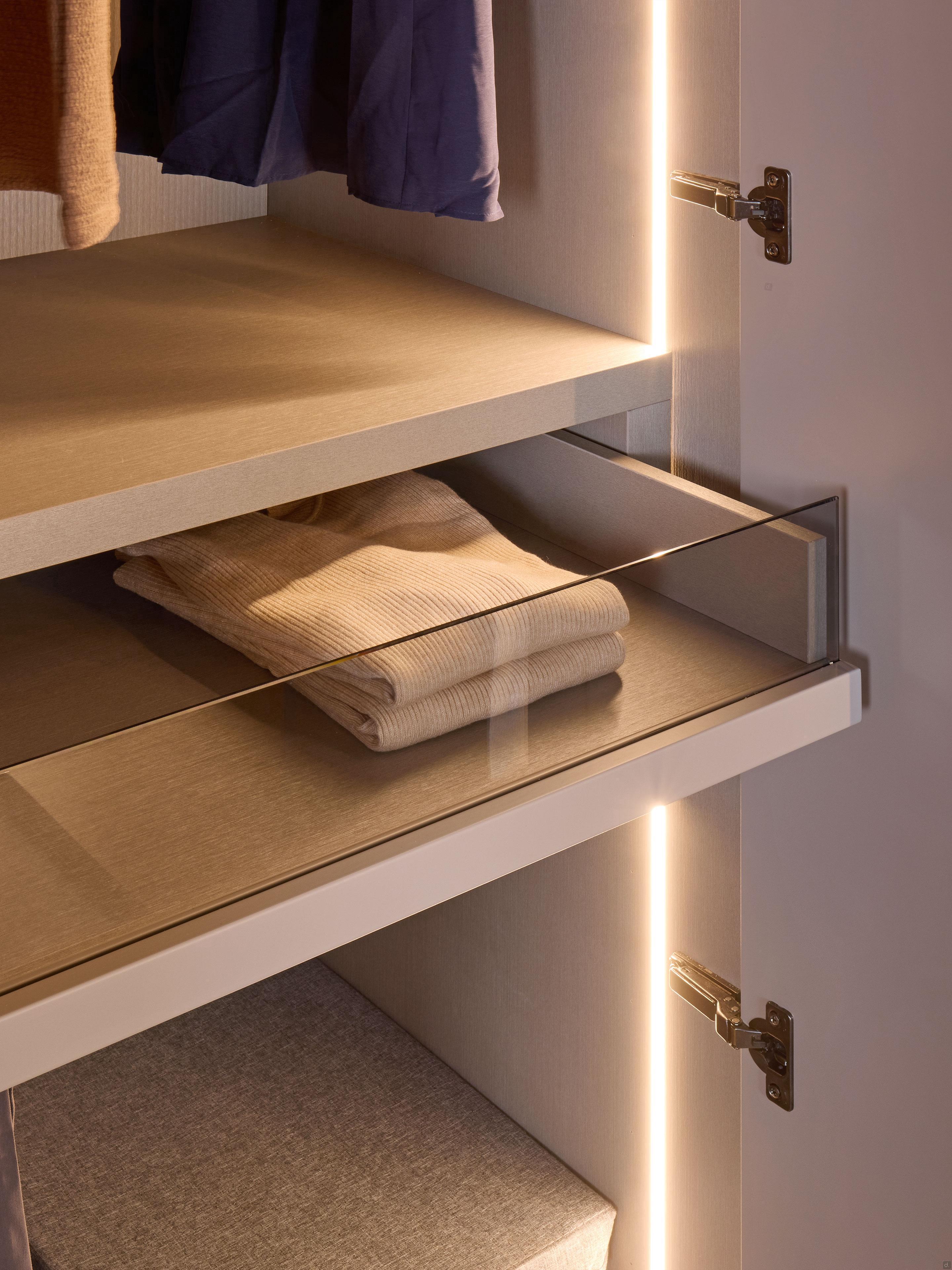

Vertical LED bars are fixed at a distance of cm 8,7 to avoid the overlapping with the doors hinges.
