Technical Specifications and Equipment
Structure: made from TAMMEL (honeycomb panel + melamine). The honeycomb panel has a frame made from carefully selected solid pine and the honeycomb plated with panels of MDF. Guarantees durability, lightness, practicality and meets all the requirements of the European Class 1 Standards regarding the limitation of harmful emissions of formaldehyde, meets the CARB2 standards.
Side and Back Panels: made from melamine (E1 class with low formaldehyde emission), meets the CARB2 standards. The side panels are cm 2,5.
Base and Top:honeycomb panels, 2,5 cm thick.

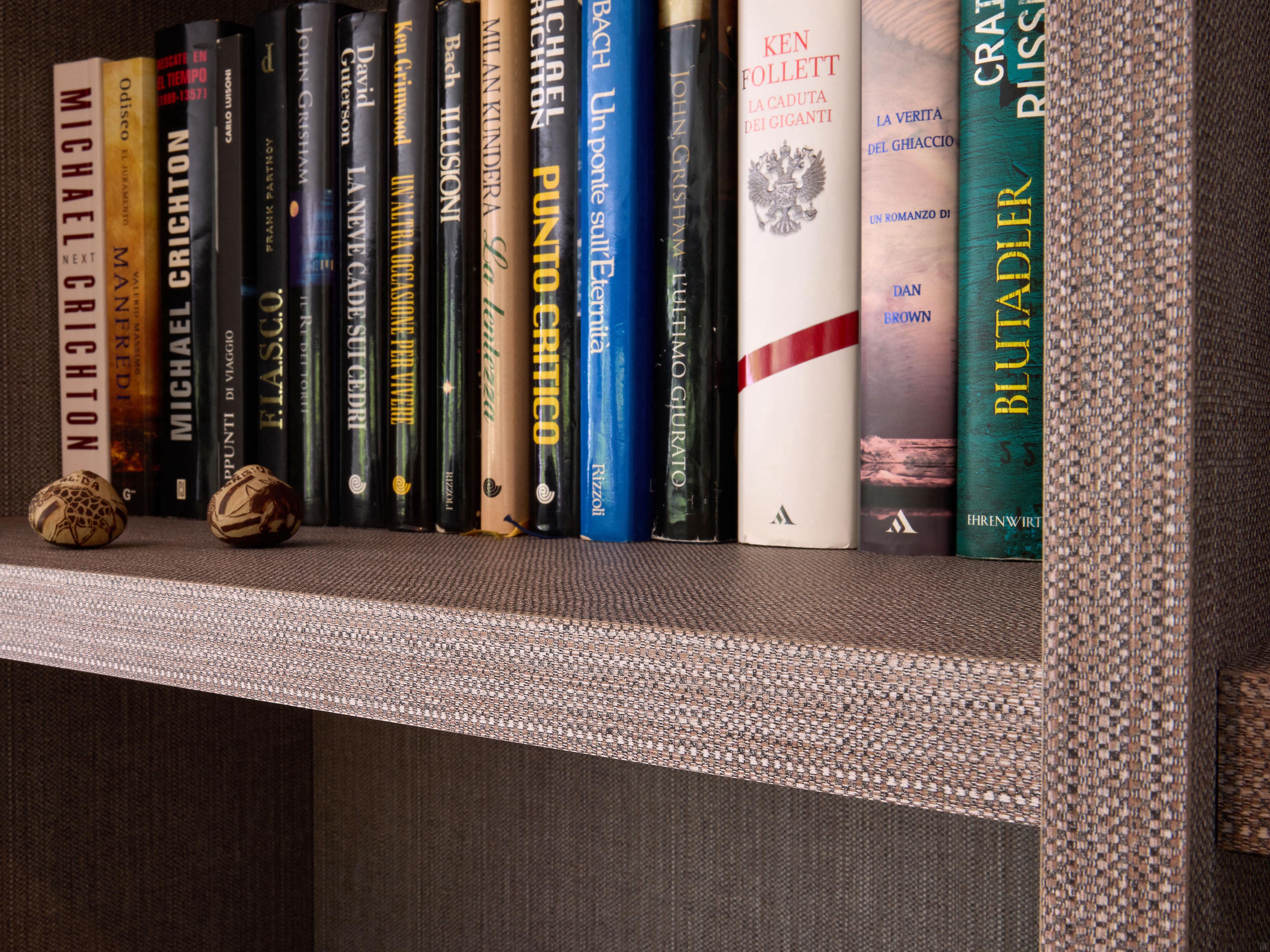

Shelf: honeycomb panel, 3,2 cm thick 36,1 cm thick.
Please Note: The sides are always supplied without edging on the short sides. This difference in finish, which is often hidden from view once the wardrobe is assembled, deliberately leaves the solid spruce frame of the honeycomb sandwich panel exposed in order to enhance the wooden component of the element and show the high quality of the finished product.
Side-Panel Holes

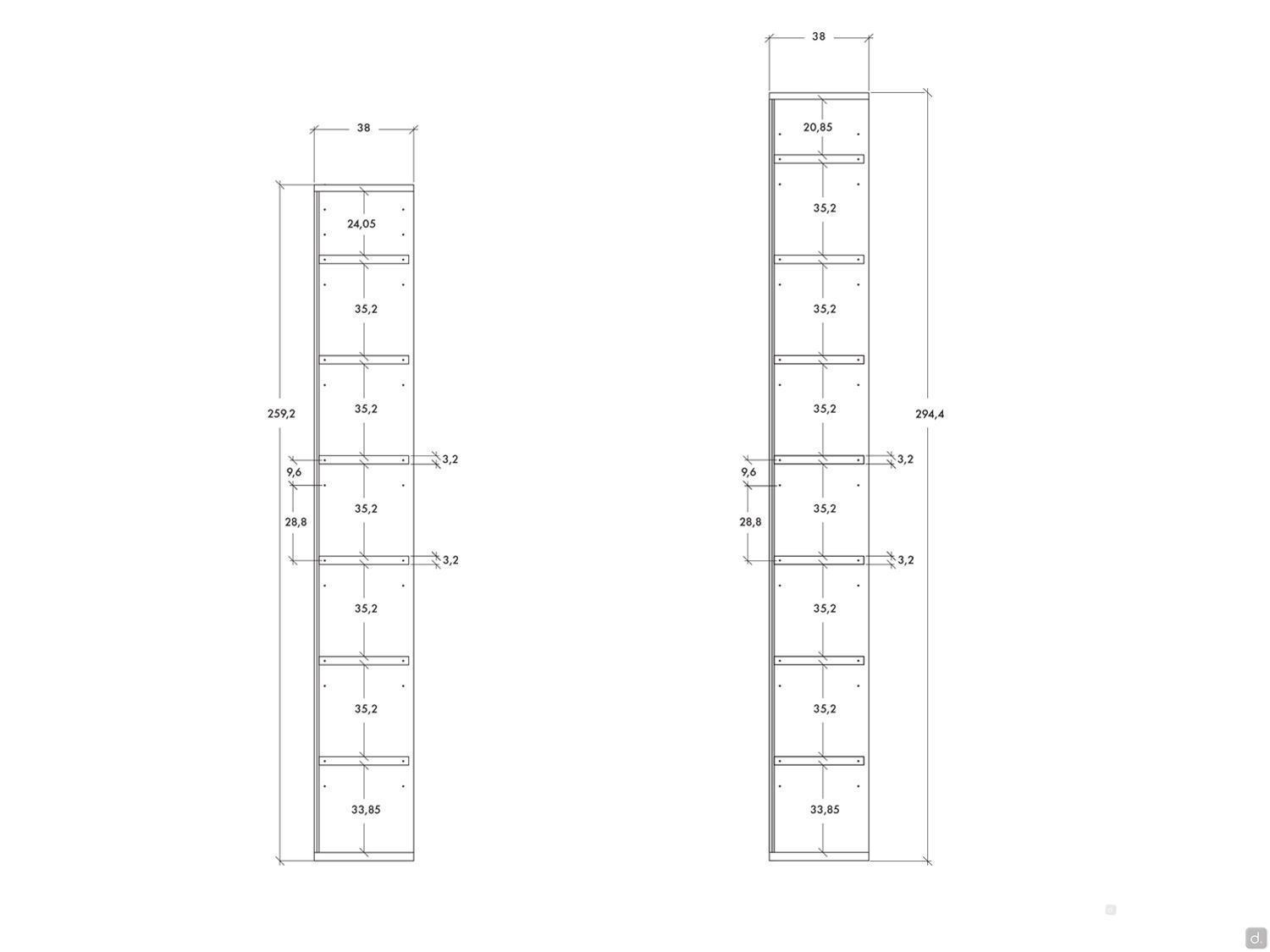

The side panels include fixed holes, cm Ø 1, on average every cm 33,4 (see photos in the Gallery for diagram).

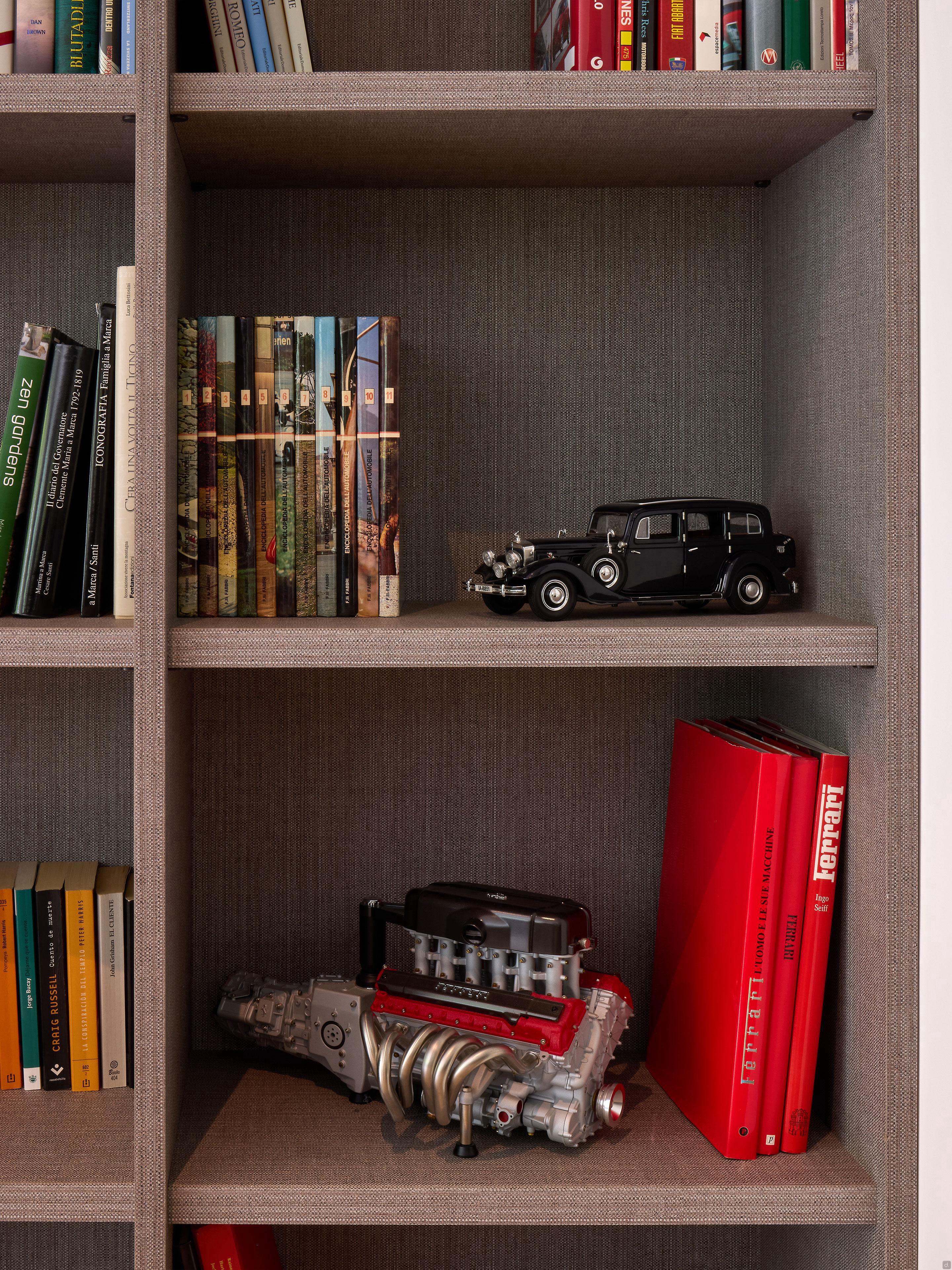

Optional - Shelves

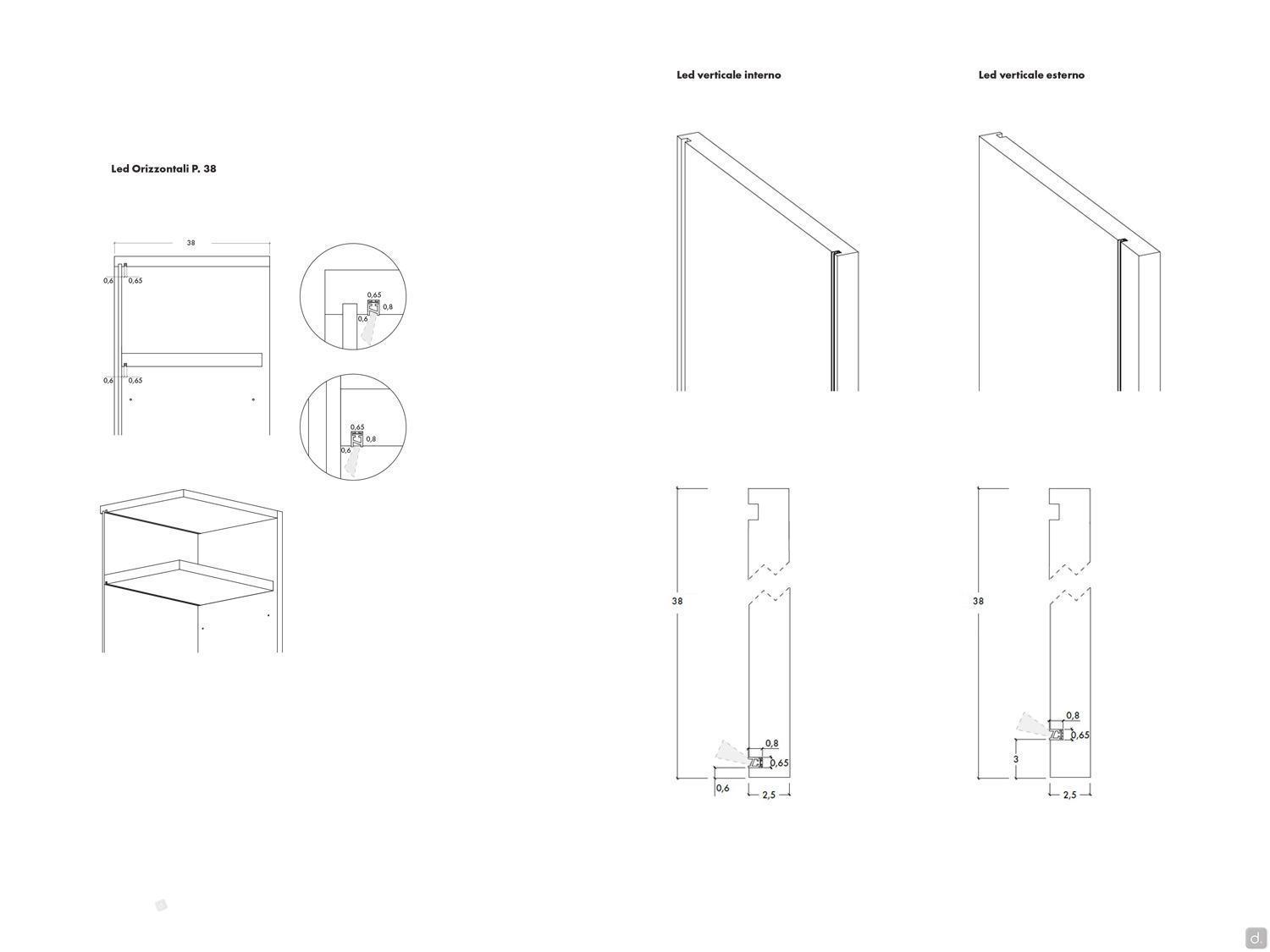

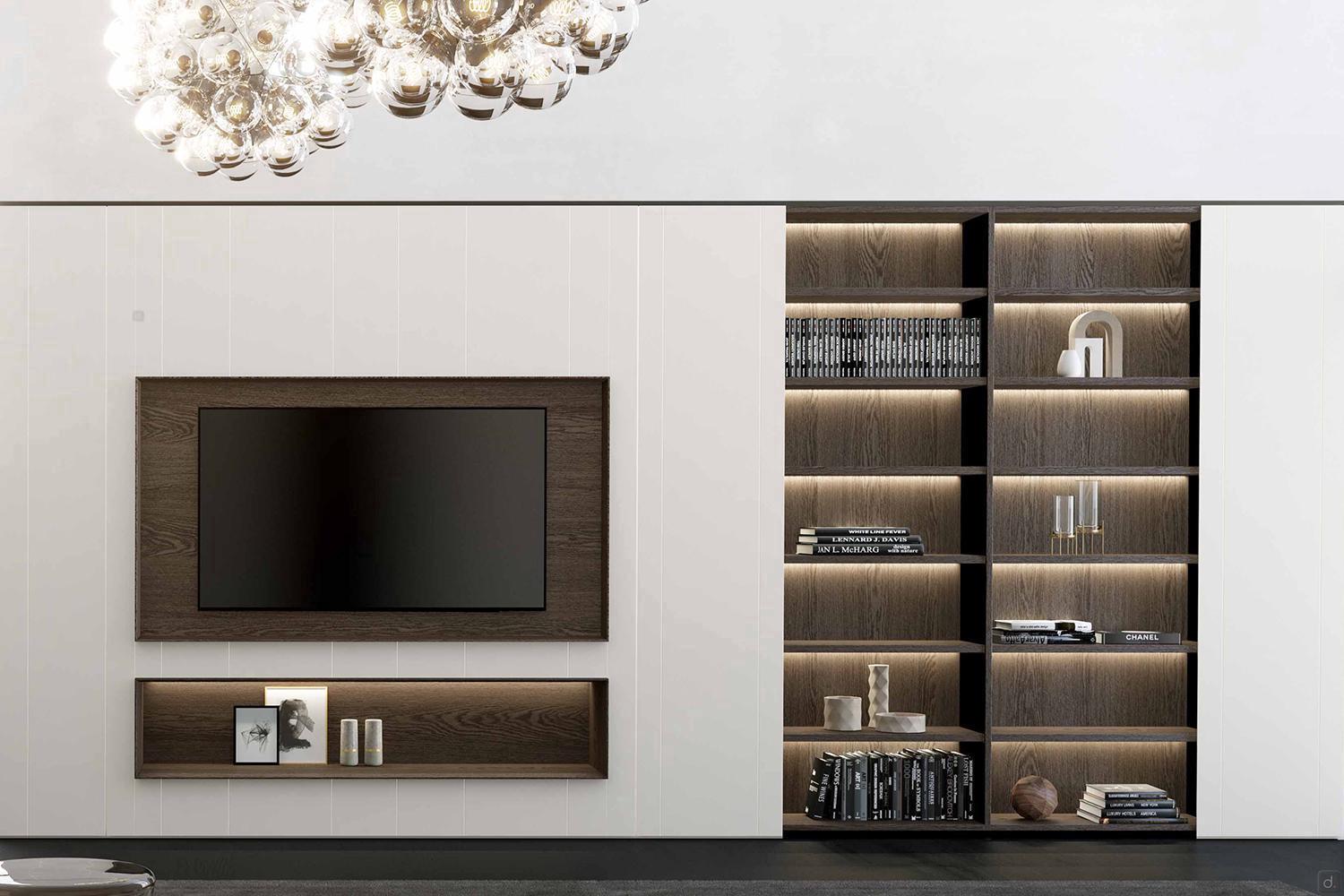

horizontal LED bar: cm 0,9, positioned at the top of the unit and on the shelves, at a distance of 0,7 cm from the back panel. Equipped with transformer (maximum power supported is 30 / 75 / 150 W) and switched on/off with a switch-controlled socket. LED with heat graduation of 3000K-24V from 11 W/ml.
Optional - Side Panels / Internal Partitions

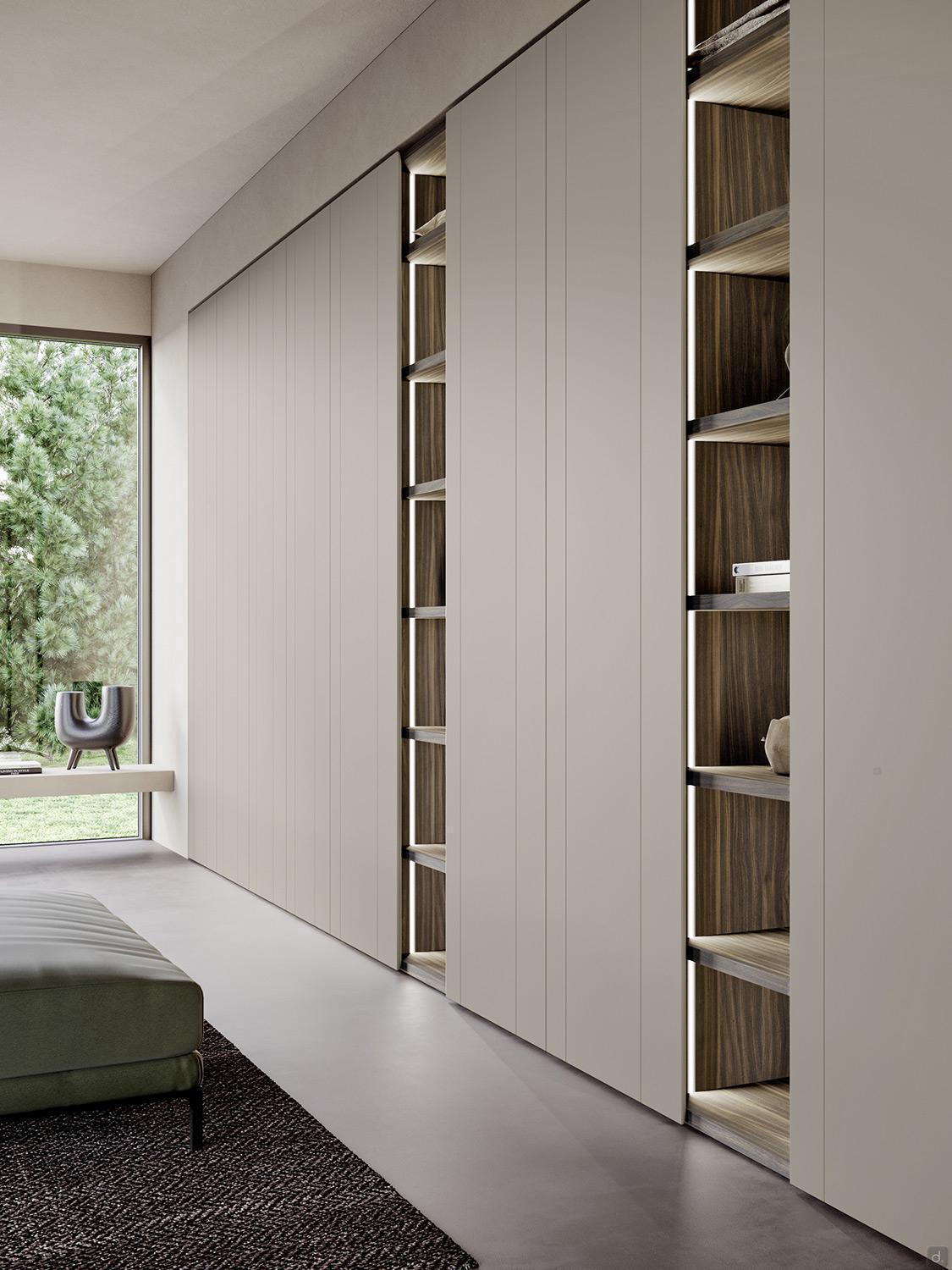

vertical LED bar: positioned on the side panels and/or the internal partitions of the cupboard, angled at 30° at a distance of 8,2 cm from the front panels. Available for internal and/or external lighting of elements, equipped with transformer (maximum power supported is 30 / 75 / 150 W) and is switched on with a controller. LED with heat graduation of 3000K-24V from 11 W/ml.
Assembly Tips
Hardware pre-mounted on all elements to facilitate and speed up the assembly process. The hinged doors are equipped with n.4 slow-closing metal hinges and a rubber dust stop. The feet, which are also pre-mounted on the stands, allow for the correct levelling of the unit.
To assemble the body of the cupboard, you will need:
- 4 cm in width (if assembling in a 2 cm alcove)
- 3 cm in height
Further Information...
Honeycomb Panels: panel made with an internal honeycomb structure and a perimeter frame of 5 / 7 cm made from top-quality solid pine, closed with 2 panels in MDF (0,3 / 0,4 cm thick) which are subsequently lacquered and veneered.
The strengths of honeycomb panels are:
- greater durability over time;
- greater resistance to load;
- significantly reduced weight of the panels (up to 60% less), useful for transport, assembly, moving or removals, but especially to reduce the weight of the doors on the structure and hardware;
- hardware always fixed on the perimeter (in solid fir wood) of the sides and doors, so hinges will have a higher resistance and the furniture will have a considerably longer life;
- better resistance to humidity, as the material "breathes";
- product is exclusively "100% Made in Italy".
