N101 - Frame
Bathroom Vanity

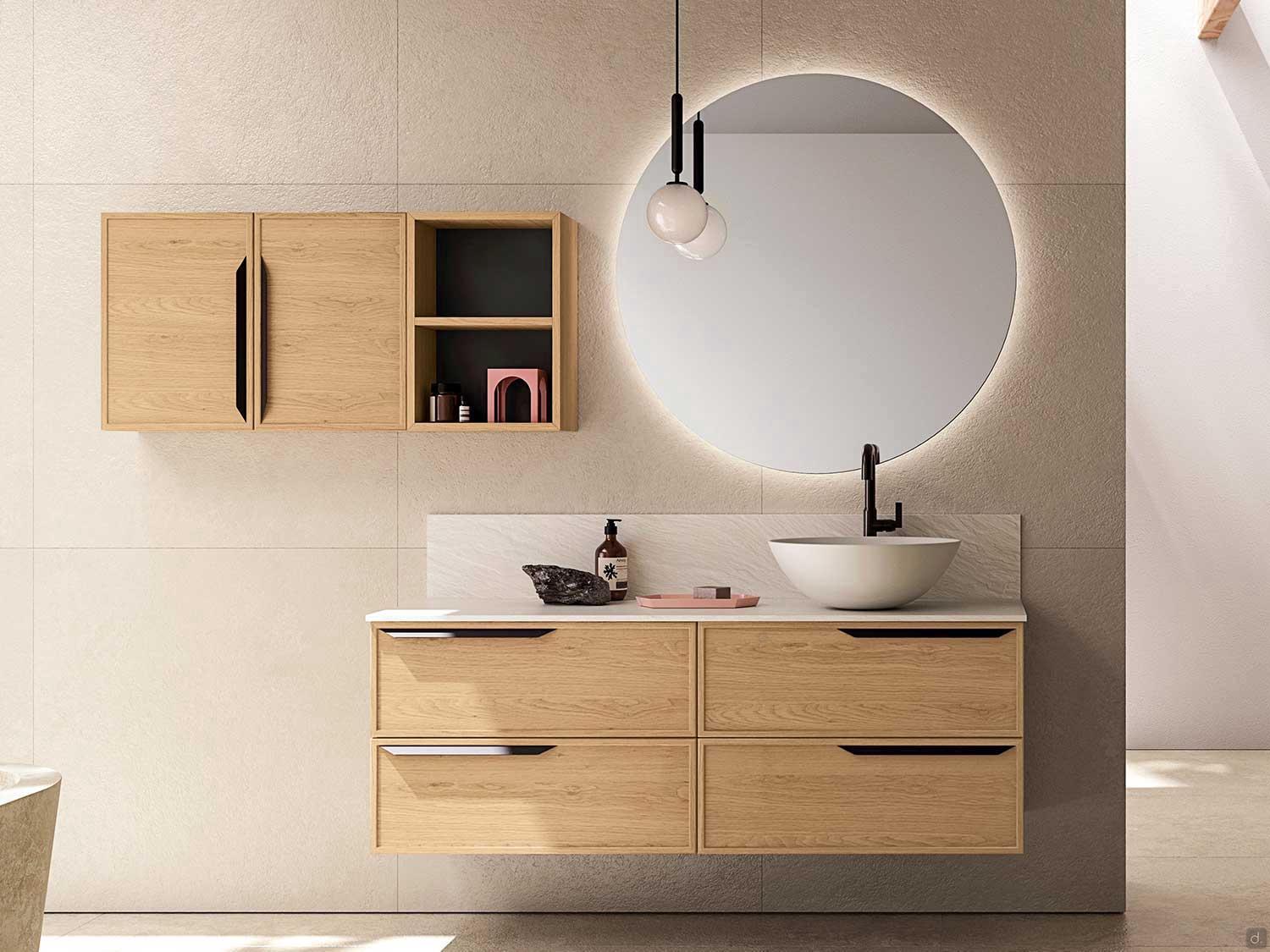

N101 Frame Nordic style bathroom vanity with stoneware top and ceramic basin. Base units with baskets, mirror, wall unit and open element.

* Required Fields

  • Raw Oak 838 Veneer Wood

From €3,999.90
Wishlist

Description

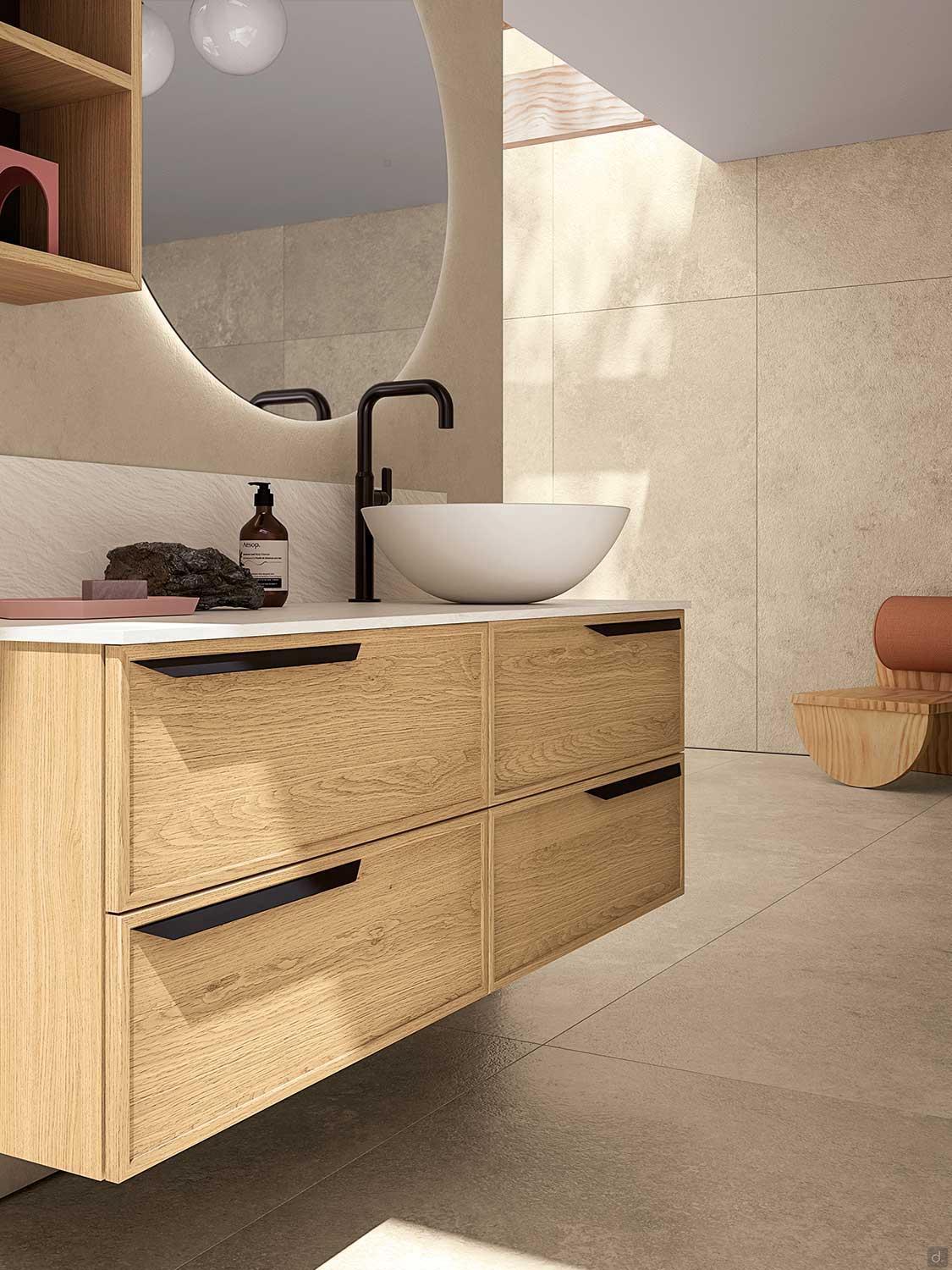

N101 Frame is a Nordic style bathroom vanity in which the essence of Scandinavian design meets the simplicity ofminimal,concrete lines. The oak wood catches the eye form the first glance, thanks to the precious construction details, such as the solid wood frame that outlines the profile of the doors. The matte black metal handles create a refined textural contrast and give a contemporary character to the whole. On the top, the prominent stoneware top dominates the scene with veining, embossing and light-dark effects typical of stone. The large round mirror with LED perimeter lighting and the hanging wall unit block with open element, lighten and harmonize the silhouette.

Characteristics
nordic style wall-hung bathroom vanity with all-out white or black ceramic basin
stoneware top with your choice of finish and also available with matching back splashback
wall units with doors and open element in light oak to match to the base units
round mirror with LED lighting
push-pull opening system or choice of numerous handle models
internal subdivision system of the baskets with optional organisers

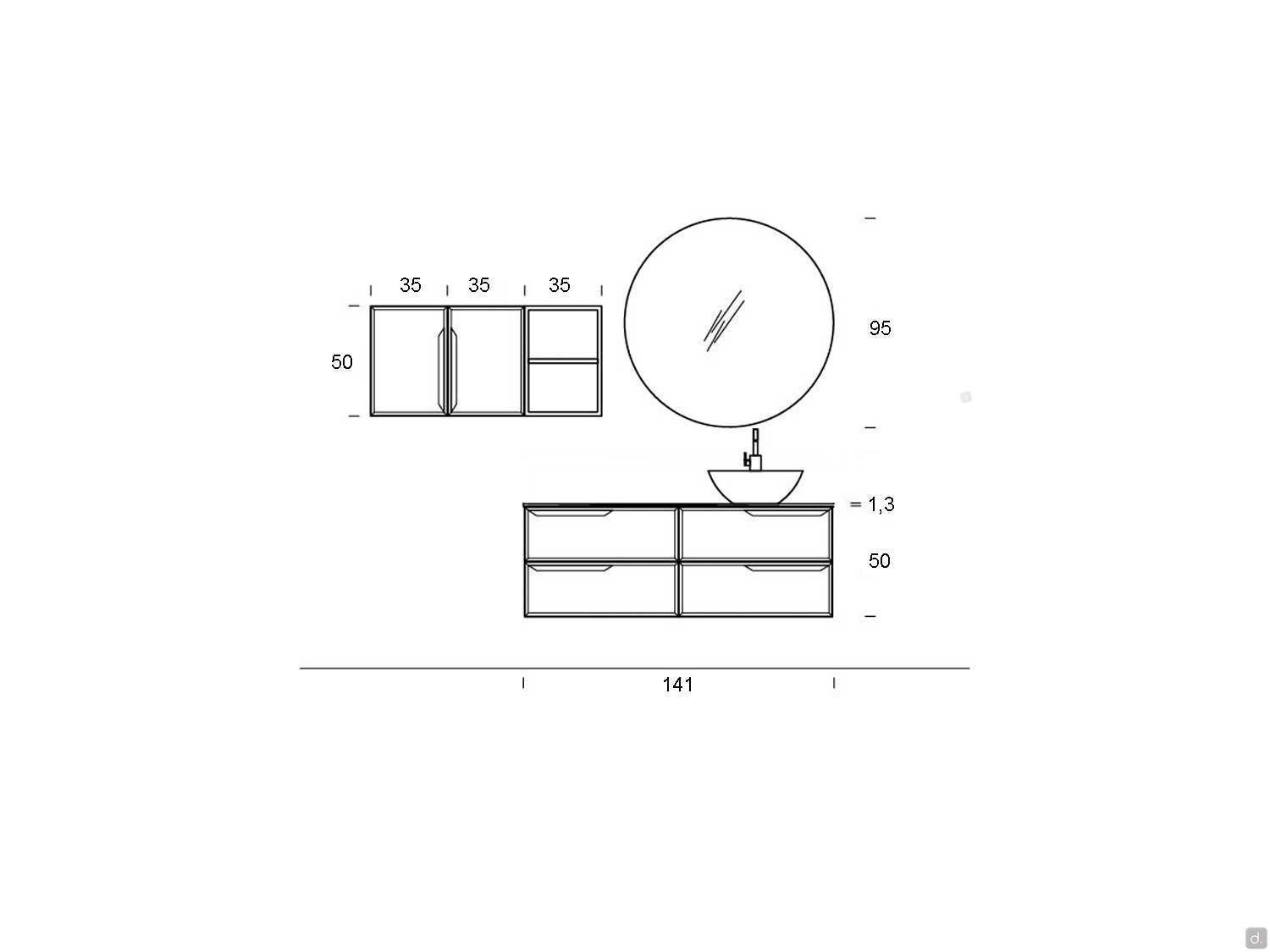

Measurements
Suspended bathroom vanity:
- cm 141 d.51 h.50
Accessories:
- mirror: cm 95 th.2,2 h.95
- open element: cm 35 d.21,8 h.50
- wall unit with n.2 doors: cm 70 d.20,8 h.50

Materials and Finishes
Base, Wall Unit and Open Element:
- veneer wood
Top:
- stoneware
Washbasin:
- black / white ceramic

Purchase Information

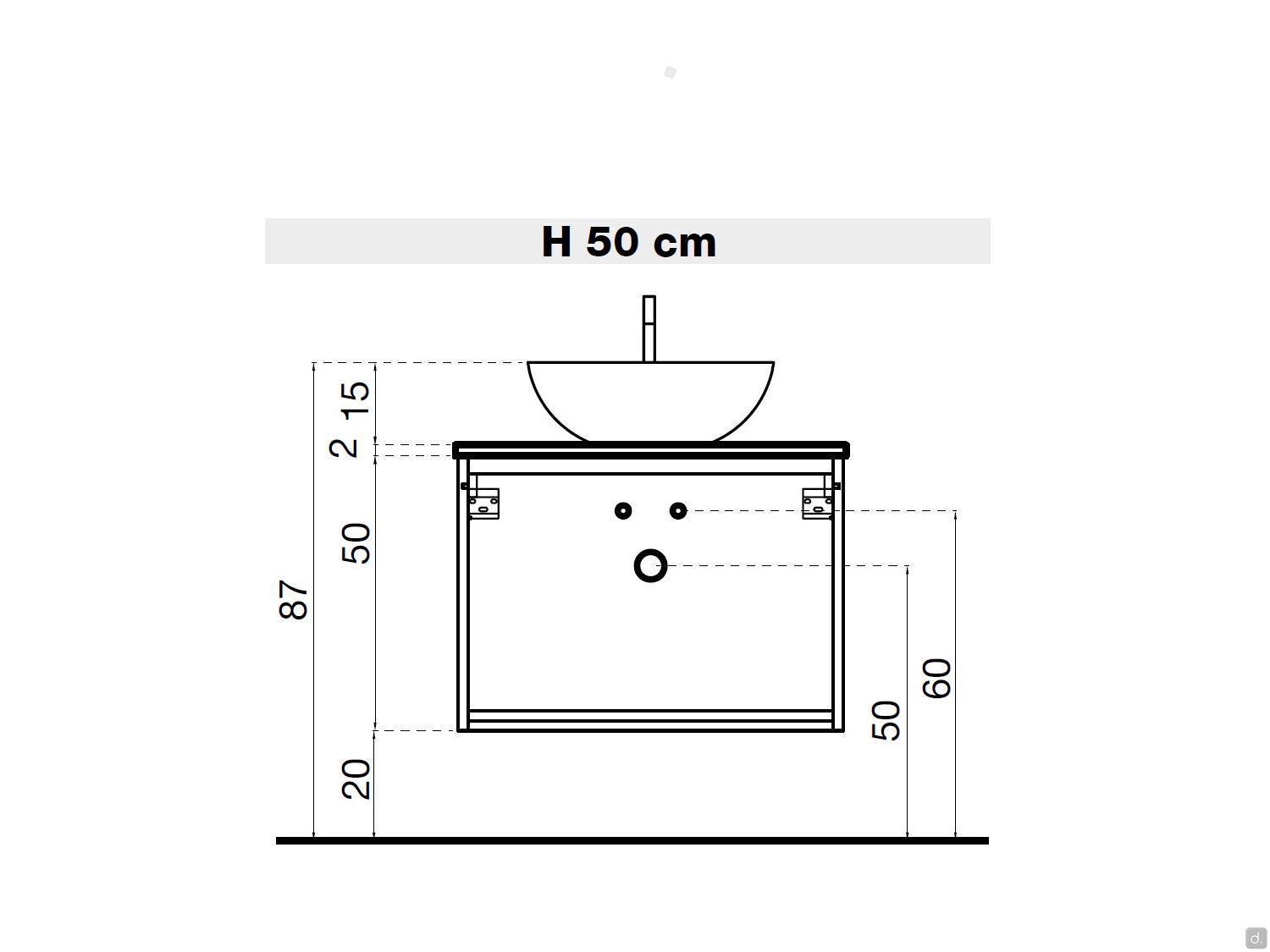

The top protruces frontally by 1 cm and laterally by 0,5 cm. The overall height of the bathroom vanity is equal to the sum of the height of the base and the thickness of the top, so it is 1.3 cm higher than indicated in the configurator.
The basin is provided with an overflow hole. The faucet is not included; among the products at the bottom of the page you can find the Universal Siphon and Drain.

Technical study

Technical Specifications and Equipment
N101 bathroom furniture is composed of:
n.1 washbasin base with n.2 drawers: cm 70 d.50 h.50.
n.1 base with n.2 drawers: cm 70 d.50 h.50.

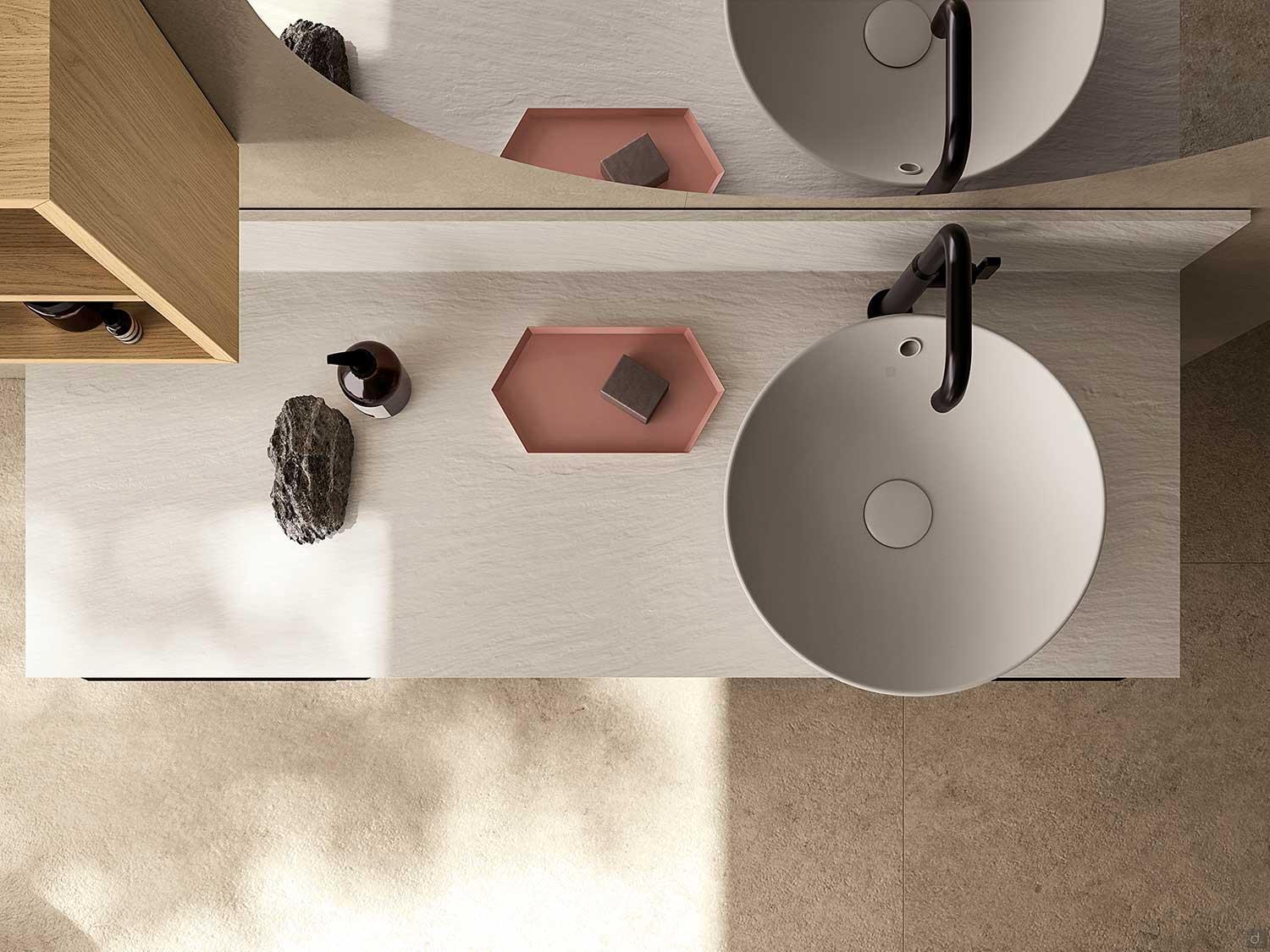

n.1 All-out washbasin in matte black ceramic mod. Roma, cm 43 d.43 h.15. The measurements of the basin are: cm 41 d.41 h.10. It has an overflow hole and a faucet hole cm Ø 3,5.

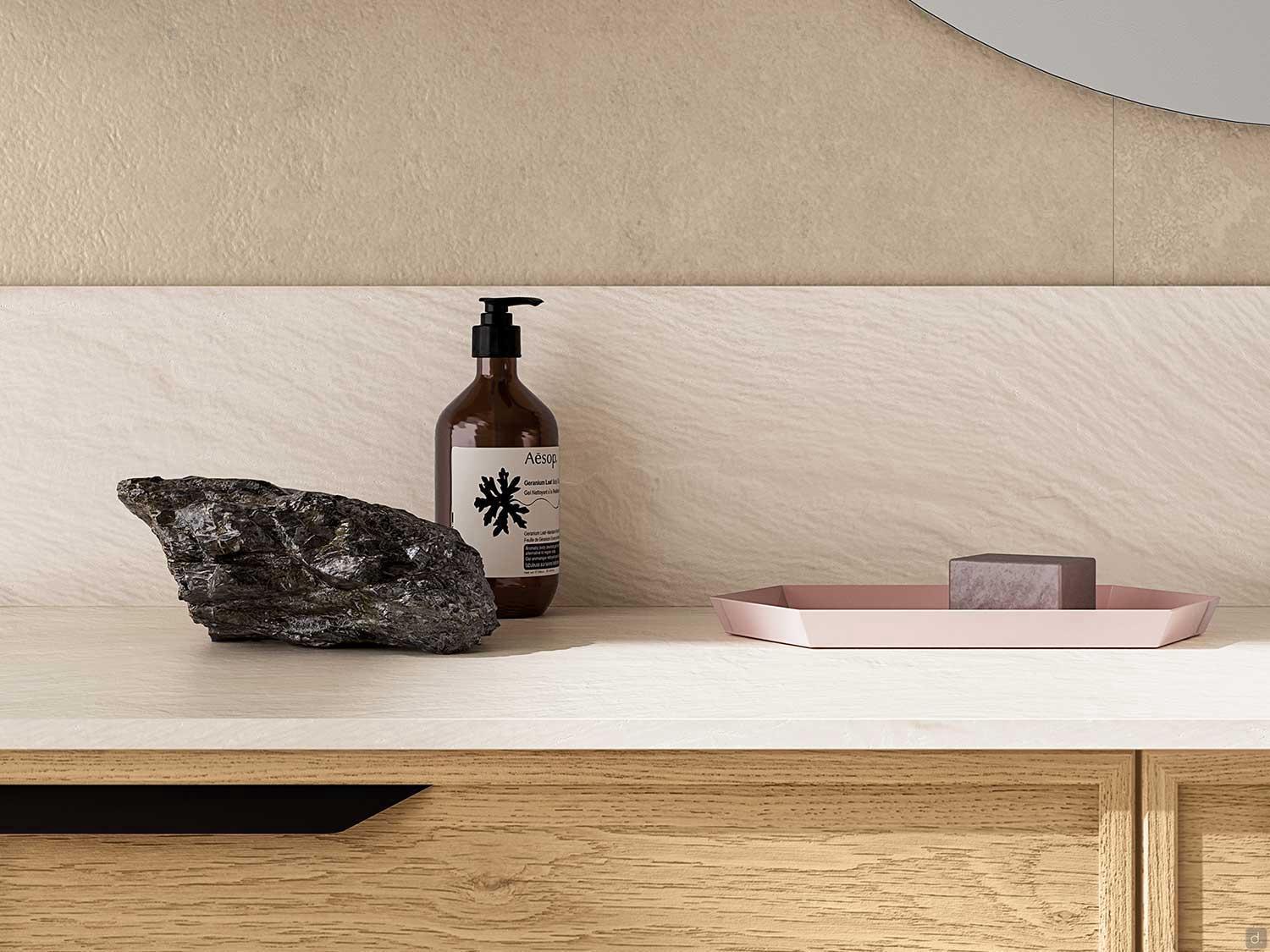

n.1 top in stoneware: cm 141 d.51 th.1,3.
n.1 mirror Circle: cm 95 th.2,2 h.95 with LED lighting (27W, 230V, IP21,4000K) without a socket or switch.

Structure: cm th.1,8 made of wood particle board, then veneered with vertical grain.
Fronts: made of solid oak frame and center panel of wood particle board cm th.2, then veneered with horizontal grain.
Legrabox drawer: characterised by straight sides both internally and externally, only 1.28 cm thick. Equipped with metal body with full-extension runners and slow closing.

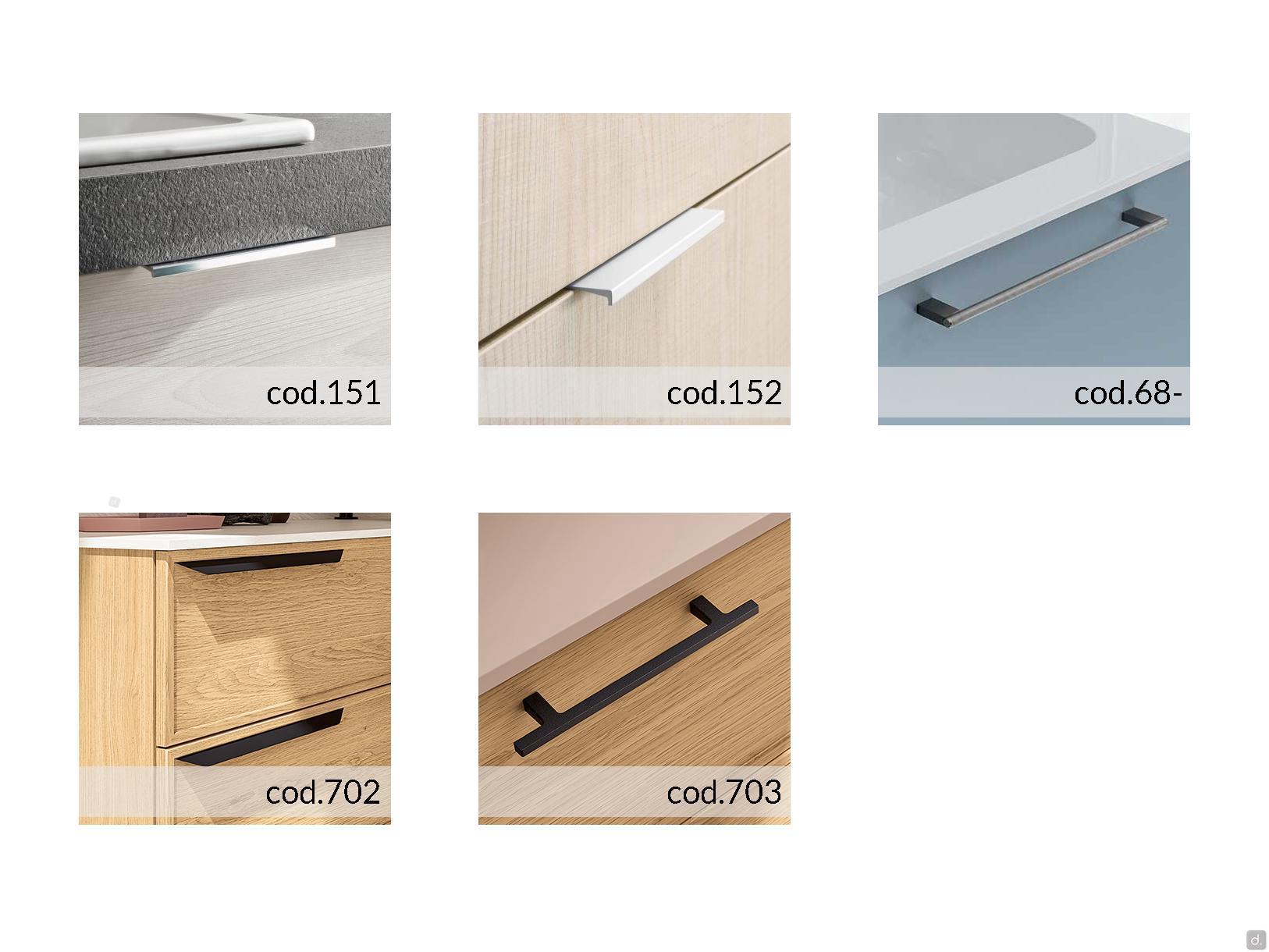

Handles: you can choose from various models of handles, as well as push-pull opening.
Handles cod.152 are available in matte lacquer finish in all colours from our sample collection.
Handles mod. 68- protrude 4 cm from the door surface, while handles 703 protrude di 3 cm.

Washbasin Model Measurements Internal Basin Encased
Type
Faucet Hole Overflow
Roma - matte white ceramic cm 43 d.43 h.15 cm 41 d.41 h.10 all-out on the top right or left yes
Firenze - matte black ceramic cm 43 d.43 h.15 cm 41 d.41 h.10 all-out on the top right or left yes

N.B. The faucet hole has a standard diameter of 3,5 cm.
For basins without an overflow hole, the use of a continuous drain is recommended.

Optional
splashback: designed to complement bathroom vanities with HPL layered melamine, marble stone, stoneware or quartz-resin tops; particularly suitable for walls that are not perfectly square and for pairing with free-standing mirrors.

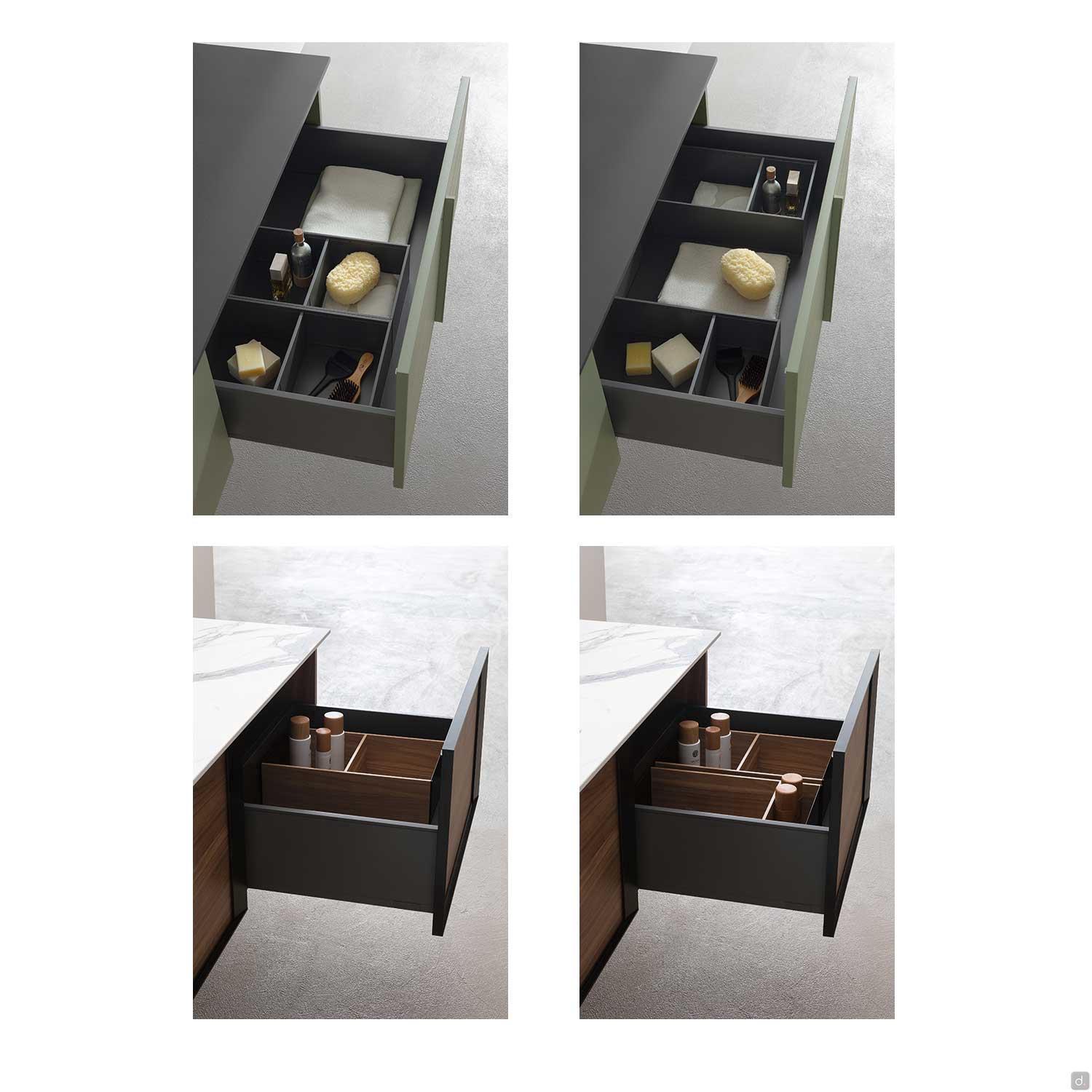

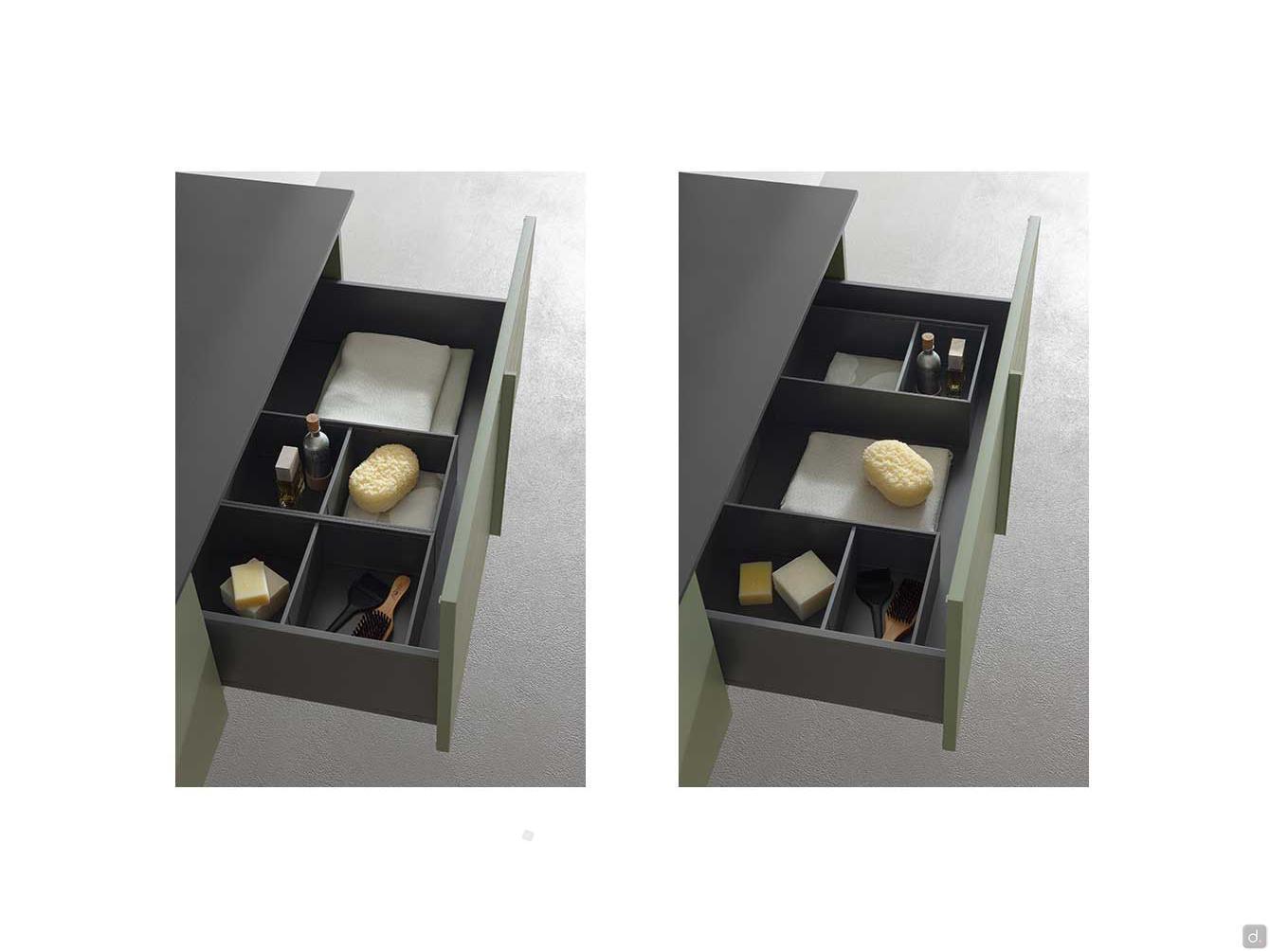

organizer: internal partitioning system for Legrabox drawer and basket. Available in Canaletto walnut and Orion finishes.
Open element: cm 35 d.21,8 h.50. Back in orion grey.

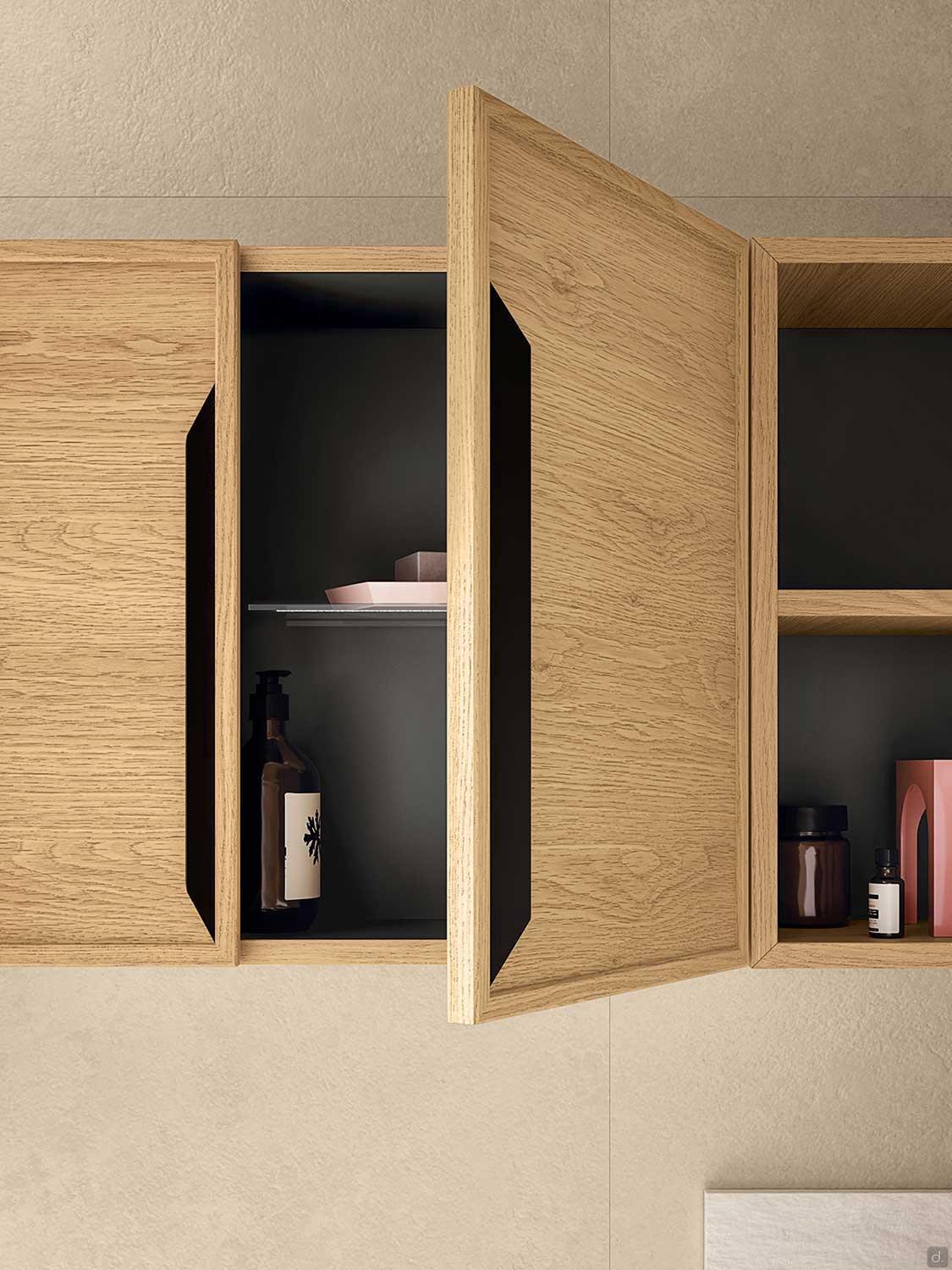

Wall unit with doors: cm 70 d.20,8 h.50. Back in orion grey finish; Internal shelf in clear glass cm. th. 0,6.

Maintenance Tips
Wood: "living" material protected superficially by varnish; a soft, non-abrasive, damp cloth well squeezed out, should be used for cleaning. It is recommended to clean the top in the direction of the grain and dry carefully.
Stone: to prevent stains, clean promptly with a damp cloth or neutral detergents. The use of neutral detergents is recommended.

Read more...
Stoneware: porcelain stoneware is made from a mixture of water and clay that is transformed through the raw extrusion process into a slab with extraordinary mechanical properties. Vitrification closes the pores, ensuring maximum resistance to water absorption and staining.

Video

Additional Information

Area of Production
Italy
Assembling
Medium Assembling
Assembling Instructions
Vedi Tab Video
Cubic Metres
0,70 m³
Other Products from the same Collection
View all the products of the collection (cod.cmp)

Partner Factory

This bathroom furniture is a 100% Italian product made by a company from the province of Pordenone that started in the field during the 90s. Initially oriented towards the production of classic and modern bathrooms, it grew throughout the years earning national and international fame in the water and sanitary system as well. The company headquarters cover 16.500 square metres and are equipped with innovative machinery. Its business is characterised by the high quality standard of the materials employed, studied and renovated every year to follow the latest fashion. The solid wood comes from forests that follow regularised policies regarding tree cutting and all the other materials are either recycled or recyclable. Every productive phase takes place inside the company itself in order to guarantee the highest monitoring level.

The company creates its personal models but still focuses on the needs of modern housings in terms of space and taste. Moreover, the modular nature of the products allows for high customisable projects. It is possible to widen the initial composition with additional accessories and equipment in every moment. The wide collection and the colour range offered cover several different styles and types of environment: from a more elegant and refined bathroom to an original design, from soft and natural shades to pastel colours. Cabinets with drawers and baskets placed under the basin, wall-hung drawers, columns to store linen or beauty products, dressing tables of the most diverse shapes: the bathroom vanities of this collection are thought to satisfy every need.
