Technical Specifications and Equipment
Structure: made from TAMMEL (honeycomb panel + melamine). The honeycomb panel has a frame made from carefully selected solid pine and the honeycomb plated with panels of MDF. Guarantees durability, lightness, practicality and meets all the requirements of the European Class 1 Standards regarding the limitation of harmful emissions of formaldehyde, meets the CARB2 standards.
Sides and Back Panels: made from melamine (E1 class with low formaldehyde emission), meets the CARB2 standards. Sides th. 2,5 cm / Backs th. 08 cm.
Base and Top: honeycomb panels, th. 3,2 and 2,5 cm thick.
Height from the ground: h.1,1. cm.
Lacquer / Wood Doors: honeycomb panels, 2,4 cm thick, with a frame made from solid pine, lacquer or wood. The front panels can be smooth or personalised (only for finishes in matte lacquer or wood)

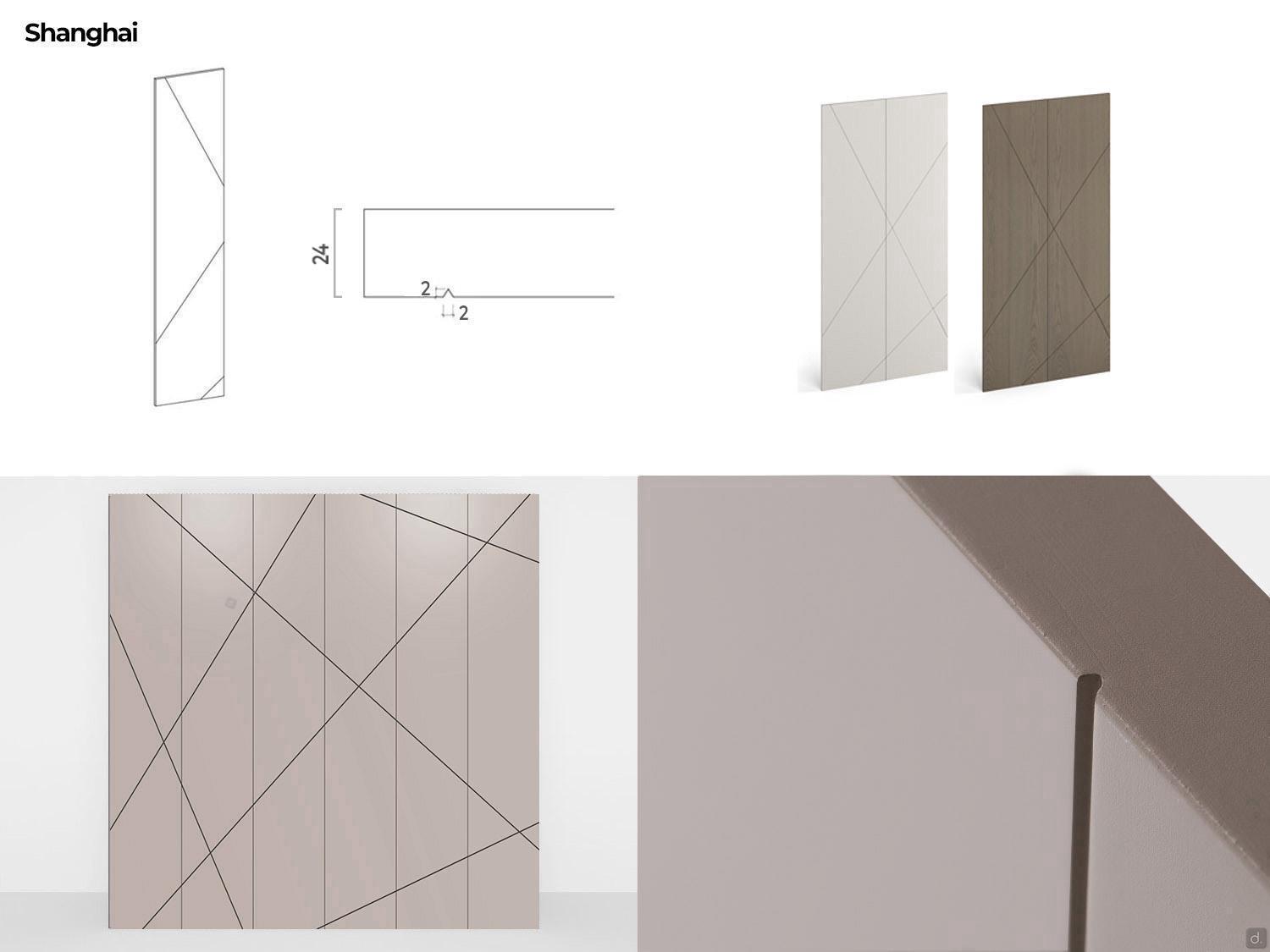

- Shanghai (only in matte lacquered finish): diagonal "V" incisions 0.2 cm thick.

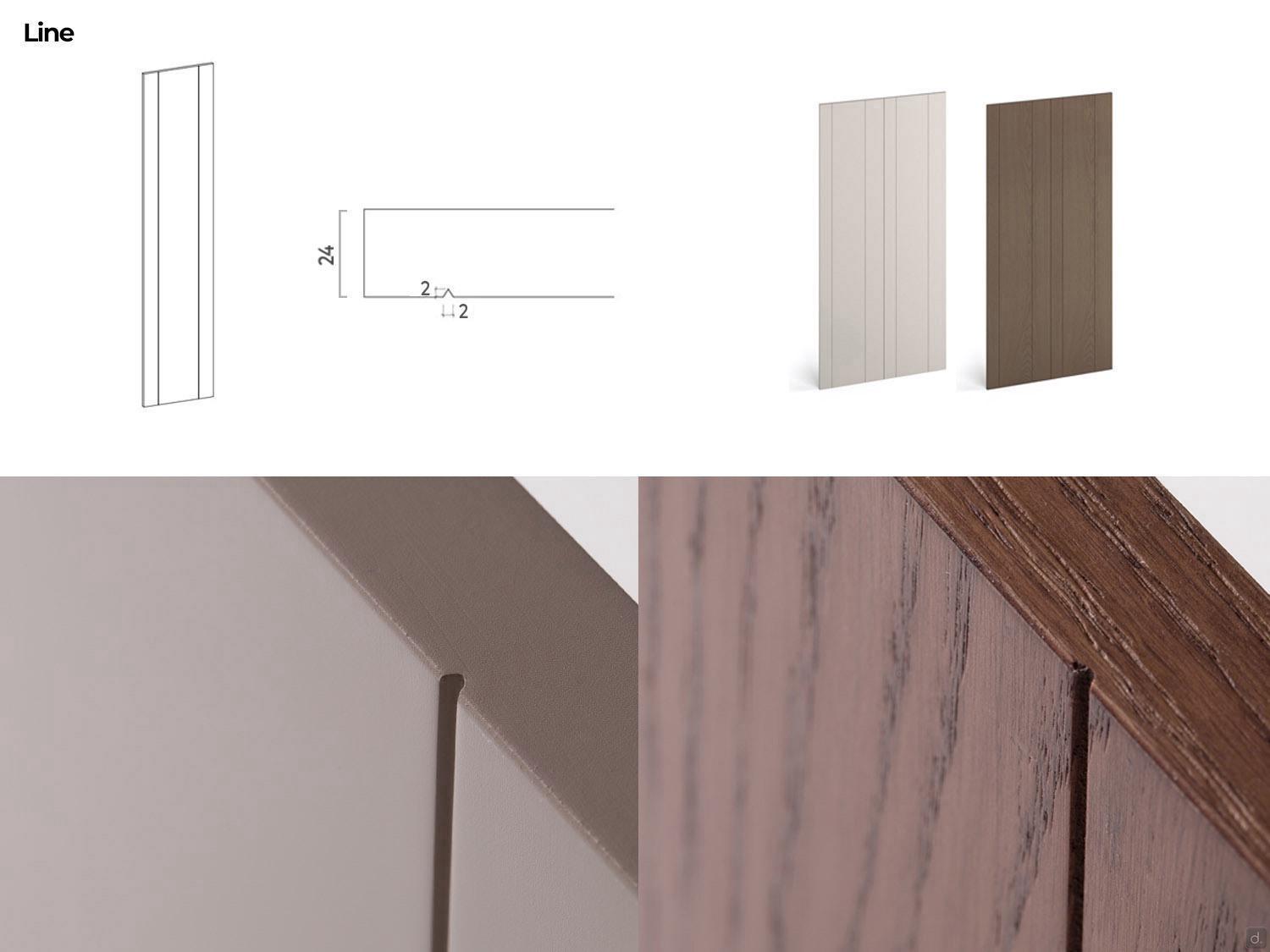

- Line (only in matte lacquered finish): vertical "V" incisions 0.2 cm thick

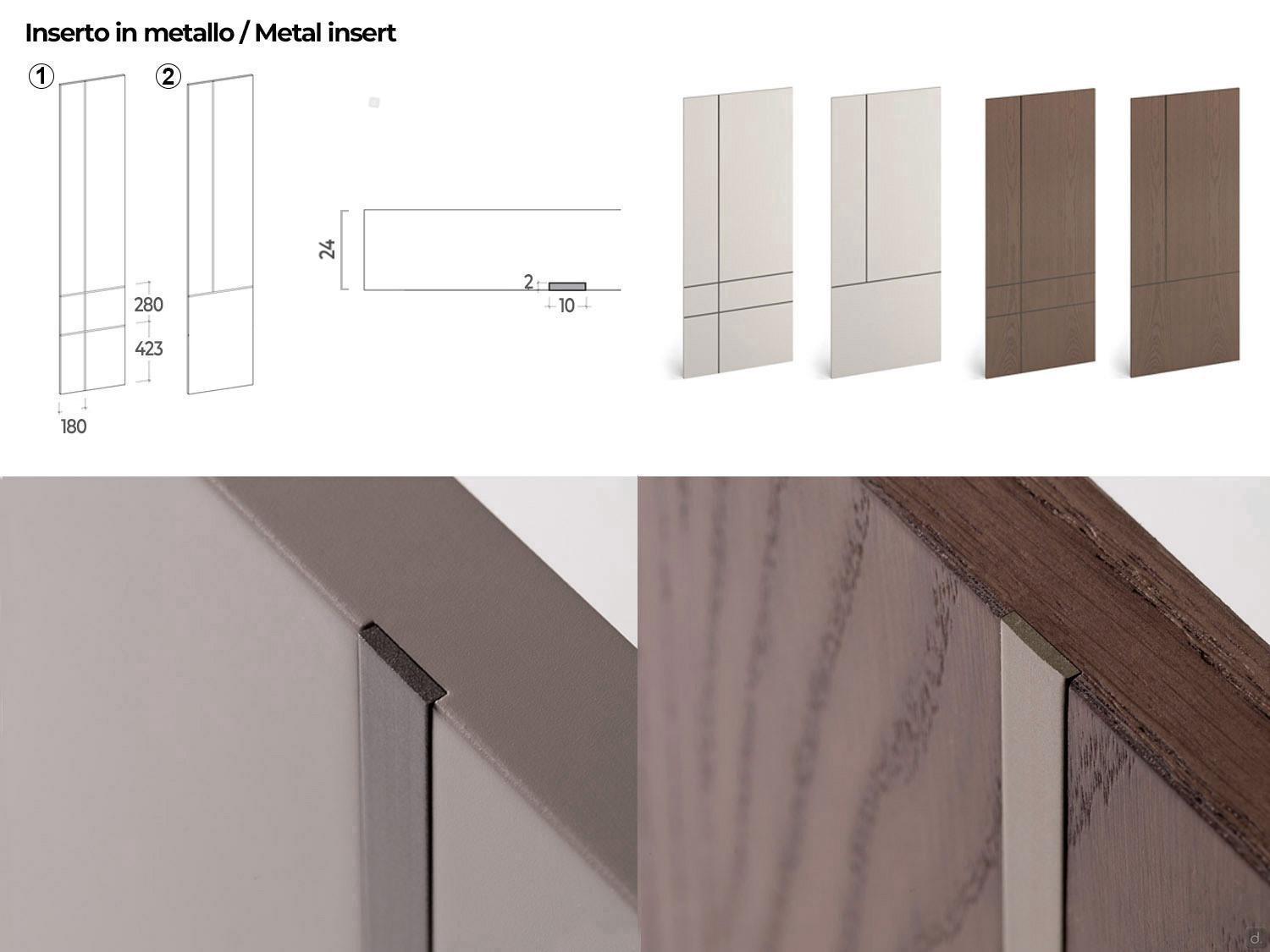

- with metal insert: cm 1 thick 0,2 in "version 1" with n.2 horizontal + n.1 vertical or in "version 2" with n.1 horizontal + n.1 vertical.

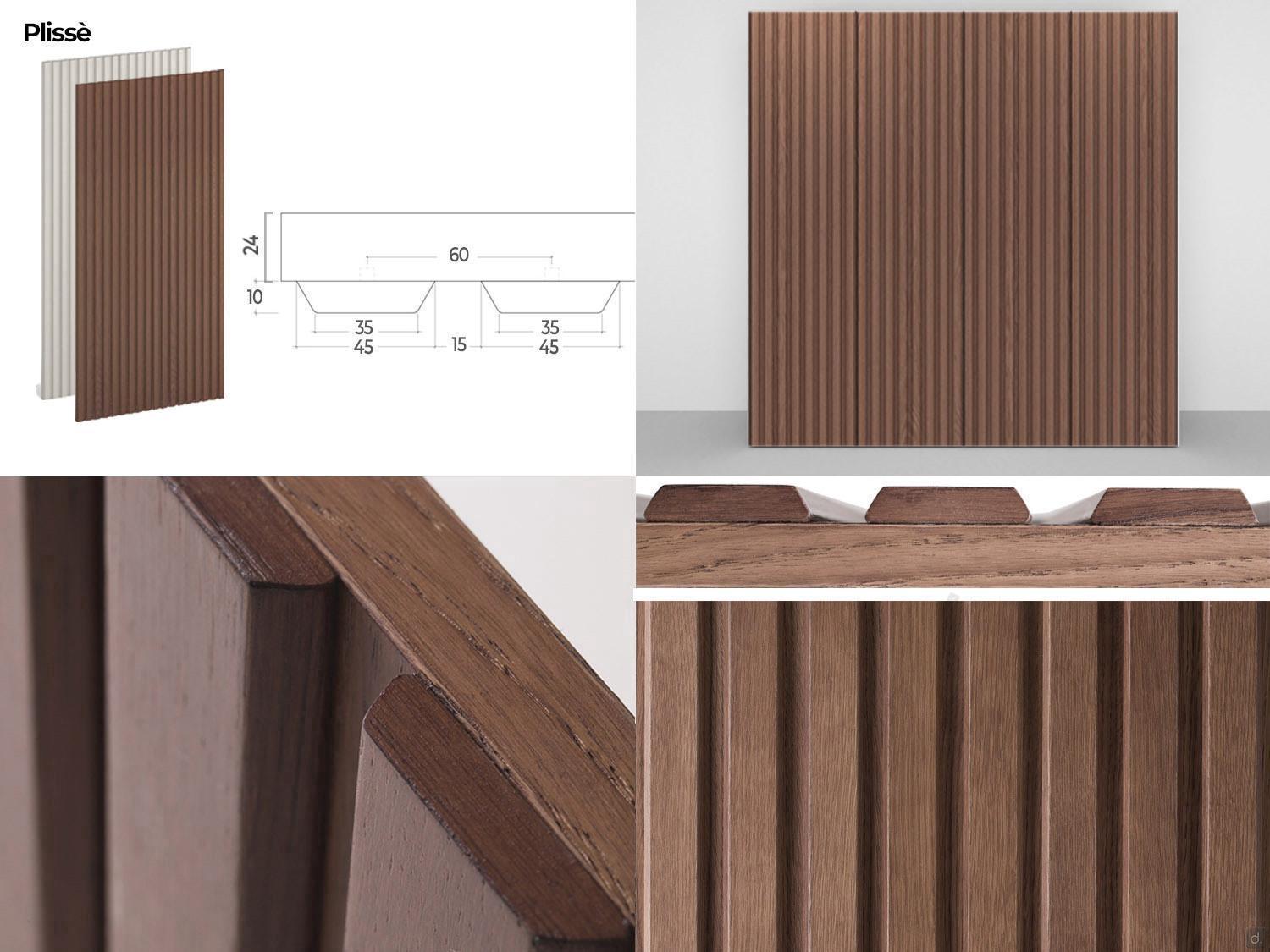

- Plissè: slats in lacquered solid wood or oak veneer with 30° processing: cm 4,5 thickness 1.

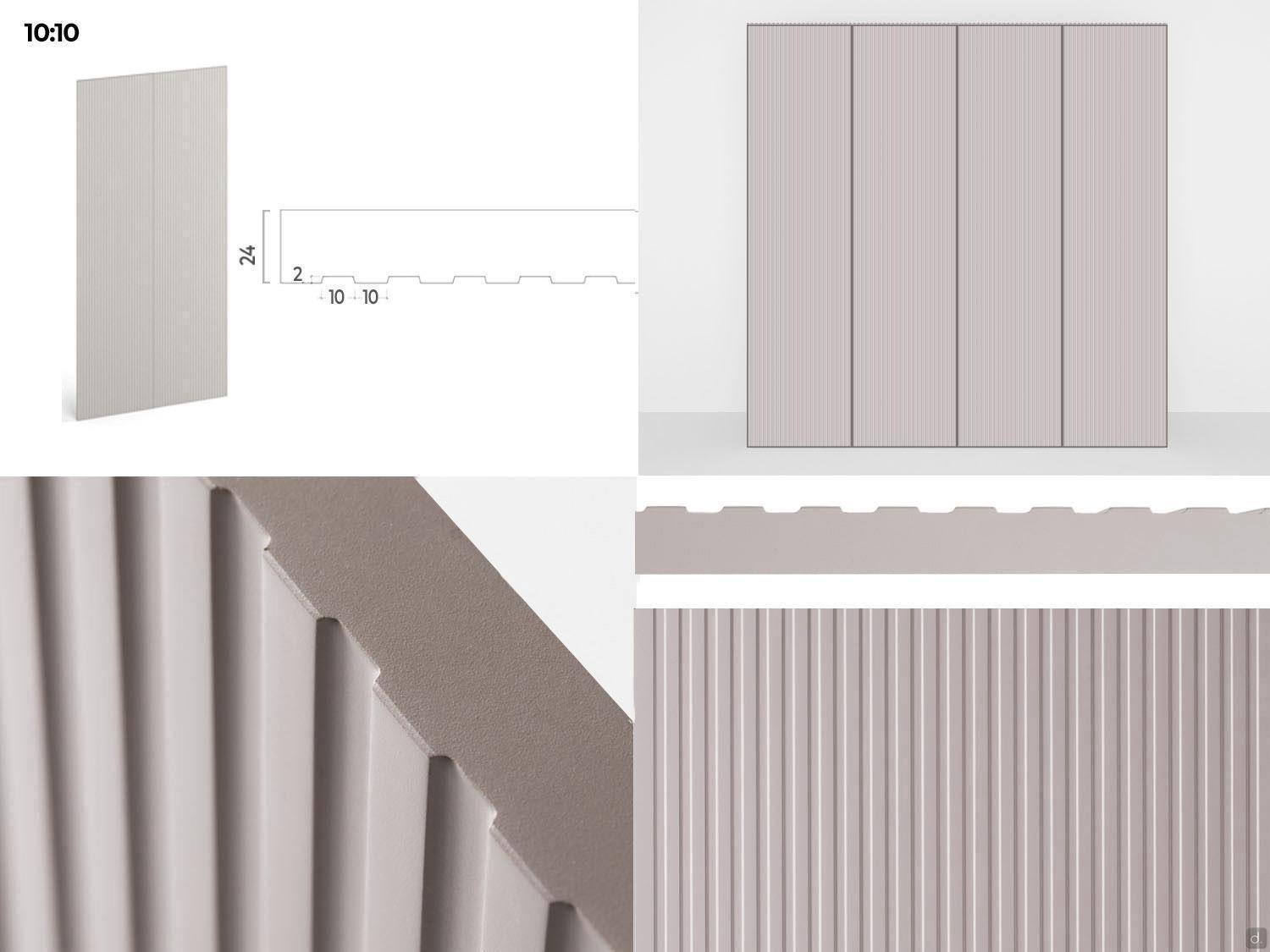

- 10:10 (only in matte lacquered finish): "U" incisions cm 1 thickness 0,2 thick.

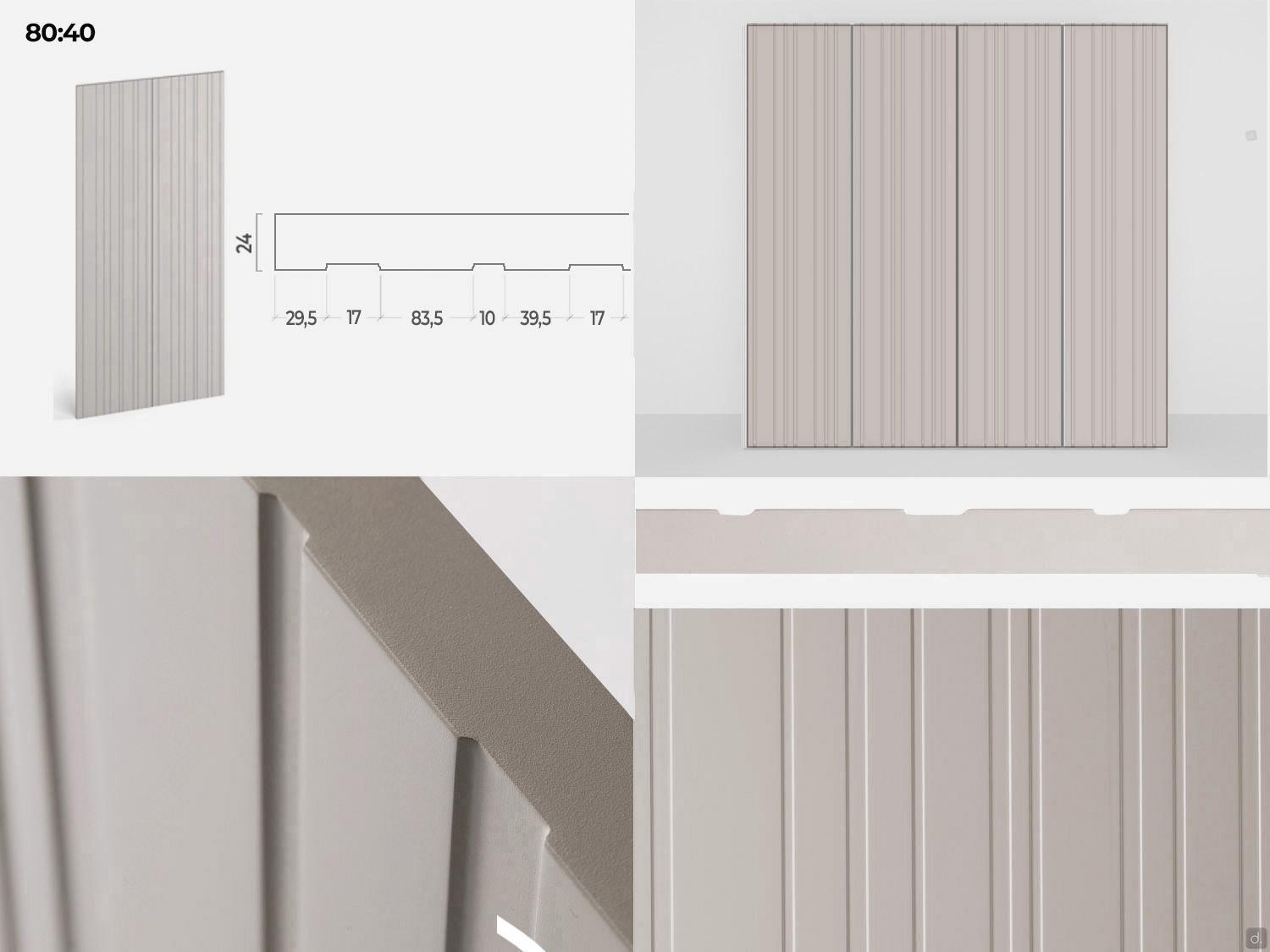

- 80:40 (matte lacquered finish only): "U" incisions cm 1 thickness 0,2 with variable spacing

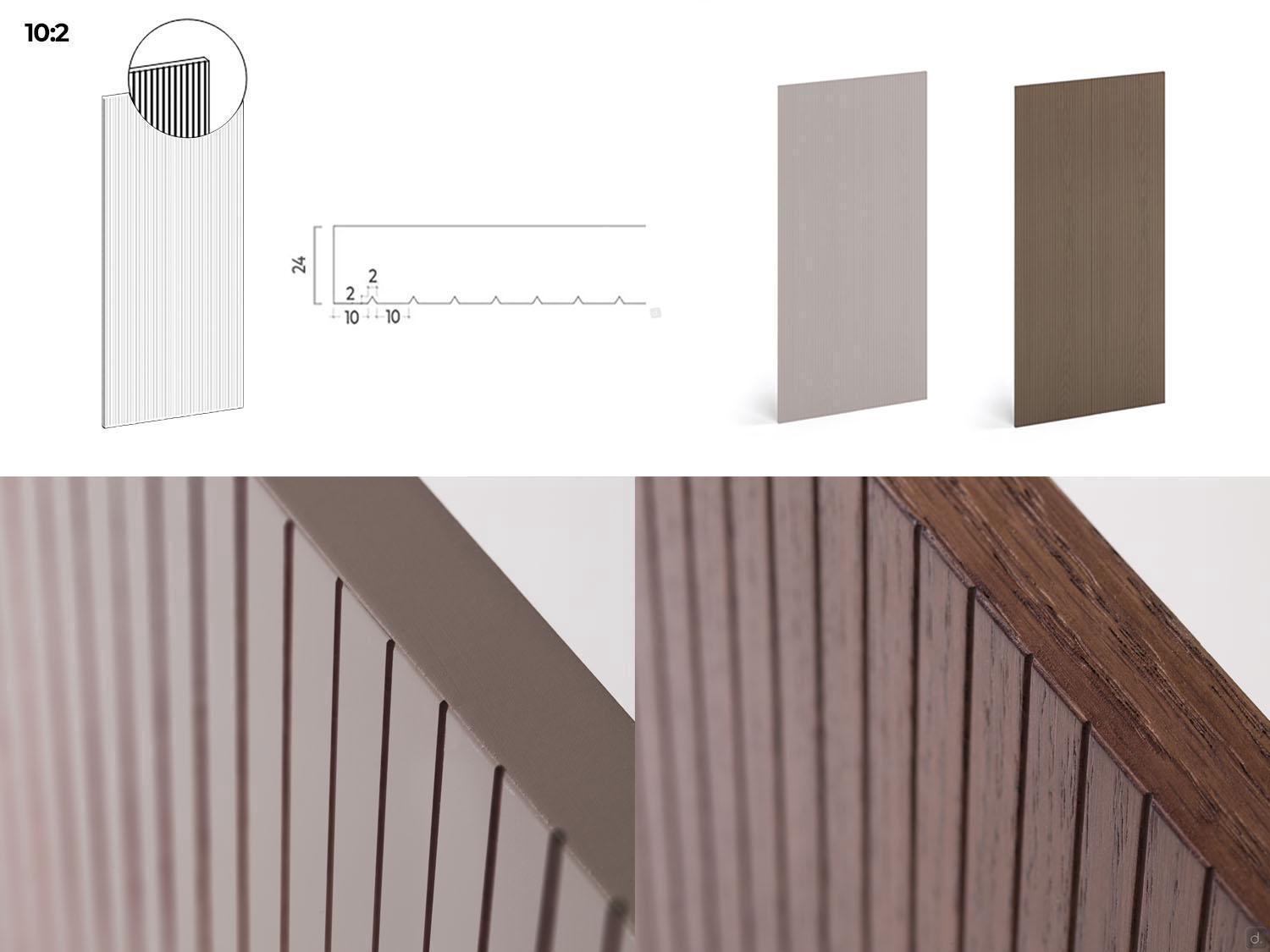

- 10:2: vertical "V" incisions cm 0,2 thick.

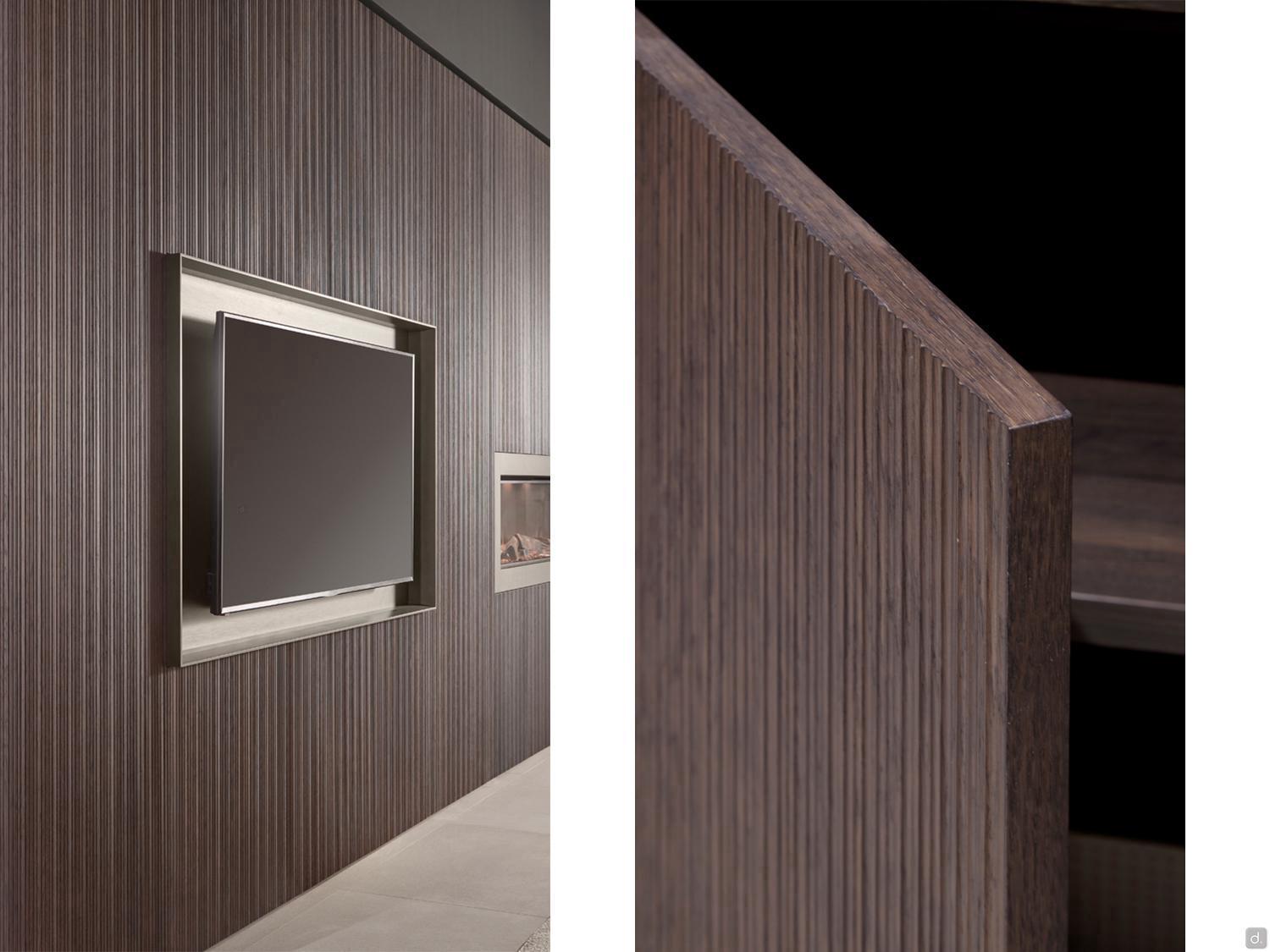

Doors also available in TAMMAS (honeycomb + solid wood), honeycomb with solid spruce frame and solid wood honeycomb plated on both sides, dyed in the sample finishes and decorated with 10:10 or Wave processing. Only available when purchased with a project, for further information please contact our Customer Service.
Handles: push-pull system.
Hinges: metal hinges in titanium finish with soft-closing mechanism. Standard opening angle of 110°, upgradeable to 155° except on the plissé finish, which comes exclusively with a 94° angle hinge.

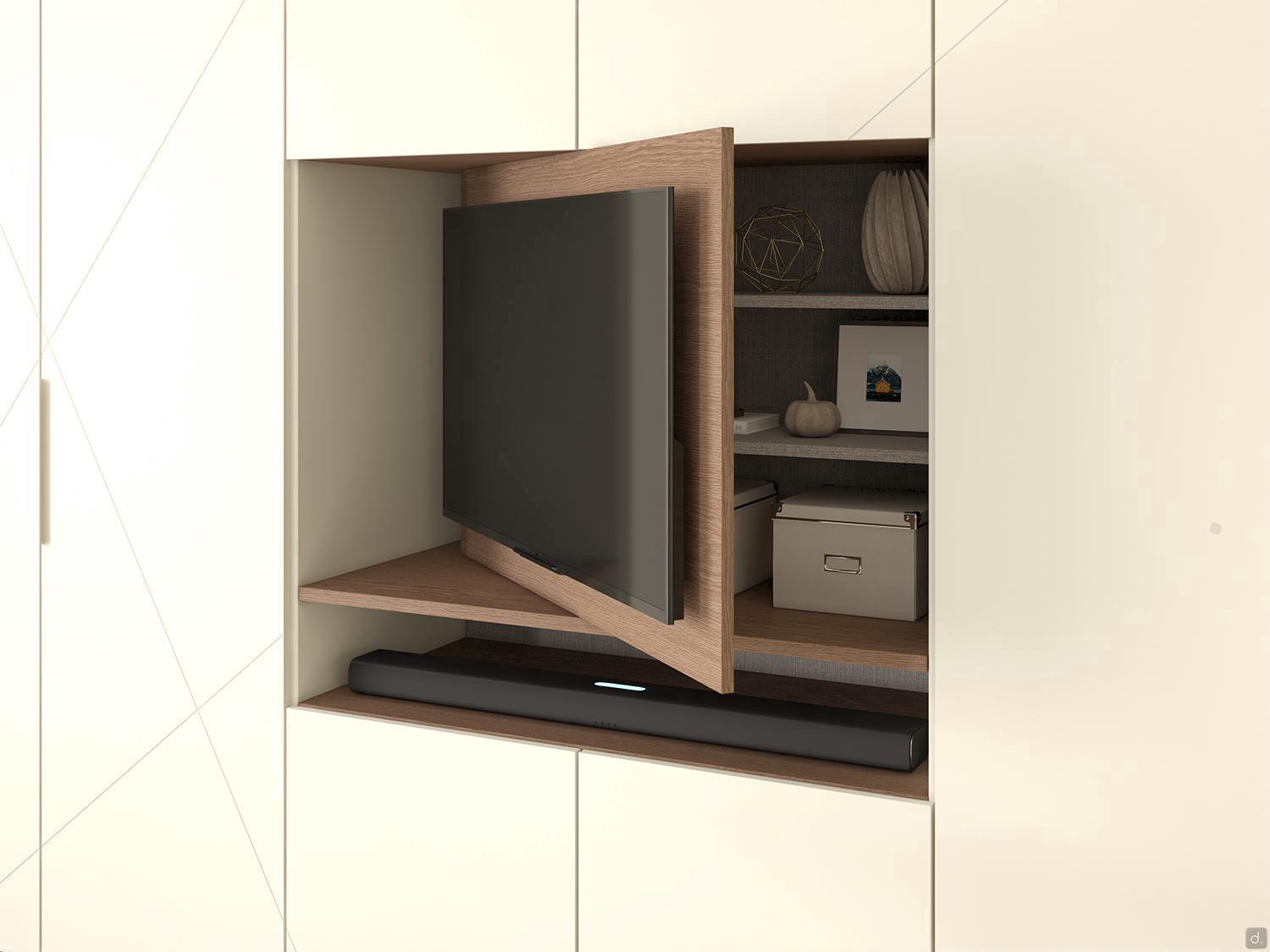

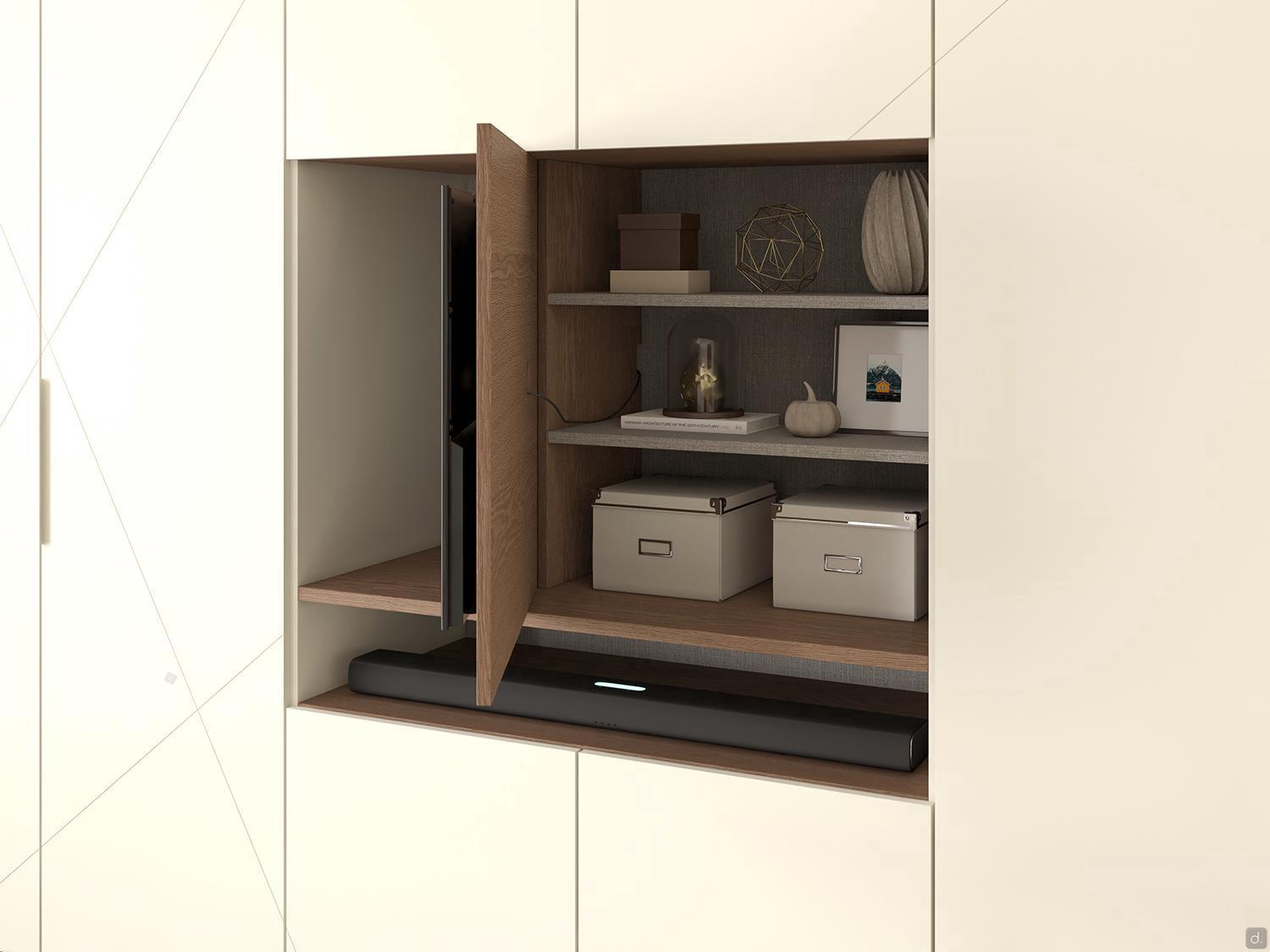

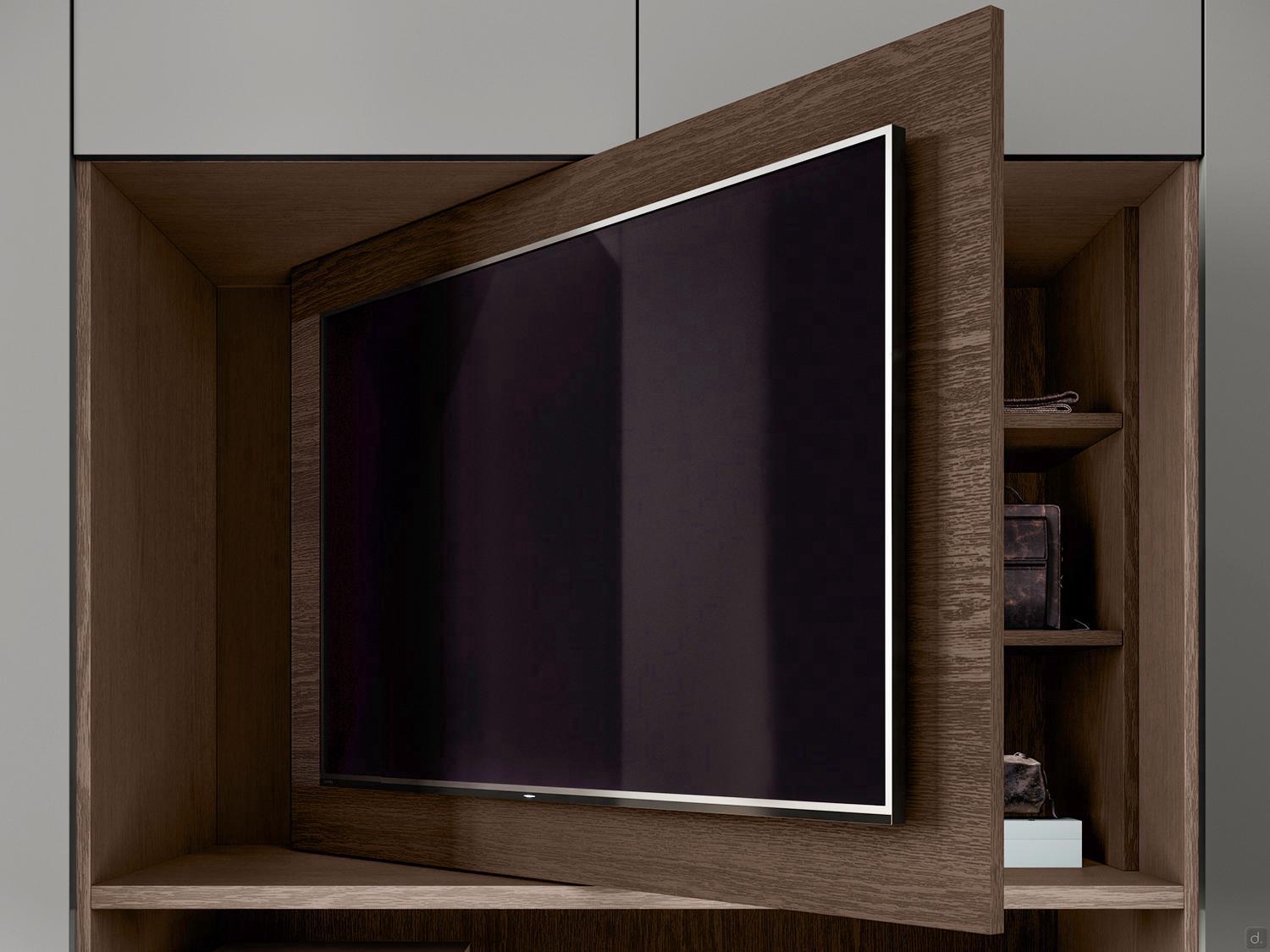

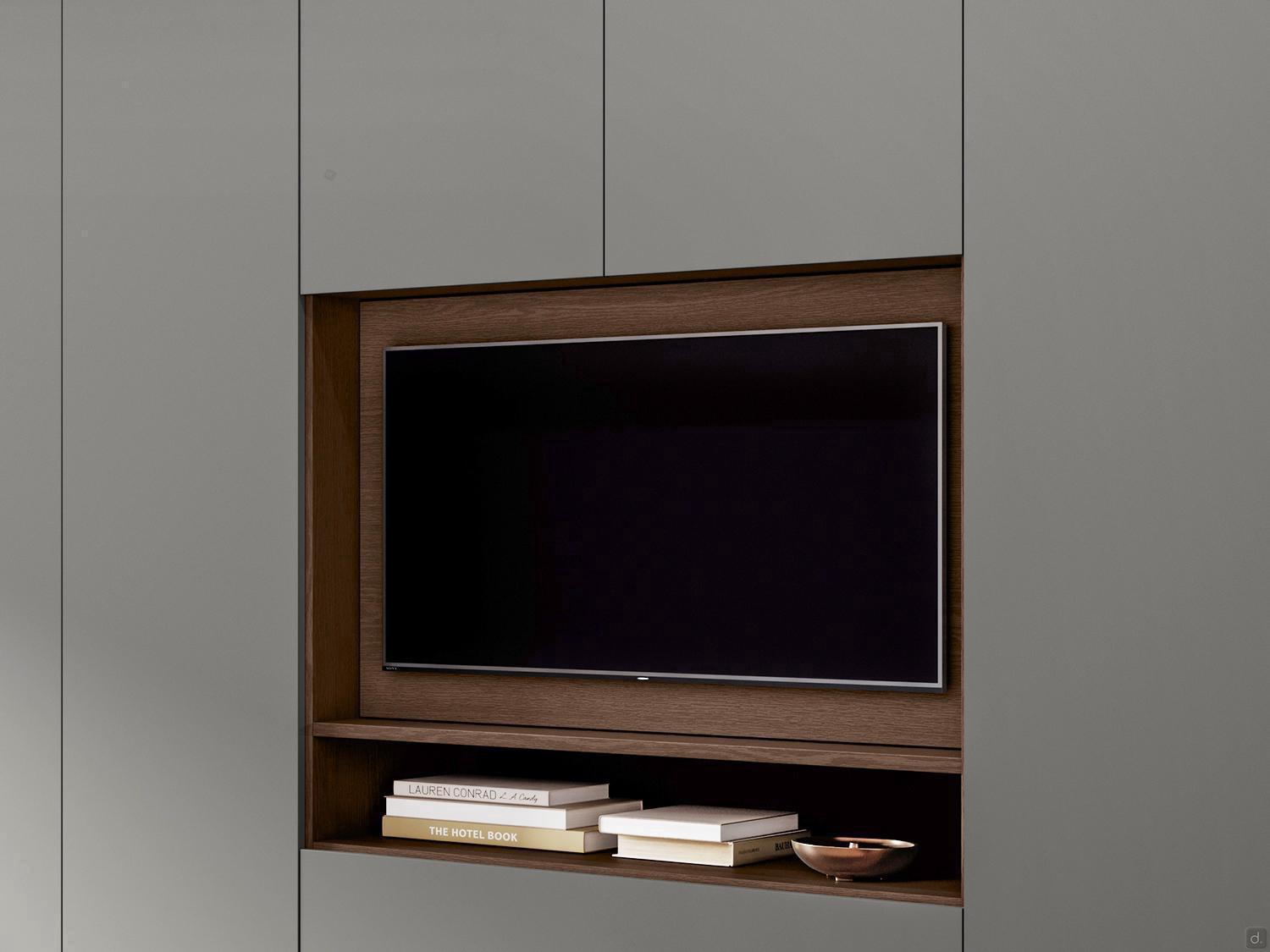

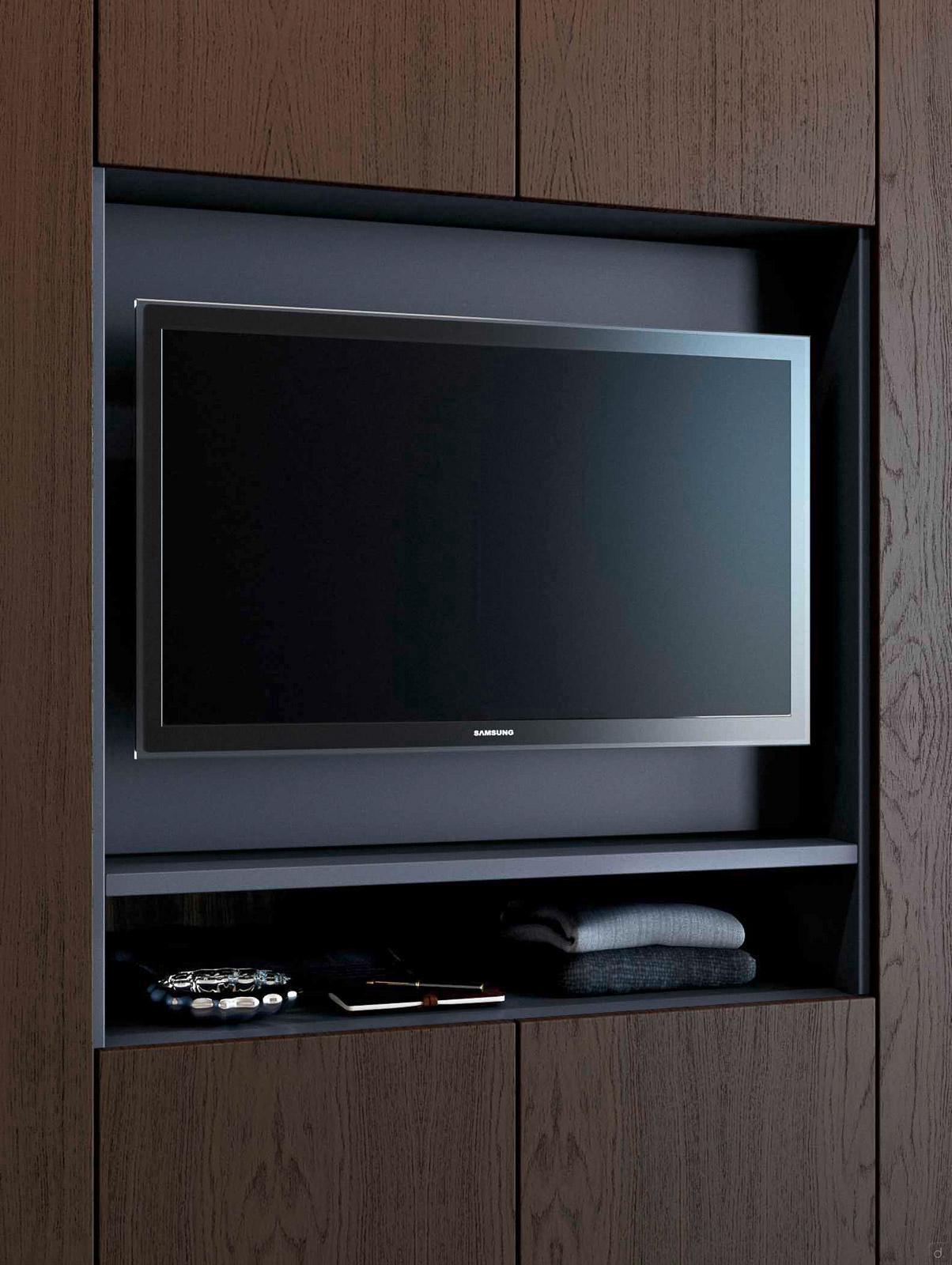

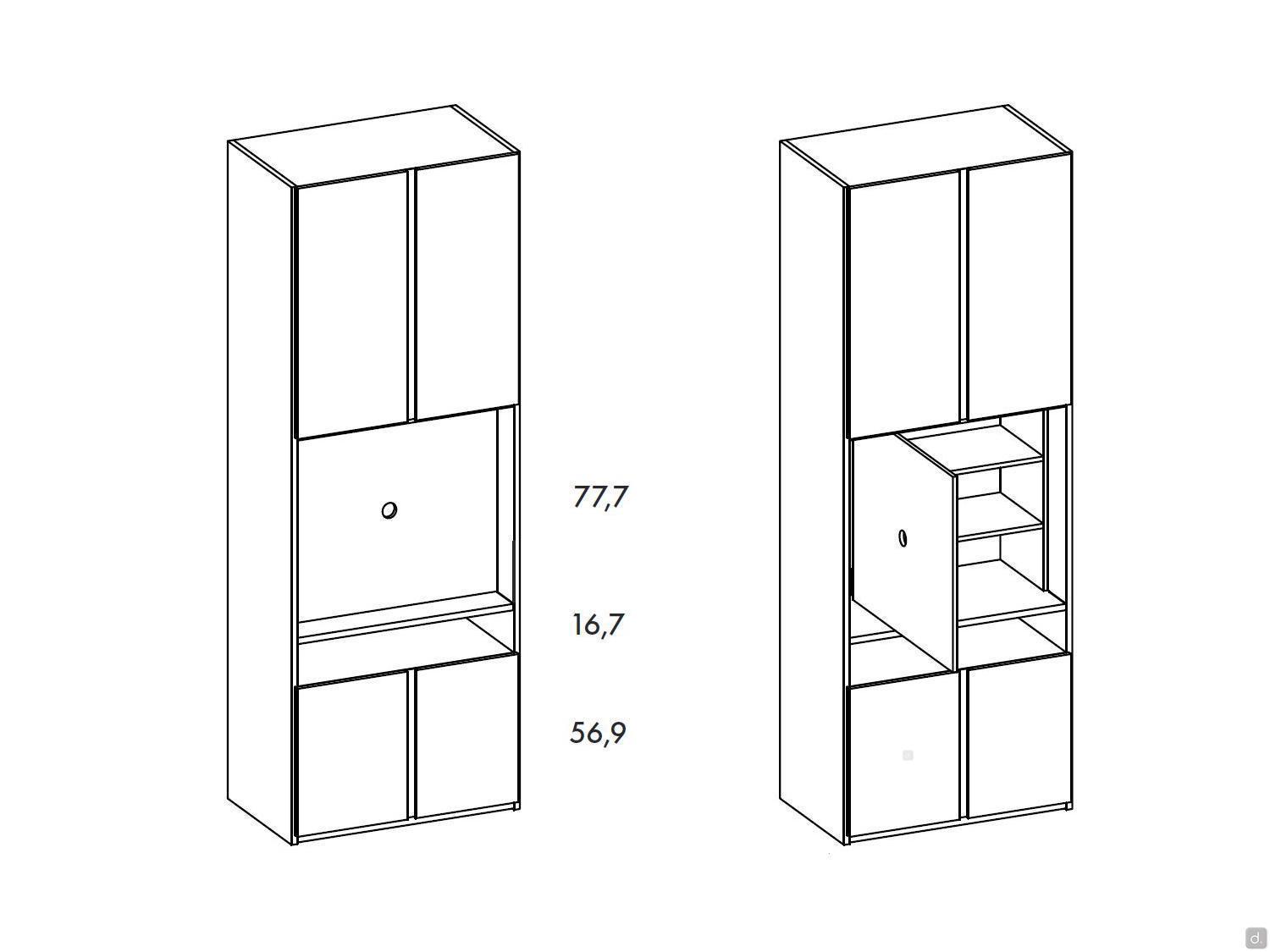

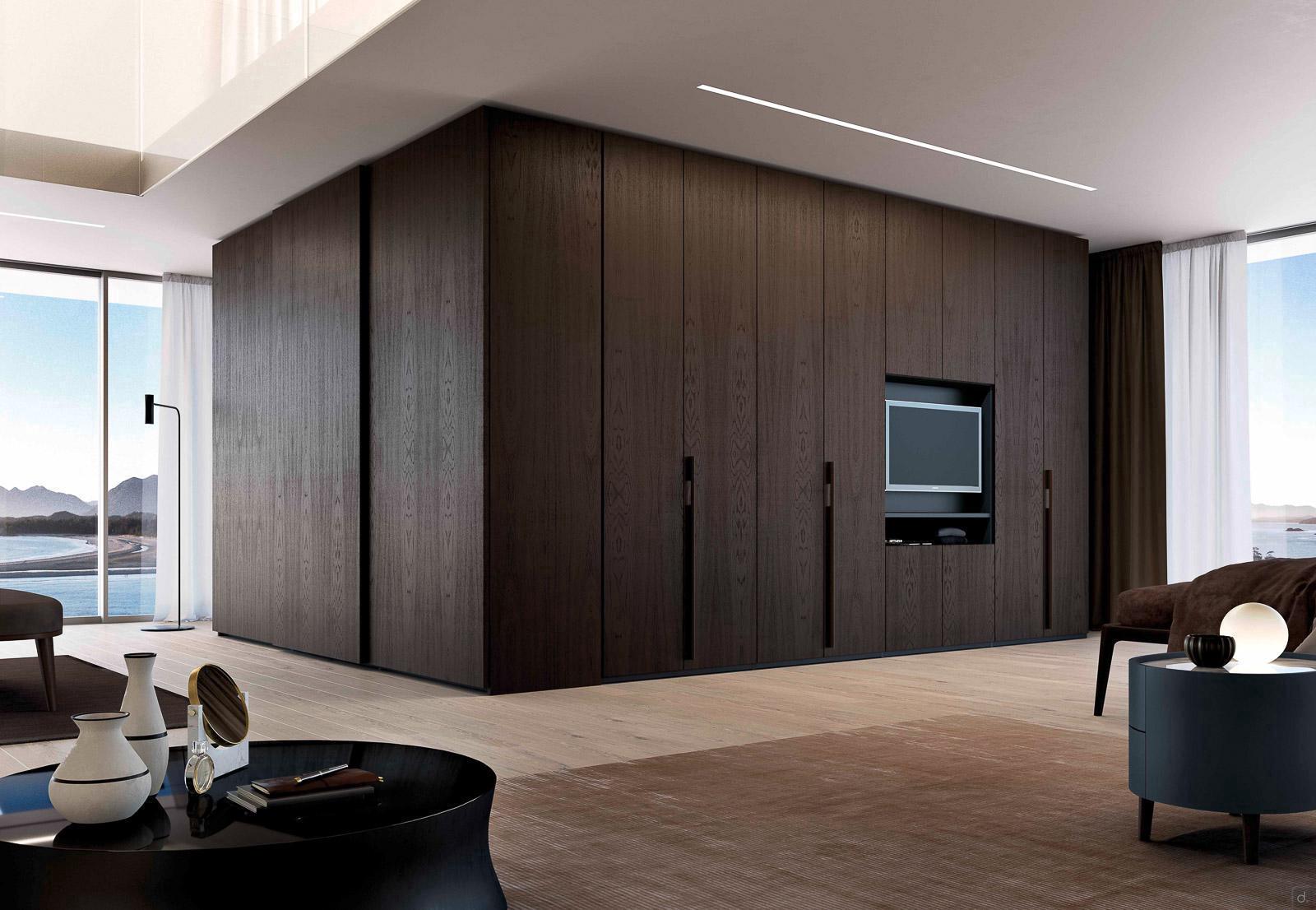

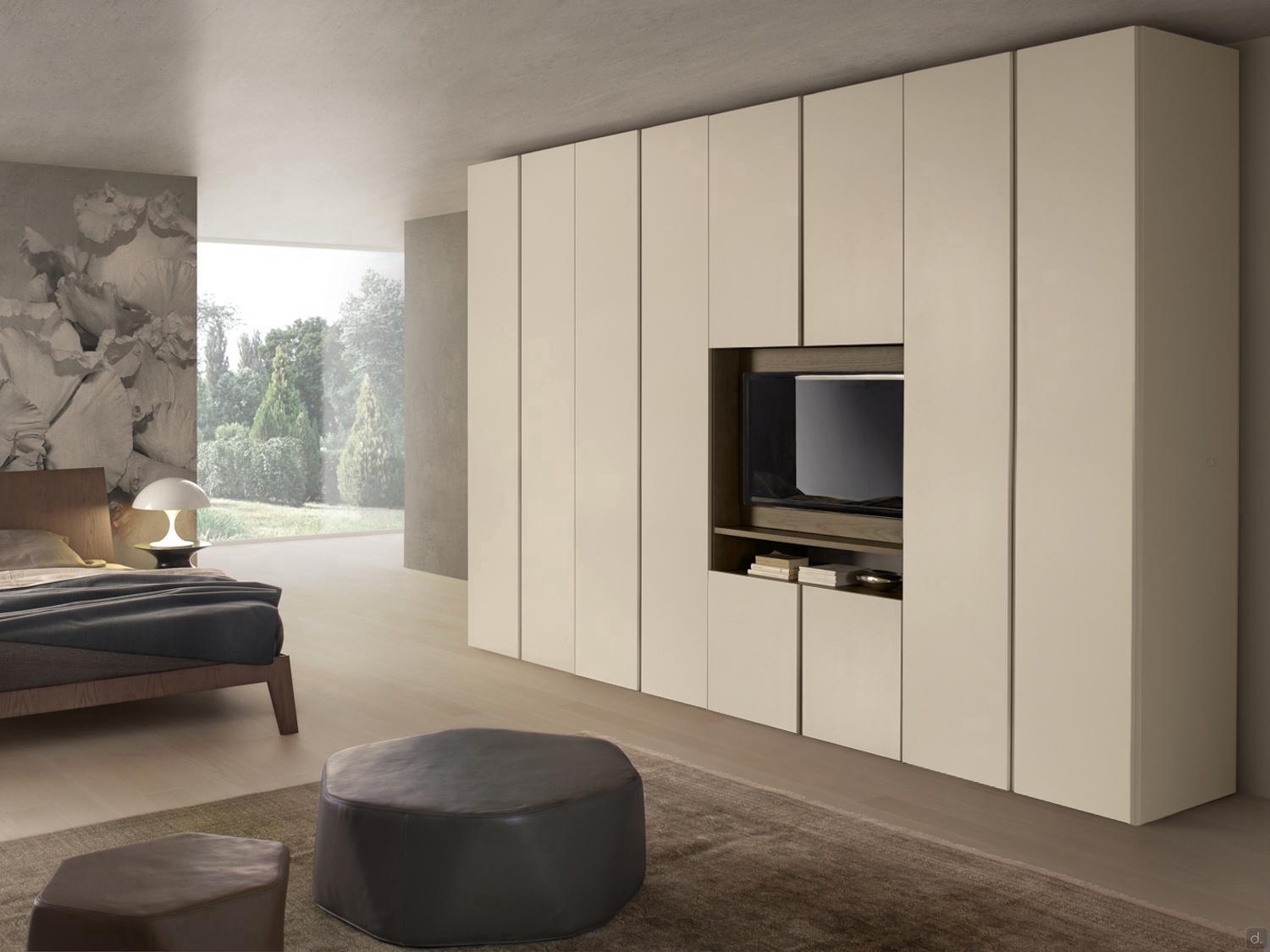

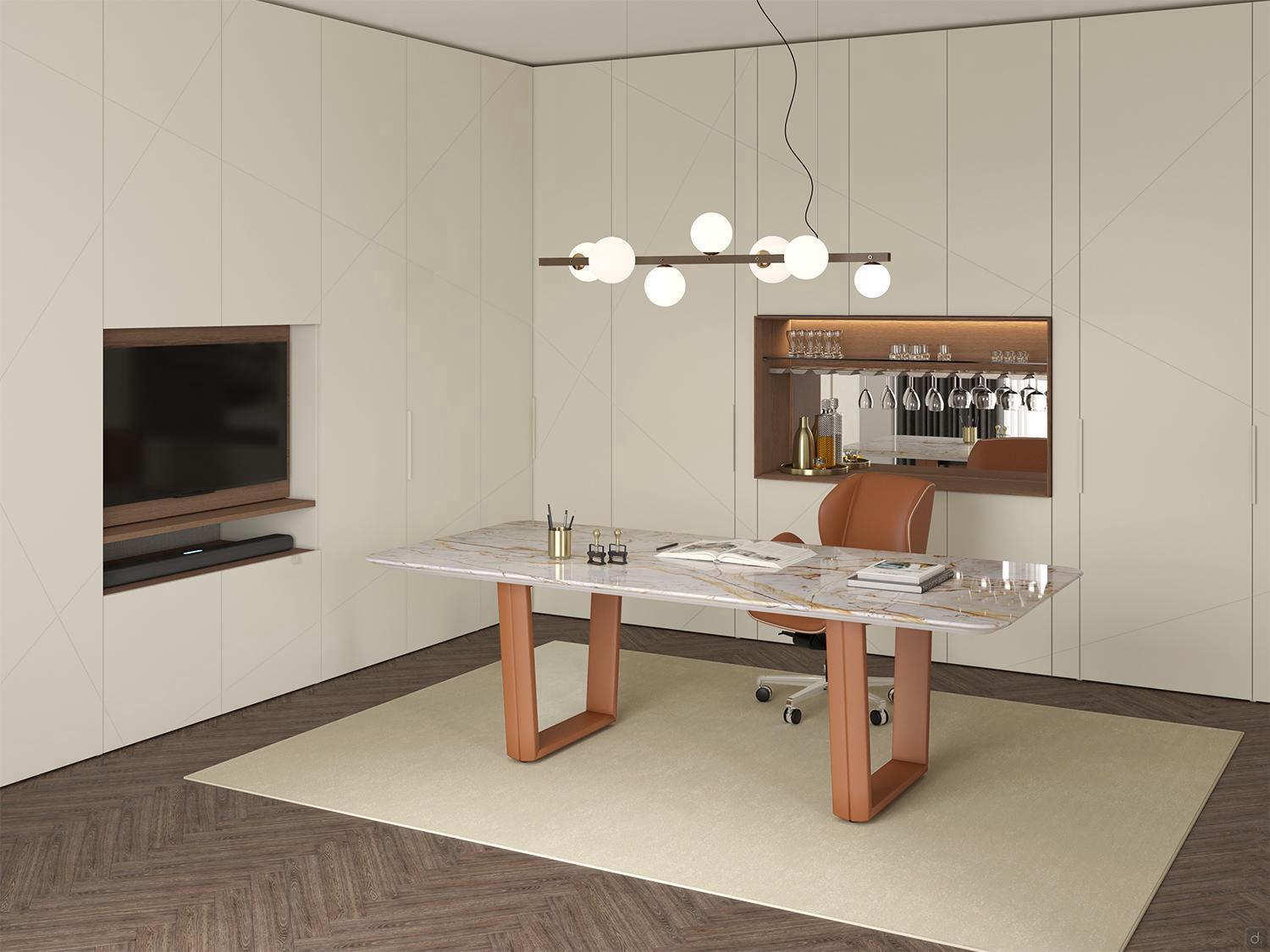

TV Compartment: in MDF, 1,8 cm thick.
Assembly Tips
Hardware pre-mounted on all elements to facilitate and speed up the assembly process. The hinged doors are equipped with n.4 slow-closing metal hinges and a rubber dust stop. The feet, which are also pre-mounted on the plinths, allow for the correct levelling of the wardrobe thanks to a maximum extension of 0,8 cm. In the unloaded position, they measure 0,5 cm for the finished product.
To assemble the structure of the wardrobe, you will need:
- 4 cm in width (if assembling in a 2 cm niche)
- 3 cm in height
Further Information...
Honeycomb Panels: panel made with an internal honeycomb structure and a perimeter frame of 5 / 7 cm made from top-quality solid pine, closed with 2 panels in MDF (0,3 / 0,4 cm thick) which are subsequently lacquered and veneered.
The strengths of honeycomb panels are:
- greater durability over time;
- greater resistance to load;
- significantly reduced weight of the panels (up to 60% less), useful for transport, assembly, moving or removals, but especially to reduce the weight of the doors on the structure and hardware;
- hardware always fixed on the perimeter (in solid fir wood) of the sides and doors, so hinges will have a higher resistance and the furniture will have a considerably longer life;
- better resistance to humidity, as the material "breathes";
- product is exclusively "100% Made in Italy".
Aged Oak: compared to the "standard" open-pore oak, aged oak is characterised by a slightly more brushed surface, which shows a deeper pore and a more marked grain. This difference is particularly noticeable on bigger surfaces such as tables, wall units and wardrobes, less so on accessories, beds and bedroom sets.
