Materials Specifications
Structure, Fronts and Upper Panels: made of particle wood panels with 2 cm thickness coated in melamine and finish in mat, glossy or metallic lacquer or in painted wood veneer. The glossy finish is applied on the external side only and its borders, while the inside is in the same colour but matt lacquered.
Backrests: made of medium density particle wood panels thickness cm 0,8 with synthetic melamine coating.

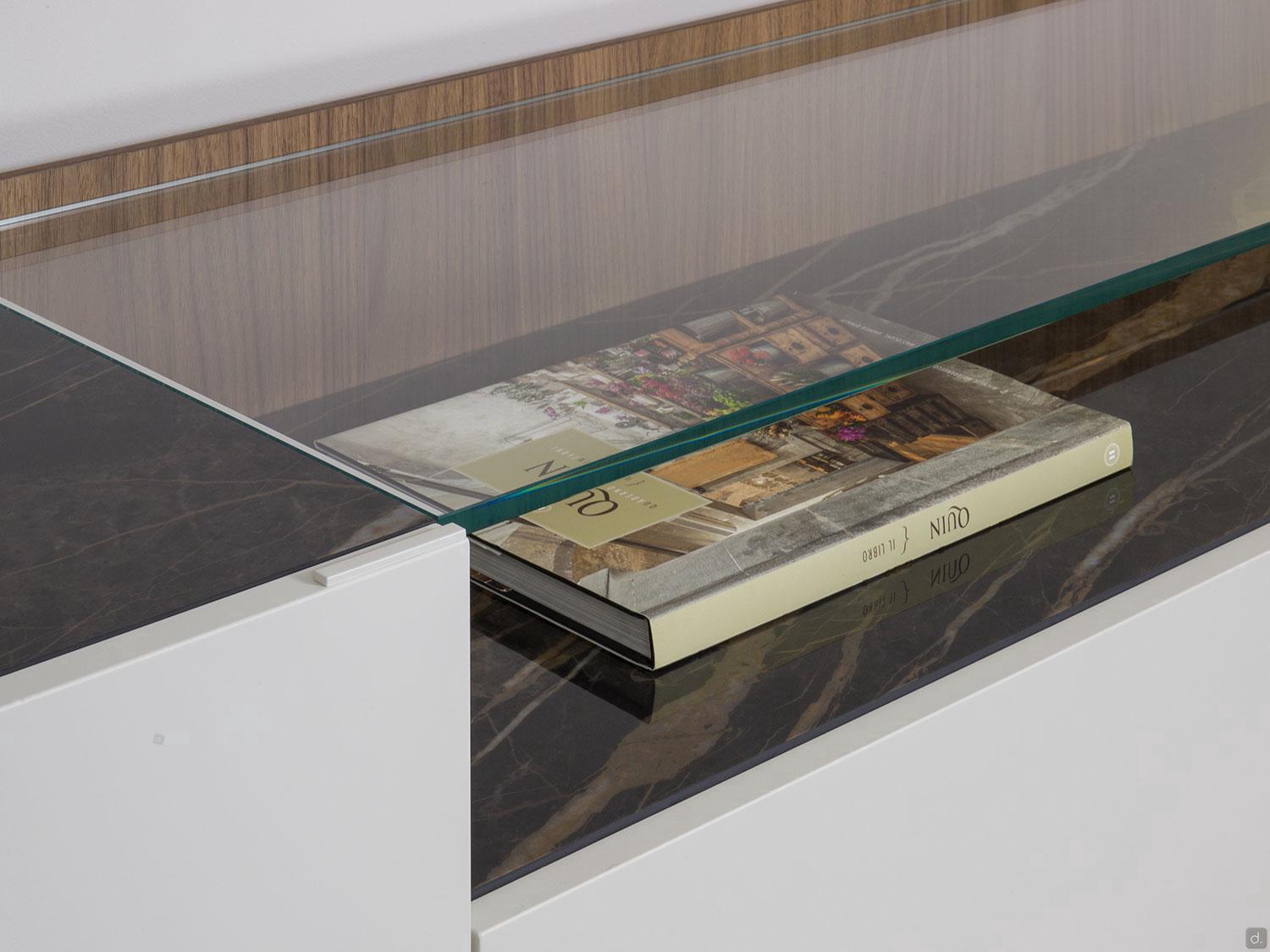

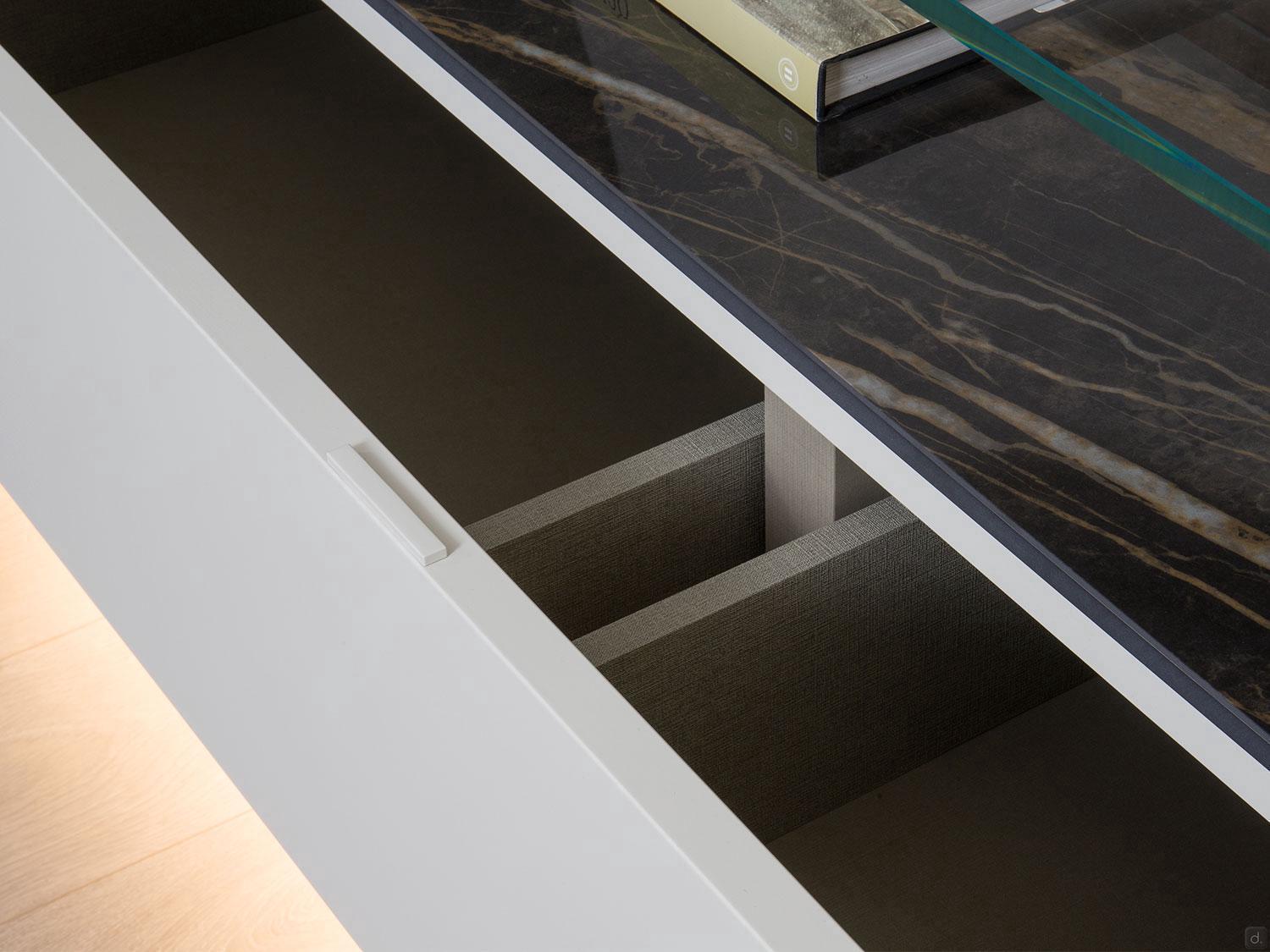

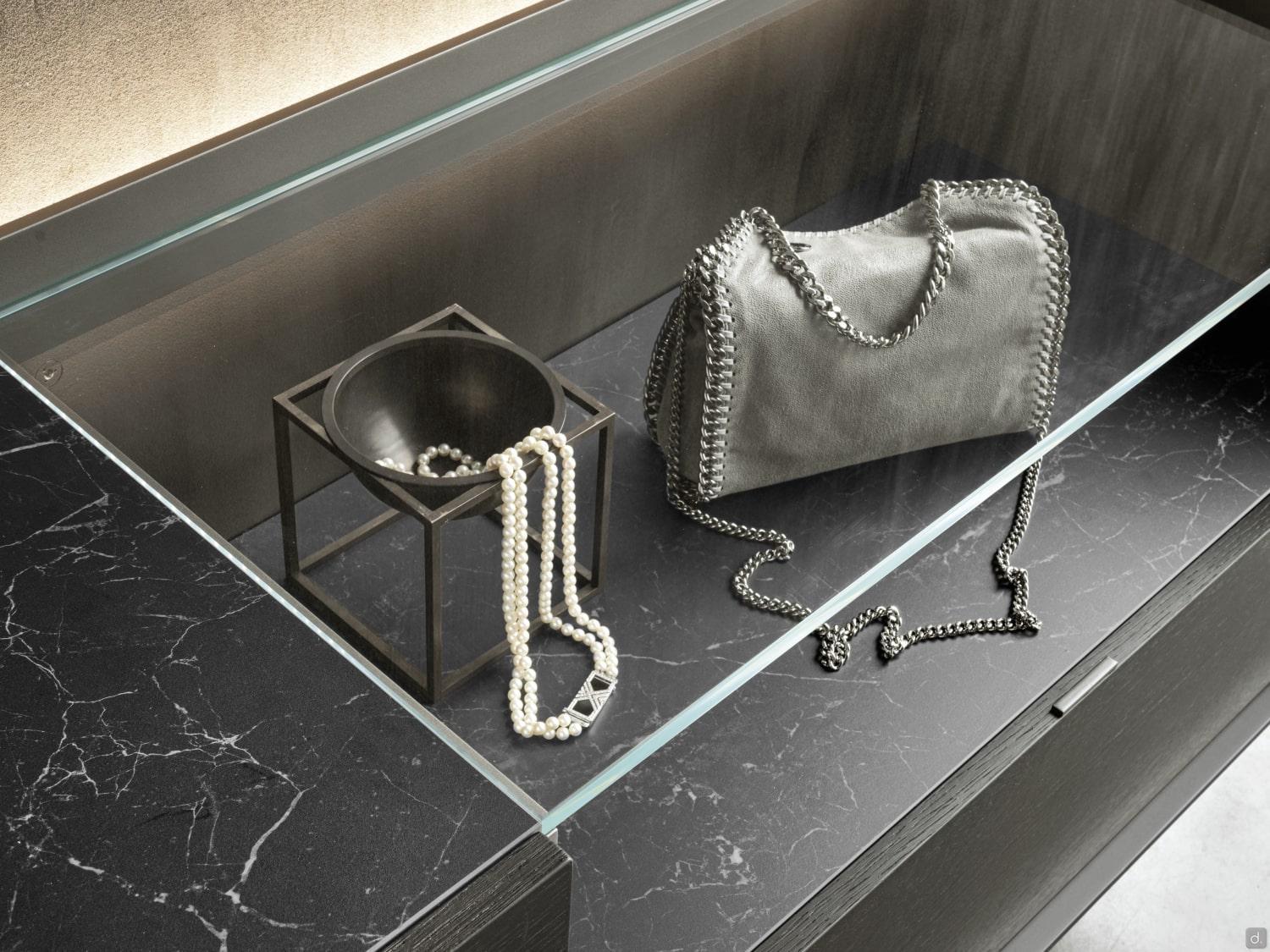

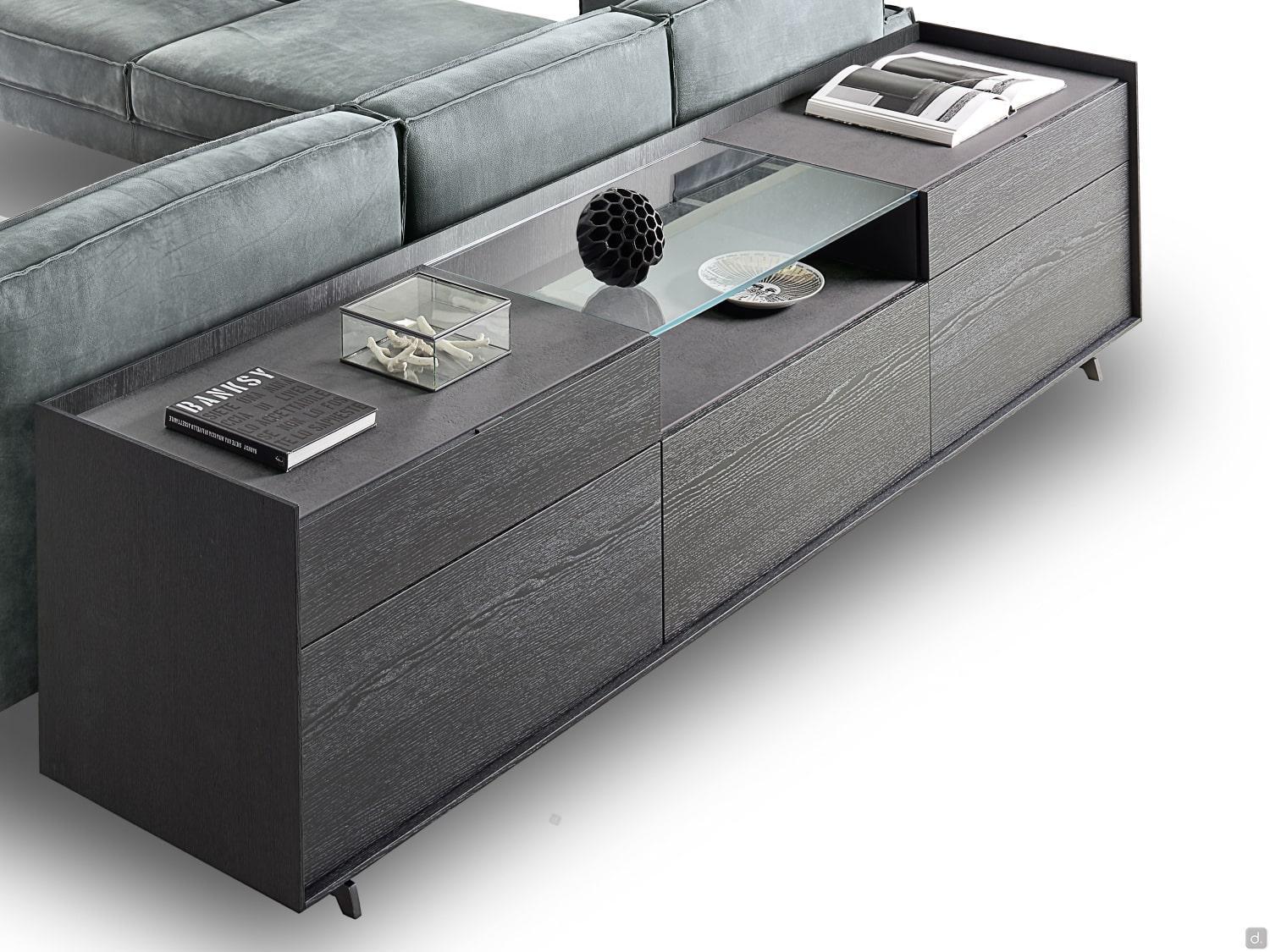

Drawer: thickness cm 1,4 with bottom panel cm 0,8 thick in particle wood panels, inside in Jute textured finish. The external shelf in clear glass has a thickness of 1,2 cm.
Perimeter Structure: made of medium density particle wood panel 1 cm thick coated in melamine finished in matt, metallic lacquer or veneered in painted wood.
Feet:
- in black ABS Ø cm 5 and height cm 2,7, internal adjustment of cm 1,2.

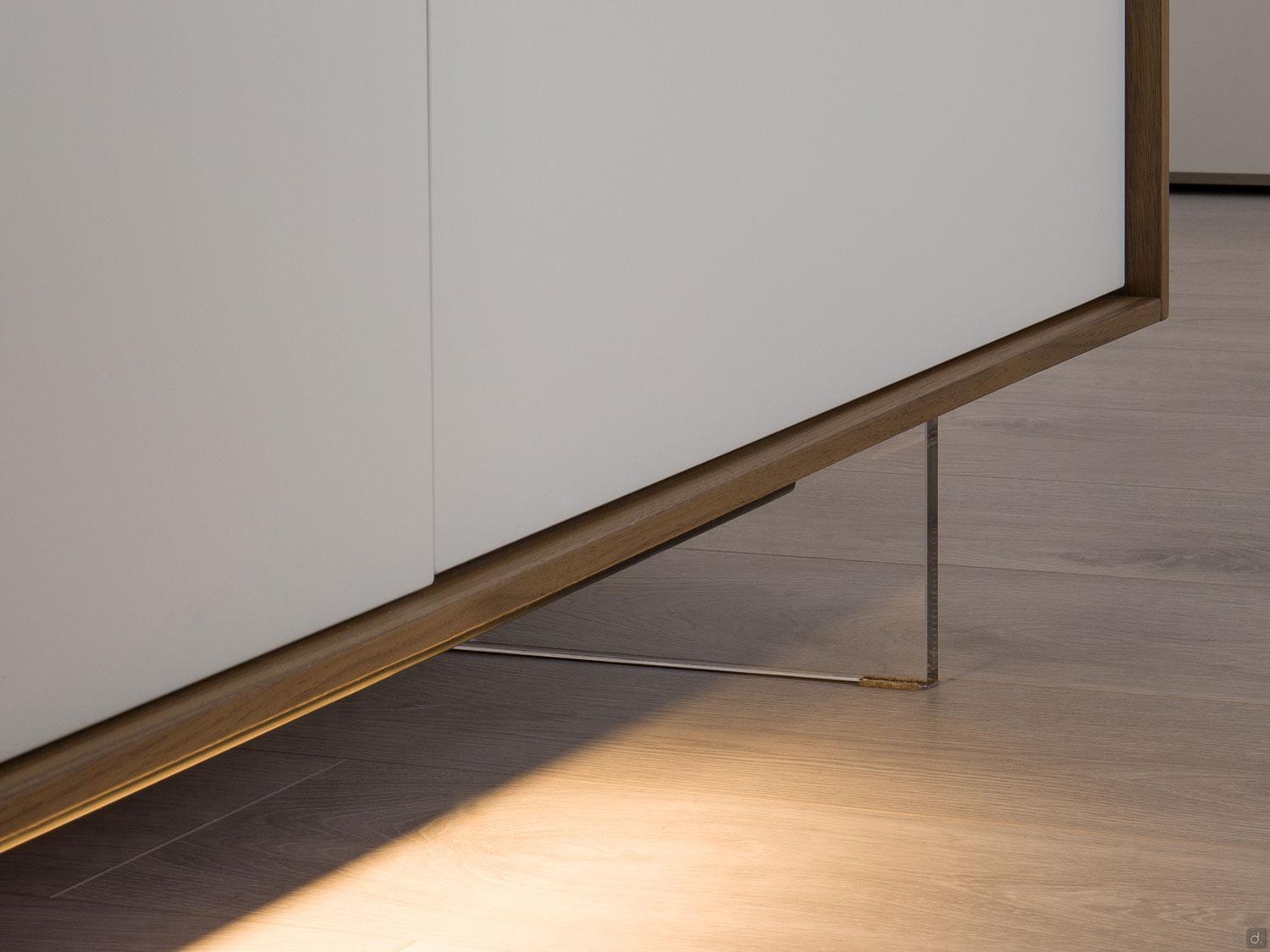

- methacrylate / shaped th. cm 1,5
- cylinder th. Ø cm 2

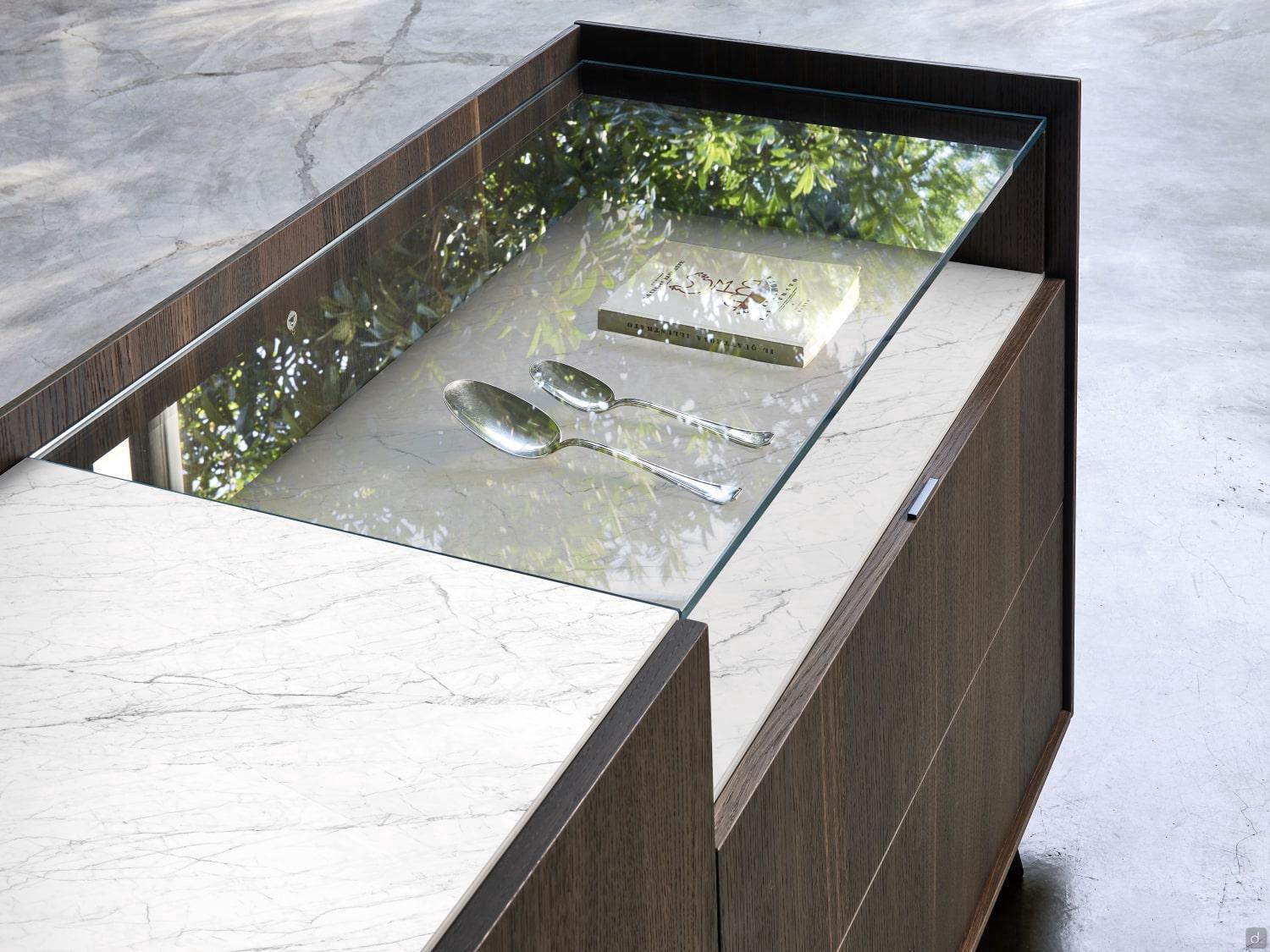

Top: made of ceramics coming from slab measuring cm 162 x 324 and thickness cm 1,2. Casually cut by keeping the correct measurements and the direction of the slab texture. Very resistant material they are an eco-friendly product.
Technical Specifications and Equipment

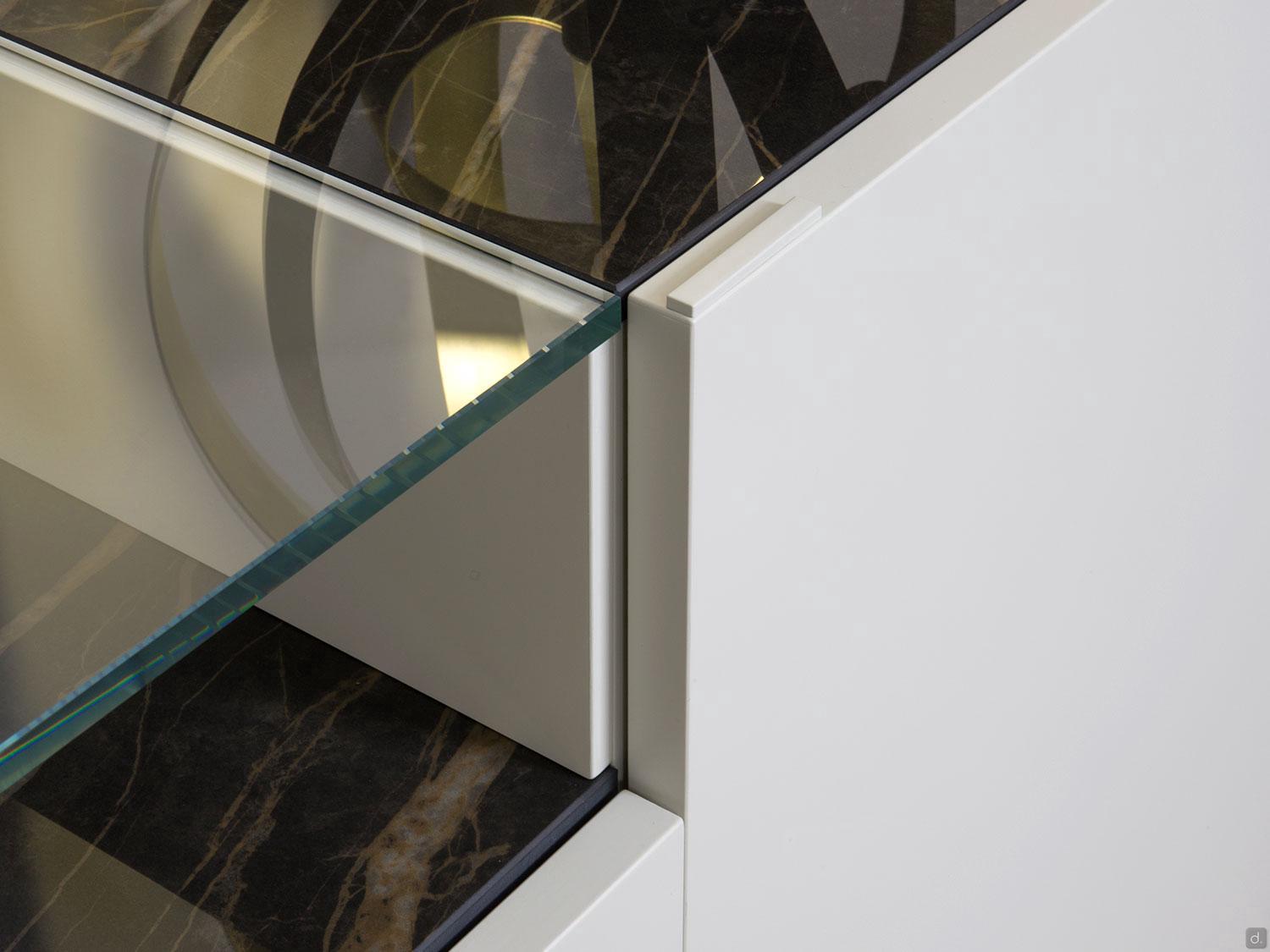

Drawers Opening: fronts with upper visible edge come with minimal handle, usually placed in the middle of the front; all the others open with push-pull.
Runners for Drawers:
- opening with Minimal handle: metallic runners with full extension, end-of-the-line block and dynamic load of 30 kg. "Blumotion" soft closing system integrated into the runners. Anti un-hooking system and vertical adjusting system of the fronts inclination included in all the runners of the system. Stabilizing bar for all drawers bigger than 90 cm wide and "Movento" runners with stabilizer and side adjustment system of the fronts for drawers 120 and 150 cm wide.
- push-pull opening: metal hinges with full extension, end-of-the-line block and dynamic load of 30 kg. Integrated sliding synchronization inside the drawers runners for sizes bigger than 45 cm. Anti un-hooking system and vertical adjustment of the fronts inclination integrated in all the runners of the system.
Drawers width cm 120 and 150 with "Movento" hinges and side adjustment of the fronts.
Matching between Minimal handle and the structure
| Structure |
Handles
|
| Clay Oak |
terranova matt |
| Avana Oak |
brown matt |
| Coal Oak |
brown matt |
| Cuba Oak |
brown matt |
| Heat-treated Oak |
brown matt |
| Grey Oak |
brown matt |
| Canaletto walnut |
Brown matt |
| matt lacquer |
matt lacquer |
| metallic lacquer |
metallic lacquer |
Optional

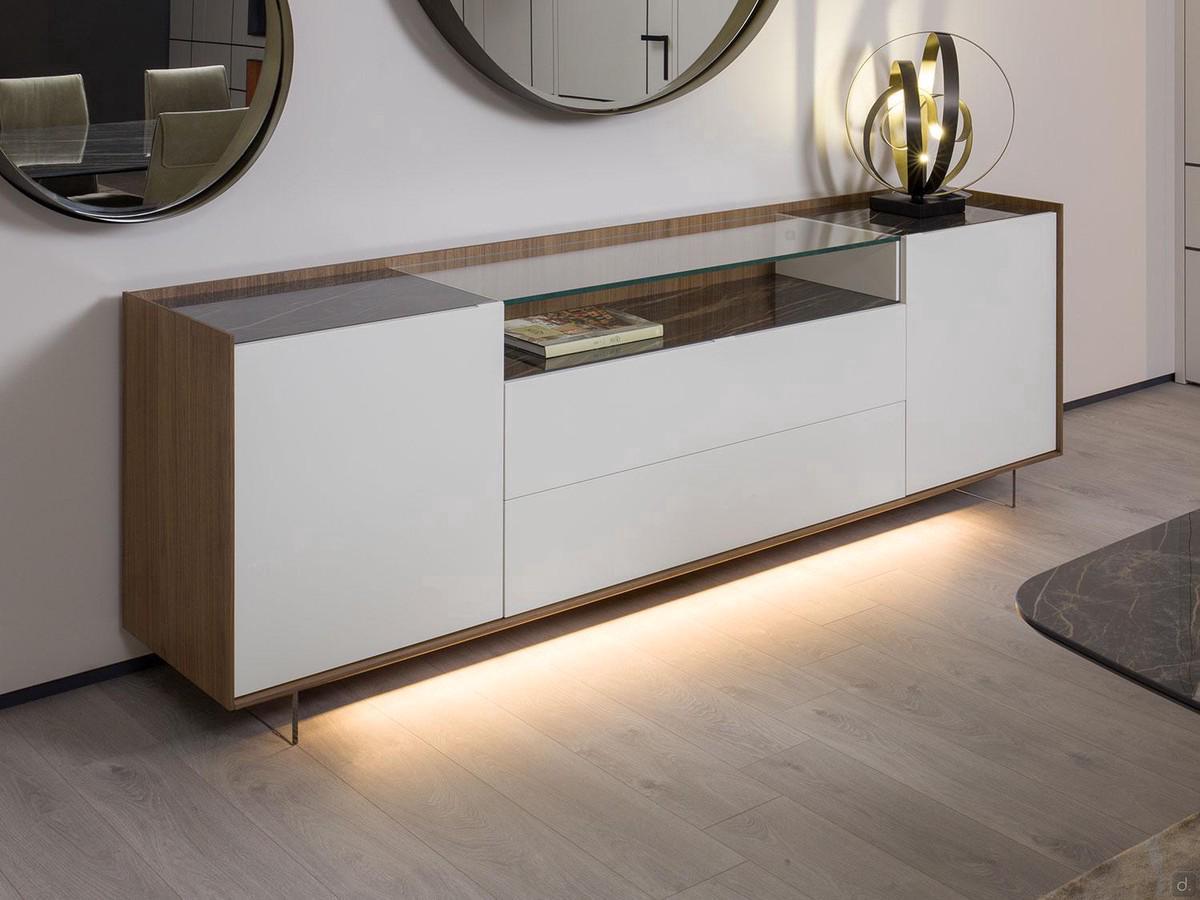

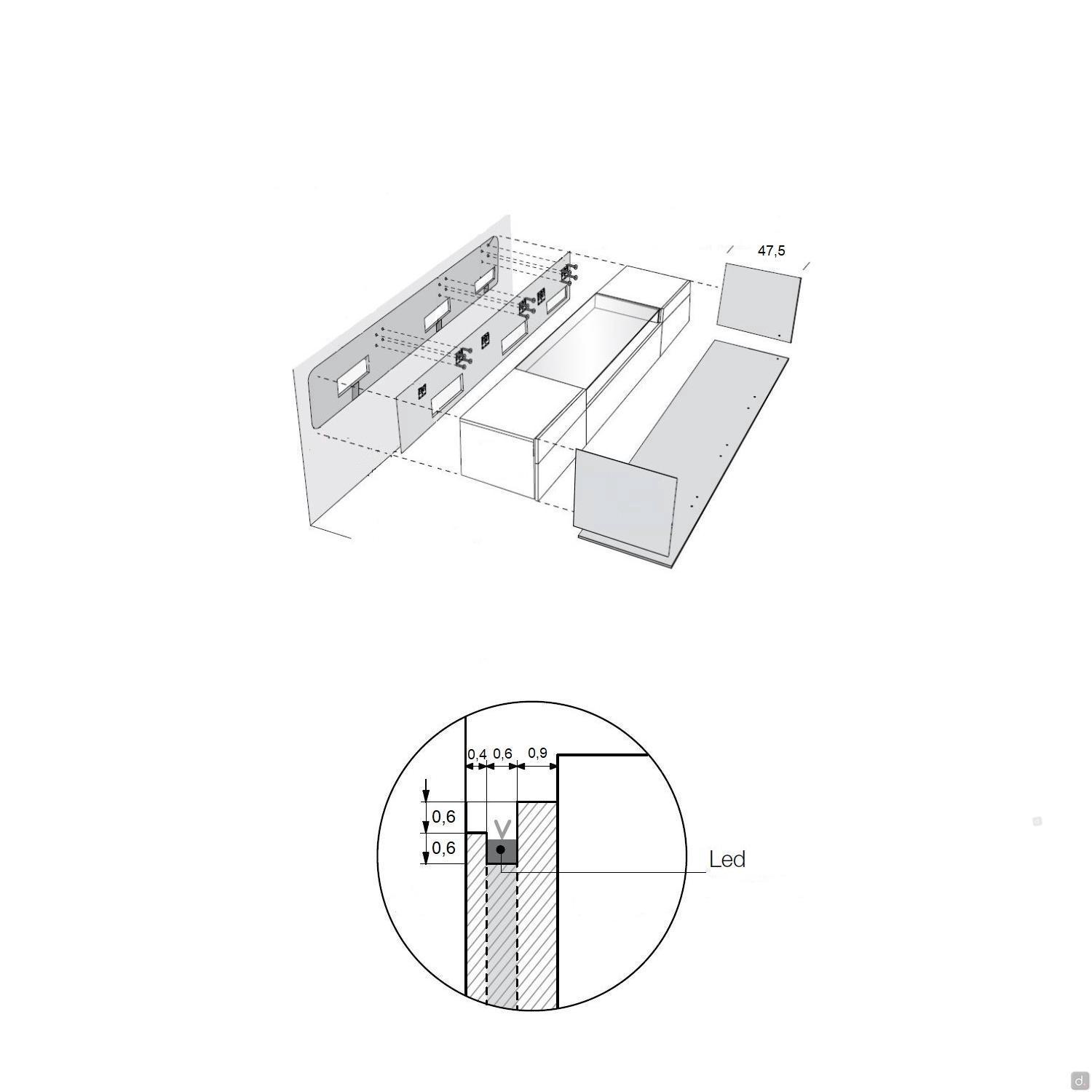

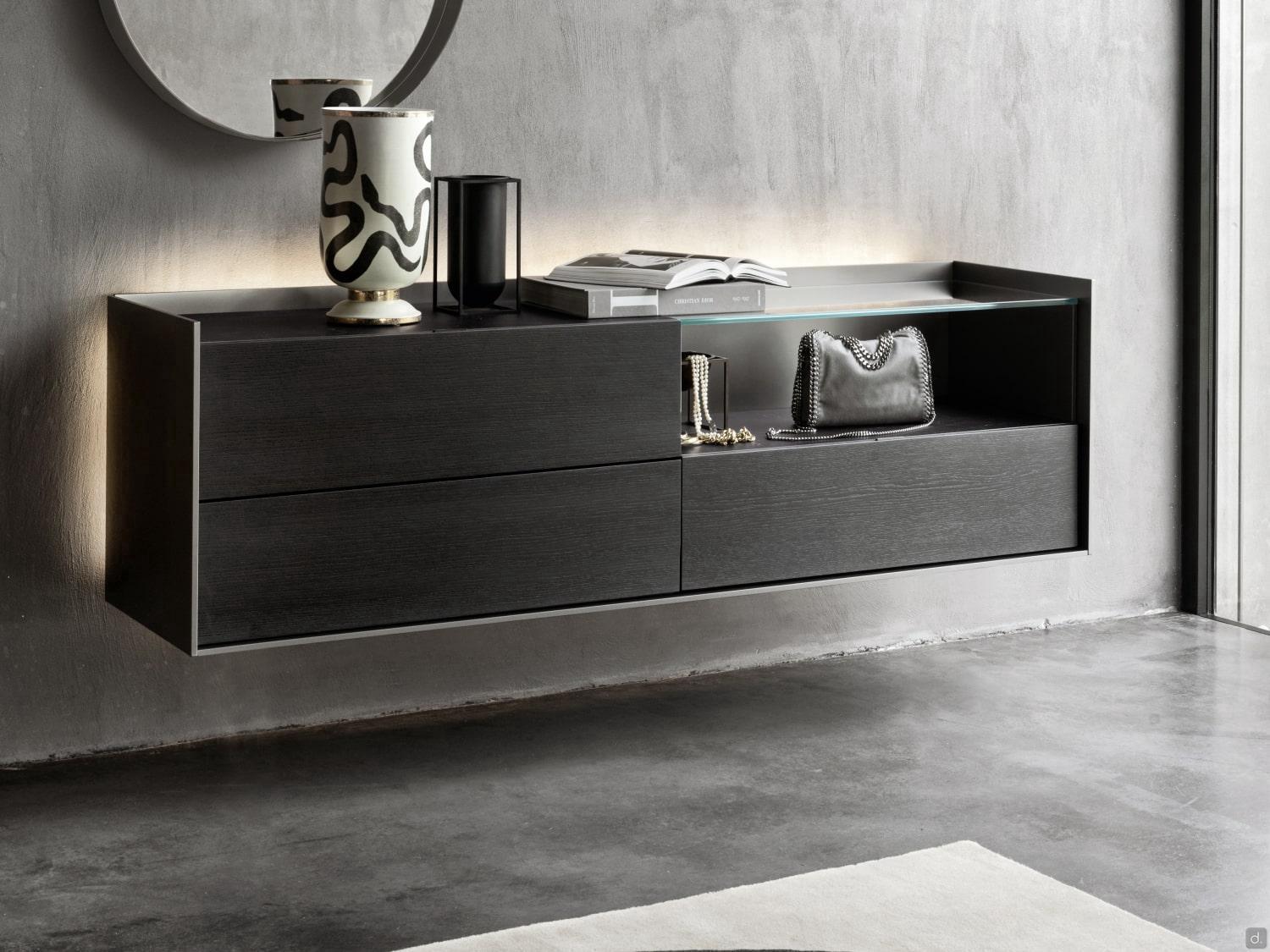

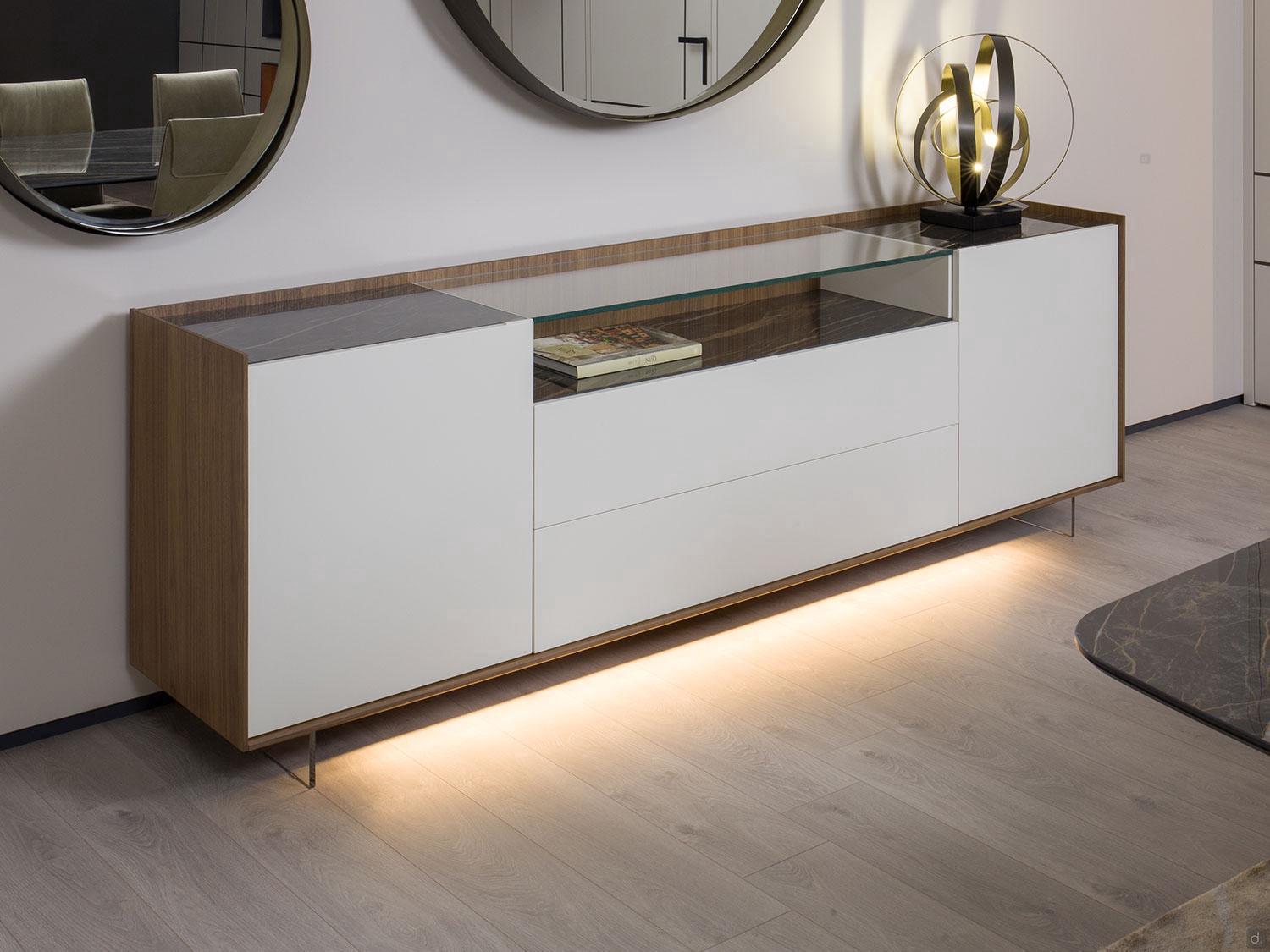

lights: under the base with LED bar at 3000K, with external profile in satined-finished aluminium; LED frame above and on the sides or on the four sides with LED light at 3000K from 39,4 to 72,6 W with transformer included and optional remote control.
For more information...
Heat-treated Oak: This particular oak finish is characterised by the contrast between the light-coloured grain and the dark, full-bodied background of the wood. This effect is created by the high temperature to which the wood is subjected, resulting in a different colouring between the harder and softer parts of the wood, with a pleasant contrast in lighter and darker tones.
