Technical Specifications
Structure: made of 2 cm thick particle board panels for the sides, bottom and top or 4 cm for internal partitions and dividers. Covered with synthetic laminate, also matte, glossy and metallic lacquer or with painted wood veneer.
Fronts: 2 cm thick, covered with synthetic melamine, also matte, glossy and metallic lacquered or with painted wood veneer. Glossy front means the exterior and the related glossy edges, while the interior is supplied with the corresponding matte lacquered colour.
Ceramic Top: carved from slabs measuring cm 162 x 324 with a thickness of 1,2 cm. They are cut randomly in compliance with the dimensions and direction of the design of the slab. Anti-scratch and highly resistant to abrasion, they are an eco-friendly product and do not release toxins.

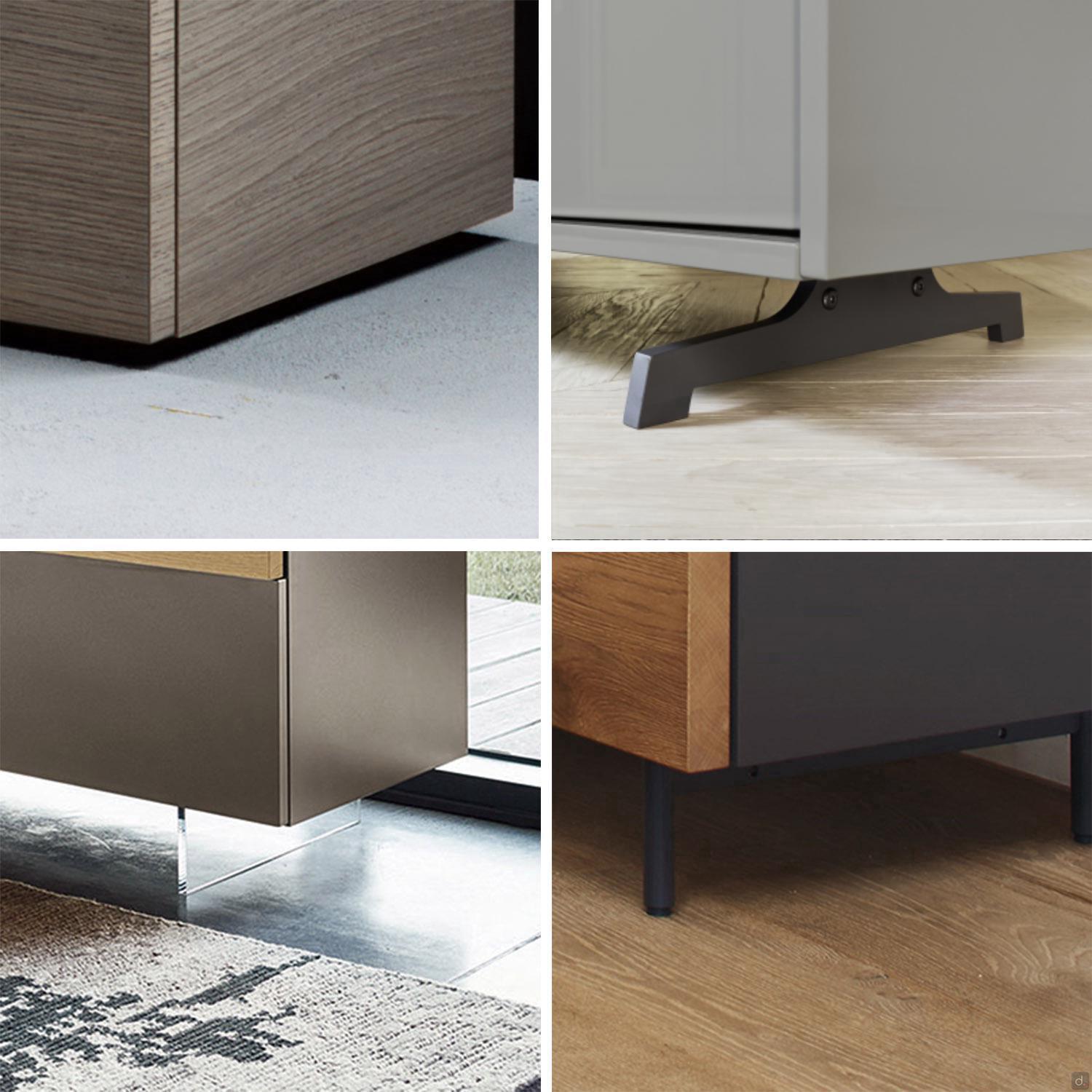

Feet:
-in black ABS Ø cm 0,5 with a height of cm 2,7, internal adjustment cm 1,2.
- methacrylate / shaped th. cm 1,5
- cylindrical th. Ø cm 2
Opening System:
- push-pull: high-sliding metal guides with Total Extraction and end-of-travel brake with dynamic load capacity of 30 kg. Sliding synchronizer integrated into the drawer guides with a width greater than 45 cm. Anti-release pin and vertical adjustment of the inclination of the fronts integrated into all the guides of the system. Drawers with widths of cm 120 and 150 are equipped with "Movento" guides and side adjustment of the fronts. Push-pull opening of the fronts for the drop-down elements with opening from top to bottom. For the drawers this is positioned at the top in the centre, while for the hinged doors it is at the top in the corner.
Internal Shelves: glass with a thickness of cm 0,6
Handles:
- Minimal: cm 6
In the case of fronts placed one on top of the other, the Minimal handle is only present on the upper front.
Combination table for the Minimal handle with the structure
| Structure |
Handles
|
| Clay Oak |
matte Terranova |
| Havana Oak |
matte Brown |
| Charcoal Oak |
matte Brown |
| Cuba Oak |
matte Brown |
| Grey Oak |
matte Brown |
| Natural Knotted Oak |
matte Brown |
| Caramel Knotted Oak |
matte Brown |
| Heat-treated Oak |
matte Brown |
| Canaletto Walnut | matte Brown |
| matte lacquer |
matte lacquer |
| glossy lacquer |
glossy lacquer |
| metallic lacquer |
metallic lacquer |
| Eco Walnut melamine |
matte Brown |
| Medium Elm melamine |
matte Lead |
| Dark Elm melamine |
matte Brown |
| Nature Loto melamine | matte Rope Grey |
| Dove Grey Loto melamine |
matte Rope Grey |
| Earth Loto melamine |
matte Terranova |
| Sand Sketch melamine |
matte Canvas |
| Rock Sketch melamine |
matte Silica |
| Tobacco Sketch melamine |
matte Beaver |
To know more...
Heat-Treated Oak: this particular oak finish is characterised by the contrast between the light grain and the dark and full-bodied background of the wood. This effect is created by the high temperature to which the veneer is subjected, determining a different coloration between the harder and softer parts of the wood, with a pleasant and random chiaroscuro.
