Materials Specifications
Fronts, sides, partitions, top, bottom, internal shelves: made of class E1 particle board with low formaldehyde emission.
Note: melamines with wood effect, barré polymeric, Metal Smoke textured and Gurè textured always come with vertical veins.
Technical Specifications and Equipment

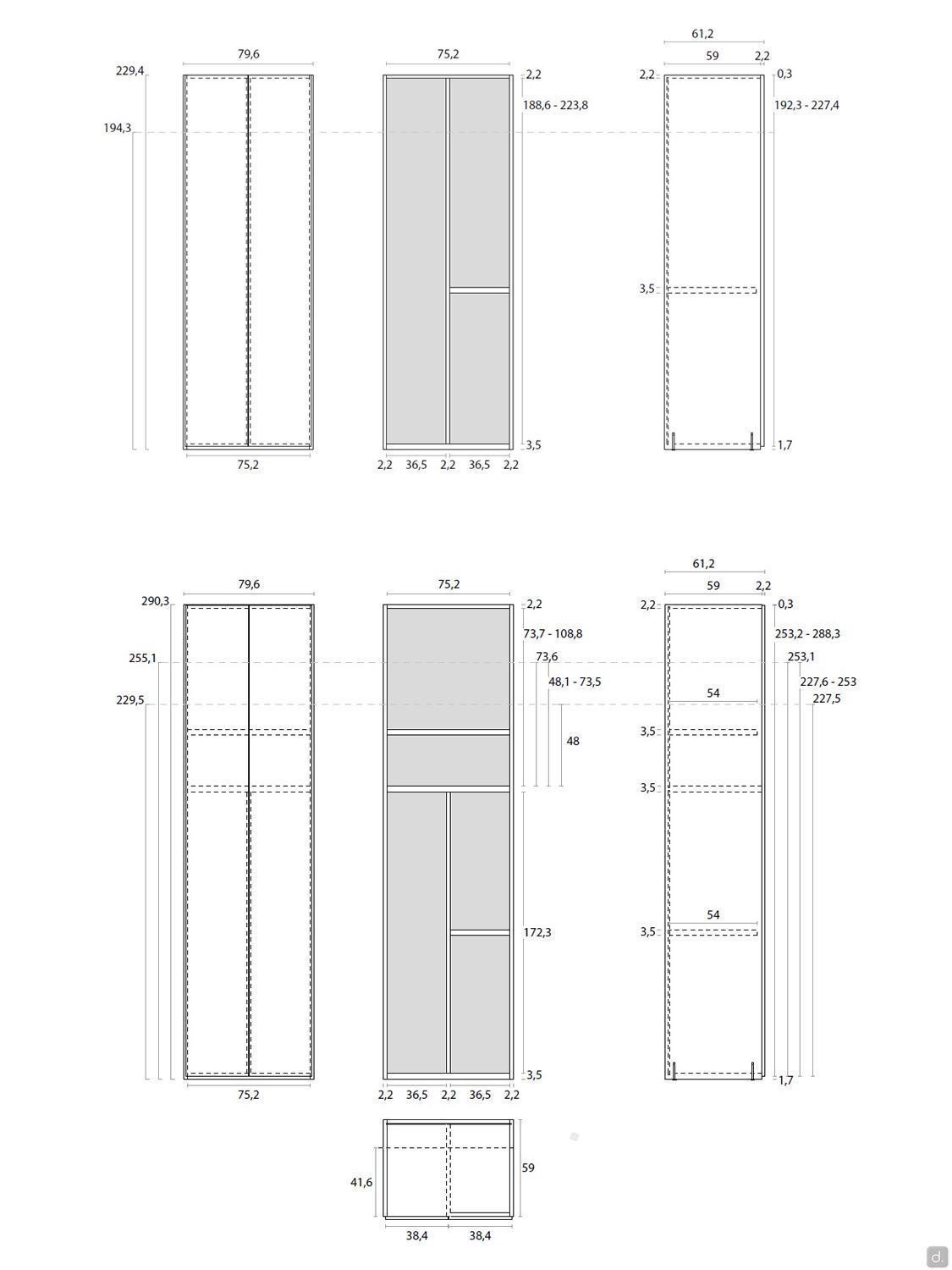

Sides and Partitions: cm 2,2 thickness. Equipped with adjustable feet built-in the thickness (cm 0,5 at lower position, to be added to the overall wardrobe height), they can be adjusted by 1 cm from the inside.
Top: cm 2,2 thick, including fixing joints., matching the internal sides.
Bottom: cm 3,5 thick, including fixing joints., matching the internal sides.

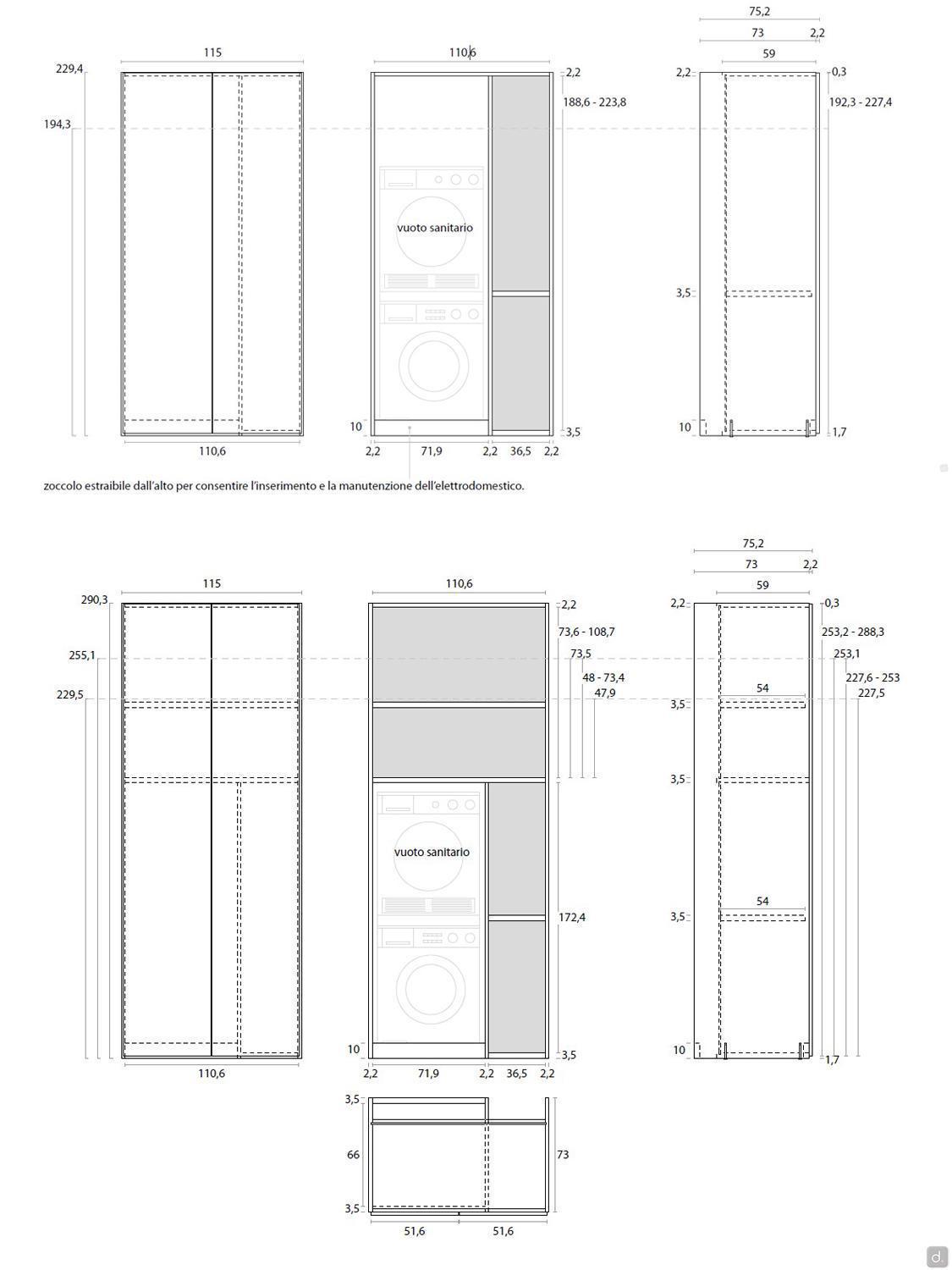

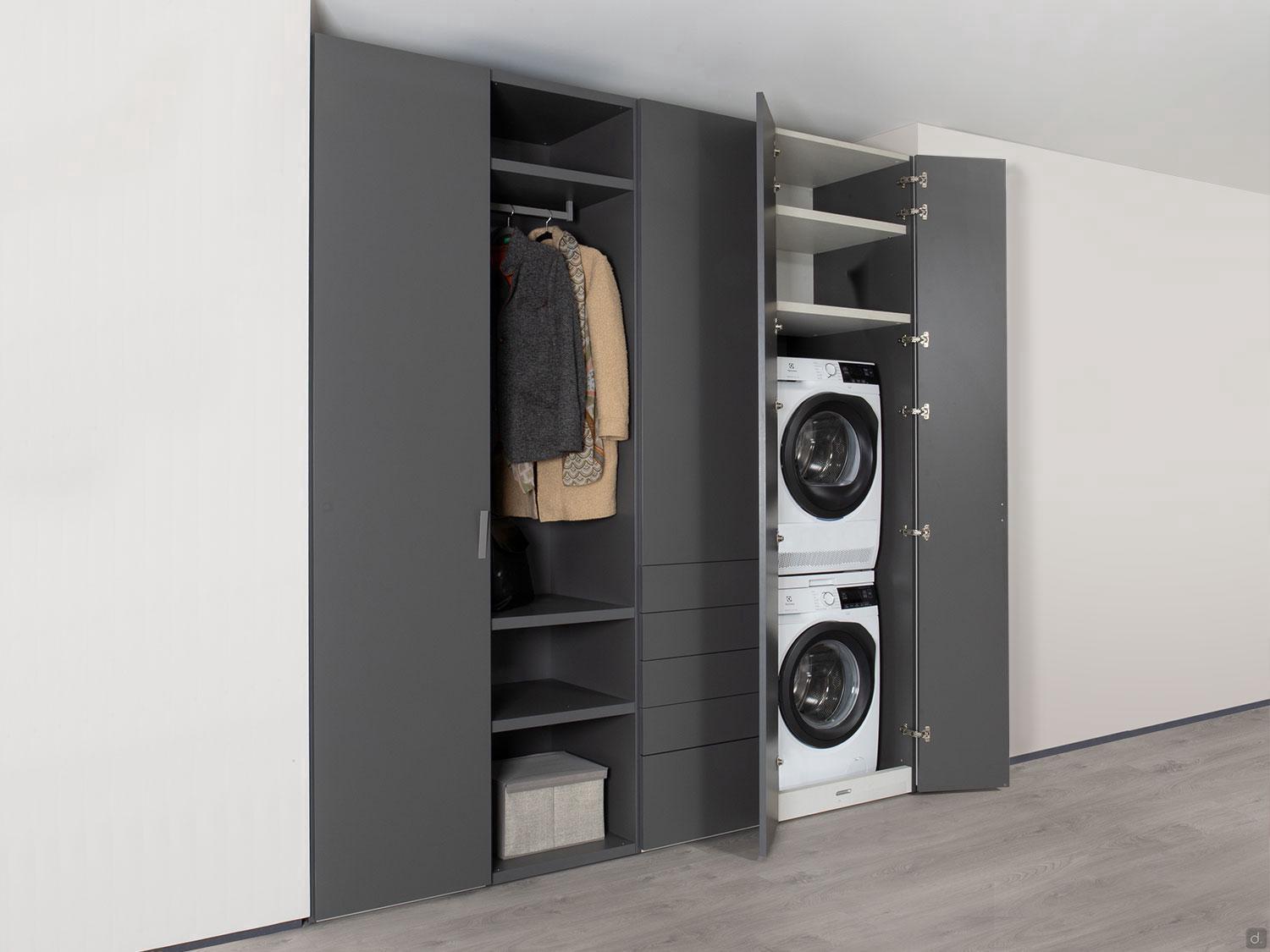

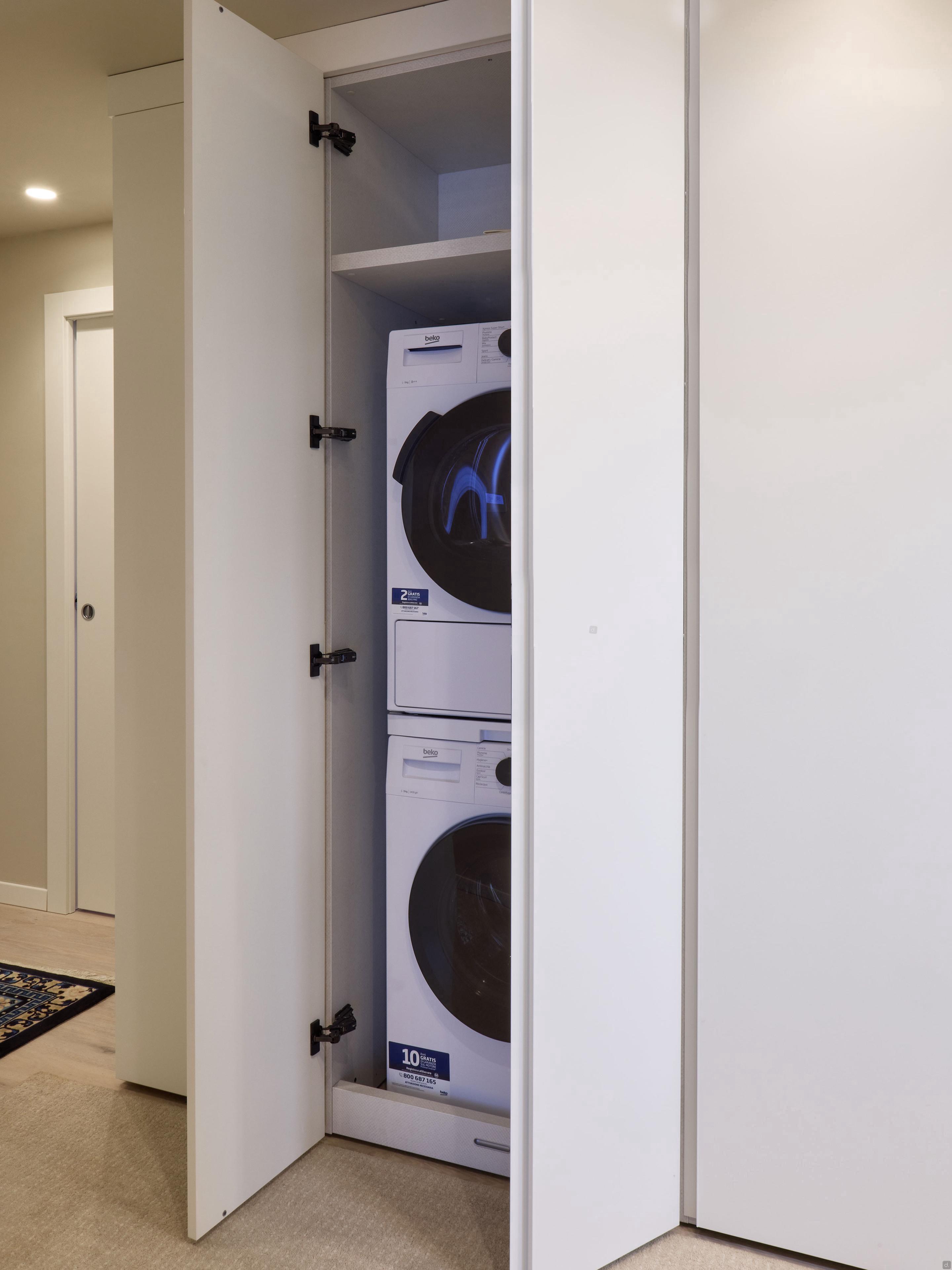

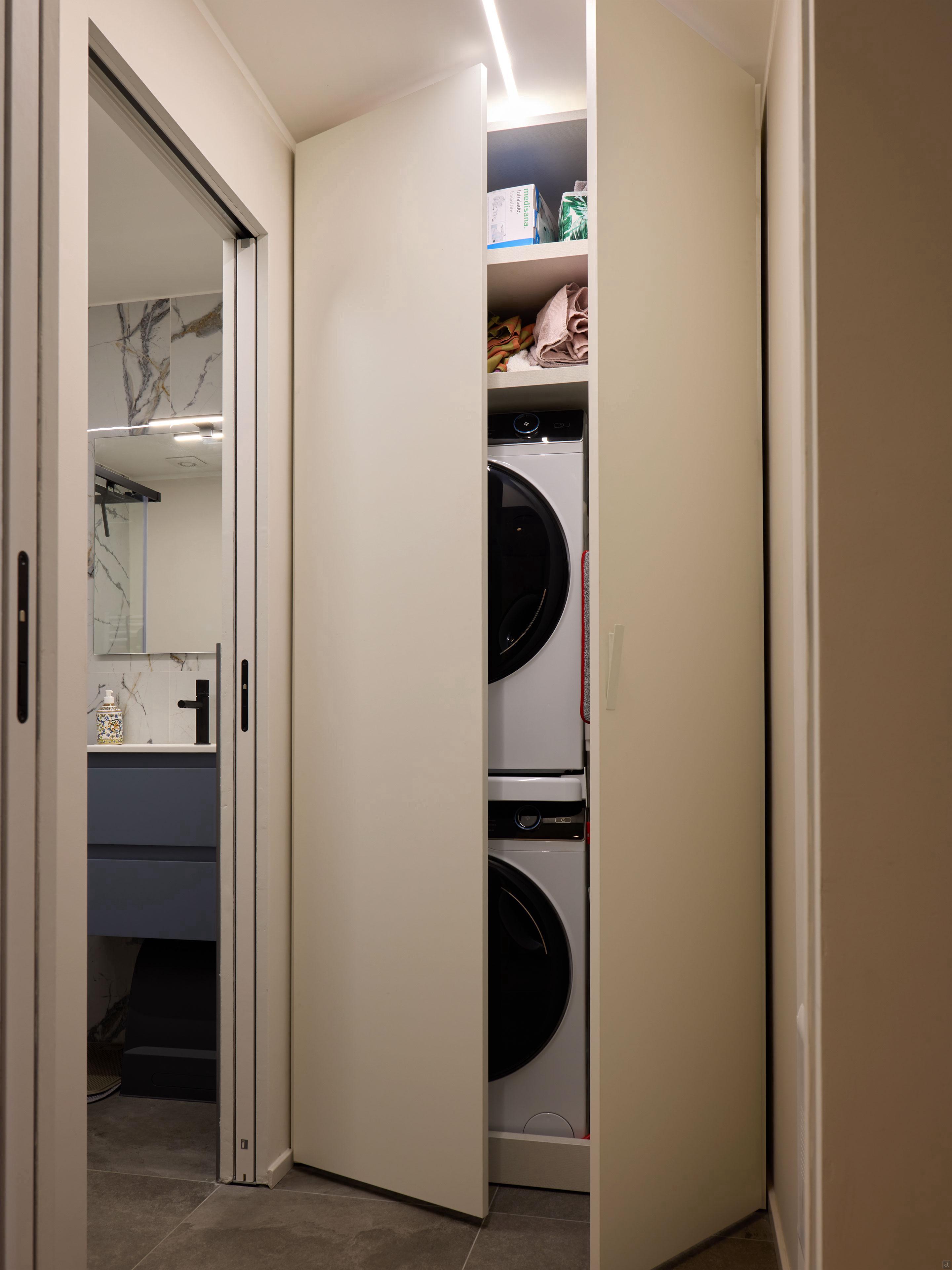

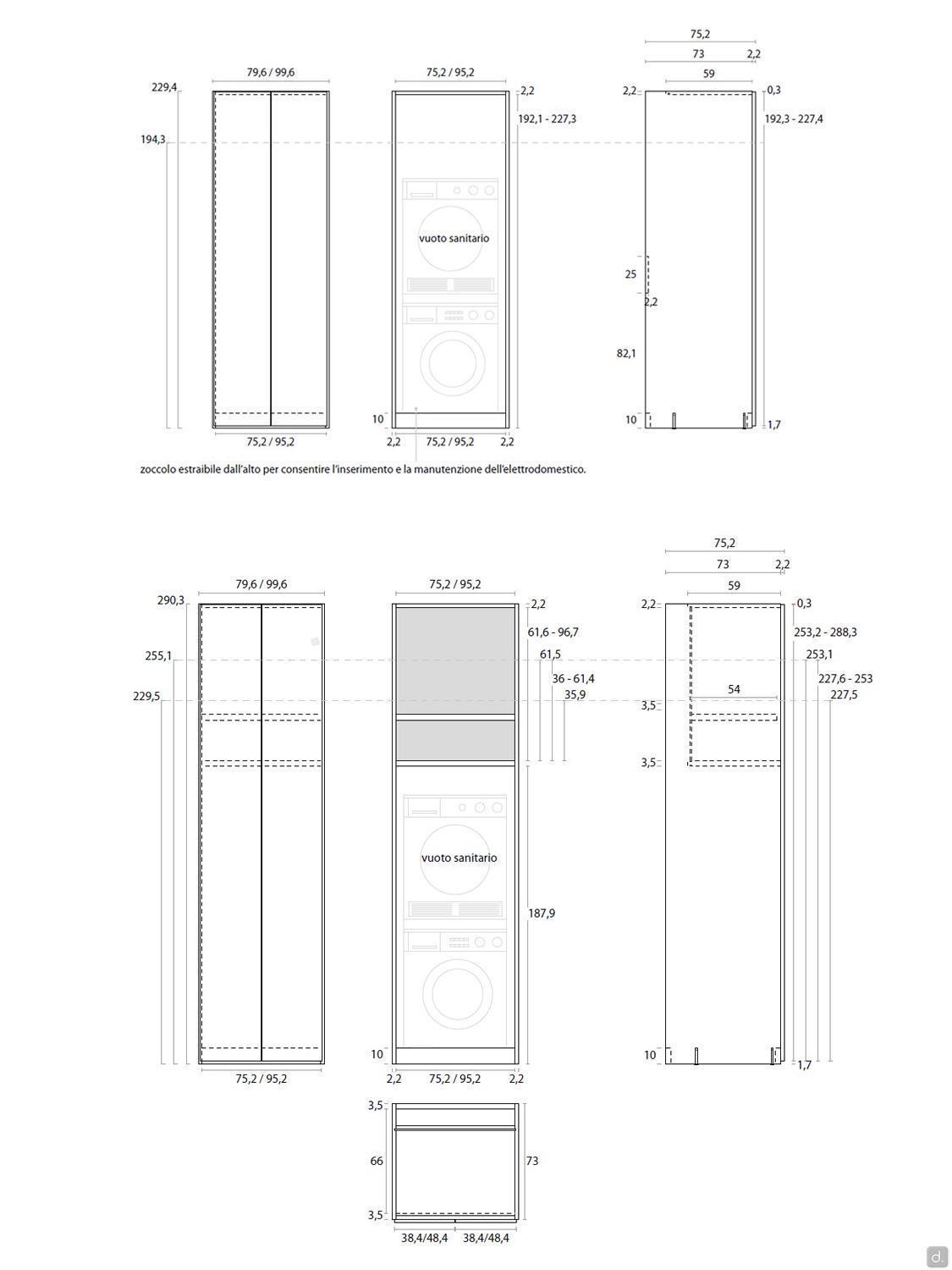

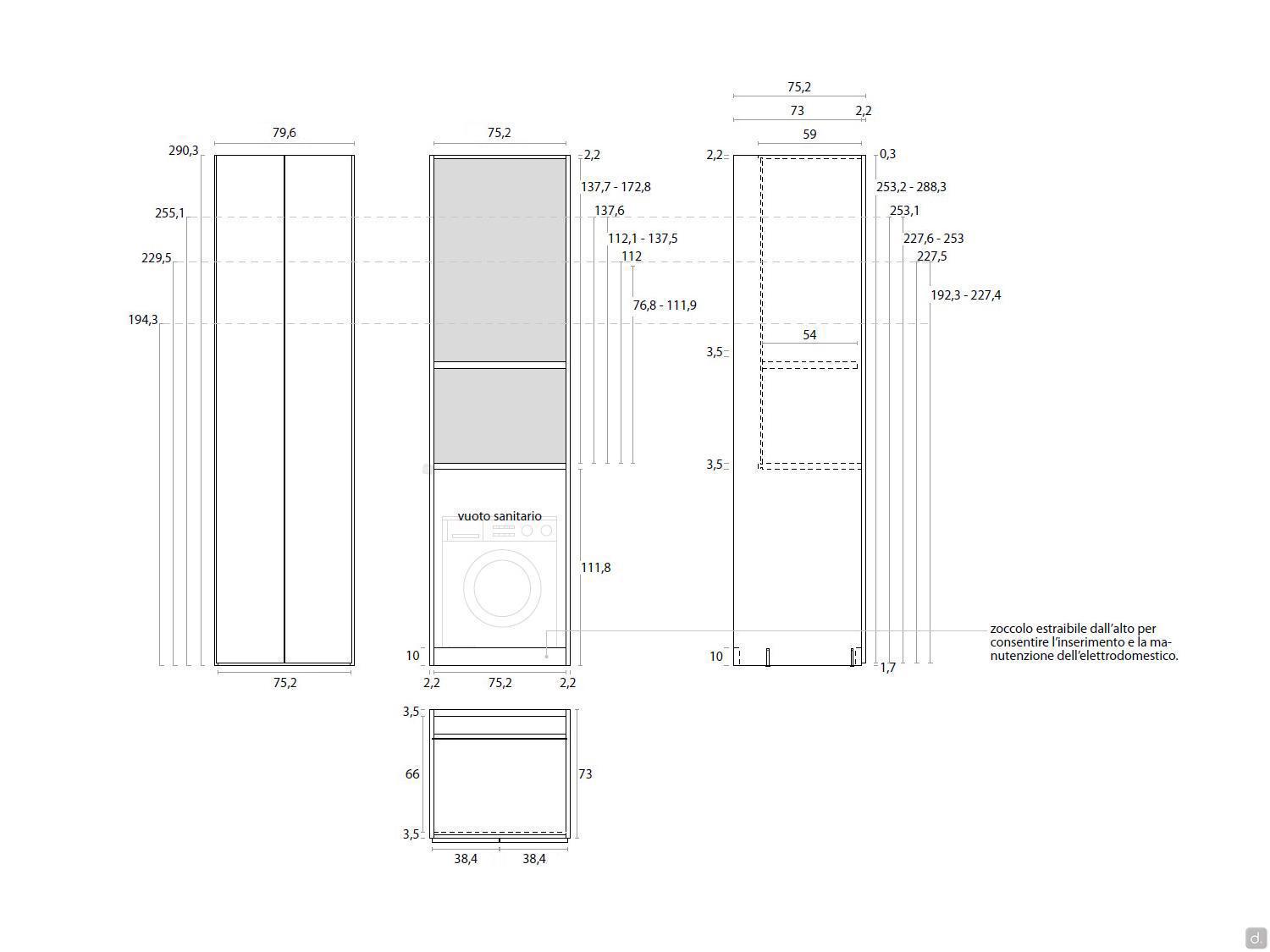

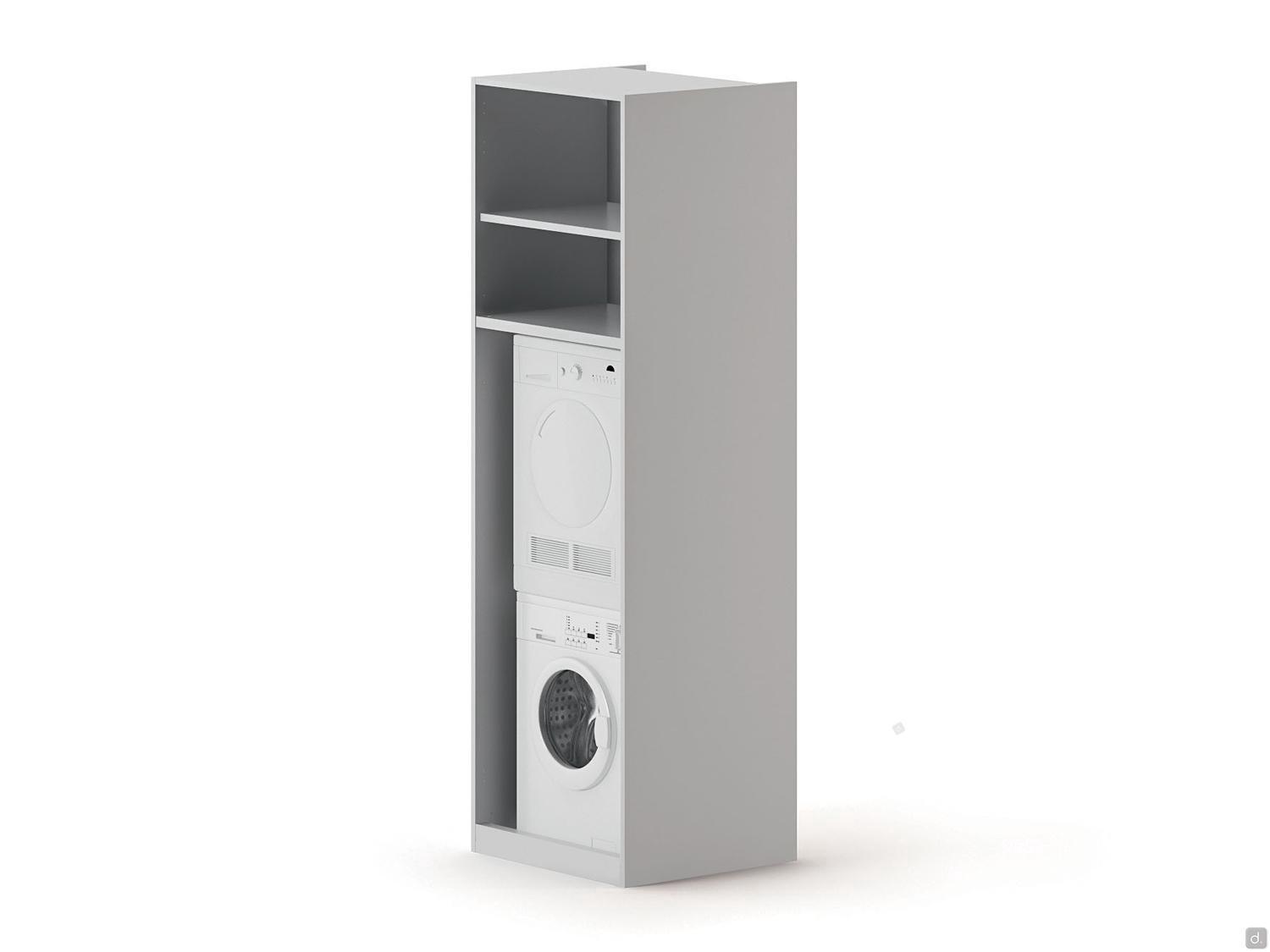

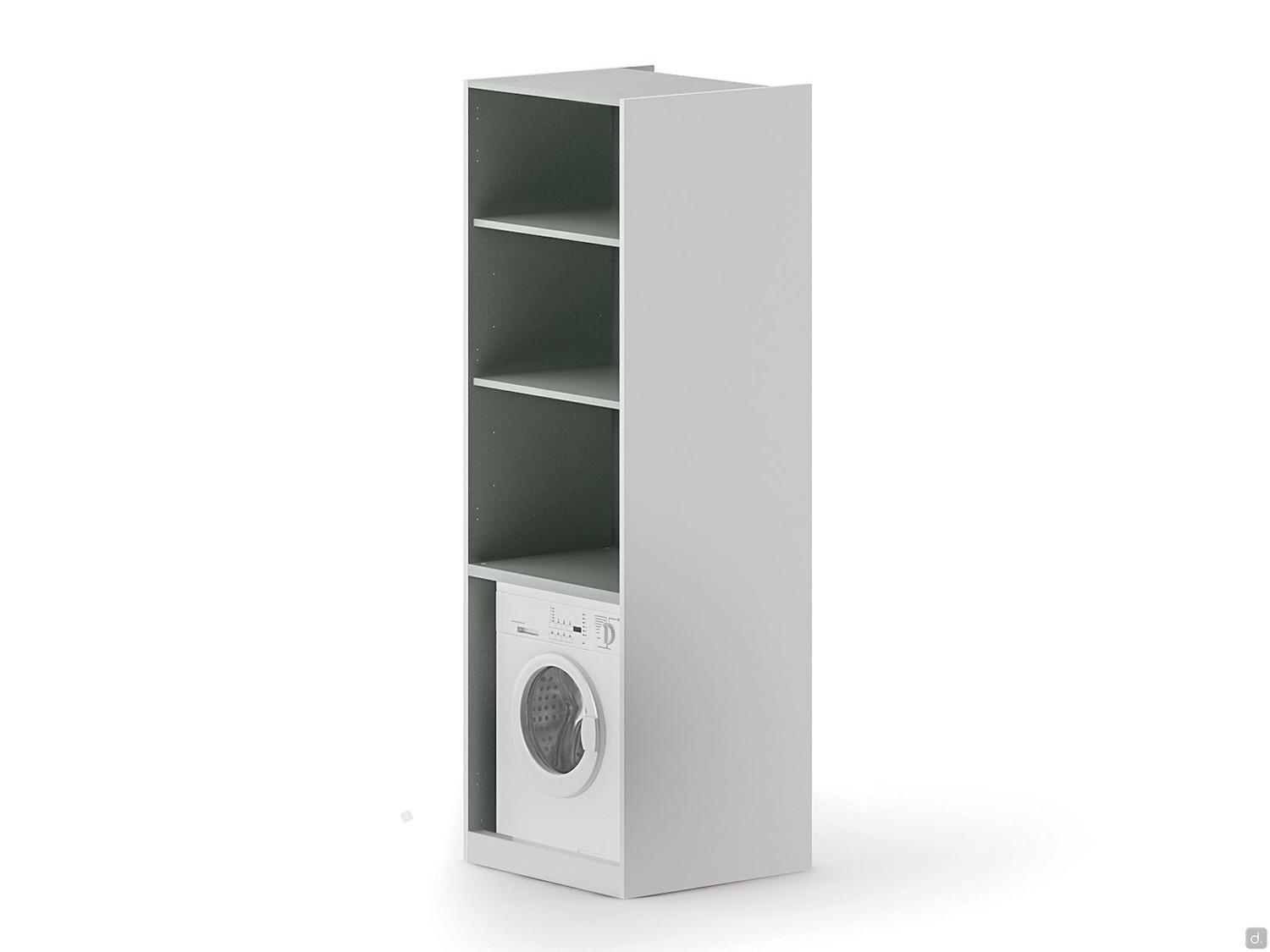

Washing machine / dryer column: it comes without bottom, the top has a depth of 59 cm with a void space behind of cm 14 to ensure the steam and air circulation, usable depth for appliances is cm 66. The washing machine / dryer compartments do not come with back panels to allow the passage of the pipes: structural h.10 cm bars guarantee the stability of the structure.

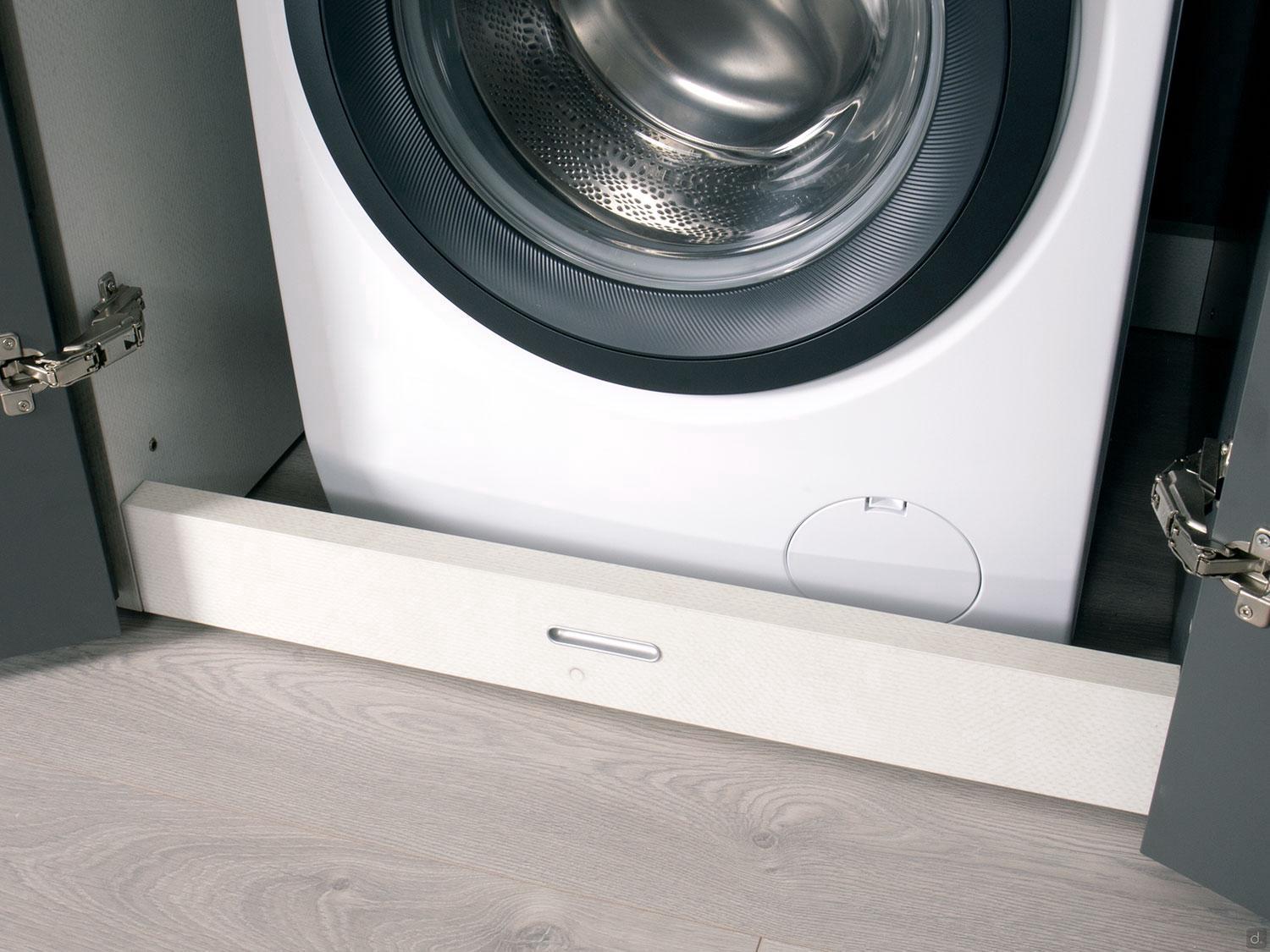

Plinth: only available for models with washing machine / dryer compartment; h.10 cm removable from above, it allows to easily insert and maintain the device and it matches the internal side finish.
Back panels: cm 0,8 thick matching the internal sides.
Internal shelves: 3,5 cm thick, including fixing joints, matching the internal sides.
Door: 2,2 cm thick, opening through handle, recess grip, integrated curved handle in white painted metal, moka shine, nickel or matt lacquer. The thickness of the curved integrated handle is 4 cm, sticking out of 1,8 cm from the doors.

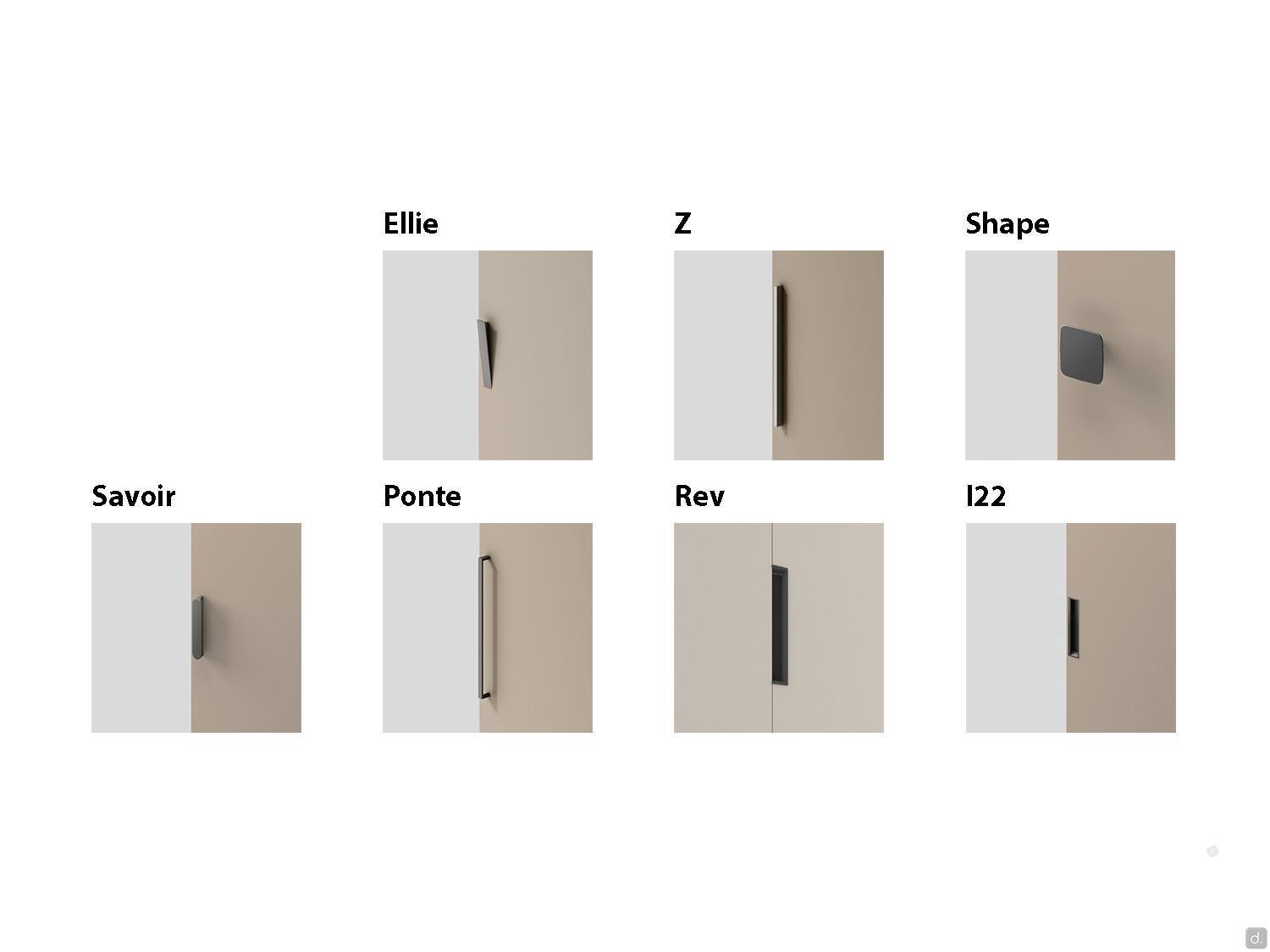

Handle:
- Ellie: cm 14,8 d.2,2 h.2,5. Finish in white, moka shine, nickel or matt lacquer.
- Z: cm 31,3 d.1,8 h. 0,9. Finish in white, moka shine, nickel or matt lacquer.
- Ponte: cm 32,6 d.2,7 h.1,2. Finish in white, moka shine, nickel or matt lacquer.
- Rev: cm 3,2 h.19,1. Finish in white, moka shine, nickel or matt lacquer.
- I22: cm 4,2 d.1,5 h.19,2. Finish in white, moka shine, nickel or matt lacquer.
- Savoir: cm 3,2 d.2,6 h.17,2. Finish in brushed pewter painted metal.
- Shape: cm 7 d.2,5 h.7. Finish in white, moka shine, nickel or matt lacquer
Tips for Assembling
The following are required for assembling the body:
- in width cm 4
- in height cm 2,5 (cm 0,5 for levelling feet in unloaded position + cm 2 for assembly). If the lighting system is fitted, this becomes cm 3,5.
