Material Specifications
Sides, partitions, lid, tops. backs, internal shelves: made of class E1 low-formaldehyde emission wood particle-board panels.

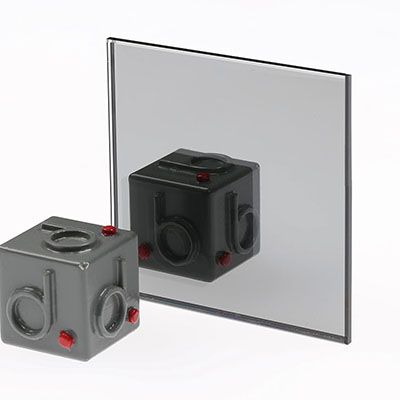

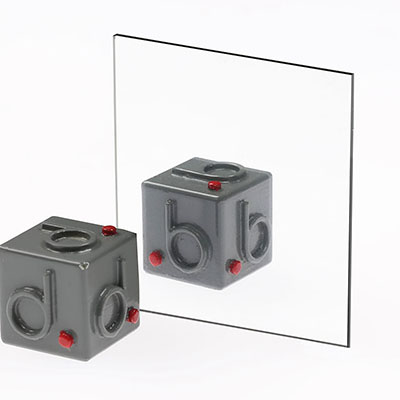

Doors: made of class E1 wood particle-board panels with low formaldehyde emission or glass or mirror: in the latter cases the doors are complete with frame and integrated handle in moka shine or nickel painted metal.
Note: Wood-effect melamine, barré polymeric, Metal Smoke material / Gurè material have the grain direction always vertical. Moreover, in these cases, there is no grain continuity between the lower and upper panels of the Ocean and Level doors.
Technical Specifications and Features
Sides and partitions: 2.2 cm thick. Equipped with levelling feet inserted in the thickness (cm 0.5 at the lowest, to be added to the overall height of the cabinet) and adjustable cm 1 from the inside.
Lid: thickness cm 2,2 complete with joints for fixing, matching the interior.
Bottom: thickness cm 3.5 complete with joints for fastening, matching Interiors.
Backs: thickness 0.8 cm to match Interiors.
Internal shelves: thickness cm 3,5 complete with joints for fastening, matching Interiors.

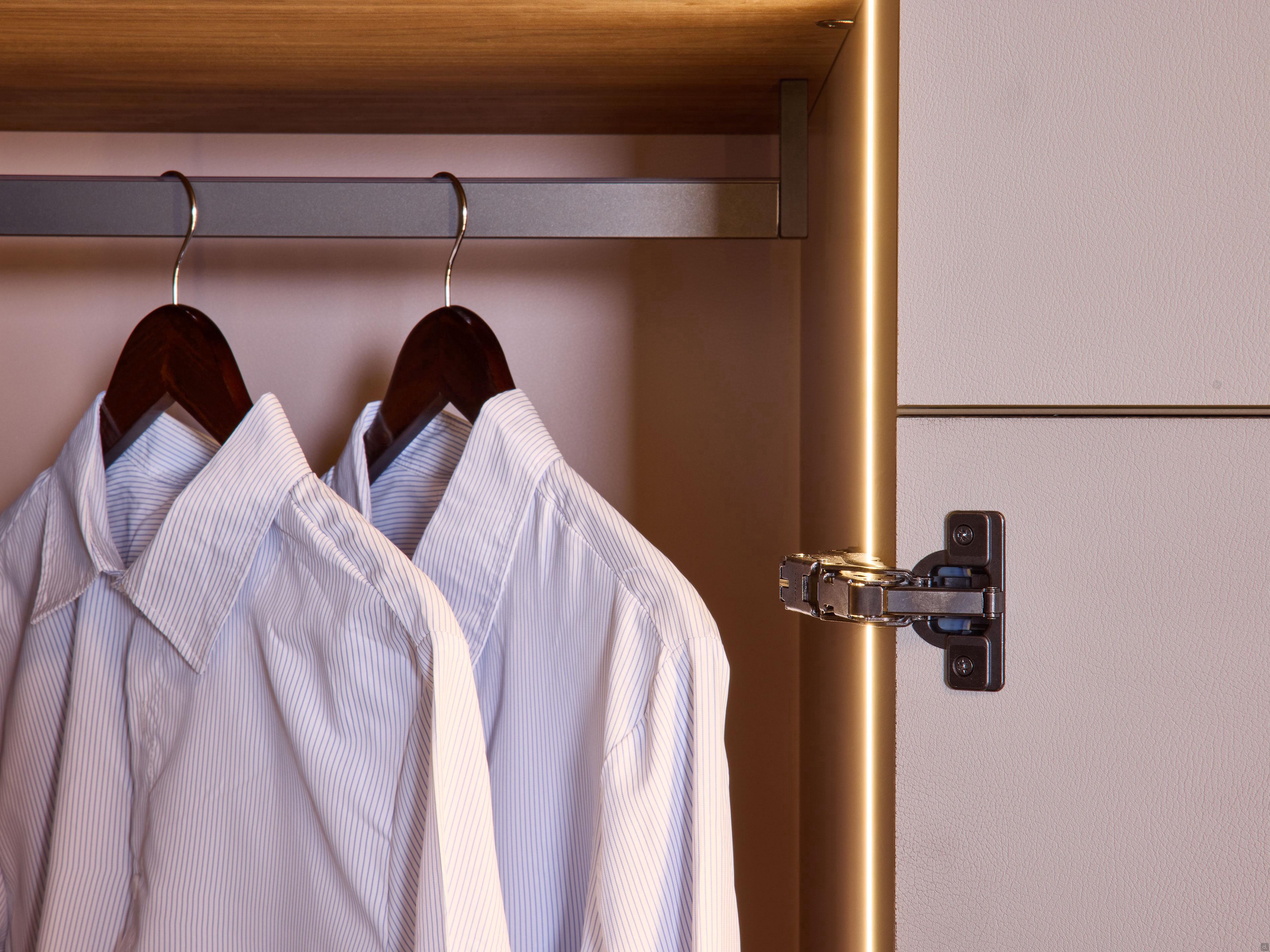

Hanging tubes: umber shine painted metal. Coat hanger tubes are supplied in the Standard version: within the "Wide Internal Equipment" product linked at the bottom of the page it is then possible to choose the Premium version, with a squarer profile.
Veneered / Wooden doors: thickness 2.2 cm. Door opening by means of handle or partial vertical, full-height and horizontal nailing in white, moka shine, nickel or matt lacquered metal. The handle or groove is always positioned on the right-hand door.
Glass / Mirror doors: thickness cm 2.2 at panel / cm 3.2 at frame. Door opening by means of a handle integrated in the frame in moka shine or nickel painted metal.
Hinges: with 180° opening and fitted with a mechanism for assisted soft-closing (except for push-pull doors, which do not). The doors are fitted with n.4 hinges up to a height of 229.5 cm, n.5 hinges for higher heights.

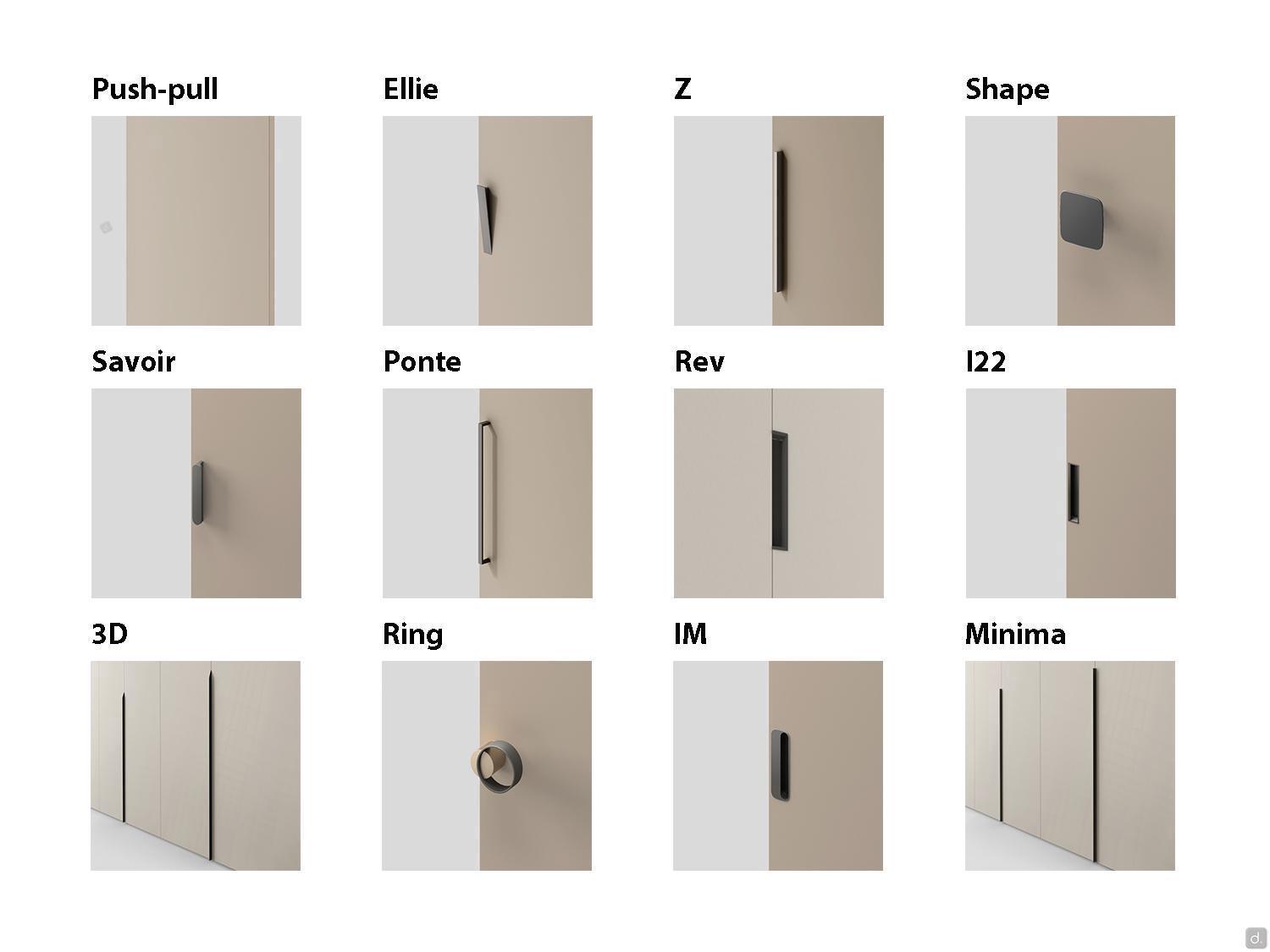

Handles:
- push-pull: positioned at the standard height of the shelf provided, which in the case of the Focus door with push-pull opening is fixed at a height of 111.8 cm, not movable.
- Ellie: cm 14,8 d.2,2 h.2,5. White, moka shine, nickel or matt lacquered metal finish.
- Z: cm 31,3 p.1,8 h. 0,9. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
- Bridge: cm 32,6 d.2,7 h.1,2. Finishes in metal painted white, moka shine, nickel or matt lacquered.
- Rev: cm 3,2 h.19,1. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
- I22: cm 4,2 p.1,5 h.19,2. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
- 3D: cm 1,7 p.1,9 h.116. Finishes in white lacquered metal, moka shine, nickel or matt lacquered.
- Minima: cm 1,9 p.2,1 h.110. Lacquered metal finish in white, moka shine, nickel or matt lacquered.
- IM: cm 5,3 h.16,2. Finishes in white painted metal, moka shine, nickel or matt lacquered.
- Savoir: cm 3,2 p.2,6 h.17,2. Brushed pewter painted metal finish.
- Shape: cm 7 p.2,5 h.7. White, moka shine, nickel or matt lacquered metal finish.
- Ring: cm 11,9 d.5,6 h.9. Nickel painted metal finish with mocha shine painted metal outer ring.
Drilling Sides
Sides and partitions have fixed holes on average every 16 cm.
Assembly tips
The following are required for assembling the shell:
- in width cm 4
- in height cm 2.5 (cm 0.5 for levelling feet in unloaded position + cm 2 for assembly). If the lighting system is fitted, this becomes cm 3.5.
