Technical Specifications and Equipment
Structure: made from TAMMEL (honeycomb panel + melamine). The honeycomb panel has a frame made from carefully selected solid pine and the honeycomb plated with panels of MDF. Guarantees durability, lightness, practicality and meets all the requirements of the European Class 1 Standards regarding the limitation of harmful emissions of formaldehyde, meets the CARB2 standards.
Side and Back Panels: made from melamine (E1 class with low formaldehyde emission), meets the CARB2 standards. The side panels are cm 2,5.
Base and Top: honeycomb panels, 2,5 cm thick.

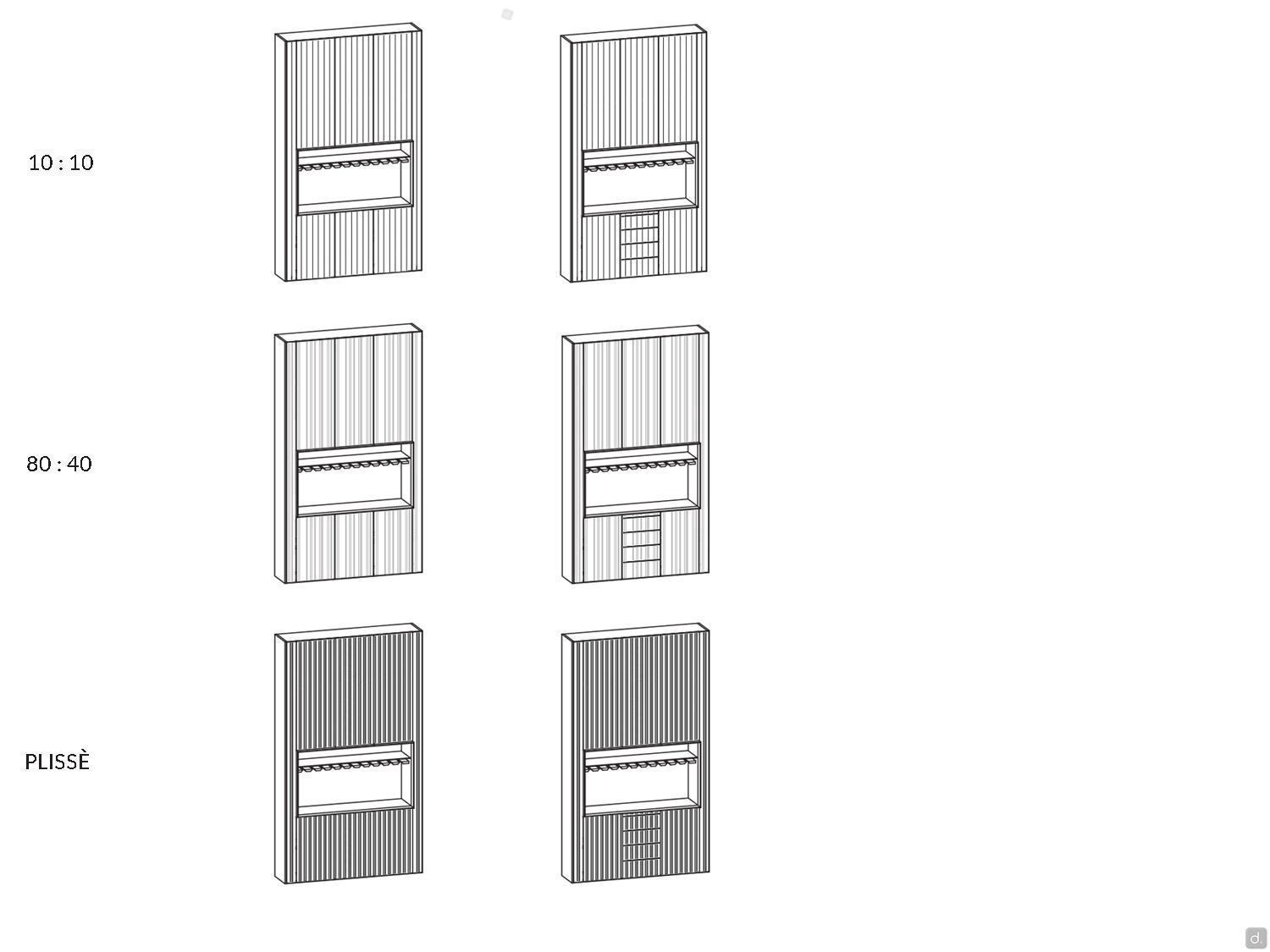

Doors / Drawers: honeycomb panels, 2,4 cm thick, with a frame made from solid pine, lacquer or wood. The front panels can be smooth or personalised (only for finishes in matt lacquer or open-pore oak wood):

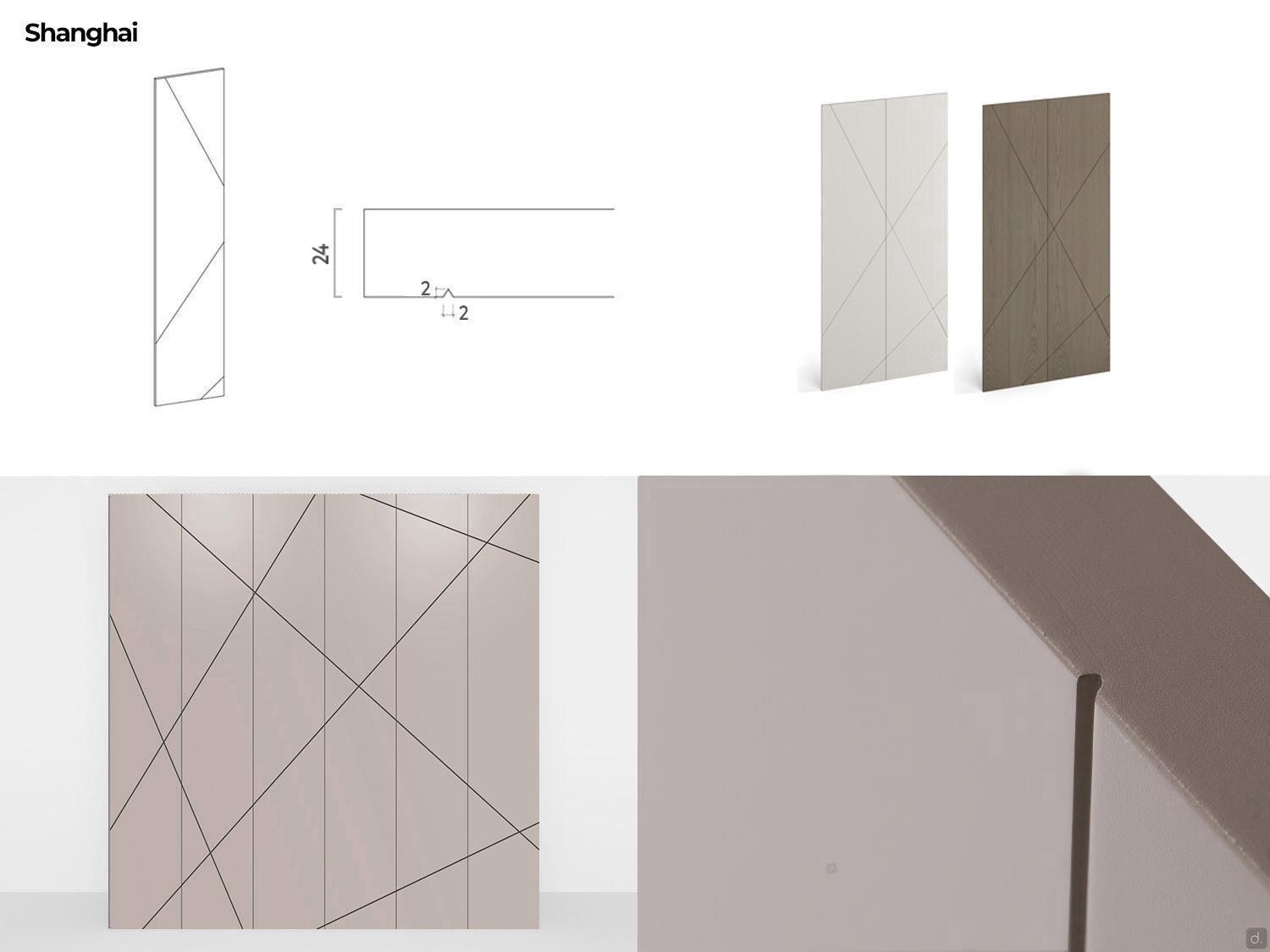

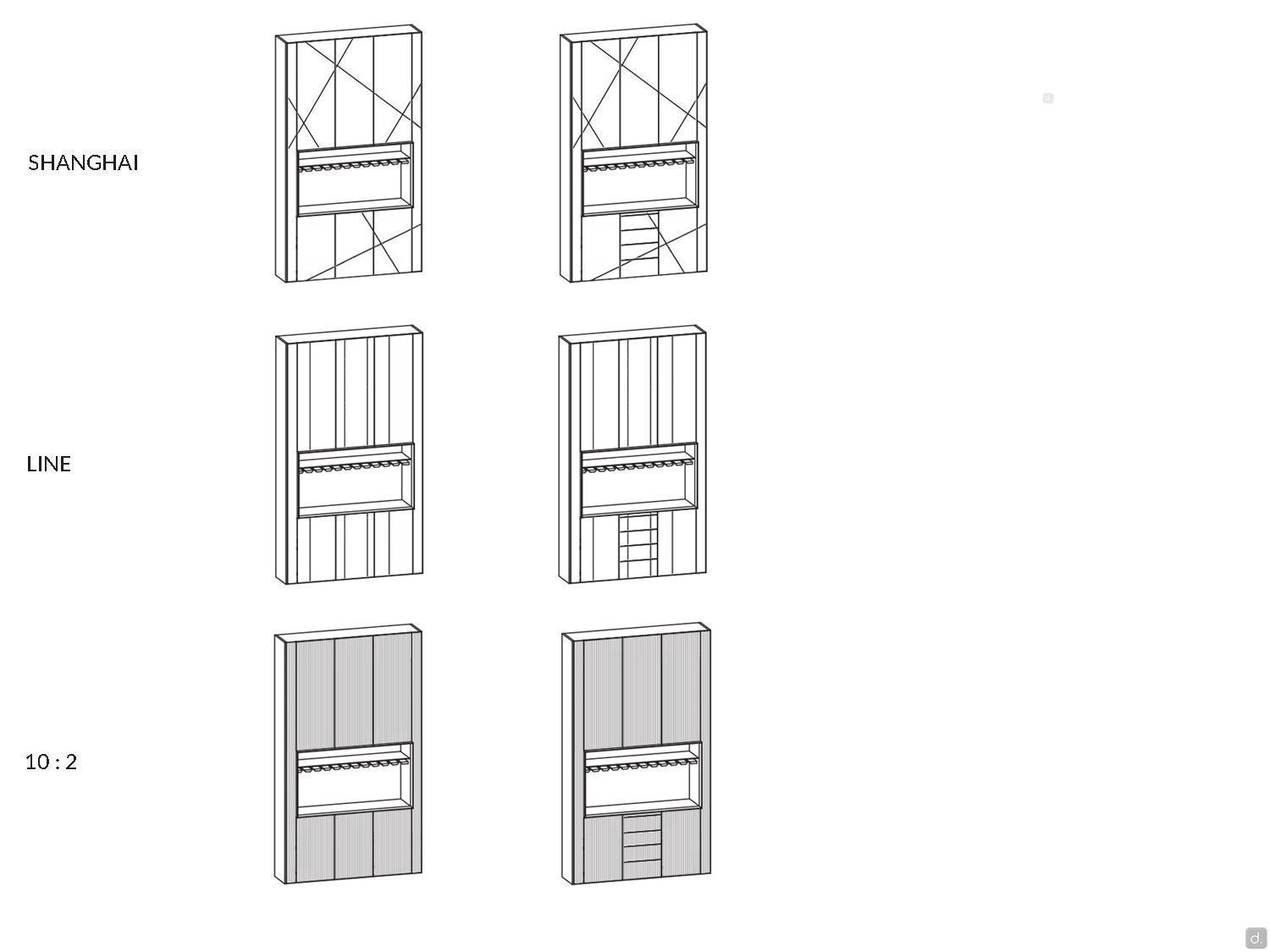

- Shanghai (only in matte lacquered finish): diagonal "V" incisions 0.2 cm thick.

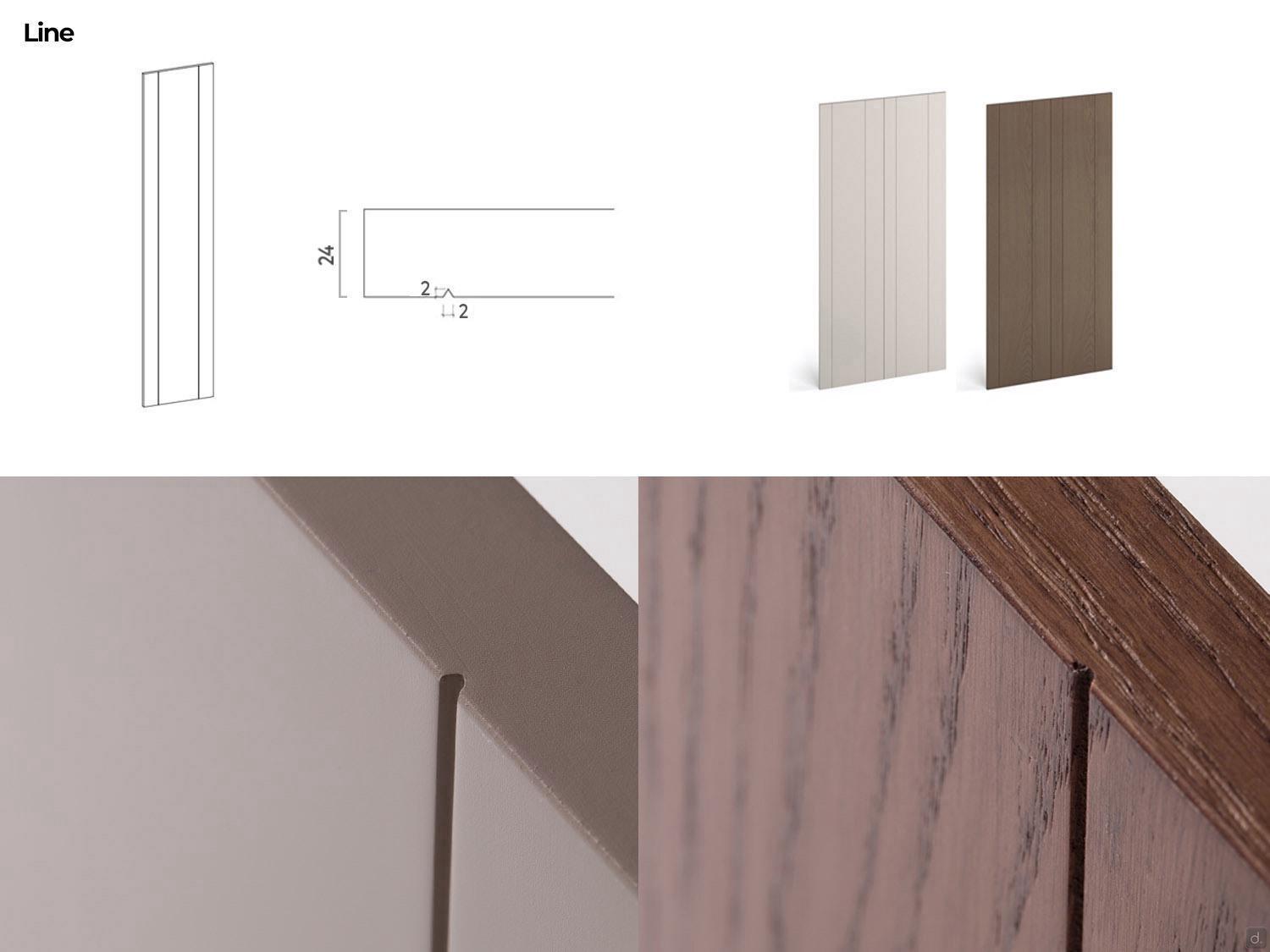

- Line (only in matte lacquered finish): vertical "V" incisions 0.2 cm thick

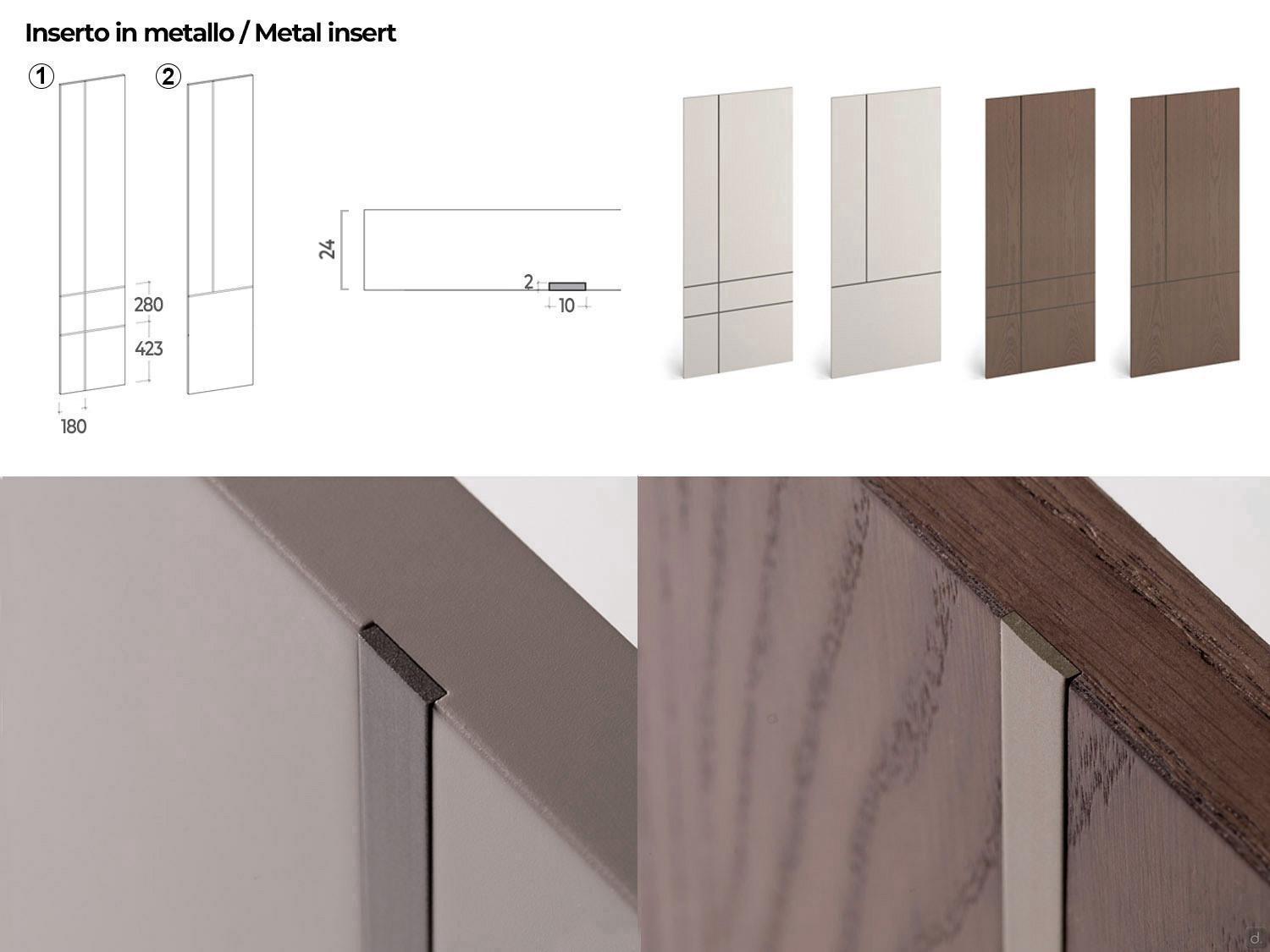

- with metal insert: cm 1 thick 0,2 in "version 1" with n.2 horizontal + n.1 vertical or in "version 2" with n.1 horizontal + n.1 vertical.

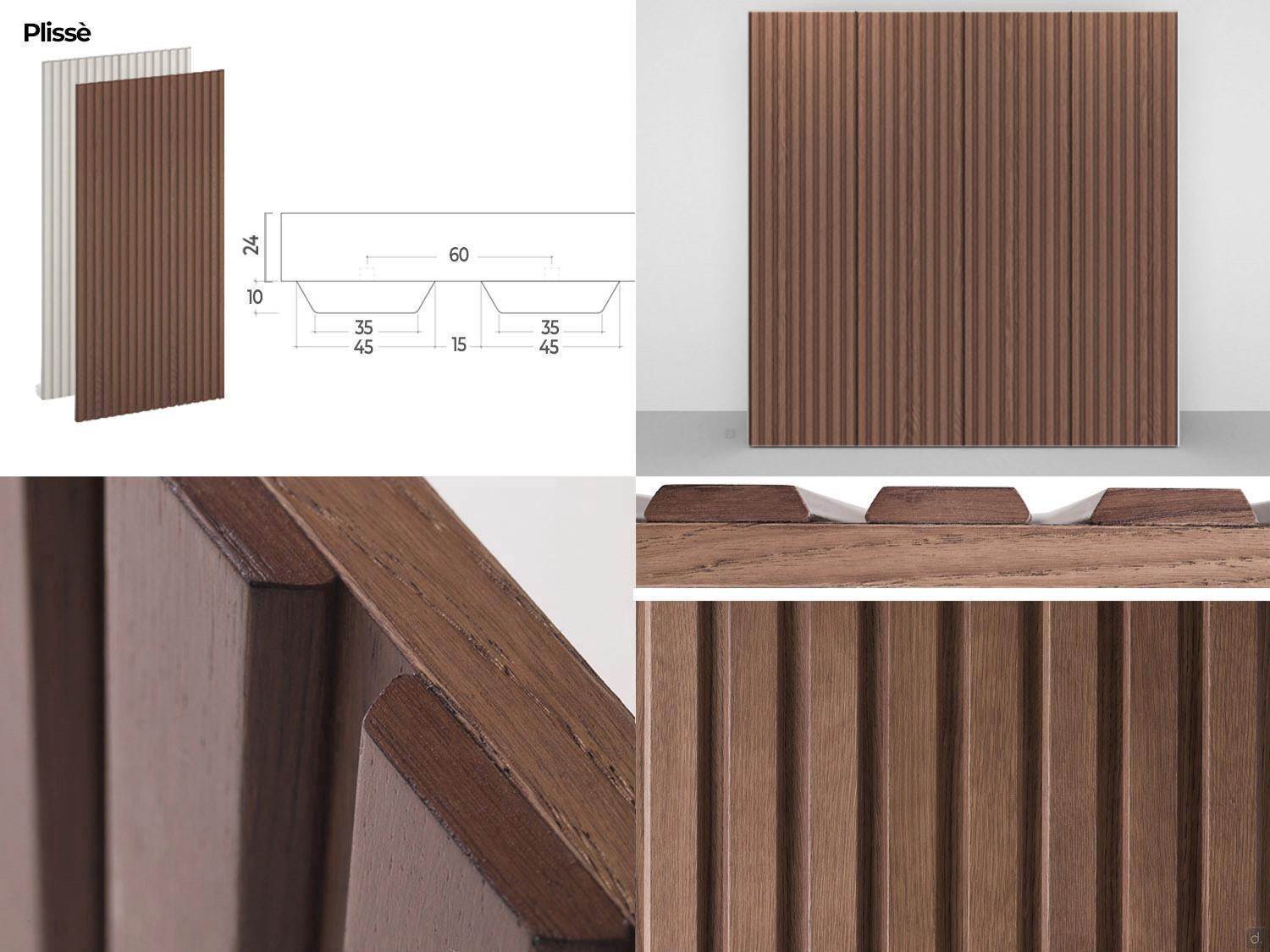

- Plissè: slats in lacquered solid wood or oak veneer with 30° processing: cm 4,5 thickness 1.

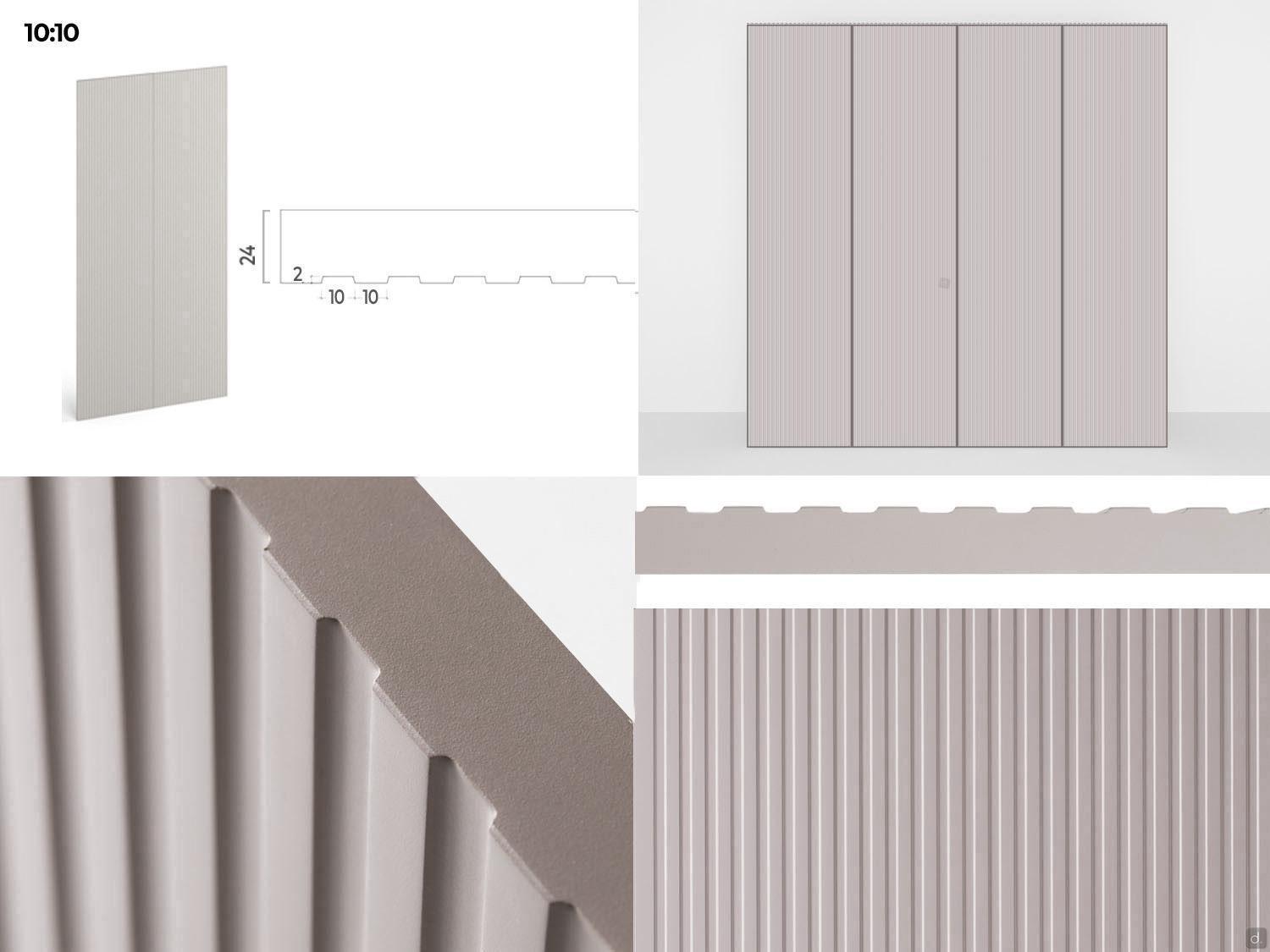

- 10:10 (only in matte lacquered finish): "U" incisions cm 1 thickness 0,2 thick.

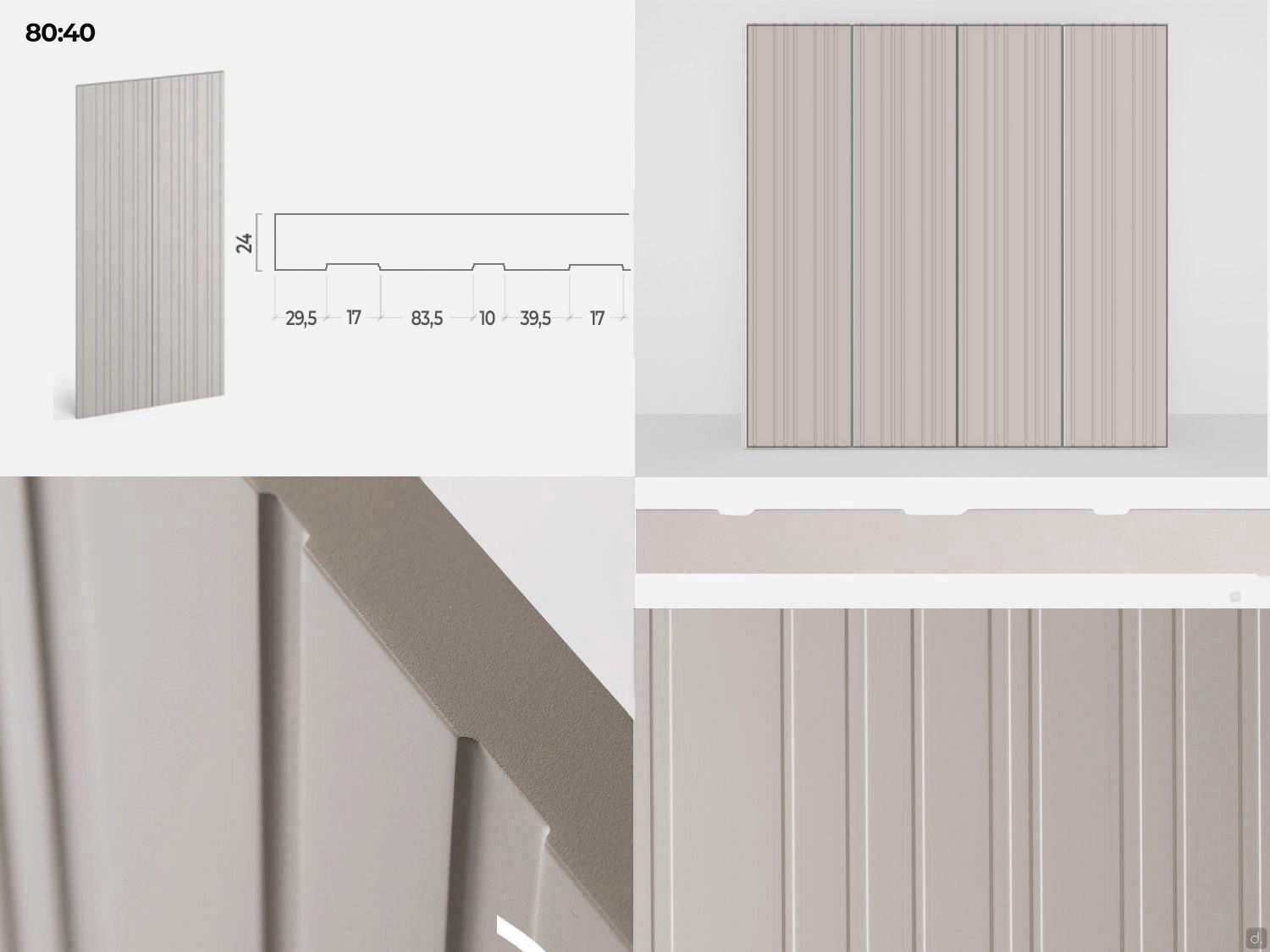

- 80:40 (matte lacquered finish only): "U" incisions cm 1 thickness 0,2 with variable spacing

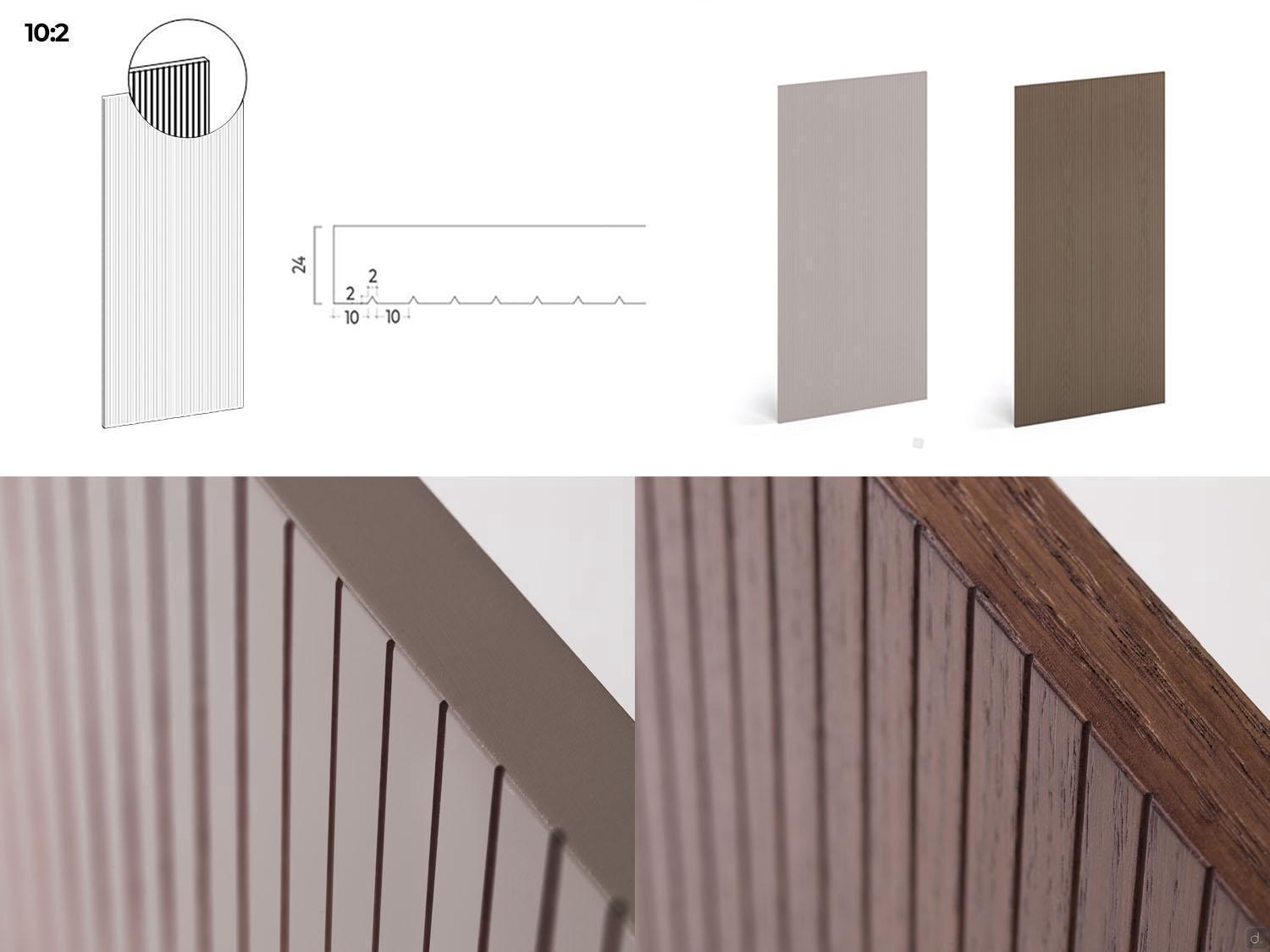

- 10:2: vertical "V" incisions cm 0,2 thick.

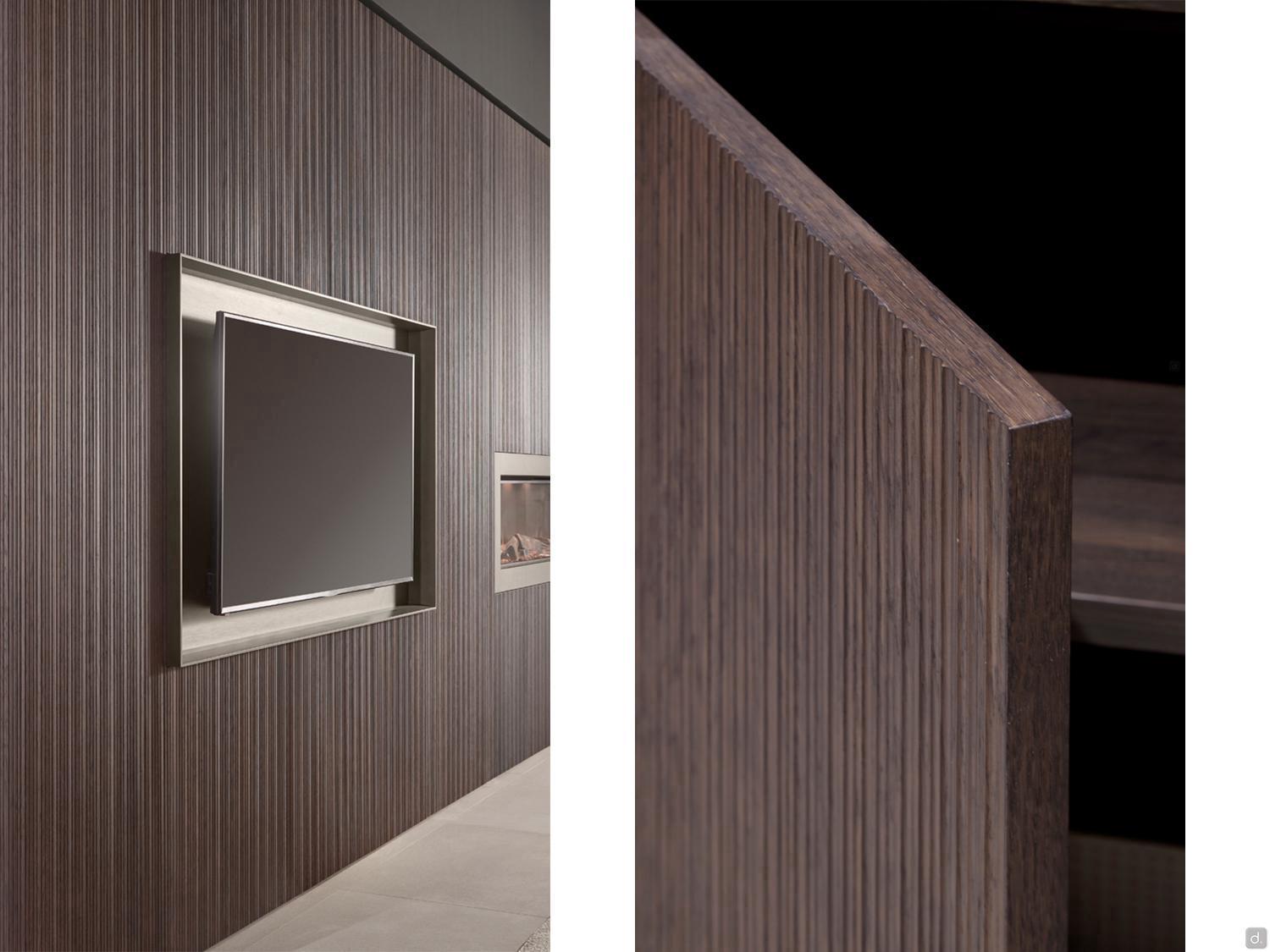

Doors also available in TAMMAS (honeycomb + solid wood), honeycomb with solid spruce frame and solid wood honeycomb plated on both sides, dyed in the sample finishes and decorated with 10:10 or Wave processing. Only available when purchased with a project, for further information please contact our Customer Service.

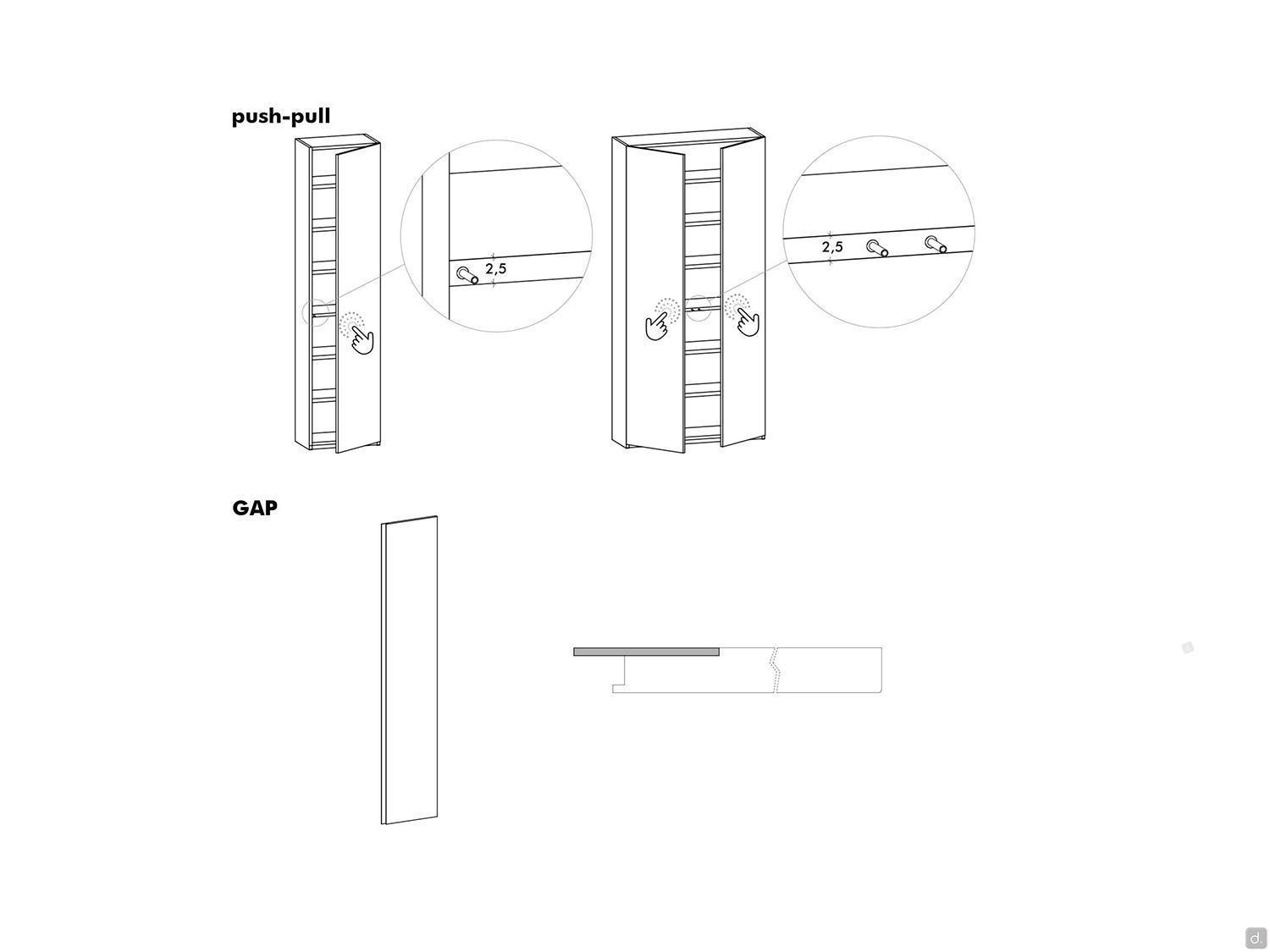

Handles: push-pull system or full-height Gap groove handle.
Hinge: metal hinges in titanium finish with soft-closing mechanism. Standard opening angle of 110°, upgradeable to 155° except on the plissé finish, which comes exclusively with a 94° angle hinge.

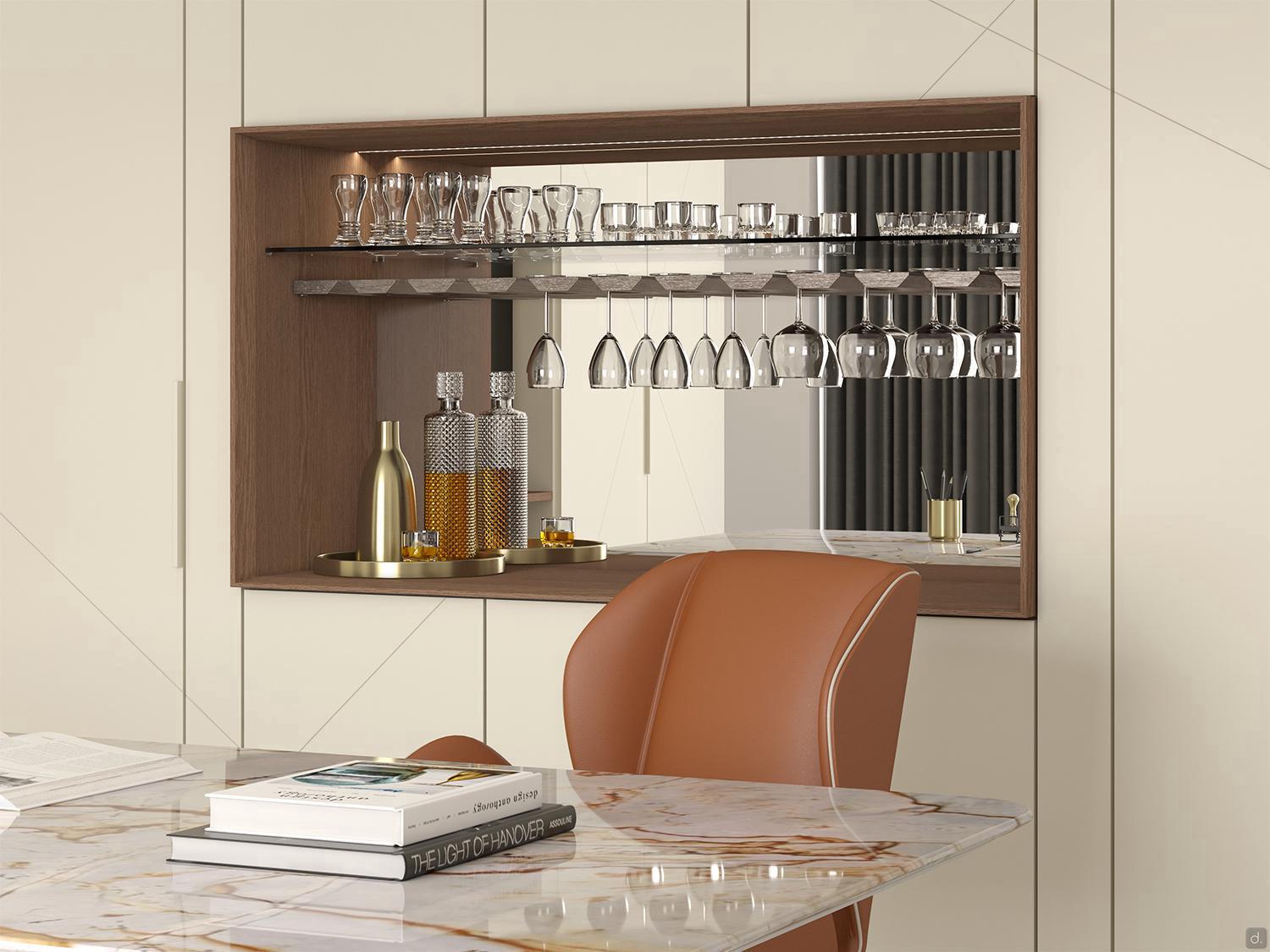

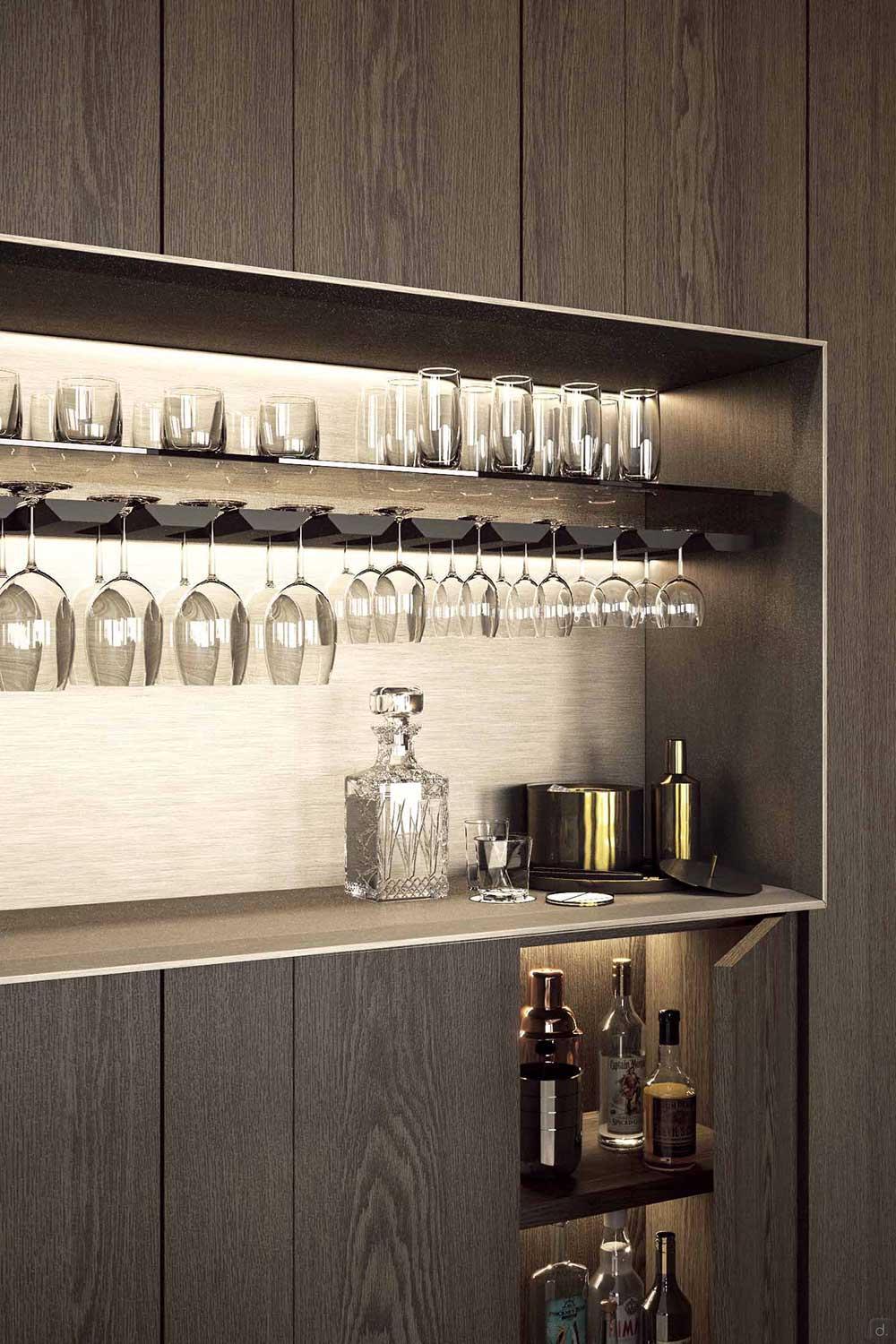

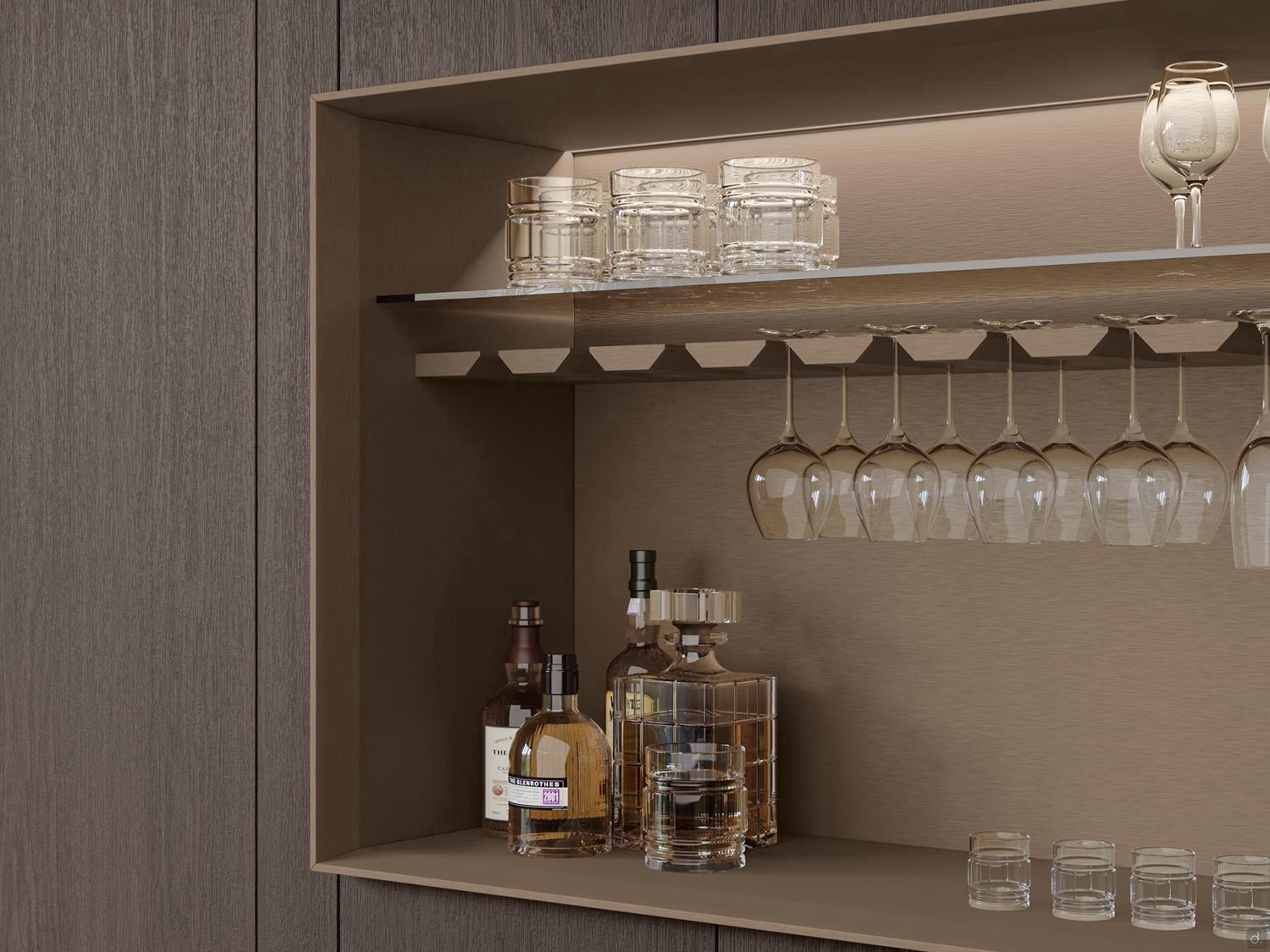

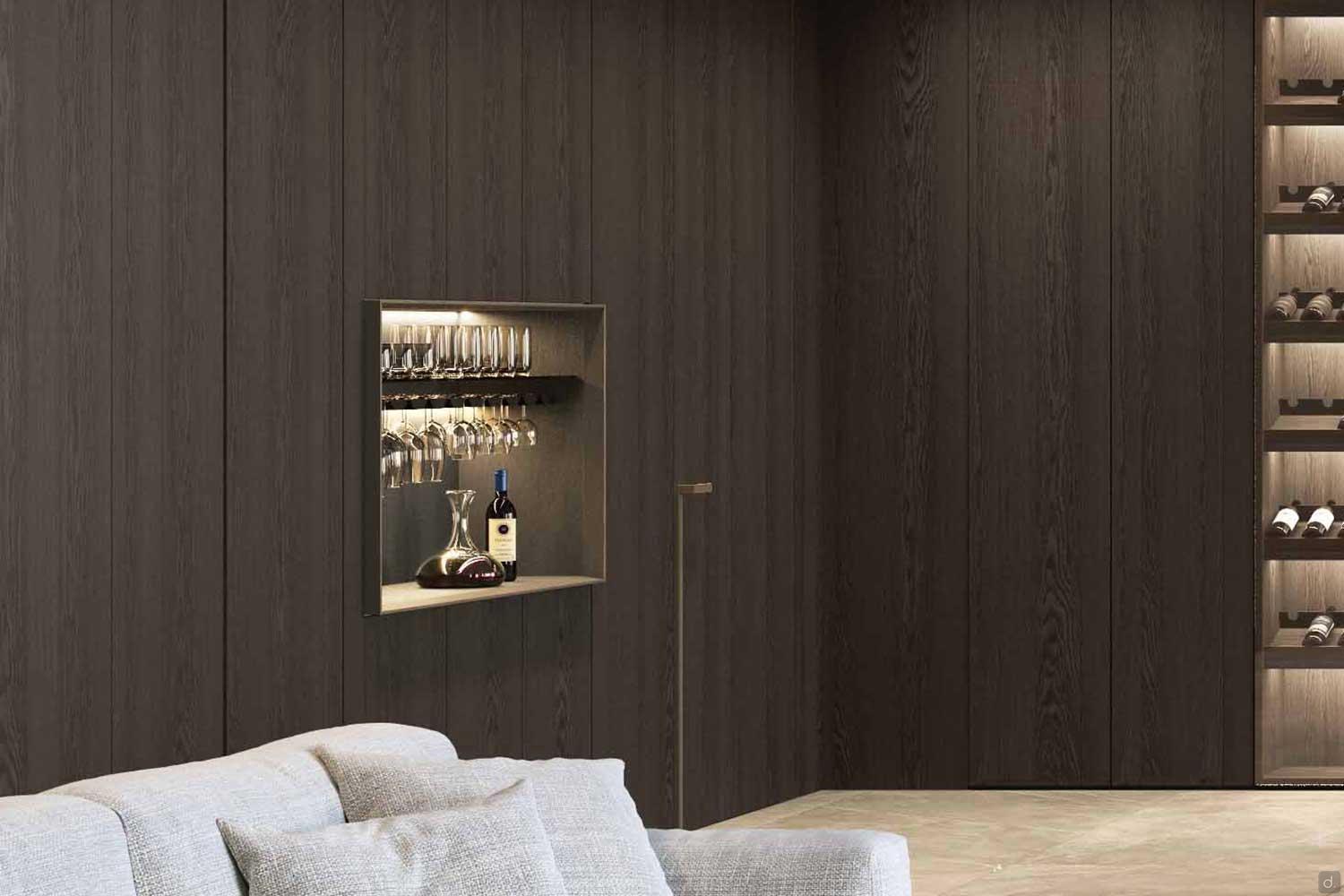

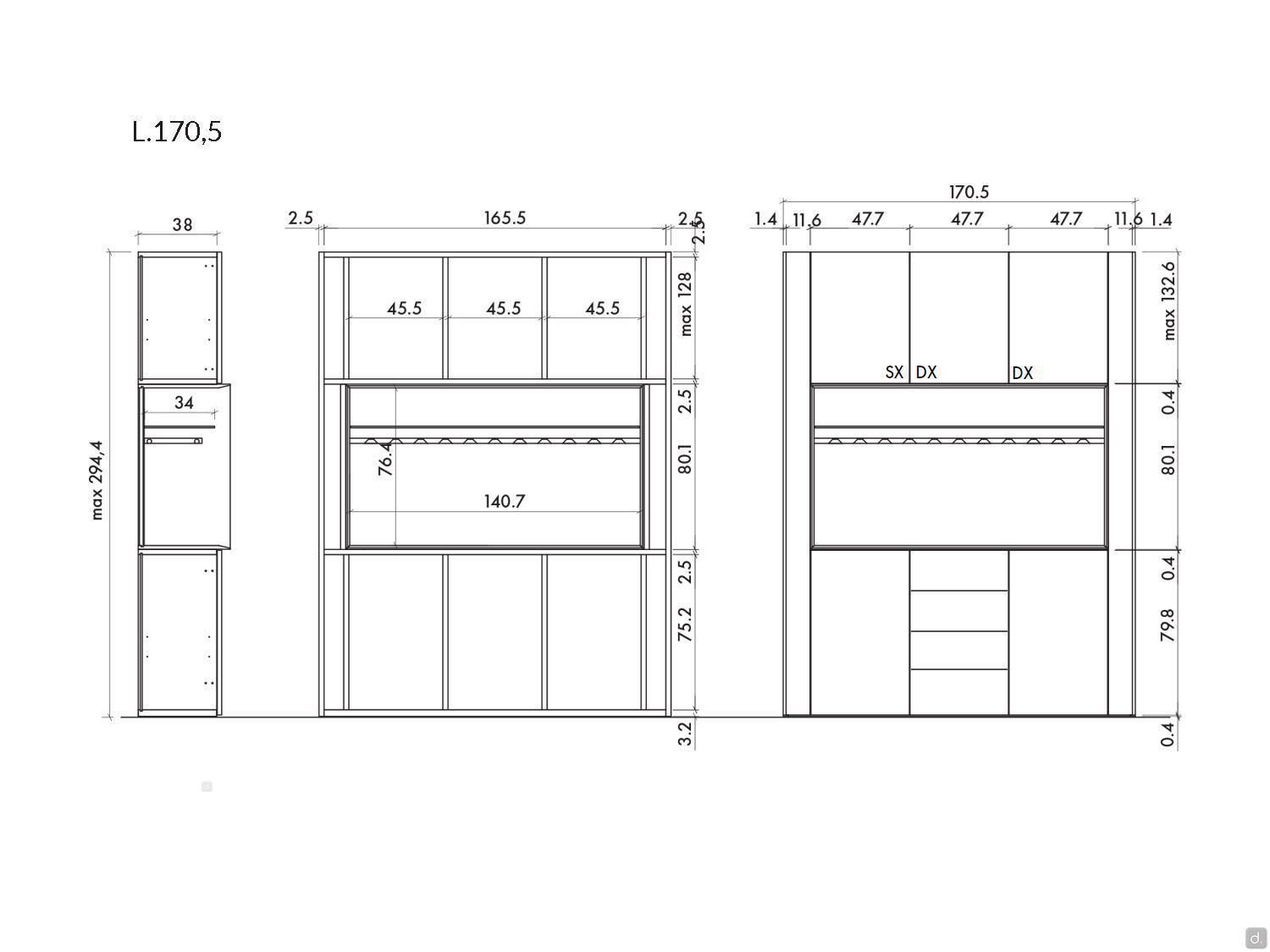

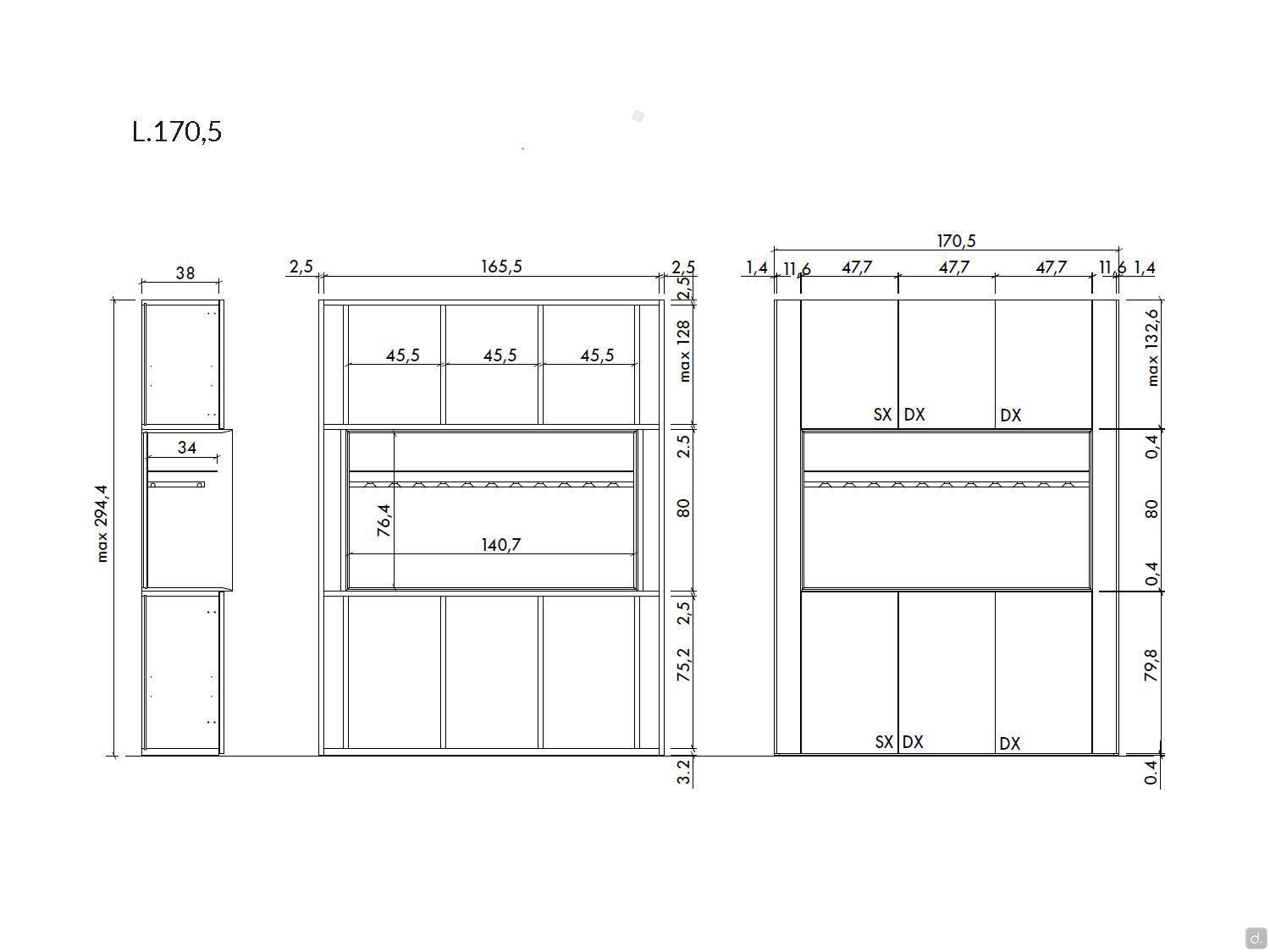

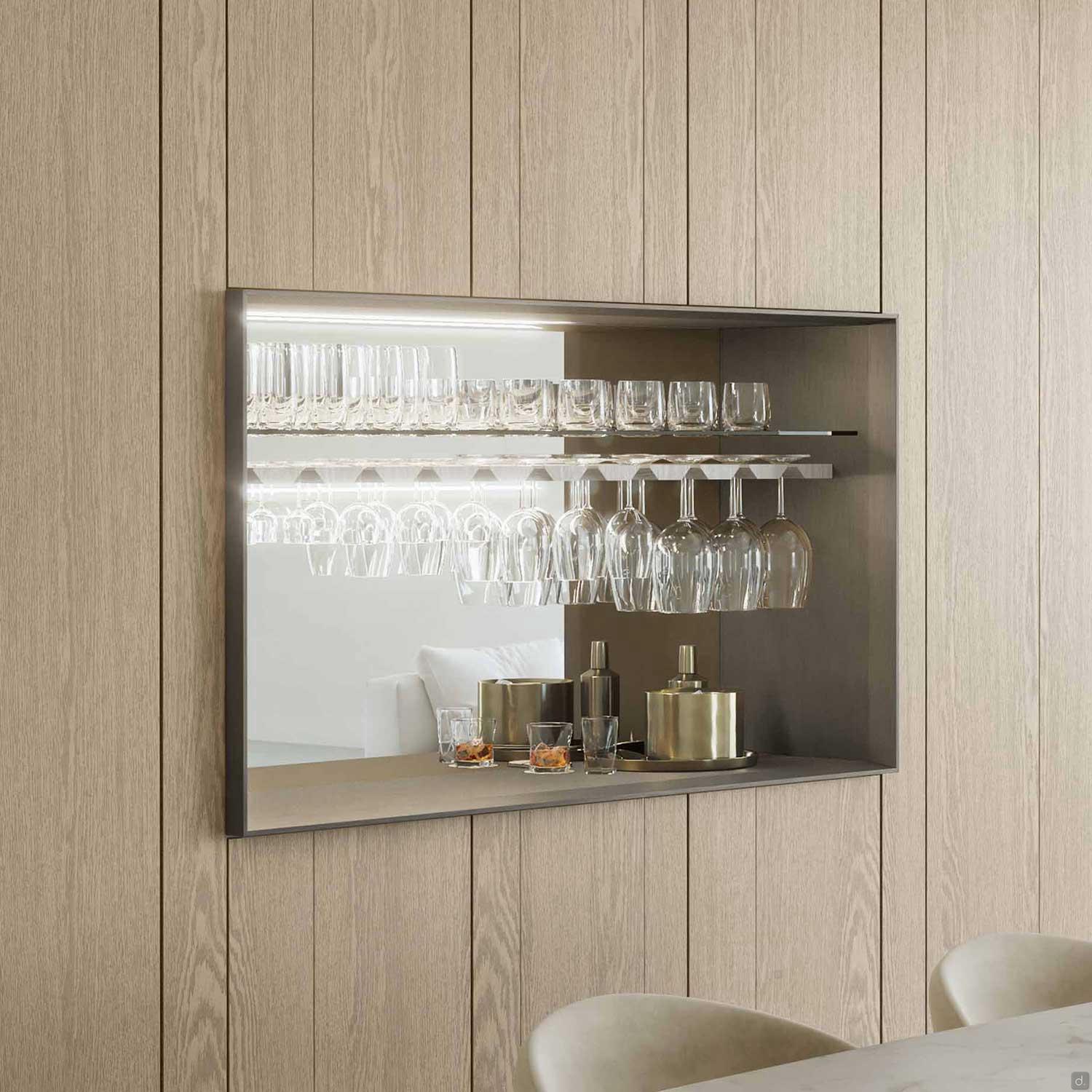

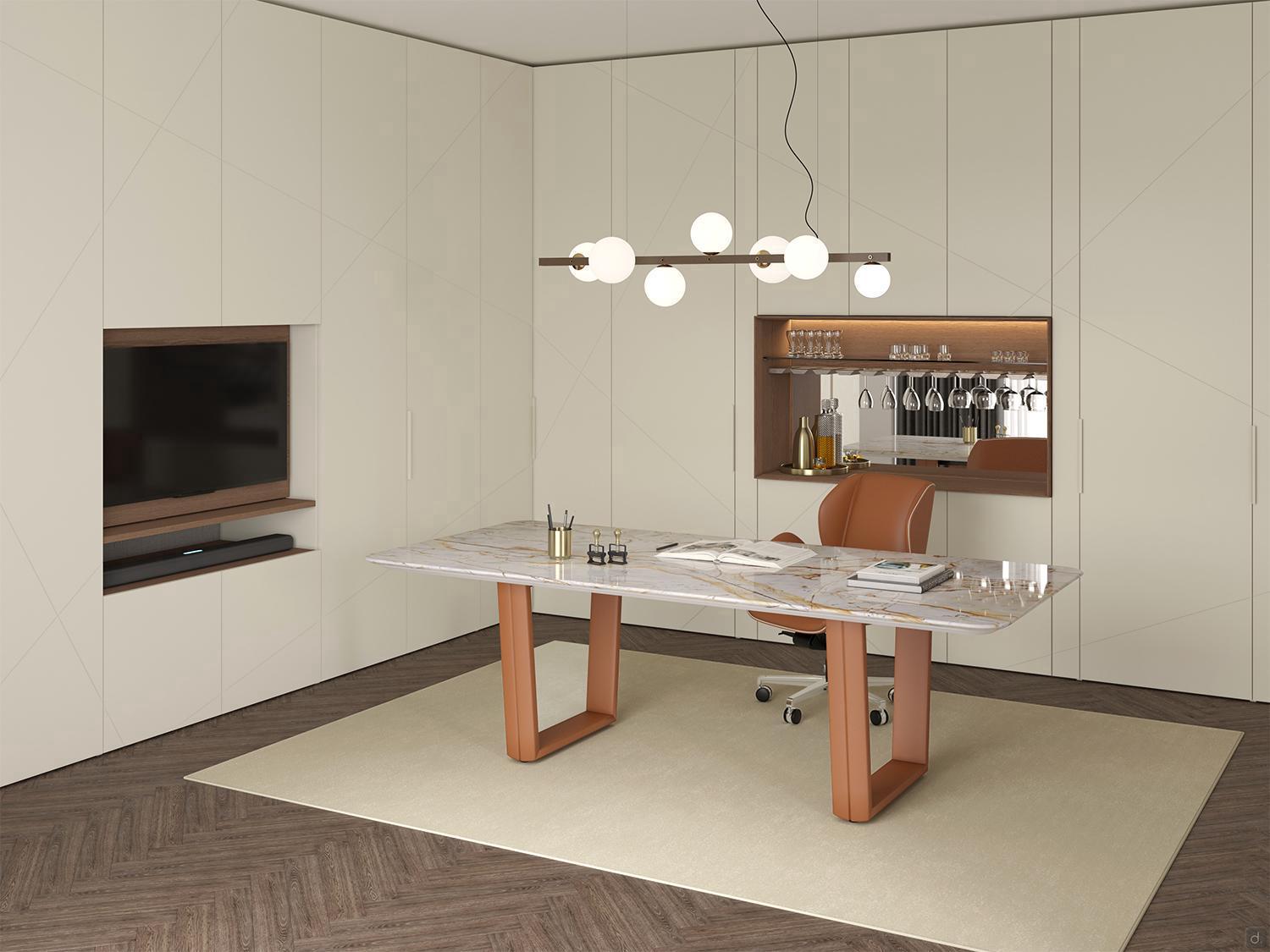

Bar Compartment: in MDF, 1,8 cm thick, composed of:
- n.1 lacquered wine-glass rack angled at 45°: cm 140,7 d.28 h.2,5;
- n.1 smoked glass shelf: cm 140,7 d.34, 0,8 cm thick;
- n.1 mirror on back panel: cm 140,7 x 76,4
Please Note: The sides are always supplied without edging on the short sides. This difference in finish, which is often hidden from view once the wardrobe is assembled, deliberately leaves the solid spruce frame of the honeycomb sandwich panel exposed in order to enhance the wooden component of the element and show the high quality of the finished product.
Optional - open compartment

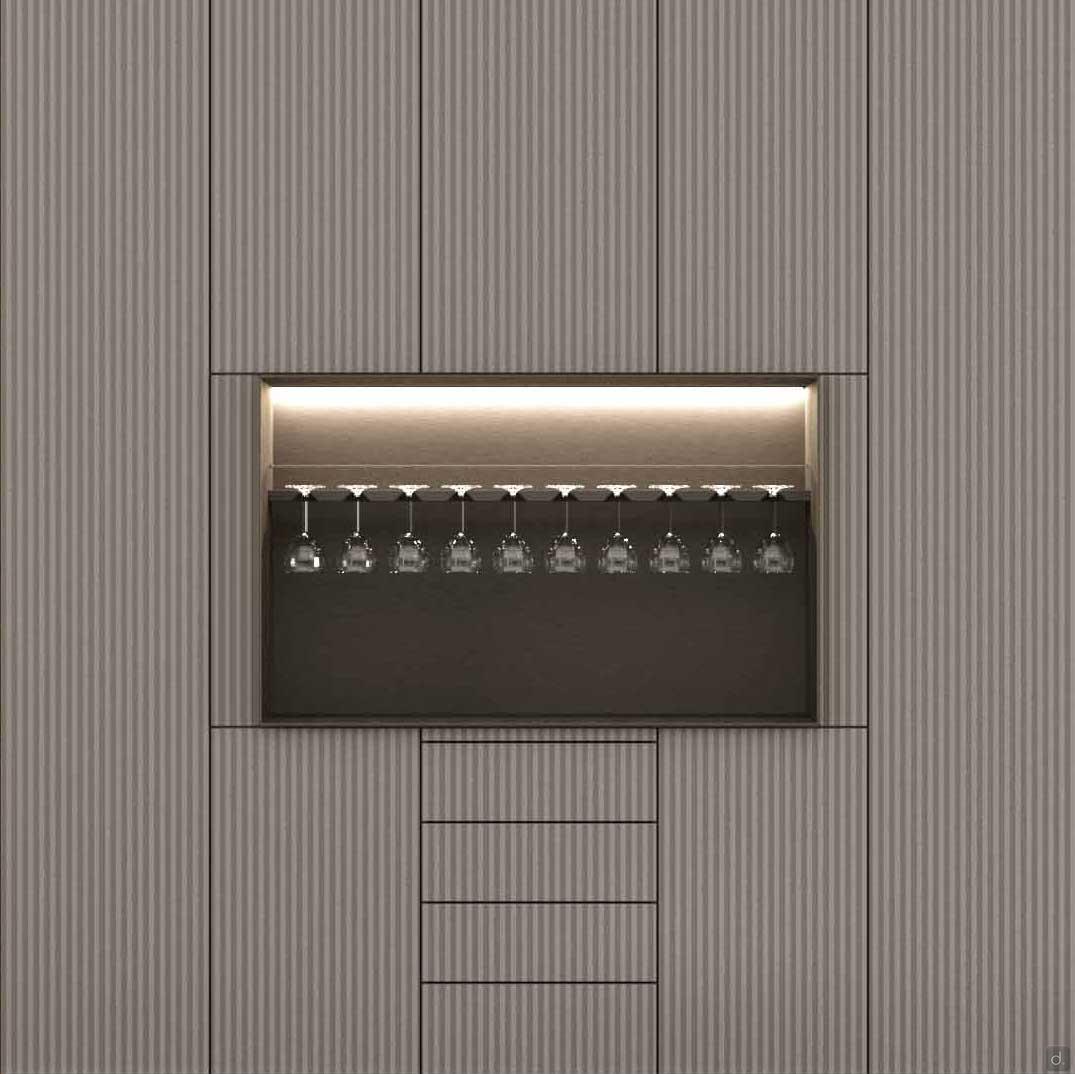

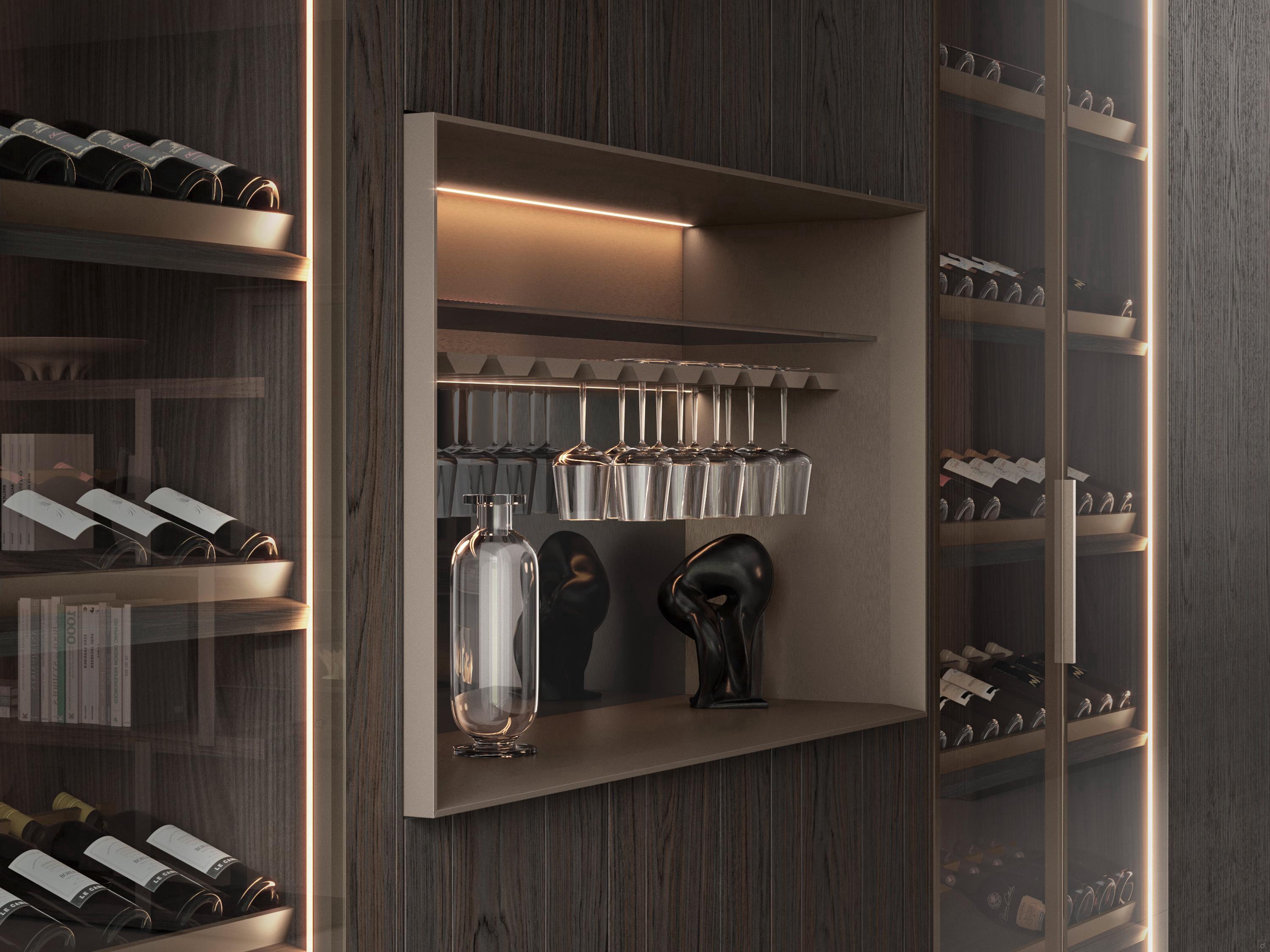

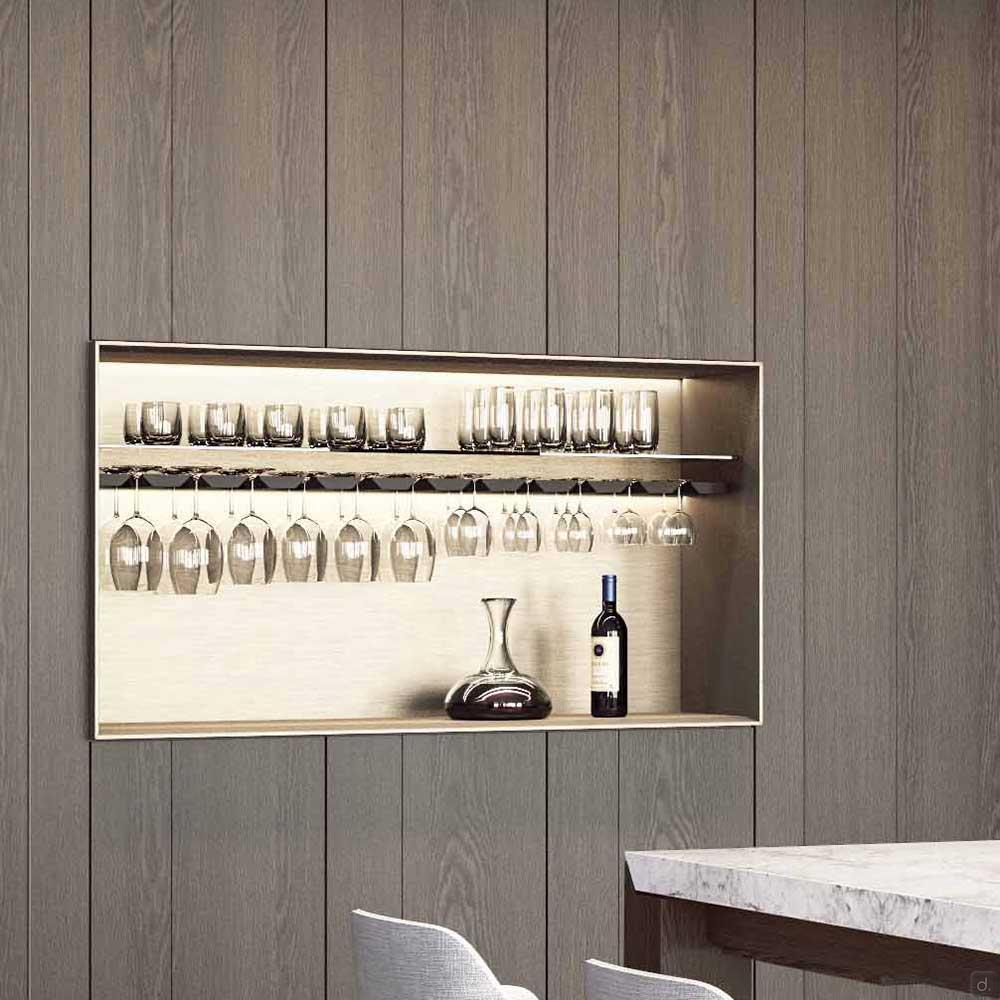

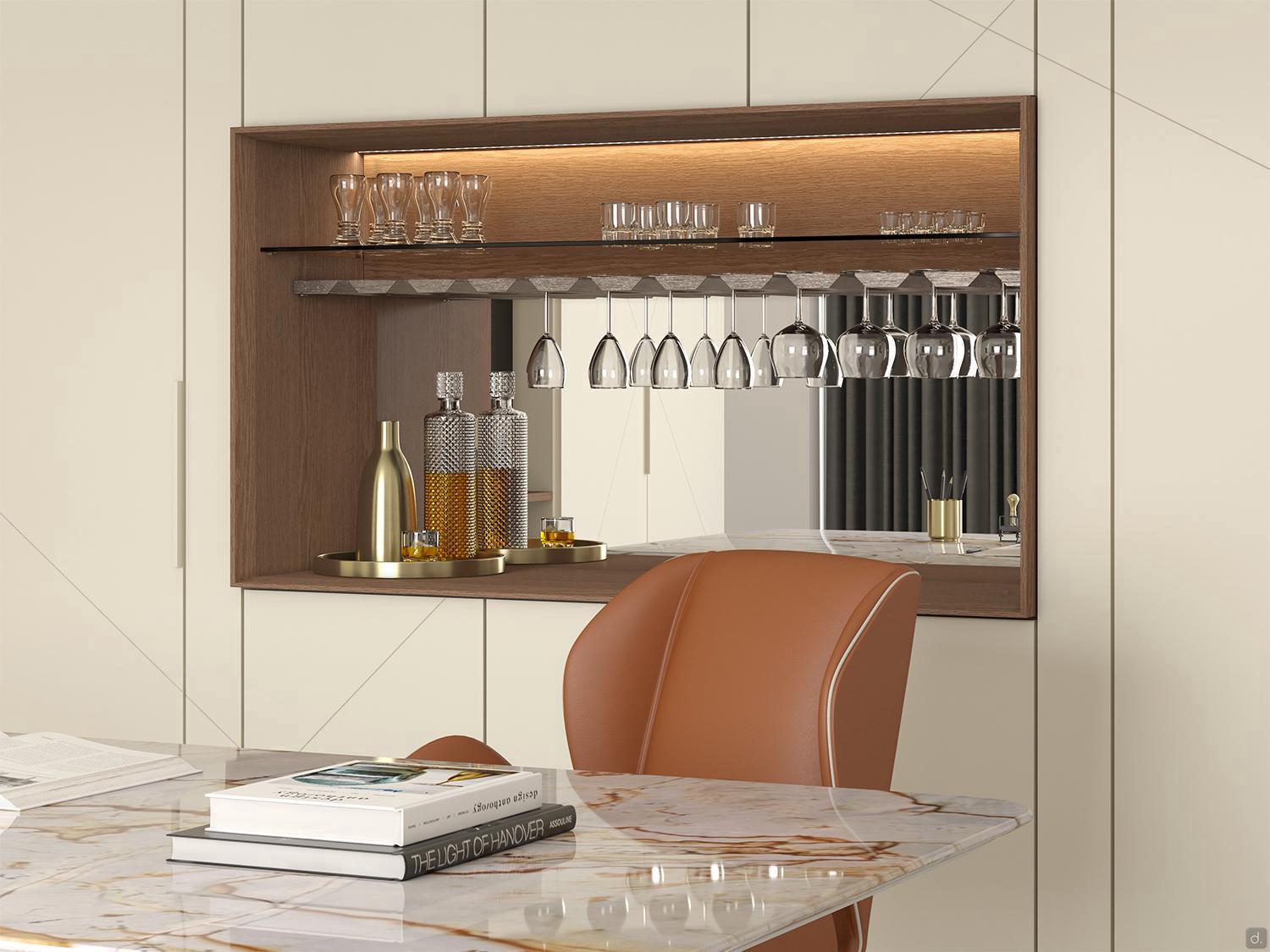

internal LED lighting: positioned on the upper panel of the bar compartment and on the wine-rack shelf, 1 cm from the back panel along the entire width of the bar compartment, can be equipped with a transformer (30W) which is switched on/off with a switch-controlled socket or a touch switch. LED with heat graduation of 3000K-24V.
Assembly Tips
Hardware pre-mounted on all elements to facilitate and speed up the assembly process. The hinged doors are equipped with n.4 slow-closing metal hinges and a rubber dust stop. The feet, which are also pre-mounted on the stands, allow for the correct levelling of the unit.

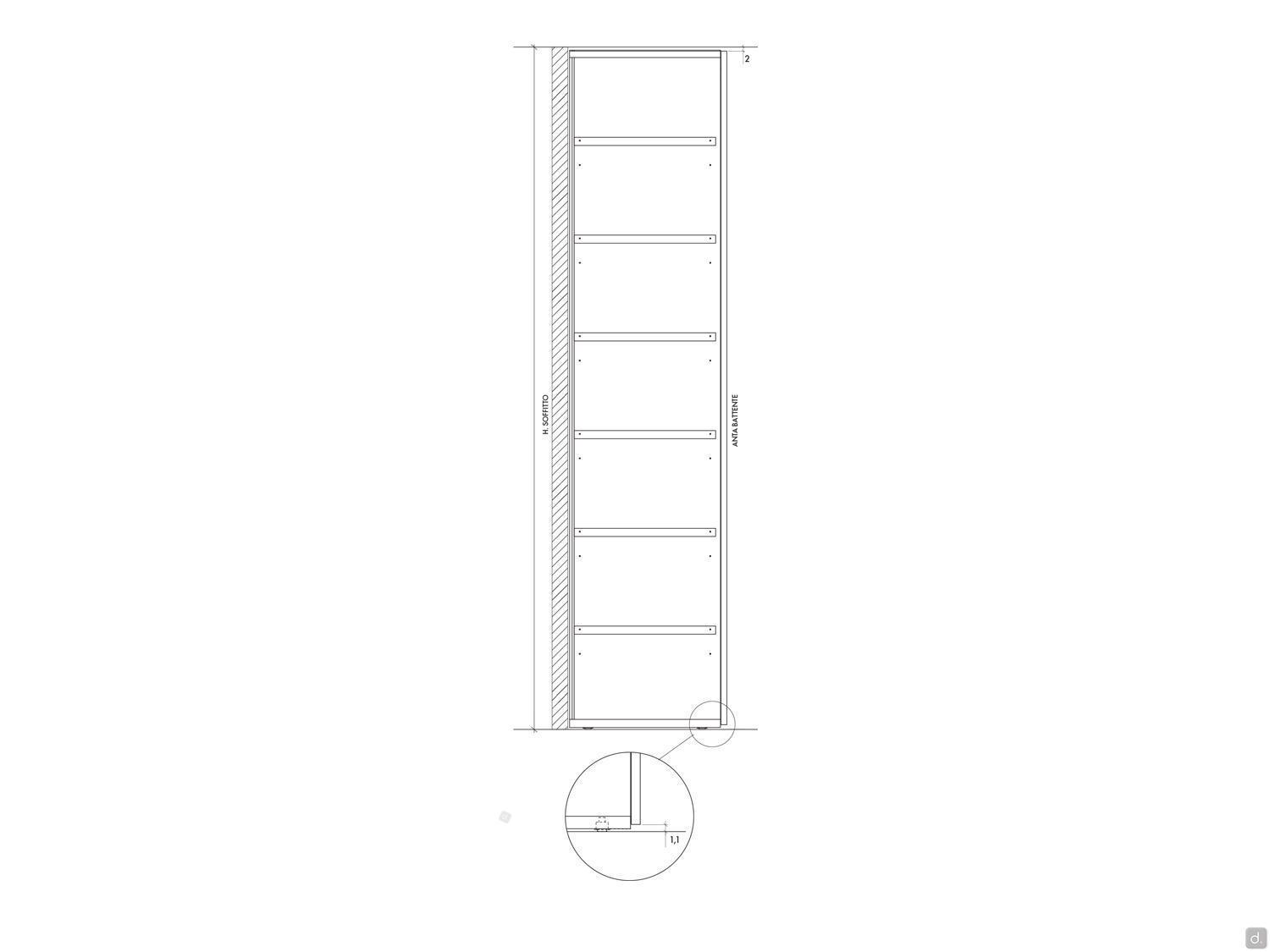

To assemble the body of the cupboard, you will need:
- 4 cm in width (if assembling in a 2 cm alcove)
- 3 cm in height
Further Information...
Honeycomb Panels: panel made with an internal honeycomb structure and a perimeter frame of 5 / 7 cm made from top-quality solid pine, closed with 2 panels in MDF (0,3 / 0,4 cm thick) which are subsequently lacquered and veneered.
The strengths of honeycomb panels are:
- greater durability over time;
- greater resistance to load;
- significantly reduced weight of the panels (up to 60% less), useful for transport, assembly, moving or removals, but especially to reduce the weight of the doors on the structure and hardware;
- hardware always fixed on the perimeter (in solid fir wood) of the sides and doors, so hinges will have a higher resistance and the furniture will have a considerably longer life;
- better resistance to humidity, as the material "breathes";
- product is exclusively "100% Made in Italy".
Aged Oak: compared to the "standard" open-pore oak, aged oak is characterised by a slightly more brushed surface, which shows a deeper pore and a more marked grain. This difference is particularly noticeable on bigger surfaces such as tables, wall units and wardrobes, less so on accessories, beds and bedroom sets.
