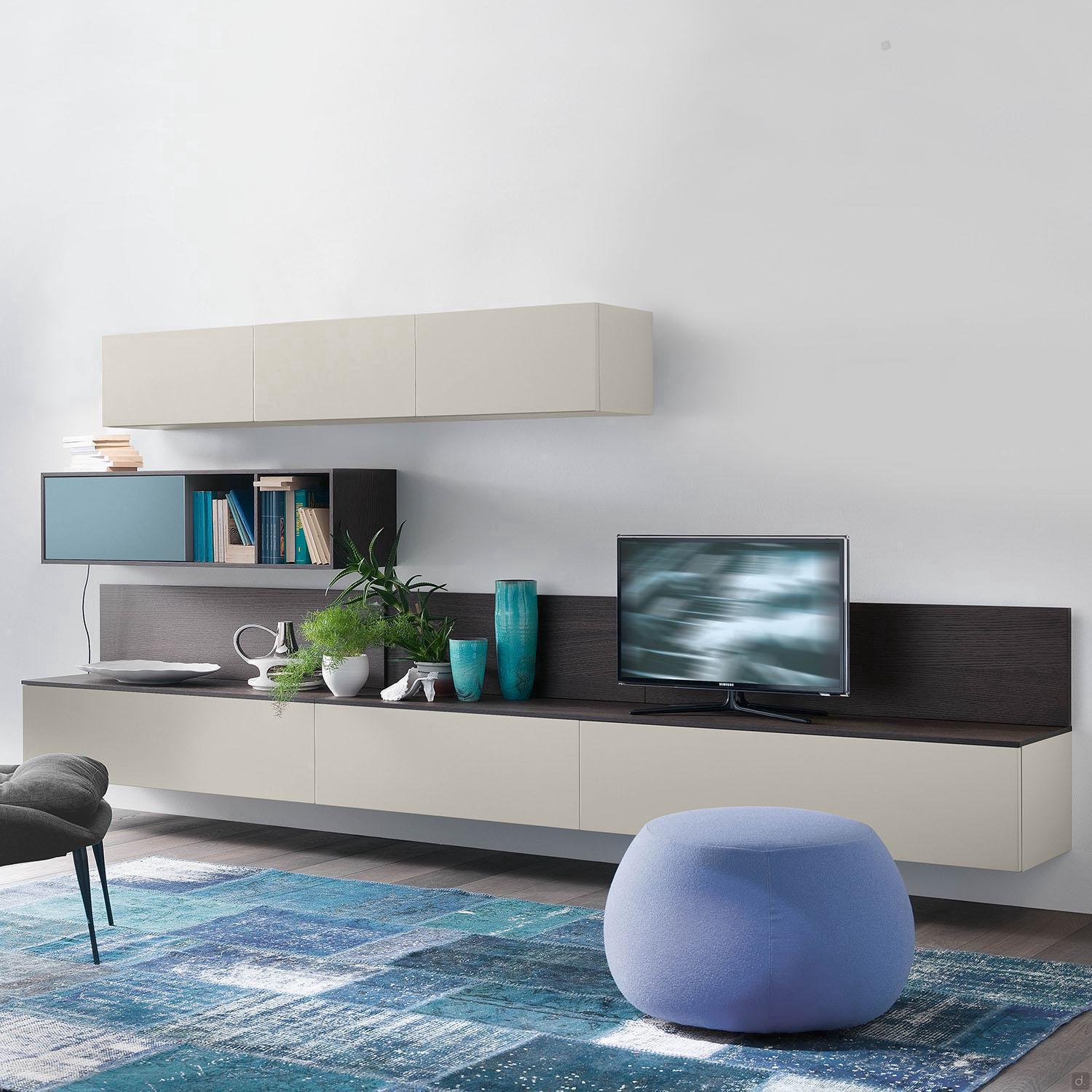

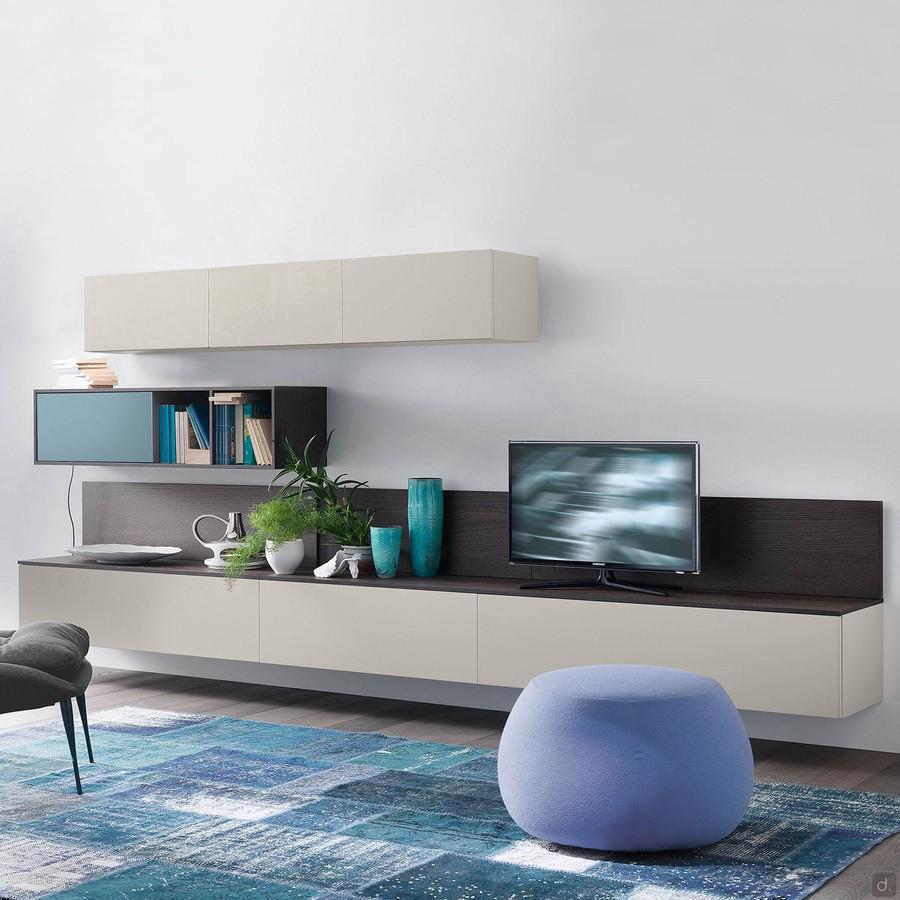

Plan 16
Wall Mounted Wall System

Specific Measurements
Part A Elements:
n.1 wall-mounted cabinet with basket: cm 96 d.52,4 h.32
n.2 wall-mounted cabinets with n.2 drop down doors: cm 128 d.52,4 h.32
n.3 wall units with n.3 transom lift-up door: cm 64 d.34,4 h.32
n.1 cable hole set for the drop down unit compartment
Part B Elements:
n.1 top: cm 128 d.52,7 th.1,4
n.1 top: cm 224 d.52,7 th.1,4
n.1 back panel: cm 96 th.4,4 h.32
n.2 back panels: cm 128 th.4,4 h.32
n.1 wall unit structure with n.2 open boxes: cm 128 d.34,7 h.32
Part C Element:

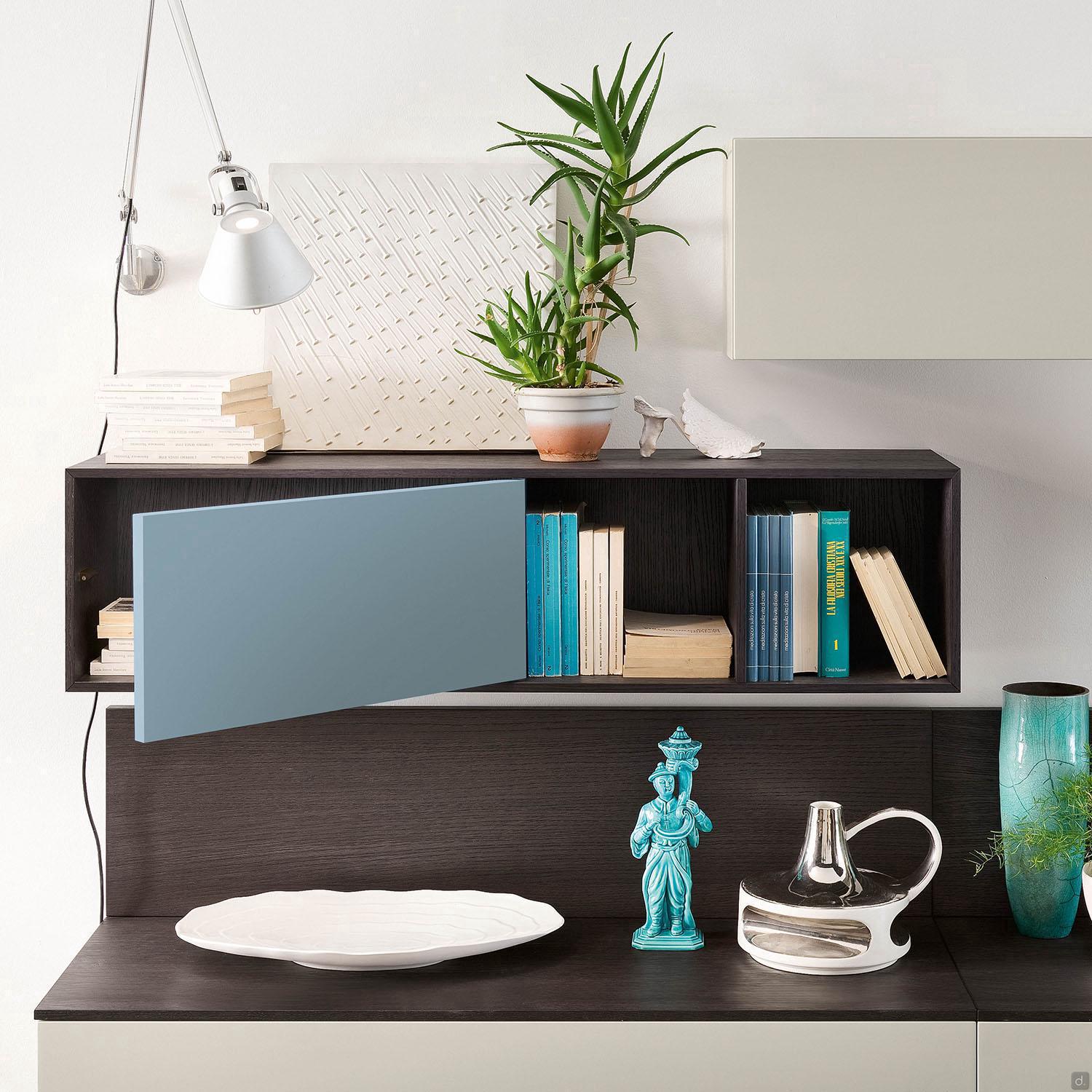

n.1 wall unit with hinged door: cm 64 th..2,2 h.28,4

Technical Specifications and Equipment
Structure:particle wood panels (class E1 - low formaldehyde emission)
Thickness: cm 2,2 thick fronts with cm 1,8 thick structure; cm 4,4 thick backrests
Opening: the movement is guaranteed by a pair of oledynamic pistons; cabinet with basket and lift-up wall units come with soft closing system
Fixing: elements come with adjustable brackets for an easy wall fastening
Cable hole set: it includes n.1 rectangular cable hole for the Top measuring cm 18 x 5 cm in aluminium, equipped with a lid, and n.1 round cable hole on the Back cm Ø 6 in black PVC. With the rectangular cable hole placed above the internal partition, there will be n.2 round cable holes on the back of each compartment.

Cleaning and Maintenance
Do not let the surfaces get in touch with water and liquids in general, excessive heat and humidity.
The cleaning has to be done with a damp cloth and neutral detergents; dry up immediately afterwards. Do not use alkaline products, solvents and abrasive ones. These products are not suitable for outdoor use.
