Materials Specifications
Sides, partitions, top, bottom, backrest: class E1 particle wood panels with low formaldheyde emissions.
Technical Specifications and Equipment
Sides and partition: thickness cm 2,5. For sides ABS edge for textured melamine and lacquers. For the partitions ABS edge matching the inside. Including adjustable feet inserted in the thickness of the panel and adjustable by cm 1,2.
Top and bottom: thickness cm 3,5. ABS edge matching the inside.
Backrest: thickness cm 0,8.
Linear shelves: thickness cm 3,5. ABS edge matching the inside.

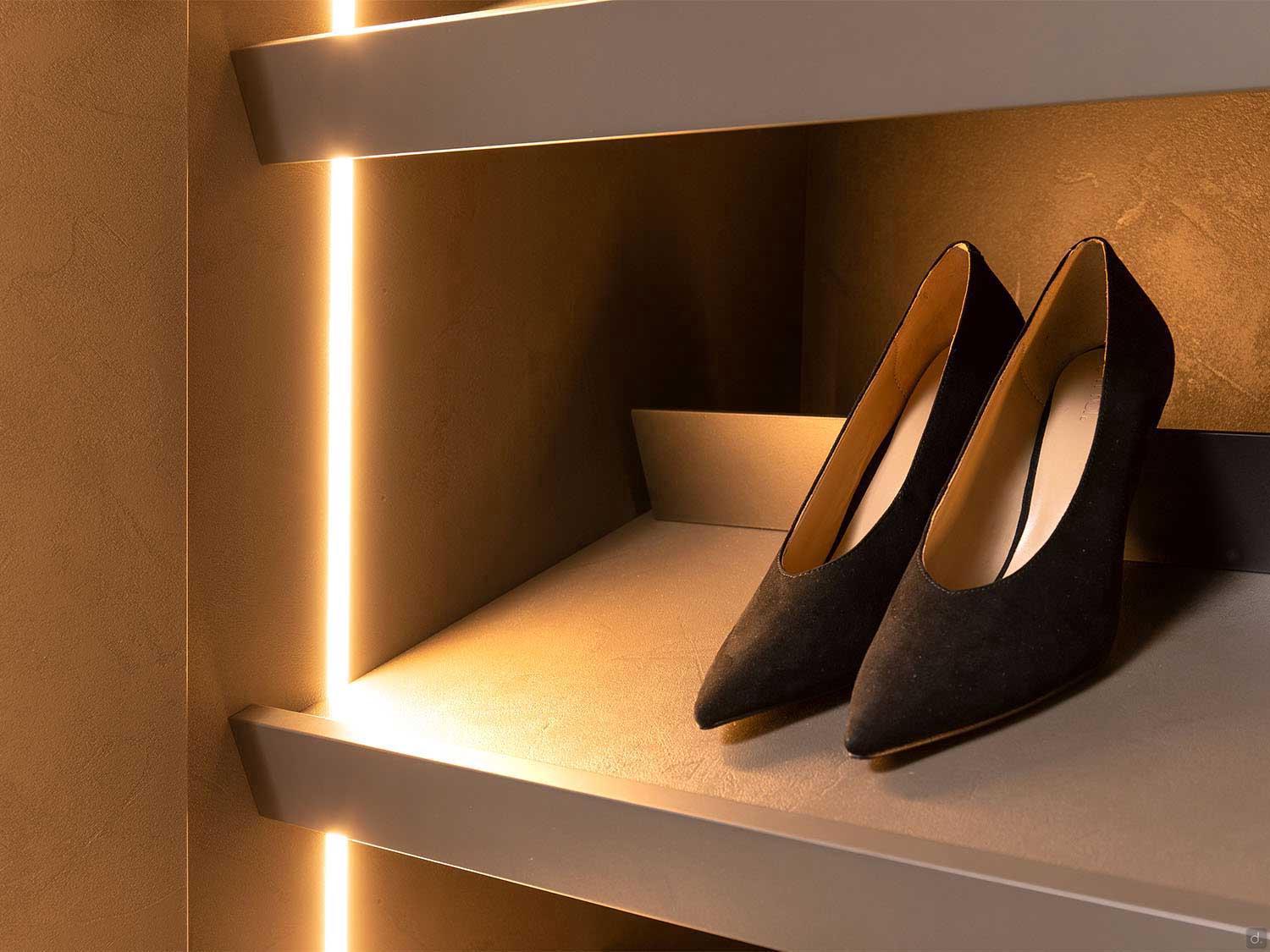

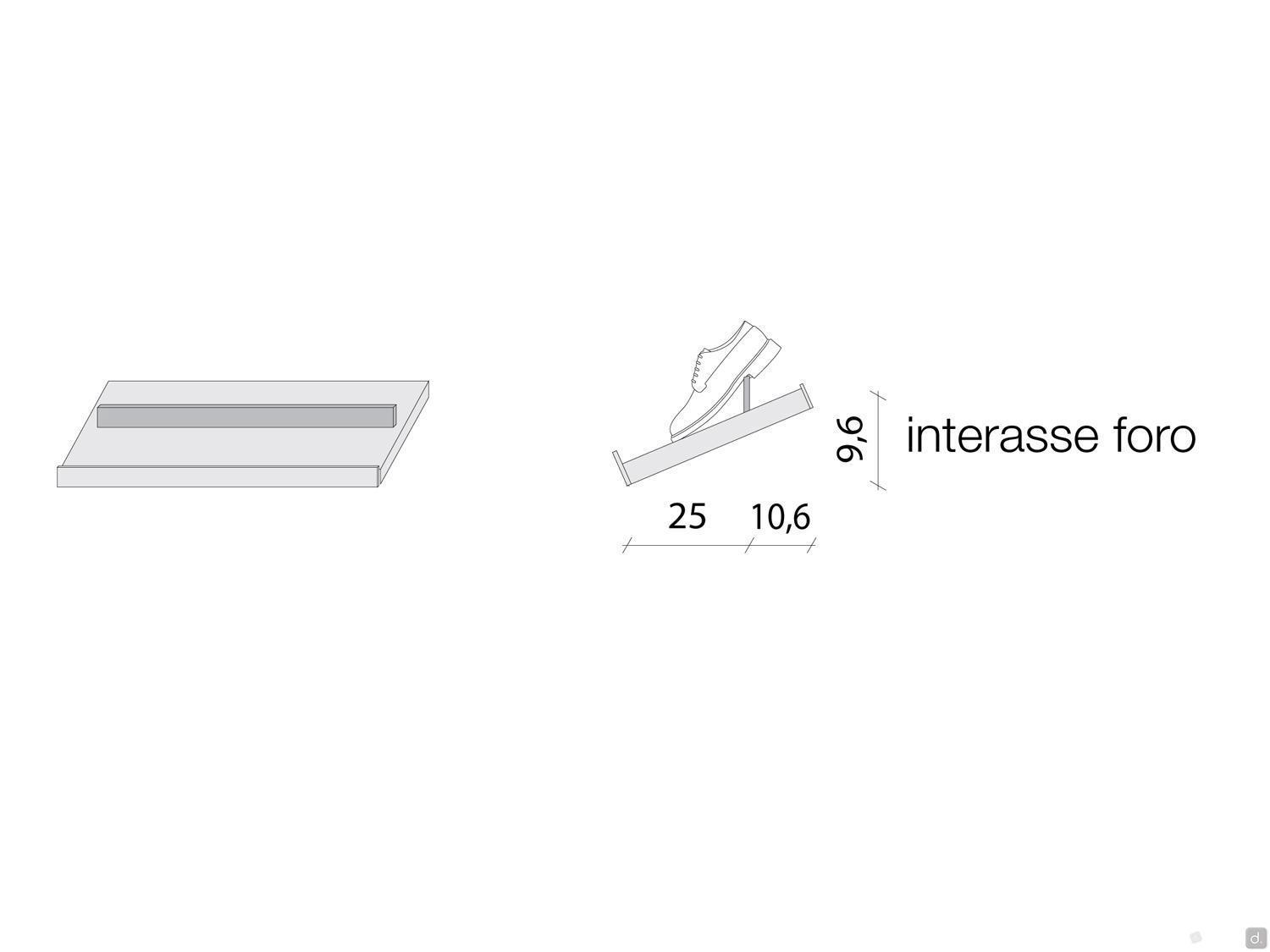

Tilted shoe shelves: thickness cm 3,5. Heel pad in gunmetal, brown or palladium painted metal.
Usable internal height:
- for wardrobe cm h.223,6: cm 216,6
- for wardrobe cm h.239,6: cm 232,6
- for wardrobe cm h.255,6: cm 248,6
- for wardrobe cm h.287,6: cm 280,6
Optional
led bars: to be connected to the home electrical system. In the vertical bars the wire comes out directly from the top part. The power supplies, placed on the top of the wardrobe, have 5 mt long cables to make the connections easier. The vertical LED bars power is as follows:
- 24 W for wardrobe cm h.223,6
- 26 W for wardrobe cm h.239,6
- 28 W for wardrobe cm h.255,6
- 31 W for wardrobe cm h.287,6
remote control kit (optional): kit with receiver necessary to turn through radio-frequency the light on and off, it supports power supplies for lights up to a max of 300 W. It can be used on all lighting systems by placing it in front of the power supply (in case of more power supplies together it is required the use of a power strip).
Holes on the Sides

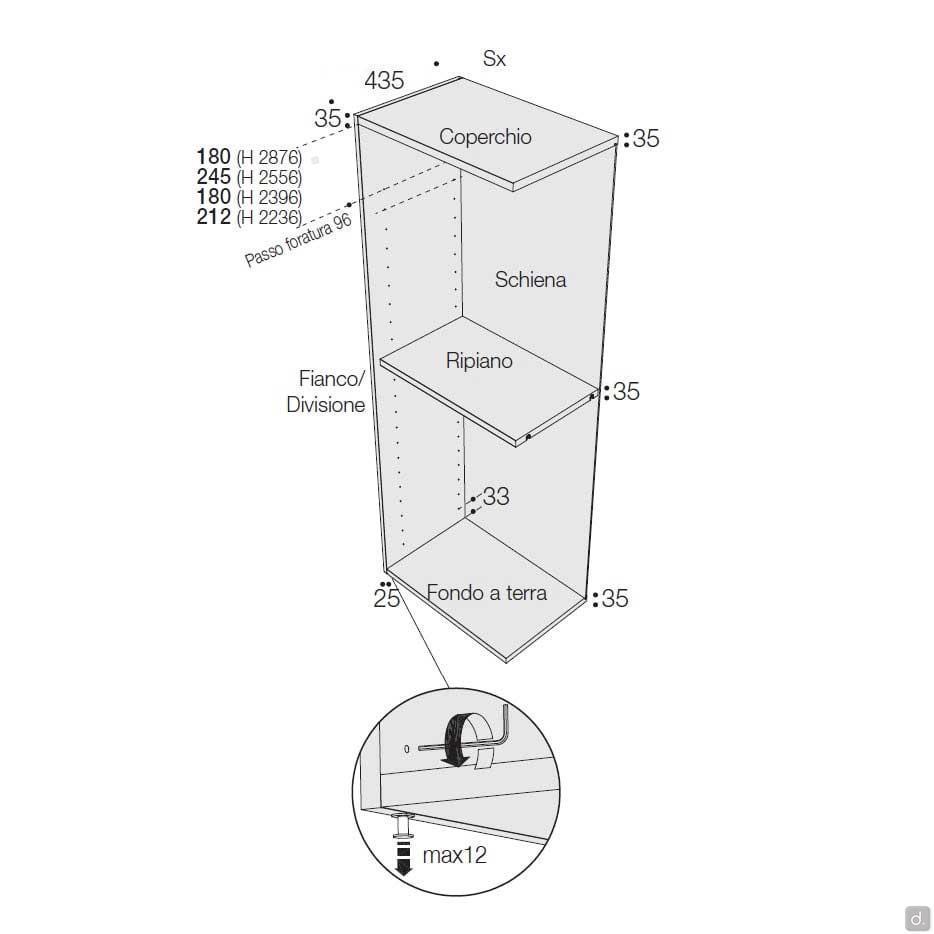

Sides and partitions have holes every 9,6 cm. For detailed measurements we recommend seeing the dedicated scheme inside the picture gallery.
Assembling Tips
In order to assemble the structure you need:
- cm 3,5 in width
- cm 2 in height (cm 5 in case of LED bars to place the power supply on the top).
In wardrobes cm d.46,2 at least 2 compartments have an anti-tip bracket to be fixed to the wall. The bracket has spacers that allow you to use them even in the presence of a skirting board with a max. total depth of 15 mm..
