Materials Specifications
Panel, shelf, uprights, floor panel: imade with E1 class particle wood panel with low formaldehyde emission.

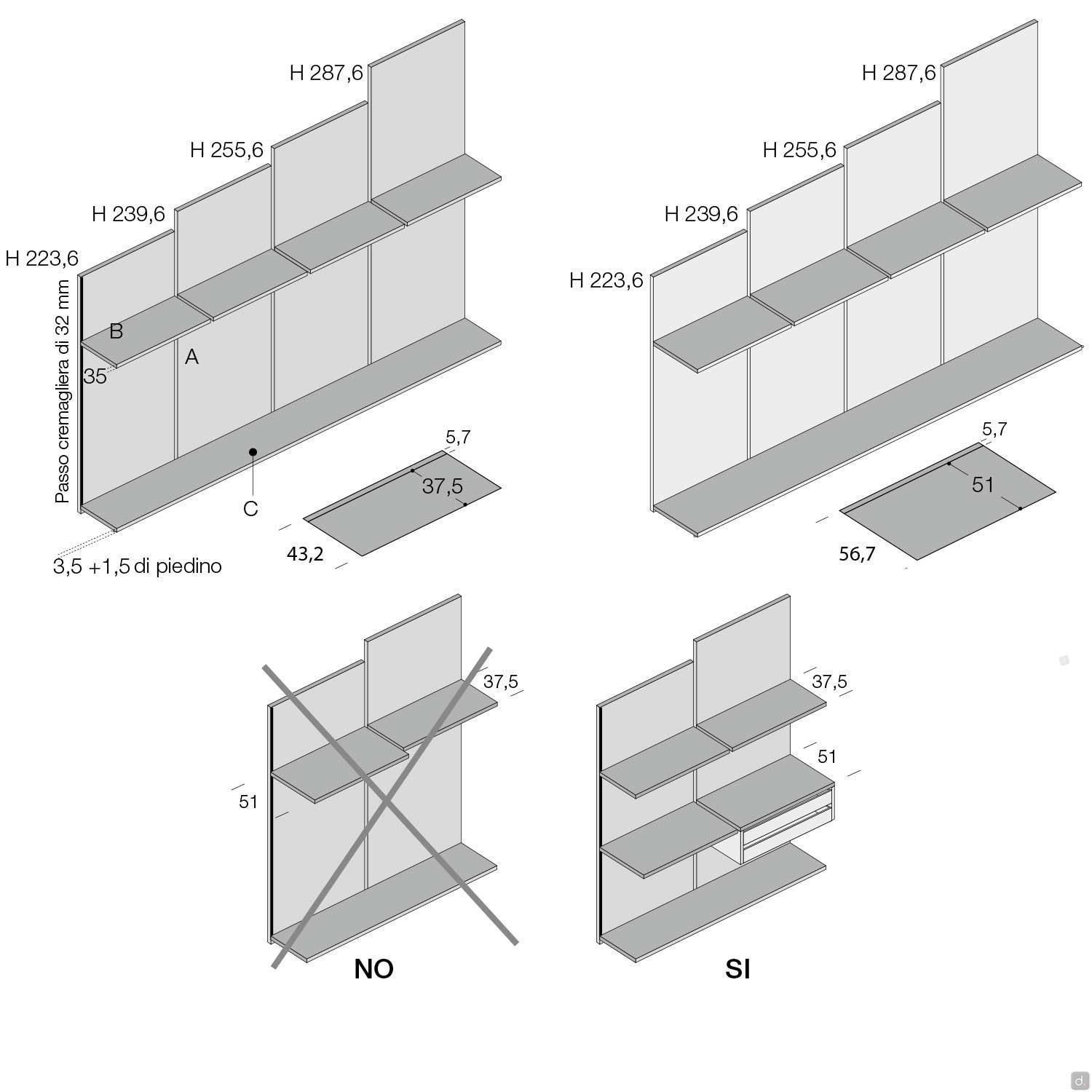

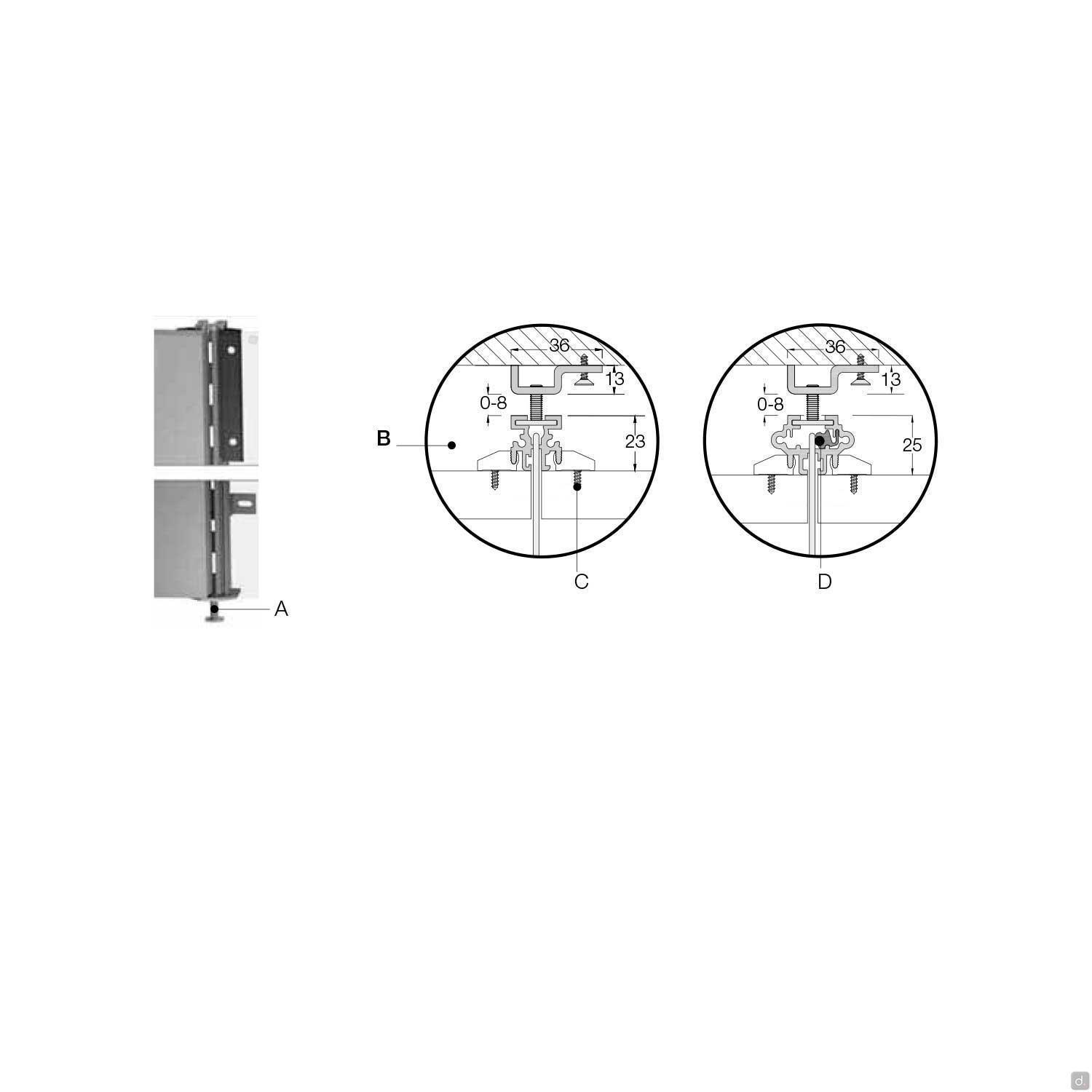

Profile with rack: anodized aluminium passage 32 mm.
Technical Specifications and Equipment
Panel: cm th.2.
- wood version: melamine or matte lacquer with polyurethane paints;
- mirror version: melamine panel with melamine paper th.1,5 + Silver or Dark mirror cm th.0,4.

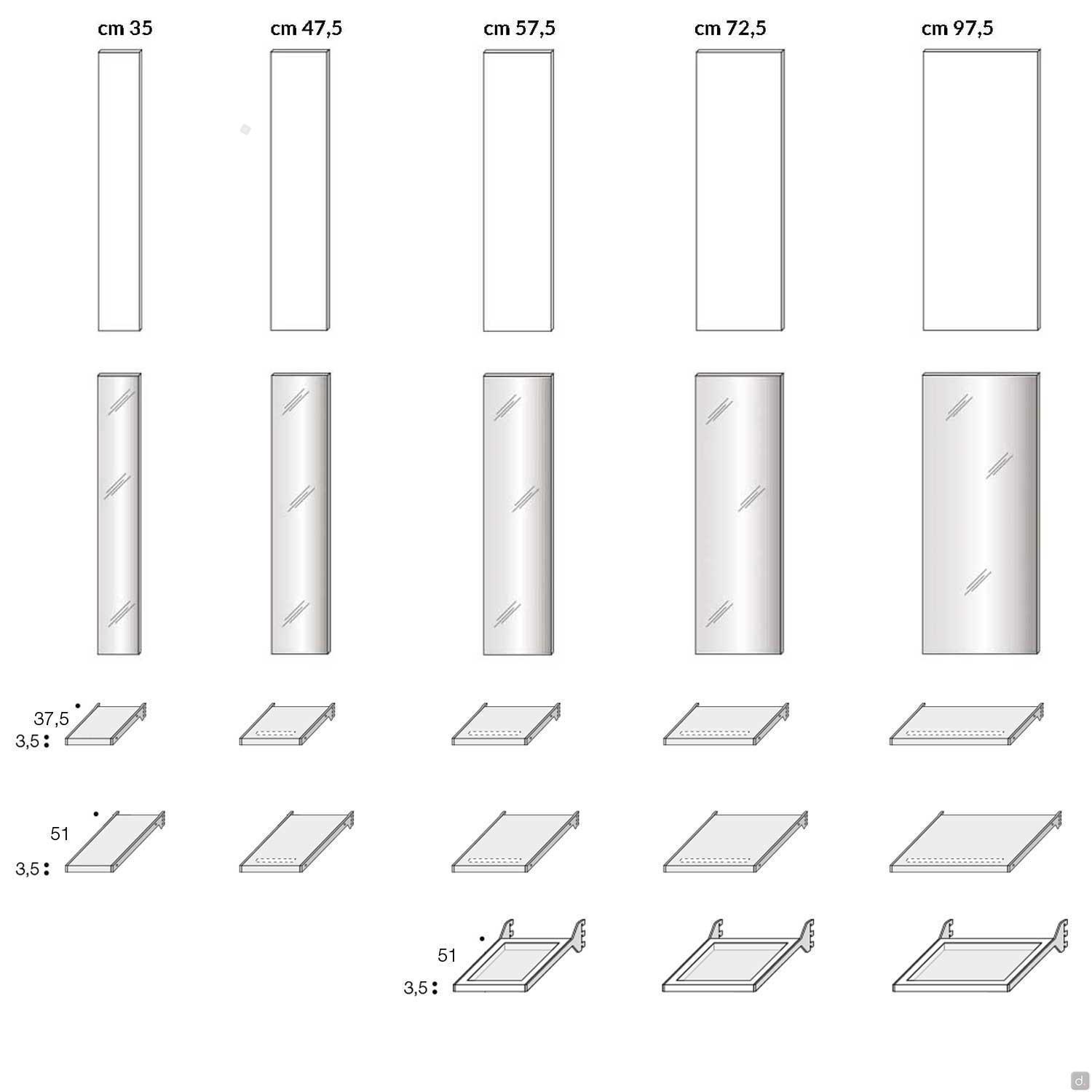

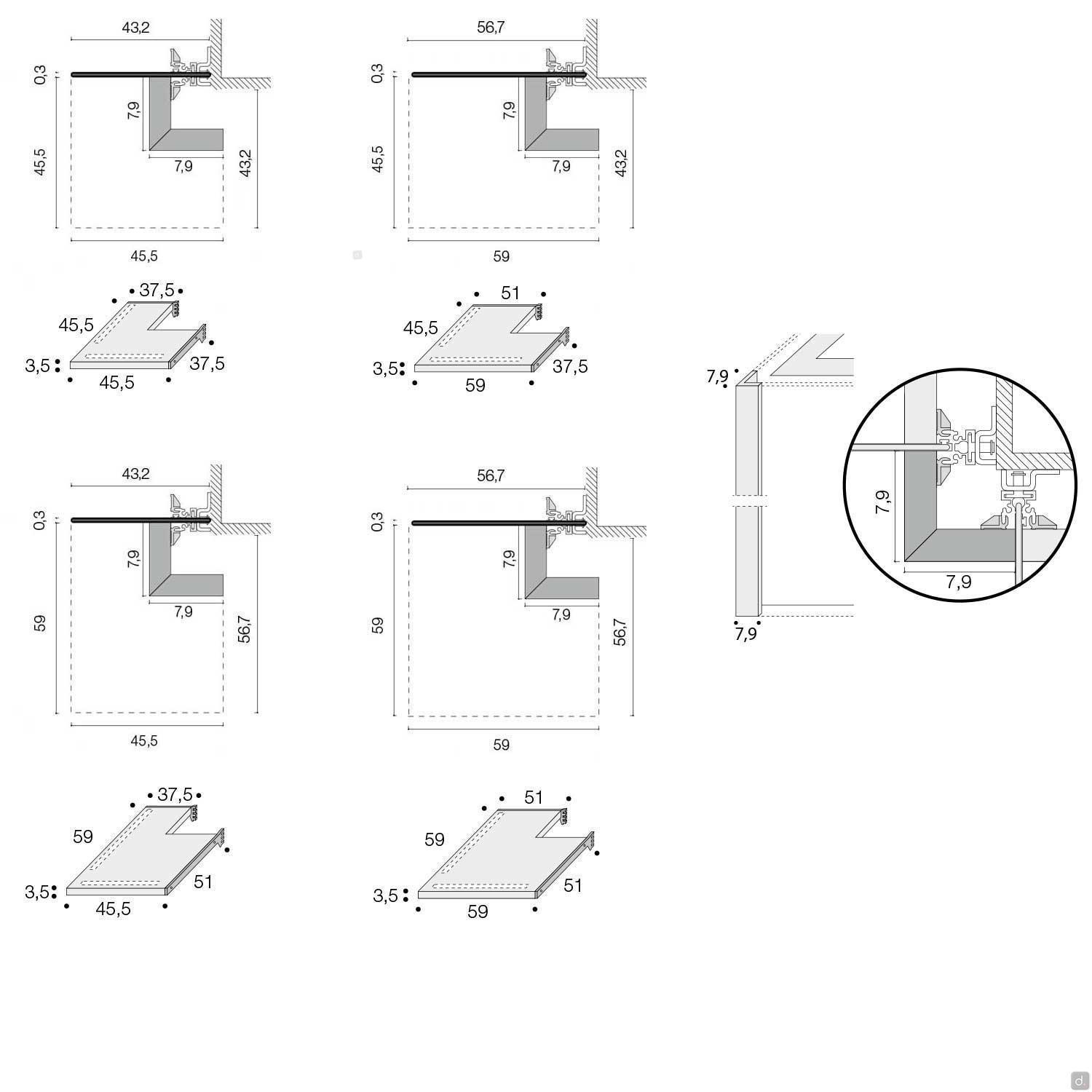

Shelf: panel equipable with n.1, 2 o 3 shelves cm th.3,5. With metal brackets.
- wood version: melamine or matte lacquer with polyurethane paints, board in ABS matching the panel;
- glass version: 4 sided aluminium frame section cm 3,5 x 2,4 in Gunmetal, Brown or Palladium finish in which transparent tempered glass cm th.0,4 is inserted (only available for walk-in closet cm d.56,7).
Shelf Brackets: cm th.0,3 metal with epoxy powder coating in Gunmetal, Brown or Palladium finish, complete with three-dimensional adjustment.

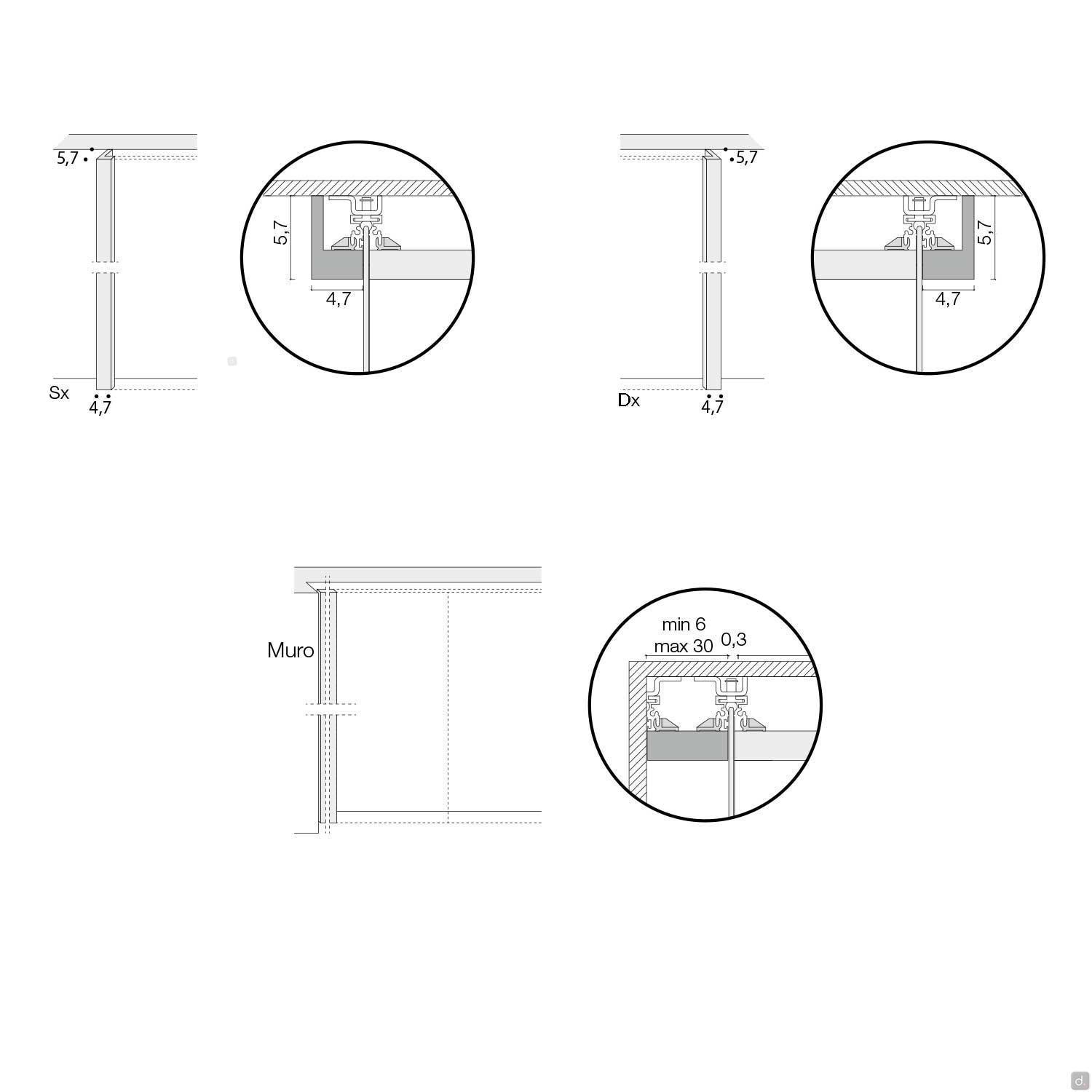

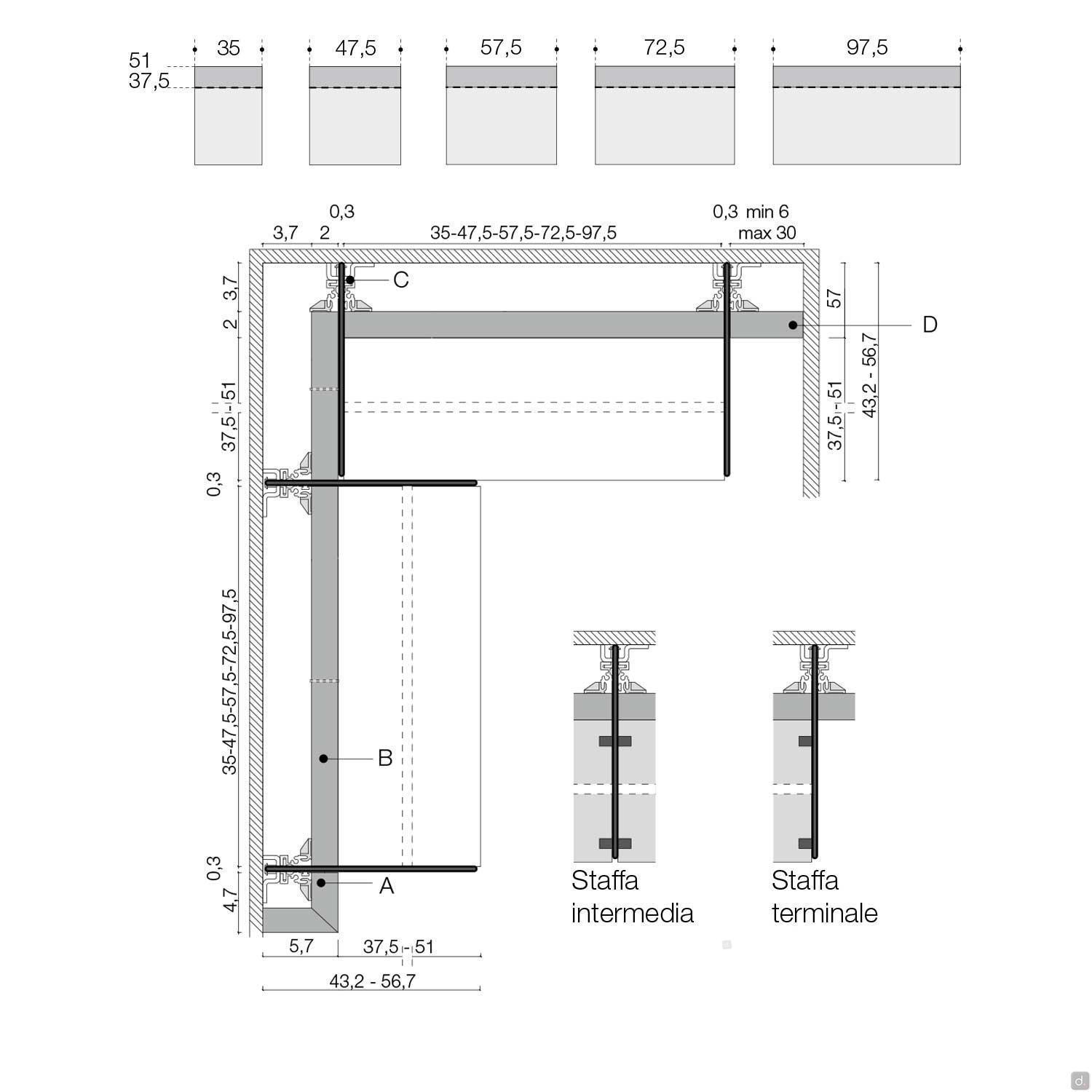

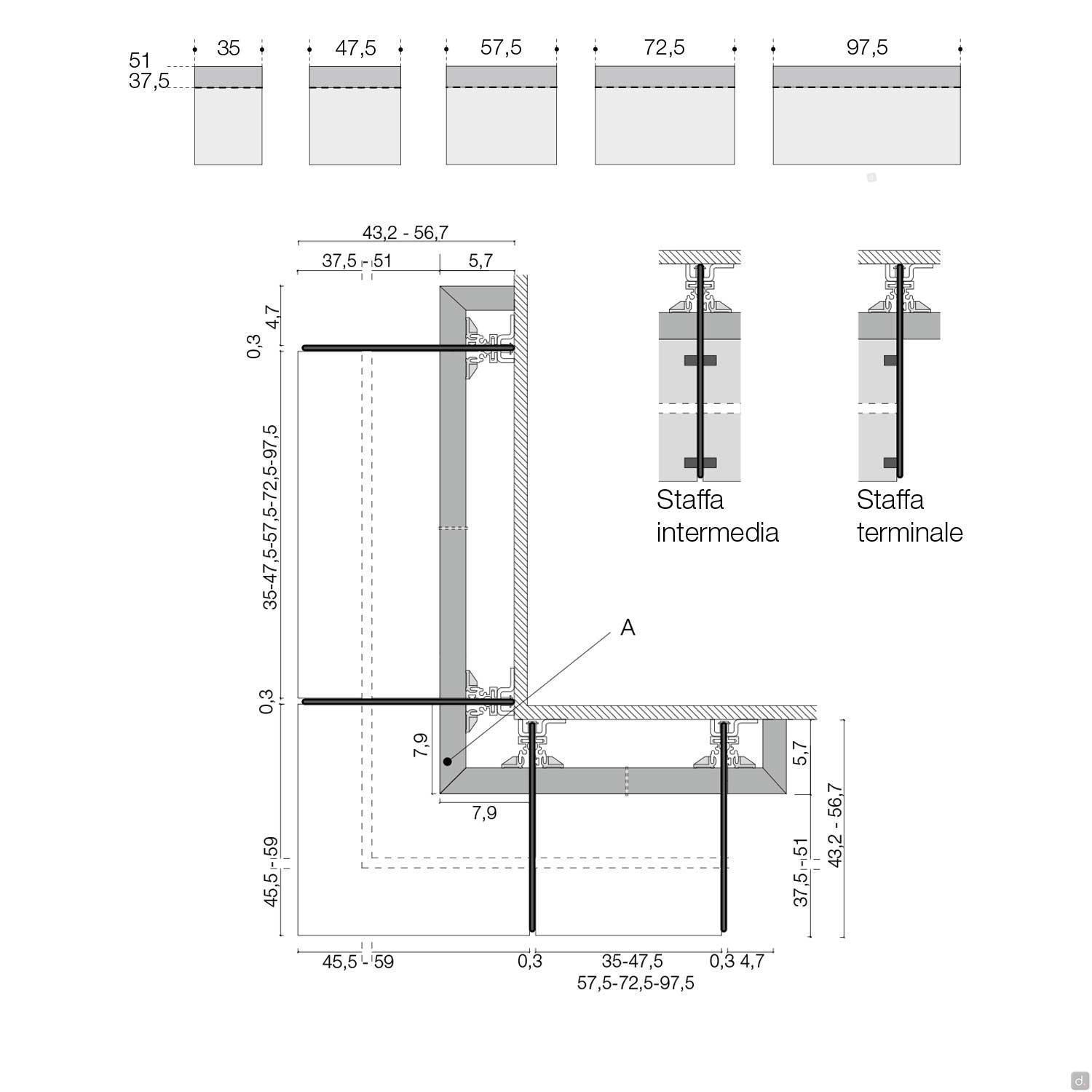

Infill Upright: cm d.5,7 to be placed at the starting and end point of the composition.
- standard: cm 4,7 textured melamine or matte lacquer with polyurethane paints;
- customised: min. cm 6 / max. cm 30 with panel cm th.2 textured melamine or matte lacquer with polyurethane paints; to be placed as a side wall infill strip (instead of the standard upright at the starting and end points).
Please note: end point upright with profile with rack (+ cm 0,3).

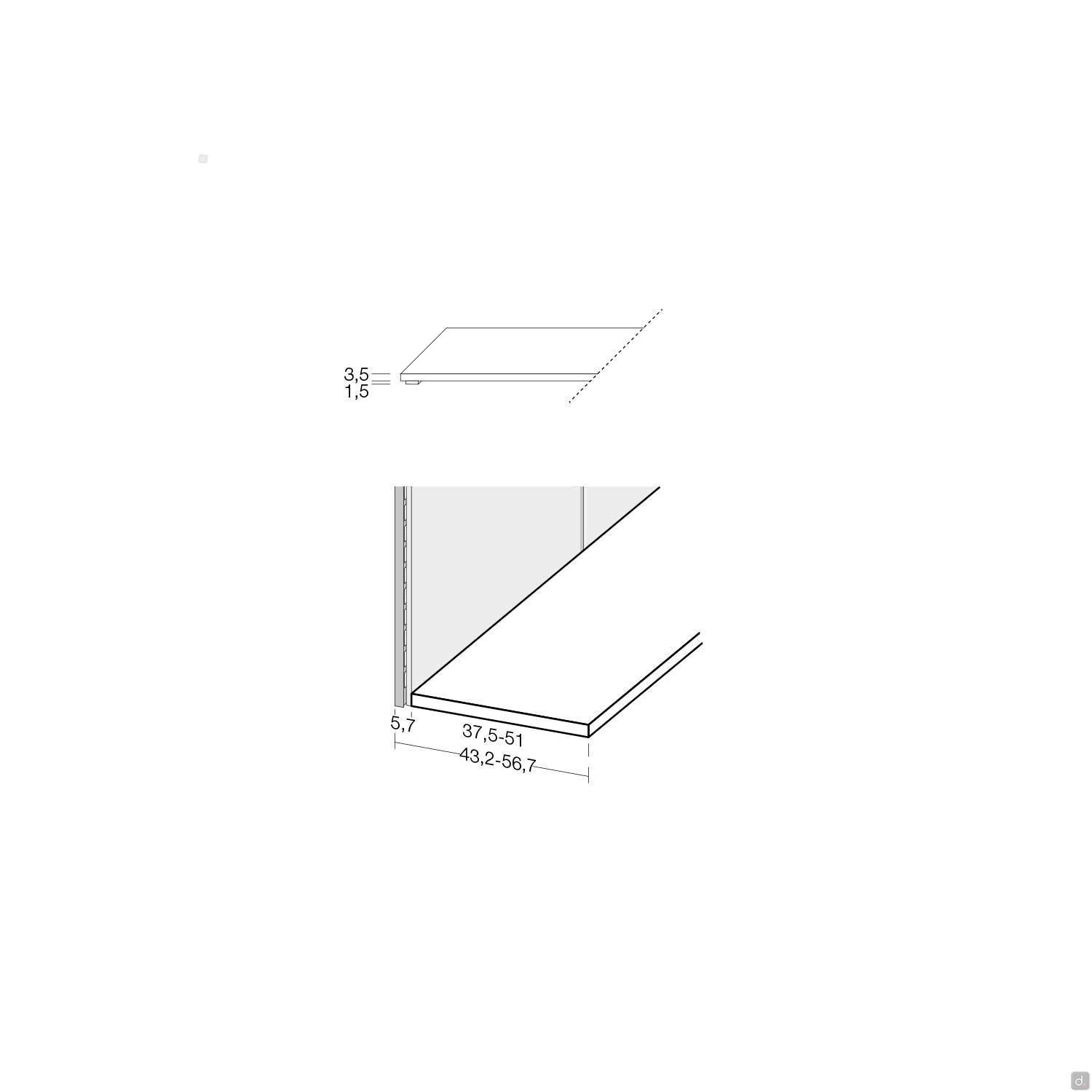

Floor Board: custom width in textured melamine, matte lacquer or polyurethane paint, metallic lacquered or wood veneer. Thickness cm 3,5 with adjustable feet(+ cm h.1,5). ABS edge matching the panel
Optional - Shelf
pull-out hanging rail: for closet cm d.43,2. Burnished aluminium guides and white opaline pull-out hook.
hanging rail: for closet cm d.56,7. Rectangular section cm 3 x 1 in painted Gunmetal, Brown or Palladium with transparent anti-slip rubber. Supporting metal tube cm 2,4 x 1 h.7,7.
LED bar: 3000 K LED light with electricity transmitted through contact between the stainless stell brackets and the electrified rack profile, equipped with a power cable running upward to be connected to the power supply (located in the gap between panel and wall).
Lights can be turned on with home network connection or with remote control:
- remote control kit (optional): kit with receiver needed for radio frequency ignition, suports power supplies for LED lights up to a max of 300 W. Can be used on all lighting systems by placing the kit with receiver in front of the power supply (in case of using more than one power supply provide multi-socket power strip).
Assembly Tips
The following are required for the assembly of the walk-in closet:
- 1 cm in width
- 1 cm in height
