Technical Specifications and Equipment
Structure: made
of TAMMEL (honeycomb wood + melamine). The honeycomb has a carefully selected
solid fir frame and is plated with MDF panels. It guarantees non-deformability
over time, lightness and practicality and meets all the requirements of the
European class 1 standards regarding the limitation of harmful emissions of
formaldehyde, and complies with CARB2 standards.
Sides and Backs: made
of melamine (class E1 with low formaldehyde emission), complies with CARB2
standards. Sides 2,5 cm / backs cm th. 0,8.
Bases, Lid: in
honeycomb wood with respective thicknesses of 3,2 and 2.5 cm.

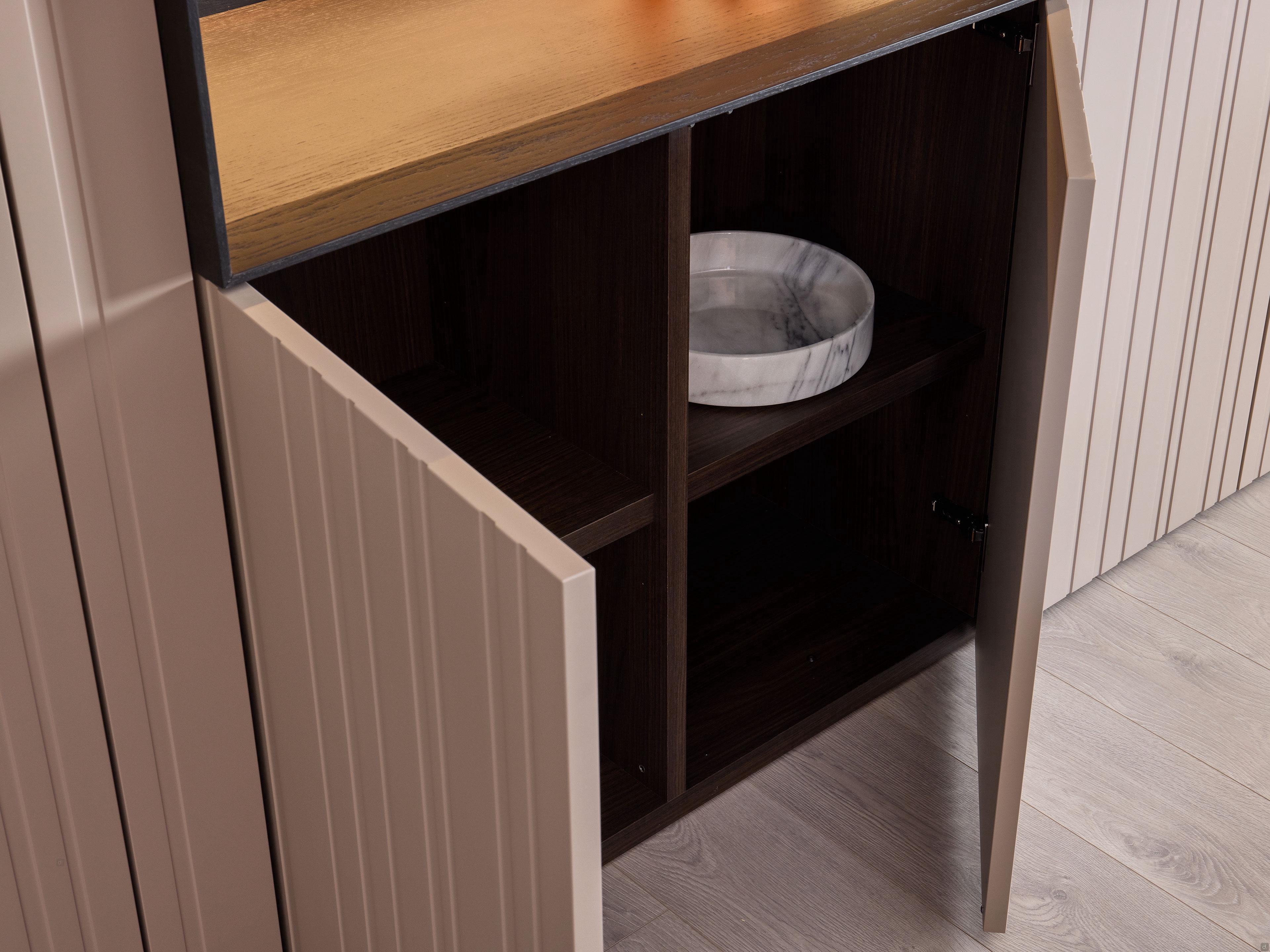

Doors: 2,4
cm thick honeycomb wood with solid fir frame, lacquered or wooden. The fronts
can be smooth or customised (exclusively in matte lacquered or open pore oak
wood finish):

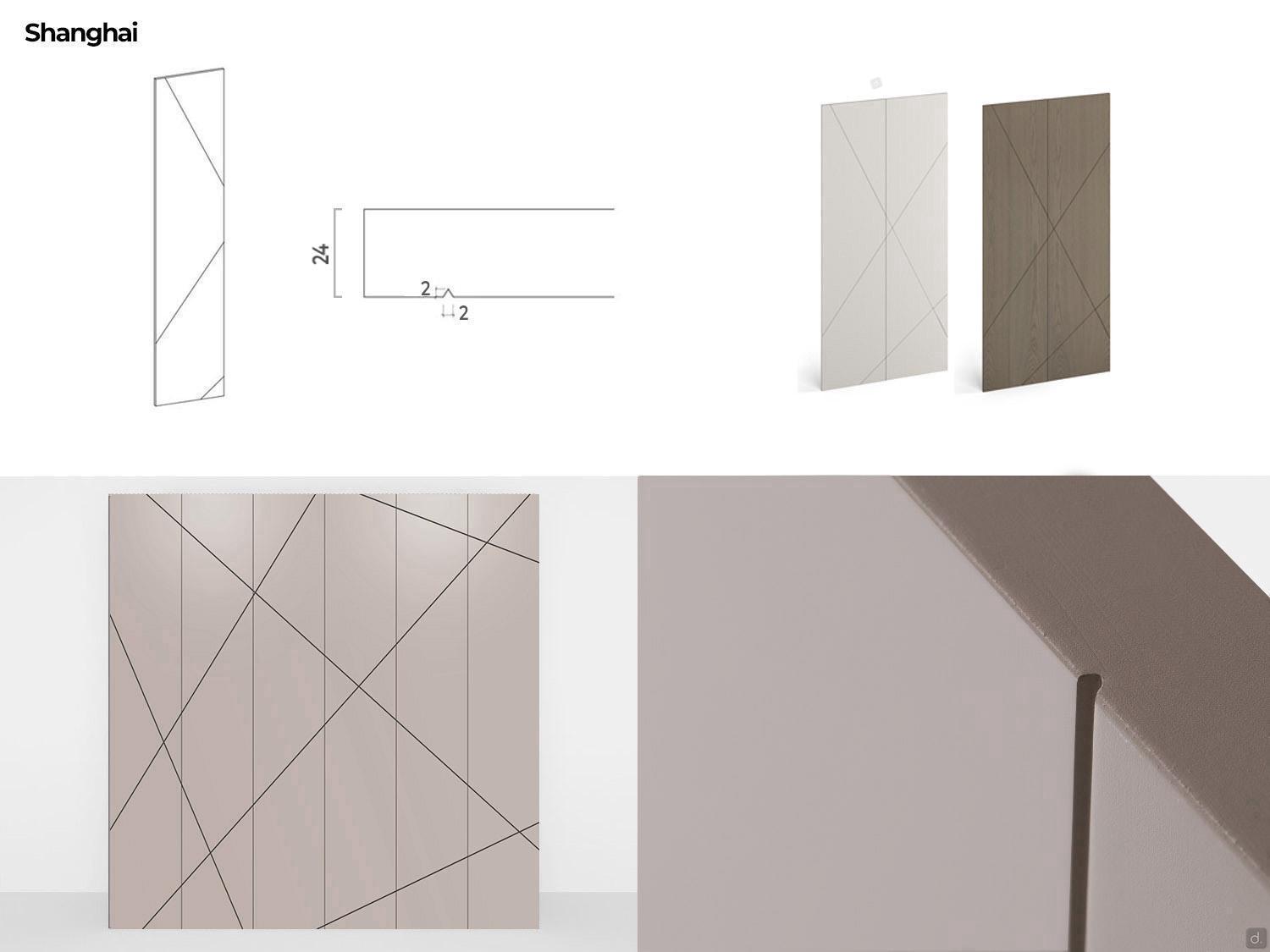

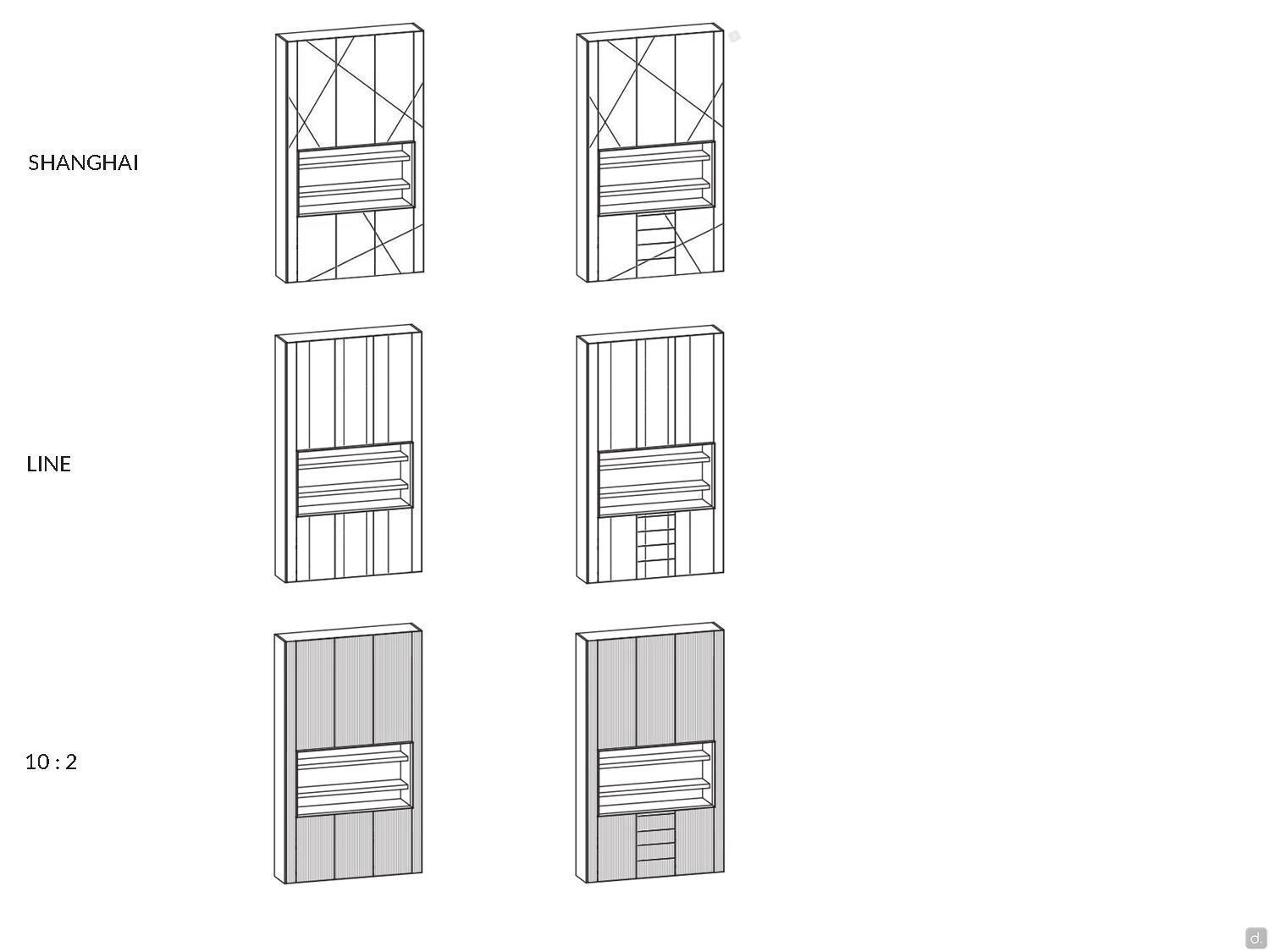

- Shanghai (only
in matte lacquered finish): diagonal "V" engravings 0,2 cm thick.

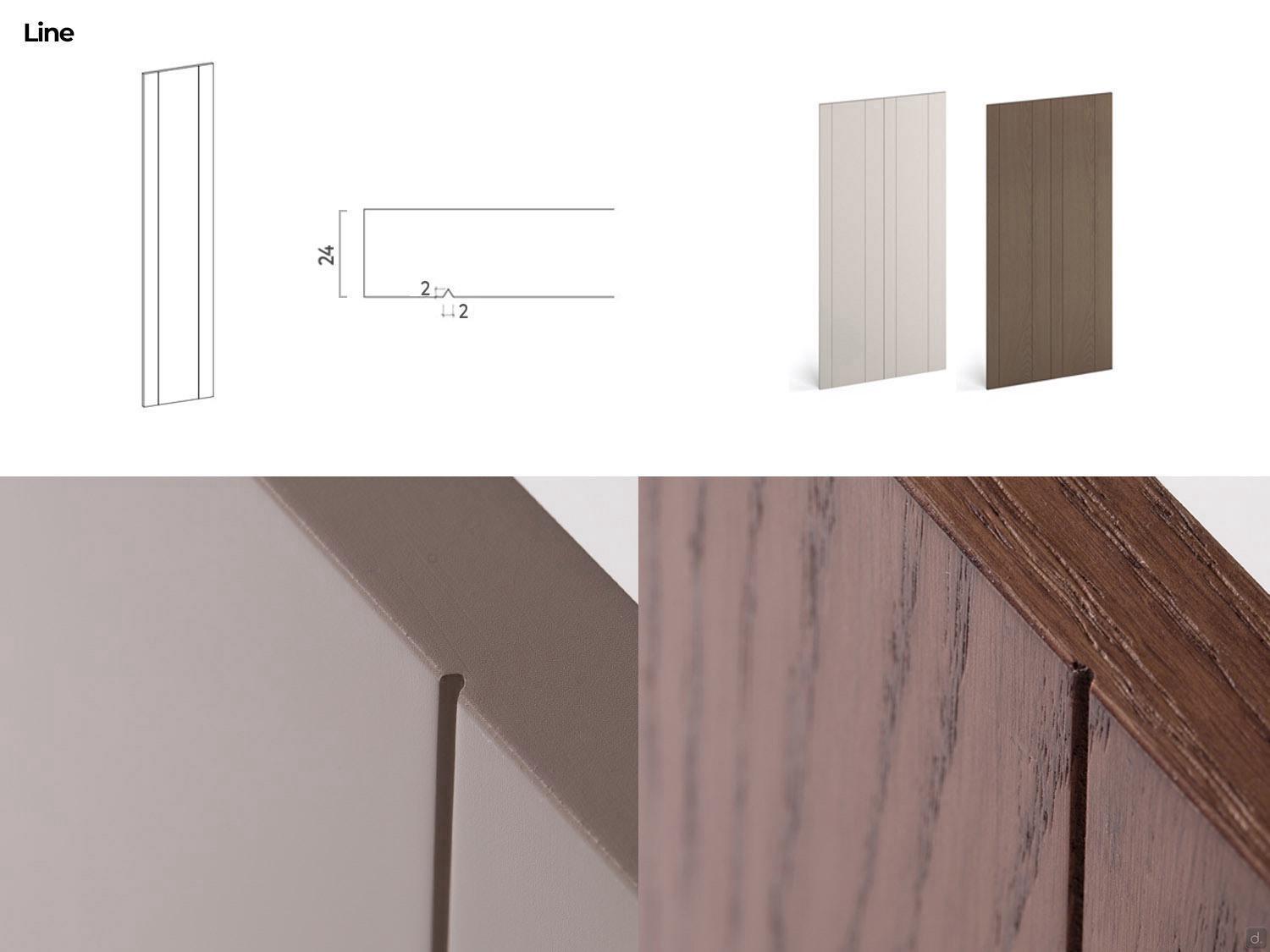

- Line
(only in matte lacquered finish): vertical "V" engravings 0,2 cm
thick.

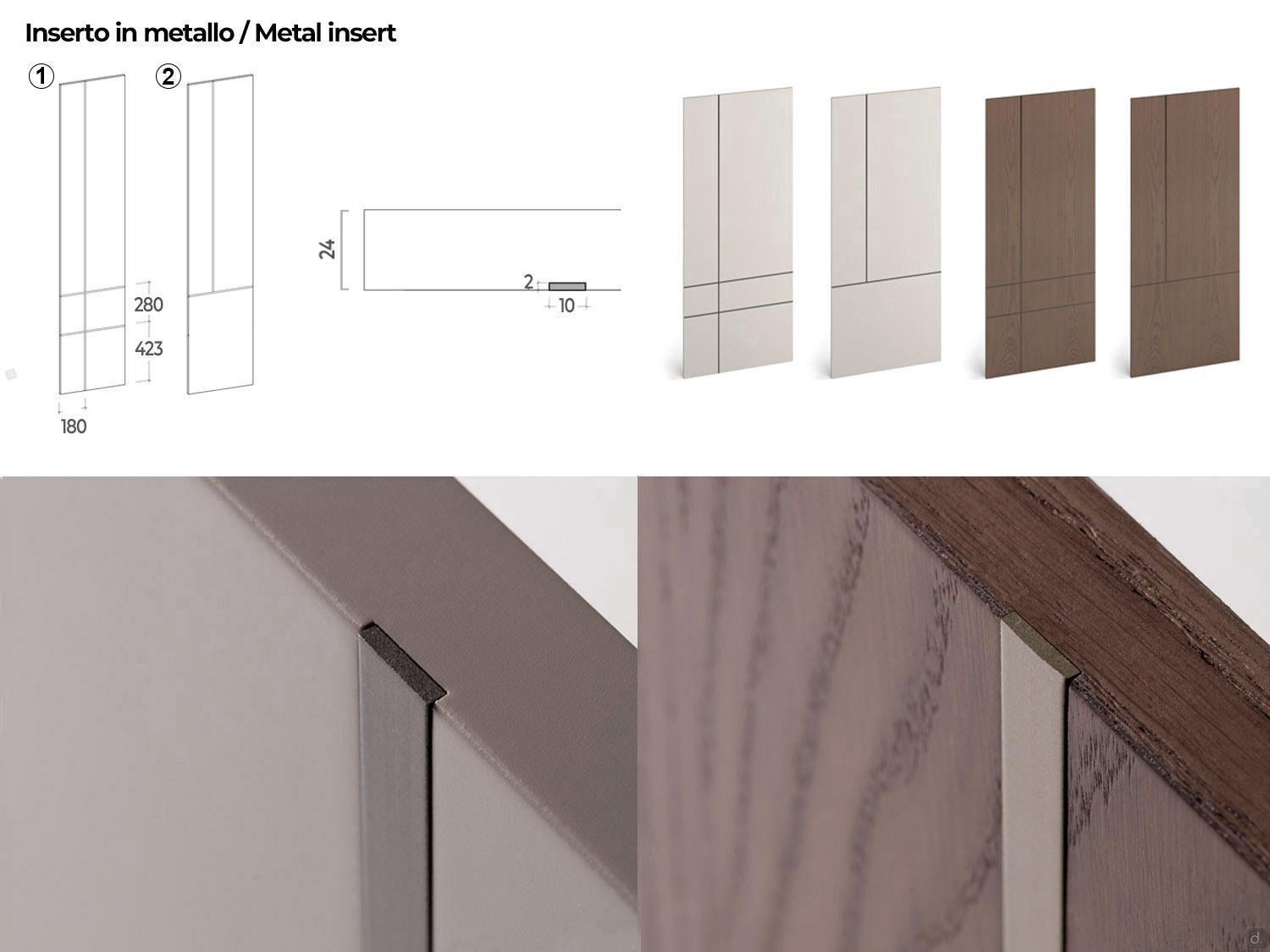

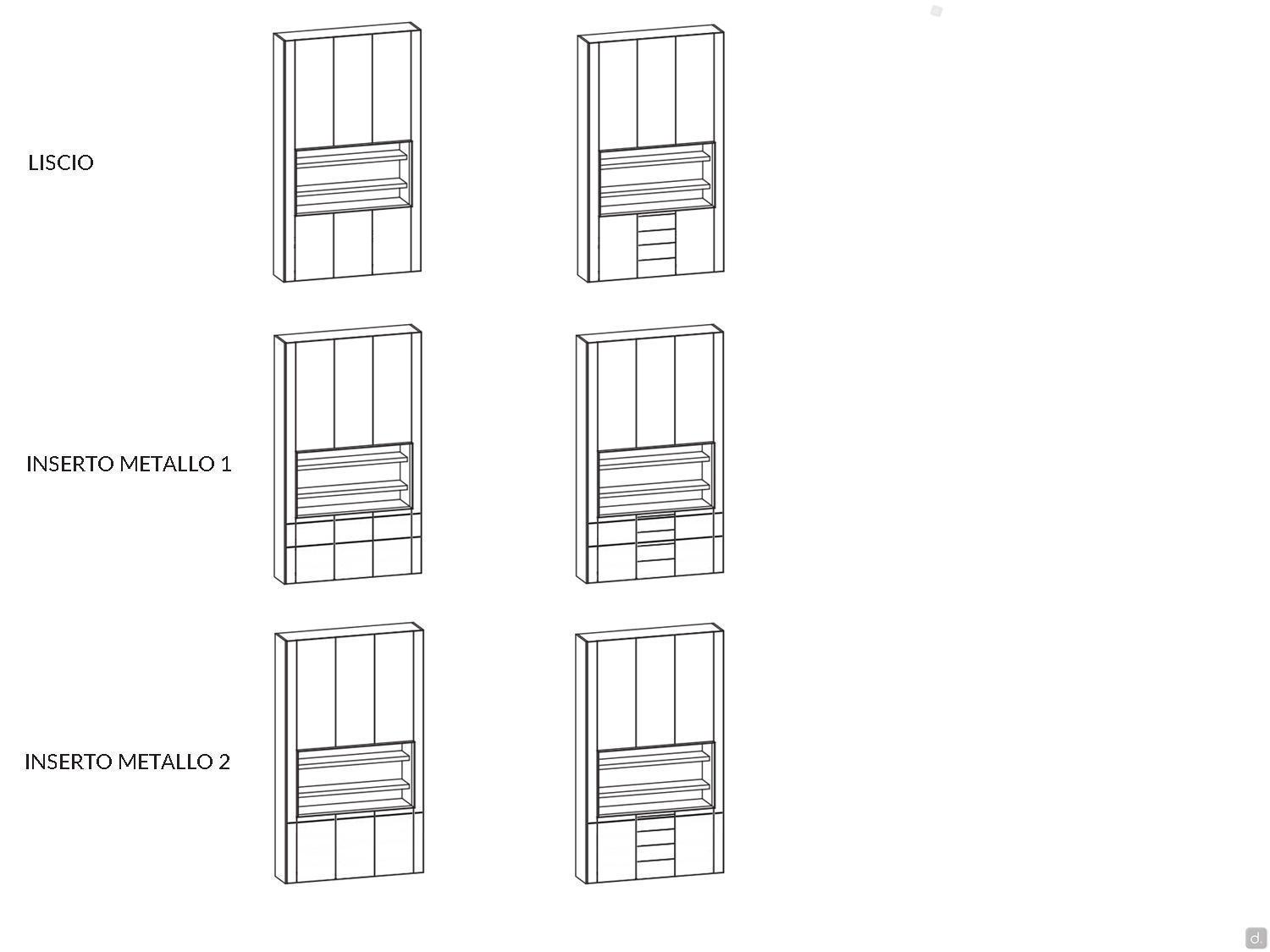

- with
metal insert: 1 cm wide, 0,2 cm thick in the "version 1" with n.2
horizontal + n.1 vertical or in the "version 2" with n.1 horizontal +
n.1 vertical. Also available in the 2:2 version with 2 mm thick matte or
metallic lacquered metal insert, 4 mm thick, protruding 2 mm from the door.
Achievable exclusively on project, for further information contact our Customer
Service.

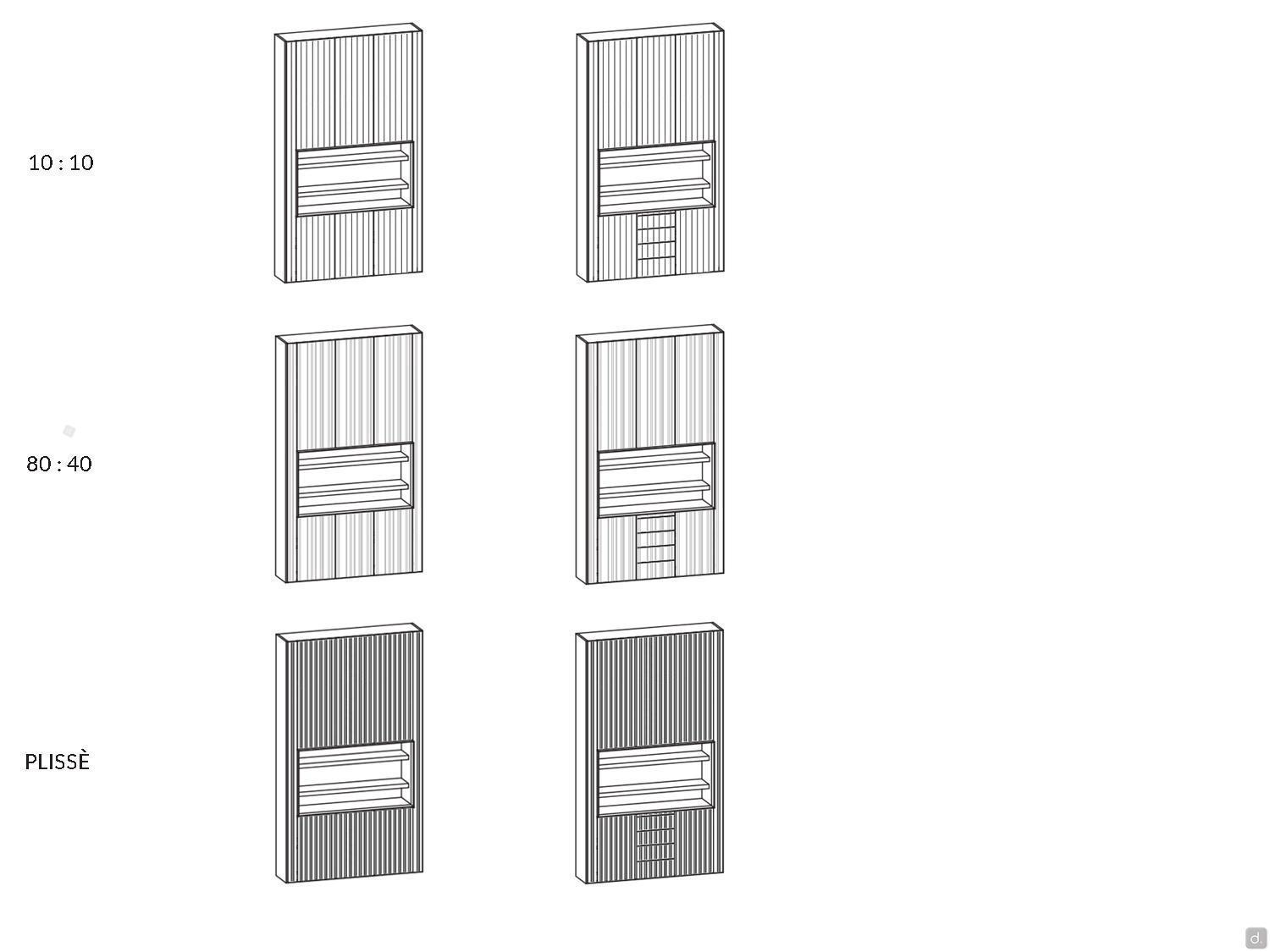

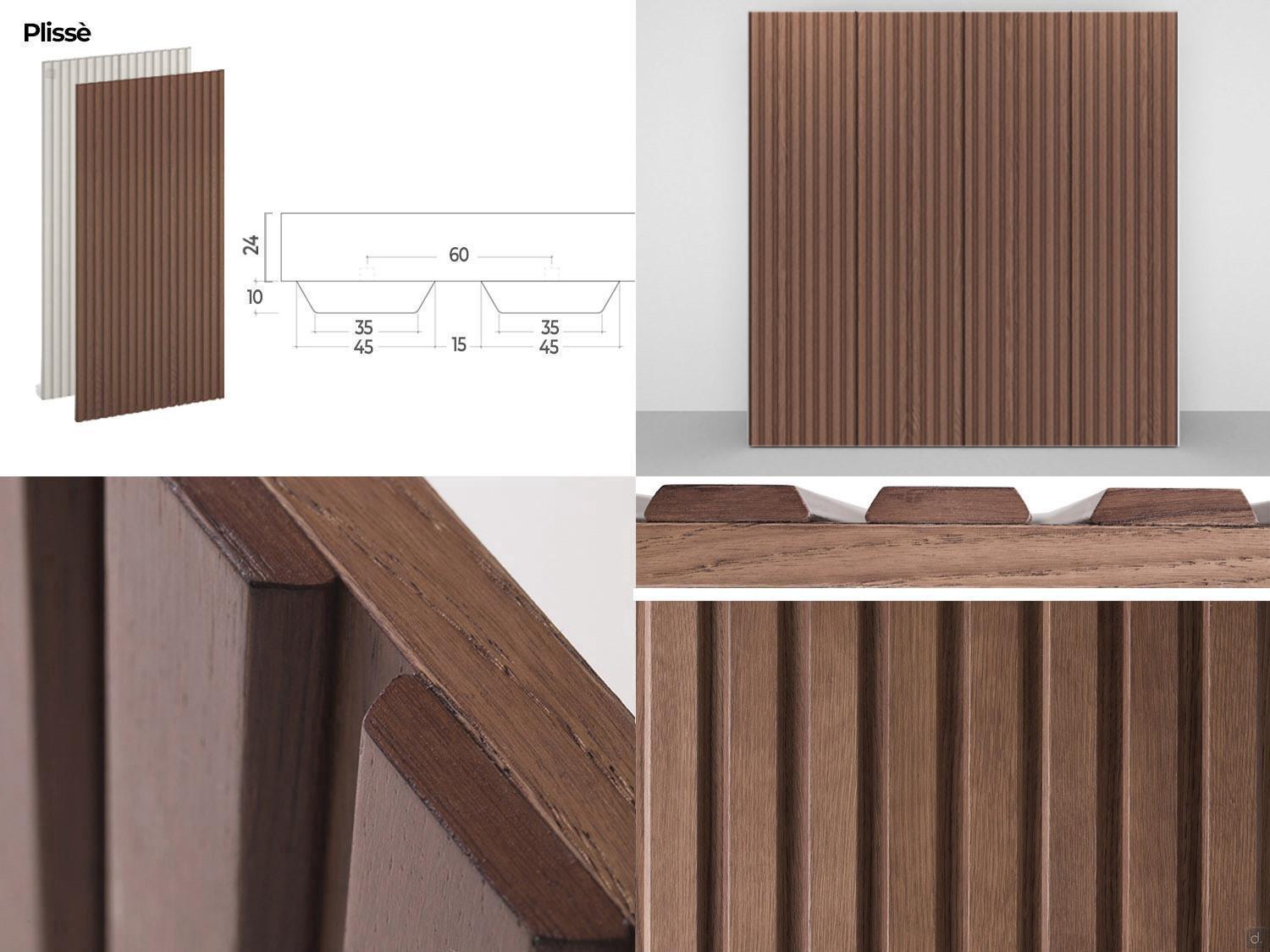

- Plissè: slats
in solid lacquered or oak veneered with 30° processing: 4,5 cm wide, 1 cm thick.

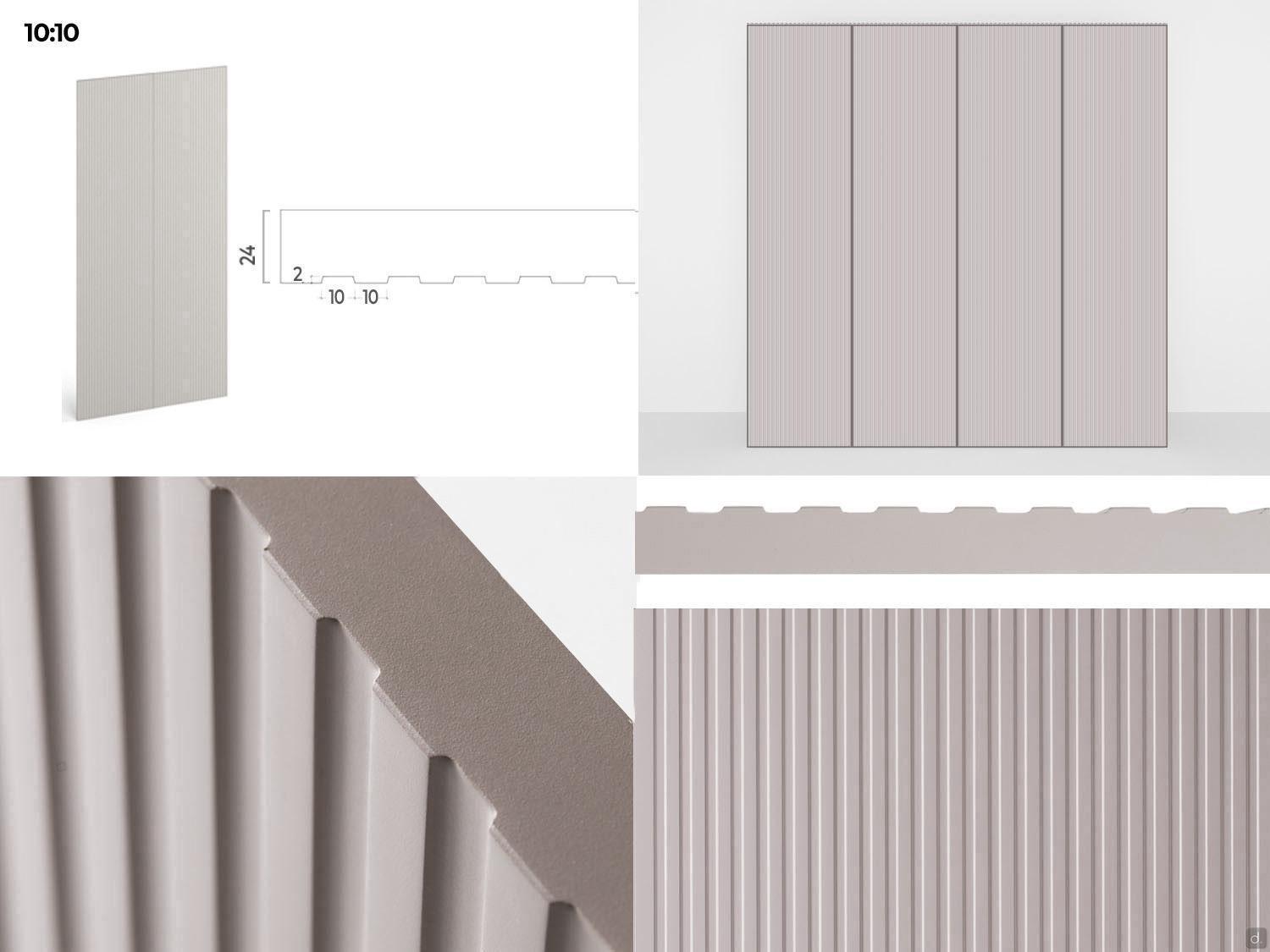

- 10:10 (only
in matte lacquered finish): "U" shaped engravings 1 cm wide, 0,2 cm
thick.

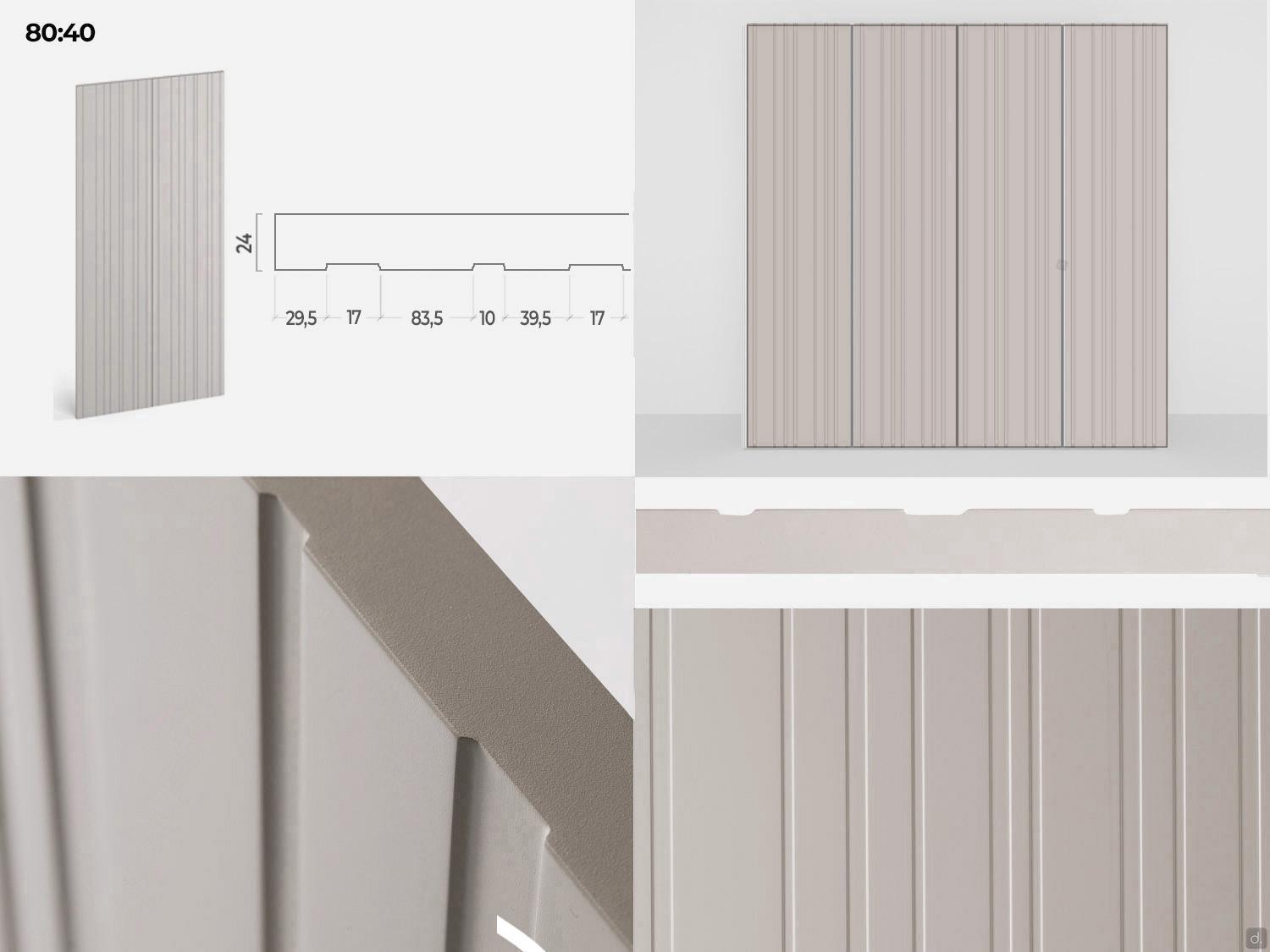

- 80:40 (only
in matte lacquered finish): "U" incisions 1 cm wide, 0,2 cm thick
with variable pitch.

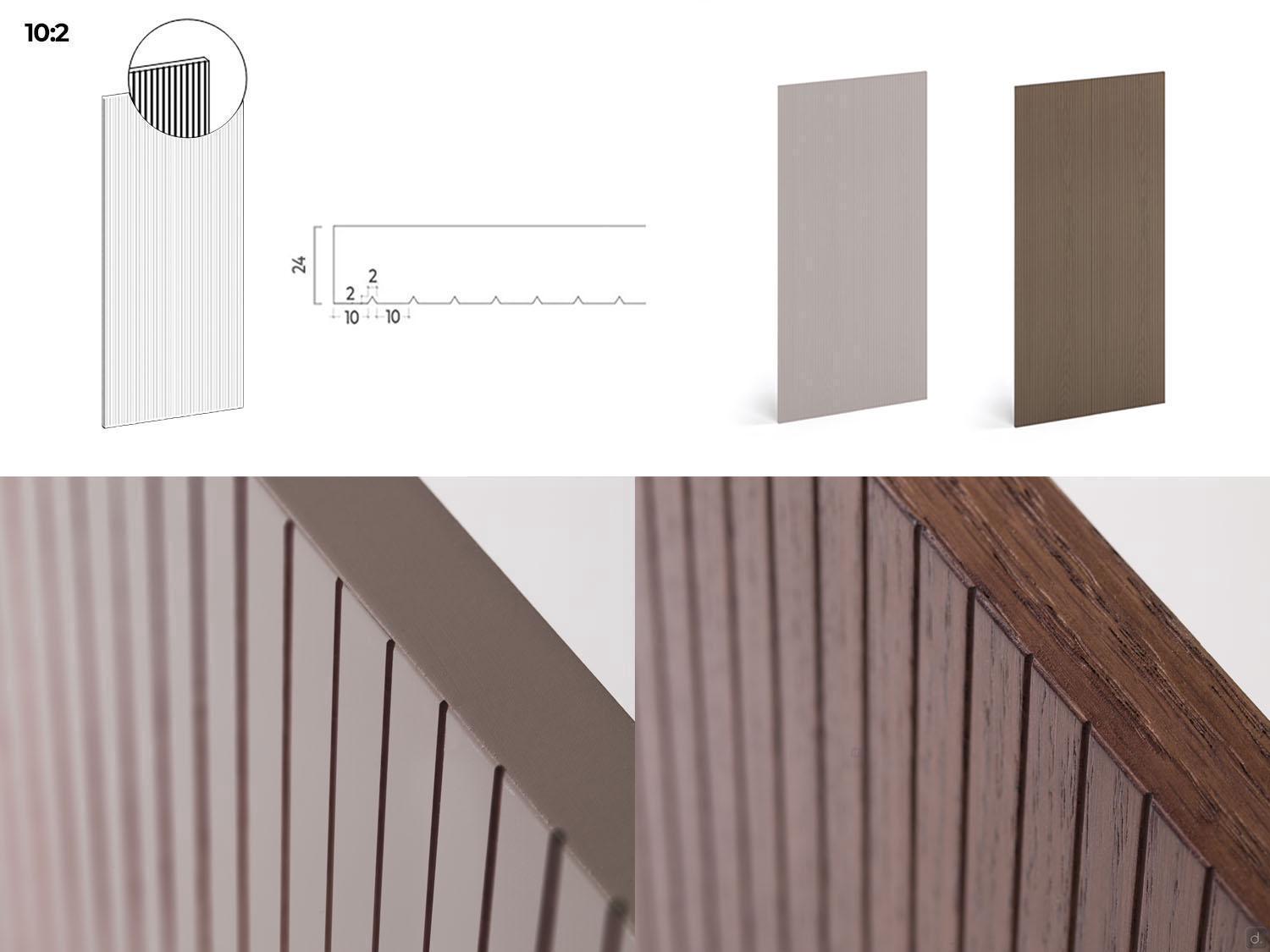

- 10:2: vertical
"V" incisions 0.2 cm wide, 0.2 cm thick.

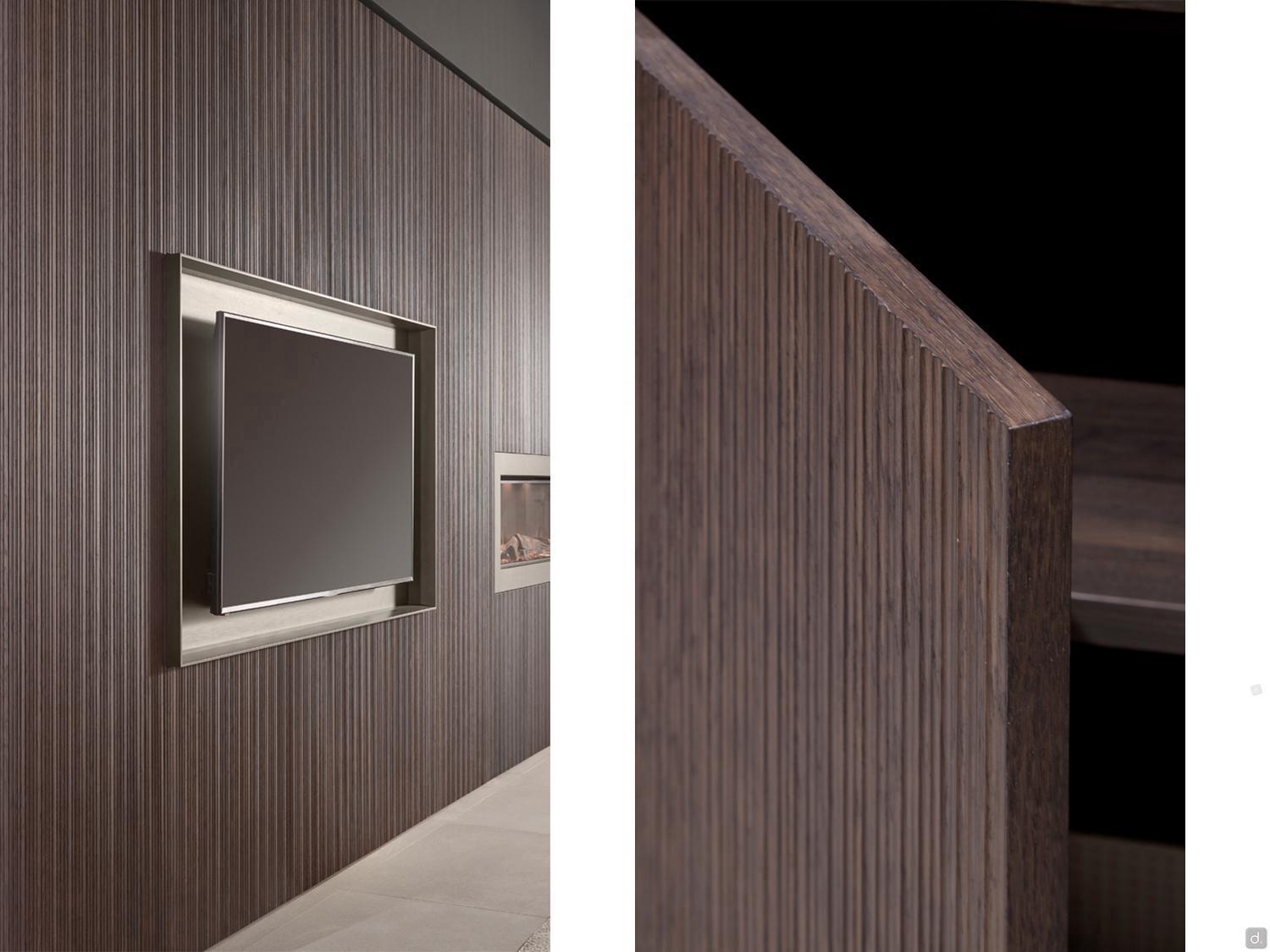

Doors
also available in TAMMAS (honeycomb + solid wood), honeycomb with solid fir
frame and honeycomb plated in solid wood on both sides, stained in the sample
finishes and decorated with 10:10 or Wave decoration. Achievable exclusively on
project, for further information contact our Customer Service.

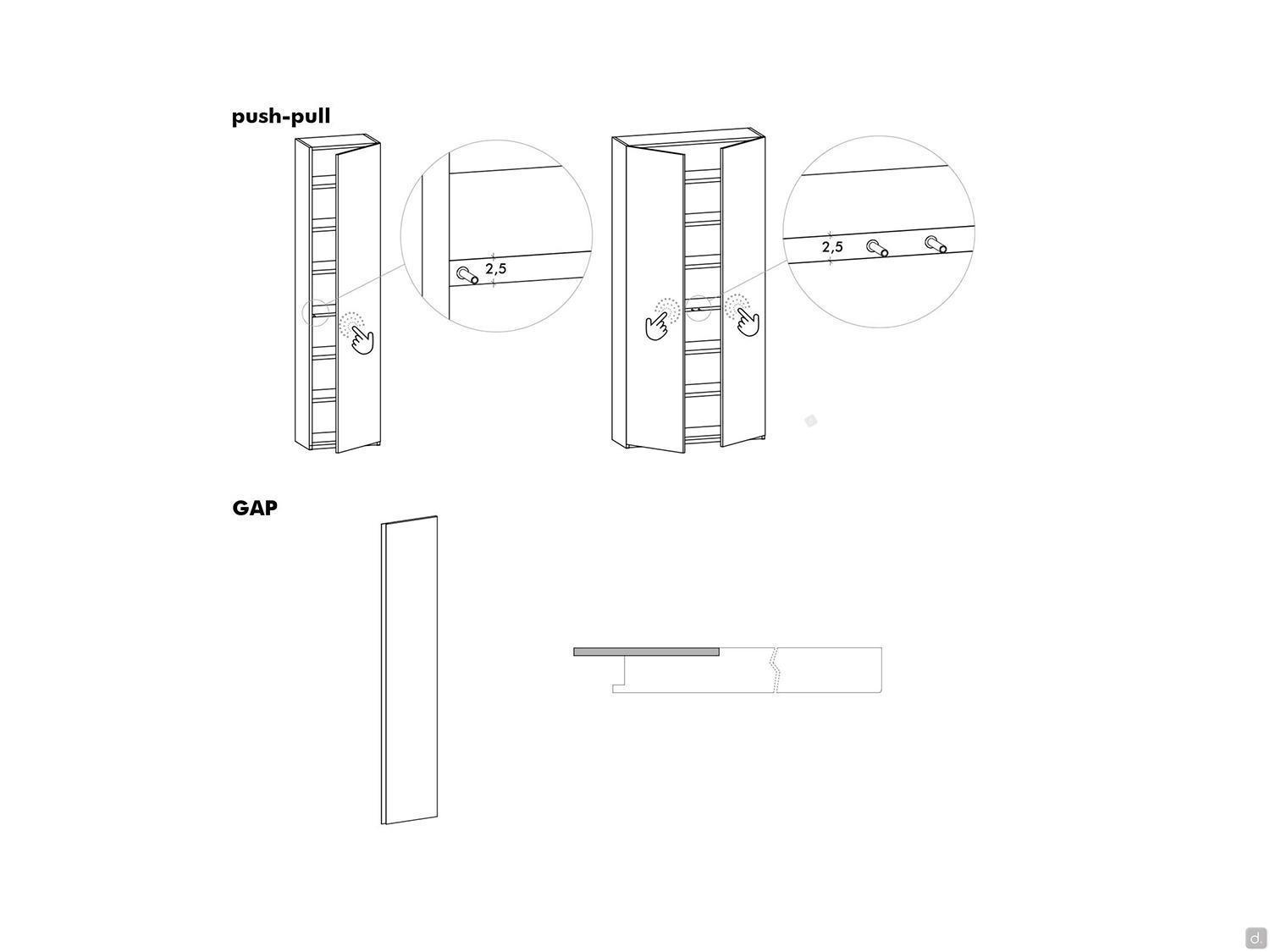

Handles: push-pull
or full-height Gap grip handle. The latter consists of a 3 mm thick wooden
strip which can be lacquered in all matte and metallic colours or veneered in
open pore oak.

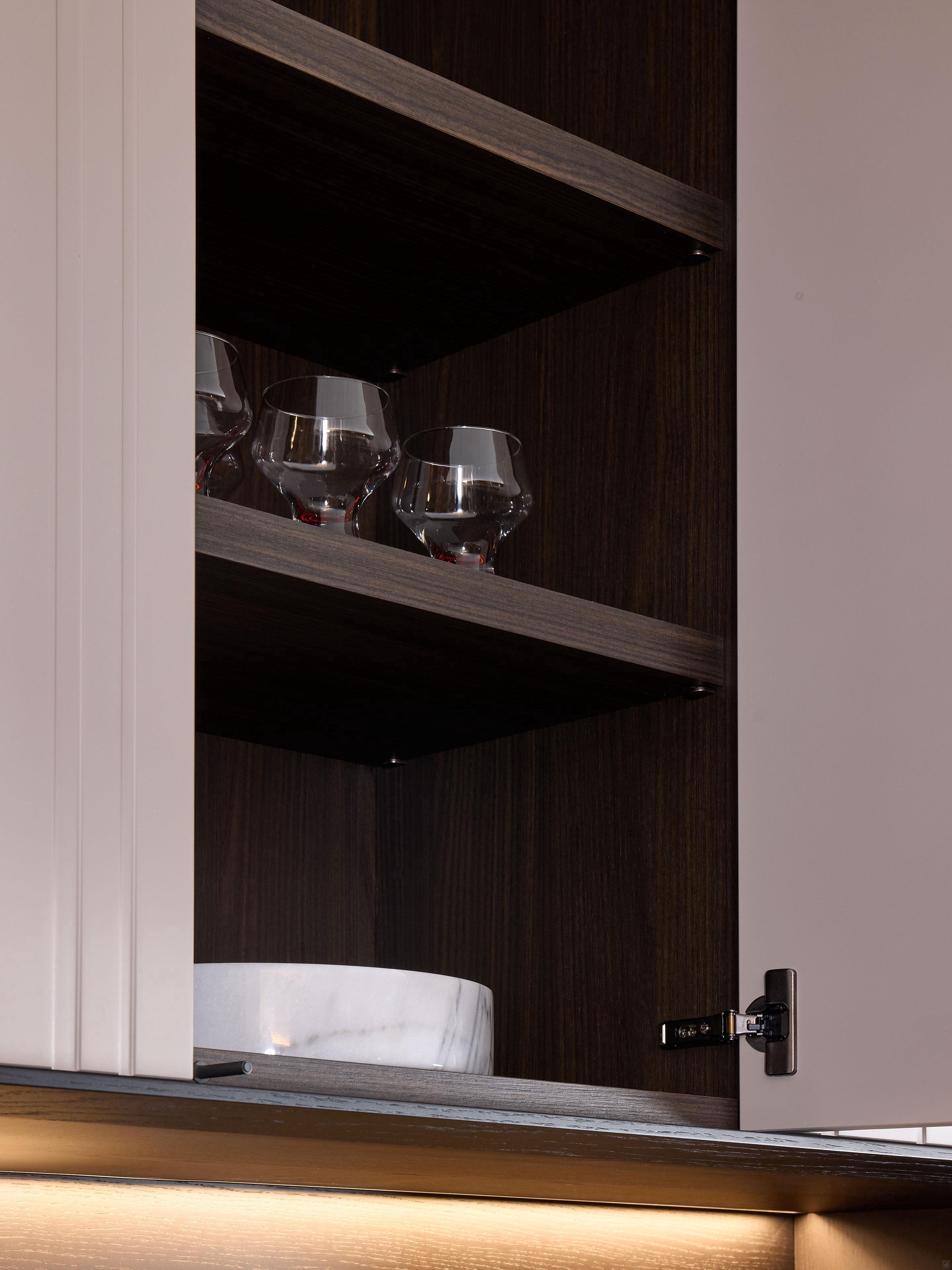

Hinges: metal in titanium finish with slow closing as standard. Standard opening angle
of 110°, which can be increased to 155° except on pleated doors, supplied
exclusively with 94° opening hinges.

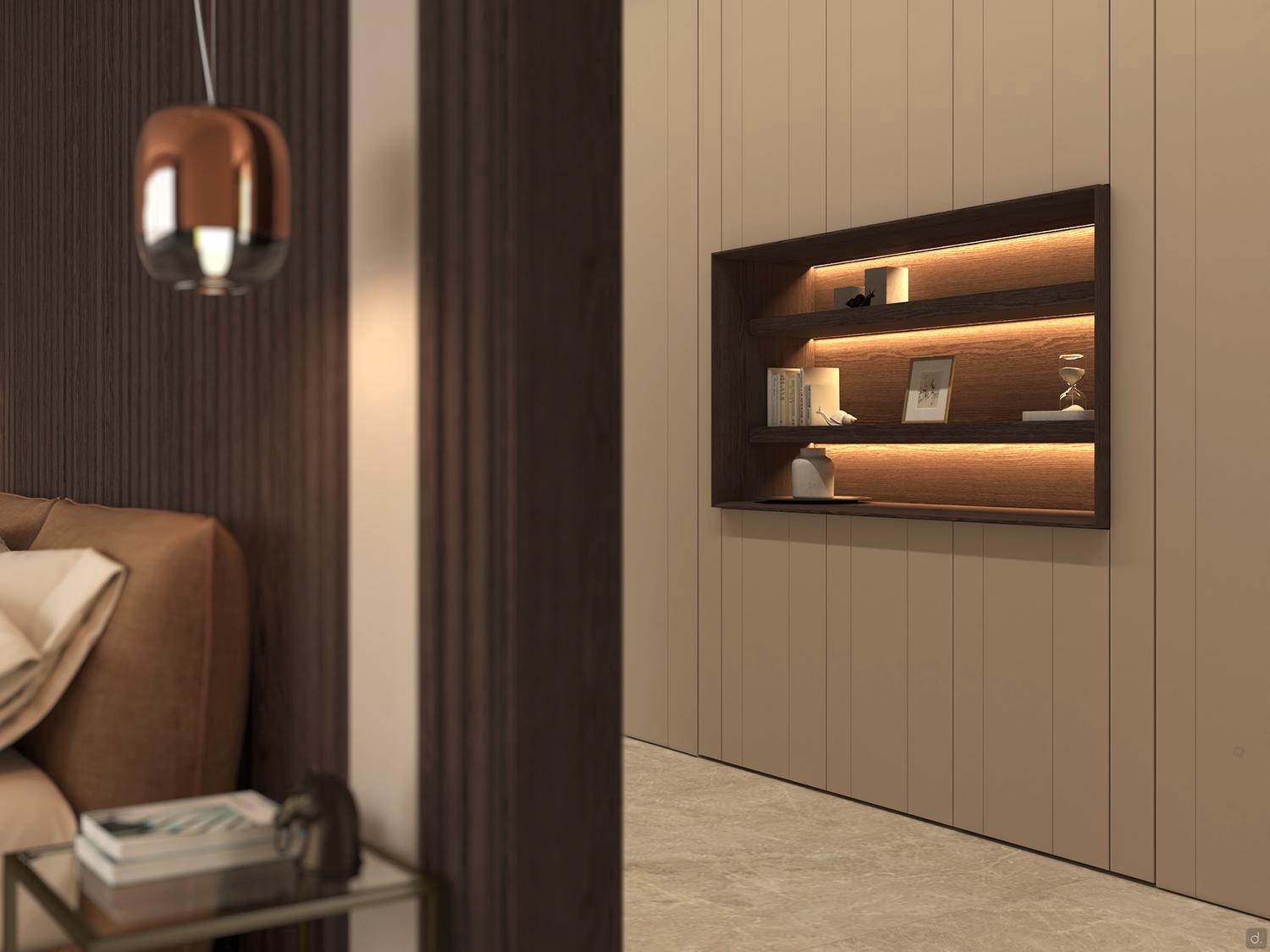

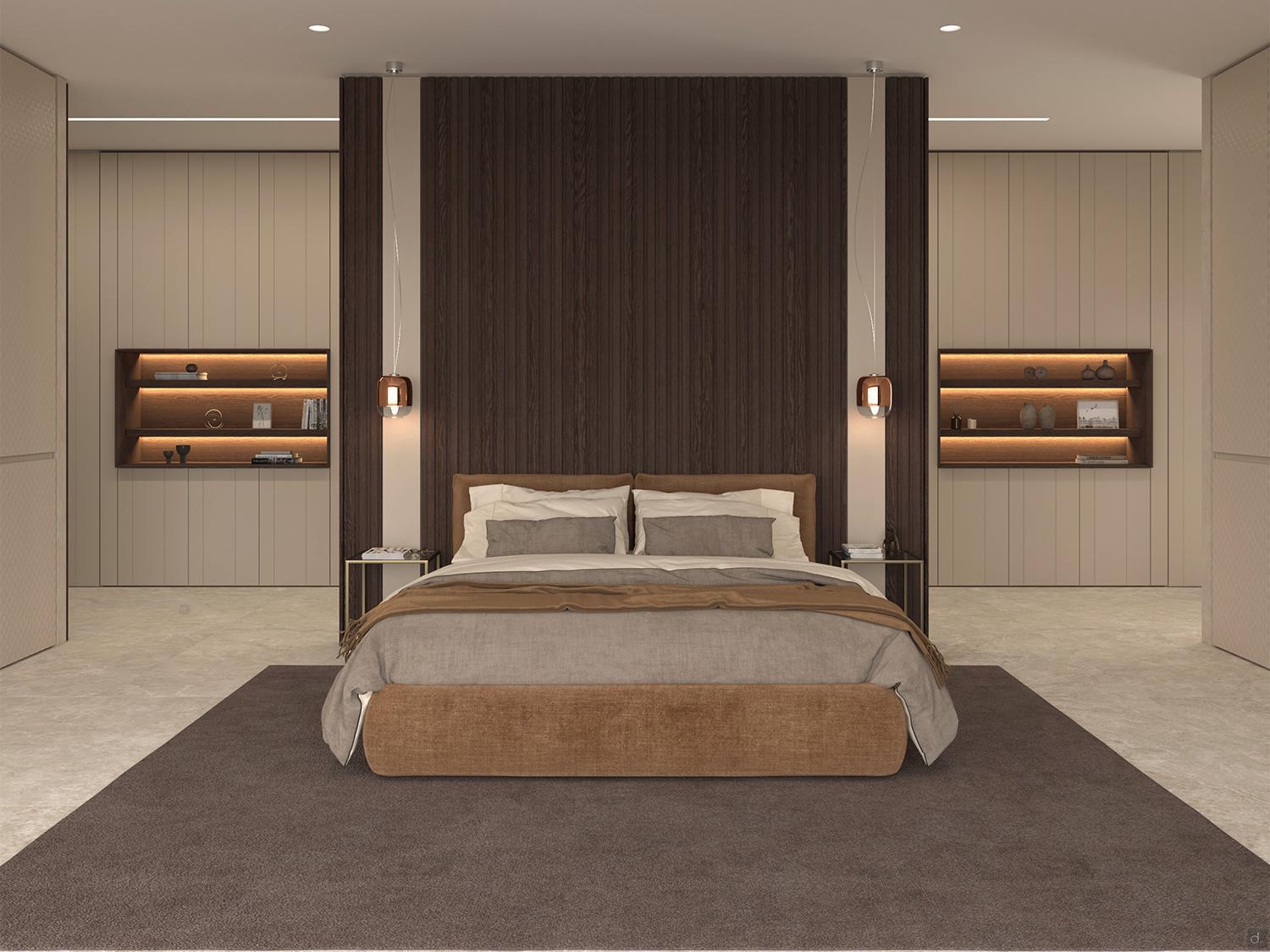

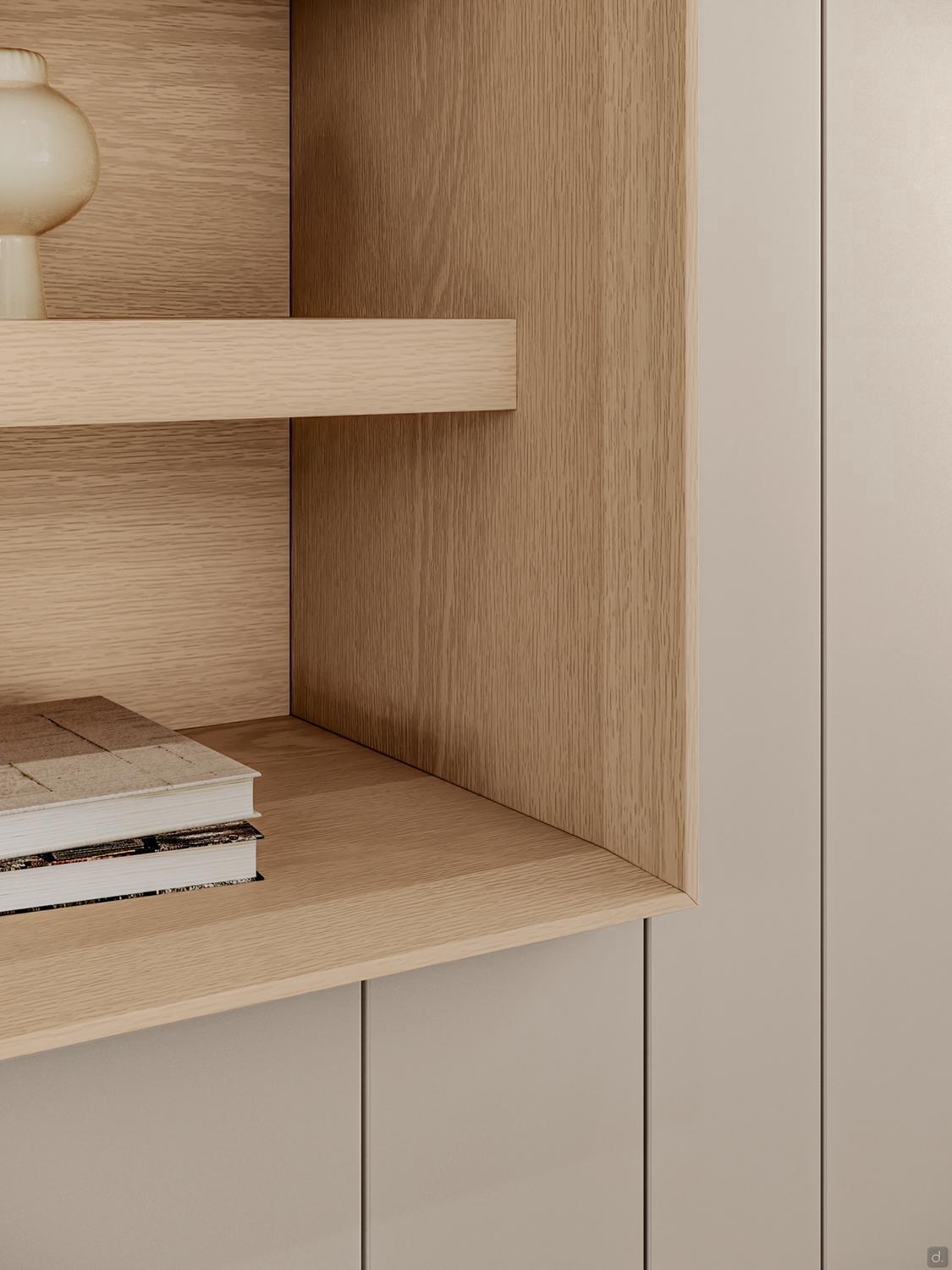

Decorative Niche: in MDF, 1,8 cm thick.
Please Note: The sides are always supplied without edging on the short sides. This difference in finish, which is often hidden from view once the wardrobe is assembled, deliberately leaves the solid spruce frame of the honeycomb sandwich panel exposed in order to enhance the wooden component of the element and show the high quality of the finished product.

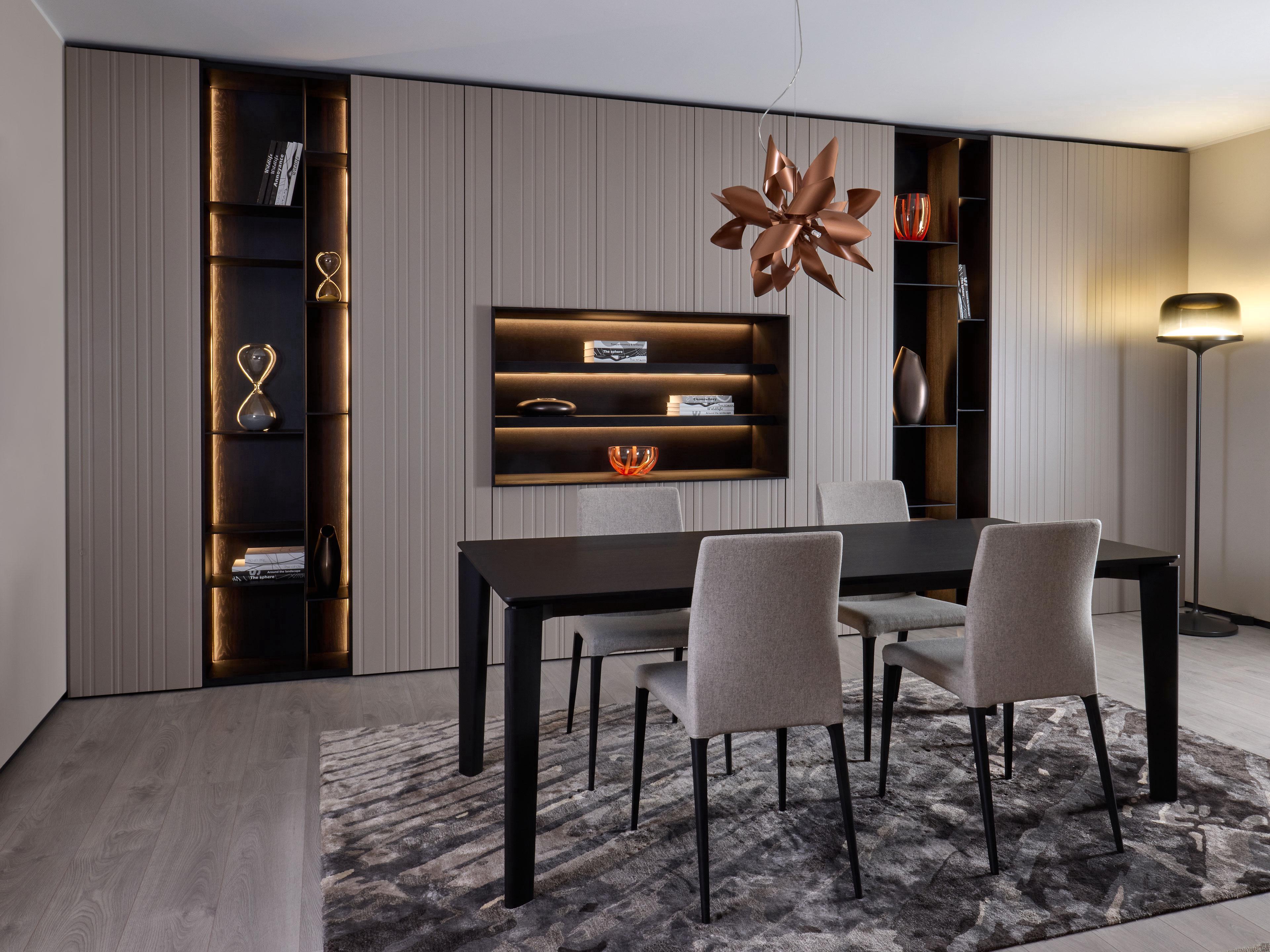

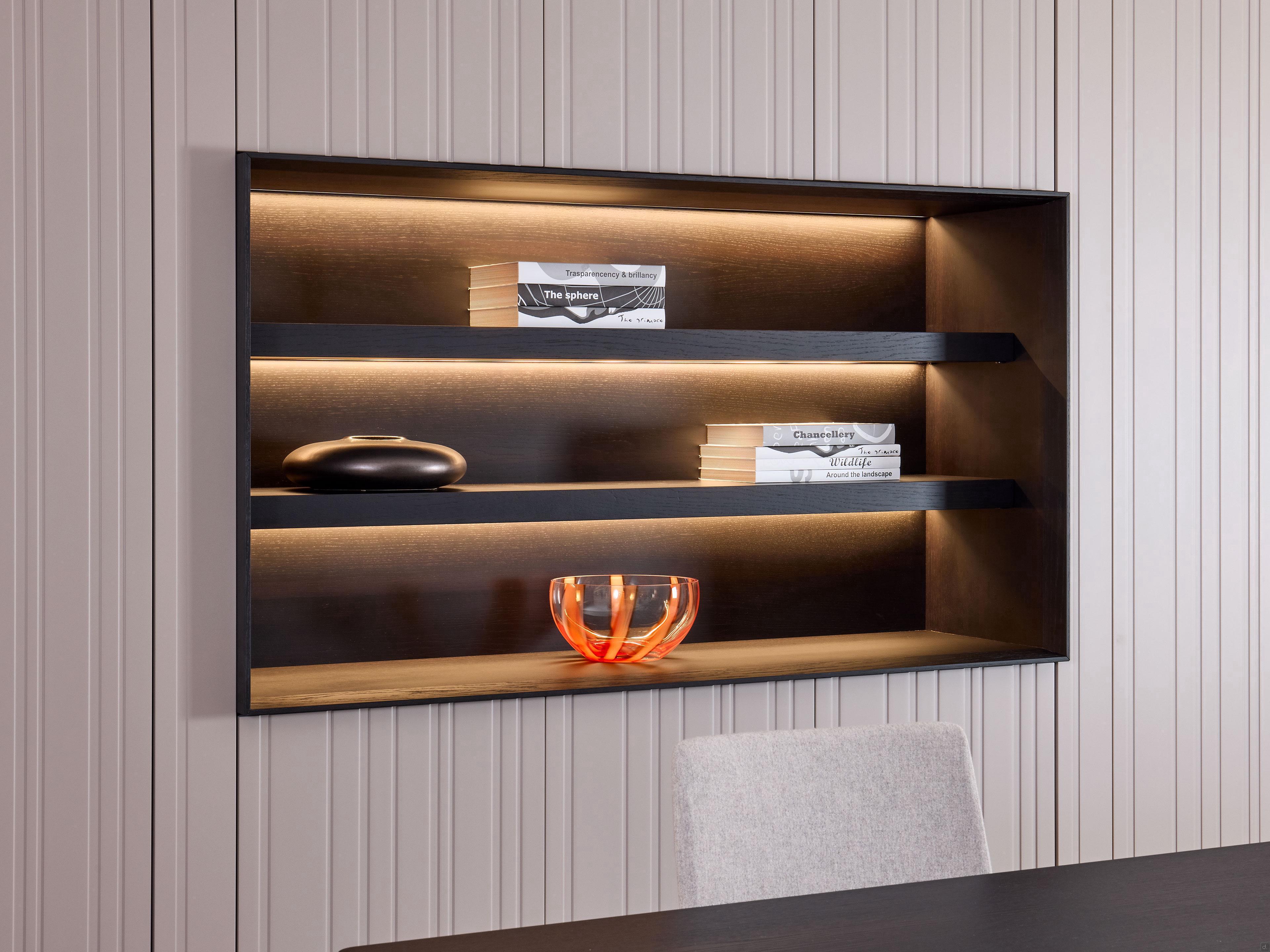

Optional - open compartment

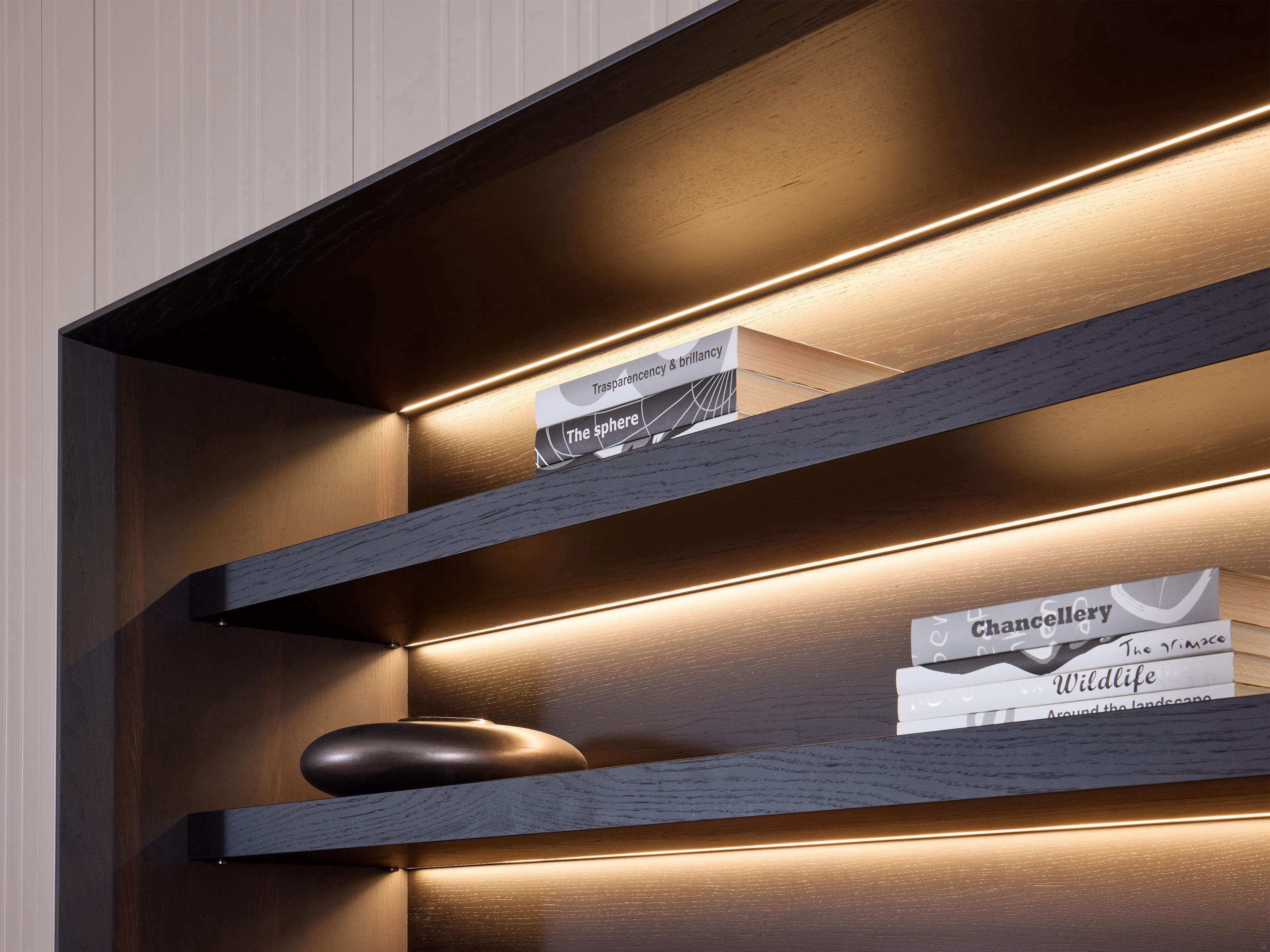

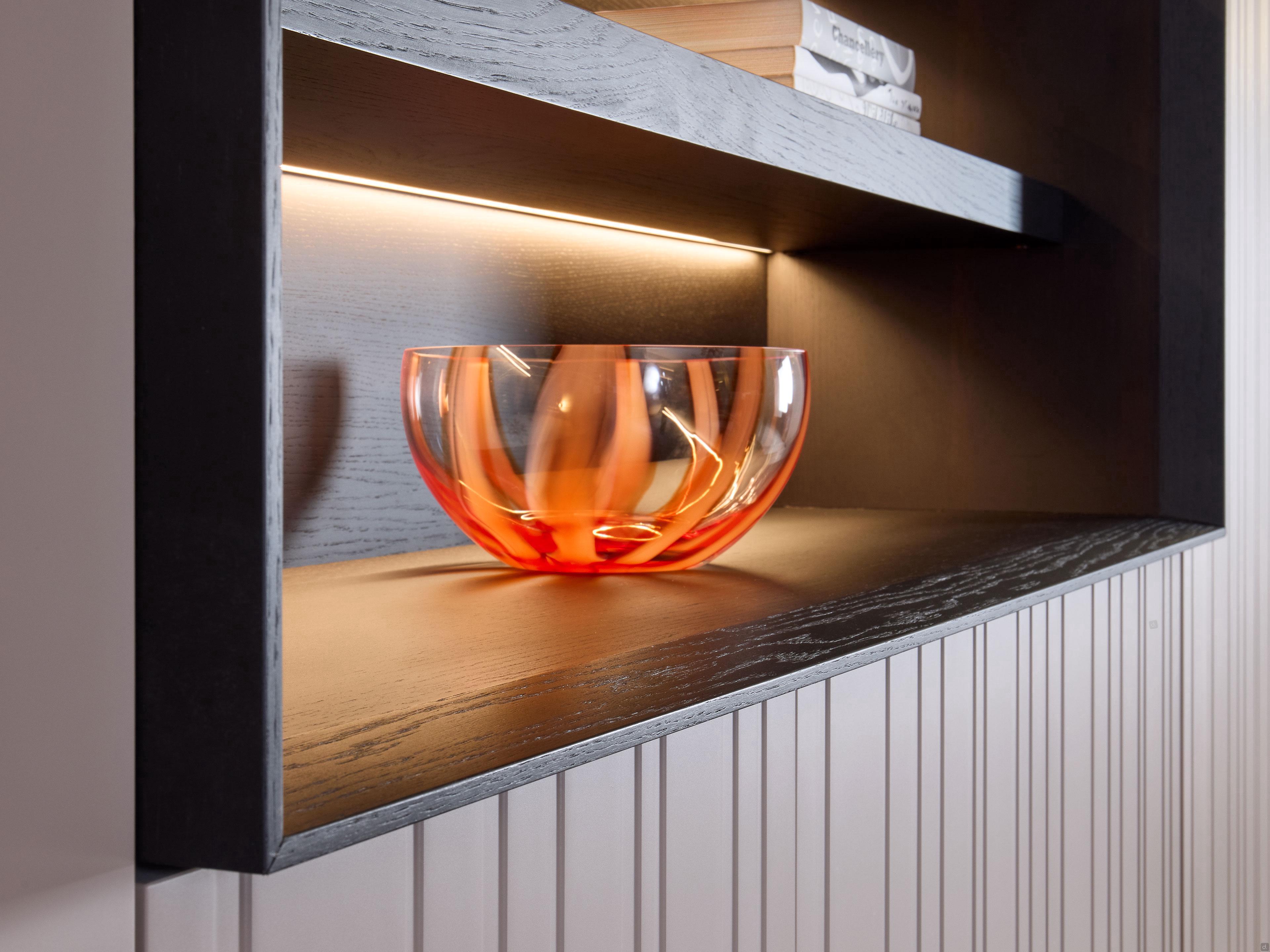

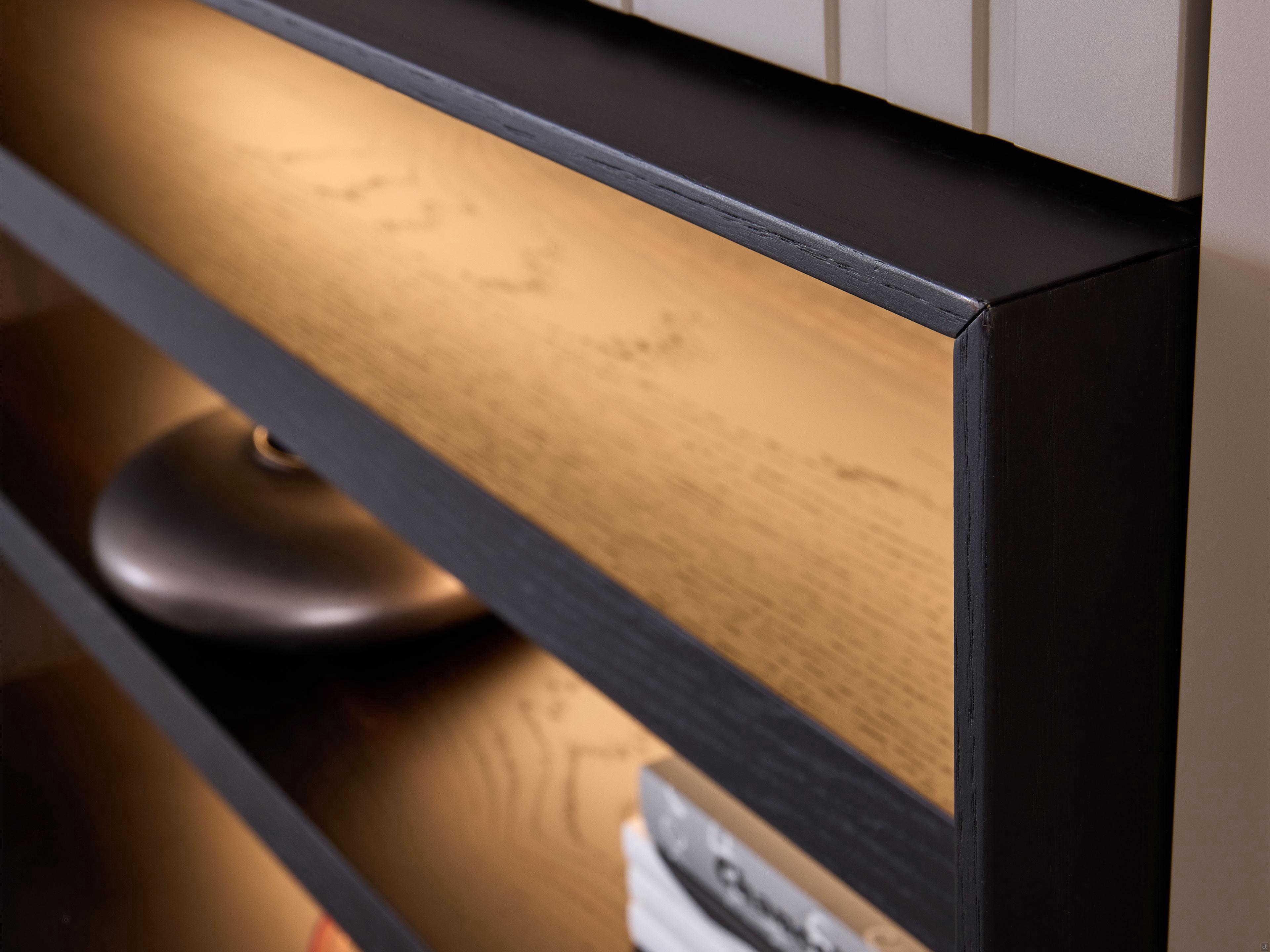

LED lights: placed on the lower side of the top and shelves at 0,6 cm from the back, along the whole width of the open compartment. It can be equipped with a transformer (20W) with a wall switch or a touch switch. The led has a warm gradation of 3000K-24V.
Assembling Tips
Pre-assembled
hardware on all elements to facilitate and speed up assembly operations.
The
feet, also pre-mounted on the bases, guarantee the correct level of the
wardrobe thanks to a maximum extension of 0,8 cm. In the unloaded position,
they measure 0,5 cm.

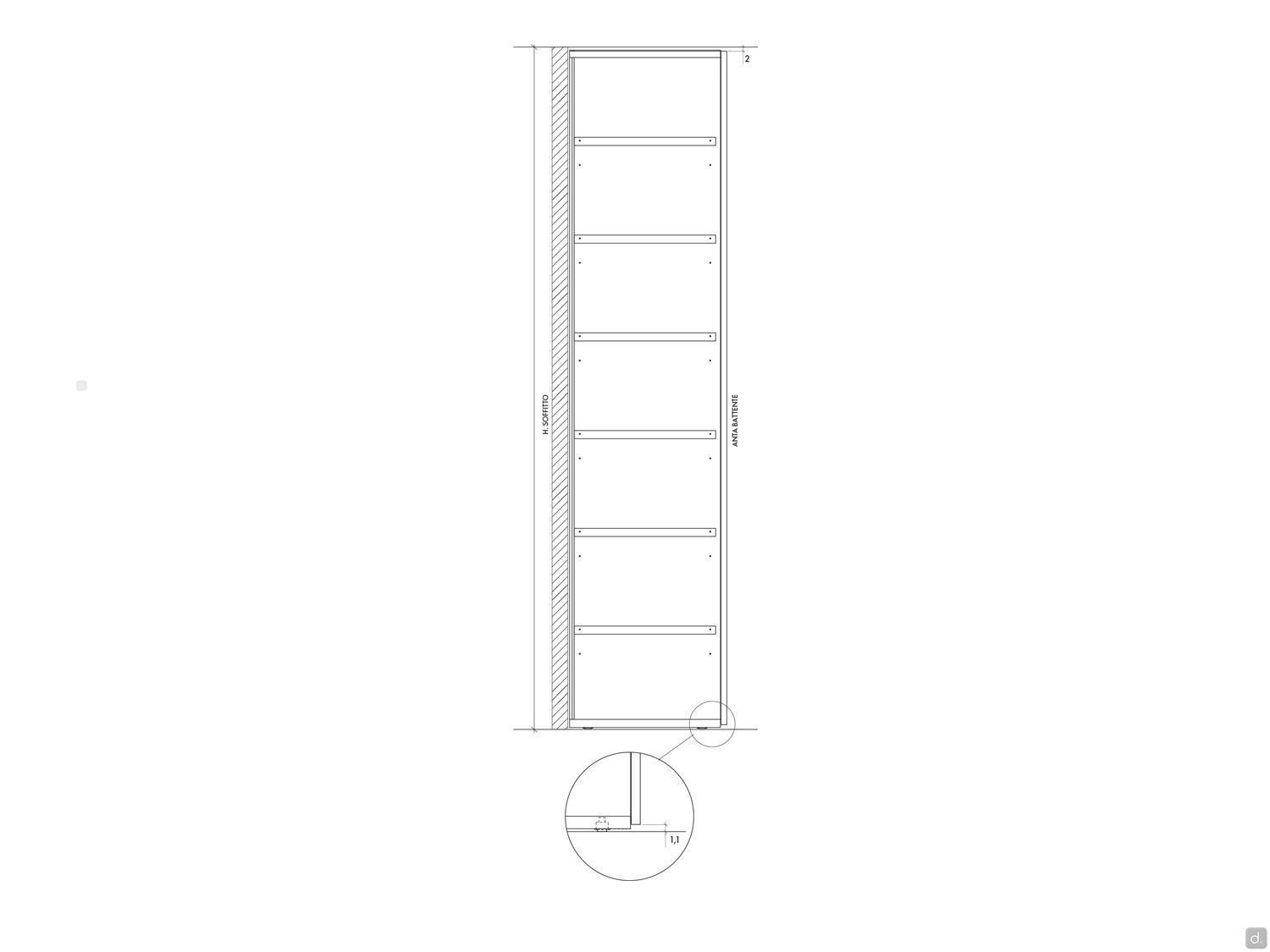

To assemble the structure you will need:
- 4 cm in width (if mounted in a niche 2 cm)
- 3 cm in height
For more information...
Honeycomb: it
is a panel made with an internal structure that resembles honeycomb, and a 5 /
7 cm perimeter frame in first choice solid fir closed with 2 MDF panels 0.3 /
0.4 cm thick, subsequently lacquered or veneered.
The strengths of honeycomb are:
- greater durability over time;
- greater load resistance;
- significantly
reduced weight of the panels (up to 60% less), useful both for transport,
assembly, travel or removals, but above all for reducing the weight of the
doors on the structure and hardware;
- hardware
is always fixed on the perimeter (in solid fir) of the sides and doors, so the
hinges will have greater resistance, and the furniture will have a
significantly longer life
- better resistance to humidity, as the material "breathes";
- product is exclusively "100% Made in Italy".
Aged Oak: compared
to "standard" open pore oak, aged oak is characterised by a slightly
more brushed surface, which shows a deeper pore and a more evident grain. This
difference is more noticeable on important surfaces such as tables, wall systems
and wardrobes, and less so on accessories, beds and bedroom furniture.
