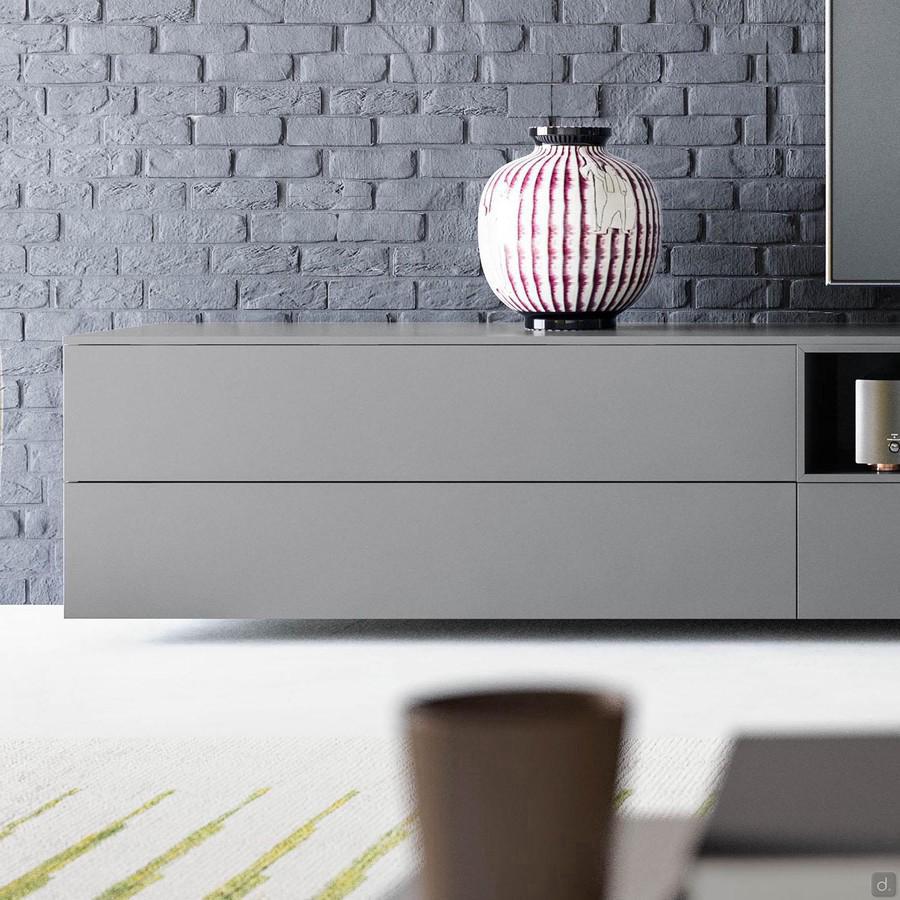

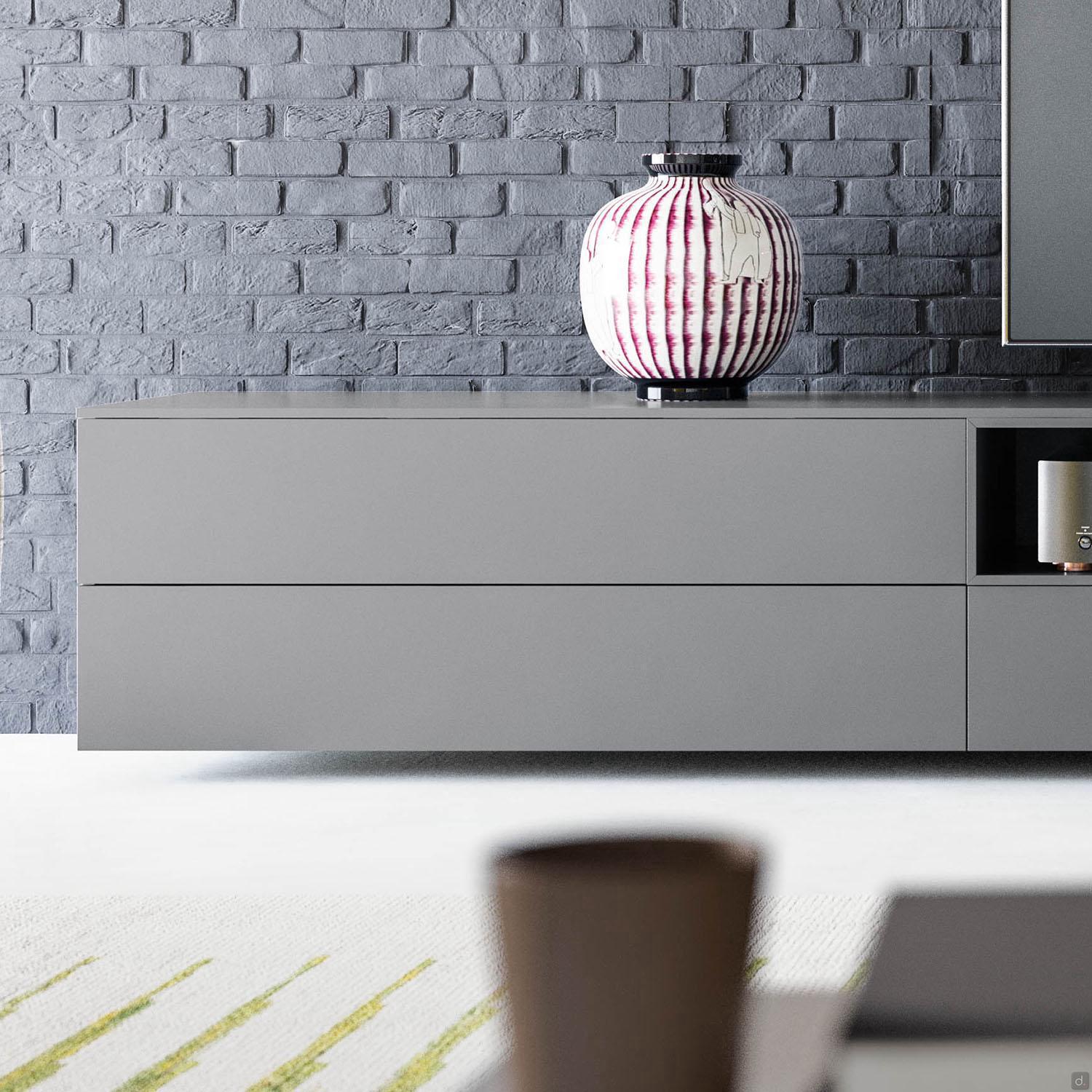

Plan living room push-pull drawers in cast iron matt lacquer

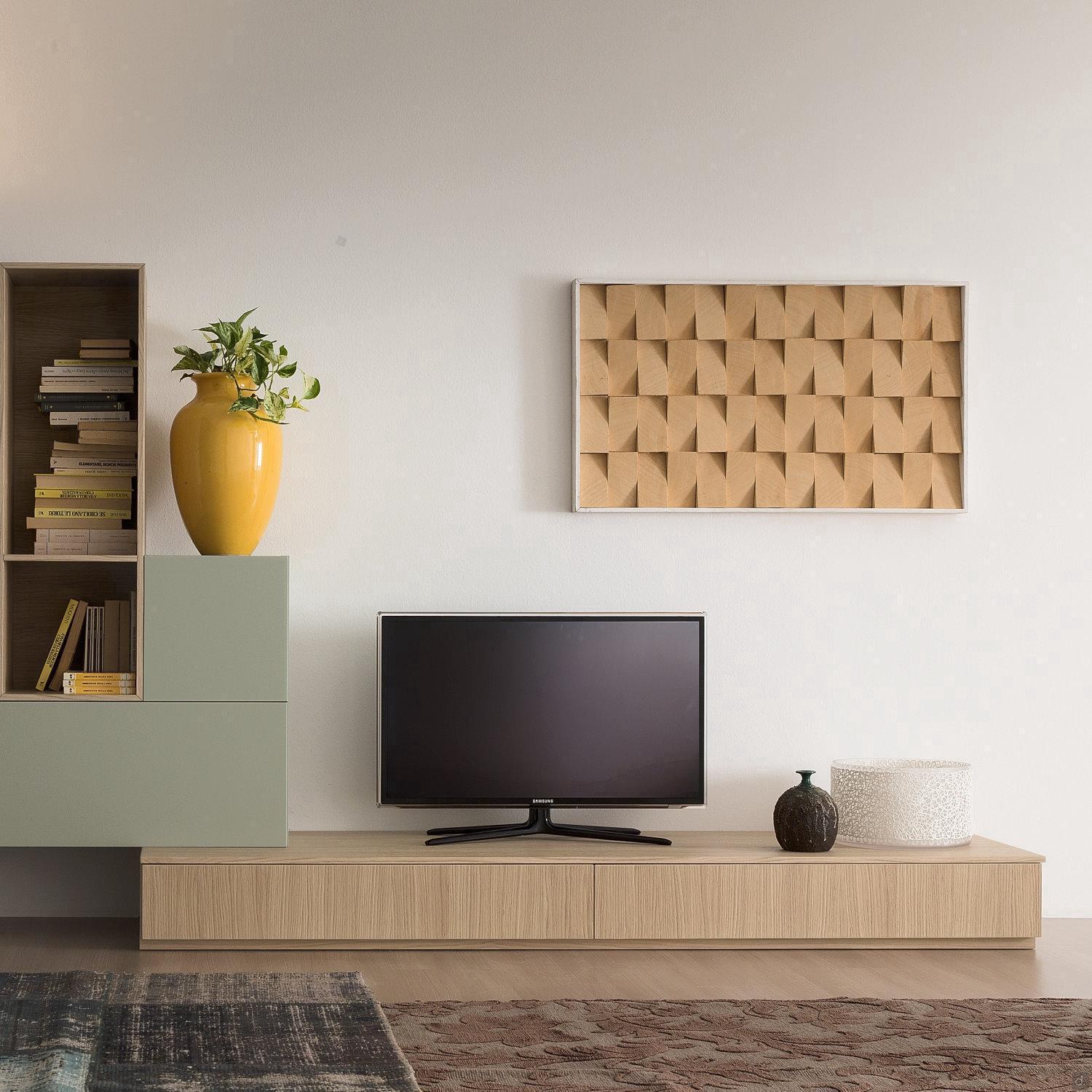

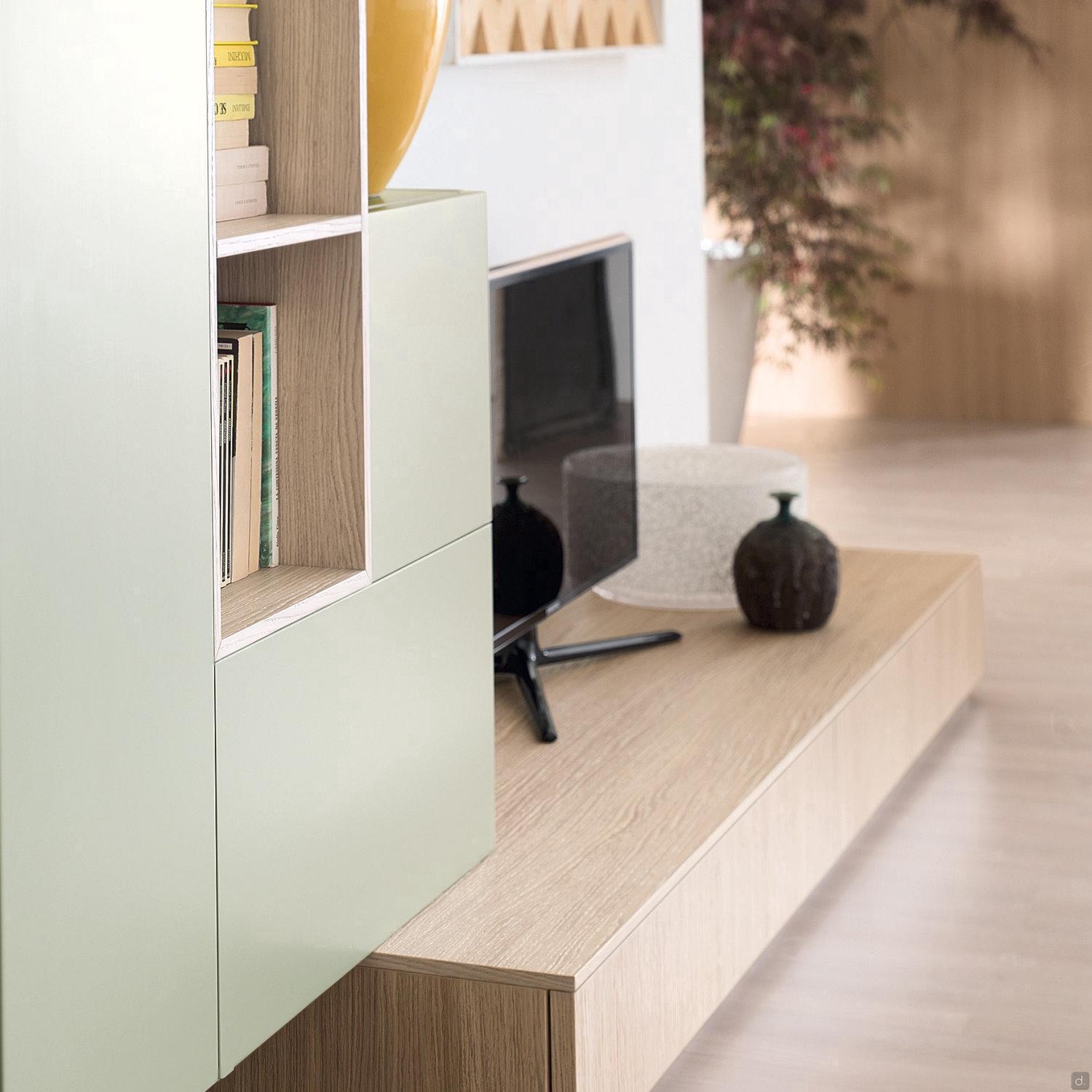

Plan floor standing living room cabinets in Natural Fashion Wood (cm 192 h.17,4 - 2 drawers)

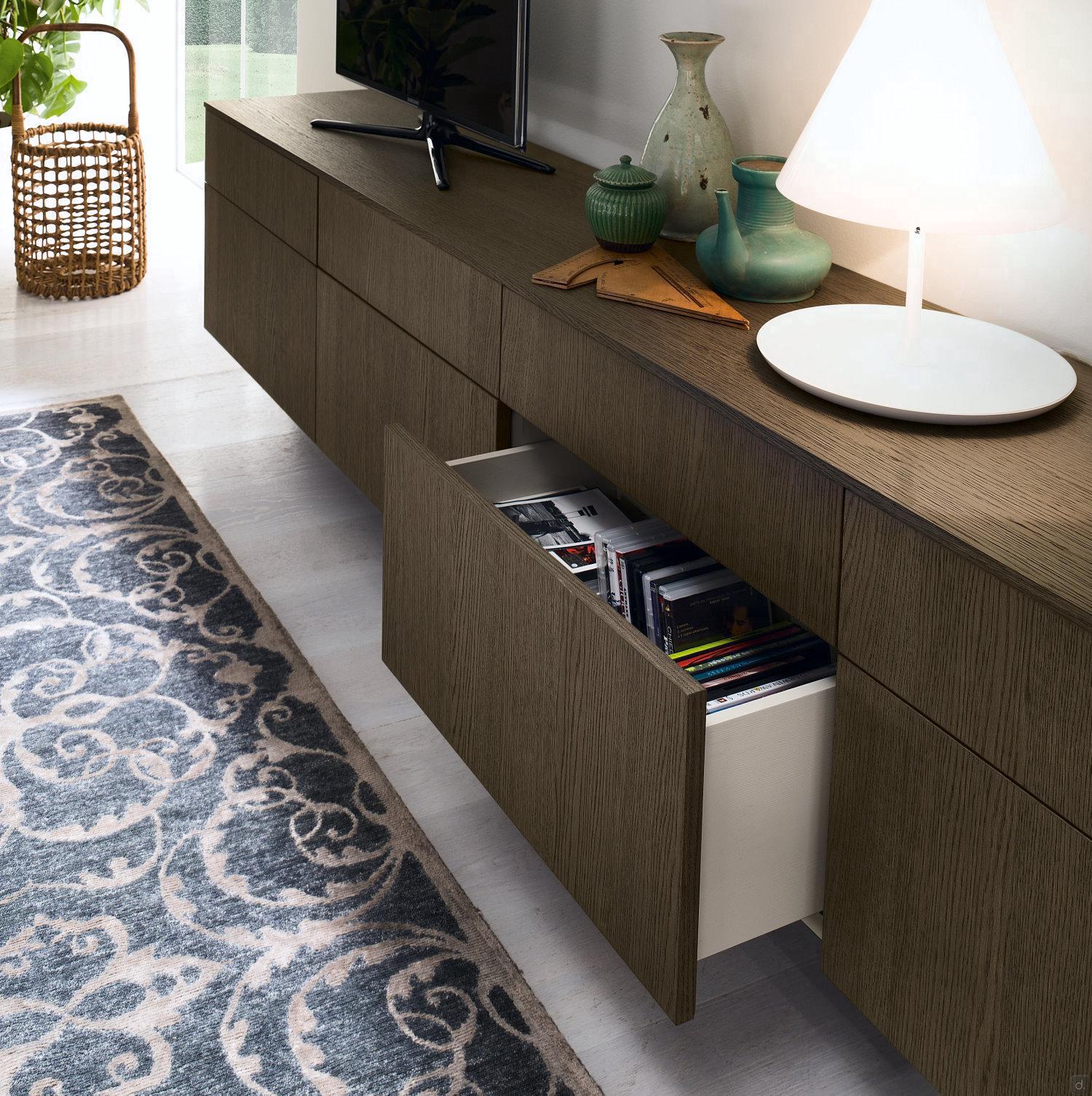

Detail of the push-pull opening on the big drawers of the cabinet

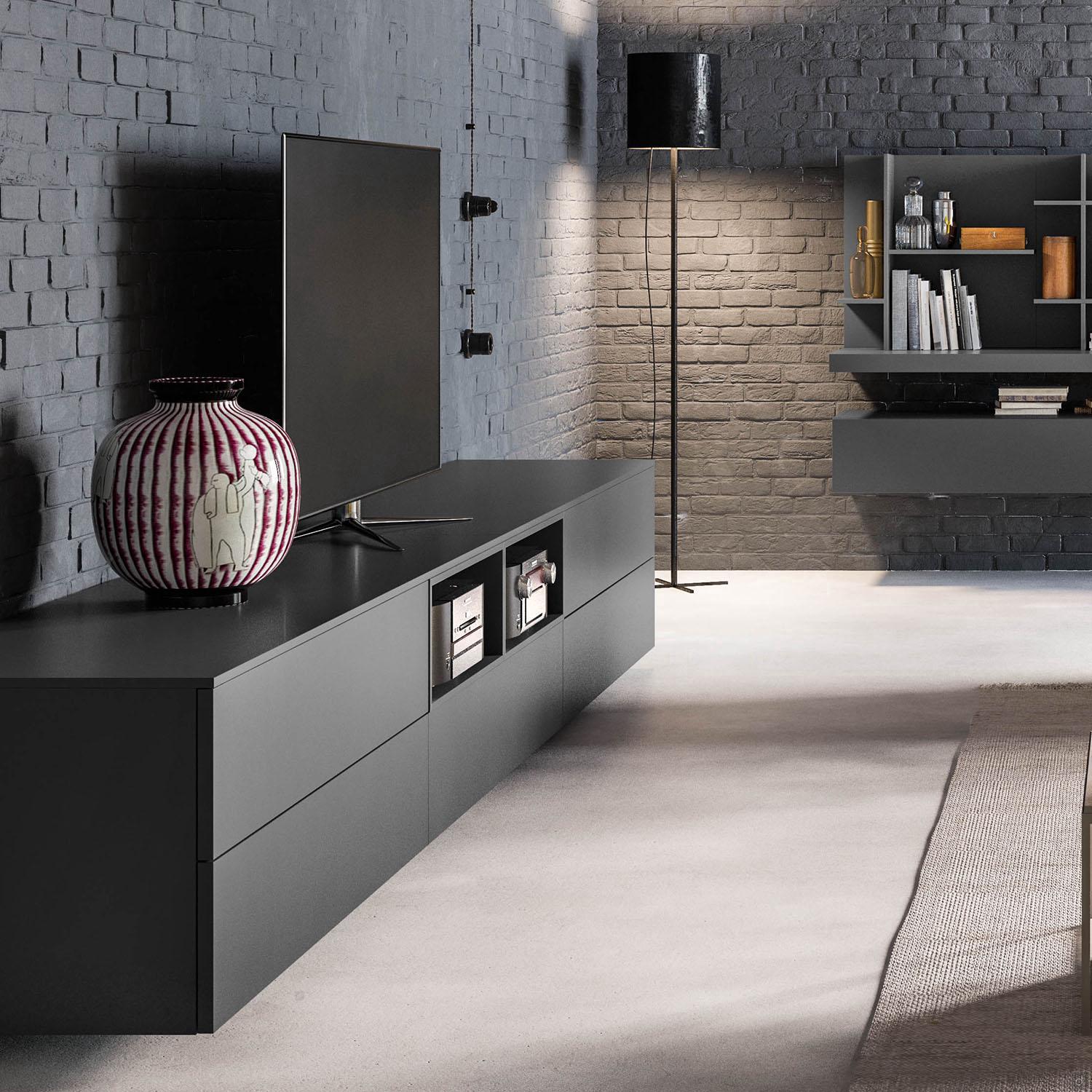

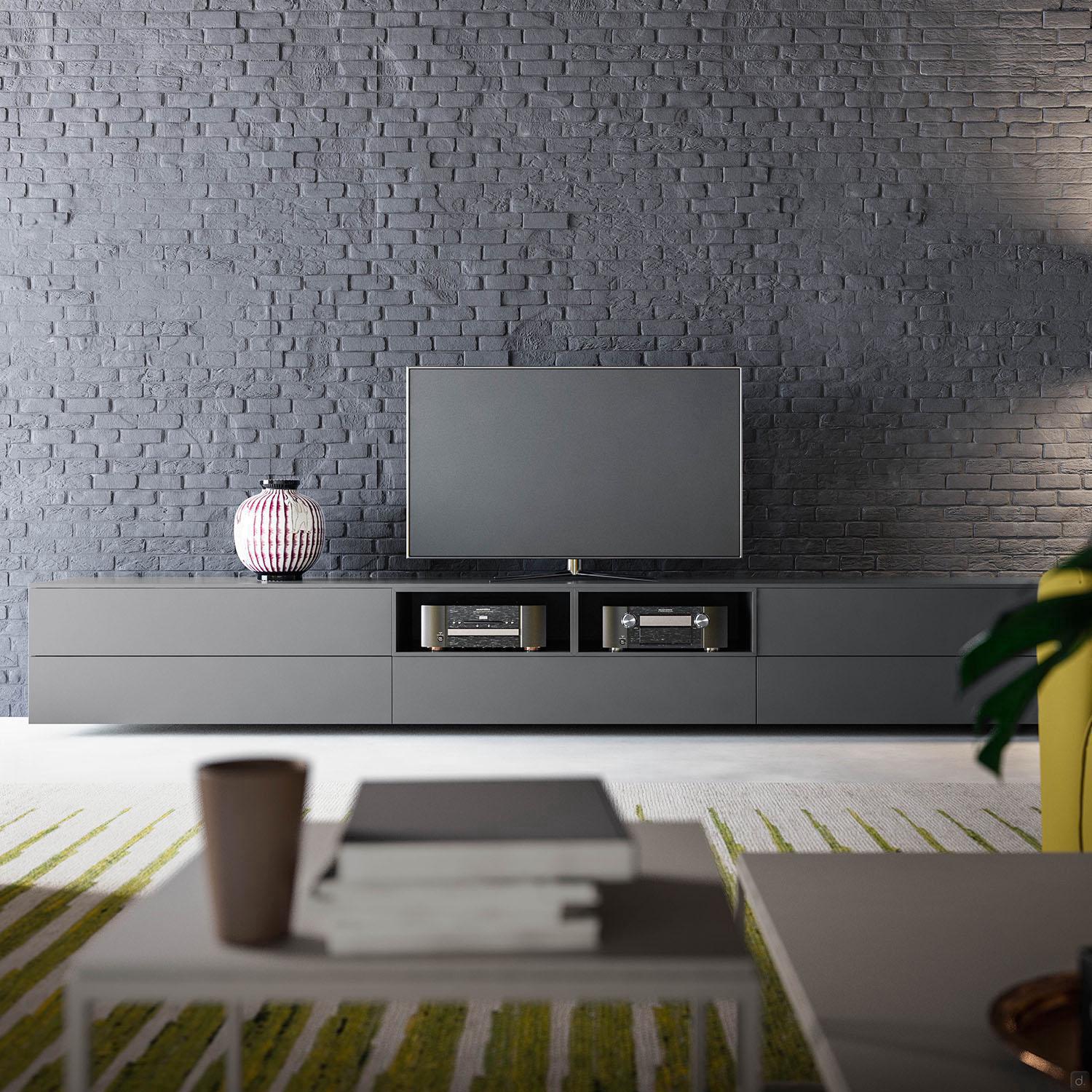

Plan living room cabinet with drawers in cast iron matt lacquer

Front view of the cabinet with drawers in cast iron matt lacquer

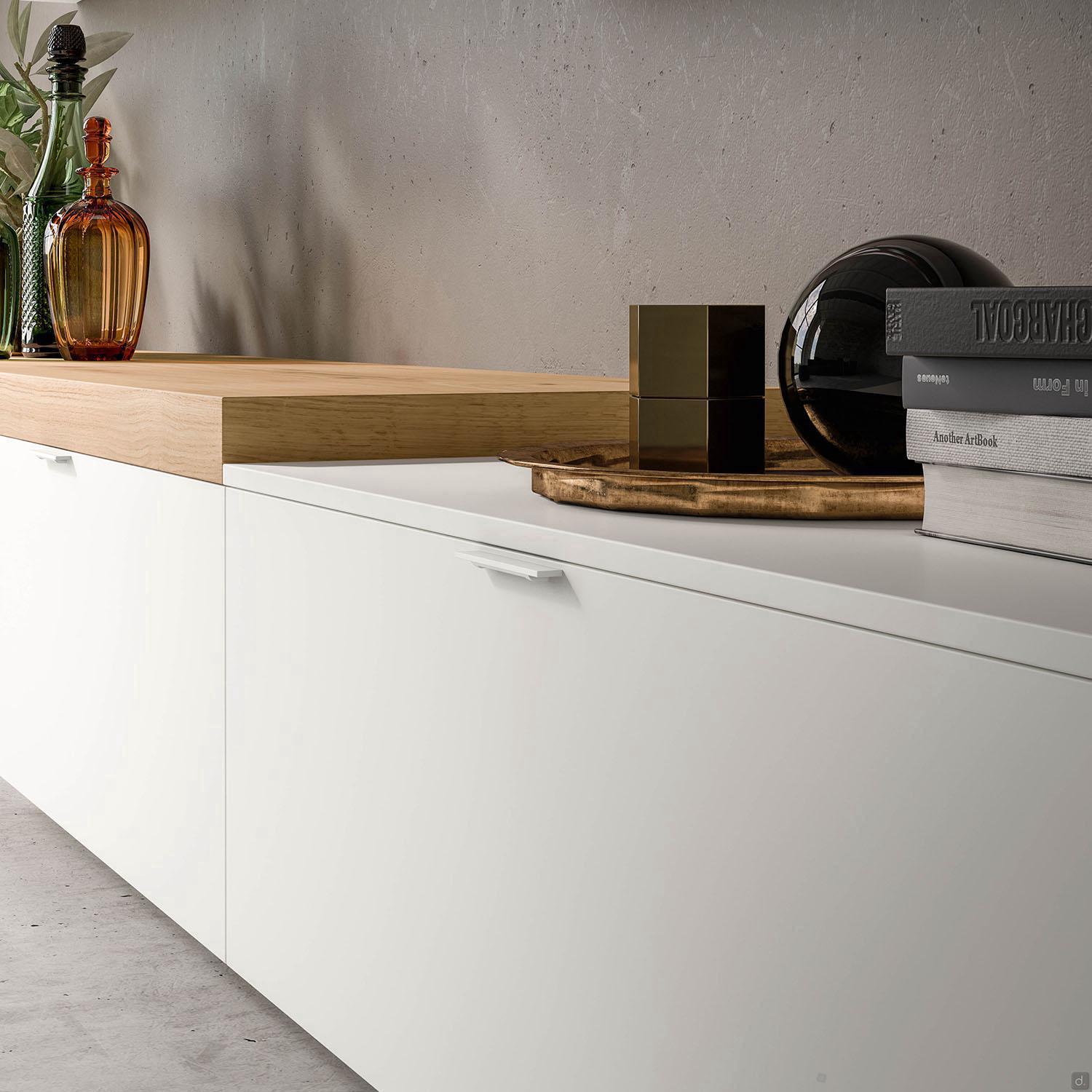

Plan drawers with 1,4 cm top included, detail

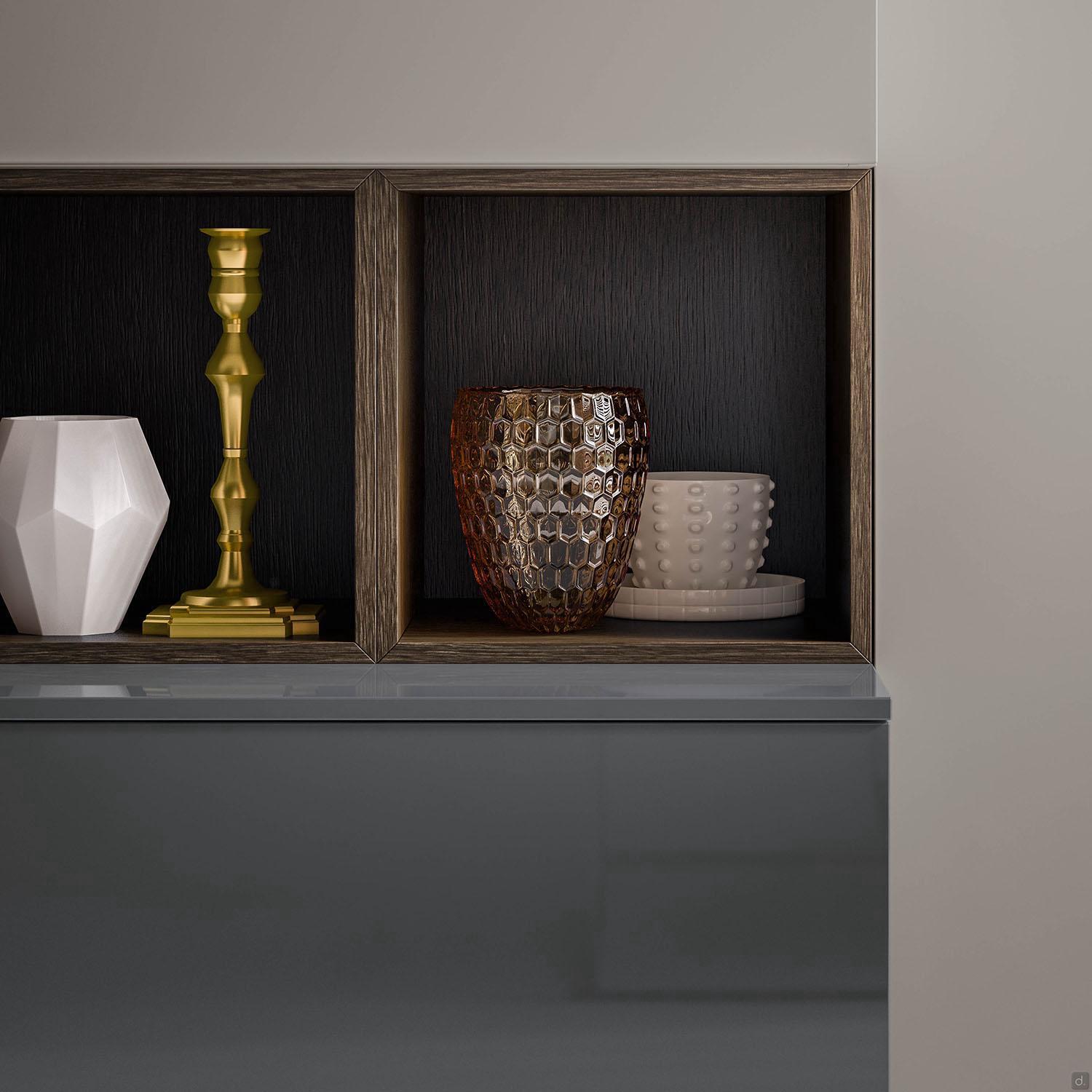

Detail of the 1,4 cm thick top on Plan drawers

Detail of Plan living room with drawers, M handle in white painted metal

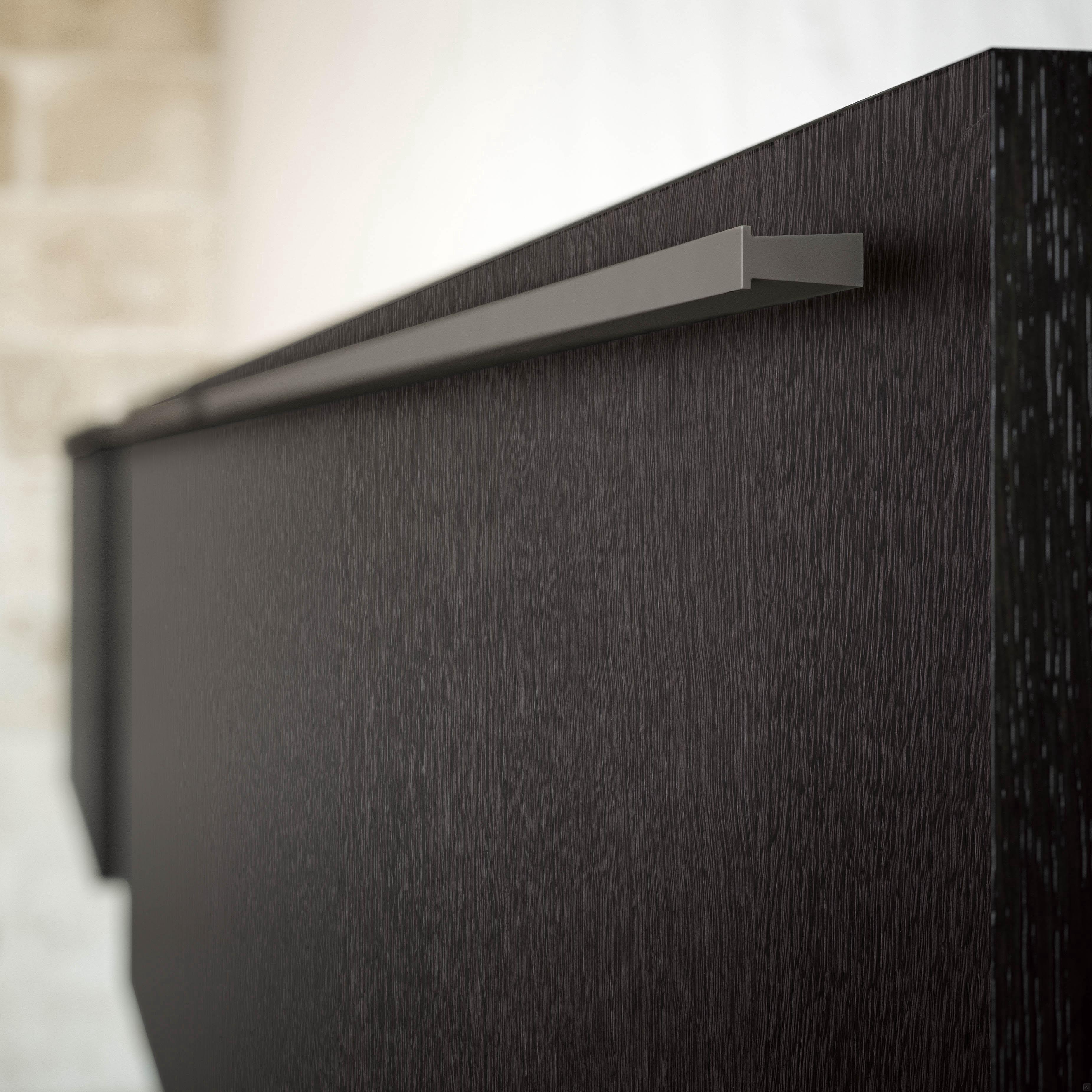

Plan living room drawers in Coal Fashion Wood with moka shine painted metal Z handle

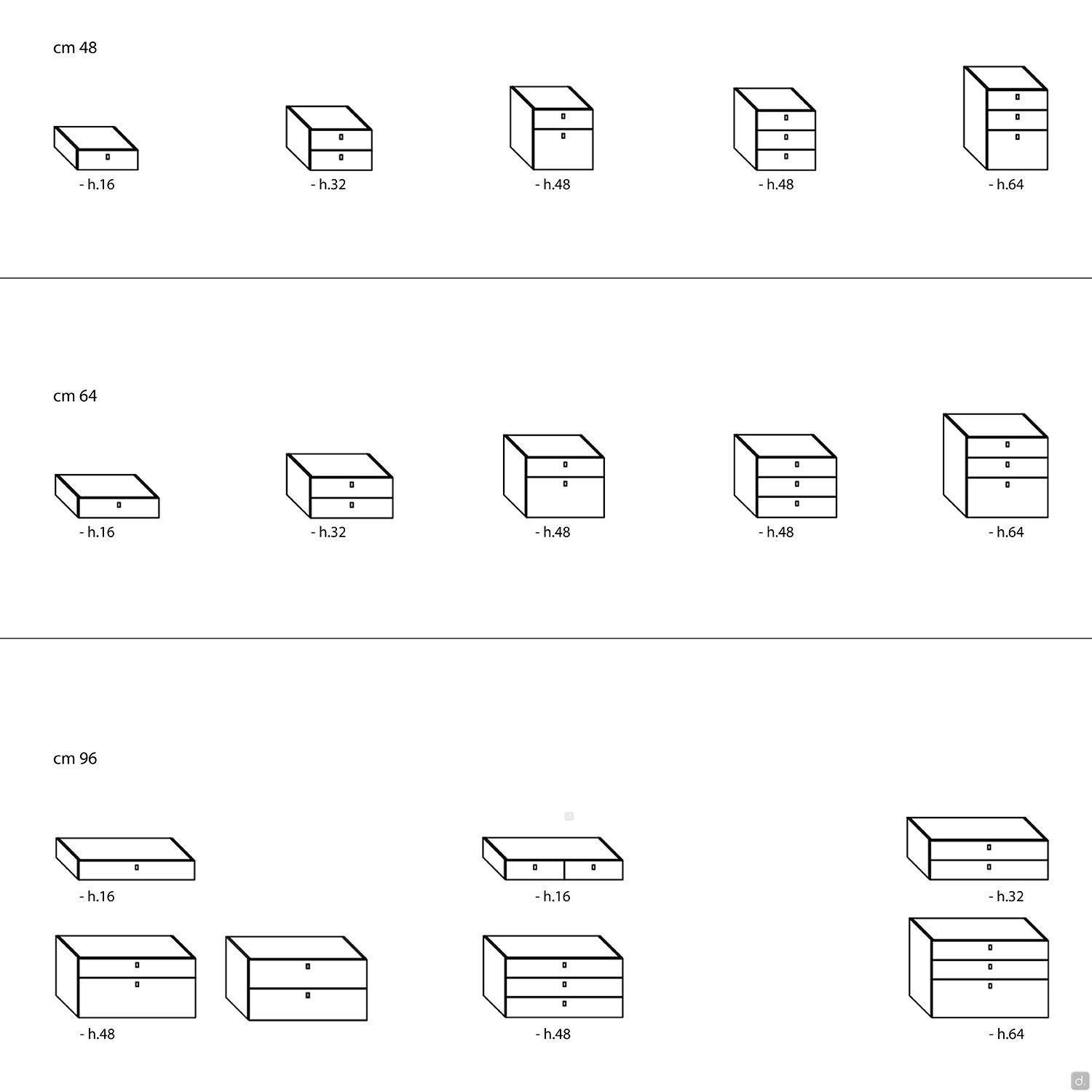

Plan living room base with drawers - Models and Dimensions (cm 48 / 64 / 96)

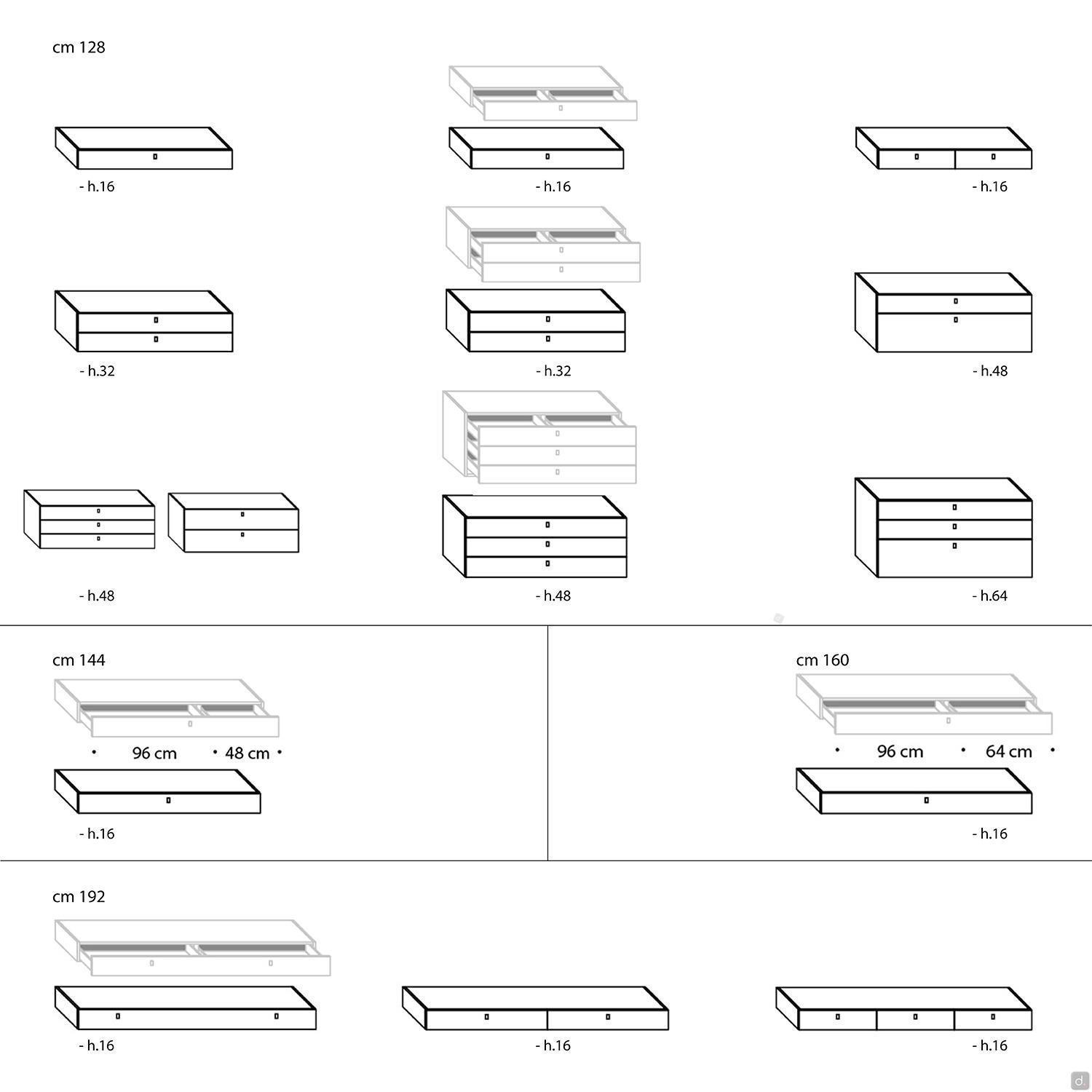

Plan living room base unit with drawers - Models and Dimensions (cm 128 / 144 / 160 / 192)

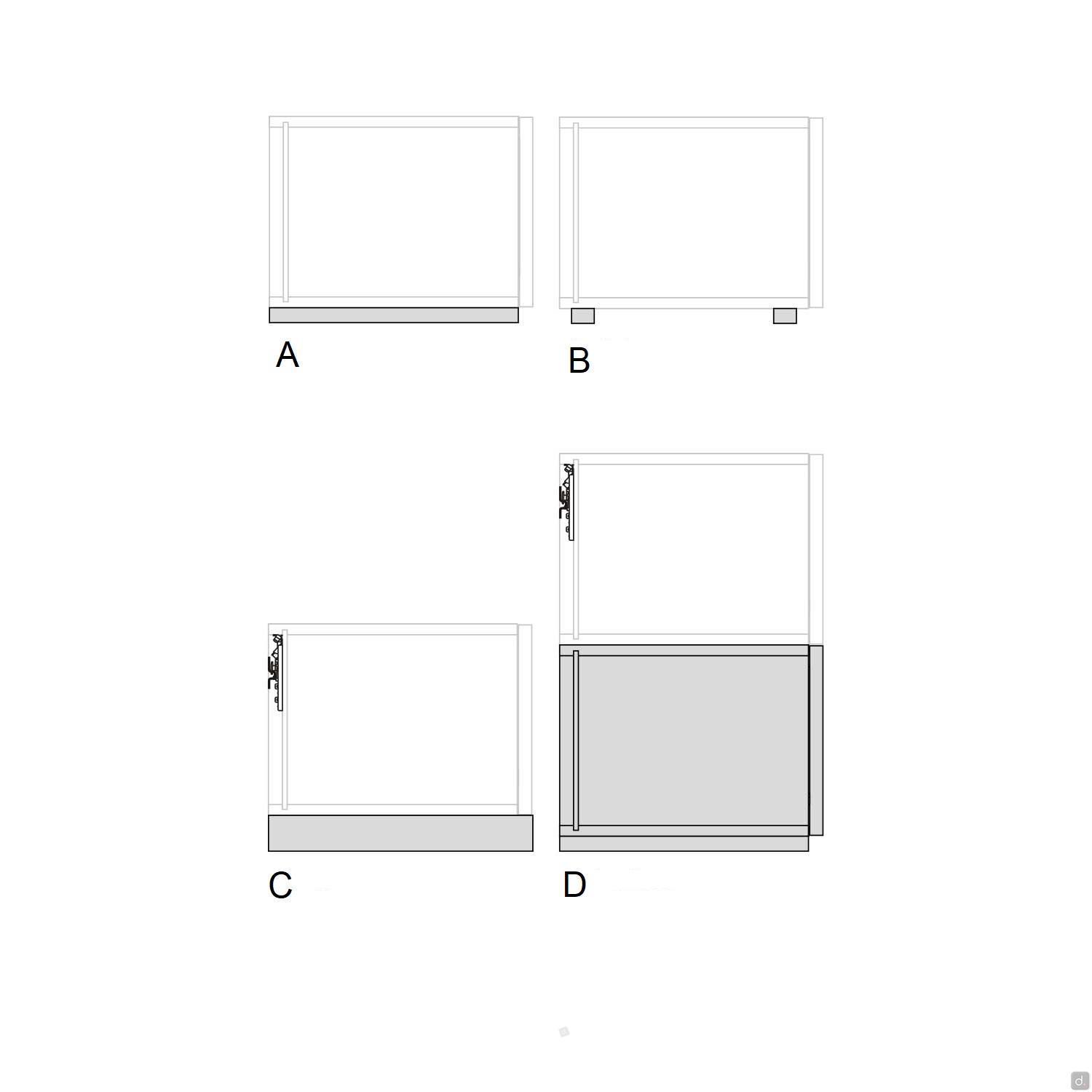

Plan cabinet with big drawers - positioning: A) plinth B) feet C) bench D) other elements

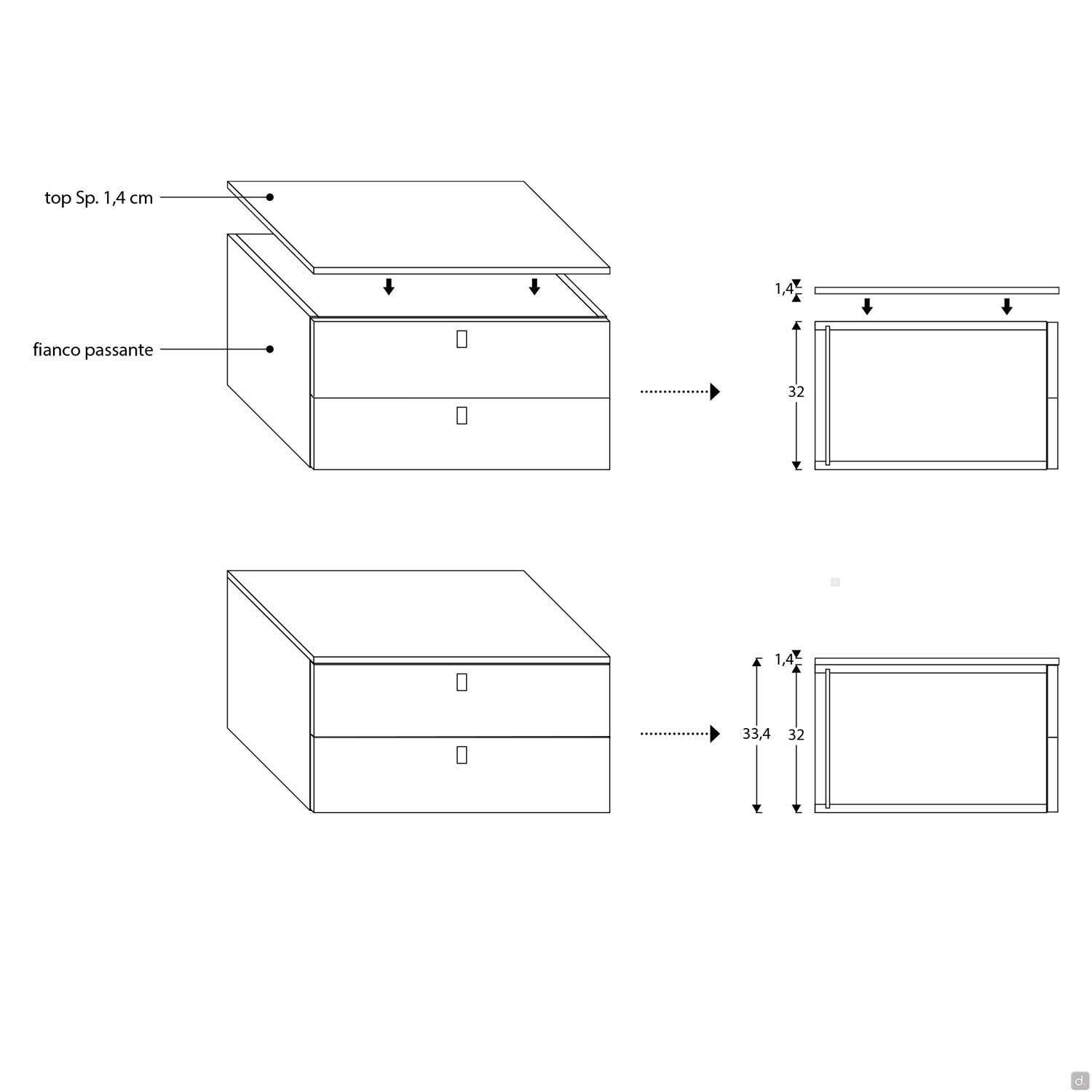

Plan cabinet with big drawers - equipped with a 1,4 cm thick top

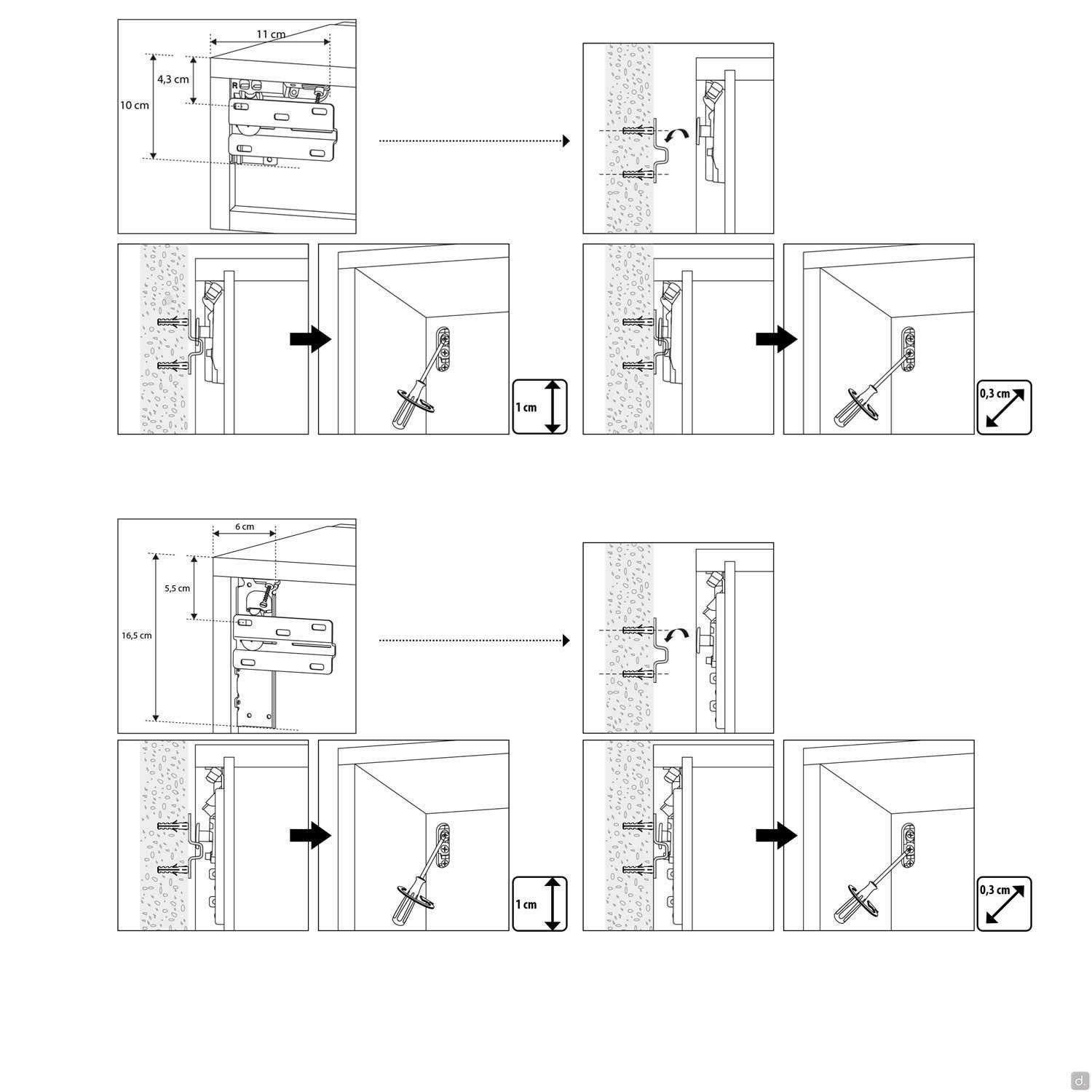

Plan cabinet with big drawers - brackets for wall mouting

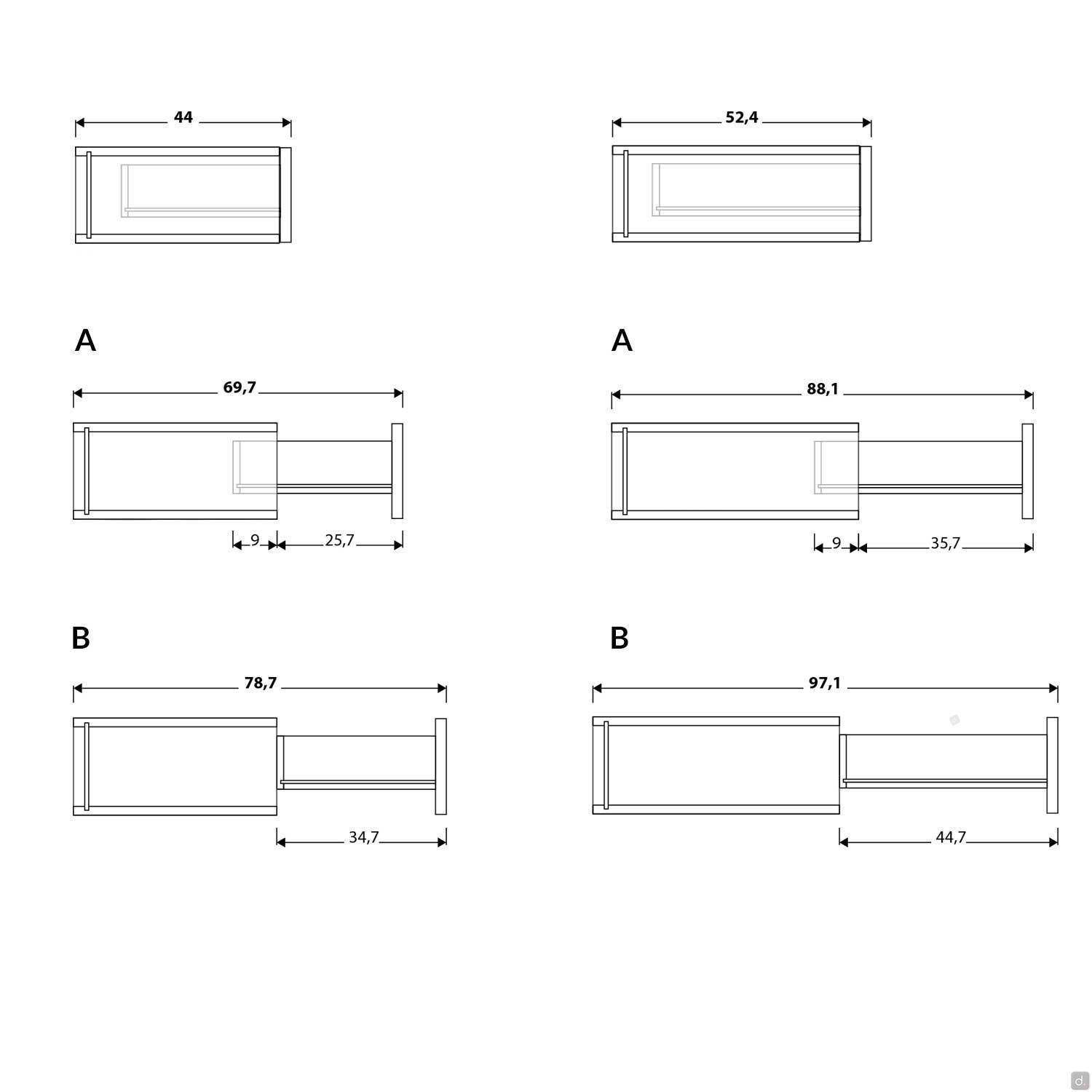

Plan cabinet with big drawers - standard partial extension (A) or full extension (B)

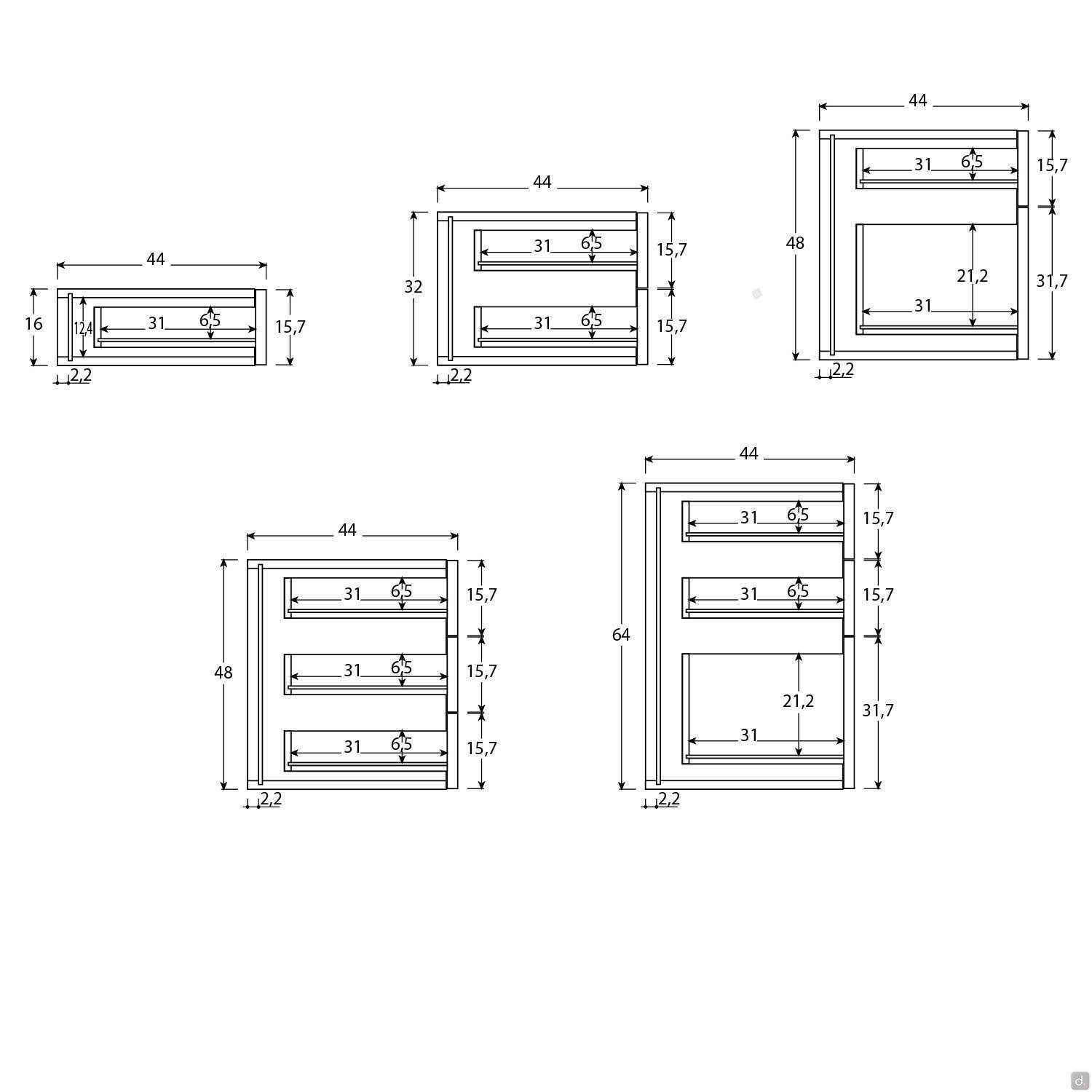

Plan cabinet with big drawers - specific measurements cm d.44

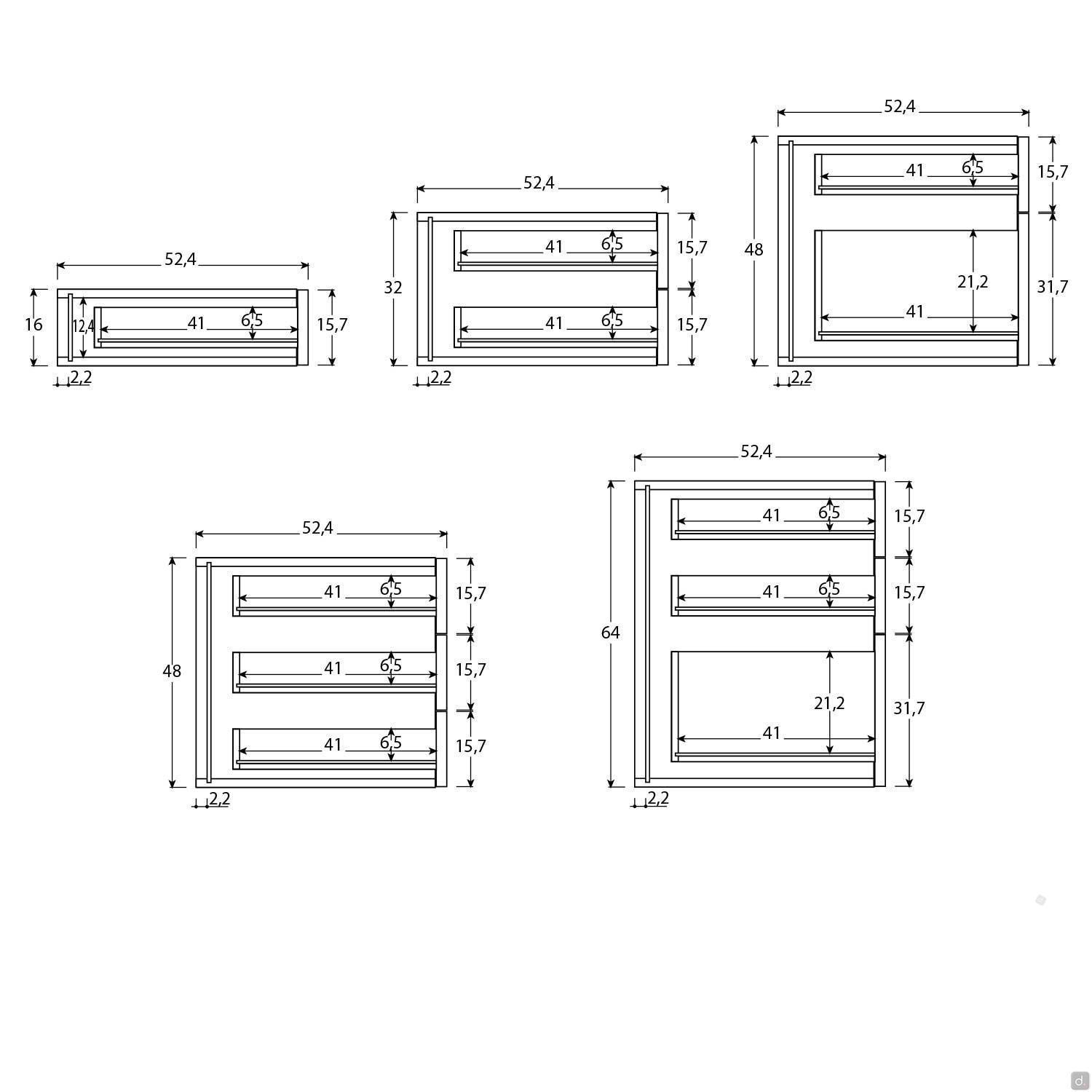

Plan cabinet with big drawers - specific measurements cm p.52,4

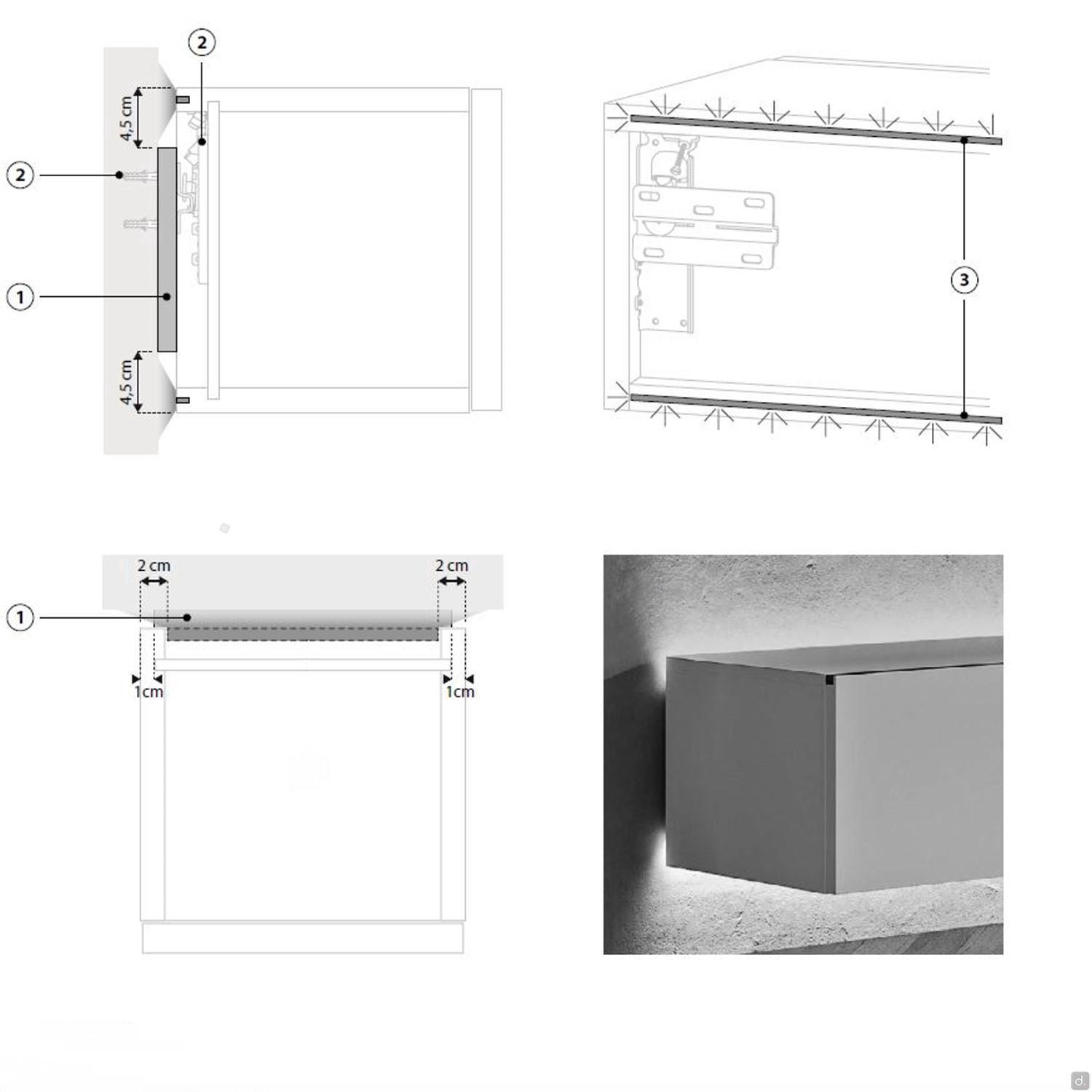

LED back-lighting: 1) gunmetal melamine th.1,4 cm inserted between cabinet and wall 2) fixing of the panel and the cabinet on the panel 3) LED strip position

+ 15

MORE IMAGES

Plan Drawers - Unique Separated Top

Plan living room push-pull drawers; available in several measurements up to 192 cm and finishes. Freestanding or wall mounted. Selection of handles or push-pull.

* Required Fields

Width *

Height and Model *

Height and Model *

----------------------------------cm 144
h.16 - 1 drawer with 2 internal compartments

Height and Model *

----------------------------------cm 160
h.16 - 1 drawer with 2 internal compartments

Depth *

Finish *

Finish *

Finish *

Opening Type *

Handle Finish *

Handles Finish *

Handles Finish *

Handle Finish *

VMS moka shine painted metal

Pomolo Cover *

grey belting leather

Internal Finish *

matching melamine (with taupe decor melamine back)

Internal Finish *

taupe decor melamine

Internal Finish *

Position *

Note: *

according to the proportions of the element, the opening system and the weight of what's inside, it might be advisable to fix the element to the wall to guarantee the perfect stability of it

Plinth Finish *

matching the structure

Plinth Finish *

matt lacquer matching the structure

Arrangement *

Arrangement *

Information for your Quote *

the cabinet always come with 1,4 cm top to be added to the cabinet height

Information for your Purchase *

single top and plinth (available up to a max. width of cm 320)
1,4 cm top to be added to the cabinet height

Information for your Purchase *

single top and plinth (available up to a max. width of cm 320)
1,4 cm top to be added to the cabinet height

Please Note: *

Back-lighting set including n.2 LED strip recessed on the two longer sides, n.1 15 Watt transformer and n.1 spacing panel 1,4 cm thick in gunmetal melamine (the depth of the cabinet will increase by 1,4 cm)

Please Note: *

Back-lighting set including n.2 LED strip recessed on the two longer sides, n.1 30 Watt transformer and n.1 spacing panel 1,4 cm thick in gunmetal melamine (the depth of the cabinet will increase by 1,4 cm)

Please Note: *

Back-lighting set including n.2 LED strip recessed on the two longer sides, n.1 60 Watt transformer and n.1 spacing panel 1,4 cm thick in gunmetal melamine (the depth of the cabinet will increase by 1,4 cm)

Please Note: *

Back-lighting set including n.2 LED strip recessed on the two longer sides, n.1 60 Watt transformer and n.1 spacing panel 1,4 cm thick in gunmetal melamine (the depth of the cabinet will increase by 1,4 cm)

Voltage * For Europe the voltage is 220 V

220 V
110 V

Remote Control for Lighting System * You need 1 remote only to activate the switch on / off of the LEDs of your whole layout

no remote control
n.1 remote control +€61.38

Quantity

From €172.62

View Samples

Wishlist

Description

Plan push-pull drawers cabinet belong to Plan living collection made up of single elements you can combine together to compose your own layout. This cabinet with drawers is available in several models, according to the number of drawers composing it, and it can be chosen in a variety of widths and heights to fit every type of living room.
Plan cabinet with drawers can be wall mounted, placed directly on the floor with a set of feet or a plinth running along the whole cabinet, or it can simply be placed on top of other elements from the same collection. All drawers come with soft closing system. Structures can be made in several finishes choosing among melamine, wood veneer, open pore lacquered wood, matt or glossy lacquer in all colours from the samples.

Characteristics
storage cabinet with drawers for the living room
available in different widths, heights and two depths
customisable for finishes and colours
door with handles or push-pull

Measurements
Width: view the available widths in the Menu
Height: cm h.16 / 32 / 48 / 64
Depth: cm d.44 / 52,4
Top Thickness: cm 1,4 thick
Feet / Plinth Height: cm h.2,5

Materials and Finishes
Structure:
- melamine
- wood veneer
- open pore lacquer
- matt / gloss / metallic lacquer

Information for your Purchase
For the total height of the cabinet please consider, if standing on the floor, the height of the feet / plinth with adjustable feet (cm 2,5).

Technical study

Technical Specifications and Equipment
Fronts: particle wood panels (class E1 - low formaldheyde emissions).
Thicknesses: door cm 2,2 / structure cm 1,8.
Drawers: with soft closing system.
Top: unique separated top standing on the cabinets with the width of the whole layout, cm. d.44,3 / 52,7 th.1,4 to add to the height of the cabinet(s), matching the structure and fronts. The top protrudes by 0,3 cm in depth for all the compositions.
Opening type:
- handle T16: cm 19 d.3,3 h.0,8 in moka shine painted metal or matt lacquered;
- handle M: cm 10,2 d.1,4 h.0,3 in moka shine painted metal, white or matt lacquered;
- handle Z: cm d.1,5 h.0,7 in moka shine, white painted metal or matt lacquer;
- handle Pomolo: cm 4,1 d.1,6 h.4,1 in moka shine painted metal with grey belting leather knob;
- push-pull.

Optional
full extension: drawers with full-extension runners.
LED back lighting system: you can have the cabinet with a LED strip, in this case it is mandatory to insert between the cabinet and the wall a spacing panel, 1,4 cm thick in gunmetal melamine (the cabinet depth will increase by 1,4 cm). The spacing panel has to be fixed to the wall, while the cabinet is fixed to the panel with the included brackets. The LED strip has a warm 3000 K light and is positioned on the back along the long sides of the cabinet through a recess on the top and bottom. The transformer can be placed both in the sanitary space behind the cabinet or under the bottom.
remote control: to switch on and off the LED light, in case of layouts made up of more cabinets you will need only one remote.

Table of Watt / LED strip length correspondence

Watt	LED strip length
2,7 Watt	cm 32
4,2 Watt	cm 48
5,8 Watt	cm 64
8,8 Watt	cm 96
11,9 Watt	cm 128
13,4 Watt	cm 144
15 Watt	cm 160
18 Watt	cm 192

Maintenance Tips
The surfaces must not come into contact with water, liquids in general, excessive heat or humidity.
Cleaning should be carried out exclusively with a dam cloth and neutral detergents, and dried immediately with a soft cloth; the use of alkaline products, solvents and abrasives is not recommended. The products are not suitable for outdoor use.

Additional Information

Area of Production
Italy

Approximate Time
8-9 working weeks for production

Assembling
Medium Assembling

Assembling Instructions
Download the Assembly Instructions

Weight
da 12 a 43 Kg

Cubic Metres
da 0,063 a 1,2 m³
