Plan living room push-pull drawers with single integrated top

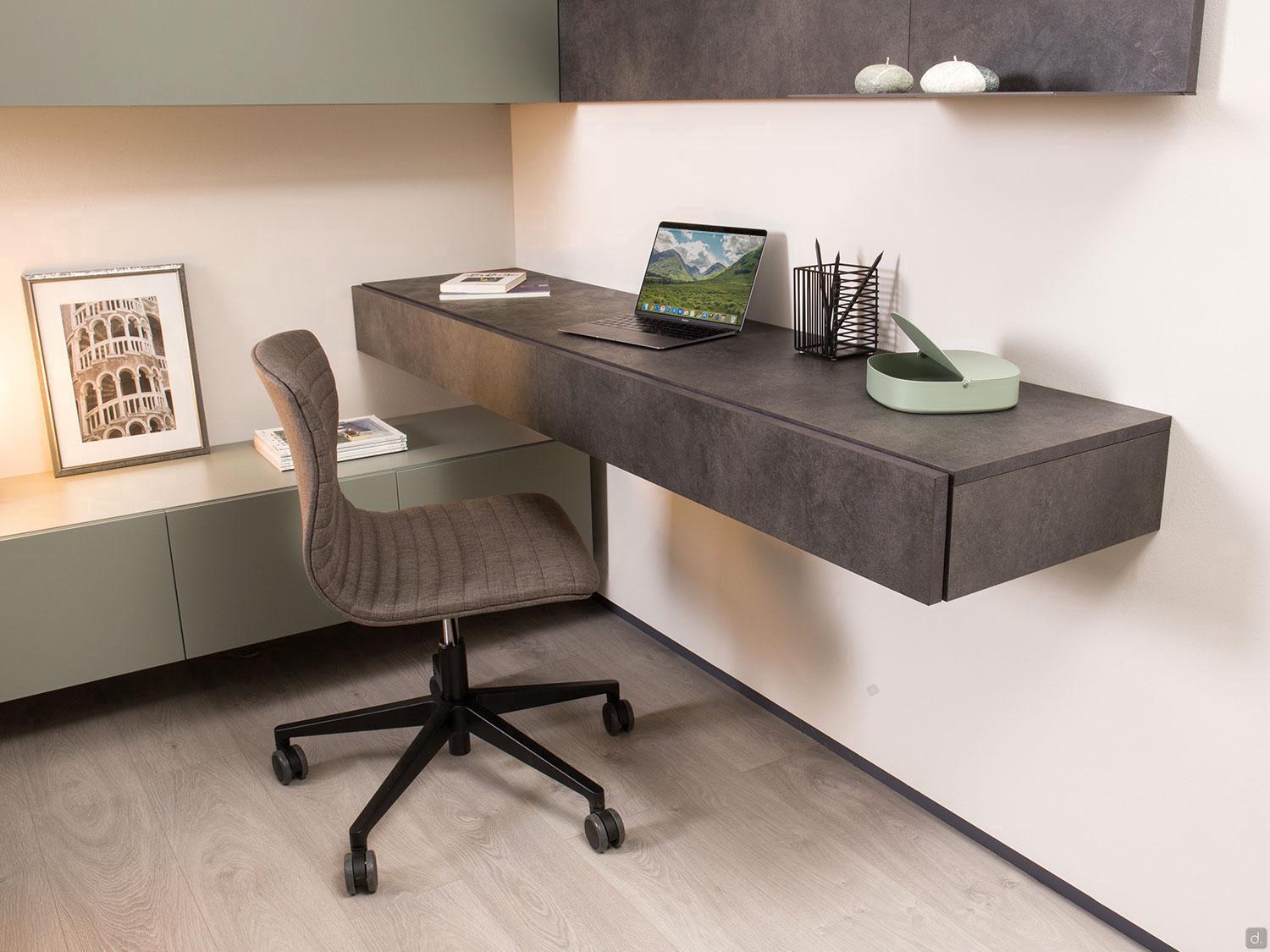

Plan suspended base unit with two drawers for home office use, width cm 192 in Fashion Wood Fossil

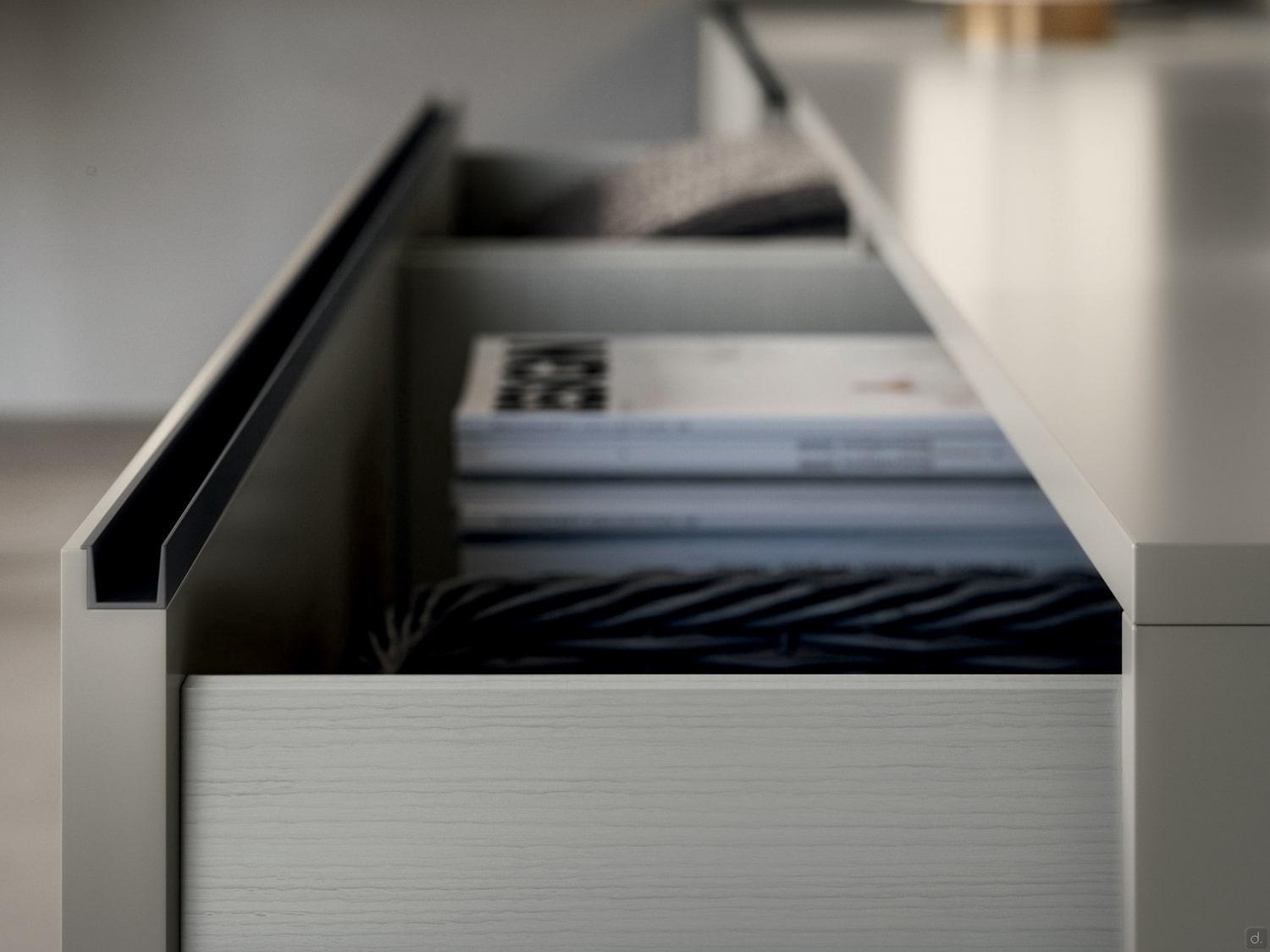

Detail fo the drawers opening with recess grip C15

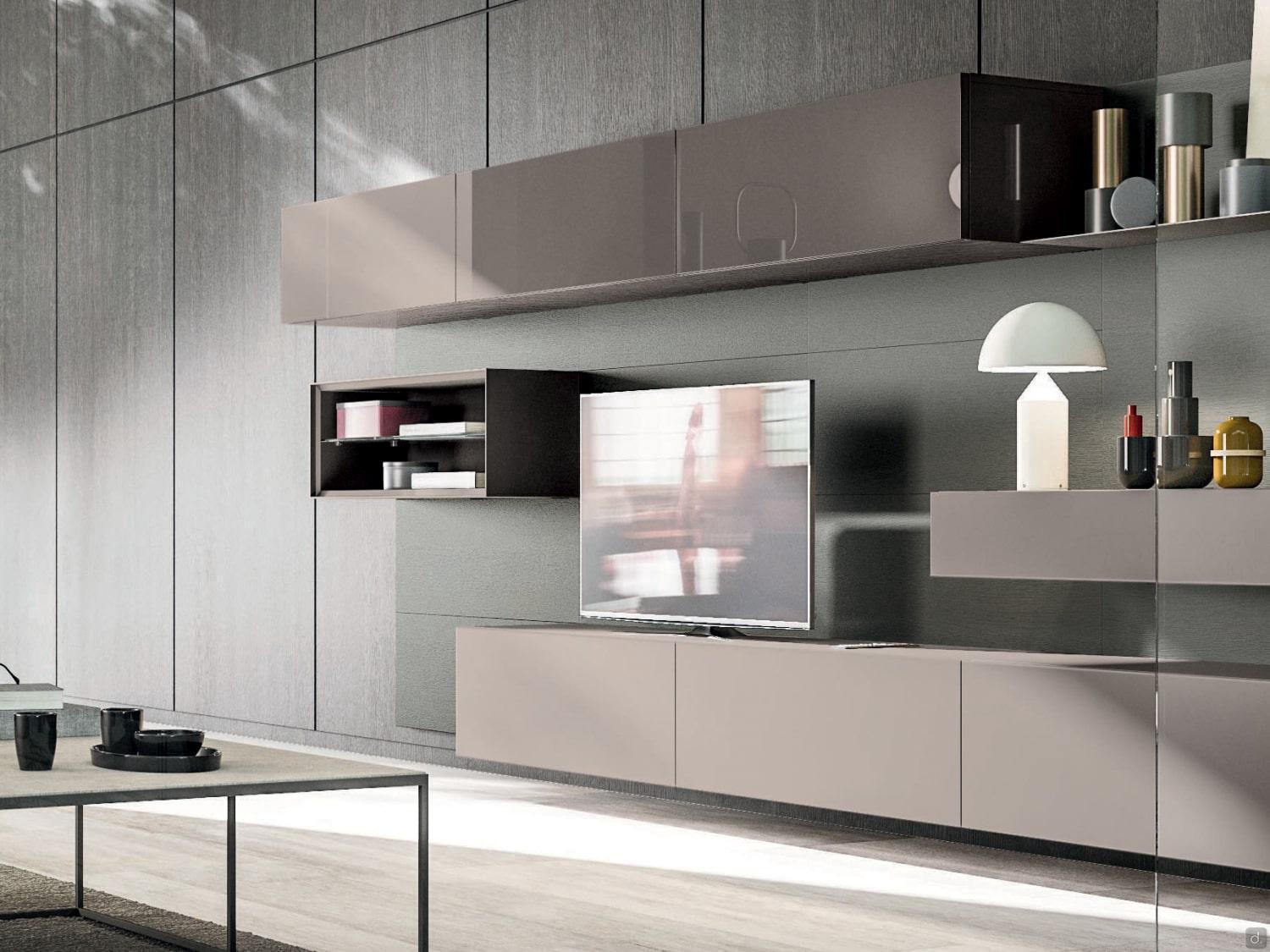

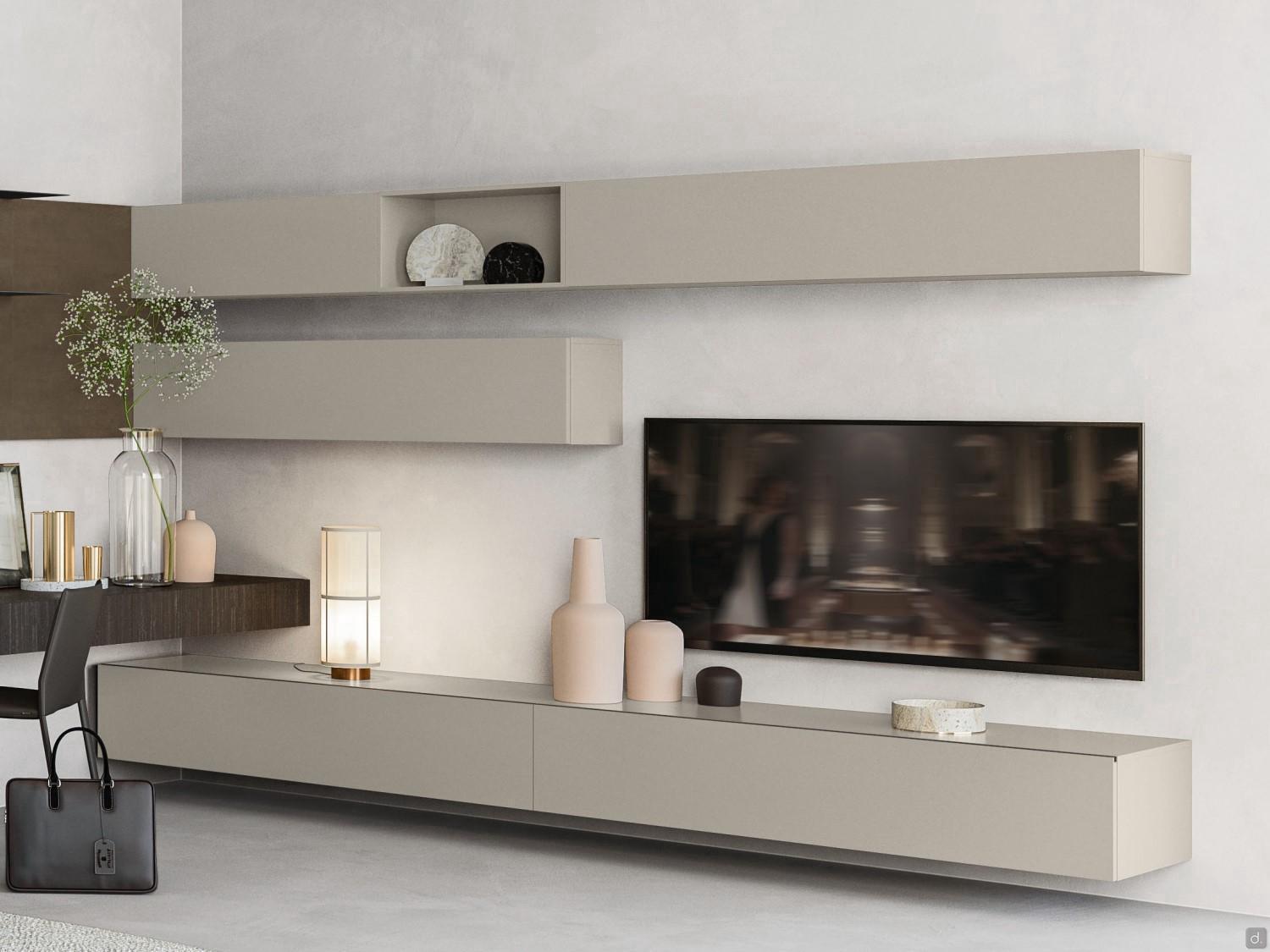

Living room layout with Plan drawers, it can be matched with wall units, drop down doors and flip-down door

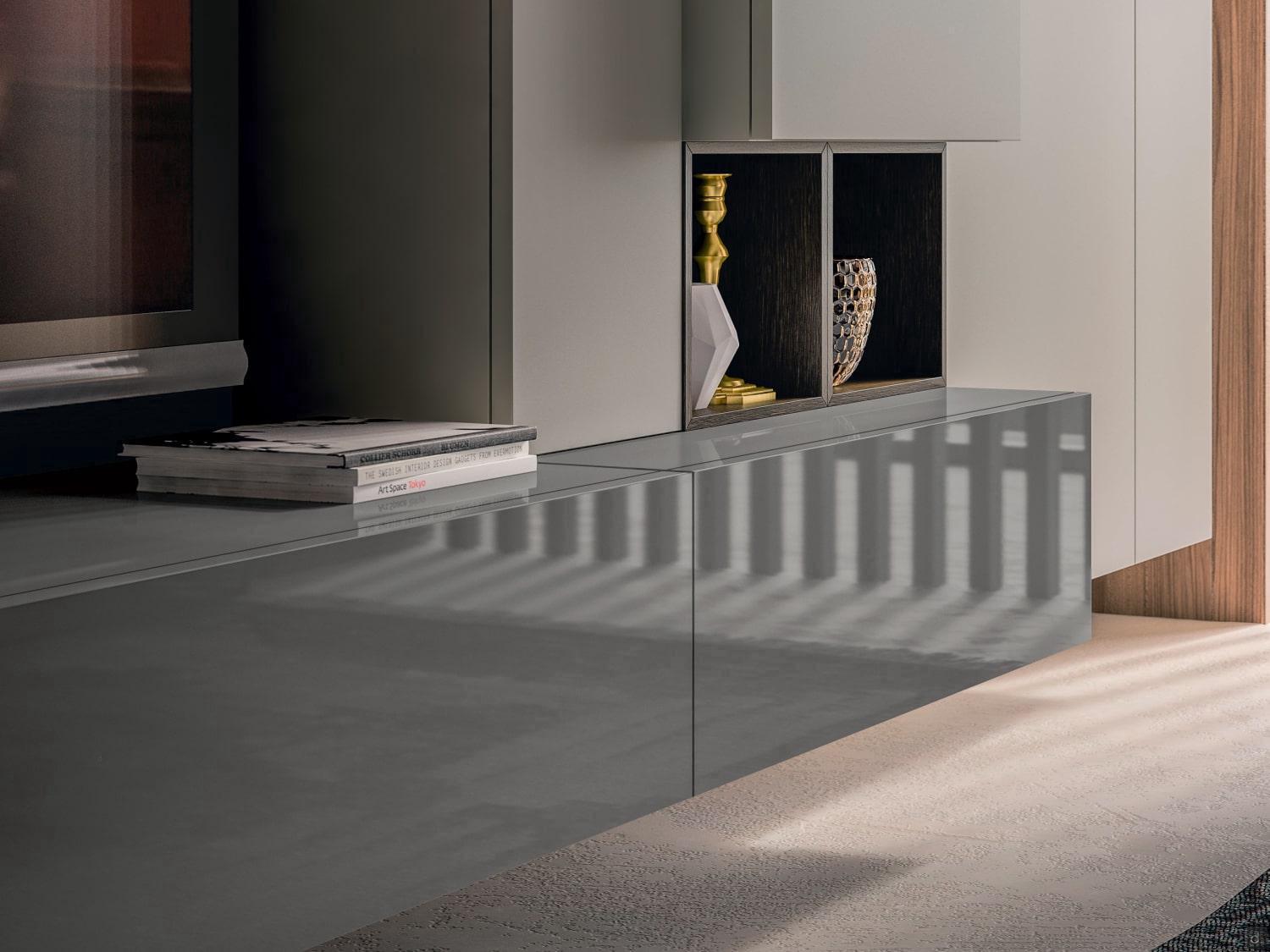

Detail of the high gloss finish of the cabinet with Plan drawers

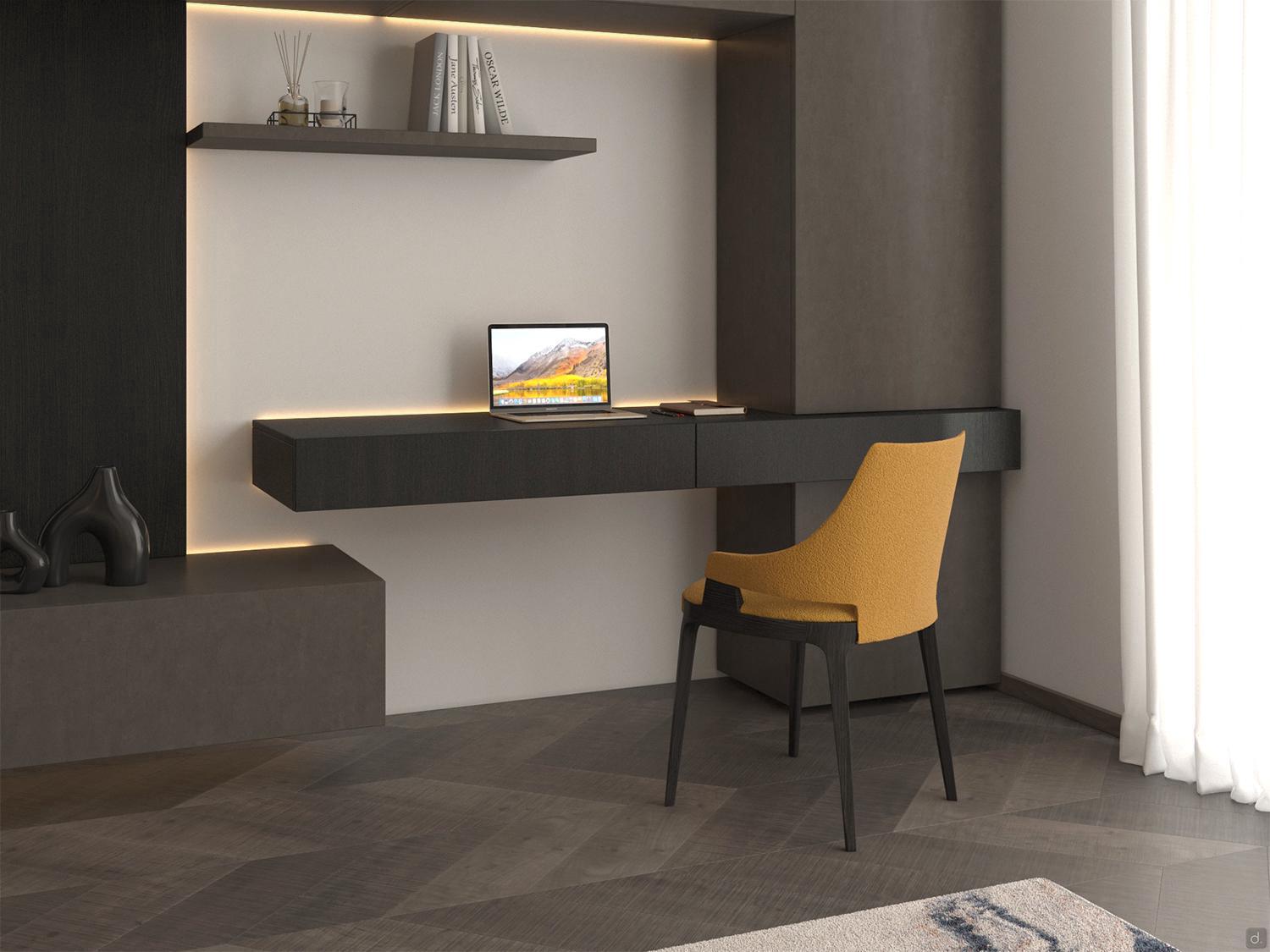

Plan living room base unit with drawers with integrated single top used as a writing desk with under-top drawer

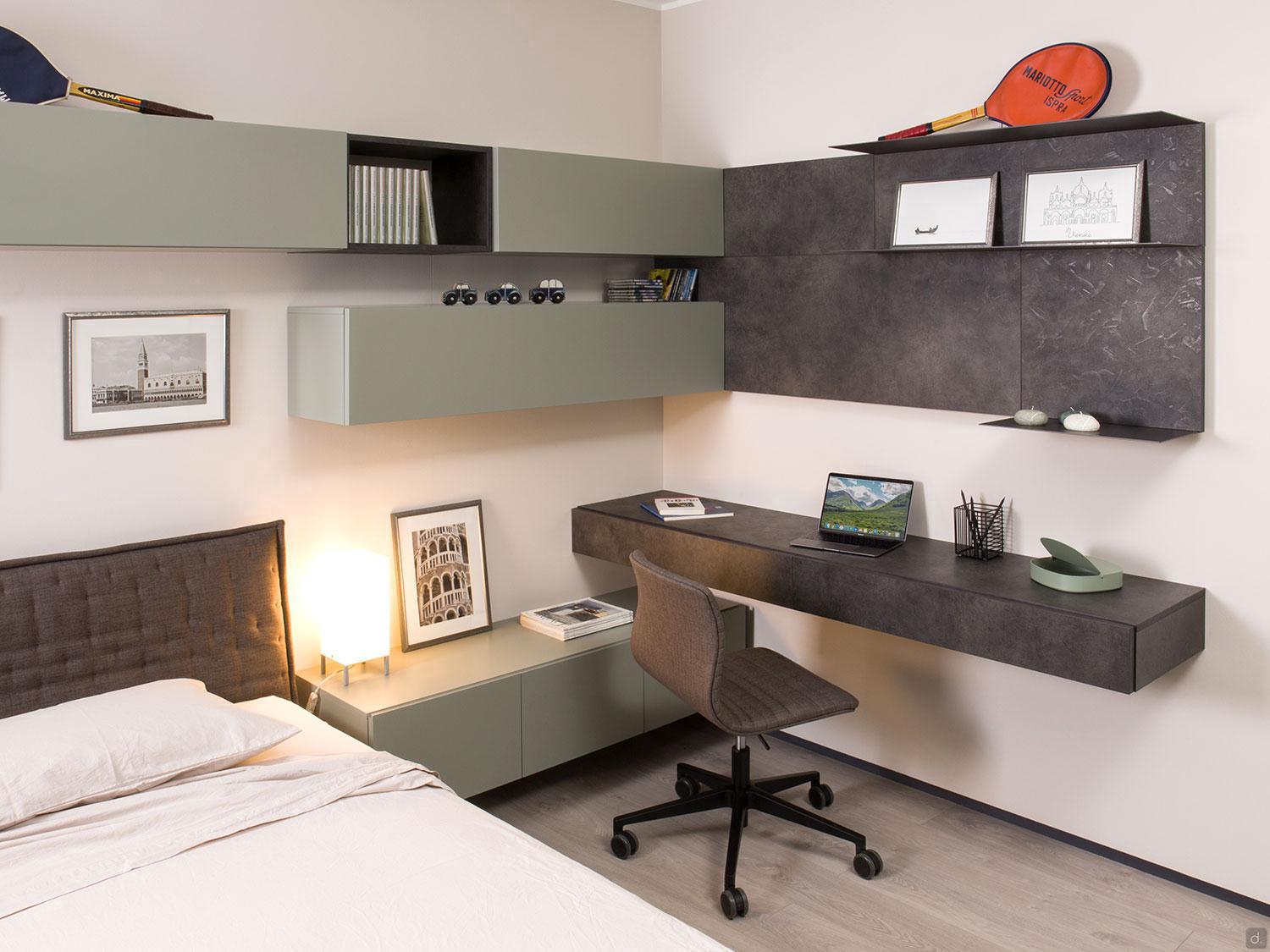

Plan living room base unit with drawers with integrated single top used as a study area in a bedroom set

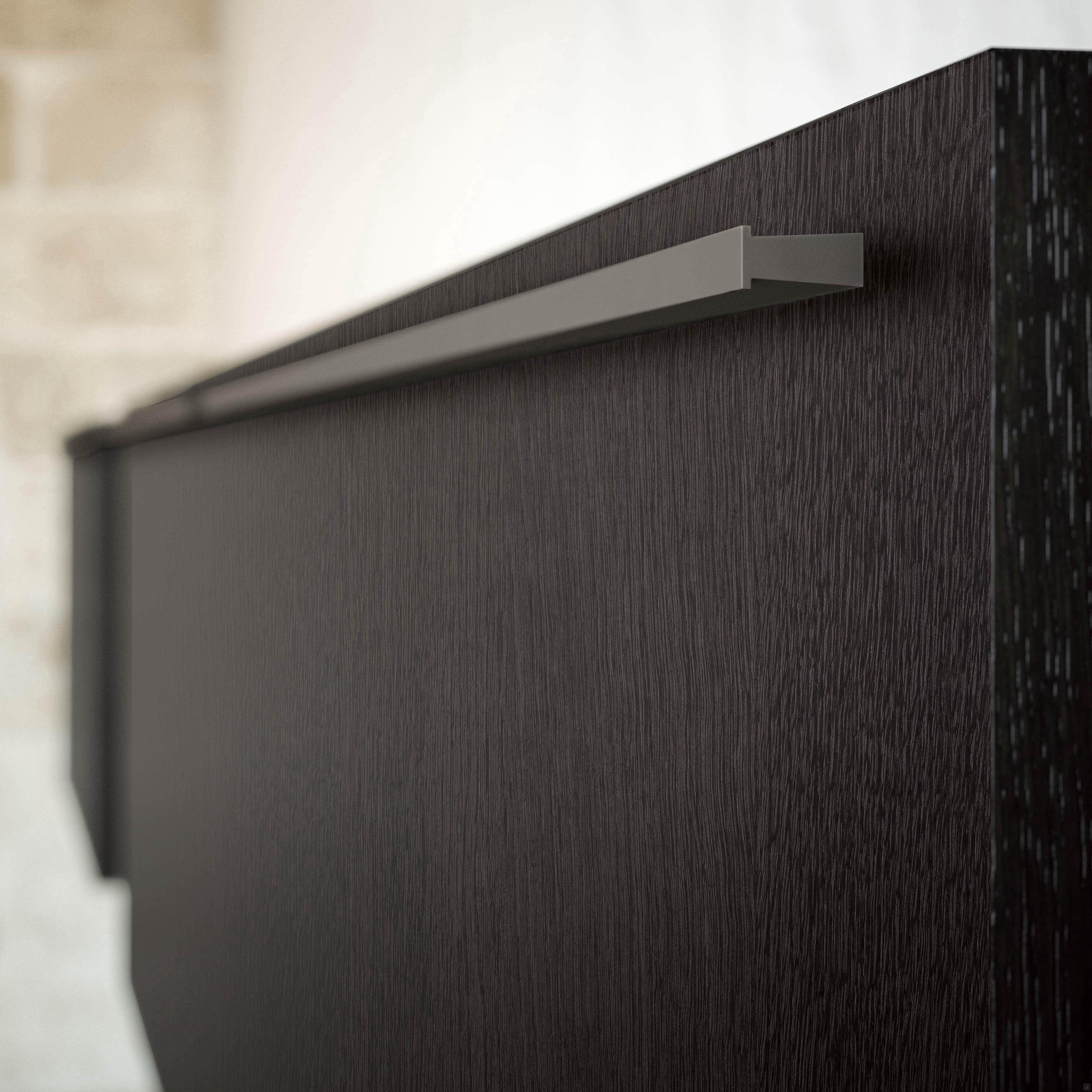

Plan living room drawers in Coal Fashion Wood with moka shine painted metal Z handle

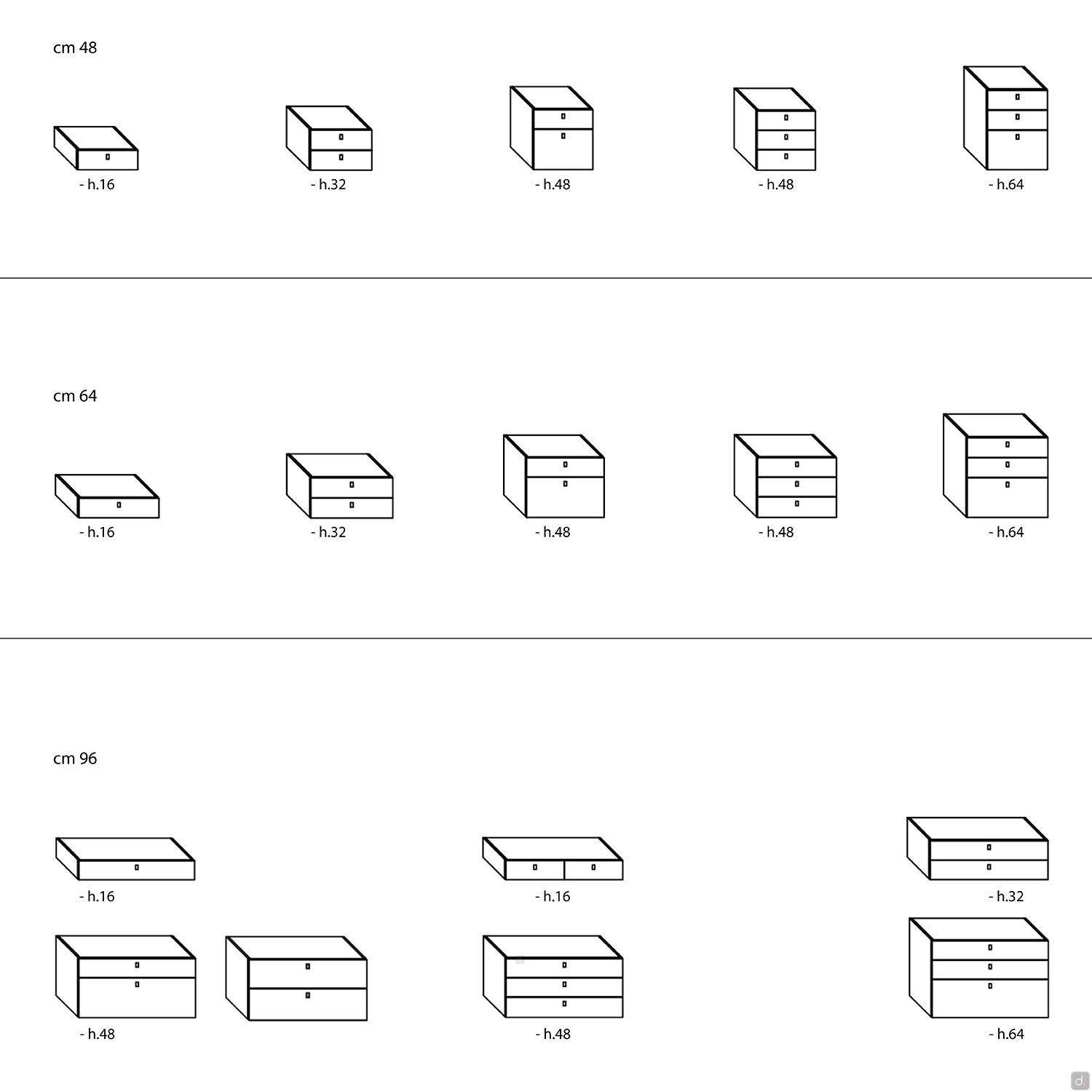

Plan living room base with drawers - Models and Dimensions (cm 48 / 64 / 96)

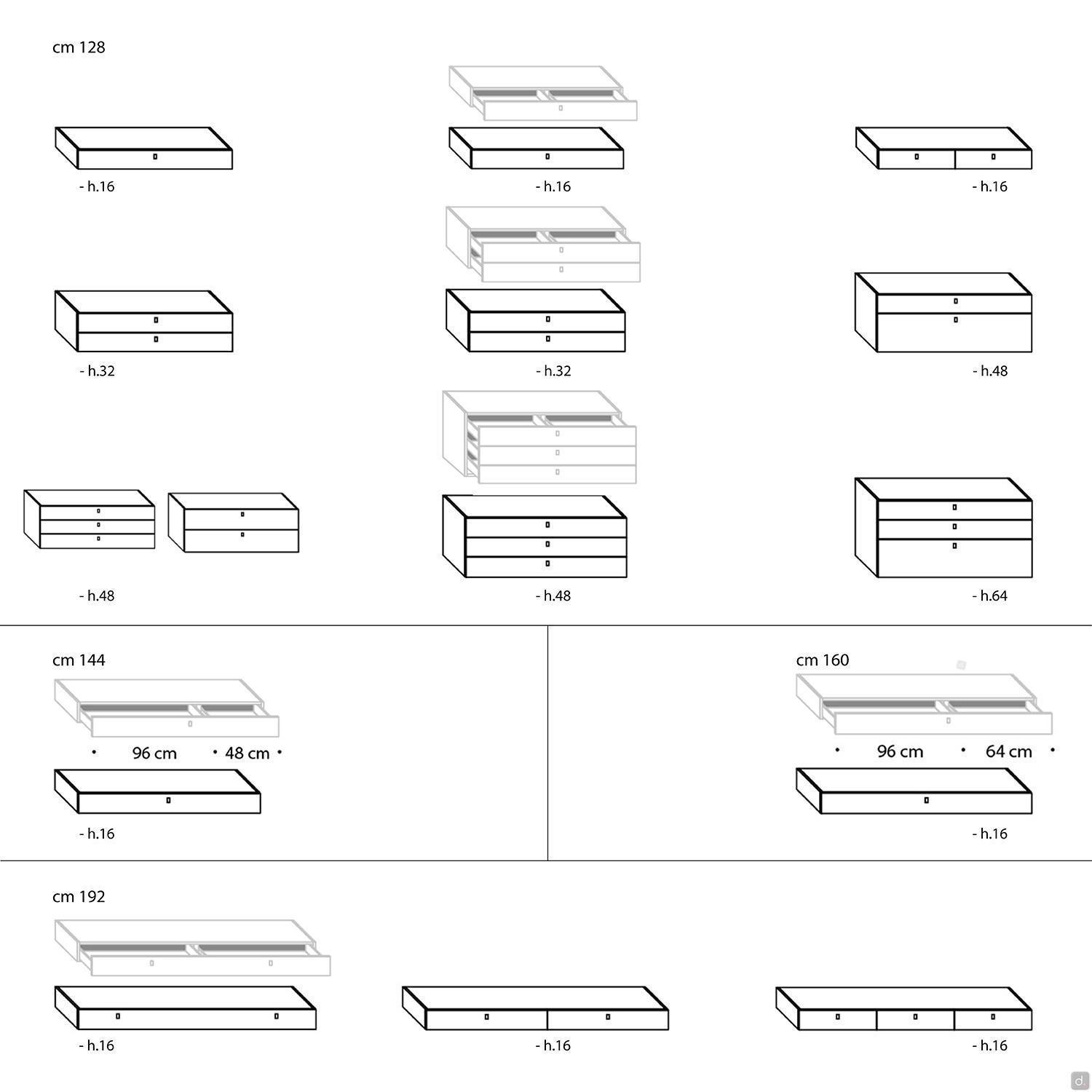

Plan living room base unit with drawers - Models and Dimensions (cm 128 / 144 / 160 / 192)

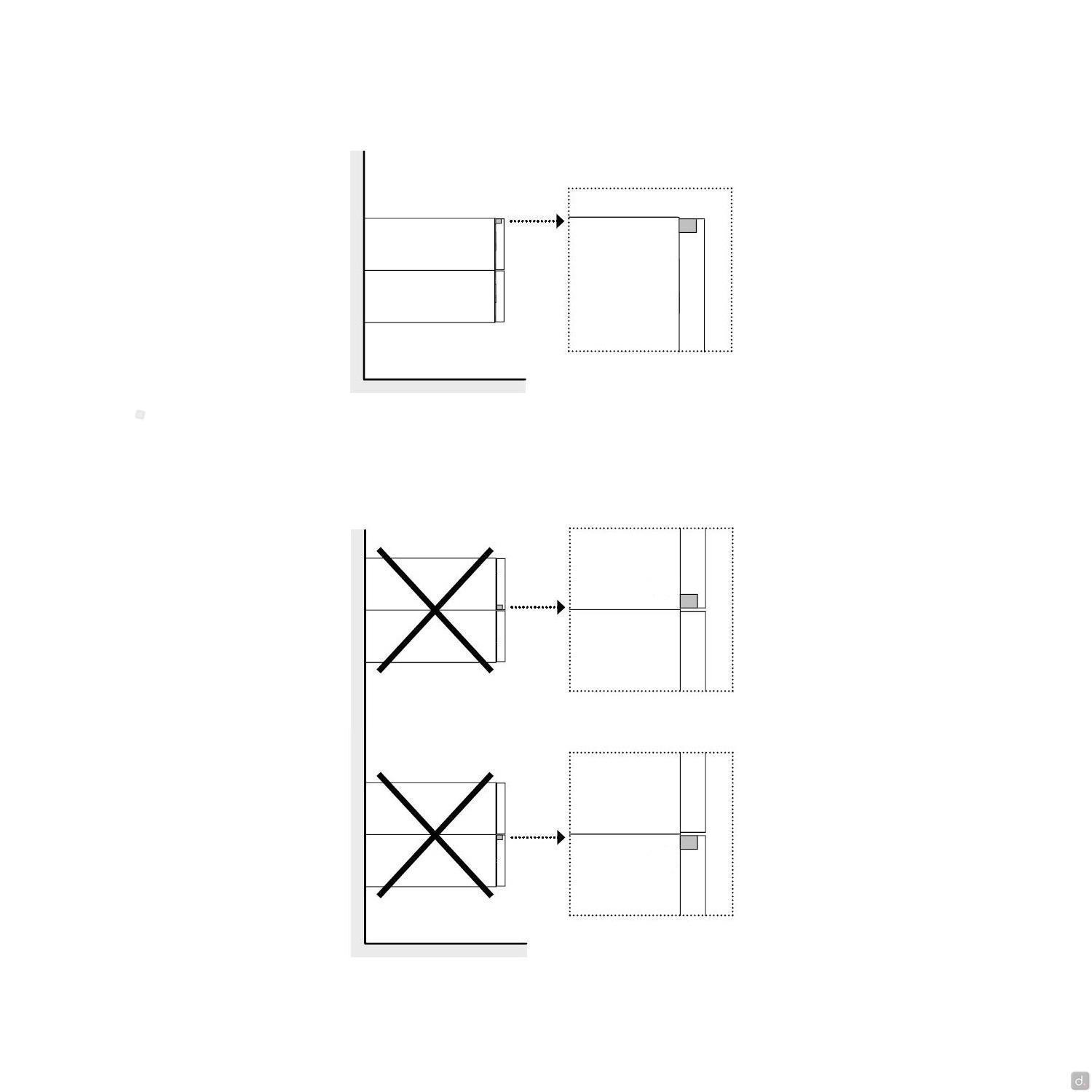

Where you can use C15 handle and where you can not in case of layouts with more drawers together

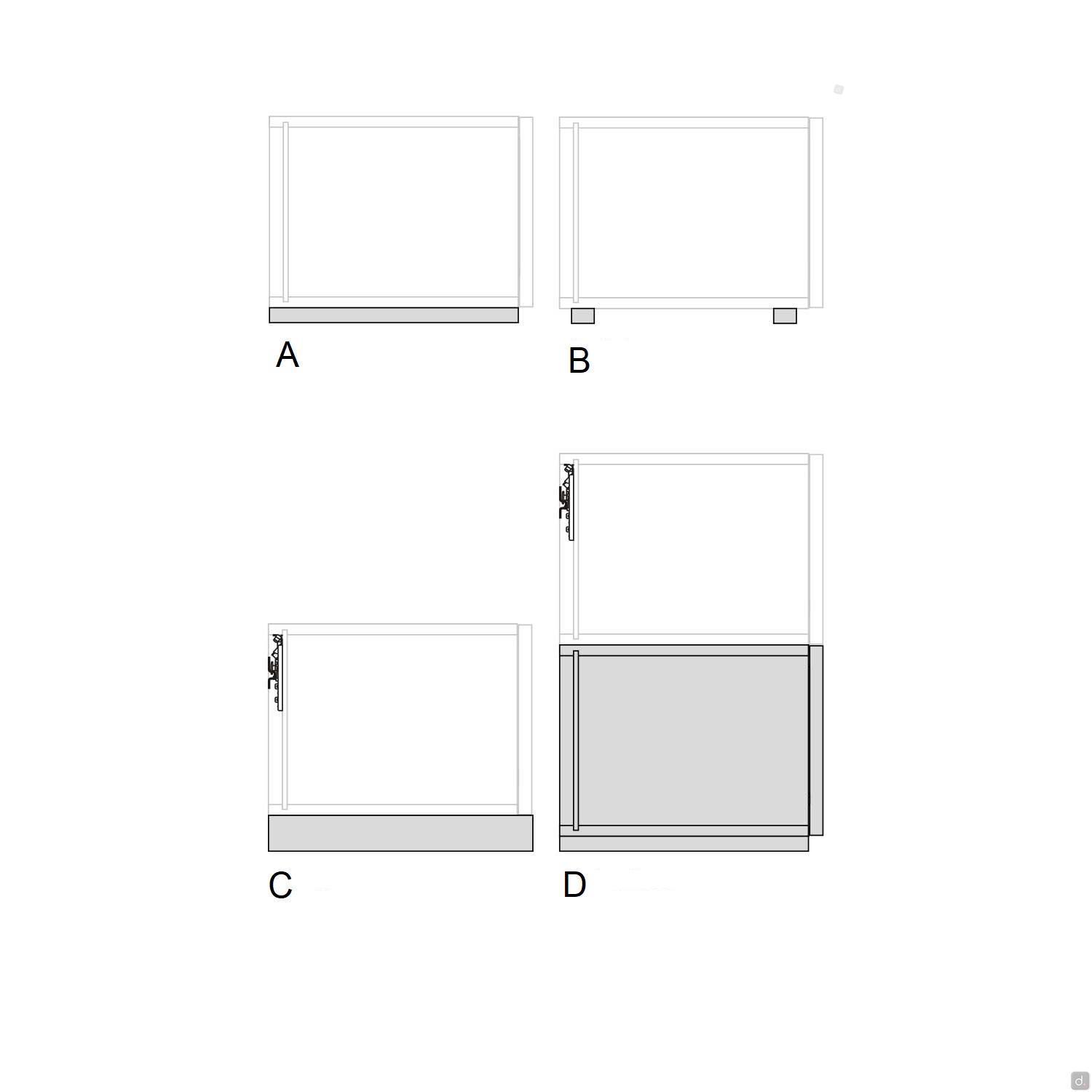

Plan living room cabinet - installation types: A) plinth B) feet C) bench D) on other units

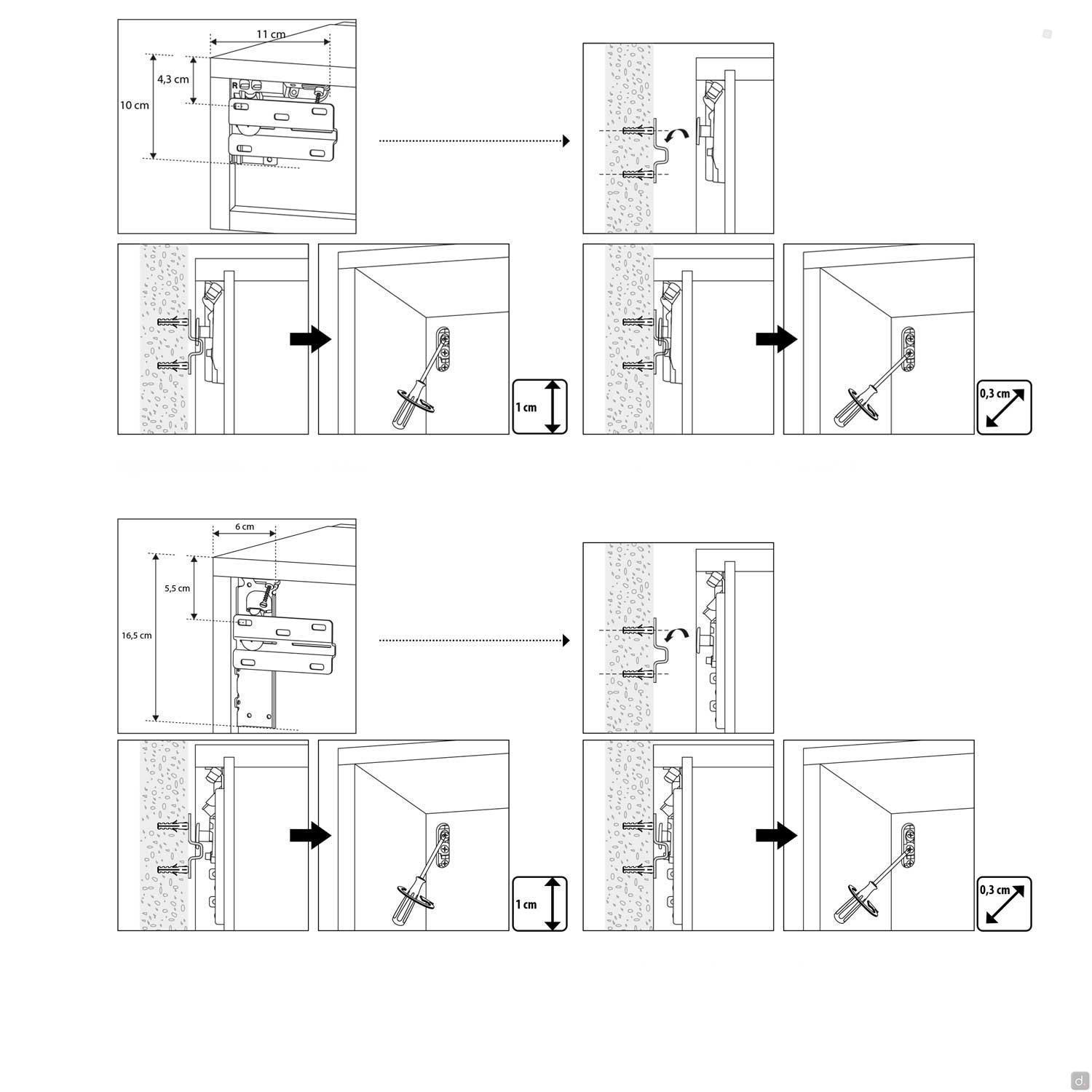

Plan living room drawers - brackets for wall fastening

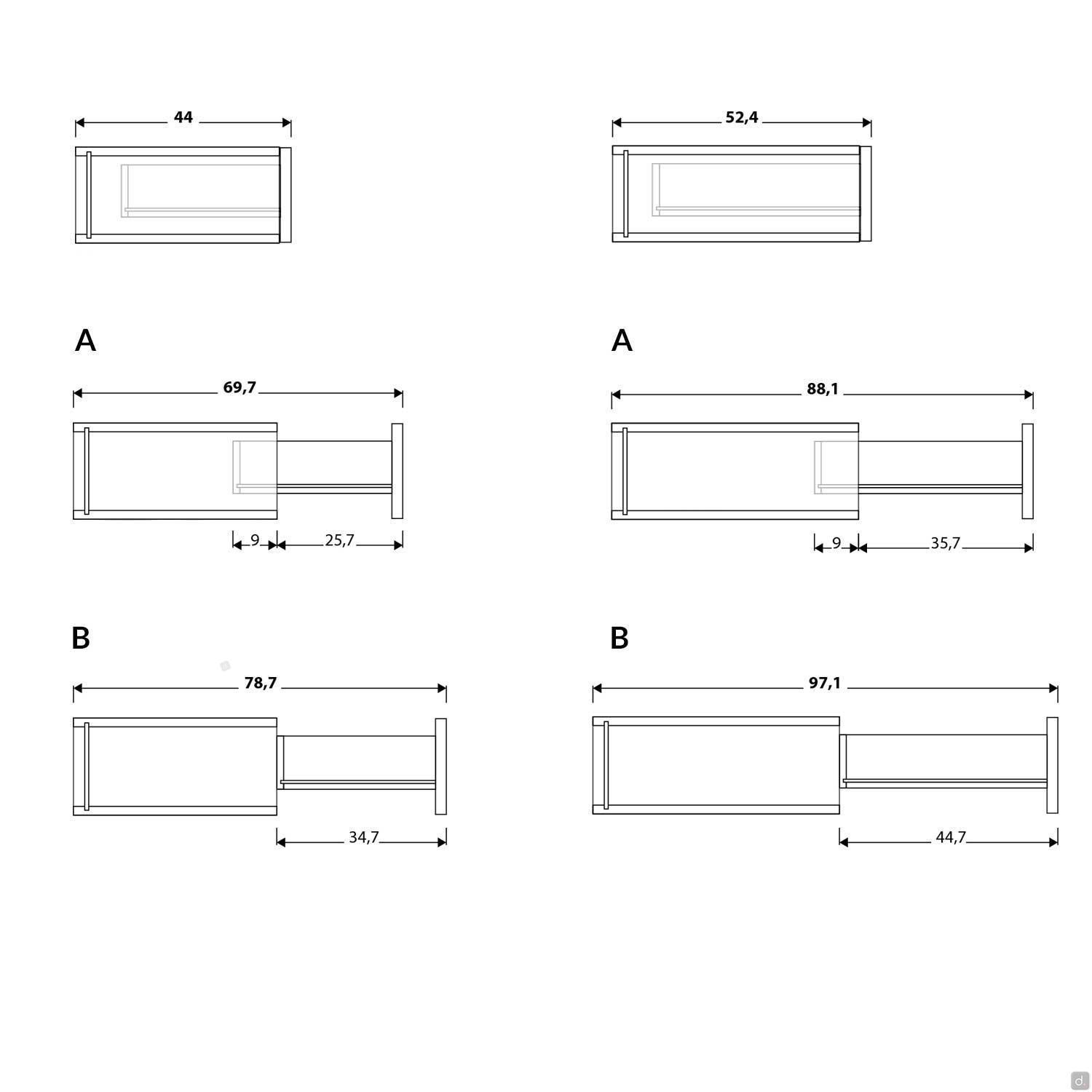

Plan living room drawers - partial extension - included (A) total extension (B)

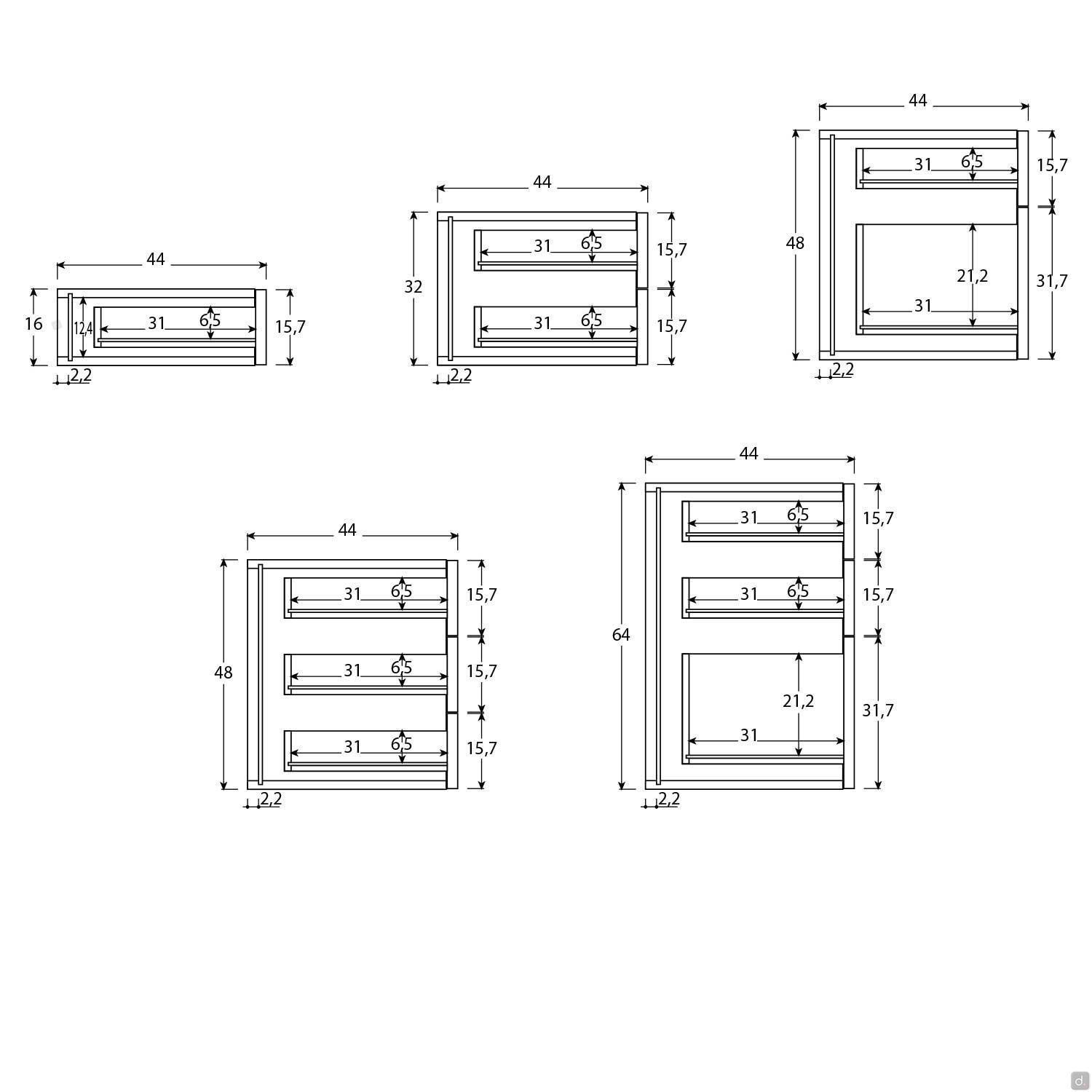

Plan living room drawers - specific measurements cm d.44

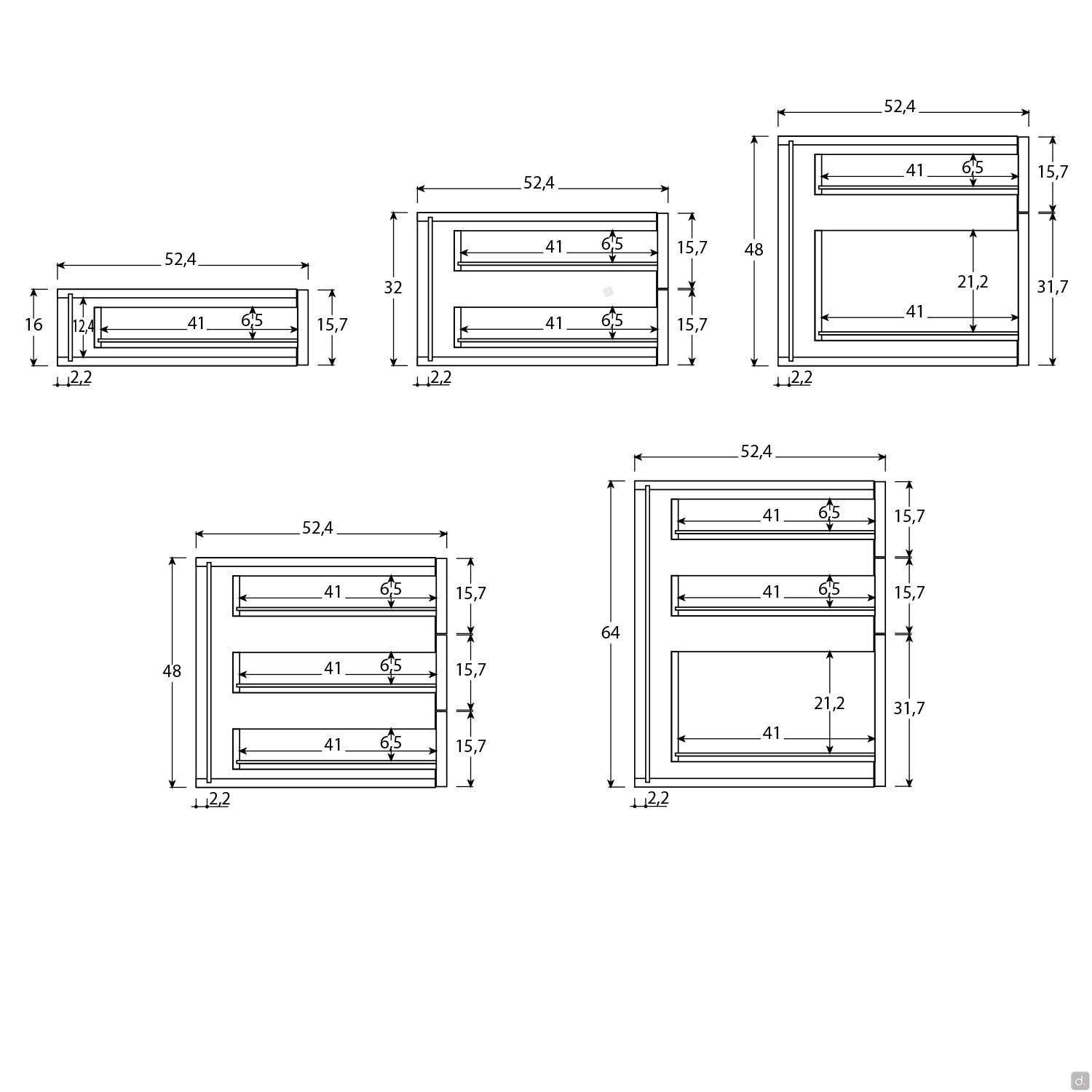

Plan living room drawers - specific measurements cm d.52,4

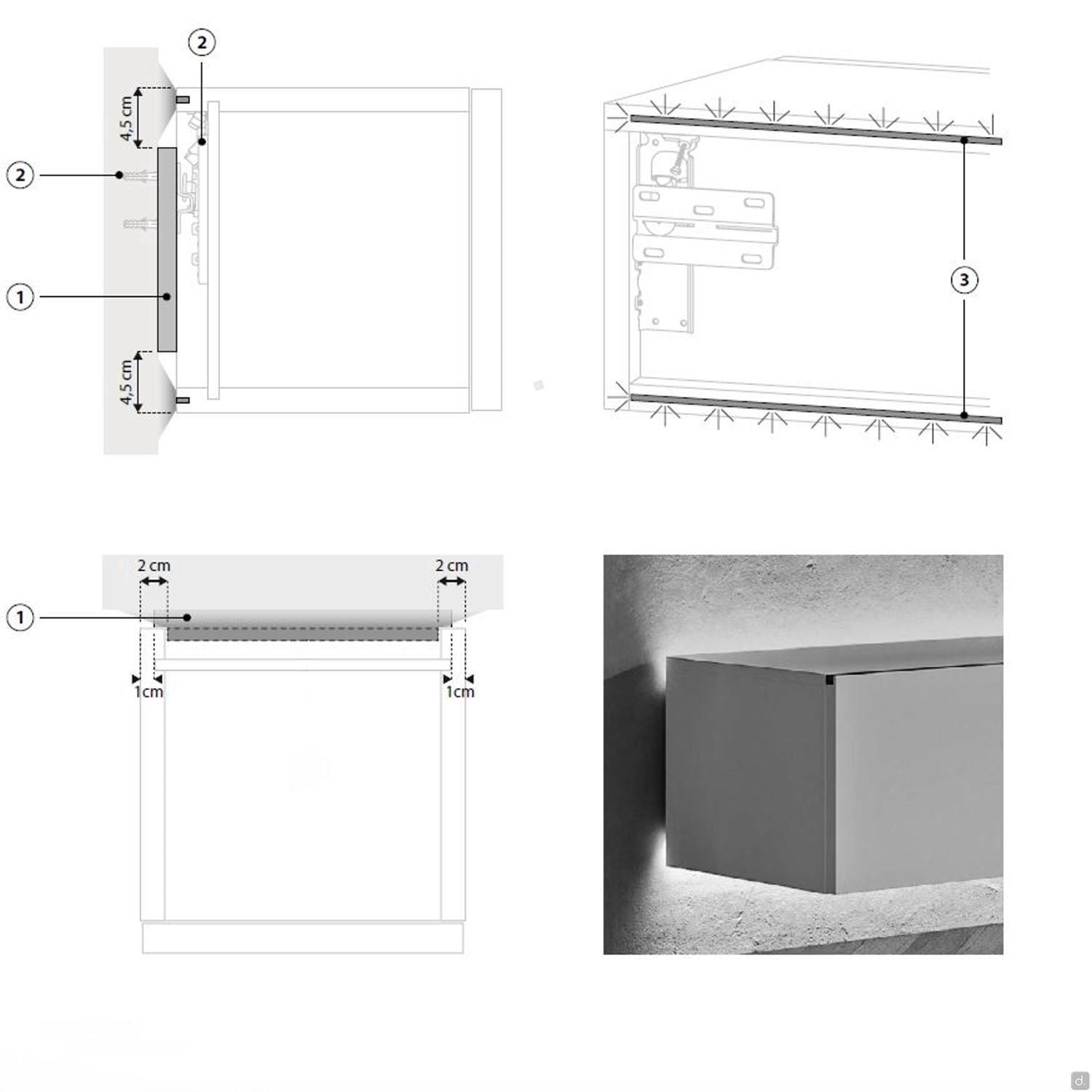

LED back-lighting system: 1) gunmetal melamine panel 1,4 cm thick inserted between the cabinet and door 2) fixing of the panel and the cabinet to the panel 3) LED strip position

+ 14

MORE IMAGES

Plan Drawers - Single Integrated Top

Plan living room push-pull drawers; available in several models and finishes. Also with built-in metal or lacquered handle.

* Required Fields

Width *

Height and Model *

Height and Model *

----------------------------------cm 144
h.16 - 1 drawer with 2 internal compartments

Height and Model *

----------------------------------cm 160
h.16 - 1 drawer with 2 internal compartments

Depth *

Finish *

Finish *

Finish *

Opening Type *

Information for your Purchase *

the handle C15 will be on the top side of the first drawer from above

Handle Finish *

Handles Finish *

Handles Finish *

Handle Finish *

VMS moka shine painted metal

Pomolo Cover *

grey belting leather

Internal Finish *

matching melamine (with taupe decor melamine back)

Internal Finish *

taupe decor melamine

Internal Finish *

Position *

Note: *

according to the proportions of the element, the opening system and the weight of what's inside, it might be advisable to fix the element to the wall to guarantee the perfect stability of it

Plinth Finish *

matching the structure

Plinth Finish *

matt lacquer matching the structure

Arrangement *

Arrangement *

Note: *

Back-lighting set including n.2 LED strip recessed on the two longer sides, n.1 15 Watt transformer and n.1 spacing panel 1,4 cm thick in gunmetal melamine (the depth of the cabinet will increase by 1,4 cm)

Note: *

Back-lighting set including n.2 LED strip recessed on the two longer sides, n.1 30 Watt transformer and n.1 spacing panel 1,4 cm thick in gunmetal melamine (the depth of the cabinet will increase by 1,4 cm)

Note: *

Back-lighting set including n.2 LED strip recessed on the two longer sides, n.1 60 Watt transformer and n.1 spacing panel 1,4 cm thick in gunmetal melamine (the depth of the cabinet will increase by 1,4 cm)

Voltage * For Europe the voltage is 220 V

220 V
110 V

Remote Control for Lighting System * You need 1 remote only to activate the switch on / off of the LEDs of your whole layout

no remote control
n.1 remote control +€62.91

Quantity

From €158.26

View Samples

Wishlist

Description

Plan push-pull drawers cabinet belong to Plan living collection made up of single elements you can combine together to compose your own layout. This cabinet with drawers is available in several models, according to the number of drawers composing it, and it can be chosen in a variety of widths and heights to fit every type of living room.
Plan cabinet with drawers can be wall mounted, placed directly on the floor with a set of feet or a plinth running along the whole cabinet, or it can simply be placed on top of other elements from the same collection. All drawers come with soft closing system. Structures can be made in several finishes choosing among melamine, wood veneer, open pore lacquered wood, matt or glossy lacquer in all colours from the samples.

Characteristics
storage cabinet with drawers for the living room
available in different widths, heights and two depths
customisable for finishes and colours
door with 4 different types of handles or push-pull
it can be combined with other Plan collection elements

Measurements
Width: view the available widths in the Menu
Height: cm h.16 / 32 / 48 / 64
Depth: cm d.44 / 52,4
Top Thickness: cm 1,4 thick
Feet / Plinth Height: cm h.2,5

Materials and Finishes
Structure:
- melamine
- wood veneer
- open pore lacquer
- matt / gloss lacquer

Information for your Purchase
For the total height of the cabinet please consider, if standing on the floor, the height of the feet / plinth with adjustable feet (cm 2,5).

Technical study

Technical Specifications and Equipment
Fronts: particle wood panels (class E1 - low formaldehyde emissions).
Thicknesses: door cm 2,2 / structure cm 1,8.
Big drawers: with soft closing system
Top: single integrated into the structure for each element, matching structure and fronts.
Opening type:
- handle T16: cm 19 d.3,3 h.0,8 in moka shine painted metal or matt lacquered;
- handle M: cm 10,2 d.1,4 h.0,3 in moka shine painted metal or matt lacquered;
- handle Z: cm d.1,5 h.0,7 in moka shine painted metal or matt lacquered;
- handle Pomolo: cm 4,1 d.1,6 h.4,1 in moka shine painted metal with grey belting leather knob;
- handle C15: cm d.1,7 h.1,4 in moka shine, white metal or in matt lacquer. In case of a wall-mounted cabinet with C15 handle in the lower side of the front, it is recommended to place the cabinet at a height from the floor bigger than 80 cm.
- push-pull.

Optional
full-extension: drawers with full-extension runners.
LED back lighting system: you can have the cabinet with a LED strip, in this case it is mandatory to insert between the cabinet and the wall a spacing panel, 1,4 cm thick in gunmetal melamine (the cabinet depth will increase by 1,4 cm). The spacing panel has to be fixed to the wall, while the cabinet is fixed to the panel with the included brackets. The LED strip has a warm 3000 K light and is positioned on the back along the long sides of the cabinet through a recess on the top and bottom. The transformer can be placed both in the sanitary space behind the cabinet or under the bottom.
remote control: to switch on and off the LED light, in case of layouts made up of more cabinets you will need only one remote.

Table of Watt / LED strip length correspondence

Watt	LED strip length
2,7 Watt	cm 32
4,2 Watt	cm 48
5,8 Watt	cm 64
8,8 Watt	cm 96
11,9 Watt	cm 128
13,4 Watt	cm 144
15 Watt	cm 160
18 Watt	cm 192

Maintenance Tips
The surfaces must not come into contact with water, liquids in general, excessive heat or humidity.
Cleaning should be carried out exclusively with a dam cloth and neutral detergents, and dried immediately with a soft cloth; the use of alkaline products, solvents and abrasives is not recommended. The products are not suitable for outdoor use.

Additional Information

Area of Production
Italy

Approximate Time
8-9 working weeks for production

Assembling
Medium Assembling

Assembling Instructions
Download the Assembling Instructions

Weight
from 12 to 43 Kg

Cubic Metres
from 0,6 to 1,1 m³
