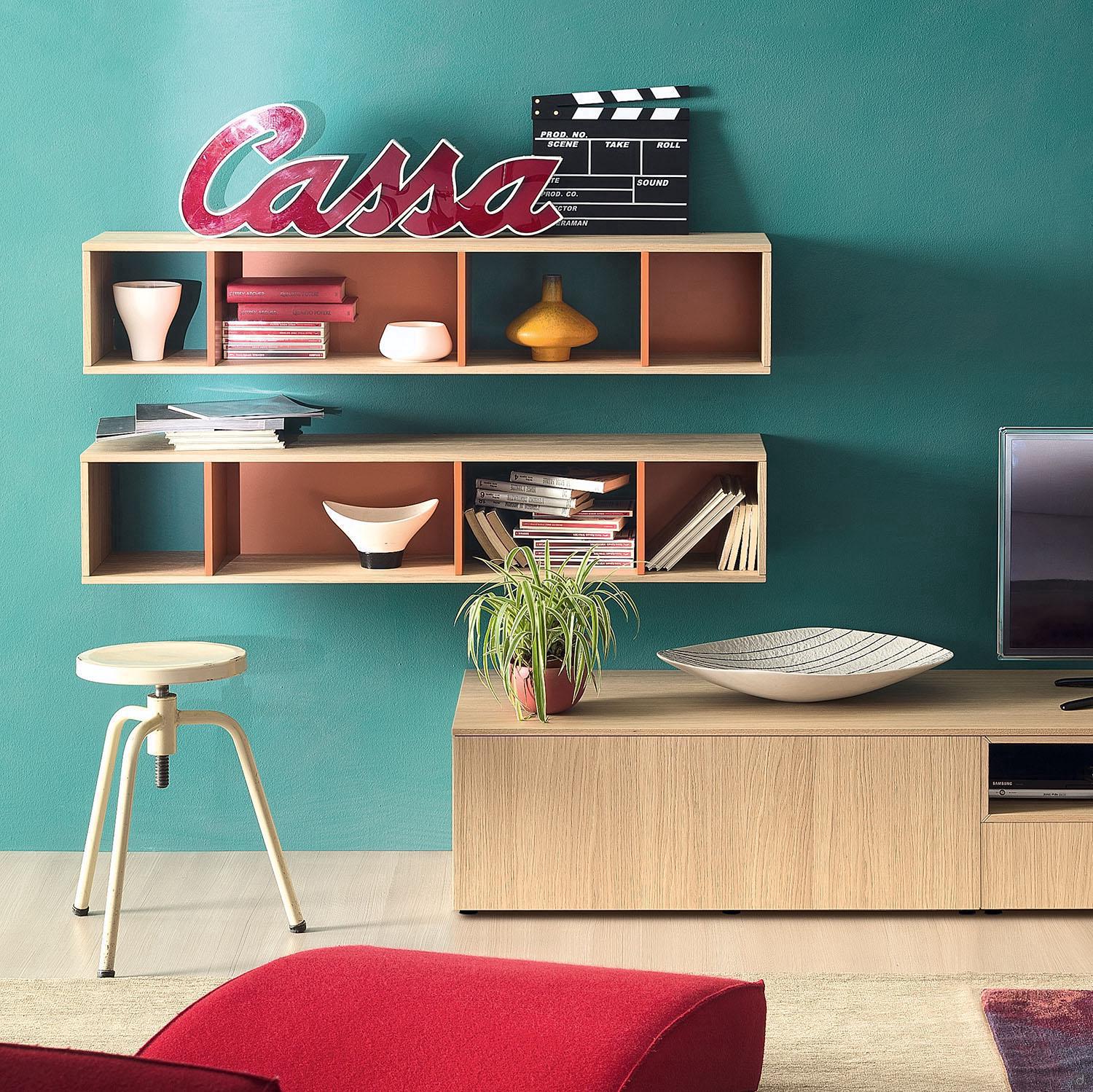

Plan living room low cabinet with doors, several finishes and colours available

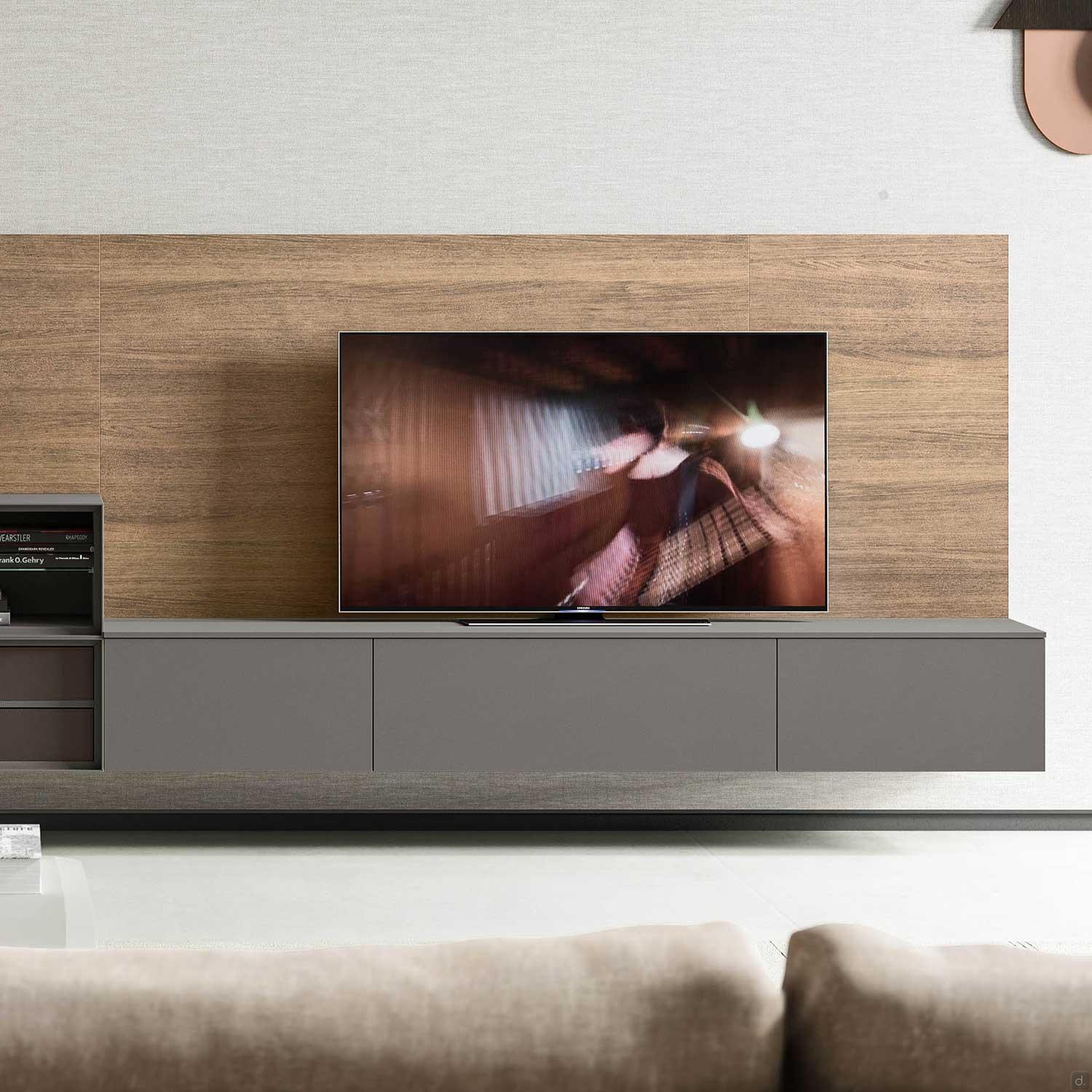

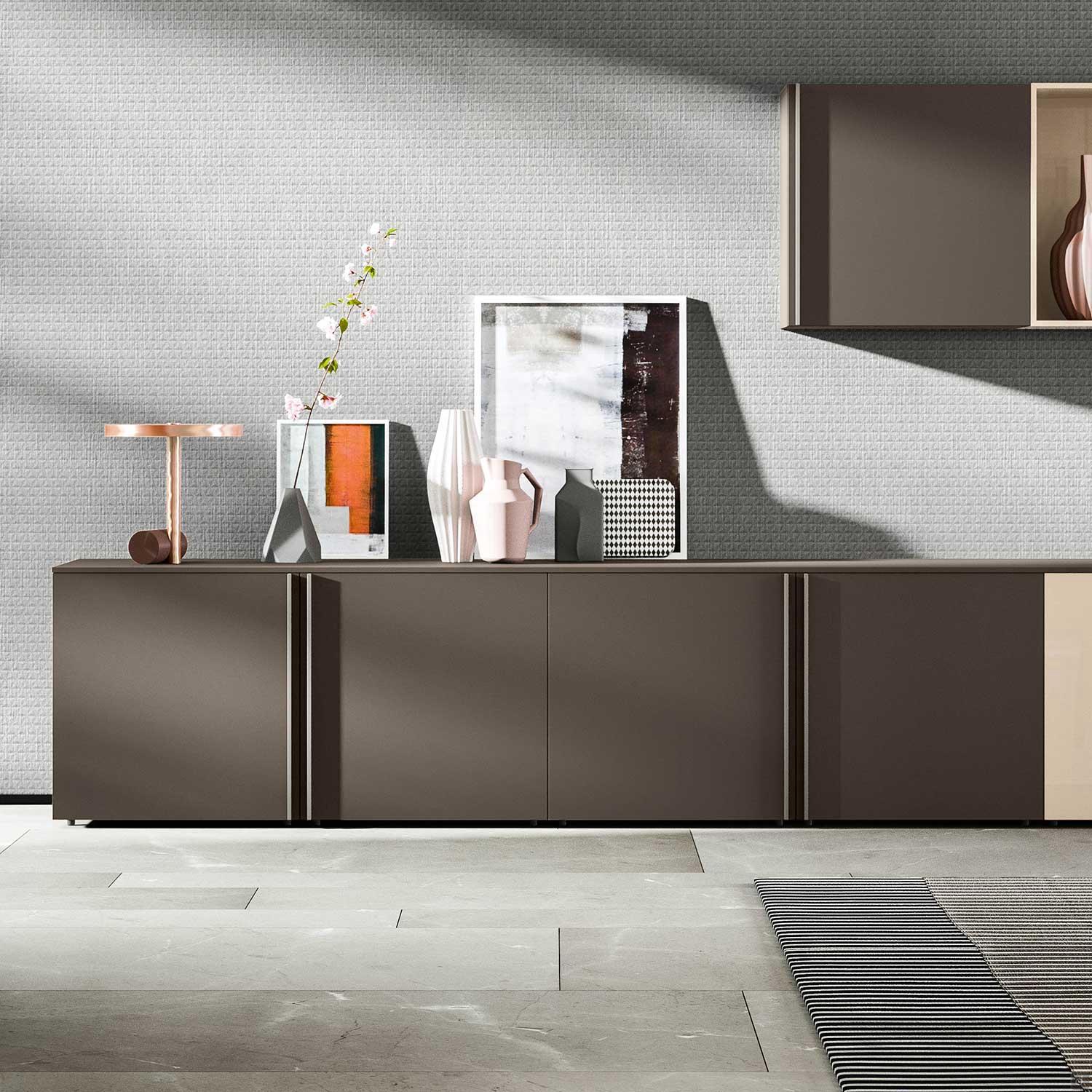

Layout composed of 2 Plan cabinets cm 128 equipped with vertical Z handle

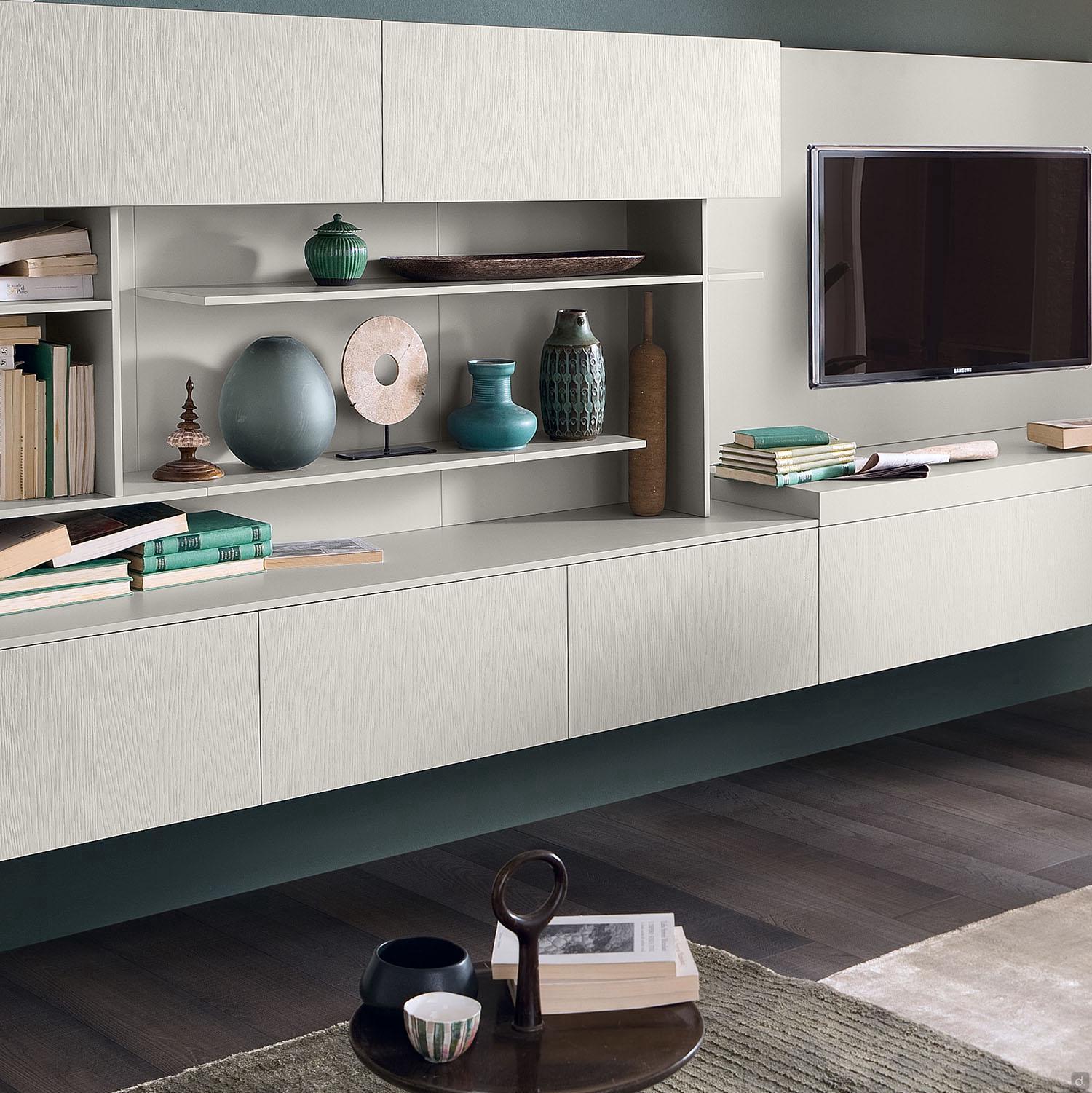

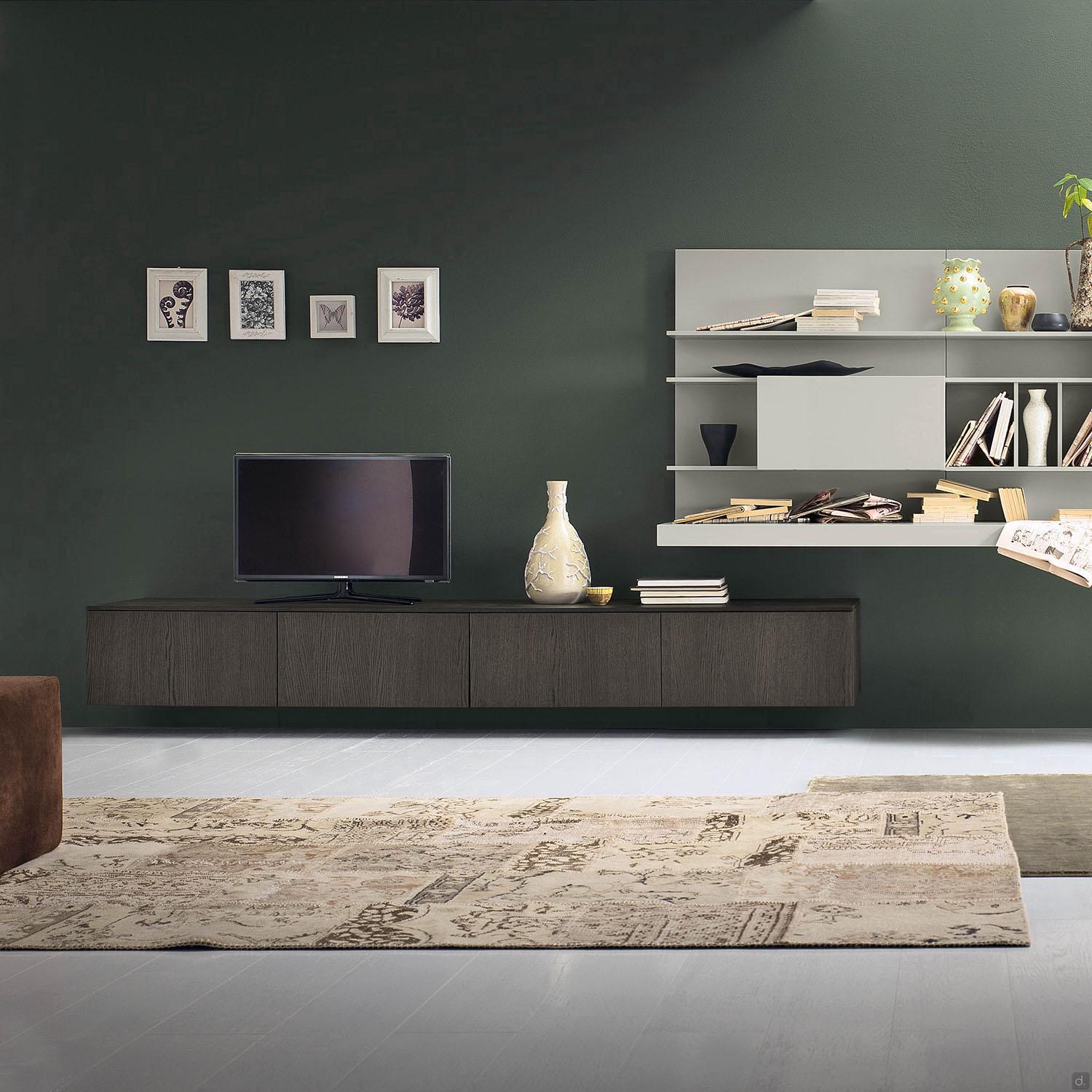

Plan wall-mounted cabinet matched with a central drop down door cabinet

Plan cabinet with hinged door in 6 different widths

Plan cabinet with hinged doors; it is equipped with 2,5 cm black adjustable feet

Plan cabinet in canvas Fashion Wood finish

Plan cabinet with 2 hinged doors and push-pull opening system

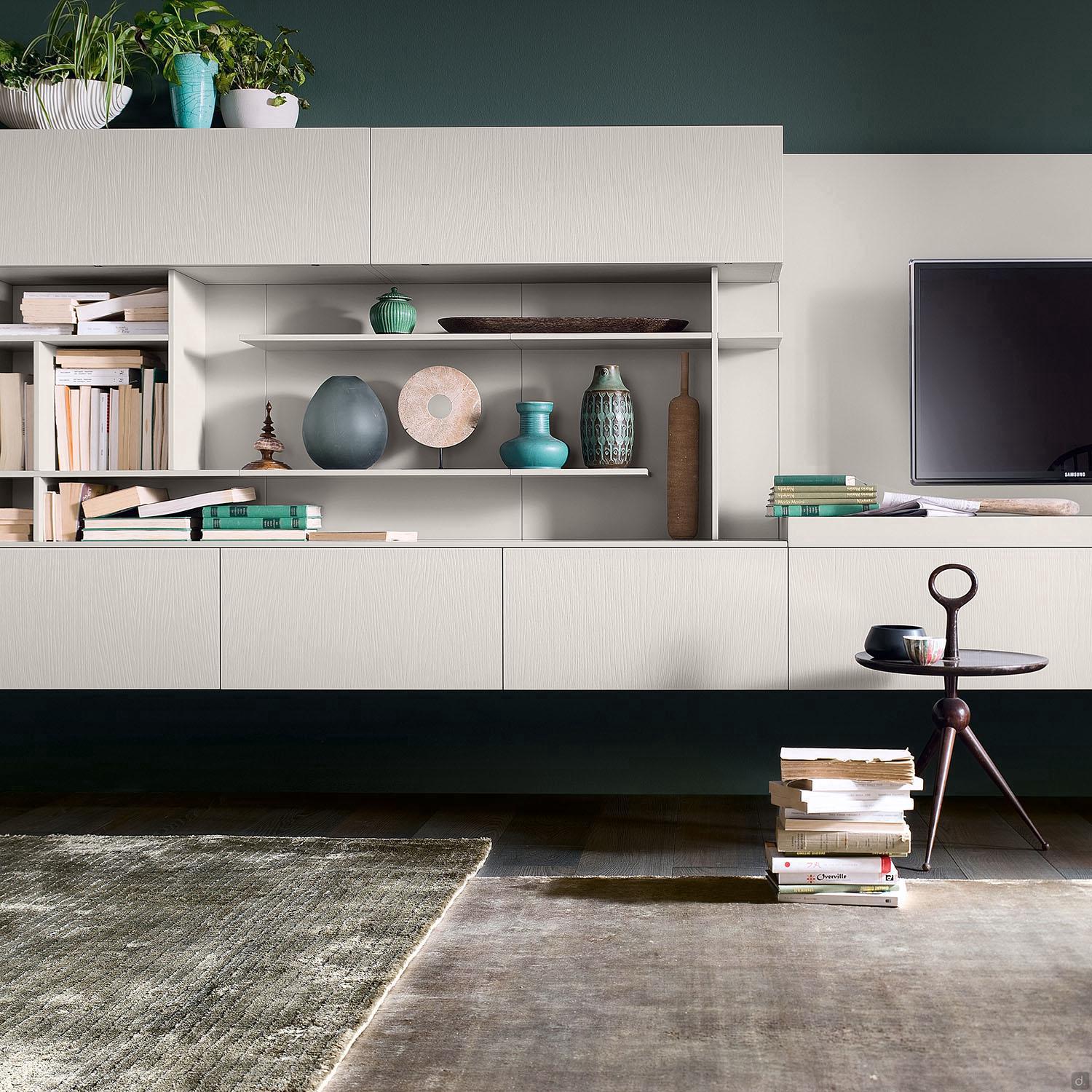

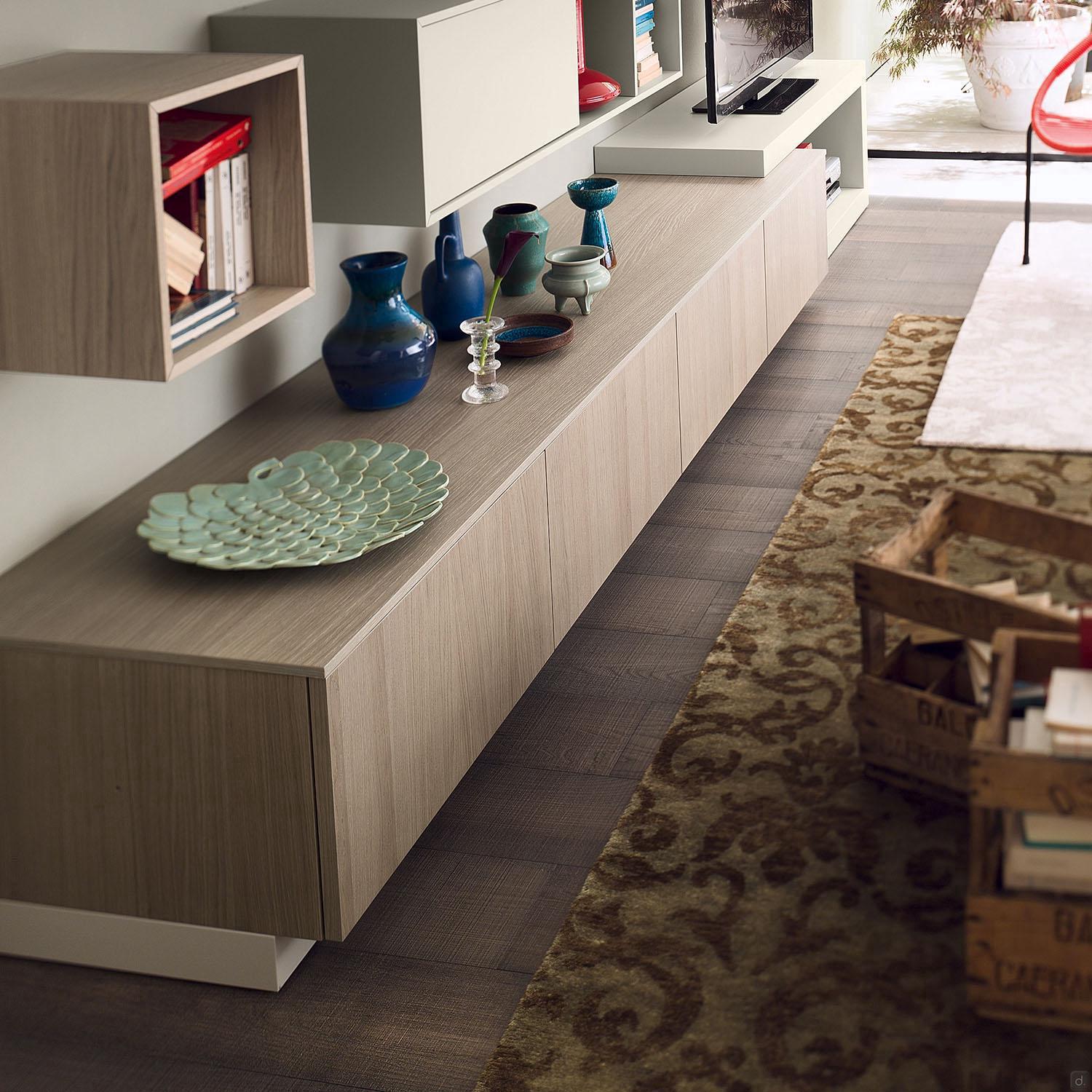

Plan cabinet with hinged door, matched with different elements from the same living room collectionenti della collezione Plan

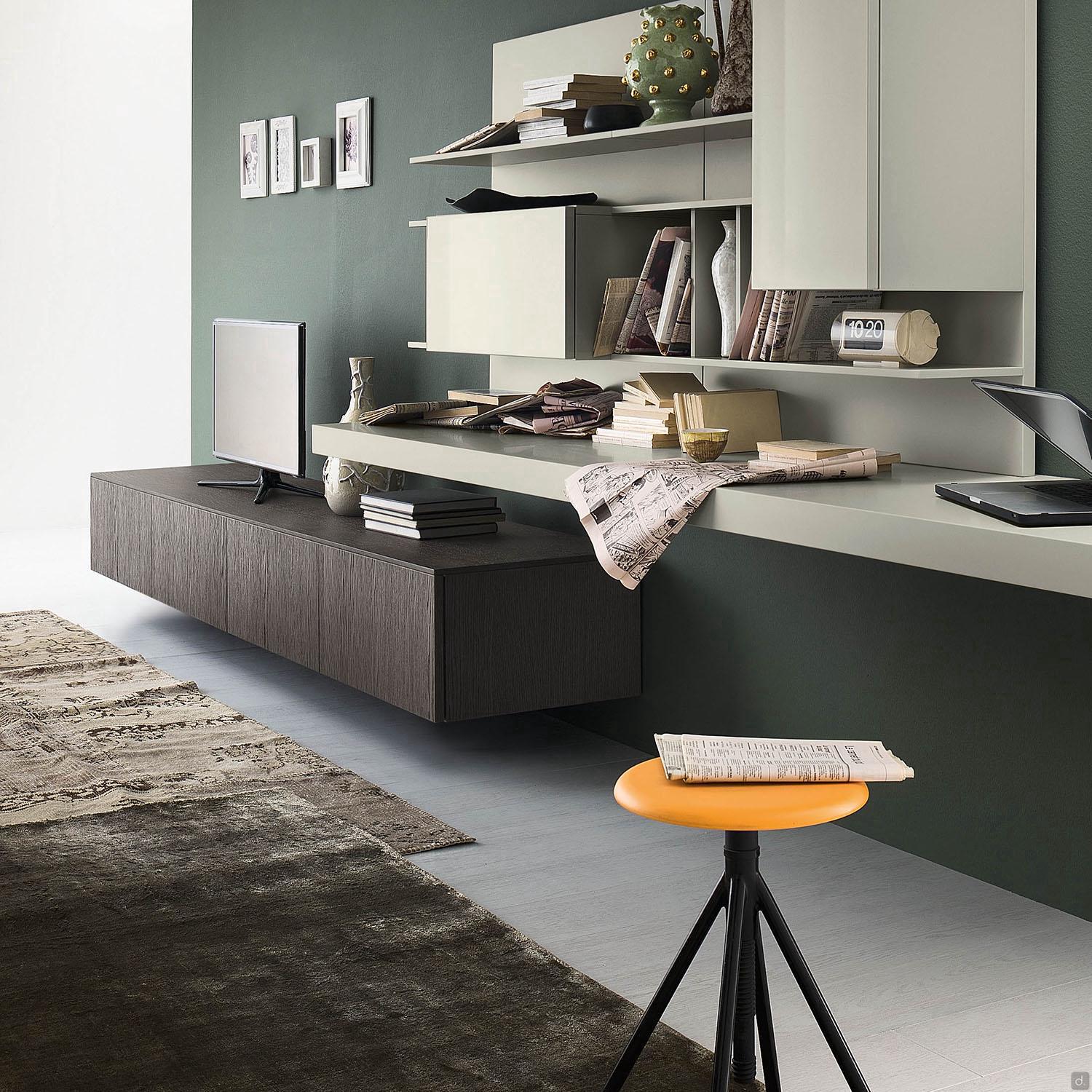

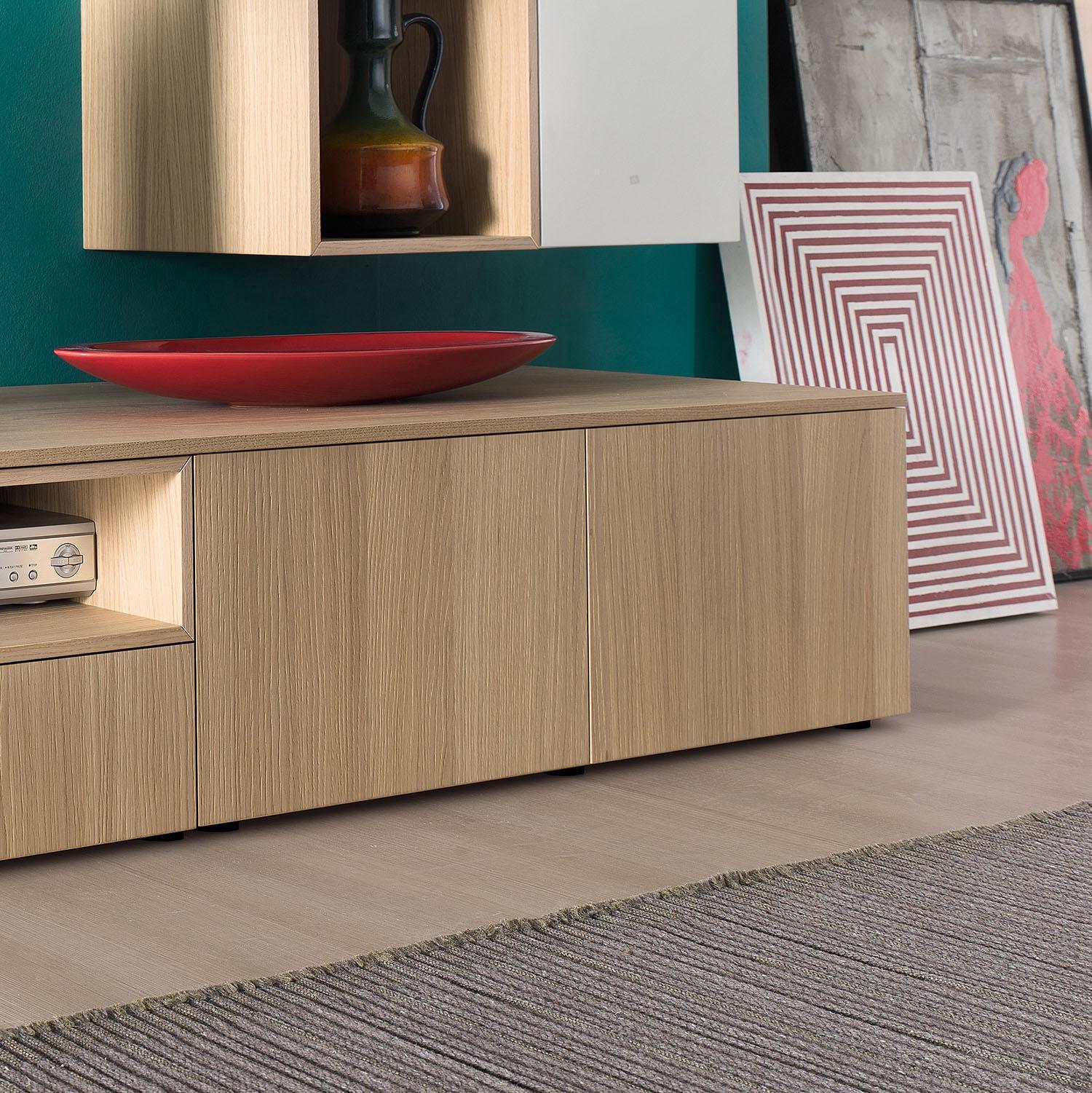

Plan cabinet with hinged door in coal Fashion Wood oak finish

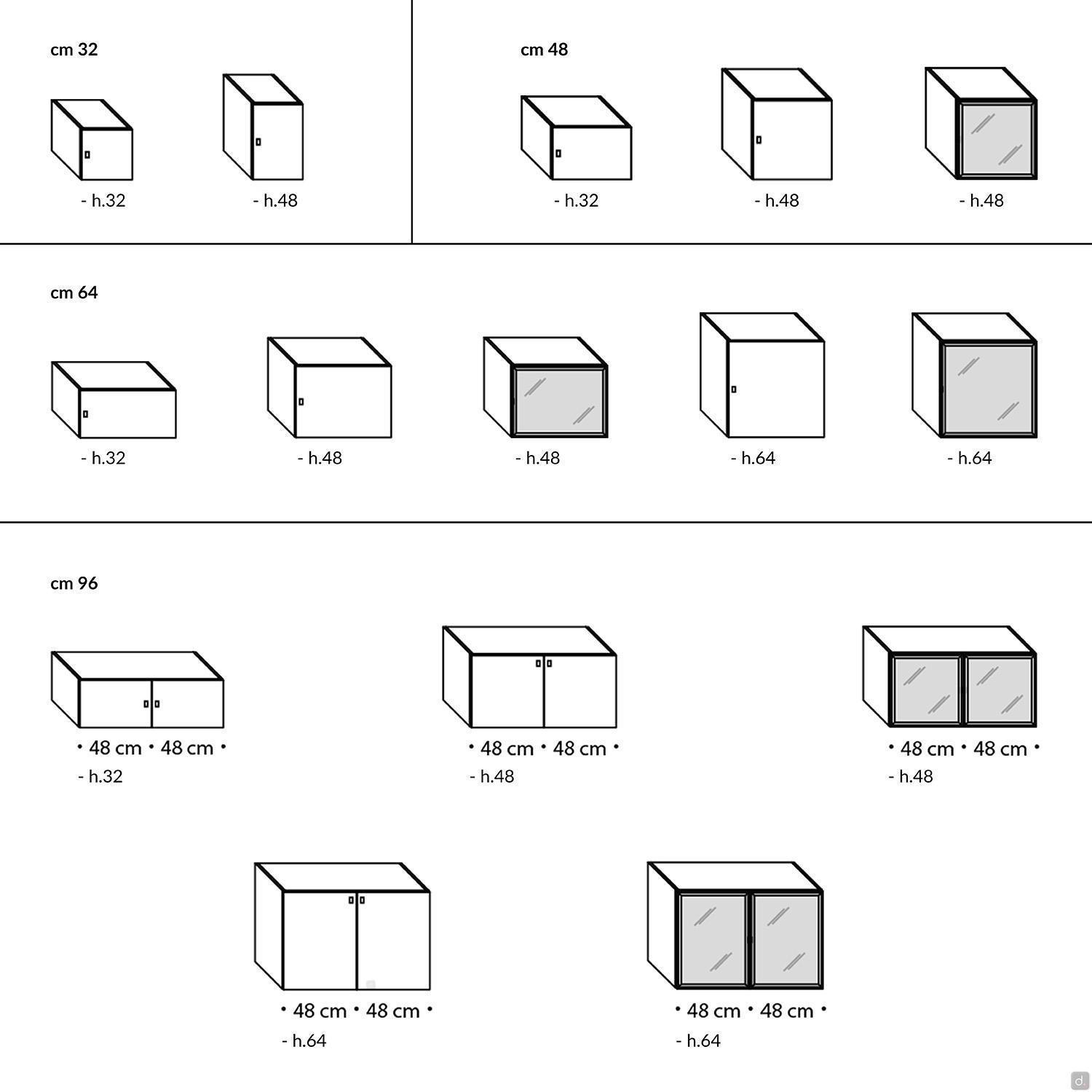

Models and Measurements of the cabinet with hinged doors (Width: cm 32 - 48 - 64 - 96)

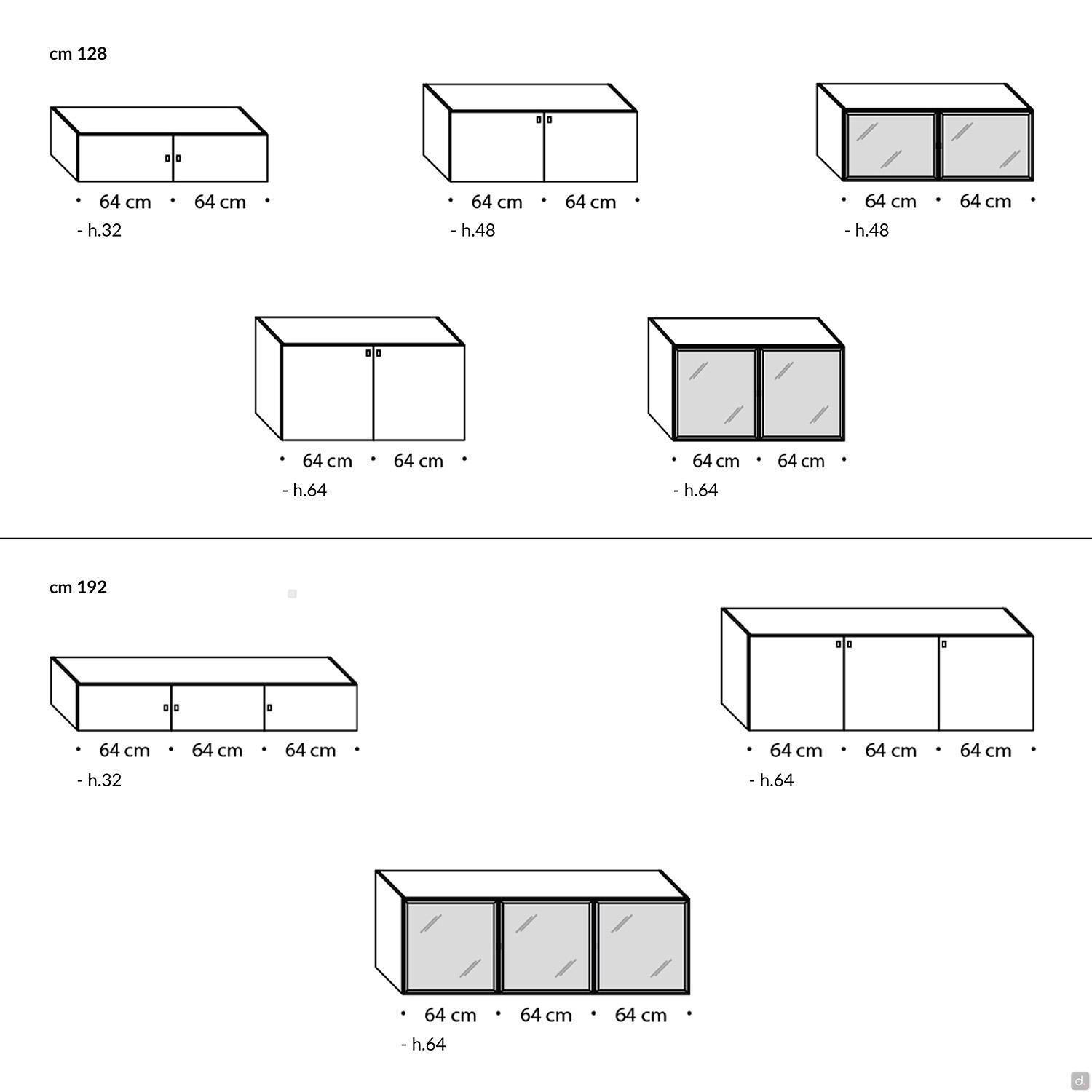

Model and Measurements of the cabinet with hinged doors (Width cm 128 - 192)

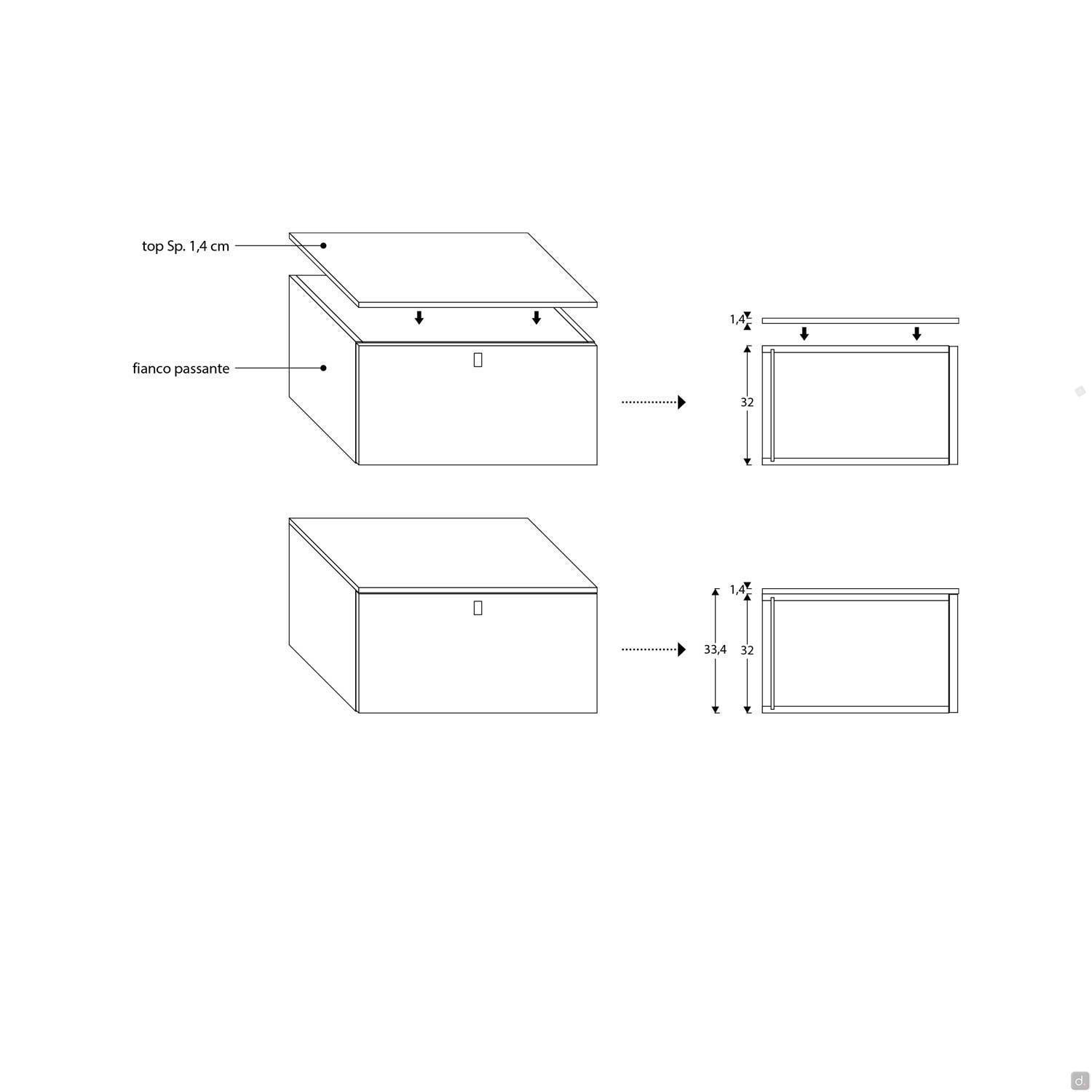

Plan cabinet - equipped with 1,4 cm thick top

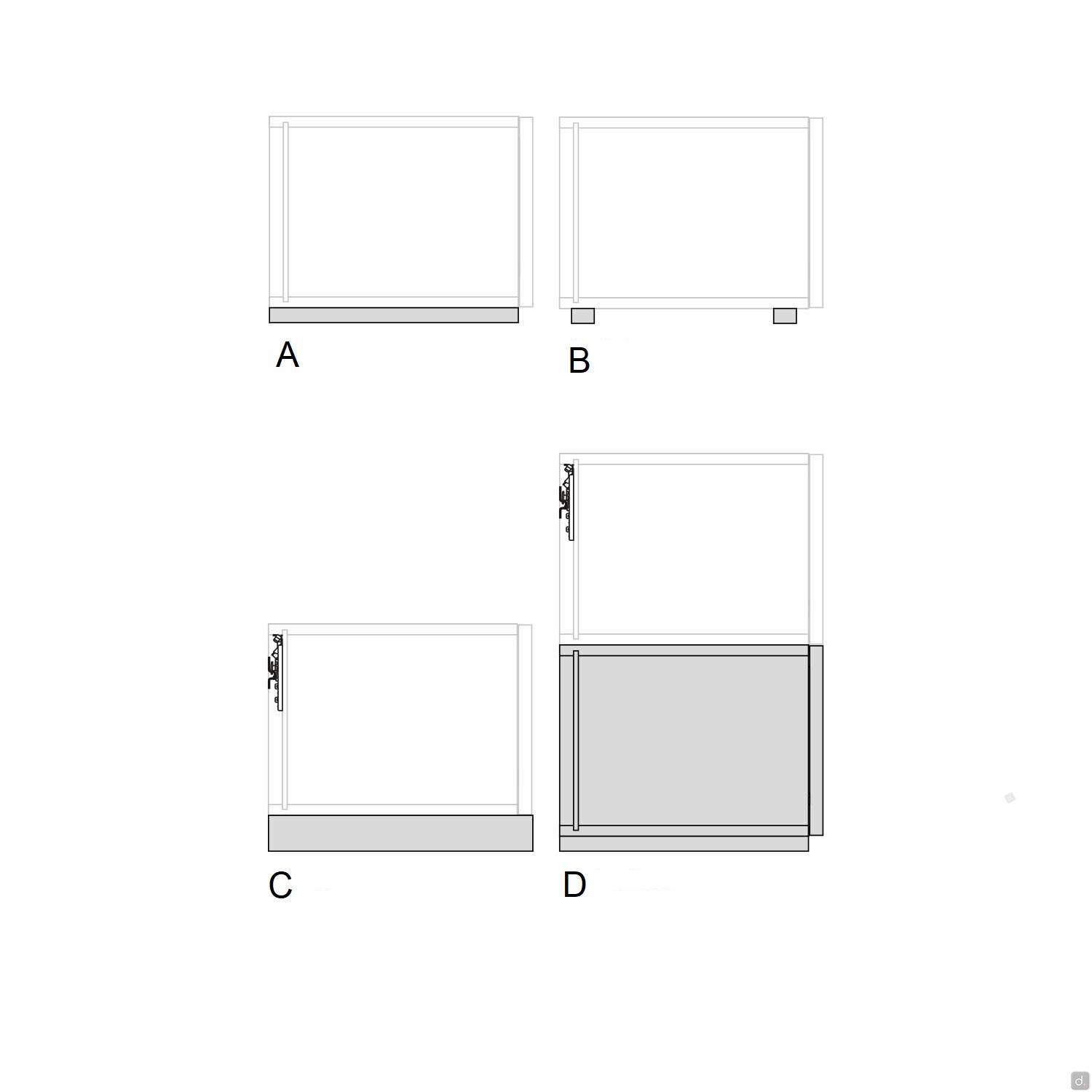

Plan cabinet - positioning: A) plinth B) feet C) bench D) storage

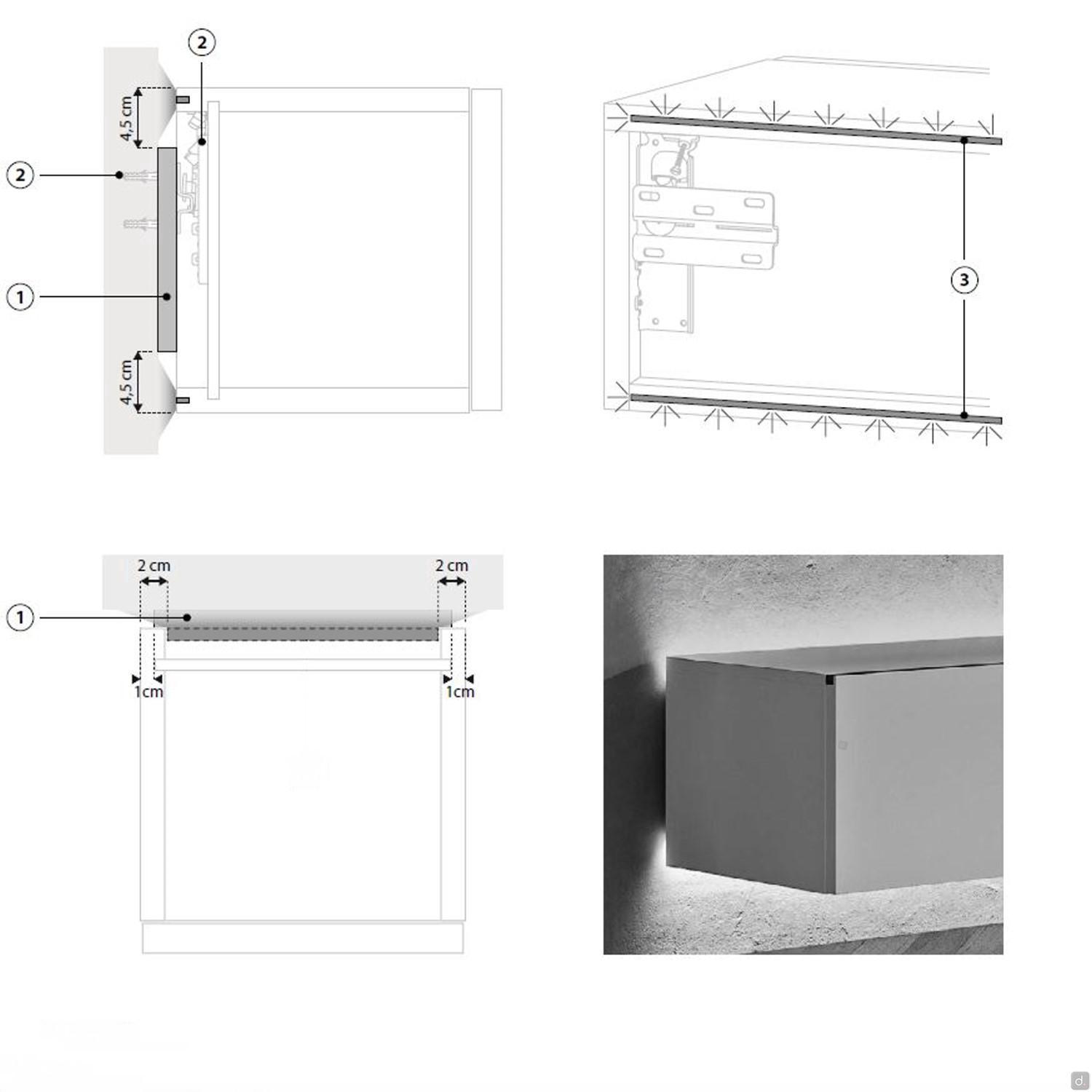

LED back lighting system: 1) gunmetal melamine panel 1,4 cm thick inserted between the cabinet and wall 2) fixing of the panel and of the cabinet to the panel 3) LED strip position

+ 15

MORE IMAGES

Plan Doors - Unique Separated Top

Plan living room low cabinet with doors to be combined with the other Plan collection elements. Suitable as a TV unit too.

* Required Fields

Width *

Height and Model * For the position of the handle please refer to the specific option.

Equipment: *

n.1 glass internal shelf

Equipment: *

n.1 internal partition
n.2 glass internal shelves

Equipment: *

n.3 glass internal shelves

Depth *

Side *

Note: *

-------- anta vetro DX
frame built-in handle placed on the side in the middle

Note: *

-------- anta vetro SX
frame built-in handle placed on the side in the middle

Note: *

-------- anta vetro DX
frame built-in handles placed on the side in the middle

Note: *

-------- anta vetro SX
frame built-in handles placed on the side in the middle

Finish *

Finish *

Finish *

Finish *

Finish *

Finish *

Structure Finish *

Door Finish *

Opening Type *

Handle Finish *

Handle Finish *

Handle Finish *

Handle Finish *

matching the fronts
VMS moka shine painted metal

Pomolo Cover *

------------ Pomolo
grey belting leather

Push-Pull Position *

H.32: on the side in the center, according to the opening side of the door
H.48 / 64: on the side to the top, according to the opening side of the door

Handle Position *

------- T16 / M / Pomolo
central top side of the front
lateral top side according to the opening side
lateral central side according to the opening side

Handle Position *

------- Z
horizontal on the top
vertical lateral according to the opening side

Handle Position *

------- C15
horizontal on the top
horizontal on the bottom

Frame and Handle Finish *

Internal Finish *

matching melamine (with taupe decor melamine back)

Internal Finish *

taupe decor melamine

Internal Finish *

Position *

Note: *

according to the proportions of the element, the opening system and the weight of what's inside, it might be advisable to fix the element to the wall to guarantee the perfect stability of it

Plinth Finish *

matching the structure

Plinth Finish *

matt lacquer matching the structure

Arrangement *

Information for your Quote *

the cabinet always come with 1,4 cm top to be added to the cabinet height

Information for your Purchase *

unique top and plinth (available up to a max. width of cm 320)
1,4 cm top to be added to the cabinet height

Information for your Purchase *

unique top and plinth (available up to a max. width of cm 320)
1,4 cm top to be added to the cabinet height

Top Cable Hole Position *

Note: *

The Cable Management Set includes one rectangular cm 18 x 5 aluminium cable hole with lid on the top, placed in the middle and close to the wall and one cable hole on the Back (black PVC Ø 6 cm in the middle of the compartment)

Note: *

The Cable Management Set on the left includes one rectangular cm 18 x 5 aluminium cable hole with lid on the top, placed in the middle and close to the wall and one cable hole on the Back (black PVC Ø 6 cm in the middle of the compartment)

Note: *

The Cable Management Set on the right includes one rectangular cm 18 x 5 aluminium cable hole with lid on the top, placed in the middle and close to the wall and one cable hole on the Back (black PVC Ø 6 cm in the middle of the compartment)

Note: *

The Cable Management Set includes a rectangular cable hole placed on top of the internal partition and two round cm Ø 6 cable holes placed in the middle of each compartment.

Note: *

The Cable Management Set includes a rectangular cable hole placed on top of the left internal partition and two round cm Ø 6 cable holes placed in the middle of the left and central compartment

Note: *

The Cable Management Set includes a rectangular cable hole placed on top of the right internal partition and two round cm Ø 6 cable holes placed in the middle of the right and central compartment.

Note: *

Back-lighting set including n.2 LED strip built-in the two longer sides, n.1 15 watt transformer and n.1 spacing panel 1,4 cm thick in gunmetal melamine (the cabinet depth will increase by 1,4 cm)

Note: *

Back-lighting set including n.2 LED strip built-in the two longer sides, n.1 30 watt transformer and n.1 spacing panel 1,4 cm thick in gunmetal melamine (the cabinet depth will increase by 1,4 cm)

Note: *

Back-lighting set including n.2 LED strip built-in the two longer sides, n.1 60 watt transformer and n.1 spacing panel 1,4 cm thick in gunmetal melamine (the cabinet depth will increase by 1,4 cm)

Voltage * For Europe the voltage is 220 V

220 V
110 V

Remote Control for Backlighting system * You need 1 remote only to activate the switch on / off of the LEDs of your whole layout.

no remote control
n.1 remote control +€61.38

Quantity

From €171.66

View Samples

Wishlist

Description

Plan living room low cabinet with hinged doors, for customised wall systems. This low cabinet can be combined with the other elements from the same collection and it can be chosen for a position on the floor with feet or plinth, for a position on top of other elements or wall mounted.
The range of the possible finishes and colours is huge so as to match it with every style of furniture and environment colours; Plan low cabinet can also turn into a convenient TV unit, in this case we recommend the purchase of the optional set of cable management.

Characteristics
fully customisable, also available with glass door
4 different types of handles available or push-pull opening
clear glass door, grey or gloss lacquered, with no soft closing system
single matching top with a thickness of 1,4 cm
ideal to create modern living room wall systems

Measurements
Width: view the available widths in the Menu
Height: cm h.32 / 48 / 64
Depth: cm d.44 / 52,4
Top Thickness: cm 1,4
Feet / Plinth Height: cm h.2,5

Materials and Finishes
Structure:
- melamine
- wood veneer
- open pore lacquer
- matt / gloss lacquer
Doors:
- melamine
- wood veneer
- open pore lacquer
- matt / gloss lacquer
- tempered glass (with painted aluminium frame)

Technical study

Technical Specifications and Equipment
Fronts: particle wood panels (class E1 - low formaldheyde emissions) or in tempered glass with aluminium frame.

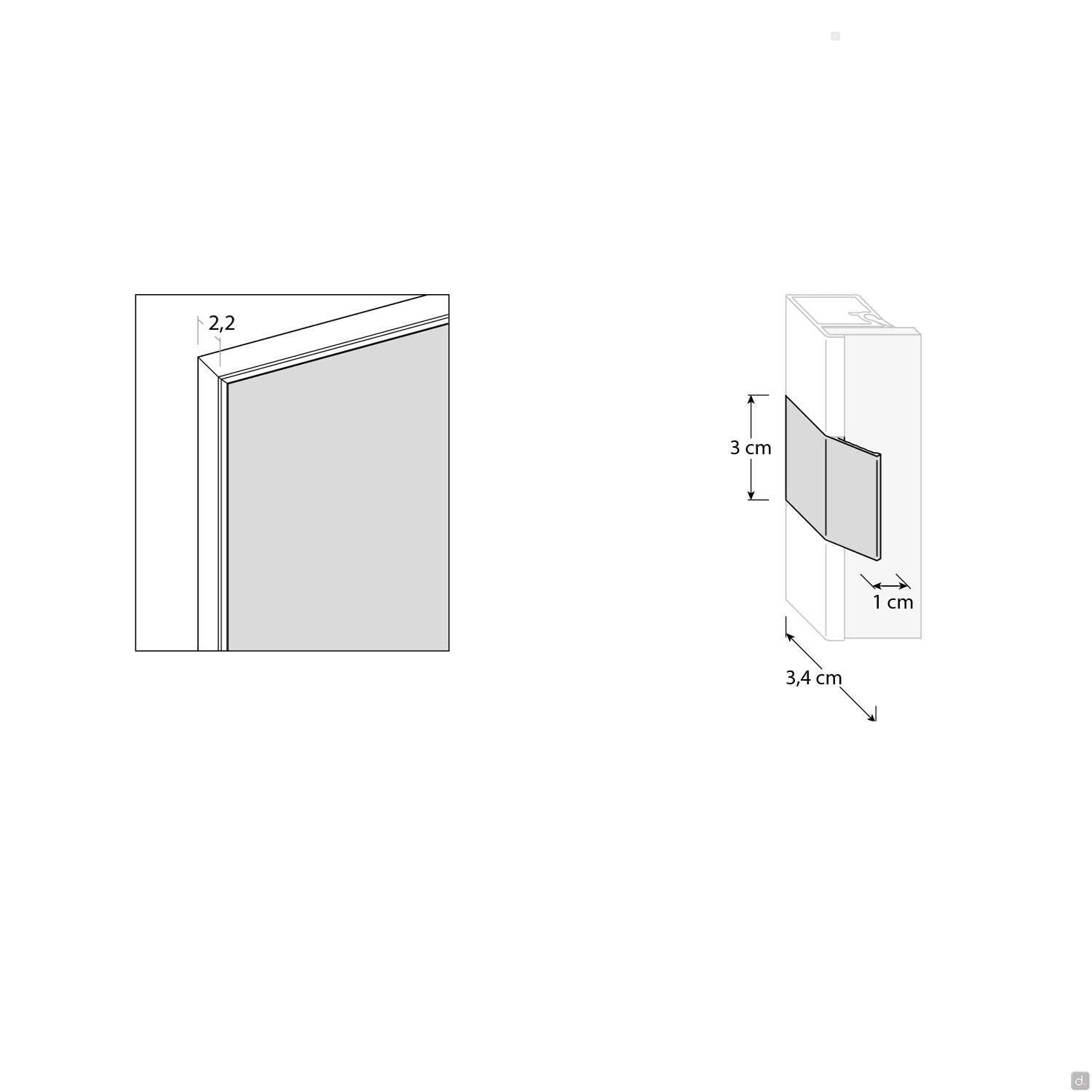

Thicknesses: door cm 2,2 / structure cm 1,8.
Top:unique separated top standing on the cabinets with the width of the whole layout, cm. d.44,3 / 52,7 th.1,4 to add to the height of the cabinet(s), matching the structure and fronts. The top protrudes by 0,3 cm in depth for all the compositions.
Opening type:
- handle T16: cm 19 d.3,3 h.0,8 in moka shine or white painted metal or matt lacquered;
- handle M: cm 10,2 d.1,4 h.0,3 in moka shine or white painted metal, white or matt lacquered;
- handle Z: cm d.1,5 h.0,7 in moka shine, white or white painted metal or matt lacquer;
- handle Pomolo: cm 4,1 d.1,6 h.4,1 in moka shine painted metal with grey belting leather knob;
- push-pull.

Optional
cable hole set: it includes n.1 rectangular cable hole on te top measuring cm 18 x 5 in aluminium with lid, and n.1 round cable hole on the Back cm Ø 6 cm in black PVC. For models with 2 compartments (with cable hole placed above the internal partition) and 3 compartments there will be 2 round cable holes.
LED back lighting system: you can have the cabinet with a LED strip, in this case it is mandatory to insert between the cabinet and the wall a spacing panel, 1,4 cm thick in gunmetal melamine (the cabinet depth will increase by 1,4 cm). The spacing panel has to be fixed to the wall, while the cabinet is fixed to the panel with the included brackets. The LED strip has a warm 3000 K light and is positioned on the back along the long sides of the cabinet through a recess on the top and bottom. The transformer can be placed both in the sanitary space behind the cabinet or under the bottom.
remote control: to switch on and off the LED light, in case of layouts made up of more cabinets you will need only one remote.

Table of Watt / LED strip length correspondence

Watt	LED strip length
2,7 Watt	cm 32
4,2 Watt	cm 48
5,8 Watt	cm 64
8,8 Watt	cm 96
11,9 Watt	cm 128
13,4 Watt	cm 144
15 Watt	cm 160
18 Watt	cm 192

Maintenance Tips
The surfaces must not come into contact with water, liquids in general, excessive heat or humidity.
Cleaning should be carried out exclusively with a dam cloth and neutral detergents, and dried immediately with a soft cloth; the use of alkaline products, solvents and abrasives is not recommended. The products are not suitable for outdoor use.

Additional Information

Area of Production
Italy

Approximate Time
8-9 working weeks for production

Assembling
Medium Assembling

Assembling Instructions
Download Assembly Instructions

Weight
from 9 to 84 Kg

Cubic Metres
from 0,73 to 0,84 m³
