Technical Specifications and Equipment
Structure: made of Tammel (honeycomb coreboard +
melamine). The honeycomb core is a carefully selected solid fir frame
and the honeycomb is clad with MDF panels. It guarantees long-lasting
non-deformability, lightness, practicality and meets all the
requirements of European Class 1 standards with regard to limiting
harmful formaldehyde emissions and complies with CARB2 standards.
Sides and Backrests: made of wood particle
board panels (class E1 low formaldehyde emission), meets CARB2
standards. Sides 2.5 cm thickness / backs 0.8 cm thickness.
Bases and Tops: honeycomb sandwich panels 3.2 cm and 2.5 cm thick respectively.
Door height from floor: 1.1 cm h.
Lacquered / wooden doors:: 2.4 cm thick
honeycomb sandwich panels with solid fir frame, lacquered or wooden. The
fronts can be smooth or customised (only in matte lacquered or
open-pore oak finish):

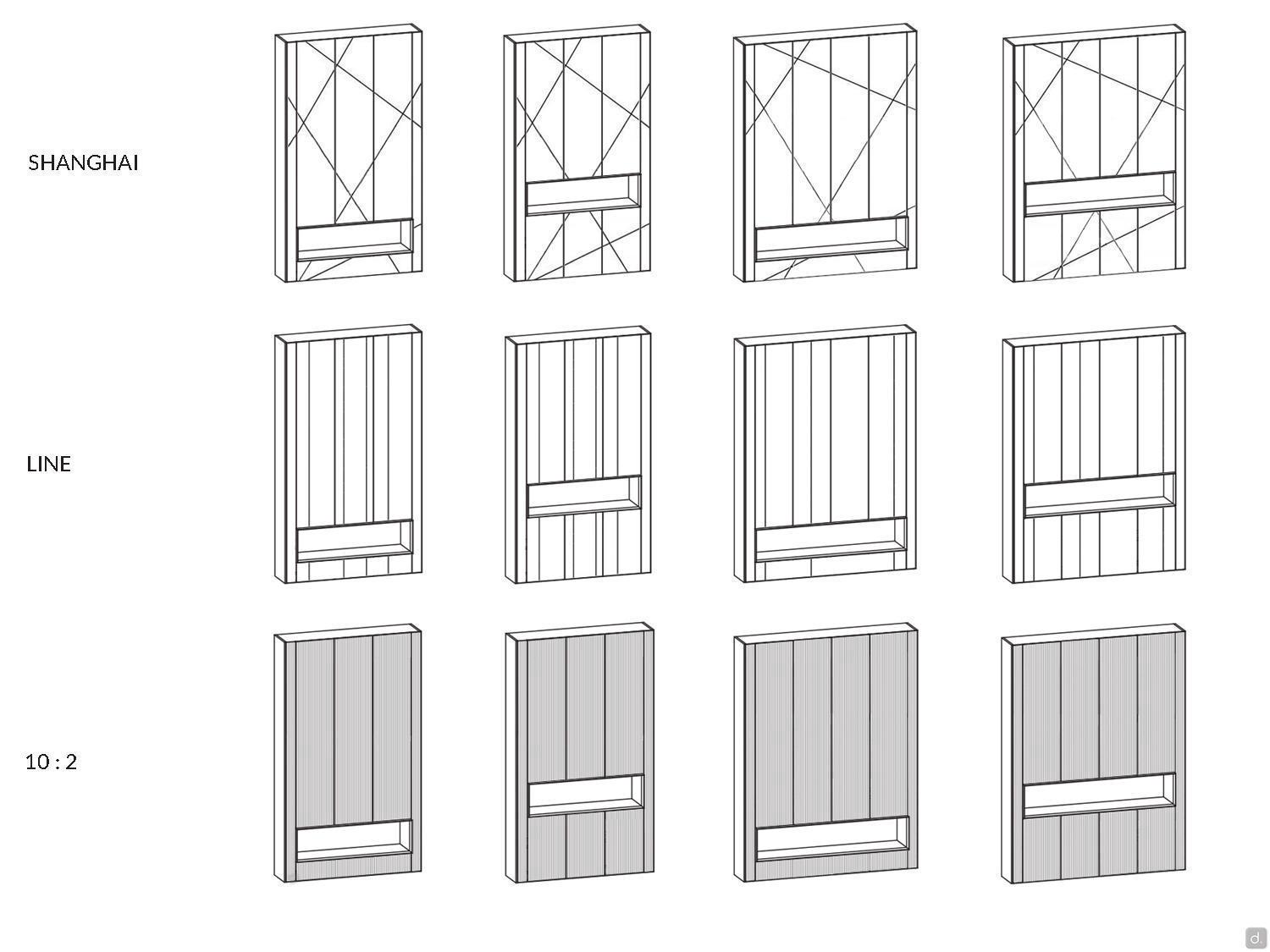

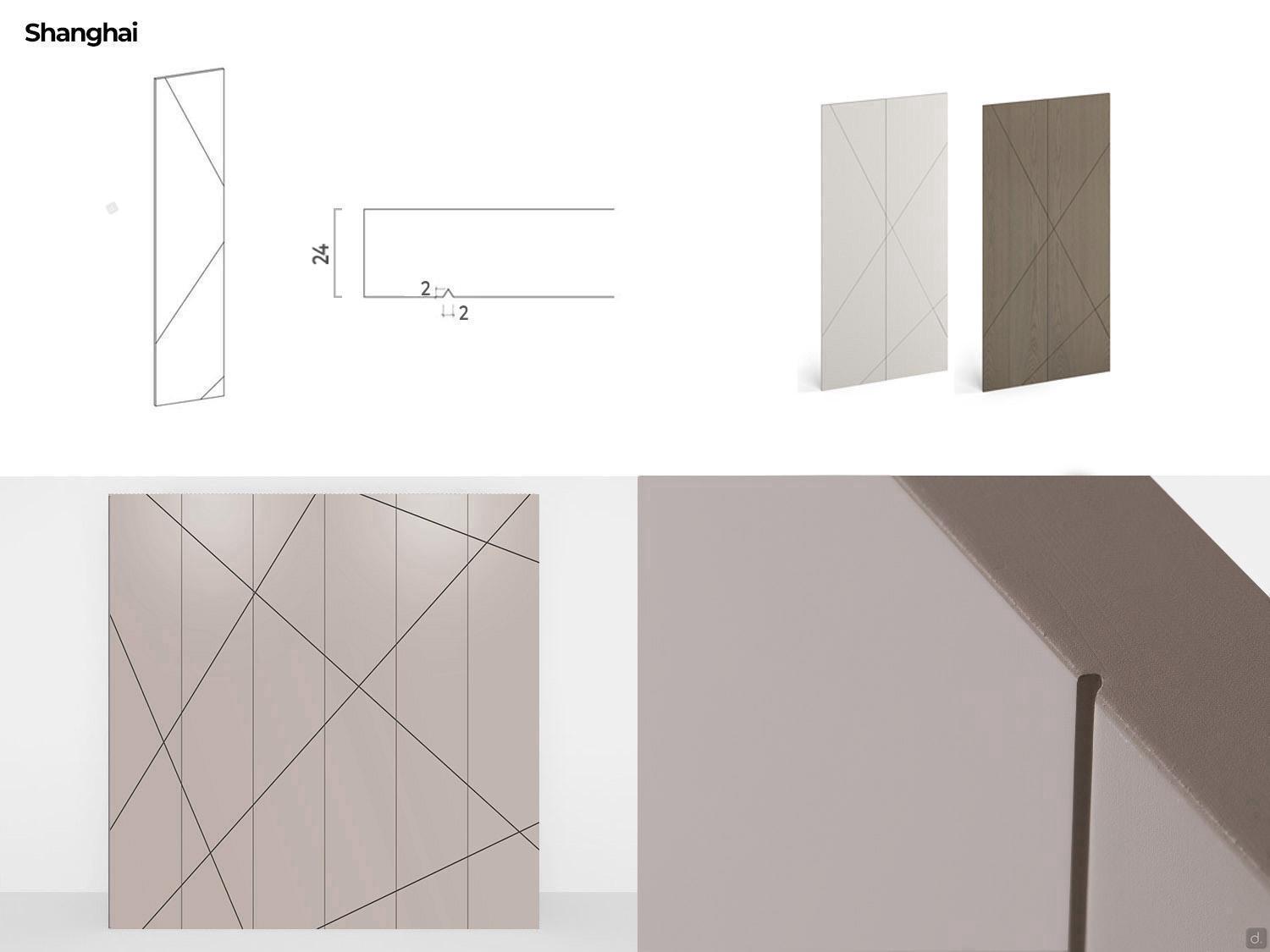

- Shanghai (only in matte lacquered finish): 0.2 cm thickness diagonal 'V' engravings.

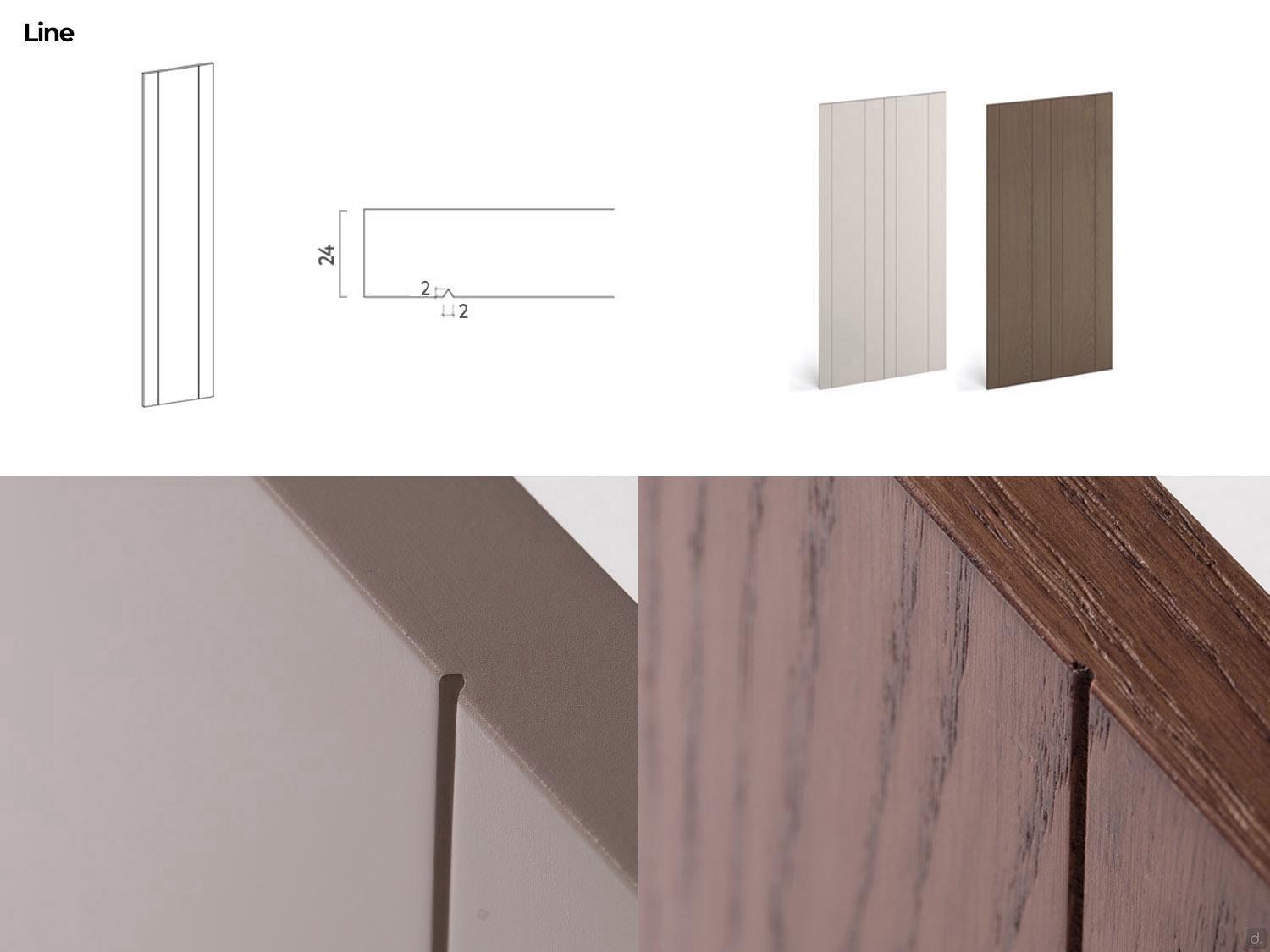

- Line (only in matte lacquered finish): vertical 'V' engravings 0.2 cm thickness.
-

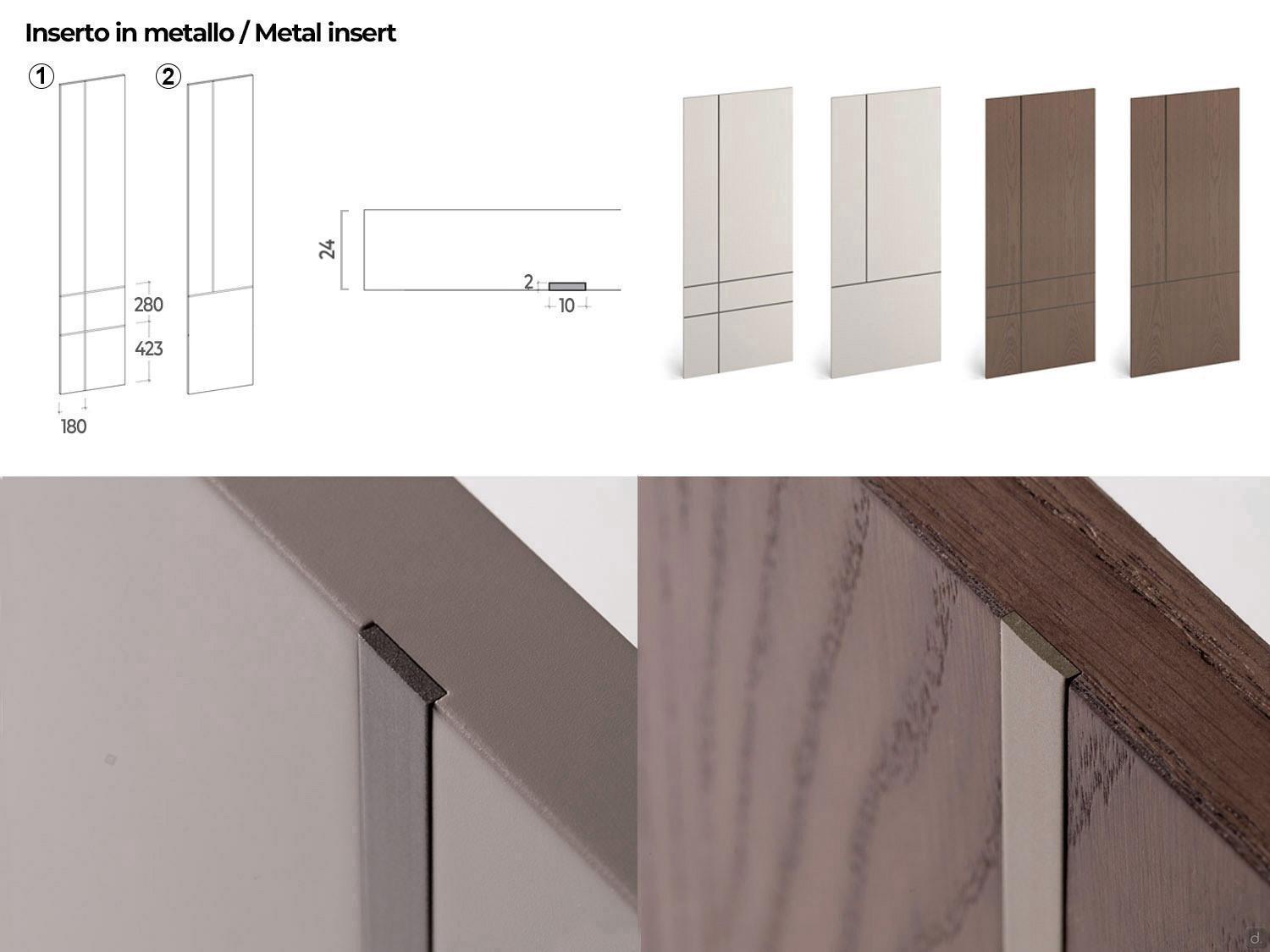

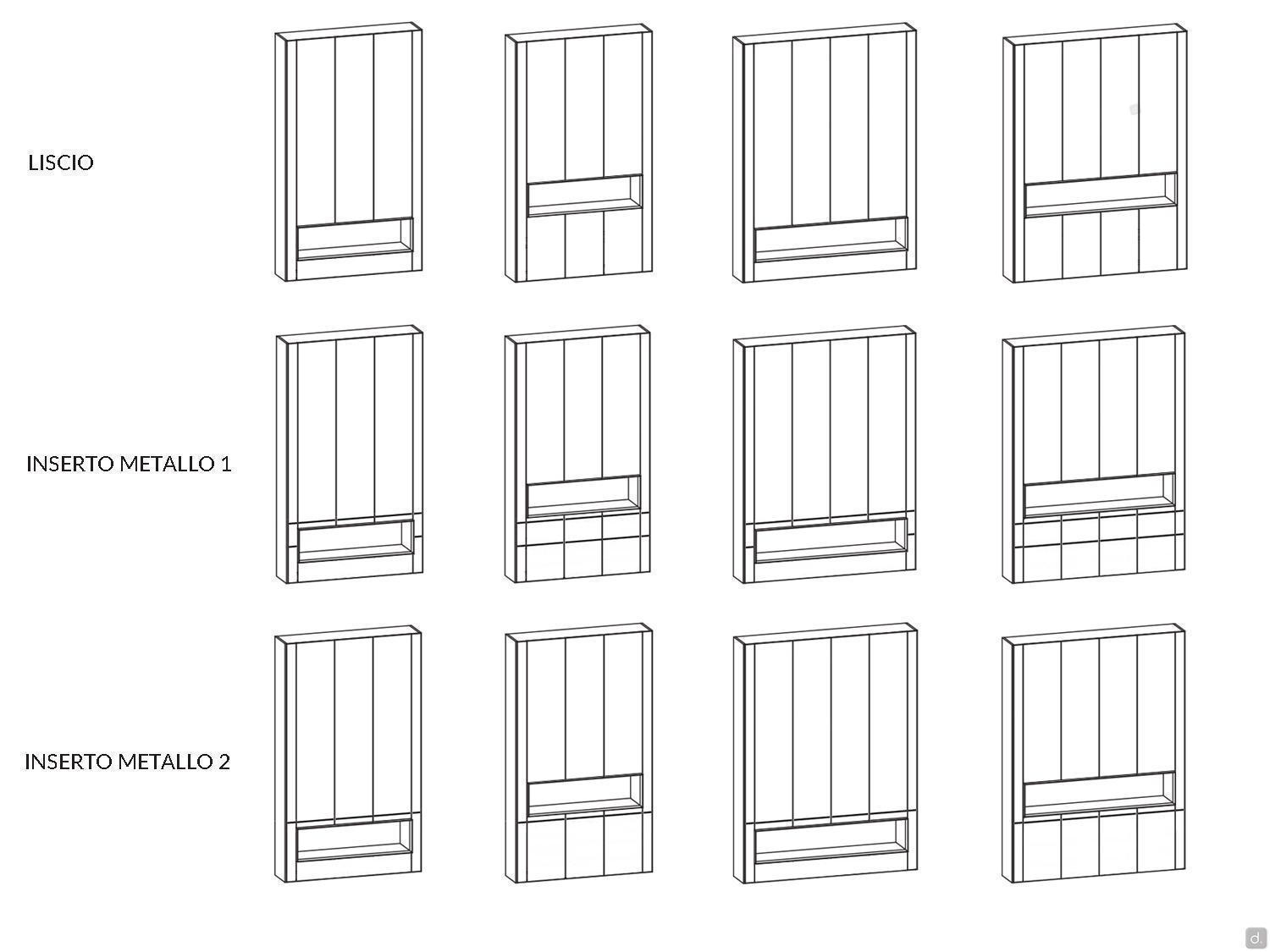

with metal insert: 1 cm 0,2 thickness in "version 1" with n.2
horizontal + n.1 vertical or in "version 2" with n.1 horizontal + n.1
vertical.

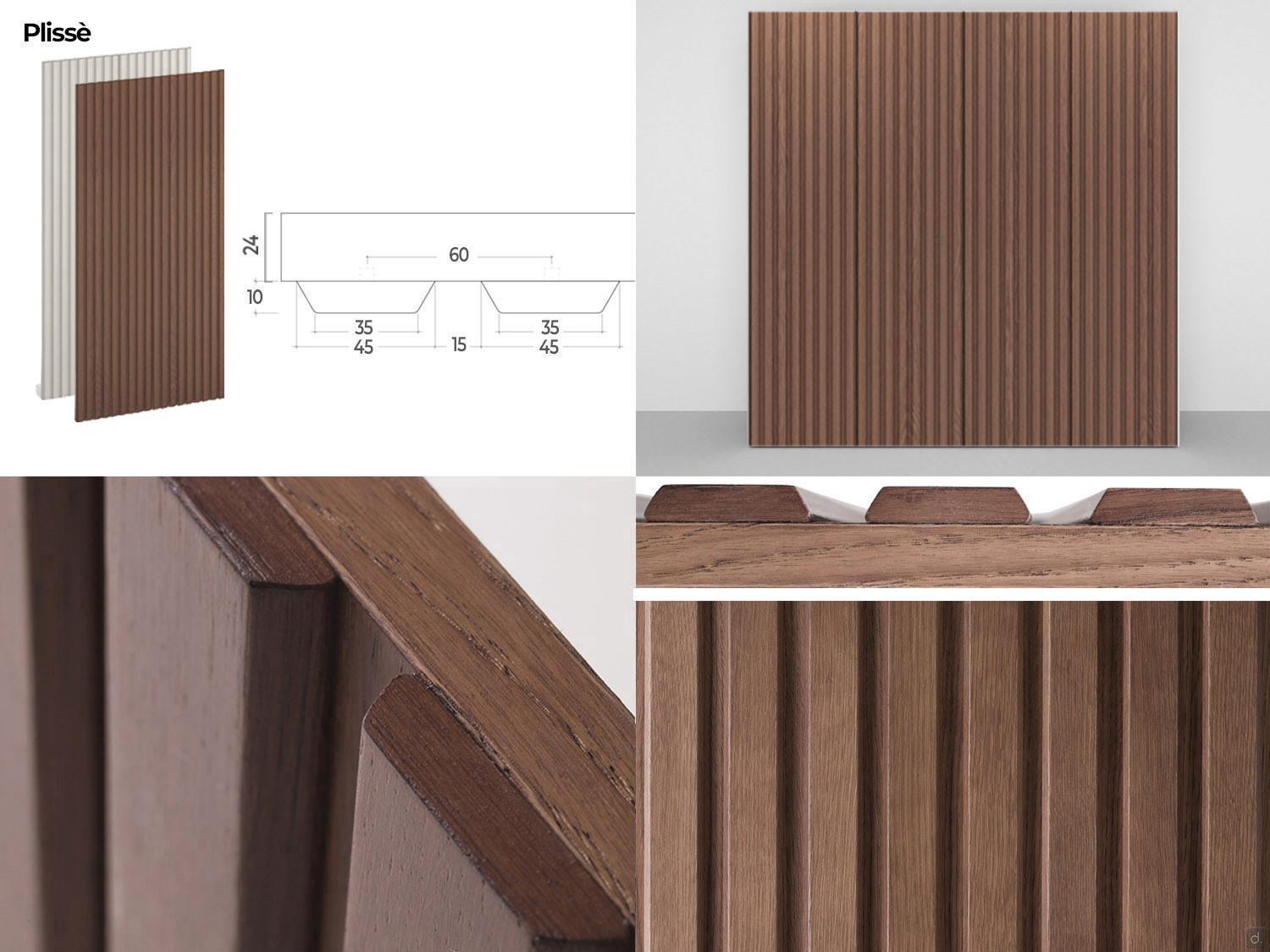

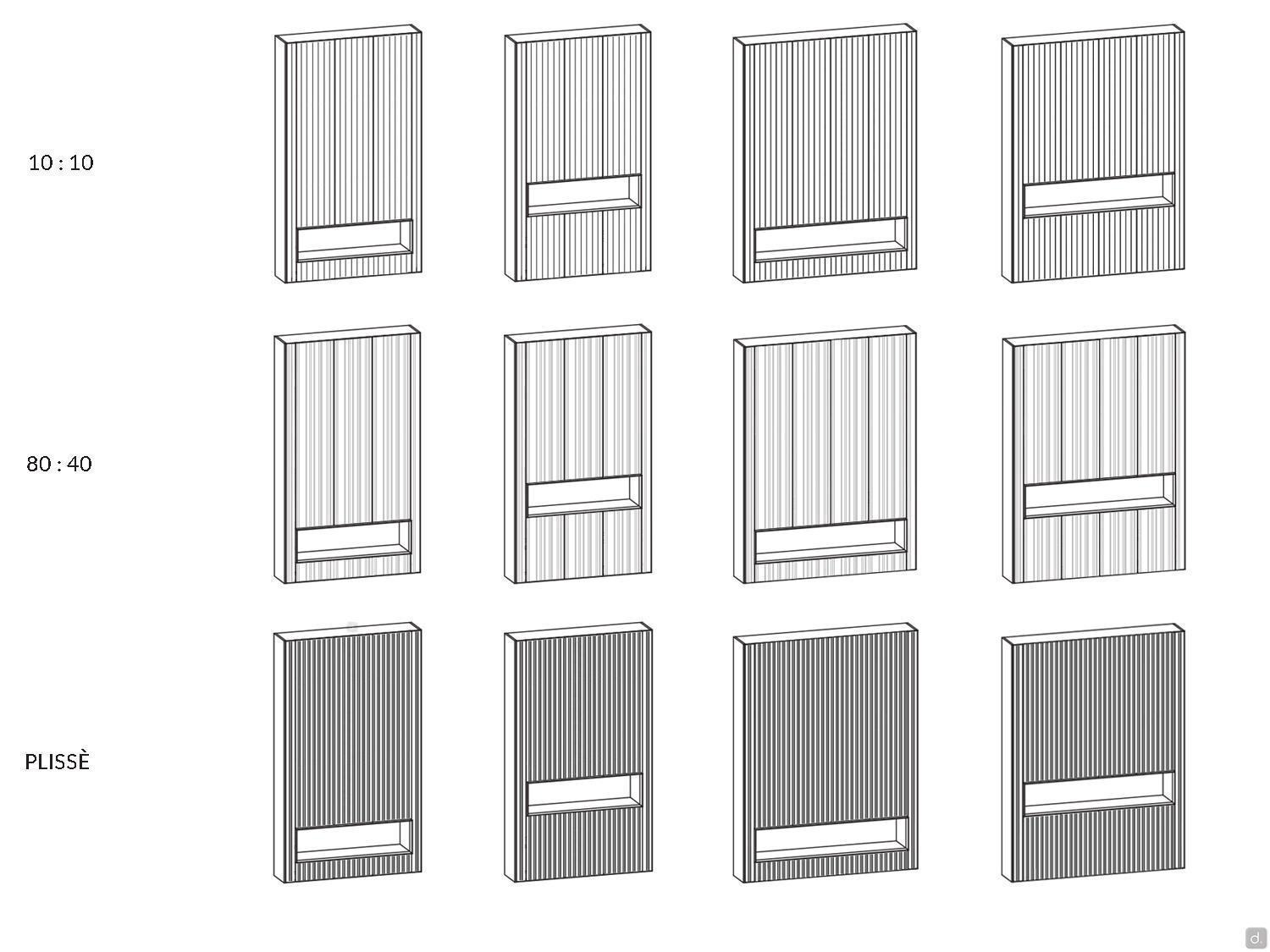

- Plissè: grooves in lacquered solid wood or oak veneer with 30° processing: 4,5 cm 1 thickness 1.

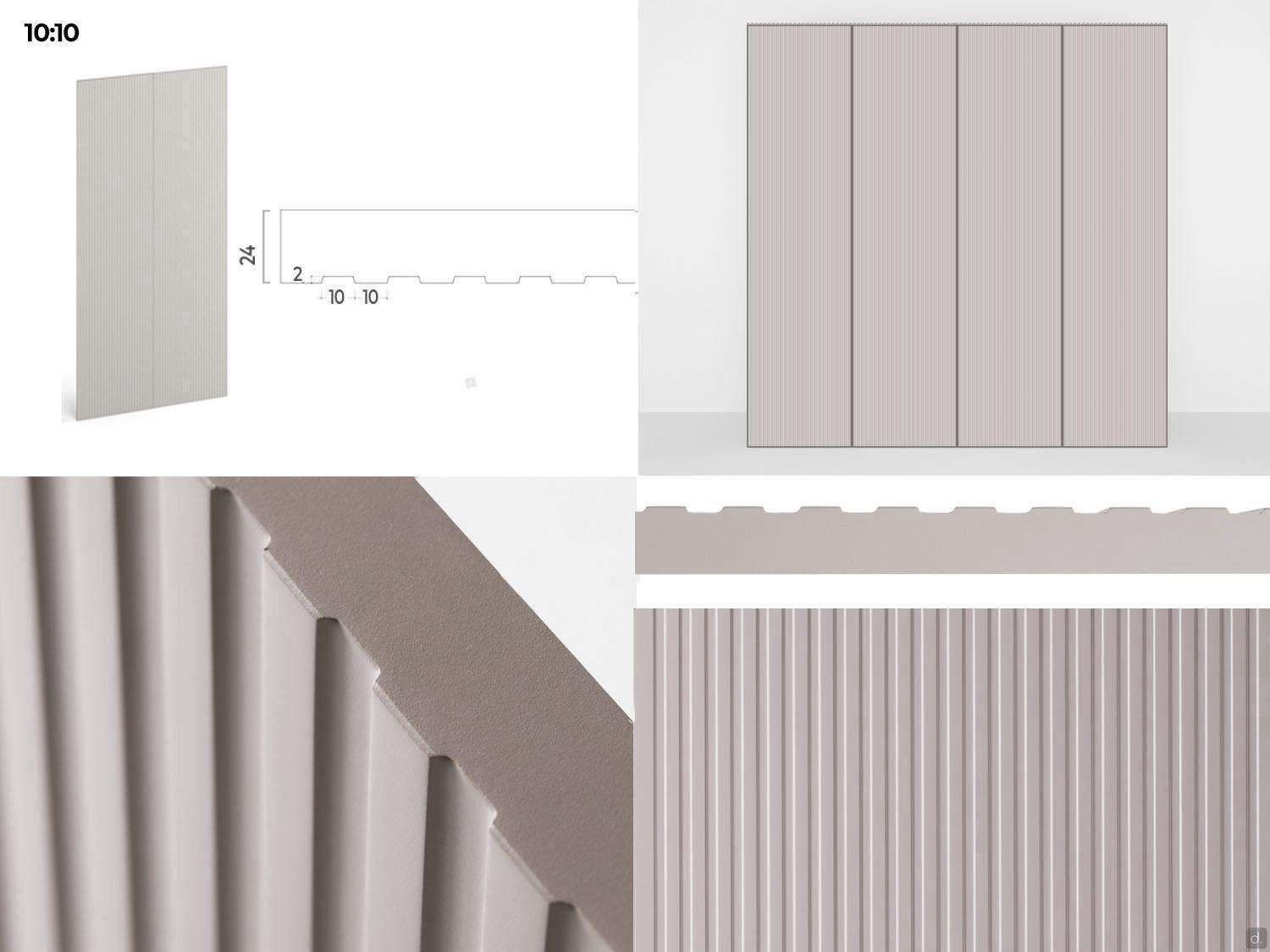

- 10:10 (only in matte lacquered finish): 'U' incisions 1 cm 0,2 thickness.

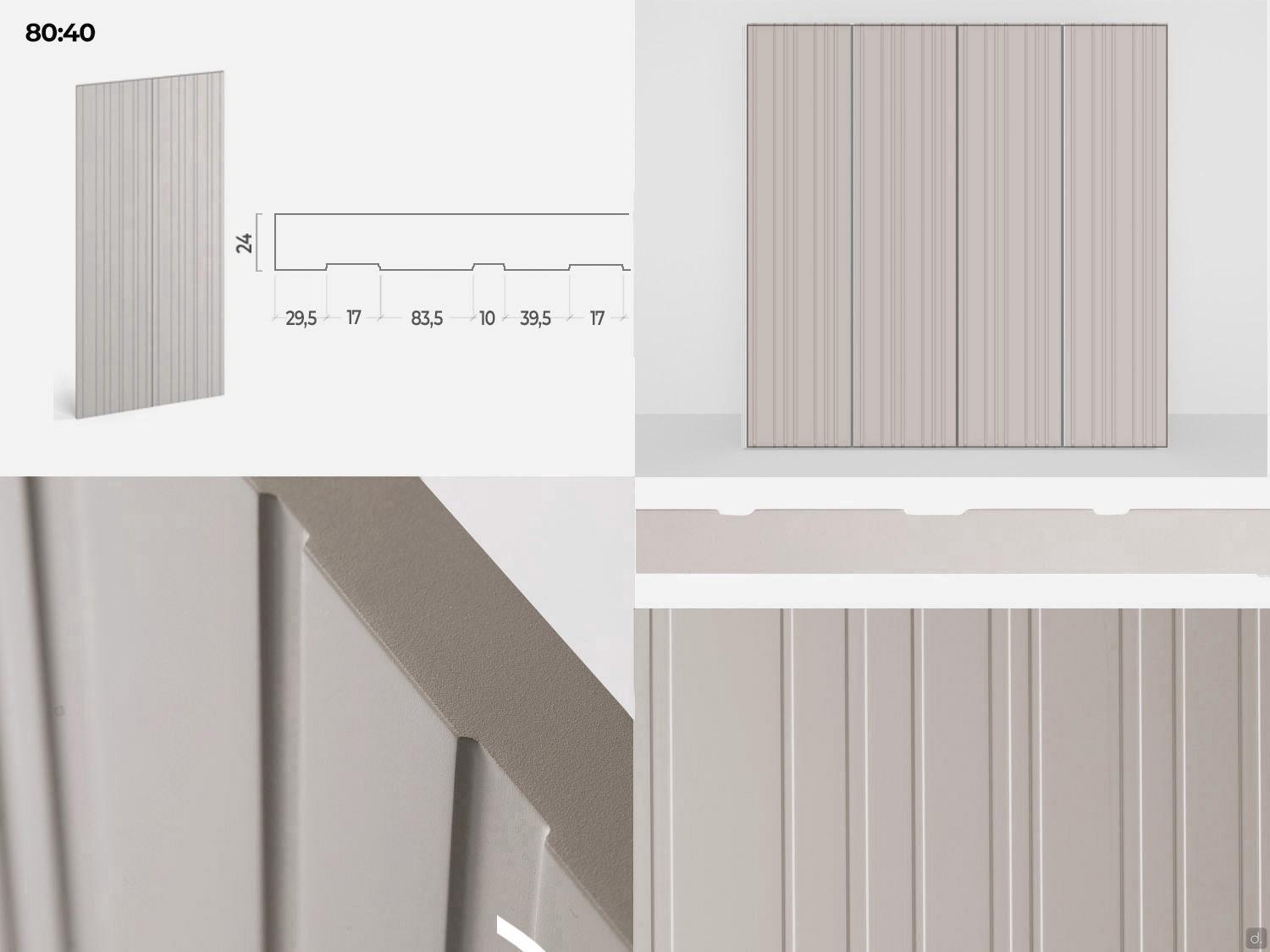

- 80:40 (matte lacquered finish only): 'U' incisions 1 cm 0,2 thickness with variable pitch.

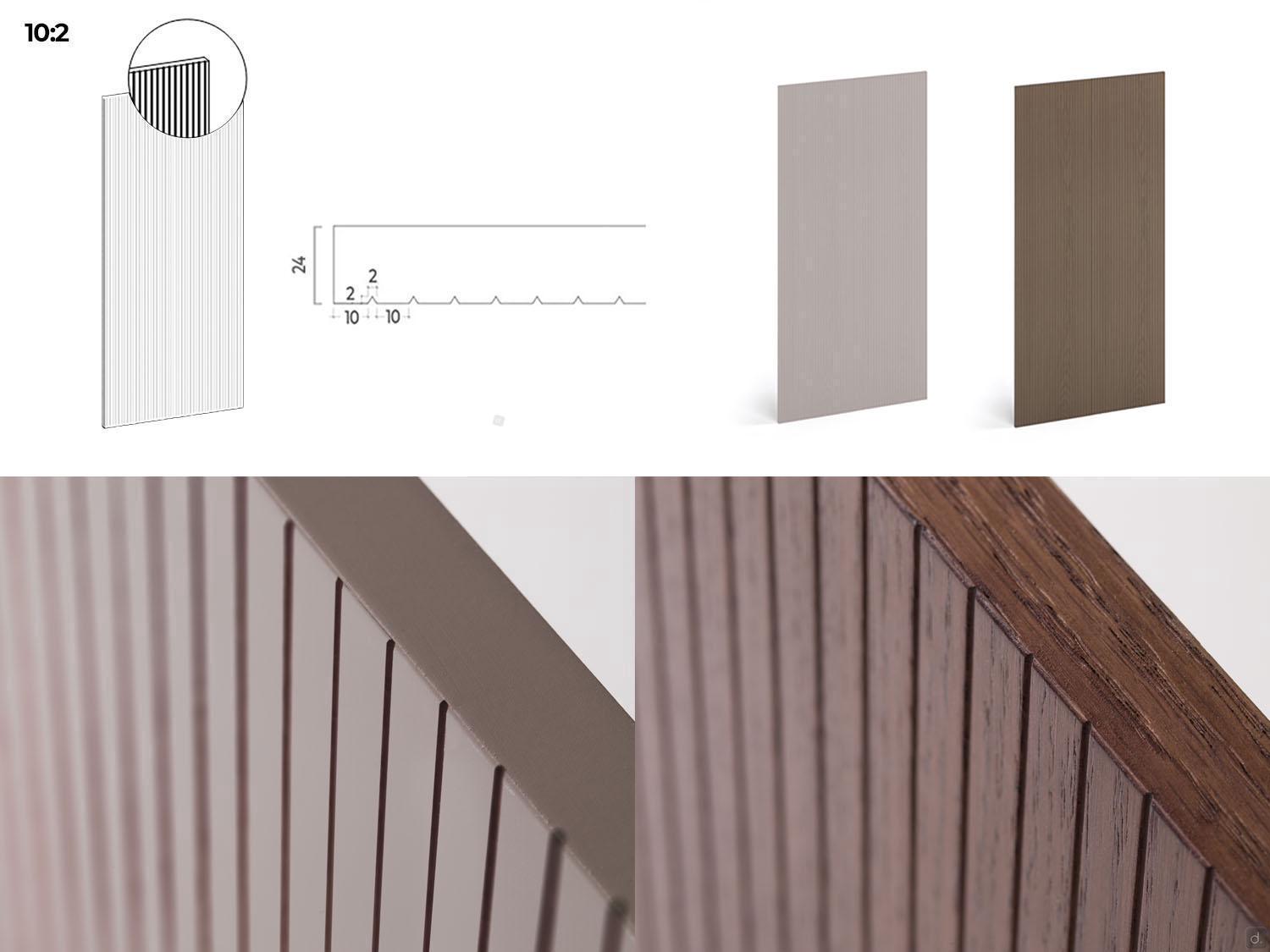

- 10:2: vertical 'V' engravings 0,2 cm thickness

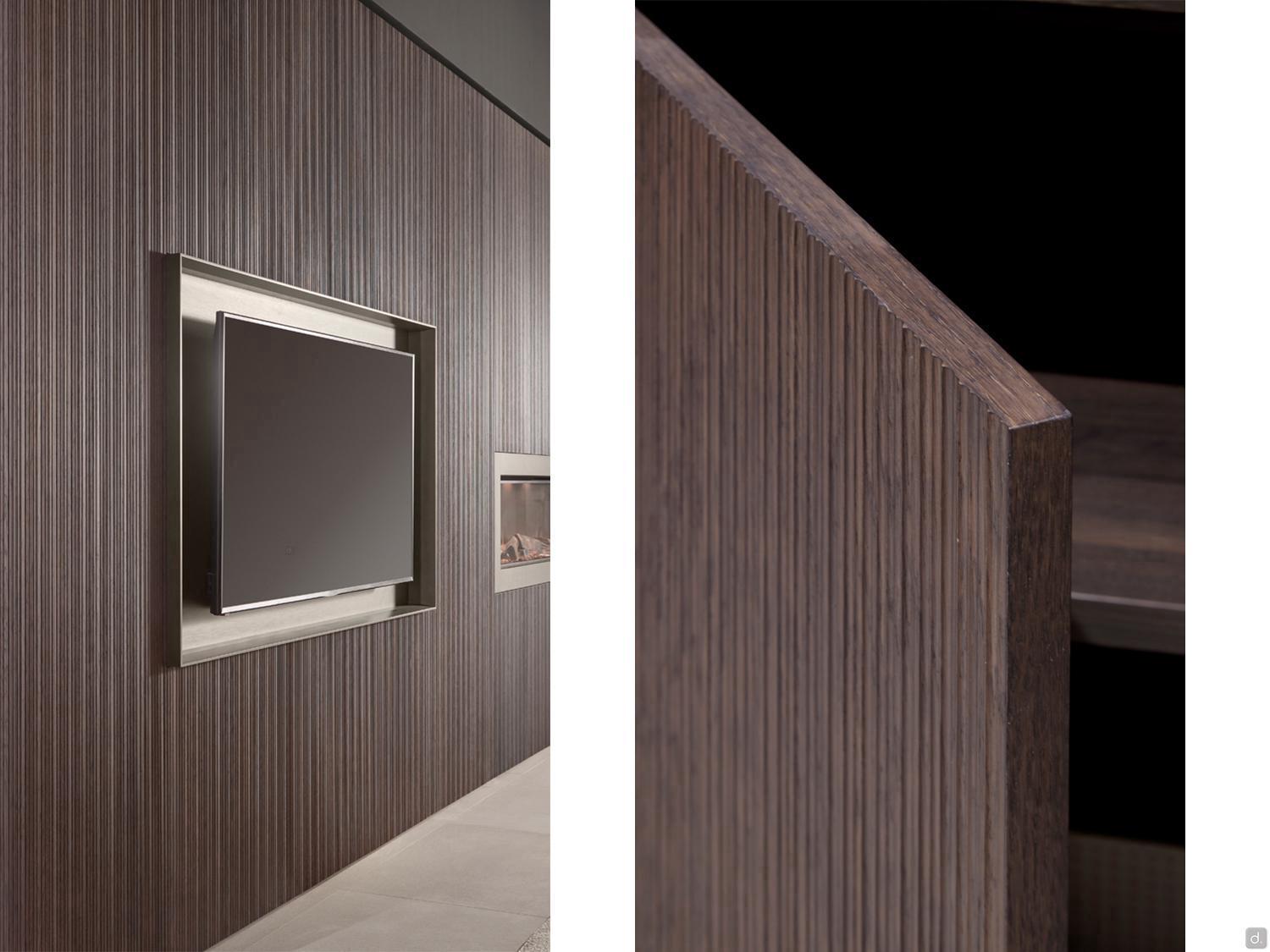

Doors and panels also available in TAMMAS (honeycomb + solid wood),
honeycomb with solid fir frame and solid wood honeycomb plated on both
sides, dyed in the sample finishes and decorated with 10:10 or Wave
processing. Available exclusively by purchasing a project, for further
information please contact our Customer Service.

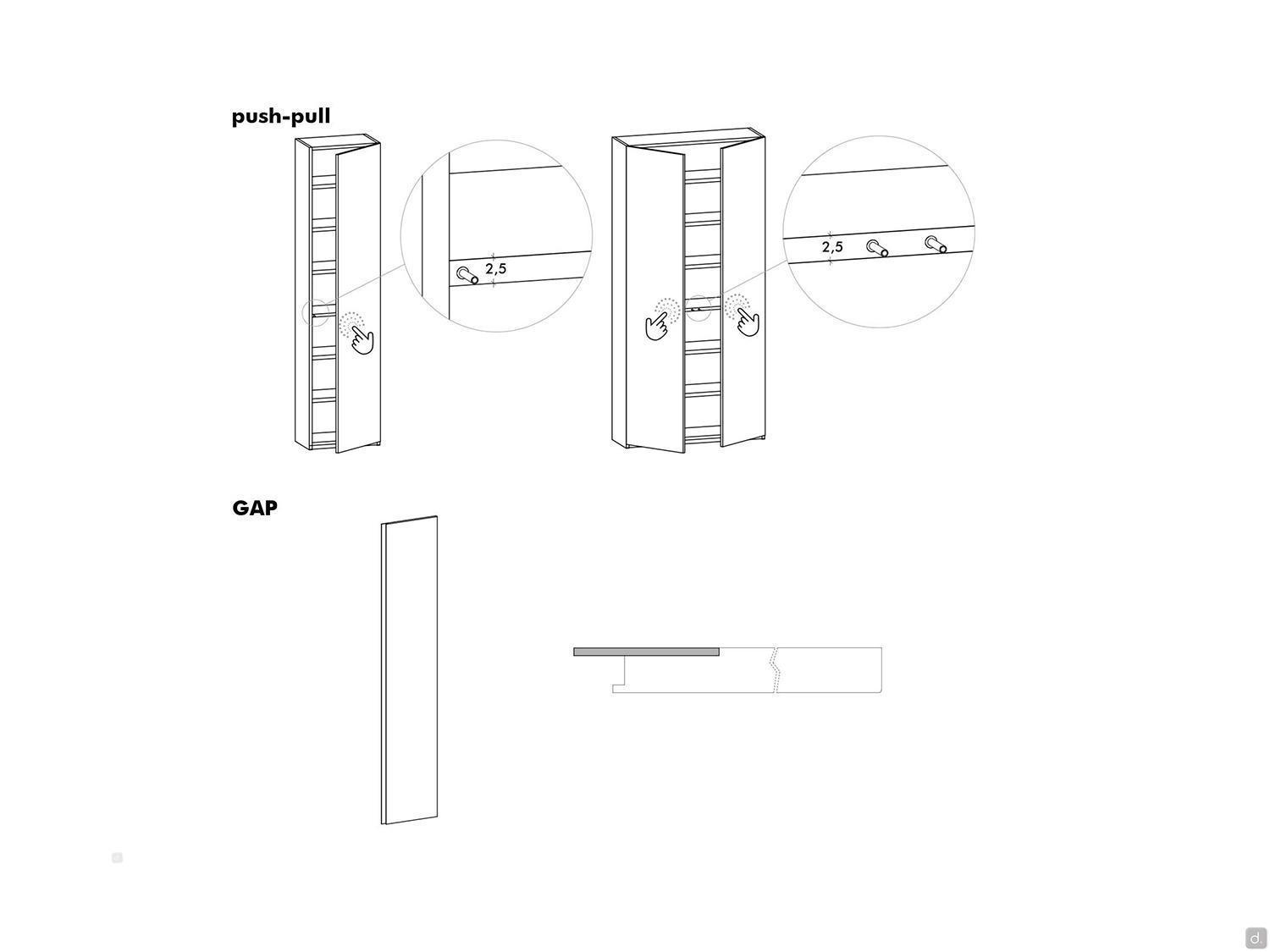

Handles: push-pull or recess grip Gap at full-height. This last one consists in a 3 mm thick wooden slat that can be lacquered in all matt and metallic colours available or venered in open pore oak.
Hinges: metal in titanium finish with standard
slow closing. Standard opening angle 110°, can be increased to 155°
except on doors with plissè processing, which are supplied exclusively
with 94° opening hinges.
Open Compartment: in MDF cm th.1,8.
Please Note: The sides are always supplied without edging on
the short sides. This difference in finish, which is often hidden from
view once the wardrobe is assembled, deliberately leaves the solid
spruce frame of the honeycomb sandwich panel exposed in order to enhance
the wooden component of the element and show the high quality of the
finished product.
Sides Holes
Sides comes with fixed holes Ø 1,5 mm every 9,6 cm (see the scheme in the gallery).
Optional - open compartment

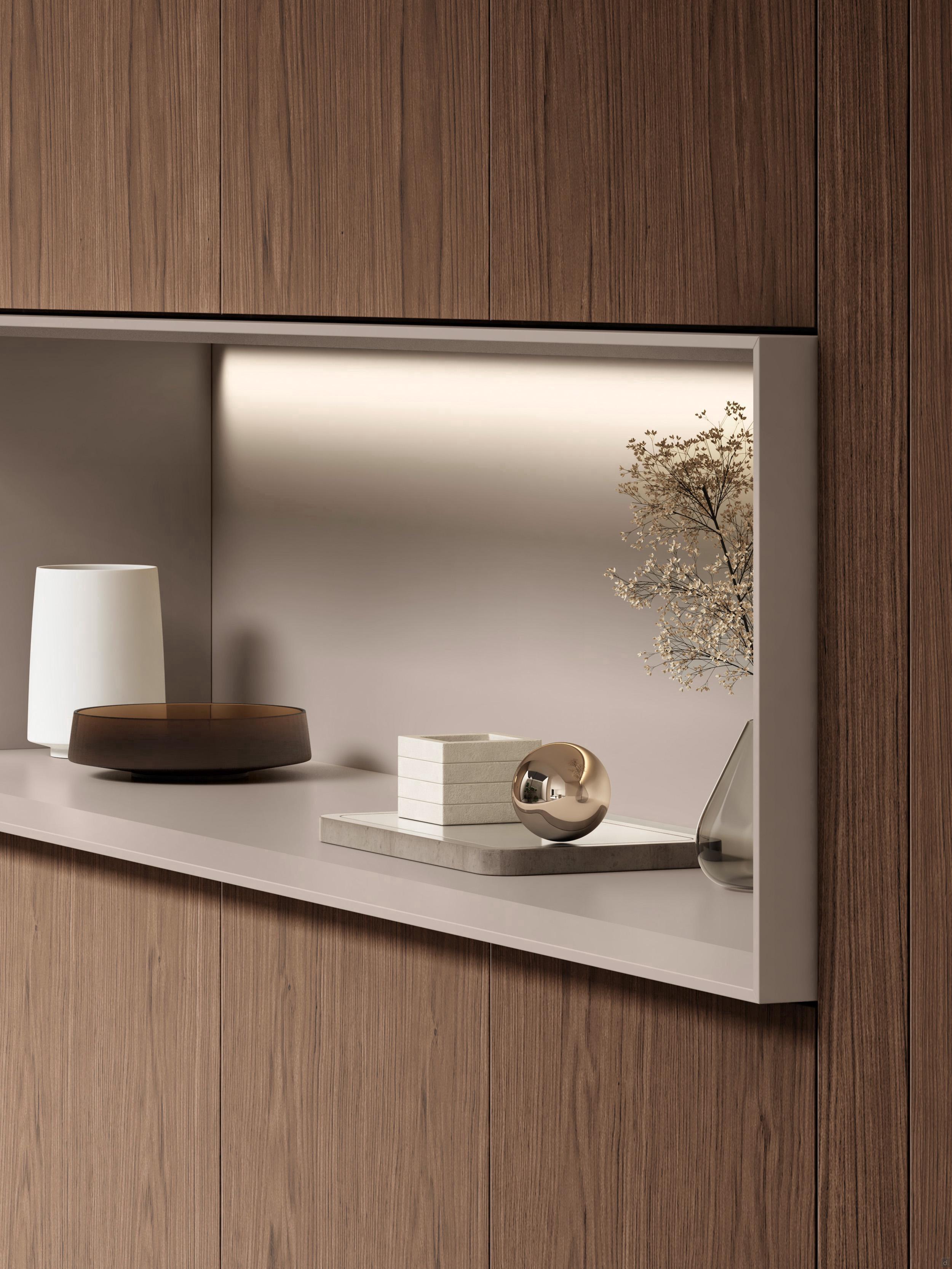

Internal LED light: horizontal LED bar positioned at 0,6 cm on the whole width of the open compartment, it can be equipped with transformer (max supported power 30 W) with switch or soft touch. Warm gradation LED 3000K-24V.

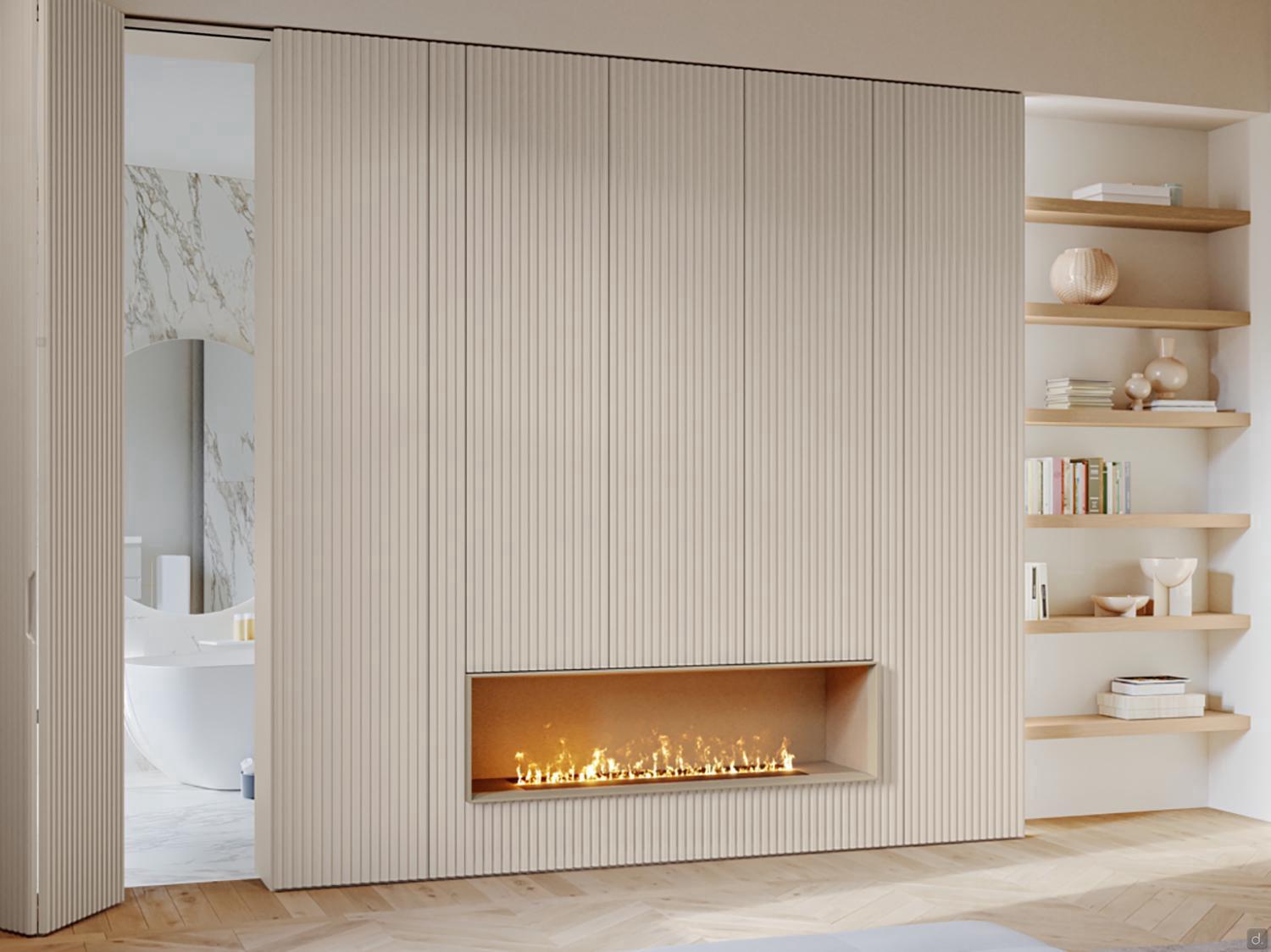

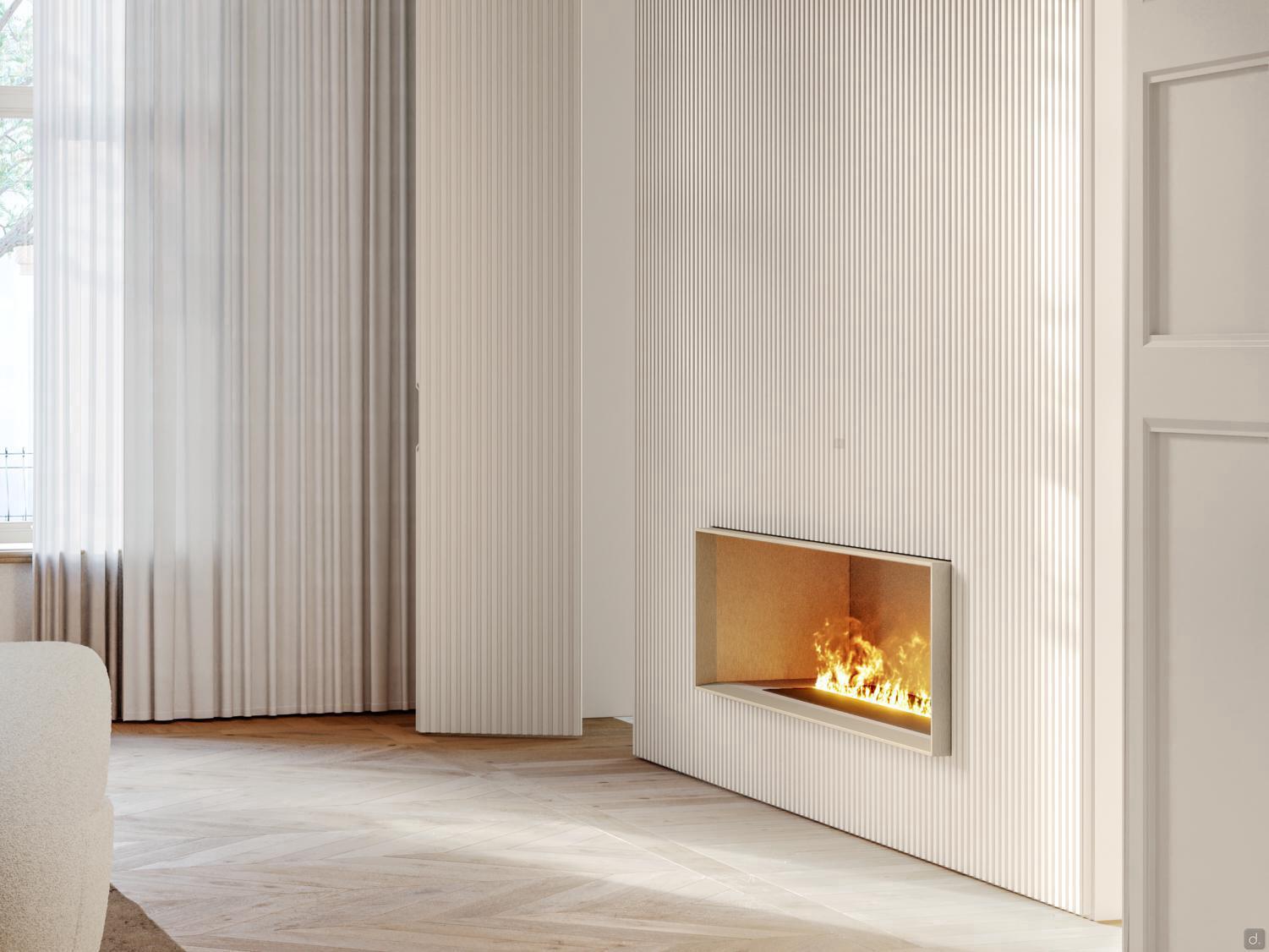

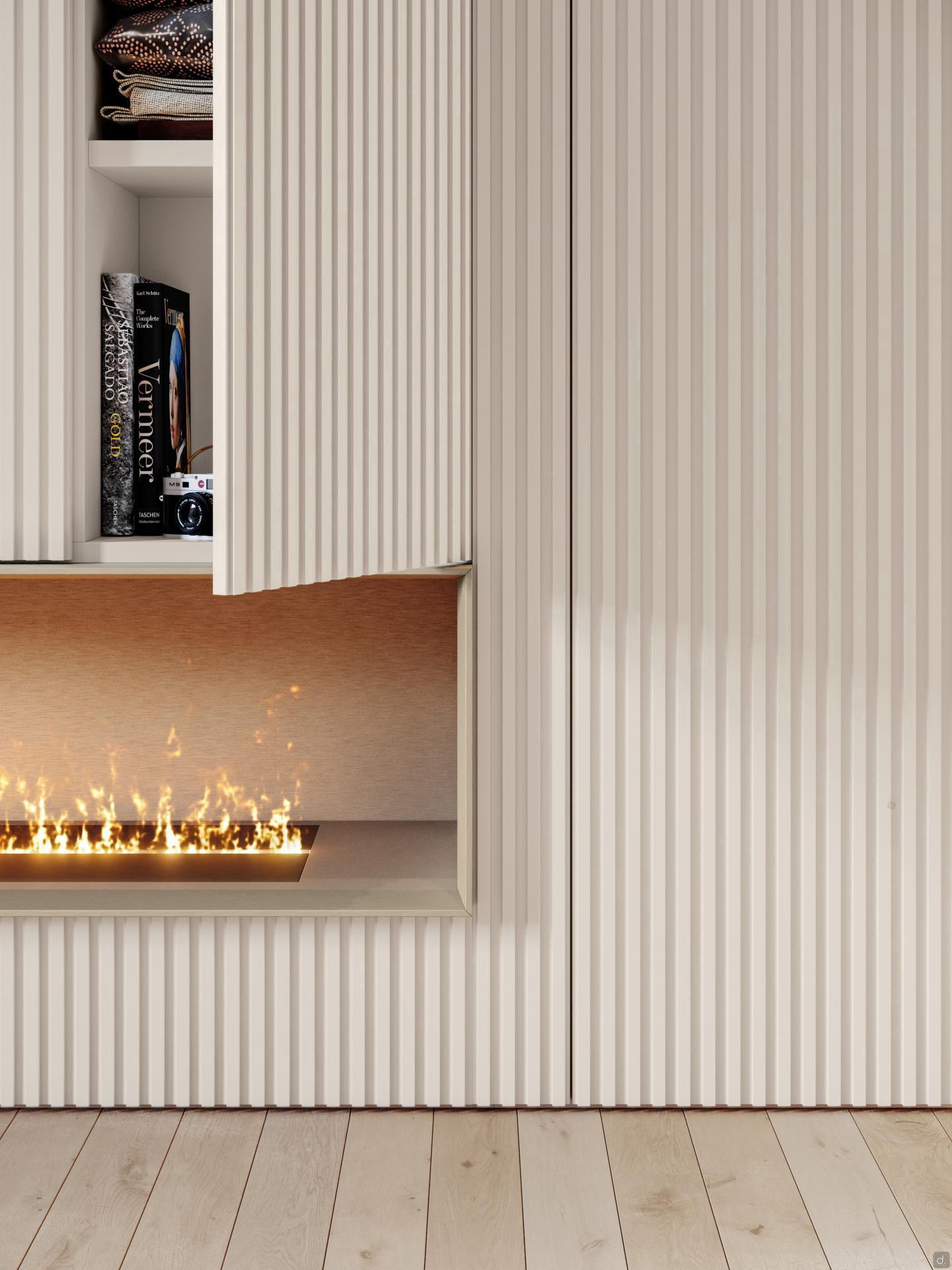

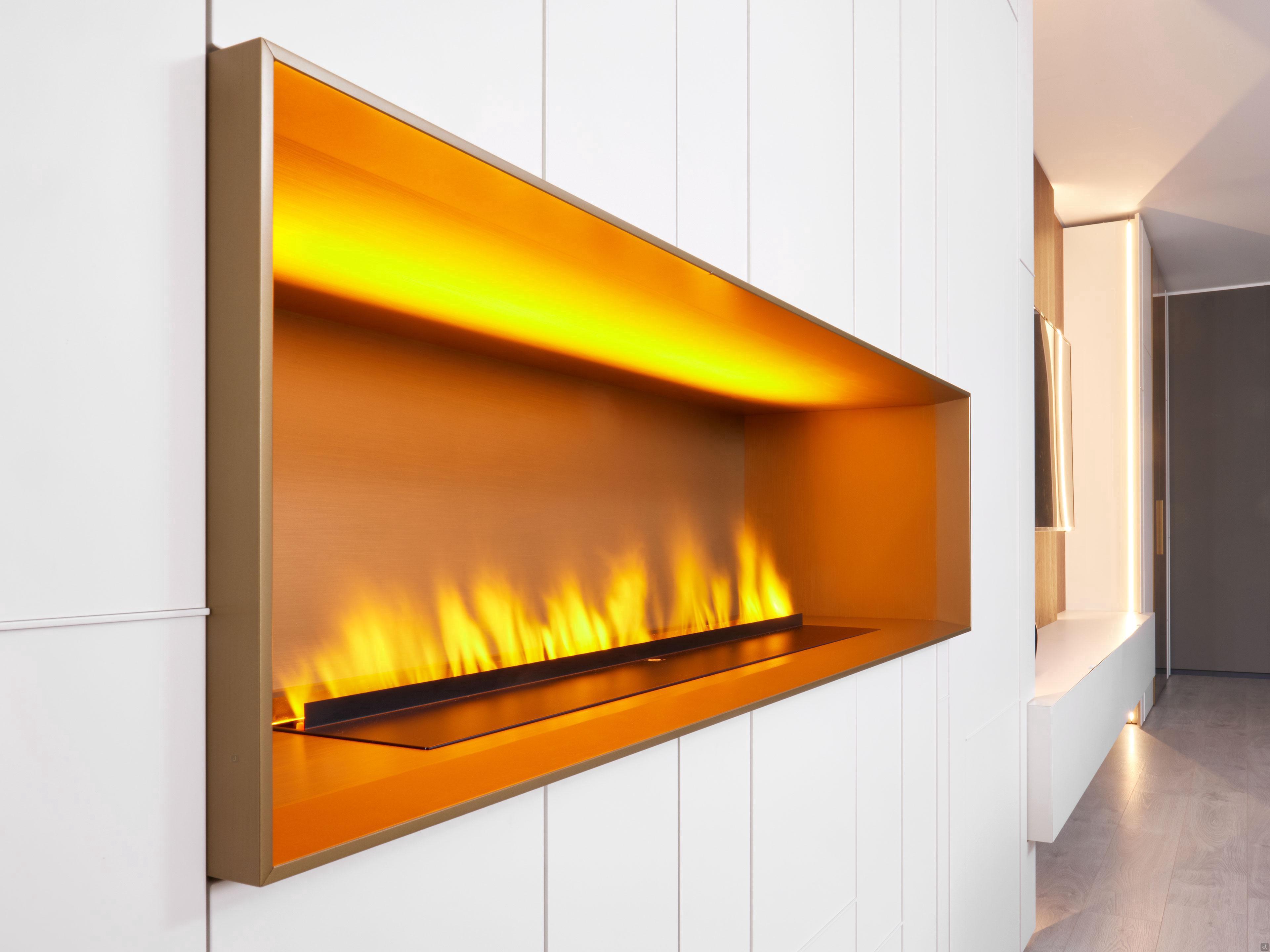

water steam fireplace: it works with water without the need for a chimney. With tank or connected to the hydraulic system. Natural flame effect with remote control, complies with EC (Europe) safety standards.

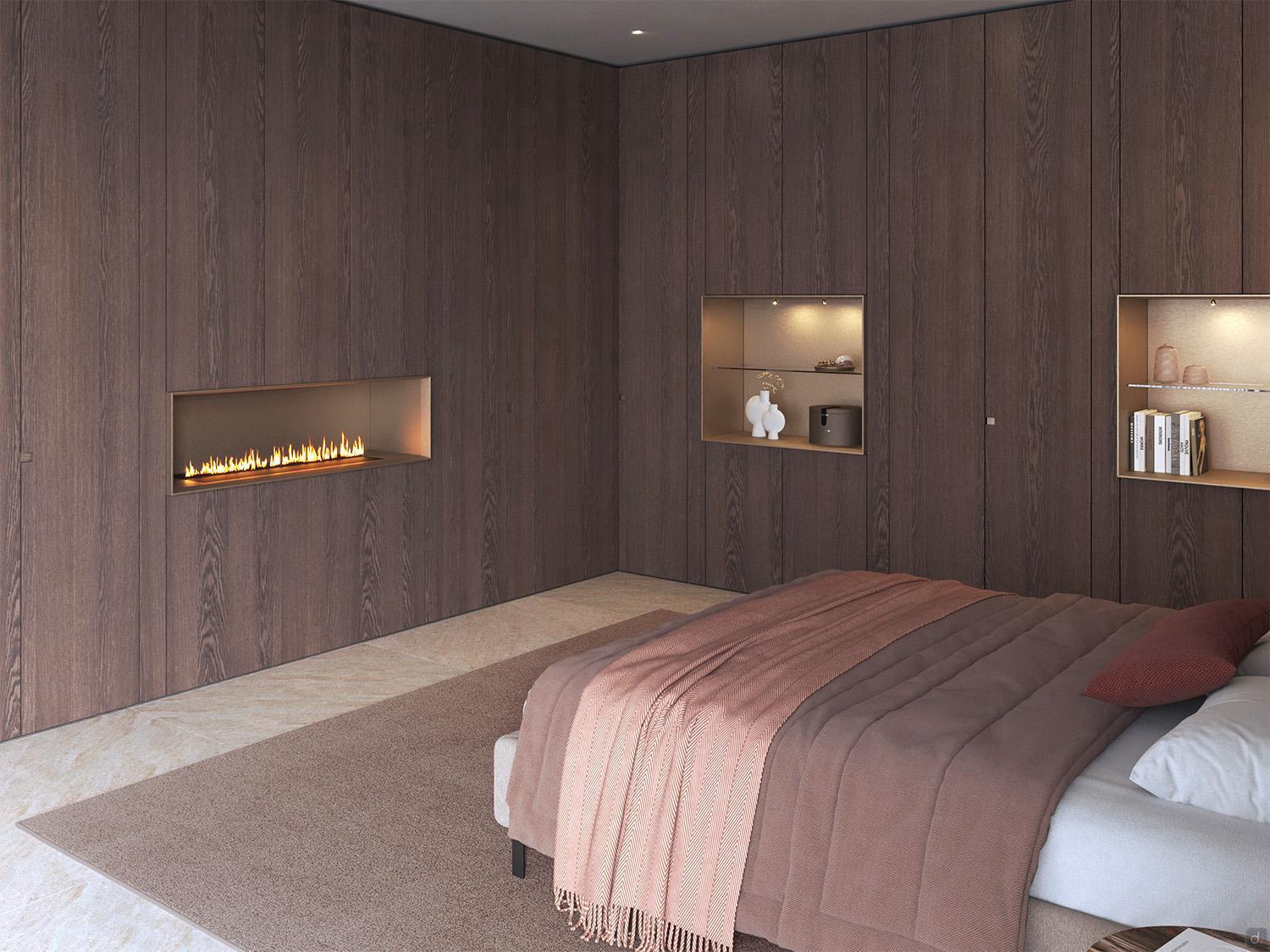

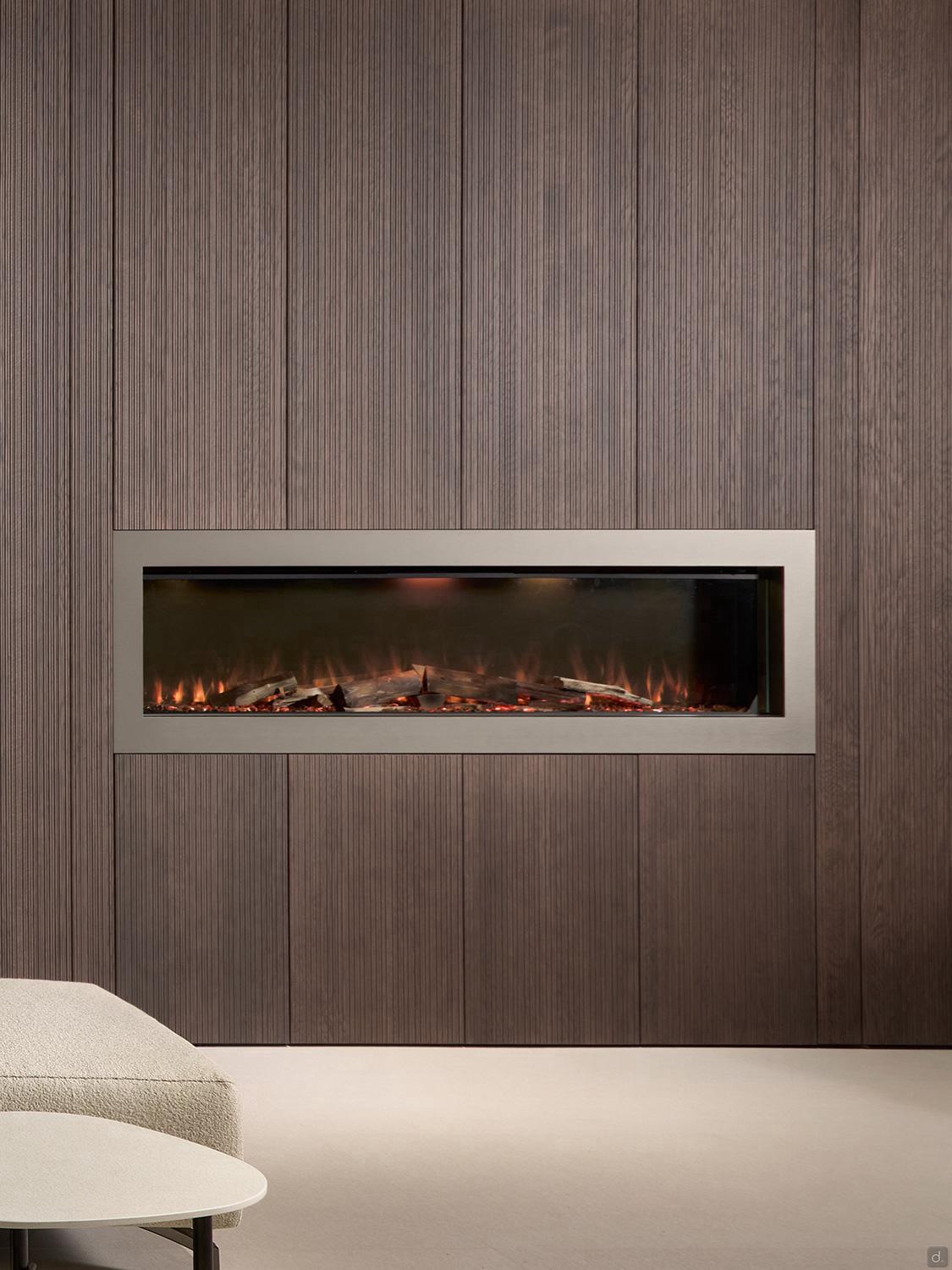

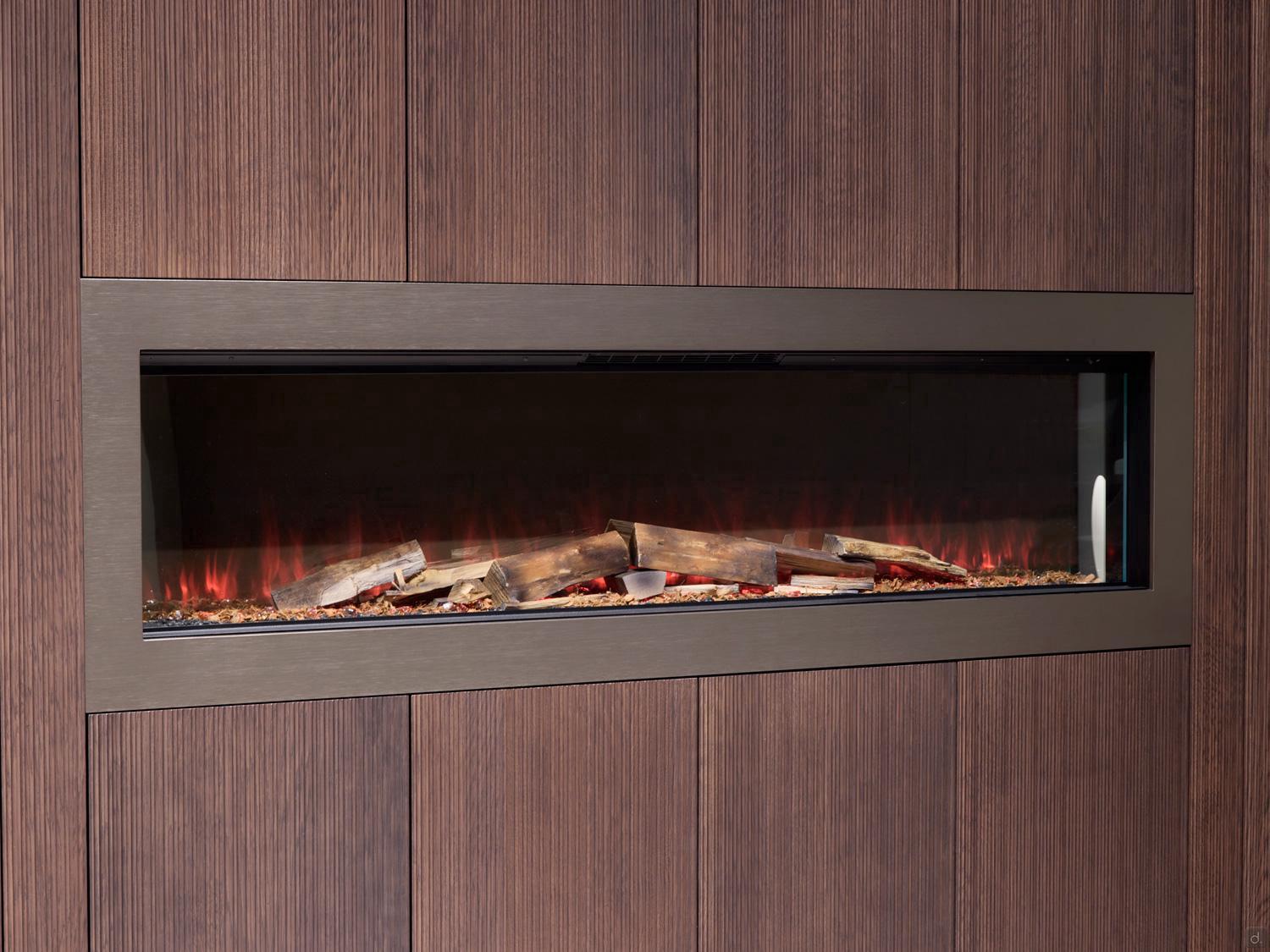

electrical 3D fireplace: it's electric, it comes with a remote control and it is compliant to EC security standards (Europe). The configuration and regulation of the fireplace can be made through E-SMART app from your phone, available for both Android and Apple: in this case you'll need a wireless.

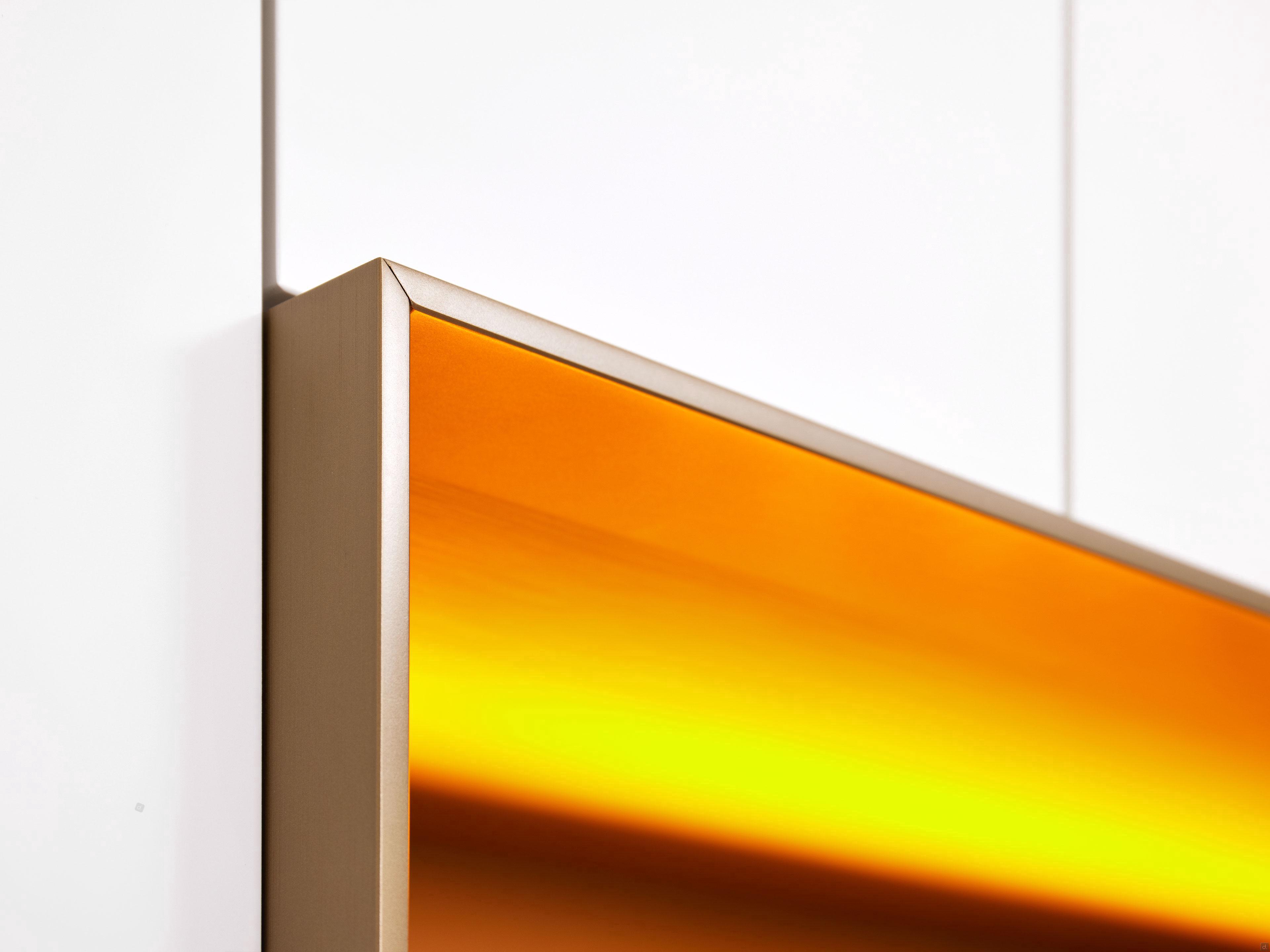

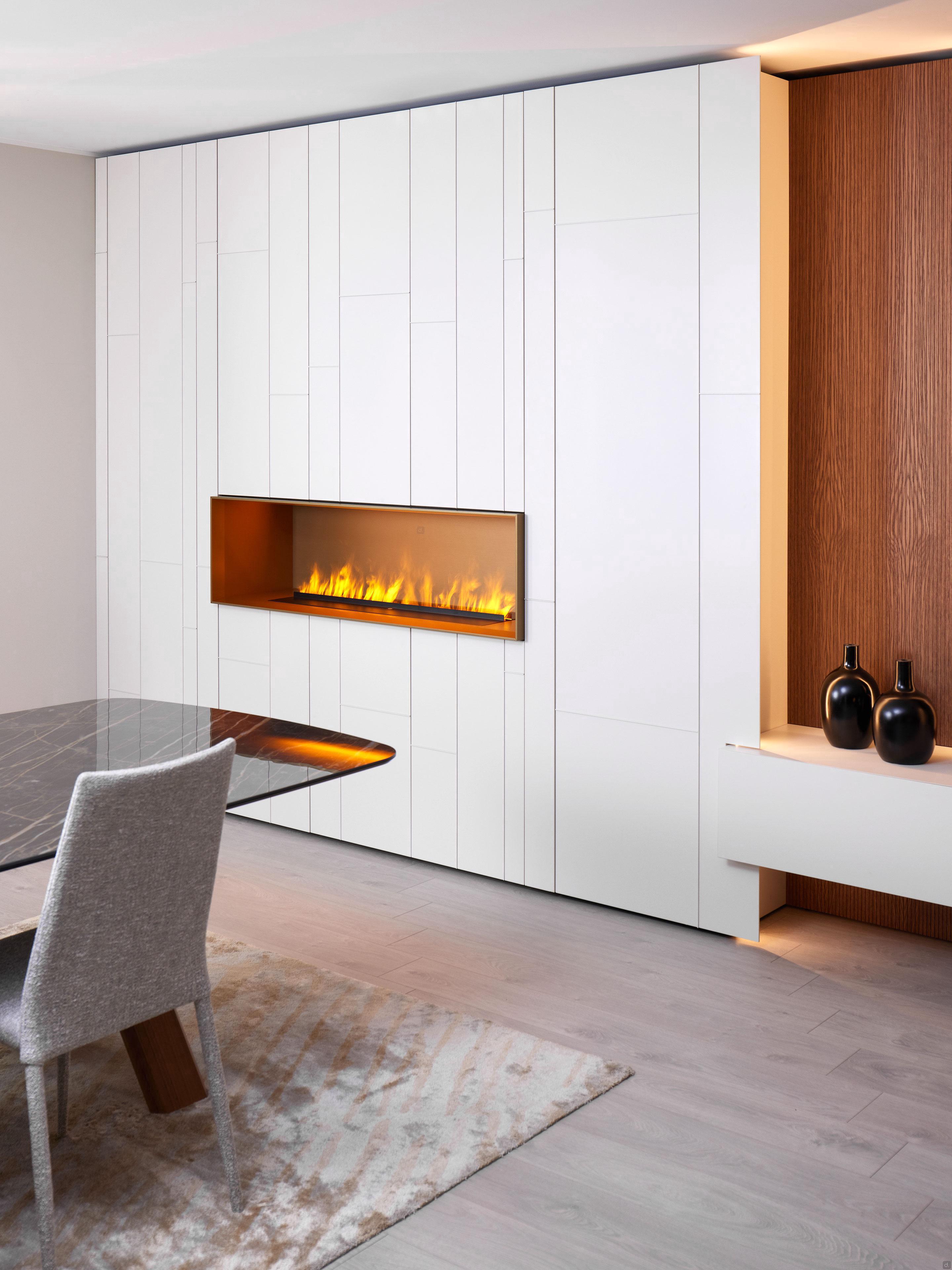

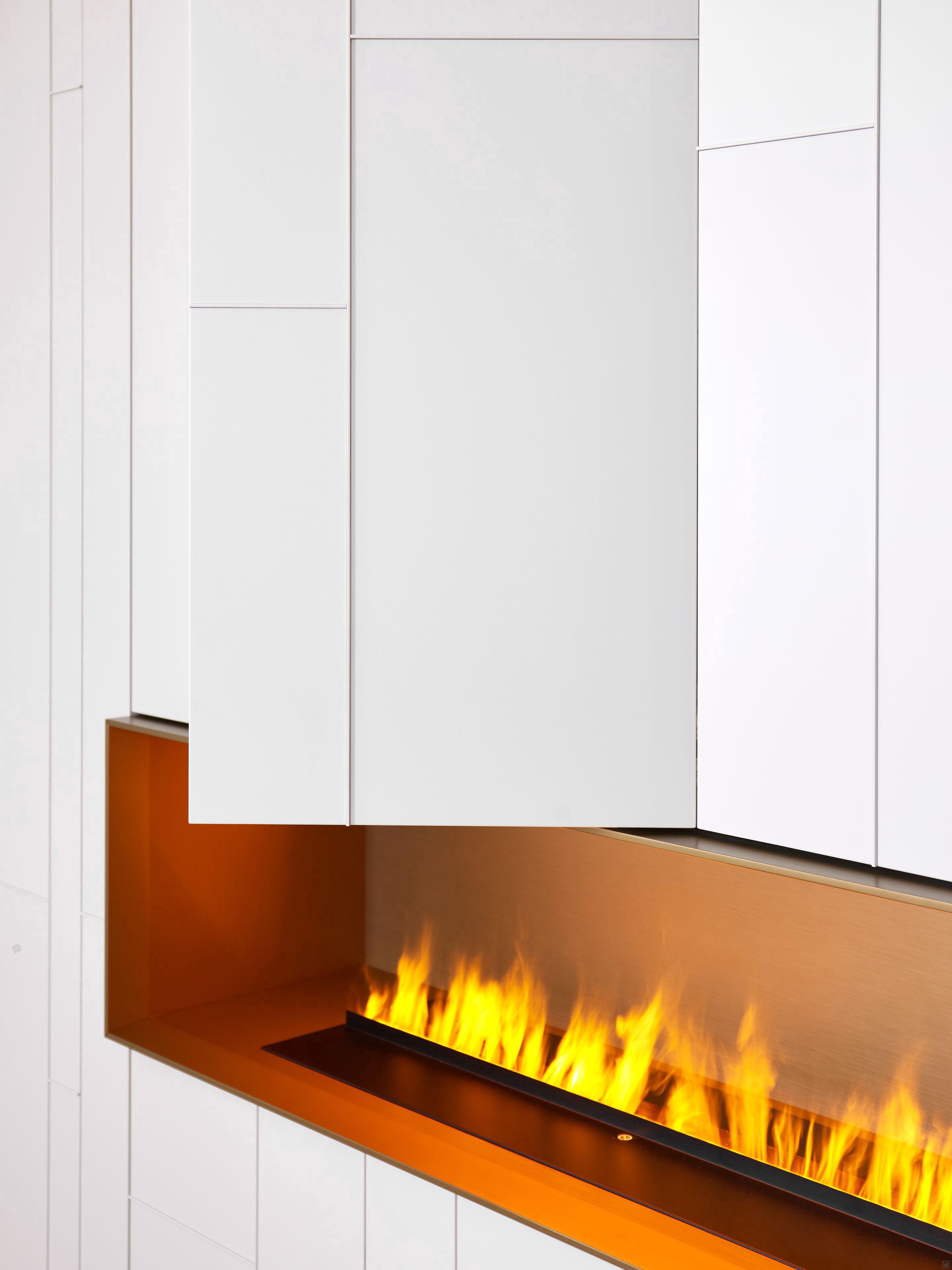

The electric fireplace is integrated into the cabinet by replacing the open compartment with a dedicated structure also including the perimeter frame flush with the doors, which can be in matte lacquer or metallic. Through LED lighting and a special internal mechanism, the electric fireplace simulates a traditional fireplace fire. Thanks to a ventilation system that can heat rooms up to 25 square meters, a pleasant warmth will envelop the room. Alternatively, you can also choose only the flame effect, without heat diffusion
Assembly Tips
Pre-mounted hardware on all elements to facilitate and speed up the assembly process.
The feet, which are also pre-mounted on the bases, allow to correctly level the wardrobe thanks to a maximum extension of cm 0,8. At the lowest they are 0,5 cm.

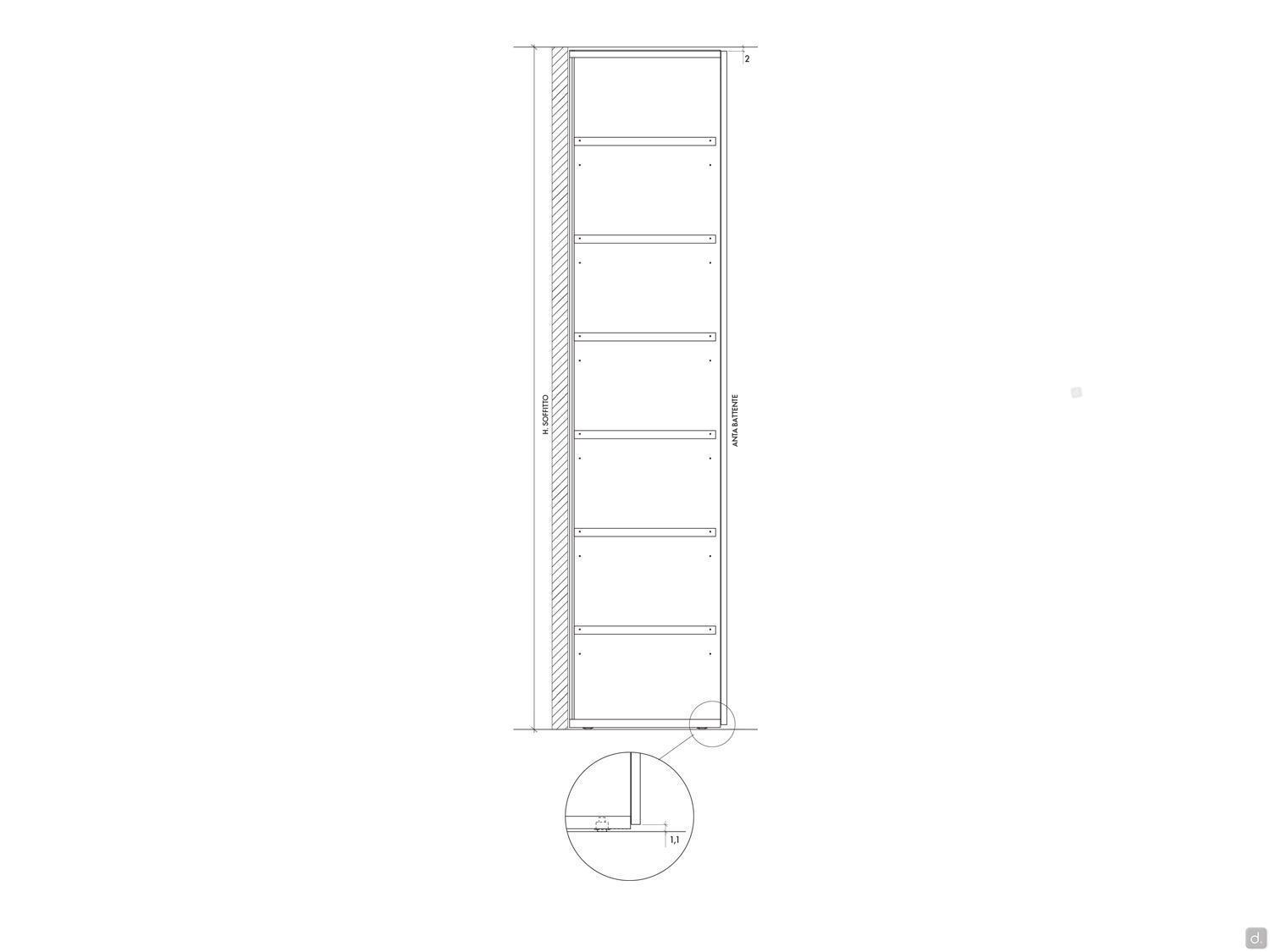

For the assembling of the structure you need:
- 4 cm in width (if assembling in niche you need 2 cm)
- 3 cm in height
For more information...
Honeycomb panel: panel made with an internal honeycomb structure and a perimeter frame of 5 / 7 cm made from top-quality solid pine, closed with 2 panels in MDF (0,3 / 0,4 cm thick) which are subsequently lacquered and veneered.
The strengths of honeycomb panels are:
- greater durability over time;
- greater resistance to load;
-
significantly reduced weight of the panels (up to 60% less), useful for
transport, assembly, moving or removals, but especially to reduce the
weight of the doors on the structure and hardware;
- hardware always
fixed on the perimeter (in solid fir wood) of the sides and doors, so
hinges will have a higher resistance and the furniture will have a
considerably longer life;
- better resistance to humidity, as the material "breathes";
- product is exclusively "100% Made in Italy".
Aged oak: compared to the "standard" open-pore oak, aged oak is characterised by a
slightly more brushed surface, which shows a deeper pore and a more
marked grain. This difference is particularly noticeable on bigger
surfaces such as tables, wall units and wardrobes, less so on
accessories, beds and bedroom sets.
